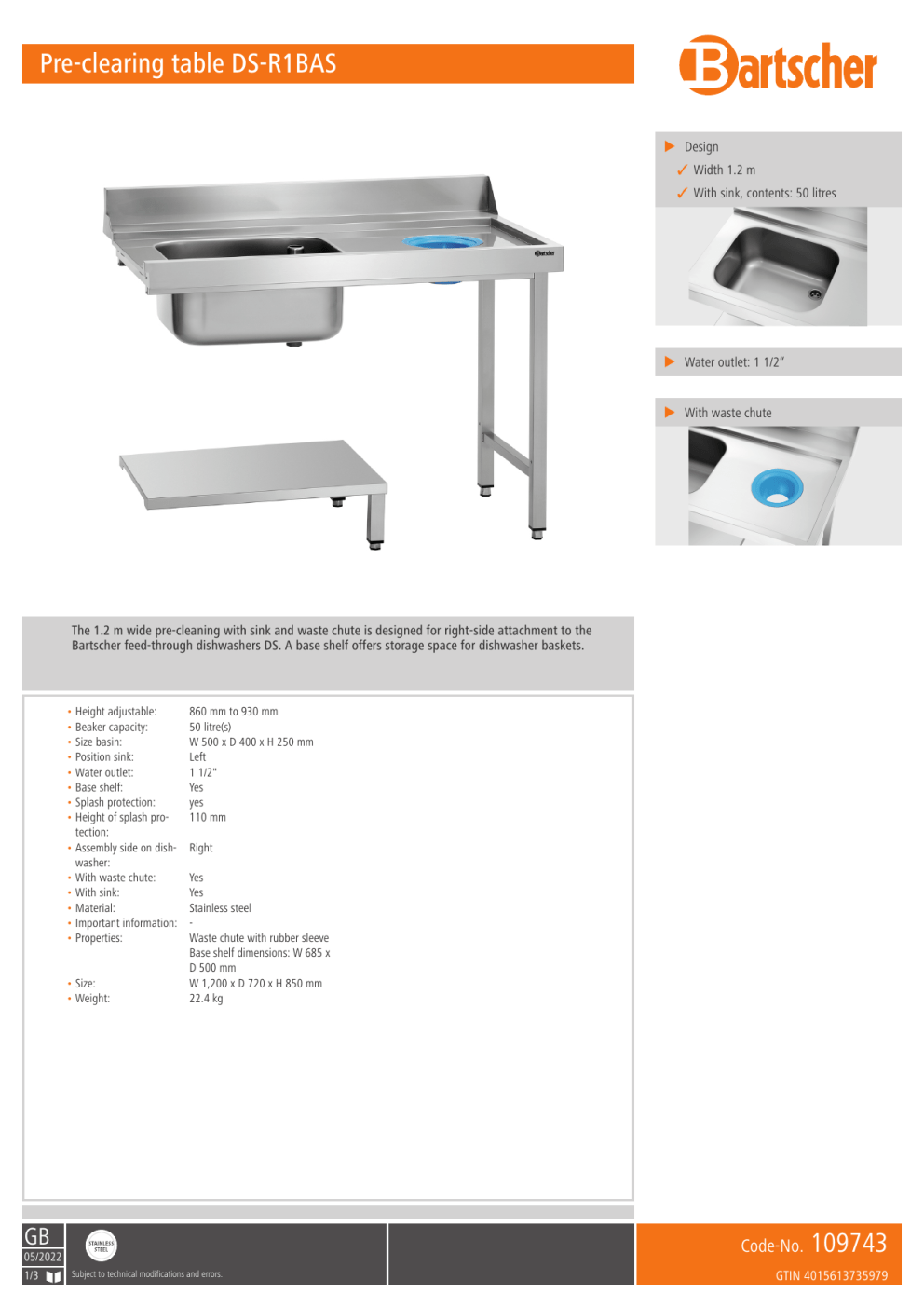

Bartscher 109743 Pre-clearing table DS-R1BAS Data sheet

Pre-clearing table DS-R1BAS
� Design
✓ Width 1.2 m
✓ With sink, contents: 50 litres
� Water outlet: 1 1/2“
� With waste chute
The 1.2 m wide pre-cleaning with sink and waste chute is designed for right-side attachment to the
Bartscher feed-through dishwashers DS. A base shelf offers storage space for dishwasher baskets.
• Height adjustable:
• Beaker capacity:
• Size basin:
• Position sink:
• Water outlet:
• Base shelf:
• Splash protection:
• Height of splash pro­
tection:
• Assembly side on dish­
washer:
• With waste chute:
• With sink:
• Material:
• Important information:
• Properties:
• Size:
• Weight:
860 mm to 930 mm
50 litre(s)
W 500 x D 400 x H 250 mm
Left
1 1/2"
Yes
yes
110 mm
Right
Yes
Yes
Stainless steel
Waste chute with rubber sleeve
Base shelf dimensions: W 685 x
D 500 mm
W 1,200 x D 720 x H 850 mm
22.4 kg
.
GB
05/2022
1/3
Code-No.
Subject to technical modifications and errors.
109743
GTIN 4015613735979
Pre-clearing table DS-R1BAS
Add on Products
Rubbish bin 56L
• Swivel casters:
• Diameter casters:
• Content:
• With casters:
• Lid properties:
• Size inner container:
• Properties:
• Material:
• Important information:
• Height without casters:
4 swivel casters
60 mm
56 litre(s)
Yes
Detachable, with handle
Can be attached to the side of the bucket
Ø 370 mm | Height: 520 mm
With handles on the side
CNS 18/10
540 mm
• Important information:
• Swivelling outlet:
• Fitting type:
• Design:
• Assembly type:
• Valve type:
• Diameter table borehole:
• Flow at 3 bar:
• Handles:
• Jet regulator mouthpiece:
180°
Two-handle mixer
Mixer tap with dishwashing shower arm
Single-hole borehole
Stainless steel valve seats
30 - 35 mm
Outlet quantity: 16 L / min.
Jet regulator: 26 L / min.
Metal (EUR)
55 mm
Code-No. 860006
Code-No. 400136
GTIN 4015613630670
GTIN 4015613674575
Two handle mixer 40L-1802B
Single handle mixer 40L-1801B
• Important information:
• Fitting type:
• Design:
• Diameter table borehole:
• Water connection:
• Flow at 3 bar:
• Fitting type:
• Design:
• Flow at 3 bar:
• Handles:
• Valve type:
• Jet regulator mouthpiece:
• Swivelling outlet:
GB
Two handle mixer 26L-1801B
05/2022
2/3
Two-handle mixer
Mixer tap with dishwashing shower arm
21 - 25 mm
1/2"
Outlet quantity: 16 L / min.
Jet regulator: 40 L / min.
Metal (EUR)
Stainless steel valve seats
55 mm
180°
• Properties:
Single lever mixer
Mixer tap with dishwashing shower arm
Shower arm: 18 L / min.
Jet regulator: 40 L / min.
Replaceable sieve
Spring mechanism
Rubber stopper ring
No chrome-damage by additional hard-nickel
coating
Check valve
Code-No. 400137
Code-No. 400123
GTIN 4015613674582
GTIN 4015613438955
Subject to technical modifications and errors.
Pre-clearing table DS-R1BAS
Power cleaner F1L, set of 2
Stainl.steel polish.spray 500ml can
• Designed for:
• Content / can:
• Application:
• Content:
• Model:
• Ph level:
• HACCP compliant:
• Chlorine-free:
• Phosphate-free:
GB
Add on Products
05/2022
3/3
Stubborn dirt, especially in kitchens
Grill and combi steamer cleaning (without
cleaning system)
2 x 1 litre
Liquid
High concentrate
13,5
Yes
Yes
Yes
• allow them to cool down first:
• Application:
500 ml
Remove heavy soiling such as grease residue
first
Do not spray onto hot surfaces
Before use, bring the can to room temperature
and shake well
Spray sparingly onto the surfaces to be cleaned
Rub evenly over the entire surface
Polish with a dry cloth
Code-No. 173078
Code-No. 173031
GTIN 4015613731926
GTIN 4015613360195
Subject to technical modifications and errors.
