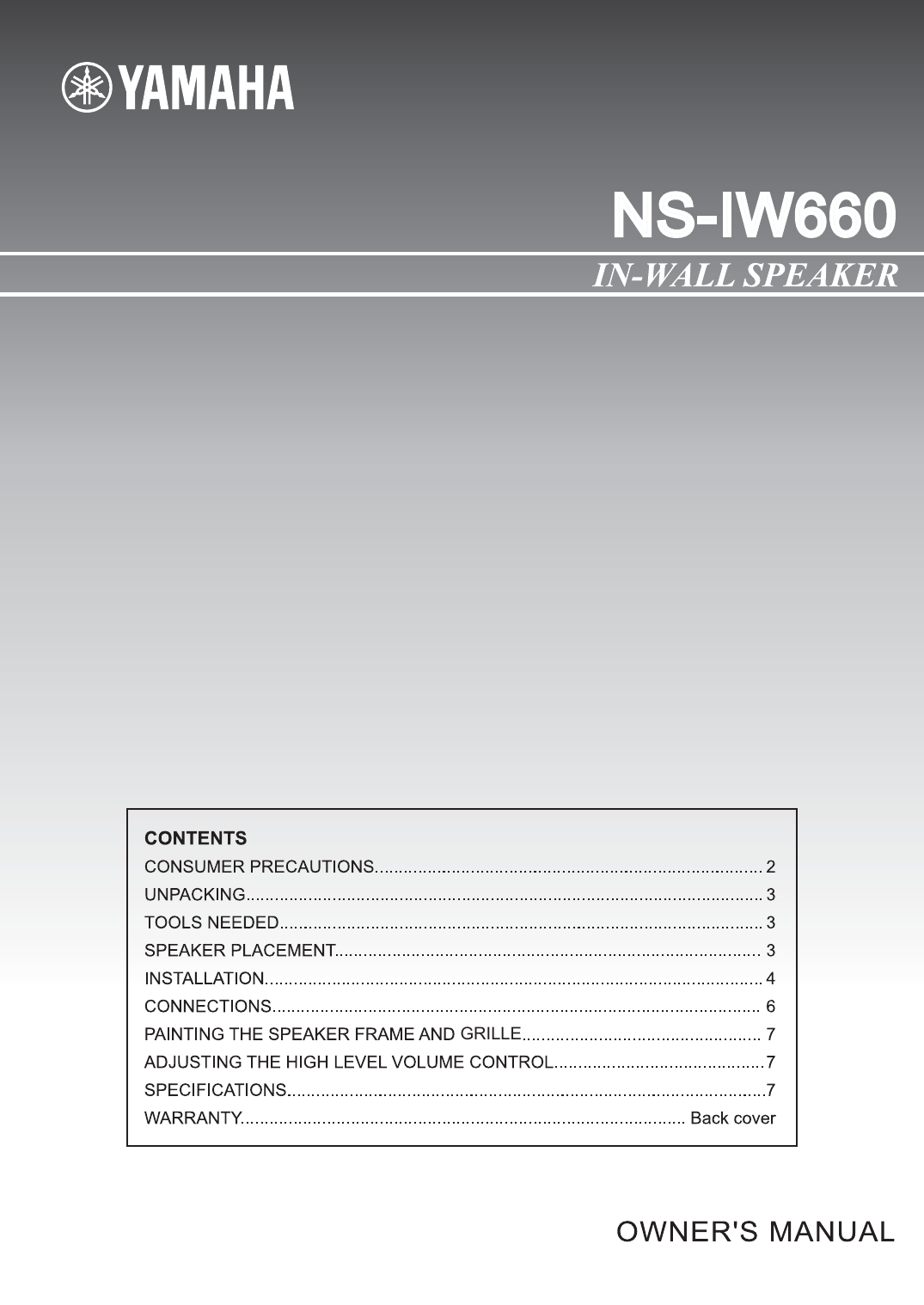

Yamaha NS-IW660 In-Wall Speaker Owner’s Manual

GRILLE
either
by tapping the wall or using a stud finder.
If you wish to paint the speaker frame and grille, please refer to page 7 "PAINTING THE SPEAKER FRAME
AND GRILLE" before proceeding.
midrange
pressing the outer edge of the
tweeter mount.
Place the speaker into the wall. Loosen each
mounting screw by turning it counterclockwise
one complete turn. This will release the mounting
clamp from its shipping position.
Tighten each of the four mounting screws evenly
until the mounting clamp grips the wall “finger tight.”
Now tighten each screw one additional turn only.
This will secure the speaker firmly to the wall.
Attach the grille to the frame.
For permanent grille attachment, application of the
supplied glue strips is recommended.
Recommended Glue Strip Location
Note:
We recommend using only hand tools as
powered drivers may over-tighten the screws.
Insert the banana plug into the terminal. Test the
connection by pulling lightly on the cable at the
terminal.
Release the knob. Test the connection by pulling
lightly on the cable at the terminal.
