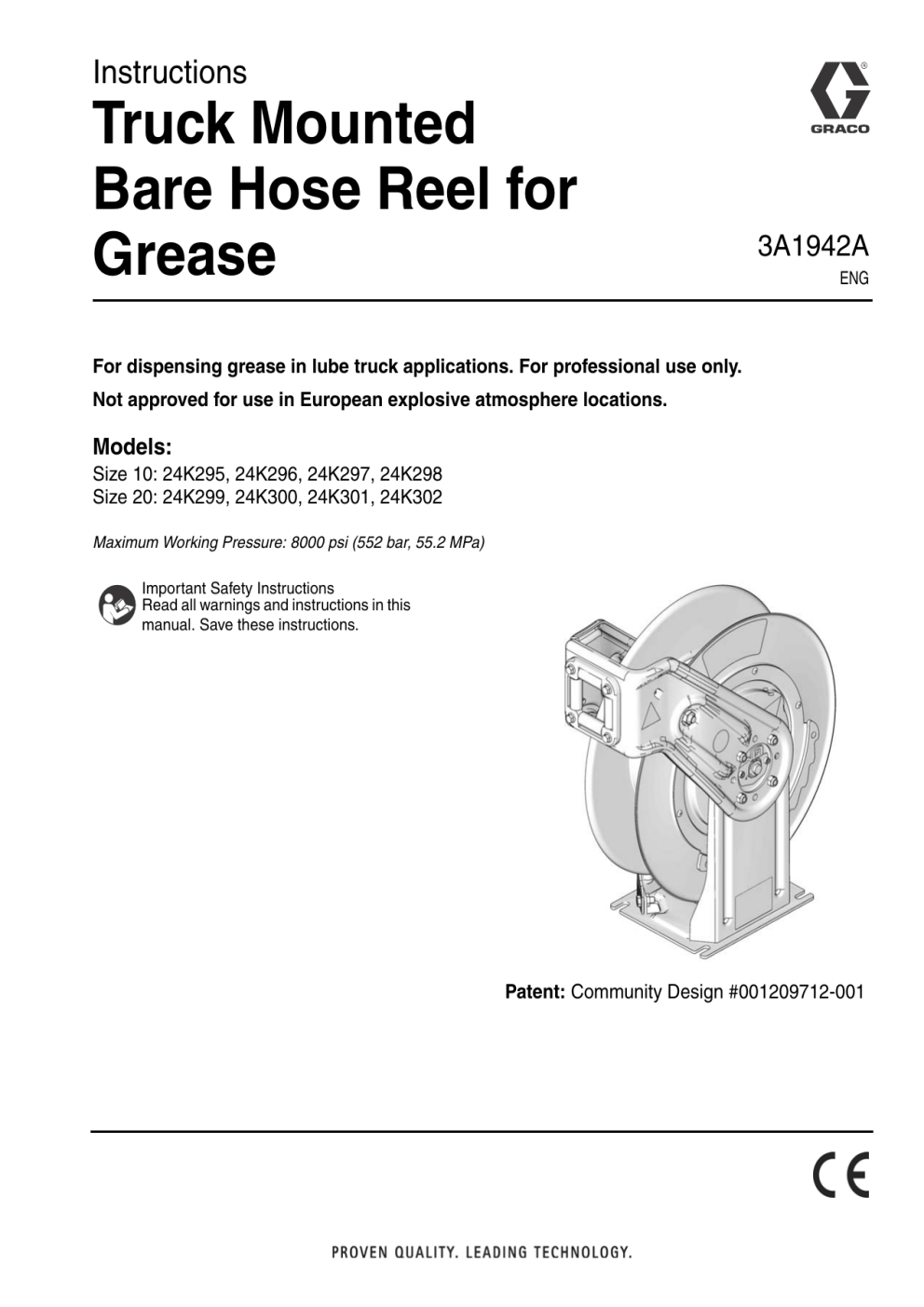

Graco 3A1942A Truck Mounted Bare Hose Reel for Grease Instructions

Instructions
Truck Mounted
Bare Hose Reel for
Grease
3A1942A
ENG
For dispensing grease in lube truck applications. For professional use only.
Not approved for use in European explosive atmosphere locations.
Models:
Size 10: 24K295, 24K296, 24K297, 24K298
Size 20: 24K299, 24K300, 24K301, 24K302
Maximum Working Pressure: 8000 psi (552 bar, 55.2 MPa)
Important Safety Instructions
Read all warnings and instructions in this
manual. Save these instructions.
Patent: Community Design #001209712-001
Warnings
Warnings
The following warnings are for the setup, use, grounding, maintenance, and repair of this equipment. The exclamation point symbol alerts you to a general warning and the hazard symbols refer to procedure-specific risks. When
these symbols appear in the body of this manual, refer back to these Warnings. Product-specific hazard symbols and
warnings not covered in this section may appear throughout the body of this manual where applicable.
WARNING
FIRE AND EXPLOSION HAZARD
When flammable fluids are present in the work area, such as gasoline and windshield wiper fluid, be aware
that flammable fumes can ignite or explode. To help prevent fire and explosion:
• Use equipment only in well ventilated area.
• Eliminate all ignition sources, such as cigarettes and portable electric lamps.
• Keep work area free of debris, including rags and spilled or open containers of solvent and gasoline.
• Do not plug or unplug power cords or turn lights on or off when flammable fumes are present.
• Ground all equipment in the work area.
• Use only grounded hoses.
• If there is static sparking or you feel a shock, stop operation immediately. Do not use equipment until
you identify and correct the problem.
• Keep a working fire extinguisher in the work area.
EQUIPMENT MISUSE HAZARD
Misuse can cause death or serious injury.
• Do not operate the unit when fatigued or under the influence of drugs or alcohol.
• Do not exceed the maximum working pressure or temperature rating of the lowest rated system
component. See Technical Data in all equipment manuals.
• Use fluids and solvents that are compatible with equipment wetted parts. See Technical Data in all
equipment manuals. Read fluid and solvent manufacturer’s warnings. For complete information about
your material, request MSDS from distributor or retailer.
• Do not leave the work area while equipment is energized or under pressure. Turn off all equipment and
follow the Pressure Relief Procedure when equipment is not in use.
• Check equipment daily. Repair or replace worn or damaged parts immediately with genuine
manufacturer’s replacement parts only.
• Do not alter or modify equipment.
• Use equipment only for its intended purpose. Call your distributor for information.
• Route hoses and cables away from traffic areas, sharp edges, moving parts, and hot surfaces.
• Do not kink or over bend hoses or use hoses to pull equipment.
• Keep children and animals away from work area.
• Comply with all applicable safety regulations.
2
3A1942A
Warnings
WARNING
SKIN INJECTION HAZARD
High-pressure fluid from dispensing device, hose leaks, or ruptured components will pierce skin. This may
look like just a cut, but it is a serious injury that can result in amputation. Get immediate surgical treatment.
• Do not point dispensing device at anyone or at any part of the body.
• Do not put your hand over the fluid outlet.
• Do not stop or deflect leaks with your hand, body, glove, or rag.
+
• Follow the Pressure Relief Procedure when you stop dispensing and before cleaning, checking, or
servicing equipment.
• Tighten all fluid connections before operating the equipment.
• Check hoses and couplings daily. Replace worn or damaged parts immediately.
MOVING PARTS HAZARD
Moving parts can pinch, cut or amputate fingers and other body parts.
• Keep clear of moving parts.
• Do not operate equipment with protective guards or covers removed.
• Pressurized equipment can start without warning. Before checking, moving, or servicing equipment,
follow the Pressure Relief Procedure and disconnect all power sources.
PERSONAL PROTECTIVE EQUIPMENT
You must wear appropriate protective equipment when operating, servicing, or when in the operating area
of the equipment to help protect you from serious injury, including eye injury, hearing loss, inhalation of
toxic fumes, and burns. This equipment includes but is not limited to:
• Protective eyewear, and hearing protection.
• Respirators, protective clothing, and gloves as recommended by the fluid and solvent manufacturer.
3A1942A
3
Typical Installation
Typical Installation
The equipment must be bonded (grounded) to the
truck. Grounding reduces the risk of static shock
due to static build up on the equipment. Refer to
your pump instruction manual for grounding
instructions.
Truck Mounted Hose Reel
Key:
A
B
C
D
E
F
G
F
E
To pump
Fluid shutoff valve
Ground (see your pump instruction manual)
Hose reel fluid inlet kit
Hose reel
Dispensing valve
Mounting channel/base
G
D
C
A
B
FIG. 1: Typical Installation
4
3A1942A
Installation
Installation
The typical installations shown in FIG. 1 is only a guide
for selecting and installing a hose reel system. The components shown are the minimum requirements for all
systems. However, it is not an actual system design.
Contact your Graco distributor for assistance in designing a system to suit your needs.
NOTE: The air and fluid accessories required for your
pump must be properly sized to that pump. Refer to your
specific pump manual for selecting pump accessories.
Installation Mounting Options
Mounting Adapter Kit for Replacing Series
500 Reels
A Mounting Adapter Kit is available for installing the
hose reel in the same location that a Series 500 Hose
Reel was previously installed. Order Graco Kit No.
24A224. See FIG. 2 and page 15.
A = Original Series 500 holes in mounting surface.
Fluid Line Components
Install the following components in the order shown in
FIG. 1, using adapters if necessary.
•
B = Holes on the bottom of adapter bracket, predrilled to
match original Series 500 hole configuration (A).
Fluid Shutoff Valve (B): shuts off fluid to hose reel.
A
•
B
Dispensing Valve (F): dispenses the fluid.
Adapter 24A224
Required Components
base
Be sure you have the following components before you
begin the installation.
•
Hose inlet kit (D)
•
Reel mounting bases, mounting brackets and
mounting channels (G)
•
Dispense valves (F)
mounting
surface
ti13795
FIG. 2
3A1942A
5
Installation
All Mountings
Do not mount on the ceiling or a wall.
2. To reposition roller support arm to any other position
than the Ship Position (EE):
To reduce the risk of injury, be sure the mounting
surface is strong enough to support the reels,
weight of the lubricants and stress caused by hard
pulls on the service hoses. See Technical Data,
page 17 for weights of hose reel assemblies.
NOTE: Reels perform best when arm allows hose to
pull straight off the spool as shown in FIG. 3.
a. Secure spool against pedestal with C-Clamp.
b. Remove 8 nuts (b) and 2 bolts (c) to rotate
arm to desired position, AA, BB, CC, DD, or
FF.
c.
Check pawl to make sure it is not wedged. See
FIG. 4.
a
DD
AA
EE
BB
ti13258
FF
b
c
CC
ti13394
FIG. 4 Shipping Position
3. Flush system.
To avoid contaminating the fluid with line-scale,
chips or other installation debris, before installing
meter or dispense valve to end of hose, flush the
equipment with a compatible solvent such as Stoddard solvent or mineral spirits.
FIG. 3
NOTE: Always use all 4 large flat washers with 4 bolts to
mount the hose reel pedestal to any surface.
1. Determine the desired position of the roller support
arm (a) (FIG. 4).
•
6
The hose reel is factory-assembled and shipped
with the roller support arm (a) in position EE
(FIG. 4). If that position is desired, skip step 2.
a. Secure the end of the hose in a waste bucket.
b.
Blow out entire lubricant supply line with air.
c.
Pump solvent through line until fluid runs clear
and is debris free.
d. Pump lubricant through line until all solvent is
flushed out.
3A1942A
Installation
4. Position hose stop so hose extends far enough for
all operators to reach dispensing valve and tighten
nuts to securely hold hose stop in place.
•
Stop only at latching locations.
•
Stop reel where there is access to hose swivel
(A) (FIG. 6) and where reel is securely latched.
5. Install meter or dispense valve to end of hose following instructions provided with the dispense equipment.
B
6. Adjust spring tension, page 8.
Hose Installation
Installing a Hose on a Bare Reel
1. Locate length of your hose in table below. Note how
many times you must turn the spring to properly preset spring tension.
Hose Length
No. of Reel Turns
35 ft (10.7 m)
17
50 ft. (15.2 m)
21
65 ft. (19.8 m)
23
D
ti13191
2. Before you install hose, attach a C-Clamp (D) to reel
flange to help prevent the reel from unintentionally
becoming unlatched and spinning freely. (FIG. 5).
FIG. 5
5. Uncoil and extend hose.
6. Install hose stop (C) to end of hose. If hose has a
warning tag (F), hose stop should be installed on
the same end of the hose as the warning tag.
A
Never allow the reel to spin freely. Doing so causes the
hose reel to spin out of control, which could cause serious
injury if you are hit by the hose or other moving parts
E
B
3. Place a piece of tape on the side of the reel flange
to use as a visual reference to help you count the
number of reel turns.
G
C
F
Always wear heavy gloves when you adjust spring tension
to protect your hands from being cut on hose reel.
4. Wearing heavy gloves, firmly grab the outside edge
of the reel flange with both hands. Wind the reel the
proper number of turns (See reference table following Step 1), rotating it in the direction shown in FIG.
5.
3A1942A
ti13190
FIG. 6
7. Run the end of hose (B), through the hose guide (G)
and then the hole (E) in reel (FIG. 6).
8. Attach hose end (B) to hose reel swivel (A). Then
carefully remove C-Clamp (D) (FIG. 5).
7
Installation
9. Pull hose hard enough to release the latch, and
slowly allow the hose to retract.
Increasing and Decreasing
Spring Tension
10. Flush system.
To avoid contaminating the fluid with line-scale,
chips or other installation debris, before installing
meter or dispense valve to end of hose, flush the
equipment with a compatible solvent such as Stoddard solvent or mineral spirits.
• The hose reel spring is not a serviceable part.
Do not attempt to replace or service the hose
reel spring.
• The spring is always under great tension and
could be propelled with enough force to cause
serious injury.
a. Secure the end of the hose in a waste bucket.
b.
c.
Blow out entire lubricant supply line with air.
• Never allow reel to spin freely. Doing so causes
the hose reel to spin out of control, which could
cause serious injury if you are hit by the hose,
dispensing valve or other moving parts.
Pump solvent through line until fluid runs clear
and is debris free.
d. Pump lubricant through line until all solvent is
flushed out.
•
Reel must be bolted securely in place when making adjustments.
11. Position hose stop so hose extends far enough for
all operators to reach dispensing valve.
C
12. Insert screws through hose stop and tighten nuts to
securely hold hose stop in place.
13. Install meter or dispense valve to end of hose following instructions provided with the dispense equipment.
14. Adjust spring tension, page 8.
B
A
D
ti12201
FIG. 7
If hose is not retracting sufficiently or is wound too tight,
the tension can be increased or decreased using one of
the following procedures:
Increasing Spring Tension (FIG. 7)
(spring is too loose, hose does not retract completely or
retraction is sluggish)
1. Loosen screw (A) 3-5 turns. Do not completely
remove it.
2. Use a hex wrench to loosen, the two screws (B). Do
not completely remove them.
3. Insert a 3/8” square drive breaker bar in opening (C)
on the spring adjustment plate (D).
8
3A1942A
Installation
4. While holding the breaker bar securely, completely
remove the two screws (B).
Decreasing Spring Tension (FIG. 7)
5. Firmly grasp the breaker bar with both hands and
turn it clockwise one turn at a time to increase
(tighten) spring tension.
1. Loosen screw (A) 3-5 turns. Do not completely
remove it.
6. Replace and partially tighten one screw. You can
now remove the breaker bar. Pull out a section of
hose and allow it to retract to test the tension adjustment.
(spring is too tight, hose retracts too fast)
2. Use a hex wrench to loosen, the two screws (B). Do
not completely remove them.
3. Insert a 3/8” square drive breaker bar in opening (C)
on the spring adjustment plate (D).
7. If additional tension is required, insert the breaker
bar in the bracket again and remove screw. Then
repeat steps 5 - 6.
4. While holding the breaker bar securely, completely
remove the two screws (B).
8. When you are satisfied with the new setting, tighten
screws A and B.
5. Firmly grasp the breaker bar with both hands and
turn it counter-clockwise one turn at a time to
decrease (loosen) spring tension.
6. Replace and partially tighten one screw. You can
now remove the breaker bar. Pull out a section of
hose and allow it to retract to test the tension adjustment.
7. If additional adjustment is required, insert the
breaker bar in the bracket again and remove screw.
Then repeat steps 5 and 6.
8. When you are satisfied with the new setting, tighten
screws A and B.
3A1942A
9
Maintenance
Maintenance
Pressure Relief Procedure
27
11
29
5
30
15
1. Close the supply pump’s bleed-type master air valve
(required for pneumatic systems).
2. Open the dispensing valve until pressure is fully
relieved.
3. Open the fluid valve at the pump fluid outlet. Leave
the drain valve open until you are ready to use the
system again.
If you suspect that the dispensing valve, extension, or
grease fitting coupler is clogged, or that pressure has
not been fully relieved after you have followed the steps
above, very slowly loosen the coupler or hose end coupling to relieve the pressure gradually, then loosen it
completely. Then clear the clog.
Replacing Spool (dual pedestal)
A complete list of replacement Spool Kits is available on
page 15. Use all new parts included in kit.
17 18
26
27
24
FIG. 8
5. Remove large nut (11) (FIG. 8).
6. Remove two screws (27) holding pedestal (26) to
base (24) and two screws (27) holding guide arm
(29) to guide arm (30) (FIG. 8).
7. Completely remove guide arm and pedestal assembly (26 / 29) and set it aside to reinstall on the new
spool (FIG. 8). These parts do not have to be disassembled.
30
5e
24
1. Relieve pressure, page 10.
2. Release spring tension, page 8.
3. Remove reel from service.
4. Completely remove hose from spool and set it aside
to reinstall on the new spool.
16
FIG. 9
10
3A1942A
Maintenance
8. Lay hose reel on its side so you can easily access
the guide arm and pedestal (24 / 30). Remove long
bolt (18) and washers (15 / 17) (FIG. 8 and FIG. 9).
9. Remove snap ring (5e) (FIG. 9).
10. Remove guide arm and pedestal base (24 / 30) as
one piece. These parts do not have to be disasssembled.
NOTE: Inspect inside of guide arm to make sure
washer (5j) is not adhering to the inside of the guide
arm. Washer (5j) should be discarded with the old
spool. A new washer (5j) is part of the new swivel
assembly.
a
11. Remove and discard old spool.
FIG. 10
To Reassemble Spool:
12. Place new spool (5) on its side on a work bench.
Make sure the flat side of the spool faces down on
the table and the ratchet side is facing up, as shown
in FIG. 9.
13. Position guide arm and pedestal base (24 / 30)
assembly over spool. Adjust as needed to correctly
align parts.
NOTE: It is easier to reattached the guide arm and
pedestal assembly to the spool if the spool is supported and somewhat level. Placing a couple blocks
of 1” thick scrap wood under the spool as shown in
FIG. 9 (page 10) will help support the spool during
the arm installation.
14. Replace snap ring (5e).
15. Install new swivel assembly in spool (see parts page
14).
19. Install large nut (11) (FIG. 8, page 10). Tighten and
torque nut to 85-105 ft. lbs (378 - 467 N.m).
20. Tighten bolt (18).
21. Align guide arm (29) and guide arm (30). Install
screws (27). Tighten and torque screws to 20-30 ft.
lbs (89 - 133 N.m).
22. Align pedestal assembly (26) to base (24). Install 2
screws (27). Tighten and torque screws to 20-30 ft.
lbs (89 - 133 N.m).
23. Re-install reel to ceiling or wall.
24. Install hose on spool following the Hose Installation
instructions, page 7.
25. Flush hose following flushing instructions starting
with Step10, page 8.
26. Set spring tension following Increasing and
Decreasing Spring Tension instructions on page 8.
16. Install washers (15 / 17) and long bolt (18), but do
NOT tighten bolt.
17. Turn the spool over.
18. Install guide arm and pedestal assembly (26 / 29)
over swivel assembly and spool.
Note shape (a) of swivel assembly end shown in
FIG. 10 and the correct alignment of swivel to the
key hole in the pedestal. For the hose reel to operate correctly, these parts must be aligned correctly.
Guide Arm and related parts are not included.
3A1942A
11
Maintenance
Replacing the Service Hose
1. Relieve the pressure.
2. Fully extend the hose (B) and latch the reel.
3. Attach a C-Clamp (A) to the reel flange to help prevent the reel from unintentionally becoming
unlatched and spinning freely (FIG. 11).
Never allow the reel to spin freely. Doing so causes the
hose reel to spin out of control, which could cause
serious injury if you are hit by the hose or other moving
parts.
aa
cc
bb
FIG. 12
5. Disconnect hose (B) from swivel (C).
6. Install hose stop (D) to end of hose. If hose has a
warning tag, hose stop should be installed on the
same end as the warning tag (F).
A
7. Insert screws (aa) through hose stop (cc) and hand
tighten nuts (bb) to hold hose stop in place.
C
E
B
B
G
ti13184
D
FIG. 11
4. Remove hose stop from hose end and put all the
parts in a safe place to reinstall on the new hose
later (FIG. 12).
a. Loosen and remove screws (aa) and nuts (bb).
b. Separate two hose stop components (cc) to
remove from end of hose.
F
ti13190
FIG. 13
8. Run the end of hose (B), through the hose guide (G)
and then the hole (E) in reel (FIG. 13).
9. Attach hose end (B) to hose reel swivel (A). Then
carefully remove C-Clamp (D) (FIG. 5).
12
3A1942A
Maintenance
10. Pull the hose hard (B) enough to release the latch
and slowly allow the hose to retract.
11. Flush system, page 8.
12. Position hose stop (D) so hose extends far enough
for all operators to reach dispensing valve. Securely
tighten nuts (bb) to keep hose stop in place.
13. Install meter or dispense valve to end of hose following instructions provided with the dispense equipment.
14. Adjust spring tension, page 8.
3A1942A
13
Parts
Parts
Ref
Part No. Description
5
5e
5h
5j
5k
6
7
8
9
10
11
14
17
18
19
24
25
26
27
29
◆
◆
◆
◆
◆
◆
◆
◆
15Y397
186579
◆
◆
◆
◆
◆
◆
◆
◆
◆
KIT, spool (see page 15) (includes
parts 5a-5j)
RING, retaining
SPOOL
WASHER, 30 mm
WASHER, square center
RING, backup
O-RING
SWIVEL, elbow
WASHER
FITTING, swivel, 90°
NUT, hex 3/8” - 18 npsm
ADJUSTER, power spring
WASHER, 8 mm
SCREW, M8 x 1.25 x 120
SCREW, M5 x .80 x 20
BASE, dual
SHAFT, swivel
PEDESAL
SCREW, M8 X 1.25 x 20
ARM, guide, dual (not included on HN
models)
Qty
1
Ref
1
1
1
1
2
2
1
1
32
33
Part No. Description
◆
30
218591
33a
33b
33c
33d
34▲
37
38
39
40
48
1
1
1
1
2
1
1
1
4
1
Qty
1
ARM, guide (not included on HN models)
8
NUT, lock, M8 x 1.25
KIT, roller (includes 33a-33d) (page
16)
◆
BRACKET, roller
◆
PIN, roller
◆
ROLLER, hose
◆
SCREW, M6 x 1.0 x 20
15W036 LABEL, warning
◆
BUSHING, pawl
◆
PAWL, ratchet
◆
BOLT, M10 x 1.5 x 25 lg
◆
SPRING, ratchet pawl
KIT, stop, hose (page 16)
1
4
4
4
1
1
1
1
1
1
▲ Replacement Danger and Warning labels, tags and cards
are available at no cost.
◆ Provided for reference only. Replacement parts are not
available.
A complete list of all available kits begins on page 15.
33d
39
33a
37
5h
40
48
33b
38 34
33c
30
14
5j
27
29
19
5k
5e
18
17
10
24
32
25
7
11
26
9
14
6
8
ti13196
3A1942A
Kits
Kits
Spool Assembly Kits (page 15)
Part No.
Model.
Size
Media
Line Size (inches)
Length (feet)
15Y501‡
24K295
24K296
24K297
24K298
10
Grease
1/4
50
15Y502‡
24K299
24K300
24K301
24K302
20
Grease
3/8
50
‡ Kit does not include swivel. Order swivel kit separately. See page 15 for complete list of swivel kits.
Swivel Kit: 15Y481
Swivel Seal Kits: 24A953
(Instruction Manual: 313432)
(Instruction Manual: 313432)
Description
Description
Qty
4
SCREW M8 x 1.25 x 20
1
SCREW, M8 x 1.25 x 120
1
WASHER, 8 mm
1
WASHER, 16 mm
1
SHAFT, swivel
1
ELBOW, swivel, 3/8”
2
RING, backup
2
O-RING
1
WASHER, thrust, 23 mm
1
RING, retaining
1
NUT, 3/8” npsm
ELBOW, male x female, 3/8” x 3/8” 1
4
NUT, M8 x 1.25
Label, Fluid Identification: 24A223
WASHER, 8 mm
NUT, M8 x 1.25
O-RING
RING, retaining
RING, backup
WASHER, 23 mm
WASHER, 16 mm
SCREW, M8 x 1.25 x 120
SCREW, M8 x 1.25 x 20
Qty
1
4
2
1
2
1
1
1
4
Latch Kit: 15Y503
(Instruction Manual: 406801)
Description
SCREW, M8 x 1.25 x 20
PAWL, ratchet
SPRING, ratchet, pawl
SCREW, M10 x 1.50 x 25
BUSHING
NUT, M8 x 1.25
SCREW, M8 x 1.50 x 40
NUT, M10 x 1.50
Qty
2
1
1
1
1
4
1
1
3/8” Inlet: 218550
Description
HOSE, coupled, 24”
FITTING, union, adapter, 90°
3A1942A
Qty
1
1
15
Kits
Hose Guide Kits
Roller Bracket Repair: 218591
(Instruction Manual: 406743)
Description
BRACKET, hose guide
PIN, roller
ROLLER, hose
NUT, lock, #10 - 32
SCREW, #10 - 32 x 3/4”
SCREW, M6 x 1.0 x 20
Qty
1
4
4
4
4
4
Cabinet Mounting Kit: 15Y478
Description
BRACKET, hose guide
PIN, roller
ROLLER, hose
PLATE, mounting
NUT, lock, #10 - 32
SCREW, #10 - 32 x 3/4”
Qty
1
4
4
1
4
4
Hose Reel Stop Kit: 218341
(Instruction Manual: 406742)
Used with 3/8” and 1/2” ID Hoses (not included)
Description
NUT, hex, jam
SCREW, machine, phillips
STOP, hose, 0.782” ID Kit
16
Qty
2
2
2
3A1942A
Technical Data
Technical Data
Fluid Pressure
8000 psi (552 bar, 55.2 MPa)
Inlet
3/8” NPSM (m)
Outlet
3/8” NPSM (f)
Operating Temperature
-40°F to 200°F (-40°C to 93°C)
Dry Weight
59 lbs (26.5 kg)
Wetted parts - Bare Hose Reel Only
Zinc plated steel, polyurethane, steel
Sound Pressure*
78 dB(A)
Sound Power**
88 dB(A)
*All readings taken at assumed retraction rate, from assumed operator position next to reel.
**Sound Power tester per ISO 9614-2.
Dimensions
E
F
G
B
A
D
C
Size
10
20
A
6.5 inches
(165 mm)
6.5 inches
(165 mm)
B
7.5 inches
(191 mm)
7.5 inches
(191 mm)
C
7.7 inches
(196 mm)
7.7 inches
(196 mm)
D
9 inches
(229 mm)
9 inches
(229 mm)
E†
18.5 inches
(473 mm)
21 inches
(533 mm)
F
7.5 inches
(196 mm)
7.5 inches
(196 mm)
G◆
18 inches
(460 mm)
20 inches
(508 mm)
† Measurement taken from base to top of bolts.
◆ Measurement taken from edge of spool to front of arm.
3A1942A
17
Graco Hose Reel Warranty
Graco warrants all equipment referenced in this document which is manufactured by Graco and bearing its name to be free from defects in
material and workmanship on the date of sale to the original purchaser for use. With the exception of any special, extended, or limited warranty
published by Graco, Graco will, for a period as defined in the table below from the date of sale, repair or replace equipment covered by this
warranty and determined by Graco to be defective. This warranty applies only when the equipment is installed, operated and maintained in
accordance with Graco’s written recommendations.
Component
Warranty Period
Wear parts, including but not limited to: hose,
swivel seals, roller guide
12 months
Reel structural components and spring
36 months
Bare hose reels: all components
12 months
This warranty does not cover, and Graco shall not be liable for general wear and tear, or any malfunction, damage or wear caused by faulty
installation, misapplication, abrasion, corrosion, inadequate or improper maintenance, negligence, accident, tampering, or substitution of
non-Graco component parts. Nor shall Graco be liable for malfunction, damage or wear caused by the incompatibility of Graco equipment with
structures, accessories, equipment or materials not supplied by Graco, or the improper design, manufacture, installation, operation or
maintenance of structures, accessories, equipment or materials not supplied by Graco.
This warranty is conditioned upon the prepaid return of the equipment claimed to be defective to an authorized Graco distributor for verification of
the claimed defect. If the claimed defect is verified, Graco will repair or replace free of charge any defective parts. The equipment will be returned
to the original purchaser transportation prepaid. If inspection of the equipment does not disclose any defect in material or workmanship, repairs will
be made at a reasonable charge, which charges may include the costs of parts, labor, and transportation.
THIS WARRANTY IS EXCLUSIVE, AND IS IN LIEU OF ANY OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED
TO WARRANTY OF MERCHANTABILITY OR WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE.
Graco’s sole obligation and buyer’s sole remedy for any breach of warranty shall be as set forth above. The buyer agrees that no other remedy
(including, but not limited to, incidental or consequential damages for lost profits, lost sales, injury to person or property, or any other incidental or
consequential loss) shall be available. Any action for breach of warranty must be brought within 48 months of the date of sale, or 24 months for all
other parts.
GRACO MAKES NO WARRANTY, AND DISCLAIMS ALL IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE, IN CONNECTION WITH ACCESSORIES, EQUIPMENT, MATERIALS OR COMPONENTS SOLD BUT NOT
MANUFACTURED BY GRACO. These items sold, but not manufactured by Graco (such as electric motors, switches, hose, etc.), are subject to
the warranty, if any, of their manufacturer. Graco will provide purchaser with reasonable assistance in making any claim for breach of these
warranties.
In no event will Graco be liable for indirect, incidental, special or consequential damages resulting from Graco supplying equipment hereunder, or
the furnishing, performance, or use of any products or other goods sold hereto, whether due to a breach of contract, breach of warranty, the
negligence of Graco, or otherwise.
FOR GRACO CANADA CUSTOMERS
The Parties acknowledge that they have required that the present document, as well as all documents, notices and legal proceedings entered into,
given or instituted pursuant hereto or relating directly or indirectly hereto, be drawn up in English. Les parties reconnaissent avoir convenu que la
rédaction du présente document sera en Anglais, ainsi que tous documents, avis et procédures judiciaires exécutés, donnés ou intentés, à la suite
de ou en rapport, directement ou indirectement, avec les procédures concernées.
Graco Information
For the latest information about Graco products, visit www.graco.com.
TO PLACE AN ORDER, contact your Graco distributor or call to identify the nearest distributor.
Phone: 612-623-6928 or Toll Free: 1-800-533-9655, Fax: 612-378-3590
All written and visual data contained in this document reflects the latest product information available at the time of publication.
Graco reserves the right to make changes at any time without notice.
Original instructions. This manual contains English. MM 3A1492
Graco Headquarters: Minneapolis
International Offices: Belgium, China, Japan, Korea
GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440-1441
Copyright 2011, Graco Inc. is registered to ISO 9001
www.graco.com
7/2011

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
