Graco 332913A - Camera Stand Kit for G-Flex 1500 Instructions

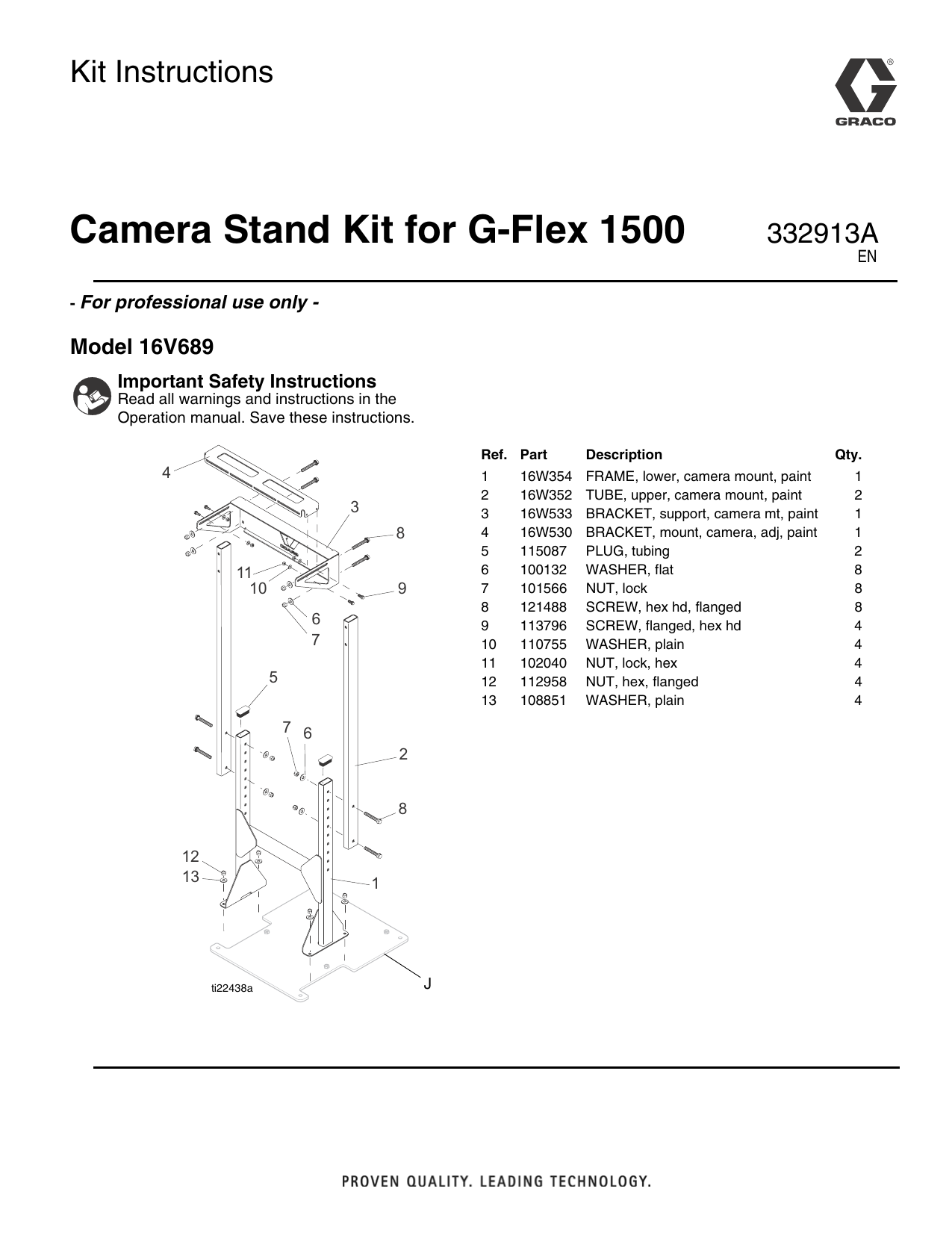

Kit Instructions
Camera Stand Kit for G-Flex 1500
- For
332913A
EN
professional use only -
Model 16V689
Important Safety Instructions
Read all warnings and instructions in the
Operation manual. Save these instructions.
4
3
8
11
10
9
6
7
5
7 6
2
8
12
13
1
ti22438a
J
Ref. Part
Description
1
2
3
4
5
6
7
8
9
10
11
12
13
FRAME, lower, camera mount, paint
TUBE, upper, camera mount, paint
BRACKET, support, camera mt, paint
BRACKET, mount, camera, adj, paint
PLUG, tubing
WASHER, flat
NUT, lock
SCREW, hex hd, flanged
SCREW, flanged, hex hd
WASHER, plain
NUT, lock, hex
NUT, hex, flanged
WASHER, plain
16W354
16W352
16W533
16W530
115087
100132
101566
121488
113796
110755
102040
112958
108851
Qty.
1
2
1
1
2
8
8
8
4
4
4
4
4
Installation
Installation
NOTE: To reduce vibration transmitted to the camera,
the camera stand must not touch the G-Flex Floor
Mounting Plate (J).
1. Assemble the camera stand per illustration.
2. To mount camera stand, position it in the cutouts in
the G-Flex 155 Floor Mounting Plate (J). The camera stand is designed to be anchored using four 3/8
in. concrete anchor bolts.
3. Use a concrete drill bit of the size recommended by
the anchor bolt manufacturer. Drill four holes in the
concrete using the camera stand holes as a guide.
Install the anchor bolts per the manufacturer’s
instructions.
4. A minimum of 1 in. stud length must protrude from
the floor for proper installation.
5. Install four washers (13) and four nuts (12) provided
to secure the G-Flex 1500 to the concrete surface.
6. Torque to anchor bolt manufacturer recommendations.
J
