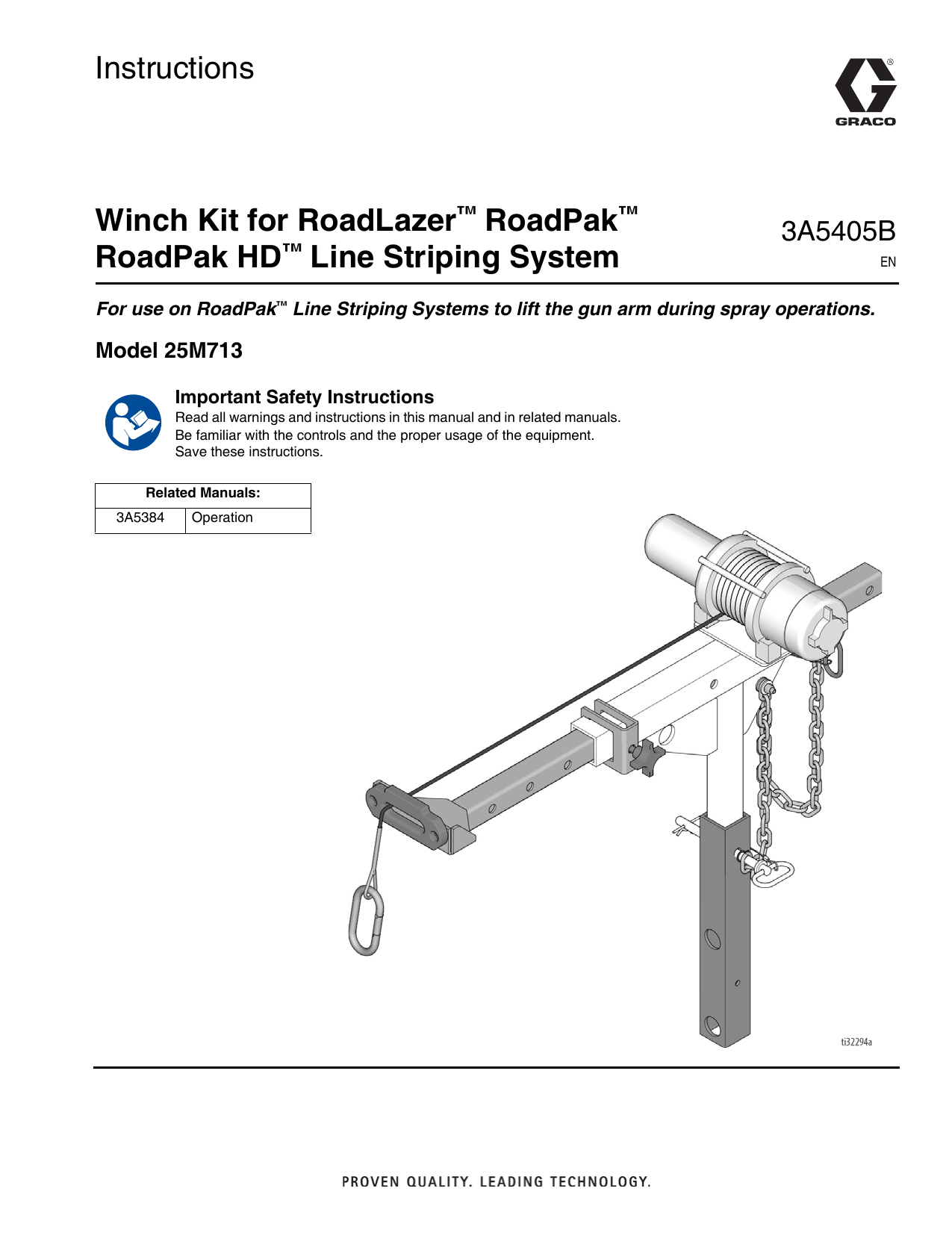

Graco 3A5405B, Winch Kit for RoadLazer™ RoadPak™ RoadPak™ HD Line Striping Systems Instructions

Instructions
Winch Kit for RoadLazer™ RoadPak™
RoadPak HD™ Line Striping System
3A5405B
For use on RoadPak™ Line Striping Systems to lift the gun arm during spray operations.
Model 25M713
Important Safety Instructions
Read all warnings and instructions in this manual and in related manuals.
Be familiar with the controls and the proper usage of the equipment.
Save these instructions.
Related Manuals:
3A5384
Operation
EN
Installation
Installation
1. Assemble adapter bracket (1) to height adjustment
bracket on both sides. Fasten with bolts (6),
washers (7), and nuts (8). Torque to 28 ft-lb.
2. Use four bolts and lock washers (supplied) to
assemble winch (5) onto winch arm (2).
2
3. Use bolts, washers, and nuts (supplied) to
assemble cable guide onto winch arm bracket (3).
4. Slide winch arm bracket (3) into winch arm (2) and
secure into place by tightening extension clamp (15)
and inserting the safety pin.
3A5405B
Installation
5. Insert winch assembly into one of the adapter brackets (1) and secure with pin (9).
7. Install split sleeving (26) over cables (25) and cut to
needed length.
8. Connect blue and yellow cables (25) from the winch
terminals to the blue and yellow color-coded terminals on the winch switch terminal. Cover terminal
with terminal boot. See Wiring Diagram, page 4.
6. Slide terminal boots (supplied) onto both ends of the
blue and yellow cables (25). Connect each cable to
the corresponding color-coded terminal on the
winch. Cover terminal with terminal boot.
NOTE: If the winch runs in the opposite direction as indicated on the control, swap the positions of the yellow
ans blue wire connections on the winch.
25
3A5405B
9. Plug in winch controller (19) to the connector at the
junction box. Properly protect and secure all wires to
keep from damaging them during every day use.
3
Wiring Diagram
10. Adjust the winch arm (3) so it is in line with the lifting
point on the gun arm. Ensure the winch arm is
secured by pinning it and tightening the extension
clamp (15).
12. When transporting the RoadPak system, the gun
arm must be properly stowed (see manual 3A5384)
and the winch arm must be adjusted to fit within the
width of the vehicle.
11. Use the buttons on the controller (19) to lower the
winch. Connect the winch hook (22) to the lifting
point on the gun arm.
Wiring Diagram
4
3A5405B
Parts List
Parts List
Ref.
1
2
3
5
6
7
8
9
10
11
12
Part
16G688
24G839
24G841
25M738
101147
109570
801020
115473
186812
M71635
100678
3A5405B
Description
Qty.
BRACKET, adapter, winch, painted
2
ARM, winch, painted
1
BRACKET, arm, winch, painted
1
WINCH, RoadLazer
1
SCREW, cap, hex HD
4
WASHER, plain
8
NUT, lock, hex
4
PIN, hitch
2
CHAIN, ground 3.5 HP
2
CLAMP, hose
2
SCREW, cap hex HD
1
Ref.
13
14
15
19*
22*
23*
25*
26
Part
111040
100023
238813
17U973
16H068
17U972
17U974
17X001
Description
NUT, lock, insert, nylock, 5/16
WASHER, flat
CLAMP, extension
SWITCH, corded remote
CARBINER, 1-3/8 in. eye dia.
CABLE, 5/16 in. dia., black
WIRE, assembly, winch
SLEEVING, split, 20 ft.
Qty.
1
6
1
1
1
1
1
1
* Included in 25M738.
5
All written and visual data contained in this document reflects the latest product information available at the time of publication.
Graco reserves the right to make changes at any time without notice.
For patent information, see www.graco.com/patents
Original instructions. This manual contains English. MM 3A5405
Graco Headquarters: Minneapolis
International Offices: Belgium, China, Japan, Korea
GRACO INC. AND SUBSIDIARIES • P.O. BOX 1441 • MINNEAPOLIS MN 55440-1441 • USA
Copyright 2016, Graco Inc. All Graco manufacturing locations are registered to ISO 9001.
www.graco.com
Revision B, March 2018
