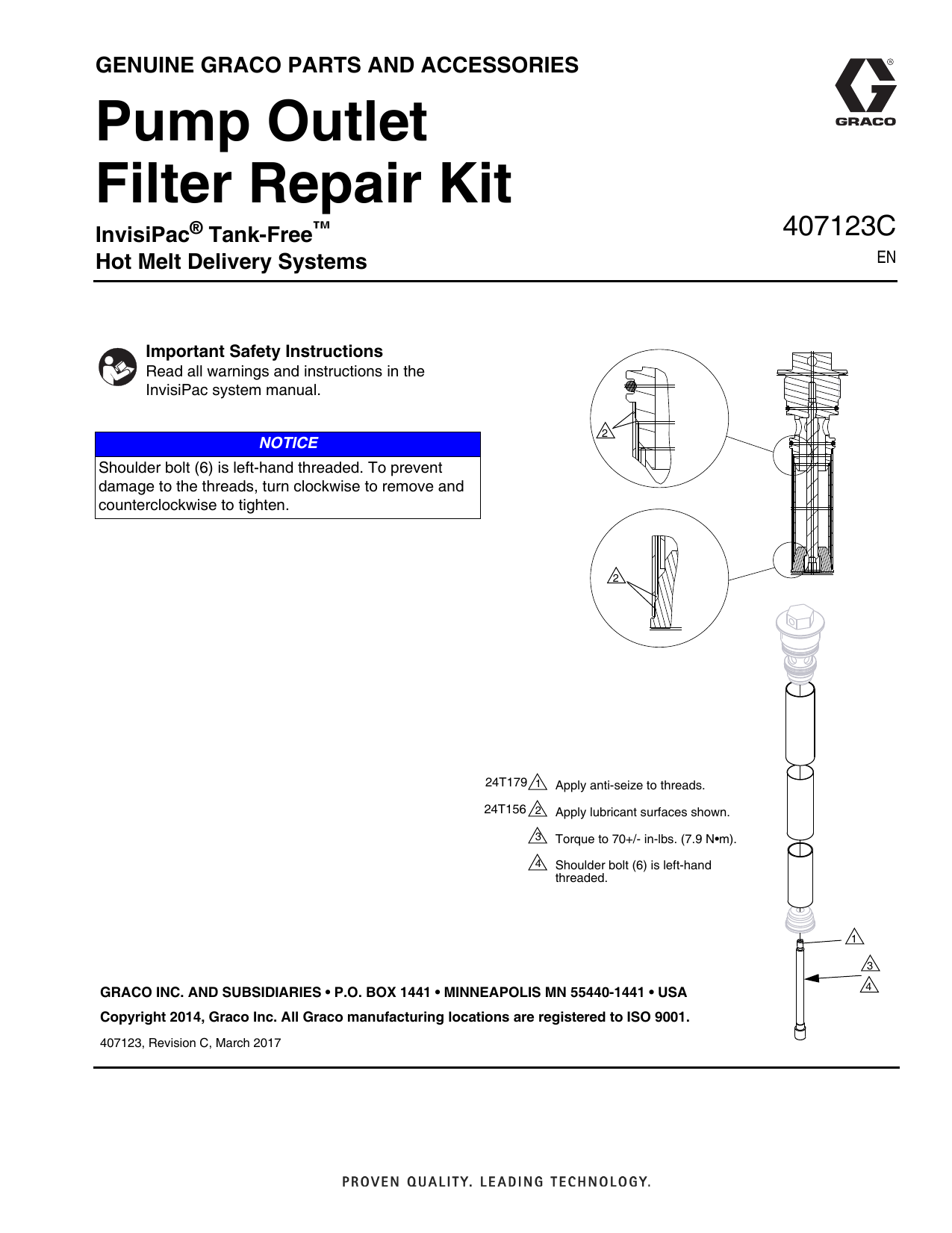

Graco 407123C, Filter Rebuild Kit Instructions

GENUINE GRACO PARTS AND ACCESSORIES
Pump Outlet
Filter Repair Kit
407123C
InvisiPac® Tank-Free™
Hot Melt Delivery Systems
EN
Important Safety Instructions
Read all warnings and instructions in the
InvisiPac system manual.
2
NOTICE
Shoulder bolt (6) is left-hand threaded. To prevent
damage to the threads, turn clockwise to remove and
counterclockwise to tighten.
2
24T179 1
Apply anti-seize to threads.
24T156 2
Apply lubricant surfaces shown.
3
Torque to 70+/- in-lbs. (7.9 N•m).
4
Shoulder bolt (6) is left-hand
threaded.
1
3
GRACO INC. AND SUBSIDIARIES • P.O. BOX 1441 • MINNEAPOLIS MN 55440-1441 • USA
Copyright 2014, Graco Inc. All Graco manufacturing locations are registered to ISO 9001.
407123, Revision C, March 2017
4
