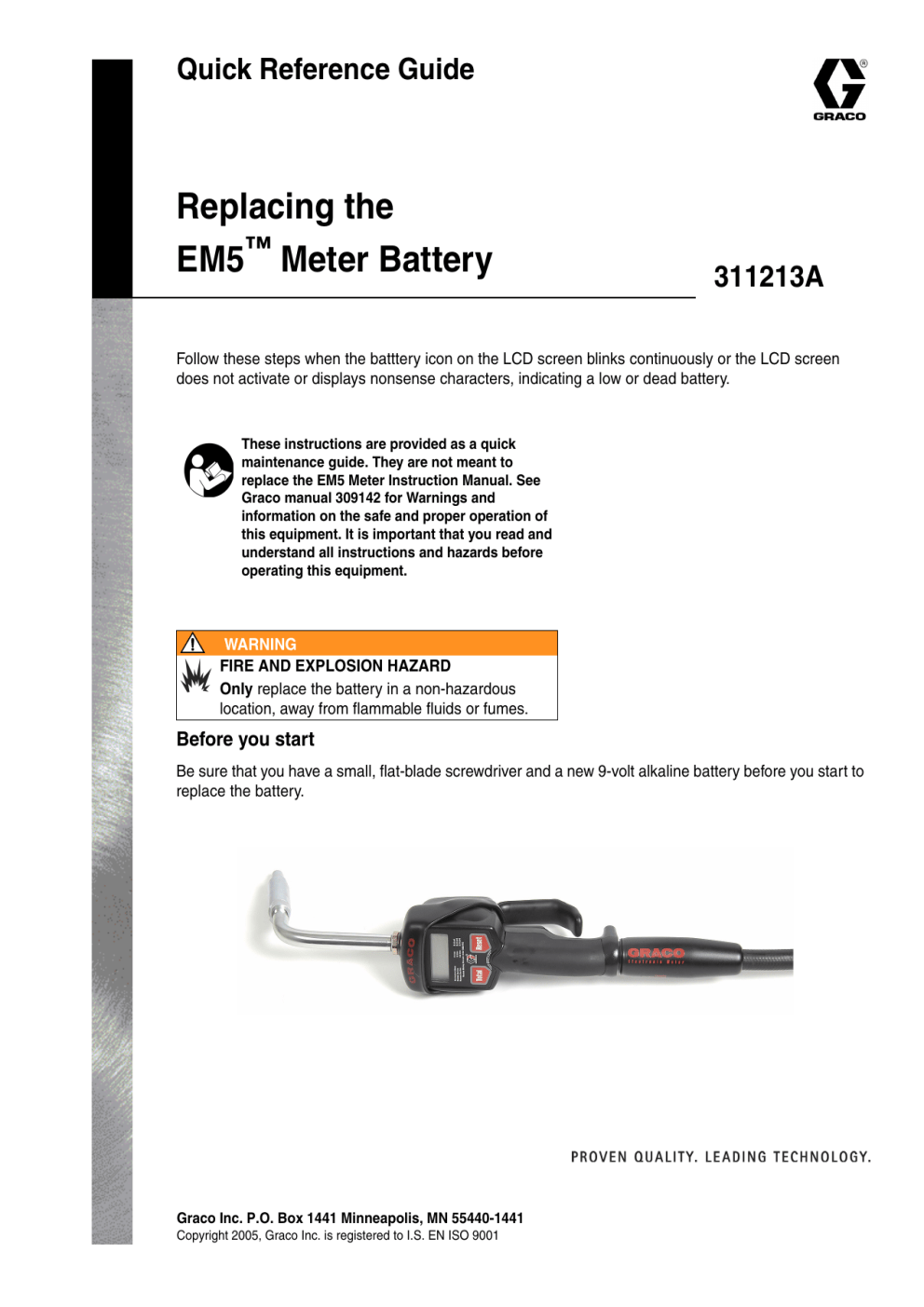

Quick Reference Guide
Replacing the
EM5™ Meter Battery
311213A
Follow these steps when the batttery icon on the LCD screen blinks continuously or the LCD screen
does not activate or displays nonsense characters, indicating a low or dead battery.
These instructions are provided as a quick
maintenance guide. They are not meant to
replace the EM5 Meter Instruction Manual. See
Graco manual 309142 for Warnings and
information on the safe and proper operation of
this equipment. It is important that you read and
understand all instructions and hazards before
operating this equipment.
WARNING
FIRE AND EXPLOSION HAZARD
Only replace the battery in a non-hazardous
location, away from flammable fluids or fumes.
Before you start
Be sure that you have a small, flat-blade screwdriver and a new 9-volt alkaline battery before you start to
replace the battery.
Graco Inc. P.O. Box 1441 Minneapolis, MN 55440-1441
Copyright 2005, Graco Inc. is registered to I.S. EN ISO 9001
Replacing the EM5™ Meter Battery
1.
Pull down enough hose so that the meter can be
2.
Remove the boot from the meter.
supported on the floor or other flat work surface.
3.
Remove the battery cover.
5.
Hold the battery terminal strip and unsnap the battery from the strip. Do not pull on the wires.
2
4.
Using a small flat-blade screwdriver, carefully pry
out the battery. Do not pull on the wires.
Replacing the EM5™ Meter Battery
6.
Snap a new 9-volt alkaline battery onto the terminal strip.
7.
Replace the battery in the meter cover.
8.
9.
Replace the boot.
10.
Replace the battery cover.
Test the meter
3
