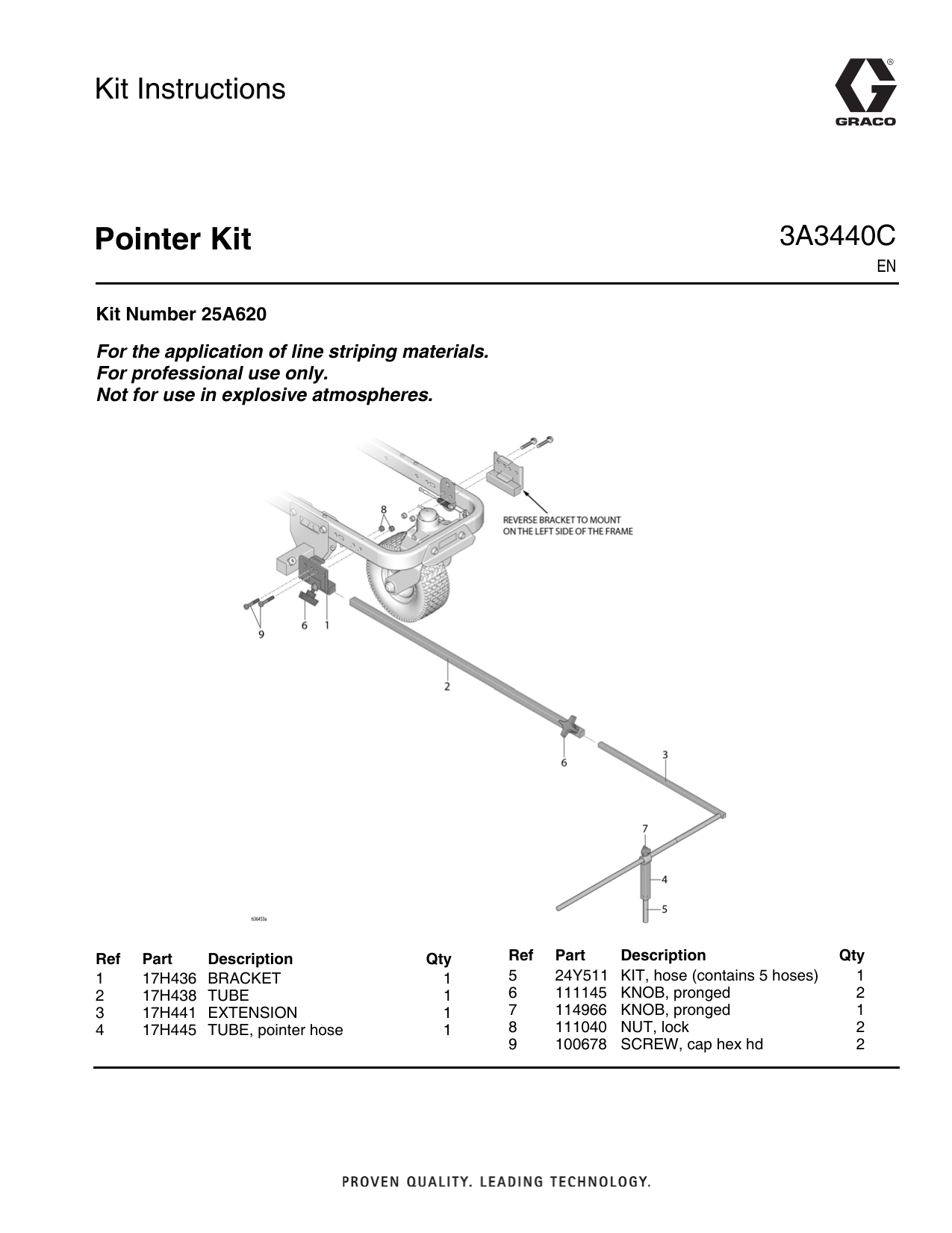

Graco 3A3440C, Pointer Kit, Kit Instructions

Kit Instructions
3A3440C
Pointer Kit
EN
Kit Number 25A620
For the application of line striping materials.
For professional use only.
Not for use in explosive atmospheres.
Ref
1
2
3
4
Part
17H436
17H438
17H441
17H445
Description
BRACKET
TUBE
EXTENSION
TUBE, pointer hose
Qty
1
1
1
1
Ref
5
6
7
8
9
Part
24Y511
111145
114966
111040
100678
Description
KIT, hose (contains 5 hoses)
KNOB, pronged
KNOB, pronged
NUT, lock
SCREW, cap hex hd
Qty
1
2
1
2
2
All written and visual data contained in this document reflects the latest product information available at the time of publication.
Graco reserves the right to make changes at any time without notice.
Original instructions. This manual contains English. MM 3A3440
Graco Headquarters: Minneapolis
International Offices: Belgium, China, Japan, Korea
GRACO INC. AND SUBSIDIARIES • P.O. BOX 1441 • MINNEAPOLIS MN 55440-1441 • USA
Copyright 2015, Graco Inc. All Graco manufacturing locations are registered to ISO 9001.
www.graco.com
Revision C, May 2019
