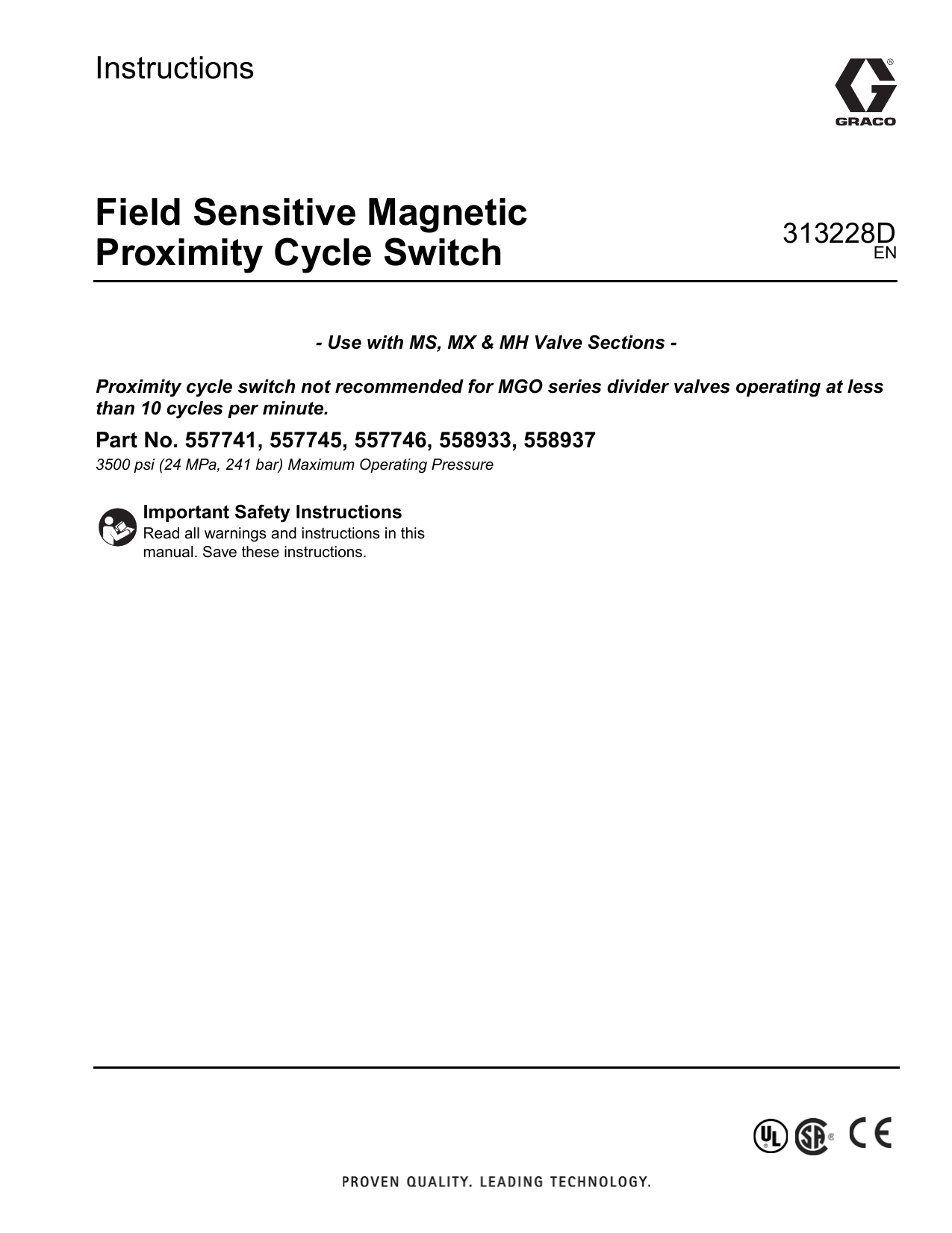

Graco 313228D Field Sensitive Magnetic Proximity Cycle Switch Instructions

Instructions
Field Sensitive Magnetic
Proximity Cycle Switch
313228D
EN
- Use with MS, MX & MH Valve Sections Proximity cycle switch not recommended for MGO series divider valves operating at less
than 10 cycles per minute.
Part No. 557741, 557745, 557746, 558933, 558937
3500 psi (24 MPa, 241 bar) Maximum Operating Pressure
Important Safety Instructions
Read all warnings and instructions in this
manual. Save these instructions.
Warnings
Warnings
The following warnings are for the setup, use, grounding, maintenance, and repair of this equipment. The exclamation point symbol alerts you to a general warning and the hazard symbol refers to procedure-specific risk. Refer back
to these warnings. Additional, product-specific warnings may be found throughout the body of this manual where
applicable.
WARNING
ELECTRIC SHOCK HAZARD
Improper grounding, setup, or usage of the system can cause electric shock.
• Turn off and disconnect power at main switch before disconnecting any cables and before servicing
equipment.
• Connect only to grounded power source.
• All electrical wiring must be done by a qualified electrician and comply with all local codes and
regulations.
EQUIPMENT MISUSE HAZARD
Misuse can cause death or serious injury.
• Do not operate the unit when fatigued or under the influence of drugs or alcohol.
• Do not exceed the maximum working pressure or temperature rating of the lowest rated system
component. See Technical Data in all equipment manuals.
• Use fluids and solvents that are compatible with equipment wetted parts. See Technical Data in all
equipment manuals. Read fluid and solvent manufacturer’s warnings. For complete information
about your material, request MSDS forms from distributor or retailer.
• Check equipment daily. Repair or replace worn or damaged parts immediately with genuine manufacturer’s replacement parts only.
• Do not alter or modify equipment.
• Use equipment only for its intended purpose. Call your distributor for information.
• Route hoses and cables away from traffic areas, sharp edges, moving parts, and hot surfaces.
• Do not kink or over bend hoses or use hoses to pull equipment.
• Keep children and animals away from work area.
• Comply with all applicable safety regulations.
SKIN INJECTION HAZARD
High-pressure fluid from dispense valve, hose leaks, or ruptured components will pierce skin. This may
look like just a cut, but it is a serious injury that can result in amputation. Get immediate surgical
treatment.
• Do not point dispense valve at anyone or at any part of the body.
• Do not put your hand over the end of the dispense nozzle.
• Do not stop or deflect leaks with your hand, body, glove, or rag.
• Follow Pressure Relief Procedure in this manual, when you stop spraying and before cleaning,
checking, or servicing equipment.
2
313228D
Valve Assembly Installation
Valve Assembly Installation
Grounding
3. Remove piston plug. (Do not discard plug if you are
removing the cycle indicator pin. You will install it in
step 5e.)
The equipment must be grounded. Grounding reduces
the risk of static and electric shock by providing an
escape wire for the electrical current due to static build
up or in the event of a short circuit.
For assemblies not originally equipped
with cycle pin indicator pin/switch
1. Determine which valve section and side is the most
convenient location for the switch.
2. Remove piston plug and discard. Screw in appropriate proximity switch using seal/gasket supplied. For
MS and MH valve sections, torque to 6-8 ft/lbs for
o-ring seal; 10 ft/lbs for gasket seals.
NOTICE
Do not over torque! Excessive torque will cause
switch failure. For MX and MGO torque adaptor to
25-30 ft/lbs and the switch to 6-8 ft/lbs.
4. Screw in appropriate proximity switch using
seal/gasket supplied. For MS and MH valve sections, torque to 6-8 ft/lbs for o-ring seal; 10 ft/lbs for
gasket seals.
NOTICE
Do not over torque! Excessive torque will cause
switch failure. For MX and MGO torque adaptor to
25-30 ft/lbs and the switch to 6-8 ft/lbs.
NOTICE
Do not reuse gasket! If switch is removed for any reason, replace with new gasket, part no. 557717.
5. Either leave cycle indicator pin installed for visual
indication of cycle or remove as follows:
a. Unscrew cycle indicator body from valve and
discard.
b.
Grasp indicator pin and pull pin/piston assembly
out of feeder.
NOTICE
Piston is a ground part and all caution must be taken
to avoid nicking, scratching or contaminating this part
or the feeder piston bore.
3. Connect electrical system.
NOTICE
Do not reuse gasket! If switch is removed for any reason, replace with new gasket, part no. 557717.
For assemblies equipped with cycle pin
indicator/electrical micro-switch
(2 options available; choose either Method A or Method B)
c.
Remove the indicator pin by sliding it through
the slot on models equipped with this arrangement (MS and late model MX type) or drive out
cross pin using a brass rod (old MX type).
d. Discard pin.carefully insert piston back in bore.
e. Plug hole with piston plug removed in step 3.
Torque to 12 ft/lbs for MSP, 35 ft/lbs for MX.
Method A: Installation in any piston chamber not
occupied by the cycle pin indicator
1. Determine which valve section and side is the most
convenient location for the switch.
6. Make electrical connection.
2. Install proximity switch in any other piston chamber
not occupied by the cycle indicator pin.
313228D
3
Valve Assembly Installation
For 5-Pin: Male Portion - Model 557746
Method B: Replacing existing cycle indicator
pin/switch
Connecting Cable Wiring Code:
1. Determine which valve section and side is the most
convenient location for the switch.
2. Remove piston plug and discard.
3. Screw in appropriate proximity switch using
seal/gasket supplied. For MS and MH valve sections, torque to 6-8 ft/lbs for o-ring seal; 10 ft/lbs for
gasket seals.
NOTICE
a - White = N/O
b - Red = Not Used
c - Green = Ground
d - Orange = Not Used
e - Black = Common
a
e
b
d
ti12619a
c
For 3-Pin: Flying Lead - Models 557745 and
558937
Do not over torque! Excessive torque will cause
switch failure. For MX and MGO torque adaptor to
25-30 ft/lbs and the switch to 6-8 ft/lbs.
Connecting Cable Wiring Code:
4. Reverse piston so proximity switch does not sense
slot end of piston. Then install proximity switch in
piston chamber.
Red = Ground
Black = Common
White = N/O
Wiring Instructions
In order to make proper electrical connections, a “Brad
Harrison” style connector cable must be used. The following connector cables are available:
Pin
Cable
Length
Part No.
3
6 ft.
558021
3
12 ft.
558022
5
6 ft.
558023
5
12 ft.
558024
For 3-Pin: Male Portion - Models 557741
and 558933
Connecting Cable Wiring Code:
a - Green = Ground
b - Black = Hot
c - White = Neutral
a
c
b
ti12620a
4
313228D
Technical Data
Technical Data
Current Rating
Temperature Range
Normally Open Contacts
Maximum Cycle Rate
Maximum Operating Pressure
Material
313228D
2 AMP @ 120/240 VAC
0.5 AMP @ 125/250 VDC (UL)
-22°F to 250°F (-30°C to 121°C)
1000 cycles/minute
3500 psi (24 MPa, 241 bar)
Switch - 303 stainless steel
Adapter - nickel plated steel
5
