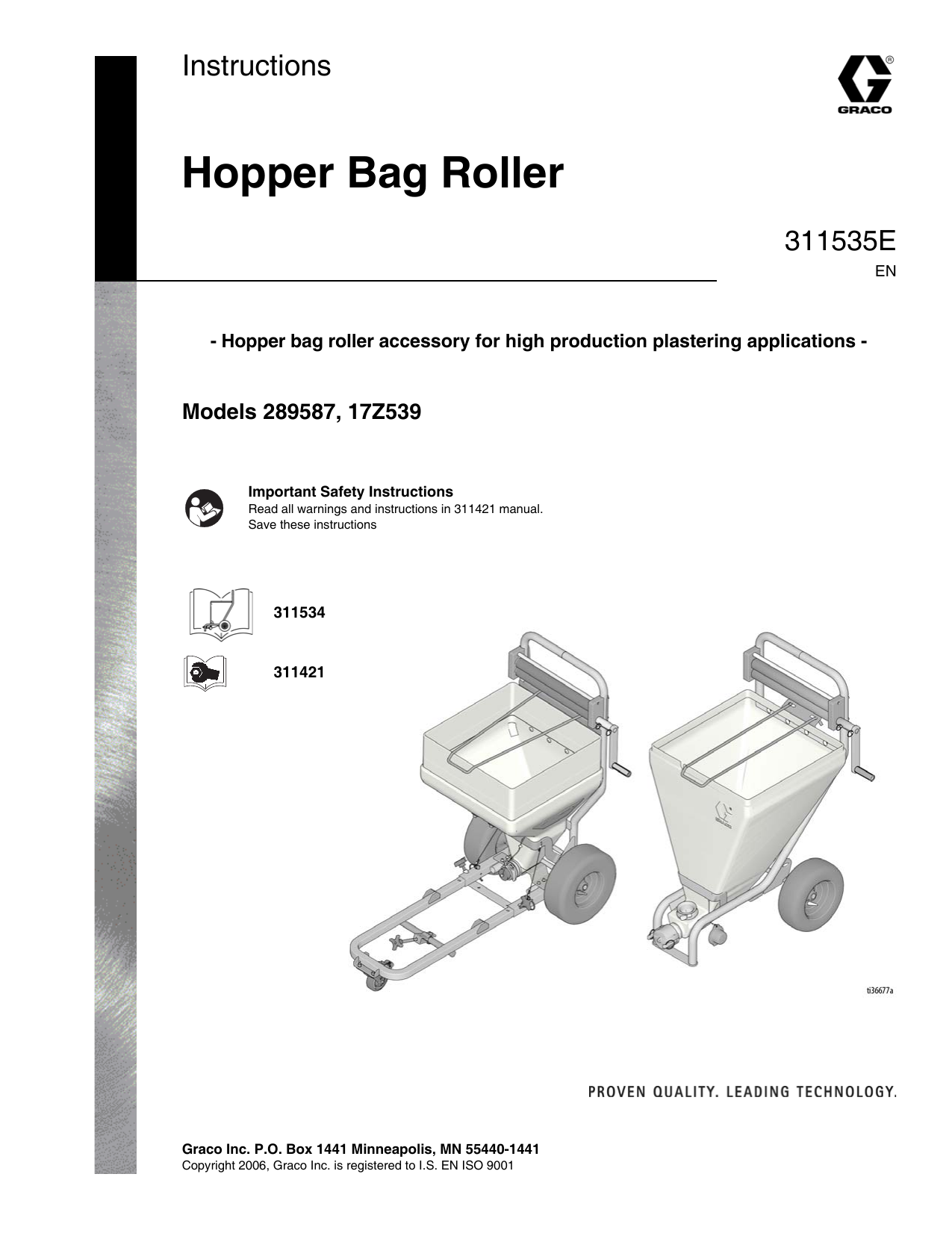

Graco 311535E, Hopper Bag Roller Instructions

Instructions
Hopper Bag Roller
311535E
EN
- Hopper bag roller accessory for high production plastering applications -
Models 289587, 17Z539
Important Safety Instructions
Read all warnings and instructions in 311421 manual.
Save these instructions
311534
311421
Graco Inc. P.O. Box 1441 Minneapolis, MN 55440-1441
Copyright 2006, Graco Inc. is registered to I.S. EN ISO 9001
1
2
3
2
311535E
Instructions
Mount Bag Roller on Texture Hopper
Clean Up
1
Clean rollers.
1
Remove bag roller from crate.
2
Reference Parts, page 5.
3
Fig. 1. Install bag roller on texture hopper handle with four
screws (16).
4
Install spacer (24) to bag roller with ring detent pin (11).
5
Install crank handle (13) to to crank arm (12) with
shoulder screw (14).
6
Install assembled crank arm to spacer with ring detent
pin (11).
Storage
7
Mount rack plate (21) to hopper with two bolts (22) and
nuts (23). (This step does not apply to model 17Z539)
1
Fig. 3. Slide bag rack back through plate holes.*
2
Squeeze ends and insert into gusset.
Operation
1
Fig. 2. Feed bottom of bag into bag roller. Turn crank
handle enough to start to pull bag through rollers. cut off
top of bag.
2
Turn crank handle and squeeze contents of bag into
texture hopper.
311535E
CAUTION
Sharp corners of scrapers can gouge the plastic of the
hopper and, in time, cause leaks.
2
Scrape dry, hard material in hopper with plastic scraper.
3
Flush residue with water.
* Model 17Z539 doesn’t have plate holes. The bag rack stores
inside the fame.
3
Parts: Model 17Z539
Ref
1
2
3
4
5
6
7
8
9
10
11
12
4
Part
110637
15C680
15C547
112166
15R679
121326
15R710
15C923
15R729
15R678
118558
15C487
Description
SCREW, mach, pnhd
PLATE, cover
GEAR, roller
SCREW, cap, sch
BLOCK, gears mounting
BEARING, sleeve
ROLLER, top
BRACE, bagroller
ROLLER, bottom
BLOCK, rollers mounting
PIN, quick release, hitch
ARM, crank
Qty
2
1
2
2
1
4
1
1
1
1
2
1
Ref
13
14
15
16
17
18
20
21
24
26
Part
15C681
118519
70386
115138
15H235
15D949
110755
15T332
15E031
121333
Description
HANDLE, crank
SCREW, shoulder, socket head
LUBRICANT, grease, EP
SCREW, cap, hex hd
RACK, bag
TOOL, multi-purpose
WASHER, plain
PLATE, rack
SPACER, handle, extension
WASHER, foam
Qty
1
1
1
4
1
1
4
1
1
4
311535E
Parts: Model 289587
Ref
1
2
3
4
5
6
7
8
9
10
11
Part
110637
15C680
15C547
112166
15R679
121326
15R710
15C923
15R729
15R678
118558
311535E
Description
SCREW, mach, pnhd
PLATE, cover
GEAR, roller
SCREW, cap, sch
BLOCK, gears mounting
BEARING, sleeve
ROLLER, top
BRACE, bagroller
ROLLER, bottom
BLOCK, rollers mounting
PIN, quick release, hitch
Qty
2
1
2
2
1
4
1
1
1
1
2
Ref
12
13
14
15
16
17
18
20
21
22
23
Part
15C487
15C681
118519
70386
121532
15H235
15D949
100086
15H344
15E031
121333
Description
ARM, crank
HANDLE, crank
SCREW, shoulder, socket head
LUBRICANT, grease, EP
SCREW, cap, hex hd
RACK, bag
TOOL, multi-purpose
WASHER, plain
PLATE, rack
SPACER, handle, extension
WASHER, foam
Qty
1
1
1
1
4
1
1
4
1
1
4
5
TO PLACE AN ORDER, contact your Graco distributor, or call 1-800-690-2894 to identify the nearest distributor.
This manual contains English. MM 311535
Graco Headquarters: Minneapolis
International Offices: Belgium, China, Japan, Korea
GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440-1441
www.graco.com
Revision E, March 2021
