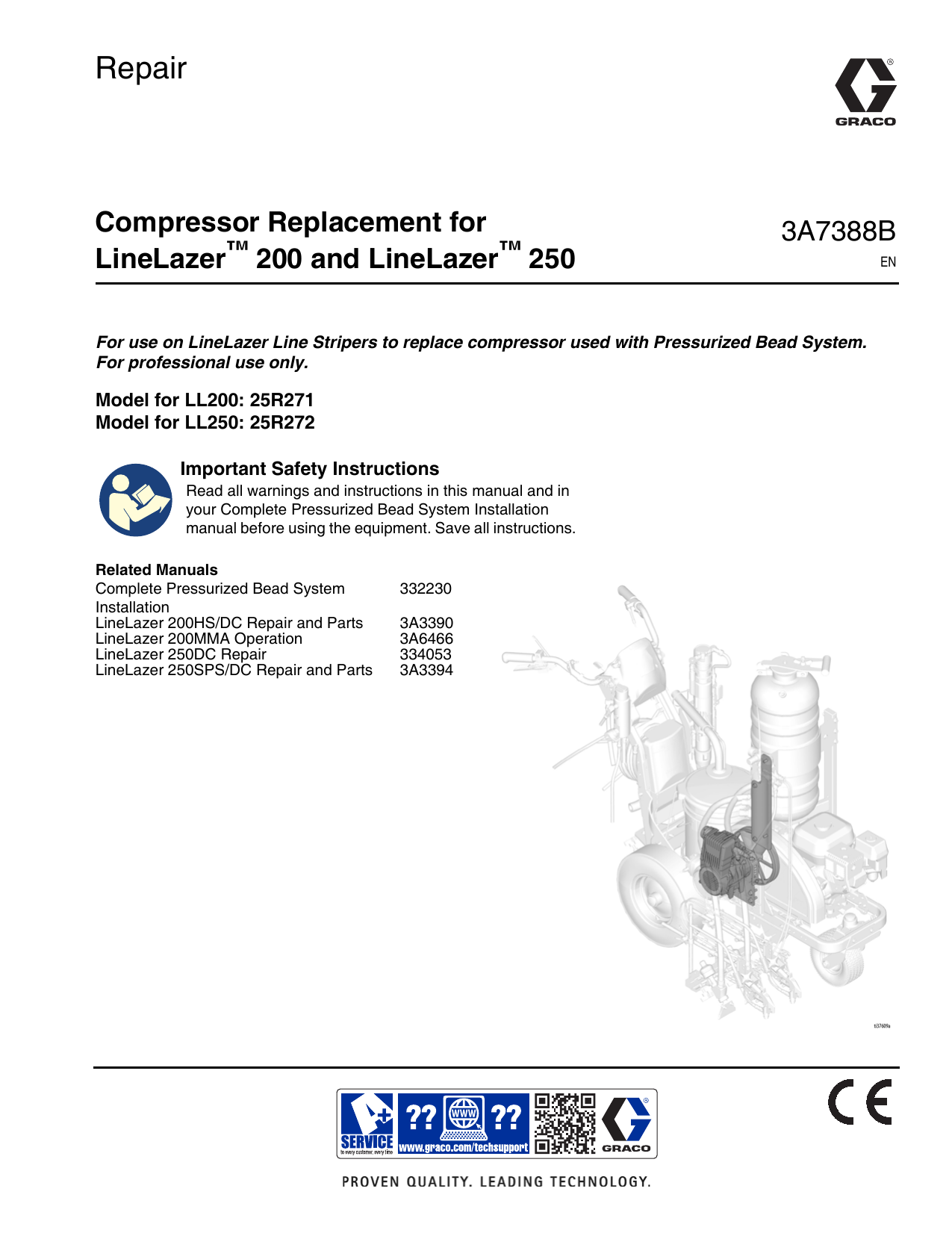

Graco 3A3788B Instructions

Repair
Compressor Replacement for
LineLazer™ 200 and LineLazer™ 250
3A7388B
For use on LineLazer Line Stripers to replace compressor used with Pressurized Bead System.
For professional use only.
Model for LL200: 25R271
Model for LL250: 25R272
Important Safety Instructions
Read all warnings and instructions in this manual and in
your Complete Pressurized Bead System Installation
manual before using the equipment. Save all instructions.
Related Manuals
Complete Pressurized Bead System
Installation
LineLazer 200HS/DC Repair and Parts
LineLazer 200MMA Operation
LineLazer 250DC Repair
LineLazer 250SPS/DC Repair and Parts
332230
3A3390
3A6466
334053
3A3394
EN
Contents
Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Pressure Relief Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
LL200 Compressor Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
LL200 Compressor Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
LL250 Compressor Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
LL250 Compressor Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Recycling and Disposal at End of Life . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
California Proposition 65 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Notes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Parts - LL200 Kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Parts List - LL200 Kit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Parts - LL250 Kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Parts List - LL250 Kit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Graco Standard Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
2
3A7388B
Warnings
Warnings
The following warnings are for the setup, use, grounding, maintenance, and repair of this equipment. The exclamation point symbol
alerts you to a general warning and the hazard symbols refer to procedure-specific risks. When these symbols appear in the body
of this manual or on warning labels, refer back to these Warnings. Product-specific hazard symbols and warnings not covered in
this section may appear throughout the body of this manual where applicable.
WARNING
PRESSURIZED EQUIPMENT HAZARD
Fluid from the equipment, leaks, or ruptured components can splash in the eyes or on skin and cause
serious injury.
•
•
•
Follow the Pressure Relief Procedure when you stop spraying/dispensing and before cleaning,
checking, or servicing equipment.
Tighten all fluid connections before operating the equipment.
Check hoses, tubes, and couplings daily. Replace worn or damaged parts immediately.
MOVING PARTS HAZARD
Moving parts can pinch, cut or amputate fingers and other body parts.
•
•
•
Keep clear of moving parts.
Do not operate equipment with protective guards or covers removed.
Equipment can start without warning. Before checking, moving, or servicing equipment, follow the
Pressure Relief Procedure and disconnect all power sources.
ENTANGLEMENT HAZARD
Rotating parts can cause serious injury.
•
•
•
•
3A7388B
Keep clear of moving parts.
Do not operate equipment with protective guards or covers removed.
Do not wear loose clothing, jewelry or long hair while operating equipment.
Equipment can start without warning. Before checking, moving, or servicing equipment, follow the
Pressure Relief Procedure and disconnect all power sources.
3
Warnings
WARNING
BURN HAZARD
Equipment surfaces and fluid that is heated can become very hot during operation. To avoid severe
burns:
•
Do not touch hot fluid or equipment.
PERSONAL PROTECTIVE EQUIPMENT
Wear appropriate protective equipment when in the work area to help prevent serious injury, including
eye injury, hearing loss, inhalation of toxic fumes, and burns. Protective equipment includes but is not
limited to:
•
•
4
Protective eyewear, and hearing protection.
Respirators, protective clothing, and gloves as recommended by the fluid and solvent manufacturer.
3A7388B
Pressure Relief Procedure
Pressure Relief Procedure
Follow the Pressure Relief Procedure whenever
you see this symbol.
3. Loosen wing nut (2) until it reaches end of threads.
If any remaining pressure is in bead tank, it will be
released through seal while wing nut secures lid to
hopper. Confirm pressure is at 0 psi (0 bar, 0 MPa)
and open lid.
2
This equipment stays pressurized until pressure is
manually relieved. To help prevent serious injury from
pressurized fluid, such as skin injection, splashing
fluid and moving parts, follow the Pressure Relief
Procedure when you stop spraying and before
cleaning, checking, or servicing the equipment.
1. Turn engine OFF.
ti21077a
4. Secure lid over opening and tighten wing nut until lid
is level with hopper.
2. Release pressure on bead tank to 0 psi (0 bar, 0
MPa). Turn pressure relief valve (8) to vertical position and watch bead tank pressure gauge until pressure reads 0 psi (0 bar, 0 MPa). Do not use safety
valve (3) to release pressure from bead tank.
ti21080a
3
8
ti21075a
3A7388B
ti21081a
5
LL200 Compressor Removal
LL200 Compressor Removal
Tools Needed: 1/8 in. Allen wrench, 9/16 in. wrench.
6. Using a 9/16 in. wrench, remove four screws
between compressor bracket and frame. Remove
compressor.
To prevent injuries from burns, let unit cool prior to
working on it.
1. Turn engine OFF. Let engine cool prior to working
on it.
2. Disconnect spark plug wire on engine. Perform
Pressure Relief Procedure page 5.
ti24337a
3. Disconnect output air line.
4. Remove three pan head screws, flat washers, and
lock washers holding coupler guard in place.
Remove coupler guard.
7. Using a 1/8 in. Allen wrench, remove coupler set
screw. Remove chain coupler from plate coupler.
5. Remove spring clip and connecting pin on chain.
Remove chain from around both sprockets.
6
3A7388B
LL200 Compressor Installation
LL200 Compressor Installation
Tools Needed: 2.5 mm Allen wrench, 4.0 mm Allen
wrench, 1/4 in. Allen wrench, 7/16 in. wrench, 9/16 in.
wrench, 11/16 in. wrench, T-20 star bit, rubber mallet,
Phillips screwdriver.
5. Using same bolts (bb) and lock nuts (22), install air
tank bracket (3).
3A3788
Replacing the compressor requires pulling on the
starting rope. To help prevent entanglement,
pinching, and potentially serious injury from an
unexpected start-up, disconnect the spark plug prior
to compressor replacement.
1. Turn engine OFF. Let engine cool prior to working
on it.
2. Disconnect spark plug on engine. Perform
Pressure Relief Procedure page 5.
3. Disconnect output air line.
4. Using a 9/16 in. wrench, remove air tank from
frame.
3A7388B
7
LL200 Compressor Installation
6. With a 9/16 in. wrench, mount air tank to air tank
bracket with screws. When correctly installed, air
tank will sit farther forward than the previous
installation.
8. Remove hopper. Locate belt shroud. Loosen knob
and rotate shroud.
9. Using a 1/4 in. Allen wrench, remove shoulder bolts
and serrated nuts securing existing coupler plate.
NOTE: Do not use ball end Allen wrenches, as they
may break and become stuck in the screws.
10. Loosen set screws on pulley. Lift engine to provide
slack for the belt and remove old pulley.
11. File any rough spots on the pump shaft key.
7. Use the T-20 star bit to remove fan grill (FF) from
shroud. Save screws for reattachment.
8
12. Slide new pulley on to the pump shaft. Pump shaft
must extend 0.125-0.225 in. (3.175-5.73 mm)
beyond the face of the pulley. The pump shaft is the
pilot for the coupler adapter.
3A7388B
LL200 Compressor Installation
13. Torque pulley set screws to 58-62 in-lb (6.6-7 N•m)
14. Install belt on pulley. Refer to Ground Drive Belt
Replacement in your striper repair manual for
additional instructions and belt tension
recommendations.
16. Use existing screws to install fan grill (FF) back onto
belt shroud. Do not over-tighten screws. Make sure
fan grill protrudes out; not into the belt shroud.
NOTE: Before performing step 15, secure nuts to back
of pulley with piece of duct tape to assist with
installation.
15. Put belt shroud down. Install shaft coupler (5) onto
pulley with two shoulder screws (18) and serrated
nuts (19). Position slot on back of pulley up and
move serrated nut with finger to accept shoulder
bolt threads. Tighten shoulder bolt by hand until the
teeth on the serrated nut catch the aluminum on the
fan. Using a 1/4 in. Allen wrench, torque to 16-18
ft-lb (21-24 N•m).
3A7388B
9
LL200 Compressor Installation
17. Position compressor bracket (4) with three tabs
facing towards the fan grill. Center shaft coupler
both vertically and horizontally in slot. Insert four
screws (20) through the slots in the compressor
bracket and tighten to 23-27 ft-lb (31-37 N•m).
19. Slowly pull the starter rope to rotate shaft so that the
shaft keyway (5) faces up. Place the key (2) into the
shaft keyway. A light tap with a rubber mallet may
be needed to ensure the key seats completely.
NOTICE
Performing steps 20 through 24 out of order, or
incorrectly, may cause excessive side loading on the
compressor shaft and could cause a premature failure
of the compressor.
18. Place drop of medium strength thread locker on the
threads of each set screw. Using a 2.5 mm and a
4.0 mm Allen wrench, screw the set screws into the
shaft collar far enough so that the shaft collar can
slide on the compressor shaft. Rotate the shaft
collar so the pin faces up. Align the shaft collar pin
with the compressor shaft keyway as shown. Slide
the shaft collar onto the compressor shaft, pin first.
10
3A7388B
LL200 Compressor Installation
20. Slide compressor onto the shaft coupler mounting
plate until the face of the compressor is flush with
compressor bracket. Rotate the compressor 90
degrees counter-clockwise until the set screw is
accessible.
3A7388B
21. Use two carriage bolts, two washers, and two nuts
in opposing holes (180 degrees apart) to tighten the
compressor to the compressor bracket.
11
LL200 Compressor Installation
22. Slowly pull the starter rope to rotate shaft until the
two M8x10 set screws appear in the set screw
access. Torque the set screws to 150-160 in-lb
(16.9-18 N•m). Again, slowly pull the starter rope
until the single M5x8 set screw appears in the
access and tighten it to 37-42 in-lb (4-4.7 N•m).
24. With the compressor secured to the coupler
mounting plate, slightly loosen the four mounting
screws (20). Install all four carriage bolts (9),
washers (10), and lock nuts (11), and torque to
150-160 in-lb (16.9-18 N•m). Re-tighten all four
mounting screws (20) to 23-27 ft-lb (31-37 N•m).
NOTE: Do not use ball end Allen wrenches, as they
may break and become stuck in the screws.
23. Remove two carriage bolts, two washers, and two
nuts in opposing holes (180 degrees apart), and
rotate the compressor clockwise 90 degrees back to
the upright orientation.
25. Install compressor guard using three screws (14),
lock washers (15), and flat washers (16). Torque to
130-150 in-lb (14.7-16.9 N•m).
12
3A7388B
LL200 Compressor Installation
26. Apply thread sealant paste to threads of tee fitting
(6). Install tee fitting with safety valve (7) into
compressor output. Use a 11/16 in. wrench and a
9/16 in. backup wrench to attach the braided hose
from the air tank to the tee.
29. If unit is equipped with a drain plug, remove drain
plug and verify oil is visible on threads of drain port.
If not full, fill with included oil through drain port until
visible on threads.
If unit is equipped with sight glass, verify oil is above
red dot. If not, remove oil breather and fill with oil
through breather port until level is above red dot.
27. Remove plug from compressor case. Install oil
breather (1c).
28. Install air filter, hand tighten.
NOTE: Oil level will change at a slower rate than poured
as it descends into the crankcase. Pour small amounts
at a time, checking between pours.
NOTICE
Failure to properly fill compressor with oil can result in
failure and/or severe or catastrophic damage to the
compressor.
30. Reconnect spark plug wire.
3A7388B
13
LL250 Compressor Removal
LL250 Compressor Removal
Tools Needed: 1/8 in. Allen wrench, 9/16 in. wrench.
6. Using a 9/16 in. wrench, remove three screws (VV)
on the compressor bracket.
To prevent injuries from burns, let unit cool prior to
working on it.
1. Turn engine OFF and remove key. Let engine cool
prior to working on it.
2. Disconnect battery cable. Perform Pressure Relief
Procedure page 5.
3. Disconnect output air line.
4. Remove three pan head screws, flat washers, and
lock washers holding coupler guard in place.
Remove coupler guard.
5. Remove spring clip and connecting pin on chain.
Remove chain from around both sprockets.
14
7. Using a 1/8 in. Allen wrench, remove coupler set
screw. Remove chain coupler from plate coupler.
3A7388B
LL250 Compressor Installation
LL250 Compressor Installation
Tools Needed: 2.5 mm Allen wrench, 4.0 mm Allen
wrench, 1/4 in. Allen wrench, 7/16 in. wrench, 9/16 in.
wrench, 11/16 in. wrench, T-20 star bit, rubber mallet,
Phillips screwdriver.
5. Using a 9/16 in. wrench and screws, mount the air
tank to the new air tank bracket.
3A3788
Replacing the compressor requires pulling on the
starting rope. To help prevent entanglement,
pinching, and potentially serious injury from an
unexpected start-up, turn engine off, remove key, and
disconnect the battery cable prior to compressor
replacement.
1. Turn engine OFF and remove key. Let engine cool
prior to working on it.
2. Disconnect battery cable. Perform Pressure Relief
Procedure page 5.
3. Disconnect output air line.
4. Using a 9/16 in. wrench, remove air tank and
existing air tank bracket. Using the same bolts, plus
lock nuts (22), install air bracket (3).
6. Using T-20 star bit, remove fan grill (FF) from
shroud. Save screws, nuts, and washers for
reattachment.
3A7388B
15
LL250 Compressor Installation
7. Remove hopper. Locate belt shroud. Loosen screw
(A) and lift belt shroud (B).
NOTE: Before performing step 14, secure nuts to back
of pulley with piece of duct tape to assist with
installation.
14. Put belt shroud down. Install coupler mounting plate
(5) onto pulley with two shoulder screws (18) and
serrated nuts (19). Position slot on back of pulley up
and move serrated nut with finger to accept
shoulder bolt threads. Tighten shoulder bolt by hand
until the teeth on the serrated nut catch the
aluminum on the fan. Using a 1/4 in. Allen wrench,
torque to 16-18 ft-lb (21-24 N•m).
8. Using a 1/4 in. Allen wrench, remove shoulder bolts
and serrated nuts securing existing coupler plate.
NOTE: Do not use ball end Allen wrenches, as they
may break and become stuck in the set screws.
9. Loosen set screws on pulley. Loosen tension bolts
to provide slack on pulley.
10. File any rough spots on the pump shaft key.
11. Slide new pulley on to the pump shaft. Pump shaft
must extend 0.125-0.225 in. (3.175-5.73 mm)
beyond the face of the pulley. The pump shaft is the
pilot for the coupler adapter.
12. Torque pulley set screws to 58-62 in-lb (6.6-7 N•m).
13. Install belt on pulley. Refer to Ground Drive Belt
Replacement in your striper repair manual for
additional instructions and belt tension
recommendations.
16
3A7388B
LL250 Compressor Installation
15. Use existing screws, nuts, and washers to install fan
grill (FF) back onto bet shroud. Do not over-tighten
screws. Make sure fan grill protrudes out; not into
the belt shroud.
3A7388B
16. Remove two existing bolts and washers from striper
frame. Install compressor bracket with three tabs
facing towards fan grill using existing washers and
bolts. Center coupler mounting plate horizontally in
slot, then tighten the two mounting screws to 23-27
ft-lb (31-37 N•m).
17
LL250 Compressor Installation
17. Place drop of medium strength thread locker on the
threads of each set screw. Using a 2.5 mm and a
4.0 mm Allen wrench, screw the set screws into the
shaft collar far enough so that the shaft collar can
slide on the compressor shaft sleeve. Rotate the
shaft collar so the pin faces up. Align the shaft collar
pin with the compressor shaft keyway as shown.
Slide the shaft collar onto the compressor shaft, pin
first.
NOTICE
Performing steps 19 through 23 out of order, or
incorrectly, may cause excessive side loading on the
compressor shaft and could cause a premature failure
of the compressor.
19. Slide the compressor onto the coupler mounting
plate until the face of the compressor is flush with
the compressor bracket. Rotate the compressor 90
degrees clockwise so that the set screw access is
accessible.
18. Using a long screw driver, slowly rotate the fan
pulley. With the keyway of the coupler mounting
plate facing up, place the key into the shaft keyway
with the key slid to the end of the shaft keyway (as
shown). A light tap with a rubber mallet may be
needed to ensure the key seats completely.
18
3A7388B
LL250 Compressor Installation
20. Use two carriage bolts (8), two washers (9), and two
nuts (16) in opposing holes (180 degrees apart) to
tighten the compressor to the compressor bracket.
21. Using a long screw driver, slowly rotate the fan
pulley until the two M8x10 set screws appear in the
set screw access. Torque the set screws to 150-160
in. lb (16.9-18 N•m). Again, slowly rotate the fan
pulley until the single M5x8 set screw appears in the
access and tighten it to 37-42 in. lb (4-4.7 N•m).
NOTE: Do not use ball end Allen wrenches, as they
may break and become stuck in the set screws.
22. Remove two carriage bolts, two washers, and two
nuts in opposing holes (180 degrees apart), and
rotate the compressor counterclockwise 90 degrees
back to the upright orientation.
3A7388B
19
LL250 Compressor Installation
23. With the compressor secured to the coupler
mounting plate, slightly loosen the two mounting
screws between the frame and bracket. Install all
four carriage bolts (9), washers (10), and lock nuts
(11), and torque to 150-160 in. lb (16.9-18 N•m).
Re-tighten the two mounting screws to 23-27 ft. lb
(31-37 N•m).
24. Install compressor guard using three screws (14),
lock washers (15), and flat washers (16). Torque to
130-150 in. lb (14.7-16.9 N•m).
20
25. Apply thread sealer to threads of tee fitting (6).
Install tee fitting with safety valve (7) into
compressor output. Use a 11/16 in. wrench and a
9/16 backup wrench to attach the braided hose from
the air tank to the tee.
26. Remove plug from compressor case. Install oil
breather (1C).
3A7388B
LL250 Compressor Installation
27. Install air filter. Hand tighten.
28. If unit is equipped with a drain plug, remove drain
plug and verify oil is visible on threads of drain port.
If not full, fill with included oil through drain port until
visible on threads.
If unit is equipped with sight glass, verify oil is above
red dot. If not, remove oil breather and fill with oil
through breather port until level is above red dot.
NOTE: Oil level will change at a slower rate than poured
as it descends into the crankcase. Pour small amounts
at a time, checking between pours.
NOTICE
Failure to properly fill compressor with oil can result in
failure and/or severe or catastrophic damage to the
compressor.
29. Reconnect the battery.
3A7388B
21
Maintenance
Maintenance
Routine maintenance is important to ensure proper operation of your compressor. Maintenance includes performing
routine actions to keep your compressor in operation and prevent trouble in the future.
Activity
Replace air filter
Change oil*
Interval
Every 200 hours, or as needed
After first 50 hours, then every 200 hours or three months
* Drain oil by siphoning from fill port. Use approximately 4 fl. oz of SAE 30W air compressor oil. If equipped with a drain plug, proper
oil level is attained when oil is visible on threads of drain port. If equipped with a sight glass, proper oil level is attained when oil is
above red dot.
Recycling and Disposal at End of Life
At the end of the product’s useful life, dismantle and recycle it in a responsible manner.
Preparation:
•
•
Perform the Pressure Relief Procedure on page 5.
Drain and dispose of fluids according to applicable regulations. Refer to the material manufacturer’s Safety Data
Sheet.
Dismantle and recycle:
•
•
Remove motors, circuit boards, displays, and other electronic components. Recycle according to applicable
regulations.
Do not dispose of electronic components with household or commercial waste.
•
Deliver remaining product to a recycling facility.
California Proposition 65
WARNING: This product can expose you to chemicals known to the State of California
to cause cancer and birth defects or other reproductive harm. For more information
go to www.P65Warnings.ca.gov.
22
3A7388B
Notes
Notes
3A7388B
23
Parts - LL200 Kit
Parts - LL200 Kit
24
3A7388B
Parts List - LL200 Kit
Parts List - LL200 Kit
Ref.
Part
1
1a
25R108
19B286
1b*
1c
1d*
1e*
2
3
4
5
6
7
8
9
10
11
12
13
14
25R109
25R114
25R110
25R111
25P605
25P599
25P600
25P602
124490
113769
164672
17N821
100527
111040
25P598
15H108
108296
3A7388B
Description
Qty.
1
COMPRESSOR, oil
1
KIT, collar, shaft, Includes 1b, 1d,
1e, and 26
1
COLLAR, shaft,
BREATHER, oil
1
SET SCREWS, M5x8
2
SET SCREW, M8x10
1
KEY, square, 3/16 x 1.34
1
BRACKET, air tank
1
BRACKET, compressor, straight
1
COUPLER, mounting plate
1
FITTING, tee, street
1
VALVE, safety, 125 psi
1
FITTING, adapter
4
BOLT, carriage
4
WASHER, flat
4
NUT, lock, insert 5/16
1
GUARD, compressor
2
LABEL, safety, warning, pinch
3
SCREW, mach, hex
Ref.
Part
15
16
18
19
20
21
22
23
26*
27
100016
110755
126833
112958
111193
111192
101566
25R115
113500
16U205
28
101962
Description
Qty.
3
WASHER, lock
3
WASHER, flat, 1/4 in.
2
SCREW, shoulder, socket head
2
NUT, hex, flanged, 3/8-16
4
SCREW, cap, flange head, 3/8-16
2
SCREW, cap, flange head
2
NUT, lock, 3/8-16
1
FILTER, air, compressor
1
ADHESIVE, anaerobic
1
PULLEY, fan, with attachment
holes
2
SCREW, set, SCH 1/4-20
 Replacement safety labels, tags, and cards are
available at no cost.
* Parts included in kit 19B286.
 Parts included in kit 25R108
25
Parts - LL250 Kit
Parts - LL250 Kit
26
3A7388B
Parts List - LL250 Kit
Parts List - LL250 Kit
Ref.
Part
1
1a
25R108
19B286
1b*
1c
1d*
1e*
2
3
4
5
6
7
8
9
10
11
12
13
25R109
25R114
25R110
25R111
25R126
25P603
25P601
25P602
124490
113769
164672
17N821
100527
111040
25P598
15H108
3A7388B
Description
Qty.
1
COMPRESSOR, oil
1
KIT, collar, shaft, Includes 1b, 1d,
1e, and 26
1
COLLAR, shaft,
BREATHER, oil
1
SET SCREWS, M5x8
2
SET SCREW, M8x10
1
KEY, shaft
1
BRACKET, air tank LL250
1
BRACKET, compressor 250
1
COUPLER, mounting plate
1
FITTING, tee, street
1
VALVE, safety, 125 psi
1
FITTING, adapter
4
BOLT, carriage
4
WASHER, flat
4
NUT, lock, insert 5/16
1
GUARD, compressor
2
LABEL, safety, warning, pinch
Ref.
14
15
16
18
19
21
22
23
26*
27
28
Part
Description
108296
100016
110755
126833
112958
111192
101566
25R115
113500
16U205
SCREW, mach, hex
WASHER, lock
WASHER, flat, 1/4 in.
SCREW, shoulder, socket head
NUT, hex, flanged, 3/8-16
SCREW, cap, flange head
NUT, lock, 3/8-16
FILTER, air, compressor
ADHESIVE, anaerobic
PULLEY, fan, with attachment
holes
101962 SCREW, set, SCH 1/4-20
Qty.
3
3
3
2
2
2
2
1
1
1
2
 Replacement safety labels, tags, and cards are
available at no cost.
* Parts included in Kit 19B286
 Parts included in kit 25R108
27
Graco Standard Warranty
Graco Standard Warranty
Graco warrants all equipment referenced in this document which is manufactured by Graco and bearing its name to be free from defects in
material and workmanship on the date of sale to the original purchaser for use. With the exception of any special, extended, or limited warranty
published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by
Graco to be defective. This warranty applies only when the equipment is installed, operated and maintained in accordance with Graco’s written
recommendations.
This warranty does not cover, and Graco shall not be liable for general wear and tear, or any malfunction, damage or wear caused by faulty
installation, misapplication, abrasion, corrosion, inadequate or improper maintenance, negligence, accident, tampering, or substitution of
non-Graco component parts. Nor shall Graco be liable for malfunction, damage or wear caused by the incompatibility of Graco equipment with
structures, accessories, equipment or materials not supplied by Graco, or the improper design, manufacture, installation, operation or
maintenance of structures, accessories, equipment or materials not supplied by Graco.
This warranty is conditioned upon the prepaid return of the equipment claimed to be defective to an authorized Graco distributor for verification of
the claimed defect. If the claimed defect is verified, Graco will repair or replace free of charge any defective parts. The equipment will be returned
to the original purchaser transportation prepaid. If inspection of the equipment does not disclose any defect in material or workmanship, repairs
will be made at a reasonable charge, which charges may include the costs of parts, labor, and transportation.
THIS WARRANTY IS EXCLUSIVE, AND IS IN LIEU OF ANY OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT
LIMITED TO WARRANTY OF MERCHANTABILITY OR WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE.
Graco’s sole obligation and buyer’s sole remedy for any breach of warranty shall be as set forth above. The buyer agrees that no other remedy
(including, but not limited to, incidental or consequential damages for lost profits, lost sales, injury to person or property, or any other incidental or
consequential loss) shall be available. Any action for breach of warranty must be brought within two (2) years of the date of sale.
GRACO MAKES NO WARRANTY, AND DISCLAIMS ALL IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE, IN CONNECTION WITH ACCESSORIES, EQUIPMENT, MATERIALS OR COMPONENTS SOLD BUT NOT
MANUFACTURED BY GRACO. These items sold, but not manufactured by Graco (such as electric motors, switches, hose, etc.), are subject to
the warranty, if any, of their manufacturer. Graco will provide purchaser with reasonable assistance in making any claim for breach of these
warranties.
In no event will Graco be liable for indirect, incidental, special or consequential damages resulting from Graco supplying equipment hereunder, or
the furnishing, performance, or use of any products or other goods sold hereto, whether due to a breach of contract, breach of warranty, the
negligence of Graco, or otherwise.
FOR GRACO CANADA CUSTOMERS
The Parties acknowledge that they have required that the present document, as well as all documents, notices and legal proceedings entered into,
given or instituted pursuant hereto or relating directly or indirectly hereto, be drawn up in English. Les parties reconnaissent avoir convenu que la
rédaction du présente document sera en Anglais, ainsi que tous documents, avis et procédures judiciaires exécutés, donnés ou intentés, à la suite
de ou en rapport, directement ou indirectement, avec les procédures concernées.
28
3A7388B
Graco Standard Warranty
Graco Information
For the latest information about Graco products, visit www.graco.com.
For patent information, see www.graco.com/patents.
TO PLACE AN ORDER, contact your Graco distributor or call 1-800-690-2894 to identify the nearest distributor.
3A7388B
29
All written and visual data contained in this document reflects the latest product information available at the time of publication.
Graco reserves the right to make changes at any time without notice.
Original instructions. This manual contains English. MM 3A788
Graco Headquarters: Minneapolis
International Offices: Belgium, China, Japan, Korea
GRACO INC. AND SUBSIDIARIES • P.O. BOX 1441 • MINNEAPOLIS MN 55440-1441 • USA
Copyright 2018, Graco Inc. All Graco manufacturing locations are registered to ISO 9001.
www.graco.com
Revision B, June 2021

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
