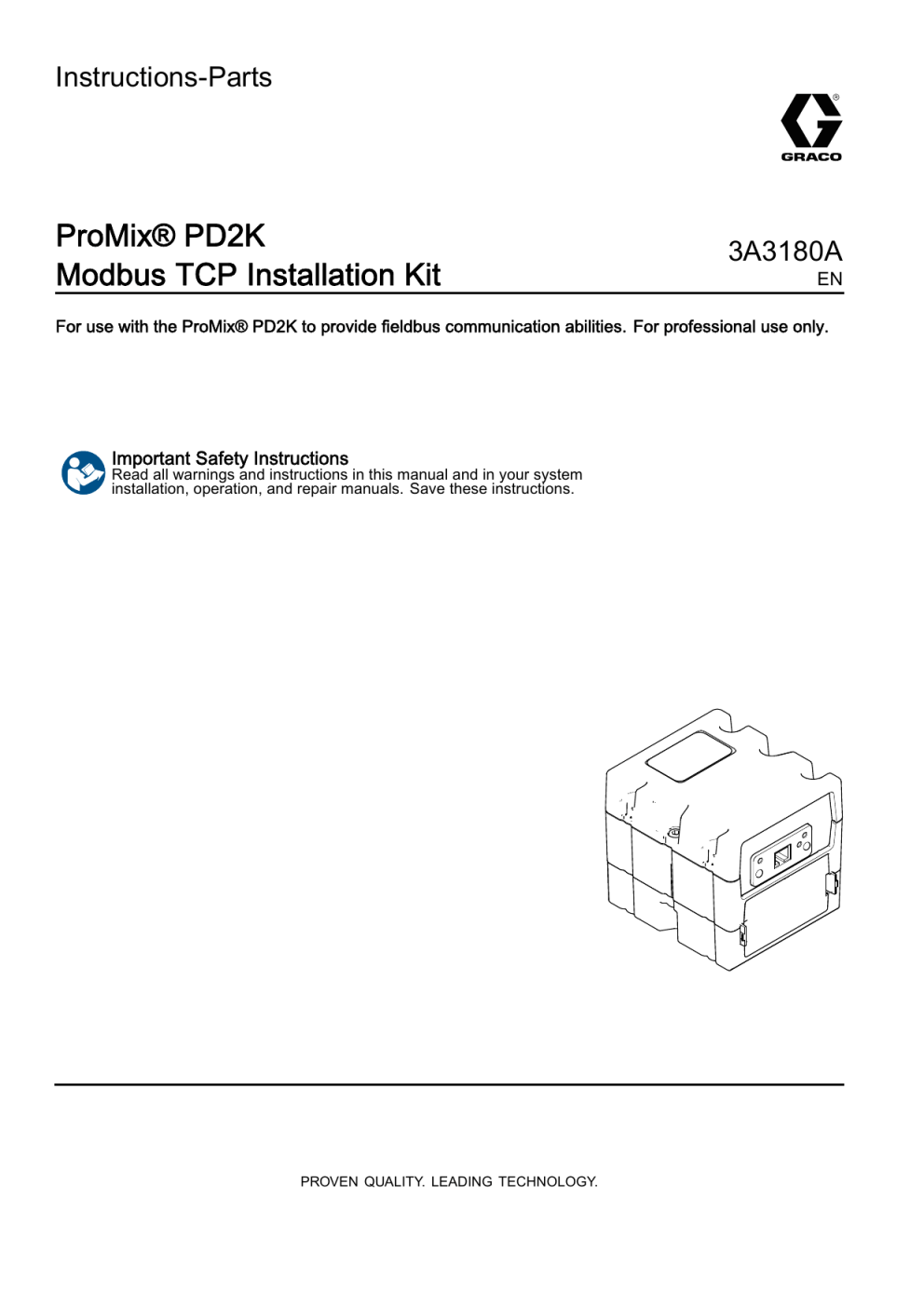

Graco 3A3180A, ProMix PD2K Modbus TCP Instructions

Instructions-Parts
ProMix® PD2K
Modbus TCP Installation Kit
3A3180A
EN
For use with the ProMix® PD2K to provide fieldbus communication abilities. For professional use only.
Important Safety Instructions
Read all warnings and instructions in this manual and in your system
installation, operation, and repair manuals. Save these instructions.
PROVEN QUALITY. LEADING TECHNOLOGY.
Contents
Related Manuals ................................................ 3
Introduction ........................................................ 4
Installation.......................................................... 5
Mount the Bracket........................................ 5
2
Mount the Module ........................................ 5
Connect the Cables...................................... 6
Parts.................................................................. 7
3A3180A
Related Manuals
Related Manuals
Current manuals are available at www.graco.com.
Manual No.
Description
332457
ProMix PD2K Proportioner for Manual Spray Applications, Installation
332562
ProMix PD2K Proportioner for Manual Spray Applications, Operation
3A2800
ProMix PD2K Proportioner for Manual Spray Applications, Repair-Parts
3A3170
ProMix PD2K Advanced Web Interface
332339
Dosing Pumps, Instructions/Parts
332454
Color/Catalyst Dispense Valves, Instructions/Parts
332455
Color Change Kits, Instructions-Parts
332456
Pump Expansion Kits, Instructions-Parts
332459
Advanced Web Interface Kit
3A3180A
3
Introduction
Introduction
This manual provides instructions for installing a communication gateway module (CGM) in a ProMix® PD2K system.
• See the Modbus TCP Gateway Module manual 334183 for detailed information on the CGM for the Modbus
TCP protocol.
• See the ProMix PD2K operation manual 332562 for setup details and available internal data.
To Non-IS
Color Change
Module(s)
ADM
CAN Isolation
Board
EFCM
Communication Gateway Module
Node
Node
CAN Cable
Fieldbus (customer supplied)
Ferrite
Figure 1
4
3A3180A
Installation
Installation
Mount the Bracket
1. Remove power from the system.
2. Use four screws (2) to mount the bracket (1) to
the holes in the back of the electrical control box.
Mount the Module
1. Install the CGM on the mounting bracket in the
electrical control box.
b. Use four screws (7) to mount the base (B) to
the bracket in the electrical control box.
c.
Install the grounding screw (5) and washer
(6). Tighten so that the grounding screw
attaches to the mounting bracket.
d. Mount the CGM (A) on the base (B) with two
screws (D).
e. Examine the 16–position rotary switch in the
base cavity that the access cover inserts
into. Ensure that the rotary switch is set to
position zero (0).
NOTE: If additional CGMs are added, each
additional CGM must be at a unique setting
on its rotary switch.
f.
Install the access cover (C).
a. Remove the access cover (C). Loosen two
screws (D) and remove the CGM (A) from
the base (B).
3A3180A
5
Installation
Connect the Cables
4. Route the cable down to the CAN 1 connection
and attach it to the CGM.
NOTE: CAN ports are located on the base (8a) of
the CGM.
5. Connect the supplied CAN cable from CAN 2 on
the CGM and to the isolation board, J1.
NOTICE
To avoid severe damage to the GCA modules,
ensure that the CAN cable is connected to the
appropriate CAN connection.
6. Connect the FieldBus cable to the CGM. Connect
the other end of the cable to the AWI.
1. Install the module (see
Mount the Module, page 5 ).
2. Locate the cable that is connected between the
isolation board, connector J1, and the EFCM, J8.
NOTE: Connect the CGM to the FieldBus
according to FieldBus standards. The Modbus
TCP interface operates at 100Mbit, full duplex.
The interface is auto polarity sensing and
auto-crossover capable.
7. Connect the ferrites (3) on both CAN cables and
the FieldBus cable, adjacent to the CGM.
3. Disconnect the cable from J1 of the isolation
board.
8. Attach the two tie strap mounts to the electrical
control box at locations that will provide support
for the two CAN cables routed to the CGM from
the isolation board and the FSCM.
9. Use the two tie straps, inserted through the
eyelets on the tie strap mounts and wrapped
around the cables, to secure the cables. Trim off
the excess portion of each tie strap.
6
3A3180A
Parts
Parts
3A3180A
7
Parts
Kit 24T805
Ref
Part
Description
Qty
1
16V797
BRACKET
1
2
112144
SCREW, pan head, #8–32 x 0.2 5 in.
4
3
121901
SUPPRESSOR, box snap, ferrite
3
4
121227
CABLE, CAN, female/female, 0.6m
1
5
123286
SCREW, machine, #6–32 x 1.5 in.
1
6
100272
WASHER
1
7
113964
SCREW, pan head, #6–32 x 0.75 in.
4
8
———
MODULE, Communications Gateway, Modbus TCP (includes
8a – 8c)
1
8a
289697
Base
8b
24R910
Module
8c
277674
Cover
9
102478
Tie strap (not shown)
2
10
117793
Tie strap mount (not shown)
2
11
16U706
Grommet (not shown)
1
8
3A3180A
Graco Standard Warranty
Graco warrants all equipment referenced in this document which is manufactured by Graco and bearing its
name to be free from defects in material and workmanship on the date of sale to the original purchaser for
use. With the exception of any special, extended, or limited warranty published by Graco, Graco will, for a
period of twelve months from the date of sale, repair or replace any part of the equipment determined by
Graco to be defective. This warranty applies only when the equipment is installed, operated and maintained
in accordance with Graco’s written recommendations.
This warranty does not cover, and Graco shall not be liable for general wear and tear, or any malfunction,
damage or wear caused by faulty installation, misapplication, abrasion, corrosion, inadequate or improper
maintenance, negligence, accident, tampering, or substitution of non-Graco component parts. Nor shall
Graco be liable for malfunction, damage or wear caused by the incompatibility of Graco equipment with
structures, accessories, equipment or materials not supplied by Graco, or the improper design, manufacture,
installation, operation or maintenance of structures, accessories, equipment or materials not supplied
by Graco.
This warranty is conditioned upon the prepaid return of the equipment claimed to be defective to an
authorized Graco distributor for verification of the claimed defect. If the claimed defect is verified, Graco
will repair or replace free of charge any defective parts. The equipment will be returned to the original
purchaser transportation prepaid. If inspection of the equipment does not disclose any defect in material
or workmanship, repairs will be made at a reasonable charge, which charges may include the costs of
parts, labor, and transportation.
THIS WARRANTY IS EXCLUSIVE, AND IS IN LIEU OF ANY OTHER WARRANTIES, EXPRESS OR
IMPLIED, INCLUDING BUT NOT LIMITED TO WARRANTY OF MERCHANTABILITY OR WARRANTY
OF FITNESS FOR A PARTICULAR PURPOSE.
Graco’s sole obligation and buyer’s sole remedy for any breach of warranty shall be as set forth above. The
buyer agrees that no other remedy (including, but not limited to, incidental or consequential damages for
lost profits, lost sales, injury to person or property, or any other incidental or consequential loss) shall be
available. Any action for breach of warranty must be brought within two (2) years of the date of sale.
GRACO MAKES NO WARRANTY, AND DISCLAIMS ALL IMPLIED WARRANTIES OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE, IN CONNECTION WITH ACCESSORIES, EQUIPMENT,
MATERIALS OR COMPONENTS SOLD BUT NOT MANUFACTURED BY GRACO. These items sold, but
not manufactured by Graco (such as electric motors, switches, hose, etc.), are subject to the warranty, if
any, of their manufacturer. Graco will provide purchaser with reasonable assistance in making any claim
for breach of these warranties.
In no event will Graco be liable for indirect, incidental, special or consequential damages resulting from
Graco supplying equipment hereunder, or the furnishing, performance, or use of any products or other goods
sold hereto, whether due to a breach of contract, breach of warranty, the negligence of Graco, or otherwise.
FOR GRACO CANADA CUSTOMERS
The Parties acknowledge that they have required that the present document, as well as all documents,
notices and legal proceedings entered into, given or instituted pursuant hereto or relating directly or indirectly
hereto, be drawn up in English. Les parties reconnaissent avoir convenu que la rédaction du présente
document sera en Anglais, ainsi que tous documents, avis et procédures judiciaires exécutés, donnés ou
intentés, à la suite de ou en rapport, directement ou indirectement, avec les procédures concernées.
Graco Information
For the latest information about Graco products, visit www.graco.com.
To place an order, contact your Graco Distributor or call to identify the nearest distributor.
Phone: 612-623-6921 or Toll Free: 1-800-328-0211 Fax: 612-378-3505
All written and visual data contained in this document reflects the latest product information available at the time of publication.
Graco reserves the right to make changes at any time without notice.
For patent information, see www.graco.com/patents.
Original Instructions. This manual contains English. MM 3A3180
