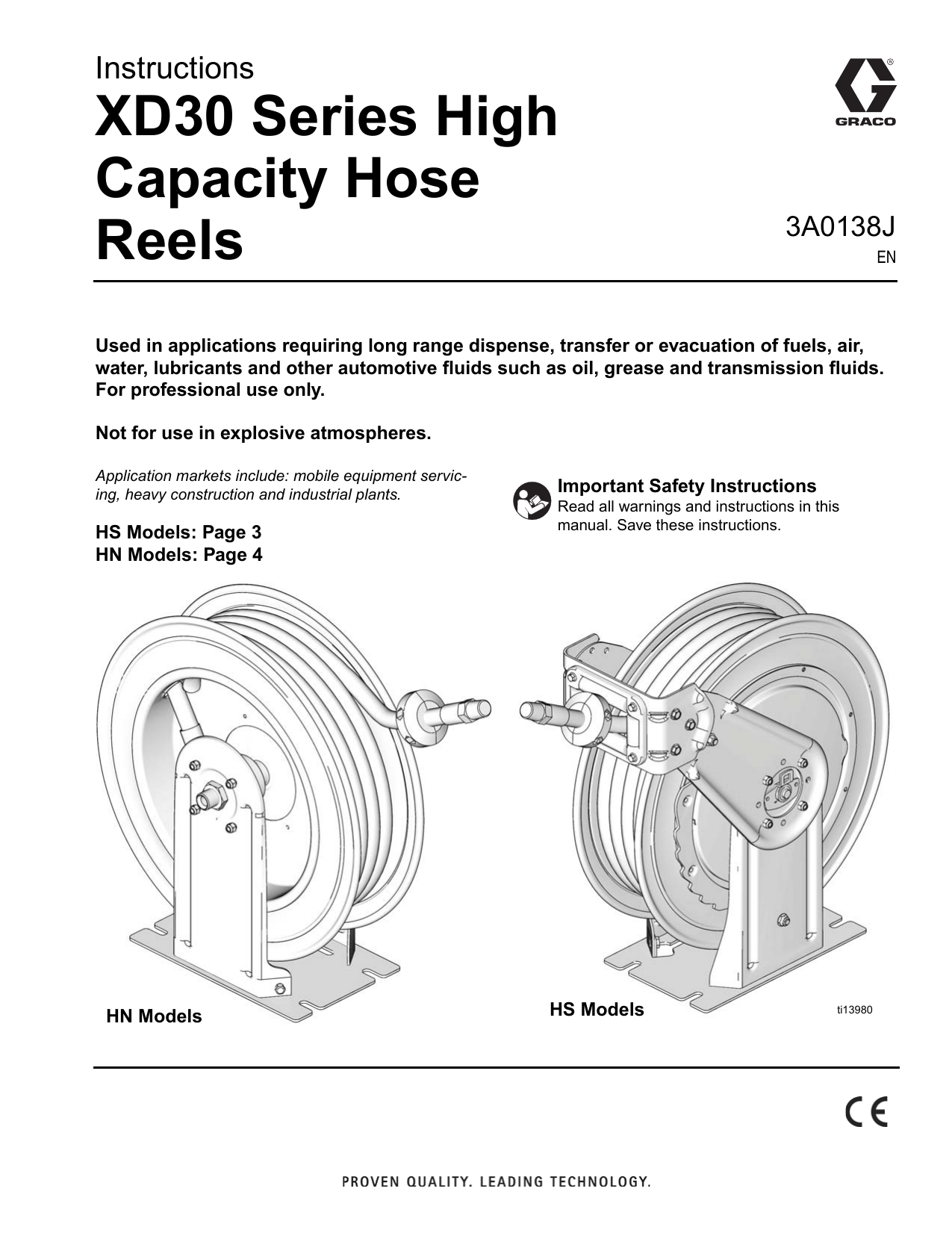

Graco 3A0138J XD30 Series High Capacity Hose Reels Instructions

Instructions
XD30 Series High
Capacity Hose
Reels
3A0138J
EN
Used in applications requiring long range dispense, transfer or evacuation of fuels, air,
water, lubricants and other automotive fluids such as oil, grease and transmission fluids.
For professional use only.
Not for use in explosive atmospheres.
Application markets include: mobile equipment servicing, heavy construction and industrial plants.
HS Models: Page 3
HN Models: Page 4
HN Models
Important Safety Instructions
Read all warnings and instructions in this
manual. Save these instructions.
HS Models
ti13980
Warnings
Warnings
The following warnings are for the setup, use, grounding, maintenance, and repair of this equipment. The exclamation point symbol alerts you to a general warning and the hazard symbol refers to procedure-specific risk. Refer back
to these warnings. Additional, product-specific warnings may be found throughout the body of this manual where
applicable.
WARNING
FIRE AND EXPLOSION HAZARD
When flammable fluids are present in the work area, such as gasoline and windshield wiper fluid, be
aware that flammable fumes can ignite or explode. To help prevent fire and explosion:
• Use equipment only in well ventilated area.
• Eliminate all ignition sources, such as cigarettes and portable electric lamps.
• Keep work area free of debris, including rags and spilled or open containers of solvent and gasoline.
• Do not plug or unplug power cords or turn lights on or off when flammable fumes are present.
• Ground all equipment in the work area.
• Use only grounded hoses.
• If there is static sparking or you feel a shock, stop operation immediately. Do not use equipment
until you identify and correct the problem.
• Keep a working fire extinguisher in the work area.
SKIN INJECTION HAZARD
High-pressure fluid from dispensing device, hose leaks, or ruptured components will pierce skin. This
may look like just a cut, but it is a serious injury that can result in amputation. Get immediate surgical
treatment.
• Do not point dispensing device at anyone or at any part of the body.
• Do not put your hand over the fluid outlet.
• Do not stop or deflect leaks with your hand, body, glove, or rag.
• Follow the Pressure Relief Procedure when you stop dispensing and before cleaning, checking,
or servicing equipment.
• Tighten all fluid connections before operating the equipment.
• Check hoses and couplings daily. Replace worn or damaged parts immediately.
EQUIPMENT MISUSE HAZARD
Misuse can cause death or serious injury.
• Do not operate the unit when fatigued or under the influence of drugs or alcohol.
• Do not exceed the maximum working pressure or temperature rating of the lowest rated system
component. See Technical Data in all equipment manuals.
• Use fluids and solvents that are compatible with equipment wetted parts. See Technical Data in all
equipment manuals. Read fluid and solvent manufacturer’s warnings. For complete information
about your material, request MSDS from distributor or retailer.
• Do not leave the work area while equipment is energized or under pressure. Turn off all equipment
and follow the Pressure Relief Procedure when equipment is not in use.
• Check equipment daily. Repair or replace worn or damaged parts immediately with genuine manufacturer’s replacement parts only.
• Do not alter or modify equipment.
• Use equipment only for its intended purpose. Call your distributor for information.
• Route hoses and cables away from traffic areas, sharp edges, moving parts, and hot surfaces.
• Do not kink or over bend hoses or use hoses to pull equipment.
• Keep children and animals away from work area.
• Comply with all applicable safety regulations.
2
3A0138J
Warnings
WARNING
MOVING PARTS HAZARD
Moving parts can pinch, cut or amputate fingers and other body parts.
• Keep clear of moving parts.
• Do not operate equipment with protective guards or covers removed.
• Pressurized equipment can start without warning. Before checking, moving, or servicing equipment, follow the Pressure Relief Procedure and disconnect all power sources.
HS Models
Each model shown in the table below is available in several colors. The last character of each model no. indicates the
hose reel color. A = white + NPT, B = Metallic Blue + NPT, F = Yellow + NPT, and G = Desert Sand + NPT, P = white
+ BSPT, R = Metallic Blue + BSPT, U = Yellow + BSPT. On the table below, this last character is represented by the
generic # symbol. For example, to show the complete model number for a white HSHC5 model hose reel, the symbol
# is replaced with “A”. The complete model number is: HSHC5A.
Model No.
Series
HSHC5#
HSHC5#
HSHFF#
HSLC8#
HSLD5#
HSLE3#
HSMC8#
HSMC8#
HSMD5#
HSMD5#
HSMDD#
HSMDD#
HSPB8#
HSHCD#
HSHCD#
HSMCF#
HSHB7#
HSPC5#
A
B
A&B
A&B
A&B
A&B
A
B
A
B
A
B
A&B
A
B
A&B
A
A
Application
Grease
Grease
Bare: Pressure Washer
Air/Water
Air/Water
Fuel/ Evacuation
Oil
Oil
Oil
Oil
Bare: MP- LP 3/4”
Bare: MP- LP 3/4”
Pressure Washer
Bare: HP 1/2”
Bare: HP 1/2”
Bare: LP 1/2”
Grease
Pressure Washer
Recommended
Mounting Position
Truck
Truck and Overhead
Truck and Overhead
Truck and Overhead
Truck and Overhead
Truck and Overhead
Truck
Truck and Overhead
Truck
Truck and Overhead
Truck
Truck and Overhead
Truck and Overhead
Truck
Truck and Overhead
Truck and Overhead
Truck and Overhead
Truck and Overhead
Hose
Size
1/2 inch
1/2 inch
NA
1/2 inch
3/4 inch
1 inch
1/2 inch
1/2 inch
3/4 inch
3/4 inch
NA
NA
3/8 inch
NA
NA
NA
3/8 inch
1/2 inch
Maximum Pressure
PSI
Bar
Mpa
5000
5000
5000
300
300
125
1500
1500
1250
1250
2000
2000
4000
5000
5000
2000
5000
4500
345
345
345
20.7
20.7
8.6
103.4
103.4
86
86
138
138
275
345
345
138
345
310.3
34.5
34.5
34.5
2.07
2.07
.86
10.34
10.34
8.6
8.6
13.8
13.8
27.5
34.5
34.5
13.8
34.5
31.0
NOTE: Truck mounted hose reels may require the hose/dispense valve be walked back into the hose reel for full
retraction.
3A0138J
3
Warnings
HN Models
Each model shown in the table below is available in several colors. The last character of each model no. indicates the
hose reel color. A = white, B = Metallic Blue, F = Yellow, and G = Desert Sand. On the table below, this last character
is represented by the generic # symbol. For example, to show the complete model number for a white HNHC5 model
hose reel, the symbol # is replaced with “A”. The complete model number is: HNHC5A.
Model No.
HNHC5#
HNHFF#
HNLC8#
HNLD5#
HNLE3#
HNMC8#
HNMD5#
HNMDD#
HNPB8#
HNHCD#
HNHB7#
HNPC5#
4
Application
Grease
Bare: Pressure Washer
Air/Water
Air/Water
Fuel/Evacuation
Oil
Oil
Bare: MP- LP 3/4”
Pressure Washer
Bare: HP 1/2”
Grease
Pressure Washer
Hose
Size
1/2 inch
NA
1/2 inch
3/4 inch
1 inch
1/2 inch
3/4 inch
NA
3/8 inch
NA
3/8 inch
1/2 inch
Maximum Pressure
PSI
Bar
Mpa
5000
345
34.5
5000
345
34.5
.
300
20.7
2.07
300
20.7
2.07
125
8.6
0.86
1500
103.4
10.34
1250
86
8.6
2000
138
13.8
4000
275
27.5
5000
345
34.5
5000
345
34.5
4500
310.3
31.0
3A0138J
Installation
Installation
A ground wire (G), bleed-type master air valve (E), thermal relief valve (H) and fluid drain
valve (J) are required in your system installation. These (user supplied) components help reduce
the risk of serious injury.
• The ground wire (G) must be connected to the pump grounding lug and to a true earth
ground to prevent static sparking that could result when fluid is dispensed through the hose.
See your local code for specific requirements.
• The hose reel must be grounded.
• The bleed-type master air valve (E) relieves air trapped between this valve and the pump
after the air is shut off. Trapped air can cause the pump to cycle unexpectedly, therefore
locate the valve close to the pump.
• The thermal relief valve (H) and fluid drain valve (J) assist in relieving fluid pressure in the
displacement pump, hose and dispense valve. Triggering the dispensing valve (N) to relieve
pressure may not be sufficient. Open the fluid drain valve (J) to relieve fluid pressure that
may be captured elsewhere in the system.
Typical Installation Layout
A
N
F
D
B
E
G
M
C
P
K
H
G
J
K
L
ti13981
FIG. 1
A
B
C
D
E
F
G
H
J
Main air supply
Pump air supply
Air filter
Air regulator
Bleed-type master air valve (user supplied, required)
Pump
Grounding wire (user supplied, required for pump and
hose reel)
Thermal relief valve (user supplied, required)
Fluid drain valve (user supplied, required)
3A0138J
K
L
M
N
P
Fluid shut-off valve
Fluid line
Hose reel
Dispensing valve
Flexible inlet hose
5
Installation
Pressure Relief Procedure
1.
6
2.
3A0138J
Installation
All Mountings
To reduce the risk of injury, be sure the mounting surface and mounting screws are strong enough to support the reels, weight of the fluids and stress caused
by hard pulls on the service hoses. See Technical
Data, page 23 for weights of hose reel assemblies.
NOTE: Reels perform best when arm allows hose to pull
straight off the spool as shown in FIG. 2 and FIG. 3.
FIG. 2
FIG. 3
3A0138J
7
Installation
Wall Mounting
1. A = Screws
2. A = Screws
A
A
Maximum distance to
floor - 16 ft (4.87 m)
ti13983
ti13982
Ceiling Mounting
1. A = Screws
2. A = Screws
A
A
Maximum distance to
floor - 16 ft (4.87 m)
8
3A0138J
Installation
Truck Bed Mounting
1. A = Screws
A
Changing Position of Guide Arms (30)
HS Models Only
1. Remove nuts (33). Reposition guide arms (30) to
new location.
30
33
3A0138J
2. Reinstall nuts (33). Torque to 25 - 35 ft lbs (33.9 to
47.5 N·m).
33
30
9
Installation
Changing Hose Guide (31) Position
HS Models Only.
1. Remove screws (52) and nuts (53) (not shown).
Reposition hose guide (31) to new location.
2. Reinstall screws (52) and nuts (53) (not shown).
Torque to 25 - 35 ft lbs (33.9 to 47.5 N·m).
52
52
10
31
52
52
31
3A0138J
Installation
Flushing
Before installing meter or dispense valve to end of hose, flush supply line with a solvent compatible with the fluid you
are dispensing.
1. Place end of hose in waste container.
2. Blow out entire lubricant supply line with air.
3. Flush equipment with a compatible solvent until fluid 4. Pump dispensing lubricant through line until all solruns clear.
3A0138J
vent is flushed out.
11
Adjusting Spring Tension
Adjusting Spring Tension
Increasing Spring Tension
The spring is always under great tension, which if
released in an uncontrolled manner could cause serious injury.
•
Never allow the reel to spin freely. Uncontrolled
spinning could cause serious injury if you are hit by
the hose.
•
Always grasp the tool firmly with both hands when
adjusting tension. Spring tension can cause the
tool to move violently.
•
The reel must be bolted securely in place when
making adjustments.
1. Loosen (A) 3-5 turns. Do not remove (A)!
2. Loosen (B) 3-5 turns. Do not remove (B) yet.
A
B
12
3A0138J
Adjusting Spring Tension
3. Insert tool (C) in opening. Hold tool (C) firmly to
engage spring force before removing screws (B).
4. Turn tool (C) one full turn clockwise.
C
C
B
B
5. Replace one screw (B). Leave tool (C) in place.
6. Remove tool (C).
C
B
7. Pull hose to test tension. Repeat 3 - 7 if necessary.
8.
Replace and tighten screws (B) and (A).
if
B
B
3A0138J
A
13
Adjusting Spring Tension
Decreasing Spring Tension
The spring is always under great tension, which if
released in an uncontrolled manner could cause serious injury.
•
Never allow the reel to spin freely. Uncontrolled
spinning could cause serious injury if you are hit by
the hose.
•
Always grasp the tool firmly with both hands when
adjusting tension. Spring tension can cause the
tool to move violently.
•
The reel must be bolted securely in place when
making adjustments.
1. Loosen (A) 3-5 turns. Do not remove (A)!
2. Loosen (B) 3-5 turns. Do not remove (B) yet.
A
B
3. Insert tool (C) in opening. Hold tool (C) firmly to
engage spring force before removing screws (B).
14
4. Turn tool (C) one full turn counter-clockwise.
3A0138J
Adjusting Spring Tension
C
C
B
B
5. Replace one screw (B). Leave tool (C) in place.
6. Remove tool (C).
C
B
3A0138J
15
Adjusting Spring Tension
7. Pull hose to test tension. Repeat 3 - 7 if necessary.
8. Replace and tighten screws (B) and (A).
if
B
B
16
A
3A0138J
Hose Stopper Installation
Hose Stopper Installation
1.
2.
ti13525
Installing Meter
1.
3A0138J
17
Parts: HS Models
Parts: HS Models
(For a complete list of model numbers, see page 3)
Ref.
No.
1‡
2
3†
Part No. Description
Qty
SHAFT, spring (not shown)
1
15Y781 WASHER, flat (not shown)
1
SHAFT, swivel, (HSLC8,
1
HSMC8,HSLD5, HSLE3, HSMD5
and HSMDD models)
4‡
KEY, square (not shown)
1
6‡
BEARING, needle, swivel side (not
1
shown)
7‡
WASHER, flat, spring side
1
8‡
BEARING, needle, spring side (not
1
shown)
9‡
FLANGE, set, black
1
10‡
SPRING, power, 21 turn (not
1
shown)
11‡
COVER, spring, black (not shown)
1
12‡
GASKET (not shown)
1
14
15Y122 ADJUSTER, power spring
1
15
277867 WASHER, flat, square center
1
16
15U581 WASHER, flat 31 id
1
17
16A719 WASHER, flat
1
18
278151 SCREW, swivel shaft
1
19
107100 SCREW, cap
2
20†
PACKING, o-ring
2
21†
RING, backup I
2
22†
SWIVEL, elbow (HSLC8, HSMC8
1
models
SWIVEL, elbow (HSLD5, HSLE3,
1
HSMD5, and HSMDD models
23
155470 FITTING, swivel, union (HSHC5,
1
HSLC8, HSHCD, HSMC8, HSPC5
models)
160327 FITTING, swivel, union (HSLD5,
1
HSLE3, HSMD5, and HSMDD
models
161037 FITTING, swivel, union (HSHFF,
1
HSPB8, HSHB7 models)
24
16A146 BASE, painted, all models white
1
16A147 BASE, painted, all models metallic
1
blue
16A148 BASE, painted, all models yellow
1
16A149 BASE, painted, all models desert
1
sand
25
15U448 RING, retaining, ext, 22mm
1
26
16A134 PEDESTAL, arm, swivel side, all
1
models white
16A135 PEDESTAL, arm, swivel side, all
1
models metallic blue
16A136 PEDESTAL, arm, swivel side, all
1
models, yellow
16A137 PEDESTAL, arm, swivel side, all
1
models desert sand
27
16A691 SCREW, socket head
2
18
Ref.
No.
28
Part No. Description
Qty
24C986 HOSE, coupled, 50 ft (HSHC5
1
models)
24C987 HOSE, coupled, 75 ft (HSLC8 mod- 1
els)
24C988 HOSE, coupled, 50 ft (HSLD5 mod- 1
els)
24C989 HOSE, coupled, 30 ft (HSLE3 mod- 1
els)
24C990 HOSE, coupled, 75 ft (HSMC8
1
models)
24C991 HOSE, coupled, 50 ft (HSMD5
1
models)
24C992 HOSE, coupled, 75 ft (HSPB8 mod- 1
els)
126076 HOSE, coupled, 75 ft (HSHB7
1
models)
126075 HOSE, coupled, 50 ft (HSPC5
1
models)
30
16A121 ARM, guide, all models, white
2
16A122 ARM, guide, all models, metallic
2
blue
16A123 ARM, guide, all models, yellow
2
16A124 ARM, guide, all models, desert
2
sand
31
16A140 GUIDE, hose, all models, white
1
16A141 GUIDE, hose, all models, metallic
1
blue
16A142 GUIDE, hose, all models, yellow
1
16A143 GUIDE, hose, all models, desert
1
sand
32
186580 NUT, hex (HSHC5, HSHCF,
1
HSLC8, HSMC, HSPB8, HSPC5,
HSHB7 models)
15Y905 NUT, hex (HSLD5, HSLE3,
HSMD5, and HSMDD models)
33
104541 NUT, lock
8
34
BRACKET, roller
1
35
PIN, roller
2
36
BOLT, m6x 20 lg w/patch
4
37
ROLLER, hose
2
38
PIN, roller
2
39
ROLLER, hose
2
40
NUT, lock, hex
1
41
BUSHING, pawl (not shown)
1
42
KIT, pawl, ratchet
1
43
BOLT, m10 x 40 lg
1
44
SPRING, sst
1
46 15W036 LABEL, Warning
1
48
SCREW, button head m6
4
49 218341 STOP, hose (HSHC5, HSLC8,
2
HSMC8, HSPB8, HSHB7, HSPC5
models)
3A0138J
Parts: HS Models
Ref.
No.
Part No. Description
Qty
237873 STOP, hose (HSLD5 and HSMD5
2
models)
237874 STOP, hose (HSLE3 models)
2
50
SCREW, mach, phil, pn hd
2
51
NUT, hex, jam
2
52
111799 SCREW, cap, hex hd
6
53
16A390 NUT, hex
6
59
RATCHET, Aluminum
1
60##
ASSEMBLY, high pressure swivel
1
(HSHC5, HSHFF, HSPB8, HSHCD,
HSHB7, HSPC5)
 Replacement Danger and Warning labels, tags and
cards are available at no cost.
† Included in Low / Medium Pressure Swivel and Seal
Replacement Kit 24C993 - 1/2” NPSM, 24P059 - 1/2”
BSPT, or 24C994 - 3/4” NPSM, 24P060 - 3/4” BSPT
 Included in Ratchet and Latch Replacement Kit
24C995
 Included in Hose Guide Kit 24C996
 Included in Bulk Head Hose Guide Kit 24C997
‡ Included in Spool Replacement Kit 24C998
 Included in Hose Stop Replacement Kit 218341,
237873 or 237874
 Included in Low / Medium Pressure Swivel Seal
Replacement Kit 24D134
## Included in High Pressure Swivel Assembly Kit
128920 - 1/2” NPSM, 128921 - 1/2” BSPT
3A0138J
19
Parts: HS Models
52
50
49
53
30
38
34
51
37
31
35
39
36
32
9
28
20
26
3
53
52
22
21
7
44
43
17
42
Low/Medium
Pressure
Reels Only
14
40
46
15
19 25
23
33
27
High Pressure Reels
Only
16
48
18
59
30
24
20
60
3A0138J
Parts: HN Models
Parts: HN Models
(For a complete list of model numbers, see page 4)
Ref.
No.
1‡
2
3†
Part No. Description
Qty
SHAFT, spring (not shown)
1
15Y781 WASHER, flat (not shown)
1
SWIVEL, shaft (HNLC8,
1
HNMC8,HNLD5, HNLE3, HNMD5
and HNMDD)
4‡
KEY, square (not shown)
1
6‡
BEARING, needle, swivel side (not
1
shown)
7‡
WASHER, flat, spring side
1
8‡
BEARING, needle, spring side (not
1
shown)
9‡
FLANGE, set, black
1
10‡
SPRING, power, 21 turn (not
1
shown)
11‡
COVER, spring, black (not shown)
1
12‡
GASKET (not shown)
1
14
15Y122 ADJUSTER, power spring
1
15
277867 WASHER, flat, square center
1
16
15U581 WASHER, flat 31 id
1
17
16A719 WASHER, flat
1
18
278151 SCREW, swivel shaft
1
19
107100 SCREW, cap
2
20†
PACKING, o-ring
2
21†
RING, backup I
2
22†
SWIVEL, elbow
1
23
155470 FITTING, swivel, union (HNHC5,
1
HNLC8, HNMC8, HNHCD, HNPC5
models)
160327 FITTING, swivel, union (HNLD5,
1
HNLE3, HNMD5, and HNMDD
models
161037 FITTING, swivel, union (HNFFA,
1
HNPB8, HNHB7 models)
24
16A146 BASE, painted, all models white
1
16A147 BASE, painted, all models metallic
1
blue
16A148 BASE, painted, all models yellow
1
16A149 BASE, painted, all models desert
1
sand
25
15U448 RING, retaining, ext, 22mm
1
26
16A134 PEDESTAL, arm, swivel side, all
1
models white
16A135 PEDESTAL, arm, swivel side, all
1
models metallic blue
16A136 PEDESTAL, arm, swivel side, all
1
models, yellow
16A137 PEDESTAL, arm, swivel side, all
1
models desert sand
27
16A691 SCREW, socket head
2
28
24C986 HOSE, coupled, 50 ft (HNHC5
1
models)
3A0138J
Ref.
No.
Part No. Description
Qty
126076 HOSE, coupled, 75 ft (HNHB7
1
models)
126075 HOSE, coupled, 50 ft (HNPC5
models)
24C987 HOSE, coupled, 75 ft (HNLC8 mod- 1
els)
24C988 HOSE, coupled, 50 ft (HNLD5 mod- 1
els)
24C989 HOSE, coupled, 30 ft (HNLE3 mod- 1
els)
24C990 HOSE, coupled, 75 ft (HNMC8
1
models)
24C991 HOSE, coupled, 50 ft (HNMD5
1
models)
24C992 HOSE, coupled, 75 ft (HNPB8
1
models)
32
186580 NUT, hex (HNHC5, HNHCF,
1
HNLC8, HNSMC,8, HNPB8,
HNPC5, HNHB7 models)
15Y905 NUT, hex (HNLD5, HNLE3,
HNMD5, and HNMDD models)
33
104541 NUT, lock
8
40
NUT, lock, hex (not shown)
1
41
BUSHING, pawl (not shown)
1
42
KIT, pawl, ratchet
1
43
BOLT, m10 x 40 lg
1
44
SPRING, sst
1
46 15W036 LABEL, Warning
1
48
SCREW, button head m6
4
49 218341 STOP, hose (HNHC5, HNLC8,
2
HNMC8, HNPB8, HNPC5, HNHB7
models)
237873 STOP, hose (HNLD5 and HNMD5
2
models)
237874 STOP, hose (HNLE3 models)
2
50
SCREW, mach, phil, pn hd
2
51
NUT, hex, jam
2
59
RATCHET, Aluminum
1
60##
ASSEMBLY, high pressure swivel
1
(HSHC5, HSHFF, HSPB8, HSHCD,
HSHB7, HSPC5)
 Replacement Danger and Warning labels, tags and
cards are available at no cost.
† Included in Low / Medium Pressure Swivel and Seal
Replacement Kit 24C993 - 1/2”, 24C994 - 3/4”
21
Parts: HN Models
Ref.
No. Part No. Description
Qty
 Included in Ratchet and Latch Replacement Kit
24C995
‡ Included in Spool Replacement Kit 24C998
 Included in Hose Stop Replacement Kit 218341,
237873 or 237874
Ref.
No. Part No. Description
Qty
 Included in Low ? Medium Pressure Swivel Seal
Replacement Kit 24D134
## Included in High Pressure Swivel Assembly Kit
128920
50
49
20
9
51
3
22
21
7
28
32
26
Low/Medium
Pressure Reels
Only
46
23
14
16
15
17
19
High Pressure Reels
Only
27
25
48
42
60
59
18
43
24
44
53
Hose Inlet Kits
Max Working
Pressure
Part No.
218549
24E283
24E284
24E285
22
psi
2000
5000
1250
125
bar
137
345
86
8.6
Hose I.D.
Hose Length
inch
mm
0.5
12
0.75
1.0
19
25
Hose Inlet
inch
mm
Fitting
90° swivel union
npt(m)
24
610
90° union
3A0138J
Technical Data
Technical Data
Model No.
HSHC5#
HNHC5#
HSHFF#
HNHFF#
HSLC8#
HNLC8#
HSLD5#
HNLD5#
HSLE3#
HNLE3#
HSMC8#
HNMC8#
HSMD5#
HNMD5#
HSMDD#
HNMDD#
HSPB8#
HNPB8#
HSHCD#
HNHCD#
HSMCF#
HNMCF#
HSHB7#
HNHB7#
HSPC5#
HNPC5#
Application
Hose Size
Maximum Pressure
PSI
Bar
Mpa
Inlet
Outlet
(NPSM) (NPT)
Grease
1/2 in. x 50 ft.
(12.7 mm x 1524 cm)
5000
345
34.5
1/2 inch
1/2 inch
Bare
N/A
5000
345
34.5
1/2 inch
3/8 inch
300
20.7
2.07
1/2 inch
1/2 inch
300
20.7
2.07
3/4 inch
3/4 inch
125
8.6
0.86
3/4 inch
1 inch
1500
103.4
10.34
1/2 inch
1/2 inch
1250
86
86.0
3/4 inch
3/4 inch
Air / Water
Air / Water
Fuel/Evacuation
Oil
Oil
1/2 in. x 80 ft.
(12.7 mm x 2438.4 cm)
3/4 in. x 50 ft.
(19.05 mm x 1524 cm)
1 in. x 30 ft.
(25.4 mm x 914.4 cm)
1/2 in. x 80 ft.
(12.7 mm x 2338.4 cm)
3/4 in. x 50 ft.
(19.05 mm x 1524 cm)
Bare
NA
2000
138
13.8
3/4 inch
3/4 inch
Pressure
Washer
3/8 in. x 80 ft.
(9.5 mm x 2438.4 cm)
4000
275
27.5
1/2 inch
3/8 inch
Bare
NA
5000
345
34.5
1/2 inch
1/2 inch
Bare
NA
2000
138
13.8
1/2 inch
1/2 inch
5000
345
34.5
1/2 inch
3/8 inch
4500
310
31.0
1/2 inch
1/2 inch
Grease
Air / Water
3/8 x 75 ft
(9.5 mm x 2286 cm)
1/2 x 50 ft
(12.7 mm x 1524 cm)
Maximum Dry Weight (without hose)
HS Models: 98 pounds (44.5 kg)
HN Models: 64 pounds (29.0 kg)
Sound Data all models:
Sound Pressure - 85.8 dB(A) calculated at 1 meter per ISO9614.2
Sound Power - 94.9 dB(A) measured per ISO 9614-2
Wetted Parts
3A0138J
Models: HSL, HSM, HNL,
and HNM
Nickel Plated Carbon Steel, Aluminum, Buna N Rubber, UHMWPE
Models: HSH, HSP, HNH,
and HNP
Nickel Plated Stainless Steel, Buna N Rubber, UHMWPE
23
Technical Data
Dimensions
HS Models
HN Models
C
C
D
D
B
24
B
A
A
Model
A
B
C
D
HN
229 mm
(9.0 in.)
350 mm
(13.77 in.)
546 mm
(21.5 in.)
588.00 mm
(23.10 in.)
HS
229 mm
(9.0 in.)
350 mm
(13.77 in.)
561.73 mm
(22.12 in.)
588.00 mm
(23.10 in.)
3A0138J
Technical Data
Mounting Pattern
14 mm (1/2 in.)
bolts - 4X
131.76 mm
(5.187 in.)
293.86 mm
(11.57 in.)
3A0138J
25
Graco 7-Year Hose Reel Warranty
Graco warrants all equipment referenced in this document which is manufactured by Graco and bearing its name to be free from defects in
material and workmanship on the date of sale to the original purchaser for use. With the exception of any special, extended, or limited warranty
published by Graco, Graco will, for a period from the date of sale as defined in the table below from the date of sale, repair or replace equipment
covered by this warranty and determined by Graco to be defective. This warranty applies only when the equipment is installed, operated and
maintained in accordance with Graco’s written recommendations.
Graco 7-Year Hose Reel Extended Warranty
Component
Warranty Period
Structural Components
7 years
Power Spring
3 years
Wear Parts - including but not limited to hose, seals, swivel seats and roller guides
1 year
Bare reels - all components
1 year
This warranty does not cover, and Graco shall not be liable for general wear and tear, or any malfunction, damage or wear caused by faulty
installation, misapplication, abrasion, corrosion, inadequate or improper maintenance, negligence, accident, tampering, or substitution of
non-Graco component parts. Nor shall Graco be liable for malfunction, damage or wear caused by the incompatibility of Graco equipment with
structures, accessories, equipment or materials not supplied by Graco, or the improper design, manufacture, installation, operation or
maintenance of structures, accessories, equipment or materials not supplied by Graco.
This warranty is conditioned upon the prepaid return of the equipment claimed to be defective to an authorized Graco distributor for verification of
the claimed defect. If the claimed defect is verified, Graco will repair or replace free of charge any defective parts. The equipment will be returned
to the original purchaser transportation prepaid. If inspection of the equipment does not disclose any defect in material or workmanship, repairs will
be made at a reasonable charge, which charges may include the costs of parts, labor, and transportation.
THIS WARRANTY IS EXCLUSIVE, AND IS IN LIEU OF ANY OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED
TO WARRANTY OF MERCHANTABILITY OR WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE.
Graco’s sole obligation and buyer’s sole remedy for any breach of warranty shall be as set forth above. The buyer agrees that no other remedy
(including, but not limited to, incidental or consequential damages for lost profits, lost sales, injury to person or property, or any other incidental or
consequential loss) shall be available. Any action for breach of warranty must be brought within one (1) year past the warranty period or two (2)
years for all other parts.
GRACO MAKES NO WARRANTY, AND DISCLAIMS ALL IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE, IN CONNECTION WITH ACCESSORIES, EQUIPMENT, MATERIALS OR COMPONENTS SOLD BUT NOT
MANUFACTURED BY GRACO. These items sold, but not manufactured by Graco (such as electric motors, switches, hose, etc.), are subject to
the warranty, if any, of their manufacturer. Graco will provide purchaser with reasonable assistance in making any claim for breach of these
warranties.
In no event will Graco be liable for indirect, incidental, special or consequential damages resulting from Graco supplying equipment hereunder, or
the furnishing, performance, or use of any products or other goods sold hereto, whether due to a breach of contract, breach of warranty, the
negligence of Graco, or otherwise.
FOR GRACO CANADA CUSTOMERS
The Parties acknowledge that they have required that the present document, as well as all documents, notices and legal proceedings entered into,
given or instituted pursuant hereto or relating directly or indirectly hereto, be drawn up in English. Les parties reconnaissent avoir convenu que la
rédaction du présente document sera en Anglais, ainsi que tous documents, avis et procédures judiciaires exécutés, donnés ou intentés, à la suite
de ou en rapport, directement ou indirectement, avec les procédures concernées.
Graco Information
For the latest information about Graco products, visit www.graco.com.
TO PLACE AN ORDER, contact your Graco distributor or call to identify the nearest distributor.
Phone: 612-623-6928 or Toll Free: 1-800-533-9655, Fax: 612-378-3590
Graco reserves the right to make changes at any time without notice.
For patent information, see www.graco.com/patents.
Original instructions. This manual contains English. MM 3A0138
Graco Headquarters: Minneapolis
International Offices: Belgium, China, Japan, Korea
GRACO INC. AND SUBSIDIARIES • P.O. BOX 1441 • MINNEAPOLIS MN 55440-1441 • USA
Copyright 2009, Graco Inc. All Graco manufacturing locations are registered to ISO 9001.
www.graco.com
Revised May 2016

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
