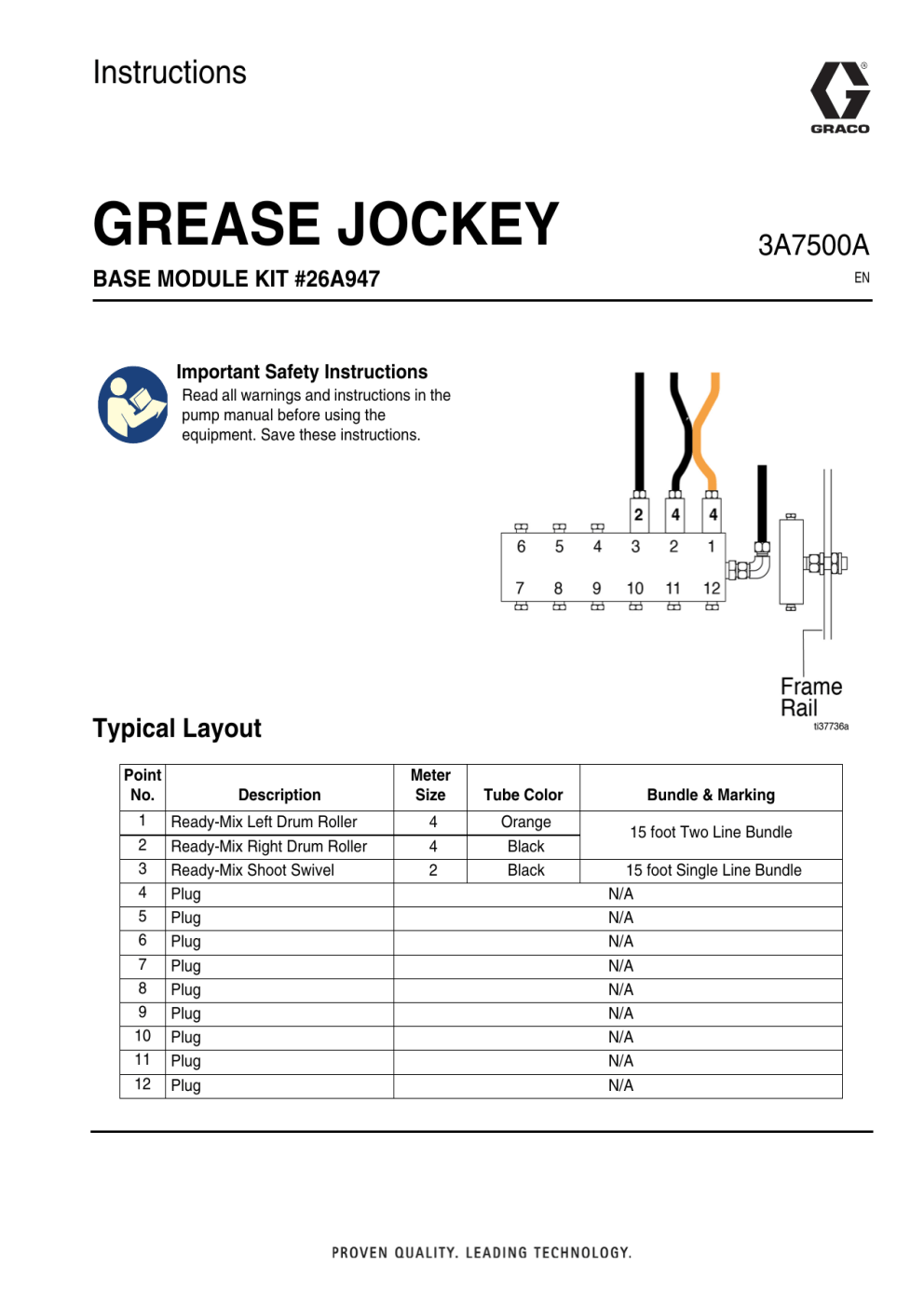

Graco 3A7500A, Grease Jockey, Base Module Ki #26A849t Instructions

Instructions
GREASE JOCKEY
3A7500A
BASE MODULE KIT #26A947
EN
Important Safety Instructions
Read all warnings and instructions in the
pump manual before using the
equipment. Save these instructions.
Typical Layout
Point
No.
1
2
3
4
5
6
7
8
9
10
11
12
Description
Ready-Mix Left Drum Roller
Ready-Mix Right Drum Roller
Ready-Mix Shoot Swivel
Plug
Plug
Plug
Plug
Plug
Plug
Plug
Plug
Plug
Meter
Size
Tube Color
4
4
2
Orange
Black
Black
Bundle & Marking
15 foot Two Line Bundle
15 foot Single Line Bundle
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
Graco Information
For the latest information about Graco products, visit www.graco.com.
For patent information, see www.graco.com/patents.
TO PLACE AN ORDER, contact your Graco distributor or call to identify the nearest distributor.
Phone: 612-623-6928 or Toll Free: 1-800-533-9655, Fax: 612-378-3590
California Proposition 65
CALIFORNIA RESIDENTS
WARNING: Cancer and reproductive harm – www.P65warnings.ca.gov.
All written and visual data contained in this document reflects the latest product information available at the time of publication.
Graco reserves the right to make changes at any time without notice.
Original instructions. This manual contains English. MM 3A7500
Graco Headquarters: Minneapolis
International Offices: Belgium, China, Japan, Korea
GRACO INC. AND SUBSIDIARIES • P.O. BOX 1441 • MINNEAPOLIS MN 55440-1441 • USA
Copyright 2020, Graco Inc. All Graco manufacturing locations are registered to ISO 9001.
www.graco.com
Revision A, February 2020
