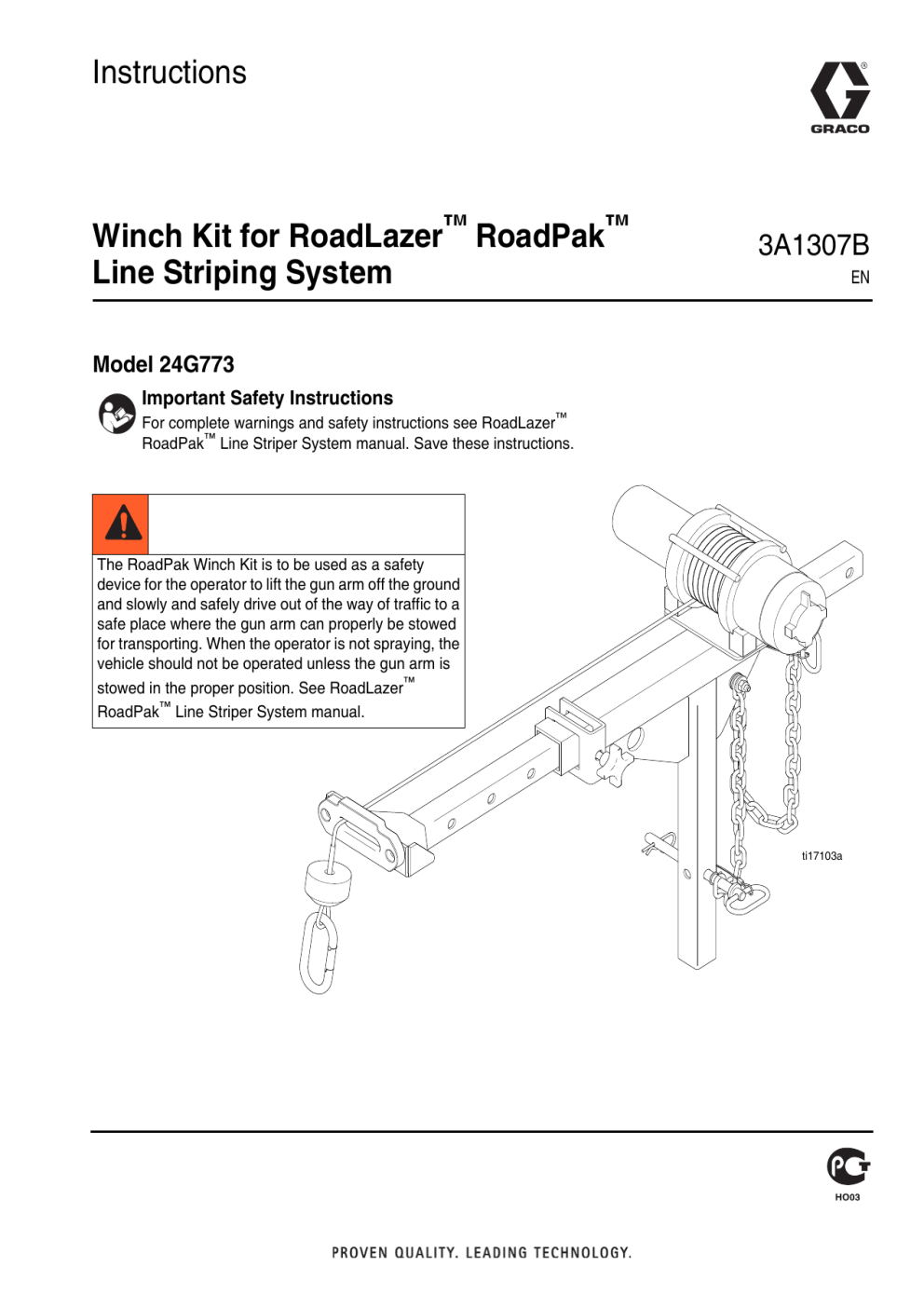

Instructions
Winch Kit for RoadLazer ™
Line Striping System
RoadPak ™
Model 24G773
Important Safety Instructions
For complete warnings and safety instructions see RoadLazer ™
RoadPak ™ Line Striper System manual. Save these instructions.
The RoadPak Winch Kit is to be used as a safety device for the operator to lift the gun arm off the ground and slowly and safely drive out of the way of traffic to a safe place where the gun arm can properly be stowed for transporting. When the operator is not spraying, the vehicle should not be operated unless the gun arm is stowed in the proper position. See RoadLazer ™
RoadPak ™ Line Striper System manual.
3A1307B
EN ti17103a
2
Winch Kit Installation
1. Assemble adaptor bracket (1) to height adjustment bracket on both sides. Fasten with bolts (6), washers (7), and nuts (8). Torque to 28 ft-lb.
7
6
1
8
7
4. Slide winch arm bracket (3) into winch arm (2) and secure into place by tightening extension clamp (15) and inserting the safety pin.
3 15
2 ti17106a
5. Insert winch assembly into one of the adapter brackets (1) and secure with pin (9).
ti17104a
2. Use four bolts and lock washers (supplied) to assemble winch (5) onto winch arm (2).
5
2
1 9 ti17108a
6. Install winch switch (20) and connector bracket (17) next to the battery on the RoadPak frame. Fasten with screws (16).
20
17
16 ti17105a
3. Use bolts, washers, and nuts (supplied) to assemble cable guide onto winch arm bracket (3).
ti17107a ti17109a
7. Pull the wires of the winch control connector (19) through the hole of the connector bracket and fasten the connector to the bracket with screws (18).
3
18
19 ti17110a
3A1307B
8. Connect blue and yellow cables (21) from the winch terminals to blue and yellow color-coded terminals on winch switch terminal.
21
11. Plug in winch controller (19) to the connector and route to the cab of the vehicle. Properly protect and secure all wires to keep from damaging them during every day use.
12. Adjust the winch arm (3) so it is in line with the lifting point on the gun arm. Ensure the winch arm is secured by pinning it and tightening the extension clamp (15).
13. Use the buttons on the controller to lower the winch.
Connect the winch hook (22) to the lifting point on the gun arm. ti17111a
9. Disconnect ground terminal on battery. Connect red and black cables (21) to red and black color-coded winch switch terminals. Attach the red cable from the winch control connector and power cable from the winch switch to the positive terminal on the battery. Then connect the black cable to the ground terminal on the battery. See Wiring Diagram, page
10. Connect the green plugs from the winch control connector and the winch switch as showed in Wiring
Diagram, page
22 ti17114a
14. When transporting the RoadPak system, the gun arm must be properly stowed (see manual 3A1214) and the winch arm must be adjusted to fit within the width of the vehicle. ti17112a
3A1307B 3
4
Wiring Diagram
Wiring Diagram
Black
+
Blue
Red
Black
Black
Green
Green
Yellow ti17113a
3A1307B
Parts List
Parts List
23
24
22
5
13
2 15
3
9
11 12
10
16
20
18
1
8 6
17
7 7
21 ti17115a
Ref. Part
8
9
6
7
3
5
1
2
10
11
12
13
14
Description Qty.
16G688 BRACKET, adapter, winch, painted 2
24G839 ARM, winch, painted
24G841 BRACKET, arm, winch, painted
16G458 WINCH, RoadLazer
101147 SCREW, cap, hex HD
109570 WASHER, plain
1
1
801020 NUT, lock, hex
115473 PIN, hitch
186812 CHAIN, ground 3.5 HP
M71635 CLAMP, hose
100678 SCREW, cap hex HD
111040 NUT, lock, insert, nylock, 5/16
100023 WASHER, flat
2
1
2
2
1
6
8
4
1
4 ti17115b
18
19
20
21
22
Ref. Part
15
16
17
23
24
Description
238813 CLAMP, extension
107439 SCREW, mach, hex HD
16H234 BRACKET, mtg., connector, winch ctrl
117501 SCREW, mach, slot hex wash HD
16H069 SWITCH, corded remote/plug in
16F346 SWITCH, winch, contactor
16H070 WIRE, assemblies, battery/winch
16H068 CONNECTOR, 1-3/8 in. eye dia., carbiner
16H067 CABLE, 3/16 in. dia., blue
25R141 BRACKET, end, winch (includes mounting hardware)
Qty.
1
1
1
4
1
1
1
2
1
1
3A1307B 5
Parts List
6
All written and visual data contained in this document reflects the latest product information available at the time of publication.
Graco reserves the right to make changes at any time without notice.
Original instructions. This manual contains English. MM 3A1307
Graco Headquarters: Minneapolis
International Offices: Belgium, China, Japan, Korea
GRACO INC. AND SUBSIDIARIES • P.O. BOX 1441 • MINNEAPOLIS MN 55440-1441 • USA
Copyright 2010, Graco Inc. All Graco manufacturing locations are registered to ISO 9001.
www.graco.com
Revision B, March 2021
