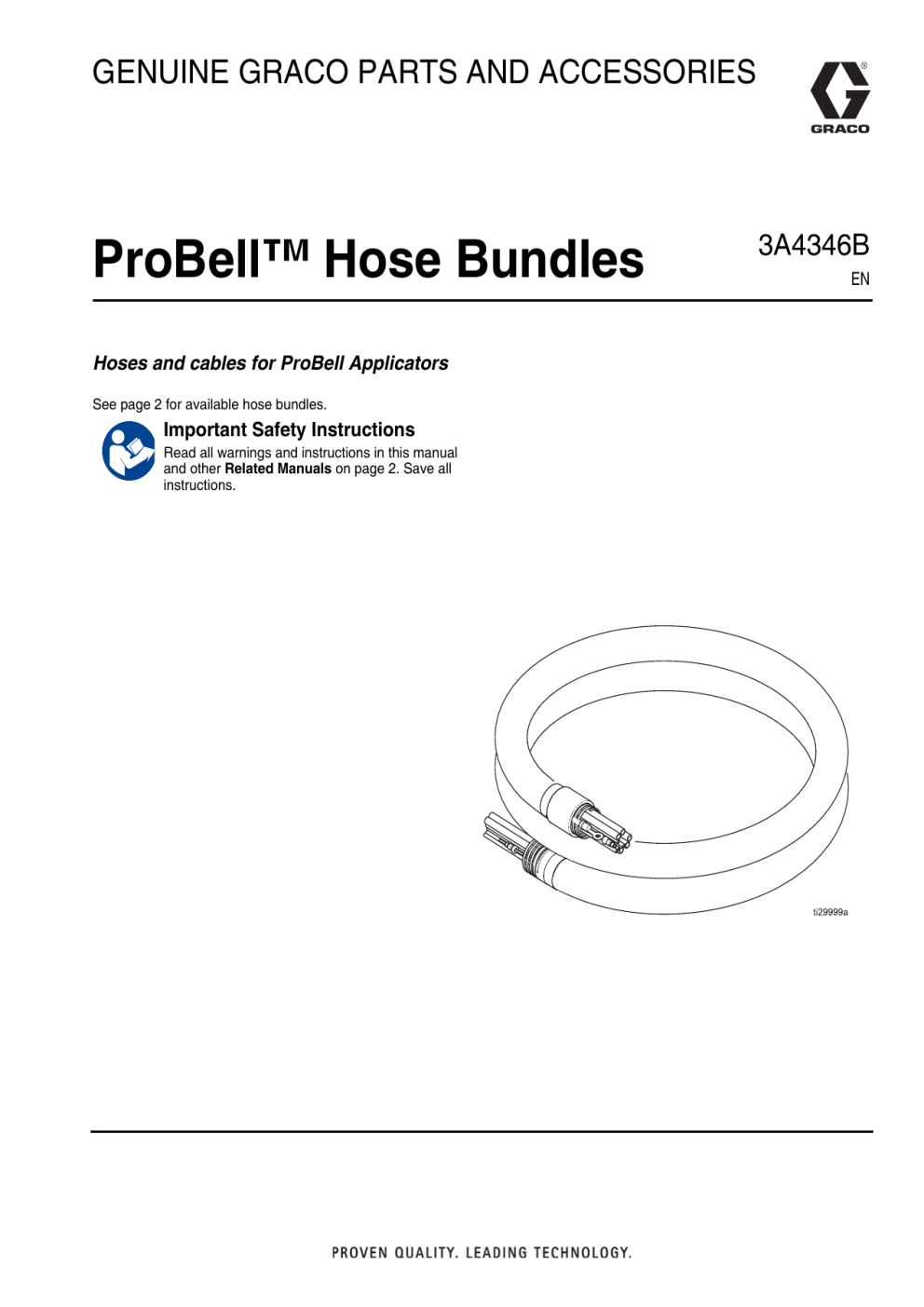

ProBell™ Hose Bundles
Hoses and cables for ProBell Applicators
See page 2 for available hose bundles.
Important Safety Instructions
Read all warnings and instructions in this manual
and other Related Manuals on page 2. Save all
instructions.
3A4346B
EN
Related Manuals
Manual No.
334626
334452
3A4232
3A3657
3A3953
3A3954
3A3955
Description
ProBell Rotary Applicator, Hollow Wrist
ProBell Rotary Applicator
ProBell Cart Systems
ProBell Electrostatic Controller
ProBell Speed Controller
ProBell Air Controllers
ProBell System Logic Controller
Available Hose Bundles
2
Part
Number
Air Lines
(9x)
Grounding
Cable
Power
Supply
Cable
Fiber
Optic
Cable
Fluid
Lines (3x)
Length
11 m
24Z168
x
x
x
x
x
x
24Z160
x
x
x
x
x
24Z170
x
x
x
x
x
24Z711
x
x
x
x
24Z712
x
x
x
x
24Z713
x
x
x
x
20 m
30 m
x
x
x
x
x
3A4346B
General Information
Each hose bundle comes with 9 air lines, a fiber optic
cable, power supply cable, and grounding cable. Solventborne bundles come with an additional 3 fluid lines.
All hoses and cables are held with spiral wrap at the
applicator and controller ends of the bundle. To adjust
the hose bundle for installation, remove the two spiral
wraps to free the three fluid lines (24Z168, 24Z169,
24Z170 models only) and grounding cable.
The grounding cable is included for use with the standard ProBell applicator and may be removed if bundle is
installed on a Hollow Wrist applicator.
Once all lines are adjusted, install spiral wrap back on
hose bundle. Additional spiral wraps can be purchased
in kit 24Z662 (bag of 10).
Waterborne Information
Waterborne hose bundles can be created by purchasing
hose bundle 24Z711, 24Z712, or 24Z713 along with 2
waterborne fluid hoses, one for paint and one for
dump/recirculation. See Other Accessories for more
information.
Remove the blue hose bundle cover to install the fluid
hoses and secure with spiral wrap after connecting all
lines to applicator. Complete assembly by re-installing
protective blue cover over all lines before spraying.
Installation
FIG. 1 Hollow Wrist Applicator Fiber Optic Cable
Length
Standard Applicator Models (RxA1xx)
For a better fit with Standard Applicator models, use the
following instructions to adjust hose bundles for installation.
1. Paint, Dump, and Solvent Tubing (24Z1xx models
only) — Locate two 5/16” tubes labeled “P” and “D”
along with a 1/4” tube labeled “S”. Reduce the
length of the P, D, and S tubes no more than 6” from
its original length. Cut cleanly with a tube cutter to
prevent leaks with the fluid fittings.
2. Fiber Optic Cable — Use the included cutter tool
(Kit 24W823) to reduce the fiber optic cable length.
Cut the cable to measure 0.110” ± 0.005” (2.8 +
0.12 mm) from the flat end of the hex nut fitting to
the end of the cable (See FIG. 2).
3. Connect the hose bundle. See the installation section of ProBell Rotary Applicator manual 334452.
4. Bring blue wrap up to the back of the applicator
adapter cover and use provided zip ties to secure
wrap.
NOTE: Use a wrench to tighten all fluid fittings from the
ProBell applicator to the hose bundle.
Hollow Wrist Applicator Models (RxA2xx)
All hose bundles come ready to connect to Hollow Wrist
applicators.
The hollow wrist fiber optic cable measures 1.480” ±
.005” (37.6 + 0.12 mm) (See FIG. 1). The hex nut may
be used for fine adjustments to reach the target length.
To add length, turn nut clockwise. The grounding cable
is not needed for the Hollow Wrist Applicator and may
be removed from the bundle.
To connect the hose bundle, see the Installation section
of ProBell Rotary Applicator, Hollow Wrist manual
334626.
3A4346B
FIG. 2 Standard Applicator Fiber Optic Cable Length
NOTICE
To prevent damage, do not allow the fiber optic or
power cable to be in tension on the ProBell or controls end of the hose bundle. Cut air and fluid tubing back if needed.
3
Hose Bundle Component Identification
Use the instructions in the Action to Adjust column below to adjust hose bundle for use with Standard Applicator
models.
NOTE: Hollow wrist applicator does not require changes.
Label
Hose / Label
Color
Description
Diameter /
Material
Bulk Hose
Part Number†
Action to Adjust
P*
Natural/Green
Paint Inlet
5/16”- PFA
057233
Cut 6” off applicator end
D*
Natural/White
Recirculation/Dump
5/16”- PFA
057233
Cut 6” off applicator end
S*
Natural/Black
Solvent/Cup Wash
1/4”- PFA
057234
Cut 6” off applicator end
PT
Green/White
Paint Trigger
5/32” - Nylon
054757
No action needed
ST
Black/White
Solvent Trigger
5/32” - Nylon
054753
No action needed
DT
Natural/White
Dump Trigger
5/32” - Nylon
598095
No action needed
BR
Red/White
Bearing Return
5/32” - Nylon
054754
No action needed
SO
Natural/Blue
Outside Shaping Air
5/16” - Nylon
057231
No action needed
SI
Natural/Gray
Inside Shaping Air
5/16” - Nylon
057231
No action needed
B
Natural/Red
Bearing Air
5/16” - Nylon
057231
No action needed
BK
Natural/Purple
Brake Air
5/16” - Nylon
057231
No action needed
TA
Natural/Brown
Turbine Air
5/16” - Nylon
057231
No action needed
1
Black/White
Fiber Optic Cable
Black/White
Yellow
Tag
Black/Yellow
Power Supply, 4 wire
Black/Yellow
Green and
Yellow
Ground Cable
Green and
Yellow
None
Cut 1.370” off applicator end
See “Other
Accessories”
No action needed
No action needed
* Included only in 24Z168, 24Z169, and 24Z170 models.
† Hose is sold by the foot, maximum of 100’.
NOTE: Maximum working pressure: 150 psi.
4
3A4346B
Other Accessories
Fiber Optic Cables, Hollow Wrist Models
Kit
Description
Qty
24Z193
CABLE, fiber optic, 11 m (36 ft.)
1
24Z194
CABLE, fiber optic, 20 m (66 ft.)
1
24Z195
CABLE, fiber optic, 30 m (99 ft.)
1
Fiber Optic Cables, Standard Models
Qty
Hollow Wrist Waterborne Fluid Hose Kits (Shielded):
For Models RxA2x8 100 psi (0.69 MPa, 6.9 bar) Maximum Working Pressure
Kit
Description
Qty
24Z199
HOSE, fluid, shielded, 11 m (36
1
24Z200
HOSE, fluid, shielded, 20 m (66 ft.)
1
Hollow Wrist Waterborne Fluid Hose Kits
(Unshielded): For Models RxA2x8 100 psi (0.69 MPa,
6.9 bar) Maximum Working Pressure
Kit
Description
24Z190
CABLE, fiber optic, 11 m (36 ft.)
1
24Z191
CABLE, fiber optic, 20 m (66 ft.)
1
Kit
Description
24Z192
CABLE, fiber optic, 30 m (99 ft.)
1
24Z201
HOSE, fluid, unshielded, 11 m (36 ft)
1
24Z202
HOSE, fluid, unshielded, 20 m (66 ft.)
1
Kit 24W875, Fiber Optic Cable Repair
Kit
Description
Qty
----
FITTING, fiber optic
4
----
NUT, fiber optic
4
----
TOOL, cutter, fiber optic
1
Kit 24W823, Fiber Optic Cable Cutting Tool
Kit
Description
----
TOOL, cutter, fiber optic
Qty
3
Kit 24X009, Fiber Optic Marker Numbers
Kit
Description
----
Pack of 30 (#1 and #2)
Qty
Standard Waterborne Fluid Hose Kits (Shielded);
For Models R_A1_8
100 psi (0.69 MPa, 6.9 bar) Maximum Working Pressure
Kit
Description
Qty
17L886
HOSE, fluid, shielded, 11 m (36 ft)
1
17L887
HOSE, fluid, shielded, 20 m (66 ft.)
1
Standard Waterborne Fluid Hose Kits (Unshielded);
For Models RxA1x8 100 psi (0.69 MPa, 6.9 bar) Maximum Working Pressure
Kit
Description
Qty
Qty
17L884
HOSE, fluid, unshielded, 11 m (36 ft)
1
1
17L885
HOSE, fluid, unshielded, 20 m (66 ft.)
1
Applicator Power Cables
Kit
Description
Qty
17J586
CABLE, low voltage, 11 m (36 ft.)
1
17J588
CABLE, low voltage, 20 m (66 ft.)
1
17J589
CABLE, low voltage, 30 m (99 ft.)
1
Grounding Cable
Kit
Description
Qty
24Z559
11 m (36 ft.)
1
24Z560
20 m (66 ft.)
1
24Z561
30 m (99 ft.)
1
3A4346B
5
