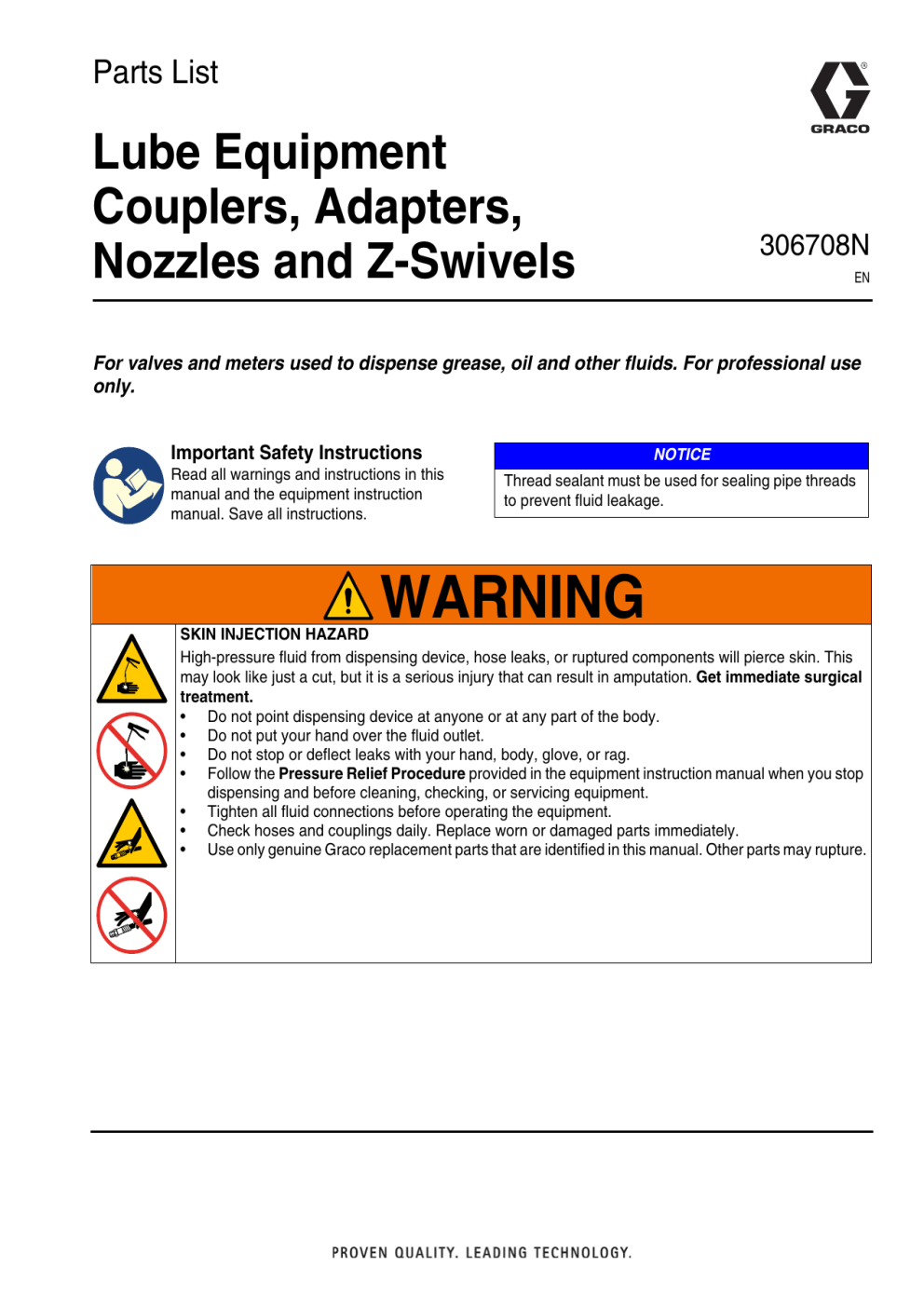

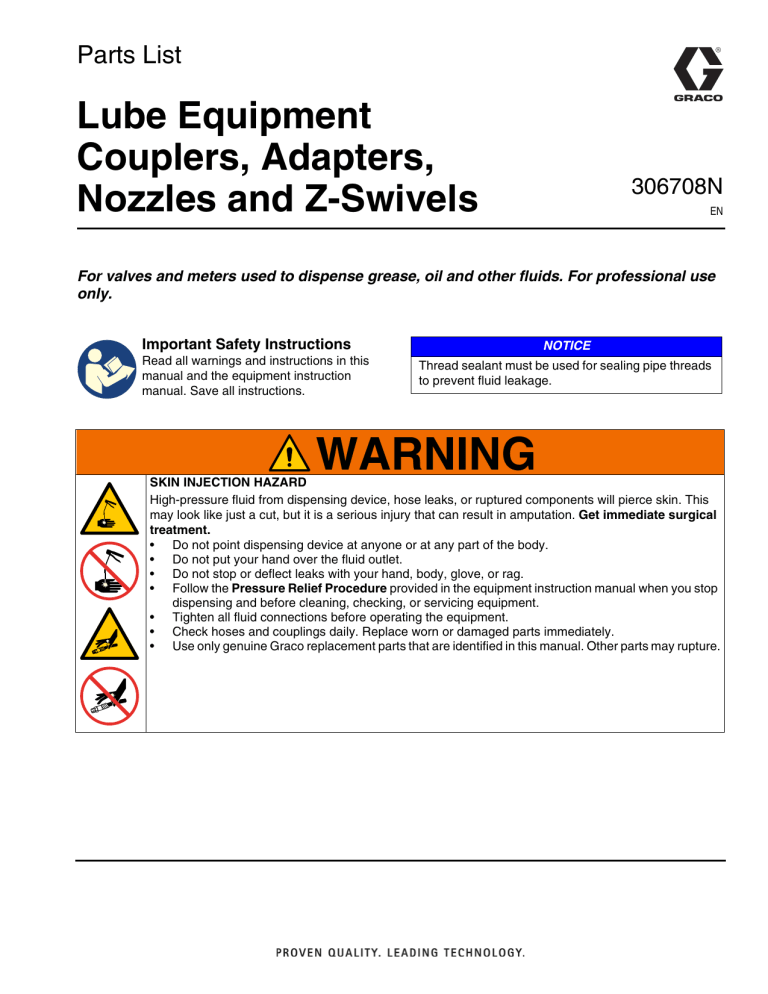

Graco 306708N, Lube Equipment Couplers, Adapters, Nozzles, and Z-Swivels, Parts List Owner's Manual

Parts List
Lube Equipment
Couplers, Adapters,
Nozzles and Z-Swivels
306708N
EN
For valves and meters used to dispense grease, oil and other fluids. For professional use
only.
Important Safety Instructions
Read all warnings and instructions in this
manual and the equipment instruction
manual. Save all instructions.
NOTICE
Thread sealant must be used for sealing pipe threads
to prevent fluid leakage.
WARNING
SKIN INJECTION HAZARD
High-pressure fluid from dispensing device, hose leaks, or ruptured components will pierce skin. This
may look like just a cut, but it is a serious injury that can result in amputation. Get immediate surgical
treatment.
• Do not point dispensing device at anyone or at any part of the body.
• Do not put your hand over the fluid outlet.
• Do not stop or deflect leaks with your hand, body, glove, or rag.
• Follow the Pressure Relief Procedure provided in the equipment instruction manual when you stop
dispensing and before cleaning, checking, or servicing equipment.
• Tighten all fluid connections before operating the equipment.
• Check hoses and couplings daily. Replace worn or damaged parts immediately.
• Use only genuine Graco replacement parts that are identified in this manual. Other parts may rupture.
Couplers
Couplers
Taper Nose Hydraulic Coupler 200325
8000 psi (560 bar) Maximum Working Pressure
Giant Button-Head Hydraulic Coupler
200021
2000 psi (140 bar) Maximum Working Pressure
Standard Button-Head Hydraulic Coupler
200020
2500 psi (175 bar) Maximum Working Pressure
2
306708N
Adapters
Adapters
Hydraulic Adapter Accessory Kit 205592
Hydraulic-to-Steel Needle Adapter 205532
See separate listing for each kit component for replacement parts and maximum working pressures.
For flush fittings
Part No.
201881
205532
Ref
No.
1
2
205582
205568
205554
203504
Description
ADAPTER, hydraulic-to-push, see page 3
ADAPTER, hydraulic-to-steel needle, see
page 3
ADAPTER, hydraulic-to-nylon needle, see
page 3
ADAPTER, nylon needle; see page 4
ADAPTER, plug, see page 4
HOSE, nozzle; with lock-sleeve connector,
see page 6
250 psi (18 bar) Maximum Working Pressure
Part No. Description
Qty
164799 NEEDLE, adapter
1
203497 CONNECTOR, locking sleeve,
1
18-27 npt(f)
2
1
Low Pressure Adapters
Hydraulic-to-Push Adapter 201881
For U-joints and low pressure service
250 psi (18 bar) Maximum Working Pressure
Hydraulic-to-Nylon Needle Adapter 205582
For removable plugs
250 psi (18 bar) Maximum Working Pressure
Ref
No.
1
2
3
Part No. Description
Qty
164771* NOZZLE, fluid
1
164757 TUBE, adapter; 2 in. (51 mm)
1
long, 18-27 npt
203497 CONNECTOR, locking sleeve,
1
18-27 npt(f)
*Recommended spare part to keep on hand
3
2
1
306708N
3
Adapters
Medium Pressure Adapters
Nylon Needle Adapter 205568
For removable plugs
250 psi (18 bar) Maximum Working Pressure
Ref
No.
1
2
90-degree Plug Adapter 205554
For removable plugs
Part No. Description
164771* NOZZLE, fluid
164772 TUBE, adapter; 1/8 npt; 5 in
(127 mm) long
Qty
1
1
*Recommended spare part to keep on hand
700 psi (49 bar) Maximum Working Pressure
Ref
No.
1
2
3
Part No.
205559
164762
100846
2
Description
NUT, lock; 1/4-28
ADAPTER, 90-degree
FITTING, hydraulic, 1/4-28
thread
Qty
1
1
1
2
1
1
90-degree Adapter 223187
250 psi (18 bar) Maximum Working Pressure
3
Ref
No.
1
2
3
4
Part No. Description
Qty
203497 CONNECTOR, locking sleeve,
1
1/8-27 npt(f)
185914 ADAPTER,
1
151249 NIPPLE, 1/8-27 npt
1
156563 TIP, nozzle
1
1
High Pressure Adapters
Locking Sleeve Connector 203497
For quick connection to taper nose coupler
6000 psi (420 bar) Maximum Working Pressure
3
2
4
4
306708N
Adapters
360-degree Grease Swivel and Coupler Kit
203597
360-degree Grease Swivel
6000 psi (420 bar) Maximum Working Pressure
204082: 1/8 npt(m) x 1/8 npt(f)
204083: 1/4 npt(m) x 1/8 npt(f)
204084: 1/4 npt(m) x 1/4 npt(f)
Ref
No.
1
2
Part No. Description
200325 COUPLER, hydraulic
203198 SWIVEL, 360-degree, 1/8 npt
Qty
1
1
8000 psi (552 bar) Maximum Working Pressure
1
2
360-degree Grease Swivel 203198, 1/8 npt
8000 psi (552 bar) Maximum Working Pressure
306708N
5
Grease Nozzles
Grease Nozzles
Hose Nozzle 204204
Hose Nozzle 203504
5000 psi (350 bar) Maximum Working Pressure
With lock sleeve connector
WARNING
SKIN INJECTION HAZARD
To reduce the risk of skin injection:
• Only install a hose nozzle on the hand grip end of
the flexible hose extension as shown below. The
hand grip prevents exceeding the maximum bend
radius of the hose. Never install a hose nozzle on
the other end of the hose.
• Never use this flexible extension without the hand
grip in place.
Ref
No.
1
2
5000 psi (350 bar) Maximum Working Pressure
Ref
No.
1
2
3
Qty
1
1
1
2
1
Part No. Description
Qty
200325 HYDRAULIC, coupler
1
151277 TUBE, adapter; 2.5 in. (64 mm)
1
long
100451 COUPLING, pipe; 1/8 npt
1
109145 HOSE, coupled; 1/8 npt(m); 1/4
1
in. (6.4 mm) ID; 12 in. (305 mm)
long
3
4
Part No. Description
154289 HOSE, 3/16 in. ID, 12 in. (305
mm) long
203497 CONNECTOR, locking sleeve
200325 COUPLER, hydraulic
3
Standard Grease Nozzle 200389
4
Hand Grip
8000 psi (560 bar) Maximum Working Pressure
Ref
No.
1
2
3
Part No. Description
Qty
TUBE, adapter; 1/8 npt(m); 6 in.
1
(152 mm) long
200325 COUPLER, hydraulic
1
2
1
Install Coupler (1) on
this end ONLY.
2
1
6
306708N
Z-Swivels
Swivel Grease Nozzle
6000 psi (420 bar) Maximum Working Pressure
204072: 6 in. (152 mm) long
204897: 12 in. (305 mm) long
Ref
No.
1
1
2
3
Z-Swivels
6500 psi (450 bar) Maximum Working Pressure
Part No. Description
Qty
150622 TUBE, extension; 1/8 npt(m); 6
1
in. (152 mm) long (204072 only)
155836 TUBE, extension; 1/8 npt(m); 12
1
in. (305 mm) long (204897 only)
200325 COUPLER, hydraulic
1
203198 SWIVEL, 360-degree
1
202577: 1/4-18 npt
224569: 3/8-18 npt
202579: 1/8-27 npt(m); 1/4-18 npt(f)
24H614: 1/4-19 bspt
24H615: 1/4-19 bspp
3
2
1
306708N
7
