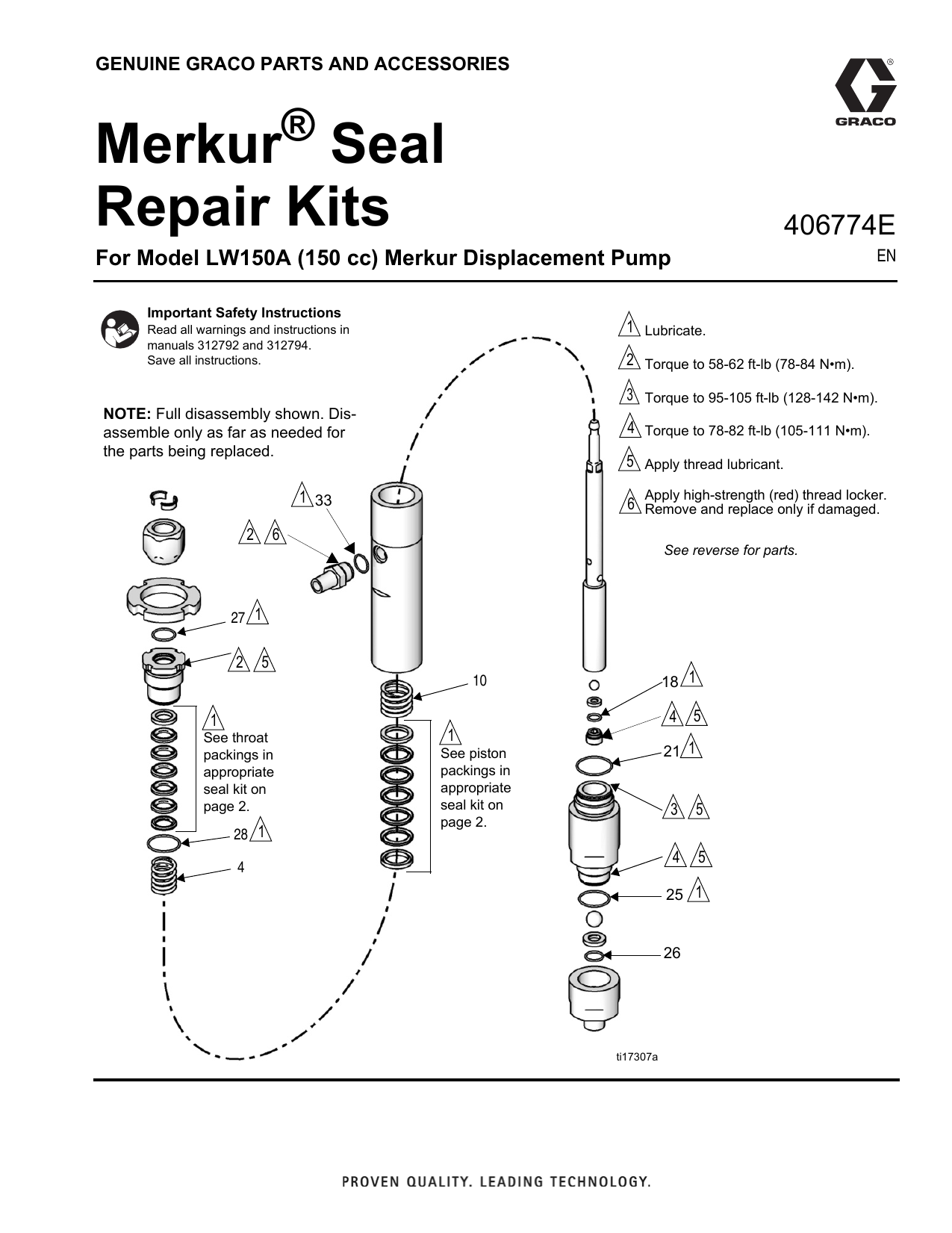

GENUINE GRACO PARTS AND ACCESSORIES
®
Merkur
Seal
Repair Kits
406774E
EN
For Model LW150A (150 cc) Merkur Displacement Pump
Important Safety Instructions
1 Lubricate.
Read all warnings and instructions in
manuals 312792 and 312794.
Save all instructions.
2 Torque to 58-62 ft-lb (78-84 N•m).
3 Torque to 95-105 ft-lb (128-142 N•m).
NOTE: Full disassembly shown. Disassemble only as far as needed for
the parts being replaced.
4 Torque to 78-82 ft-lb (105-111 N•m).
5 Apply thread lubricant.
Apply high-strength (red) thread locker.
1 33
2
6 Remove and replace only if damaged.
6
See reverse for parts.
27 1
2
5
18 1
10
4 5
1
See throat
packings in
appropriate
seal kit on
page 2.
28 1
1
21 1
See piston
packings in
appropriate
seal kit on
page 2.
4
3
5
4
5
25 1
26
ti17307a
Ref.Description
Qty.
4
SPRING, throat
1
6
GLAND, male, throat
1
7
PACKING, throat, UHMWPE
3
8
PACKING, throat, PTFE
2
9
GLAND, female, throat
1
Standard Seal Repair Kit 24A256
Throat Packings:
Lips Face Down
11
9
12
7
10 SPRING, piston
1
11 GLAND, male, piston
1
8
12 PACKING, piston, UHMWPE
3
7
13 PACKING, piston, PTFE
2
14 GLAND, female, piston
1
18 O-RING, piston,
1
0.9 in (23 mm) OD
19 PACKING, throat,
Piston Packings:
Lips Face Up
13
12
8
13
7
12
6
14
5
reinforced PTFE
20 PACKING, piston,
ti17306a
Lubricate Packings
5
reinforced PTFE
21 O-RING, lower cylinder,
1
2.7 in. (69 mm) OD
25 O-RING, lower cylinder,
1
2.3 in. (58 mm) OD
26 O-RING, inlet check,
1
1.0 in. (25 mm) OD
27 O-RING, wet cup,
1
Optional Seal Kits:
24J857 - Carbon-Filled PTFE
26C712 - Reinforced PTFE
Use with materials that cause chemical compatibility
concerns with UHMWPE, such as acid catalyst
materials.
1.9 in. (48 mm) OD
28 O-RING, wet cup,
1
2.3 in. (58 mm) OD
33 O-RING, outlet fitting,
Throat Packings:
Lips Face Down
1
Piston Packings:
Lips Face Up
1.0 in. (25 mm) OD
9
TIP: Some o-rings are close in size. Stack on bench to
differentiate. O-rings 26 and 33 are the same.
}
11
}
19
20
14
6
Lubricate Packings
