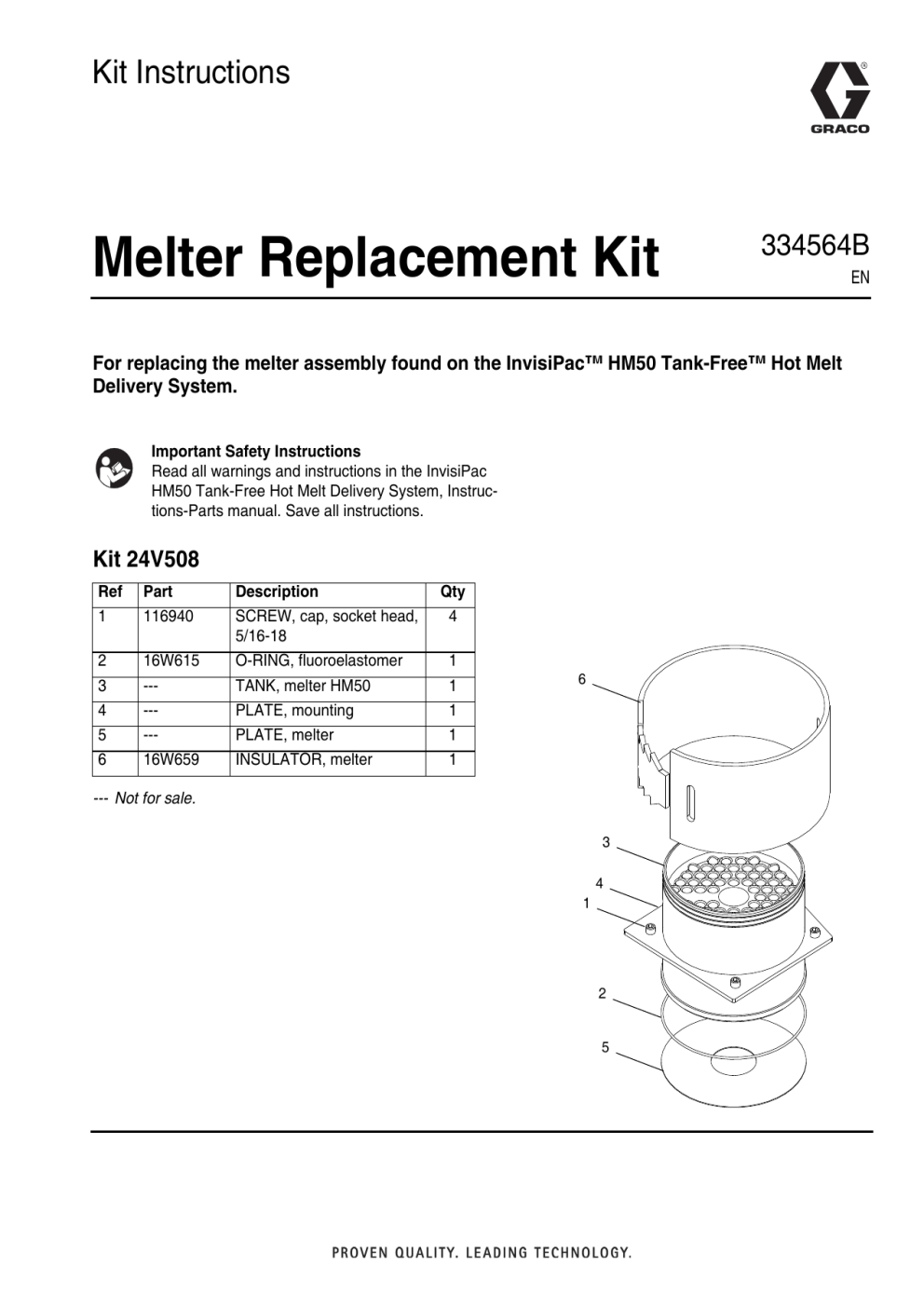

Graco 334564B - Melter Replacement Kit, Kit Instructions

Kit Instructions
Melter Replacement Kit
334564B
For replacing the melter assembly found on the InvisiPac™ HM50 Tank-Free™ Hot Melt
Delivery System.
Important Safety Instructions
Read all warnings and instructions in the InvisiPac
HM50 Tank-Free Hot Melt Delivery System, Instructions-Parts manual. Save all instructions.
Kit 24V508
Ref
Part
Description
Qty
1
116940
SCREW, cap, socket head,
5/16-18
2
16W615
O-RING, fluoroelastomer
1
3
---
TANK, melter HM50
1
4
---
PLATE, mounting
1
5
---
PLATE, melter
1
6
16W659
INSULATOR, melter
1
4
6
--- Not for sale.
3
4
1
2
5
EN
NOTE: Be aware of all connections and
routings prior to the disassembly of the
existing funnel assembly, as this will aid
in the installation of the kit.
NOTE: Lubricate all o-rings and seals
prior to installation.
6
3
1
4
2
5
