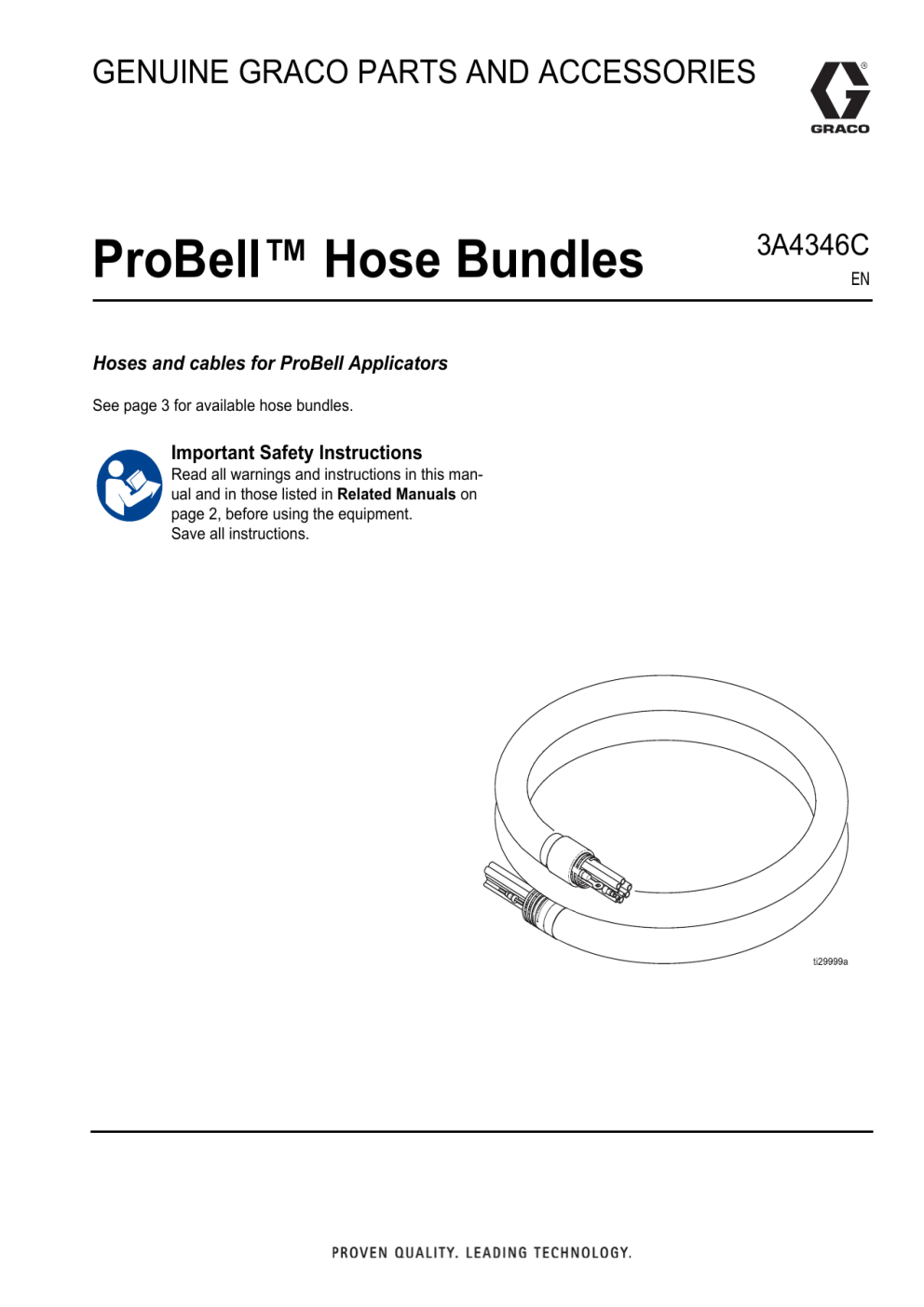

Graco 3A4346C, ProBell Hose Bundles Instructions

GENUINE GRACO PARTS AND ACCESSORIES
ProBell™ Hose Bundles
Hoses and cables for ProBell Applicators
See page 3 for available hose bundles.
Important Safety Instructions
Read all warnings and instructions in this manual and in those listed in Related Manuals on
page 2, before using the equipment.
Save all instructions.
3A4346C
EN
Related Manuals
Contents
Related Manuals . . . . . . . . . . . . . . . . . . . . . . . . . . .
Hose Bundles for Electrostatic Systems . . . . . . .
Hose Bundles for Non-Electrostatic Systems . . .
General Information . . . . . . . . . . . . . . . . . . . . . . . .
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Hollow Wrist Applicator Models (RxA2xx) . . . . . .
Standard Electrostatic Applicator
Models (RxA1x0) . . . . . . . . . . . . . . . . . . . . .
Standard Non-Electrostatic Applicator Models
(RxA1x1) . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Hose Bundle Component Identification . . . . . . . .
California Proposition 65 . . . . . . . . . . . . . . . . . . . .
Other Accessories . . . . . . . . . . . . . . . . . . . . . . . . . .
Hose Kits for Electrostatic Applications . . . . . . .
Graco Standard Warranty . . . . . . . . . . . . . . . . . . . .
2
3
3
4
4
4
5
5
6
6
7
7
8
Related Manuals
Manual in
English
334626
334452
3A4232
3A3657
3A3953
3A3954
3A3955
2
Description
ProBell Rotary Applicator, Hollow Wrist
ProBell Rotary Applicator
ProBell Cart Systems
ProBell Electrostatic Controller
ProBell Speed Controller
ProBell Air Controllers
ProBell System Logic Controller
3A4346C
Hose Bundles for Electrostatic Systems
Hose Bundles for Electrostatic Systems
Part
Number
Air Lines
(9x)
Grounding
Cable
Power
Supply
Cable
Fiber
Optic
Cable
Solventborne
Fluid Lines
(3x)
Length
11 m
24Z168
x
x
x
x
x
x
24Z160
x
x
x
x
x
24Z170
x
x
x
x
x
24Z711
x
x
x
x
24Z712
x
x
x
x
24Z713
x
x
x
x
20 m
30 m
x
x
x
x
x
Hose Bundles for Non-Electrostatic Systems
Fiber
Optic
Cable
Fluid
Lines (3x)
11 m
x
x
x
x
x
x
x
x
25T745
x
x
x
x
25T746
x
x
x
25T747
x
x
x
25T748
x
x
x
Part
Number
Air Lines
(9x)
Grounding
Cable
25T743
x
25T744
3A4346C
Power
Supply
Cable
Length
20 m
30 m
x
x
x
x
x
3
General Information
General Information
Installation
Each hose bundle comes with 9 air lines, a fiber optic
cable, power supply cable (ES bundles), and grounding
cable. Solventborne bundles come with an additional 3
fluid lines.
Hollow Wrist Applicator Models
(RxA2xx)
All hoses and cables are held with spiral wrap at the
applicator and controller ends of the bundle. To adjust
the hose bundle for installation, remove the two spiral
wraps to free the three fluid lines (24Z168, 24Z169,
24Z170, 24T743, 24T744, 24T745 models only) and
grounding cable.
Once all lines are adjusted, install spiral wrap back on
hose bundle. Additional spiral wraps can be purchased
in kit 24Z662 (bag of 10).
All hose bundles come ready to connect to Hollow Wrist
applicators.
The hollow wrist fiber optic cable measures 1.480” ±
.005” (37.6 + 0.12 mm) (See FIG. 1). The hex nut may be
used for fine adjustments to reach the target length. To
add length, turn nut clockwise.
To connect the hose bundle, see the Installation section
of ProBell Rotary Applicator, Hollow Wrist manual
334626.
Waterborne Information
Waterborne hose bundles for electrostatic applications
can be created by purchasing hose bundle 24Z711,
24Z712, or 24Z713 along with 2 waterborne fluid hoses,
one for paint and one for dump/recirculation. See Other
Accessories for more information.
FIG. 1 Hollow Wrist Applicator Fiber Optic Cable
Length (All Models)
Remove the blue hose bundle cover to install the fluid
hoses and secure with spiral wrap after connecting all
lines to applicator. Complete assembly by re-installing
protective blue cover over all lines before spraying.
For non-electrostatic applications, the standard fluid
hoses for solventborne systems can be used.
4
3A4346C
Installation
For a better fit with Standard Applicator models, use the following instructions to adjust hose bundles for installation.
NOTICE
To prevent damage, do not allow the fiber optic or
power cable to be in tension on the ProBell or controls
end of the hose bundle. Cut air and fluid tubing back if
needed.
Standard Electrostatic
Applicator Models (RxA1x0)
Standard Non-Electrostatic
Applicator Models (RxA1x1)
1. Paint, Dump, and Solvent Tubing (24Z1xx models
only) — Locate two 5/16” tubes labeled “P” and “D”
along with a 1/4” tube labeled “S”. Reduce the
length of the P, D, and S tubes no more than 6” from
its original length. Cut cleanly with a tube cutter to
prevent leaks with the fluid fittings.
2. Fiber Optic Cable — Use the included cutter tool
(Kit 24W823) to reduce the fiber optic cable length.
Cut the cable to measure 0.110” ± 0.005” (2.8 +
0.12 mm) from the flat end of the hex nut fitting to
the end of the cable (See FIG. 2).
3. Connect the hose bundle. See the installation section of ProBell Rotary Applicator manual 334452.
4. Bring blue wrap up to the back of the applicator
adapter cover and use provided zip ties to secure
wrap.
1. Unthread the ferrule from the fiber optic cable end
and remove the nut. The parts are not used.
NOTE: Use a wrench to tighten all fluid fittings from the
ProBell applicator to the hose bundle.
FIG. 3 Ferrule on Fiber Optic Cable End
2. Connect the hose bundle. See the installation section of ProBell Rotary Applicator manual 334452.
3. Bring blue wrap up to the back of the applicator
adapter cover and use provided zip ties to secure
wrap.
NOTE: Use a wrench to tighten all fluid fittings from the
ProBell applicator to the hose bundle.
FIG. 2 Standard Electrostatic Applicator Fiber Optic
Cable Length
3A4346C
5
Hose Bundle Component Identification
Hose Bundle Component Identification
Use the instructions in the Action to Adjust column below to adjust hose bundle for use with Standard Applicator
models.
NOTE: Hollow wrist applicator does not require changes.
Action to Adjust
Description
Diameter/
Material
Bulk Hose
Part
Number†
Natural/Green
Paint Inlet
5/16”- PFA
057233
Natural/White
Recirculation/
Dump
5/16”- PFA
057233
Natural/Black
1/4”- PFA
057234
5/32” - Nylon
054757
Label
Hose / Label
Color
P*
D*
S*
PT
Green/White
Solvent/
Cup Wash
Paint Trigger
ST
Black/White
Solvent Trigger
5/32” - Nylon
054753
DT
Natural/White
Dump Trigger
5/32” - Nylon
598095
BR
Red/White
Bearing Return
5/32” - Nylon
054754
Natural/Blue
Outside
Shaping Air
Inside Shaping
Air
5/16” - Nylon
057231
5/16” - Nylon
057231
SO
SI
Natural/Gray
B
Natural/Red
Bearing Air
5/16” - Nylon
057231
BK
Natural/Purple
Brake Air
5/16” - Nylon
057231
TA
Natural/Brown
Turbine Air
5/16” - Nylon
057231
Black/White
Fiber Optic
Cable
Black/White
Black/Yellow
Power Supply, 4
wire
Black/Yellow
Ground Cable
Green and
Yellow
1
Yellow
Tag
None
Green and
Yellow
For Standard
Electrostatic Bell
For
Non-Electrostatic
Standard Bell
Cut 6” off applicator
end
No action needed
No action needed
Cut 1.370” off applicator end
See “Other
Accessories”
Remove nut
and ferrule
No action needed
* Included only in models: 24Z168, 24Z169, 24Z170, 25T742, 25T743, 25T744.
† Hose is sold by the foot, maximum of 100 feet.
NOTE: Maximum working pressure: 150 psi.
California Proposition 65
CALIFORNIA RESIDENTS
WARNING: Cancer and reproductive harm. – www.P65warnings.ca.gov.
6
3A4346C
Other Accessories
Other Accessories
Fiber Optic Cables, Hollow Wrist Models
Kit
Description
Qty
24Z193
CABLE, fiber optic, 11 m (36 ft.)
1
24Z194
CABLE, fiber optic, 20 m (66 ft.)
1
24Z195
CABLE, fiber optic, 30 m (99 ft.)
1
Fiber Optic Cables, Standard Models
Kit
Description
Qty
24Z190
CABLE, fiber optic, 11 m (36 ft.)
1
24Z191
CABLE, fiber optic, 20 m (66 ft.)
1
24Z192
CABLE, fiber optic, 30 m (99 ft.)
1
Kit 24W875, Fiber Optic Cable Repair
Kit
Description
Qty
----
FITTING, fiber optic
4
----
NUT, fiber optic
4
----
TOOL, cutter, fiber optic
1
Kit 24W823, Fiber Optic Cable Cutting Tool
Kit
Description
----
TOOL, cutter, fiber optic
Qty
3
Hose Kits for Electrostatic
Applications
Hollow Wrist Waterborne Fluid Hose Kits (Shielded)
For Models RxA2x8
100 psi (0.69 MPa, 6.9 bar) Maximum Working Pressure
Kit
Description
Qty
24Z199
HOSE, fluid, shielded, 11 m (36 ft.)
1
24Z200
HOSE, fluid, shielded, 20 m (66 ft.)
1
Hollow Wrist Waterborne Fluid Hose Kits
(Unshielded)
For Models RxA2x8
100 psi (0.69 MPa, 6.9 bar) Maximum Working Pressure
Kit
Description
Qty
24Z201
HOSE, fluid, unshielded, 11 m (36 ft.)
1
24Z202
HOSE, fluid, unshielded, 20 m (66 ft.)
1
Standard Waterborne Fluid Hose Kits (Shielded)
For Models R_A1_8
100 psi (0.69 MPa, 6.9 bar) Maximum Working Pressure
Kit
Description
Qty
17L886
HOSE, fluid, shielded, 11 m (36 ft.)
1
17L887
HOSE, fluid, shielded, 20 m (66 ft.)
1
Kit 24X009, Fiber Optic Marker Numbers
Kit
Description
----
Pack of 30 (#1 and #2)
Qty
1
Applicator Power Cables
Kit
Description
Qty
17J586
CABLE, low voltage, 11 m (36 ft.)
1
17J588
CABLE, low voltage, 20 m (66 ft.)
1
17J589
CABLE, low voltage, 30 m (99 ft.)
1
Standard Waterborne Fluid Hose Kits (Unshielded)
For Models RxA1x8
100 psi (0.69 MPa, 6.9 bar) Maximum Working Pressure
Kit
Description
Qty
17L884
HOSE, fluid, unshielded, 11 m (36 ft.)
1
17L885
HOSE, fluid, unshielded, 20 m (66 ft.)
1
Grounding Cable
Kit
Description
Qty
24Z559
11 m (36 ft.)
1
24Z560
20 m (66 ft.)
1
24Z561
30 m (99 ft.)
1
3A4346C
7
Graco Standard Warranty
Graco warrants all equipment referenced in this document which is manufactured by Graco and bearing its name to be free from defects in
material and workmanship on the date of sale to the original purchaser for use. With the exception of any special, extended, or limited warranty
published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by
Graco to be defective. This warranty applies only when the equipment is installed, operated and maintained in accordance with Graco’s written
recommendations.
This warranty does not cover, and Graco shall not be liable for general wear and tear, or any malfunction, damage or wear caused by faulty
installation, misapplication, abrasion, corrosion, inadequate or improper maintenance, negligence, accident, tampering, or substitution of
non-Graco component parts. Nor shall Graco be liable for malfunction, damage or wear caused by the incompatibility of Graco equipment with
structures, accessories, equipment or materials not supplied by Graco, or the improper design, manufacture, installation, operation or
maintenance of structures, accessories, equipment or materials not supplied by Graco.
This warranty is conditioned upon the prepaid return of the equipment claimed to be defective to an authorized Graco distributor for verification of
the claimed defect. If the claimed defect is verified, Graco will repair or replace free of charge any defective parts. The equipment will be returned
to the original purchaser transportation prepaid. If inspection of the equipment does not disclose any defect in material or workmanship, repairs will
be made at a reasonable charge, which charges may include the costs of parts, labor, and transportation.
THIS WARRANTY IS EXCLUSIVE, AND IS IN LIEU OF ANY OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED
TO WARRANTY OF MERCHANTABILITY OR WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE.
Graco’s sole obligation and buyer’s sole remedy for any breach of warranty shall be as set forth above. The buyer agrees that no other remedy
(including, but not limited to, incidental or consequential damages for lost profits, lost sales, injury to person or property, or any other incidental or
consequential loss) shall be available. Any action for breach of warranty must be brought within two (2) years of the date of sale.
GRACO MAKES NO WARRANTY, AND DISCLAIMS ALL IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE, IN CONNECTION WITH ACCESSORIES, EQUIPMENT, MATERIALS OR COMPONENTS SOLD BUT NOT
MANUFACTURED BY GRACO. These items sold, but not manufactured by Graco (such as electric motors, switches, hose, etc.), are subject to
the warranty, if any, of their manufacturer. Graco will provide purchaser with reasonable assistance in making any claim for breach of these
warranties.
In no event will Graco be liable for indirect, incidental, special or consequential damages resulting from Graco supplying equipment hereunder, or
the furnishing, performance, or use of any products or other goods sold hereto, whether due to a breach of contract, breach of warranty, the
negligence of Graco, or otherwise.
FOR GRACO CANADA CUSTOMERS
The Parties acknowledge that they have required that the present document, as well as all documents, notices and legal proceedings entered into,
given or instituted pursuant hereto or relating directly or indirectly hereto, be drawn up in English. Les parties reconnaissent avoir convenu que la
rédaction du présente document sera en Anglais, ainsi que tous documents, avis et procédures judiciaires exécutés, donnés ou intentés, à la suite
de ou en rapport, directement ou indirectement, avec les procédures concernées.
Graco Information
For the latest information about Graco products, visit www.graco.com.
For patent information, see www.graco.com/patents.
TO PLACE AN ORDER, contact your Graco distributor or call to identify the nearest distributor.
Phone: 612-623-6921 or Toll Free: 1-800-328-0211 Fax: 612-378-3505
All written and visual data contained in this document reflects the latest product information available at the time of publication.
Graco reserves the right to make changes at any time without notice.
Original instructions. This manual contains English. MM 3A4346
Graco Headquarters: Minneapolis
International Offices: Belgium, China, Japan, Korea
GRACO INC. AND SUBSIDIARIES • P.O. BOX 1441 • MINNEAPOLIS MN 55440-1441 • USA
Copyright 2015, Graco Inc. All Graco manufacturing locations are registered to ISO 9001.
www.graco.com
Revision C, April 2021

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
