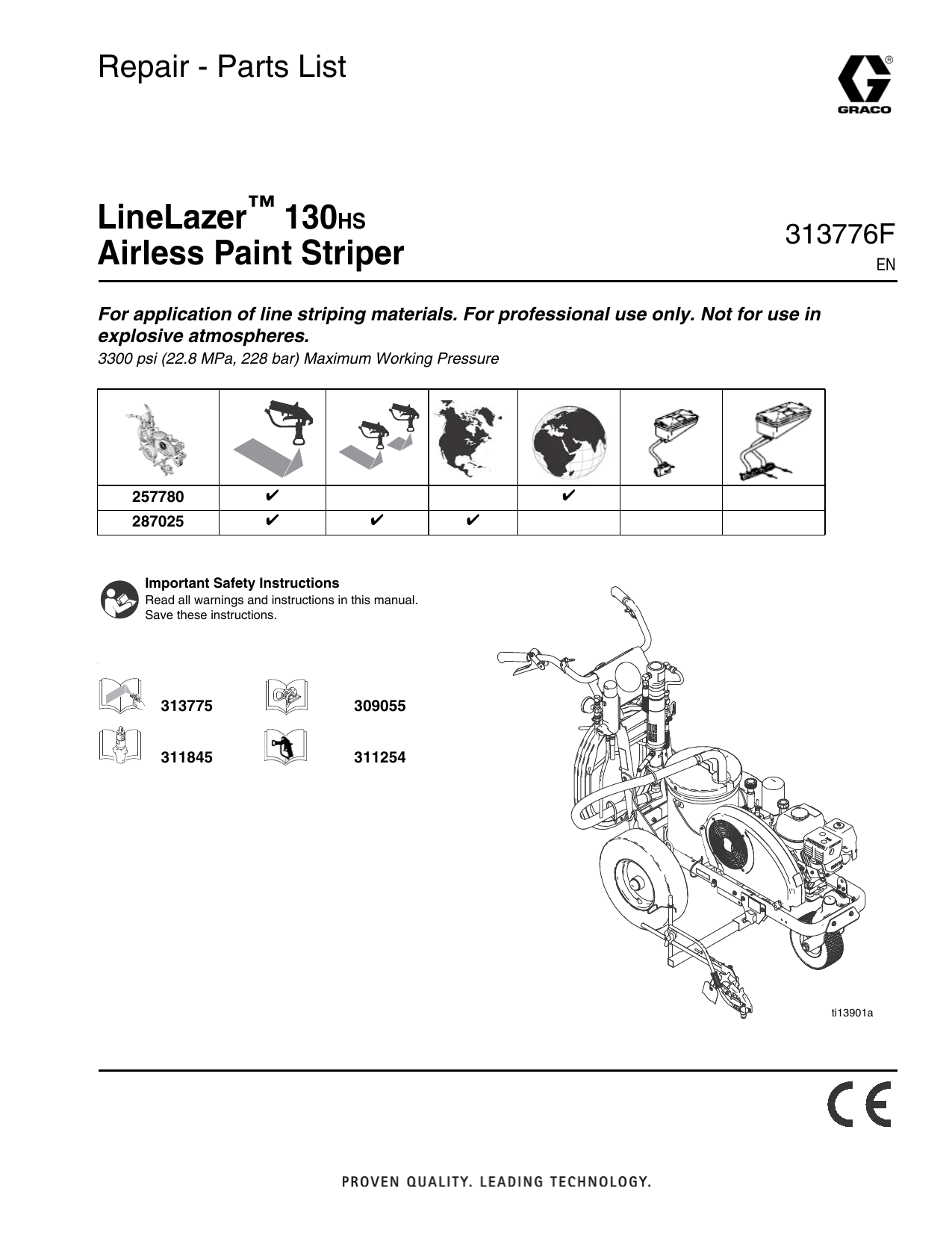

Graco 313776F LineLazer 130HS Airless Paint Striper, Repair - Parts List Owner's Manual

Repair - Parts List
LineLazer™ 130HS
Airless Paint Striper
313776F
EN
For application of line striping materials. For professional use only. Not for use in
explosive atmospheres.
3300 psi (22.8 MPa, 228 bar) Maximum Working Pressure
257780
✔
287025
✔
✔
✔
✔
Important Safety Instructions
Read all warnings and instructions in this manual.
Save these instructions.
.
313775
309055
311845
311254
ti13901a
Contents
Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Tip Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
General Repair Information . . . . . . . . . . . . . . . . . . 6
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Hydraulic Pump . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Fan Belt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Hydraulic Motor Yoke . . . . . . . . . . . . . . . . . . . . . . 15
Oil/Filter Change . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Displacement Pump . . . . . . . . . . . . . . . . . . . . . . . 18
Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Graco Standard Warranty . . . . . . . . . . . . . . . . . . . 34
2
313776F
Warnings
Warnings
The following warnings are for the setup, use, grounding, maintenance, and repair of this equipment. The exclamation point symbol alerts you to a general warning and the hazard symbol refers to procedure-specific risk. Refer back
to these warnings. Additional, product-specific warnings may be found throughout the body of this manual where
applicable.
WARNING
FIRE AND EXPLOSION HAZARD
Flammable fumes, such as solvent and paint fumes, in work area can ignite or explode. To help prevent
fire and explosion:
• Use equipment only in well ventilated area.
• Do not fill fuel tank while engine is running or hot; shut off engine and let it cool. Fuel is flammable
and can ignite or explode if spilled on hot surface.
• Eliminate all ignition sources; such as pilot lights, cigarettes, portable electric lamps, and plastic drop
cloths (potential static arc).
• Keep work area free of debris, including solvent, rags and gasoline.
• Do not plug or unplug power cords, or turn power or light switches on or off when flammable fumes
are present.
• Ground all equipment in the work area. See Grounding instructions.
• Use only grounded hoses.
• Hold gun firmly to side of grounded pail when triggering into pail.
• If there is static sparking or you feel a shock, stop operation immediately. Do not use equipment
until you identify and correct the problem.
• Keep a working fire extinguisher in the work area.
CARBON MONOXIDE HAZARD
Exhaust contains poisonous carbon monoxide, which is colorless and odorless. Breathing carbon
monoxide can cause death. Do not operate in an enclosed area.
SKIN INJECTION HAZARD
High-pressure fluid from gun, hose leaks, or ruptured components will pierce skin. This may look like just
a cut, but it is a serious injury that can result in amputation. Get immediate surgical treatment.
• Do not point gun at anyone or at any part of the body.
• Do not put your hand over the spray tip.
• Do not stop or deflect leaks with your hand, body, glove, or rag.
• Do not spray without tip guard and trigger guard installed.
• Engage trigger lock when not spraying.
• Follow Pressure Relief Procedure in this manual, when you stop spraying and before cleaning,
checking, or servicing equipment.
PRESSURIZED EQUIPMENT HAZARD
Fluid from the gun/dispense valve, leaks, or ruptured components can splash in the eyes or on skin and
cause serious injury.
• Follow Pressure Relief Procedure in this manual, when you stop spraying and before cleaning,
checking, or servicing equipment.
• Tighten all fluid connections before operating the equipment.
• Check hoses, tubes, and couplings daily. Replace worn or damaged parts immediately.
313776F
3
Warnings
WARNING
EQUIPMENT MISUSE HAZARD
Misuse can cause death or serious injury.
• Do not operate the unit when fatigued or under the influence of drugs or alcohol.
• Do not exceed the maximum working pressure or temperature rating of the lowest rated system
component. See Technical Data in all equipment manuals.
• Use fluids and solvents that are compatible with equipment wetted parts. See Technical Data in all
equipment manuals. Read fluid and solvent manufacturer’s warnings. For complete information
about your material, request MSDS forms from distributor or retailer.
• Check equipment daily. Repair or replace worn or damaged parts immediately with genuine manufacturer’s replacement parts only.
• Do not alter or modify equipment.
• Use equipment only for its intended purpose. Call your distributor for information.
• Route hoses and cables away from traffic areas, sharp edges, moving parts, and hot surfaces.
• Do not kink or over bend hoses or use hoses to pull equipment.
• Keep children and animals away from work area.
• Comply with all applicable safety regulations.
BURN HAZARD
Equipment surfaces and fluid that’s heated can become very hot during operation. To avoid severe
burns, do not touch hot fluid or equipment. Wait until equipment/fluid has cooled completely.
MOVING PARTS HAZARD
Moving parts can pinch or amputate fingers and other body parts.
• Keep clear of moving parts.
• Do not operate equipment with protective guards or covers removed.
• Pressurized equipment can start without warning. Before checking, moving, or servicing equipment,
follow the Pressure Relief Procedure in this manual. Disconnect power or air supply.
TOXIC FLUID OR FUMES HAZARD
Toxic fluids or fumes can cause serious injury or death if splashed in the eyes or on skin, inhaled, or
swallowed.
• Read MSDS’s to know the specific hazards of the fluids you are using.
• Store hazardous fluid in approved containers, and dispose of it according to applicable guidelines.
• Always wear impervious gloves when spraying or cleaning equipment.
PERSONAL PROTECTIVE EQUIPMENT
You must wear appropriate protective equipment when operating, servicing, or when in the operating
area of the equipment to help protect you from serious injury, including eye injury, inhalation of toxic
fumes, burns, and hearing loss. This equipment includes but is not limited to:
• Protective eyewear
• Clothing and respirator as recommended by the fluid and solvent manufacturer
• Gloves
• Hearing protection
RECOIL HAZARD
Gun may recoil when triggered. If you are not standing securely, you could fall and be seriously injured.
4
313776F
Tip Selection
Tip Selection
in.
(cm)
*
LL5213*
2 (5)
LL5215*
2 (5)
in.
(cm)
in.
(cm)
in.
(cm)
✔
✔
✔
LL5217
4 (10)
LL5219
4 (10)
LL5315
4 (10)
✔
LL5317
4 (10)
✔
LL5319
4 (10)
✔
LL5321
4 (10)
✔
LL5323
4 (10)
✔
LL5325
4 (10)
✔
LL5327
4 (10)
✔
LL5329
4 (10)
✔
LL5331
4 (10)
✔
LL5333
4 (10)
✔
LL5335
4 (10)
✔
LL5355
4 (10)
✔
✔
LL5417
6 (15)
✔
LL5419
6 (15)
✔
LL5421
6 (15)
✔
LL5423
6 (15)
✔
LL5425
6 (15)
✔
LL5427
6 (15)
✔
LL5429
6 (15)
✔
LL5431
6 (15)
✔
LL5435
6 (15)
✔
LL5621
12 (30)
✔
LL5623
12 (30)
✔
LL5625
12 (30)
✔
LL5627
12 (30)
✔
LL5629
12 (30)
✔
LL5631
12 (30)
✔
LL5635
12 (30)
✔
LL5639
12 (30)
✔
Use 100 mesh filter to reduce tip clogs.
313776F
5
General Repair Information
General Repair Information
SAE O-Ring Installation
1. Unscrew lock nut to touch
fitting.
1. Keep all screws, nuts, washers, gaskets, and
electrical fittings removed during repair procedures. These parts are not normally provided with
replacement assemblies.
A
2. Lubricate o-ring (A).
A
ti5414a
3. Screw in fitting hand tight.
2. Test repair after problem is corrected.
3. If sprayer does not operate properly, review
repair procedure to verify procedure was done correctly. If necessary, see Troubleshooting, page 8,
for other possible solutions.
TI5415a
4. Unscrew fitting until
oriented properly.
4. Install belt guard before operation of sprayer and
replace if damaged. Belt guard reduces risk of
pinching and loss of fingers.
TI5416a
Grounding
5. Tighten lock nut to
indicated torque. (Make sure
washer is seated properly
without pinching o-ring).
Ground sprayer with grounding clamp to earth ground
when flushing sprayer. FIG. 1.
TI5417a
grounding
clamp
water pipe, steel
sign post, or
metal light pole
TI06250
FIG. 1
6
313776F
Maintenance
Maintenance
Pressure Relief Procedure
1. Engage trigger lock.
2. Turn engine ON/OFF switch to OFF.
3. Move pump valve to OFF (clockwise) and turn pressure control knob fully counterclockwise.
4. Disengage the trigger lock. Hold a metal part of the
gun firmly to a grounded metal pail, and trigger the
gun to relieve pressure.
DAILY: Top off TSL level in displacement pump packing
nut to help prevent material buildup on piston rod and
early wear of packings.
AFTER THE FIRST 20 HOURS OF OPERATION: Drain
engine oil and refill with clean oil. Reference Honda
Engines Owner's Manual for correct oil viscosity.
WEEKLY: Remove engine air filter cover and clean element and replace, if necessary. If operating in an unusually dusty environment: check filter daily.
WEEKLY/DAILY: Remove any debris from hydraulic rod.
AFTER EACH 100 HOURS OF OPERATION: Change
engine oil. Reference Honda Engines Owner's Manual
for correct oil viscosity.
5. Engage the trigger lock.
6. Open pressure drain valve. Leave valve open until
you are ready to spray again.
If you suspect the spray tip or hose is completely
clogged, or that pressure has not been fully relieved
after following the steps above, VERY SLOWLY loosen
tip guard retaining nut or hose end coupling to relieve
pressure gradually, then loosen completely. Clear hose
or tip obstruction.
•
•
CAUTION
Minimum hose size allowable for proper sprayer
operation is 3/8 in. x 50 ft.
For detailed engine maintenance and specifications, refer to separate Honda Engines Owner's
Manual, supplied.
DAILY: Check engine oil level and fill as necessary.
DAILY: Check hydraulic oil level and fill as necessary.
DAILY: Check hose for wear and damage.
DAILY: Check gun safety for proper operation.
DAILY: Check prime/spray drain valve for proper operation.
DAILY: Check and fill the gas tank.
DAILY: Check that displacement pump is tight.
313776F
SEMI-ANNUALLY: Check belt wear, page 18; replace if
necessary.
YEARLY OR 2000 HOURS: Replace hydraulic oil and
filter element with Graco hydraulic oil 169236 (5 gallon/18.9 liter) or 207428 (1 gallon/3.8 liter) and filter element 246173; page 17.
SPARK PLUG: Use only BPR6ES (NGK) or W20EPR-U
(NIPPONDENSO) plug. Gap plug to 0.028 to 0.031 in.
(0.7 to 0.8 mm). Use spark plug wrench when installing
and removing plug.
Caster Wheel
(See letter call-outs in Parts drawing on page 19.)
1. Once each year, tighten nut (127, detail A) until
spring washer bottoms out. Then back off the nut
1/2 to 3/4 turn.
2. Once each year, tighten nut (127) until it begins to
compress spring washer. Then tighten the nut an
additional 1/4 turn.
3. Once each month, grease the wheel bearing (F).
4. Check pin (55) for wear. If pin is worn out, there will
be play in the caster wheel. Reverse or replace the
pin as needed.
5. Check caster wheel alignment as necessary. To
align: loosen bolt (145), align wheel and tighten bolt.
7
Troubleshooting
Troubleshooting
Problem
Cause
Solution
Gas engine pulls hard
(won't start).
Hydraulic pressure is too high.
Turn hydraulic pressure knob counterclockwise to
lowest setting.
Engine won't start.
Engine switch is OFF.
Turn engine switch ON.
Engine is out of gas.
Refill gas tank. Honda Engines Owner's Manual.
Engine oil level is low.
Try to start engine. Replenish oil, if necessary.
Honda Engines Owner's Manual.
Spark plug cable is disconnected or damaged.
Connect spark plug cable or replace spark plug.
Cold engine.
Use choke.
Fuel shutoff lever is OFF.
Move lever to ON position.
Oil is seeping into combustion chamber.
Remove spark plug. Pull starter 3 to 4 times.
Clean or replace spark plug. Start engine. Keep
sprayer upright to avoid oil seepage.
Engine operates, but dis- Pump valve is OFF.
placement pump does
Pressure setting is too low.
not operate.
Turn pump valve ON.
Turn pressure adjusting knob clockwise to
increase pressure. Manual 311018.
Fluid filter (11) is dirty.
Clean filter.
Tip or tip filter is clogged.
Clean tip or tip filter. Manual 311254.
Displacement pump piston rod is stuck due to
dried paint.
Repair pump. Manual 311845.
Belt worn, broken or off pulley.
Replace.
Hydraulic fluid too low.
Shut of sprayer. Add fluid*.
Hydraulic motor not shifting.
Set pump valve OFF. Turn pressure down. Turn
engine OFF. Pry rod up or down until hydraulic
motor shifts.
* Check hydraulic fluid level often. Do not allow it to become too low. Use only Graco approved hydraulic fluid, page 7.
8
313776F
Troubleshooting
Problem
Displacement pump
operates, but output is
low on upstroke
Cause
Solution
Piston ball is not seating.
Service piston ball. Manual 311845.
Piston packings are worn or damaged.
Replace packings. Manual 311845.
Strainer (34e) is clogged.
Displacement pump
operates but output is low O-ring in pump is worn or damaged.
on downstroke and/or on
Intake valve ball is packed with material or is not
both strokes.
seating properly.
Clean strainer.
Replace o-ring. Manual 311845..
Clean intake valve. Manual 311845..
Engine speed is too low.
Increase throttle setting. Manual 313775.
Suction tube air leak.
Tighten suction tube.
Pressure setting is too low.
Increase pressure. Manual 313775.
Fluid filter (11), tip filter or tip is clogged or dirty.
Clean filter. Manual 313775 or 311254.
Large pressure drop in hose with heavy materials.
Use larger diameter hose and/or reduce overall
length of hose. Use of more than 100 ft of 1/4 in.
hose significantly reduces performance of
sprayer. Use 3/8 in. hose for optimum performance (50 ft minimum).
Pump is difficult to prime. Air in pump or hose.
Check and tighten all fluid connections.
Reduce engine speed and cycle pump as slowly
as possible during priming.
Intake valve is leaking.
Clean intake valve. Be sure ball seat is not nicked
or worn and that ball seats well. Reassemble
valve.
Pump packings are worn.
Replace pump packings. Manual 311845.
Paint is too thick.
Thin the paint according to the supplier's recommendations.
Engine speed is too high.
Decrease throttle setting before priming pump.
Manual 313775.
Misadjusted throttle setting.
Reset throttle to 3700-3800 engine rpm at no
load.
Worn engine governor.
Replace or service engine governor.
Low stall or run pressure
shown on display.
New pump or new packings.
Pump break-in period takes up to 100 gallons of
material.
Faulty transducer.
Replace transducer.
Excessive paint leakage
into throat packing nut.
Throat packing nut is loose.
Remove throat packing nut spacer. Tighten throat
packing nut just enough to stop leakage.
Throat packings are worn or damaged.
Replace packings. Manual 311845.
Displacement rod is worn or damaged.
Replace rod. Manual 311845.
High engine speed at no
load.
Fluid is spitting from gun. Air in pump or hose.
313776F
Check and tighten all fluid connections. Reprime
pump. Manual 313775.
Tip is partially clogged.
Clear tip. Manual 311254.
Fluid supply is low or empty.
Refill fluid supply. Prime pump. Manual 313775.
Check fluid supply often to prevent running pump
dry.
9
Troubleshooting
Problem
Excessive leakage
around hydraulic motor
piston rod wiper.
Fluid delivery is low.
Cause
Solution
Piston rod seal worn or damaged.
Replace these parts.
Pressure setting too low.
Increase pressure. Manual 313775.
Displacement pump outlet filter (if used) is dirty or Clean filter.
clogged.
The sprayer overheats.
Excessive hydraulic
pump noise.
10
Intake line to pump inlet is not tight.
Tighten.
Hydraulic motor is worn or damaged.
Bring sprayer to Graco distributor for repair.
Large pressure drop in fluid hose.
Use larger diameter or shorter hose.
Paint buildup on hydraulic components.
Clean.
Oil level is low.
Fill with oil, page 7.
Low hydraulic fluid level.
Shut off sprayer. Add fluid*, page 7.
313776F
Hydraulic Pump
Hydraulic Pump
Removal
Installation
1. Install hydraulic pump (252) on reservoir cover (237)
with four screws (215) and o-rings (178), o-ring
(180); torque 100 in-lb (11 N·m).
1. Allow hydraulic system to cool before beginning service.
2. Relieve pressure, page 7.
3. Place drip pan or rags under sprayer to catch
hydraulic oil that leaks out during repair.
4. Remove drain plug (195) and oil filter (199) and
allow hydraulic oil to drain.
2. Install gasket (85) filter assembly (A) and reservoir
cover (237) with eight washers (101) and screws
(184); torque 90 in-lb (10 N•m).
3. Install elbow (182) per instructions, page 6; torque
to 15 ft-lb (20.3 N•m).
4. Install pressure control guard (63) and tighten screw
(184).
5. Connect hydraulic hoses (32) and (35).
5. Remove screw (224), loosen belt guard knob (241)
and belt guard (24).
6. Install case drain tube (251); torque to 15 ft-lb (20.3
N•m).
6. Raise motor and remove belt (143).
7. Install fan pulley (86) with two set screws (193).
7. Remove two set screws (169) and fan pulley (86).
8. Raise motor and install belt (143).
8. Remove case drain tube (251).
9. Install belt guard (24) with screw (224) and belt
guard knob (241).
9. Remove elbow (182).
10. Loosen screw (184) and remove pressure control
guard (63).
11. Loosen set screw (102) and remove remote pressure control cable (12).
12. Remove eight screws (184) and washers (101), reservoir cover (237), filter assembly (A) and gasket
(85).
13. Remove four screws (215) and o-rings (178), o-ring
(180) and hydraulic pump (252) from reservoir cover
(237).
313776F
10. Install remote pressure control cable (12).Tighten
set screw (102).
11. Install drain plug (195); torque to 110 in-lb (12.4
N•m). Install oil filter (199); tighten 3/4 turn after
gasket contacts base. Fill with Graco hydraulic oil,
page 7.
12. Start up and allow pump to operate at low pressure
for approximately 5 minutes to purge all air.
13. Check and top off hydraulic oil level.
11
Hydraulic Pump
182
251
143
86
196
252
169
162
178
24
32
199
180
218
35
224
184
237
A
101
215
85
241
TI6551a
195
FIG. 2
12
313776F
Fan Belt
Fan Belt
Removal
5. Remove belt from fan pulley (86) and fan pulley
(87a).
Installation
1. Relieve pressure, page 7.
1. Thread belt (143) around fan pulley (87a) and fan
pulley (86).
2. FIG. 3. Loosen belt guard knob (241).
2. Lower engine (185) to put tension on belt.
3. Rotate belt guard (24) up.
3. Rotate belt guard (24) down.
4. Lift engine (185) up to remove tension on belt (143).
4. Tighten belt guard knob (241).
24
143
185
86
87a
241
TI6511a
FIG. 3
313776F
13
Engine
Engine
NOTE: All service to the engine must be performed by
an authorized HONDA dealer,
6. Remove four screws (189), washers (114), washers
(170) and nuts (118) and remove rocker plate,
dampeners (59) and washers (114) from engine.
Removal
Installation
1. Install rocker plate (87c), dampeners (59) and washers (170), washers (114) on engine (185) with four
screws (189), washers (170) and nuts (118); torque
to 20 ft-lb (27.1 N•m).
1. Relieve pressure, page 7.
2. Install engine and rocker plate (87c) on sprayer.
2. Do Fan Belt, Removal; page 13.
3. Connect red and black leads.
3. Loosen hand nut (241). Swing bracket (30) out.
4. Do Fan Belt, Installation; page 13.
4. FIG. 4. Disconnect red and black leads from engine.
5. Remove engine and rocker plate (87c) from sprayer.
5. Swing motor retainer bracket (30) in. Tighten hand
nut (241).
GREEN
RED
241 30
BLACK
118
170
114
59
87c
114
189
TI6520b
FIG. 4
14
313776F
Hydraulic Motor Yoke
Hydraulic Motor Yoke
Removal
Installation
1. Slide piston rod assembly (A) into hydraulic motor
cylinder.
1. Relieve pressure, page 7.
2. Place drip pan or rags under sprayer to catch
hydraulic oil that leaks out during repair.
3. FIG. 5. Slide retainer clip (194) down to remove.
Remove pump pin (249).
4. Remove hydraulic lines (35, 250) from fittings (217)
at top left and right side of hydraulic motor.
5. Loosen jam nut (183).
6. Unscrew and remove hydraulic motor cap (25).
7. Slide piston rod/hydraulic motor cap assembly (A)
from hydraulic motor cylinder (69).
313776F
2. Screw down hydraulic motor cap (25) until cap bottoms out. Unscrew hydraulic motor cap until inlet
and outlet align with hydraulic line fittings and test
hole in hydraulic motor cap points toward belt guard
(24).
3. Torque jam nut (183) against hydraulic motor cap
(25) to 150 ft-lb (17 N•m).
4. Install hydraulic lines (35, 250) to fittings (217) to top
left and right side of hydraulic motor per procedure
on page 6; torque to 40 ft-lb (54.2 N•m).
5. Pull start rope slowly to align pin holes of hydraulic
motor and displacement pump (21). Connect with
pump pin (249); and retainer clip (194), page 18.
6. Start engine and operate pump for 30 seconds. Turn
engine OFF. Check hydraulic oil level and fill with
Graco hydraulic oil, page 7.
15
Hydraulic Motor Yoke
WHVWKROH
$
ti13918a
FIG. 5
16
313776F
Oil/Filter Change
Oil/Filter Change
Removal
1. FIG. 6 Place drip pan or rags under sprayer to catch
hydraulic oil that drains out.
199
2. Remove drain plug (195). Allow hydraulic oil to
drain.
3. Unscrew filter (199) slowly - oil runs into groove and
drains out rear.
Installation
1. Install drain plug (195). Apply a light coat of oil to oil
filter gasket and install oil filter (199). Tighten oil filter 3/4 turn after gasket contacts base.
2. Fill with 1.25 gallons (4.73 liters) of Graco hydraulic
oil 169236 (5 gallon/20 liter) or 207428 (1 gallon/3.8
liter)
ti2271a
FIG. 6
3. Check oil level.
4. Check oil level.
313776F
17
Displacement Pump
Displacement Pump
See manual 311845 for pump repair instructions.
Removal
Installation
CAUTION
If the pump jam nut loosens during operation, the
threads of the hydraulic motor manifold will be damaged. Tighten jam nut as specified.
1.
Flush pump.
2.
3.
Relieve pressure, page 7.
FIG. 7. Remove suction tube (34) and hose (26).
1.
FIG. 10. Screw jam nut to bottom of pump threads.
Screw pump completely into manifold. Unscrew
pump from manifold until pump outlet aligns with
hose. Hand tighten jam nut, then tap 1/8 to 1/4 turn
with hammer or torque to 200 ft-lb (270 N•m).
26
34
ti13907a
ti13904a
FIG. 10
FIG. 7
4.
FIG. 8. Push retaining spring (194) up. Push out pin
(249).
249
2.
FIG. 11. Slowly pull engine starter rope until pump
rod pin hole is aligned with hydraulic rod hole. FIG. 8.
FIG. 8 Push pin (249) into hole. Push retaining spring
(194) into groove.
194
ti13905a
FIG. 8
ti13908a
5.
FIG. 9. Loosen jam nut. Unscrew pump.
FIG. 11
3.
FIG. 12. Fill packing nut with Graco TSL.
ti13906a
FIG. 9
ti13809a
FIG. 12
18
313776F
Parts
Parts
LineLazer IV 130HS
Parts Page 30
Parts Page 34
Parts Page 34
Parts Page 28
Parts Page 36
Parts Page 26
Parts Page 28
ti13917a
313776F
19
Parts
144
57
141
290
27
36
108
33
5
60
129
108
221
156
73
93
74
134
84
112
58
261
28
261
117
70
2
156
13
154
121
94
258
16
51 117
142
127
99
122
120
117
121
256
1
ti13910a
20
313776F
Parts
LineLazer IV 130HS
Ref
Part
Description
5
13
16
27
28
33
237686
245225
287623
287417
287622
CLAMP, grounding assy
HOSE, 3/8 in. x 50 ft
FRAME, linestriper (painted)
HANDLE
SUPPORT, handle, painted
COVER, pail
No. 221 (Model 257780)
includes 221 (Model 287025)
BUSHING, strain relief
AXLE
LEVER, actuator
SPACER, ball guide
ADAPTER, nipple
SENSOR, distance
SHIELD, sensor, distance
BRACKET, mounting
ROD, brake
BEARING
STRAP, retaining
LABEL, warning, fire and skin
BRACE, left, painted
BRACE. right, painted
BRACKET, reservoir
CLIP, spring
SCREW, cap
STRAP, wiring tie (not shown)
AXLE
36
51
57
58
60
66
68
70
73
74
77
84▲
93
94
99
107
108
109
51
240926
287567
115642
193405
194310
195134
196176
15K357
15J088
198891
198930
198931
114271
15F638
15F577
15F576
15F425
178342
112395
102478
193405
Qty
1
1
1
1
1
1
1
2
1
1
1
1
1
1
1
1
1
1
1
1
1
1
4
2
6
1
Ref Part
Description
112
117
120
121
122
127
129
134
141
142
144
154
156
221
256
258
261
290
134
141
KNOB, pronged
SCREW, flange, hex
WHEEL, pneumatic
NUT, lock, insert, nylock, 5/16
SCREW, cap flange hd
NUT, lock
SCREW, thread forming, hex hd
SCREW, cap, hex hd
CABLE, caster
CAP, dust
GRIP, handle
PAIL, plastic
SCREW, cap, flng hd
STRAP, cover
SPRING, extension
BRACKET, frame
SCREW, hex hd
PLUG, tube
SCREW, cap, hex hd
CABLE, caster
111145
110837
255162
111040
111194
112405
112798
113961
241445
114648
114659
115077
112395
119771
119696
15F441
116780
120151
113961
241445
Qty
2
10
2
10
2
4
2
1
1
3
2
1
2
2
1
1
4
2
1
1
▲ Replacement warning labels may be ordered free of charge.
Notes
1
Maintain tire pressure at 28-32 psi
2
Torque to 17-23 ft-lb
313776F
21
Parts
LineLazer IV 130HS
49
136
121
360
WLD
117
83
46
104 1
44
8e
161
8f
8b
105
8f
8d
1
8f
47
8
14
8a
8f
8c
Detail 8
4
71
160
72
119
144
27
161
119
2 162
89
96
163
71
Ref 161
ti13911a
17
22
313776F
Parts
LineLazer IV 130HS
Ref
Part
Description
Qty
1
4
8
8a
8b
8c
8d
8e
8f
14
17
27
224052
248157
287570
287569
15F214
15F209
15F210
15F211
102040
245798
245733
287417
BRACKET, support gun
GUN, flex, basic, includes guard & tip
KIT, holder, gun
HOLDER, gun
LEVER, actuator
STUD, pull, trigger
STUD, pivot
STUD, cable
NUT, lock
HOSE, 1/4 x 7 ft
KIT, trigger handle repair
HANDLE
44
46
47
49
71
72
83▲
89▲
15F212
111145
15F213
188135
198895
198896
15F637
15A644
ARM, support
KNOB, pronged
BRACKET, cable
GUIDE, cable
PLATE, lever, pivot
BLOCK, mounting (mach)
LABEL, skin injection
LABEL, trigger
1
1
1
1
2
1
1
1
96
104
105
109
117
119
121
136
144
15F624
119647
119648
102478
110837
111017
111040
287566
114659
NUT, cable, gun
SCREW, cap, socket, flthd
SCREW, mach tursshd, cross recess
STRAP, wiring tie
SCREW, flange, hex
BEARING, flange
NUT, lock
KIT, clamp, includes 136a
GRIP, handle
2
2
1
6
2
2
2
1
2
160
161
162
163
360
116941
287696
116969
116973
15F389
SCREW, shoulder, socket head
CABLE, includes 96
NUT, lock
SCREW, #10 taptite phil
BRACKET, gun arm
1
1
2
1
1
1
1
1
1
1
1
1
1
4
11
1
1
▲ Replacement warning labels may be ordered free of charge
Notes
1
Torque to 90-110 in-lb
2
Torque to 10-20 ft-lb
313776F
23
Parts
Parts - LineLazer IV 130HS
(Engine Control Wiring Diagram)
151
97
185a
ti13916a
15f
72(1*,1(
81
*5281'
41
(1*,1(2))
6:,7&+
37
27
15f
15s
103
267
262
11
167
40
29
302
29
62
62
31
76
2d
103
310
2a
2b
97
64 2
308
34
303
62
13
24
124 259
2d
259
124
38 62
26
313776F
Parts
LineLazer IV 130HS
Ref
2*
2a
2b
2c
2d
11*
13
15f
15s▲
26
27
29
31
34
37
38
40
41
62
64
76
97
103
124
125
167
259
262
267
270
Part
245103
193709
193710
116424
114708
244067
245225
114954
15Y608
245226
287417
196179
15Y465
287206
15C766
15G563
15H561
287285
196178
196181
104813
122854
117501
111457
112303
117285
15Y462
111801
15F814
24B749
Description
Qty
VALVE, drain
1
SEAT, valve
1
SEAT, valve
1
NUT, cap
1
SPRING
1
FILTER, fluid
1
HOSE, 3/8 in. x 50 ft
1
SWITCH, rocker
1
LABEL, control
1
HOSE, coupled, 3/8 in.
1
HANDLE
1
FITTING, elbow, street
2
COVER, control
1
HOSE, suction/drain
1
TUBE, diffuser
1
HANDLE
`1
MANIFOLD, filter, 3/8 npt
1
KIT, repair, filter cap, includes 37, 167 1
ADAPTER, nipple
2
FITTING, nipple
1
PLUG, pipe
1
HARNESS, wiring
1
SCREW
5
O-RING
1
SCREW, set, sch
1
O-RING
1
PLUG, filter
1
SCREW, cap, hex
2
GASKET, handle
1
KIT, repair, filter, includes 2, 3, 11,
1
37, 38, 39, 40, 41, 124, 167, 259
LABEL, brand
1
ADAPTER (Model 257780)
1
GAUGE (Model 257780)
1
TRIM, rubber
1
302 15Y598
303 243683
308 115523
310 123782
▲ Replacement warning labels may be ordered free of charge
Notes
1
Torque to 115-135 in-lb
2
Torque to 130-150 ft-lb
313776F
25
Parts
Parts - LineLazer IV 130HS
138
231
159
217
243
250 7
285
217
2
235
35
149 6
173
173
176
213
183
48
107
187
69
3
186
220
32
244
108
179
245
213
174
235
283
230
233
137
92
285
35
194
249
218
13
26
60
21
222
34
ti13914a
26
313776F
Parts
LineLazer IV 130HS
Ref
21
159
Part
Description
Qty
24B748 PUMP, displacement
1
Manual 311845
245797 HOSE, coupled, 3/8 in.
1
287175 HOSE, hydraulic, supply
1
287206 HOSE, suction/drain
1
287176 HOSE, hydraulic, return
1
117328 FITTING, nipple, straight
1
196178 ADAPTER, nipple 3/8 in. x 3/8 in.
1
246176 SLEEVE, hydraulic cylinder,
1
includes 213
193031 NUT, retaining
1
117441 VALVE, ball
1
101566 NUT, lock
4
15F911 GUARD, pump rod
1
106276 SCREW, cap, hex hd
1
119841 FITTING, tee, branch, str thd
1
‘
155685 O-RING
1
173
174
176
179
183
186
100139
102040
105765
108014
15A726
112342
26
32
34
35
48
60
69
92
107
108
137
138
149
PLUG, pipe
NUT, lock, hex
O-RING
O-RING
NUT, jam
BEARING, rod
1
2
1
`
1
1
Ref
183
186
187
194
213
217
218
220
222
230
231
233
235
243
244
245
249
250
283
284
285
Part
15A726
112342
112561
116551
117283
117607
117608
117739
15Y463
15H953
15B063
107210
15B804
178179
178207
178226
197443
15F519
110982
288758
288735
Description
NUT, jam
BEARING, rod
PACKING, block
RING, retaining
O-RING
FITTING, elbow, std thd
FITTING, nipple, straight
WIPER, rod
BUSHING
MANIFOLD, adapter
LABEL,
SCREW, cap, socket head
LABEL, Graco Logo
WASHER, sealing
BEARING, piston
SEAL, piston
PIN, pump
TUBE, hydraulic, supply
SCREW, cap, hex head
KIT, repair, hydraulic motor
KIT, repair, trip rod, piston
Qty
1
1
1
1
1
2
1
1
1
1
1
4
1
1
1
1
1
1
1
1
1
KITS
246174 KIT, repair, seal, hydraulic, includes
176, 186, 213, 220, 244, 245
Notes
313776F
1
Torque to 75 ft-lb
2
Torque to 85-95 in-lb
3
Torque to 150 ft-lb
4
Torque to 54-56 in-lb
5
Torque to 40-44 ft-lb
6
Torque to 40 ft-lb
7
Torque to 25 ft-lb
27
Parts
LineLazer IV 130HS
227
185
225
182
252
86
251
196 88
169
143
178
169
24
32
118
150
170
81
87b
180
114
59
188 87a
181
82
87c
199
228
193
172
184
162
212
253
114
197
189
237
214
101
224
215
23
174
34k
34f
34d
75
198
85
241
241
34h
30
117
242
34n
34g
170
34a
34b
34j
195
34e
200
34d
Detail 34
34c
TI6493b
28
313776F
Parts
LineLazer IV 130HS
Ref
23
24
Part
Description
Qty
288261 RAIL, belt
1
248973 GUARD, belt, includes: 162, 193,
1
214, 224, and 228
30
15E476 BRACKET, retainer, motor
1
32
287175 HOSE, hydraulic supply
1
34
287206 HOSE, suction/drain
1
34a 15F149 TUBE, suction
1
34b 194306 HOSE, fluid
1
34c 198119 ELBOW, barbed
1
34d 101818 CLAMP, hose
1
34e 181072 STRAINER, inlet
1
34f
198601 TUBE, drain
1
34g 241920 DEFLECTOR, threaded
1
34h 248008 HOSE, coupled 1/4 in. x 4 ft.
1
34j
114958 STRAP, tie
7
34k 196180 BUSHING
1
34m 195119 LABEL, warning (not shown)
1
34n 15F513 GASKET, pail
1
59
15E888 DAMPENER, motor mount
4
75
15E587 TUBE, suction
1
81
240997 CONDUCTOR, ground
1
82▲ 15Y464 LABEL, brand 130HS
85
120604 GASKET, reservoir
1
86
15E410 PULLEY, fan
1
87a 116908 PULLEY, 5.50 diameter
1
87b 15E759 SPACER, shaft, engine
1
87c 15F485 BRACKET, engine mount
1
88
117632 KEY, square, 3/16 x 1.25
1
101 100016 WASHER
8
114 108851 WASHER, plain
8
117 110837 SCREW, flange, hex
10
118 110838 NUT, lock
4
143 119433 BELT, vee, gripnotch
1
150 154594 O-RING
2
151 114956 TERMINAL, wire tap, insulated
1
162 116969 NUT, lock
2
169 100002 SCREW, set, sch
3
170 100023 WASHER, flat
6
172 100084 BALL, metallic
1
174 102040 NUT, lock
1
178 107188 O-RING
1
180 156401 O-RING
1
181 108842 SCREW, cap, hex head
1
182 110792 ELBOW, male, 90 degree
1
184 112166 SCREW, cap, sch
15
185 248943 KIT, engine, gas, 5.5 hp, Honda,
1
includes: 59, 87, 88, 98, 114, 118,
169, 170, 181, 185a, 188, 189, 227
and 234
185a 120590 ENGINE, gas, 4.0 hp, Honda
1
188 112717 WASHER,
1
189 113664 SCREW, flange, hex
4
193 115477 SCREW, mach, torx pan hd
4
195 101754 PLUG, hex head, hydraulic
1
196 116793 FITTING, elbow, hydraulic
1
197 116915 CAP, breather filler
1
313776F
Ref
198
199
200
212
214
215
224
225
227▲
228▲
237
241
242
251
252
253
Part
116919
246173
120981
116967
117284
117471
119434
15A464
194126
198492
15M057
15D862
15J513
246167
Description
FILTER, hydraulic, suction
FILTER, oil, spin on
SCREW, hex wash hd
SPRING, compression
GRILL, fan guard
SCREW, 1/4-20 flat hd mach
SCREW, shoulder, socket head
LABEL, control
LABEL, warning
LABEL, warning
COVER, reservoir, GH130 LL
NUT, hand
TANK, reservoir
TUBE, hydraulic, case drain,
includes: 150
288733 PUMP, hydraulic
198841 RETAINER, ball, press bypass
Qty
1
1
2
1
1
4
1
1
1
1
1
2
1
1
1
1
▲ Replacement warning labels may be ordered free of charge
29
Parts
LineLazer IV 130HS
141
56
146
142
127
130 1
117
133
121
10
113
46
54
128
133
16
153
7
132
116
147
55
108
139
106
52
127
139
110
209
130 1
53
Detail A
65
46
6
140
F
135
145
131
Detail A
TI6492b
30
313776F
Parts
LineLazer IV 130HS
Ref
6
7
10*
16
46
52
53
54
55
56
65
106
108
110
113
116
121
127
Part
240942
240991
15G952
287623
181818
193528
193658
193661
193662
15F910
198606
100731
101566
15J603
108483
110754
111040
112405
Description
SHAFT, fork
BRACKET, caster, front
BRACKET, hub
FRAME, linestriper, painted
KNOB, pronged
ARM, detent
SPACER, seal
JAW
STOP, wedge
BRACKET, cable
DISK, adjuster
WASHER
NUT, lock
WASHER, plain
SCREW, shoulder, soc, hd
SCREW, flange, hex
NUT, lock
NUT, lock
Qty
1
1
1
1
1
1
2
2
1
1
1
2
2
1
1
10
2
4
Ref
Part
Description
128
130
131
132*
133*
135
139
140
141
142
145
146
147
153
154*
112776
112825
113471
113484
113485
113962
114548
114549
241445
114648
114681
114682
114802
114982
120476
WASHER, plain
SPRING, Belleville
SCREW, cap, hex hd
SEAL, grease
BEARING, cup/cone
WASHER, hardened
BEARING, bronze
WHEEL, pneumatic
CABLE
CAP, dust
SCREW, cap, hex hd
SPRING, compression
STOP, wire
SCREW, cap, flng, hd
BOLT
Qty
1
3
1
2
1
2
1
1
3
1
1
1
2
1
*Included in 240940 Bracket Repair Kit; purchase separately.
Notes
1
313776F
Install washers (130) concave surface to inside
31
Technical Data
Technical Data
Honda GX160 Engine
Power Rating @ 3600 rpm
ANSI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Maximum working pressure . . . . . . . . . . . . . . . . . . . . . . .
Noise Level
Sound power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Sound pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
*Vibration Level
Left hand . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Right hand. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
* Vibration measured per ISO 5349 based on 8 hour daily
exposure
Cycles/gallon (liter). . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Maximum delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Maximum tip size
1 gun . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Inlet paint strainer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Outlet paint strainer . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Pump inlet size. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fluid outlet size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Hydraulic reservoir capacity . . . . . . . . . . . . . . . . . . . . . . .
Hydraulic pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Weight (dry, without packaging). . . . . . . . . . . . . . . . . . . .
Height. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Length . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Width . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Wetted parts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.0 Horsepower
3300 psi (227 bar, 22.7 MPa)
103 dBa, per ISO 3744
88 dBa, measured at 3.1 feet (1 m)
2.90 m/sec2
2.83 m/sec2
104 (27.5)
1.3 gpm (5.9 liter/min)
with 0. 037 in. tip
16 mesh (1190 micron) stainless steel screen, reusable
60 mesh (250 micron) stainless steel screen, reusable
1 in. npsm(m)
3/8 npt(f)
1.25 gallon (4.73 liters)
1510 psi (104 bar)
242 lb (110 kg)
40 in. (101.6 cm)
65 in. (165.1 cm)
32 in. (81.3 cm)
PTFE, Nylon, polyurethane, V-Max™ UHMWPE polyethylene, fluoroelastomer, acetal, leather, tungsten carbide,
stainless steel, chrome plating, nickel-plated carbon steel,
ceramic
Accessories
Must be purchased separately.
GRACO-APPROVED HYDRAULIC OIL
169236
207428
32
5 gallons (19 liters)
1 gallon (3.8 liters)
313776F
Notes
Notes
313776F
33
Graco Standard Warranty
Graco warrants all equipment referenced in this document which is manufactured by Graco and bearing its name to be free from defects in
material and workmanship on the date of sale to the original purchaser for use. With the exception of any special, extended, or limited warranty
published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by
Graco to be defective. This warranty applies only when the equipment is installed, operated and maintained in accordance with Graco’s written
recommendations.
This warranty does not cover, and Graco shall not be liable for general wear and tear, or any malfunction, damage or wear caused by faulty
installation, misapplication, abrasion, corrosion, inadequate or improper maintenance, negligence, accident, tampering, or substitution of
non-Graco component parts. Nor shall Graco be liable for malfunction, damage or wear caused by the incompatibility of Graco equipment with
structures, accessories, equipment or materials not supplied by Graco, or the improper design, manufacture, installation, operation or
maintenance of structures, accessories, equipment or materials not supplied by Graco.
This warranty is conditioned upon the prepaid return of the equipment claimed to be defective to an authorized Graco distributor for verification of
the claimed defect. If the claimed defect is verified, Graco will repair or replace free of charge any defective parts. The equipment will be returned
to the original purchaser transportation prepaid. If inspection of the equipment does not disclose any defect in material or workmanship, repairs will
be made at a reasonable charge, which charges may include the costs of parts, labor, and transportation.
THIS WARRANTY IS EXCLUSIVE, AND IS IN LIEU OF ANY OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED
TO WARRANTY OF MERCHANTABILITY OR WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE.
Graco’s sole obligation and buyer’s sole remedy for any breach of warranty shall be as set forth above. The buyer agrees that no other remedy
(including, but not limited to, incidental or consequential damages for lost profits, lost sales, injury to person or property, or any other incidental or
consequential loss) shall be available. Any action for breach of warranty must be brought within two (2) years of the date of sale.
GRACO MAKES NO WARRANTY, AND DISCLAIMS ALL IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE, IN CONNECTION WITH ACCESSORIES, EQUIPMENT, MATERIALS OR COMPONENTS SOLD BUT NOT
MANUFACTURED BY GRACO. These items sold, but not manufactured by Graco (such as electric motors, switches, hose, etc.), are subject to
the warranty, if any, of their manufacturer. Graco will provide purchaser with reasonable assistance in making any claim for breach of these
warranties.
In no event will Graco be liable for indirect, incidental, special or consequential damages resulting from Graco supplying equipment hereunder, or
the furnishing, performance, or use of any products or other goods sold hereto, whether due to a breach of contract, breach of warranty, the
negligence of Graco, or otherwise.
FOR GRACO CANADA CUSTOMERS
The Parties acknowledge that they have required that the present document, as well as all documents, notices and legal proceedings entered into,
given or instituted pursuant hereto or relating directly or indirectly hereto, be drawn up in English. Les parties reconnaissent avoir convenu que la
rédaction du présente document sera en Anglais, ainsi que tous documents, avis et procédures judiciaires exécutés, donnés ou intentés, à la suite
de ou en rapport, directement ou indirectement, avec les procédures concernées.
POUR LES CLIENTS DE GRACO PARLANT FRANCAIS
Les parties reconnaissent avoir convenu que la rédaction du présent document ainsi que de tous les documents, avis et procédures judiciaires
exécutés, donnés ou intentés à la suite de ou en rapport, directement ou indirectement, avec les procédures concernées, sera en anglais.
ADDITIONAL WARRANTY COVERAGE
Graco does provide extended warranty and wear warranty for products described in the “Graco Contractor Equipment Warranty Program”.
Graco Information
For the latest information about Graco products, visit www.graco.com.
TO PLACE AN ORDER, contact your Graco distributor or call 1-800-690-2894 to identify the nearest distributor.
All written and visual data contained in this document reflects the latest product information available at the time of publication.
Graco reserves the right to make changes at any time without notice.
For patent information, see www.graco.com/patents
2ULJLQDOLQVWUXFWLRQV This manual contains English. MM 313776
Graco Headquarters: Minneapolis
International Offices: Belgium, China, Japan, Korea
GRACO INC. AND SUBSIDIARIES • P.O. BOX 1441 • MINNEAPOLIS MN 55440-1441 • USA
Copyright 2007, Graco Inc. All Graco manufacturing locations are registered to ISO 9001.
www.graco.com
September 2012

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
