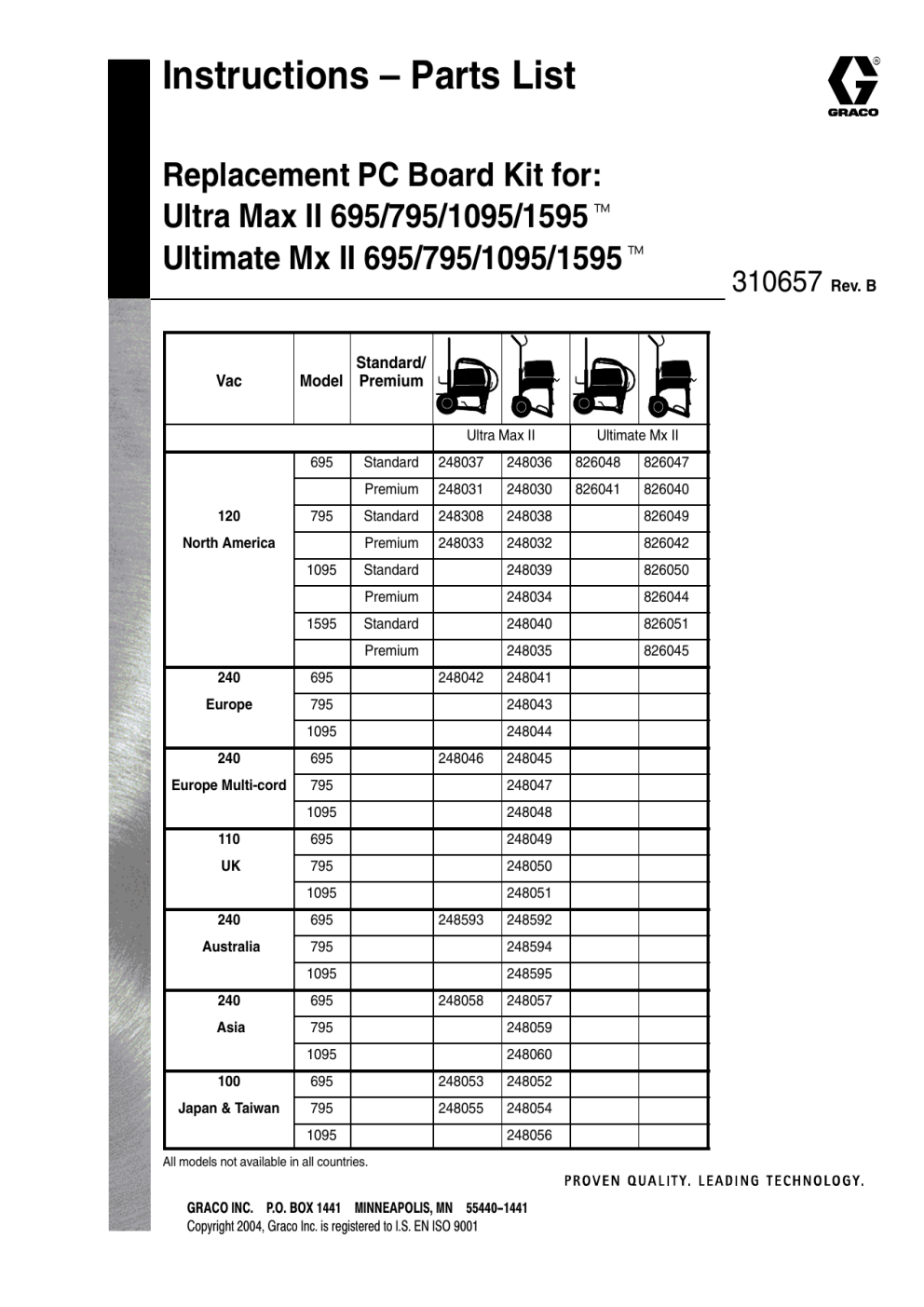

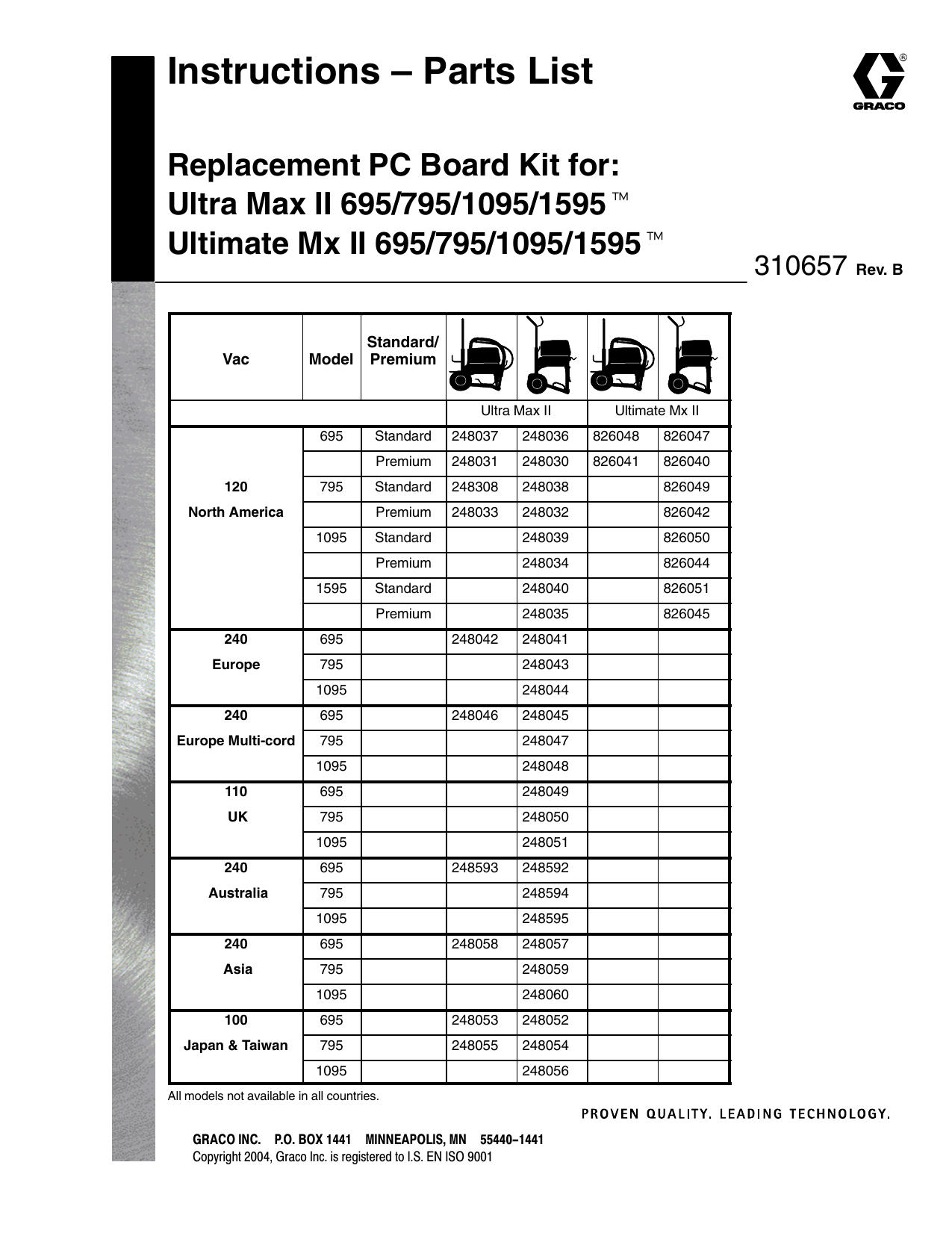

Graco 310657B Replacement PC Board Kit for Ultra Max II & Ultimate Mx II 695/795/1095/1595 Owner's Manual

Instructions – Parts List
Replacement PC Board Kit for:
Ultra Max II 695/795/1095/1595t
Ultimate Mx II 695/795/1095/1595t
Vac
Model
Standard/
Premium
Ultra Max II
695
120
795
North America
1095
1595
Ultimate Mx II
Standard
248037
248036
826048
826047
Premium
248031
248030
826041
826040
Standard
248308
248038
826049
Premium
248033
248032
826042
Standard
248039
826050
Premium
248034
826044
Standard
248040
826051
Premium
248035
826045
240
695
248042
Europe
795
248043
1095
248044
248046
248041
240
695
Europe Multi-cord
795
248047
1095
248048
110
695
248049
UK
795
248050
1095
248051
248593
248045
240
695
Australia
795
248594
1095
248595
248058
248592
240
695
248057
Asia
795
248059
1095
248060
100
695
248053
248052
Japan & Taiwan
795
248055
248054
1095
248056
All models not available in all countries.
GRACO INC.ąP.O. BOX 1441ąMINNEAPOLIS, MNą55440-1441
Copyright 2004, Graco Inc. is registered to I.S. EN ISO 9001
310657
Rev. B
Pressure Relief Procedure
1. Turn pressure to zero.
WARNING
2. Turn ON/OFF switch to OFF.
INJECTION HAZARD
System pressure must be manually relieved to prevent system
from starting or spraying accidentally. Fluid under high pressure can be injected through skin and cause serious injury.
To reduce risk of injury from injection, splashing fluid, or moving parts, follow Pressure
Relief Procedure whenever you:
D
D
D
D
are instructed to relieve pressure,
stop spraying,
check or service any system equipment,
or install or clean spray tip.
3. Unplug power supply cord.
4. Hold metal part of gun firmly to grounded metal
pail. Trigger gun to relieve pressure.
5. Lock gun safety latch.
6. Open pressure drain valve. Leave pressure drain
valve open until ready to spray again.
If suspected that spray tip or hose is completely
clogged, or that pressure has not been fully relieved
after following steps above, VERY SLOWLY loosen tip
guard retaining nut or hose end coupling to relieve
pressure gradually, then loosen completely. Now clear
tip or hose obstruction.
Installation
1095
795
695
795 EXAMPLE SHOWN
695/795/1095: CUT 2 RESISTORS LEAVE THE
CHOSEN MODEL.
1595: CUT ALL 3 RESISTORS
ti4413a
Fig. 1
1. Follow Pressure Relief Procedure.
CAUTION
Electrostatic discharges can damage components on
PC board. Use a ground strap when handling or
installing PC board.
Using configurations other than those specified in
Fig. 1 results in poor sprayer performance.
2. Remove PC board. See Manual 309941 or 309942
for procedure.
3. Fig. 1. Cut resistors from PC board.
4. Install PC board. See Manual 309941 or 309942
for procedure.
TO PLACE AN ORDER OR FOR SERVICE, contact your Graco distributor, or call 1–800–690–2894 to identify the nearest distributor.
All written and visual data contained in this document reflects the latest product information available at the time of publication.
Graco reserves the right to make changes at any time without notice.
Sales Offices: Minneapolis
International Offices: Belgium, Korea, Hong Kong, Japan
GRACO INC.
P.O. BOX 1441
MINNEAPOLIS, MN
http://www.graco.com
PRINTED IN USA 310657 01/2004, Revised 4/2004
