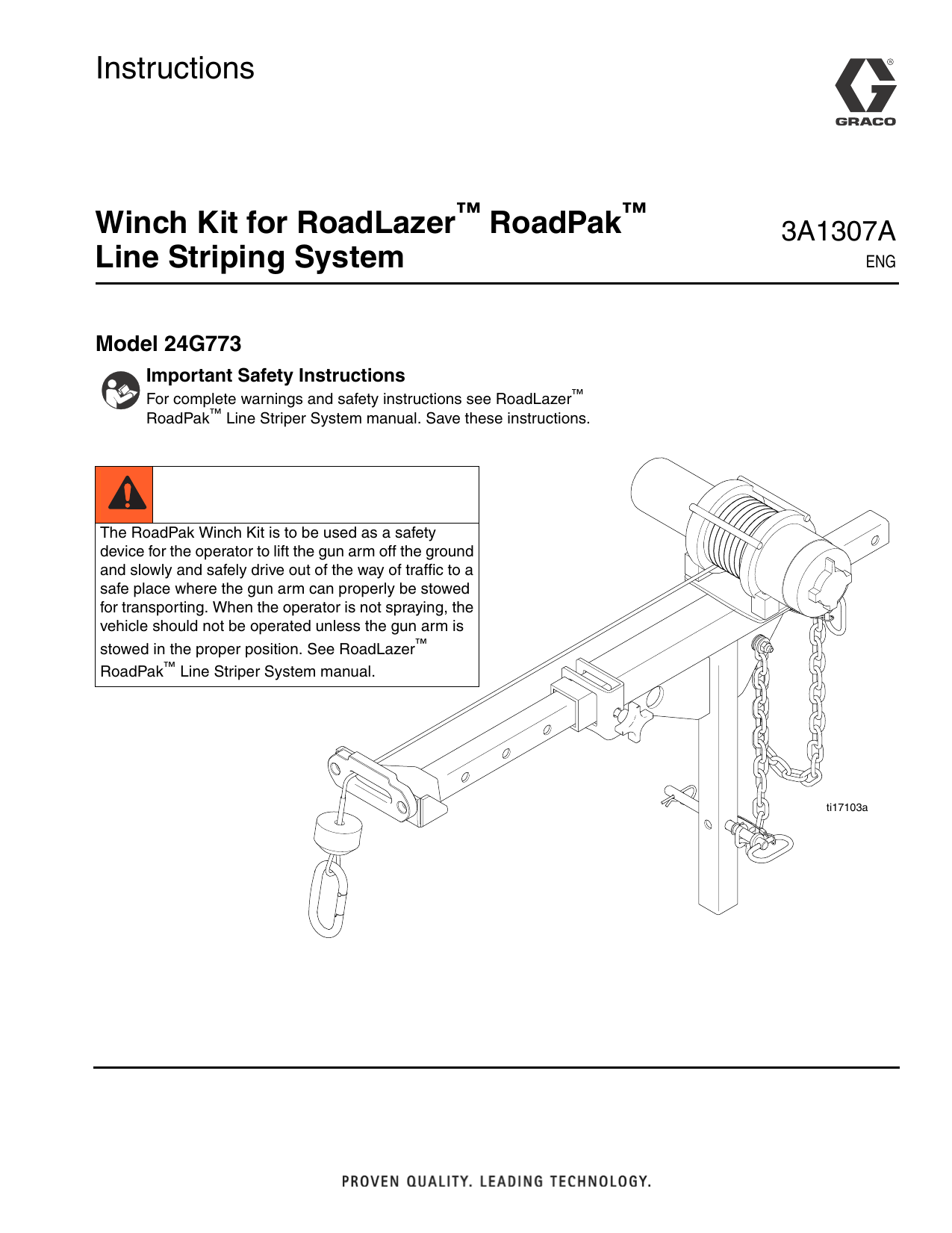

Instructions
Winch Kit for RoadLazer™ RoadPak™
Line Striping System
3A1307A
ENG
Model 24G773
Important Safety Instructions
For complete warnings and safety instructions see RoadLazer™
RoadPak™ Line Striper System manual. Save these instructions.
The RoadPak Winch Kit is to be used as a safety
device for the operator to lift the gun arm off the ground
and slowly and safely drive out of the way of traffic to a
safe place where the gun arm can properly be stowed
for transporting. When the operator is not spraying, the
vehicle should not be operated unless the gun arm is
stowed in the proper position. See RoadLazer™
RoadPak™ Line Striper System manual.
ti17103a
Winch Kit Installation
1. Assemble adaptor bracket (1) to height adjustment
bracket on both sides. Fasten with bolts (6), washers (7), and nuts (8). Torque to 28 ft-lb.
4. Slide winch arm bracket (3) into winch arm (2) and
secure into place by tightening extension clamp (15)
and inserting the safety pin.
6
7
15
3
1
7
ti17106a
2
8
5. Insert winch assembly into one of the adapter brackets (1) and secure with pin (9).
ti17104a
2. Use four bolts and lock washers (supplied) to
assemble winch (5) onto winch arm (2).
9
1
ti17108a
6. Install winch switch (20) and connector bracket (17)
next to the battery on the RoadPak frame. Fasten
with screws (16).
5
2
20
17
16
ti17105a
3. Use bolts, washers, and nuts (supplied) to assemble
cable guide onto winch arm bracket (3).
ti17109a
ti17107a
7. Pull the wires of the winch control connector (19)
through the hole of the connector bracket and fasten
the connector to the bracket with screws (18).
3
18
19
ti17110a
2
3A1307A
8. Connect blue and yellow cables (21) from the winch
terminals to blue and yellow color-coded terminals
on winch switch terminal.
21
11. Plug in winch controller (19) to the connector and
route to the cab of the vehicle. Properly protect and
secure all wires to keep from damaging them during
every day use.
12. Adjust the winch arm (3) so it is in line with the lifting
point on the gun arm. Ensure the winch arm is
secured by pinning it and tightening the extension
clamp (15).
13. Use the buttons on the controller to lower the winch.
Connect the winch hook (22) to the lifting point on
the gun arm.
ti17111a
9. Disconnect ground terminal on battery. Connect red
and black cables (21) to red and black color-coded
winch switch terminals. Attach the red cable from
the winch control connector and power cable from
the winch switch to the positive terminal on the battery. Then connect the black cable to the ground terminal on the battery. See Wiring Diagram, page 4.
22
10. Connect the green plugs from the winch control connector and the winch switch as showed in Wiring
Diagram, page 4.
ti17114a
14. When transporting the RoadPak system, the gun
arm must be properly stowed (see manual 3A1214)
and the winch arm must be adjusted to fit within the
width of the vehicle.
ti17112a
3A1307A
3
Wiring Diagram
Wiring Diagram
Black
Blue
Red
-
+
Yellow
Black
Green
Black
Green
ti17113a
4
3A1307A
Parts List
Parts List
23
22
5
2
13
3
14
14
15
19
14
11
20
12
9
16
18
10
17
1
21
6
8
ti17115a
7
Ref.
1
2
3
5
6
7
8
9
10
11
12
13
Part
16G688
24G839
24G841
16G458
101147
109570
801020
115473
186812
M71635
100678
111040
3A1307A
Description
Qty.
BRACKET, adapter, winch, painted
2
ARM, winch, painted
1
BRACKET, arm, winch, painted
1
WINCH, RoadLazer
1
SCREW, cap, hex HD
4
WASHER, plain
8
NUT, lock, hex
4
PIN, hitch
2
CHAIN, ground 3.5 HP
2
CLAMP, hose
2
SCREW, cap hex HD
1
NUT, lock, insert, nylock, 5/16
1
Ref.
14
15
16
17
Part
100023
238813
107439
16H234
18
19
20
21
22
117501
16H069
16F346
16H070
16H068
23
16H067
Description
Qty.
WASHER, flat
6
CLAMP, extension
1
SCREW, mach, hex HD
4
BRACKET, mtg., connector, winch
1
ctrl
SCREW, mach, slot hex wash HD
2
SWITCH, corded remote/plug in
1
SWITCH, winch, contactor
1
WIRE, assemblies, battery/winch
1
CONNECTOR, 1-3/8 in. eye dia.,
1
carbiner
CABLE, 3/16 in. dia., blue
1
5
Parts List
All written and visual data contained in this document reflects the latest product information available at the time of publication.
Graco reserves the right to make changes at any time without notice.
Original instructions. This manual contains English. MM 3A1307
Graco Headquarters: Minneapolis
International Offices: Belgium, China, Japan, Korea
GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440-1441
Copyright 2010, Graco Inc. is registered to ISO 9001
www.graco.com
02/2011
6
3A1307A
