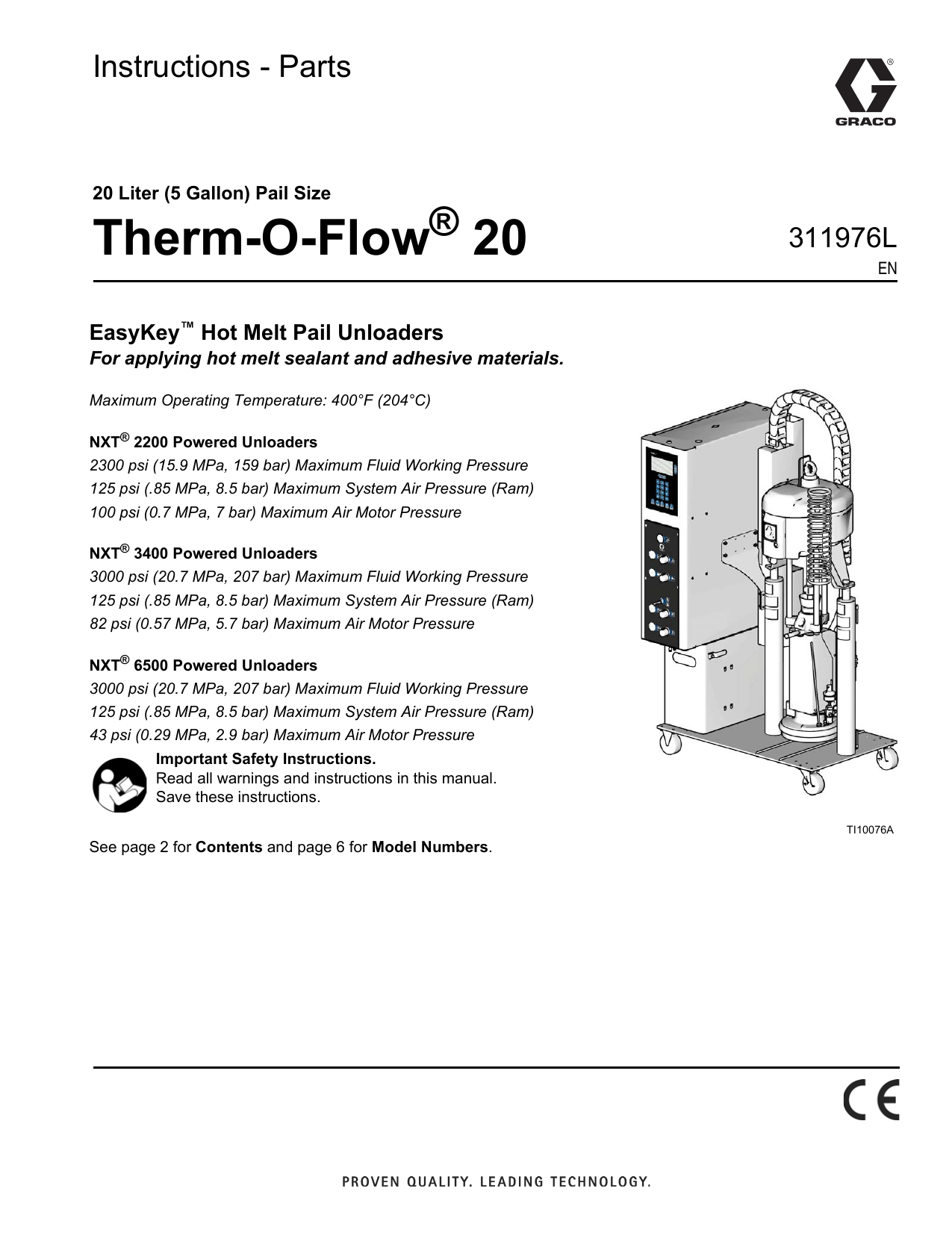

Graco 311976L - Therm-O-Flow 20 Instructions

Instructions - Parts
20 Liter (5 Gallon) Pail Size
®
Therm-O-Flow 20
311976L
EN
EasyKey™ Hot Melt Pail Unloaders
For applying hot melt sealant and adhesive materials.
Maximum Operating Temperature: 400°F (204°C)
NXT® 2200 Powered Unloaders
2300 psi (15.9 MPa, 159 bar) Maximum Fluid Working Pressure
125 psi (.85 MPa, 8.5 bar) Maximum System Air Pressure (Ram)
100 psi (0.7 MPa, 7 bar) Maximum Air Motor Pressure
NXT® 3400 Powered Unloaders
3000 psi (20.7 MPa, 207 bar) Maximum Fluid Working Pressure
125 psi (.85 MPa, 8.5 bar) Maximum System Air Pressure (Ram)
82 psi (0.57 MPa, 5.7 bar) Maximum Air Motor Pressure
NXT® 6500 Powered Unloaders
3000 psi (20.7 MPa, 207 bar) Maximum Fluid Working Pressure
125 psi (.85 MPa, 8.5 bar) Maximum System Air Pressure (Ram)
43 psi (0.29 MPa, 2.9 bar) Maximum Air Motor Pressure
Important Safety Instructions.
Read all warnings and instructions in this manual.
Save these instructions.
TI10076A
See page 2 for Contents and page 6 for Model Numbers.
Contents
Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
How the Therm-O-Flow 20 Works . . . . . . . . . . . . 6
Model Numbers . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Component Identification . . . . . . . . . . . . . . . . . . 8
Power Requirements . . . . . . . . . . . . . . . . . . . . 10
Heat Control Zone Selection . . . . . . . . . . . . . . . 10
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Location Requirements . . . . . . . . . . . . . . . . . . . 11
Locate and Install the Ram . . . . . . . . . . . . . . . . 11
Hose Installation and Care . . . . . . . . . . . . . . . . 12
Mechanical Setup . . . . . . . . . . . . . . . . . . . . . . . 12
Electrically Connect Hoses . . . . . . . . . . . . . . . . 13
Connect the Electrical Control Panel to a Power
Source . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Grounding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Check Resistance . . . . . . . . . . . . . . . . . . . . . . . 14
Overview of the Temperature Controller Settings 15
Purging the System . . . . . . . . . . . . . . . . . . . . . . 16
Operator Controls . . . . . . . . . . . . . . . . . . . . . . . . . 17
Main Power Disconnect . . . . . . . . . . . . . . . . . . 17
EasyKey Display and Keypad . . . . . . . . . . . . . . 17
LCD Display . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Alarm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
EasyKey Display Screens . . . . . . . . . . . . . . . . . . . 19
Power Up Screens . . . . . . . . . . . . . . . . . . . . . . 19
Run Screens . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Setup Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Purge Before Using Equipment . . . . . . . . . . . . 25
Set Values on EasyKey . . . . . . . . . . . . . . . . . . 25
Material Loading . . . . . . . . . . . . . . . . . . . . . . . . 25
System Heat Up . . . . . . . . . . . . . . . . . . . . . . . . 27
Prime Pump . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Prime System . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Pressure Relief Procedure . . . . . . . . . . . . . . . . 30
Trigger Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Ram Pressure Relief Procedure . . . . . . . . . . . . 31
Pail Changing . . . . . . . . . . . . . . . . . . . . . . . . . . 32
System Shutdown . . . . . . . . . . . . . . . . . . . . . . . 34
Dual Ram Cross-Over Installation . . . . . . . . . . . . 35
Typical Installation . . . . . . . . . . . . . . . . . . . . . . 35
2
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Ram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Ground Fault Interrupt . . . . . . . . . . . . . . . . . . . . 36
Power in a Tandem System . . . . . . . . . . . . . . . 36
Resetting the Ground Fault Interrupt . . . . . . . . . 36
Alarm Troubleshooting . . . . . . . . . . . . . . . . . . . . . 36
Ram Troubleshooting . . . . . . . . . . . . . . . . . . . . . . 38
Heated Pump Troubleshooting . . . . . . . . . . . . . . . 39
Air Motor Troubleshooting . . . . . . . . . . . . . . . . . . 39
Electrical Control Panel Troubleshooting . . . . . . 40
Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Ram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Pump . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Ground Fault interrupt . . . . . . . . . . . . . . . . . . . . 41
Power in a Tandem System . . . . . . . . . . . . . . . 41
Platen Service . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Air Motor/Pump Removal and Service . . . . . . . 43
Replacing Heater Bands and Sensors in Pump
Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Therm-O-Flow 20 Supply Unit . . . . . . . . . . . . . . 46
Pump . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Platen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Air Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
EasyKey Assembly, Part No. 255224 . . . . . . . . 51
Spare Parts and Kits . . . . . . . . . . . . . . . . . . . . . 52
Electrical Schematics . . . . . . . . . . . . . . . . . . . . . . 54
253150 and 253156 Controls . . . . . . . . . . . . . . 54
253154 and 253160 Controls . . . . . . . . . . . . . . 58
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Light Tower Kit (253547) . . . . . . . . . . . . . . . . . . 61
Light Tower Kit Recommended Wire Routing . . 62
Pail Low and Empty Sensor Kit (255233) . . . . . 63
Ethernet Kit (253566) . . . . . . . . . . . . . . . . . . . . 64
EasyKey Modbus / TCP Wiring Diagram . . . . . . 70
Maintenance Call Kit (253548) . . . . . . . . . . . . . 71
Maintenance Call Kit (253548) Wiring . . . . . . . . 72
Discrete I/O Kit (253567) . . . . . . . . . . . . . . . . . . 73
Swirl Kit, Part No. 253263 . . . . . . . . . . . . . . . . . 75
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Graco Standard Warranty . . . . . . . . . . . . . . . . . . . 78
Graco Information . . . . . . . . . . . . . . . . . . . . . . . . . 78
311976L
Warnings
Warnings
The following warnings are for the setup, use, grounding, maintenance, and repair of this equipment. The exclamation point symbol alerts you to a general warning and the hazard symbol refers to procedure-specific risk. Refer back
to these warnings. Additional, product-specific warnings may be found throughout the body of this manual where
applicable.
WARNING
BURN HAZARD
Equipment surfaces and fluid that’s heated can become very hot during operation. To avoid severe
burns, do not touch hot fluid or equipment. Wait until equipment/fluid has cooled completely.
SPLATTER HAZARD
During blow off of platen splatter may occur.
• Use minimum pail removal air pressure.
MOVING PARTS HAZARD
Moving parts can pinch or amputate fingers and other body parts.
• Keep clear of moving parts.
• Do not operate equipment with protective guards or covers removed.
• Pressurized equipment can start without warning. Before checking, moving, or servicing equipment,
follow the Pressure Relief Procedure in this manual. Disconnect power or air supply.
ELECTRIC SHOCK HAZARD
Improper grounding, setup, or usage of the system can cause electric shock.
• Turn off and disconnect power at main switch before disconnecting any cables and before servicing
equipment.
• Connect only to grounded power source.
• All electrical wiring must be done by a qualified electrician and comply with all local codes and regulations.
TOXIC FLUID OR FUMES HAZARD
Toxic fluids or fumes can cause serious injury or death if splashed in the eyes or on skin, inhaled, or
swallowed.
• Read MSDS’s to know the specific hazards of the fluids you are using.
• Store hazardous fluid in approved containers, and dispose of it according to applicable guidelines.
EQUIPMENT MISUSE HAZARD
Misuse can cause death or serious injury.
• Do not exceed the maximum working pressure or temperature rating of the lowest rated system
component. See Technical Data in all equipment manuals.
• Use fluids and solvents that are compatible with equipment wetted parts. See Technical Data in all
equipment manuals. Read fluid and solvent manufacturer’s warnings. For complete information
about your material, request MSDS from distributor or retailer.
• Check equipment daily. Repair or replace worn or damaged parts immediately with genuine Graco
replacement parts only.
• Do not alter or modify equipment.
• For professional use only.
• Use equipment only for its intended purpose. Call your Graco distributor for information.
• Route hoses and cables away from traffic areas, sharp edges, moving parts, and hot surfaces.
• Do not kink or over bend hoses or use hoses to pull equipment.
• Keep children and animals away from work area.
• Do not operate when fatigued or under the influence of drugs or alcohol.
• Comply with all applicable safety regulations.
311976L
3
Warnings
WARNING
PERSONAL PROTECTIVE EQUIPMENT
You must wear appropriate protective equipment when operating, servicing, or when in the operating
area of the equipment to help protect you from serious injury, including eye injury, inhalation of toxic
fumes, burns, and hearing loss. This equipment includes but is not limited to:
• Protective eyewear.
• Clothing and respirator as recommended by the fluid and solvent manufacturer.
• Gloves.
• Hearing protection.
SKIN INJECTION HAZARD
High-pressure fluid from gun, hose leaks, or ruptured components will pierce skin. This may look like just
a cut, but it is a serious injury that can result in amputation. Get immediate surgical treatment.
• Do not point gun at anyone or at any part of the body.
• Do not put your hand over the spray tip.
• Do not stop or deflect leaks with your hand, body, glove, or rag.
• Do not spray without tip guard and trigger guard installed.
• Engage trigger lock when not spraying.
• Follow Pressure Relief Procedure in this manual, when you stop spraying and before cleaning,
checking, or servicing equipment.
FIRE AND EXPLOSION HAZARD
Flammable fumes, such as solvent and paint fumes, in work area can ignite or explode. To help prevent
fire and explosion:
• Use equipment only in well ventilated area.
• Eliminate all ignition sources; such as pilot lights, cigarettes, portable electric lamps, and plastic drop
cloths (potential static arc).
• Keep work area free of debris, including solvent, rags and gasoline.
• Do not plug or unplug power cords, or turn power or light switches on or off when flammable fumes
are present.
• Ground equipment and conductive objects in work area. See Grounding instructions.
• Use only grounded hoses.
• Hoses are for indoor use only. Do not get hose wet.
• Hold gun firmly to side of grounded pail when triggering into pail.
• If there is static sparking or you feel a shock, stop operation immediately. Do not use equipment
until you identify and correct the problem.
• Keep a fire extinguisher in the work area.
4
311976L
Warnings
311976L
5
Overview
Overview
6
How the Therm-O-Flow 20 Works
Model Numbers
A heated platen melts the sealant or adhesive and
directs the molten material to the pump inlet. The material then travels through a heated Check-Mate pump and
heated fluid moves to the application tool.
The six digit part number stamped on your
Therm-O-Flow 20 defines your machine. Each digit represents a component, as shown in the following table.
3. Heat
Controls
Supply Voltage 4. Pump Ratio
(0, 2, 3, 4)
(1, 2, 3)
1.
Therm-O-Flow
20 (T)
2. Number of
Heat Zones
(0, 6)
T
6
230 (2)
T
6
T
5. Heated
Platen (F, S)
6. Controls
(0, B, S)
Part No.
23:1 (1)
Finned (F)
Standard (B)
T621FB
230 (2)
23:1 (1)
Smooth (S)
Standard (B)
T621SB
6
380 (3)
23:1 (1)
Finned (F)
Standard (B)
T631FB
T
6
380 (3)
23:1 (1)
Smooth (S)
Standard (B)
T631SB
T
6
480 (4)
23:1 (1)
Finned (F)
Standard (B)
T641FB
T
6
480 (4)
23:1 (1)
Smooth (S)
Standard (B)
T641SB
T
6
230 (2)
36:1 (2)
Finned (F)
Standard (B)
T622FB
T
6
230 (2)
36:1 (2)
Smooth (S)
Standard (B)
T622SB
T
6
380 (3)
36:1 (2)
Finned (F)
Standard (B)
T632FB
T
6
380 (3)
36:1 (2)
Smooth (S)
Standard (B)
T632SB
T
6
480 (4)
36:1 (2)
Finned (F)
Standard (B)
T642FB
T
6
480 (4)
36:1 (2)
Smooth (S)
Standard (B)
T642SB
T
6
230 (2)
70:1 (3)
Finned (F)
Standard (B)
T623FB
T
6
230 (2)
70:1 (3)
Smooth (S)
Standard (B)
T623SB
T
6
380 (3)
70:1 (3)
Finned (F)
Standard (B)
T633FB
T
6
380 (3)
70:1 (3)
Smooth (S)
Standard (B)
T633SB
T
6
480 (4)
70:1 (3)
Finned (F)
Standard (B)
T643FB
T
6
480 (4)
70:1 (3)
Smooth (S)
Standard (B)
T643SB
311976L
Overview
3. Heat
Controls
Supply Voltage 4. Pump Ratio
(0, 2, 3, 4)
(1, 2, 3)
1.
Therm-O-Flow
20 (T)
2. Number of
Heat Zones
(0, 6)
T
6
230 (2)
T
6
T
5. Heated
Platen (F, S)
6. Controls
(0, B, S)
Part No.
23:1 (1)
Finned (F)
Secondary (S)
T621FS
230 (2)
23:1 (1)
Smooth (S)
Secondary (S)
T621SS
6
380 (3)
23:1 (1)
Finned (F)
Secondary (S)
T631FS
T
6
380 (3)
23:1 (1)
Smooth (S)
Secondary (S)
T631SS
T
6
480 (4)
23:1 (1)
Finned (F)
Secondary (S)
T641FS
T
6
480 (4)
23:1 (1)
Smooth (S)
Secondary (S)
T641SS
T
6
230 (2)
36:1 (2)
Finned (F)
Secondary (S)
T622FS
T
6
230 (2)
36:1 (2)
Smooth (S)
Secondary (S)
T622SS
T
6
380 (3)
36:1 (2)
Finned (F)
Secondary (S)
T632FS
T
6
380 (3)
36:1 (2)
Smooth (S)
Secondary (S)
T632SS
T
6
480 (4)
36:1 (2)
Finned (F)
Secondary (S)
T642FS
T
6
480 (4)
36:1 (2)
Smooth (S)
Secondary (S)
T642SS
T
6
230 (2)
70:1 (3)
Finned (F)
Secondary (S)
T623FS
T
6
230 (2)
70:1 (3)
Smooth (S)
Secondary (S)
T623SS
T
6
380 (3)
70:1 (3)
Finned (F)
Secondary (S)
T633FS
T
6
380 (3)
70:1 (3)
Smooth (S)
Secondary (S)
T633SS
T
6
480 (4)
70:1 (3)
Finned (F)
Secondary (S)
T643FS
T
6
480 (4)
70:1 (3)
Smooth (S)
Secondary (S)
T643SS
T
0
0
23:1 (1)
Finned (F)
No Controls (0)
T001F0
T
0
0
23:1 (1)
Smooth (S)
No Controls (0)
T001S0
T
0
0
36:1 (2)
Finned (F)
No Controls (0)
T002F0
T
0
0
36:1 (2)
Smooth (S)
No Controls (0)
T002S0
T
0
0
70:1 (3)
Finned (F)
No Controls (0)
T003F0
T
0
0
70:1 (3)
Smooth (S)
No Controls (0)
T003S0
311976L
7
Overview
Component Identification
Before installing the system you should be familiar with
all the Therm-O-Flow system components. See FIG. 1.
Contact your Graco distributor for help in designing a
system to suit your particular needs.
The air-powered ram extruder forces high viscosity fluids into the intake valve of the fluid pump. Wiper rings
and other accessory equipment for use with this ram are
listed in 253154 and 253160 Controls on page 58.
•
Air Motor Air Regulator (C) controls the pump outlet
pressure by adjusting the air pressure to the air
motor.
•
Ram Up/Down Lever (R) changes the direction of
the ram.
•
Ram Air Regulators (N, P) control the air pressure
to the ram. There are separate air regulators to control the ram pressure in the up and down directions.
EasyKey Display and Keypad
Air Line Components
The following components are included with the unit.
See FIG. 1.
EasyKey is a simple user interface consisting of an LCD
display and keypad (L) which controls Therm-O-Flow 20
operations.
Air and Fluid Hoses
The Air Motor Bleed-type Master Air Valve (D) is
required in your system to relieve motor air pressure.
Trapped air can cause the pump to cycle unexpectedly, which can result in serious bodily injury.
The Therm-O-Flow 20 requires Graco single-circuit
material hoses rated at a maximum of 1250 Watts.
When installing a system make sure that all air and fluid
hoses are properly sized and pressure rated for the system.
•
System Bleed-type Master Air Valve (A) is used to
shut off the air supply to the entire system.
Fluid Line Accessories (Typical)
•
Air Line Filter (B) removes dirt and moisture from
the compressed air supply.
•
Air Motor Enable Solenoid/Depressurization Valve
(V) opens to allow air to the Air Motor Air Regulator
(C) and exhausts air from the air motor at shutoff.
The built-in control delays start-up to allow material
to heat thoroughly.
A pressure compensator valve controls fluid pressure to
the gun/valve, and dampens pressure surges. Install a
pressure compensator valve in the fluid line, using
adapters as necessary.
•
The Air Motor Remote Piloted Air Regulator (X) regulates air pressure to the air motor.
•
Air Motor Bleed-type Master Air Valve (D) shuts off
the air supply to the air motor and bleeds trapped air
from the air motor.
Pneumatic Control Panel
The Pneumatic Control Panel (M) includes the following.
See FIG. 1.
•
Platen Blow-off Valve (S) directs air to the underside
of the platen when depressed.
•
Blow-off Air Regulator (T) controls the air pressure
to the platen blow-off valve.
8
311976L
Overview
U
M
AC
L
AB
W
J
AA
S
T
C
K
R
E
N
Y
P
Z
G
TI10077A
D
V
X
F
TI10076A
H
B
A
TI10030A
FIG. 1: Component Identification
A
B
C
D
E
F
G
H
J
K
L
M
System Bleed-type Master Air Valve
Air Line Filter
Air Motor Air Regulator (bleed-type) and Gauge
Air Motor Bleed-type Master Air Valve
Ram
Heated Pump
Platen
Air Inlet (1/2” npt)
Electrical Control Panel
Main Power Disconnect Switch
EasyKey Display and Keypad
Pneumatic Control Panel
311976L
N
P
R
S
T
U
V
W
X
Y
Z
AA
AB
AC
Ram Up Air Regulator and Gauge
Ram Down Air Regulator and Gauge
Ram Up/Down Lever
Platen Blow-off Pushbutton
Blow-Off Air Regulator and Gauge
Electrical Power Input
Air Motor Enable Solenoid/Depressurization Valve
NXT Air Motor
Air Motor Remote Piloted Air Regulator
Platen Bleed Stick
Pail Blow Off Valve
Maintenance Call
Ethernet Connection
Light Tower Connection
9
Overview
Power Requirements
Heat Control Zone Selection
See Table 1, and the Technical Data on page 77.
The Therm-O-Flow 20 has 6 heat zones (see FIG. 2).
•
Zones 1 and 2 are always used for the heated
platen and the heated pump.
•
Zones 3 and 4, 5 and 6 are each available as paired
zones through 16-pin connectors.
Table 1: Electrical Requirements
AC Panel
Voltage
HZ
Phase
Full Load
Amps
240
380
480
50/60
50/60
50/60
3
3
3
36.0
17.5
18.0
ZONE 1
Control
ZONE 2
Control
The heated hoses have a 16-pin connector on the inlet
end cable, and an 8-pin connector on the outlet end
cable. All heated valves, manifolds, and heaters are
equipped with an 8-pin matching connector. Accessory
cables are available for other possible combinations.
Valve 1
Valve 2
Hose 1
Hose 2
ZONE 3
Control
1250 Watts
max
Platen
ZONE 4
Control
ZONE 5
Control
ZONE 6
Control
500 Watts
max
1250 Watts
max
500 Watts
max
Pump
TI10092A
FIG. 2: Heat Control Zone Selection
10
311976L
Installation
Installation
The installation procedure includes:
Locate and Install the Ram
•
unpacking the ram
1. Apply 50 psi download pressure to ram.
•
locating and installing the ram
•
mechanical setup
•
electrically connecting hoses to the electrical control
panel
•
grounding the system
•
connecting the electrical control panel to a power
source
•
connecting to an air source
•
setting controls on the electrical control panel
CAUTION
Always lift system at proper lift locations (see FIG. 3).
Do not lift in any other way.
2. Attach a lifting sling at the proper lift spots (see FIG.
3). Lift off the pallet using a crane or a forklift.
To mount the ram directly to the floor, remove the
four wheels.
Unpacking
3. Position the ram in the desired location.
1. Inspect the shipping box carefully for damage. Contact the carrier promptly if there is damage.
4. Lock the wheels, or bolt the ram to the floor. To bolt
the ram to the floor, level the base using metal
shims. Bolt the ram to the floor, using anchors that
are long enough to prevent the unit from tipping.
2. Open the box and inspect the contents carefully.
There should not be any loose or damaged parts in
the box.
3. Compare the packing slip against all items in the
box. Report any shortages or other inspection problems immediately.
Lift Locations (if air is supplied to the
system and ram lever is set to down)
Location Requirements
Refer to the Dimensions drawing on page 76 for ram
mounting and clearance dimensions.
1. Make sure there is sufficient overhead clearance for
the pump and ram when the ram is in the fully raised
position (approximately 82 in. [209 cm]).
2. If you are installing a vent hood, make sure there is
sufficient horizontal clearance for it. Locate the ram
near a connection to the factory ventilation system.
3. Make sure the air regulators for the pump and ram
are fully accessible, with room to stand directly in
front of the pneumatic control panel and the electrical control panel.
4. Make sure there is easy access to an appropriate
electrical power source. The National Electrical
Code requires 3 ft (0.9 m) of open space in front of
the electrical panel.
311976L
TI10078A
FIG. 3: Lift Locations
11
Installation
Hose Installation and Care
1. Do not use hose to pull equipment.
7. Minimum bend radius is 8 in. (20.3 cm).
8 in.
(20.3 cm)
2. Use 2 wrenches to tighten. Torque to 470-550 in-lbs
(53.1-62.1 N•m).
8. Do not bend or crimp hose.
9. Do not twist hose.
3. Do not tape or cover hose.
10. Use proper length hose.
88
4. Do not flex hose when cold.
Mechanical Setup
1. Check, and if necessary, tighten the heated hose
connection at the pump outlet.
5. Use hose support spring.
2. Wrap exposed fittings on the pump outlet with
Nomex insulation and secure insulation using fiberglass tape.
3. Fill displacement pump wet cup 2/3 full with Graco
Throat Seal Liquid (TSL).
6. Do not clamp, squeeze, or zip tie hose.
4. Turn all air regulators to their full counterclockwise
position.
5. Connect a 1/2 in. (13 mm) air line from an air source
to the system air inlet, see FIG. 1, page 9, letter (H)
capable of delivering a minimum of 15 cfm (0.4
m3/m) at 100 psi (0.7 MPa, 7.0 bar). Do not use
quick disconnects.
12
311976L
Installation
Electrically Connect Hoses
The Therm-O-Flow 20 requires Graco single-circuit
material hoses rated at a maximum of 1250 Watts.
1. Securely tighten the 16-pin electrical connectors on
long heated hose leads into 16-socket receptacles
located on the back of the electrical control panel.
See FIG. 4.
2. Securely tighten the 8-socket electrical connectors
on short heated hose leads into 8-pin receptacle
located on the dispense valves.
Hose One
Have a trained electrician connect the electrical control
panel (FIG. 5) to a grounded electrical source that has
the required service ratings. See Power Requirements
on page 10 and Electrical Schematics on page 54.
For information about specific terminal locations
and connections, see Electrical Schematics on
page 54.
To connect the control panel to the electrical source:
1. Open electrical control panel door and locate the
main disconnect (K).
2. Have a qualified electrician connect your plant
power to the electrical control panel disconnect
switch according to local codes. A 1-3/8 in. (35 mm)
diameter opening is provided on top of the panel
above the connections. This opening is suitable for
a 1 in. npt conduit or strain relief fitting.
Hose Two
Hose Three
(Optional)
3. Thread the wire from the power source into the control panel housing, and then connect the power
source wires to the appropriate terminals on the
main disconnect (K).
TI8136A
FIG. 4: Rear View of Electrical Control Panel
Connect the Electrical Control
Panel to a Power Source
Electrical
Control
Panel
K
The electrical control panel (FIG. 5) comes already
attached and wired to the ram, however before the supply unit becomes functional, you must connect the electrical control panel to a power source.
CAUTION
If power and grounding connections are not done
properly, the equipment will be damaged and the warranty will be voided. Before running power to the unit,
make sure the plant electrical service meets the
machine’s electrical requirements. Check the label on
the control panel for the required voltage and amperage.
311976L
TI10026A
FIG. 5: Electrical Control Panel
13
Installation
Grounding
Ground the supply unit as instructed here and in the
individual component manuals.
The power source conduit is not an adequate ground
for the system. The unit must be bonded to either the
building ground or a true earth ground. To reduce the
risk of static sparking, ground the pump, the object
being dispensed to, and all other spraying/dispensing
equipment used or located in the spraying/dispensing
area. Check your local electrical code for detailed
grounding instructions for your area and type of
equipment.
•
Air and fluid hoses: Use only electrically conductive
hoses.
•
Dispensing/Spray Gun: Follow the dispensing/spray
gun grounding instructions.
•
Object material is applied to: Ground according to
your local code.
•
Material pails: Ground according to your local code.
Use only metal pails placed on a grounded surface.
Do not place the pail on a nonconductive surface,
such as paper or cardboard, which interrupts the
grounding continuity.
•
Maintain grounding continuity when flushing or
relieving pressure: Follow the instructions in your
separate gun manual for safely grounding your gun
while flushing.
Check Resistance
Check the Resistance Between the Supply
Unit and the True Earth Ground
The resistance between the supply unit components
and true earth ground must be less than 0.25 ohms.
Have a qualified electrician check the resistance
between each supply unit component and the true earth
ground. The resistance must be less than 0.25 ohms. If
the resistance is greater than 0.25 ohms a different
ground site may be required. Do not operate the system
until the problem is corrected.
Use a meter that is capable of measuring resistance at this level.
Sensor Resistance Checks
Conduct these electrical checks with the main disconnect OFF.
The package includes a heat sensor and controller for
each of the six heated zones. To check sensor resistance:
1. Make sure the power is off and that the disconnect
switch is in the OFF position.
2. Make electrical resistance checks for the components.
3. Replace any parts whose resistance readings do
not comply with the ranges listed in Table 2.
Check resistance at ambient room temperature
(63°– 77°F [17°– 25°C]).
14
311976L
Installation
Table 3: Resistance Chart of All Heaters
Table 2: RTD Sensor Resistance
Zone Component
1
2
3
4
5
6
Platen
Fluid Pump
Dispense Hose 1
Dispense Gun 1
Dispense Hose 2
Dispense Gun 2
Terminals
2011 & 2021
2051 & 2061
2081 & 2091
2111 & 2121
2261 & 2271
2291 & 2301
Range (ohms)
108 +/- 2%
108 +/- 2%
108 +/- 2%
108 +/- 2%
108 +/- 2%
108 +/- 2%
Zone
Component
1
Platen
2
Heater Resistance Checks
Conduct these electrical checks with the main power
disconnect OFF.
To check heater resistance:
1. Make sure the power is off and that the disconnect
switch is in the OFF position.
2. Make electrical resistance checks for the components. Refer to Electrical Schematics on page 54
for wiring diagram information.
3. Replace any parts whose resistance readings do
not comply with the ranges listed in Table 3.
Check resistance at ambient room temperature
(63°– 77°F [17°– 25°C]).
311976L
Pump
Between
Terminals
Unit
Voltage
Range
(ohms)
F/A, D/C
E/A
E/B, B/C
E/A
E/B, B/C
T1/T3,
T2/T3,
B1/B3,
B2/B3
T1/T3,
T2/T3,
B1/B3,
B2/B3,
T3/B3
T1/T3,
T2/T3,
B1/B3,
B2/B3,
T3/B3
240
380
240
29 +3/-5
115 +12/-17
57.6 +6/-9
115 +12/-17
57.6 +6/-9
48 +5/-5
380
192 +19/-19
480
192 +19/-19
480
Overview of the Temperature
Controller Settings
Temperature controls are set in the Zone Setup
screens. See System Run Screen on page 19 for information about setting temperature controls.
P, I, and D settings are preset for device types and will
not need to be changed. Refer to the Zone Setup
Screens on page 20 for a list of device types and how to
set them for each zone.
15
Installation
Purging the System
Purging the system before the initial use can prevent
material contamination, which may cause the material to
fail or perform poorly.
CAUTION
Purge the system before performing the initial material
loading procedure. The system was factory- tested
using a light soluble oil, a soybean oil, or some other oil
as tagged. Flush the system to avoid contaminating
the material that has been designated for initial material loading.
To purge the system perform the following procedure:
1. Select the material for the initial material load.
2. Verify whether the factory-test oil and the initial
material load are compatible:
3. Select a pail of material that can eliminate the factory-test oil from the system. If necessary, check
with Graco or the material supplier for a recommended solvent.
4. Before purging be sure the entire system and waste
pail are properly grounded. Refer to Grounding on
page 14.
5. Turn all heat zones to 70°F (21.1°C). This allows air
to the air motor, with no alarms, in a cold state. Heat
soak must = 0 or you will need to wait for the preset
time to elapse (default is 45 minutes).
Remove any dispense valve orifices before purging. Reinstall after purging has been completed.
6. Purge the material through the system for approximately 1 to 2 minutes.
7. Remove the pail if purge material was used.
a. If the two substances are compatible omit the
remaining steps in this procedure and refer to
the start up and operation instructions.
b. If the two substances are incompatible perform
the remaining steps in this procedure to flush
the system at ambient temperature.
Use fluids that are chemically compatible with the
equipment wetted parts. See the Technical Data sections of all the equipment manuals.
This equipment should not be used with more than one
type of fluid due to potential compatibility issues which
could result in an unpredictable reaction. Graco recommends using new hoses when chemicals are changed
or care must be taken to assure that all traces of one
chemical are removed before introducing a second
chemical.
16
311976L
Operator Controls
Operator Controls
EasyKey Display and Keypad
Main Power Disconnect
EasyKey is a simple user interface consisting of an LCD
display (A) and keypad (B). See FIG. 7.
Turns system power on or off. Includes system circuit
breaker. See FIG. 6.
POWER
ON
Use to input numerical data, enter Setup screens, scroll
through screens, and select setup values. See page 17
for additional keypad/screen navigation information. The
EasyKey includes numbered keys to enter values in
setup and the function keys listed in Table 4.
A
TI8138A
POWER
OFF
TI8139A
B
FIG. 6: Main Power Disconnect
In a Tandem System, the secondary unloader provides 24VDC power to the EasyKey display. This
allows the primary unloader to be powered down
for maintenance without interrupting production. All
accessories (light tower, swirl, etc.) and the display
board on the primary system will have power when
the secondary unloader is powered on and the primary unloader is powered off.
TI8140A
FIG. 7: EasyKey Display and Keypad
Table 4: Key Descriptions
Key
Function
Setup: press to enter or exit Setup mode.
Enter: if cursor is in drop-down list box, press Enter key to view drop-down list. Press Enter to save a
value either keyed in from the numerical keypad or selected from a drop-down list.
Up Arrow: move to previous field or drop-down list item.
Down Arrow: move to next field, or drop-down list item.
Continued on page 18.
311976L
17
Operator Controls
Table 4: Key Descriptions
Left Arrow: move to previous screen.
Right Arrow: move to next screen.
System On/Off: on starts system. Activates
,
,
, and
keys.
Heat State Toggle: starts heaters in all zones where they are enabled. Cycles through heat states
(Heat Off, Heat On/Heat Soak/Run, Setback).
Clear: clears alarms and warnings.
Pump Ready: allows pump to cycle after a DRUM EMPTY condition is removed or a MOTOR ERROR
is cleared.
Pump Crossover: transitions the active system to the inactive unloader.
LCD Display
E
Temperature Readout: shows current temperature
of each zone, in temperature units selected in Table
7, see page 24.
F
Status Bar: shows current operation mode or
alarm.
G
Current Date and Time
H
Security Level: a padlock appears on the screen if
a password is required to enter Setup mode. If the
password was set to 0, no padlock appears and
setup can be entered without a password.
The two Run screens show graphical and text information related to setup and spray operations.
A screen saver option is available in the Advanced
Setup screen 4 (see Table 7, page 24).
A
B
Animation: when there is flow the air motor piston
and pump displacement rod move and the gun
appears to spray.
Total Job Volume: recorded in units selected in
Table 7, see page 24. Press
twice to reset Total
Job Volume to zero.
C
Current Flow Rate: flow rate displayed in units
selected in Adv tab of setup. See Table 7 on page
24.
D
Zone Number and Icon: shows which zone data is
currently being displayed. Icon indicates component
for that zone.
18
You must be in system off mode to enter Setup
.
Alarm
Alerts the user to an alarm condition. Press
the alarm.
to clear
311976L
EasyKey Display Screens
EasyKey Display Screens
Power Up Screens
When the EasyKey power switch is turned on the Graco
Logo screen and the phrase “Establishing Communication” displays for several seconds before the System
Run screen appears.
If the EasyKey cannot communicate with any board
during the power on phase, the phrase “Communication
Error” displays on the Graco Logo screen. Once communications are established the System Run screen
appears. See FIG. 8.
Run screens and Setup screens are the two main
screen types that provide information and system control.
Run Screens
System Run Screen
The System Run screen displays and cycles through the
operating status of each enabled zone in sequence. See
FIG. 8.
Zone Run Screen
The Zone Run screen displays a summary of all 6 zones
in the system. See FIG. 9.
Tandem systems contain two 6 Zone Run screens (A
and B). See FIG. 9 and FIG. 10. Expansion systems contain one 6 Zone Run screen (A) and one 4 Zone Run
screen (B). See FIG. 9 and FIG. 10.
From the Zone Run screen, press the Left Arrow
Right Arrow
screen.
or
key to move to the System Run
Temperature setpoints are adjustable on this
screen if Setpoint Adjust is turned on. See
Advanced Screens, page 23. Setpoints will be
highlighted in a box. Use the Up Arrow
Arrow
or Down
keys to move among the setpoints.
From the System Run screen, press the Left Arrow
or Right Arrow
screens.
key to move to the Zone Run
FIG. 9: Zone A Run Screen
FIG. 8: System Run Screen
FIG. 10: Zone B Run Screen
311976L
19
EasyKey Display Screens
Setup Mode
Zone Setup Screens
Entering Setup
Zone Setup has 2 screens. The screen number appears
on the right side of the screen. See FIG. 11 and FIG. 12.
See Table 5 on page 21 for settings.
Press
to enter or exit Setup. You must be in system
off state to enter Setup.
Password Screen
Press the Enter
key to show drop-down lists
and to enter your selection.
If a password was enabled you must enter the password
before entering Setup mode. See Table 7, page 24.
Entering the wrong password returns you to the Run
screens.
If a password is enabled, “Setup Locked” displays
momentarily after exiting Setup mode and returning
to the Run screens.
Setup Screen Menu
The Setup screens contain tabs across the bottom of
the screen for the Zone, Timer, Report, and Advanced
screens. The current screen is highlighted. See FIG. 11
and FIG. 12.
FIG. 12: Setup Screen 2
FIG. 11: Setup Screen 1
20
311976L
EasyKey Display Screens
Table 5: Zone Setup Screens
Screen
1
(See FIG. 11)
Setting
Selection
Unloader
Description
In single system always A. In tandem or expansion system it is selectable
between A and B.
Zone
Numeric
Enter desired zone (1-6). Zone 1 (platen) and zone 2 (pump) are fixed. All
other zones are selectable (hose, gun, regulator, manifold, meter).
Enable
On/Off
Select On or Off to turn zone heat on or off.
Zone Type Hose/
Select desired component for heat zones 3 through 6. Zone 1 (platen) and
Gun/
zone 2 (pump) are fixed. Zone icons on Run screens will match selections.
Regulator/
Manifold/
Meter
Assign to
2
(See FIG. 12)
311976L
Tandem system only. Determines unloader zone is assigned to for heat
control.
Setpoint
Numeric
Enter the temperature to which material needs to be heated. Consult material supplier for recommended material application temperatures.
Setback
Numeric
Enter desired temperature to maintain during downtime, so material will not
cool completely.
Calibrate
+/Numeric
Select +/ -, then enter desired calibration temperature. Use if Zone Temp
reading does not match ambient temperature of location.
Alarm
Numeric
Range +/-
Enter temperature range from setpoint at which an alarm condition will
occur.
Warning
Numeric
Range +/-
Enter temperature range from setpoint at which a warning condition will
occur.
21
EasyKey Display Screens
Timer Screen
Report Screen
Timer settings are explained in Table 6. See also FIG.
13 and FIG. 14.
The Report screen shows the most recent 12 alarms,
with the date and time. Use the Up Arrow
or Down
keys to see all the alarms. See FIG. 15.
Arrow
Grand total is displayed in liters, gallons, pounds, kilograms, or cycles, based on the units set in Advanced
screen 2. See Table 7, page 24. Grand total cannot be
reset.
There are no selectable settings on the Report screen.
FIG. 13: Timer Screen Disabled
FIG. 15: Report Screen
FIG. 14: Timer Screen, with individual day and
setback action selected
Table 6: Timer Setup Screen
Setting
Day
Selection
Individual/
M-F/
S-S/
All
Description
Select desired day(s). Selected days will be highlighted in calendar on screen.
Event Number 1-5
Select desired event number (maximum of 5 events per day).
Action
None
No timer value entered for selected event.
Off
Turns off timer for selected event.
On
Turns on timer for selected event.
Setback
Turns on setback function for selected event.
Clear All
Clears all timer events for selected day.
Numeric
Enter hours (0-23) and minutes (0-59).
Time
22
311976L
EasyKey Display Screens
Advanced Screens
Advanced Setup has 3 screens. The screen number
appears on the right side of the screen. See FIG. 16
through FIG. 18, and Table 7 on page 24.
The specific gravity listed in the material data sheet
may be for solid form at room temperature. For
accurate weight calculations, specific gravity at the
application temperature should be used; otherwise
these weight calculations may be inaccurate.
FIG. 18: Advanced Screen 3
Press the Enter
key to show drop-down lists
and to enter your selection.
6+6
FIG. 16: Advanced Screen 1
FIG. 17: Advanced Screen 2
311976L
23
EasyKey Display Screens
Table 7: Advanced Setup Screens
Screen
Setting
Selection
Language English, Spanish,
1
German, French,
(See FIG. 16)
Japanese, Chinese,
custom
Language displayed. English is the default.
Default
English
Number
Zones
6 / 6+4 / 6+6
The number of zones in system is set at the factory.
(8 / 8+4 / 8+8 are not
used on these models)
Change
Setpoint
Yes / No
Select Yes or No to allow operator to change setpoints Yes
from the Zone Run screen.
Temperature Units
°F / °C
Select desired temperature units.
Heat Soak Numeric
2
Units
(See FIG. 17)
6
F
Enter time (in minutes) to delay air motor start after all 45
zones reach temperature setpoints.
cycles / gallons /
liters / lb / kg
Select desired units. Affects units used for Run screen Cycles
job totalizers and Report screen grand total volume.
7-Day
Timer
On / Off
(Enable / Disable 7 day timer).
Pump
Inactivity
Yes / No
If pump does not move for 2 hours, zones switch to
No
setback temperatures. If 2 more hours pass without
pump movement, system shuts off. Select Yes or No.
External
Pump
Enable
On / Off
Allows external device to control pump. Default is off.
Off
Runaway
Rate
Numeric
Enter speed (cycles/min) at which air motor will be
shutdown, to prevent runaway.
60
Specific
Gravity
Numeric
Used to determine units when weights are selected
(lb/kg).
1.00
Numeric
Select current month (1-12).
1
Numeric
Select current day (1-31).
1
Year
Numeric
Select current year (4 digits).
0000
Time
Numeric
Enter hours (0-23) and minutes (0-59).
0__0
Password
Numeric
Is only used to enter Setup mode. Default is 0, which 0000
means no password is required to enter Setup. To set
a password, enter a number (1–9999).
Screen
Saver
Time
Numeric
Enter minutes (1-99) for screen to be inactive before 0
screen saver turns on (screen dims). Press any key to
restore. Default is 0 (screen saver off).
3
Month
(See FIG. 18) Day
24
Description
Off
311976L
Setup
Setup
Purge Before Using Equipment
2. Place the ram UP/DOWN lever in the UP position.
The equipment was tested with lightweight oil, which is
left in the fluid passages to protect parts. To avoid contaminating your fluid with oil, purge the equipment with a
compatible material before using the equipment. See
Purging the System, page 16.
Set Values on EasyKey
Set desired values on EasyKey Setup menus. See
Setup Mode, page 20.
Material Loading
TI8141A
3. Slowly turn the ram UP regulator (N) clockwise until
the ram begins to rise See. FIG. 19.
4. When the ram is fully raised, install the pail.
CAUTION
Do not use a pail of material that has been dented or
otherwise damaged; damage to the platen wiper can
result.
Before loading material, make sure there is a minimum overhead clearance of 82 in. (209 cm) and all
air regulators are backed off to their full counterclockwise position.
1. Open the system bleed-type master air valve (A).
A
N
P
TI8142A
FIG. 19: Pneumatic Control Panel
TI835A
5. Apply a thin coating of high temp grease lubricant
(part no. 115982) to the platen seals (PS). See FIG.
20.
6. Add TSL fluid to wet cup. Fill approximately 2/3 full.
7. Open pail, remove any packing material, and
inspect material for any contamination.
8. Slide the pail into position. Be sure it is pushed all
the way against the stops at the back of the ram
baseplate.
311976L
25
Setup
9. Remove the platen bleed stick (Y). See FIG. 20.
10. Place the ram UP/DOWN lever in the DOWN position.
TI8141A
CAUTION
Lowering the ram without a pail in place can damage
the pail centering guides (if equipped).
TI8143A
Y
11. See FIG. 19. Slowly turn the ram DOWN regulator
(P) clockwise to approximately 5-10 psi (34-69 kPa,
0.3-0.7 bar). The platen will begin to lower into the
pail.
PS
FIG. 20: Platen
12. After the platen seal (PS) enters the material pail,
adjust the ram DOWN air regulator (P) to 30-50 psi
(207-345 kPa, 2.1-3.4 bar). See FIG. 19 and FIG. 20.
13. When the ram stops, reinsert the platen bleed stick
(Y) and hand tighten. See FIG. 20.
26
311976L
Setup
System Heat Up
The air will be locked from the air motor until all
temperature zones are within a preset window of
the temperature set points, allowing the system to
heat fully and complete the material heat soak
period.
Never pressurize a hot melt system before turning on
the heat. The air will be locked from the air motor until
all temperature zones are within a preset window of
the temperature set points.
CAUTION
The dispense valve must be kept open over a waste
container while the system is heating up and also
when cooling down. This will prevent a pressure
build-up caused by fluids or gasses expanding from
the heat.
Operate at the lowest temperature and pressure
necessary for your application.
1. Turn the main disconnect on the electrical control
panel door to the ON position.
POWER
ON
Prime Pump
In a Tandem system, after a pail change has
occurred on the inactive unloader, pressing the
Pump Ready
key will allow five minutes of air
to the air motor to allow for the pump to be primed.
The inactive unloader must be within its warning
deviation setpoints and in the Ready or Heat On
state. If the five minute timer runs out before the
inactive unloader is primed, pressing the Pump
Ready key again will repeat the air to the air motor.
1. Make sure the system has completed the approximately 45 minute heat soak cycle and is up to temperature.
2. Close the air motor bleed-type master air valve (D).
TI8138A
2. Press
. Display status bar reads System On
and Heat Off.
3. Press
. The zones begin to heat (provided they
are enabled). Display status bar reads Heat On.
When temperature reaches setpoint, display status
bar reads either Run Mode or Heat Soak, depending on user setting.
311976L
D
TI10094A
27
Setup
3. Adjust the air motor air regulator (C) to approximately 20 psi (138 kPa, 1.38 bar) on the pneumatic
panel.
7. Make sure the pump begins to cycle and heated
material flows from the bleed stem (ST) after several cycles of the pump.
8. If the pump does not cycle, adjust the air motor air
regulator (C) up by 5 psi (34 kPa, 0.3 bar). Never
adjust the regulator by more than 5 psi (34 kPa, 0.3
bar) increments.
9. Prime the pump until it moves smoothly in both
directions with no air popping or erratic movement
and close the air motor bleed-type master air valve
(D).
C
10. Close the bleed stem (ST). See FIG. 21.
TI8142A
4. Place a waste container under the bleed stem (ST).
Using an adjustable wrench, open the bleed stem
counterclockwise 1/3 -1/2 turn. See FIG. 21.
5. If a new pail was installed and:
ST
•
If the unit is equipped with proximity sensors,
•
press the Pump Ready key
.
If the unit is not equipped with proximity sensors, press the Clear key
if a motor error is
present, then press the Pump Ready key
.
6. With waste container in place, slowly open the air
motor valve (D).
TI8143A
FIG. 21: Bleed Stem
D
TI10094A
28
311976L
Setup
Prime System
3. Place the dispense valve over a waste container.
4. Slowly open the system master air valve.
5. Prime the system until a smooth flow of material dispenses from the dispense valve.
1. Close the system bleed-type master air valve (A).
2. If using a manual gun, lock the dispense valve trigger open by pulling and securing the trigger using
the trigger retainer (TR).
6. Close the system master air valve and release trigger retainer.
7. Engage trigger lock.
Trigger Lock
Engaged
TI8049A
The system is now ready to operate.
TR
TI8051A
311976L
29
Operation
Operation
Pressure Relief Procedure
3. Disengage trigger lock.
Trigger Lock
Disengaged
Follow Pressure Relief Procedure when you stop
spraying and before cleaning, checking, servicing, or
transporting equipment.
This procedure describes how to relieve pressure for the
supply unit. Use this procedure whenever you shut off
the unit and before checking or adjusting any part of the
system.
TI8050A
4. Hold a metal part of the gun firmly to a grounded
metal pail. Trigger the gun to relieve pressure.
5. Engage trigger lock.
1. Engage trigger lock.
Trigger Lock
Engaged
Trigger Lock
Engaged
TI8049A
TI8049A
2. Close the system bleed-type master air valve (A).
6. Open all fluid drain valves in the system, having a
waste container ready to catch drainage. Leave
drain valve(s) open until you are ready to spray
again.
If you suspect the spray tip or hose is clogged or that pressure has not
been fully relieved after following the steps above, VERY SLOWLY loosen
hose end coupling to relieve pressure gradually, then loosen completely.
Clear hose or tip obstruction.
A
7. To relieve pressure in the ram, see page 31.
Trigger Lock
TI8135A
30
Always engage the trigger lock when you stop spraying
to prevent the gun from being triggered accidentally by
hand or if dropped or bumped.
311976L
Operation
Ram Pressure Relief Procedure
5. Exhaust air from both sides of the ram:
a. Move the ram UP/DOWN lever to the DOWN
position until all air is exhausted from one side
of the ram.
Follow Pressure Relief Procedure when you stop
spraying and before cleaning, checking, servicing, or
transporting equipment.
To relieve air pressure in the ram:
1. Relieve the supply unit pressure, see page 30.
TI8141A
2. Place the ram UP/DOWN lever in the DOWN position. Move the ram to the DOWN position.
b. Move the ram UP/DOWN lever to the UP position until all air is exhausted from the other side
of the ram.
TI8141A
3. When the ram reaches the full down position, place
the ram UP/DOWN lever in the center position (off).
TI8141A
4. Close the system bleed-type master air valve (A).
A
TI8135A
311976L
31
Operation
Pail Changing
1. Place the ram UP/DOWN lever in the UP position.
Follow the procedure below to change the pail on a fully
heated machine.
CAUTION
Be sure to reload the empty supply unit with a full
pail of material immediately. Do not raise the ram
and remove the platen from the empty pail until you
are ready to immediately install a new pail.
Do not raise the ram and remove the platen from
the empty pail unless the supply unit is at full
operating temperature. Pail changes can only be
performed when the system is heated.
Do not use a pail of material that has been dented
or otherwise damaged; damage to the platen wiper
can result.
No Pail Low/Empty Sensors
The pump will cavitate and a pump runaway error will
appear in the EasyKey status bar. The air motor will
shut off and the heat will continue to be applied for
approximately 1 hour.
TI8141A
2. Dial ram up regulator pressure to 0 psi.
Excessive air pressure in the material pail could
cause the pail to rupture, causing serious injury. The
platen must be free to move out of the pail. Attempting to change a pail when the supply unit is cold could
result in injury, damage to the equipment, or rupture
of the material pail. Never use pail blow-off air with
cold adhesive or a damaged pail.
Positive pressure is released from the pail when
the platen seal is pulled clear.
3. Adjust the platen blow-off air regulator (T) to 20-30
psi (138-207 kPa, 1.4-2.1 bar).
With Pail Low/Empty Sensors
“Drum Empty” will appear in the EasyKey status bar.
The air motor will shut off and the heat will continue to
be applied for approximately 1 hour. The pump icon will
flash in the status bar. If the light tower kit is installed a
flashing yellow light indicates that the pail is empty and
ready to change. In a tandem system a flashing red light
means that both pails are empty and the system has
shut down.
In a Tandem system, after a pail change has
occurred on the inactive unloader, pressing the
T
TI8142A
Pump Ready key
will allow five minutes of air
to the air motor to allow for the pump to be primed.
The inactive unloader must be within its warning
deviation setpoints and in the Ready or Heat On
state. If the five minute timer runs out before the
inactive unloader is primed, pressing the Pump
Ready key again will repeat the air to the air motor.
32
311976L
Operation
4. Push and hold the blow-off air pushbutton (S). The
platen will begin to raise.
If both unloaders in the system are empty, the
pump ready and transition sequence will depend on
the unloader to transition to the Run state.
S
 Active unloader cleared. Inactive unloader
empty.
•
TI8142A
5. When platen is clear of the pail, increase the ram up
pressure to 10-15 psi (69-103 kPa, 0.69-1.03 bar) to
continue to raise the heated platen.
 Inactive unloader cleared. Active unloader
empty.
•
Never reach under the heated platen after it leaves
the pail. Serious burns could result from dripping
material.
6. Follow the steps in Material Loading (page 25) and
Prime Pump (page 27).
Pressing the Pump Ready key
while
the active unloader is in the Heat On state
will cause the active unloader to transition
to the Run state.
Pressing the Pump Ready key
while
the inactive unloader is in the Heat On
state will cause the inactive unloader to
transition to the Ready state. The active
state can then be transitioned to the loaded
unit.
 Both unloaders cleared before pressing Pump
Ready.
•
7. After pail change, press the Pump Ready key
to reverse the air motor control.
Pressing the Pump Ready key
while
the inactive unloader is in the Heat On
state will cause the inactive unloader to
transition to the Ready state. The Pump
8. Prime the pump.
Crossover key
It is only necessary to lubricate the platen seals on
initial material loading.
For tandem systems the Pump Ready key
will turn the air motor on for approximately 5 minutes to prime the pump. This can be repeated as
necessary.
311976L
must be pressed to
transfer active unloader status to the
Ready unloader. Pressing the Pump
Ready key
again while the now inactive loader is in the Heat On state, will
cause the inactive unloader to transition to
the ready state.
•
Pressing the Pump Ready key
while
the inactive unloader is in the Heat Off
state and the active unloader is in the Heat
On state will cause the active unloader to
transition to the Run state.
•
This sequence is required to force the user
to only engage one unloader at a time. This
prevents accidental pumping of air into the
system.
33
Operation
System Shutdown
4. Lock the dispense valve trigger open by pulling and
securing the trigger using the trigger retainer TR).
Follow the procedure below for normal system shut
down, such as at the end of the work day.
1. Make sure the pump rod (PR) is parked in the down
position.
TR
TI8051A
PR
TI10078A
2. Close the system bleed-type master air valve (A).
Many hot melt materials tend to expand when heating
up and may cause a heated hose to burst. Avoid the
potential of bursting a hose by opening the dispense
valve during system heat up and lock the dispense
valve trigger open every time you shut the system
down.
5. If the optional 7-day timer is not being used, set the
main disconnect to OFF.
If 7-day timer is required, system needs to be in the
system on state.
A
POWER
OFF
TI8135A
TI8139A
3. If a 7-day timer is not being used, enable Pump
Inactivity (see Table 7, page 24).
34
311976L
Dual Ram Cross-Over Installation
Dual Ram Cross-Over Installation
Typical Installation
Cross-Over Cable (part number 15H385) was included with the Dual Ram prior to 6/19/2008. Use can cable, (part
number 1221228) for units dated after 6/19/2008.
Cross-Over Cable
TI10075A
EasyKey Setup
See EasyKey Display and Keypad on page 17.
Pail Change Procedure
See Pail Changing on page 32.
311976L
35
Maintenance
Maintenance
Ram
Periodically (at least once a month), inspect the ram
guide sleeves, rods and cylinders for wear or damage.
Ground Fault Interrupt
Periodically (at least once a month) test the ground fault
interrupt switch by pushing the TEST button.
Power in a Tandem System
In a Tandem System, the secondary unloader provides 24VDC power to the EasyKey display. This
allows the primary unloader to be powered down
for maintenance without interrupting production. All
accessories (light tower, swirl, etc.) and the display
board on the primary system will have power when
the secondary unloader is powered on and the primary unloader is powered off.
Resetting the Ground Fault
Interrupt
This electrical control panel is equipped with a ground
fault interrupt (GFPE) circuit breaker. If the disconnect
switch is ON, but all lights on the electrical control panel
are off, review troubleshooting procedures.
Alarm Troubleshooting
The Therm-O-Flow alarms alert you to a problem and
help prevent system shut downs or application errors. If
an alarm occurs, operation may stop and the following
occurs.
•
Light Tower Changes (if equipped)
•
Status bar on the EasyKey Display shows the
description
•
Alarm out puts a signal sent to I/O
To clear the alarm and restart the unit, press the Error
Clear key
on the EasyKey display.
See Table 8, page 37.
36
311976L
Alarm Troubleshooting
Table 8: Therm-O-Flow Alarms
Warnings
Cause
With optional light tower, the yellow light illuminates and green light remains on if in Run mode.
Temperature Warning - occurs when a zone temperature is above/below the setpoint +/- warning deviation specified in the Zone tab of the Setup screen.
Drum Low - occurs when the pail low proximity sensor is activated due to the ram position.
Alarms
Cause
With optional light tower, the red light illuminates.
High Temperature - occurs when the zone temperature is above the setpoint plus alarm deviation specified in the
Zone tab of the Setup screen.
Low Temperature - occurs when the zone temperature is below the setpoint minus alarm deviation specified in the
Zone tab of the Setup screen while the unloader is in the Run state.
Sensor Error occurs in the following conditions:
•
When an enabled zone does not increase in temperature within 7 minutes while the system is in the Heat On
state. This is the short circuit state of an RTD sensor.
•
When a zone temperature exceeds 500°F (260°C). This is the open circuit state of an RTD sensor.
Heater Error - occurs if the contactor relay on a temperature board is not closed when a zone of the temperature
board is enabled and in a heat state for the active unloader.
Communication Error occurs in the following conditions:
•
Error 201 - The EasyKey does not communicate with the first Temperature PCB (201 position).
•
Error 221 - The EasyKey does not communicate with the second Temperature PCB (221 position).
•
Error 246 - The EasyKey does not communicate with the Unloader PCB (246 position).
•
Error 300 - The EasyKey and another PCB have incompatible software.
If any of the above error codes are generated, contact a Graco customer service representative.
Events
Cause
Drum Empty - occurs when the pail empty proximity sensor is activated for the ram position. Pump icon in status
bar starts flashing.
With optional light tower the yellow light begins flashing and the green light turns off.
Pump Runaway - occurs when the pump exceeds the motor shutdown rate set in the advanced tab of the Setup
screen.
The pump icon in the status bar begins flashing.
With optional light tower the red light turns on and the green light turns off.
Maintenance - occurs in advanced unit if user presses maintenance call button. See Maintenance Call Kit
(253548) on page 71 for additional information.
With optional light tower the yellow light turns on.
See Electrical Schematics on page 54 for additional information.
311976L
37
Ram Troubleshooting
Ram Troubleshooting
Problem
Ram will not raise or lower.
Cause
Closed main air valve or clogged air
line.
Solution
Open air valve; clear air line.
Not enough ram air pressure.
Increase ram air pressure.
Worn or damaged ram piston.
Replace piston. See instruction manual 310525.
Platen not fully up to temperature.
Wait for full temperature.
Ram air pressure too high.
Decrease ram air pressure.
Dented pail has stopped platen.
Fix or replace pail.
Ram raises or lowers too fast.
Ram “up / down” air pressure too
high.
Decrease ram air pressure.
Air leaks around cylinder rod.
Worn rod seal.
Replace o-rings in guide sleeve. See
instruction manual 310525.
Fluid squeezes past platen wiper.
Ram air pressure too high.
Decrease ram air pressure.
Worn or damaged wiper.
Replace wiper.
Closed main air valve or clogged air
line.
Open air valve; clear air line.
Not enough air pressure.
Increase air pressure.
Worn or damaged ram piston.
Replace piston. See instruction manual 310525.
Ram directional valve closed or
clogged.
Open valve; clear valve or exhaust.
Ram directional valve dirty, worn, or
damaged.
Clean; repair valve.
Dented pail has stopped platen.
Fix or replace pail.
Closed main air valve or clogged air
line.
Open air valve; clear air line.
Pump will not prime properly, or
pumps air.
Air pressure will not push platen out
of pail.
38
Not enough blow-off air pressure.
Increase blow-off air pressure.
Blow-off valve passage clogged.
Clean valve passage.
Dented pail has stopped platen.
Fix or replace pail.
Wiper bonded to pail or pail liner.
Lubricate wiper with high temperature grease at every pail change.
311976L
Heated Pump Troubleshooting
Heated Pump Troubleshooting
For additional troubleshooting information about the pump, see the pump’s documentation.
Problem
Cause
Rapid downstroke or upstroke (pump Material not heated to proper temcavitation).
perature.
Solution
Check and adjust temperature to
proper set point. Wait for
pump/platen to heat up.
Air is trapped in pump.
Bleed air from pump. See Prime
Pump, page 27.
Downstroke: Dirty or worn pump
intake valve.
Clean or repair. See Pump Manual.
Upstroke: Dirty or worn pump piston
valve.
Clean or repair.
Material leaks around pump outlet.
Loose outlet fitting.
Tighten outlet fitting.
Material leaks around bleed port.
Loose bleed port fitting.
Tighten bleed port fitting.
Pump will not move up and down.
Problem with air motor.
See Air Motor Manual.
Foreign object lodged in pump.
Relieve pressure. See Pump Manual.
Leak around pump wet-cup.
Worn throat seals.
Replace throat seals. See manual
308570 or 311536.
Air Motor Troubleshooting
For additional air motor troubleshooting information, see the air motor manual supplied.
Problem
Cause
Solution
Air motor will not run.
Air motor solenoid is off.
Wait for heat zones in use to reach
“window” around temperature set values.
Air motor stalled.
Damaged main air valve spool or
poppets.
Rebuild main air valve. See Air Motor
Manual.
Air continuously exhausting around
air motor shaft.
Damaged air motor shaft seal.
Replace air motor shaft seal. See Air
Motor Manual.
Air continuously exhausting around
air valve/slide valve.
Air valve/slide valve gasket is damaged.
Replace the valve gasket. See Air
Motor Manual.
Air continuously exhausting from
muffler when motor is idle.
Internal seal damage.
Rebuild air motor. See Air Motor
Manual.
Icing on muffler.
Air motor operating at high pressure
or high cycle rate.
Reduce pressure, cycle rate, or duty
cycle of motor.
311976L
39
Electrical Control Panel Troubleshooting
Electrical Control Panel Troubleshooting
Problem
Disconnect is ON, but EasyKey not
lit.
Cause
The ground fault interrupt has been
activated.
Solution
Have a qualified electrician check
wiring.
One or more fuses or circuit breakers Have a qualified electrician check
tripped.
wiring.
High temperature alarm.
The temperature of a heated compo- Supply unit automatically turns off
nent has gone out of range.
power to supply unit components and
air motor. Unit turns power back on
when overheated components reach
appropriate temperatures.
Heat is turned off after a period of
pump inactivity.
Pump has not moved within the pro- See Table 7, page 24.
grammed time period and the inactivity timer has been triggered.
Pump Ready key does not clear
flashing pump ready icon.
Unloader not in Heat On state and/or Turn system to Heat On state and
zones have not reached warning
wait until all zones reach warning
deviation level.
deviation level.
40
311976L
Service
Service
Ram
Platen Service
Whenever you service the ram, follow the Ram Pressure Relief Procedure on page 31.
Periodically (once a month), inspect the ram guide
sleeves, rods and cylinders for wear or damage, replace
all worn parts. See the Service section of Form 310525
for instructions on replacing worn parts.
Pump
See the material pump instructions for its inspection frequency.
Ground Fault interrupt
Raise the platen up out of the pail before proceeding. See Pail Changing on page 32.
Removing the Platen
1. Turn OFF the main electrical disconnect.
2. Disconnect the platen power wires and the platen
ground wire from within the main control panel and
pull out of conduit.
3. Remove the platen assembly from the ram.
4. Reverse this procedure to reinstall the new or rebuilt
platen assembly.
Periodically (at least once a month) test the ground fault
interrupt switch by pushing the TEST button.
Power in a Tandem System
In a Tandem System, the secondary unloader provides 24VDC power to the EasyKey display. This
allows the primary unloader to be powered down
for maintenance without interrupting production. All
accessories (light tower, swirl, etc.) and the display
board on the primary system will have power when
the secondary unloader is powered on and the primary unloader is powered off.
311976L
41
Service
Replacing Wiper
1. Follow Pressure Relief Procedure, page 30.
2. Separate the wiper joint, and bend back the strapping that covers the clamp (207). FIG. 22.
3. Unscrew the worm gear and remove the wiper
(202).
218
206
4. Thread the strapping through the new wiper (202).
5. Insert the strap end through the clamp (207) and
tighten.
6. Use a rubber mallet to pound the wiper around the
platen (201) until the wiper ends are butted tightly
together.
7. Apply a lubricant to the wiper (202). Use a lubricant
that is compatible with the material to be pumped.
Check with the material supplier.
Replacing Platen Heat Sensor
For more information about the platen, refer to
page 41.
217
205
215
233
228
229
231
216
214
213
203
224
212
204
223
219
232
225
201
1. Follow Pressure Relief Procedure, page 30.
2. Make sure the ram control lever is set to OFF.
3. Turn OFF the main electrical disconnect (K).
202
4. Disconnect quick connect terminal (233).
5. Loosen the conduit locknut on sensor (219). FIG. 22.
Unscrew the sensor from the platen.
6. Coat the new sensor with non-silicone heat-sink
compound.
7. Slide the sensor (219) into the opening in the platen
(201). Be sure it is seated to the bottom of the
platen.
207
TI10085A
FIG. 22: Platen
8. Tighten the conduit locknut on the sensor.
9. Reconnect the quick connect terminal (233).
42
311976L
Service
Air Motor/Pump Removal and Service
8. Remove the pump sheet metal enclosure (A). See
FIG. 23.
This procedure must be done with the unit still
warm. The material and equipment will be hot!
For information about servicing the Check-Mate™ 800
Displacement Pump, see Instruction Manual 308570.
For information about servicing the NXT Air Motor, see
Instruction Manual 311238.
1. Remove the material pail (see Pail Changing procedure on page 32). Ensure that the air motor shaft
is fully extended and the pump rod is in the fully
down (parked) position.
2. Make sure the platen is down and the ram up/down
lever is in the neutral position.
a. Remove the cover screws (B).
b. Disconnect the pump heater wires, the ground
wire, and the sensor mounted to the pump.
c.
Disconnect the platen sensor (C).
9. Remove the air motor top cover.
10. Disconnect electrical cable from air motor.
11. Remove air line from air motor and air lines to the
platen blow-off valve.
12. Remove nuts (F) from tie rods at the pump end. See
FIG. 23.
13. Disconnect the u-bolts (19) from the tie rod and
slide the end of cable track (17) outboard of the
mounting plate. See Parts on page 46.
Follow Pressure Relief Procedure on page 30 when
you stop spraying and before cleaning, checking, servicing, or transporting equipment.
3. Bleed off excess material and pressure in the system by opening the dispense gun and catching the
material in a waste container.
14. Fully loosen pump rod coupler to the air motor rod
(G).
15. Slowly raise elevator to achieve enough separation
of the tie rods to remove the pump.
16. Remove bolts from air motor mounting plates.
17. Remove the pump.
4. Press
to turn off the system heat.
5. Turn OFF the main electrical power supply to the
unit. Follow all applicable safety procedures and
lockout rules.
6. Turn OFF the main electrical disconnect (K) located
on the left side of the Therm-O-Flow 20.
18. Reverse this procedure to reinstall the new or rebuilt
air motor.
Inspection/Maintenance Frequency
The pump packings do not require any other service or
maintenance, except as described in the Daily Maintenance Procedures. See 308570 for inspection frequency of the pump.
Throat Packings
Make sure the main disconnect is off before continuing
with this procedure.
Refer to manual 308570 or 311536 for a list of throat
packing kits and replacement instructions.
7. Disconnect all material hoses.
311976L
43
Service
G
C
A
F
TI10084A
A
B
FIG. 23
44
311976L
Service
Replacing Heater Bands and Sensors in Pump Module
Module heaters and sensor can be serviced without
removing the pump module from the supply unit.
Remove the front shrouds. When finished servicing the
pump module re-attach shrouds.
Removing/Replacing RTD Sensor
1. Turn OFF the main electrical disconnect.
2. Remove the screws that hold the front shroud in
place and remove front shroud.
3. Disconnect quick connect terminal.
This procedure can be done when the
Therm-O-Flow 20 is cool.
Removing/Replacing Heater Band
1. Turn OFF the main electrical disconnect.
2. Remove the screws that hold the front shroud in
place and remove the front shroud.
4. Loosen the clamp holding sensor on pump (G). See
FIG. 24.
5. Reconnect sensor to extension wire.
6. Replace the sensor in clamp:
a. Place sensor approximately 30° counterclockwise from pump outlet.
b. Tighten clamp.
3. Disconnect the electrical wires from heater band
(117). See FIG. 24. Label wires as they are
removed.
4. Remove the screw that holds the heater band in
place.
5. Remove the heater band from pump.
6. Coat the inside of the heater with non silicone heat
sink compound before mounting. Maximum thickness is 0.005”. Coat only to within 3/4 in. (19 mm) of
vertical ends.
117
7. Install a new heater band in the same location as
the old heater band:
G
a. Locate heater terminals so they line up with
back of pump.
b. Tighten the heater band.
117
8. Re-connect heater wires and re-attach ceramic
caps that insulate terminal.
TI8144A
FIG. 24
311976L
45
Parts
Parts
Therm-O-Flow 20 Supply Unit
Ref
1
2*
3*
Part
277436
288544
253150
253154
253156
253160
4
253137
297401
5
6
288506
288507
288508
288511
288512
7
8
9
10
11*
288545
288546
288547
C20474
120187
12*
13
14*
288525
288540
218093
15
253229
205418
16*
17*
18*
19*
20
46
288634
288517
288541
106285
288543
Description
Qty
CART, assembly
1
PEDESTAL, enclosure
1
CONTROL, standard, 230v, 6 zone 1
CONTROL, secondary, 230v, 6
1
zone
CONTROL, standard, 480v, 6 zone 1
CONTROL, secondary, 480v, 6
1
zone
CONTROL, air, assy; units with
1
controls; see page 50
CONTROL, air, assy; units without
1
controls; see page 50
PUMP, 2200; see page 48
1
PUMP, 3400; see page 48
1
PUMP, 6500; see page 48
1
PLATEN, heated, finned; see page
1
49
PLATEN, heated, smooth; see
1
page 49
COVER, pump, bottom
1
COVER, back
1
COVER, pump, front
1
SCREW, self-tapping
6
SCREW, button head; 1/2-13 x 3/4
2
in. (19 mm)
CONDUIT, w/fittings
1
BRACKET, enclosure, ram
1
HOSE; 1/2 npt (mbe); 22 in. (560
1
mm)
HOSE, air; 1/2 npt (mbe);
1
15 ft (4.6 m)
HOSE, air; 1/2 npt (mbe);
1
6 ft (1.8 m)
BRACKET, cable track; enclosure
1
CABLE, track
1
BRACKET, cable track, NXT
1
U-BOLT
2
BRACKET, hose spring
1
Ref
21*
22*
23*
24
25
26
27*
28*
29*
31
33
34
35*
38*
39
40
Part
Description
100214 WASHER, lock
101864 SCREW, cap, socket head; 5/16-18
x 1 in. (25 mm)
100023 WASHER, plain; 3/8
100016 WASHER, lock; 1/4; units with controls
100016 WASHER, lock; 1/4; units without
controls
112166 SCREW, cap, socket-hd; 1/4-20 x
3/4 in. (19 mm)
110755 WASHER, plain; units with controls
110755 WASHER, plain; units without controls
100020 WASHER, lock
111820 SCREW, cap, socket-hd; 10-24 x
3/4 in. (19 mm)
100179 NUT, hex; 10-24
103347 VALVE, safety; 23:1 units
120306 VALVE, safety; 36:1 units
120012 VALVE, safety; 70:1 units
120774 ADAPTER, reducing, 5/16 to 1/4
tube
103345 SCREW, cap, socket-hd; 1/4-20 x
1-1/4 in. (31 mm)
120810 FITTING, washer, reducing, 1 in. to
3/4 in.
100643 SCREW, cap, socket-hd; 1/4-20 x 1
in. (25 mm)
15J075 LABEL, warning
184090 LABEL, warning
Qty
8
12
4
18
10
4
12
4
6
6
4
1
1
1
2
6
2
4
1
1
 Replacement Danger and Warning labels, tags, and
cards are available at no cost.
*
These parts are used only on complete systems with
controls.
311976L
Parts
17
5
3
11
11
20
24, 26, 38
13
19, 24, 26
4
7, 8, 9, 10
1
2
6
TI10078A
311976L
18
33
4 (Ref)
12
TI10080A
47
Parts
Pump
Ref
101
102
103
104
105
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
126
127
129
Part
Description
Qty
N22LH0 MOTOR, 2200; used on 288506;
1
see 311238
N34LH0 MOTOR, 3400; used on 288507;
1
see 311238
N65LH0 MOTOR, 6500; used on 288508;
1
see 311238
237885 PUMP, Check-Mate; see 308570
1
15J213 BRACKET, air motor; used on
1
288506
15J288 BRACKET, air motor; used on
2
288507 and 288508
15H395 ROD, tie
3
106166 NUT, mach, hex
3
15H397 ADAPTER, rod, pump; used on
1
288506
15H396 ADAPTER, rod, pump; used on
1
288507 and 288508
184129 COLLAR, coupling
2
186925 NUT, coupling
1
15K036 CONDUCTOR, ground
1
C38163 WASHER, lock, ext. tooth
1
C38162 SCREW, machine
1
120375 ADAPTER, elbow, 3/4 npt x 1/2 npt 1
C19837 SCREW, socket-hd cap; used on
4
288507 and 288508
100133 LOCKWASHER; used on 288507
4
and 288508
15K037 HEATER, pump, 600 W
2
C03507 SUPPORT, sensor
1
15K033 SENSOR, RTD, temp, w/connector
1
C31012 CLAMP
1
C33049 TAPE, adhesive, fiberglass
2
15H398 ADAPTER, motor mount; used on
3
288506 only
109211 SCREW, socket-hd cap; used on
3
288506 only
120588 PLUG, pipe
1
15K034 CONDUCTOR, rtd, temp w/ con1
nector
101
108
103
127
116
114
115
104
110
109
111, 112, 113
105
102
118
129
118, 120, 121
117
TI10202A
48
311976L
Parts
Platen
Ref
201
Part
202
203
204
205
206
207
212
213
214
215
216
217
218
219
223
224
225
228
229
231
232
233
C31052
207440
288855
15J794
514930
C31154
167730
100176
115948
115949
054778
054779
288524
15K032
C38163
C19049
15C171
102931
120866
15K035
15K036
15K034
Description
Qty
PLATE, heated, finned; used on
1
288511
PLATE, heated, smooth; used on
1
288512
HOSE, seal, Mini - 5
1
VALVE, dispenser
1
HANDLE, bleed
1
ADAPTER, bushing
1
SCREW, cap, skt hd
3
CLAMP, worm gear
2
GASKET, copper
1
BUSHING, hex
1
ELBOW, 1/4 npt(m), 5/16 OD tube
1
ELBOW, 1/4npt(m), 5/32 OD tube
1
TUBE, PTFE, 1/4 x 5/16
13
TUBE, PTFE, 3/32 x 5/32
13
CONDUIT, hi-temp, w/fittings
1
SENSOR, RTD, temp, w/connector
1
WASHER, lock, ext. tooth
1
SCREW, mach, slotted, rnd hd
1
GASKET
1
NUT, mach. hex
4
WASHER, lock, internal tooth
4
CONDUCTOR, heater
4
CONDUCTOR, ground
1
CONDUCTOR, RTD, temp w/ con1
nector
218
206
217
205
215
233
228
229
231
216
214
213
203
224
212
204
223
219
232
225
201
202
207
TI10085A
311976L
49
Parts
Air Control
Ref
308
309
310
311
312
313
314
Part
113269
113286
115952
120432
115957
115948
C11037
Description
Qty
VALVE, ball, bleed-type; 1/2 npt
1
VALVE, safety
1
VALVE, 4-way, 1/8 npt
1
REGULATOR, panel mount
4
VALVE, check
4
ELBOW, 1/4 npt(m), 5/16 OD tube
3
INSERT, 1/2 npt
2
Ref
315
316
317
318
319
Part
C11033
120434
120435
15H236
C06299
Description
FILTER, air
SOLENOID, motor 24V dc
REGULATOR, remote piloted
VALVE, ball, female, 1/2 npt
MUFFLER, #10-32 unf
316
Qty
1
1
1
1
2
317
314
318
310
315
311
308
319
TI10030A
50
311976L
Parts
EasyKey Assembly, Part No. 255224
405
402
403
404
401
TI7918A
TI7919A
Back of EasyKey Assembly
Ref
No.
401
402
403
404
405
Part No. Description
LABEL, operations
117769 DISPLAY, graphics
BOARD, circuit assembly
PLATE, blank
SCREW, pan head cross 4-40
311976L
Qty
1
1
1
1
4
51
Parts
Spare Parts and Kits
Spare Parts and Kits
Graco Part No.
Description
See manual 308570
253566
253147
117769
253603
253547
120400
15H386
15H385
121228
120384
15K032
15K033
15K037
253548
253567
255233
288511
288512
288543
288545
288546
288547
C31065
Pump Rebuild Kit
Ethernet Kit
EasyKey Display Kit
LCD Graphic Display
Pail Low and Empty Sensors
Light Tower Kit
Discrete I/O Cable
Air Motor Sensor Cable
Crossover Communication Cable
Can Cable (for units dated after 6/19/2008)
Swirl Cable
Platen RTD Sensor
Pump RTD Sensor
Pump Heater 600W
Maintenance Call Button Kit
Discrete I/O Kit
Pail Low and Empty Sensor kit
Platen Assembly, Finned
Platen Assembly, Smooth
Hose Support Kit
Pump Bottom Cover
Pump Back Cover
Pump Front Cover
Wiper Repair Kit
Electrical Control Panel Spare Parts
52
Reference No.
Graco Part No.
PCB246
PCB201, 226
SR106, 113, 116, 119, 122
SSR130
DISC 100
N/A
N/A
FU1061, 1062
FU106, 108
FU113, 119
FU116, 122
PS122
GFPE112
N/A
249404
249405
120398
120399
120438
120439
120440
116214
120426
116208
116209
120427
120428
120430
Description
Unloader Board
Temperature Board
18A Watlow SSR
65A Watlow SSR
Disconnect 80A
Door Operating Mechanism Disconnect
Shaft Disconnect
15A Fuse
7A Fuse
6A Fuse
2-1/4A Fuse
DC Power Supply 24V
GFPE
5KVA Transformer
6 Zone
1
2
5
1
1
1
2
2
2
2
1
1
1
311976L
Parts
311976L
53
54
128
127
126
125
124
123
122
121
120
119
118
117
116
115
W4
T110
W7
420V
TRANSFORMER
(480V UNIT)
X1
380V
X2
240V
W6
W2
W1
X1
W5
FOR 400 VAC INPUT POWER, USE THE 420 VAC TAPS.
FIGURE 1
ROUTE WIRES TOWARDS
REAR OF ENCLOSURE
W3
480V
X4
X2
NO TRANSFORMER
(230V UNIT)
X3
X4
#16 BLACK
MTW TYP.
1271
N
N
GFPE 112
114
X3
X1
2
X2
SEE FIGURE 1
X3
#12 BLACK
MTW TYP.
#6 BLACK
MTW TYP.
1
575V
X4
#12 BLACK
MTW TYP.
GROUND
LUG
FU 1062
113
112
111
110
109
108
GND
L3
L2
100
FU 1061
107
106
105
104
103
102
101
100
L1
DISC
300 319 222
224
312
305
246
A2
4
2
#12 BLACK
MTW TYP
#12 BLACK MTW TYP.
FROM DC INTRF 224
A1
3
1
CON 112
#12 BLACK
MTW TYP.
104
300
200
1272
24 COM
L
224
6
A2
5
4
2
A1
3
1
221
246
200
+24V
N
224
103
FROM DC
INTF 221
PS 122
1141
1131
221
1L3
1L2
1L1
CON 101
#12 BLACK
MTW TYP.
111
109
1141
1142
1132
#12 BLACK
MTW TYP
#12 BLACK MTW TYP.
#6 BLACK
MTW TYP.
FU 128
FU 125
FU 122
FU 119
FU 116
FU 113
1
H
FAN
3
2
1281
1251
1221
1191
1161
1133
6
5
4
4L1
1
SSR 128
1
SSR 125
1
SSR 122
1
SSR 119
1
SSR 116
1
SSR 113
#12 GREEN/YELLOW
MTW TYP.
FU 108
FU 106
1141
1131
2L3
2L2
2L1
SSR 130
#6 BLACK
MTW TYP.
2
2
2
2
2
2
1
1282
1252
1222
#14 AWG
DH1-A1
DH3-B1
#14 AWG
DH3-A1
#14 AWG
DH2-B1
#14 AWG
DH2-A1
#14 AWG
500W
DG3-1
500W
1250W MAX
DG2-1
1250W MAX
500W
DG3-2
DG2-2
C
A
D
DH3-B2
DH3-A2
DH2-B2
DH2-A2
DH1-B2
DH1-A2
F
E
PUMP
HEATERS
(ZONE 2)
1200 KW
TOTAL
B
GUN/AUX HEATER
#2
(ZONE 8)
HOSE/AUX HEATER
#2
(ZONE 7)
GUN/AUX HEATER
#2
(ZONE 6)
HOSE/AUX HEATER
#2
(ZONE 5)
GUN/AUX HEATER
#1
(ZONE 4)
HOSE/AUX HEATER
#1
(ZONE 3)
PUMP GROUND
FOLLOWER GROUND
DG1-2
T3
B3
B2
B1
T2
T1
C
A
B
E
F
D
1250W MAX
DG1-1
3
SEE
FIGURE
SEE
FIGURE 2
5L1
DH1-B1
2
#14 AWG
1192
1162
1134
4L2
SSR 106
3L3
3L2
3L1
#6 GREEN
MTW TYP.
3L1
3L2
3L3
480V
F
D
B
E
C
A
4L2
5L1
4L2
5L1
230V
480V
FIGURE 3
FIGURE 2
3L2
3L3
3L1
230V
B2
B1
T2
T1
T3
B3
B2
B1
T2
T1
T3
B3
F
D
B
E
C
A
Electrical Schematics
Electrical Schematics
253150 and 253156 Controls
311976L
1131
(ZONE 6)
LINE
DH2-B4
J3
4
245
244
243
2012
3
2
1
2
2
1
3
4
5
6
7
8
J9
J6
J10
128
2332
2322
2311
2302
2292
2282
2272
2262
RS485
RS485
2082
2071
2062
2052
2041
2032
2022
24 COM
1272
7
1
7
4
6
J6
1
2
1
2
3
3
242
2361
2351 J4
2331
2321
2301
1
2
2
2231
2
J9
J6
241
DH3-B5
DG3-4
1
2
1
1
6
5
4
3
2
1
2
1
2
3
4
5
6
7
5
DH3-B4
DH2-B5
DG3-3
DH3-A5
DH3-A4
DG2-4
J1
J5
+24V
1271
2291 J2
2271
DH2-A5
DG2-3
2261
128
DH2-A4
E1
E1
1
1
2
2
1
J10
8
240
1271
E2
E2
2212
J5
J6
J4
J3
2
1
2
1
4
+24V
GUN/AUX #3 RTD
(ZONE 8)
(ZONE 7)
A1
A1
DC INTRF 221
LINE
103
#18 BLUE MTW TYP.
DH1-B5
2121
2111
2091
2081
J2
J1
239
238
237
236
235
234
233
232 GUN/AUX #3 RTD
231
230
1271
DG1-4
DH1-B4
2061
2051
2021
2011
DH1-A5
DH1-A4
DG1-3
#18 BLUE MTW TYP. (ALL 24V POWER)
1
1
RTD SENSOR
100
PLATINUM
.00385
/
/C
DC INTRF 224
229 GUN/AUX #2 RTD
228
226 GUN/AUX #2 RTD
227 (ZONE 5)
225
224 113
223
222
1131
TO
CONN
101
GUN/AUX
RTD
(ZONE 4)
HOSE/AUX
RTD
(ZONE 3)
PUMP
RTD
(ZONE 2)
FOLLOWER
RTD
(ZONE 1)
+24V
221 113
220
219
218
217
216
215
214
213
212
211
210
209
208
207
206
205
204
203
202
201
200
1271
#18 BLUE MTW TO BE
WIRED AS TWISTED
PAIR TYP. (6) PLACES
PCB 201
(TEMPERATURE BOARD #1)
PCB 226
(TEMPERATURE BOARD #2)
311976L
SSR 116
SSR 113
SSR 106
SSR 130
3
3
3
7
1272
4
4
4
4
3
3
3
3
2571
2561
2151
2142
SSR 128
SSR 125
SSR 122
SSR 119
#18 BLUE MTW TYP
1272
GUN/AUX #3
(ZONE 8)
HOSE/AUX #3
(ZONE 7)
GUN/AUX #2
(ZONE 6)
HOSE/AUX #2
(ZONE 5)
2151
2142
2131
2122
GUN/AUX #1
(ZONE 4)
HOSE/AUX #1
(ZONE 3)
PUMP
(ZONE 2)
FOLLOWER
(ZONE 1)
24 AWG, TWISTED
PAIR, 2 STRANDED
COND.,SHIELDED
BELDEN 9463
#18 BLUE MTW TYP.
ALL SSR COIL WIRING
4
4
4
8
302
24 COM
303
24 COM
1272
128
1271
2501
2511
RD
WH
268
270
5
J3
3
2
4
269
CORD GRIP
2551 (BU)
2541 (WH)
2532 (BK)
2522 (BN)
2512 (BU)
2502 (WH)
2492 (BK)
2482 (BN)
CORD GRIP
24 COM
2641(BL)
2671(BL)
2661(BL)
NC
2651(BL)
5
4
3
2
1
#12 GREEN MTW TYP
HARNESS 262
FLOW CONTROL
J264
1272
#20 AWG TYP
EXTERNAL CONTROL
CORD GRIP
GN/WH
2581 (BU)
J9
2572 (BN)
1
267
6
5
4
3
2
1
8
7
6
5
4
3
2
J2
J4
1
2
3
J7
7
6
5
4
3
2
1
1
266
2571
2561
TO DIN RAIL
MOUNTING SCREW
2531
J1
J4
2
RS485
BELDEN 9463
CORD GRIP
BK
2521
2491
GN
BK
2481
BK
CBL 247
+24V
1
4
8
9
7
1
2
3
JM
EXTERNAL TO CONTROL
#18 BLUE MTW TYP
264
TOP
REED
128
PCB 246
(UNLOADER BOARD)
265
263
262
261
260
259
258
257
256
255
254
253
252
251
250
249
248
247
246
ANALOG
SENSOR
REED
SWITCHES
128
AIR
SOLENOID
CBL 256
PROX.
SENSOR #2
(EMPTY)
PROX.
SENSOR #1
(LOW)
128
Electrical Schematics
55
Electrical Schematics
BU
WH
RED
BLACK
56
311976L
311976L
PCB
246
PCB
201
PCB
226
1.25 X 3.0 WIRE DUCT
GND BUS
FU 108
FU 106
SSR 106
D
F
B
E
A
C
B2
T2
B1
T1
B3
T3
DC
INTRF
221
SSR
130
NO
PARTS
AIRFLOW
1.25 X 3.0 WIRE DUCT
SHIELD
OOOOOOOO
1.25 X 3.0 WIRE DUCT
W6
W5
W4
W3
W7
W2
W1
GND
GND
1.75 X 3.0 WIRE DUCT
FU 1062
1.75 X 3.0 WIRE DUCT
FU 122
FU 119
FU 116
FU 113
SSR 122
SSR 119
SSR 116
SSR 113
CON
101
PS
122
OOOOOOOO
DC
INTRF
224
FU 1061
OOOOOOOO
CON 112
OOOOOOOOOOOOOOO
1142
1142
1141
1141
1132
1132
1131
1131
1.25 X 3.0 WIRE DUCT
1271
1271
1271
1271
1272
1272
1272
1272
OOOOOOOOOOOOOOO
GFEP 112
2482
2492
2502
2512
2522
2532
2541
2551
2572
2581
3021
3151
GND
GND
GND
1.25 X 3.0 WIRE DUCT
Electrical Schematics
1.75 X 3.0 WIRE DUCT
GND
LUG
FAN
DISC
100
OOOOOOOO
TI8521a
57
58
128
127
126
125
W4
T110
W7
420V
TRANSFORMER
(480V UNIT)
X1
380V
X2
240V
W6
W2
W1
X1
W5
FOR 400 VAC INPUT POWER, USE THE 420 VAC TAPS.
FIGURE 1
ROUTE WIRES TOWARDS
REAR OF ENCLOSURE
W3
480V
X4
X2
1271
246
300 319 222
300
312
224
#12 BLACK
MTW TYP
#12 BLACK MTW TYP.
FROM DC INTRF 224
246
305
4
A2
3
A1
2
1
CON 112
#12 BLACK
MTW TYP.
104
200
1272
24 COM
L
6
A2
5
4
A1
2
3
224
CON 101
1
221
200
+24V
N
PS 122
113
103
FROM DC
INTF 221
1211
124
NO TRANSFORMER
(230V UNIT)
X3
X4
1141
1131
113
1L3
1L2
1L1
1212
123
122
121
120
119
118
117
116
#16 BLACK
MTW TYP.
N
115
N
GFPE 112
114
X3
X1
2
X2
SEE FIGURE 1
X3
#12 BLACK
MTW TYP.
#6 BLACK
MTW TYP.
1
575V
X4
#12 BLACK
MTW TYP.
GROUND
LUG
FU 1062
113
112
111
110
109
108
GND
L3
L2
100
FU 1061
107
106
105
104
103
102
101
100
L1
DISC
1141
1142
1132
#12 BLACK
MTW TYP
#12 BLACK MTW TYP.
#6 BLACK
MTW TYP.
#12 BLACK
MTW TYP.
111
109
FU 128
FU 125
FU 122
FU 119
FU 116
FU 113
1
H
FAN
3
2
1281
1251
1221
1191
1161
1133
6
5
4
4L1
1
SSR 128
1
SSR 125
1
SSR 122
1
SSR 119
1
SSR 116
1
SSR 113
#12 GREEN/YELLOW
MTW TYP.
FU 108
FU 106
1141
1131
2L3
2L2
2L1
SSR 130
#6 BLACK
MTW TYP.
2
2
2
2
2
2
1
1282
1252
1222
#14 AWG
DH1-A1
DH3-B1
#14 AWG
DH3-A1
#14 AWG
DH2-B1
#14 AWG
DH2-A1
#14 AWG
500W
DG3-1
500W
1250W MAX
DG2-1
1250W MAX
500W
DG3-2
DG2-2
C
D
A
DH3-B2
DH3-A2
DH2-B2
DH2-A2
DH1-B2
DH1-A2
F
E
PUMP
HEATERS
(ZONE 2)
1200 KW
TOTAL
B
GUN/AUX HEATER
#2
(ZONE 8)
HOSE/AUX HEATER
#2
(ZONE 7)
GUN/AUX HEATER
#2
(ZONE 6)
HOSE/AUX HEATER
#2
(ZONE 5)
GUN/AUX HEATER
#1
(ZONE 4)
HOSE/AUX HEATER
#1
(ZONE 3)
PUMP GROUND
WIRED AT GRACO
FOLLOWER GROUND
DG1-2
T3
B3
B2
B1
T2
T1
C
A
B
E
1250W MAX
DG1-1
3
SEE
FIGURE
SEE
FIGURE 2
5L1
DH1-B1
2
#14 AWG
1192
1162
1134
4L2
SSR 106
3L3
3L2
3L1
F
D
3L1
3L2
3L3
480V
F
D
B
E
C
A
4L2
5L1
4L2
5L1
230V
480V
FIGURE 3
FIGURE 2
3L2
3L3
3L1
230V
B2
B1
T2
T1
T3
B3
B2
B1
T2
T1
T3
B3
F
D
B
E
C
A
Electrical Schematics
253154 and 253160 Controls
311976L
1131
DG1-4
DG1-3
LINE
E2
E2
4
3
2
1
2
2
1
3
4
5
6
7
8
245
244
243
J9
J6
2012
2032
2022
2332
2322
2311
2302
2292
2282
2272
2262
128
RS485
RS485
2082
2071
2062
2052
2041
J10
24 COM
1272
7
1
7
4
J9
J6
6
J6
1
2
1
2
3
3
6
5
4
3
2
1
2
1
2
3
4
5
6
242
2361
2351 J4
J3
1
2
2
2231
2
8
7
241
DH3-B5
DG3-4
1
2
1
1
1
1
2
2
1
2
1
2
1
5
DH3-B4
2331
2301
DH3-A5
DG3-3
J1
J5
+24V
1271
J5
J6
J4
J3
2291 J2
2271
2261
2321
DH2-B5
DH2-B4
115
2222
128
DH3-A4
DG2-4
DG2-3
DH2-A5
DH2-A4
E1
E1
2212
2121
2111
2091
2081
J2
J1
240
1271
103
#18 BLUE MTW TYP.
DH1-B5
DH1-B4
DH1-A5
DH1-A4
2061
2051
2021
2011
J10
4
+24V
A1
A1
DC INTRF 221
LINE
GUN/AUX #3 RTD
(ZONE 8)
GUN/AUX #3 RTD
(ZONE 7)
1271
RTD SENSOR
100
PLATINUM
.00385
/
/C
#18 BLUE MTW TYP. (ALL 24V POWER)
1
1
DC INTRF 224
GUN/AUX #2 RTD
(ZONE 6)
GUN/AUX #2 RTD
(ZONE 5)
113
113
1131
TO
CONN
101
GUN/AUX
RTD
(ZONE 4)
HOSE/AUX
RTD
(ZONE 3)
PUMP
RTD
(ZONE 2)
FOLLOWER
RTD
(ZONE 1)
PCB 201
(TEMPERATURE BOARD #1)
239
238
237
236
235
234
233
232
231
230
229
228
227
226
225
224
223
222
221
220
219
218
217
216
215
214
213
212
211
210
209
208
207
206
205
204
203
202
201
200
+24V
SSR 116
SSR 113
SSR 106
SSR 130
3
3
3
7
1272
4
4
4
4
3
3
3
3
2571
2561
2151
2142
SSR 128
SSR 125
SSR 122
SSR 119
#18 BLUE MTW TYP
1272
GUN/AUX #3
(ZONE 8)
HOSE/AUX #3
(ZONE 7)
GUN/AUX #2
(ZONE 6)
HOSE/AUX #2
(ZONE 5)
2151
2142
2761
2751
GUN/AUX #1
(ZONE 4)
HOSE/AUX #1
(ZONE 3)
PUMP
(ZONE 2)
FOLLOWER
(ZONE 1)
24 AWG, TWISTED
PAIR, 2 STRANDED
COND.,SHIELDED
BELDEN 9463
#18 BLUE MTW TYP.
ALL SSR COIL WIRING
4
4
4
8
275
24 COM
276
24 COM
1272
128
2501
2511
RD
WH
128
J275
6
5
4
3
2
1
7
268
278
277
276
275
274
273
272
271
270
269
128
1272
1271
BK 2751
RD 2761
CROSSOVER
COMM
CORD GRIP
2551 (BU)
2541 (WH)
2532 (BK)
2522 (BN)
2512 (BU)
2502 (WH)
2492 (BK)
2482 (BN)
CORD GRIP
24 COM
1
5
J3
3
2
2641(BL)
2671(BL)
2661(BL)
NC
2651(BL)
5
4
3
2
1
#12 GREEN MTW TYP
HARNESS 262
FLOW CONTROL
J264
1272
#20 AWG TYP
EXTERNAL CONTROL
CORD GRIP
GN/WH
2581 (BU)
J9
2572 (BN)
1
8
7
6
5
4
3
2
J2
J4
1
4
5
4
1
2
3
J7
6
5
4
3
2
1
2
267
HARNESS 274
2571
2561
TO DIN RAIL
MOUNTING SCREW
2531
J1
1
3
212
RS485
BELDEN 9463
CORD GRIP
BK
2521
2491
GN
BK
2481
BK
CBL 247
J4
266
213
4
8
9
7
1
2
3
JM
+24V
#18 BLUE MTW TYP
2
TOP
REED
1271
EXTERNAL TO CONTROL
265
264
263
262
261
260
259
258
257
256
255
254
253
252
251
250
249
248
247
246
128
ANALOG
SENSOR
REED
SWITCHES
#18 BLUE MTW TO BE
WIRED AS TWISTED
PAIR TYP. (6) PLACES
PCB 246
(UNLOADER BOARD)
311976L
PCB 226
(TEMPERATURE BOARD #2)
128
AIR
SOLENOID
CBL 256
PROX.
SENSOR #2
(EMPTY)
PROX.
SENSOR #1
(LOW)
128
Electrical Schematics
59
60
PCB
246
PCB
201
PCB
226
W6
W5
W4
W3
W7
W2
W1
GND
GND
GND BUS
FU 108
FU 106
SSR 106
D
F
B
E
A
C
B2
T2
B1
T1
B3
T3
DC
INTRF
221
SSR
130
NO
PARTS
AIRFLOW
1.25 X 3.0 WIRE DUCT
OOOOOOOO
SHIELD
1.25 X 3.0 WIRE DUCT
FU 1061
1.75 X 3.0 WIRE DUCT
PS
122
OOOOOOOO
DC
INTRF
224
1.75 X 3.0 WIRE DUCT
FU 122
FU 119
FU 116
FU 113
SSR 122
SSR 119
SSR 116
SSR 113
CON
101
FU 1062
OOOOOOOO
CON 112
OOOOOOOOOOOOO
1142
1142
1141
1141
1132
1132
1131
1131
1.25 X 3.0 WIRE DUCT
1271
1271
1271
1271
1272
1272
1272
1272
OOOOOOOOOOOOO
GFEP 112
2482
2492
2502
2512
2522
2532
2541
2551
2572
2581
GND
GND
GND
1.25 X 3.0 WIRE DUCT
Electrical Schematics
1.75 X 3.0 WIRE DUCT
GND
LUG
FAN
DISC
100
OOOOOOOO
1.25 X 3.0 WIRE DUCT
311976L
Accessories
Accessories
Light Tower Kit (253547)
The optional light tower kit has the following color and
flashing lights to signal warnings and alarms. See FIG.
25.
Green denotes an active system where the pump will
activate when material is needed.
Yellow denotes user attention is required.
Flashing yellow denotes a pail is empty (when
equipped with proximity sensors).
Red denotes immediate user attention is required due to
an alarm condition or interruption of material flow. The
user should be aware that in the case of a motor error
on a Single or Tandem system, or a Tandem system
with both pails empty, heat may be applied to the platen
and pump to allow for a pail change.
TI8540A
FIG. 25
24 COM
Terminal block
PCB 300 EasyKey Board
J7
1272
1
3031
3041
2
3
4
5
3051
0 LT302
1
Light
2 Tower
3
1271
+24V
Terminal block
#18 Blue
MTW TYP
TI8523A mod
FIG. 26
311976L
61
Accessories
Light Tower Kit Recommended Wire Routing
EasyKey
1.75 X 3.0 WIRE DUCT
CON
101
FU 108
FU 106
SSR 106
D
F
B
E
A
C
B2
T2
B1
T1
B3
T3
DC
INTRF
221
SSR
130
GND BUS
W6
W5
W4
W3
W7
W2
W1
GND
GND
FU 1061
FU 1062
1.25 X 3.0 WIRE DUCT
PCB
226
OOOOOOOO
PS
122
PCB
201
1271
1271
1271
1271
1272
1272
1272
1272
OOOOOOOO
PCB
246
DISC
100
1.25 X 3.0 WIRE DUCT
OOOOOOOO
DC
INTRF
224
CON 112
1142
1142
1141
1141
1132
1132
1131
1131
OOOOOOOO
GFEP 112
2482
2492
2502
2512
2522
2532
2541
2551
2572
2581
3021
3151
GND
GND
GND
OOOOOOOOOOOOOOO
NO
PARTS
AIRFLOW
1.75 X 3.0 WIRE DUCT
FU 122
FU 119
FU 116
1.25 X 3.0 WIRE DUCT
1.25 X 3.0 WIRE DUCT
1271
1272
FAN
FU 113
SSR 122
SSR 119
SSR 113
SSR 116
1.75 X 3.0 WIRE DUCT
OOOOOOOOOOOOOOO
GND
LUG
TI8541a
1.25 X 3.0 WIRE DUCT
FIG. 27
62
311976L
Accessories
Pail Low and Empty Sensor Kit
(255233)
The Pail Low and Empty Sensor Kit is used to indicate
that a pail is EMPTY or LOW, depending on the adjustment of the proximity switch. The kit contains a sensor
mounting bracket (A), activator (B), sensors (C), and a
cable for connecting to the Therm-O-Flow 20 control
panel. See FIG. 28.
The low and empty conditions will be displayed in the
status bar of the EasyKey display. An optional light
tower is also available.
With the optional light tower a yellow light indicates a
pail low condition. A flashing yellow light indicates a pail
empty condition. In a tandem system a red light indicates both pails are empty. See Light Tower Kit
(253547), page 61.
When ordering this kit individually to connect to an existing Therm-O-Flow 20 unloader assembly, use the bolts,
screws and washers provided to mount to the closest
ram post to the control panel. Mount the limit switches to
the bracket as shown.
Increasing the distance between the low and empty sensors (C) increases the heat up time for the tandem secondary system. Lowering the pail empty sensor forces
the heated platen lower into the pail. If this is set too low
the pump could cavitate causing a system alarm.
A
B
Proximity Sensor Connections
",5% -47 490
*
#/
*
0#" 5.,/!$%2 "/!2$
C
#/2$ '2)0
".
"+
02/8
3%.3/2 ,/7
7(
TI10243A
"5
".
"+
7(
%84%2.!, #/.42/,
02/8
3%.3/2 %-049
"5
#/2$ '2)0
TI10244A
FIG. 28: Optional Low Level Kit
311976L
63
Accessories
Ethernet Kit (253566)
This kit is intended for use with the unloaders and
accessory box. The Ethernet kit is designed so that the
user will have network access to the Therm-O-Flow 20
unit and can clear, display, download, restore, and reset
various values from a remote location. This kit includes
a Graco Ethernet Expansion Board (15H816), internal
Cat 5E patch cord, and the RJ45 panel mount jack.
If Java Error appears when running the program
for the first time, you must download Java RTE (Run
Time Environment) for the program to operate correctly.
Follow the screen link to Java version 1.4.2.09 or newer.
Or enter http://java.sun.com/j2se/1.4.2/download.html
and select Download J2SE JRE. The file is approximately 15 MB.

Web Interface
If the Graco program will not start, check the
following.
Web Interface - allows users to connect, view, and
change the setup, log, and error files. It does not display
run data.
Is the power on?
Use the web I/F Software to:
•
Are the LEDs on the PC Ethernet connector
illuminated?
•
Are the LEDs on the EasyKey Ethernet mod
illuminated? The bottom left LED should be
constantly illuminated showing a network
connection. The bottom right LED should
illuminate when network traffic is occurring. If
there are no LEDs illuminated check for
loose connections or a loose board.
64
•
Install EasyKey Software
•
View
 error log
 material usage report
 setup values
•
Upload
 setup values
 a custom language to view on screen
•
Download
 setup values
 error log
 a custom language file
•
Clear
 error log
 material usage report
•
Reset
 settings to factory default
 password
•
Record
 temperature and cycle data
Are the cables fully seated in both the PC and
Therm-O-Flow 20 ports?
To isolate the problem, try communicating with a
different PC.
Check Local Network Hardware and Software
Configuration. See page 66.
There are two possible ways to connect a PC to the unit.
•
Local Network Connection (most common). Patch
cable from the local network plugs into the unit Web
Interface connection. See FIG. 29 and FIG. 30, and
page 66.
•
Direct Connection to the unit crossover cable from
the PC plugs into the unit Web Interface connection.
See FIG. 29 and page 69.
311976L
Accessories
Non-hazardous Area Only
Local
Network
Patch Cable
Patch Cable
Local Network Connection
or
Laptop PC
Direct Connection
TI8570A
Patch Cable
Control Panel
FIG. 29 Network Selection
311976L
65
Accessories
Local Network Hardware and Software
Configuration
Hardware
Browser must be closed and restarted for change
to be effective.
Patch cables are used to connect each unit to the local
network and to the Web connection (A) on the EasyKey
panel. See FIG. 30.
A
Use smooth scrolling
HTTP 1.1 settings
Use HTTP 1.1
Use HTTP 1.1 through proxy connections
Java (Sun)
Use Java 2 v1.4.2_09 for <applet> (requires restart)
Microsoft VM
Java console enabled (requires restart)
Java logging enabled
JIT compiler for virtual machine enabled (requires restart)
ti8557
FIG. 31 Java Internet Options
FIG. 30 EasyKey Web Connection
Microsoft Browser Configuration
1. Establish a connection/address to the local network.
It may be necessary to change the Java selection
from Sun to Microsoft for other software applications to
run correctly on your PC.
a. Open the PC control panel.
b. Select Network Connections.
c.
Double click on the local area connection.
If you cannot make these changes contact your I.S.
department and request they change your computer
access rights. You must have administrative rights to
change the settings.
d. Select Properties.
e. Select Internet Protocol (TCP/IP).
f.
Select Properties.
g. Select the appropriate Internet connection and
key in address 192.168.0.10
2. The EasyKey software requires Sun Java to operate. Open your web browser options advanced tab
and select Java (Sun) and deselect the Microsoft
VM selection. See FIG. 31. If the Sun Java option is
not available follow the Software Operation procedure and load the Sun Java program when the
appropriate screen and link appear.
66
311976L
Accessories
Software Operation
Reports
1. Open Microsoft Internet Explorer.
Display material usage report - shows the material
pumped from the unit. See FIG. 33.
2. In the address area type http://192.168.0.1
3. Click Enter.
4. Select yes when security screen appears.
5. Main software screen appears. See FIG. 32.
•
If “Cannot Read Firmware” appears check for
loose hardware connections.
•
If “Java script needs to be loaded” appears follow the screen link to install this freeware.
FIG. 33 Display Material Usage Report
Clear material usage report - deletes the material
usage from the system Run screen batch total. Does not
reset grand total in setup.
Record Temperature and Cycles - records temperature and cycle information once per minute. A file is
opened and data recorded. See FIG. 34.
FIG. 34
While data is recorded other web functions are unavailable. See FIG. 35.
FIG. 32 Main Software Screen
Web Navigation Screens
From the main screen (see FIG. 32) the operator can
select buttons for reports, error log, setup, software/resets, or language.
311976L
FIG. 35
67
Accessories
Error Log
Download error log - downloads the error log to the
PC.
Display error log - displays the number of alarms, date,
time, recipe and what the error was. See FIG. 36.
Once complete the control panel will be reprogrammed
from the EasyKey.
Reset settings - places system back to factory default
mode.
Reset password - clears password if lost or forgotten.
Language
Download custom Language - saves the current
system language to the PC. This file is opened and a
custom language added to the B column of the Excel
file. See FIG. 38.
FIG. 36 Display Error Log
Clear error log - deletes the errors from the display.
Setup
Download setup values - saves the TOF configuration
to the PC. This file can be opened and edited using
Microsoft Excel, or used to set up multiple systems.
Custom languages are limited to Ascii and Ascii
extended characters and a maximum of 32 characters.
Save the Excel file as a tab delineated file for uploading
purposes.
Restore custom language - allows the custom language file to be uploaded to the TOF.
Display setup values - indicates what values are
currently being used for the system. Allows the operator
to verify that the right values are being used. See FIG.
37.
FIG. 37 Display Set up
Restore setup values - allows files to be uploaded and
restored to the TOF.
Software/Resets
FIG. 38 Download Custom Language
Advanced Configuration
To change IP settings use the freeware configuration
program available from www.lantronix.com/device-networking/utilities-tools/device-installer.html.
Install EasyKey software - downloads the Graco
provided software to the PC (approximately 5 minutes).
68
311976L
Accessories
Ethernet Kit Installation
Graco Kit 253566 is required for this connection.
D
Do not operate Therm-O-Flow 20 with electrical control
panel doors/covers open. Disconnect power source
before servicing or electrically wiring.
ti8557
1. Power the Therm-O-Flow system off and disconnect
power source.
2. Open the control panel door.
3. Remove the EasyKey Display shield.
FIG. 39 RJ45 Bulkhead Connector Installation
Changing Network Configuration
1. Connect PC to Ethernet connection on EasyKey
with the crossover cable.
2. Connect network to PC with DeviceInstaller.
4. Locate the 10 pin Expansion Connector J9 (A) on
the lower right of the EasyKey Display Assembly
249480 (B). See FIG. 40.
3. Run DeviceInstaller program.
5. Plug the Ethernet Assembly 249183 (C) into J9
making sure the RJ45 connector is oriented down.
See FIG. 41 and FIG. 42.
A freeware configuration program is available
from www.lantronix.com/device-networking/utilities-tools/device-installer.html
6. Secure the Ethernet Assembly 249183 (C) to the
EasyKey Display 249480 (B) using the hardware
provided.
4. To change IP Address from Default setting
192.168.0.1
7. Remove plug (D) covering Ethernet opening at the
upper right corner of the Control Panel. See FIG. 39.
8. Secure Bulkhead Receptacle in the Ethernet opening at the upper right corner of the Control Panel.
9. Connect one end of the Ethernet cable to Ethernet
Assembly 249183 (C).
10. Replace EasyKey Display shield connecting ground
terminal from Ethernet Bulkhead connector to upper
right stud.
11. Connect the other end of the Ethernet cable to the
Ethernet bulkhead receptacle.
a. Run DeviceInstaller
b. Click “Search”
c.
Select device
d. Click “Assign IP”
Select and assign specific IP address.
i. Input address
ii. Enter subnet mask 255.255.255.0
iii. Click “Assign” (unit is programmed and will
now reboot)
iv. Click “Finish”
v. Close/Exit DeviceInstaller
12. Close the Control Panel door.
Alternate method via telnet and port 9999.
Serial Port Setup
Kit is pre-programmed with these settings.
- 57,600 baud, 8-bit, no parity, 1-stop bit.
311976L
69
70
*
#",
*
*
TI8762
0#"
%4(%2.%4
#!2$
$)30,!9
-%-"2!.%
37)4#(
*
Accessories
EasyKey Modbus / TCP Wiring Diagram
C
C
B
A
B
TI8761
FIG. 40
FIG. 41
PCB 300
0#" (EasyKey%!39
Board)
+%9 "/!2$
B
C
FIG. 42
311976L
Accessories
Maintenance Call Kit (253548)
The maintenance call kit is designed for the user to indicate an issue has occurred and needs to be addressed,
but the unit keeps operating if no serious faults have
occurred. With the optional light tower kit the maintenance call button (E) causes the yellow light to flash
making the problem more obvious. See FIG. 43. This kit
includes the push button actuator and internal harness
to connect the button. For additional light tower information see Light Tower Kit (253547), page 61.
E
TI8557A
FIG. 43
311976L
71
Accessories
Maintenance Call Kit (253548) Wiring
*
#/
PCB
300
0#" (EasyKey
%!39 +%9Board)
"/!2$
6
7()4%/2!.'%
7()4%9%,,/7
7()4%'2%%.
7()4%",5%
$
%
0" 37)4#(
*
"
#
,!-0
37)4#(
*
7()4%0520,%
'2%%.
",5%
0520,%
'2%9
7()4%
7()4%",!#+
7()4%"2/7.
7()4%2%$
7()4%'2%9
&
-AINTENANCE #ALL "UTTON
#ONTACTS ARE ./
$)')4!, )/
).4%2&!#%
!
9%,,/7
"2/7.
2%$
/2!.'%
*
*
ti8559
FIG. 44
72
311976L
Accessories
Discrete I/O Kit (253567)
The discrete I/O kit is designed to connect to robots or
PLC that control the primary unit. This connection allows
the communication of System On/Off, Heat On/Heat
Soak/Ready, Setback, Pail Empty, Warnings, Alarms,
Maintenance, and Gun switch. Included in this kit is the
Internal Cable Harness to convert the primary unit and
the 40 ft external cable, which has individual wire on the
robot/PLC end for the user to install.
Digital Output
See FIG. 47. Connect +Vdc to pins 5 or 14. EasyKey will
toggle outputs to +Vdc when activated.
Digital Inputs
TI8558A
FIG. 45: Discrete I/O Kit
Examples
Preferred Routing
System On/Off
OOOOOOOOOOOOOOO
OOOOOOOO
W6
W5
W4
W3
W7
W2
W1
GND
GND
FU 1062
OOOOOOOO
“Digital Reference” is the ground reference for the
+Vdc coming from the robot or PLC.
PS
122
+Vdc can range from 10-30 Vdc.
PCB
226
1271
1271
1271
1271
1272
1272
1272
1272
OOOOOOOO
PCB
201
DISC
100
GND BUS
1.75 X 3.0 WIRE DUCT
DC
INTRF
224
1.25 X 3.0 WIRE DUCT
PCB
246
To EasyKey
FU 108
OOOOOOOO
FU 1061
FU 122
FU 119
FU 116
FU 113
SSR 122
SSR 119
OOOOOOOOOOOOOOO
NO
PARTS
AIRFLOW
1.25 X 3.0 WIRE DUCT
•
Toggle from “Digital Reference” to +Vdc to turn air
motor solenoid on.
Toggle from +Vdc to “Digital Reference” to turn air
motor solenoid off.
1.25 X 3.0 WIRE DUCT
1142
1142
1141
1141
1132
1132
1131
1131
•
GND
LUG
SSR
130
FAN
GFEP 112
Pump On/Off
SSR 113
Toggle from “Digital Reference” to +Vdc to turn heat
on.
Toggle from +Vdc to “Digital Reference” to turn heat
off.
1.25 X 3.0 WIRE DUCT
•
CON
101
1.75 X 3.0 WIRE DUCT
Heat On/Off
•
FU 106
SSR 106
D
F
B
E
A
C
B2
T2
B1
T1
B3
T3
DC
INTRF
221
SSR 116
•
Toggle from “Digital Reference” to +Vdc to turn system on.
Toggle from +Vdc to “Digital Reference” to turn system off.
2482
2492
2502
2512
2522
2532
2541
2551
2572
2581
3021
3151
GND
GND
GND
•
1.75 X 3.0 WIRE DUCT
CON 112
See FIG. 47. Connect “Digital Reference” to pin 1. All
unused inputs must be tied “low” to “Digital Reference.”
To activate signal, toggle from “Digital Reference” to
+Vdc. To deactivate signal, toggle from +Vdc to “Digital
Reference”.
1.25 X 3.0 WIRE DUCT
FIG. 46
311976L
73
Accessories
Robot I/O Cable, Part No. 120400
Pin
No. Signal Description
For use with
optional Maintenance Call
Kit (253566)
FIG. 47
74
Wire Color
1
Digital Input Reference
Digital Input Ref
Yellow
2
System On/Off
Digital Input
Brown
3
Heat On/Off
Digital Input
Red
4
Pump On/Off
Digital Input
Orange
5
24 Vdc from Robot/PLC
Digital Input Ref
Tan
6
System On/Off
Digital Output
Green
7
System Run
Digital Output
Blue
8
Heat On/Heat Soak Ready
Digital Output
Violet
9
Setback
Digital Output
Gray
10
Drum Empty
Digital Output
White
11
Warning
Digital Output
White/Black
12
Alarm
Digital Output
Pink
13
Maintenance
Digital Output
White/Red
14
24 Vdc from Robot/PLC
Digital Input Ref
Red/Green
15
Analog Gnd Ref
16
17
Analog Gnd Ref
18
ti8559b
Signal Type
Analog Gnd Ref
Red/Yellow
Analog Input
White/Yellow
Analog Gnd Ref
White/Green
Analog Output
White/Blue
19
Ground
Shield Connection
27
Maintenance Call Button
Digital Output
Black
28
Maintenance Call Button
Digital Input Ref
Red/Black
311976L
Accessories
Swirl Kit, Part No. 253263
6
11
8
7
5
1
4
2
TI7921A
3
Air In
Ref.
No.
1
2
3
4
5
6
7
8
9
10
11
Part
No.
Qty
Description
.
.125 ID hose barb x 1/4 npt Male
1
brass fitting
Regulator
1
Gauge
1
1/4 to 1/8 Brass Hex Nipple
1
Solenoid Valve
120384 Cable
1
Tube Fitting
1
Nylon tube
3 ft.
Socket head cap screw (not shown) 2
Tube Clamp (not shown)
1
Regulator mounting bracket
1
311976L
75
Dimensions
Dimensions
2.8 in.
(7.1 cm)
24.0 in.
(61.0 cm)
32.5 in.
(82.6 cm)
22.6 in.
(57.3 cm)
3.2 in.
(8.1 cm)
5.7 in.
(14.5 cm)
TI7932A
71.0 in.
(180.3 cm)
Ram measures 86 in.
(218 cm) fully extended (highest point.
63.4 in.
(161.0 cm)
12.5 in.
(31.9 cm)
5.4 in.
(13.7 cm)
76
5.0 in.
(12.7 cm)
31.0 in.
(78.7 cm)
43.5 in.
(110.6 cm)
TI7937A
311976L
Technical Data
Technical Data
Displacement pump effective area . . . . . . . . . . . . . . . . . . 1.24 in.2 (8 cm2)
Volume per cycle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11.7 in.3 (192 cm3)
Pump cycles per 1 gal. (3.8 liters) . . . . . . . . . . . . . . . . . . 21
Maximum fluid working pressure
NXT 2200. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2300 psi (15.9 MPa, 159 bar)
NXT 3400. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3000 psi (20.7 MPa, 207 bar)
NXT 6500. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3000 psi (20.7 MPa, 207 bar)
Maximum air input pressure (Ram) . . . . . . . . . . . . . . . . . 125 psi (0.85 MPa, 8.5 bar)
Maximum air input pressure (Pumps). . . . . . . . . . . . . . . .
NXT 2200. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
NXT 3400. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
NXT 6500. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Maximum pump operating temperature . . . . . . . . . . . . . .
100 psi (0.7 MPa, 7 bar)
82 psi (0.57 MPa, 5.7 bar)
43 psi (0.29 MPa, 2.9 bar)
400°F (204°C)
Air motor piston effective area
NXT 2200. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28.3 in.2 (182 cm2)
NXT 3400. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44.2 in.2 (285 cm2)
NXT 6500. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84.5 in.2 (545 cm2)
Air inlet size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1/2 npsm(f)
Pump fluid outlet size . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 in. npt(f)
Wetted parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Carbon steel; brass; chrome, zinc, and nickel plating; 304,
316, 440, and 17-4 PH grades of stainless steel; alloy
steel; ductile iron; PTFE
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 670 lb (304 kg)
Displacement pump weight . . . . . . . . . . . . . . . . . . . . . . . 81 lb (37 kg)
Instruction Manuals
Heated Hoses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 309160
Wiper Kits. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 309196
Bare Displacement Pump Lower . . . . . . . . . . . . . . . . 308570
3.5 in. (88.9 mm) Global Ram Module . . . . . . . . . . . . 310525
Power requirements
Compressed air . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25-50 scfm (typical)
Voltage (as selected) . . . . . . . . . . . . . . . . . . . . . . . . . 220/240 V, 3-phase, 50/60 Hz
380/400 V, 3-phase, 50/60 Hz
470/490 V, 3-phase, 50/60 Hz
Peak consumption*
with standard melt grid. . . . . . . . . . . . . . . . . . . . . . . . 8.7 kVa
* Includes pail melt grid, pump, and a 5 kVa transformer for the 230 V hoses and accessories.
311976L
77
Graco Standard Warranty
Graco warrants all equipment referenced in this document which is manufactured by Graco and bearing its name to be free from defects in
material and workmanship on the date of sale to the original purchaser for use. With the exception of any special, extended, or limited warranty
published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by
Graco to be defective. This warranty applies only when the equipment is installed, operated and maintained in accordance with Graco's written
recommendations.
This warranty does not cover, and Graco shall not be liable for general wear and tear, or any malfunction, damage or wear caused by faulty
installation, misapplication, abrasion, corrosion, inadequate or improper maintenance, negligence, accident, tampering, or substitution of
non-Graco component parts. Nor shall Graco be liable for malfunction, damage or wear caused by the incompatibility of Graco equipment with
structures, accessories, equipment or materials not supplied by Graco, or the improper design, manufacture, installation, operation or
maintenance of structures, accessories, equipment or materials not supplied by Graco.
This warranty is conditioned upon the prepaid return of the equipment claimed to be defective to an authorized Graco distributor for verification of
the claimed defect. If the claimed defect is verified, Graco will repair or replace free of charge any defective parts. The equipment will be returned
to the original purchaser transportation prepaid. If inspection of the equipment does not disclose any defect in material or workmanship, repairs
will be made at a reasonable charge, which charges may include the costs of parts, labor, and transportation.
THIS WARRANTY IS EXCLUSIVE, AND IS IN LIEU OF ANY OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT
LIMITED TO WARRANTY OF MERCHANTABILITY OR WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE.
Graco's sole obligation and buyer's sole remedy for any breach of warranty shall be as set forth above. The buyer agrees that no other remedy
(including, but not limited to, incidental or consequential damages for lost profits, lost sales, injury to person or property, or any other incidental or
consequential loss) shall be available. Any action for breach of warranty must be brought within two (2) years of the date of sale.
GRACO MAKES NO WARRANTY, AND DISCLAIMS ALL IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE, IN CONNECTION WITH ACCESSORIES, EQUIPMENT, MATERIALS OR COMPONENTS SOLD BUT NOT
MANUFACTURED BY GRACO. These items sold, but not manufactured by Graco (such as electric motors, switches, hose, etc.), are subject to
the warranty, if any, of their manufacturer. Graco will provide purchaser with reasonable assistance in making any claim for breach of these
warranties.
In no event will Graco be liable for indirect, incidental, special or consequential damages resulting from Graco supplying equipment hereunder, or
the furnishing, performance, or use of any products or other goods sold hereto, whether due to a breach of contract, breach of warranty, the
negligence of Graco, or otherwise.
FOR GRACO CANADA CUSTOMERS
The parties acknowledge that they have required that the present document, as well as all documents, notices and legal proceedings entered into,
given or instituted pursuant hereto or relating directly or indirectly hereto, be drawn up in English. Les parties reconnaissent avoir convenu que la
rédaction du présente document sera en Anglais, ainsi que tous documents, avis et procédures judiciaires exécutés, donnés ou intentés à la suite
de ou en rapport, directement ou indirectement, avec les procedures concernées.
Graco Information
For the latest information about Graco products, visit www.graco.com.
TO PLACE AN ORDER, contact your Graco distributor or call to identify the nearest distributor.
Phone: 612-623-6921 or Toll Free: 1-800-328-0211 Fax: 612-378-3505
All written and visual data contained in this document reflects the latest product information available at the time of publication.
Graco reserves the right to make changes at any time without notice.
For patent information, see www.graco.com/patents.
Original instructions. This manual contains English. MM 311976
Graco Headquarters: Minneapolis
International Offices: Belgium, China, Japan, Korea
GRACO INC. AND SUBSIDIARIES • P.O. BOX 1441 • MINNEAPOLIS MN 55440-1441 • USA
Copyright 2011, Graco Inc. All Graco manufacturing locations are registered to ISO 9001.
www.graco.com
Revision L, February 2016

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
