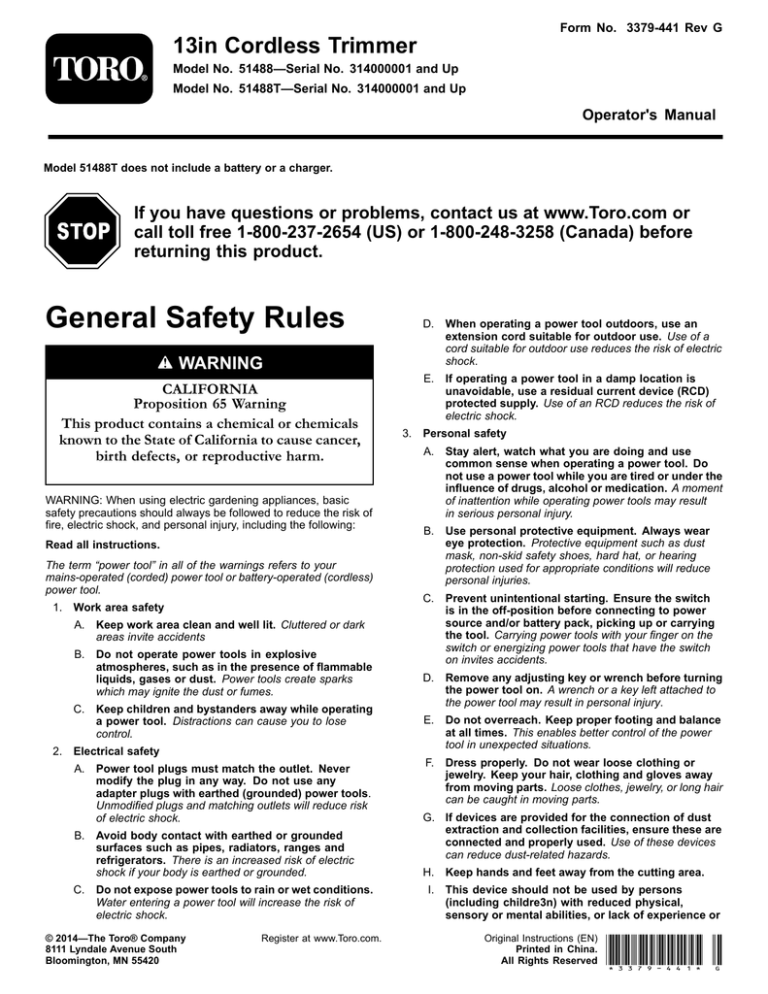

Form No. 3379-441 Rev G
13in Cordless Trimmer
Model No. 51488—Serial No. 314000001 and Up
Model No. 51488T—Serial No. 314000001 and Up
Operator's Manual
Model 51488T does not include a battery or a charger.
If you have questions or problems, contact us at or
call toll free 1-800-237-2654 (US) or 1-800-248-3258 (Canada) before
returning this product.
General Safety Rules
Proposition 65 Warning
This product contains a chemical or chemicals
known to the State of California to cause cancer,
birth defects, or reproductive harm.
WARNING: When using electric gardening appliances, basic
safety precautions should always be followed to reduce the risk of
fire, electric shock, and personal injury, including the following:
Read all instructions.
The term “power tool” in all of the warnings refers to your
mains-operated (corded) power tool or battery-operated (cordless)
power tool.
1. Work area safety
A. Keep work area clean and well lit. Cluttered or dark
areas invite accidents
B. Do not operate power tools in explosive
atmospheres, such as in the presence of flammable
liquids, gases or dust. Power tools create sparks
which may ignite the dust or fumes.
C. Keep children and bystanders away while operating
a power tool. Distractions can cause you to lose
2. Electrical safety
A. Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power tools.
Unmodified plugs and matching outlets will reduce risk
of electric shock.
B. Avoid body contact with earthed or grounded
surfaces such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric
shock if your body is earthed or grounded.
C. Do not expose power tools to rain or wet conditions.
Water entering a power tool will increase the risk of
electric shock.
© 2014—The Toro® Company
8111 Lyndale Avenue South
Bloomington, MN 55420
Register at
D. When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of a
cord suitable for outdoor use reduces the risk of electric
E. If operating a power tool in a damp location is
unavoidable, use a residual current device (RCD)
protected supply. Use of an RCD reduces the risk of
electric shock.
3. Personal safety
A. Stay alert, watch what you are doing and use
common sense when operating a power tool. Do
not use a power tool while you are tired or under the
influence of drugs, alcohol or medication. A moment
of inattention while operating power tools may result
in serious personal injury.
B. Use personal protective equipment. Always wear
eye protection. Protective equipment such as dust
mask, non-skid safety shoes, hard hat, or hearing
protection used for appropriate conditions will reduce
personal injuries.
C. Prevent unintentional starting. Ensure the switch
is in the off-position before connecting to power
source and/or battery pack, picking up or carrying
the tool. Carrying power tools with your finger on the
switch or energizing power tools that have the switch
on invites accidents.
D. Remove any adjusting key or wrench before turning
the power tool on. A wrench or a key left attached to
the power tool may result in personal injury.
E. Do not overreach. Keep proper footing and balance
at all times. This enables better control of the power
tool in unexpected situations.
Dress properly. Do not wear loose clothing or
jewelry. Keep your hair, clothing and gloves away
from moving parts. Loose clothes, jewelry, or long hair
can be caught in moving parts.
G. If devices are provided for the connection of dust
extraction and collection facilities, ensure these are
connected and properly used. Use of these devices
can reduce dust-related hazards.
H. Keep hands and feet away from the cutting area.
I. This device should not be used by persons
(including childre3n) with reduced physical,
sensory or mental abilities, or lack of experience or
Original Instructions (EN)
Printed in China.
All Rights Reserved *3379-441* G
G. Do not open or mutilate the battery. Released electrolyte
is flammable and can cause damage if exposed to fire.
knowledge, unless such persons are supervised
or trained to operate the appliance by a person
responsible for their safety. Children should be
supervised to not use the device as a toy.
H. Exercise care in handling batteries in order not to short
the battery with conducting materials such as rings,
bracelets, and keys. The battery or conductor may
overheat and cause burns.
4. Power tool use and care
A. Do not force the power tool. Use the correct power
tool for your application. The correct power tool will
do the job better and safer at the rate for which it was
I. Ideal charging temperature is between 5° C and 40° C
(32° and 122° F). Charging outside of this temperature
range will increase the charging time.
B. Do not use the power tool if the switch does not turn
it on and off. Any power tool that cannot be controlled
with the switch is dangerous and must be repaired.
C. Disconnect the plug from the power source and/or
the battery pack from the power tool before making
any adjustments, changing accessories, or storing
power tools. Such preventive safety measures reduce
the risk of starting the power tool accidentally.
D. Store idle power tools out of the reach of children
and do not allow persons unfamiliar with the power
tool or these instructions to operate the power tool.
Power tools are dangerous in the hands of untrained
E. Store idle appliances indoors. When not in use,
appliances should be stored indoors in a dry and high
or locked-up place, out of the reach of children.
Maintain power tools. Check for misalignment or
binding of moving parts, breakage of parts and
any other condition that may affect the power tools
operation. If damaged, have the power tool repaired
before use. Many accidents are caused by poorly
maintained power tools.
G. Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges are
less likely to bind and are easier to control.
H. Use the power tool, accessories and tool bits etc.,
in accordance with these instructions and in the
manner intended for the particular type of power
tool, taking into account the working conditions
and the work to be performed. Use of the power tool
for operations different from those intended could result
in a hazardous situation.
I. Keep guards in place and in working order.
5. Service
Have your power tool serviced by a qualified repair
person using only identical replacement parts. This will
ensure that the safety of the power tool is maintained.
6. Battery Safety
A. Do not charge appliance in rain, or in wet locations.
B. Do not use battery-operated appliance in the rain.
C. Use only the following type and size battery: Toro
battery model 88508 or 88509 and battery charger
88507 or 88510.
D. Remove or disconnect the battery before servicing,
cleaning, or removing material from the gardening
E. Do not dispose of the battery in a fire. The cell may
explode. Check with local codes for possible special
disposal instructions.
Do not open or mutilate the battery. Released electrolyte
is corrosive and may cause damage to the eyes or skin.
It may be toxic if swallowed.
Safety and Instructional Decals
Safety decals and instructions are easily visible to the operator and are located near any area of potential danger.
Replace any decal that is damaged or lost.
Direct current
Type of current
1. Warning—read the Operator’s Manual; do not operate in
the rain; wear eye protection.
1. Warning—read the Operator’s Manual; do not operate in
the rain; wear eye protection.
Loose Parts
Use the chart below to verify that all parts have been shipped.
No parts required
Phillips screw
Lock washer
Mount the guard to the base of the
Edge guard
Install the edge guard.
Auxiliary handle
Install the auxiliary handle.
No parts required
Adjusting the handle height.
Assembling the Trimmer
No Parts Required
1. Slide the upper pole into the lower pole, lining up the groove
in the upper pole with the groove in the lower pole, and
tighten the screw so that the upper pole remains secure
during operation (Figure 1).
Note: Use a 10 mm wrench to tighten the screw.
Figure 1
Note: The upper pole should bottom out in the lower
1. Upper pole
4. 3 mm (1/8 inch) gap
2. Clamp
5. Lower pole
3. Screw
2. Cut the cable tie away from your body and remove it from
the trigger handle (Figure 2).
Figure 2
1. Cable tie
Installing the Guard
Installing the Edge Guard
Parts needed for this procedure:
Parts needed for this procedure:
Phillips screw
Lock washer
Edge guard
Insert the ends of the wire edge guard into the holes in the trimmer
housing as shown in (Figure 4).
1. Remove the 2 Phillips screws and washers taped to the
guard (Figure 3).
2. Slide the guard onto the trimmer base as shown in Figure 3.
Figure 4
1. Wire guard
Figure 3
1. Phillips screw
3. Guard
2. Washer
4. Lock washer
3. Secure the guard using 2 Phillips screws.
Installing the Auxiliary Handle
Adjusting the Handle Height
Parts needed for this procedure:
No Parts Required
Auxiliary handle
To adjust handle height, flip the auxiliary handle latch, slide it up
or down to the desired height, then secure it in place by closing
the latch (Figure 6).
1. Position the auxiliary handle on the upper shaft of the
trimmer with the smooth surface facing the operator (Figure
Figure 6
1. Auxiliary handle
Figure 5
1. Auxiliary handle
3. Brace
2. Latch
4. Upper shaft
2. Slide the brace into the auxiliary handle so that the brace
rests in the groove along the shaft (Figure 5).
3. Slide the latch from the left through the handle and brace as
shown in Figure 5, and tighten the latch screw with a Phillips
2. Auxiliary handle latch
5. Slide the thumb wheel away from you to increase the motor
speed, and towards you to decrease motor speed (Figure 9).
Note: A higher motor speed is effective for trimming
thicker grass, but will decrease the battery operation
time. Use a lower motor speed to increase the operation
Important: The battery pack is not fully charged when
it is purchased. Before using the trimmer for the first
time, place the battery pack in the charger and charge it
until the LED display indicates the battery is charged.
Make sure to read all safety precautions. With regular
use, it will need shorter charging time. If storing for 1
month or longer, enable storage mode on the charger.
When ready to use again, charge the battery pack until
the LED display indicates the battery is charged. Refer
to Charging the Battery Pack (page 9).
Starting the Trimmer
1. Align the tongue of the battery pack with the cavity in the
handle housing (Figure 7).
Figure 7
1. Trigger handle
3. Latch
2. Tongue
Figure 9
1. Thumb wheel
2. Grasp the trigger handle (Figure 7).
3. Push the battery pack into the handle until the latch locks
into place.
4. To start the trimmer, hold down the lock switch, then squeeze
the trigger (Figure 8).
Figure 8
1. Thumb wheel
3. Trigger
2. Lock switch
Stopping the Trimmer
Charging the Battery Pack
To stop the trimmer, release the trigger (Figure 8).
Important: For best results, your battery tool should
be charged in a location where the temperature is more
than 5° C (41° F) but less than 40° C (104° F). To reduce
the risk of serious personal injury, do not store outside
or in vehicles. Charging time will be increased if not
charged within this range.
Removing the Battery
To remove the battery from the trimmer, grip the handle, press
down on the latch, and pull the battery out of the cavity.
1. If the power cord is not plugged in to the charger, plug it in
to the charger (Figure 12), then plug the power cord into
a power socket.
2. Turn the battery upside down and line up the battery terminal
with the slot in the charger (Figure 12 and Figure 13).
Figure 10
1. Handle
2. Battery housing
3. Latch
Note: Do not grip the housing around the battery. This will
make it more difficult to remove the battery from the trimmer.
Note: If you have trouble removing the battery, apply some
dielectric grease to the battery terminals (Figure 11). Do not
use any other type of lubricant as it can cause damage to the
Figure 12
1. Insert battery here
3. Charge/storage mode
4. Power cord plug-in
2. LED indicators
Figure 13
Figure 11
1. Battery terminals
1. LED indicators (level of
3. Battery terminal
2. Release button
4. Test button
3. Slide the battery into the charger until it clicks into place.
4. Hold down the charger, pull up on the release button, and
slide the battery backward out of the charger.
Advancing the Line
5. Refer to Figure 14 to interpret the LED indicators on the
battery charger.
The trimmer is equipped with an auto-feed head. The line will
advance 6 mm (1/4 inch) each time you stop and start the
trimmer. When the line reaches the blade in the deflector, it will
be cut off at that length.
1. With the trimmer running, release the switch trigger.
2. Wait two seconds to allow the trimmer head to stop rotating,
then press the switch trigger.
3. Resume trimming.
Advancing the Line Manually
Remove the battery from the string trimmer, then push the button
at the base of the spool retainer while pulling on the trimmer line
to manually advance the line.
Figure 14
1. Red light on; green
light flashing—battery is
5. Red light off; green
light flashing—battery is
preparing for storage.
2. Red light on; green
light on—battery is fully
6. Red light off; green light
on—battery is prepared
for storage.
Figure 15
1. Button
7. Red light on; green light
3. Red light flashing; green
off—no battery inserted.
light off—abnormal battery
temperature (greater than
40 C (104 F) or less than 5
C (41 F).
4. Charge/storage mode
8. Red light flashing; green
light flashing—battery is
Important: If the charger indicates an abnormal battery
temperature, allow the battery to cool or warm up as
needed before inserting the battery into the charger.
Storing a lithium-ion battery at 40% of its capacity maximizes
battery life.
Use storage mode (Figure 14) when the battery will not be used
for 1 month or longer.
1. Insert the battery into the charger.
2. Turn storage mode on.
3. The battery will charge or discharge as necessary to
approximately 40% charge.
4. When the battery is ready for storage (Figure 14, item 6.),
remove the battery from the charger.
Figure 17
1. Direction of rotation
3. String path
2. Ideal cutting range
After each use of the trimmer, complete the following:
1. Remove the battery from the trimmer.
2. Wipe the trimmer clean with a damp cloth. Do not hose the
trimmer down or submerge it in water.
The line cut-off blade on the deflector is sharp and
can cut you. Do not use your hands to clean the
deflector shield and blade.
Figure 16
3. Wipe or scrape clean the cutting head area any time there is
an accumulation of debris.
Operating Tips
Keep the trimmer tilted toward the area being cut; this is the
best cutting area (Figure 17, item2.).
The string trimmer cuts when passing the unit from left to
right. This will avoid throwing debris at the operator.
Use the tip of the string to do the cutting; do not force string
head into uncut grass.
Wire and picket fences cause extra string wear, even
breakage. Stone and brick walls, curbs, and wood may wear
string rapidly.
Avoid trees and shrubs. Tree bark, wood moldings, siding,
and fence posts can easily be damaged by the strings.
4. Check and tighten all fasteners. If any part is damaged or
lost, repair or replace it.
5. Brush debris away from the air vents on the motor housing
and shaft to prevent the motor from overheating (Figure 18).
5. Thread the strings into the eyelet. Install the new spool so
that the strings align with the eyelets in the string head.
6. Pull the strings extending from the string head so the strings
release from the slots in the spool.
7. Reinstall the spool retainer by depressing tabs into slots and
pushing down until spool retainer clicks into place.
Figure 18
1. Air vents
Replacing the Spool
Use only 1.6 mm (.065 inch) diameter monofilament string. Use
original manufacturer’s replacement string for best performance
(Toro part number 88518 and 88528).
1. Remove the battery.
2. Push in the tabs on the side of the spool retainer (Figure 19).
Figure 19
1. Spool retainer
3. Slots
2. Spool
4. Tabs
3. Pull the spool retainer up to remove it and remove the spool.
4. To install the new spool, make sure the strings are captured
in the retaining slots on the new spool. Make sure the end of
the strings extends approximately 152 mm (6 inches).
Preparing the Battery Pack For
Replacing the String
1. Remove the battery.
2. Remove the spool. See Replacing the Spool (Figure 19).
Upon removal, cover the battery pack's terminals with
heavy-duty adhesive tape. Do not attempt to destroy
or disassemble the battery pack or remove any of its
components. Lithium-ion batteries must be recycled or
disposed of properly at the nearest battery recycling
Should this item need service, take the product to your Authorized
Toro Service Dealer. Your Toro Dealer is specially trained to repair
Toro products and will ensure that your Toro stays “All” Toro.
Figure 20
1. Slot in upper spool flange
3. Slot in lower spool flange
2. Hole
Note: Remove any old string remaining on the spool.
3. The spool will accept up to 4.5 m (15 feet) of string. Use
only 1.6 mm (.065 inch) diameter monofilament string.
Note: Do not use any other gauge or type of string, as
this could damage the trimmer.
4. Insert the string into the anchor holes in the upper part of
the spool (Figure 20). Wind the string onto the spool in the
direction shown by the arrows on the spool.
Clean all foreign material from the product.
Keep away from corrosive agents such as garden chemicals
and de-icing salts.
Use the storage mode on the battery charger if it will be
unused for 1 month or longer. Refer to Charging the Battery
Pack (page 9).
Store it in a well-ventilated place that is inaccessible to
5. Place the string in the slot on the upper spool flange, leaving
about 152 mm (6 inches) extended beyond the slot.
6. Repeat steps 4 and 5 for the lower string.
Using the battery when it is hot can reduce the operating time.
The battery will automatically stop working when it is overheated
to prevent damage to it. Remove the battery from the charger and
allow it to cool before placing it back into the trimmer.
Note: Do not overfill. After winding the string, there
should be at least 6 mm (1/4 inch) between the wound
string and the outside edge of the spool.
Using the battery when there is moisture on the leads can cause
the trimmer to malfunction. Allow the battery to dry or wipe it dry
before placing it back into the trimmer.
7. Replace the spool and the spool retainer. Refer to Replacing
the Spool (page 12).
Using the trimmer to cut thick grass in temperatures above 32° C
(90° F) may reduce the run time. Decrease the motor speed to
help increase the operating time; refer to ( Starting the Trimmer
(page 8).
Failing to clear debris from the trimmer head vents and shaft may
result in reduced run time. The trimmer may also stop working
when it is overheated to prevent damage to the trimmer. Clear
debris from the air vents on the motor housing and shaft and allow
the trimmer to cool before attempting to use the trimmer again.
Refer to (page )
If it is difficult to remove the battery from the trimmer or the
charger, apply some dielectric grease to the battery terminals. Do
not use any other type of lubricant as it can cause damage to the
terminals. Refer to Removing the Battery (page 9).
The Toro Promise - Electric Products
A Three-Year Full Warranty for Residential Use for the United States and Canada
The Toro Company and its affiliate, Toro Warranty Company, pursuant to an agreement between them, jointly warrant this product for three years
against defects in material or workmanship when used for normal residential purposes.*
If you think your Toro Product contains a defect in materials or workmanship, if you have questions or problems, and before returning this product call
toll free:
1-800-237-2654 (US)
1-800-248-3258 (Canada)
1-888-367-6631 (US)
1-888-430-1687 (Canada)
1-800-808-2963 (US)
1-800-808-3072 (Canada)
To receive a replacement or repair, at our option, return the complete unit to the seller. United States and Canada customers may return their product,
with proof of purchase, to any Authorized Service Dealer. United States customers may also return their product, with proof of purchase, postage
prepaid, to the Toro Service Center, 5500 SE Delaware, Ankeny, IA 50021.
This warranty covers product defects only. Neither The Toro Company nor Toro Warranty Company is liable for indirect, incidental, or
consequential damages in connection with the use of the Toro Products covered by this warranty, including any cost or expense of
providing substitute equipment or service during reasonable periods of malfunction or non-use pending completion of repairs under this
warranty. Some states do not allow exclusions of incidental or consequential damages, so the above exclusions may not apply to you. This
warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
Countries Other than the United States and Canada
Customers who have purchased Toro products exported from the United States or Canada should contact their Toro Distributor (Dealer) to obtain
guarantee policies for your country, province, or state. If for any reason you are dissatisfied with your Distributor’s service or have difficulty obtaining
guarantee information, contact the Toro importer. If all other remedies fail, you may contact us at Toro Warranty Company.
Australian Consumer Law
Australian customers will find details relating to the Australian Consumer Law either inside the box or at your local Toro Dealer.
* Residential use means use of the product on the same lot as your home.
Part Number 374-0262 Rev. F
374-0262 Rev F
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF
