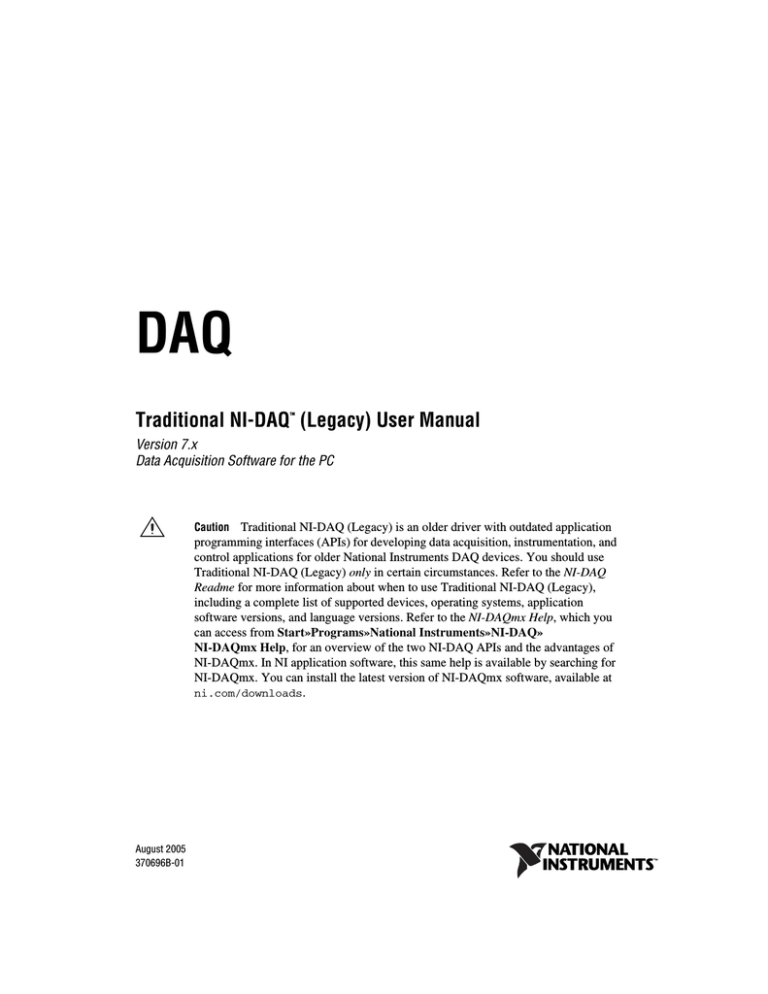

Traditional NI-DAQ (Legacy) User Manual

Traditional NI-DAQ (Legacy) User Manual

DAQ

Traditional NI-DAQ

TM

(Legacy) User Manual

Version 7.x

Data Acquisition Software for the PC

Traditional NI-DAQ (Legacy) User Manual

Caution

Traditional NI-DAQ (Legacy) is an older driver with outdated application programming interfaces (APIs) for developing data acquisition, instrumentation, and control applications for older National Instruments DAQ devices. You should use

Traditional NI-DAQ (Legacy) only in certain circumstances. Refer to the NI-DAQ

Readme for more information about when to use Traditional NI-DAQ (Legacy), including a complete list of supported devices, operating systems, application software versions, and language versions. Refer to the NI-DAQmx Help, which you can access from Start»Programs»National Instruments»NI-DAQ»

NI-DAQmx Help, for an overview of the two NI-DAQ APIs and the advantages of

NI-DAQmx. In NI application software, this same help is available by searching for

NI-DAQmx. You can install the latest version of NI-DAQmx software, available at ni.com/downloads

.

Traditional NI-DAQ (Legacy) User Manual

August 2005

370696B-01

Support

Worldwide Technical Support and Product Information

ni.com

National Instruments Corporate Headquarters

11500 North Mopac Expressway Austin, Texas 78759-3504 USA Tel: 512 683 0100

Worldwide Offices

Australia 1800 300 800, Austria 43 0 662 45 79 90 0, Belgium 32 0 2 757 00 20, Brazil 55 11 3262 3599,

Canada 800 433 3488, China 86 21 6555 7838, Czech Republic 420 224 235 774, Denmark 45 45 76 26 00,

Finland 385 0 9 725 725 11, France 33 0 1 48 14 24 24, Germany 49 0 89 741 31 30, India 91 80 51190000,

Israel 972 0 3 6393737, Italy 39 02 413091, Japan 81 3 5472 2970, Korea 82 02 3451 3400,

Lebanon 961 0 1 33 28 28, Malaysia 1800 887710, Mexico 01 800 010 0793, Netherlands 31 0 348 433 466,

New Zealand 0800 553 322, Norway 47 0 66 90 76 60, Poland 48 22 3390150, Portugal 351 210 311 210,

Russia 7 095 783 68 51, Singapore 1800 226 5886, Slovenia 386 3 425 4200, South Africa 27 0 11 805 8197,

Spain 34 91 640 0085, Sweden 46 0 8 587 895 00, Switzerland 41 56 200 51 51, Taiwan 886 02 2377 2222,

Thailand 662 278 6777, United Kingdom 44 0 1635 523545

For further support information, refer to the

Technical Support and Professional Services

appendix. To comment on National Instruments documentation, refer to the National Instruments Web site at ni.com/info and enter the info code feedback.

© 1991–2005 National Instruments Corporation. All rights reserved.

Important Information

Warranty

The media on which you receive National Instruments software are warranted not to fail to execute programming instructions, due to defects in materials and workmanship, for a period of 90 days from date of shipment, as evidenced by receipts or other documentation. National

Instruments will, at its option, repair or replace software media that do not execute programming instructions if National Instruments receives notice of such defects during the warranty period. National Instruments does not warrant that the operation of the software shall be uninterrupted or error free.

A Return Material Authorization (RMA) number must be obtained from the factory and clearly marked on the outside of the package before any equipment will be accepted for warranty work. National Instruments will pay the shipping costs of returning to the owner parts which are covered by warranty.

National Instruments believes that the information in this document is accurate. The document has been carefully reviewed for technical accuracy. In the event that technical or typographical errors exist, National Instruments reserves the right to make changes to subsequent editions of this document without prior notice to holders of this edition. The reader should consult National Instruments if errors are suspected.

In no event shall National Instruments be liable for any damages arising out of or related to this document or the information contained in it.

E

XCEPT AS SPECIFIED HEREIN

, N

ATIONAL

I

NSTRUMENTS MAKES NO WARRANTIES

,

EXPRESS OR IMPLIED

,

AND SPECIFICALLY DISCLAIMS ANY WARRANTY OF

MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE

. C

USTOMER

S RIGHT TO RECOVER DAMAGES CAUSED BY FAULT OR NEGLIGENCE ON THE PART OF

N

ATIONAL

I

NSTRUMENTS SHALL BE LIMITED TO THE AMOUNT THERETOFORE PAID BY THE CUSTOMER

. N

ATIONAL

I

NSTRUMENTS WILL NOT BE LIABLE FOR

DAMAGES RESULTING FROM LOSS OF DATA

,

PROFITS

,

USE OF PRODUCTS

,

OR INCIDENTAL OR CONSEQUENTIAL DAMAGES

,

EVEN IF ADVISED OF THE POSSIBILITY

THEREOF

. This limitation of the liability of National Instruments will apply regardless of the form of action, whether in contract or tort, including negligence. Any action against National Instruments must be brought within one year after the cause of action accrues. National Instruments shall not be liable for any delay in performance due to causes beyond its reasonable control. The warranty provided herein does not cover damages, defects, malfunctions, or service failures caused by owner’s failure to follow the National Instruments installation, operation, or maintenance instructions; owner’s modification of the product; owner’s abuse, misuse, or negligent acts; and power failure or surges, fire, flood, accident, actions of third parties, or other events outside reasonable control.

Copyright

Under the copyright laws, this publication may not be reproduced or transmitted in any form, electronic or mechanical, including photocopying, recording, storing in an information retrieval system, or translating, in whole or in part, without the prior written consent of National

Instruments Corporation.

Trademarks

National Instruments, NI, ni.com, and LabVIEW are trademarks of National Instruments Corporation. Refer to the Terms of Use section on ni.com/legal

for more information about National Instruments trademarks.

FireWire is a trademark of Apple Computer, Inc. Other product and company names mentioned herein are trademarks or trade names of their respective companies. Other product and company names mentioned herein are trademarks or trade names of their respective companies.

Members of the National Instruments Alliance Partner Program are business entities independent from National Instruments and have no agency, partnership, or joint-venture relationship with National Instruments.

Patents

For patents covering National Instruments products, refer to the appropriate location: Help»Patents in your software, the patents.txt

file on your CD, or ni.com/patents

.

WARNING REGARDING USE OF NATIONAL INSTRUMENTS PRODUCTS

(1) NATIONAL INSTRUMENTS PRODUCTS ARE NOT DESIGNED WITH COMPONENTS AND TESTING FOR A LEVEL OF

RELIABILITY SUITABLE FOR USE IN OR IN CONNECTION WITH SURGICAL IMPLANTS OR AS CRITICAL COMPONENTS IN

ANY LIFE SUPPORT SYSTEMS WHOSE FAILURE TO PERFORM CAN REASONABLY BE EXPECTED TO CAUSE SIGNIFICANT

INJURY TO A HUMAN.

(2) IN ANY APPLICATION, INCLUDING THE ABOVE, RELIABILITY OF OPERATION OF THE SOFTWARE PRODUCTS CAN BE

IMPAIRED BY ADVERSE FACTORS, INCLUDING BUT NOT LIMITED TO FLUCTUATIONS IN ELECTRICAL POWER SUPPLY,

COMPUTER HARDWARE MALFUNCTIONS, COMPUTER OPERATING SYSTEM SOFTWARE FITNESS, FITNESS OF COMPILERS

AND DEVELOPMENT SOFTWARE USED TO DEVELOP AN APPLICATION, INSTALLATION ERRORS, SOFTWARE AND

HARDWARE COMPATIBILITY PROBLEMS, MALFUNCTIONS OR FAILURES OF ELECTRONIC MONITORING OR CONTROL

DEVICES, TRANSIENT FAILURES OF ELECTRONIC SYSTEMS (HARDWARE AND/OR SOFTWARE), UNANTICIPATED USES OR

MISUSES, OR ERRORS ON THE PART OF THE USER OR APPLICATIONS DESIGNER (ADVERSE FACTORS SUCH AS THESE ARE

HEREAFTER COLLECTIVELY TERMED “SYSTEM FAILURES”). ANY APPLICATION WHERE A SYSTEM FAILURE WOULD

CREATE A RISK OF HARM TO PROPERTY OR PERSONS (INCLUDING THE RISK OF BODILY INJURY AND DEATH) SHOULD

NOT BE RELIANT SOLELY UPON ONE FORM OF ELECTRONIC SYSTEM DUE TO THE RISK OF SYSTEM FAILURE. TO AVOID

DAMAGE, INJURY, OR DEATH, THE USER OR APPLICATION DESIGNER MUST TAKE REASONABLY PRUDENT STEPS TO

PROTECT AGAINST SYSTEM FAILURES, INCLUDING BUT NOT LIMITED TO BACK-UP OR SHUT DOWN MECHANISMS.

BECAUSE EACH END-USER SYSTEM IS CUSTOMIZED AND DIFFERS FROM NATIONAL INSTRUMENTS' TESTING

PLATFORMS AND BECAUSE A USER OR APPLICATION DESIGNER MAY USE NATIONAL INSTRUMENTS PRODUCTS IN

COMBINATION WITH OTHER PRODUCTS IN A MANNER NOT EVALUATED OR CONTEMPLATED BY NATIONAL

INSTRUMENTS, THE USER OR APPLICATION DESIGNER IS ULTIMATELY RESPONSIBLE FOR VERIFYING AND VALIDATING

THE SUITABILITY OF NATIONAL INSTRUMENTS PRODUCTS WHENEVER NATIONAL INSTRUMENTS PRODUCTS ARE

INCORPORATED IN A SYSTEM OR APPLICATION, INCLUDING, WITHOUT LIMITATION, THE APPROPRIATE DESIGN,

PROCESS AND SAFETY LEVEL OF SUCH SYSTEM OR APPLICATION.

Contents

About This Manual

How to Use the Traditional NI-DAQ (Legacy) Documentation Set .............................ix

Conventions Used in This Manual.................................................................................x

MIO and AI Device Terminology ...................................................................x

Chapter 1

Introduction to Traditional NI-DAQ (Legacy)

About the Traditional NI-DAQ (Legacy) Software.......................................................1-1

How to Set Up Your DAQ System ................................................................................1-2

Traditional NI-DAQ (Legacy) Overview ......................................................................1-2

Device Configuration.....................................................................................................1-2

Using Measurement & Automation Explorer..................................................1-2

Chapter 2

Fundamentals of Building Windows Applications

The Traditional NI-DAQ (Legacy) Libraries ................................................................2-1

Creating a Windows Application Using Microsoft Visual C++....................................2-2

Developing a Traditional NI-DAQ (Legacy) Application ..............................2-2

Example Programs...........................................................................................2-2

Special Considerations ....................................................................................2-3

Buffer Allocation ..............................................................................2-3

String Passing....................................................................................2-3

Parameter Passing .............................................................................2-3

Creating a Windows Application Using Microsoft Visual Basic ..................................2-3

Developing a Traditional NI-DAQ (Legacy) Application ..............................2-4

Example Programs...........................................................................................2-4

Special Considerations ....................................................................................2-5

Buffer Allocation ..............................................................................2-5

String Passing....................................................................................2-6

Parameter Passing .............................................................................2-6

Passing Unsigned 16-Bit and 32-Bit Integer Parameters..................2-6

Traditional NI-DAQ (Legacy) Examples ......................................................................2-8

Chapter 3

Software Overview

Initialization and General-Configuration Functions ......................................................3-2

Software-Calibration and Device-Specific Functions ...................................................3-3

© National Instruments Corporation

v

Traditional NI-DAQ (Legacy) User Manual

Contents

Event Message Functions .............................................................................................. 3-5

Event Messaging Application Tips ................................................................. 3-5

Traditional NI-DAQ (Legacy) Events in Visual Basic ................................... 3-6

ActiveX Controls for Visual Basic ................................................... 3-6

General DAQ Event.......................................................................... 3-7

Analog Trigger Event ....................................................................... 3-9

Analog Alarm Event ......................................................................... 3-12

Analog Input Function Group ....................................................................................... 3-16

One-Shot Analog Input Functions .................................................................. 3-17

Single-Channel Analog Input Functions .......................................... 3-17

Data Acquisition Functions............................................................................. 3-21

High-Level Data Acquisition Functions........................................... 3-21

Low-Level Data Acquisition Functions ........................................... 3-22

Low-Level Double-Buffered Data Acquisition Functions ............... 3-24

Data Acquisition Application Tips ................................................... 3-25

Multirate Scanning ........................................................................... 3-33

Analog Output Function Group..................................................................................... 3-36

One-Shot Analog Output Functions................................................................ 3-36

Analog Output Application Tips ...................................................... 3-37

Waveform Generation Functions .................................................................... 3-40

High-Level Waveform Generation Functions .................................. 3-40

Low-Level Waveform Generation Functions................................... 3-40

Waveform Generation Application Tips .......................................... 3-42

Digital I/O Function Group ........................................................................................... 3-54

DIO-24, 6025E, AT-MIO-16DE-10, and DIO-96 Device Groups ................. 3-56

653X Device Groups ....................................................................................... 3-56

PCI-6115, PCI-6120, and 673X Device Groups............................................. 3-57

Digital I/O Functions ...................................................................................... 3-58

Group Digital I/O Functions ........................................................................... 3-59

Double-Buffered Digital I/O Functions .......................................................... 3-60

Digital Change Notification Functions ........................................................... 3-61

Digital Filtering Function................................................................................ 3-61

Digital Change Notification Applications with 652X Devices......... 3-61

Digital Change Detection Applications with 653X Devices ............ 3-62

Digital I/O Application Tips ........................................................................... 3-63

Handshaking Versus No-Handshaking Digital I/O .......................... 3-64

Digital Port I/O Applications............................................................ 3-64

Digital Line I/O Applications ......................................................................... 3-66

Digital Group I/O Applications....................................................................... 3-68

Digital Group Block I/O Applications ............................................................ 3-69

Pattern Generation I/O with 653X, PCI-6115, PCI-6120, and 673X Devices ........................................................................................ 3-74

Double-Buffered I/O ....................................................................................... 3-74

Traditional NI-DAQ (Legacy) User Manual

vi ni.com

Contents

Counter/Timer Function Group .....................................................................................3-75

Counter/Timer Operation for the GPCTR Functions ......................................3-75

General-Purpose Counter/Timer Functions.....................................................3-77

General-Purpose Counter/Timer Application Tips .........................................3-78

Clocks or Time Counters.................................................................................3-79

Sample Use Cases............................................................................................3-79

Use Case #1.......................................................................................3-79

Use Case #2.......................................................................................3-80

RTSI Bus Trigger Functions ...........................................................................3-81

RTSI Bus .........................................................................................................3-81

E Series, DSA, 660X, 671X, and 673X RTSI Connections.............................3-82

653X RTSI Connections ..................................................................................3-83

RTSI Bus Application Tips .............................................................................3-84

SCXI Functions..............................................................................................................3-85

SCXI Application Tips ....................................................................................3-90

Building Analog Input Applications in Multiplexed Mode ..............3-91

Building Analog Input Applications in Parallel Mode .....................3-97

SCXI Data Acquisition Rates ...........................................................3-101

Analog Output Applications............................................................................3-103

Digital Applications.........................................................................................3-103

Chapter 4

Traditional NI-DAQ (Legacy) Double Buffering

Overview........................................................................................................................4-1

Single-Buffered versus Double-Buffered Data..............................................................4-1

Double-Buffered Input Operations ................................................................................4-2

Potential Setbacks............................................................................................4-4

Double-Buffered Output Operations .............................................................................4-6

Potential Setbacks............................................................................................4-7

Double-Buffered Functions ...........................................................................................4-9

Double Buffer Configuration Functions..........................................................4-9

Double Buffer Transfer Functions...................................................................4-10

Double Buffer HalfReady Functions...............................................................4-11

Conclusion .....................................................................................................................4-12

Chapter 5

Transducer Conversion Functions

Function Descriptions ....................................................................................................5-2

RTD_Convert and RTD_Buf_Convert............................................................5-2

Parameter Discussion ........................................................................5-2

Using This Function..........................................................................5-3

© National Instruments Corporation

vii

Traditional NI-DAQ (Legacy) User Manual

Contents

Strain_Convert and Strain_Buf_Convert ........................................................ 5-4

Parameter Discussion ....................................................................... 5-4

Using This Function ......................................................................... 5-5

Thermistor_Convert and Thermistor_Buf_Convert........................................ 5-7

Parameter Discussion ....................................................................... 5-7

Using This Function ......................................................................... 5-7

Thermocouple_Convert and Thermocouple_Buf_Convert ............................ 5-9

Parameter Discussion ....................................................................... 5-9

Using This Function ......................................................................... 5-10

Appendix A

Technical Support and Professional Services

Glossary

Index

Traditional NI-DAQ (Legacy) User Manual

viii ni.com

About This Manual

Caution

Traditional NI-DAQ (Legacy) is an older driver with outdated application programming interfaces (APIs) for developing data acquisition, instrumentation, and control applications for older National Instruments DAQ devices. You should use

Traditional NI-DAQ (Legacy) only in certain circumstances. Refer to the NI-DAQ Readme for more information about when to use Traditional NI-DAQ (Legacy), including a complete list of supported devices, operating systems, application software versions, and language versions. Refer to the NI-DAQmx Help, which you can access from Start»

Programs» National Instruments»NI-DAQ»NI-DAQmx Help, for an overview of the two NI-DAQ APIs and the advantages of NI-DAQmx. In NI application software, this same help is available by searching for NI-DAQmx. You can install the latest version of

NI-DAQmx software, available at ni.com/downloads

.

The

Traditional NI-DAQ (Legacy) User Manual

describes the Traditional

NI-DAQ (Legacy) application programming interface (

API

). This manual

includes source code for several example applications.

How to Use the Traditional NI-DAQ (Legacy)

Documentation Set

Begin by reading the NI-DAQ 7.x readme file, the Traditional NI-DAQ

(Legacy) Readme, and the DAQ Getting Started Guide for NI-DAQ 7.x for information on how to set up your DAQ system using Traditional NI-DAQ

(Legacy).

Read this manual to learn about programming with Traditional NI-DAQ

(Legacy). When you are familiar with the material in this manual, you can begin to use the Traditional NI-DAQ (Legacy) reference help files for more information on functions and VIs. Other documentation includes

Measurement & Automation Explorer Help for Traditional NI-DAQ

(Legacy), a help file installed with Measurement & Automation Explorer

(MAX).

For detailed hardware information, refer to the user documentation for each device.

© National Instruments Corporation

ix

Traditional NI-DAQ (Legacy) User Manual

About This Manual

»

Conventions Used in This Manual

bold

italic

monospace

monospace bold

monospace italic

The following conventions are used in this manual.

The » symbol leads you through nested menu items and dialog box options to a final action. The sequence File»Page Setup»Options directs you to pull down the File menu, select the Page Setup item, and select Options from the last dialog box.

This icon denotes a note, which alerts you to important information.

This icon denotes a caution, which advises you of precautions to take to avoid injury, data loss, or a system crash.

Bold text denotes items that you must select or click in the software, such as menu items and dialog box options. Bold text also denotes parameter names and function prototypes.

Italic text denotes variables, emphasis, a cross reference, or an introduction to a key concept. This font also denotes text that is a placeholder for a word or value that you must supply.

Text in this font denotes text or characters that you should enter from the keyboard, sections of code, programming examples, and syntax examples.

This font is also used for the proper names of disk drives, paths, directories, programs, subprograms, subroutines, device names, functions, operations, properties, methods, variables, filenames and extensions, and code excerpts.

Bold text in this font denotes the messages and responses that the computer automatically prints to the screen. This font also emphasizes lines of code that are different from the other examples.

Italic text in this font denotes text that is a placeholder for a word or value that you must supply.

MIO and AI Device Terminology

This manual uses generic terms to describe groups of devices whenever possible. The generic terms for the multifunction I/O (MIO) and analog input (AI) devices are based on the number of bits, the platform, and the functionality. The following table lists each MIO and AI device and the technical details for each.

Traditional NI-DAQ (Legacy) User Manual

x ni.com

About This Manual

Device

AT-AI-16XE-10

AT-MIO-16DE-10

AT-MIO-16E-1

AT-MIO-16E-2

AT-MIO-16E-10

AT-MIO-16XE-10

AT-MIO-16XE-50

AT-MIO-64E-3

DAQCard-6023E

DAQCard-6024E

DAQCard-6062E

DAQPad-6020E

DAQPad-6052E for

FireWire

DAQPad-6070E for

FireWire

PCI-6013

PCI-6014

PCI-6023E

PCI-6024E

PCI-6025E

PCI-6031E (MIO-64XE-10)

PCI-6032E (AI-16XE-10)

PCI-6033E (AI-64XE-10)

PCI-6034E

PCI-6035E

PCI-6040E

(PCI-MIO-16E-4)

PCI-6052E

16

16

64

16

64

16

16

16

16

16

16

16

16

Table 1. MIO and AI Device Technical Details

16

16

16

16

64

16

16

Number of

Single-Ended

(SE) Channels

16

16

16

16

16

16

16-bit

12-bit

12-bit

12-bit

12-bit

12-bit

16-bit

Bit

16-bit

12-bit

12-bit

12-bit

12-bit

16-bit

AT

AT

PCMCIA

PCMCIA

PCMCIA

USB

FireWire

Type

AT

AT

AT

AT

AT

AT

12-bit

16-bit

16-bit

12-bit

12-bit

12-bit

16-bit

16-bit

16-bit

16-bit

16-bit AI, 12-bit AO

12-bit

16-bit

FireWire

PCI

PCI

PCI

PCI

PCI

PCI

PCI

PCI

PCI

PCI

PCI

PCI

MIO

MIO

AI

AI

MIO

MIO

AI

MIO

AI

MIO

MIO

MIO

MIO

MIO

AI

MIO

MIO

MIO

MIO

Functionality

AI

MIO

MIO

MIO

MIO

MIO

MIO

© National Instruments Corporation

xi

Traditional NI-DAQ (Legacy) User Manual

About This Manual

Device

PCI-6070E

(PCI-MIO-16E-1)

PCI-6071E (MIO-64E-1)

PCI-6110

PCI-6111

PCI-6115

PCI-6120

PCI-MIO-16XE-10

PCI-MIO-16XE-50

PXI-6025E

PXI-6030E

PXI-6031E

PXI-6040E

PXI-6052E

PXI-6070E

PXI-6115

PXI-6120

Table 1. MIO and AI Device Technical Details (Continued)

Number of

Single-Ended

(SE) Channels

16

Bit

12-bit

Type

PCI

64

4, DIFF only

2, DIFF only

4, DIFF only

4, DIFF only

16

16

16

16

64

16

16

16

4, DIFF only

4, DIFF only

12-bit

12-bit AI, 16-bit AO

12-bit AI, 16-bit AO

12-bit

16-bit

16-bit

16-bit

12-bit

16-bit

16-bit

12-bit

16-bit

12-bit

12-bit

16-bit

PXI

PXI

PXI

PXI

PXI

PXI

PXI

PXI

PCI

PCI

PCI

PCI

PCI

PCI

PCI

Functionality

MIO

MIO

MIO

MIO

MIO

MIO

MIO

MIO

MIO

MIO

MIO

MIO

MIO

MIO

MIO

MIO

Traditional NI-DAQ (Legacy) User Manual

xii ni.com

1

Introduction to

Traditional NI-DAQ (Legacy)

This chapter presents an overview of Traditional NI-DAQ (Legacy).

About the Traditional NI-DAQ (Legacy) Software

Thank you for buying a National Instruments DAQ device, which includes

Traditional NI-DAQ (Legacy) software. Traditional NI-DAQ (Legacy) is a set of functions that control all of the National Instruments DAQ devices for analog I/O, digital I/O, timing I/O, SCXI signal conditioning, and

RTSI

multiboard synchronization.

Traditional NI-DAQ (Legacy) has both high-level DAQ I/O functions for maximum ease of use, and low-level DAQ I/O functions for maximum flexibility and performance. Examples of high-level functions are streaming data to disk or acquiring a certain number of data points.

Examples of low-level functions are writing directly to the DAQ device registers or calibrating the analog inputs. Traditional NI-DAQ (Legacy) does not sacrifice the performance of National Instruments DAQ devices, because it lets multiple devices operate at their peak performance.

Traditional NI-DAQ (Legacy) includes a Buffer and Data Manager that uses sophisticated techniques for handling and managing data acquisition buffers, so you can acquire and process data simultaneously. Traditional

NI-DAQ (Legacy) can transfer data using

DMA

,

interrupts

, or software polling. Traditional NI-DAQ (Legacy) can use DMA to transfer data into memory above 16

MB

, even on ISA bus computers.

With the Resource Manager, you can use several functions and several devices simultaneously. The Resource Manager prevents multiboard contention over DMA channels, interrupt levels, and RTSI channels.

© National Instruments Corporation

1-1

Traditional NI-DAQ (Legacy) User Manual

Chapter 1 Introduction to Traditional NI-DAQ (Legacy)

Traditional NI-DAQ (Legacy) can send

event-driven messages

to Windows or Windows NT applications each time a user-specified event occurs. Thus, polling is eliminated and you can develop event-driven DAQ applications.

Some examples of Traditional NI-DAQ (Legacy) user events are:

• When a specified number of analog samples has been acquired

• When the analog level and slope of a signal match specified levels

• When the signal is inside or outside a voltage band

• When a specified digital I/O pattern is matched

• When a rising or falling edge occurred on a timing I/O line

How to Set Up Your DAQ System

Refer to the DAQ Getting Started Guide for NI-DAQ 7.x for more information on installing and configuring your hardware and software.

Traditional NI-DAQ (Legacy) Overview

Traditional NI-DAQ (Legacy) is a library of routines that work with

National Instruments DAQ devices. Traditional NI-DAQ (Legacy) helps you perform tasks ranging from simple device initialization to advanced high-speed data logging. The number of tasks you need for your applications depends on the types of DAQ devices you have and the complexity of your applications.

Device Configuration

Before you begin your Traditional NI-DAQ (Legacy) application development, you must configure your National Instruments DAQ devices.

Traditional NI-DAQ (Legacy) needs the device configuration information to program your hardware correctly.

Using Measurement & Automation Explorer

Measurement & Automation Explorer (MAX) is a Windows-based application that you use to configure and view National Instruments DAQ device settings under Windows 2000/NT/XP/Me/98.

Note

To use MAX, quit any applications that are performing DAQ operations.

Traditional NI-DAQ (Legacy) User Manual

1-2 ni.com

Chapter 1 Introduction to Traditional NI-DAQ (Legacy)

Double-click the Measurement & Automation icon on your desktop to run MAX. Refer to the Measurement & Automation Explorer Help for

Traditional NI-DAQ (Legacy) for more information and detailed instructions on configuring your devices and accessories.

© National Instruments Corporation

1-3

Traditional NI-DAQ (Legacy) User Manual

2

Fundamentals of Building

Windows Applications

This chapter describes the fundamentals of creating Traditional NI-DAQ

(Legacy) applications in Windows 2000/NT/XP/Me/98.

The following section contains general information about building

Traditional NI-DAQ (Legacy) applications, describes the nature of the

Traditional NI-DAQ (Legacy) files used in building Traditional NI-DAQ

(Legacy) applications, and explains the basics of making applications using the following tools:

• Microsoft Visual C++

• Microsoft Visual Basic

If you are not using the tools listed, refer to your development tool reference manual for details on creating applications that call

DLLs

.

The Traditional NI-DAQ (Legacy) Libraries

The Traditional NI-DAQ (Legacy) function libraries are DLLs, which means that Traditional NI-DAQ (Legacy) routines are not linked into the executable files of applications. Only the information about the Traditional

NI-DAQ (Legacy) routines in the Traditional NI-DAQ (Legacy) import libraries is stored in the executable files.

Note

Use the 32-bit nidaq32.dll

. If you are programming in C or C++, link in the appropriate import library. Refer to the following sections for language-specific details.

Using function prototypes is a good programming practice. That is why

Traditional NI-DAQ (Legacy) is packaged with function prototype files for different Windows development tools. The installation utility copies the appropriate prototype files for the development tools you choose. If you are not using any of the development tools that Traditional NI-DAQ (Legacy) works with, you must create your own function prototype file.

© National Instruments Corporation

2-1

Traditional NI-DAQ (Legacy) User Manual

Chapter 2 Fundamentals of Building Windows Applications

Creating a Windows Application Using

Microsoft Visual C++

This section assumes that you will be using the Microsoft Visual C++ IDE to manage your code development, and that you are familiar with the IDE.

Developing a Traditional NI-DAQ (Legacy) Application

To develop a Traditional NI-DAQ (Legacy) application, follow these general steps:

1.

Open an existing or new Visual C++ project to manage your application code.

2.

Create files of type

.c

(C source code) or

.cpp

(C++ source code) and add them to the project. Make sure you include the Traditional

NI-DAQ (Legacy) header file, nidaq.h

, as such in your source code files:

#include "nidaq.h"

You also might want to include nidaqcns.h

and nidaqerr.h

. You also can include other files (for example,

.rc

,

.def

) that you have created for graphical user interface (GUI) applications.

3.

Specify the directory which contains the Traditional NI-DAQ (Legacy) header files under the preprocessor»include directory settings in your compiler. (For Visual C++ 4.x, this is under

Build»Settings»C/C++. For Visual C++ 5.0/6.0, this is under

Project»Settings»C/C++.) The Traditional NI-DAQ (Legacy) header files are located in the

.\Include

directory under your NI-DAQ directory.

4.

Add the Traditional NI-DAQ (Legacy) import library nidaq32.lib

to the project. The Traditional NI-DAQ (Legacy) import library files are located in the

.\Lib

directory under your NI-DAQ directory.

5.

Build your application.

Example Programs

You can find example programs and project files in

.\Examples\VisualC directory under your NI-DAQ directory.

To load an example program, use one of the generic makefiles with the

.mak

extension.

Traditional NI-DAQ (Legacy) User Manual

2-2 ni.com

Chapter 2 Fundamentals of Building Windows Applications

To load an example project with Visual C++ 4.x or later, select the menu option File»Open Project Workspace, and select List Files of Type to be

Makefiles. Then select the

.mak

file of your choice.

Special Considerations

When developing an application using Visual C++, consider the following special considerations.

Buffer Allocation

To allocate memory, you can use the Windows API function

GlobalAlloc()

. After allocation, lock memory with

GlobalLock() to use a buffer of memory. You can use the memory handle returned by

GlobalLock() in place of the buffer parameter in Traditional NI-DAQ

(Legacy) API functions that accept buffers (

Align_DMA_Buffer

,

DAQ_DB_Transfer

, DAQ_Monitor, DAQ_Op, DAQ_Start,

DIG_Block_In

, DIG_Block_Out, DIG_DB_Transfer,

GPCTR_Config_Buffer

, GPCTR_Read_Buffer, Lab_ISCAN_Op,

Lab_ISCAN_Start

, SCAN_Op, SCAN_Start, SCAN_Sequence_Demux,

WFM_DB_Transfer

, WFM_Load, WFM_Op

). After using the memory, unlock memory with

GlobalUnlock()

and free it with

GlobalFree()

.

Note

If you allocate memory from

GlobalAlloc()

, you must call

GlobalLock()

on the memory object before passing it to Traditional NI-DAQ (Legacy).

String Passing

To pass strings, pass a pointer to the first element of the character array.

Be sure that the string is null-terminated.

Parameter Passing

By default, C passes parameters by value. Remember to pass pointers to variables when you need to pass by address.

Creating a Windows Application Using Microsoft

Visual Basic

This section assumes that you will be using the Microsoft Visual Basic

IDE to manage your code development, and that you are familiar with the IDE.

© National Instruments Corporation

2-3

Traditional NI-DAQ (Legacy) User Manual

Chapter 2 Fundamentals of Building Windows Applications

Developing a Traditional NI-DAQ (Legacy) Application

To develop a Traditional NI-DAQ (Legacy) application, follow these general steps:

1.

Open an existing or new Visual Basic project to manage your application code.

2.

Create files of type

.frm

(form definition and event handling code),

.bas

(Visual Basic generic code module), or

.cls

(Visual Basic class module) and add them to the project.

3.

Include the Traditional NI-DAQ (Legacy) include file for Visual Basic, nidaq32.bas

, into your project. You also might want to include nidaqcns.inc

and nidaqerr.inc

. The Traditional NI-DAQ

(Legacy) include files for Visual Basic are located in the

.\Include directory under your NI-DAQ directory. For Visual Basic 5.0/6.0, you can select the Project»Add Module menu option, click the Existing tab, and select the module of your choice.

Alternatively, you can add a reference to the National Instruments Data

Acquisition Type Library, which is part of the Traditional NI-DAQ

(Legacy) DLL. In Visual Basic 5.0/6.0, select the Project»References menu option, and check National Instruments Data Acquisition

Library. If you do not see it listed there, click the Browse button and locate nidaq32.dll

in your

\Windows\system

or

\Windows\system32

directory.

4.

Run your application by clicking the Run button.

Note

In Visual Basic, function declarations have scope globally throughout the project.

In other words, you can define your prototypes in any module. The functions will be recognized even in other modules.

For information on using the NI-DAQ Visual Basic Custom Controls, refer to the

Traditional NI-DAQ (Legacy) Events in Visual Basic

section of Chapter 3,

Software

Overview

.

Refer to the Traditional NI-DAQ (Legacy) reference help files for more information on using the Traditional NI-DAQ (Legacy) functions in Visual Basic for Windows.

Example Programs

You can find example programs and project files in the

.\Examples\

VBasic

directory under your Traditional NI-DAQ (Legacy) directory.

Traditional NI-DAQ (Legacy) User Manual

2-4 ni.com

Chapter 2 Fundamentals of Building Windows Applications

To load an example program, use one of the Visual Basic project files with the

.vbp

extension. These are Visual Basic 4.0 projects, which you can open only with Visual Basic version 4.0 or later.

To load an example project with Visual Basic 4.0 or later versions, select the menu option File»Open Project, then select the

.vbp

file of your choice.

Special Considerations

When developing an application using Visual Basic, consider the following special considerations.

Buffer Allocation

Visual Basic 4.0 is restrictive when allocating memory. You allocate memory by declaring an array of the data type with which you want to work. Visual Basic uses dynamic memory allocation so you can redimension an array to a variable size during run time. However, arrays are restricted to being less than 64 KB in total size (this translates to about

32,767 (16-bit) integers, 16,384 (32-bit) long integers, or 8,191 doubles).

To break the 64 KB buffer size barrier, you can use the Windows API functions

GlobalAlloc()

to allocate buffers larger than 64 KB. After allocation, you must lock memory with

GlobalLock() to use a buffer of memory. You can use the memory handle returned by

GlobalLock()

in place of the buffer parameter in Traditional NI-DAQ (Legacy) API functions that accept buffers (

Align_DMA_Buffer

, DAQ_DB_Transfer,

DAQ_Monitor

, DAQ_Op, DAQ_Start, DIG_Block_In, DIG_Block_Out,

DIG_DB_Transfer

, GPCTR_Config_Buffer, GPCTR_Read_Buffer,

Lab_ISCAN_Op

, Lab_ISCAN_Start, SCAN_Op, SCAN_Start,

SCAN_Sequence_Demux

, WFM_DB_Transfer, WFM_Load

,

WFM_Op

). The

Traditional NI-DAQ (Legacy) header file declares the buffer parameter “As

Any.” After using the memory, you must unlock memory with

GlobalUnlock() and free it with

GlobalFree()

.

Note

If you allocate memory from

GlobalAlloc()

, you must call

GlobalLock

on the memory object before passing it to Traditional NI-DAQ (Legacy).

The following paragraph illustrates declarations of functions.

© National Instruments Corporation

2-5

Traditional NI-DAQ (Legacy) User Manual

Chapter 2 Fundamentals of Building Windows Applications

For Visual Basic 4.0 or later, 32-bit:

Declare Function GlobalAlloc Lib "kernel32" Alias

"GlobalAlloc" (ByVal wFlags As Long, ByVal dwBytes As

Long) As Long

Declare Function GlobalFree Lib "kernel32" Alias

"GlobalFree" (ByVal hMem As Long) As Long

Declare Function GlobalLock Lib "kernel32" Alias

"GlobalLock" (ByVal hMem As Long) As Long

Declare Function GlobalReAlloc Lib "kernel32" Alias

"GlobalReAlloc" (ByVal hMem As Long, ByVal dwBytes As

Long, ByVal wFlags As Long) As Long

Declare Function GlobalUnlock Lib "kernel32" Alias

"GlobalUnlock" (ByVal hMem As Long) As Long

String Passing

In Visual Basic, variables of data type

String

need no special modifications to be passed to Traditional NI-DAQ (Legacy) functions.

Visual Basic automatically appends a null character to the end of a string before passing it (by reference, because strings cannot be passed by value in Visual Basic) to a procedure or function.

Parameter Passing

By default, Visual Basic passes parameters by reference. Prepend the

ByVal

keyword if you need to pass by value.

Passing Unsigned 16-Bit and 32-Bit Integer

Parameters

The Visual Basic INTEGER type is a signed value. Visual Basic considers any value greater than 32,767 a negative number. To pass unsigned 16-bit parameters, refer to the following examples:

• If the function is supposed to return an unsigned 16-bit integer, and you are reading back a negative number, add 65,536 to the negative number.

Dim myUnsignedCnt As Long

Dim retCnt As Integer

‘retCnt is the value returned from the called

‘function.

‘You can call a DAQ function that returns an unsigned

‘16-bit value and store the value in retCnt.

Traditional NI-DAQ (Legacy) User Manual

2-6 ni.com

Chapter 2 Fundamentals of Building Windows Applications

if retCnt < 0 then myUnsignedCnt = CInt(retCnt) + 65536 else myUnsignedCnt = retCnt end if

• To pass an unsigned 16-bit value to a function with an unsigned 16-bit type parameter, you must first compute the value to pass to the function.

Dim myUnsignedCnt As Long

Dim ToPassVal As Integer

‘You compute the value that you want to pass to the

‘function and store it in myUnsignedCnt.

if myUnsignedCnt > 32767 then

ToPassVal = CInt(myUnsignedCnt - 65536) else

ToPassVal = CInt(myUnsignedCnt) end if

The Visual Basic LONG integer type is a signed 32-bit type. Visual Basic considers any value greater than 2,147,483,647 a negative number. To pass unsigned 16-bit parameters, refer to the following examples:

• If the function is supposed to return an unsigned 32-bit integer, and you are reading back a negative number, then add 4,294,967,296 to the negative number.

Dim myUnsignedCnt As Double

Dim retCnt As Long

‘retCnt is the value returned from the called

‘function

‘You can call a DAQ function that returns an unsigned

‘16-bit value and stores it in retCnt.

if retCnt < 0 then myUnsignedCnt = CInt(retCnt) + 4294967296 else myUnsignedCnt = retCnt end if

© National Instruments Corporation

2-7

Traditional NI-DAQ (Legacy) User Manual

Chapter 2 Fundamentals of Building Windows Applications

• To pass an unsigned 32-bit value to a function with an unsigned 32-bit type parameter, you must first compute the value to pass to the function.

Dim myUnsignedCnt As Double

Dim ToPassVal As Long

‘You compute the value that you want to pass to the

‘function and store it in myUnsignedCnt.

if myUnsignedCnt > 2147483647 then

ToPassVal = CLng(myUnsignedCnt - 4294967296) else

ToPassVal = CLng(myUnsignedCnt) end if

Traditional NI-DAQ (Legacy) Examples

The Traditional NI-DAQ (Legacy) installer installs a suite of concisely written examples in the following application development environments:

• LabWindows

/CVI

5.0.x

• Microsoft Visual C++ 2.x (32-bit) or later

• Microsoft Visual Basic 4.0 (32-bit) or later

These examples illustrate how to use Traditional NI-DAQ (Legacy) functions to perform a single task. All examples are devoid of any code to extract values from GUI objects so that you can focus on how the code flow is formed. In addition, most parameters are hardcoded at the top of the routine so that if you decide to change them, you can simply change the assignment.

The examples correspond to the function flowcharts that you will see in

Chapter 3,

Software Overview

. If a task and a flowchart in the following chapter suits your data acquisition needs, you should find a corresponding example to get you started.

Each example consists of the following files:

• An appropriate project file for the programming language

• A single source code file to illustrate the task at hand

• A library of Traditional NI-DAQ (Legacy) example utility functions

(for buffer creation, waveform plotting, error checking, and implementing a delay)

Traditional NI-DAQ (Legacy) User Manual

2-8 ni.com

Chapter 2 Fundamentals of Building Windows Applications

Note

None of the examples are installed in their executable (

.exe

) format. To run them, you first must build them or load them into the IDE for the appropriate programming language.

The examples are stored in the hierarchy shown below for each language:

.\AI

Analog Input examples

.\AO

.\DI

Analog Output examples

Digital Input examples

.\DO

.\CTR

.\SCXI

.\CALIB

Digital Output examples

Counter/timer examples

SCXI examples

Calibration examples

The project files have the same file name (not including extension) as the source code files. The following types are installed:

• LabWindows/CVI:

.prj

(project file),

.c

(source file)

• Visual C++:

.mak

(generic make file),

.c

(source file)

• Visual Basic:

.vbp

(project file, for Visual Basic 4.0 [32-bit] or later),

.frm

(form module)

© National Instruments Corporation

2-9

Traditional NI-DAQ (Legacy) User Manual

Software Overview

This chapter describes the function classes in Traditional NI-DAQ

(Legacy) and briefly describes each function.

Traditional NI-DAQ (Legacy) functions are grouped according to the following classes:

• Initialization and general-configuration

• Software-calibration and device-specific

• Event Message

• Analog input function group

– One-shot analog input

• Single-channel analog input

– Data acquisition

• High-level data acquisition

• Low-level data acquisition

• Low-level double-buffered data acquisition

• Analog output function group

– One-shot analog output

– Waveform generation

• High-level waveform generation

• Low-level waveform generation

• Digital I/O function group

– Digital I/O

– Group digital I/O

• Double-buffered digital I/O

– Change Notification

– Filtering

3

© National Instruments Corporation

3-1

Traditional NI-DAQ (Legacy) User Manual

Chapter 3 Software Overview

• Counter/Timer function group

– Counter/timer

Interval

counter/timer

– General-purpose counter/timer

• RTSI bus trigger

• SCXI

• Transducer conversion

Initialization and General-Configuration Functions

Use these general functions for initializing and configuring your hardware and software.

Refer to the Traditional NI-DAQ (Legacy) C Reference Help to determine which functions your device supports.

Align_DMA_Buffer

Aligns the data in a DMA buffer to avoid crossing a physical page boundary. This function is for use with DMA waveform generation and digital I/O pattern generation.

Get_DAQ_Device_Info

Get_NI_DAQ_Version

Init_DA_Brds

Retrieves parameters pertaining to the device operation.

Returns the version number of the

Traditional NI-DAQ (Legacy) library.

Initializes the hardware and software states of a National Instruments

DAQ device to its default state and then returns a numeric device code that corresponds to the type of device initialized. Any operation that the device is performing is halted. Traditional

NI-DAQ (Legacy) automatically calls this function; your application does not have to call it explicitly. This function is useful for reinitializing the device hardware, for reinitializing the

Traditional NI-DAQ (Legacy) software,

Traditional NI-DAQ (Legacy) User Manual

3-2 ni.com

Chapter 3 Software Overview

Set_DAQ_Device_Info

Timeout_Config and for determining which device has been assigned to a particular slot number.

Selects parameters pertaining to the device operation.

Establishes a timeout limit that is used by the synchronous functions to ensure that these functions eventually return control to your application. Examples of synchronous functions are

DAQ_Op

,

DAQ_DB_Transfer

, and

WFM_from_Disk

.

Software-Calibration and Device-Specific Functions

Each of these software-calibration and configuration functions is specific to only one type of device or class of devices.

Refer to the Traditional NI-DAQ (Legacy) C Reference Help to determine which functions your device supports.

AO_Calibrate

Calibrate_1200

Loads a set of calibration constants into the calibration

DACs

or copies a set of calibration constants from one of four

EEPROM

areas to EEPROM area 1. You

can load an existing set of calibration constants into the calibration DACs from a storage area in the onboard EEPROM.

You can copy EEPROM storage areas

2 through 5 (EEPROM area 5 contains the factory-calibration constants) to storage area 1. NI-DAQ automatically loads the calibration constants stored in EEPROM area 1 the first time a function pertaining to the AT-AO-6/10 is called.

Calibrates the

gain

and offset values for

the 1200/AI devices

ADCs

and DACs.

You can perform a new calibration or use an existing set of calibration constants by copying the constants from their storage location in the onboard EEPROM. You

© National Instruments Corporation

3-3

Traditional NI-DAQ (Legacy) User Manual

Chapter 3 Software Overview

Calibrate_TIO

Calibrate_DSA

Calibrate_E_Series can store up to six sets of calibration constants. Traditional NI-DAQ (Legacy) automatically loads the calibration constants stored in EEPROM user area 5 the first time you call a function pertaining to the device.

Use the function to calibrate the crystal oscillator on your timing I/O 660X device.

Use this function to calibrate your

DSA device.

Use this function to calibrate your

E Series, 671X, or 673X device and to select a set of calibration constants for

Traditional NI-DAQ (Legacy) to use.

Configure_HW_Analog_Trigger

Configures the hardware

analog trigger

available on your E Series device.

LPM16_Calibrate

Calibrates the LPM device converter.

The function calculates the correct offset voltage for the voltage comparator, adjusts positive linearity and full-scale errors to less than ±0.5 each, and adjusts zero error to less than ±1 LSB.

MIO_Config

SCXI_Calibrate

Select_Signal

Turns

dithering

on and off. For the

MIO-64, this function also lets you specify whether to use AMUX-64T channels or onboard channels.

Performs a self-calibration (or internal calibration) for certain SCXI modules.

Selects the source and polarity of certain signals used by the E Series and DSA devices. You typically need to use this function to externally control timing, to use the RTSI bus, or to configure one of the I/O connector PFI pins.

Traditional NI-DAQ (Legacy) User Manual

3-4 ni.com

Chapter 3 Software Overview

Event Message Functions

Traditional NI-DAQ (Legacy) Event Message functions are an efficient way to monitor your background data acquisition processes, without dedicating your foreground process for status checking.

The Event Message dispatcher notifies your application when a user-specified DAQ event occurs. Using event messaging eliminates continuous polling of data acquisition processes.

Config_Alarm_Deadband

Specify alarm on/off condition for data acquisition event messaging.

Config_ATrig_Event_Message

Specify analog input trigger level and slope for data acquisition event messaging.

Config_DAQ_Event_Message

Specify analog input, analog output, digital input, or digital output trigger condition for event messaging.

Event Messaging Application Tips

To receive notification from the Traditional NI-DAQ (Legacy) data acquisition process in case of special events, you can call

Config_Alarm_Deadband

,

Config_ATrig_Event_Message

, or

Config_DAQ_Event_Message

to specify an event in which you are interested. If you are interested in more than one event, you can call any of those three functions again for each event.

After you have configured all event messages, you can begin your data acquisition by calling

SCAN_Start

,

DIG_Block_In

, and so on.

When any of the events you specified occur, Traditional NI-DAQ (Legacy) notifies your application.

Event notification can be done through user-defined callbacks and/or the

Windows Message queue. When a user-specified event occurs, Traditional

NI-DAQ (Legacy) calls the user-defined callback (if defined) and/or puts a message into the Windows Message queue, if you specified a window handle. Your application receives the message when it calls the Windows

GetMessage API.

© National Instruments Corporation

3-5

Traditional NI-DAQ (Legacy) User Manual

Chapter 3 Software Overview

After your application receives an event message, it can carry out the appropriate task, such as updating the screen or saving data to disk.

To restart your data acquisition process after it completes, you do not need to call the message configuration calls again. They remain defined as long as your application does not explicitly remove them or call

Init_DA_Brds

.

To add or remove a message, first clear your data acquisition process.

Then, call one of the three event message configuration functions.

Traditional NI-DAQ (Legacy) Events in Visual Basic

ActiveX Controls for Visual Basic

Unlike standard control-flow programming languages, event occurrences drive Visual Basic code. You interact with outside events through the properties and procedures of a control. For any given control, there is a set of procedures called event procedures that affect that control.

For example, a command button named Run has a procedure called

Run_Click()

that is called when you click the Run button. If you want something to run when you click the Run button, enter code in the

Run_Click()

procedure. When a program starts executing, Visual Basic looks for events related to controls and calls control procedures as necessary. You do not write an event loop.

There are three Traditional NI-DAQ (Legacy) ActiveX controls for Visual

Basic applications:

• General Data Acquisition Event ( daqevent.ocx

)

• Analog Trigger Event ( atrigev.ocx

)

• Analog Alarm Event ( alarmev.ocx

)

Traditional NI-DAQ (Legacy) User Manual

3-6 ni.com

Chapter 3 Software Overview

The Traditional NI-DAQ (Legacy) installer places all of these ActiveX controls in the

NIDAQ

subdirectory of your Windows 2000/NT/XP/Me/98 directory under the file names shown.

These three ActiveX controls actually call the Traditional NI-DAQ

(Legacy)

Config_DAQ_Event_Message

,

Config_ATrig_Event_Message

, and

Config_Alarm_Deadband functions. Visual Basic applications cannot receive Windows messages, but if you use Traditional NI-DAQ (Legacy) ActiveX controls shown previously in this section, your Visual Basic application can receive

Traditional NI-DAQ (Legacy) messages.

Note

You can use the

OCXs

in Visual Basic, version 4.0 (32-bit) or later.

General DAQ Event

You use the General DAQ Event control to configure and enable a single data acquisition event. Refer to the

Event Message Functions

section for a

complete description of Traditional NI-DAQ (Legacy) events. Table 3-1

lists the properties for the General DAQ Event control.

Note

An n represents a generic number and is not the same value in every occurrence.

© National Instruments Corporation

3-7

Traditional NI-DAQ (Legacy) User Manual

Chapter 3 Software Overview

Property

Name

Board

ChanStr

DAQEvent

DAQTrigVal0

DAQTrigVal1

TrigSkipCount

PreTrigScans

PostTrigScans

Index

Tag

Enabled

Table 3-1. General DAQ Event Control Properties

Allowed Property Values

GeneralDAQEventn

(default)

1 – n (default)

Refer to

Config_DAQ_Event_Message

in the Traditional NI-DAQ (Legacy) C Reference

Help.

0—Acquired or generated n scans

1—Every n scans

2—Completed operation or stopped by error

3—Voltage out of bounds

4—Voltage within bounds

5—Analog positive slope triggering

6—Analog negative slope triggering

7—Digital pattern not matched

8—Digital pattern matched

9—Counter pulse event

Long

Long

Long

Long

Long

N/A

N/A

0—False (default)

1—True

Some General DAQ Events can be implemented only by a select group of National Instruments DAQ devices. Also, some General DAQ Events require that you set the

asynchronous

data acquisition or generation

operation to use interrupts. For more information on the different types of General DAQ Events, refer to the description for the

Config_DAQ_Event_Message

function in the Traditional NI-DAQ

(Legacy) C Reference Help.

Traditional NI-DAQ (Legacy) User Manual

3-8 ni.com

Chapter 3 Software Overview

Set each of these properties as follows:

GeneralDAQEventn.property name = property value

For example, to set the

ChanStr

property to Analog Input channel 0 for

GeneralDAQEvent 1:

GeneralDAQEvent1.ChanStr = "AI0"

Set up your program flow like this:

1.

Set the properties of the General DAQ Event control. Then, configure the acquisition or generation operations using the appropriate

Traditional NI-DAQ (Legacy) functions.

2.

Set the

Enabled

property of the General DAQ Event control to 1 (True).

3.

Invoke the

GeneralDAQEventn

.

Refresh

method to set the

DAQ Event in the Traditional NI-DAQ (Legacy) driver. Each subsequent use of

GeneralDAQEventn

.

Refresh

deletes the old

DAQ Event and sets a new one with the current set of properties.

4.

Start an

asynchronous

data acquisition or generation operation.

5.

When the selected event occurs, the

GeneralDAQEventn_Fire procedure is called. You can perform the necessary event processing within this procedure, such as updating a global count variable, or toggling digital I/O lines.

The

GeneralDAQEventn_Fire

procedure is prototyped as follows:

Sub GeneralDAQEventn_Fire

(DoneFlag As Integer, Scans As Long)

The parameter DoneFlag equals 1 if the acquisition was over when the

DAQ Event fired. Otherwise, it is 0. Scans equals the number of the scan that caused the DAQ Event to fire.

For a detailed example of how to use the General DAQ Event control in a

Visual Basic program, refer to the General DAQ Event example at the end of the

Traditional NI-DAQ (Legacy) Events in Visual Basic

section.

Analog Trigger Event

Use the Analog Trigger Event control to configure and enable an

analog trigger

. Refer to the

Event Message Functions

section earlier in this chapter

for a definition of the analog trigger.

© National Instruments Corporation

3-9

Traditional NI-DAQ (Legacy) User Manual

Chapter 3 Software Overview

Table 3-2 lists the properties for the Analog Trigger Event control.

Table 3-2. Analog Trigger Event Control Properties

Property

Name

Board

ChanStr

Level

WindowSize

Slope

TrigSkipCount

PreTrigScans

PostTrigScans

Index

Tag

Enabled

Allowed Property Values

GeneralDAQEventn

(default)

1 – n (default)

Refer to

Config_DAQ_Event_Message

in the Traditional NI-DAQ (Legacy) C

Reference Help

Single (voltage)

Single (voltage)

0—Positive (default)

1—Negative

Long

Long

Long

N/A

N/A

0—False (default)

1—True

The Analog Trigger Event requires that you set the asynchronous data acquisition operation to use interrupts. For more information on Analog Trigger Events, refer to the descriptions for the

Config_ATrig_Event_Message

function in the Traditional NI-DAQ

(Legacy) C Reference Help.

Each of these properties should be set as follows:

AnalogTriggerEventn.property name = property value

For example, to set the

ChanStr

property to Analog Input channel 0 for

Analog Trigger Event 1:

AnalogTriggerEvent1.ChanStr = "AI0"

Traditional NI-DAQ (Legacy) User Manual

3-10 ni.com

Chapter 3 Software Overview

Set up your program flow like this:

1.

Set the properties of the Analog Trigger Event control. Next, configure the acquisition or generation operations using the appropriate

Traditional NI-DAQ (Legacy) functions.

2.

Set the

Enabled

property of the Analog Trigger Event control to

1 (True).

3.

Invoke the

AnalogTriggerEventn.

Refresh

method to actually set the Analog Trigger Event in the Traditional NI-DAQ (Legacy) driver.

Each subsequent invocation of

AnalogTriggerEventn.

Refresh deletes the old Analog Trigger Event and sets a new one with the current set of properties.

4.

Start an asynchronous data acquisition operation.

5.

When the Analog Trigger conditions are met, the

AnalogTriggerEventn_Fire

procedure is called. You can perform the necessary event processing within this procedure, such as updating a global count variable, or toggling digital I/O lines.

The

AnalogTriggerEventn_Fire

procedure is prototyped as follows:

Sub AnalogTriggerEventn_Fire

(DoneFlag As Integer,

Scans As Long)

The parameter DoneFlag equals 1 if the acquisition was over when the

Analog Trigger Event fired. Otherwise, it is 0. Scans equals the number of the scan that caused the Analog Trigger Event to fire.

© National Instruments Corporation

3-11

Traditional NI-DAQ (Legacy) User Manual

Chapter 3 Software Overview

Analog Alarm Event

Use the Analog Alarm Event control to configure and enable an analog trigger. Refer to the

Event Message Functions

section earlier in this chapter

for a definition of the analog trigger.

Table 3-3 lists the properties for the Analog Alarm Event control.

Table 3-3. Analog Alarm Event Control Properties

Property

Name

Board

ChanStr

HighAlarmLevel

LowAlarmLevel

HighDeadbandWidth

LowDeadbandWidth

Index

Tag

Enabled

Allowed Property Values

GeneralDAQEventn

(default)

1 – n (default)

Refer to

Config_DAQ_Event_Message

in the Traditional NI-DAQ (Legacy)

C Reference Help

Single (voltage)

Single (voltage)

Single (voltage)

Single (voltage)

N/A

N/A

0—False (default)

1—True

The Analog Alarm Event requires that you set the asynchronous data acquisition operation to use interrupts. For more information on Analog Alarm Events, refer to the description for the

Config_Alarm_Deadband

function in the Traditional NI-DAQ (Legacy)

C Reference Help.

Each of these properties should be set as follows:

AnalogAlarmEventn.property name = property value

For instance, to set the

ChanStr

property to Analog Input channel 0 for

Analog Alarm Event 1:

AnalogAlarmEvent1.ChanStr = "AI0"

Traditional NI-DAQ (Legacy) User Manual

3-12 ni.com

Chapter 3 Software Overview

Set up your program flow like this:

1.

Set the properties of the Analog Alarm Event control. Next, configure the acquisition or generation operations using the appropriate

Traditional NI-DAQ (Legacy) functions.

2.

Set the

Enabled

property of the Analog Alarm Event control to

1 (True).

3.

Invoke the

AnalogAlarmEventn

.

Refresh

method to set the Analog

Alarm Event in the Traditional NI-DAQ (Legacy) driver. Each subsequent invocation of

AnalogAlarmEventn

.

Refresh

deletes the old Analog Alarm Event and sets a new one with the current set of properties.

4.

Start an asynchronous data acquisition operation.

5.

Call any one of the four following procedures:

AnalogAlarm_HighAlarmOn

AnalogAlarm_HighAlarmOff

AnalogAlarm_LowAlarmOn

AnalogAlarm_LowAlarmOff

You can perform necessary event processing within this procedure, such as updating a global count variable or toggling digital I/O lines.

The four Analog Alarm procedures are prototyped as follows:

Sub AnalogAlarmn_HighAlarmOn

(DoneFlag As Integer,

Scans As Long)

Sub AnalogAlarmn_HighAlarmOff

(DoneFlag As Integer,

Scans As Long)

Sub AnalogAlarmn_LowAlarmOn

(DoneFlag As Integer,

Scans As Long)

Sub AnalogAlarmn_LowAlarmOff

(DoneFlag As Integer,

Scans As Long)

The parameter DoneFlag equals 1 if the acquisition was over when the

Analog Alarm Event fired. Otherwise, it is 0. Scans equals the number of the scan that caused the Analog Alarm Event to fire.

© National Instruments Corporation

3-13

Traditional NI-DAQ (Legacy) User Manual

Chapter 3 Software Overview

Using Multiple Controls

In general, a program might contain any number of General DAQ Event,

Analog Trigger Event, and Analog Alarm Event controls. Just like regular

Visual Basic controls, there are two ways you can place multiple controls on a Visual Basic form:

• You can create control arrays by copying and pasting a control that already exists on the form. Each individual element in the control array is then distinguished by the

Index

property, and the event procedures is an extra parameter

Index as Integer

. The first element has

Index = 0

, the second element has

Index = 1

, and so on. You have only one procedure for each type of event custom control; however, you can determine which control array element caused the event to occur by examining the

Index

property.

• You can place multiple controls from the Visual Basic Tool Box onto the form. Each individual custom control of the same type is then distinguished by the number after the name of the custom control, such as

GeneralDAQEvent1

,

GeneralDAQEvent2

, and so on.

Consequently, you can have separate procedures for each custom control, such as

GeneralDAQEvent1_Fire

,

GeneralDAQEvent2_Fire

, and so on.

General DAQ Event Example

The following steps provide an outline of how to use the General DAQ

Event control in a Visual Basic program. A working knowledge of Visual

Basic is assumed; otherwise, this example is complete, except for error checking:

1.

To use the GeneralDAQEvent control, you must first include the proper control into your project.

• If you are using Visual Basic 4.0 (32-bit), select the Tools»

Custom Controls option, and select the National Instruments

GeneralDAQEvent custom control.

• If you are using Visual Basic 5.0, select the Project»

Components option, and select the National Instruments

GeneralDAQEvent custom control. In either version, if you do not find the custom control listed, click the Browse button and find the custom control in the NI-DAQ subdirectory under your

Windows directory.

2.

To place the GeneralDAQEvent control into your form, go to the tool box window and select the GeneralDAQEvent tool, labelled DAQ

EVENT.

Traditional NI-DAQ (Legacy) User Manual

3-14 ni.com

Chapter 3 Software Overview

3.

Click somewhere on the form, and while holding down the mouse button, drag the mouse to place the control onto the form. You will see a small icon, which does not appear in run time.

4.

To set up a DAQ Event that notifies you after every n scans

(DAQ Event #1), unless you decide to make n very large, you can use the

Set_DAQ_Device_Info

function to set the device analog inputs to use interrupts. The constants used in this function come from

NIDAQCNS.INC

. Refer to the function description for

Set_DAQ_Device_Info

in the Traditional NI-DAQ (Legacy) C

Reference Help for more information. You also must configure some parameters so that the GeneralDAQEvent can occur when it needs to.

In the

Form_Load

event routine, add the following to the existing code: er% = Set_DAQ_Device_Info(1, ND_DATA_XFER_MODE_AI,

ND_INTERRUPTS) set AI to use INTR

GeneralDAQEvent1.Board = 1 ‘assume Device 1

GeneralDAQEvent1.DAQEvent = 1 ‘event every N scans

GeneralDAQEvent1.DAQTrigVal0 = 1000 ‘set N=1000 scans

GeneralDAQEvent1.Enabled = True

5.

Next, start an asynchronous operation. Use the Traditional NI-DAQ

(Legacy) function

DAQ_Start

. Set up your program so it does a

DAQ_Start

on channel 0 when you click a button you have placed on your form. To do so, add the following code in the

Command1_Click()

subroutine as follows:

Redim buffer%(10000)

GeneralDAQEvent1.ChanStr = "AI0"

GeneralDAQEvent1.Refresh ‘refresh to set params er% = DAQ_Start(1, 0, 1, buffer%(0), 10000, 3, 10)

6.

Next, define what to do when the DAQ Event occurs. In this example, we can easily update a text box upon every 1,000 scans and also when the whole acquisition is complete. Place a text box on your form. It is automatically named Text 1.

© National Instruments Corporation

3-15

Traditional NI-DAQ (Legacy) User Manual

Chapter 3 Software Overview

7.

Go to the code window, pull down on the Object combo box, and select GeneralDAQEvent1. The only Proc for this control object is

Fire. Within the subroutine, enter the following code:

If (DoneFlag% <> 1) Then

Text1.Text = Str$(Scans&)+"scans have been acquired."

Else

Text1.Text = "Acquisition is complete!" er% = DAQ_Clear(1)

End If

8.

Make sure that you stop any ongoing acquisition when you stop the program. To do so, call the

DAQ_Clear

function before the

End statement in the subroutine

Command2_Click(_)

. Place another button on your form and label it

Exit

. The subroutine should have code as follows: er% = DAQ_Clear(1)

End

9.

Run the program. Because you are not going to display the data onto a graph, it does not matter what the data is; however, when you click the

Click Me! button, the text box should update its contents every second.

After all the scans are acquired, you should see the text box display a completion message. If you run into errors, refer to the Traditional

NI-DAQ (Legacy) C Reference Help for guidance.

10. Click the Exit button to stop the program.

Analog Input Function Group

The analog input function group contains two sets of functions—the

one-shot analog input functions, which perform single

A/D

conversions, and the data acquisition functions, which perform multiple clocked, buffered A/D functions. Within the analog input functions, single-channel analog input (

AI

) functions perform single A/D conversions on one channel. Within the data acquisition functions, there are high-level, low-level, and low-level double buffered functions.

If you are using SCXI analog input modules, you must use the SCXI functions first to program the SCXI hardware. Then you can use these functions to acquire the data using your DAQ device.

Traditional NI-DAQ (Legacy) User Manual

3-16 ni.com

Chapter 3 Software Overview

One-Shot Analog Input Functions

Single-Channel Analog Input Functions

Use the single-channel analog input functions on the MIO and AI devices.

Refer to the Traditional NI-DAQ (Legacy) C Reference Help to determine which functions your device supports.

AI_Check

Returns the status of the analog input circuitry and an analog input reading if one is available.

AI_Check

is intended for use when A/D conversions are initiated by external pulses applied at the appropriate pin; refer to

DAQ_Config

in the Traditional NI-DAQ (Legacy) C

Reference Help for information on enabling external conversions.

AI_Clear

AI_Change_Parameter

Clears the analog input circuitry and

empties the

FIFO

memory.

Selects a specific parameter setting for the analog input section or analog input channel. Use this to set the

coupling

for

AI channels.

AI_Configure

AI_Mux_Config

Informs Traditional NI-DAQ (Legacy) of the input mode (single-ended or differential), input range, and input polarity selected for the device. Use this function if you change the jumpers affecting the analog input configuration from their factory settings. For the

E Series devices which have no jumpers for analog input configuration, this function programs the device for the settings you want. For the E Series devices you can configure the input mode and polarity on a per channel basis. Also use

AI_Configure

to specify whether to drive AISENSE to onboard ground.

Configures the number of multiplexer

(AMUX-64T) devices connected to

© National Instruments Corporation

3-17

Traditional NI-DAQ (Legacy) User Manual

Chapter 3 Software Overview

AI_Read

AI_Read_Scan

AI_Read_VScan

AI_Setup

AI_VRead

AI_VScale an MIO and AI device and informs

Traditional NI-DAQ (Legacy) if any

AMUX-64T devices are attached to the system. This function applies only to the

MIO and AI devices.

Reads an analog input channel (initiates an A/D conversion on an analog input channel) and returns the unscaled result.

Returns readings for all analog input channels selected by

Scan_Setup

.

Returns readings in volts for analog input channels selected by

Scan_Setup

.

Selects the specified analog input channel and gain setting for externally pulsed conversion operations.

Reads an analog input channel (initiates an A/D conversion on an analog input channel) and returns the result scaled to a voltage in units of volts.

Converts the binary result from an

AI_Read

call to the actual input voltage.

Single-Channel Analog Input Application Tips

All of the Traditional NI-DAQ (Legacy) functions described in this section are for nonbuffered single-point analog input readings. For buffered data

acquisition, refer to the

Data Acquisition Functions

section.

Two of the

AI

functions are related to device configuration. If you have changed the device jumper settings from the factory-default settings or want to reprogram the E Series devices, call

AI_Configure

at the beginning of your application to inform Traditional NI-DAQ (Legacy) about the changes. Furthermore, if you have connected multiplexer devices

(AMUX-64T) to your MIO and AI devices, call

AI_Mux_Config

once at the beginning of your application to inform Traditional NI-DAQ (Legacy) about the multiplexer devices.

For most purposes,

AI_VRead

is the only function required to perform single-point analog input readings. Use

AI_Read

when unscaled data is sufficient or when extra time taken by

AI_VRead

to scale the data is

Traditional NI-DAQ (Legacy) User Manual

3-18 ni.com

Chapter 3 Software Overview

detrimental to your applications. Use

AI_VScale

to convert the binary

values to voltages at a later time if you want. Refer to Figure 3-1 for the

function flow typical of single-point data acquisition. Also, refer to the

NI-DAQ Examples Online Help ( nidaqex.hlp

) to find a related example.

When using SCXI as a front end for analog input to the MIO and AI devices, it is not advisable to use the

AI_VRead

function because that function does not take into account the gain of the SCXI module when scaling the data. Use the

AI_Read

function to obtain the unscaled data, then call the

SCXI_Scale

function using both the SCXI module gain and the DAQ device gain.

Change analog input default configuration.

AI_Configure

Add AMUX-64T configuration.

AI_Mux_Config

Yes

Retrieve an analog reading in terms of a binary value.

Binary reading?

AI_Read

No

Retrieve an analog reading in terms of voltage.

AI_VRead

Yes

Another reading?

No

© National Instruments Corporation

Figure 3-1. Single-Point Analog Reading with Onboard Conversion Timing

3-19

Traditional NI-DAQ (Legacy) User Manual

Chapter 3 Software Overview

When accurate sample timing is important, you can use external conversion pulses with

AI_Clear

,

AI_Setup

, and

AI_Check

to sample your signal

on the analog input channels. Refer to Figure 3-2 for the function flow

typical of single-point data acquisition using external conversion pulses.

However, this method works only if your computer is faster than the rate of

conversion pulses. Refer to the

Data Acquisition Functions

section to learn

more about interrupt and DMA-driven data acquisition by using high-speed data acquisition.

When you are using SCXI analog input modules, use the SCXI functions to set up the SCXI chassis and modules before using the

AI

functions

described in Figures 3-1 and 3-2.

Change analog input default configuration.

AI_Configure

Add AMUX-64T configuration.

AI_Mux_Config

Clean up onboard FIFO memory for new conversion.

AI_Clear

Select an analog input channel.

AI_Setup

Check for new data in

FIFO memory.

AI_Check

Yes

Another reading?

No

Figure 3-2. Single-Point Analog Reading with External Conversion Timing

Traditional NI-DAQ (Legacy) User Manual

3-20 ni.com

Chapter 3 Software Overview

Data Acquisition Functions

High-Level Data Acquisition Functions

These high-level data acquisition functions are synchronous calls that acquire data and return when data acquisition is complete.

Refer to the Traditional NI-DAQ (Legacy) C Reference Help to determine which functions your device supports.

DAQ_Op

Performs a synchronous, single-channel data acquisition operation.

DAQ_Op

does not return until Traditional NI-DAQ

(Legacy) has acquired all the data or an acquisition error has occurred.

DAQ_to_Disk

Performs a synchronous, single-channel data acquisition operation and saves the acquired data in a disk file.

DAQ_to_Disk

does not return until

Traditional (Legacy) NI-DAQ has acquired and saved all the data or an acquisition error has occurred.

Lab_ISCAN_Op

Lab_ISCAN_to_Disk

SCAN_Op

Performs a synchronous, multiple-channel scanned data acquisition operation.

Lab_ISCAN_Op does not return until Traditional NI-DAQ

(Legacy) has acquired all the data or an acquisition error has occurred.

Performs a synchronous, multiple-channel scanned data acquisition operation and simultaneously saves the acquired data in a disk file.

Lab_ISCAN_to_Disk

does not return until Traditional NI-DAQ (Legacy) has acquired all the data and saved all the data or an acquisition error has occurred.

Performs a synchronous, multiple-channel scanned data acquisition operation.

SCAN_Op

does not return until Traditional NI-DAQ (Legacy)

© National Instruments Corporation

3-21

Traditional NI-DAQ (Legacy) User Manual

Chapter 3 Software Overview

SCAN_to_Disk has acquired all the data or an acquisition error has occurred.

Performs a synchronous, multiple-channel scanned data acquisition operation and simultaneously saves the acquired data in a disk file.

SCAN_to_Disk

does not return until

Traditional NI-DAQ (Legacy) has acquired all the data and saved it or until an acquisition error has occurred.

Low-Level Data Acquisition Functions

These functions are low-level primitives used for setting up, starting, and monitoring asynchronous data acquisition operations.

Refer to the Traditional NI-DAQ (Legacy) C Reference Help to determine which functions your device supports.

DAQ_Check

Checks if the current data acquisition operation is complete and returns the status and the number of samples acquired to that point.

DAQ_Clear

DAQ_Config

DAQ_Monitor

Cancels the current data acquisition operation (both single-channel and multiple-channel scanned) and reinitializes the data acquisition circuitry.

Stores configuration information for subsequent data acquisition operations.

Returns data from an asynchronous data acquisition in progress. During a multiple-channel acquisition, you can call

DAQ_Monitor

to retrieve data from a single channel or from all channels being scanned. Using the oldest/newest mode, you can specify whether

DAQ_Monitor returns sequential (oldest) blocks of data, or the most recently acquired (newest) blocks of data.

Traditional NI-DAQ (Legacy) User Manual

3-22 ni.com

Chapter 3 Software Overview

DAQ_Rate

DAQ_Set_Clock

DAQ_Start

DAQ_StopTrigger_Config

DAQ_VScale

Lab_ISCAN_Check

Lab_ISCAN_Start

SCAN_Demux

Converts a data acquisition rate into the timebase and sample-interval values needed to produce the rate you want.

Sets the scan rate for a group of channels.

Initiates an asynchronous, single-channel data acquisition operation and stores its input in an array.

Enables the pretrigger mode of data acquisition and indicates the number of data points to acquire after you apply the stop trigger pulse at the appropriate

PFI pin.

Converts the values of an array of acquired binary data and the gain setting for that data to actual input voltages measured.

Checks if the current scan data acquisition operation begun by the

Lab_ISCAN_Start

function is complete and returns the status, the number of samples acquired to that point, and the scanning order of the channels in the data array.

Initiates a multiple-channel scanned data acquisition operation and stores its input in an array.

Rearranges, or demultiplexes, data acquired by a

SCAN

operation into row-major order (that is, each row of the array holding the data corresponds to a scanned channel) for easier access by

C applications.

SCAN_Demux

does not need to be called by BASIC applications to rearrange two-dimensional arrays because these arrays are accessed in column-major order.

© National Instruments Corporation

3-23

Traditional NI-DAQ (Legacy) User Manual

Chapter 3 Software Overview

SCAN_Sequence_Demux

SCAN_Sequence_Retrieve

SCAN_Sequence_Setup

SCAN_Setup

SCAN_Start

Rearranges the data produced by a multirate acquisition so that all the data from each channel is stored in adjacent elements of your buffer.

Returns the scan sequence created by

Traditional NI-DAQ (Legacy) as a result of a previous call to

SCAN_Sequence_Setup

.

Initializes the device for a multirate scanned data acquisition operation.

Initialization includes selecting the channels to be scanned, assigning gains to these channels, and assigning different sampling rates to each channel by dividing down the base scan rate.

Initializes circuitry for a scanned data acquisition operation. Initialization includes storing a table of the channel sequence and gain setting for each channel to be digitized.

Initiates a multiple-channel scanned data acquisition operation, with or without interval scanning, and stores its input in an array.

Low-Level Double-Buffered Data Acquisition

Functions

These functions are low-level primitives used for setting up and monitoring asynchronous double-buffered data acquisition operations.

Refer to the Traditional NI-DAQ (Legacy) C Reference Help to determine which functions your device supports.

DAQ_DB_Config

Enables or disables double-buffered data acquisition operations.

DAQ_DB_HalfReady

Checks if the next half buffer of data is available during a double-buffered data acquisition.

Traditional NI-DAQ (Legacy) User Manual

3-24 ni.com

Chapter 3 Software Overview

DAQ_DB_Transfer

Transfers half of the data from the buffer being used for double-buffered data acquisition to another buffer, which is passed to the function. This function waits until the data to be transferred is available before returning. You can execute

DAQ_DB_Transfer

repeatedly to return sequential half buffers of the data.

Data Acquisition Application Tips

LPM Device Counter/Timer Signals

For these devices, counter 0 produces the sample interval for data acquisition timing. If data acquisition is not in progress, you can call the

ICTR

functions to use counter 0 as a general-purpose counter. Because the

CLOCK0 input is connected to a 1 MHz oscillator, the timebase for counter 0 is fixed.

External Multiplexer Support (AMUX-64T)

You can expand the number of analog input signals measurable by the

MIO and AI devices with an external multiplexer device (AMUX-64T).

Refer to the AMUX-64T User Manual for more information on the external multiplexer device.

Basic Building Blocks

Most of the buffered data acquisition applications are made up of four

building blocks, as shown in Figure 3-3. However, depending on the

specific devices and applications you have, the Traditional NI-DAQ

(Legacy) functions comprising each building block vary. Typical applications can include the Traditional NI-DAQ (Legacy) functions in each of their four building blocks.

© National Instruments Corporation

3-25

Traditional NI-DAQ (Legacy) User Manual

Chapter 3 Software Overview

Configuration

Start

Checking

Cleaning up

Figure 3-3. Buffered Data Acquisition Basic Building Blocks

When using SCXI analog input modules, use the SCXI functions to set up the SCXI chassis and modules before using the

AI

,

DAQ

,

SCAN

, and

Lab_ISCAN

functions shown in the following flowcharts.

Building Block 1: Configuration

Five configuration functions are available for creating the first building

block, as shown in Figure 3-4. However, you do not have to call all five

functions every time you start a data acquisition.

Traditional NI-DAQ (Legacy) User Manual

3-26 ni.com

Chapter 3 Software Overview

Alter low-level board configuration such as analog input mode.

AI_Configure

Add AMUX-64T

Configuration.

AI_Mux_Config

Alter start trigger, external conversion, and external scan clock modes.

DAQ_Config

Alter pretrigger mode.

DAQ_StopTrigger_Config

Alter double-buffered mode.

DAQ_DB_Config

Figure 3-4. Buffered Data Acquisition Application Building Block 1, Configuration

Traditional NI-DAQ (Legacy) records the device configurations and the default configurations. Refer to the

Init_DA_Brds

description in the

Traditional NI-DAQ (Legacy) C Reference Help for device default configurations. Therefore, if you are satisfied with the default or the current configurations of your devices, your configuration building block will be empty, and you can go on to the next building block, Start.

Building Block 2: Start

Traditional NI-DAQ (Legacy) has high-level and low-level start functions.

The high-level start functions are as follows:

DAQ_Op

SCAN_Op

(MIO, AI, and DSA devices only)

Lab_ISCAN_Op

(LPM devices only)

DAQ_to_Disk

SCAN_to_Disk

(MIO, AI, and DSA devices only)

© National Instruments Corporation

3-27

Traditional NI-DAQ (Legacy) User Manual

Chapter 3 Software Overview

Lab_ISCAN_to_Disk

(LPM devices only)

A high-level start call initiates data acquisition but does not return to the function caller until the data acquisition is complete. For that reason, you do not need the next building block, Checking, when you use high-level start functions.

No

DAQ_Op

No

Streaming to disk?

Yes

Scan Multiple

Channels?

Yes

No

Scan Multiple

Channels?

Yes

No

Lab_ISCAN_Op

MIO, AI or

DSA Device?

Yes

DAQ_to_Disk

SCAN_Op

No

Lab_ISCAN_to_Disk

MIO, AI or

DSA Device?

Yes

SCAN_to_Disk

Figure 3-5. Buffered Data Acquisition Application Building Block 2, Start

The major advantage of the high-level start functions is that they are simple.

A single call can produce a buffer full or a disk full of data. However, if your application is acquiring data at a very slow rate or is acquiring a lot of data, the high-level start functions might tie up the computer for a significant amount of time. Therefore, Traditional NI-DAQ (Legacy) has some low-level (or asynchronous) start functions that initiate data acquisition and return to the calling program function caller immediately.

Traditional NI-DAQ (Legacy) User Manual

3-28 ni.com

Chapter 3 Software Overview

Asynchronous start functions include

DAQ_Start

,

SCAN_Start

, and

Lab_ISCAN_Start

. Figures 3-6 and 3-7 show how the start calls make

up building block 2 for different devices.

Convert sampling rate to sample timebase and sample interval.

DAQ_Rate

Yes

Select channels and their gain for multiple-channel scanning.

SCAN_Setup

Initiate multiple-channel data acquisition.

SCAN_Start

Sample multiple channels?

No

Initiate single-channel data acquisition.

DAQ_Start

Figure 3-6. Buffered Data Acquisition Application Building Block 2, Start, for the MIO, AI, and DSA Devices

For DSA devices, substitute

DAQ_Set_Clock

for

DAQ_Rate

in Figure 3-6.

DAQ_Rate

will not produce the correct clock settings for DSA devices.

If your device works with

multirate scanning

, you can use

SCAN_Sequence_Setup

instead of

SCAN_Setup

in building block 2.

© National Instruments Corporation

3-29

Traditional NI-DAQ (Legacy) User Manual

Chapter 3 Software Overview

Convert sampling rate to sample timebase and sample interval.

DAQ_Rate

Yes

Initiate multiple-channel data acquisition.

Lab_ISCAN_Start

Sample multiple channels?

No

Initiate single-channel data acquisition.

DAQ_Start

Figure 3-7. Buffered Data Acquisition Application Building Block 2, Start, for the LPM Devices

When you have the asynchronous start calls in your building block 2, the next building block, Checking, is very useful for determining the status of the ongoing data acquisition process.

Traditional NI-DAQ (Legacy) User Manual

3-30 ni.com

Chapter 3 Software Overview

Building Block 3: Checking

DAQ_Check

and

Lab_ISCAN_Check

, shown in Figures 3-8 and 3-9, are

simple and quick ways to check the ongoing data acquisition process. This call is often put in a while loop so that the application can periodically monitor the data acquisition process.

Check ongoing single or multiple-channel data acquisition status.

DAQ_Check

No

Data Acquisition complete?

Yes

Figure 3-8. Buffered Data Acquisition Application Building Block 3, Checking, for the MIO, AI, and DSA Devices

Yes

Check ongoing multiplechannel data acquisition status

Sample multiple channels?

Lab_ISCAN_Check

No

Check ongoing singlechannel data acquisition status

DAQ_Check

Figure 3-9. Buffered Data Acquisition Application Building Block 3, Checking, for the LPM Devices

However, if the information provided by

DAQ_Check

is not sufficient,

DAQ_Monitor

or the double-buffered functions might be a better choice.

With

DAQ_Monitor

, not only can you monitor the data acquisition

© National Instruments Corporation

3-31

Traditional NI-DAQ (Legacy) User Manual

Chapter 3 Software Overview

process, but you can also retrieve a portion of the acquired data. With the double-buffered functions, you can retrieve half of the data buffer at a time.

Double-buffered functions are very useful when your application has a real-time strip chart displaying the incoming data.

Building Block 4: Cleaning up

The purpose of this building block is to stop the data acquisition and free any system resources (such as DMA channels) used for the data acquisition.

DAQ_Clear

is the only function needed for this building block and is automatically called by the check functions described in the previous building block when the data acquisition is complete. Therefore, you can eliminate this last building block if your application continuously calls the previously described check functions until the data acquisition is complete.

Note

DAQ_Clear

does not alter the device configurations made by building block 1.

Double-Buffered Data Acquisition

The double-buffered (

DAQ_DB

) data acquisition functions return data from an ongoing data acquisition without interrupting the acquisition. These functions use a double or circular buffering scheme that permits half buffers of data to be retrieved and processed as the data becomes available.

By using a circular buffer, you can collect an unlimited amount of data without needing an unlimited amount of memory. Double-buffered data acquisition is useful for applications such as streaming data to disk and real-time data display.

Initiating double-buffered data acquisition requires some simple changes to the first and third basic building blocks, Configuration and Checking, respectively.

In building block 1, turn on double-buffered mode data acquisition through the

DAQ_DB_Config

call. After the double-buffered mode is enabled, all subsequent data acquisitions are in double-buffered mode.

In building block 3, different checking functions are needed. Figure 3-10

shows a simple way to monitor the data acquisition in progress and to retrieve data when they are available.

For further details on double-buffered data acquisition, refer to Chapter 4,

Traditional NI-DAQ (Legacy) Double Buffering

.

Traditional NI-DAQ (Legacy) User Manual

3-32 ni.com

Chapter 3 Software Overview

Check for next half buffer availability.

DAQ_DB_HalfReady

No

Next half buffer ready for transfer?

Yes

Retrieve half of the data in the data acquisition buffer.

DAQ_DB_Transfer

No

Data acquisition complete?

Yes

Figure 3-10. Double-Buffered Data Acquisition Application

Building Block 3, Checking

Multirate Scanning

Use multirate scanning to scan multiple channels at different scan rates and acquire the minimum amount of data necessary for your application.

This is particularly useful if you are scanning very fast and want to write your data to disk, or if you are acquiring large amounts of data and want to keep your buffer size to a minimum.

Multirate scanning works by scanning each channel at a rate that is a fraction of the specified scan rate. For example, if you want to scan four channels at 6,000, 4,000, 3,000, and 1,000 scans per second, specify a scan rate of 12,000 scans per second and a scan rate divisor vector of 2, 3, 4, and 12.

© National Instruments Corporation

3-33

Traditional NI-DAQ (Legacy) User Manual

Chapter 3 Software Overview

NI-DAQ includes three functions for multirate scanning:

SCAN_Sequence_Setup

SCAN_Sequence_Retrieve

SCAN_Sequence_Demux

Use

SCAN_Sequence_Setup

to identify the channels to scan, their gains, and their scan rate divisors. After the data is acquired, use

SCAN_Sequence_Retrieve

and

SCAN_Sequence_Demux

to arrange the data into a more convenient format.

Figure 3-11 shows how to use the multirate scanning functions in

conjunction with other Traditional NI-DAQ (Legacy) functions.

Traditional NI-DAQ (Legacy) User Manual

3-34 ni.com

Chapter 3 Software Overview

Convert sampling rate to sample timebase and sample interval; convert scan rate to scan timebase and scan interval.

DAQ_Rate

Select channels and their gains and scan rate divisors.

SCAN_Sequence_Setup

Allocate your buffer using the values returned by SCAN_Sequence_Setup in the scansPerSequence and

samplesPerSequence output variables.

Retrieve the scan sequence vector for use in the SCAN_Sequence_Demux function.

SCAN_Sequence_Retrieve

Initiate multiple-channel data acquisition.

SCAN_Start

Check ongoing data acquisition status.

DAQ_Check

© National Instruments Corporation

No

Data acquisition complete?

Yes

Rearrange the data in your data acquisition buffer so that all data from each channel is stored in adjacent elements of your buffer.

SCAN_Sequence_Demux

Add AMUX-64T configuration.

Figure 3-11. Multirate Scanning

3-35

Traditional NI-DAQ (Legacy) User Manual

Chapter 3 Software Overview

Analog Output Function Group

The Analog Output function group contains two sets of functions—the

Analog Output (

AO

) functions, which perform single

D/A

conversions, and

the Waveform (

WFM

) functions, which perform buffered D/A conversions.

Note

Use the SCXI functions described later in this chapter for the SCXI-1124 analog output module.

One-Shot Analog Output Functions

Use the Analog Output functions to perform single D/A conversions with analog output devices.

Refer to the Traditional NI-DAQ (Legacy) C Reference Help to determine which functions your device supports.

AO_Change_Parameter

Selects a specific parameter setting for the analog output section or analog output channel. These parameters might be data transfer conditions, filter settings, or similar device settings.

AO_Configure

Records the output range and polarity selected for each analog output channel by the jumper settings on the device and indicates the update mode of the DACs.

Use this function if you have changed the jumper settings affecting analog output range and polarity from their factory settings. Also use this function to change the analog output settings on devices without jumpers.

AO_Update

AO_VScale

Updates analog output channels on the specified device to new voltage values when the later internal update mode is enabled by a previous call to

AO_Configure

.

Scales a voltage to a binary value that, when written to one of the analog output channels, produces the specified voltage.

Traditional NI-DAQ (Legacy) User Manual

3-36 ni.com

Chapter 3 Software Overview

AO_VWrite

AO_Write

Accepts a floating-point voltage value, scales it to the proper binary number, and writes that number to an analog output channel to change the output voltage.

Writes a binary value to one of the analog output channels, changing the voltage produced at the channel.

Analog Output Application Tips

This section contains a basic explanation of how to construct an application using the analog output functions. The flowcharts are a quick reference for constructing potential applications from the Traditional NI-DAQ (Legacy) function calls.

For most purposes,

AO_VWrite

is the only function required to generate single analog voltages. It converts the floating-point voltage to binary and writes the value to the device.

AO_VWrite

is the equivalent of a call to

AO_VScale

followed by a call to

AO_Write

. Figure 3-12 illustrates the

equivalency.

Scale floating-point voltage to binary value.

AO_VScale

Output binary voltage to board.

AO_Write

Scale floating-point voltage to binary value and output binary voltage to board.

AO_VWrite

Figure 3-12. Equivalent Analog Output Calls

The following applications are shown using

AO_VWrite

. However, substituting the equivalent

AO_VScale

and

AO_Write

calls will not change the results.

© National Instruments Corporation

3-37

Traditional NI-DAQ (Legacy) User Manual

Chapter 3 Software Overview

Simple Analog Output Application

Figure 3-13 illustrates the basic series of calls for a simple analog output

application.

Account for any changes in the jumper settings. Enable external update pulses?

AO_Configure

Output voltage to board.

AO_VWrite

No

Done outputting data?

Yes

Figure 3-13. Simple Analog Output Application

The call to

AO_Configure

in Figure 3-13 must be made only if you have

changed the jumper settings of an MIO or AT-AO-6/10 device. You also might call

AO_Configure

to enable external updating of the voltage.

When you select external update mode, voltages written to the device are not output until you apply a pulse to pin 48 (EXTUPDATE*) on the

AT-AO-6/10 or to the selected pin on an E Series, 671X, or 673X device.

You can simultaneously change the voltages at all the analog output

channels. The final steps in Figure 3-13 form a simple loop. New voltages

are output until the data ends.

Analog Output with Software Update Application

Another application option is to enable later software updates. Like the external update mode, voltages written to the device are not immediately output. Instead, the device does not output the voltages until you call

AO_Update

. In later software update mode, the device changes voltages

simultaneously at all the channels. Figure 3-14 illustrates a modified

version of the flowchart in Figure 3-13.

Traditional NI-DAQ (Legacy) User Manual

3-38 ni.com

No

Chapter 3 Software Overview

Account for changes in the jumper settings. Enable software voltage update.

AO_Configure

Output voltage to board.

AO_VWrite

Wait until you are ready to output voltage.

Update?

Yes

Output voltage from board.

AO_Update

No

Done outputting data?

Yes

Figure 3-14. Analog Output with Software Updates

The first modification you make is to enable later internal updates when you call

AO_Configure

. The next change, which follows the

AO_VWrite

step, is the decision to wait or to output the voltage. If you want the voltage to be output, your application must call

AO_Update

to

write out the voltage. The rest of the flowchart is identical to Figure 3-13.

Note

Implement buffered analog output using the Waveform Generation (

WFM

) functions.

© National Instruments Corporation

3-39

Traditional NI-DAQ (Legacy) User Manual

Chapter 3 Software Overview

Waveform Generation Functions

Use the Waveform Generation (

WFM

) functions to perform buffered analog output operations with the MIO devices, 671X devices, 673X devices, and

AT-AO-6/10 devices.

Refer to the Traditional NI-DAQ (Legacy) C Reference Help to determine which functions your device supports.

High-Level Waveform Generation Functions

The following high-level Waveform Generation functions accomplish with a single call tasks that require several low-level calls to accomplish:

WFM_from_Disk

WFM_Op

Assigns a disk file to one or more analog output channels, selects the rate and the number of times the data in the file is to be generated, and starts the generation.

WFM_from_Disk

always waits for completion before returning, unless you call

Timeout_Config

.

Assigns a waveform buffer to one or more analog output channels, selects the rate and the number of times the data in the buffer is to be generated, and starts the generation. If the number of buffer generations is finite,

WFM_Op

waits for completion before returning, unless you call

Timeout_Config

.

Low-Level Waveform Generation Functions

Low-level Waveform Generation functions are for setting up, starting, and controlling synchronous waveform generation operations:

WFM_Chan_Control

WFM_Check

WFM_ClockRate

Temporarily halts or restarts waveform generation for a single analog output channel.

Returns status information concerning a waveform generation operation.

Sets an update rate and a delay rate for a group of analog output channels.

Traditional NI-DAQ (Legacy) User Manual

3-40 ni.com

WFM_DB_Config

WFM_DB_HalfReady

WFM_DB_Transfer

WFM_Group_Control

WFM_Group_Setup

WFM_Load

WFM_Rate

WFM_Scale

© National Instruments Corporation

3-41

Chapter 3 Software Overview

Enables and disables the double-buffered mode of waveform generation.

Checks if the next half buffer for one or more channels is available for new data during a double-buffered waveform generation operation. You can use

WFM_DB_HalfReady

to avoid the waiting period possible with the double-buffered transfer functions.

Transfers new data into one or more waveform buffers (selected in

WFM_Load

) as waveform generation is in progress.

WFM_DB_Transfer

waits until

Traditional NI-DAQ (Legacy) can transfer the data from the buffer to the waveform buffer.

Controls waveform generation for a group of analog output channels.

Assigns one or more analog output channels to a waveform generation group.

By default, all analog output channels for 671X, 673X, and MIO devices are in group 1.

Assigns a waveform buffer to one or more analog output channels and indicates the number of waveform cycles to generate.

For the 671X devices, 673X devices, and

E Series devices, this function also enables or disables FIFO mode waveform generation.

Converts a waveform generation update rate into the timebase and update-interval values needed to produce the rate you want.

Translates an array of floating-point values that represent voltages into an array of binary values that produce those voltages. The function uses the current

Traditional NI-DAQ (Legacy) User Manual

Chapter 3 Software Overview

WFM_Set_Clock analog output configuration settings to perform the conversions.

Sets an update rate for a group of channels.

Waveform Generation Application Tips

This section outlines a basic explanation of constructing an application with the Waveform Generation functions. The flowcharts are a quick reference for constructing potential applications from the Traditional

NI-DAQ (Legacy) function calls.

Basic Waveform Generation Applications

A basic waveform application outputs a series of voltages to an analog

output channel. Figure 3-15 illustrates the ordinary series of calls for a

basic waveform application.

The first step of Figure 3-15 calls

WFM_Scale

. The

WFM_Scale function converts floating-point voltages to integer values, thus producing the voltages (DAC values) you want.

You have two options available for starting a waveform generation.

The first option is to call the high-level function

WFM_Op

. The

WFM_Op function immediately begins the waveform generation after you call it.

If the number of

iterations

is nonzero,

WFM_Op

does not return until the waveform generation is done and all cleanup work is complete. Setting the iterations equal to 0 signals Traditional NI-DAQ (Legacy) to place the waveform generation in continuous double-buffered mode. In continuous double-buffered mode, waveform generation occurs in the background, and the

WFM_Op

function returns immediately to your application. Refer to the

Double-Buffered Waveform Generation Applications

section for more

information.

The second option to start a waveform generation is to call the following sequence of functions:

1.

WFM_Group_Setup

to assign one or more analog output channels to a group.

2.

WFM_Load

to assign a waveform buffer to one or more analog output channels.

3.

WFM_Rate

to convert a data output rate to a timebase and an update interval that generates the rate you want.

WFM_Rate

only supports some devices. Because it does not have a device number parameter,

Traditional NI-DAQ (Legacy) User Manual

3-42 ni.com

Chapter 3 Software Overview

it cannot return an error if you use it with a non-supported device.

Refer to the Traditional NI-DAQ (Legacy) C Reference Help for supported devices.

4.

WFM_ClockRate

or

WFM_Set_Clock

to set the update rate. Refer to the Traditional NI-DAQ (Legacy) C Reference Help to find out which function supports your device.

5.

WFM_Group_Control

(with operation =

START

) to start the waveform generation in the background and return to your application after the waveform generation has begun.

The next step in Figure 3-15 shows how the call to

WFM_Check

.

WFM_Check

retrieves the current status of the waveform generation. Your application uses this information to determine if the generation is complete or should be stopped.

The final step is to call

WFM_Group_Control

(operation =

CLEAR

).

The

CLEAR

operation performs all of the necessary cleanup work after a waveform generation. Additionally,

CLEAR

halts any ongoing waveform generation.

© National Instruments Corporation

3-43

Traditional NI-DAQ (Legacy) User Manual

Chapter 3 Software Overview

Convert floating-point voltages to binary values.

WFM_Scale

Assign channels to the waveform generation group.

WFM_Group_Setup

Load waveform buffer and specify iterations.

WFM_Load

Convert output rate to timebase and interval.

WFM_Rate

Set the update rate.

WFM_ClockRate

or

WFM_Set_Clock

Start background waveform generation.

WFM_Group_Control

(operation = START)

Load waveform buffer, specify iterations, and start waveform.

WFM_Op

Iterations > 0

If iterations > 0, the waveform generation is complete.

Yes

No

Yes

WFM_Check

Any more data to output?

No

Clear waveform.

WFM_Group_Control

(operation = CLEAR)

Traditional NI-DAQ (Legacy) User Manual

Figure 3-15. Basic Waveform Generation Application

3-44 ni.com

Chapter 3 Software Overview

Basic Waveform Generation with Pauses

The application skeleton described in this section is nearly identical to the basic waveform generation application skeleton. The difference is that the description in this section includes the pause and resume operations.

Figure 3-16 illustrates the ordinary series of calls for a basic waveform

application with pauses.

The first step of Figure 3-16 calls

WFM_Group_Setup

. The

WFM_Group_Setup

function assigns one or more analog output channels to a group.

The second step is to assign a buffer to the analog output channels using the calls

WFM_Scale

and

WFM_Load

. The

WFM_Scale

function converts floating-point voltages to integer values that produce the voltages you want.

The

WFM_Load

function assigns a waveform buffer to one or more analog output channels.

The next step is to assign an update rate to the group of channels using the calls

WFM_Rate

and

WFM_ClockRate

. The

WFM_Rate

function converts a data output rate to a timebase and an update interval that generates the rate you want. The

WFM_ClockRate

function assigns a timebase, update interval, and delay interval to a group of analog output channels.

Notice that there are restrictions for using the

WFM_ClockRate

function to specify delay rate. Refer to the

WFM_ClockRate

function description in the

Traditional NI-DAQ (Legacy) C Reference Help for further details.

Your application is now ready to start a waveform generation. Call

WFM_Group_Control

(operation =

START

) to start the waveform generation in the background.

WFM_Group_Control

will return to your application after the waveform generation begins.

The next step in Figure 3-16 is an application decision to pause the

waveform generation. The application uses a number of conditions for making this decision, including status information returned by

WFM_Check

.

Pause the waveform generation by calling

WFM_Group_Control

(operation =

PAUSE

).

PAUSE

stops the waveform generation and maintains the current waveform voltage at the channel output.

© National Instruments Corporation

3-45

Traditional NI-DAQ (Legacy) User Manual

Chapter 3 Software Overview

Resume the waveform generation by calling

WFM_Group_Control

(operation =

RESUME

).

RESUME

restarts the waveform generation at the data point where it was paused. The output rate and the data buffer are unchanged.

The final step is to call

WFM_Group_Control

(operation =

CLEAR

).

CLEAR performs all the necessary cleanup work after a waveform generation. Additionally,

CLEAR

halts any ongoing waveform generation.

Traditional NI-DAQ (Legacy) User Manual

3-46 ni.com

Chapter 3 Software Overview

Assign channels to waveform generation group.

WFM_Group_Setup

Convert floating-point voltages to binary values.

WFM_Scale

Load waveform buffer and specify iterations.

WFM_Load

Convert output rate to timebase and interval.

WFM_Rate

Set the update and delay rates.

WFM_ClockRate

Start background waveform generation.

WFM_Group_Control

(operation = RESUME)

Should you pause waveform generation?

Yes

Pause wave?

No

Start waveform generation where it was paused.

No

WFM_Group_Control

(operation = PAUSE)

Pause the waveform generator.

Resume waveform generation?

Resume wave?

WFM_Group_Control

(operation = RESUME)

Yes

Clear waveform.

WFM_Group_Control

(operation = CLEAR)

© National Instruments Corporation

Figure 3-16. Waveform Generation with Pauses

3-47

Traditional NI-DAQ (Legacy) User Manual

Chapter 3 Software Overview

Double-Buffered Waveform Generation Applications

You also can configure waveform generation as a double-buffered operation. Double-buffered operations can perform continuous waveform generation with a limited amount of memory. For an explanation of double

buffering, refer to Chapter 4,

Traditional NI-DAQ (Legacy) Double

Buffering

. Figure 3-17 outlines the basic steps for double-buffered

waveform applications.

First, enable double buffering by calling

WFM_DB_Config

as shown in the

first step of Figure 3-17.

Although every step is not in the diagram, you might also call

WFM_Rate and/or

WFM_Scale

as described in the basic waveform application outline.

There are two ways in which your application can start waveform generation. The first way is to call the high-level function

WFM_Op

.

The second way is to call the following sequence of functions—

WFM_Group_Setup

(only required on the AT-AO-6/10),

WFM_Load

,

WFM_ClockRate

, or

WFM_Set_Clock

,

WFM_Group_Control

(operation =

START

). The

WFM_Group_Setup

function assigns one or more analog output channels to a group. The

WFM_Load

function assigns a waveform buffer to one or more analog output channels.

This buffer is called a circular buffer. The

WFM_ClockRate

and

WFM_Set_Clock

functions assign an update rate to a group of analog output channels. Refer to the Traditional NI-DAQ (Legacy) C Reference

Help for the function that supports your device. Calling

WFM_Group_Control

(operation =

START

) starts the background waveform generation.

WFM_Group_Control

returns to your application after the waveform generation begins.

After the operation begins, you can perform unlimited transfers to the circular waveform buffer. To transfer data to the circular buffer, call the

WFM_DB_Transfer

function. After you call the function, Traditional

NI-DAQ (Legacy) waits until it is able to transfer the data before returning to the application. To avoid the waiting period, you can call

WFM_DB_HalfReady

to determine if the transfer can be made immediately. If

WFM_DB_HalfReady

indicates Traditional NI-DAQ

(Legacy) is not ready for a transfer, your application is free to do other processing and check the status later.

Traditional NI-DAQ (Legacy) User Manual

3-48 ni.com

Chapter 3 Software Overview

After the final transfer, you can call

WFM_Check

to get the current transfer progress. Remember, Traditional NI-DAQ (Legacy) requires some time after the final transfer to actually output the data.

The final step is to call

WFM_Group_Control

(operation =

CLEAR

).

The

CLEAR

operation performs all of the necessary cleanup work after a waveform generation. Additionally,

CLEAR

halts any ongoing waveform generation.

© National Instruments Corporation

3-49

Traditional NI-DAQ (Legacy) User Manual

Chapter 3 Software Overview

Traditional NI-DAQ (Legacy) User Manual

Enable double buffering.

WFM_DB_Config

Assign channels to waveform generation group.

WFM_Group_Setup

Load waveform buffer and specify iterations.

WFM_Load

Set the update rate.

FM_ClockRate

or

WFM_Set_Clock

Start background waveform generation.

WFM_Group_Control

(operation = START)

Check if the next half buffer is ready for data.

No

WFM_DB_HalfReady

Yes

Yes

Transfer the next half of the data to the waveform data buffer.

WFM_DB_Transfer

Do you want to transfer more data to the waveform buffer?

Transfer?

No

Any more data to output?

Yes

WFM_Check

No

Clear the waveform.

WFM_Group_Control

(operation = CLEAR)

Figure 3-17. Double-Buffered Waveform Generation

3-50 ni.com

Chapter 3 Software Overview

Reference Voltages for Analog Output Devices

Table 3-4 shows the output voltages produced when you select unipolar

output polarity.

All other MIO devices

Table 3-4. Output Voltages with Unipolar Output Polarity

Device

AT-MIO-16XE-10, PCI-MIO-16XE-10,

PCI-MIO-16XE-50, PCI-6031E

(MIO-64XE-10), 6052E devices

0

0 V

0 V

Value in Waveform Buffer

4,095

65,535

Reference voltage

Reference voltage —

Table 3-5 shows the output voltages produced when you select bipolar

output polarity.

Device

AT-MIO-16XE-10,

PCI-MIO-16XE-10,

PCI-MIO-16XE-50,

PCI-6031E

(MIO-64XE-10), PCI-6110,

PCI-6111, 6052E devices

All other MIO devices,

671X devices

Table 3-5. Output Voltages with Bipolar Output Polarity

–2,048

Value in Waveform Buffer

2,047

–32,768

Negative of the reference voltage

Reference voltage

AT-AO-6/10

673X devices

Negative of the reference voltage

Negative of the reference voltage

(–10 V in default case)

Reference voltage

(+10 V in default case)

Negative of the reference voltage

32,767

Reference voltage

Reference voltage

© National Instruments Corporation

3-51

Traditional NI-DAQ (Legacy) User Manual

Chapter 3 Software Overview

Note

NI PCI-4451and NI PCI-4551 devices use signed, 18-bit binary data left-justified in a 32-bit word. Their output voltage range is ±10 V.

Minimum Update Intervals

The rate at which a device can output analog data is limited by the performance of the host computer. For waveform generation, the limitation is in terms of minimum update intervals. The update interval is the period of time between outputting new voltages. Therefore, the minimum update interval specifies the smallest possible time delay between outputting new data points. In other words, the minimum update interval specifies the

fastest rate at which a device can output data. Refer to Chapter 4,

Traditional NI-DAQ (Legacy) Double Buffering

, for more information on

the minimum update intervals.

Counter Usage

NI PCI-4451 and NI PCI-4551 devices use the same counter for both waveform generation and analog input data acquisition. Refer to the

WFM_Set_Clock

function in the Traditional NI-DAQ (Legacy) C

Reference Help for an explanation of the restrictions this causes. This counter is separate from the general-purpose counters.

The MIO, 671X, 673X, and E Series devices use dedicated counters from the DAQ-STC chip for waveform-generation control and timing.

On the AT-AO-6/10, counter 0 produces the total update interval for group 1 waveform generation, and counter 1 produces the total update interval for group 2 waveform generation. However, if the total update interval is greater than 65,535 µs for either group 1 or 2, counter 2 is used by counter 0 (group 1) or counter 1 (group 2) to produce the total update interval. If either group is using counter 2 to produce the sample timebase, counter 2 is available to the other group only if the timebase is the same as the timebase required by the Waveform Generation functions to produce the total update interval. In this case, counter 2 produces the same timebase for both waveform generation groups.

FIFO Lag Effect on the MIO, E Series, NI 4451 for PCI,

NI 4551 for PCI, 671X, and 673X Devices

Group 1 analog output channels use an onboard FIFO to output data values to the DACs. Traditional NI-DAQ (Legacy) continuously writes values to the FIFO as long as the FIFO is not full. Traditional NI-DAQ (Legacy) transfers data values from the FIFO to the DACs at regular intervals using an onboard or external clock. You see a lag effect for group 1 channels

Traditional NI-DAQ (Legacy) User Manual

3-52 ni.com

Chapter 3 Software Overview

because of the FIFO buffering. That is, a value written to the FIFO is not output to the DAC until all of the data values currently in the FIFO have been output to the DACs. This time lag is dependent upon the update rate

(specified in

WFM_ClockRate

). Refer to your device user manual for a more detailed discussion of the onboard FIFO.

Three functions are affected by the FIFO lag effect—

WFM_Chan_Control

,

WFM_Check

, and double-buffered waveform generation.

WFM_Chan_Control

—When you execute operation =

PAUSE

for a group 1 channel, the effective pause does not occur until the FIFO has finished writing all of the data remaining in the FIFO for the specified channel. The same is true for the

RESUME

operation on a group 1 channel; Traditional NI-DAQ (Legacy) cannot place data for the specified channel into the FIFO until the FIFO is empty.

WFM_Check

—The values returned in pointsDone and itersDone indicate the number of points that Traditional NI-DAQ (Legacy) has written to the FIFO for the specified channel. A time lag occurs from the point when Traditional NI-DAQ (Legacy) writes the data to the

FIFO when Traditional NI-DAQ (Legacy) outputs the data to the DAC.

• When you use double-buffered waveform generation with group 1, make sure the total number of points for all of the group 1 channels

(specified in the count parameter in

WFM_Load

) is at least twice the size of the FIFO. Refer to your device user manual for information on the analog output FIFO size.

• For 61XX devices with onboard memory, data is transferred to the memory in blocks of 32 bytes. Therefore, when you use double-buffered waveform generation that does not end in a 32-byte sample boundary, the last few points will not be output.

With PCI E Series, 671X devices, and 673X devices in NI-DAQ 5.1 and later, you can reduce or even eliminate the FIFO lag effect by specifying the

FIFO condition Traditional NI-DAQ (Legacy) uses to determine when to put more data into the FIFO. Refer to the

AO_Change_Parameter function in Traditional NI-DAQ (Legacy) C Reference Help for details.

Externally Triggering Your Waveform Generation Operation

You can initiate a waveform generation operation from an external trigger signal in much the same manner as for analog input. Refer to the

Select_Signal

function in the Traditional NI-DAQ (Legacy) C

Reference Help.

© National Instruments Corporation

3-53

Traditional NI-DAQ (Legacy) User Manual

Chapter 3 Software Overview

Digital I/O Function Group

The Digital I/O function group contains three sets of functions—the Digital

I/O (

DIG

) functions, the Group Digital I/O (

DIG_Block

,

DIG_Grp

, and

DIG_SCAN

) functions, and the double-buffered Digital I/O (

DIG_DB

) functions. Refer to the NI-DAQ Functions Listed by Hardware Product section of the Traditional NI-DAQ (Legacy) C Reference Help to find out which digital functions your device supports. The SCXI functions control the SCXI digital and relay modules.

These devices contain a number of digital I/O ports of up to eight digital lines in width. The name port refers to a set of digital lines. Digital lines are also referred to as bits in this text. In many instances, you control the set of digital lines as a group for both reading and writing purposes and for configuration purposes. For example, you can configure the port as an input port or as an output port, which means that the set of digital lines making up the port consist of either all input lines or all output lines.

In NI-DAQ, you refer to ports by number. Many digital I/O devices label ports by letter. For these devices, use port number 0 for port A, port number 1 for port B, and so on. For example, the DIO-24 contains three ports of eight digital lines each. Ports 0, 1, and 2 are labeled PA, PB, and

PC on the DIO-24 I/O connector. The eight digital lines making up port 0, lines 0 through 7, are labeled PA0 through PA7.

In some cases, you can combine digital I/O ports into a larger entity called a group. On the 653X devices, for example, you can assign any of the ports DIOA through DIOD to one of two groups. On the PCI-6115,

PCI-6120, and 673X devices, you also can create groups smaller than the port size. For example, both the PCI-6115 and the PCI-6120 have one digital port of eight lines, but you can configure five lines as an input group and three lines as an output group. A group of ports are handshaked or clocked as a unit.

Traditional NI-DAQ (Legacy) User Manual

3-54 ni.com

Chapter 3 Software Overview

The digital I/O functions can write to and read from both an entire port and single digital lines within the port. To write to an entire port,

Traditional NI-DAQ (Legacy) writes a

byte

of data to the port in a specified digital output pattern. To read from a port, Traditional NI-DAQ (Legacy) returns a byte of data in a specified digital output pattern. The byte mapping to the digital I/O lines is as follows.

Table 3-6. Byte Mapping to Digital I/O Lines

Bit Number

7

6

5

2

1

4

3

0

Digital I/O Line Number

7 Most significant bit (

MSB

)

6

5

2

1

4

3

0 Least significant bit (LSB)

In the cases where a digital I/O port has fewer than eight lines, the most significant bits in the byte format are ignored.

You can configure most of the digital I/O ports as either input ports or output ports. On the 653X, DSA, 671X, 673X, and E Series devices

(except for ports 2, 3, and 4 on the AT-MIO-16DE-10), you can program lines on the same port independently as input or output lines. Some digital

I/O ports are permanently fixed as either input ports or output ports. If you configure a port as an input port, reading that port returns the value of the digital lines. In this case, external devices connected to and driving those lines determine the state of the digital lines.

If no external device is driving the lines, the lines float to some indeterminate state, and you can read them in either state 0 (digital logic low) or state 1 (digital logic high). If you configure a port as an output port, writing to the port sets each digital line in the port to a digital logic high or low, depending on the data written. In this case, these digital lines can drive an external device. Many of the digital I/O ports have read-back capability; if you configure the port as an output port, reading the port returns the output state of that port.

© National Instruments Corporation

3-55

Traditional NI-DAQ (Legacy) User Manual

Chapter 3 Software Overview

You can use digital I/O ports on the DIO-24, 6025E devices, DIO-96, 653X,

DIO-32F, 673X, PCI-6115, and PCI-6120 devices for handshaking and no-handshaking modes. These two modes have the following characteristics:

• No-handshaking mode—This mode changes the digital value at an output port when written to and returns a digital value from a digital input port when read from. No handshaking signals are generated.

• Handshaking mode—This mode is for digital I/O handshaking; that is, a digital input port latches the data present at the input when the port receives a handshake signal and generates a handshake pulse when the computer writes to a digital output port. In this mode, you can read the status of a port or a group of ports to determine whether an external device has accepted data written to an output port or has latched data into an input port. The handshaking mode for the PCI 6115, PCI-6120, and 673X devices is slightly different and is more appropriately called a clocking mode. In the clocking mode, no two-way handshaking signals are generated. Instead, data is latched in or latched out when a pulse from a clock signal is detected.

Note

On the 653X, PCI-6115, PCI-6120, and 673X devices, you must assign ports to a group before you can use handshaking mode.

Process control applications, such as controlling or monitoring relays, often use the no-handshaking mode. Communications applications, such as transferring data between two computers, often use the handshaking mode.

DIO-24, 6025E, AT-MIO-16DE-10, and DIO-96 Device Groups

You can group together any combination of ports 0, 1, 3, 4, 6, 7, 9, and 10 on the DIO-96, ports 0 and 1 on the DIO-24, and ports 2 and 3 on the 6025E devices and AT-MIO-16DE-10 to make up larger ports. For example, with the DIO-96 you can program ports 0, 3, 9, and 10 to make up a 32-bit handshaking port, or program all eight ports to make up a 64-bit handshaking port. Refer to

Digital I/O Application Tips

section and the

DIG_SCAN_Setup

function description of the Traditional NI-DAQ

(Legacy) C Reference Help for more details.

653X Device Groups

On the 653X devices, you can assign ports 0 through 3 (referring to ports

DIOA through DIOD) to one of two groups for handshaking. These groups are referred to as group 1 and group 2. Group 1 uses handshake lines

REQ

1

and

ACK

1. Group 2 uses handshake lines REQ2 and ACK2. The group

Traditional NI-DAQ (Legacy) User Manual

3-56 ni.com

Chapter 3 Software Overview

senses the REQ line. An active REQ signal is an indication that the group must perform a read or write. The group drives the ACK line. After the group has performed a read or write, it drives the ACK line to its active state. Refer to your device user manual for more information on the handshaking signals.

A group can be 8, 16, or 32 bits wide. An 8-bit group can be port 0, 1, 2, or 3. A 16-bit group can be ports 0 and 1 or ports 2 and 3. A 32-bit group is all four ports.

After you have assigned ports to a group, the group acts as a single entity controlling 8, 16, or 32 digital lines simultaneously. The group controls handshaking of that port. These ports are then read from or written to simultaneously by writing or reading 8 or 16 bits at one time from the group.

You can configure the groups for various handshake configurations. The configuration choices include a handshaking protocol, inverted or non-inverted ACK and REQ lines, and a programmed transfer settling time.

Note

Implement buffered digital I/O via the

DIG_Block

functions described in detail in the Traditional NI-DAQ (Legacy) C Reference Help.

PCI-6115, PCI-6120, and 673X Device Groups

On the PCI-6115, PCI-6120, and 673X devices, port 0 can be broken into two smaller groups. These groups are referred to as group 1 and group 2.

One group is configured as an input group and the other is configured as an output group.

Because these devices only have one digital port, a group can consist of any combination of digital lines 0–7. For example, group 1 can be configured as an input group containing lines 0–4 and group 2 as an output group containing lines 5–7. Alternatively, group 1 can be configured as an output group containing lines 1, 3, 5, and 7, and group 2 as an input group containing lines 0, 2, 4, and 6. A portion of the eight available lines can also be configured for group operations, with the remaining unused lines configured for immediate digital operations. However, both groups cannot be configured for input or output at the same time.

Although a group can consist of non-contiguous lines, there is no logical grouping of the lines, and an 8-bit value is still passed from the input function or returned from the output function. For example, if a group is configured for output with lines 0, 1, 2, and 4, and the group is to be written with all ones, the hex value of 0x17 is passed to the function instead of 0xF.

© National Instruments Corporation

3-57

Traditional NI-DAQ (Legacy) User Manual

Chapter 3 Software Overview

Group operations are buffered operations only, which means immediate digital operations are not possible with these devices using handshaking.

Because all group operations are buffered, there is no support for a status operation indicating when an input operation has been latched to or an output operation latched from the digital lines. Instead, group operations are done from a buffer. In the case of digital output operations, values are written to a buffer and latched onto the digital lines when the appropriate edge from a clock signal is detected. For digital input operations, values are latched from the digital lines to the buffer when the appropriate edge of the clock signal is detected. Either a rising edge or a falling edge of the clock signal can be specified for latching the values. The clock source can be a timing signal used internally or generated external to the board, and it must be routed to one of the RTSI lines.

Digital I/O Functions

The digital I/O (

DIG

) functions perform nonhandshaked digital line and port I/O.

Refer to the Traditional NI-DAQ (Legacy) C Reference Help to determine which functions your device supports.

DIG_In_Line

DIG_In_Prt

Returns the digital logic state of the specified digital input line in the specified port.

Returns digital input data from the specified digital I/O port.

DIG_Line_Config

DIG_Out_Line

DIG_Out_Prt

DIG_Prt_Config

DIG_Prt_Status

Configures the specified line on a specified port for direction (input or output).

Sets or clears the specified digital output line in the specified digital port.

Writes digital output data to the specified digital port.

Configures the specified port for direction

(input or output).

Returns a status word indicating the handshake status of the specified port.

Traditional NI-DAQ (Legacy) User Manual

3-58 ni.com

Chapter 3 Software Overview

Group Digital I/O Functions

The Group Digital I/O (

DIG_Block

,

DIG_Grp

, and

DIG_SCAN

) functions perform handshaked I/O on groups of ports.

Refer to the Traditional NI-DAQ (Legacy) C Reference Help to determine which functions your device supports.

DIG_Block_Check

Returns the number of items remaining to be transferred after a

DIG_Block_In

or

DIG_Block_Out

call.

DIG_Block_Clear

DIG_Block_In

DIG_Block_Out

DIG_Block_PG_Config

DIG_Grp_Config

Halts any ongoing asynchronous transfer, allowing another transfer to be initiated.

Initiates an asynchronous data transfer from the specified group to memory.

Initiates an asynchronous data transfer from memory to the specified group.

Enables or disables the pattern generation mode of buffered digital I/O.

Configures the specified group for port assignment, direction (input or output), and size.

DIG_Grp_Mode

DIG_Grp_Status

DIG_In_Grp

DIG_Out_Grp

DIG_SCAN_Setup

Configures the specified group for handshake signal modes.

Returns a status word indicating the handshake status of the specified group.

Reads digital input data from the specified digital group.

Writes digital output data to the specified digital group.

Configures the specified group for port assignment, direction (input or output), and size.

© National Instruments Corporation

3-59

Traditional NI-DAQ (Legacy) User Manual

Chapter 3 Software Overview

DIG_Trigger_Config

Enables or disables the trigger mode of buffered digital I/O to indicate when to start and stop the data acquisition.

Double-Buffered Digital I/O Functions

The double-buffered digital I/O (

DIG_DB

) functions perform double-buffered operations during Group Digital I/O operations.

Refer to the Traditional NI-DAQ (Legacy) C Reference Help to determine which functions your device supports.

DIG_DB_Config

Enables or disables double-buffered digital transfer operations and sets the double-buffered options.

DIG_DB_HalfReady

DIG_DB_Transfer

Checks whether the next half buffer of data is available during a double-buffered digital block operation. You can use

DIG_DB_HalfReady

to avoid the possible waiting period that can occur because

DIG_DB_Transfer

waits until the data can be transferred before returning.

For an input operation,

DIG_DB_Transfer

waits until

Traditional NI-DAQ (Legacy) can transfer half the data from the buffer being used for double-buffered digital block input to another buffer, which is passed to the function. For an output operation,

DIG_DB_Transfer

waits until Traditional NI-DAQ (Legacy) can transfer the data from the buffer passed to the function to the buffer being used for double-buffered digital block output. You can execute

DIG_DB_Transfer repeatedly to read or write sequential half buffers of data.

Traditional NI-DAQ (Legacy) User Manual

3-60 ni.com

Chapter 3 Software Overview

Digital Change Notification Functions

The Digital Change Notification functions provide messaging for lines and ports on the 652X devices. For other boards such as the DIO-24, the

Config_DAQ_Event_Message

function handles event messaging.

DIG_Change_Message_Config

Configures 652X devices to detect rising or falling edges on input lines and to notify you by generating a message.

DIG_Change_Message_Control

Controls the change notification operation of the digital input lines on

652X devices.

Digital Filtering Function

The Digital Filtering function provides signal conditioning to filter the inputs of 652X devices.

DIG_Filter_Config

Configures filtering for the input lines on

652X devices.

Digital Change Notification Applications with

652X Devices

Digital change notification applications automatically detect changes on input lines and notify you or your software by message. These applications may use digital filtering to eliminate signals that may trigger unwanted change notification. Digital filtering can be used alone to condition and debounce input data.

Figure 3-18 illustrates the series of calls needed for change notification on

the input data. Figure 3-19 illustrates the series of calls needed for filtering

the input data without change notification. Only 652X devices can execute change notification and filtering applications using these functions.

© National Instruments Corporation

3-61

Traditional NI-DAQ (Legacy) User Manual

Chapter 3 Software Overview

Digital Change Detection Applications with 653X Devices

For change detection on the 653X, refer to the

DIG_Block_PG_Config function in the function reference. For message generation on the 653X and many other devices, refer to the

Config_DAQ_Event_Message

function in the function reference.

Enable filtering?

DIG_Filter_Config

Configure Change Notification

DIG_Change_Message_Config

Start Change Notification

DIG_Change_Message_Control

Stop?

No

Yes

Stop Change Notification

DIG_Change_Message_Control

Figure 3-18. Basic Digital Change Notification

To configure change notification, call

DIG_Change_Message_Config

.

With

DIG_Change_Message_Config

, you can configure individual digital lines for rising, falling, or rising and falling edge detection. Call

DIG_Filter_Config

to enable filtering on some or all of the lines.

The next step is to start change detection messaging by calling the

DIG_Change_Message_Control

function with the start control code.

To stop change notification, call

DIG_Change_Message_Control

with the stop control code. These steps form the basis of a basic digital change notification application.

Traditional NI-DAQ (Legacy) User Manual

3-62 ni.com

Chapter 3 Software Overview

Enable filtering?

DIG_Filter_Config

(Optional on 652

X Devices)

Configure lines for input

DIG_Line_Config

Configure ports for input

DIG_Prt_Config

DIG_In_Line

DIG_In_Prt

No

Done?

Yes

Figure 3-19. Basic Digital Filtering of Input Data Application

The first step is to call

DIG_Filter_Config

, which enables filtering on the specified lines. Next, you can configure either the ports or the lines.

For the 652X devices, configuring the ports by calling

DIG_Prt_Config is optional, because the ports have fixed directions.

DIG_Line_Config is also optional because the lines within the ports have fixed directions.

The next step is to call

DIG_In_Port

to read data from an input port.

Call

DIG_In_Line

to read a bit from a line. The final step is to loop back if more data is to be read.

Digital I/O Application Tips

This section gives a basic explanation of how to construct an application using the digital input and output functions. The flowcharts are a quick reference for constructing potential applications from the Traditional

NI-DAQ (Legacy) function calls.

© National Instruments Corporation

3-63

Traditional NI-DAQ (Legacy) User Manual

Chapter 3 Software Overview

Handshaking Versus No-Handshaking Digital I/O

Digital ports can output or input digital data in two ways. The first is to immediately read or write data to or from the port. This type of digital I/O is called no-handshaking mode. The second method is to coordinate digital data transfers with another digital port. The second method is called digital

I/O with handshaking. With handshaking, you use dedicated transmission lines to ensure that data on the receiving end is not overwritten with new data before it is read from the input port.

Traditional NI-DAQ (Legacy) supports both handshaking and no-handshaking modes. The application outlines within this section explain the use of both modes where they apply.

Digital Port I/O Applications

Digital port I/O applications use individual digital ports to input or output digital data. In addition, the applications input or output data points on an individual basis.

You can configure individual port transfers for handshaking or no-handshaking. All AT devices with digital I/O ports can use no-handshaking digital port I/O. DIO-24, 6025E devices,

AT-MIO-16DE-10, and DIO-96 devices can also execute handshaking digital I/O for using the port I/O functions.

Figure 3-20 illustrates the series of calls for digital port I/O applications

with handshaking. Figure 3-21 illustrates the series of calls for digital port

I/O applications without handshaking.

Traditional NI-DAQ (Legacy) User Manual

3-64 ni.com

Chapter 3 Software Overview

Configure ports for input or output.

Enable optional handshaking?

DIG_Prt_Config

Check for port ready if handshaking is enabled.

Not Ready

DIG_Prt_Status

Input data from port.

DIG_In_Prt

Ready

Output data to port.

DIG_Out_Prt

No

Done?

Yes

Figure 3-20. Basic Port Input or Output Application with Handshaking

© National Instruments Corporation

3-65

Traditional NI-DAQ (Legacy) User Manual

Chapter 3 Software Overview

DIG_Prt_Config

Input data from port.

DIG_In_Prt

Output data to port.

DIG_Out_Prt

No

Done?

Yes

Figure 3-21. Basic Port Input or Output Application without Handshaking

The first step is to call

DIG_Prt_Config

, with which you configure the individual digital ports for input or output and enable handshaking.

If handshaking is disabled, do not check the port status. If handshaking is enabled, call

DIG_PRT_Status

to determine if an output port is ready to output a new data point, or if an input port has latched new data.

The third step is to input or output the data point. Call

DIG_In_Prt

to read data from an input port. Call

DIG_Out_Prt

to write data to an output port.

The final step is to loop back if more data is to be input or output. These four steps form the basis of a simple digital port I/O application.

Digital Line I/O Applications

Digital line I/O applications are similar to digital port I/O applications, except that digital line I/O applications input or output data on a bit-by-bit basis rather than by port. The digital line I/O can only transfer data in no-handshaking mode.

Traditional NI-DAQ (Legacy) User Manual

3-66 ni.com

Chapter 3 Software Overview

Figure 3-22 is a flowchart outlining the basic line I/O application.

Yes

TIO, DSA,

62XX, 652X,

PCI/PXI-6703/6704,

DIO 6533 (DIO-32HS), or E Series device?

No

Configure lines for input

DIG_Line_Config

Configure ports for input

DIG_Prt_Config

DIG_In_Line DIG_In_Prt

No

Done?

Yes

Figure 3-22. Basic Line Input or Output Application

First, configure the digital lines for input or output. You can program

653X devices, PCI-6703, PCI-6704, PXI-6703, PXI-6704, 671X, 673X, and E Series devices on an individual line basis. To do this, call

DIG_Line_Config

. You must configure all other devices on a port-by-port basis. As a result, you must configure all lines within a port for the same direction. Call

DIG_Prt_Config

to configure a port for input or output. For the 652X devices it is not necessary to configure a port or line since the line direction is preconfigured.

The next step is to call

DIG_In_Line

or

DIG_Out_Line

to output or input a bit from or to the line. The final step is to loop back until NI-DAQ has transferred all of the data.

© National Instruments Corporation

3-67

Traditional NI-DAQ (Legacy) User Manual

Chapter 3 Software Overview

Digital Group I/O Applications

Digital group I/O applications use one or more digital ports as a single group to input or output digital information, except for the PCI-6115,

PCI-6120, and 673X devices, which can create groups smaller than the port size for digital operations.

Figure 3-23 is a flowchart for group digital applications that handshake one

point at a time. Only the 653X devices can execute group input or output one point at a time.

Configure groups for input or output.

DIG_Grp_Config

After handshaking mode?

DIG_Grp_Mode

Check if group is ready for transfer.

Not Ready

DIG_Grp_Status

Input data from group.

DIG_In_Grp

Ready

Output data to group.

DIG_Out_Grp

No

Done?

Yes

Figure 3-23. Simple Digital Group Input or Output Application

Traditional NI-DAQ (Legacy) User Manual

3-68 ni.com

Chapter 3 Software Overview

At the start of your application, call

DIG_Grp_Config

to configure the individual digital ports as a group. After the ports are grouped, call

DIG_Grp_Mode

(second step of Figure 3-23) to alter the handshaking

mode of the 653X devices. The various handshaking modes and the default settings are explained in the

DIG_Grp_Mode

function description.

The next step in your application is to check if the port is ready for a transfer

(third step of Figure 3-23). To do this, call

DIG_Grp_Status

. If the group status indicates it is ready, call

DIG_Out_Grp

or

DIG_In_Grp

to transfer the data to or from the group.

The final step of the flowchart is to loop back until all of the data has been input or output.

Digital Group Block I/O Applications

Traditional NI-DAQ (Legacy) also contains group digital I/O functions,

which operate on blocks of data. Figure 3-24 outlines the basic steps for

applications that use block I/O.

© National Instruments Corporation

3-69

Traditional NI-DAQ (Legacy) User Manual

Chapter 3 Software Overview

Configure DIO-32F, DIO 6533 (DIO-32HS),

PCI-6115, PCI-6120, and 673 X device groups for input and output.

DIG_Scan_Setup

DIG_Grp_Config

Configure DIO-24, 6025E devices, AT-MIO-16DE-10, or DIO-96 for input or output.

Alter handshaking mode?

DIG_Grp_Mode

(DIO-32F and DIO 6533

Enable or disable pattern generation?

DIG_Block_PG_Config

Enable or disable start and stop triggers?

DIG_Trigger_Config

(DIO 6533 only)

Start block input.

DIG_Block_In

Start block output.

DIG_Block_Out

Any more data to input or output?

Yes

DIG_Block_Check

No Clear block operation if

DIG_Block_Check

did not.

DIG_Block_Clear

Figure 3-24. Digital Block Input or Output Application

Note

The 653X, DIO-24, 6025E devices, AT-MIO-16DE-10, and DIO-96 all can perform group block operations. However, the DIO-24, 6025E devices, AT-MIO-16DE-10, and

DIO-96 have special wiring requirements for groups larger than one port. The wiring for both the input and output cases for these devices is explained in the

DIG_SCAN_Setup function description. No additional wiring is necessary for the 653X devices.

Traditional NI-DAQ (Legacy) User Manual

3-70 ni.com

Chapter 3 Software Overview

The first step for a group block I/O application is to call

DIG_Grp_Config or

DIG_SCAN_Setup

to configure individual ports as a group. Call

DIG_Grp_Config

if you have a 653X, PCI-6115, PCI-6120, or 673X device. Call

DIG_SCAN_Setup

for all other devices. The DIO-32F is restricted to group sizes of two and four ports for block I/O.

If you are using a 653X device, you can alter the handshaking mode of the group by calling

DIG_Grp_Mode

. For the 653X, PCI-6115, PCI-6120, and

673X, you can perform digital pattern generation by calling

DIG_Block_PG_Config

, as shown in Figure 3-24. Pattern generation is

simply reading in or writing out digital data at a fixed rate. This is the digital equivalent of analog waveform generation. To enable pattern generation, call

DIG_Block_PG_Config

as shown in Figure 3-24. You cannot

handshake with pattern generation, so do not connect any handshaking

lines. Refer to the explanation of pattern generation in the

Pattern

Generation I/O with 653X, PCI-6115, PCI-6120, and 673X Devices

section for more information.

The next step for your application, as illustrated in Figure 3-25, is to call

DIG_Block_In

or

DIG_Block_Out

to start the data transfer.

After you start the operation, you can call

DIG_Block_Check

to get the current progress of the transfer. If the block operation completes prior to a

DIG_Block_Check

call,

DIG_Block_Check

automatically calls

DIG_Block_Clear

, which performs cleanup work.

The final step of a digital block operation is to call

DIG_Block_Clear

.

DIG_Block_Clear

performs the necessary cleanup work after a digital block operation. You must call this function explicitly if

DIG_Block_Check

did not already call

DIG_Block_Clear

.

Note

DIG_Block_Clear

halts any ongoing block operation. Therefore, call

DIG_Block_Clear

only if you are certain the block operation has completed or you want to stop the current operation.

© National Instruments Corporation

3-71

Traditional NI-DAQ (Legacy) User Manual

Chapter 3 Software Overview

Configure groups for input or output.

DIG_Grp_Config

Enable double buffering.

DIG_DB_Config

Start block input.

DIG_Block_In

Start block output.

DIG_Block_Out

No

Yes

Is Traditional NI-DAQ (Legacy) ready to transfer?

DIG_DB_HalfReady

Yes

Transfer next half of the data to or from the digital data buffer.

DAQ_DB_Transfer

Do you wish to transfer more data to or from the digital buffer?

Transfer?

No

Any more data to output?

(Output operations only).

Yes

DIG_Block_Check

No

Clear block operation if

DIG_Block_Check

DIG_Block_Clear

did not.

Traditional NI-DAQ (Legacy) User Manual

Figure 3-25. Double-Buffered Block Operation

3-72 ni.com

Chapter 3 Software Overview

The first step for an application is to call

DIG_Grp_Config

to configure individual ports as a group. Although the steps have been left out of the diagram, you can alter the handshaking mode and enable pattern generation

as shown in Figure 3-24, and explained in the

Digital Group Block I/O

Applications

section. Next, enable double buffering by calling

DIG_DB_Config

(second step of Figure 3-25). To start the digital block

input or output, call

DIG_Block_In

or

DIG_Block_Out

.

After the operation has started, you can perform unlimited transfers to or from the circular buffer. Input operations transfer new data from the digital buffer for storage or processing. Output operations transfer new data to the digital buffer for output.

To transfer to or from the circular buffer, call the

DIG_DB_Transfer function. After you call the function, Traditional NI-DAQ (Legacy) waits until it can transfer the data before returning to the application. To avoid the waiting period, call

DIG_DB_HalfReady

to determine if Traditional

NI-DAQ (Legacy) can make the transfer immediately. If

DIG_DB_HalfReady

indicates that Traditional NI-DAQ (Legacy) is not ready for a transfer, your application can do other processing and check the status later.

After the final transfer, you can call

DIG_Block_Check

to get the current progress of the transfer. For example, if you are using double-buffered output, Traditional NI-DAQ (Legacy) requires some time after the final transfer to actually output the data. In addition, if Traditional NI-DAQ

(Legacy) completes the block operation prior to a

DIG_Block_Check

call,

DIG_Block_Check

automatically calls

DIG_Block_Clear

to perform cleanup work.

The final step of a double-buffered block operation is to call

DIG_Block_Clear

, which performs the necessary cleanup work after a digital block operation. You must explicitly call this function if

DIG_Block_Check

did not already call it.

Note

DIG_Block_Clear

halts any ongoing block operation. Therefore, call

DIG_Block_Clear

only if you are certain the block operation is complete or if you want to stop the current operation.

© National Instruments Corporation

3-73

Traditional NI-DAQ (Legacy) User Manual

Chapter 3 Software Overview

Pattern Generation I/O with 653X, PCI-6115, PCI-6120, and 673X Devices

Use pattern generation for clocked digital I/O when you have a group that is written to or read from based on the output of a counter. The

DIG_Block_PG_Config

function enables the pattern generation mode of digital I/O. When pattern generation is enabled, a subsequent

DIG_Block_In

or

DIG_Block_Out

call automatically uses this mode.

Each group for the 653X devices has its own onboard counter so that each can simultaneously run in this mode at different rates. Use an external counter by connecting its output to the appropriate REQ pin at the I/O connector. For an input group, pattern generation is analogous to a data acquisition operation, but instead of reading analog input channels,

Traditional NI-DAQ (Legacy) reads the digital ports. For an output group, pattern generation is analogous to waveform generation, but instead of writing voltages to the analog output channels, Traditional NI-DAQ

(Legacy) writes digital patterns to the digital ports.

The 653X, PCI-6115, PCI-6120, and 673X, use DMA to service pattern generation. However, certain buffers require Traditional NI-DAQ (Legacy) to reprogram the DMA controller during the pattern generation. The extra time needed to reprogram increases the minimum request interval (thus decreasing the maximum rate unless you use dual DMA). Refer to

Chapter 4,

Traditional NI-DAQ (Legacy) Double Buffering

, for more

information.

Double-Buffered I/O

With the double-buffered (

DIG_DB

) digital I/O functions, you can input or output unlimited digital data without requiring unlimited memory.

Double-buffered digital I/O is useful for applications such as streaming data to disk and sending long data streams as output to external devices.

For an explanation of double-buffering, refer to Chapter 4,

Traditional

NI-DAQ (Legacy) Double Buffering

.

Digital double-buffered output operations have two options. The first option is to stop the digital block operation if old data is ever encountered.

This occurs if the

DIG_DB_Transfer

function calls are not keeping pace with the data input or output rate; that is, new data is not transferred to or from the circular buffer quickly enough. For digital input, this option prevents the loss of incoming data. For digital output, this option prevents erroneous data from being transferred to an external device. If the group is

Traditional NI-DAQ (Legacy) User Manual

3-74 ni.com

Chapter 3 Software Overview

configured for handshaking, an old data stop is only a pause and a call to one of the transfer functions resumes the digital operation. If the group is configured for pattern generation, an old data stop forces you to clear and restart the block operation.

The second option, available only to output groups, is the ability to transfer data that is less than half the circular buffer size to the circular buffer. This option is useful when long digital data streams are being output, but the size of the data stream is not evenly divisible by the size of half of the circular buffer. This option imposes the restriction that the double-buffered digital block output is halted when a partial block of data has been output. This means that the data from the first call to

DIG_DB_Transfer

with a count less than half the circular buffer size is the last data output by the device.

Notice, however, that enabling either of the double-buffered digital output options causes an artificial split in the digital block buffer, requiring DMA reprogramming at the end of each half buffer. For a group that is configured for handshaking, such a split means that a pause in data transfer can occur while Traditional NI-DAQ (Legacy) reprograms the DMA. For a group configured for pattern generation, this split can cause glitches in the digital input or output pattern (time lapses greater than the programmed period) during DMA reprogramming. Therefore, you should enable these options only if necessary. Both options can be enabled or disabled by the

DIG_DB_Config

function.

Note

EISA chaining is disabled if partial transfers of half buffers are enabled.

Counter/Timer Function Group

The Counter/Timer function group contains the General Purpose

Counter/Timer (

GPCTR

) functions. These functions perform a variety of timing I/O and counter operations such as event counting, period and frequency measurement, and single-pulse and pulse-train generation. Refer to your hardware user manual to find out which operations are supported by your device.

Counter/Timer Operation for the GPCTR Functions

Figure 3-26 shows the 16-bit counters available on DSA devices supported

by

GPCTR

functions.

© National Instruments Corporation

3-75

Traditional NI-DAQ (Legacy) User Manual

Chapter 3 Software Overview

SOURCE

Counter OUT

GATE

Figure 3-26. 16-bit Counter Block Diagram

Each counter has a SOURCE input, a GATE input, and an output labeled OUT. 24-bit and 32-bit counters also have an AUX/UP_DOWN

input, as shown in Figure 3-27.

SOURCE

GATE Counter

AUX/UP_DOWN

OUT

Figure 3-27. 24-bit and 32-bit Counter Block Diagram

When using a 24-bit or 32-bit counter for event counting, the input signals perform the following functions:

• SOURCE increments or decrements the counter.

• GATE is used to indicate when to start or stop counting intervals or when to save the counter contents in the save register.

• AUX/UP_DOWN controls the direction of the counting. When configured for hardware control of counting direction, the counter counts up when AUX/UP_DOWN is high, and it counts down when

AUX/UP_DOWN is low.

Traditional NI-DAQ (Legacy) User Manual

3-76 ni.com

Chapter 3 Software Overview

When using a counter for pulse generation, the input signals perform the following functions:

• The counter uses SOURCE as a timebase to generate the pulse.

• The user specifies the pulse parameters in terms of periods of the

SOURCE input.

• GATE can serve as a trigger signal to generate a pulse after the first active gate edge, or after each active gate edge.

The GATE input can operate in either buffered or non-buffered mode.

Buffered measurements are similar to their single measurement counterparts. However, multiple successive measurements are made. The result of each measurement is saved in the Hardware Save Register on each active edge of GATE. A buffered measurement generates a data stream.

This data stream is transferred to your computer via DMA or interrupts.

The maximum transfer rates for these buffered measurements are system dependent. Non-buffered measurements do not use a buffer. Unbuffered data appears on the OUT output on each active edge of GATE.

General-Purpose Counter/Timer Functions

Use the General-Purpose Counter/Timer (

GPCTR

) functions with the

E Series, 660X, 671X, 673X, and DSA devices. Refer to the

GPCTR functions in the Traditional NI-DAQ (Legacy) C Reference Help for a detailed description of how to use the

GPCTR

functions for a variety of applications.

GPCTR_Change_Parameter

GPCTR_Config_Buffer

GPCTR_Control

GPCTR_Read_Buffer

Customizes the counter operation to fit the requirements of your application by selecting a specific parameter setting.

Assigns the buffer that Traditional

NI-DAQ (Legacy) uses for a buffered counter operation.

Controls the operation of the

General-Purpose Counter/Timer.

Transfers data from the previously assigned buffer during an asynchronous counter operation.

© National Instruments Corporation

3-77

Traditional NI-DAQ (Legacy) User Manual

Chapter 3 Software Overview

GPCTR_Set_Application

GPCTR_Watch

Selects the application for which you use the General-Purpose Counter/Timer. The function description in the Traditional

NI-DAQ (Legacy) C Reference Help contains many application tips.

Monitors the state of the General-Purpose

Counter/Timer and its operation.

General-Purpose Counter/Timer Application Tips

The General-Purpose Counter/Timer (

GPCTR

) functions perform a variety of event counting, time measurement, and pulse and pulse-train generation operations, including buffered operations. When using the

GPCTR

functions, follow the generic program flow as shown in Figure 3-28.

Select Counter Application

Configure Buffer (if needed)

Change Counter Attributes

Program Counter (Arm)

Read Attributes or Buffer

Done?

Yes

No

Reset Counter

Figure 3-28. Generic Program Flow for All GPCTR Applications

To select the type of application you want to use, (for example simple event counting, buffered event counting, period measurement, and so on) call the

GPCTR_Set_Application

function with the appropriate application parameter. If the application is buffered, configure a buffer for use during the acquisition using the

GPCTR_Config_Buffer

function. Next, change some of the counter attributes, depending on your type of application by calling

GPCTR_Change_Parameter

. For example, set the counter source

Traditional NI-DAQ (Legacy) User Manual

3-78 ni.com

Chapter 3 Software Overview

to the internal 100 kHz timebase, set the initial value of the counter to 0, or set the output mode of the counter to pulse mode. Arm the counter with the settings you made by calling

GPCTR_Control

.

If you configure the counter to use a start trigger, the counter will not start counting until it receives the start trigger signal. Otherwise, the counter immediately begins counting. Check the status of the counters by using the

GPCTR_Watch

function. If you are doing a continuous buffered operation, read the buffer by calling

GPCTR_Read_Buffer

. When the operation has completed or you want to abort the operation, reset the counter by calling

GPCTR_Control

with appropriate control code.

For more about

GPCTR functions, refer to the

GPCTR_Set_Application function description in the Traditional NI-DAQ (Legacy) C Reference

Help.

Clocks or Time Counters

NI-TIO based devices have built-in clocks, which are specialized time counters that retrieve current time and timestamp one or more digital triggers. The number of clocks available depends on the number of NI-TIO chips on your device. Most devices have one clock per NI-TIO chip.

Like counters, clocks have gate signals that latch their current value, or time. They can latch a single time or multiple times in a buffer using interrupts or DMA. Unlike counters, clocks have additional hardware that eliminates drift by synchronizing the clocks to a PPS or IRIG-B stream.

Sample Use Cases

The following cases are examples of applications that can use clocks.

Use Case #1

The user records the time of n events with software timing precision.

A user wants to record the time of an external event—for example, when a key is pressed on a keyboard, when a data packet is received by a CAN controller, or when a temperature is read from an AI channel.

© National Instruments Corporation

3-79

Traditional NI-DAQ (Legacy) User Manual

Chapter 3 Software Overview

The software program flow is as follows:

1.

Initialize the clock for this application.

• Specify the synchronization signal type (none).

• Specify the initial DHMS value (the default value of DHMS is undefined).

2.

Read the clock value (days, hours, minutes, seconds) when the external event happens to determine the time of the event.

3.

At the end of the operation, free up any hardware and software resources. After powering up, the clock will run until the power to the TIO ASIC is turned off.

Use Case #2

The user records the time of a single event on two physically distributed data acquisition systems with hardware timing precision.

A user wants to record how a lightning strike at a power grid in city A travels to a grid station in city B. The lightning sensors in both cities produce a TTL pulse upon receiving the lightning bolt in city A.

Another user wants to correlate buffered analog input measurements across distributed data acquisition systems. He connects a GPS receiver to an

NI-TIO device on each system and connects the scan clock to the gate input of the clock. The first active edge on the scan clock on each system will record the global time that sample was taken. The user can use the sample rate on each system to calculate the absolute time each sample was taken, assuming sample rates remain constant throughout the experiment.

The software program flow is as follows:

1.

Initialize the clock for this application.

• Specify the synchronization signal source (PFI line, RTSI line).

• Specify the synchronization method.

– If source is PPS, read the current time from the GPS receiver via a serial port and set it as the initial DHMS value of the clock, or choose any arbitrary value. Initialization will take about 2 seconds.

– If source is IRIG-B, simply wait for 2 seconds after programming the hardware. The clock will automatically synchronize to the GPS signal.

Traditional NI-DAQ (Legacy) User Manual

3-80 ni.com

Chapter 3 Software Overview

• Specify gate signal source and polarity.

• Clock value automatically latches upon receiving the first pulse on its gate input.

2.

Poll the armed attribute of the clock until it is disarmed (when the external event happens). The clock is always armed in hardware, but the software abstraction of the clock will be unarmed after it latches the first point.

3.

Read the clock value (days, hours, minutes, seconds) to determine the time of the external event.

4.

At the end of the operation, free up any hardware and software resources. After powering up, the clock will run until the power to the TIO ASIC is turned off.

RTSI Bus Trigger Functions

The Real-Time System Integration (RTSI) Bus Trigger functions connect and disconnect signals over the RTSI bus trigger lines.

Refer to the Traditional NI-DAQ (Legacy) C Reference Help to determine which functions your device supports.

RTSI_Clear

Disconnects all RTSI bus trigger lines from signals on the specified device.

RTSI_Clock

RTSI_Conn

Connects or disconnects the system clock from the RTSI bus.

Connects a device signal to the specified

RTSI bus trigger line.

RTSI_DisConn

Select_Signal

Disconnects a device signal from the specified RTSI bus trigger line.

Connects or disconnects a device signal to a RTSI bus trigger line.

Refer to the Traditional NI-DAQ (Legacy) C Reference Help to determine if your device supports RTSI.

RTSI Bus

The RTSI bus is implemented via a 34-pin ribbon cable connector on the AT, PCI E Series, PCI-DSA, 671X, and 673X devices. On PXI DAQ and DSA devices, the RTSI bus is implemented using PXI trigger bus lines.

© National Instruments Corporation

3-81

Traditional NI-DAQ (Legacy) User Manual

Chapter 3 Software Overview

On E Series DAQ devices for FireWire, the RTSI bus is implemented with

a 15-pin mini-

DSUB

connector. The RTSI bus has a 7-wire trigger bus.

Each device that works with a RTSI bus interface contains a number of useful signals that can be driven onto, or received from, the trigger lines.

Each device is equipped with a switch with which an onboard signal is connected to any one of the RTSI bus trigger lines through software control. By programming one device to drive a particular trigger line and another device to receive from the same trigger line, you can hardware connect the two devices. Use the RTSI Bus Trigger functions described in this chapter for this type of programmable signal interconnection between devices.

Through the RTSI bus, you can trigger one device from another device, share clocks and signals between devices, and synchronize devices to the same signals. The RTSI bus also can connect signals on a single device.

To specify the signals on each device that you can connect to the RTSI bus trigger lines, each device signal is assigned a signal code number. Make all references to that signal by using the signal code number in the RTSI bus trigger function calls. The signal codes for each device that can use the

RTSI bus trigger lines are outlined later in this section.

Each signal listed in this chapter also has a signal direction. If a signal is listed with a source direction, that signal can drive the trigger lines. If a signal is listed with a receiver direction, that signal must be received from the trigger lines. A bidirectional signal direction means that the signal can act as either a source or a receiver, depending on the application.

E Series, DSA, 660X, 671X, and 673X RTSI Connections

For information regarding signals on the E Series, DSA, 660X, 671X, and

673X devices that you can connect to the RTSI bus, refer to the

Select_Signal

function description in the Traditional NI-DAQ (Legacy)

C Reference Help.

Note

If you have a PXI-DSA board in slot 2 (star trigger controller slot), do not drive any signals on RTSI 6 from other modules in the chassis. You can use other RTSI lines.

The signals EXTUPDATE* and EXTUPD* externally update selected

DACs. The EXTUPDATE* signal is shared with the I/O connector. For more information about the AT-AO-6/10 signals, refer to your device user manual.

Traditional NI-DAQ (Legacy) User Manual

3-82 ni.com

Chapter 3 Software Overview

653X RTSI Connections

The 653X devices (except for the DAQCard-653X) contain eight signals

that you can connect to the RTSI bus trigger lines. Table 3-7 shows these

signals.

Signal Name

REQ1

REQ2

ACK1

ACK2

STOPTRIG1

STOPTRIG2

PCLK1

PCLK2

The direction of each signal depends on the function you are performing.

Some signals have a different direction when you enable pattern generation using

DIG_Block_PG_Config

than when you leave pattern generation disabled. Make sure that you do not configure a signal as a RTSI receiver when you use that signal as a device output. For example, do not configure the 653X device to receive the REQ1 line from the RTSI bus if you are using internal requests, or if you have made an external connection that drives the REQ1 pin on the I/O connector.

Signal Direction

(Pattern Direction)

Receiver (external requests) or source

(internal requests)

Receiver (external requests) or source

(internal requests)

Receiver

(STARTTRIG1)

Receiver

(STARTTRIG2)

Receiver

Receiver

Unused

Unused

Table 3-7. 653X RTSI Bus Signals

Signal Direction

(Handshaking,

No Pattern Generation)

Receiver

Receiver

Source

Source

Unused

Unused

Source (internal clock) or receiver (external clock)

Source (internal clock) or receiver (external clock)

Signal Direction

(No Handshaking)

Receiver

Receiver

Source

Source

Receiver

Receiver

Source

Source

Signal Code

0

1

2

3

4

5

6

7

REQ1 and REQ2 are request signals generated internally or received from the I/O connector. ACK1 and ACK2 are acknowledge signals used for handshaking mode; in pattern-generation mode, they can carry start trigger signals instead. PCLK1 and PCLK2 are the peripheral clock lines for burst mode. STOPTRIG1 and STOPTRIG2 are used for data acquisition timing.

For more information about the 653X signals, refer to the DIO 653X User

© National Instruments Corporation

3-83

Traditional NI-DAQ (Legacy) User Manual

Chapter 3 Software Overview

Manual. Find additional explanations of the ACK1, ACK2, STOPTRIG1, and STOPTRIG2 signals in the

DIG_Trigger_Config

function in the

Traditional NI-DAQ (Legacy) C Reference Help.

RTSI Bus Application Tips

This section gives a basic explanation of how to construct an application that uses RTSI bus Traditional NI-DAQ (Legacy) functions. Use the flowcharts as a quick reference for constructing potential applications from the Traditional NI-DAQ (Legacy) function calls.

An application that uses the RTSI bus has three basic steps:

1.

Connect the signals from the device to the RTSI bus.

2.

Execute the work of the application.

3.

Disconnect the signals from the RTSI bus. Figure 3-29 illustrates

the normal order of RTSI function calls.

Connect clock signals on RTSI bus?

RTSI_Clock

Connect each device signal to a specified

RTSI bus trigger line. A completed signal path requires two RTSI_Conn calls.

RTSI_Conn

Disconnect device signal from RTSI bus.

RTSI_DisConn

Disconnect clock signal from RTSI bus.

RTSI_Clock

Disconnect all device and clock signals from RTSI bus.

RTSI_Clear

Traditional NI-DAQ (Legacy) User Manual

Figure 3-29. Basic RTSI Application Calls

3-84 ni.com

Chapter 3 Software Overview

Call

RTSI_Clock/RTSI_Conn

to connect the signals. Each completed signal path requires

RTSI_Conn

calls. The first call specifies the device signal to transmit onto a RTSI bus trigger line. The second call specifies the device signal that receives a RTSI bus trigger line. After the signals are connected, you are ready to do the actual work of your application.

After you finish with the RTSI bus, disconnect the device from the bus.

To do this, call

RTSI_DisConn/RTSI_Clock

for each connection made.

Alternatively, call

RTSI_Clear

to sever all connections from your device to the RTSI bus.

SCXI Functions

Refer to the Traditional NI-DAQ (Legacy) C Reference Help to determine which functions your device supports.

SCXI_AO_Write

Sets the DAC channel on the SCXI-1124 module to the specified voltage or current output value. You also can use this function to write a binary value directly to the DAC channel, or to translate a voltage or current value to the corresponding binary value.

SCXI_Cal_Constants

SCXI_Calibrate

Calculates calibration constants for the particular channel and range or gain using measured voltage/binary pairs. You can use this function with any SCXI analog input or analog output module. The constants can be stored and retrieved from Traditional NI-DAQ (Legacy) memory or the module EEPROM (if your module has an EEPROM). The driver uses the calibration constants to scale analog input data more accurately when you use the

SCXI_Scale

function and output data when you use

SCXI_AO_Write

.

Provides a single call calibration for the

SCXI-1112, SCXI-1125, SCXI-1520, and SCXI-1540 modules. With the

SCXI-1112 and SCXI-1125, calling this function calibrates individual channels.

© National Instruments Corporation

3-85

Traditional NI-DAQ (Legacy) User Manual

Chapter 3 Software Overview

SCXI_Calibrate_Setup

SCXI_Change_Chan

SCXI_Get_Chassis_Info

SCXI_Get_Module_Info

However, with the SCXI-1540, calling this function calibrates every channel.

You also use this function to update the actual onboard reference voltage value on the SCXI-1125 EEPROM and to copy calibration constants to the module’s default EEPROM load area from another

EEPROM area or from Traditional

NI-DAQ (Legacy) memory.

Grounds the amplifier inputs of an

SCXI-1100, SCXI-1101, SCXI-1122, or

SCXI-1141, SCXI-1142, or SCXI-1143 so that you can determine the amplifier offset. You also can use this function to switch a shunt resistor across your bridge circuit to test the circuit. This function supports shunt calibration for the

SCXI-1122 module or the SCXI-1121 module with the SCXI-1321 terminal block. It also supports shunt calibration for the SCXI-1520 module with the

SCXI-1314 terminal block.

Selects a new channel of a multiplexed module that has previously been set up for a single-channel operation using the

SCXI_Single_Chan_Setup

function.

SCXI_Configure_Connection

Sets the connection type parameter to a specified type on a given channel or all channels on the SCXI-1520 and

SCXI-1540 modules. This function also allows programmatic control of external synchronization.

SCXI_Configure_Filter

Sets the specified channel to the assigned filter setting on any SCXI module with programmable filter settings.

Returns chassis configuration information.

Returns configuration information for the assigned SCXI chassis slot number.

Traditional NI-DAQ (Legacy) User Manual

3-86 ni.com

SCXI_Get_State

SCXI_Get_Status

SCXI_Load_Config

SCXI_ModuleID_Read

SCXI_MuxCtr_Setup

Chapter 3 Software Overview

Gets the state of a single channel or an entire port on any digital or relay module.

Reads the data in the status register on the specified module. You can use this function with the SCXI-1160 or

SCXI-1122 to determine if the relays have finished switching, with the

SCXI-1124 to determine if the DACs have settled, with the SCXI-1126 to determine if the module has settled after changing any of its programmable functions (ranges, filter settings, threshold, or hysteresis), or with the

SCXI-1102/B/C to determine if the module has settled after changing gains.

Loads the SCXI chassis configuration information that you established in MAX.

Sets the software states of the chassis and modules present to their default states. No changes are made to the hardware states of the SCXI chassis or modules.

Reads the Module ID register of the SCXI module in a given slot.

The principal difference between this function and

SCXI_Get_Module_Info

is that

SCXI_ModuleID_Read

does a hardware read of the module. You can use this function to verify that your SCXI system is configured and communicating properly.

Enables or disables a DAQ device counter to be used as a multiplexer counter during

SCXI channel scanning to synchronize the scan list with the module scan list that

Traditional NI-DAQ (Legacy) has downloaded to Slot 0 of the SCXI chassis.

© National Instruments Corporation

3-87

Traditional NI-DAQ (Legacy) User Manual

Chapter 3 Software Overview

SCXI_Reset

SCXI_Scale

SCXI_SCAN_Setup

SCXI_Set_Config

SCXI_Set_Excitation

SCXI_Set_Gain

SCXI_Set_Input_Mode

SCXI_Set_State

Resets the specified module to its default state. You also can use

SCXI_Reset

to reset the Slot 0 scanning circuitry or to reset the entire chassis.

Scales an array of binary data acquired from an SCXI channel to voltage.

Sets up the SCXI chassis for a multiplexed scanning data acquisition operation that the assigned DAQ device will perform. The function downloads a module scan list to Slot 0 that determines the sequence of scanned modules and how many channels on each module are scanned. This function can program each module with its given start channel, as well as resolve any contention on the SCXIbus.

Changes the configuration of the

SCXI chassis that you established in

MAX. Sets the software states of the chassis and modules specified to their default states. Does not change the SCXI chassis or module hardware states.

Sets a specified excitation parameter to a supplied value on a given channel or all channels on the SCXI-1520, SCXI-1530,

SCXI-1531, and SCXI-1540 modules.

Sets the specified channel to the given gain or range setting on any SCXI module that works with programmable gain or range settings.

Configures the SCXI-1122 for differential mode or 4-wire mode.

Sets the state of a single channel or an entire port on any digital or relay module.

Traditional NI-DAQ (Legacy) User Manual

3-88 ni.com

Chapter 3 Software Overview

SCXI_Set_Threshold

SCXI_Single_Chan_Setup

SCXI_Strain_Null

Used to set the high and low threshold values for the SCXI-1126 frequency-to-voltage module.

Sets up a multiplexed module for a single-channel analog-input operation to be performed by the given DAQ device.

Sets the module channel, enables the module output, and routes the module output on the SCXIbus, if necessary.

Resolves any contention on the SCXIbus by disabling the output of any module that was previously driving the SCXIbus. You also can use this function to set up to read the temperature sensor on a terminal block connected to the front connector of the module.

Nulls the offset in the specified strain gage on an SCXI-1520 strain gage module by adjusting the internal potentiometers.

SCXI_Track_Hold_Control

Controls the track-and-hold modules track/hold state that you set up for a single-channel operation.

SCXI_Track_Hold_Setup

Establishes the track/hold behavior of a track-and-hold module and sets up the module for either a single-channel or an interval-scanning operation.

© National Instruments Corporation

3-89

Traditional NI-DAQ (Legacy) User Manual

Chapter 3 Software Overview

SCXI Application Tips

There are three categories of SCXI applications—analog input applications, analog output applications, and digital applications.

Figure 3-30 shows the basic structure of an SCXI application.

Load SCXI configuration that was entered in the

MAX and initialize software defaults.

SCXI_Load_Config

Reset the chassis and modules to their default hardware settings.

SCXI_Reset

Analog Input Operations Analog Output Operations Digital Operations

No

Done?

Yes Reset the chassis and modules to their default hardware settings.

SCXI_Reset

Figure 3-30. General SCXIbus Application

The figures in the following sections show the detailed call sequences for different types of SCXI operations. In effect, each of the remaining flowcharts in this section is an enlargement of the Analog Input Operations, the Analog Output Operations, or the Digital Operations node in

Figure 3-30. Refer to the function descriptions in the Traditional NI-DAQ

(Legacy) C Reference Help for detailed information about each function used in the flowcharts.

Traditional NI-DAQ (Legacy) User Manual

3-90 ni.com

Chapter 3 Software Overview

You can divide the SCXI analog input applications further into two categories—single-channel applications and channel-scanning applications. The distinction between the two categories is simple— single-channel applications do not involve automatic channel switching by the hardware during an analog input process; channel-scanning applications do.

After you have set up the SCXI system, single-channel applications use the

AI

or the

DAQ

class of functions described earlier in this chapter to acquire the input data. To acquire data from more than one channel, you need multiple

AI

or

DAQ

function calls, and you might need explicit SCXI function calls to change the selected SCXI channel. This specific type of single-channel application is called software scanning.

After you have set up the SCXI system, channel-scanning applications use the

SCAN

and

Lab_ISCAN

classes of functions described earlier in this chapter to acquire the input data.

Building Analog Input Applications in

Multiplexed Mode

Multiplexed applications require the use of SCXI functions to select the multiplexed channels, select the programmable module features, route signals on the SCXIbus, and program Slot 0. After you have set up the SCXI chassis and modules, you can use the

AI

,

DAQ

,

SCAN

, and

Lab_ISCAN

functions to acquire the data either with a plug-in DAQ device.

The channel parameter that is passed to each of these functions is almost always 0 because the multiplexed output of a module is connected by default to analog input channel 0 of the DAQ device. If you are using a

PXI DAQ device with an internal connection to the PXI-1010 or PXI-1011

SCXIbus, then

ND_PXI_SC

is the channel parameter. When you use multiple chassis, the modules in each chassis are multiplexed to a separate analog input channel. In that case, the channel parameters of the

AI

,

DAQ

,

SCAN

, and

Lab_ISCAN

functions should be the DAQ device channel that corresponds to the chassis you want for the operation.

© National Instruments Corporation

3-91

Traditional NI-DAQ (Legacy) User Manual

Chapter 3 Software Overview

Figure 3-31 shows the function call sequence of a single-channel or

software-scanning application using an SCXI-1100, SCXI-1101,

SCXI-1102/B/C, SCXI-1104/C, SCXI-1112, SCXI-1120/D, SCXI-1121,

SCXI-1122, SCXI-1125, SCXI-1126, SCXI-1141, SCXI-1142,

SCXI-1143, SCXI-1520, SCXI-1530, SCXI-1531, or SCXI-1540 module operating in multiplexed mode.

Set up the chassis for a single-channel analog input operation on a specified channel on a specified module.

SCXI_Single_Chan_Setup

If the desired module has programmable gain and the current module gain setting is not desirable, change to the desired gain.

SCXI_Set_Gain

Single Analog Input

Acquire data from the desired channel on the module using the AI functions or the DAQ functions.

Single-Channel Data Acquisition

If desired,change the selected channel on the module.

SCXI_Change_Chan

No

Done?

Have you acquired all the data you need from this module?

Yes

Figure 3-31. Single-Channel or Software-Scanning Operation in Multiplexed Mode

The

SCXI_Single_Chan_Setup

function selects the given channel to appear at the module output. If the given module is not directly cabled to the DAQ device, the function sends the module output on the SCXIbus, and then configures the module that is cabled to the DAQ device to send the signal present on the SCXIbus to the DAQ device.

Traditional NI-DAQ (Legacy) User Manual

3-92 ni.com

Chapter 3 Software Overview

The

SCXI_Set_Gain

function changes the gain or range of the

SCXI-1100, SCXI-1102/B/C, SCXI-1122, SCXI-1125, SCXI-1126,

SCXI-1141, SCXI-1142, SCXI-1143, SCXI-1520, SCXI-1530,

SCXI-1531, or SCXI-1540 module. The module maintains this gain or range setting until you call the function again to change it. You also can do any other module-specific programming at this point, such as

SCXI_Configure_Filter

or

SCXI_Set_Input_Mode

.

To achieve software scanning, select a different channel on the module using the

SCXI_Change_Chan

function after acquiring data from the channel you want with the AI or DAQ functions. If you want a channel on a different module, call the

SCXI_Single_Chan_Setup

function again to enable the appropriate module outputs and manage the SCXIbus signal routing.

Figure 3-32 shows the function call sequence of a single channel or

software-scanning application using a Simultaneous Sample and Hold

(SSH) module in multiplexed mode.

© National Instruments Corporation

3-93

Traditional NI-DAQ (Legacy) User Manual

Chapter 3 Software Overview

Configure the desired module for a single-channel operation.

SCXI_Track_Hold_Setup

Set up the chassis for a single-channel analog input operation on a specified channel on a specified module.

SCXI_Single_Chan_Setup

Latch the analog inputs by putting the module into Hold mode.

SCXI_Track_Hold_Control

Acquire data from the desired channel on the module using the AI functions.

Single Analog Input

SCXI_Change_Chan SCXI_Change_Chan

If desired, change the selected channel on the module.

Do you wish to take more data while the module is in

Hold mode?

If desired, change the selected channel on the module.

Maintain

Hold mode?

Yes

No Put the module back into Track mode to sense the new input values.

SCXI_Track_Hold_Setup

Have you acquired all the data you need from this module?

No

Done?

Yes

Traditional NI-DAQ (Legacy) User Manual

Figure 3-32. Single-Channel or Software-Scanning Operation Using a Simultaneous Sample and Hold Module in Multiplexed Mode

3-94 ni.com

Chapter 3 Software Overview

Notice the similarities between Figure 3-32 and Figure 3-33,

which shows the corresponding application in parallel mode. The

SCXI_Track_Hold_Setup

calls and the

SCXI_Track_Hold_Control calls are the same. In multiplexed mode, however, an

SCXI_Single_Chan_Setup

call is required to select the multiplexed channel and appropriately route the output to the DAQ device.

The

SCXI_Change_Chan

call can change the channel on the module either while the module is in hold mode or after the module has been returned to track mode.

Figure 3-33 shows the function call sequence of a channel-scanning

application in multiplexed mode. Remember that only the MIO and

AI devices work with channel scanning in multiplexed mode. You can use any combination of module types in a scanning operation. If any track-and-hold modules are to be scanned, use interval scanning; if you are using a plug-in DAQ device, the module directly connected to the DAQ device must be one of the SSH modules.

© National Instruments Corporation

3-95

Traditional NI-DAQ (Legacy) User Manual

Chapter 3 Software Overview

Configure each SSH Module in the module scan list for interval scanning.

SCXI_Track_Hold_Setup

Specify the module scan list, the start channel of each module, and the number of channels to scan on each module.

SCXI_SCAN_Setup

Set the gain and/or filter settings of each SCXI-1100, SCXI-1102/B/C,

SCXI-1122, SCXI-1125, SCXI-1141, SCXI-1142, SCXI-1143, or

SCXI-1540 module in the module scan list.

SCXI_Set_Gain and/or

SCXI-Configure_Filter

Set up the Mux Counter on the DAQ device so that the total number of samples to be taken in one scan on the DAQ device is equal to the total number of channels in one scan of the module scan list.

SCXI_MuxCtr_Setup

Acquire the data using the SCAN or Lab_ISCAN functions.

Remember, if there are any SSH modules to be scanned, you must use interval scanning.

Scanned Data Acquisition

Have you acquired all the data you need?

No

Done?

Yes

Disable the Track/Hold setup of the SSH modules to free the counter resource on the DAQ device.

SCXI_Track_Hold_Setup

Figure 3-33. Channel-Scanning Operation Using Modules in Multiplexed Mode

If any of the modules to be scanned are SSH modules, you must establish the Track/Hold setup of each one. To synchronize multiple SSH modules, you can configure the module that is receiving the Track/Hold control

Traditional NI-DAQ (Legacy) User Manual

3-96 ni.com

Chapter 3 Software Overview

signal to send the Track/Hold signal on the SCXIbus so that any other SSH module can use it. The Track/Hold signal can be from either the DAQ device counter or an external source.

The

SCXI_SCAN_Setup

call establishes the module scan list, which

Traditional NI-DAQ (Legacy) downloads to Slot 0. Each module is programmed for automatic scanning starting at its given start channel. If you need the SCXIbus during the scan to route the outputs of multiple modules, this function resolves any contention.

In many of the data acquisition function descriptions in the Traditional

NI-DAQ (Legacy) C Reference Help, the count parameter descriptions specify that count must be an integer multiple of the total number of channels scanned. In channel-scanning acquisitions in multiplexed mode, the total number of channels scanned is the sum of all the elements in the

numChans array in the

SCXI_SCAN_Setup

function call.

If any of the modules in the module scan list are SCXI-1100,

SCXI-1102/B/C, SCXI-1122, SCXI-1125, SCXI-1126, SCXI-1141,

SCXI-1142, SCXI-1143, SCXI-1520, SCXI-1530, SCXI-1531, or

SCXI-1540 modules, you can use

SCXI_Set_Gain

to change the gain or range setting on each module. You also can use the

SCXI_Configure_Filter

function for the SCXI-1122, SCXI-1125,

SCXI-1126, SCXI-1141, SCXI-1142, SCXI-1143, SCXI-1530, and

SCXI-1531, and the

SCXI_Set_Input_Mode

function for the SCXI-1122.

The

SCXI_MuxCtr_Setup

call synchronizes the module scan list with the

DAQ device scan list. In most cases (especially when using interval scanning), it is best to ensure that the number of samples Traditional

NI-DAQ (Legacy) takes in one pass through the module scan list is the same as the number of samples Traditional NI-DAQ (Legacy) takes in one pass through the DAQ device scan list. Refer to the

SCXI_MuxCtr_Setup function description in the Traditional NI-DAQ (Legacy) C Reference

Help.

After you have set up the SCXI chassis and modules, you can perform more than one channel-scanning operation using the

SCAN

or

Lab_ISCAN functions without reconfiguring the SCXI chassis or modules.

Building Analog Input Applications in Parallel Mode

When you operate the SCXI-1120/D, SCXI-1121, SCXI-1125,

SCXI-1126, SCXI-1141, SCXI-1142, and SCXI-1143 modules in parallel mode, you need no further SCXI function calls beyond those shown in

Figure 3-34 to set up the modules for analog input operations. After you

© National Instruments Corporation

3-97

Traditional NI-DAQ (Legacy) User Manual

Chapter 3 Software Overview

have initialized and reset the SCXI chassis and modules, you can use the

AI

,

DAQ

,

SCAN

, or

Lab_ISCAN

functions with the DAQ device. Remember that the channel and gain parameters of the

AI

,

DAQ

,

SCAN

, and

Lab_ISCAN

functions refer to the DAQ device channels and gains.

For example, to acquire a single reading from channel 0 on the module, call the

AI_Read

function with the channel parameter set to 0. The

gain parameter refers to the DAQ device gain. You then can use the

SCXI_Scale

function to convert the binary reading to a voltage. The

AI_VRead

function call is not generally useful in SCXI applications because it does not take into account the gain applied at the SCXI module when scaling the binary reading.

To build a channel-scanning application using the SCXI-1120/D,

SCXI-1121, SCXI-1125, SCXI-1126, SCXI-1141, SCXI-1142, or

SCXI-1143 in parallel mode, use the

SCAN

and

Lab_ISCAN

functions to scan the channels on the DAQ device that correspond to channels on the module you want. For example, to scan channels 0, 1, and 3 on the module using an MIO-16 device, call the

SCAN_Op

function with the channel vector set to {0, 1, 3}. The gain vector should contain the MIO and

AI device channel gains. After the data is acquired, you can demultiplex it and send the data for each channel to the

DAQ_VScale

function.

Remember to pass the total gain to the

DAQ_VScale

function to obtain the voltage read at the module input.

In many of the data acquisition function descriptions in the Traditional

NI-DAQ (Legacy) C Reference Help, the count parameter descriptions specify that count must be an integer multiple of the total number of channels scanned. In channel-scanning acquisitions in parallel mode, the total number of channels scanned is the numChans parameter in the

SCAN_Setup

,

SCAN_Op

,

SCAN_to_Disk

,

Lab_ISCAN_Start

,

Lab_ISCAN_Op

, or

Lab_ISCAN_to_Disk

function calls.

The SCXI-1100, SCXI-1101, SCXI-1102/B/C, SCXI-1104/C, SCXI-1112,

SCXI-1122, and SCXI-1540 operate in multiplexed mode only.

The SCXI-1140, SCXI-1520, SCXI-1530, and SCXI-1531 modules require the use of SCXI functions to configure and control the Track/Hold state of the module before you can use the

AI

,

DAQ

,

SCAN

, and

Lab_ISCAN

functions to acquire the data. Figure 3-34 shows the function call sequence

of a single-channel (or software-scanning) operation using these modules in parallel mode.

Traditional NI-DAQ (Legacy) User Manual

3-98 ni.com

Chapter 3 Software Overview

Configure the desired module for a single-channel operation.

SCXI_Track_Hold_Setup

Latch the analog inputs by putting the module into Hold mode.

SCXI_Track_Hold_Control

Acquire data from the desired channel on the module using the AI functions.

Single Analog Input

Do you wish to take more data while the module is in Hold mode?

Maintain

Hold mode?

Yes

No

Put the module back into Track mode to sense the new input values.

SCXI_Track_Hold_Control

Have you acquired all the data you need from this module?

No

Done?

Yes

Disable the Track/Hold setup of the module to free the counter resource on the data acquisition device.

SCXI_Track_Hold_Setup

Figure 3-34. Single-Channel or Software-Scanning Operation Using an SSH Module in Parallel Mode

The initial

SCXI_Track_Hold_Setup

call signals the driver that the module is used in a single-channel application, and puts the module into track mode. The first

SCXI_Track_Hold_Control

call latches, or samples, all the module inputs; subsequent

AI

calls read the sampled

© National Instruments Corporation

3-99

Traditional NI-DAQ (Legacy) User Manual

Chapter 3 Software Overview

voltages. It is important to realize that all

AI

operations that occur between the first

SCXI_Track_Hold_Control

call, which puts the module into hold mode, and the second control call, which puts the module into track mode, acquire data that was sampled at the time of the first control call.

One or more channels can be read while the module is in hold mode.

After you put the module back into track mode, you can repeat the process to acquire new data.

Remember that the channel and gain parameters of the

AI

function calls refer to the DAQ device channels and gains. Use the data acquisition channels that correspond to the module channels you want, as described earlier in this section.

Figure 3-35 shows the function call sequence of a channel-scanning

application using an SSH module in parallel mode.

Configure the desired module for interval scanning.

SCXI_Track_Hold_Setup

Acquire data from the desired channels using interval scanning with the SCAN and Lab_ISCAN functions.

Scanned Data Acquisition

Have you acquired all the data you need?

No

Done?

Yes

Disable the Track/Hold setup of the module to free the counter resource on the data acquisition board.

SCXI_Track_Hold_Setup

Figure 3-35. Channel-Scanning Operation Using an SSH Module in Parallel Mode

Traditional NI-DAQ (Legacy) User Manual

3-100 ni.com

Chapter 3 Software Overview

The call sequence is much simpler because the scan interval timer automatically controls the Track/Hold state of the module during the interval-scanning operation. Remember that only the MIO and AI devices work with channel-scanning using an SSH module.

SCXI Data Acquisition Rates

The settling time of the SCXI modules can affect the maximum data acquisition rates that your DAQ device can achieve. The settling times of

the different SCXI modules at each gain setting are listed in Table 3-8 for

three different DAQ devices.

The maximum data acquisition rate you can use will be the inverse of the settling time for your SCXI module and DAQ device. For example, if the settling time is listed as 7 µs, your maximum data acquisition rate will be

7

1

µs

=

143 kS/s

If you are using a DAQ device with a maximum acquisition rate faster than the AT-MIO-16E-2 (such as the PCI-MIO-16E-1), you should use the settling times and corresponding maximum acquisition rates listed for the

AT-MIO-16E-2.

If you are using a DAQ device with a maximum acquisition rate slower than

200 kS/s (such as the PCI-6032E), you should add 1 µs to the settling time of your DAQ device. The maximum acquisition rate for the PCI-6032E would be

10

1

µs 1 µs )

=

90.9 kS/s

If you are using a DAQ device faster than 200 kS/s but slower than the

AT-MIO-16E-2 (such as an AT-MIO-64E-3), you can interpolate between the settling times listed for these devices to calculate an appropriate settling time and corresponding maximum data acquisition rate.

© National Instruments Corporation

3-101

Traditional NI-DAQ (Legacy) User Manual

Chapter 3 Software Overview

Table 3-8. Maximum SCXI Module Settling Times

SCXI Module

SCXI-1100

(no filter)

Gain

1 to 100

200

500

1,000

2,000 all gains

Settling Time

Using up to

12-bit, 200 kS/s

1

Device

7 µs

10 µs

16 µs

50 µs

50 µs

7 µs

Settling Time

Using

AT-MIO-16E-2

2

4 µs

5.5 µs

12 µs

20 µs

25 µs

3 µs

Settling Time

Using

AT-MIO-16XE-10

(±0.006%

Accuracy)

3

10 µs

10 µs

25 µs

30 µs

30 µs

10 µs SCXI-1102/B/C,

SCXI-1104/C,

SCXI-1112

SCXI-1120,

SCXI-1120D,

SCXI-1125 all gains 7 µs 3 µs 10 µs 20 µs

SCXI-1121

SCXI-1122

SCXI-1126 all gains all gains all gains or ranges all gains

7 µs

10 ms

7 µs

3 µs

10 ms

3 µs

10 µs

10 ms

10 µs

20 µs

10 ms

20 µs

SCXI-1140 7 µs 3 µs 10 µs 20 µs

SCXI-1141,

SCXI-1142,

SCXI-1143,

SCXI-1520,

SCXI-1540 all gains 7 µs 3 µs 10 µs 20 µs

1 Includes effects of a 12-bit, 200 kS/s device with 1 m SCXI cable assembly.

2 Includes effects of AT-MIO-16E-2 with 1 or 2 m SCXI cable assembly.

3 Includes effects of AT-MIO-16XE-10 with 1 or 2 m SCXI cable assembly.

Note: If you are using remote SCXI, the maximum data acquisition rate also depends on the serial baud rate used.

For more information, refer to your SCXI user manual.

Settling Time

Using

AT-MIO-16XE-10

(±0.0015%

Accuracy)

3

32 µs

33 µs

40 µs

76 µs

195 µs

The filter setting on the SCXI-1100 and the SCXI-1122 dramatically affects settling time. Refer to the Specifications appendix in your SCXI module user manual for details.

Traditional NI-DAQ (Legacy) User Manual

3-102 ni.com

Chapter 3 Software Overview

Note

The SCXI-1122 uses relays to switch the input channels. The module requires 10 ms to settle when the relays switch, so the sampling rate in a channel scanning operation cannot exceed 100 Hz. If you want to take many readings from each channel and average them to reduce noise, you should use the single-channel or software-scanning method

shown in Figure 3-34 instead of the channel-scanning method shown in Figure 3-35.

This means you select one channel on the module, acquire many samples on that channel using the

DAQ

functions, select the next channel, and so on. This increases the lifetime of your module relays. When you have selected a particular channel, you can use the fastest sample rate your DAQ device supports with the

DAQ

functions.

Analog Output Applications

Using the SCXI-1124 analog output module with the Traditional NI-DAQ

(Legacy) functions is simple. Call the

SCXI_AO_Write

function to write the voltages you want to the module DAC channels. You can use the

SCXI_Get_Status

function to determine when the DAC channels have settled to their final analog output voltages.

To calculate new calibration constants for

SCXI_AO_Write

to use for the voltage to binary conversion instead of the factory calibration constants that are shipped in the module EEPROM, refer to the

SCXI_Cal_Constants function description.

Digital Applications

If you configured your digital or relay modules for multiplexed mode, use the

SCXI_Set_State

and

SCXI_Get_State

functions to access your digital or relay channels.

If you are using the SCXI-1160 module, you might want to use the

SCXI_Get_Status

function after calling the

SCXI_Set_State

function.

SCXI_Get_Status

tells you when the SCXI-1160 relays have finished switching.

If you are using the SCXI-1162/HV module,

SCXI_Get_State

reads the module input channels. For the other digital and relay modules,

SCXI_Get_State

returns a software copy of the current state that

Traditional NI-DAQ (Legacy) maintains. However, if you are using the

SCXI-1163/R in parallel mode,

SCXI_Get_State

reads the hardware states.

© National Instruments Corporation

3-103

Traditional NI-DAQ (Legacy) User Manual

Chapter 3 Software Overview

If you are using the SCXI-1162/HV or SCXI-1163/R in parallel mode, you can use the SCXI functions as described above, or you can call the

DIG_In_Prt

and

DIG_Out_Prt

functions using the correct DAQ device port numbers that correspond to the SCXI module channels. The MIO and

AI devices cannot use the SCXI-1162/HV or the SCXI-1163/R in parallel mode.

Traditional NI-DAQ (Legacy) User Manual

3-104 ni.com

4

Traditional NI-DAQ (Legacy)

Double Buffering

This chapter describes using double-buffered data acquisitions with

Traditional NI-DAQ (Legacy). This chapter applies to counter operations; however, you can read samples of any size.

Overview

Conventional data acquisition software techniques, such as single-buffered data acquisition, work well for most applications. However, more sophisticated applications involving larger amounts of data at higher rates require more advanced techniques for managing the data. One such technique is double buffering. National Instruments uses double-buffering techniques in its driver software for continuous, uninterrupted input or output of large amounts of data.

This chapter discusses the fundamentals of double buffering, including specific information on how the Traditional NI-DAQ (Legacy) double-buffered functions work.

Note

Input and output refer to both digital and analog operations in this chapter.

Single-Buffered versus Double-Buffered Data

The most common method of data buffering found in conventional driver software is single buffering. In single-buffered input operations, a fixed number of samples are acquired at a specified rate and transferred into computer memory. After the memory buffer stores the data, the computer can analyze, display, or store the data to the hard disk for later processing.

Single-buffered output operations output a fixed number of samples from computer memory at a specified rate. After outputting data, the buffer can be updated with new or freed data.

Single-buffered operations are relatively simple to implement, can usually take advantage of the full hardware speed of the DAQ device, and are very

© National Instruments Corporation

4-1

Traditional NI-DAQ (Legacy) User Manual

Chapter 4 Traditional NI-DAQ (Legacy) Double Buffering

useful for many applications. The major disadvantage of single-buffered operations is that the amount of data that can be input or output is limited to the amount of free memory available in the computer.

In double-buffered input operations, the data buffer is configured as a circular buffer. For input operations, the DAQ device fills the circular buffer with data. When the end of the buffer is reached, the device returns to the beginning of the buffer and fills it with data again. This process continues indefinitely until it is interrupted by a hardware error or cleared by a function call.

Double-buffered output operations also use a circular buffer. In this case, however, the DAQ device retrieves data from the circular buffer for output.

When the end of the buffer is reached, the device begins retrieving data from the beginning of the buffer again.

Unlike single-buffered operations, double-buffered operations reuse the same buffer and are therefore able to input or output an infinite number of data points without requiring an infinite amount of memory. However, for double buffering to be useful, there must be a means by which to access the data for updating, storing, and processing. The next two sections explain how to access the data for double-buffered input and output operations.

Double-Buffered Input Operations

The data buffer for double-buffered input operations is configured as a circular buffer. In addition, Traditional NI-DAQ (Legacy) logically divides the buffer into two equal halves (no actual division exists in the buffer). By dividing the buffer into two halves, Traditional NI-DAQ

(Legacy) can coordinate user access to the data buffer with the DAQ device. The coordination scheme is simple—Traditional NI-DAQ (Legacy) copies data from the circular buffer in sequential halves to a transfer buffer you create. You can process or store the data in the transfer buffer however you choose.

Traditional NI-DAQ (Legacy) User Manual

4-2 ni.com

Chapter 4 Traditional NI-DAQ (Legacy) Double Buffering

Figure 4-1 illustrates a series of sequential data transfers.

a.

Incoming

Device Data

Circular Buffer b.

Transfer Buffer c.

d.

Empty Buffer Untransferred Data Transferred Data

Figure 4-1. Double-Buffered Input with Sequential Data Transfers

The double-buffered input operation begins when the DAQ device starts

writing data into the first half of the circular buffer (Figure 4-1a). After the

device begins writing to the second half of the circular buffer, Traditional

NI-DAQ (Legacy) can copy the data from the first half into the transfer

buffer (Figure 4-1b). You then can store the data in the transfer block to

disk or process it according to your application needs. After the input device has filled the second half of the circular buffer, the device returns to the first half of the buffer and overwrites the old data. Traditional NI-DAQ

(Legacy) can now copy the second half of the circular buffer to the transfer

buffer (Figure 4-1c). The data in the transfer buffer is again available for

use by your application. The process can be repeated endlessly to produce

a continuous stream of data to your application. Notice that Figure 4-1d is equivalent to the step in Figure 4-1b and is the start of a two-step cycle.

© National Instruments Corporation

4-3

Traditional NI-DAQ (Legacy) User Manual

Chapter 4 Traditional NI-DAQ (Legacy) Double Buffering

Potential Setbacks

The double-buffered coordination scheme is not flawless. An application might experience two possible problems with double-buffered input. The first is the possibility of the DAQ device overwriting data before

Traditional NI-DAQ (Legacy) has copied it to the transfer buffer. This

situation is illustrated by Figure 4-2.

Incoming

Device Data

Circular Buffer a.

b.

Transfer Buffer c.

d.

Overwrite Before

Copy

Empty Buffer Untransferred Data Transferred Data

Figure 4-2. Double-Buffered Input with an Overwrite Before Copy

Notice that in Figure 4-2b, Traditional NI-DAQ (Legacy) has missed the

opportunity to copy data from the first half of the circular buffer to the transfer buffer while the DAQ device is writing data to the second half. As a result, the DAQ device begins overwriting the data in the first half of the circular buffer before Traditional NI-DAQ (Legacy) has copied it to the

transfer buffer (Figure 4-2c). To guarantee uncorrupted data, Traditional

NI-DAQ (Legacy) must wait until the device finishes overwriting data in the first half before copying the data into the transfer buffer. After the device has begun to write to the second half, Traditional NI-DAQ (Legacy)

Traditional NI-DAQ (Legacy) User Manual

4-4 ni.com

Chapter 4 Traditional NI-DAQ (Legacy) Double Buffering

a.

copies the data from the first half of the circular buffer to the transfer

buffer (Figure 4-2d).

For the previously described situation, Traditional NI-DAQ (Legacy) returns an overwrite before copy warning (overWriteError). This warning indicates that the data in the transfer buffer is valid, but some earlier input data has been lost. Subsequent transfers will not return the warning as long

as they keep pace with the DAQ device as in Figure 4-1.

The second potential problem occurs when an input device overwrites data that Traditional NI-DAQ (Legacy) is simultaneously copying to the transfer buffer. Traditional NI-DAQ (Legacy) returns an overwrite error

(overWriteError) when this occurs. The situation is presented in

Figure 4-3.

Incoming

Device Data

Circular Buffer b.

Transfer Buffer c.

Overwrite Error

Empty

Buffer

Untransferred

Data

Transferred

Data

Corrupted

Data

Figure 4-3. Double-Buffered Input with an Overwrite

In Figure 4-3b, Traditional NI-DAQ (Legacy) has started to copy data from

the first half of the circular buffer into the transfer buffer. However,

Traditional NI-DAQ (Legacy) is unable to copy the entire half before the

© National Instruments Corporation

4-5

Traditional NI-DAQ (Legacy) User Manual

Chapter 4 Traditional NI-DAQ (Legacy) Double Buffering

DAQ device begins overwriting data in the first half buffer (Figure 4-3c).

Consequently, data copied into the transfer buffer might be corrupted; that is, it might contain both old and new data points. Future transfers will execute normally as long as neither of the problem conditions re-occur.

Double-Buffered Output Operations

Double-buffered output operations are similar to input operations. The circular buffer is again logically divided into two halves. By dividing the buffer into two halves, Traditional NI-DAQ (Legacy) can coordinate user access to the data buffer with the DAQ device. The coordination scheme is simple—Traditional NI-DAQ (Legacy) copies data from a transfer buffer you create to the circular buffer in sequential halves. The data in the transfer buffer can be updated between transfers.

Figure 4-4 illustrates a series of sequential data transfers.

Outgoing

Device Data

Circular Buffer a.

b.

Transfer Buffer c.

d.

Empty Buffer

Data Ready for Output

Successfully

Output Data

Figure 4-4. Double-Buffered Output with Sequential Data Transfers

Traditional NI-DAQ (Legacy) User Manual

4-6 ni.com

Chapter 4 Traditional NI-DAQ (Legacy) Double Buffering

The double-buffered output operation begins when the output device begins

outputting data from the first half of the circular buffer (Figure 4-4a). After

the device begins retrieving data from the second half of the circular buffer,

Traditional NI-DAQ (Legacy) can copy the prepared data from the transfer

buffer to the first half of the circular buffer (Figure 4-4b). Your application

then can update the data in the transfer buffer. After the output device is finished with the second half of the circular buffer, the device returns to the first half buffer and begins outputting updated data from the first half.

Traditional NI-DAQ (Legacy) can now copy the transfer buffer to the

second half of the circular buffer (Figure 4-4c). The data in the transfer

buffer is again available for update by your application. The process can be repeated endlessly to produce a continuous stream of output data from your

application. Notice that Figure 4-4d is equivalent to the step in Figure 4-4b

and is the start of a two-step cycle.

Potential Setbacks

Like double-buffered input, double-buffered output has two potential problems. The first is the possibility of the output device retrieving and outputting the same data before Traditional NI-DAQ (Legacy) has updated the circular buffer with new data from the transfer buffer. This situation is

illustrated by Figure 4-5.

Notice that in Figure 4-5b, Traditional NI-DAQ (Legacy) has missed the

opportunity to copy data from the transfer buffer to the first half of the circular buffer while the output device is retrieving data from the second half. As a result, the device begins to output the original data in the first half of the circular buffer before Traditional NI-DAQ (Legacy) has updated it

with data from the transfer buffer (Figure 4-5c). To guarantee uncorrupted

output data, Traditional NI-DAQ (Legacy) is forced to wait until the device finishes retrieving data from the first half before copying the data from the transfer buffer. After the device has begun to output the second half,

Traditional NI-DAQ (Legacy) copies the data from the transfer buffer to the

first half of the circular buffer (Figure 4-5d).

© National Instruments Corporation

4-7

Traditional NI-DAQ (Legacy) User Manual

Chapter 4 Traditional NI-DAQ (Legacy) Double Buffering

a.

Outgoing

Device Data

Circular Buffer

Transfer Buffer b.

c.

d.

Overwrite Before

Copy

Empty Buffer Untransferred Data Transferred Data

Figure 4-5. Double-Buffered Output with an Overwrite before Copy

For this situation, Traditional NI-DAQ (Legacy) returns an overwrite before a copy warning (overWriteError). This warning indicates that the device has output old data but the data was uncorrupted during output.

Subsequent transfers will not return the warning as long as they keep pace

with the output device as in Figure 4-4.

The second potential problem is when an output device retrieves data that

Traditional NI-DAQ (Legacy) is simultaneously overwriting with data from the transfer buffer. Traditional NI-DAQ (Legacy) returns an overwrite error (overWriteError) when this occurs. The situation is presented in

Figure 4-6.

Traditional NI-DAQ (Legacy) User Manual

4-8 ni.com

Chapter 4 Traditional NI-DAQ (Legacy) Double Buffering

a.

Outgoing

Device Data

Circular Buffer

Transfer Buffer b.

c.

Overwrite Error

Empty

Buffer

Data Ready for Output

Successfully

Output Data

Corrupted

Output

Figure 4-6. Double-Buffered Output with an Overwrite

In Figure 4-6b, Traditional NI-DAQ (Legacy) has started to copy data from

the transfer buffer to the first half of the circular buffer. However,

Traditional NI-DAQ (Legacy) is unable to copy all of the data before the

output device begins retrieving data from the first half (Figure 4-6c).

Consequently, device data output might be corrupted; it might contain both old and new data points. Future transfers will execute normally as long as neither of these problem conditions occur again.

Double-Buffered Functions

Double-buffered functions exist for analog input (

DAQ

), analog output

(

WFM

), digital input/output (

DIG

), and general-purpose counter (

GPCTR

) operations. This section explains what each of the functions do and the order in which you should call them.

Double Buffer Configuration Functions

The Double Buffer Configuration functions enable and disable double buffering for input and output operations, and you can select double-buffering options if any are available.

© National Instruments Corporation

4-9

Traditional NI-DAQ (Legacy) User Manual

Chapter 4 Traditional NI-DAQ (Legacy) Double Buffering

The configuration functions are as follows:

DAQ_DB_Config

WFM_DB_Config

DIG_DB_Config

GPCTR_Change_Parameter

For analog input operations, call

DAQ_DB_Config

prior to calling

DAQ_Start

, or a

SCAN_Start

to enable or disable double buffering.

For waveform operations, call

WFM_DB_Config

prior to calling

WFM_Load to enable or disable double buffering.

For digital block input and output operations, call

DIG_DB_Config

prior to calling

DIG_Block_In

, or

DIG_Block_Out

to enable or disable double buffering.

For counter operations, before calling

GPCTR_Control

to start your counter, call

GPCTR_Change_Parameter to enable or disable continuous buffering (with

ND_Double

)

. Counters transfer their data continuously, not in half buffers.

Double Buffer Transfer Functions

After a double-buffered operation begins, the Double Buffer Transfer functions transfer data to or from a circular buffer. The direction of the transfer depends on the direction of the double-buffered operations. Along with copying data, the Double Buffer Transfer functions also check for possible errors during the transfer.

For input operations,

DB_Transfer

copies data from alternating halves of the circular input buffer to the transfer buffer. For output operations,

DB_Transfer

copies data from the buffer passed to the function to alternating halves of the circular output buffer. The function might return an overwrite before a copy warning or an overwrite error

(overWriteError) if a problem occurs during the transfer.

Note

Waveform transfer functions do not detect overwrite before copy or overwrite errors.

The

DB_Transfer

functions for

DAQ

,

WFM

,

DIG

,

and

GPCTR

are synchronous for both input and output operations. In other words, when your application calls these functions, Traditional NI-DAQ (Legacy) does not return control to your application until the transfer is complete. As a result, your application might crash if Traditional NI-DAQ (Legacy) cannot

Traditional NI-DAQ (Legacy) User Manual

4-10 ni.com

Chapter 4 Traditional NI-DAQ (Legacy) Double Buffering

complete the transfer. To avoid this situation, call the

Timeout_Config function for

DAQ

,

WFM

,

DIG

, and

GPCTR

prior to starting a double-buffered operation. The timeout configuration function sets the maximum time allocated to complete a synchronous function call for a device. For counter operations, the transfer function takes timeout as one of the parameters, so you do need to call

Timeout_Config

prior to calling the transfer function.

The transfer functions are as follows:

DAQ_DB_Transfer

WFM_DB_Transfer

DIG_DB_Transfer

GPCTR_Read_Buffer

For analog input operations, call

DAQ_DB_Transfer

after starting a double-buffered analog acquisition to perform a double-buffered transfer.

For waveform operations, call

WFM_DB_Transfer

after starting a double-buffered waveform generation to perform a double-buffered transfer.

For digital block input and output operations, call

DIG_DB_Transfer

after starting a double-buffered digital operation to perform a double-buffered transfer.

For counter operations call

GPCTR_Read_Buffer

after starting the operation to transfer a specified portion of the double buffer.

Double Buffer HalfReady Functions

With the Double Buffer HalfReady functions, applications can avoid the delay possible when calling the double buffer transfer function. When you call either of the transfer functions, Traditional NI-DAQ (Legacy) waits until the transfer to or from the circular buffer can be made; that is, the

DAQ device is operating on the opposite half of the circular buffer.

The Double Buffer HalfReady functions check if a double buffer transfer can be completed immediately. If the call to Double Buffer HalfReady indicates a transfer cannot be made, your application can do other work and try again later.

The HalfReady functions are as follows:

DAQ_DB_HalfReady

WFM_DB_HalfReady

© National Instruments Corporation

4-11

Traditional NI-DAQ (Legacy) User Manual

Chapter 4 Traditional NI-DAQ (Legacy) Double Buffering

DIG_DB_HalfReady

GPCTR_Read_Buffer

For analog input operations, call

DAQ_DB_HalfReady

, after starting a double-buffered analog acquisition but prior to calling

DAQ_DB_Transfer

, to check the transfer status of the operation.

For analog output problems, call

WFM_DB_HalfReady

, after starting a double-buffered waveform generation but prior to calling

WFM_DB_Transfer

, to check the transfer status of the operation.

For digital block input and output operations, call

DIG_DB_HalfReady after starting a double-buffered digital operation but prior to calling

DIG_DB_Transfer

, to check the transfer status of the operation.

For counter operations, call

GPCTR_Read_Buffer

after calling

GPCTR_Control

with a timeOut of 0, to check the transfer status of the operation. Counters actually transfer their data in a continuous manner, not a double-buffered manner.

Conclusion

Double buffering is a data acquisition software technique for continuously inputting or outputting large amounts of data with limited available system memory. However, double buffering might not be practical for high-speed input or output applications. The throughput of a double-buffered operation is typically limited by the ability of the CPU to process the data within a given period of time. Specifically, data must be processed by the application at least as fast as the rate at which the device is writing or reading data. For many applications, this requirement depends on the speed and efficiency of the computer system and programming language.

Traditional NI-DAQ (Legacy) User Manual

4-12 ni.com

5

Transducer Conversion

Functions

This chapter describes the Traditional NI-DAQ (Legacy) Transducer

Conversion functions. Traditional NI-DAQ (Legacy) includes source code for these functions.

The Transducer Conversion functions convert analog input voltages read

from thermocouples, RTDs

, thermistors, and strain gages into temperature or strain units:

RTD_Convert

Strain_Convert

Supplied single-voltage and voltage-buffer routines convert voltages read from an RTD into resistance and then into temperature in units for Celsius,

Fahrenheit, Kelvin, or Rankine.

Supplied single-voltage and voltage-buffer routines convert voltages read from a strain gage into measured strain using the appropriate formula for the strain gage bridge configuration used.

Thermistor_Convert

Thermocouple_Convert

Supplied single-voltage and voltage-buffer routines convert voltages read from thermistors into temperature.

Supplied single-voltage and voltage-buffer routines convert voltages read from B-, E-, J-, K-, N-, R-, S-, or

T-type thermocouples into temperature in

Celsius, Fahrenheit, Kelvin, or Rankine.

Traditional NI-DAQ (Legacy) installs the source files for these functions in the same directories as the example programs. You can cut and paste, include, or merge these conversion routines into your application source files in order to call the routines in your application.

© National Instruments Corporation

5-1

Traditional NI-DAQ (Legacy) User Manual

Chapter 5 Transducer Conversion Functions

The conversion routines are included in Traditional NI-DAQ (Legacy) as source files rather than driver function calls so that you have complete access to the conversion formulas. You can edit the conversion formulas or replace them with your own to meet your application’s specific accuracy requirements. Comments in the conversion source code simplify the process of making only necessary changes.

A header file for each language ( convert.h

for C/C++, convert.bas

for Visual Basic) contains the constant definitions used in the conversion routines. Include or merge this header file into your application program.

The transducer conversion routine descriptions apply to all languages.

Function Descriptions

RTD_Convert and RTD_Buf_Convert

These functions convert a voltage or voltage buffer that Traditional

NI-DAQ (Legacy) reads from an RTD into temperature.

Parameter Discussion

The convType integer indicates whether to use the given conversion formula, or to use a user-defined formula that you have put into the routine.

0: The given conversion formula.

–1: Use a user-defined formula that has been added to the routine.

Iex is the excitation current in amps that was used with the RTD. If a 0 is passed in Iex, a default excitation current of 150

× 10

–6

A (150 mA) is assumed.

Ro is the RTD resistance in ohms at 0 °C.

A and B are the coefficients of the Callendar Van-Düsen equation that fit your RTD.

The TempScale integer indicates which temperature units you want your return values to be. Constant definitions for each temperature scale are given in the conversion header file.

1: Celsius

2: Fahrenheit

Traditional NI-DAQ (Legacy) User Manual

5-2 ni.com

Chapter 5 Transducer Conversion Functions

3:

4:

Kelvin

Rankine

The

RTD_Convert

routine has two remaining parameters—RTDVolts is the voltage that Traditional NI-DAQ (Legacy) reads from the RTD, and

RTDTemp is the return temperature value.

The

RTD_Buf_Convert

routine has three remaining parameters—numPts is the number of voltage points to convert, RTDVoltBuf is the array that contains the voltages that Traditional NI-DAQ (Legacy) read from the

RTD, and RTDTempBuf is the return array that contains the temperatures.

Using This Function

The conversion routines first find the RTD resistance by dividing

RTDVolts (or each element of RTDVoltBuf) by Iex. The function converts that resistance to a temperature using a solution to the Callendar

Van-Düsen equation for RTDs:

R t

= R

0

[1 + At + Bt

2

+ C(t – 100)t

3

]

For temperatures above 0 °C, the C coefficient is 0 and the equation reduces to a quadratic equation for which we have found the appropriate root. Thus, these conversion routines are accurate only for temperatures above 0 °C.

Your RTD documentation should give you R

0

and the A and B coefficients for the Callendar Van-Düsen equation. The most common RTDs are 100

Ω platinum RTDs that either follow the European temperature curve (also known as the DIN EN 60751 standard) or the American curve. The values for A and B are as follows:

• European Curve (DIN EN 60751):

A = 3.90802

× 10

–3

B = –5.80195

× 10

–7

(α = 3.85 × 10

–3

;

∂ = 1.492)

• American Curve:

A = 3.9784

× 10

–3

B = –5.8408

× 10

–7

(α = 3.92 × 10

–3

;

∂ = 1.492)

© National Instruments Corporation

5-3

Traditional NI-DAQ (Legacy) User Manual

Chapter 5 Transducer Conversion Functions

Some RTD documentation contains values for

α and ∂, from which you can calculate A and B using the following equations:

A

=

(

+

)

B

= –

⁄ ( , ,

2

) where

α is the temperature coefficient at T = 0 °C.

C = –

α ß/1,000,000 where ß is a characteristic of your RTD similar to the

α and ∂ equation coefficients.

Strain_Convert and Strain_Buf_Convert

These functions convert a voltage or voltage buffer that Traditional

NI-DAQ (Legacy) read from a strain gage to units of strain.

Parameter Discussion

The bridgeConfig integer indicates in what type of bridge configuration

the strain gage is mounted. Figure 5-1 shows all the different bridge

configurations and the corresponding values that you should pass in

bridgeConfig.

Vex is the excitation voltage (in volts) that you used. If the value of Vex is 0, a default excitation voltage of 3.333 V is assumed. The SCXI-1121 module provides excitation voltages of 10 V and 3.333 V. The SCXI-1122 module provides an excitation voltage of 3.333 V.

GF is the gage factor of the strain gage.

v is Poisson’s Ratio (needed only in certain bridge configurations).

Rg is the strain gage nominal value in ohms.

RL is the lead resistance in ohms. In many cases, the lead resistance is negligible and you can pass a value of 0 for RL to the routine. Otherwise, you can measure RL to be more accurate.

V init

is the unstrained voltage of the strain gage in volts after it is mounted in its bridge configuration. Read this voltage at the beginning of your application and save it to pass to the strain gage conversion routines.

Traditional NI-DAQ (Legacy) User Manual

5-4 ni.com

Chapter 5 Transducer Conversion Functions

The

Strain_Convert

routine has two remaining parameters—

strainVolts is the voltage that Traditional NI-DAQ (Legacy) read from the strain gage, and strainVal is the return strain value.

The

Strain_Buf_Convert

routine has three remaining parameters—numPts is the number of voltage points to convert,

strainVoltBuf is the array that contains the voltages that Traditional

NI-DAQ (Legacy) read from the strain gage, and strainValBuf is the return array that contains the strain values.

Using This Function

The conversion formula used is based solely on the bridge configuration.

Figure 5-1 shows the seven bridge configurations supported and the

corresponding formulas. For all bridge configurations, Traditional

NI-DAQ (Legacy) uses the following formula to obtain V r

:

V r

=

strainVolts V

Vex init

In the circuit diagrams shown in Figure 5-1, V

out

is the voltage you measure and pass to the

Strain_Convert

function as the strainVolts parameter.

In the quarter-bridge and half-bridge configurations, R

1 and R

2

are dummy resistors that are not directly incorporated into the conversion formula.

The SCXI-1121 and SCXI-1122 modules provide R

1 and R

2

for a bridge-completion network, if needed. Refer to the Getting Started

with SCXI user manual for more information on bridge-completion networks and voltage excitation.

© National Instruments Corporation

5-5

Traditional NI-DAQ (Legacy) User Manual

Chapter 5 Transducer Conversion Functions

Vex

Vex

+

+

VOUT

+

RL

R2

RL bridgeConfig = 1 (QTR_BRIDGE_I) strain ( ) =

–4Vr

GF (1 + 2Vr)

RL

VOUT

+

RL

RL

RL bridgeConfig = 3 (HALF_BRIDGE_I) strain ( ) =

–4Vr

GF [(1 + v) – 2Vr (v – 1)]

+

Vex

RL

R1 ( )

RL

VOUT

+

RL bridgeConfig = 2 (QTR_BRIDGE_II) strain ( ) =

–4Vr

GF (1 + 2Vr)

RL

R2 (dummy)

R1 (+ )

R2 (–v )

+

Vex

VOUT

+

RL

RL

R1 (+ )

R2 (– ) bridgeConfig = 4 (HALF_BRIDGE_II) strain ( ) =

–2Vr

GF

+

Vex

R3

R4

VOUT

+

R1

R2 bridgeConfig = 5 (FULL_BRIDGE_I) strain ( ) =

–Vr

GF

R3

R3 R1

+

Vex

VOUT

+

R4 R2 bridgeConfig = 6 (FULL_BRIDGE_II) strain ( ) =

–2Vr

GF ( v + 1)

R1

+

Vex

VOUT

+

R4 R2 bridgeConfig = 7 (FULL_BRIDGE_III) strain ( ) =

–2Vr

GF [( v + 1) – Vr (v – 1)]

Figure 5-1. Strain Gage Bridge Configuration

Traditional NI-DAQ (Legacy) User Manual

5-6 ni.com

Chapter 5 Transducer Conversion Functions

Thermistor_Convert and Thermistor_Buf_Convert

These functions convert a voltage or voltage buffer read from a thermistor into temperature. Some SCXI terminal blocks have onboard thermistors that you can use to do

cold-junction compensation

.

Parameter Discussion

V ref

is the voltage reference you apply across the thermistor circuit in volts.

Refer to Figure 5-2. The thermistor on the SCXI terminal blocks has a V

ref

of 2.5 V.

R

1

is the value of the resistor in series with your thermistor in ohms. Refer

to Figure 5-2. The thermistor on the SCXI terminal blocks has an R

1

of 5,000

Ω.

value

The TempScale integer indicates in which temperature unit you want your return values to be. Constant definitions for each temperature scale are assigned in the conversion header file.

1:

2:

Celsius

Fahrenheit

3:

4:

Kelvin

Rankine

The

Thermistor_Convert

function has two remaining parameters—Volts is the voltage that you read from the thermistor, and Temperature is the return temperature value assigned in units determined by TempScale.

The

Thermistor_Buf_Convert

function has three remaining parameters—numPts is the number of voltage points to convert, VoltBuf is the array of voltages that you read from the thermistor, and TempBuf is the return array of temperature values assigned in units determined by

TempScale.

Using This Function

The following equation expresses the relationship between Volts and R

t

,

the thermistor resistance. Refer to Figure 5-2.

Volts

=

V ref

R

1

R

-----------------------

+

t

© National Instruments Corporation

5-7

Traditional NI-DAQ (Legacy) User Manual

Chapter 5 Transducer Conversion Functions

Solving the previous equation for R

t

, we have:

R t

=

R

1

(

V ref

Volts

After this function calculates R

t

, the function uses the following equation to convert R

t

, the thermistor resistance, to temperature in Kelvin. The function then converts the temperature to the temperature scale you want, if necessary.

T

=

+

(

t

1

+

t

)^3 )

The values used for a, b, and c are given below. If you are using a thermistor with different values for a, b, and c (refer to your thermistor data sheet), you can edit the thermistor conversion routine to use your own a, b, and

c values.

a = 1.295361E–3

The following equation expresses the relationship between Volts and R

t

,

the thermistor resistance. Refer to Figure 5-2.

Volts

=

V ref

(

R

1

R t

+

t

)

Solving the previous equation for R

t

, you have:

R t

=

R

1

(

V ref

Volts

When you calculate R

t

, you use the following equation to convert R

t

, the thermistor resistance, to temperature in Kelvin. Then convert the temperature to the temperature scale you want, if necessary.

T

=

+

(

t

1

+

t

)^3 )

Traditional NI-DAQ (Legacy) User Manual

5-8 ni.com

Chapter 5 Transducer Conversion Functions

The values used for a, b, and c are shown below. These values are correct for the thermistors provided on the SCXI terminal blocks. If you are using a thermistor with different values for a, b, and c (refer to you thermistor data sheet), you can edit the thermistor conversion routine to use your own

a, b, and c values.

a = 1.295361E–3

b = 2.343159E–4

c = 1.018703E–7

V ref

R

1

Volts

R t

Figure 5-2. Circuit Diagram of a Thermistor in a Voltage Divider

Thermocouple_Convert and Thermocouple_Buf_Convert

These functions convert a voltage or voltage buffer that Traditional

NI-DAQ (Legacy) read from a thermocouple into temperature.

Parameter Discussion

The TCType integer indicates what type of thermocouple Traditional

NI-DAQ (Legacy) used to read the temperature. Constant definitions for each thermocouple type are shown in the conversion header file. You can use the constants that have been defined, or you can pass integer values to the routine.

1:

2:

E

J

3:

4:

5:

6:

K

R

S

T

© National Instruments Corporation

5-9

Traditional NI-DAQ (Legacy) User Manual

Chapter 5 Transducer Conversion Functions

7: B

8: N

CJCTemp is the temperature in Celsius that Traditional NI-DAQ (Legacy) uses for cold-junction compensation of the thermocouple temperature. If you are using SCXI, most likely this is the temperature that Traditional

NI-DAQ (Legacy) read from the temperature sensor on the SCXI terminal block. The AMUX-64T also has a temperature sensor that you can use for this purpose.

The TempScale integer indicates in which temperature unit you want your return values to be. Constant definitions for each temperature scale are shown in the conversion header file.

1: Celsius

2: Fahrenheit

3: Kelvin

4: Rankine

The

Thermocouple_Convert

routine has two remaining parameters—TCVolts is the voltage that Traditional NI-DAQ (Legacy) read from the thermocouple, and TCTemp is the return temperature value.

The

Thermocouple_Buf_Convert

routine has three remaining parameters—numPts is the number of voltage points to convert,

TCVoltBuf is the array that contains the voltages that Traditional NI-DAQ

(Legacy) read from the thermocouple, and TCTempBuf is the return array that contains the temperatures.

Using This Function

These routines convert TCVolts (or each element of TCVoltBuf) into a corresponding temperature after performing the necessary cold-junction compensation. Cold-junction compensation is done by converting

CJCTemp into an equivalent thermocouple voltage and adding it to

TCVolts. The actual temperature-to-voltage conversion is done by choosing the appropriate reference equation that characterizes the correct temperature subrange for the specific TCType. The valid temperature range for a given TCType is divided into several subranges with each subrange characterized by a reference equation. The computed voltage is then added to TCVolts to perform the cold-junction correction. The conversion of TCVolts into a corresponding temperature is done by using inverse equations that are specified for a given TCType for different subranges. These inverse equations have an error tolerance as shown in

Traditional NI-DAQ (Legacy) User Manual

5-10 ni.com

Chapter 5 Transducer Conversion Functions

Table 5-1. All the reference equations and inverse equations used in

these routines are from NIST Monograph 175.

Table 5-1 shows the valid temperature ranges and accuracies for the inverse

equations used for each thermocouple type. The errors listed in the table refer to the equations only; they do not take into consideration the accuracy of the thermocouple itself, the SCXI modules, or the DAQ device that is used to take the voltage reading.

Table 5-1. Temperature Error for Thermocouple Inverse Equations

Thermocouple

Type

B

E

J

K

N

R

S

T

Temperature Range

250 to 700 °C

700 to 1,820 °C

–200 to 0 °C

0 to 1,000 °C

–210 to 0 °C

0 to 760 °C

760 to 1,200 °C

–200 to 0 °C

0 to 500 °C

500 to 1,372 °C

–200 to 0 °C

0 to 600 °C

600 to 1,300 °C

–50 to 250 °C

250 to 1,200 °C

1,200 to 1,664.5 °C

1,664.5 to 1,768.1 °C

–50 to 250 °C

250 to 1,200 °C

1,200 to 1,664.5 °C

1,664.5 to 1,768.1 °C

–200 to 0 °C

0 to 400 °C

Error

–0.02 to +0.03 °C

–0.01 to +0.02 °C

–0.01 to +0.03 °C

±0.02 °C

–0.05 to +0.03 °C

±0.04 °C

–0.04 to +0.03 °C

–0.02 to +0.04 °C

–0.05 to +0.04 °C

–0.05 to +0.06 °C

–0.02 to +0.03 °C

–0.02 to +0.03 °C

–0.04 to +0.02 °C

±0.02 °C

±0.005 °C

–0.0005 to +0.001 °C

–0.001 to +0.002 °C

±0.02 °C

±0.01 °C

±0.0002 °C

±0.002 °C

–0.02 to +0.04 °C

±0.03 °C

© National Instruments Corporation

5-11

Traditional NI-DAQ (Legacy) User Manual

A

Technical Support and

Professional Services

Visit the following sections of the National Instruments Web site at ni.com

for technical support and professional services:

Support—Online technical support resources at ni.com/support include the following:

Self-Help Resources—For answers and solutions, visit the award-winning National Instruments Web site for software drivers and updates, a searchable KnowledgeBase, product manuals, step-by-step troubleshooting wizards, thousands of example programs, tutorials, application notes, instrument drivers, and so on.

Free Technical Support—All registered users receive free Basic

Service, which includes access to hundreds of Application

Engineers worldwide in the NI Developer Exchange at ni.com/ exchange

. National Instruments Application Engineers make sure every question receives an answer.

For information about other technical support options in your area, visit ni.com/services

or contact your local office at ni.com/contact

.

Training and Certification—Visit ni.com/training

for self-paced training, eLearning virtual classrooms, interactive CDs, and Certification program information. You also can register for instructor-led, hands-on courses at locations around the world.

System Integration—If you have time constraints, limited in-house technical resources, or other project challenges, National Instruments

Alliance Partner members can help. To learn more, call your local

NI office or visit ni.com/alliance

.

If you searched ni.com

and could not find the answers you need, contact your local office or NI corporate headquarters. Phone numbers for our worldwide offices are listed at the front of this manual. You also can visit the Worldwide Offices section of ni.com/niglobal

to access the branch office Web sites, which provide up-to-date contact information, support phone numbers, email addresses, and current events.

© National Instruments Corporation

A-1

Traditional NI-DAQ (Legacy) User Manual

Glossary

Symbol

p n

µ m k

M

G

T

Prefix

pico nano micro milli kilo mega giga tera

Value

10 –12

10 –9

10 – 6

10 –3

10

3

10 6

10 9

10 12

°

ß

Symbols/Numbers

%

+

±

ε

α

1102/B/C modules coefficient coefficient degree minus ohm percent plus plus or minus strain temperature coefficient at T = 0 °C refers to the SCXI-1102, SCXI-1102B, and SCXI-1102C modules

© National Instruments Corporation

G-1

Traditional NI-DAQ (Legacy) User Manual

Glossary

44XX device

45XX device

6025E device

6052E device

61XX device

652X device

653X device

660X device

6602 device

671X device

673X devices

A

A/D

AC

ACK

ActiveX

ActiveX control

ADC refers to the PCI-4451, PCI-4452, PCI-4454, PCI-4472, PXI-4472, and

PCI-4474 refers to the PCI-4551 and PCI-4552 refers to the PCI-6025E and PXI-6025E refers to the PCI-6052E, PXI-6052E, and DAQPad-6052E for FireWire refers to the PCI-6110, PCI-6111, PCI-6115, PXI-6115, PCI-6120, and

PXI-6120 refers to the PCI-6527 and PXI-6527 refers to the AT-DIO-32HS, PCI-DIO-32HS, DAQCard-6533, PXI-6533,

PCI-6534, and PXI-6534 refers to the DAQCard-6601, PCI-6601, PCI-6602, PXI-6602, PCI-6608, and PXI-6608 refers to the PCI-6602 and PXI-6602 refers to the DAQCard-6715, PCI-6711, PXI-6711, PCI-6713, and

PXI-6713 refers to the PCI-6731, PXI-6731, PCI-6733, and PXI-6733 analog-to-digital alternating current acknowledge a programming system and user interface that lets you work with interactive objects. Formerly called OLE.

a standard software tool that adds additional functionality to any compatible ActiveX container

A/D converter—an electronic device, often an integrated circuit, that converts an analog voltage to a digital number

Traditional NI-DAQ (Legacy) User Manual

G-2 ni.com

Glossary

ADC resolution

AI

AMD analog trigger

API

ARB asynchronous the resolution of the ADC, which is measured in bits. An ADC with 16 bits has a higher resolution, and thus a higher degree of accuracy, than a

12-bit ADC.

analog input

Advanced Micro Devices a trigger that occurs at a user-selected point on an incoming analog signal.

Triggering can be set to occur at a specific level on either an increasing or a decreasing signal (positive or negative slope). Analog triggering can be implemented either in software or in hardware. When implemented in software (LabVIEW), all data is collected, transferred into system memory, and analyzed for the trigger condition. When analog triggering is implemented in hardware, no data is transferred to system memory until the trigger condition has occurred.

application programming interface pertaining to arbitrary waveform generation (NI 54XX devices only)

(1) hardware—a property of an event that occurs at an arbitrary time, without synchronization to a reference clock;

(2) software—an action or event that occurs at an unpredictable time with respect to the execution of a program

B

background acquisition data is acquired by a DAQ system while another program or processing routine is running without apparent interruption bandwidth the range of frequencies present in a signal, or the range of frequencies to which a measuring device can respond base address

BCD

BIOS bipolar a memory address that serves as the starting address for programmable registers. All other addresses are located by adding to the base address.

binary-coded decimal basic input/output system a signal range that includes both positive and negative values (for example,

–5 V to +5 V)

© National Instruments Corporation

G-3

Traditional NI-DAQ (Legacy) User Manual

Glossary

bit block-mode bus byte

C

C

CI cold-junction compensation compiler one binary digit, either 0 or 1 a high-speed data transfer in which the address of the data is sent followed by a specified number of back-to-back data words the group of conductors that interconnect individual circuitry in a computer.

Typically, a bus is the expansion vehicle to which I/O or other devices are connected. Examples of PC buses are the PCI bus, AT bus, and EISA bus.

eight related bits of data, an 8-bit binary number. Also used to denote the amount of memory required to store one byte of data.

conversion time counter/timer coupling

CPU

D

D/A

DAC

Celsius computing index a method of compensating for inaccuracies in thermocouple circuits a software utility that converts a source program in a high-level programming language, such as C/C++, Visual Basic (version 5.0), or Borland Delphi, into an object or compiled program in machine language. Compiled programs run 10 to 1,000 times faster than interpreted programs.

the time required, in an analog input or output system, from the moment a channel is interrogated (such as with a read instruction) to the moment that accurate data is available a circuit that counts external pulses or clock pulses (timing) the manner in which a signal is connected from one location to another central processing unit digital-to-analog

D/A converter—an electronic device, often an integrated circuit, that converts a digital number into a corresponding analog voltage or current

Traditional NI-DAQ (Legacy) User Manual

G-4 ni.com

DAQ

DC

DDS device differential input digital port

DIN

DIO

DIO device

DIO-24

DIO-32F

DIO-96 dithering

DLL

Glossary

(1) data acquisition—collecting and measuring electrical signals from sensors, transducers, and test probes or fixtures and inputting them to a computer for processing;

(2) data acquisition—collecting and measuring the same kinds of electrical signals with A/D and/or DIO devices plugged into a computer, and possibly generating control signals with D/A and/or DIO devices in the same computer direct current

Direct Digital Synthesis a plug-in DAQ board, card, or pad that can contain multiple channels and conversion devices. Plug-in boards and PCMCIA cards are all examples of

DAQ devices. SCXI modules are distinct from devices.

an analog input consisting of two terminals, both of which are isolated from computer ground, whose difference is measured

See port

.

Deutsche Industrie Norme (German Industrial Standard) digital I/O refers to any DIO-24, DIO-32, DIO-6533, or DIO-96 refers to the PC-DIO-24, PC-DIO-24PnP, DAQCard-DIO-24, PCI-6503 refers to the AT-DIO-32F refers to the PC-DIO-96, PC-DIO-96PnP, PCI-DIO-96, DAQPad-6507,

DAQPad-6508, and PXI-6508 the addition of Gaussian noise to the analog input signal dynamic-link library—a software module in Microsoft Windows containing executable code and data that can be called or used by Windows applications or other DLLs. Functions and data in a DLL are loaded and linked at run time when they are referenced by a Windows application or other DLLs.

© National Instruments Corporation

G-5

Traditional NI-DAQ (Legacy) User Manual

Glossary

DMA driver

DSA

DSA device

DSP

DSUB direct memory access—a method by which data can be transferred to/from computer memory from/to a device or memory on the bus while the processor does something else. DMA is the fastest method of transferring data to/from computer memory.

software that controls a specific hardware device such as a DAQ board or a GPIB interface board dynamic signal acquisition refers to the PCI-4451, PCI-4452, PCI 4454, PCI-4472, PCI-4551,

PCI-4552, PXI-4472, and PCI-4474 dynamic signal acquisition devices digital signal processing

D-subminiature connector

E

EEPROM

EGA

EISA

E Series device event-driven message external trigger electronically erasable programmable read-only memory—ROM that can be erased with an electrical signal and reprogrammed

Enhanced Graphics Adapter

Extended Industry Standard Architecture refers to MIO and AI devices a message sent by an event-driven program, a program with a loop that waits for events to occur a voltage pulse from an external source that triggers an event such as

A/D conversion

Traditional NI-DAQ (Legacy) User Manual

G-6 ni.com

Glossary

F

FIFO

FireWire

G

gain group

GPS

GPS receiver

GUI

H

Hz

I

I/O a first-in first-out memory buffer; the first data stored is the first data sent to the acceptor. FIFOs are often used on DAQ devices to temporarily store incoming or outgoing data until that data can be retrieved or output. For example, an analog input FIFO stores the results of A/D conversions until the data can be retrieved into system memory, a process that requires the servicing of interrupts and often the programming of the DMA controller.

This process can take several milliseconds in some cases. During this time, data accumulates in the FIFO for future retrieval. With a larger FIFO, longer latencies can be tolerated. In the case of analog output, a FIFO permits faster update rates, because the waveform data can be stored on the FIFO ahead of time. This again reduces the effect of latencies associated with getting the data from system memory to the DAQ device.

refers to a high-speed external

bus

that implements the

IEEE

1394 serial

bus protocol the factor by which a signal is amplified, sometimes expressed in decibels a collection of digital ports, combined to form a larger entity for digital input and/or output

Global Positioning System—a satellite-based system created and maintained by the U.S. Department of Defense that allows its users to determine their position, velocity, and time. an instrument that receives signals from GPS satellites graphical user interface hertz input/output

© National Instruments Corporation

G-7

Traditional NI-DAQ (Legacy) User Manual

Glossary

ID

IDE

IEEE import library interrupt interrupt latency

IRIG

IRQ

ISA iterations

J

Julian

K

kS

Kword identification

Integrated Development Environment

Institute of Electrical and Electronics Engineers a file that contains information the linker needs to resolve external references to exported dynamic link library (DLL) functions, so the system can locate the specified DLL and exported DLL functions at run time a computer signal indicating that the CPU should suspend its current task to service a designated activity the delay between the time hardware asserts an interrupt and when the interrupt service routine is activated

Inter Range Instrumentation Group—a pulse-modulated signal normally produced by a GPS receiver. interrupt request

Industry Standard Architecture repetitions of the buffer a measurement of time based on the Julian calendar, a commonly used calendar that divides each year into 12 months with 365 days

1,000 samples

1,024 words of memory

Traditional NI-DAQ (Legacy) User Manual

G-8 ni.com

Glossary

L

linker

LSB

N

NC a software utility that combines object modules (created by a compiler) and libraries, which are collections of object modules, into an executable program least significant bit

M

master/slave

MAX

MB

MIO

MIO device

MIO-16XE-50 device

MIO-64

MS

MSB multirate scanning mux type of network connection in which a request is transmitted to one or more destination nodes, and those nodes send a response back to the requesting node. In industrial applications, the responding (slave) device is usually a sensor or actuator, and the requesting (master) device is usually a controller.

Measurement & Automation Explorer megabytes of memory multifunction I/O refers to multifunction I/O devices refers to the AT-MIO-16XE-50 and PCI-6070E (PCI-MIO-16XE-50) refers to the AT-MIO-64E-3, PCI-6031E, and PCI-6071E million samples most significant bit scanning different channels at different rates multiplexer—a switching device with multiple inputs that sequentially connects each of its inputs to its output, typically at high speeds, in order to measure several signals with a single analog input channel normally closed

© National Instruments Corporation

G-9

Traditional NI-DAQ (Legacy) User Manual

Glossary

NI

NI-DAQ

NI-TIO based device

National Instruments refers to the NI-DAQ software, unless otherwise noted refers to the NI 4551, NI 4552, DAQCard-6601, PCI-6601, PCI-6602,

PXI-6602, PCI-6608, PXI-6608 normally open NO

O

OCX output settling time

OLE Control eXtension—another name for OLE or ActiveX controls, reflected by the

.OCX

file extension of ActiveX control files.

the amount of time required for the analog output voltage to reach its final value within specified limits

P

paging

PC

PCI

PCI Series port posttriggering

PPS pretriggering programmed I/O a technique used for extending the address range of a device to point into a larger address space

(1) personal computer;

(2) Refers to the IBM PC/XT, IBM PC AT, and compatible computers.

Peripheral Component Interconnect refers to the National Instruments products that use the high-performance expansion bus architecture originally developed by Intel a digital port, consisting of four or eight lines of digital input and/or output the technique used on a DAQ board to acquire a programmed number of samples after trigger conditions are met pulse per second. A signal normally produced by a GPS receiver. the technique used on a DAQ board to keep a continuous buffer filled with data, so that when the trigger conditions are met, the sample includes the data leading up to the trigger condition the standard method a CPU uses to access an I/O device—each byte of data is read or written by the CPU

Traditional NI-DAQ (Legacy) User Manual

G-10 ni.com

pts

PXI

Glossary

points

PCI eXtensions for Instrumentation. PXI is an open specification that builds off the CompactPCI specification by adding instrumentation-specific features.

ROM

RTC

RTD

RTSI

R

RAM

REQ resolution random-access memory request

The smallest signal increment that can be detected by a measurement system. Resolution can be expressed in bits, in proportions, or in percent of full scale. For example, a system has 12-bit resolution, one part in

4,096 resolution, and 0.0244% of full scale.

read-only memory real time clock—a clock capable of recording the exact time of events that counts time in days, hours, minutes, seconds, and fractions of seconds.

Resistive Temperature Detector—a metallic probe that measures temperature based upon its coefficient of resistivity

Real-Time System Integration (bus)—the National Instruments timing bus that connects DAQ devices directly, by means of connectors on top of the boards, for precise synchronization of functions

S

S/s s

S

Sample-and-Hold

(S/H) samples per second—used to express the rate at which a DAQ device samples an analog signal seconds samples a circuit that acquires and stores an analog voltage on a capacitor for a short period of time

© National Instruments Corporation

G-11

Traditional NI-DAQ (Legacy) User Manual

Glossary

SCXI

SCXI-1102/B/C

SCXI-1120/D

SCXI-1104/C

SCXI analog input module

Signal Conditioning eXtensions for Instrumentation—the National

Instruments product line for conditioning low-level signals within an external chassis near sensors refers to the SCXI-1102, SCXI-1102B, and SCXI-1102C refers to the SCXI-1120 and SCXI-1120D refers to the SCXI-1104 and SCXI-1104C refers to the SCXI-1100, SCXI-1101, SCXI-1102,

SCXI-1104,SCXI-1104C, SCXI-1112, SCXI-1120, SCXI-1120D,

SCXI-1121, SCXI-1122, SCXI-1125, SCXI-1140, SCXI-1141,

SCXI-1142, SCXI-1143, and SCXI-1520 refers to the SCXI-1124 module SCXI analog output module

SCXI chassis

SCXI digital module

SCXI switch module

SDK self-calibrating simultaneous sampling module

refers to the SCXI-1000, SCXI-1000

DC

, and SCXI-1001 refers to the SCXI-1160, SCXI-1161, SCXI-1162, SCXI-1162HV,

SCXI-1163, and SCXI-1163R refers to the SCXI-1127, SCXI-1128, SCXI-1129, SCXI-1160,

SCXI-1161, SCXI-1163R, SCXI-1190, SCXI-1191, and SCXI-1192

Software Development Kit a property of a DAQ device that has an extremely stable onboard reference and calibrates its own A/D and D/A circuits without manual adjustments by the user refers to the PCI-6110, PCI-6111, PCI-6115, PXI-6115, PCI-6120,

PXI-6120, PCI-4451, PCI-4452, PCI-4454, PCI-4551, PCI-4552,

PCI-4472, PXI-4472, and PCI-4474 an analog input that is measured with respect to a common ground Single-Ended (SE)

Inputs slave software trigger stage

See master/slave

.

a programmed event that triggers an event such as data acquisition

(NI 54XX boards only) an entry in a sequence list

Traditional NI-DAQ (Legacy) User Manual

G-12 ni.com

Glossary

STC synchronous

V

V

VDC

VPICD

System Timing Controller

(1) hardware—a property of an event that is synchronized to a reference clock;

(2) software—a property of a function that begins an operation and returns only when the operation is complete

T

TC throughput rate terminal count the data, measured in bytes/s, for a given continuous operation, calculated to include software overhead track-and-hold module refers to the SCXI-1140, SCXI-1520, SCXI-1530, and SCXI-1531

Traditional NI-DAQ

(Legacy) refers to the Traditional NI-DAQ (Legacy) software, unless otherwise noted transfer rate the rate, measured in bytes/s, at which data is moved from source to destination after software initialization and set up operations; the maximum rate at which the hardware can operate

Terminate-and-Stay Resident TSR

U

unipolar

USB a signal range that is always positive (for example, 0 to +10 V) universal serial bus volt volts direct current

Virtual Programmable Interrupt Controller Device

© National Instruments Corporation

G-13

Traditional NI-DAQ (Legacy) User Manual

Index

Numerics

4451 and 4551 devices

counter usage, 3-52

FIFO lag effect, 3-52

6025E groups of ports, 3-56

6115 and 6120 devices. See PCI-6115 and 6120

devices

652X devices

digital change notification applications, 3-61

653X devices

digital change detection applications, 3-62

groups of ports, 3-56

pattern generation, 3-74

RTSI connections, 3-83

660X devices, RTSI connections, 3-82

671X devices

counter usage, 3-52

FIFO lag effect, 3-52

RTSI connections, 3-82

673X devices

counter usage, 3-52

FIFO lag effect, 3-52

RTSI connections, 3-82

A

ACK1 signal

653X RTSI connections (table), 3-83

ACK2 signal

653X RTSI connections (table), 3-83

ActiveX controls for Visual Basic, 3-6

AI device terminology (table), xi

AI_Change_Parameter function, 3-17

AI_Check function, 3-17

AI_Clear function, 3-17

AI_Configure function, 3-17

AI_Mux_Config function, 3-17

AI_Read function, 3-18

AI_Read_Scan function, 3-18

AI_Read_VScan function, 3-18

AI_Setup function, 3-18

AI_VRead function, 3-18

AI_VScale function, 3-18

Align_DMA_Buffer function, 3-2

AMUX-64T external multiplexer support, 3-25

Analog Alarm Event control

properties (table), 3-12

setting program flow, 3-13

setting properties, 3-12

analog input application tips. See data

acquisition application tips

analog input functions. See data acquisition

functions; one-shot analog input functions analog output application tips

equivalent analog output calls (figure), 3-37

SCXI applications, 3-103

simple application, 3-38 software update application, 3-38

analog output devices, reference voltages for

(tables), 3-51

analog output functions

See also waveform generation functions

AO_Change_Parameter, 3-36

AO_Configure, 3-36

AO_Update, 3-36

AO_VScale, 3-36

AO_VWrite, 3-37

AO_Write, 3-37

Analog Trigger Event control

properties (table), 3-10

setting properties, 3-9

AO_Calibrate function, 3-3

AO_Change_Parameter function, 3-36

© National Instruments Corporation

I-1

Traditional NI-DAQ (Legacy) User Manual

Index

AO_Configure function, 3-36

AO_Update function, 3-36

AO_VScale function, 3-36

AO_VWrite function, 3-37

AO_Write function, 3-37

applications for Windows. See building

Windows applications

AT-AO-6/10

counter usage in waveform generation, 3-52

reference voltages for waveform generation (tables), 3-51

AT-MIO-16DE-10, groups of ports, 3-56

B

buffer allocation in Windows applications

Microsoft Visual Basic, 2-5

Microsoft Visual C++, 2-3

building Windows applications

Microsoft Visual Basic, 2-3

Microsoft Visual C++, 2-2

NI-DAQ examples, 2-8

NI-DAQ libraries, 2-1

C

Calibrate_1200 function, 3-3

Calibrate_DSA function, 3-4

Calibrate_E_Series function, 3-4

Calibrate_TIO function, 3-4

calibration functions. See software-calibration

and device-specific functions clocks or time counters for NI-TIO devices

sample use cases, 3-79

synchronization

IRIG-B stream, 3-80

PPS stream, 3-80

Config_Alarm_Deadband function, 3-5

Config_ATrig_Event_Message function, 3-5

Config_DAQ_Event_Message function, 3-5

Traditional NI-DAQ (Legacy) User Manual

I-2

configuration

NI-DAQ, 1-2 using Measurement & Automation

Explorer, 1-2

configuration functions

See also initialization and

general-configuration functions

AI_Change_Parameter, 3-17

AI_Configure, 3-17

AI_Mux_Config, 3-17

AI_Setup, 3-18

AO_Configure, 3-36

Config_Alarm_Deadband, 3-5

Config_ATrig_Event_Message, 3-5

Config_DAQ_Event_Message, 3-5

Configure_HW_Analog_Trigger, 3-4

DAQ_Config, 3-22

DAQ_DB_Config, 3-24, 4-10

DAQ_StopTrigger_Config, 3-23

DIG_Block_PG_Config, 3-59

DIG_Change_Message_Config, 3-61

DIG_DB_Config, 3-60, 4-10

DIG_Filter_Config, 3-61

DIG_Grp_Config, 3-59

DIG_Line_Config, 3-58

DIG_Prt_Config, 3-58

DIG_SCAN_Setup, 3-59

DIG_Trigger_Config, 3-60

GPCTR_Change_Parameter, 3-77, 4-10

GPCTR_Config_Buffer, 3-77

MIO_Config, 3-4

SCXI_Configure_Connection, 3-86

SCXI_Configure_Filter, 3-86

SCXI_Load_Config, 3-87

SCXI_MuxCtr_Setup, 3-87

SCXI_SCAN_Setup, 3-88

SCXI_Set_Config, 3-88

SCXI_Set_Excitation, 3-88

SCXI_Set_Gain, 3-88

SCXI_Set_Input_Mode, 3-88

SCXI_Set_State, 3-88

ni.com

SCXI_Set_Threshold, 3-89

SCXI_Single_Chan_Setup, 3-89

SCXI_Track_Hold_Setup, 3-89

Timeout_Config, 3-3

WFM_DB_Config, 3-41, 4-10

WFM_Group_Setup, 3-41

Configure_HW_Analog_Trigger function, 3-4

conventions used in manual, x

counter usage, in waveform generation, 3-52

counter/timer application tips

See also counter/timer functions;

counter/timer operation

event counting, 3-75

general-purpose counter/timer functions, 3-77

counter/timer functions

See also counter/timer application tips;

counter/timer operation general-purpose counter/timer functions

application tips, 3-78

GPCTR_Change_Parameter, 3-77,

4-10

GPCTR_Config_Buffer, 3-77

GPCTR_Control, 3-77

GPCTR_Read_Buffer, 3-77, 4-11,

4-12

GPCTR_Set_Application, 3-78

GPCTR_Watch, 3-78

counter/timer operation clocks or time counters

clock synchronization, 3-79

IRIG-B, 3-80

PPS, 3-80

sample use cases, 3-79

data acquisition function application tips, 3-25

D

DAQ system, setting up, 1-2

DAQ_Check function, 3-22

© National Instruments Corporation

I-3

Index

DAQ_Clear function, 3-22

DAQ_Config function, 3-22

DAQ_DB_Config function, 3-24, 4-10

DAQ_DB_HalfReady function, 3-24, 4-11

DAQ_DB_Transfer function, 3-25, 4-11

DAQ_Monitor function, 3-22

DAQ_Op function, 3-21

DAQ_Rate function, 3-23

DAQ_Set_Clock function, 3-23

DAQ_Start function, 3-23

DAQ_StopTrigger_Config function, 3-23

DAQ_to_Disk function, 3-21

DAQ_VScale function, 3-23

data acquisition application tips

basic building blocks, 3-25

building block 1: configuration functions, 3-26

building block 2: start functions, 3-27

building block 3: check functions, 3-31

building block 4: cleaning up, 3-32 double-buffered data acquisition, 3-32

external multiplexer support

(AMUX-64T), 3-25

LPM device counter/timer signals, 3-25

data acquisition functions high-level data acquisition functions

DAQ_Op, 3-21

DAQ_to_Disk, 3-21

Lab_ISCAN_Op, 3-21

Lab_ISCAN_to_Disk, 3-21

SCAN_Op, 3-21

SCAN_to_Disk, 3-22

low-level data acquisition functions

DAQ_Check, 3-22

DAQ_Clear, 3-22

DAQ_Config, 3-22

DAQ_Monitor, 3-22

DAQ_Rate, 3-23

DAQ_Set_Clock, 3-23

DAQ_Start, 3-23

DAQ_StopTrigger_Config, 3-23

Traditional NI-DAQ (Legacy) User Manual

Index

DAQ_VScale, 3-23

Lab_ISCAN_Check, 3-23

Lab_ISCAN_Start, 3-23

SCAN_Demux, 3-23

SCAN_Sequence_Demux, 3-24,

3-34

SCAN_Sequence_Retrieve, 3-24,

3-34

SCAN_Sequence_Setup, 3-24, 3-34

SCAN_Setup, 3-24

SCAN_Start, 3-24

low-level double-buffered data acquisition functions

DAQ_DB_Config, 3-24, 4-10

DAQ_DB_HalfReady, 3-24, 4-11

DAQ_DB_Transfer, 3-25, 4-11

multirate scanning, 3-33

data acquisition rates, SCXI modules, 3-101

device configuration

NI-DAQ, 1-2 using Measurement & Automation

Explorer, 1-2

devices

See also specific device, e.g.,

AT-AO-6/10

MIO and AI device terminology, x

reference voltages for analog output devices (tables), 3-51

diagnostic tools (NI resources), A-1

DIG_Block_Check functions, 3-59

DIG_Block_Clear functions, 3-59

DIG_Block_In functions, 3-59

DIG_Block_Out functions, 3-59

DIG_Block_PG_Config functions, 3-59

DIG_Change_Message_Config function, 3-61

DIG_Change_Message_Control function, 3-61

DIG_DB_Config function, 3-60, 4-10

DIG_DB_HalfReady function, 3-60, 4-12

DIG_DB_Transfer function, 3-60, 4-11

DIG_Filter_Config function, 3-61

Traditional NI-DAQ (Legacy) User Manual

I-4

DIG_Grp_Config function, 3-59

DIG_Grp_Mode function, 3-59

DIG_Grp_Status function, 3-59

DIG_In_Grp function, 3-59

DIG_In_Line function, 3-58

DIG_In_Prt function, 3-58

DIG_Line_Config function, 3-58

DIG_Out_Grp function, 3-59

DIG_Out_Line function, 3-58

DIG_Out_Prt function, 3-58

DIG_Prt_Config function, 3-58

DIG_Prt_Status function, 3-58

DIG_SCAN_Setup function, 3-59

DIG_Trigger_Config function, 3-60

digital I/O application tips digital change detection

with 652X devices, 3-61

with 653X devices, 3-62

digital change notification with 652X devices, 3-61

digital group block I/O, 3-69

digital group I/O, 3-68

digital line I/O, 3-66

digital port I/O applications, 3-64

double-buffered I/O, 3-74

handshaking versus no-handshaking digital I/O, 3-64

SCXI applications, 3-90

digital I/O functions

byte mapping to digital I/O lines (table), 3-55

DIG_In_Line, 3-58

DIG_In_Prt, 3-58

DIG_Line_Config, 3-58

DIG_Out_Line, 3-58

DIG_Out_Prt, 3-58

DIG_Prt_Config, 3-58

DIG_Prt_Status, 3-58

digital change notification functions, 3-61 digital filtering function, 3-61

double-buffered digital I/O functions

ni.com

DIG_DB_Config, 4-10

DIG_DB_HalfReady, 3-60, 4-12

DIG_DB_Transfer, 3-60, 4-11

group digital I/O functions

DIG_Block_Check, 3-59

DIG_Block_Clear, 3-59

DIG_Block_In, 3-59

DIG_Block_Out, 3-59

DIG_Block_PG_Config, 3-59

DIG_Grp_Config, 3-59

DIG_Grp_Mode, 3-59

DIG_Grp_Status, 3-59

DIG_In_Grp, 3-59

DIG_Out_Grp, 3-59

DIG_SCAN_Setup, 3-59

DIG_Trigger_Config, 3-60

groups of ports

653X, 3-56

DIO-24, 6025E, AT-MIO-16DE-10, and DIO-96, 3-56

PCI-6115, PCI-6120, and 673X, 3-57

overview, 3-54

DIO-96 groups of ports, 3-56

documentation

conventions used in manual, x

how to use NI-DAQ manual set, ix

NI resources, A-1

double-buffered data acquisition

application tips, 3-32

input operations, 4-2

potential setbacks, 4-4

output operations, 4-6

potential setbacks, 4-7

overview, 4-1 single-buffered versus double-buffered data, 4-1

double-buffered functions configuration functions

DAQ_DB_Config, 3-24, 4-10

DIG_DB_Config, 3-60, 4-10

© National Instruments Corporation

I-5

Index

GPCTR_Change_Parameter, 3-77,

4-10

WFM_DB_Config, 4-10

digital I/O functions applications

double-buffered I/O, 3-74

group block I/O applications, 3-69

DIG_DB_Config, 4-10

DIG_DB_HalfReady, 3-24, 3-60,

4-12

DIG_DB_Transfer, 3-60, 4-11

HalfReady functions

DAQ_DB_HalfReady, 3-24, 4-11

DIG_DB_HalfReady, 3-60, 4-12

GPCTR_Read_Buffer, 4-12

WFM_DB_HalfReady, 4-11

low-level double-buffered data acquisition functions

application tips, 3-32

DAQ_DB_Config, 3-24, 4-10

DAQ_DB_HalfReady, 3-24, 4-11

DAQ_DB_Transfer, 3-25, 4-11

transfer functions

DAQ_DB_Transfer, 3-25, 4-11

DIG_DB_Transfer, 3-60, 4-11

GPCTR_Read_Buffer, 4-11

WFM_DB_Transfer, 4-11

double-buffered waveform generation applications, 3-48

drivers (NI resources), A-1

DSA devices, RTSI connections, 3-82

E

E Series devices

Calibrate_E_Series function, 3-4

counter usage, 3-52

FIFO lag effect, 3-52

RTSI bus connections, 3-82

event counting, 3-75

Traditional NI-DAQ (Legacy) User Manual

Index

event message functions

See also NI-DAQ events in Visual Basic

for Windows

application tips, 3-5

Config_Alarm_Deadband, 3-5

Config_ATrig_Event_Message, 3-5

Config_DAQ_Event_Message, 3-5

event procedures, 3-6

examples (NI resources), A-1

external multiplexer support

(AMUX-64T), 3-25

external triggering of waveform generation, 3-53

EXTUPD* signal, 3-82

EXTUPDATE* signal, 3-82

F

FIFO lag effect, 3-52

frequency measurement, 3-75

functions analog input functions

one-shot analog input functions, 3-17

single-channel analog input application tips, 3-18

single-channel analog input functions, 3-17

analog output functions

application tips, 3-37

list of functions, 3-36

counter/timer functions

application tips, 3-78

counter/timer operation, 3-75

general-purpose counter/timer functions, 3-77 list of functions, 3-77

data acquisition functions

application tips, 3-25

double-buffered data acquisition application tips, 3-32

Traditional NI-DAQ (Legacy) User Manual

I-6

high-level data acquisition functions, 3-21

low-level data acquisition functions, 3-22

low-level double-buffered data acquisition functions, 3-24

digital I/O function group

653X device groups, 3-56

application tips, 3-63

byte mapping to digital I/O lines

(table), 3-55

digital I/O functions, 3-58

digital line I/O applications, 3-66

DIO-24, 6025E, AT-MIO-16DE-10, and DIO-96 device groups, 3-56

double-buffered digital I/O functions, 3-60

group digital I/O functions, 3-59

overview, 3-54

PCI-6115, PCI-6120, and 673X device groups, 3-57

event message functions

application tips, 3-5 list of functions, 3-5

NI-DAQ events in Visual Basic for

Windows, 3-6

initialization and general-configuration functions, 3-2

list of function groups, 3-1

RTSI bus trigger functions

653X RTSI connections, 3-83

application tips, 3-84

E series, DSA, 660X, and 671X RTSI connections, 3-82

list of functions, 3-81

SCXI functions

application tips, 3-90

list of functions, 3-85

software-calibration and device-specific functions, 3-3

transducer conversion functions

ni.com

function descriptions, 5-2

list of functions, 5-1 overview, 5-1

waveform generation functions

application tips, 3-42

high-level waveform generation functions, 3-40 low-level waveform generation functions, 3-40

G

General DAQ Event controls

examples, 3-9

properties (table), 3-8

setting properties, 3-9

general-purpose counter/timer functions

application tips, 3-78

GPCTR_Change_Parameter, 3-77, 4-10

GPCTR_Config_Buffer, 3-77

GPCTR_Control, 3-77

GPCTR_Read_Buffer, 3-77

GPCTR_Set_Application, 3-78

GPCTR_Watch, 3-78

Get_DAQ_Device_Info function, 3-2

Get_NI_DAQ_Version function, 3-2

GPCTR_Change_Parameter function, 3-77, 4-10

GPCTR_Config_Buffer function, 3-77

GPCTR_Control function, 3-77

GPCTR_Read_Buffer

function, 3-77, 4-11, 4-12

GPCTR_Set_Application function, 3-78

GPCTR_Watch function, 3-78

group digital I/O functions

DIG_Block_Check, 3-59

DIG_Block_Clear, 3-59

DIG_Block_In, 3-59

DIG_Block_Out, 3-59

DIG_Block_PG_Config, 3-59

DIG_Grp_Config, 3-59

© National Instruments Corporation

I-7

Index

DIG_Grp_Mode, 3-59

DIG_Grp_Status, 3-59

DIG_In_Grp, 3-59

DIG_Out_Grp, 3-59

DIG_SCAN_Setup, 3-59

DIG_Trigger_Config, 3-60

group digitial I/O applications

digital double-buffered group block I/O, 3-60

digital group block I/O, 3-69

digital group I/O, 3-68

groups of ports

653X group, 3-56

DIO-24, 6025E, AT-MIO-16DE-10, and

DIO-96, 3-56

PCI-6115, 6120, and 673X groups, 3-57

H

handshaking mode, 3-56

handshaking versus no-handshaking digital

I/O, 3-64

help

technical support, A-1

high-level data acquisition functions

See also data acquisition application tips

DAQ_Op, 3-21

DAQ_to_Disk, 3-21

Lab_ISCAN_Op, 3-21

Lab_ISCAN_to_Disk, 3-21

SCAN_Op, 3-21

SCAN_to_Disk, 3-22

high-level waveform generation functions

WFM_from_Disk, 3-40

WFM_Op, 3-40

I

Init_DA_Brds function, 3-2

initialization and general-configuration functions

Traditional NI-DAQ (Legacy) User Manual

Index

Align_DMA_Buffer, 3-2

Get_DAQ_Device_Info, 3-2

Get_NI_DAQ_Version, 3-2

Init_DA_Brds, 3-2

Set_DAQ_Device_Info, 3-3

Timeout_Config, 3-3

installation

See also device configuration setting up your DAQ system, 1-2

instrument drivers (NI resources), A-1

K

KnowledgeBase, A-1

L

Lab_ISCAN_Check function, 3-23

Lab_ISCAN_Op function, 3-21

Lab_ISCAN_Start function, 3-23

Lab_ISCAN_to_Disk function, 3-21

libraries, NI-DAQ, 2-1

low-level data acquisition functions

application tips. See data acquisition

application tips

DAQ_Check, 3-22

DAQ_Clear, 3-22

DAQ_Config, 3-22

DAQ_Monitor, 3-22

DAQ_Rate, 3-23

DAQ_Set_Clock, 3-23

DAQ_Start, 3-23

DAQ_StopTrigger_Config, 3-23

DAQ_VScale, 3-23

Lab_ISCAN_Check, 3-23

Lab_ISCAN_Start, 3-23

SCAN_Demux, 3-23

SCAN_Sequence_Demux, 3-24, 3-34

SCAN_Sequence_Retrieve, 3-24, 3-34

SCAN_Sequence_Setup, 3-24, 3-34

SCAN_Setup, 3-24

Traditional NI-DAQ (Legacy) User Manual

I-8

SCAN_Start, 3-24 low-level double-buffered data acquisition functions, 3-24

application tips. See data acquisition

application tips

DAQ_DB_Config, 4-10

DAQ_DB_HalfReady, 3-24, 4-11

DAQ_DB_Transfer, 3-25, 4-11

low-level waveform generation functions

WFM_Chan_Control, 3-40, 3-53

WFM_Check, 3-53

WFM_ClockRate, 3-40

WFM_DB_HalfReady, 3-41

WFM_DB_Transfer, 3-41

WFM_Group_Control, 3-41

WFM_Group_Setup, 3-41

WFM_Load, 3-41

WFM_Rate, 3-41

WFM_Scale, 3-41

WFM_Set_Clock, 3-42

LPM devices. See PC-LPM-16

LPM16_Calibrate function, 3-4

M

manual. See documentation

Measurement & Automation Explorer application, 1-2

Microsoft Visual Basic for Windows building Windows applications

buffer allocation, 2-5

example programs, 2-4

parameter passing, 2-6

procedure, 2-4

string passing, 2-6

NI-DAQ events

ActiveX controls, 3-6

Analog Alarm Event control, 3-12

Analog Trigger Event control, 3-9

General DAQ Event controls, 3-7

ni.com

General DAQ Event example, 3-9

using multiple controls, 3-14

special considerations, 2-5

Microsoft Visual C++

building Windows applications, 2-2 example programs, 2-2

special considerations, 2-3

MIO devices

counter usage in waveform generation,

3-52

FIFO lag effect, 3-52

MIO and AI device terminology (table), xi

reference voltages for waveform generation (table), 3-51

MIO_Config function, 3-4

MIO-E series devices. See E series devices

Multiplexed mode applications, SCXI, 3-91

multiplexer device (AMUX-64T), 3-25

multirate scanning

flow chart for, 3-35

functions for, 3-34

purpose and use, 3-33

N

National Instruments support and services,

A-1

NI 4551 devices

counter usage, 3-52

FIFO lag effect, 3-52

NI support and services, A-1

NI-DAQ events in Visual Basic for Windows

ActiveX controls, 3-6

Analog Alarm Event control, 3-12

Analog Trigger Event control, 3-9

General DAQ Event controls, 3-7

General DAQ Event example, 3-9

using multiple controls, 3-14

NI-DAQ installation. See installation

NI-DAQ libraries for Windows, 2-1

© National Instruments Corporation

I-9

Index

NI-DAQ software

features, 1-1

overview, 1-2

nidaq32.dll (note), 2-1

NI-TIO based devices. See clocks or time

counters for NI-TIO devices

no-handshaking mode, 3-56

O

one-shot analog input functions

AI_Change_Parameter, 3-17

AI_Check, 3-17

AI_Clear, 3-17

AI_Configure, 3-17

AI_Mux_Config, 3-17

AI_Read, 3-18

AI_Read_Scan, 3-18

AI_Read_VScan, 3-18

AI_Setup, 3-18

AI_VRead, 3-18

AI_VScale, 3-18 application tips, 3-18

one-shot analog output functions

AO_Change_Parameter, 3-36

AO_Configure, 3-36

AO_Update, 3-36

AO_VScale, 3-36

AO_VWrite, 3-37

AO_Write, 3-37 application tips, 3-37

P

Parallel mode applications, SCXI modules, 3-97

parameter passing in Windows applications

Microsoft Visual Basic, 2-6

Microsoft Visual C++, 2-3

pattern generation I/O with 653X, PCI-6115,

PCI-6120, and 673X devices, 3-74

Traditional NI-DAQ (Legacy) User Manual

Index

PC-DIO-24 groups of ports, 3-54

PCI-4451 devices

counter usage, 3-52

FIFO lag effect, 3-52

PCI-6115 and PCI-6120 devices

groups of ports, 3-57

pattern generation, 3-74

PCLK1 signal (table), 3-83

PCLK2 signal (table), 3-83

PC-LPM-16

counter/timer signals, 3-25

LPM16_Calibrate function, 3-4

programming examples (NI resources), A-1

R

reference voltages for analog output devices

bipolar output polarity (table), 3-51 unipolar output polarity (table), 3-51

REQ1 signal

653X RTSI connections (table), 3-83

REQ2 signal

653X RTSI connections (table), 3-83

RTD_Buf_Convert function, 5-2

RTD_Convert function

definition, 5-1

purpose and use, 5-2

RTSI bus

application tips, 3-84

description, 3-81

RTSI bus connections

653X, 3-83

E series, DSA, 660X, 671X,

and 673X, 3-82

RTSI bus trigger functions

RTSI_Clear, 3-81

RTSI_Clock, 3-81

RTSI_Conn, 3-81

RTSI_DisConn, 3-81

Select_Signal, 3-81

Traditional NI-DAQ (Legacy) User Manual

I-10

S

SCAN_Demux function, 3-23

SCAN_Op function, 3-21

SCAN_Sequence_Demux function, 3-24, 3-34

SCAN_Sequence_Retrieve function, 3-24, 3-34

SCAN_Sequence_Setup function, 3-24, 3-34

SCAN_Setup function, 3-24

SCAN_Start function, 3-24

SCAN_to_Disk function, 3-22

SCXI application tips

analog output applications, 3-103

data acquisition rates, 3-101

digital applications, 3-103

general SCXIbus application flowchart, 3-90

Multiplexed mode, 3-91

Parallel mode, 3-97

settling times (table), 3-102

SCXI functions

SCXI_AO_Write, 3-85

SCXI_Cal_Constants, 3-85

SCXI_Calibrate, 3-85

SCXI_Calibrate_Setup, 3-86

SCXI_Change_Chan, 3-86

SCXI_Configure_Connection, 3-86

SCXI_Configure_Filter, 3-86

SCXI_Get_Chassis_Info, 3-86

SCXI_Get_Module_Info, 3-86

SCXI_Get_State, 3-87

SCXI_Get_Status, 3-87

SCXI_Load_Config, 3-87

SCXI_ModuleID_Read, 3-87

SCXI_MuxCtr_Setup, 3-87

SCXI_Reset, 3-88

SCXI_Scale, 3-88

SCXI_SCAN_Setup, 3-88

SCXI_Set_Config, 3-88

SCXI_Set_Excitation, 3-88

ni.com

SCXI_Set_Gain, 3-88

SCXI_Set_Input_Mode, 3-88

SCXI_Set_State, 3-88

SCXI_Set_Threshold, 3-89

SCXI_Single_Chan_Setup, 3-89

SCXI_Strain_Null, 3-89

SCXI_Track_Hold_Control, 3-89

SCXI_Track_Hold_Setup, 3-89

SCXI_Calibrate function, 3-4

Select_Signal function, 3-4, 3-81

Set_DAQ_Device_Info function, 3-3

setting up DAQ systems. See device

configuration; installation

single-buffered versus double-buffered data, 4-1

single-channel analog input functions

AI_Change_Parameter, 3-17

AI_Check, 3-17

AI_Clear, 3-17

AI_Configure, 3-17

AI_Mux_Config, 3-17

AI_Read, 3-18

AI_Read_Scan, 3-18

AI_Read_VScan, 3-18

AI_Setup, 3-18

AI_VRead, 3-18

AI_VScale, 3-18 application tips, 3-18

software (NI resources), A-1

software-calibration and device-specific functions

AO_Calibrate, 3-3

Calibrate_1200, 3-3

Calibrate_DSA, 3-4

Calibrate_E_Series, 3-4

Calibrate_TIO, 3-4

Configure_HW_Analog_Trigger, 3-4

LPM16_Calibrate, 3-4

MIO_Config, 3-4

SCXI_Cal_Constants, 3-85

© National Instruments Corporation

I-11

Index

SCXI_Calibrate, 3-4, 3-85

SCXI_Calibrate_Setup, 3-86

Select_Signal, 3-4

STOPTRIG1 signal (table), 3-83

STOPTRIG2 signal (table), 3-83

Strain_Buf_Convert function, 5-4

Strain_Convert function

definition, 5-1

purpose and use, 5-4

string passing in Windows applications

Microsoft Visual Basic, 2-6

Microsoft Visual C++, 2-3

support

technical, A-1

synchronization of clocks. See clocks or time

counters for NI-TIO devices

T

technical support, A-1

Thermistor_Buf_Convert function, 5-7

Thermistor_Convert function

definition, 5-1

purpose and use, 5-7

Thermocouple_Buf_Convert function, 5-9

Thermocouple_Convert function

definition, 5-1

purpose and use, 5-9

time counters. See clocks or time counters for

NI-TIO devices

Timeout_Config function, 3-3

training and certification (NI resources), A-1

transducer conversion functions

overview, 5-1

RTD_Buf_Convert, 5-2

RTD_Convert, 5-1, 5-2

Strain_Buf_Convert, 5-4

Strain_Convert, 5-1, 5-4

Thermistor_Buf_Convert, 5-7

Thermistor_Convert, 5-1, 5-7

Traditional NI-DAQ (Legacy) User Manual

Index

Thermocouple_Buf_Convert, 5-9

Thermocouple_Convert, 5-1, 5-9

troubleshooting (NI resources), A-1

V

Visual Basic. See Microsoft Visual Basic for

Windows

W

waveform generation application tips

basic applications, 3-42

basic waveform generation with pauses, 3-45

counter usage, 3-52

double-buffered applications, 3-48

external triggering, 3-53

FIFO lag effect, 3-52 minimum update intervals, 3-52

reference voltages for analog output devices

bipolar output polarity (table), 3-51 unipolar output polarity (table), 3-51

waveform generation functions high-level waveform generation functions

WFM_from_Disk, 3-40

WFM_Op, 3-40

low-level waveform generation functions

WFM_Chan_Control, 3-40

WFM_Check, 3-40

WFM_ClockRate, 3-40

WFM_DB_Config, 3-41, 4-10

WFM_DB_HalfReady, 3-41, 4-11

WFM_DB_Transfer, 3-41, 4-11

WFM_Group_Control, 3-41

WFM_Group_Setup, 3-41

WFM_Load, 3-41

WFM_Rate, 3-41

WFM_Scale, 3-41

WFM_Set_Clock, 3-42

Web resources, A-1

WFM_Chan_Control function, 3-40, 3-53

WFM_Check function, 3-40, 3-53

WFM_ClockRate function, 3-40

WFM_DB_Config function, 3-41, 4-10

WFM_DB_HalfReady function, 3-41, 4-11

WFM_DB_Transfer function, 3-41, 4-11

WFM_from_Disk function, 3-40

WFM_Group_Control function, 3-41

WFM_Group_Setup function, 3-41

WFM_Load function, 3-41

WFM_Op function, 3-40

WFM_Rate function, 3-41

WFM_Scale function, 3-41

WFM_Set_Clock function, 3-42

Windows application building

Microsoft Visual Basic, 2-3

Microsoft Visual C++, 2-2

NI-DAQ examples, 2-8

NI-DAQ libraries, 2-1

Traditional NI-DAQ (Legacy) User Manual

I-12 ni.com
