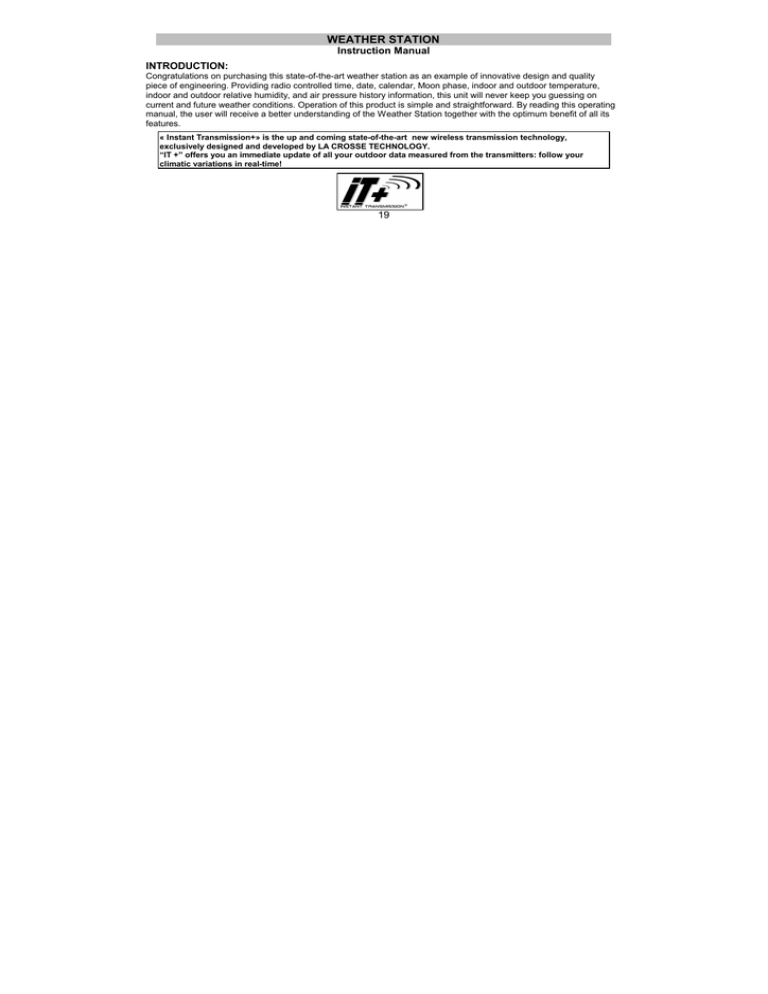

WEATHER STATION
Instruction Manual
INTRODUCTION:
Congratulations on purchasing this state-of-the-art weather station as an example of innovative design and quality
piece of engineering. Providing radio controlled time, date, calendar, Moon phase, indoor and outdoor temperature,
indoor and outdoor relative humidity, and air pressure history information, this unit will never keep you guessing on
current and future weather conditions. Operation of this product is simple and straightforward. By reading this operating
manual, the user will receive a better understanding of the Weather Station together with the optimum benefit of all its
features.
« Instant Transmission+» is the up and coming state-of-the-art new wireless transmission technology,
exclusively designed and developed by LA CROSSE TECHNOLOGY.
“IT +” offers you an immediate update of all your outdoor data measured from the transmitters: follow your
climatic variations in real-time!
19
FEATURES:
The Weather Station
Hanging hole
Battery
compartment
LCD Display
Stand
Function keys
20
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
DCF Radio controlled time with manual setting option
Time reception ON/OFF (user selectable)
12/24 hour time display
Time zone option ±12 hours
Weekday and day calendar display (year and month only in setting mode)
Display 12 Moon phases throughout the year
Weather forecasting with weather tendency indicator
Indoor comfort indicator
Temperature display in ºC/ºF
Indoor and outdoor temperature display with MIN/MAX records and time of reception
Humidity data display as RH%
Indoor and outdoor humidity display with MIN/MAX records
Relative air pressure hPa/ inHg with adjustable reference value
Weather icon sensitivity setting
Relative air pressure history for the past 24 hours (electronic barometer with barometric pressure trend)
Wireless transmission at 868 MHz
21
•
•
•
•
•
Signal reception intervals at 4 seconds
LCD contrast selectable
Can receive up to 3 outdoor transmitters
Low battery indicator
Table standing or wall mounting
The Outdoor Thermo-hygro Transmitter
•
•
•
•
Remote transmission of outdoor temperature and humidity to Weather Station by 868 MHz
Display alternately the outdoor temperature and humidity readings on LCD
Shower proof casing
Wall mounting case (Mounting at a sheltered place. Avoid direct rain and sunshine)
22
TO INSTALL AND REPLACE BATTERIES IN THE WEATHER STATION
The Weather Station uses 2 x AA, IEC LR6, 1.5V
batteries. To install and replace the batteries, please
follow the steps below:
1. Insert finger or other solid object in the space at the
bottom center of the battery
compartment and lift up to remove the cover.
2. Insert batteries observing the correct polarity (see
marking).
3. Replace compartment cover.
23
INSTALL AND REPLACE BATTERIES IN THE THERMO-HYGRO TRANSMITTER
The Thermo-hygro transmitter uses 2 x AA, IEC LR6, 1.5V battery. To install and replace the batteries, please follow the steps
below:
1.
2.
3.
Remove the battery compartment cover.
Insert the batteries, observing the correct polarity (see marking).
Replace the battery compartment cover on the unit.
Note:
In the event of changing batteries in any of the units, all units need to be reset by following the setting up procedures. This is
because a random security code is assigned by the transmitter at start-up and this code must be received and stored by the
Weather station in the first 3 minutes of power being supplied to it
24
BATTERY CHANGE:
It is recommended to replace the batteries in all units on an annual basis to ensure optimum accuracy of these units.
Please participate in the preservation of the environment. Return used batteries to an authorized
depot.
SETTING UP
WHEN ONE TRANSMITTER IS USED
1.
First, insert the batteries in the transmitter (see “How to install and replace batteries in the Thermo-hygro
outdoor transmitter” above).
2.
Within 2 minutes of powering up the transmitter, insert the batteries in the Weather Station (see “How to install
and replace batteries in the Weather Station” above). Once the batteries are in place, all segments of the LCD
will light up briefly and a short signal tone will sound. Following the indoor temperature/humidity and the time as
0:00 will be displayed. If these information are not displayed on the LCD after 60 seconds, remove the batteries
and wait for at least 60 seconds before reinserting them. Once the indoor data is displayed user may proceed to
the next step.
25
3.
4.
After the batteries are inserted, the Weather station will start receiving data signal from the transmitter. The
outdoor temperature and humidity data should then be displayed on the Weather station. If this does not happen
after 2 minutes, the batteries will need to be removed from both units and reset from step 1.
In order to ensure sufficient 868 MHz transmission however, the distance between the Weather Station and the
transmitter should not be more than 100 meters (see notes on “Positioning” and “868 MHz Reception”).
Note:
In the event of changing batteries of the units, ensure the batteries do not spring free from the contacts. Always wait at
least 1 minute after removing the batteries before reinserting, otherwise start up and transmission problems may occur.
WHEN MORE THAN ONE TRANSMITTER IS USED
1.
User shall remove all the batteries from the Weather Station and transmitters, and wait 60 seconds.
2.
Insert the batteries in the first transmitter.
3.
Within 2 minutes of powering up the first transmitter, insert the batteries in the Weather Station. Once the
batteries are in place, all segments of the LCD will light up briefly and a short signal tine will sound. Following the
indoor temperature/humidity and the time as 0:00 will be displayed. If these information are not displayed on the
LCD after 60 seconds, remove the batteries from both units and wait for at least 60 seconds before reinserting
them.
26
4.
5.
6.
7.
The outdoor temperature and humidity data from the first transmitter (channel 1) should then be displayed on the
Weather Station. Also, the signal reception icon will be displayed. If this does not happen after 2 minutes, the
batteries will need to be removed from both units and reset from step 1.
Insert the batteries in the second transmitter as soon as the outdoor temperature and humidity readings from the
first transmitter are displayed on the Weather Station.
Note : User shall insert the batteries into the second transmitter within 45 seconds after the Weather Station
displays the information of the first transmitter.
The outdoor temperature and humidity from the second transmitter and the "channel 2" icon should then be
displayed on the Weather Station. If this does not happen after 2 minutes, the batteries will need to be removed
from all the units and reset from step 1.
Insert the batteries in the third transmitter as soon as the "channel 2" icon and outdoor data are displayed on the
Weather Station. Then within 2 minutes, the channel 3 outdoor data from the third transmitter will be displayed
and the channel icon will shift back to "1" once the third transmitter is successfully received. If this is not happen,
user shall restart the setting up from step 1.
Note : User shall insert the batteries into the third transmitter within 45 seconds after the Weather Station
displays the information of the first transmitter.
27
8.
In order to ensure sufficient 868 MHz transmission however, the distance between the Weather Station and the
transmitter should not be more than 100 meters (see notes on “Positioning” and “868 MHz Reception”).
IMPORTANT:
Transmission problems will arise if the setting for additional sensors is not followed as described above. Should
transmission problems occur, it is necessary to remove the batteries from all units and start again the set-up from step
1.
RESETTING
The Weather Station and the Thermo-hygro transmitter need to be reset when one of the following conditions occur:
•
Unsuccessful 868MHz signal reception.
•
Malfunction on the units.
•
Batteries replacement.
For resetting, remove all batteries from the units. Wait at least for 1 minute before powering up the Weather station
again. Proceed from step 1 in “Setting Up”.
28
DCF RADIO CONTROLLED TIME
The time base for the radio controlled time is a Cesium Atomic Clock operated by the Physikalisch Technische
Bundesanstalt Braunschweig which has a time deviation of less than one second in one million years. The time is
coded and transmitted from Mainflingen near Frankfurt via frequency signal DCF-77 (77.5 kHz) and has a transmitting
range of approximately 1,500 km. Your radio-controlled Weather Station receives this signal and converts it to show
the precise time in summer or wintertime.
The quality of the reception depends greatly on the geographic location. In normal cases, there should be no reception
problems within a 1500km radius of Frankfurt.
Once the outdoor data reception learning period is completed, the DCF tower icon in the clock display will start flashing
in the upper left corner. This indicates that the clock has detected that there is a radio signal present and is trying to
receive it. When the time code is received, the DCF tower becomes permanently lit and the time will be displayed.
DCF reception is done twice daily at 02:00 and 03:00 am. If the reception is not successful at 03:00 am, then the next
reception takes place the next hour and so on until 06:00am, or until the reception is successful. If the reception is not
successful at 06:00 am, then the next attempt will take place the next day at 02:00 am.
29
If the tower icon flashes, but does not set the time or the DCF tower does not appear at all, then please take note of
the following:
•
Recommended distance to any interfering sources like computer monitors or TV sets is a minimum of 1.5 - 2
meters.
•
Within ferro-concrete rooms (basements, superstructures), the received signal is naturally weakened. In extreme
cases, please place the unit close to a window and/ or point its front or back towards the Frankfurt transmitter.
•
During nighttime, the atmospheric disturbances are usually less severe and reception is possible in most cases.
A single daily reception is adequate to keep the accuracy deviation below 1 second.
30
FUNCTION KEYS:
Weather Station:
The Weather Station has 4 easy to use function keys:
SET key
CH key
IN key
OUT/+ key
SET key
•
Press and hold the key to enter manual setting modes: LCD contrast, time zone, time reception ON/OFF, 12/24
hour display, manual time setting, calendar, temperature °C/°F, pressure hPa/inHg, relative pressure v alue, and
weather icon sensitivity setting
•
Reset all MIN/MAX records
31
IN key
•
Press to toggle between MAX/MIN and current indoor temperature/humidity data
•
Decrease relative pressure value (within manual set mode)
OUT/+ key
•
Press shortly to toggle between MAX/MIN and current outdoor temperature/humidity data
•
Increase, change, toggle all values in manual set mode
CH key
•
Exit the manual set mode
•
Switch among display of channels (if more than 1 transmitter is used)
LCD SCREEN
The LCD screen is split into 4 sections displaying the information for time/calendar/moon phase, indoor data, weather
forecast and outdoor data.
32
Time reception
icon (for DCF
time)
Moon phase
icon
Low
battery
Indoor
temperature in
ºC/ ºF
Weather
tendency
indicator
Time
Calendar
Comfort indicator icon
Indoor relative
humidity in
RH%
Weather forecast
icon
Relative air
pressure in hPa
/ inHg
Relative air
pressure history
bar graph
Outdoor
temperature in
ºC/ ºF
Outdoor data
signal reception
Outdoor relative
humidity in RH%
33
* When the signal is successfully received by the Weather Station, the outdoor transmission icon will be switched on.
(If not successful, the icon will not be shown on LCD). The user can then easily see whether the last reception was
successful (icon on) or not (icon off). On the other hand, the short blinking of the icon shows that a reception is
currently taking place.
MANUAL SETTINGS:
The following manual settings can be changed when pressing the SET key for:
•
LCD contrast setting
•
Time zone setting
•
Time reception ON/OFF setting
•
12/24-hour format setting
•
Manual time setting
•
Calendar setting
•
°C/°F temperature setting
•
hPa / inHg pressure setting
•
Relative air pressure setting
•
Weather forecasting icon sensitivity setting
34
LCD CONTRAST SETTING:
Last digit flashing
The LCD contrast can be set within 8 levels, from LCD 0 to LCD7 (Default setting is LCD 4):
1.
Press and hold the SET key until the digit starts flashing.
2.
Use the OUT/+ key to view all levels of contrast.
3.
Select the desired LCD contrast. Confirm with the SET key and enter in the Time Zone setting.
TIME ZONE SETTING:
Flashing
35
The time zone default of the Weather Station is “0”. To set a different time zone:
1.
The current time zone value starts flashing.
2.
Use the OUT/+ key to set the time zone. The range runs from 0 to -12 and then runs from +12 back to 0 in
consecutive 1-hour intervals.
3.
Confirm with the SET key and enter the Time reception ON/OFF setting.
TIME RECEPTION ON/OFF SETTING:
Flashing
In area where reception of the DCF time is not possible, the DCF time reception function can be turn OFF. The clock
will then work as a normal Quartz clock. (Default setting is ON).
1.
The digit “ON” will start flashing on the LCD.
2.
Use the OUT/+ key to turn OFF the time reception function.
36
3.
Confirm with the SET key and enter the 12/24-hour format setting.
Note:
If the Time Reception function is turn OFF manually, the clock will not attempt any reception of the DCF time
as long as the Time Reception OFF function is activated.
The time reception icon and the “DCF” icon will not be displayed on the LCD.
12/24-HOUR FORMAT SETTING:
Flashing
The hour display can be selected to show hours in 12-hour or 24-hour settings. (Default 24-Hour)
1.
Use the OUT/+ key to toggle between “12H” or “24H”.
2.
Confirm with the SET key and enter the Manual time setting.
37
MANUAL TIME SETTING:
In case the Weather Station cannot detect the DCF-signal (for example due to disturbances, transmitting distance,
etc.), the time can be manually set. The clock will then work as a normal Quartz clock.
Hour flashing
1.
2.
3.
4.
5.
Minutes flashing
The hour digit will start flashing.
Use the OUT/+ key to set the hour.
Press again the SET key to set the minutes. The minute digits start flashing.
Use the OUT/+ key to set the minutes.
Confirm with the SET key and enter the Calendar setting.
Note:
The unit will still try and receive the signal at 02:00 and 03:00 am despite it being manually set. When it does receive
the signal, it will change the manually set time into the received time. During reception attempts the DCF tower icon will
38
flash. If reception has been unsuccessful, then the DCF tower icon will not appear but reception will still be attempted
the following day.
CALENDAR SETTING:
Year
Date and month (24hr time format)
Month and date (12hr time format)
The date default of the Weather station is 1. 1. 2006. Once the radio-controlled time signals are received, the date is
automatically updated. However, if the signals are not received, the date can also be set manually.
1.
The year starts flashing.
2.
Use the OUT/+ key to set the year (between year 2003-2029).
3.
Press the SET key again to confirm and to enter the month setting. The month starts flashing.
39
4.
5.
6.
7.
Use the OUT/+ key to set the month.
Press the SET key again to confirm and to enter the date setting mode. The date starts flashing.
Use the OUT/+ key to set the date.
Confirm all calendar settings with the SET key and enter the Temperature unit setting.
°C/°F TEMPERATURE SETTING:
Flashing
The temperature display can be selected to show temperature data in °C or °F (Default °C).
1.
Use the OUT/+ key to toggle between “°C” or “°F” .
2.
Confirm with the SET key and enter the Air pressure unit setting.
40
hPa / inHg PRESSURE UNIT SETTING:
The pressure display can be selected to show relative air pressure in hPa or inHg ( default is “hPa”).
Flashing
1.
2.
Use the OUT/+ key to toggle between “hPa” or “inHg” unit
Confirm with the SET key and enter the Relative air pressure value setting.
Note: Units of weather icon sensitivity and air pressure history are not affected. They are always expressed in hPa.
41
RELATIVE AIR PRESSURE VALUE SETTING
The default relative pressure value is 1013 hPa (29.92 inHg). This can be manually set to another value within the
range of 960 – 1040 hPa (28.35 – 30.72 inHg) for a better reference.
Flashing
1.
2.
3.
The current relative pressure value will start flashing
Use the OUT/+ key to increment and IN key to decrement the value. Keep holding the key allows the value to
advance faster.
Confirm with the SET key and enter the Weather forecast icon sensitivity setting.
42
WEATHER FORECASTING ICON SENSITIVITY SETTING:
For locations with rapid changes of weather conditions, the weather icons sensitivity can be set to a different level for
faster display of weather conditions.
Flashing
1.
2.
The current sensitivity value will start flashing.
Use the OUT/+ key to set the weather sensitivity level. There are 3 levels of setting: 2, 3 and 4. The value
corresponds to the change of air pressure in hPa before the weather icon will switch to another state. Level 2 is
the most sensitive setting, level 4 is the slowest recording setting (default setting is "3").
43
3.
Confirm with the SET key and exit the Manual settings.
TO EXIT THE MANUAL SETTING MODE
To exit the manual setting mode anytime during the manual setting, press the CH key or wait for automatic timeout.
The mode will return to normal time display.
MOON PHASES SYMBOL
The Moon icon of the Weather station will also display all 12 Moon phases throughout the year according to the set
calendar.
44
New Moon
Small Waning
Crescent
Small Waxing
Crescent
Large Waning
Crescent
Large Waxing First Quarter
Crescent
Last Quarter
Small Waxing
Gibbous
Small Waning Large Waning
Gibbous
Gibbous
Large Waxing
Gibbous
Full Moon
INDOOR RELATIVE HUMIDITY AND INDOOR TEMPERATURE:
The indoor temperature and humidity data, the indoor comfort indicator are automatically updated and displayed on the
second section of the LCD.
45
MAX icon
Indoor temperature
in °C or ºF
Indoor relative
humidity in RH%
THE COMFORT LEVEL INDICATOR:
Comfortable
:
Uncomfortable :
A happy face icon “☺” indicating a temperature level between 20°C and 2 5.9°C and relative
humidity reading between 45% and 65%.
A sad face icon “” indicating any value outside the comfortable range.
TOGGLING AND RESETTING THE INDOOR READINGS:
1.
Press the IN key to toggle between the indoor current, MAX/MIN temperature and humidity data. The time and
dates of the recorded data will also be displayed in the time and calendar sections (for temperature data only).
Once to show the MAX indoor temperature and humidity data with the recorded time and date.
Twice to show the MIN indoor temperature and humidity data with the recorded time and date.
Three times to return to the current displayed values
46
2.
Once the MIN or MAX data is displayed, press and hold the SET key for 3 seconds to reset the respective MIN or
MAX record to current temperature and humidity data, and current time, date display.
Note: The MIN or MAX data needs to be reset individually.
WEATHER FORECAST AND WEATHER TENDENCY:
WEATHER FORECASTING ICONS:
Weather icons in the third section of LCD can be displayed in any of the following combinations:
FORECAST
FORECAST
FORECAST
Sunny
Cloudy with sunny intervals
Rainy
For every sudden or significant change in the air pressure, the weather icons will update accordingly to represent the
change in weather. If the icons do not change, then it means either the air pressure has not changed or the change
47
has been too slow for the Weather station to register. However, if the icon displayed is a sun or raining cloud, there will
be no change of icon if the weather gets any better (with sunny icon) or worse (with rainy icon) since the icons are
already at their extremes.
The icons displayed forecasts the weather in terms of getting better or worse and not necessarily sunny or rainy as
each icon indicates. For example, if the current weather is cloudy and the rainy icon is displayed, it does not mean that
the product is faulty because it is not raining. It simply means that the air pressure has dropped and the weather is
expected to get worse but not necessarily rainy.
Note:
After setting up, readings for weather forecasts should be disregarded for the next 12-24 hours. This will allow
sufficient time for the Weather station to collect air pressure data at a constant altitude and therefore result in a more
accurate forecast.
Common to weather forecasting, absolute accuracy cannot be guaranteed. The weather forecasting feature is
estimated to have an accuracy level of about 75% due to the varying areas the Weather station has been designed for
use. In areas that experience sudden changes in weather (for example from sunny to rain), the Weather station will be
more accurate compared to use in areas where the weather is stagnant most of the time (for example mostly sunny).
48
If the Weather station is moved to another location significantly higher or lower than its initial standing point (for
example from the ground floor to the upper floors of a house), discard the weather forecast for the next 12-24 hours.
By doing this, the Weather Station will not mistake the new location as being a possible change in air-pressure when
really it is due to the slight change of altitude.
WEATHER TENDENCY INDICATOR
Working together with the weather icons is the weather tendency indicators (located on the left and right sides of the
weather icons). When the indicator points upwards, it means that the air-pressure is increasing and the weather is
expected to improve, but when indicator points downwards, the air-pressure is dropping and the weather is expected to
become worse.
Taking this into account, one can see how the weather has changed and is expected to change. For example, if the
indicator is pointing downwards together with cloud and sun icons, then the last noticeable change in the weather was
when it was sunny (the sun icon only). Therefore, the next change in the weather will be cloud with rain icons since the
indicator is pointing downwards.
Note:
49
Once the weather tendency indicator has registered a change in air pressure, it will remain permanently visualized on
the LCD.
AIR PRESSURE HISTORY (ELECTRONIC BAROMETER WITH BAROMETRIC PRESSURE TREND)
The third section of the LCD also shows the relative air pressure value and the air pressure history.
Air pressure over the last 24 hours
The bar chart indicates the air pressure history trend over the last 24 hours in 7 steps, 0h, -3h, -6h, -9h, -12h, -18h, and
-24h. The “0h” represents the current full hour air pressure recording. The columns represent the “hPa” (0, ±2, ±4, ±6)
at specific time. The “0” in the middle of this scale is equal to the current pressure and each change (±2, ±4, ±6)
represents how high or low in “hPa“ the past pressure was compared to the current pressure.
If the bars are rising it means that the weather is getting better due to the increase of air pressure. If the bars go down,
it means the air pressure has dropped and the weather is expected to get worse from the present time “0h“.
50
Note:
For accurate barometric pressure trends, the Weather Station should operate at the same altitude for example, it
should not be moved from the ground to the second floor of the house. Should the unit be moved to a new location,
discard readings for the next 12-24 hours.
OUTDOOR TEMPERATURE/HUMIDITY DATA
The fourth LCD section shows the outdoor temperature and humidity, the reception indicator, the transmitter
identification number and the MIN/MAX outdoor data.
MIN icon
Reception indicator
Outdoor temperature
in °C/ °F
Outdoor relative
humidity in RH%
Outdoor transmitter identification number
51
TOGGLING AND RESETTING THE OUTDOOR DATA
To toggle between the outdoor current, MAX/MIN temperature and humidity data and the times (for temperature
data only) they were recorded press the OUT/+ key:
Once to show the MAX outdoor temperature and humidity data with the recorded time and date.
Twice to show the MIN outdoor temperature and humidity data with the recorded time and date.
Three times to return to the current displayed values.
2.
Once the MIN or MAX data is displayed, press and hold the SET key for 3 seconds to reset the respective MIN or
MAX record to current temperature and humidity data, and current time, date display.
Note: The MIN or MAX data needs to be reset individually.
1.
TO VIEW THE MIN/MAX DATA FROM DIFFERENT TRANSMITTERS
When more than 1 transmitter used:
1. To toggle between transmitters, press the CH key:
Once to show transmitter 2
Twice to show transmitter 3
Three times to return to transmitter 1
2.
Use OUT/+ key to view the MIN/MAX temperature and humidity data for the selected transmitter.
52
3.
To reset the minimum and maximum temperature and humidity data, and the times at which they were recorded,
press the SET key continuously for about 3 seconds. This will reset the MIN/MAX data recorded to the current
time, date, temperature and humidity. The current time taken is the normal displayed time and does not regard
the time zone set for the unit.
Note: the MIN/MAX data for each transmitter needs to be reset separately.
TEMPERATURE TRANSMITTER:
Outdoor
temperature
The LCD display shows the current temperature and humidity at the location of the transmitter. The temperature and
humidity is measured and transmitted to the Weather Station approximately every 4 seconds.
The range of the Temperature Transmitter may be affected by the temperature and humidity. At cold temperatures the
transmitting distance may be decreased. Please bear this in mind when positioning the transmitter. The LCD contrast
on the unit will also be reduced when the batteries are reduced in power.
53
LOW BATTERY INDICATOR
Low battery indicator is displayed on the LCD when the batteries require changing.
ABOUT THE OUTDOOR TRANSMITTER
The range of the Thermo-hygro transmitter may be affected by the temperature. At cold temperatures the transmitting
distance may be decreased. Please bear this in mind when positioning the transmitters. Also the batteries may be
reduced in power for the Thermo-hygro transmitter.
CHECKING FOR 868MHz RECEPTION
If the outdoor temperature and humidity data are not being received within three minutes after setting up (or outdoor
display always show “- -. -” in the outdoor section of the Weather station during normal operation), please check the
following points:
1.
The distance of the Weather station or transmitters should be at least 2 meters away from any interfering sources
such as computer monitors or TV sets.
2.
Avoid placing the transmitters onto or in the immediate proximity of metal window frames.
54
3.
Using other electrical products such as headphones or speakers operating on the 868MHz-signal frequency may
prevent correct signal transmission or reception. Neighbors using electrical devices operating on the 868MHzsignal frequency can also cause interference.
Note:
When the 868MHz signal is received correctly, do not re-open the battery cover of either the transmitter or Weather
station, as the batteries may spring free from the contacts and force a false reset. Should this happen accidentally then
reset all units (see “Setting up” above) otherwise transmission problems may occur.
The transmission range is around 100 meters from the Thermo-hygro transmitter to the Weather station (in open
space). However, this depends on the surrounding environment and interference levels. If no reception is possible
despite the observation of these factors, all system units have to be reset (see “Setting up” above).
55
POSITIONING THE WEATHER STATION
The Weather station provides the option of table standing or wall mounting the unit. Before wall
mounting, please check that the outdoor data can be received from the desired locations.
To wall mount:
1.
Fix a screw (not supplied) into the desired wall, leaving the head extended out
by about 5mm.
2.
Place the weather station onto the screw, using the hanging hole on the
backside. Gently pull the
weather station down to lock the screw into place.
56
Foldout table stand:
The foldout table stand leg is located on the backside. Pull the stand out from the bottom center
edge of the weather station, below the battery compartment. Once the foldout table stand is
extended, place the weather station in an appropriate location.
POSITIONING THE THERMO-HYGRO TRANSMITTER:
The Transmitter is supplied with a holder that may be attached to a wall with the two screws supplied.
The Transmitter can also be position on a flat surface by securing the stand to the bottom of the
Transmitter.
57
To wall mount:
1. Secure the bracket onto a desired wall using the screws and plastic anchors.
2. Clip the remote thermo-hygro transmitter onto the bracket.
Note:
Before permanently fixing the transmitter wall base, place all units in the desired locations to check that
the outdoor temperature reading is receivable. In event that the signal is not received, relocate the
transmitters or move them slightly as this may help the signal reception.
CARE AND MAINTENANCE:
•
•
Extreme temperatures, vibration and shock should be avoided as these may cause damage to the units and give
inaccurate forecasts and readings.
When cleaning the display and casings, use a soft damp cloth only. Do not use solvents or scouring agents as
they may mark the LCD and casings.
58
•
•
•
•
Do not submerge the units in water.
Immediately remove all low powered batteries to avoid leakage and damage. Replace only with new batteries of
the recommended type.
Do not make any repair attempts to the units. Return it to their original point of purchase for repair by a qualified
engineer. Opening and tampering with the units may invalidate their guarantee.
Do not expose the units to extreme and sudden temperature changes, this may lead to rapid changes in
forecasts and readings and thereby reduce their accuracy.
SPECIFICATIONS:
Temperature measuring range:
Indoor
: -9.9ºC to +59.9ºC with 0.1°C resolution
14.2ºF to 139.8ºF with 0.2ºF resolution
(“OF.L” displayed if outside this range)
Outdoor
: -39.9ºC to +59.9ºC with 0.1°C resolution
-39.8ºF to +139.8ºF with 0.2ºF resolution
(“OF.L” displayed if outside this range)
Indoor humidity range
: 1% to 99% with 1% resolution
59
(Display “- -““ if outside this range or temperature is OF.L)
1% to 99% with 1% resolution
(Display “1%” <1% and “99%” > 99%)
Interior data checking intervals
Indoor Temperature
: Every 15 seconds
Humidity
: Every 20 seconds
Air pressure checking interval
: Every 15 seconds
Outdoor temperature and humidity data checking interval:
Every 4 seconds
Transmission range
: up to 100 meters (open space)
Power consumption: (alkaline batteries recommended)
Weather station
: 2 x AA, IEC LR6, 1.5V
Thermo-hygro transmitter
: 2 x AA, IEC LR6, 1.5V
Battery life
: up to 24 months
Dimensions (L x W x H):
Weather station
: 101 x 28.5 x 179 mm
Thermo-hygro transmitter
: 38.2 x 21.2 x 128.3 mm
Outdoor humidity range
:
60
LIABILITY DISCLAIMER
•
•
•
•
•
•
•
•
The electrical and electronic wastes contain hazardous substances. Disposal of electronic waste in wild country
and/or in unauthorized grounds strongly damages the environment
Please contact your local or/and regional authorities to retrieve the addresses of legal dumping grounds with
selective collection
All electronic instruments must from now on be recycled. User shall take an active part in the reuse, recycling
and recovery of the electrical and electronic waste.
The unrestricted disposal of electronic waste may do harm on public health and the quality of environment.
This product must however not be thrown in general rubbish collection points.
As stated on the gift box and labeled on the product, reading the “User manual” is highly recommended for the
benefit of the user.
The manufacturer and supplier cannot accept any responsibility for any incorrect readings and any
consequences that occur should an inaccurate reading take place.
This product is not to be used for medical purposes or for public information.
61
•
•
•
•
This product is only designed to be used in the home as indication of the future weather and is not 100%
accurate. Weather forecasts given by this product should be taken only as an indication and not as being totally
accurate.
The specifications of this product may change without prior notice.
This product is not a toy. Keep out of the reach of children.
No part of this manual may be reproduced without written consent of the manufacturer.
R&TTE Directive 1999/5/EC
Summary of the Declaration of Conformity : We hereby declare that this wireless transmission device does comply with the essential
requirements of R&TTE Directive 1999/5/EC.
62
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
