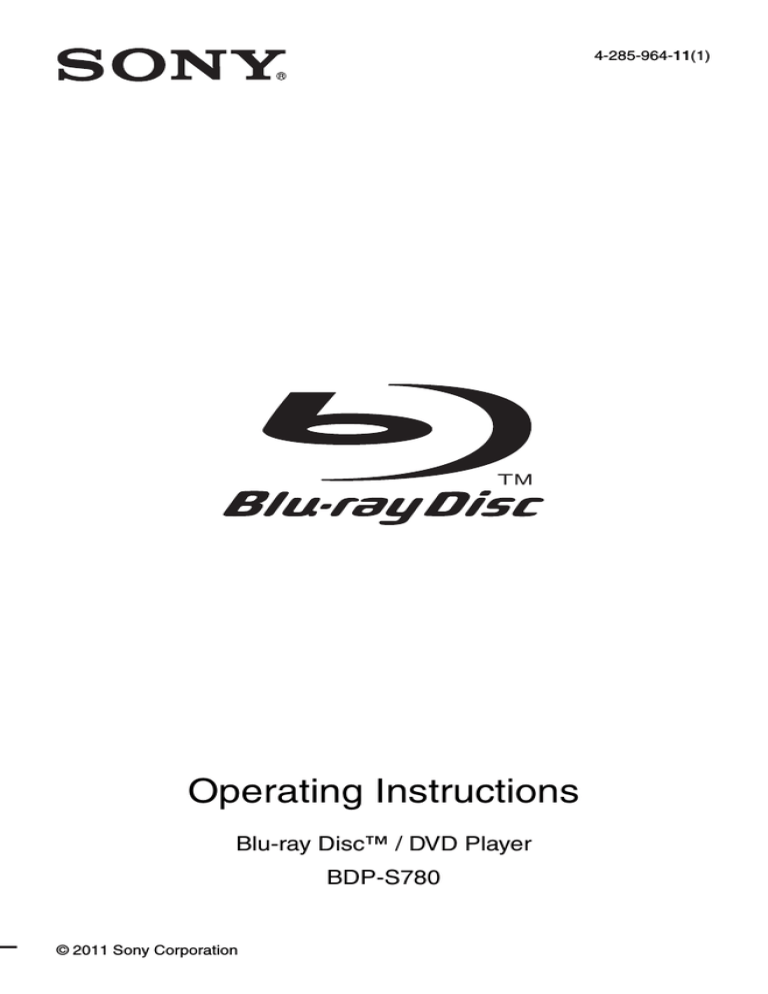

Operating Instructions

Blu-ray Disc™ / DVD Player

BDP-S780

© 2011 Sony Corporation

4-285-964-11(1)

2

WARNING

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

To avoid electrical shock, do not open the cabinet.

Refer servicing to qualified personnel only.

The AC power cord must be changed only at a qualified service shop.

Batteries or batteries installed apparatus shall not be exposed to excessive heat such as sunshine, fire or the like.

CAUTION

The use of optical instruments with this product will increase eye hazard. As the laser beam used in this Bluray Disc/DVD player is harmful to eyes, do not attempt to disassemble the cabinet.

Refer servicing to qualified personnel only.

This label is located on the laser protective housing inside the enclosure.

This symbol is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

Precautions

• To prevent fire or shock hazard, do not place objects filled with liquids, such as vases, on the apparatus.

• Install this unit so that the AC power cord can be unplugged from the wall socket immediately in the event of trouble.

Operation is subject to the following two conditions;

(1) this device may not cause interference, and

(2) this device must accept any interference received, including interference that may cause undesired operation of the device.

FCC WARNING

You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

The shielded Interface cable (LAN cable) must be used with the equipment in order to comply with the limits for a digital device pursuant to Subpart B of

Part 15 of FCC Rules.

b

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

– Reorient or relocate the receiving antenna.

– Increase the separation between the equipment and receiver.

– Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

– Consult the dealer or an experienced radio/TV technician for help.

FCC Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency

(RF) Exposure Guidelines in Supplement C to

OET65. This equipment should be installed and operated keeping the radiator at least 20cm or more away from person’s body (excluding extremities: hands, wrists, feet and ankles).

IC Radiation Exposure Statement:

This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment and meets RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment should be installed and operated keeping the radiator at least 20cm or more away from person’s body (excluding extremities: hands, wrists, feet and ankles).

Contains FCC ID : EW4DWMW042

Contains IC : 4250A-DWMW042

This class B digital apparatus complies with

Canadian ICES-003.

Important Safety Instructions

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus

(including amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11) Only use attachments/accessories specified by the manufacturer.

12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or when unused for long periods of time.

14) Refer all servicing to qualified service personnel.

Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

Owner’s Record

The model and serial numbers are located at the rear of the unit. Record the serial number in the space provided below. Refer to them whenever you call upon your

Sony dealer regarding this product.

Model No.______________

Serial No.______________

For customers in the USA

If this product is not working properly, please call 1-

866-909-7669.

For Customers in Canada

If this product is not working properly, please contact our Customer Information Service Center at 1-

877-899-7669 or write to us at: Customer Information

Service 115 Gordon Baker Road, Toronto, Ontario,

M2H 3R6

3

4

Precautions

This equipment has been tested and found to comply with the limits set out in the EMC Directive using a connection cable shorter than 3 meters.

On placement

• Place the player in a location with adequate ventilation to prevent heat build-up in the player.

• Do not place the player on a soft surface such as a rug that might block the ventilation holes.

• Do not install this player in a confined space, such as a bookshelf or similar unit.

• Do not place the player in a location near heat sources, or in a place subject to direct sunlight, excessive dust, or mechanical shock.

• Do not place the player outdoors, in vehicles, on ships, or on other vessels.

• If the player is brought directly from a cold to a warm location, or is placed in a very damp room, moisture may condense on the lenses inside the player. Should this occur, the player may not operate properly. In this case, remove the disc and leave the player turned on for about half an hour until the moisture evaporates.

• Do not install the player in an inclined position. It is designed to be operated in a horizontal position only.

• Do not place metal objects in front of the front panel. It may limit reception of radio waves.

• Do not place the player in a place where medical equipment is in use. It may cause a malfunction of medical instruments.

• If you use a pacemaker or other medical device, consult your physician or the manufacturer of your medical device before using the wireless

LAN function.

• Do not place heavy or unstable objects on the player.

• Do not place any objects other than discs on the disc tray. Doing so may cause damage to the player or the object.

• Take out any discs when you move the player. If you don’t, the disc may be damaged.

• Disconnect the AC power cord and all other cables from the player when you move the player.

On power sources

• The player is not disconnected from the AC power source as long as it is connected to the wall outlet, even if the player itself has been turned off.

• Disconnect the player from the wall outlet if you are not going to use the player for a long time. To disconnect the AC power cord, grasp the plug itself; never pull the cord.

• Observe following points to prevent the AC power cord being damaged. Do not use the AC power cord if it is damaged, as doing so may result in an electric shock or fire.

– Do not pinch the AC power cord between the player and wall, shelf, etc.

– Do not put anything heavy on the AC power cord or pull on the AC power cord itself.

On adjusting volume

Do not turn up the volume while listening to a section with very low level inputs or no audio signals. If you do, your ears and the speakers may be damaged when a peak level section is played.

On cleaning

Clean the cabinet, panel, and controls with a soft cloth. Do not use any type of abrasive pad, scouring powder or solvent such as alcohol or benzine.

On cleaning discs, disc/lens cleaners

Do not use cleaning discs or disc/lens cleaners

(including wet or spray types). These may cause the apparatus to malfunction.

On replacement of parts

In the events that this player is repaired, repaired parts may be collected for reuse or recycling purposes.

On connecting to the HDMI OUT jack

Observe the following as improper handling may damage the HDMI OUT jack and the connector.

• Carefully align the HDMI OUT jack on the rear of the player and the HDMI connector by checking their shapes. Make sure the connector is not upside down or tilted.

• Be sure to disconnect the HDMI cable when moving the player.

• Hold the HDMI connector straight when connecting or disconnecting the HDMI cable. Do not twist or force the HDMI connector into the

HDMI OUT jack.

On watching 3D video images

Some people may experience discomfort (such as eye strain, fatigue, or nausea) while watching 3D video images. Sony recommends that all viewers take regular breaks while watching 3D video images. The length and frequency of necessary breaks will vary from person to person. You must decide what works best. If you experience any discomfort, you should stop watching the 3D video images until the discomfort ends; consult a doctor if you believe necessary. You should also review (i) the instruction manual and/or the caution message of any other device used with, or Blu-ray Disc contents played with this product and (ii) our website (http://esupport.sony.com/) for the latest information. The vision of young children

(especially those under six years old) is still under development. Consult your doctor (such as a pediatrician or eye doctor) before allowing young children to watch 3D video images.

Adults should supervise young children to ensure they follow the recommendations listed above.

IMPORTANT NOTICE

Caution: This player is capable of holding a still video image or on-screen display image on your television screen indefinitely. If you leave the still video image or on-screen display image displayed on your TV for an extended period of time you risk permanent damage to your television screen. Plasma display panel televisions and projection televisions are susceptible to this.

If you have any questions or problems concerning your player, please consult your nearest Sony dealer.

Copy Protection

Please be advised of the advanced content protection systems used in both Blu-ray Disc™ and

DVD media. These systems, called AACS

(Advanced Access Content System) and CSS

(Content Scramble System), may contain some restrictions on playback, analog output, and other similar features. The operation of this product and the restrictions placed may vary depending on the date of purchase, as the governing board of the

AACS may adopt or change its restriction rules after the time of purchase.

Copyrights and Trademarks

• “AVCHD” and the “AVCHD” logo are trademarks of Panasonic Corporation and Sony

Corporation.

• Java, the coffee cup logo, and all Java based marks are trademarks or registered trademarks of

Sun Microsystems, inc. in the U.S. or other countries.

• , “XMB,” and “xross media bar” are trademarks of Sony Corporation and Sony

Computer Entertainment Inc.

• This product incorporates High-Definition

Multimedia Interface (HDMI™) technology.

HDMI, the HDMI logo and High-Definition

Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the

United States and other countries.

• “Blu-ray Disc” is a trademark.

• “Blu-ray Disc,” “DVD+RW,” “DVD-RW,”

“DVD+R,” “DVD-R,” “DVD VIDEO,” and

“CD” logos are trademarks.

• “BD-LIVE,” “BD-LIVE” logo, and

“BONUSVIEW” are trademarks of Blu-ray Disc

Association.

• “Blu-ray 3D” and “Blu-ray 3D” logo are trademarks of Blu-ray Disc Association.

• “x.v.Color” and “x.v.Color” logo are trademarks of Sony Corporation.

• “BRAVIA” is a trademark of Sony Corporation.

• “PhotoTV HD” and the “PhotoTV HD” logo are trademarks of Sony Corporation.

• MPEG Layer-3 audio coding technology and patents licensed from Fraunhofer IIS and

Thomson.

• Windows Media is either a registered trademark or trademark of Microsoft Corporation in the

United States and/or other countries.

This product contains technology subject to certain intellectual property rights of Microsoft.

Use or distribution of this technology outside of this product is prohibited without the appropriate license(s) from Microsoft.

Content owners use Microsoft PlayReady™ content access technology to protect their intellectual property, including copyrighted content. This device uses PlayReady technology to access PlayReady-protected content and/or

WMDRM-protected content. If the device fails to properly enforce restrictions on content usage, content owners may require Microsoft to revoke the device’s ability to consume PlayReadyprotected content. Revocation should not affect unprotected content or content protected by other content access technologies. Content owners may require you to upgrade PlayReady to access their content. If you decline an upgrade, you will not be able to access content that requires the upgrade.

,continued

5

6

• This product meets ENERGY STAR

®

guidelines for energy efficiency.

ENERGY STAR and the ENERGY STAR mark are registered U.S. marks. ENERGY STAR is a registered mark owned by the U.S. government.

• Music and video recognition technology and related data are provided by Gracenote

®

.

Gracenote is the industry standard in music recognition technology and related content delivery. For more information, please visit www.gracenote.com.

CD, DVD, Blu-ray Disc, and music and videorelated data from Gracenote, Inc., copyright ©

2000-present Gracenote. Gracenote Software, copyright © 2000-present Gracenote. One or more patents owned by Gracenote apply to this product and service. See the Gracenote website for a nonexhaustive list of applicable Gracenote patents. Gracenote, CDDB, MusicID,

MediaVOCS, the Gracenote logo and logotype, and the “Powered by Gracenote” logo are either registered trademarks or trademarks of Gracenote in the United States and/or other countries.

• This product includes SkypeKit Version 3

Copyright 2003-2010, Skype Limited

Patents Pending

Skype, associated trade marks and logos and the

“S” symbol are trade marks of Skype Limited.

• The Wi-Fi CERTIFIED™ Logo is a certification mark of the Wi-Fi Alliance.

• The Wi-Fi Protected Setup™ Mark is a mark of the Wi-Fi Alliance.

• “Wi-Fi CERTIFIED™” and “Wi-Fi Protected

Setup™” are trademarks of the Wi-Fi Alliance.

• DLNA

®

, the DLNA Logo and DLNA

CERTIFIED™ are trademarks, service marks, or certification marks of the Digital Living Network

Alliance.

• All other trademarks are trademarks of their respective owners.

• Other system and product names are generally trademarks or registered trademarks of the manufacturers. ™ and ® marks are not indicated in this document.

Table of Contents

WARNING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Guide to Parts and Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Hookups and Settings

Step 1: Connecting the Player . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Step 2: Easy Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Connecting to the Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Playback

Playing a Disc . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Playing from a USB Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Playing via a Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Available Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Internet

Browsing Websites . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Enjoying Skype . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Settings and Adjustments

Using the Settings Displays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Network Update . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Screen Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Audio Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

BD/DVD Viewing Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Parental Control Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Music Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

System Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Network Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Easy Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Resetting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Additional Information

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

7

8

Guide to Parts and Controls

Front panel

z

The N button has a tactile dot. Use the tactile dot as a reference when operating the player.

A Disc tray

B Power indicator

Lights up in white when the player is turned on.

C Remote sensor

D Front panel display

N, X: Lights up during playback or pause.

: Lights up when enabling the repeat setting.

: Lights up when outputting 720p/

1080i/1080p video signals.

E

(USB) jack

Connect a USB device to this jack.

F x (stop)

G N (play)

H Z (open/close)

I [/1 (on/standby)

Turns on the player, or sets to standby mode.

To lock the disc tray (Child Lock)

You can lock the disc tray to prevent it being opened by mistake.

When the player is turned on, hold down N on the player for more than 10 seconds. The disc tray is locked or unlocked.

Rear panel

A LINE OUT (R-AUDIO-L) jacks

B LINE OUT (VIDEO) jack

C DIGITAL OUT (COAXIAL) jack

D Ventilation holes

E CONTROL S IN / IR IN jack (U.S.

models only)

If you have a CONTROL S-compatible

Sony TV or AV amplifier (receiver), use a Control S cable (not supplied) to connect to the Control S (output) jack.

Refer to the instruction manual supplied with your TV or AV amplifier (receiver).

F

(USB) jack

G DIGITAL OUT (OPTICAL) jack

H LAN (100) terminal

I COMPONENT VIDEO OUT

(Y, P

B

, P

R

) jacks

J HDMI OUT jack

,continued

9

10

Remote

The available functions of the remote differ depending on the disc or the situation.

z

• Number 5, AUDIO, VOL +, and N PLAY buttons have a tactile dot. Use the tactile dot as a reference when operating the player.

• Gray-colored buttons glow in the dark.

The player automatically returns to standby mode

If any button on the player or remote is not pressed for more than 30 minutes, the player automatically returns to standby mode.

A Z OPEN/CLOSE

Opens or closes the disc tray.

-TV- INPUT

Switches between TV and other input sources.

-TV- [/1 (on/standby)

Turns on the TV, or sets to standby mode.

[/1 (on/standby)

Turns on the player, or sets to standby mode.

B Number buttons (0 - 9)

Enters the title/chapter numbers, etc.

VOL +/–

Adjusts the TV volume.

3D (page 20)

Converts 2D content into simulated 3D content when connected to 3Dcompatible devices.

AUDIO (page 29)

Selects the language track when multilingual tracks are recorded on BD-

ROMs/DVD VIDEOs.

Selects the sound track on CDs.

SUBTITLE (page 29)

Selects the subtitle language when multilingual subtitles are recorded on BD-

ROMs/DVD VIDEOs.

DISPLAY (page 17)

Displays the playback and web browsing information on the screen.

C Color buttons (YELLOW/BLUE/

RED/GREEN)

Shortcut keys for interactive functions.

D TOP MENU

Opens or closes the BD’s or DVD’s Top

Menu.

POP UP/MENU

Opens or closes the BD-ROM’s Pop-up

Menu, or the DVD’s menu.

OPTIONS (page 20)

The options menu that can be selected appears on the screen.

HOME

Enters the player’s home menu.

Displays the wallpaper when pressed on the category icon of the home menu.

RETURN

Returns to the previous display.

</M/m/,

Moves the highlight to select a displayed item.

Center button (ENTER)

Enters the selected item.

E . PREV/NEXT >

Skips to the previous/next chapter, track, or file.

X PAUSE

Pauses or re-starts playback.

m/M (fast/slow/freeze frame)

• Fast reverses/fast forwards the disc when pressed during playback. Each time you press the button during playback of videos, the search speed changes.

• Plays in slow motion, when pressed for more than one second in pause mode.

• Plays one frame at a time, when pressed briefly in pause mode.

z

Playback in slow motion or one frame is not available for a Blu-ray 3D Disc.

N PLAY

Starts or re-starts playback.

NETFLIX (page 17)

Accesses the “NETFLIX” online service.

x STOP

Stops playback and remembers the stop point (resume point).

The resume point for a title/track is the last point you played or the last photo for a photo folder.

QRIOCITY

Accesses the “Qriocity” online service.

Home menu display

The home menu appears when you press

HOME. Select a category using

</,.

Select an item using

M/m, and press ENTER.

Item Category

(Setup): Adjusts the player settings.

(Photo): Displays photos.

(Music): Plays music.

(Video): Plays videos.

(Network): Displays network items.

11

Hookups and Settings

Step 1: Connecting the Player

Do not connect the AC power cord until you have made all the connections.

For supplied accessories, see “Supplied accessories” (page 35).

Connecting to your TV

Select one of the following connection methods according to the input jacks on your TV.

Match the color of the plug to that of the jack when connecting.

HDMI cable (not supplied)

Audio/video cable (supplied)

High quality

Component video cable*

(not supplied)

Audio/video cable (supplied)

12

Standard quality

* Protected content on BD-ROMs is output at 480i resolution from the COMPONENT VIDEO OUT jack

(page 5).

b

Do not connect the player through a VCR. Video signals fed through VCRs may be affected by copyright protection systems and the picture will be distorted on the television.

Connecting to your AV amplifier (receiver)

Select one of the following connection methods according to the input jacks on your AV amplifier (receiver). When you select A or B, make the appropriate settings in the “Audio

Settings” setup (page 28).

*1

HDMI cable (not supplied)

HDMI cable

(not supplied)

t Set “BD Audio MIX Setting” (page 28).

Coaxial digital cable (not supplied) or

Optical digital cable (not supplied) t Set “Dolby Digital

*1

and “DTS

*2

” (page 28)

” (page 28).

Audio/video cable (supplied)

*2

13

14

Step 2: Easy Setup Connecting to the

Network

When turned on for the first time

Wait for a short while before the player turns on and starts “Easy Setup.”

1

Insert two Size AA (R6) batteries by

matching the 3 and # ends on the

batteries to the markings inside the battery compartment.

Wired Setup

Use a LAN cable to connect to the LAN (100) terminal on the player.

LAN cable

(not supplied)

Broadband router

ADSL modem/

Cable modem

Internet

2

Plug the player into the AC outlet.

to AC outlet

3

Press [/1 to turn on the player.

z

Using a shielded interface cable (LAN cable), straight or crossing, is recommended.

To set the network settings

Select “Network Settings,” “Internet

Settings,” then “Wired Setup” (page 31), and

follow the on-screen instructions to complete the setup.

4

Turn on the TV, then switch the input selector on your TV so that the signal from the player appears on your TV screen.

5

Perform “Easy Setup.”

Follow the on-screen instructions to make the basic settings using </M/m/

, and ENTER on the remote.

USB Wireless Setup

Turn off the player, then connect the USB

Wireless LAN Adapter (UWA-BR100 only available as of November 2010) to the USB jack on the front or rear of the player.

b

The USB Wireless LAN Adapter may not be available in some regions/countries.

USB Wireless

LAN Adapter

LAN cable

(not supplied)

</M/m/,

ENTER

Wireless LAN router

ADSL modem/

Cable modem

Internet

To set the network settings

Select “Network Settings,” “Internet

Settings,” then “USB Wireless Setup”

(page 31), and follow the on-screen

instructions to complete the setup.

Wireless Setup

Use the wireless LAN that is built into the player.

LAN cable (not supplied)

Wireless LAN router

ADSL modem/

Cable modem

Internet

To set the network settings

Select “Network Settings,” “Internet

Settings,” then “Wireless Setup(built-in)”

(page 31), and follow the on-screen

instructions to complete the setup.

15

16

Playback

Playing a Disc

3

Insert a BD-ROM with BONUSVIEW/

BD-LIVE.

The operation method differs depending on the disc. Refer to the instruction manual supplied with the disc.

For playable discs, see “Playable discs”

(page 36).

1

Switch the input selector on your TV so that the signal from the player appears on your TV screen.

2

Press Z OPEN/CLOSE, and place a

disc on the disc tray.

Playing side facing down

3

Press Z OPEN/CLOSE to close the

disc tray.

Playback starts.

If playback does not start automatically, select in the (Video), (Music), or (Photo) category, and press

ENTER.

z

To delete data in the USB memory, select “Erase

BD Data” in the (Video), and press ENTER.

All data stored in the buda folder will be erased.

Enjoying Blu-ray 3D

You can enjoy a Blu-ray 3D Disc with the

“Blu-ray 3D” logo*.

*

1

Prepare for Blu-ray 3D Disc playback.

• Connect the player to your 3Dcompatible devices using a High Speed

HDMI cable.

• Set “3D Output Setting” and “TV

Screen Size Setting for 3D” in the

“Screen Settings” setup (page 26).

2

Insert a Blu-ray 3D Disc.

The operation method differs depending on the disc. Refer to the instruction manual supplied with the disc.

z

Refer also to the instruction manuals supplied with your TV and the connected device.

Enjoying BONUSVIEW/BD-LIVE

Some BD-ROMs with the “BD-LIVE” logo* have bonus content and other data that can be downloaded for enjoyment.

*

1

Connect a USB memory to the USB

jack on the rear of the player (page 9).

As your local storage, use a 1 GB or larger USB memory.

2

Prepare for BD-LIVE (BD-LIVE only).

• Connect the player to a network

(page 14).

• Set “BD Internet Connection” to

“Allow” (page 29).

Displaying the play information

You can check the playback information, etc., by pressing DISPLAY.

The displayed information differs depending on the disc type and player status.

Example: when playing a BD-ROM

Playing from a USB

Device

You can play video/music/photo files on the connected USB device.

For playable USB devices, see “Playable types of files” (page 36).

1

Connect the USB device to the USB jack on the player.

Refer to the instruction manual supplied with the USB device before connecting.

A Output resolution/Video frequency

B Title number or name

C The currently selected audio setting

D Available functions ( audio, subtitle) angle,

E Playback information

Displays the Play mode, Playing status bar, Disc type, Video codec, Bitrate,

Repeat type, Elapsed time, and Total playing time.

F Chapter number

G The currently selected angle

USB device

2

Select (Video), (Music),

(Photo) on the home menu using

</,.

3

Select (USB and press ENTER.

Playing via a Network

Streaming BRAVIA Internet

Video

Serves as a gateway delivering the selected

Internet content and a variety of on-demand entertainment straight to your player.

z

• Some Internet content requires registration via a

PC before it can be played.

For further details, visit the following website: http://www.sony.com/bluraysupport/

• Some Internet content may not be available in some regions/countries.

1

Prepare for BRAVIA Internet Video.

Connect the player to a network

(page 14).

,continued

17

18

2

Select (Video), (Music),

(Photo) on the home menu using

</,.

3

Select an Internet content provider

icon using M/m, and press ENTER.

When an Internet content list has not been acquired, an unacquired icon or a new icon is displayed.

Playing files on a Home

Network (DLNA)

The player (DLNA Player) can play video/ music/photo files stored on another DLNAcompatible product (DLNA Server) via a network.

To use the control panel

The control panel appears when the video file starts playing. The displayed items may differ depending on Internet content providers.

To display again, press DISPLAY.

A Control display

Press </M/m/, or ENTER for playback operations.

B Playing status bar

Status bar, Cursor indicating the current position, Playing time,

Duration of the video file

C Network condition

indicates the signal strength for

wireless connection.

indicates the wired connection.

D Network transmission speed

E The next video file name

F The currently selected video file name

Server

Player

1

Prepare for using DLNA.

• Connect the player to a network

(page 14).

• Prepare the other necessary DLNAcompatible products. Refer to the instruction manual supplied with the product.

2

Select the DLNA Server icon from

(Video), (Music), or (Photo) on the home menu.

3

Select the file you want to play using

M/m, and press ENTER.

To control the player using another product (Renderer)

When you play files from a DLNA Server on the player, you can use a DLNA Controllercompatible product (a phone, etc.) to control playback.

Server

Renderer

Controller z

Refer to the instruction manual supplied with the

DLNA Controller.

Playing the same music in different rooms (PARTY

STREAMING)

You can play music files on the player

(PARTY host) in other rooms simultaneously through Sony products (PARTY guest) which are compatible with DLNA and the

PARTY STREAMING function, or vice versa.

PARTY host

PARTY guest

PARTY guest

1

Prepare for PARTY STREAMING.

• Connect the player to a network

(page 14).

• Connect the products which are compatible with the PARTY

STREAMING function to a network.

2

Select a track in (Music) on the home menu.

3

Select “Start Party” from the options menu.

Searching for the video/music information

You can acquire content information based on Gracenote technology and search for the related information.

1

Connect the player to a network

(page 14).

2

Insert a disc or connect a USB device you want to search.

• Video: For a BD-ROM or DVD-ROM only

• Music: For a CD-DA or USB device only

3

Select (Video) or (Music) using

</,.

4

Select (Video Search) or

(Music Search) using M/m, and

press ENTER.

The content information is displayed.

Example: List of the selected cast’s works

To join in a PARTY (for the PARTY guest only)

Select (Party) in (Music), then select the PARTY host device icon.

To close the PARTY

Press HOME.

z

The sale and lineup of products that are compatible with the PARTY STREAMING function differ depending on the area.

A Content details

Displays a list of related information, such as title, cast, track, or artist.

B Playback History

Displays a title in playback history of a

BD-ROM/DVD-ROM/CD-DA.

C Search History

Displays a list of search history.

To search for further related information

Select an item in the lists, then select the service for searching.

19

20

Available Options

Various settings and playback operations are available by pressing OPTIONS. The available items differ depending on the situation.

Common options

Item

Repeat

Setting

3D Menu

Details

Sets the repeat mode.

• Simulated 3D: Adjusts the simulated 3D effect.

• 3D Depth Adjustment:

Adjusts the depth of 3D image.

Favorites List Displays the Favorites List.

Play/Stop

Play from beginning

Add to

Favorites

Remove from

Favorites

Starts or stops the playback.

Plays the item from the beginning.

Adds Internet content to the

Favorites List.

Removes Internet content from the Favorites List.

(Video) only

Item

3D Output

Setting

A/V SYNC

Details

Sets whether or not to output

3D video automatically.

Adjusts the gap between picture and sound, by delaying the sound output in relation to the picture output

(0 to 120 milliseconds).

Item

Pause

Top Menu

Details

Video Settings • Picture Quality Mode:

Selects the picture settings.

“Auto,” “Custom1,” and

“Custom2” are available only for HDMI connections.

• Texture Remaster: Adjusts the sharpness and detail of the edges.

• Super Resolution:

Improves the resolution.

• Smoothing: Reduces onscreen banding by smoothing gradations on flat areas.

• Contrast Remaster:

Automatically arranges the black and white levels so that the screen is not too dark and the image is modulated.

• Clear Black: Adjusts the display of the dark elements of the image. All shading is not suppressed; it allows beautifully reproduced black tones.

Pauses the playback.

Menu/Popup

Menu

Displays the BD’s or DVD’s

Top Menu.

Displays the BD-ROM’s

Pop-up Menu or DVD’s menu.

Title Search

Chapter

Search

Searches for a title on BD-

ROMs/DVD VIDEOs and starts playback from the beginning.

Searches for a chapter and starts playback from the beginning.

Angle

Switches to other viewing angles when multi-angles are recorded on BD-ROMs/

DVD VIDEOs.

IP Content NR

Pro

Adjusts the picture quality of

Internet content.

Video Search Displays information on the

BD-ROM/DVD-ROM based on Gracenote technology.

(Music) only

Item

Add

Slideshow

BGM

Start Party

Details

Registers music files in the

USB memory as slideshow background music (BGM).

Starts a PARTY with the selected source.

This item may not appear depending on the source.

Leave Party

Close Party

Leaves from a PARTY which the player is participating in. The

PARTY STREAMING function continues among other participating products.

Closes a PARTY which the player is participating in.

The PARTY STREAMING function ends for all other participating products.

Music Search

Displays information on the

CD-DA based on Gracenote technology.

(Photo) only

Item

Slideshow

Speed

Slideshow

Effect

Slideshow

BGM

Details

Changes the slideshow speed.

Sets the effect for slideshows.

• Off: Turns off the function.

• My Music from USB: Sets the music files registered in “Add Slideshow BGM.”

• Play from Music CD: Sets the tracks in CD-DAs.

Slideshow

Rotate Left

Plays a slideshow.

Rotates the photo counterclockwise by

90 degrees.

Rotate Right Rotates the photo clockwise by 90 degrees.

21

22

Internet

Browsing Websites

Internet browser display

You can check the website information by pressing DISPLAY.

The display information differs depending on the website and page status.

You can connect to the Internet and enjoy websites.

1

Prepare for Internet Browser.

Connect the player to a network

(page 14).

2

Select (Network) on the home

menu using </,.

3

Select

(Internet Browser) using M/

m, and press ENTER. z

Some websites use functions which this browser does not support. Some websites may not be displayed correctly, or may not function.

To enter a URL

Select “URL entry” from the options menu.

Enter the URL using the software keyboard, then select “Enter.”

To set the default start page

While displaying the page you want to set, select “Set as start page” from the options menu.

To return to the previous page

Select “Previous page” from the options menu.

When the previous page does not appear even if you select “Previous page,” select

“Window List” from the options menu and select the page you want to return to from the list.

To quit the Internet browser

Press HOME.

A Page title

B Cursor

To view a linked site, press </M/m/, to move the cursor, and press ENTER.

C Page address

D SSL icon

Appears when the website is secured.

E Signal strength indicator (wireless network connection only)

F Progress bar/Loading icon

Appears when the page is being read, or during file download/transfer.

G Text input field

Press ENTER and select “Input” from the options menu to display the software keyboard.

H Scroll bar

Press

<

/

M/m/ ,

to move the page display.

Available options

Various settings and operations are available by pressing OPTIONS.

The available items differ depending on the situation.

Item

Browser

Setup

• Zoom: Increases or decreases the size of the displayed content.

• JavaScript Setup: Enables or disables JavaScript.

• Cookie Setup: Sets whether or not to accept cookies.

• SSL Alarm Display:

Enables or disables SSL.

Input

Break

Displays the software keyboard to enter characters while browsing a website.

Moves the cursor to the next line in the text input field.

Delete

Erases one character on the left side of the cursor during text input.

Window List Displays a list of currently opened windows of website.

Allows you to return to a previously displayed website by selecting the window.

Bookmark List Displays the bookmark list.

Character encoding

Previous page/Next page

Details

Sets the character code.

Moves to the previous/next page.

Cancel loading

Reload

URL entry

Stops loading a page.

Add to

Bookmark

Set as start page

Reloads the same page.

Allows you to enter a URL when the software keyboard is displayed.

Adds the currently displayed website to the bookmark list.

Sets the currently displayed website as the default start page.

Item

Open in new window

Display certificate

Details

Opens a link in a new window.

View server certificates sent from pages that support

SSL.

23

24

Enjoying Skype

Skype is a communication software using the

Internet.

You can enjoy Skype-to-Skype video calls/ voice calls for free with the player.

Using the Skype menu

After sign-in, you can make/receive a call or make Skype settings.

PC

1

Prepare for Skype.

• Connect the player to a network

(page 14).

• Connect the web camera with

microphone to the USB jack (page 8).

2

Select (Network) on the home

menu using </,.

3

Select press ENTER.

When you start Skype for the first time, follow the on-screen instructions and sign in to use Skype. If you do not have your own account, create one.

z

For information about available web cameras, visit the following website: http://www.sony.com/bluraysupport/

A Your Skype name

B Signal strength indicator (wireless network connection only)

C Tab area

• Contacts: Displays the contacts to call.

• History: Displays the call history.

• Tools: Enables useful functions such as contact search.

• Settings

To make a call

Select the contact icon you want to call in the

Skype menu, and press ENTER.

To receive a call

Activate Skype and sign in.

To quit Skype

Press HOME.

Once you sign in, your password will be saved in the player when you quit Skype. To delete your password, sign out of Skype before quitting.

To sign in using another account

Select “Sign Out” from the options menu.

Select on the home menu, and follow the on-screen instructions.

Skype display

A Contact name

B Video of the contact (for video calls only)

C Signal strength indicator/Network transmission speed (wireless network connection only)

D Video of yourself (for video calls only)

E Available buttons

The available buttons differ depending on the situation.

• Full screen/Window screen: Changes the display mode.

• Hang Up

• Hold/Resume

• Mute/Unmute

• Start My Video/Stop My Video:

Displays/hides the video of yourself.

• Voice call/Video call

Available options

Various settings and operations are available by pressing OPTIONS.

The available items differ depending on the situation.

Item Details

Change

Display

Change

Status

Changes the display for contact/history.

Changes the Skype status.

Sign Out Exits Skype.

About Skype

Displays copyright screen.

Help Displays the Skype help.

25

26

Settings and Adjustments

Using the Settings

Displays

Select (Setup) on the home menu when you need to change the settings of the player.

The default settings are underlined.

1

Select (Setup) on the home menu

using </,.

2

Select the setup category icon using

M/m, and press ENTER.

Icon Explanation

Network Update (page 26)

Updates the software of the player.

Screen Settings (page 26)

Makes the video settings according to the type of connecting jacks.

Audio Settings (page 28)

Makes the audio settings according to the type of connecting jacks.

BD/DVD Viewing Settings

(page 29)

Makes detailed settings for BD/

DVD playback.

Parental Control Settings

(page 29)

Makes detailed settings for the

Parental Control function.

Music Settings (page 30)

Makes detailed settings for

Super Audio CD playback.

System Settings (page 30)

Makes the player-related settings.

Network Settings (page 31)

Makes detailed settings for the

Internet and network.

Easy Setup (page 31)

Re-runs the Easy Setup to make the basic settings.

Resetting (page 31)

Resets the player to the factory settings.

Network Update

Select “OK” to update the player’s software via the network.

z

• We recommend the network update every 2 months or so.

• For information about update functions, visit the following website: http://www.sony.com/bluraysupport/

Screen Settings

3D Output Setting

Auto: Normally select this.

Off: Select this to display all content in 2D.

TV Screen Size Setting for 3D

Sets the screen size of your 3D-compatible

TV.

TV Type

16:9: Select this when connecting to a widescreen TV or a TV with a wide mode function.

4:3: Select this when connecting to a 4:3 screen TV without a wide mode function.

Screen Format

Original: Select this when connecting to a TV with a wide mode function. Displays a

4:3 screen picture in 16:9 aspect ratio even on a wide-screen TV.

Fixed Aspect Ratio: Changes the picture size to fit the screen size with the original picture aspect ratio.

DVD Aspect Ratio

Letter Box: Displays a wide picture with black bands on the top and bottom.

Pan & Scan: Displays a full-height picture on the entire screen, with trimmed sides.

Cinema Conversion Mode

Auto: Normally select this. The player automatically detects whether the material is video-based or film-based, and switches to the appropriate conversion method.

Video: The conversion method suited for video-based material will always be selected regardless of the material.

Output Video Format

HDMI: Normally select “Auto.” Select

“Original Resolution” to output the resolution recorded on the disc. When the resolution is lower than the SD resolution, it is scaled up to the SD resolution.

Component Video: Select the resolution that suits your TV.

Video: Automatically sets the lowest resolution.

z

• When connecting the HDMI OUT jack and other video output jacks at the same time, select

“Component Video.”

• If no picture appears when setting “HDMI” or

“Component Video” resolution, try another resolution setting.

• When connecting via the COMPONENT VIDEO

OUT jack and “Component Video” is selected, protected content on BD-ROMs is output only at

480i resolution (page 5).

BD/DVD-ROM 1080/24p Output

Auto: Outputs 1920 × 1080p/24 Hz video signals only when connecting a 1080/

24p-compatible TV using the HDMI

OUT jack.

Off: Select this when your TV is not compatible with 1080/24p video signals.

YCbCr/RGB (HDMI)

Auto: Automatically detects the connected

TV type, and switches to the matching color setting.

YCbCr (4:2:2): Outputs YCbCr 4:2:2 video signals.

YCbCr (4:4:4): Outputs YCbCr 4:4:4 video signals.

RGB: Outputs RGB video signals.

HDMI Deep Color Output

Auto: Normally select this.

12bit/10bit: Outputs 12bit/10bit video signals when the connected TV is compatible with Deep Color.

Off: Select this when the picture is unstable or colors appear unnatural.

SBM (Super Bit Mapping)

On: Smooths the video signals output from the HDMI OUT jack.

Off: For distorted video signals or unnatural color.

Pause Mode

Auto: Normally select this. Dynamic moving pictures appear without blurring.

Frame: Displays static pictures at high resolution.

27

28

Audio Settings

Audio (HDMI)

Auto: Normally select this. Outputs audio signals according to the status of the connected HDMI device.

PCM: Outputs PCM signals from the HDMI

OUT jack.

DSD Output Mode

On: Outputs DSD signals from the HDMI

OUT jack when playing a Super Audio

CD. When “On” is selected, no signal is output from other jacks.

Off: Outputs PCM signals from the HDMI

OUT jack when playing a Super Audio

CD.

BD Audio MIX Setting

On: Outputs the audio obtained by mixing the interactive and secondary audio to the primary audio.

Off: Outputs the primary audio only. Select this to output HD audio signals to an AV amplifier (receiver).

Dolby Digital

Downmix PCM: Converts to output Linear

PCM signals. Select this when connecting an audio device without a built-in Dolby Digital decoder.

Dolby Digital: Select this when connecting an audio device with a built-in Dolby

Digital decoder.

DTS

Downmix PCM: Converts to output Linear

PCM signals. Select this when connecting to an audio device without a built-in DTS decoder.

DTS: Select this when connecting to an audio device with a built-in DTS decoder.

DTS Neo:6

Cinema: Outputs the simulated multi-channel sound from 2 channel sources via the

HDMI OUT jack according to the capability of the connected device using

“DTS Neo:6 Cinema” mode.

Music: Outputs the simulated multi-channel sound from 2 channel sources via the

HDMI OUT jack according to the capability of the connected device using

“DTS Neo:6 Music” mode.

Off: Outputs the sound with its original number of channels via the HDMI OUT jack.

Audio DRC

Auto: Performs playback at the dynamic range specified by the disc (BD-ROM only). Other discs are played back at the

“On” level.

On: Performs playback at a standard compression level.

Off: No compression works. A more dynamic sound is produced.

Downmix

Surround: Outputs audio signals with surround effects. Select this when connecting an audio device that supports

Dolby Surround (Pro Logic) or DTS

Neo:6.

Stereo: Outputs audio signals without surround effects. Select this when connecting an audio device that does not support Dolby Surround (Pro Logic) or

DTS Neo:6.

BD/DVD Viewing

Settings

Parental Control

Settings

BD/DVD Menu

Selects the default menu language for BD-

ROMs or DVD VIDEOs.

When you select “Select Language Code,” the display for entering the language code appears. Enter the code for your language by

referring to “Language code list” (page 39).

Audio

Selects the default track language for BD-

ROMs or DVD VIDEOs.

When you select “Original,” the language given priority in the disc is selected.

When you select “Select Language Code,” the display for entering the language code appears. Enter the code for your language by

referring to “Language code list” (page 39).

Password

Sets or changes the password for the Parental

Control function. A password allows you to set a restriction on BD-ROM or DVD

VIDEO, and Internet video playback. If necessary, you can differentiate the restriction levels for BD-ROMs, DVD

VIDEOs, and Internet videos.

Parental Control Area Code

Playback of some BD-ROMs, DVD

VIDEOs, or Internet videos can be limited according to the geographic area. Scenes may be blocked or replaced with different scenes.

Follow the on-screen instructions and enter your four-digit password.

Subtitle

Selects the default subtitle language for BD-

ROMs or DVD VIDEOs.

When you select “Select Language Code,” the display for entering the language code appears. Enter the code for your language by

referring to “Language code list” (page 39).

BD Parental Control

Playback of some BD-ROMs can be limited according to the age of the users. Scenes may be blocked or replaced with different scenes.

Follow the on-screen instructions and enter your four-digit password.

BD Hybrid Disc Playback Layer

BD: Plays BD layer.

DVD/CD: Plays DVD or CD layer.

BD Internet Connection

Allow: Normally select this.

Do not allow: Prohibits Internet connection.

DVD Parental Control

Playback of some DVD VIDEOs can be limited according to the age of the users.

Scenes may be blocked or replaced with different scenes. Follow the on-screen instructions and enter your four-digit password.

Internet Video Parental Control

Playback of some Internet videos can be limited according to the age of the users.

Scenes may be blocked or replaced with different scenes. Follow the on-screen instructions and enter your four-digit password.

Internet Video Unrated

Allow: Allows the playback of unrated

Internet videos.

Block: Blocks the playback of unrated

Internet videos.

29

30

OSD

Music Settings

Super Audio CD Playback Layer

Super Audio CD: Plays the Super Audio CD layer.

CD: Plays the CD layer.

Super Audio CD Playback Channel

DSD 2ch: Plays the 2ch area.

DSD Multi: Plays the multi-channel area.

System Settings

Selects your language for the player onscreen displays.

Dimmer

Bright: Bright lighting.

Dark: Low lighting.

Off: Turns off the lighting during playback.

Low lighting other than during playback.

Auto Display

On: Automatically displays information on the screen when changing the viewing titles, picture modes, audio signals, etc.

Off: Displays information only when you press DISPLAY.

Screen Saver

On: Turns on the screen saver function. The screen saver image appears when you do not use the player for more than 10 minutes while an on-screen display is displayed.

Off: Turns off the function.

Software Update Notification

On: Sets the player to inform you of newer

software version information (page 26).

Off: Turns off the function.

Gracenote Settings

Auto: Automatically downloads disc information when disc playback stops.

Connect to the network for downloading.

Manual: Downloads the disc information when “Video Search” or “Music Search” is selected.

Control for HDMI

On: The following BRAVIA Sync features are available:

– One-Touch Play

– System Power-Off

– Language Follow

Off: Turns off the function.

z

For details, refer to the instruction manual supplied with the TV or components.

System Information

Displays the player’s software version information and the MAC address.

HDMI: Linked to TV-off

On: Automatically turns off the player and

HDMI-compatible components when the connected TV enters standby mode

(BRAVIA Sync).

Off: Turns off the function.

Quick Start Mode

On: Shortens the startup time when turning on the player.

Off: Reduces standby power consumption.

Network Settings

Internet Settings

Connect the player to the network

beforehand. For details, see “Connecting to the Network” (page 14).

View Network Status: Displays the current network status.

Wired Setup: Select this when you connect to a broadband router using a LAN cable.

Wireless Setup(built-in): Select this when you use the wireless LAN that is built into the player for wireless network connection.

USB Wireless Setup: Select this when you use a USB Wireless LAN Adapter for wireless network connection.

z

For further details, visit the following website and check the FAQ contents: http://www.sony.com/bluraysupport/

Network Connection Diagnostics

You can run the network diagnostic to check if the network connection has been made properly.

Connection Server Settings

Sets whether or not to display the connected server.

Party Auto Start

On: Starts a PARTY or joins an existing

PARTY at the request of a networked product compatible with the PARTY

STREAMING function.

Off: Turns off the function.

Media Remote Device Registration

Registers your “Media Remote” device.

Registered Media Remote Devices

Displays a list of your registered “Media

Remote” devices.

Easy Setup

Re-runs the “Easy Setup” to make the basic settings. Follow the on-screen instructions.

Resetting

Renderer Options

Auto Access Permission: Sets whether or not to allow automatic access from newly detected DLNA renderer-compatible product.

Renderer Name: Displays the player’s name as it is listed on other DLNA products on the network.

Renderer Access Control

Displays a list of DLNA controllercompatible products and sets whether or not each product is accessible via this player.

Reset to Factory Default Settings

You can reset the player settings to the factory default by selecting the group of settings. All the settings within the group will be reset.

Initialize Personal Information

You can erase your personal information stored in the player.

31

32

Additional Information

Troubleshooting

If you experience any of the following difficulties while using the player, use this troubleshooting guide to help remedy the problem before requesting repairs. Should any problem persist, consult your nearest

Sony dealer.


There is no picture or the picture is not output correctly.

, Check that all the connecting cables are

securely connected (page 12).

, Switch the input selector on your TV to display the signal from the player.

, Reset the video output resolution to the lowest resolution by pressing x on the player for more than 10 seconds.

, For HDMI connections, try the following:

1

Turn the player off and on again. 2Turn the connected equipment off and on again.

3

Disconnect and then reconnect the HDMI cable.

, The HDMI OUT jack is connected to a DVI device that does not support copyright protection technology.

, For HDMI connections, check the “Output

Video Format” settings in the “Screen

Settings” setup (page 27).

, When the analog signals are also output, set

“BD/DVD-ROM 1080/24p Output” to

“Off” in the “Screen Settings” setup

(page 27).

, For BD-ROMs, check the “BD/DVD-ROM

1080/24p Output” setting in the “Screen

Settings” setup (page 27).

Sound

There is no sound or the sound is not output correctly.

, Check that all the connecting cables are

securely connected (page 12).

, Switch the input selector on your AV amplifier (receiver) so that the audio signals of the player are output from your AV amplifier (receiver).

, If the audio signal does not come through the DIGITAL OUT (OPTICAL/

COAXIAL)/HDMI OUT jack, check the

audio settings (page 28).

, For HDMI connections, try the following:

1

Turn the player off and on again. 2Turn the connected equipment off and on again.

3

Disconnect and then reconnect the HDMI cable.

, For HDMI connections, if the player is connected to a TV through an AV amplifier

(receiver), try connecting the HDMI cable directly to the TV. Refer also to the instruction manual supplied with the AV amplifier (receiver).

, The HDMI OUT jack is connected to a DVI device (DVI jacks do not accept audio signals).

, The device connected to the HDMI OUT jack does not support the audio format of the player. Check the audio settings

(page 28).

The HD Audio (Dolby Digital Plus, Dolby

TrueHD, DTS-HD High Resolution Audio, and DTS-HD Master Audio) is not output by bitstream.

, Set “BD Audio MIX Setting” to “Off” in

the “Audio Settings” setup (page 28).

, Check that the connected AV amplifier

(receiver) is compatible with each HD

Audio format.

The display language on the screen switches automatically when connected to the HDMI OUT jack.

, When “Control for HDMI” is set to “On”

(page 30), the display language on the

screen automatically switches according to the language setting of the connected TV (if you change the setting on your TV, etc.).

The interactive audio is not output.

, Set “BD Audio MIX Setting” to “On” in the

“Audio Settings” setup (page 28).

Disc

The disc does not play.

, The disc is dirty or skewed.

, The disc is upside down. Insert the disc with the playback side facing down.

, The disc has a format that cannot be played

back by this player (page 36).

, The player cannot play a recorded disc that is not correctly finalized.

, The region code on the BD or DVD does not match the player.

BRAVIA Internet Video

The picture/sound is poor/certain programs display a loss of detail, especially during fast-motion or dark scenes.

, Picture/sound quality may be poor depending on Internet content providers.

, Picture/sound quality may be improved by changing the connection speed. We recommend a connection speed of at least

2.5 Mbps for standard definition video

(10 Mbps for high definition video).

, Not all videos will contain sound.

The picture is small.

, Press M to zoom in.

Skype

There is severe humming or noise.

, Set the volume of the connected TV lower.

, Try moving the web camera with microphone away from the speakers of the connected TV.

USB device

The player does not detect a USB device connected to the player.

, Make sure that the USB device is securely connected to the USB jack.

, Check if the USB device or a cable is damaged.

, Check if the USB device is on.

, If the USB device is connected via a USB hub, connect the USB device directly to the player.

Network connection

The player cannot connect to the network.

, Check the network connection (page 14)

and the network settings (page 31).

You cannot connect your PC to the Internet after “Wi-Fi Protected Setup (WPS)” is performed.

, The wireless settings of the router may change automatically if you use the Wi-Fi

Protected Setup function before adjusting the settings of the router. In this case, change the wireless settings of your PC accordingly.

You cannot connect the player to the wireless LAN router.

, Check if the wireless LAN router is on.

, Depending on the surrounding environment, such as the wall material, radio wave receiving condition, or obstacles between the player and the wireless LAN router, the communication distance may be shortened. Move the player and the wireless

LAN router closer to each other.

, Devices that use a 2.4 GHz frequency band, such as a microwave, Bluetooth, or digital cordless device, may interrupt the communication. Move the player away from such devices, or turn off such devices.

The desired wireless router is not detected even if “Scan” is performed.

, Press RETURN to return to the previous screen, and try “Scan” again. If the desired wireless router is still not detected, press

RETURN to select “Manual registration.”

,continued

33

34

The message “A new software version is available. Please go to the "Setup" section of the menu and select "Network update" to perform the update.” appears on the screen when turning the player on.

, See “Network Update” (page 26) to update

the player to a newer software version.

You cannot start the PARTY STREAMING function.

, Check that “Party Auto Start” is set to “On”

in “Network Settings” (page 31).

The System Power-Off function does not work (BRAVIA Sync).

, Check that “Control for HDMI” and

“HDMI: Linked to TV-off” are set to “On”

(page 30).

Others

Playback does not start from the beginning of content.

, Press OPTIONS, and select “Play from beginning.”

“Control for HDMI” (BRAVIA

Sync)

The “Control for HDMI” function does not work (BRAVIA Sync).

, Check that “Control for HDMI” is set to

“On” (page 30).

, If you change the HDMI connection, turn the player off and on again.

, If power failure occurs, set “Control for

HDMI” to “Off,” then set “Control for

HDMI” to “On” (page 30).

, Check the following and refer to the instruction manual supplied with the component.

– the connected component is compatible with the “Control for HDMI” function.

– the connected component’s setting for the “Control for HDMI” function is correct.

, When you connect the player to a TV through an AV amplifier (receiver),

– if the AV amplifier (receiver) is not compatible with the “Control for HDMI” function, you may be unable to control the TV from the player.

– if you change the HDMI connection, disconnect and reconnect the AC power cord, or a power failure occurs, try the following: 1Switch the input selector of the AV amplifier (receiver) so that the picture from the player appears on the

TV screen. 2Set “Control for HDMI” to

“Off,” then set “Control for HDMI” to

“On” (page 30). Refer to the instruction

manual supplied with the AV amplifier

(receiver).

Playback does not start from the resume point where you last stopped playing.

, The resume point may be cleared from memory depending on the disc when

– you open the disc tray.

– you disconnect the USB device.

– you play other content.

– you turn off the player.

The disc tray does not open and

“LOCKED” or “TLK ON” appears on the front panel display.

, When “LOCKED” appears, the player is locked. To cancel the Child Lock, hold down N on the player until “UNLOCK”

appears on the front panel display (page 8).

, When “TLK ON” appears, contact your

Sony dealer or local authorized Sony service facility.

The disc tray does not open and you cannot remove the disc even after you

press Z.

, Try the following: 1Turn the player off, and disconnect the AC power cord.

2

Reconnect the AC power cord while pressing down Z on the player. 3Keep pressing down Z on the player until the tray opens. 4Remove the disc. 5When

“OPEN” appears on the front panel display, hold down [/1 on the player for more than

10 seconds until the player turns off.

“Exxxx” or “FAN ERR” appears on the front panel display.

, When “Exxxx” appears, contact your nearest Sony dealer or local authorized

Sony service facility and give the error code.

, When “FAN ERR” appears, try the following: 1Check that the ventilation holes on the rear of the player are not blocked. 2Place the player in a location with adequate ventilation to prevent heat build-up in the player.

The player does not respond to any button.

, Moisture has condensed inside the player

(page 4).

, Hold down [/1 on the player for more than

10 seconds until the indicators on the front panel display turn off.

If the player still does not respond to any button, disconnect then reconnect the AC power cord.

Specifications

System

Laser: Semiconductor laser

Inputs and outputs

(Jack name:

Jack type/Output level/Load impedance)

LINE OUT R-AUDIO-L:

Phono jack/2 Vrms/10 kilohms

DIGITAL OUT (OPTICAL):

Optical output jack/–18 dBm

(wave length 660 nm)

DIGITAL OUT (COAXIAL):

Phono jack/0.5 Vp-p/75 ohms

HDMI OUT:

HDMI 19-pin standard connector

COMPONENT VIDEO OUT

(Y, P

B

, P

R

):

Phono jack/Y: 1.0 Vp-p/

P

B

, P

R

: 0.7 Vp-p/75 ohms

LINE OUT VIDEO:

Phono jack/1.0 Vp-p/75 ohms

LAN (100):

100BASE-TX Terminal

CONTROL S IN / IR IN (U.S. models only):

Mini jack

USB:

USB jack Type A (For connecting a USB memory, memory card reader, digital still camera, and digital video camera)

Wireless

Wireless LAN standard:

IEEE802.11b/g/n

Frequency range:

2.4 GHz band: Channels 1-11

Modulation:

DS-SS Modem and OFDM Modem

General

Power requirements:

120 V AC, 60 Hz

Power consumption:

22 W

Dimensions (approx.):

430 mm × 199 mm × 46 mm

(17 in. × 7

4

/

5

in. × 1

13

/

16

in.)

(width/depth/height) incl. projecting parts

Mass (approx.):

1.8 kg (3 lb 15 1 /

2

oz)

Operating temperature:

5 ºC to 35 ºC (41 °F to 95 °F)

Operating humidity:

25 % to 80 %

Supplied accessories

Audio/video cable (phono plug ×3) (1)

Remote commander (remote) (1)

Size AA (R6) batteries (2)

Specifications and design are subject to change without notice.

,continued

35

36

Playable discs

Blu-ray

Disc

DVD

CD

*3

*1

*3

BD-ROM

BD-R

*2

/BD-RE

*2

DVD-ROM

DVD-R/DVD-RW

DVD+R/DVD+RW

CD-DA (Music CD)

CD-ROM

CD-R/CD-RW

Super Audio CD

*1

Since the Blu-ray Disc specifications are new and evolving, some discs may not be playable depending on the disc type and the version.

The audio output differs depending on the source, connected output jack, and selected

*2 audio settings.

BD-RE: Ver.2.1

BD-R: Ver.1.1, 1.2, 1.3 including organic pigment type BD-R (LTH type)

The BD-Rs recorded on a PC cannot be played if postscripts are recordable.

*3

A CD or DVD disc will not play if it has not been correctly finalized. For more information, refer to the instruction manual supplied with the recording device.

Discs that cannot be played

• BDs with cartridge

• BDXLs

• DVD-RAMs

• HD DVDs

• DVD Audio discs

• PHOTO CDs

• Data part of CD-Extras

• Super VCDs

• Audio material side on DualDiscs

• A disc recorded in a color system other than

NTSC, such as PAL (this player conforms to the NTSC color system).

Note on Discs

This product is designed to playback discs that conform to the Compact Disc (CD) standard. DualDiscs and some of the music discs encoded with copyright protection technologies do not conform to the Compact

Disc (CD) standard, therefore, these discs may not be playable by this product.

Note on playback operations of BDs/DVDs

Some playback operations of BDs/DVDs may be intentionally set by software producers. Since this player plays BDs/

DVDs according to the disc contents the software producers designed, some playback features may not be available.

Note about double-layer BDs/DVDs

The playback pictures and sound may be momentarily interrupted when the layers switch.

Region code (BD-ROM/DVD VIDEO only)

Your player has a region code printed on the rear of the unit and will only play BD-ROMs/

DVD VIDEOs labeled with identical region codes or

ALL

.

Region code

Playable types of files

Video

File format

MPEG-1 Video/

PS

*1*2

MPEG-2 Video/PS,

TS

*1*3

MPEG-4 AVC

*1*2

Extensions

“.mpg,” “.mpeg,”

“.m2ts,” “.mts”

WMV9

AVCHD

Xvid

*1*2

*2

“.mkv,” “.mp4,”

“.m4v,” “.m2ts,”

“.mts”

“.wmv,” “.asf”

*4

“.avi”

Music

File format Extensions

MP3 (MPEG-1 Audio

Layer III)

“.mp3”

AAC

*1*2*5

“.m4a”

“.wma” WMA9

Standard

*1*2*5

LPCM

“.wav”


File format Extensions

JPEG “.jpg,” “.jpeg”

*1

The player does not play coded files such as

DRM.

*2

The player does not play this file format on a

DLNA server.

*3

The player can only play standard definition video on a DLNA server.

*4

The player plays AVCHD format files that are recorded on a digital video camera, etc. The

*5

AVCHD format disc will not play if it has not been correctly finalized.

The player does not play coded files such as

Lossless.

b

• Some files may not play depending on the file format, file encoding, recording condition, or

DLNA server condition.

• Some files edited on a PC may not play.

• The player can recognize the following files or folders in BDs, DVDs, CDs and USB devices:

– up to folders in the 3rd tree

– up to 500 files in a single tree

• The player can recognize the following files or folders stored in the DLNA server:

– up to folders in the 18th tree

– up to 999 files in a single tree

• Some USB devices may not work with this player.

• The player can recognize Mass Storage Class

(MSC) devices (such as flash memory or an

HDD), Still Image Capture Device (SICD) class devices and 101 keyboard (front USB jack only).

• To avoid data corruption or damage to the USB memory or devices, turn the player off when connecting or removing the USB memory or devices.

• The player may not play high bit rate video files on DATA CDs smoothly. You are recommended to play such files using DATA DVDs.

About wireless LAN security

Since communication via the wireless LAN function is established by radio waves, the wireless signal may be susceptible to interception. To protect wireless communication, this player supports various security functions. Be sure to correctly configure the security settings in accordance with your network environment.

No Security

Although you can easily make settings, anyone can intercept wireless communication or intrude into your wireless network, even without any sophisticated tools. Keep in mind that there is a risk of unauthorized access or interception of data.

WEP

WEP applies security to communications to prevent outsiders from intercepting communications or intruding into your wireless network. WEP is a legacy security technology that enables older devices, which do not support TKIP/AES, to be connected.

WPA-PSK (TKIP), WPA2-PSK (TKIP)

TKIP is a security technology developed to correct for the deficiencies of WEP. TKIP assures a higher security level than WEP.

WPA-PSK (AES), WPA2-PSK (AES)

AES is a security technology that uses an advanced security method that is distinct from WEP and TKIP.

AES assures a higher security level than

WEP or TKIP.

,continued

37

38

Notes About the Discs

• To keep the disc clean, handle the disc by its edge.

Do not touch the surface.

Dust, fingerprints, or scratches on the disc may cause it to malfunction.

• Do not expose the disc to direct sunlight or heat sources such as hot air ducts, or leave it in a car parked in direct sunlight as the temperature may rise considerably inside the car.

• After playing, store the disc in its case.

• Clean the disc with a cleaning cloth. Wipe the disc from the center out.

• Do not use solvents such as benzine, thinner, commercially available disc/lens cleaners, or anti-static spray intended for vinyl LPs.

• If you have printed the disc’s label, dry the label before playing.

• Do not use the following discs.

– A lens cleaning disc.

– A disc that has a non-standard shape (e.g., card, heart).

– A disc with a label or sticker on it.

– A disc that has cellophane tape or sticker adhesive on it.

• Do not resurface the playing side of a disc to remove surface scratches.

Code numbers of controllable

TVs

While holding down -TV- [/1, enter the TV manufacturer’s code using the number buttons.

If more than one code number is listed, try entering them one at a time until you find the one that works with your TV.

Manufacturer

Sony

Hitachi

LG/Goldstar

Mitsubishi/MGA

NEC

Panasonic

Philips

Pioneer

RCA

Samsung

Sharp

Toshiba

16

10

20

18

07

13

04

19

21

Code number

01 (default)

02

04

Language code list

For details, see “BD/DVD Viewing Settings”

(page 29).

The language spellings conform to the ISO

639: 1988 (E/F) standard.

Code Language

1027 Afar

1032 Afrikaans

1044 Arabic

1051 Aymara

1053 Bashkir

1059 Bulgarian

1061 Bislama

1028 Abkhazian

1039 Amharic

1045 Assamese

1052 Azerbaijani

1057 Byelorussian

1060 Bihari

1066 Bengali

1067 Tibetan

1079 Catalan

1097 Czech

1105 Danish

1130 Bhutani;

Dzongkha

1144

1149

1151

1165

1209

1226

1233

1239

English

Spanish

Basque

Finnish

1171 Faroese

1181 Frisian

1186 Scots Gaelic

1196 Guarani

Hausa

Croatian

Armenian

Interlingue

1070

1093

1103

1109

1142

Breton

Corsican

Welsh

German

Greek

1145 Esperanto

1150 Estonian

1157 Persian

1166 Fiji

1174

1183

1194

1203

French

Irish

Galician

Gujarati

1217 Hindi

1229 Hungarian

1235 Interlingua

1245 Inupiak

1248 Indonesian

1254 Italian

1261 Japanese

1283 Javanese

1297 Kazakh

1253

1257

1269

1287

Icelandic

Hebrew

Yiddish

Georgian

1298 Greenlandic;

Kalaallisut

1300 Kannada 1299 Cambodian;

Khmer

1301

1307

Korean

Kurdish

1305 Kashmiri

1311 Kirghiz

1313 Latin 1326 Lingala

1327 Laothian; Lao 1332 Lithuanian

1334 Latvian

1347 Maori

1350 Malayalam

1353 Moldavian

1357 Malay

1363 Burmese

1369 Nepali

1379 Norwegian

1345

1349

1352

1356

1358

1365

1376

1393

Malagasy

Macedonian

Mongolian

Marathi

Malese; Maltese

Nauru

Dutch

Occitan

1403 Oromo 1408 Oriya

1417 Punjabi; Panjabi 1428 Polish

1435 Pashto; Pushto 1436 Portuguese

1463 Quechua 1481 Rhaeto-

Romance

1482 Kirundi; Rundi 1483 Romanian

Code Language

1489 Russian

1503 Singhalese;

Sinhalese

1491 Kinyarwanda

1495 Sanskrit 1498 Sindhi

1501 Sangho; Sango 1502 Serbo-Croatian

1505 Slovak

1506 Slovenian

1508 Shona

1507 Samoan

1509 Somali

1511 Albanian 1512 Serbian

1513 Siswati; Swati 1514 Sesotho; Sotho southern

1515 Sundanese 1516 Swedish

1517 Swahili

1525 Telugu

1528 Thai

1531 Turkmen

1534 Setswana;

Tswana

1538 Turkish

1540 Tatar

1557 Ukrainian

1572 Uzbek

1587 Volapük

1632 Xhosa

1684 Chinese

1703 not specified

1521 Tamil

1527 Tajik

1529 Tigrinya

1532 Tagalog

1535 Tonga; Tonga

1613

1665

1697 islands

1539 Tsonga

1543 Twi

1564 Urdu

1581 Vietnamese

Wolof

Yoruba

Zulu

Parental control/area code

For details, see “Parental Control Area Code”

(page 29).

Code Area

2044 Argentina

2046 Austria

2070 Brazil

2092 China

2115 Denmark

2174 France

2200 Greece

2248 India

2239 Ireland

2276 Japan

2333 Luxembourg

2362 Mexico

2390 New Zealand

2427 Pakistan

2428 Poland

2489 Russia

2149 Spain

2086 Switzerland

2528 Thailand

2047 Australia

2057 Belgium

2090 Chile

2093 Colombia

2165 Finland

2109 Germany

2219 Hong Kong

2238 Indonesia

2254 Italy

2304 Korea

2363 Malaysia

2376 Netherlands

2379 Norway

2424 Philippines

2436 Portugal

2501 Singapore

2499 Sweden

2543 Taiwan

2184 United Kingdom

39

40

Index

Words in quotations appear in the on-screen displays.

Numerics

3D

10

,

16

“3D Output Setting”

26

A

AUDIO

10

“Audio Settings”

28

B

“BD/DVD Viewing

Settings”

29

BD-LIVE

16

BD-R

36

BD-RE

36

Bitstream

32

Blu-ray Disc

36

BONUSVIEW

16

BRAVIA Internet Video

17

BRAVIA Sync

34

C

CD

36

Child Lock

8

,

34

Color buttons

10

Connecting

AV amplifier

(Receiver)

13

Network

14

TV

12

“Control for HDMI”

30

,

34

D

Deep Color

27

“Dimmer”

30

DISPLAY

10

DLNA

18

,

19

,

31

Dolby Digital

28

“DSD Output Mode”

28

DTS

28

DVD

36

I

E

“Easy Setup”

G

Gracenote

19

14

,

31

“Gracenote Settings”

30

H

HDMI

27

,

28

HOME

10

,

26

Home menu

26

Internet Browser

22

Internet content

17

“IP Content NR Pro”

20

M

MAC address

30

“Music Settings”

30

N

NETFLIX

11

“Network Settings”

31

“Network Update”

26

O

OPTIONS

10

“OSD”

30

P

Parental Control

29

“Parental Control Settings”

29

PARTY STREAMING

19

Play information

17

Playable discs

36

POP UP/MENU

10

Q

QRIOCITY

11

“Quick Start Mode”

30

R

Region code

36

Remote

10

“Resetting”

31

Resetting the player

31

Resume

11

,

34

S

“Screen Settings”

26

“Setup”

26

Skype

24

Software update

26

,

30

SUBTITLE

10

“System Settings”

30

T

TOP MENU

10

Troubleshooting

32

“TV Screen Size Setting for 3D”

26

“TV Type”

26

U

Update

26

USB

17

W

WEP

37

WPA2-PSK (AES)

37

WPA2-PSK (TKIP)

37

WPA-PSK (AES)

37

WPA-PSK (TKIP)

37

41

42

43

The software of this player may be updated in the future. For information about any available updates and the latest Operating Instructions, please visit the following website: http://www.sony.com/bluraysupport/

Printed in Malaysia

4-285-964-11(1)
