AC Induction Motor
Freescale Semiconductor, Inc.
Order by AN1930/D
(Motorola Order Number)
Rev. 0, 10/02

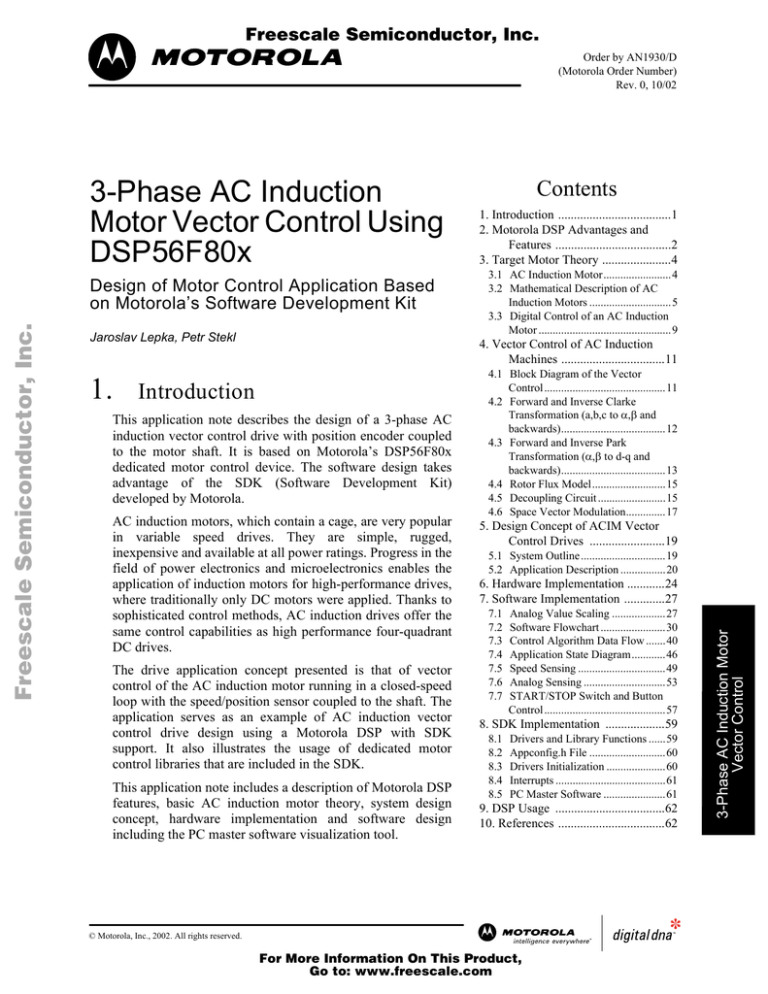

Design of Motor Control Application Based
on Motorola’s Software Development Kit
Jaroslav Lepka, Petr Stekl
1.
Contents
1. Introduction ....................................1
2. Motorola DSP Advantages and
Features .....................................2
3. Target Motor Theory ......................4
3.1 AC Induction Motor........................4
3.2 Mathematical Description of AC
Induction Motors .............................5
3.3 Digital Control of an AC Induction
Motor ...............................................9
4. Vector Control of AC Induction
Machines .................................11
Introduction
This application note describes the design of a 3-phase AC
induction vector control drive with position encoder coupled
to the motor shaft. It is based on Motorola’s DSP56F80x
dedicated motor control device. The software design takes
advantage of the SDK (Software Development Kit)
developed by Motorola.
AC induction motors, which contain a cage, are very popular
in variable speed drives. They are simple, rugged,
inexpensive and available at all power ratings. Progress in the
field of power electronics and microelectronics enables the
application of induction motors for high-performance drives,
where traditionally only DC motors were applied. Thanks to
sophisticated control methods, AC induction drives offer the
same control capabilities as high performance four-quadrant
DC drives.
The drive application concept presented is that of vector
control of the AC induction motor running in a closed-speed
loop with the speed/position sensor coupled to the shaft. The
application serves as an example of AC induction vector
control drive design using a Motorola DSP with SDK
support. It also illustrates the usage of dedicated motor
control libraries that are included in the SDK.
This application note includes a description of Motorola DSP
features, basic AC induction motor theory, system design
concept, hardware implementation and software design
including the PC master software visualization tool.
4.1 Block Diagram of the Vector
Control ...........................................11
4.2 Forward and Inverse Clarke
Transformation (a,b,c to α,β and
backwards).....................................12
4.3 Forward and Inverse Park
Transformation (α,β to d-q and
backwards).....................................13
4.4 Rotor Flux Model..........................15
4.5 Decoupling Circuit ........................15
4.6 Space Vector Modulation..............17
5. Design Concept of ACIM Vector
Control Drives ........................19
5.1 System Outline ..............................19
5.2 Application Description ................20
6. Hardware Implementation ............24
7. Software Implementation .............27
7.1
7.2
7.3
7.4
7.5
7.6
7.7
Analog Value Scaling ...................27
Software Flowchart .......................30
Control Algorithm Data Flow .......40
Application State Diagram............46
Speed Sensing ...............................49
Analog Sensing .............................53
START/STOP Switch and Button
Control ...........................................57
8. SDK Implementation ...................59
8.1
8.2
8.3
8.4
8.5
Drivers and Library Functions ......59
Appconfig.h File ...........................60
Drivers Initialization .....................60
Interrupts .......................................61
PC Master Software ......................61
9. DSP Usage ...................................62
10. References ..................................62
© Motorola, Inc., 2002. All rights reserved.
For More Information On This Product,
Go to: www.freescale.com
3-Phase AC Induction Motor
Vector Control
Freescale Semiconductor, Inc...
3-Phase AC Induction
Motor Vector Control Using
DSP56F80x
Freescale Semiconductor, Inc.
Motorola DSP Advantages and Features
2.
Motorola DSP Advantages and Features
The Motorola DSP56F80x family is well-suited for digital motor control, combining the DSP’s
calculation capability with an MCU’s controller features on a single chip. These DSPs offer many
dedicated peripherals, including a Pulse Width Modulation (PWM) unit, an Analog-to-Digital
Converter (ADC), timers, communication peripherals (SCI, SPI, CAN), on-board Flash and RAM.
Generally, all the family members are well-suited for AC induction motor control.
Freescale Semiconductor, Inc...
A typical member of the family, the DSP56F805, provides the following peripheral blocks:
•
Two Pulse Width Modulator units (PWMA & PWMB), each with six PWM outputs, three
Current Sense inputs, and four Fault inputs, fault tolerant design with deadtime insertion;
supports both Center- and Edge-aligned modes
•
12-bit Analog-to-Digital Convertors (ADCs), supporting two simultaneous conversions with
dual 4-pin multiplexed inputs; ADC can be synchronized by PWM modules
•
Two Quadrature Decoders (Quad Dec0 & Quad Dec1), each with four inputs, or two
additional Quad Timers A & B
•
Two dedicated General Purpose Quad Timers totalling six pins: timer C with two pins and
timer D with four pins
•
CAN 2.0 A/B Module with 2-pin ports used to transmit and receive
•
Two Serial Communication Interfaces (SCI0 & SCI1), each with two pins, or four additional
GPIO lines
•
Serial Peripheral Interface (SPI), with configurable 4-pin port (or four additional GPIO lines)
•
Computer Operating Properly (COP)/watchdog timer
•
Two dedicated external interrupt pins
•
14 dedicated General Purpose I/O (GPIO) pins, 18 multiplexed GPIO pins
•
External reset pin for hardware reset
•
JTAG/On-Chip Emulation (OnCE) for unobtrusive, processor speed-independent debugging
•
Software-programmable, Phase Lock Loop-based frequency synthesizer for the DSP core
clock
Table 2-1. Memory Configuration
DSP56F801
DSP56F803
DSP56F805
DSP56F807
Program Flash
8188 x 16-bit
32252 x 16-bit
32252 x 16-bit
61436 x 16-bit
Data Flash
2K x 16-bit
4K x 16-bit
4K x 16-bit
8K x 16-bit
Program RAM
1K x 16-bit
512 x 16-bit
512 x 16-bit
2K x 16-bit
Data RAM
1K x 16-bit
2K x 16-bit
2K x 16-bit
4K x 16-bit
Boot Flash
2K x 16-bit
2K x 16-bit
2K x 16-bit
2K x 16-bit
The key feature of the motor control DSP is the inclusion of PWM modules. The device is designed to
control most motor types, including induction motors. An interesting feature for controlling the AC
induction motor at low speeds is the patented PWM waveform distortion correction circuit. Each
PWM is double-buffered and includes interrupt controls. The PWM module provides a reference
output to synchronize the Analog-to-Digital Converters.
2
3-Phase AC Induction Motor Vector Control
For More Information On This Product,
Go to: www.freescale.com
MOTOROLA
Freescale Semiconductor, Inc.
Motorola DSP Advantages and Features
Freescale Semiconductor, Inc...
The PWM block has the following features:
•
Three complementary PWM signal pairs, or six independent PWM signals
•
Complementary channel operation
•
Deadtime insertion
•
Separate top and bottom pulse width correction via current status inputs or software
•
Separate top and bottom polarity control
•
Edge-aligned or center-aligned PWM signals
•
15-bit resolution
•
Half-cycle reload capability
•
Integral reload rates from 1 to 16
•
Individual software-controlled PWM output
•
Programmable fault protection
•
Polarity control
•
20-mA current sink capability on PWM pins
•
Write-protectable registers
The Analog-to-Digital Converter (ADC) consists of a digital control module and two analog sample
and hold (S/H) circuits. The ADC features:
•
12-bit resolution
•
Maximum ADC clock frequency of 5MHz with a 200ns period
•
Single conversion time of 8.5 ADC clock cycles (8.5 x 200ns = 1.7µs)
•
Additional conversion time of six ADC clock cycles (6 x 200ns = 1.2µs)
•
Eight conversions in 26.5 ADC clock cycles (26.5 x 200ns = 5.3µs) using simultaneous mode
•
ADC can be synchronized to the PWM via the SYNC signal
•
Simultaneous or sequential sampling
•
Internal multiplexer to select two of eight inputs
•
Ability to sequentially scan and store up to eight measurements
•
Ability to simultaneously sample and hold two inputs
•
Optional interrupts at end of scan if an out-of-range limit is exceeded or at zero crossing
•
Optional sample correction by subtracting a pre-programmed offset value
•
Signed or unsigned result
•
Single-ended or differential inputs
The application utilizes the ADC block in simultaneous mode and sequential scan. It is synchronized
with PWM pulses. Such a configuration allows conversion of the desired analog values of all phase
currents, voltage and temperature at once in the desired time.
MOTOROLA
3-Phase AC Induction Motor Vector Control
For More Information On This Product,
Go to: www.freescale.com
3
Freescale Semiconductor, Inc.
Target Motor Theory
3.
Target Motor Theory
3.1 AC Induction Motor
The AC induction motor is a rotating electric machine designed to operate from a 3-phase source of
alternating voltage. For variable speed drives, the source is normally an inverter that uses power
switches to produce approximately sinusoidal voltages and currents of controllable magnitude and
frequency.
Freescale Semiconductor, Inc...
A cross-section of a two-pole induction motor is shown in Figure 3-1. Slots in the inner periphery of
the stator accommodate 3-phase winding a,b,c. The turns in each winding are distributed so that a
current in a stator winding produces an approximately sinusoidally-distributed flux density around the
periphery of the air gap. When three currents that are sinusoidally varying in time, but displaced in
phase by 120° from each other, flow through the three symmetrically-placed windings, a
radially-directed air gap flux density is produced that is also sinusoidally distributed around the gap
and rotates at an angular velocity equal to the angular frequency ωs of the stator currents.
The most common type of induction motor has a squirrel cage rotor in which aluminum conductors or
bars are cast into slots in the outer periphery of the rotor. These conductors or bars are shorted together
at both ends of the rotor by cast aluminum end rings, which also can be shaped to act as fans. In larger
induction motors, copper or copper-alloy bars are used to fabricate the rotor cage winding.
Stator Rotor
b
c'
a'
a
c
b'
Figure 3-1. 3-Phase AC Induction Motor
As the sinusoidally-distributed flux density wave produced by the stator magnetizing currents sweeps
past the rotor conductors, it generates a voltage in them. The result is a sinusoidally-distributed set of
currents in the short-circuited rotor bars. Because of the low resistance of these shorted bars, only a
small relative angular velocity ωr between the angular velocity ωs of the flux wave and the mechanical
angular velocity ω of the two-pole rotor is required to produce the necessary rotor current. The relative
angular velocity ωr is called the slip velocity. The interaction of the sinusoidally-distributed air gap
flux density and induced rotor currents produces a torque on the rotor. The typical induction motor
speed-torque characteristic is shown in Figure 3-2.
4
3-Phase AC Induction Motor Vector Control
For More Information On This Product,
Go to: www.freescale.com
MOTOROLA
Freescale Semiconductor, Inc.
Freescale Semiconductor, Inc...
Target Motor Theory
Figure 3-2. AC Induction Motor Speed-torque Characteristic
Squirrel-cage AC induction motors are popular for their simple construction, low cost per horsepower
and low maintenance (they contain no brushes, as do DC motors). They are available in a wide range
of power ratings. With field-oriented vector control methods, AC induction motors can fully replace
standard DC motors, even in high-performance applications.
3.2 Mathematical Description of AC Induction Motors
There are a number of AC induction motor models. The model used for vector control design can be
obtained by utilization of the space vector theory. The 3-phase motor quantities (such as voltages,
currents, magnetic flux, etc.) are expressed in the term of complex space vectors. Such a model is valid
for any instantaneous variation of voltage and current and adequately describes the performance of the
machine under both steady-state and transient operation. Complex space vectors can be described
using only two orthogonal axes. We can look at the motor as a 2-phase machine. The utilization of the
2-phase motor model reduces the number of equations and simplifies the control design.
3.2.1 Space Vector Definition
Let’s assume isa , isb , and isc are the instantaneous balanced 3-phase stator currents:
i sa + i sb + i sc = 0
(EQ 3-1)
Then we can define the stator current space vector as follows:
2
i s = k ( i sa + ai sb + a i sc )
MOTOROLA
3-Phase AC Induction Motor Vector Control
For More Information On This Product,
Go to: www.freescale.com
(EQ 3-2)
5
Freescale Semiconductor, Inc.
Target Motor Theory
j2π ⁄ 3
2
j4π ⁄ 3
where a and a2 are the spatial operators, a = e
,a = e
and k is the transformation
constant and is chosen k=2/3. Figure 3-3 shows the stator current space vector projection:
β
phase- b
Freescale Semiconductor, Inc...
is β
Figure 3-3. Stator Current Space Vector and Its Projection
The space vector defined by (EQ 3-2) can be expressed utilizing the two-axis theory. The real part of
the space vector is equal to the instantaneous value of the direct-axis stator current component, isα, and
whose imaginary part is equal to the quadrature-axis stator current component, isβ. Thus, the stator
current space vector in the stationary reference frame attached to the stator can be expressed as:
i s = i sα + ji sβ
(EQ 3-3)
In symmetrical 3-phase machines, the direct and quadrature axis stator currents isα , isβ are fictitious
quadrature-phase (2-phase) current components, which are related to the actual 3-phase stator currents
as follows:
1
1
i sα = k  i sa – --- i sb – --- i sc
2
2
(EQ 3-4)
3
i sβ = k ------- ( i sb – i sc )
2
(EQ 3-5)
where k=2/3 is a transformation constant.
The space vectors of other motor quantities (voltages, currents, magnetic fluxes, etc.) can be defined in
the same way as the stator current space vector.
6
3-Phase AC Induction Motor Vector Control
For More Information On This Product,
Go to: www.freescale.com
MOTOROLA
Freescale Semiconductor, Inc.
Target Motor Theory
3.2.2 AC Induction Motor Model
The AC induction motor model is given by the space vector form of the voltage equations. The system
model defined in the stationary α,β-coordinate system attached to the stator is expressed by the
following equations. The motor model is supposed to be ideally symmetrical with a linear magnetic
circuit characteristic.
Freescale Semiconductor, Inc...
a. The stator voltage differential equations:
u sα = Rs i sα +
d
Ψ
d t sα
(EQ 3-6)
u sβ = R s i sβ +
d
Ψ
d t sβ
(EQ 3-7)
b. The rotor voltage differential equations:
u rα = 0 = R r i rα +
d
Ψ + ωΨ rβ
d t rα
(EQ 3-8)
u rβ = 0 = Rr i rβ +
d
Ψ – ωΨrα
d t rβ
(EQ 3-9)
c. The stator and rotor flux linkages expressed in terms of the stator and rotor current space
vectors:
Ψ sα = L s i sα + L m i rα
(EQ 3-10)
Ψ sβ = L s i sβ + L m i rβ
(EQ 3-11)
Ψ rα = L r i rα + L m i sα
(EQ 3-12)
Ψ rβ = L r i rβ + L m i sβ
(EQ 3-13)
d. Electromagnetic torque expressed by utilizing space vector quantities:
3
t e = --- p p ( Ψ sα i sβ – Ψ sβ i sα )
2
where:
MOTOROLA
(EQ 3-14)
α,β
stator orthogonal coordinate system
usα,β
isα,β
urα,β
irα,β
Ψsα,β
Ψrα,β
Rs
Rr
Ls
stator voltages
[V]
stator currents
[A]
rotor voltages
[V]
rotor currents
[A]
stator magnetic fluxes
[Vs]
rotor magnetic fluxes
[Vs]
stator phase resistance
[Ohm]
rotor phase resistance
[Ohm]
stator phase inductance
[H]
3-Phase AC Induction Motor Vector Control
For More Information On This Product,
Go to: www.freescale.com
7
Freescale Semiconductor, Inc.
Target Motor Theory
Lr
Lm
ω / ωs
pp
rotor phase inductance
[H]
mutual (stator to rotor) inductance
[H]
electrical rotor speed / synchronous speed
[rad/s]
number of pole pairs
[-]
te
electromagnetic torque
[Nm]
Freescale Semiconductor, Inc...
Besides the stationary reference frame attached to the stator, motor model voltage space vector
equations can be formulated in a general reference frame, which rotates at a general speed ωg. If a
general reference frame, with direct and quadrature axes x,y rotating at a general instantaneous speed
ωg=dθg/dt is used, as shown in Figure 3-4, where θg is the angle between the direct axis of the
stationary reference frame (α) attached to the stator and the real axis (x) of the general reference frame,
then the following equation defines the stator current space vector in general reference frame:
i sg = i s e
y
– jθ g
= i sx + ji sy
(EQ 3-15)
β
x
g
Figure 3-4. Application of the General Reference Frame
The stator voltage and flux-linkage space vectors can be similarly obtained in the general reference
frame.
Similar considerations hold for the space vectors of the rotor voltages, currents and flux linkages. The
real axis (rα) of the reference frame attached to the rotor is displaced from the direct axis of the stator
reference frame by the rotor angle θr . It can be seen that the angle between the real axis (x) of the
general reference frame and the real axis of the reference frame rotating with the rotor (rα) is θg-θr . In
the general reference frame, the space vector of the rotor currents can be expressed as:
i rg = i r e
–j ( θg – θr )
= i rx + ji ry
(EQ 3-16)
where i r is the space vector of the rotor current in the rotor reference frame.
Similarly, the space vectors of the rotor voltages and rotor flux linkages in the general reference frame
can be expressed.
8
3-Phase AC Induction Motor Vector Control
For More Information On This Product,
Go to: www.freescale.com
MOTOROLA
Freescale Semiconductor, Inc.
Target Motor Theory
Freescale Semiconductor, Inc...
By utilizing introduced transformations of the motor quantities from one reference frame to the general
reference frame, the motor model voltage equations in the general reference frame can be expressed.
The AC induction motor model is often used in vector control algorithms. The aim of vector control is
to implement control schemes which produce high dynamic performance and are similar to those used
to control DC machines. To achieve this, the reference frames may be aligned with the stator
flux-linkage space vector, the rotor flux-linkage space vector or the magnetizing space vector. The
most popular reference frame is the reference frame attached to the rotor flux linkage space vector with
direct axis (d) and quadrature axis (q). After transformation into d-q coordinates the motor model is the
following:
usd = R s i sd +
d
Ψ – ω s Ψ sq
d t sd
(EQ 3-17)
usq = R s i sq +
d
Ψ – ω s Ψ sd
d t sq
(EQ 3-18)
u rd = 0 = R r i rd +
d
Ψ – ( ω s – ω )Ψ rq
d t rd
(EQ 3-19)
urq = 0 = R r i rq +
d
Ψ + ( ω s – ω )Ψ rd
d t rq
(EQ 3-20)
Ψ sd = L s i sd + L m i rd
(EQ 3-21)
Ψ sq = L s i sq + L m i rq
(EQ 3-22)
Ψ rd = L r i rd + L m i sd
(EQ 3-23)
Ψ rq = L r i rq + L m i sq
(EQ 3-24)
3
t e = --- p p ( Ψ sd i sq – Ψ sq i sd )
2
(EQ 3-25)
3.3 Digital Control of an AC Induction Motor
In adjustable speed applications, AC motors are powered by inverters. The inverter converts DC power
to AC power at the required frequency and amplitude.
MOTOROLA
3-Phase AC Induction Motor Vector Control
For More Information On This Product,
Go to: www.freescale.com
9
Freescale Semiconductor, Inc.
Target Motor Theory
Figure 3-5 illustrates a typical 3-phase inverter.
+ DC-B us
C
+
- DC-B us
Freescale Semiconductor, Inc...
P h. B
P h. A
P h. C
3-P has e
AC Motor
Figure 3-5. 3- Phase Inverter
The inverter consists of three half-bridge units where the upper and lower switch are controlled
complementarily, meaning when the upper one is turned on, the lower one must be turned off, and vice
versa. As the power device’s turn-off time is longer than its turn-on time, some dead-time must be
inserted between the turn-off of one transistor of the half-bridge and the turn-on of its complementary
device. The output voltage is mostly created by a pulse width modulation (PWM) technique, where an
isosceles triangle carrier wave is compared with a fundamental-frequency sine modulating wave and
the natural points of intersection determine the switching points of the power devices of a half-bridge
inverter. This technique is shown in Figure 3-6. The 3-phase voltage waves are shifted 120o to one
another and thus a 3-phase motor can be supplied.
Generated
S ine Wave
P WM Carrier
Wave
1
0
ωt
-1
P WM Output T
1
(U pper S witch)
P WM Output T
2
(L ower S witch)
1
0
ωt
1
0
ωt
Figure 3-6. Pulse Width Modulation
10
3-Phase AC Induction Motor Vector Control
For More Information On This Product,
Go to: www.freescale.com
MOTOROLA
Freescale Semiconductor, Inc.
Vector Control of AC Induction Machines
The most popular power devices for motor control applications are Power MOSFETs and IGBTs.
A Power MOSFET is a voltage-controlled transistor. It is designed for high-frequency operation and
has a low-voltage drop, so it has low power losses. However, saturation temperature sensitivity limits
the MOSFET’s use in high-power applications.
An Insulated-Gate Bipolar Transistor (IGBT) is controlled by a MOSFET on its base. The IGBT
requires low drive current, has fast switching time, and is suitable for high switching frequencies. The
disadvantage is the higher voltage drop of the bipolar transistor, causing higher conduction losses.
Freescale Semiconductor, Inc...
4.
Vector Control of AC Induction Machines
Vector control is the most popular control technique of AC induction motors. In special reference
frames, the expression for the electromagnetic torque of the smooth-air-gap machine is similar to the
expression for the torque of the separately excited DC machine. In the case of induction machines, the
control is usually performed in the reference frame (d-q) attached to the rotor flux space vector. That’s
why the implementation of vector control requires information on the modulus and the space angle
(position) of the rotor flux space vector. The stator currents of the induction machine are separated into
flux- and torque-producing components by utilizing transformation to the d-q coordinate system,
whose direct axis (d) is aligned with the rotor flux space vector. That means that the q-axis component
of the rotor flux space vector is always zero:
Ψ rq = 0 and also
d
Ψ = 0
d t rq
(EQ 4-1)
The rotor flux space vector calculation and transformation to the d-q coordinate system require the
high computational power of a microcontroller. The digital signal processor is suitable for this task.
The following sections describe the space vector transformations and the rotor flux space vector
calculation.
4.1 Block Diagram of the Vector Control
Figure 4-1 shows the basic structure of the vector control of the AC induction motor. To perform
vector control, it is necessary to follow these steps:
•
Measure the motor quantities (phase voltages and currents)
•
Transform them to the 2-phase system (α,β) using a Clarke transformation
•
Calculate the rotor flux space vector magnitude and position angle
•
Transform stator currents to the d-q coordinate system using a Park transformation
•
The stator current torque (isq) and flux (isd) producing components are separately controlled
•
The output stator voltage space vector is calculated using the decoupling block
•
The stator voltage space vector is transformed by an inverse Park transformation back from
the d-q coordinate system to the 2-phase system fixed with the stator
•
Using the space vector modulation, the output 3-phase voltage is generated
MOTOROLA
3-Phase AC Induction Motor Vector Control
For More Information On This Product,
Go to: www.freescale.com
11
Freescale Semiconductor, Inc.
Vector Control of AC Induction Machines
Line Input
Speed
Command
USq_lin
Decoupling
-
-
Motor Flux
Command
USd
USα
USq
USβ
Space - Vector
Modulation
USd_lin
pwm a
pwm b
pwm c 3-Phase Power Stage
ΨRd
ISq
Freescale Semiconductor, Inc...
ISd
ISa
ISα
Forward Park
Transformation
Rotor Flux
Position
Rotor Flux
Calculation
ISβ
Forward Clarke
Transformation
ISb
ISc
AC Induction
Motor
Speed
Speed
Sensor
Figure 4-1. Block Diagram of the AC Induction Motor Vector Control
4.2 Forward and Inverse Clarke Transformation (a,b,c to α,β and
backwards)
The forward Clarke transformation converts a 3-phase system a,b,c to a 2-phase coordinate system
α,β. Figure 4-2 shows graphical construction of the space vector and projection of the space vector to
the quadrature-phase components α,β.
β
phase- b
is β
Figure 4-2. Clarke Transformation
12
3-Phase AC Induction Motor Vector Control
For More Information On This Product,
Go to: www.freescale.com
MOTOROLA
Freescale Semiconductor, Inc.
Vector Control of AC Induction Machines
Assuming that the a axis and the α axis are in the same direction, the quadrature-phase stator currents
isα and isβ are related to the actual 3-phase stator currents as follows:
1
1
i sα = k i sa – --- i sb – --- i sc
2
2
(EQ 4-2)
i sβ
Freescale Semiconductor, Inc...
where:
3
= k ------- ( i sb – i sc )
2
isa
actual current of the motor Phase a
[A]
isb
actual current of the motor Phase b
[A]
isc
actual current of the motor Phase c
[A]
For the non-power-invariant transformation the constant k equals k=2/3. In this case, the quantities isa
and isα are equal. If we assume i sa + i sb + i sc = 0 , the quadrature-phase components can be
expressed utilizing only two phases of the 3-phase system:
i sα = i sa
1
2
i sβ = ------- i sa + ------- i sb
3
3
(EQ 4-3)
The inverse Clarke transformation goes back from a 2-phase (α,β) to a 3-phase isa, isb, isc system. For
constant k=2/3, it is given by the following equations:
i sa = i sα
3
1
i sb = – --- i sα + ------- i sβ
2
2
(EQ 4-4)
1
3
i sc = – --- i sα – ------- i sβ
2
2
4.3 Forward and Inverse Park Transformation (α,β to d-q and backwards)
The components isα and isβ, calculated with a Clarke transformation, are attached to the stator
reference frame α, β. In vector control, it is necessary to have all quantities expressed in the same
reference frame. The stator reference frame is not suitable for the control process. The space vector is
is rotating at a rate equal to the angular frequency of the phase currents. The components isα and isβ
depend on time and speed. We can transform these components from the stator reference frame to the
d-q reference frame rotating at the same speed as the angular frequency of the phase currents. Then the
isd and isq components do not depend on time and speed. If we consider the d-axis aligned with the
rotor flux, the transformation is illustrated in Figure 4-3, where θ Field is the rotor flux position.
MOTOROLA
3-Phase AC Induction Motor Vector Control
For More Information On This Product,
Go to: www.freescale.com
13
Freescale Semiconductor, Inc.
Vector Control of AC Induction Machines
q
β
Freescale Semiconductor, Inc...
Field
Figure 4-3. Park Transformation
The components isd and isq of the current space vector in d-q reference frame are determined by the
following equations:
i sd = i sα cos θ Field + i sβ sin θ Field
i sq = – i sα sin θ Field + i sβ cos θ Field
(EQ 4-5)
The component isd is called the direct axis component (flux producing component) and isq is
called the quadrature axis component (torque producing component). They are time invariant and
the flux and torque control with them is easy. To avoid using trigonometric functions on the DSP we
can directly calculate sinθField and cosθField using division. They are defined by the following
equations:
Ψ rd =
Ψ rα + Ψ rβ
Ψ rβ
sin θ Field = -------Ψ rd
cos θ Field
Ψ rα
= --------Ψ rd
(EQ 4-6)
(EQ 4-7)
The inverse Park transformation from the d-q to α,β coordinate system is given by the following
equations:
i sα = i sd cos θ Field – i sq sin θ Field
i sβ = i sd sin θ Field + i sq cos θ Field
14
3-Phase AC Induction Motor Vector Control
For More Information On This Product,
Go to: www.freescale.com
(EQ 4-8)
MOTOROLA
Freescale Semiconductor, Inc.
Vector Control of AC Induction Machines
4.4 Rotor Flux Model
Knowledge of the rotor flux space vector magnitude and position is key information for the AC
induction motor vector control. With the rotor magnetic flux space vector, the rotational coordinate
system (d-q) can be established. There are several methods for obtaining the rotor magnetic flux space
vector. The implemented flux model utilizes monitored rotor speed and stator voltages and currents. It
is calculated in the stationary reference frame (α,β) attached to the stator. The error in the calculated
value of the rotor flux, influenced by the changes in temperature, is negligible for this rotor flux model.
Freescale Semiconductor, Inc...
The rotor flux space vector is obtained by solving the differential equations (EQ 4-2) and (EQ 4-3),
which are resolved into the α and β components. The equations are derived from the equations of the
AC induction motor model (see Section 3.2.2 AC Induction Motor Model).
dΨ rα
Lm
di sα
[ ( 1 – σ )T s + T r ] ------------- = ------ u sα – Ψ rα – ωT r Ψ rβ – σL m T s ---------dt
Rs
dt
(EQ 4-9)
Lm
di sβ
dΨ rβ
[ ( 1 – σ )T s + T r ] ------------ = ------ u sβ + ωT r Ψ rα –Ψ rβ – σL m T s --------dt
Rs
dt
(EQ 4-10)
where:
Ls
self-inductance of the stator
[H]
Lr
self-inductance of the rotor
[H]
Lm
magnetizing inductance
[H]
Rr
resistance of a rotor phase winding
[Ohm]
Rs
resistance of a stator phase winding
[Ohm]
ω
angular rotor speed
[rad.s-1]
pp
number of motor pole-pairs
Lr
T r = ----Rr
rotor time constant
[s]
L
T s = -----s
Rs
stator time constant
[s]
resultant leakage constant
[-]
2
Lm
σ = 1 – ---------Ls Lr
u sα, u sβ, i sα, i sβ, Ψ rα, Ψ rβ are the α, β components of the stator voltage, currents and rotor flux
space vectors
4.5 Decoupling Circuit
For purposes of the rotor flux-oriented vector control, the direct-axis stator current isd (rotor
flux-producing component) and the quadrature-axis stator current isq (torque-producing component)
must be controlled independently. However, the equations of the stator voltage components are
coupled. The direct axis component usd also depends on isq and the quadrature axis component usq also
depends on isd. The stator voltage components usd and usq cannot be considered as decoupled control
variables for the rotor flux and electromagnetic torque. The stator currents isd and isq can only be
MOTOROLA
3-Phase AC Induction Motor Vector Control
For More Information On This Product,
Go to: www.freescale.com
15
Freescale Semiconductor, Inc.
Vector Control of AC Induction Machines
independently controlled (decoupled control) if the stator voltage equations are decoupled and the
stator current components isd and isq are indirectly controlled by controlling the terminal voltages of
the induction motor.
The equations of the stator voltage components in the d-q coordinate system (EQ 3-22) and (EQ 3-23)
lin
lin
can be reformulated and separated into two components: linear components u sd , u sq and decoupling
decouple
decouple
, u sq
components u sd
lin
decouple
u sd = u sd + u sd
lin
decouple
Freescale Semiconductor, Inc...
u sq = u sq + u sq
. The equations are decoupled as follows:
Ψ rd L m
d
= K R i sd + K L i sd – ω s K L i sq + --------------dt
Lr Tr
(EQ 4-11)
Lm
d
= K R i sq + K L i sq + ω s K L i sd + ------ ωΨ rd
dt
Lr
(EQ 4-12)
where:
2
Lm
K R = R s + -----2- R r
Lr
(EQ 4-13)
2
L
K L = L s – -----mLr
lin
(EQ 4-14)
lin
The voltage components u sd , u sq are the outputs of the current controllers which control isd and isq
decouple
decouple
components. They are added to the decoupling voltage components u sd
, u sq
. In this way,
we can get direct and quadrature components of the terminal output voltage. This means the voltage on
the outputs of the current controllers is:
d
lin
u sd = K R i sd + K L i sd
dt
(EQ 4-15)
d
lin
u sq = K R i sq + K L i sq
dt
(EQ 4-16)
And the decoupling components are:
decouple
u sd
decouple
u sq
Lm
= –  ω s K L i sq + ---------- Ψ rd


Lr Tr
(EQ 4-17)
Lm
=  ω s K L i sd + ------ ωΨ rd


Lr
(EQ 4-18)
As can be seen, the decoupling algorithm transforms the nonlinear motor model to linear equations
which can be controlled by general PI or PID controllers instead of complicated controllers.
16
3-Phase AC Induction Motor Vector Control
For More Information On This Product,
Go to: www.freescale.com
MOTOROLA
Freescale Semiconductor, Inc.
Vector Control of AC Induction Machines
4.6 Space Vector Modulation
Space Vector Modulation (SVM) can directly transform the stator voltage vectors from α,β-coordinate
system to pulse width modulation (PWM) signals (duty cycle values).
The standard technique of the output voltage generation uses an inverse Clarke transformation to
obtain 3-phase values. Using the phase voltage values, the duty cycles needed to control the power
stage switches are then calculated. Although this technique gives good results, the space vector
modulation is more straightforward (valid only for transformation from the α,β-coordinate system).
The basic principle of the standard space vector modulation technique can be explained with the help
of the power stage schematic diagram depicted in Figure 4-4.
Id0
Freescale Semiconductor, Inc...
+
u DC-Bus /2
=
S At
S Bt
S Ct
+
u DC-Bus /2
=
S Ab
IA
IB
S Bb
IC
S Cb
-
u AB
u BC
u CA
B
uR
ub
uL
u ib
O u ic
ua
u L u ia
A
uR
uL
uR
uc
C
Figure 4-4. Power Stage Schematic Diagram
Regarding the 3-phase power stage configuration, as shown in Figure 4-4, eight possible switching
states (vectors) are feasible. They are given by combinations of the corresponding power switches.The
graphical representation of all combinations is the hexagon shown in Figure 4-5. There are six
non-zero vectors, U0, U60, U120, U180, U240, U300, and two zero vectors, O000 and O111, defined in α,β
coordinates.
The combination of ON/OFF states of the power stage switches for each voltage vector is coded in
Figure 4-5 by the three-digit number in parenthesis. Each digit represents one phase. For each phase, a
value of one means that the upper switch is ON and the bottom switch is OFF. A value of zero means
that the upper switch is OFF and the bottom switch is ON. These states, together with the resulting
instantaneous output line-to-line voltages, phase voltages and voltage vectors, are listed in Table 4-1.
MOTOROLA
3-Phase AC Induction Motor Vector Control
For More Information On This Product,
Go to: www.freescale.com
17
Freescale Semiconductor, Inc.
Vector Control of AC Induction Machines
Freescale Semiconductor, Inc...
Table 4-1. Switching Patterns and Resulting Instantaneous
Line-to-Line and Phase Voltages
a
b
c
Ua
Ub
Uc
UAB
UBC
UCA
Vector
0
0
0
0
0
0
0
0
0
O000
1
0
0
2UDCBus/3
-UDCBus/3
-UDCBus/3
UDCBus
0
-UDCBus
U0
1
1
0
UDCBus/3
UDCBus/3
-2UDCBus/3
0
UDCBus
-UDCBus
U60
0
1
0
-UDCBus/3
2UDCBus/3
-UDCBus/3
-UDCBus
UDCBus
0
U120
0
1
1
-2UDCBus/3
UDCBus/3
UDCBus/3
-UDCBus
0
UDCBus
U240
0
0
1
-UDCBus/3
-UDCBus/3
2UDCBus/3
0
-UDCBus
UDCBus
U300
1
0
1
UDCBus/3
-2UDCBus/3
UDCBus/3
UDCBus
-UDCBus
0
U360
1
1
1
0
0
0
0
0
0
O111
U120
(010)
[1/√3,-1]
β-axis
.
U60
(110)
[1/√3,1]
II.
Basic Space Vector
Maximal phase
voltage magnitude = 1
T60/T*U60
III.
US
U180
(011)
uβ
[-2/√3,0]
U0
(100)
α-axis
[2/√3,0]
O000 O111
(000) (111)
uα
T0/T*U0
IV.
30 degrees
VI.
Voltage vector components
in α, β axis
V.
[-1/√3,-1]
U240
(001)
[-1/√3,1]
U300
(101)
Figure 4-5. Basic Space Vectors and Voltage Vector Projection
SVM is a technique used as a direct bridge between vector control (voltage space vector) and PWM.
The SVM technique consists of several steps:
1. Sector identification
2. Space voltage vector decomposition into directions of sector base vectors Ux, Ux±60
3. PWM duty cycle calculation
The principle of SVM is the application of the voltage vectors UXXX and OXXX for certain instances in
such a way that the “mean vector” of the PWM period TPWM is equal to the desired voltage vector.
18
3-Phase AC Induction Motor Vector Control
For More Information On This Product,
Go to: www.freescale.com
MOTOROLA
Freescale Semiconductor, Inc.
Design Concept of ACIM Vector Control Drives
This method gives the greatest variability of arrangement of the zero and non-zero vectors during the
PWM period. One can arrange these vectors to lower switching losses; another might want to approach
a different result, such as center-aligned PWM, edge-aligned PWM, minimal switching, etc.
For the chosen SVM, we define the following rule:
•
The desired space voltage vector is created only by applying the sector base vectors: the
non-zero vectors on the sector side, (Ux, Ux±60) and the zero vectors (O000 or O111).
Freescale Semiconductor, Inc...
The following expressions define the principle of the SVM:
T PWM ⋅ U S [ α, β ] = T 1 ⋅ U x + T 2 ⋅ U x ± 60 + T 0 ⋅ ( O 000 ∨ O 111 )
(EQ 4-19)
T PWM = T 1 + T 2 + T 0
(EQ 4-20)
In order to solve the time periods T0, T1 and T2, it is necessary to decompose the space voltage vector
US[α,β] into directions of the sector base vectors Ux, Ux±60. The equation (EQ 4-19) splits into
equations (EQ 4-21) and (EQ 4-22).
T PWM ⋅ U S x = T 1 ⋅ U x
(EQ 4-21)
T PWM ⋅ U S ( x ± 60 ) = T 2 ⋅ U x ± 60
(EQ 4-22)
By solving this set of equations, we can calculate the necessary duration of the application of the sector
base vectors Ux, Ux±60 during the PWM period TPWM to produce the right stator voltages.
U
Sx
T 1 = ----------- T PWM
U
for vector Ux
(EQ 4-23)
for vector Ux±60
(EQ 4-24)
x
U
Sx
T 2 = ------------------- T PWM
U x ± 60
T 0 = T PWM – ( T 1 + T 2 )
5.
either for O000 or O111
(EQ 4-25)
Design Concept of ACIM Vector Control Drives
5.1 System Outline
The system is designed to drive a 3-phase AC induction motor (ACIM). The application has the
following specifications:
•
Vector control technique used for ACIM control
•
Speed control loop of the ACIM
•
Targeted for DSP56F803EVM, DSP56F805EVM, DSP56F807EVM
•
Running on 3-phase AC induction motor control development platform at variable line voltage
115/230V AC (range -15%.....+10%)
MOTOROLA
3-Phase AC Induction Motor Vector Control
For More Information On This Product,
Go to: www.freescale.com
19
Freescale Semiconductor, Inc.
Design Concept of ACIM Vector Control Drives
•
Control technique incorporates
— Speed control loop with inner q axis stator current loop
— Rotor flux control loop with inner d axis stator current loop
— Field-weakening technique
— Stator phase current measurement method
— AC induction flux model calculation in α, β - stationary reference frame
— Forward Clarke and inverse Park transformations
— d-q establishment - transformation from the stationary reference frame to the rotating
reference frame
— DCBus ripple elimination
Freescale Semiconductor, Inc...
— Space Vector Modulation (SVM)
•
Motor mode
•
Generator mode
•
DCBus brake
•
Minimum speed of 50 rpm
•
Maximum speed of 2500 rpm at input power line 230V AC
•
Maximum speed 1100 rpm at input power line 115V AC
•
Manual interface (RUN/STOP switch, UP/DOWN push buttons control, LED indication)
•
Power stage board identification
•
Overvoltage, undervoltage, overcurrent and overheating fault protection
•
PC remote control interface (Start/Stop Motor push buttons, speed set-up)
•
PC master software remote monitor
— PC master software monitor interface (required speed, actual motor speed, PC master
software mode, START MOTOR/STOP MOTOR controls, drive fault status, DCBus
voltage level, identified power stage boards, drive status, mains detection)
— PC master software speed scope (observes actual and desired speed)
5.2 Application Description
The vector control algorithm is calculated on Motorola DSP56F80x. According to the user-required
inputs, measured and calculated signals, the algorithm generates 3-phase PWM signals for an AC
induction motor inverter.
The block diagram of the ACIM control algorithm is shown in Figure 5-1, which describes the
structure of the implemented vector control algorithm (basic blocks and control signals).
The system incorporates the following hardware components:
20
•
3-phase AC induction motor with load coupled on the motor shaft
•
3-phase AC/BLDC high-voltage power stage
•
DSP56F803EVM / DSP56F805EVM / DSP56F807EVM boards
•
ECOPTINL, In-line optoisolation box, which is connected between the host computer and the
DSP56F80xEVM
3-Phase AC Induction Motor Vector Control
For More Information On This Product,
Go to: www.freescale.com
MOTOROLA
Freescale Semiconductor, Inc.
Design Concept of ACIM Vector Control Drives
The drive can be controlled in two different operating modes:
•
In the manual operating mode, the required speed is set by UP/DOWN push buttons and the
drive is started and stopped by the RUN/STOP switch on the EVM board
•
In the PC remote control operating mode, the required speed is set by the PC master
software bar graph and the drive is started and stopped by the START MOTOR and STOP
MOTOR controls
Freescale Semiconductor, Inc...
Measured quantities:
•
DCBus voltage
•
Phase currents (Phase A, Phase B, Phase C)
•
Power module temperature
•
Rotor speed
The faults used for drive protection:
•
“Overvoltage”
•
“Undervoltage”
•
“Overcurrent”
•
“Overheating”
•
“Mains out of range”
•
“Wrong hardware”
•
“Overload”
MOTOROLA
3-Phase AC Induction Motor Vector Control
For More Information On This Product,
Go to: www.freescale.com
21
Freescale Semiconductor, Inc...
6
Line AC
UP DOWN
ACIM
LOAD
DC
START
STOP
Optical
Encoder
Temperature
Faults
ISa ISb ISc
PWM
SCI
SCI
GPIO
GPIO
GPIO
PWM
Application
Application
Control
Control
Fault Protection
Break
Control
Filter
Dutycycle a
Dutycycle b
Dutycycle c
Decoupling
Current q
Controller
Flux
Psi_Rd
Controller
Current d
Controller
Us_d
Omega_atual_mech
Omega_actual_mech
(Back-EMFFeedforward)
feedforward)
(Back-EMF
Speed
Controller
Is_q_Req
Us_q
U_dcb
Omega_Req
Quad
Timer
ADC
PWM
Is_a
Is_b
Is_c
Space
Vector
Modulation
Sector
Us_alpha_comp
Us_beta_comp
Position
&
Speed
Sensing
Us_alpha
Inverse Park
Transformation
d,q->alpha,beta
DC-bus
ripple
Ripple
compensation
U_dcb
Us_beta
sin_PsiR
cos_PsiR
Us_req
Us_d
MOTOROLA
Us_q
Field
Weakening
Controller
Motorola DSP56F80x
Is_q
Is_d
PsiR_d
Is_beta
Forward Park
Transformation
alpha,beta->d,q
PsiR
Rotor Flux
Estimation
alpha,beta
Is_alpha
Forward Clark
Transformation
a,b,c ->alpha,beta
Is_a_comp
Is_b_comp
Is_c_comp
Current
Sensing
Processing
OmegaField
Omega_actual_mech
Omega_atual_mech
Freescale Semiconductor, Inc.
3-Phase AC Induction Motor Vector Control
For More Information On This Product,
Go to: www.freescale.com
Figure 5-1. AC Induction Motor Vector Control Drive Structure
PC master
software
AC
Design Concept of ACIM Vector Control Drives
22
3-Phase AC BLDC
3High Voltage Power Stage
U_Dc
U
DC_Bus bus
Freescale Semiconductor, Inc.
Design Concept of ACIM Vector Control Drives
5.2.1 Control Process
Freescale Semiconductor, Inc...
After reset, the drive is in the INIT state and in the manual operation mode. When the RUN/STOP
switch is detected in the stop position and there are no faults pending, the INIT state is changed to the
STOP state. Otherwise, the drive waits in the INIT state. If a fault occurs, it goes to the FAULT state.
In the INIT and STOP states, the operating mode can be changed from the PC master software. In the
manual operating mode, the application is controlled by the RUN/STOP switch and UP/DOWN push
buttons; in the PC remote-control mode, the application is controlled by the PC master software.
When the start command is accepted (from the RUN/STOP switch or the PC master software
command), the STOP state is changed to the RUN state. The required speed is then calculated from the
UP/DOWN push buttons or PC master software commands, if in PC remote control mode. The
required speed is the input into the acceleration/deceleration ramp and the output is used as a reference
command for the speed controller; (see Figure 5-1.). The difference between the actual speed and the
required speed generates a speed error. Based on the error, the speed controller generates an Is_q_Req
current which corresponds to the torque component. The second component of the stator current
Is_d_Req, which corresponds to the rotor flux, is given by the flux controller. The field-weakening
algorithm generates the required rotor flux, which is compared to the calculated rotor flux from the AC
induction flux model calculation algorithm. The difference between the required rotor flux and
calculated rotor flux generates a flux error. Based on the flux error, the flux controller generates the
required Is_d_Req stator current. Simultaneously, the stator currents Is_a, Is_b and Is_c (3-phase
system) are measured and transformed to the stationary reference frame α, β (2-phase system) and to
the d-q rotating reference frame consecutively. The decoupling algorithm generates Us_q and Us_d
voltages (d-q rotating reference frame). The Us_q and Us_d voltages are transformed back to the
stationary reference frame α, β. The space vector modulation then generates the 3-phase voltage
system, which is applied to the motor.
5.2.2 Drive Protection
The DCBus voltage, DCBus current and power stage temperature are measured during the control
process. They are used for the overvoltage, undervoltage, overcurrent and overheating protection of
the drive. The undervoltage and the overheating protection is performed by software. The overcurrent
and the overvoltage fault signals utilize fault inputs of the DSP controlled by hardware. The power
stage is identified via board identification. If correct boards are not identified, the "Wrong hardware"
fault disables drive operation. Line voltage is measured during application initialization. According to
the detected voltage level, the 115VAC or 230VAC mains is recognized. If the mains is out of the
-15%.... +10% range, the “Mains out of range” fault is set, and drive operation is disabled.
If any of the mentioned faults occur, the motor control PWM outputs are disabled in order to protect
the drive and the application enters the FAULT state. The FAULT state can be left only when the fault
conditions disappear and the RUN/STOP switch is moved to the STOP position (in PC remote control
mode by PC master software).
5.2.3 Indication of the Application States
If the application is running and motor spinning is disabled (i.e., the system is ready), the green user
LED blinks at a 2Hz frequency (slower). When motor spinning is enabled, the green user LED is
turned on and the actual state of the PWM outputs is indicated by PWM output LEDs. If any fault
occurs (overcurrent, overvoltage, undervoltage, mains out of range, overheating or wrong hardware)
the green user LED blinks at an 8Hz frequency (faster). The PC master software control page shows
the identified faults. The faults can be handled by switching the RUN/STOP switch to STOP in manual
operating mode or bypushing the START MOTOR/STOP MOTOR buttons to the STOP
MOTOROLA
3-Phase AC Induction Motor Vector Control
For More Information On This Product,
Go to: www.freescale.com
23
Freescale Semiconductor, Inc.
Hardware Implementation
MOTOR state in PC remote control mode to acknowledge the fault state. Meanwhile, the “Mains
out of range” and “Wrong hardware” faults can be exited only with an application reset. It is strongly
recommended that the user inspect the entire application to locate the source of the fault before restart.
6.
Hardware Implementation
The application can run on Motorola motor control DSPs using the DSP EVM Boards with:
•
DSP56F803
•
DSP56F805
•
DSP56F807
Freescale Semiconductor, Inc...
The hardware set-up of the system for a particular DSP varies only by the EVM Board used.
Application software is identical for all DSPs.
The application can run on the following motor control platform:
•
3-phase AC induction motor
System configuration is shown in Figure 6-1.
24
3-Phase AC Induction Motor Vector Control
For More Information On This Product,
Go to: www.freescale.com
MOTOROLA
Freescale Semiconductor, Inc.
3ph AC/BLDC
High-Voltage
Power Stage
Freescale Semiconductor, Inc...
Hardware Implementation
Figure 6-1. 3-Phase AC Induction Motor High-Voltage Platform Configuration
MOTOROLA
3-Phase AC Induction Motor Vector Control
For More Information On This Product,
Go to: www.freescale.com
25
Freescale Semiconductor, Inc.
Hardware Implementation
All the system parts are supplied and documented according to the following references:
•
U1 - Controller Board for DSP56F805:
— supplied as: DSP56F805EVM
— described in: DSP56F805EVMUM/D DSP Evaluation Module Hardware User’s
Manual
or U1 - Controller Board for DSP56F803:
— supplied as: DSP56F803EVM
— described in: DSP56F803EVMUM/D DSP Evaluation Module Hardware User’s
Manual
or U1 - Controller Board for DSP56F807:
Freescale Semiconductor, Inc...
— supplied as: DSP56F807EVM
— described in: DSP56F803EVMUM/D DSP Evaluation Module Hardware User’s
Manual
•
U2 - 3-phase AC/BLDC High Voltage Power Stage
— supplied in kit with In-Line Optoisolation Box as: ECINLHIVACBLDC
— described in: MEMC3BLDCPSUM/D - 3-phase AC/BLDC High Voltage Power Stage
•
U3 - In-Line Optoisolation Box
— supplied in kit with 3-phase AC/BLDC High Voltage Power Stage as:
ECINLHIVACBLDC, or separately as ECOPTINL
— described in: MEMCILOBUM/D - In-Line Optoisolation Box
Warning: The user must use the In-line Optoisolation Box during development to avoid damage to the
development equipment.
•
MB1 Motor-Brake AM40V + SG40N
— supplied as: ECMTRHIVAC
Detailed descriptions of individual boards can be found in comprehensive User’s Manuals belonging
to each board or on the Motorola web http://www.motorola.com. The User’s Manual incorporates the
schematic of the board, description of individual function blocks and a bill of materials. An individual
board can be ordered from Motorola as a standard product.
The AC induction motor-brake set incorporates a 3-phase AC induction motor and attached BLDC
motor brake. The AC induction motor has four poles. The incremental position encoder is coupled to
the motor shaft, and position Hall sensors are mounted between motor and brake. They allow sensing
of the position if required by the control algorithm. Detailed motor-brake specifications are listed in
Table 6-1.
26
3-Phase AC Induction Motor Vector Control
For More Information On This Product,
Go to: www.freescale.com
MOTOROLA
Freescale Semiconductor, Inc.
Software Implementation
Table 6-1. Motor - Brake Specifications
Set Manufactured
EM Brno, Czech Republic
Freescale Semiconductor, Inc...
Motor Specification:
Brake Specification:
Position Encoder
7.
eMotor Type:
AM40V
3-Phase AC Induction Motor
Pole-Number:
4
Nominal Speed:
1300 rpm
Nominal Voltage:
3 x 200 V
Nominal Current:
0.88 A
Brake Type:
SG40N
3-Phase BLDC Motor
Nominal Voltage:
3 x 27 V
Nominal Current:
2.6 A
Pole-Number:
6
Nominal Speed:
1500 rpm
Type:
Baumer Electric
BHK 16.05A 1024-12-5
Pulses per Revolution:
1024
Software Implementation
This section describes the software design of the AC induction vector control drive application. First,
the numerical scaling in fixed-point fractional arithmetic of the DSP is discussed. Then, the control
software is described in terms of:
•
Software Flowchart
•
Control Algorithm Data Flow
•
State Diagram
Finally, particular issues such as speed and current sensing are explained. The aim of the chapter
presented is to facilitate understanding of the designed software.
7.1 Analog Value Scaling
The AC induction motor vector control application uses a fractional representation for all real
quantities, except time. The N-bit signed fractional format is represented using 1.[N-1] format (1 sign
bit, N-1 fractional bits). Signed fractional numbers (SF) lie in the following range:
– 1.0 ≤ SF ≤ +1.0 -2
–[ N – 1 ]
(EQ 7-1)
For words and long-word signed fractions, the most negative number that can be represented is -1.0,
whose internal representation is $8000 and $80000000, respectively. The most positive word is $7FFF
or 1.0 - 2-15, and the most positive long-word is $7FFFFFFF or 1.0 - 2-31
MOTOROLA
3-Phase AC Induction Motor Vector Control
For More Information On This Product,
Go to: www.freescale.com
27
Freescale Semiconductor, Inc.
Software Implementation
The following equation shows the relationship between a real and a fractional representation:
Real Value
Fractional Value = -------------------------------------------------Real Quantity Range
(EQ 7-2)
7.1.1 Voltage Scaling
Voltage quantities are scaled to the maximum measurable voltage, which is dependent on the
hardware. The relationship between real and fractional representations of voltage quantities is:
u Real
u Frac = ----------u Max
(EQ 7-3)
Freescale Semiconductor, Inc...
where:
uFrac
fractional representation of voltage quantities
[-]
uReal
real voltage quantities in physical units
[V]
uMax
maximum defined voltage used for scaling in physical units
[V].
In the application, the uMaxvalue is the maximum measurable DC-bus voltage:
uMax = 407 V
Other application voltage variables are scaled in the same way (u_dc_bus, u_dc_bus_filt,
u_SAlphaBeta, u_SDQ_ref, u_SDQ, u_Sabc, u_Samplitude, etc.).
7.1.2 Current Scaling
The current quantities are scaled to the maximum measurable current, which is dependent on the
hardware. The relationship between real and fractional representation of current quantities is:
i Real
i Frac = ---------i Max
(EQ 7-4)
where:
iFrac
fractional representation of current quantities
[-]
iReal
real current quantities in physical units
[A]
iMax
maximum defined current used for scaling in physical units
[A].
In the application, the iMax value is the maximum measurable current:
iMax = 5.86 A
Other application current variables are scaled in the same way (i_Sabc_comp, i_SAlphaBeta,
i_Sphase_max, i_SD_desired, i_SQ_desired, etc.).
7.1.3 Flux Scaling
Magnetic flux quantities are scaled to the maximum motor flux, which is dependent on the motor used.
The maximum flux can be expressed as:
60 ⋅ 2 u nom
Ψ Max ≈ C sf ⋅ ---------------------- ⋅ -------------2 ⋅ π ⋅ 3 p p ⋅ ns
28
3-Phase AC Induction Motor Vector Control
For More Information On This Product,
Go to: www.freescale.com
(EQ 7-5)
MOTOROLA
Freescale Semiconductor, Inc.
Software Implementation
where:
ΨMax
maximum calculated flux value used for scaling in physical units
[Vs]
unom
nominal line-to-line voltage of motors
[V]
ns
motor-synchronous speed dependent on pair of poles
[rpm]
pp
number of pole pairs
[-]
Csf
safety margin constant
[-]
The relationship between real and fractional representation of flux quantities is:
Freescale Semiconductor, Inc...
Ψ Real
Ψ Frac = -------------Ψ Max
(EQ 7-6)
where:
ΨFrac
fractional representation of flux quantities
[-]
ΨReal
real flux quantities in physical units
[Vs]
In the application, the parameters for ΨMax calculation are:
unom = 200 V
ns = 1500 rpm
pp = 2
Csf = 1.92
The maximum motor flux value is then:
ΨMax = 1 Vs
Other application flux variables are scaled in the same way (psi_RAlphaBeta, psi_RD_desired,
etc.).
7.1.4 Speed Scaling
Speed quantities are scaled to the defined maximum mechanical speed, which is dependent on the
drive. The relationship between real and fractional representation of speed quantities is:
ω Real
ω Frac = ------------ω Max
(EQ 7-7)
where:
ωFrac
fractional representation of speed quantities
[-]
ωReal
real speed quantities in physical units
[rpm]
ωMax
maximum defined speed used for scaling in physical units
[rpm].
In the application, the ωMax value is defined as:
ωMax= 4000 rpm
Other speed variables are scaled in the same way (omega_reqPCM_mech, omega_desired_mech,
omega_required_mech, omega_reqMAX_mech, omega_reqMIN_mech, omega_actual_mech).
MOTOROLA
3-Phase AC Induction Motor Vector Control
For More Information On This Product,
Go to: www.freescale.com
29
Freescale Semiconductor, Inc.
Software Implementation
7.2 Software Flowchart
The general software flowchart incorporates the main routine entered from reset and interrupt states.
The overview of the software flowchart is shown in Figure 7-1.
After reset, the main routine provides initialization of the drive parameters, the application and the
DSP; it then enters an endless background loop. The background loop contains the routines: Fault
Detection, Start/Stop Switch and Required Speed Scan, Brake Control and Application State Machine.
Freescale Semiconductor, Inc...
The following interrupt service routines (ISRs) are utilized:
•
PWMA Fault ISR services faults invoked by external hardware fault
•
ADC End of Scan ISR services ADC and provides the execution of the fast control loop; the
ADC is synchronized with the PWM pulses. The PWM value registers are updated here. It is
invoked with a 125µs period.
•
Timer C, Channel 0 On Compare ISR provides the execution of the slow control loop, LED
indication processing, push button processing and switch filtering; it is invoked with a 1000µs
period.
•
SCI ISR services PC master software communication
•
IRQA ISR services the UP Push Button
•
IRQB ISR services the DOWN Push Button
7.2.1 Initialization
Initialization occurs after reset. The first phase of initialization of the DSP peripherals is done through
the appconfig.h file defines. The next phase is done in the application code. The drive parameters
are set, then the application and DSP initializations are executed.
Initialization performed by the appconfig.h:
•
SDK drivers are included/excluded
•
DSP56F80X chip revision is defined (A,B or D). It is not necessary to define it for other
revisions, since it is required only for elimination of the offset and gain errors of the first DSP
versions.
•
PWMA module is initialized
— Center-aligned complementary PWM mode, positive polarity
— Set PWM modulus: defines the PWM frequency as 16kHz
— Deadtime is set to 1µs
— Output pads are disabled
— PWM faults are disabled
30
3-Phase AC Induction Motor Vector Control
For More Information On This Product,
Go to: www.freescale.com
MOTOROLA
Freescale Semiconductor, Inc.
Software Implementation
•
ADC module is initialized
— ADC is triggered simultaneously
— Conversion started by SYNC pulse
— Associate interrupt service routine with ADC end of scan event
— Defines ADC samples
•
Timers defined to be used by the application
— Timer A channels 0, 1, 2, 3
— Timer C channels 0, 2
•
IRQA and IRQB interrupts are initialized
Freescale Semiconductor, Inc...
— Interrupt service routine is associated with the IRQA and IRQB
— Interrupt priority is set
•
Interrupt priorities are set in descending order from highest to lowest
— PWMA fault interrupt
— ADC end of scan interrupt
— Timer C channel 0 On Compare interrupt
— SCI interrupts
— IRQA, IRQB interrupts
•
PC master software recorder is initialized; see Section 8.5
For more information on the appconfig.h file, see Section 8.2.
The following drive parameters are set in the DriveParamSet routine:
•
The output voltage structure is initialized to zero volts
•
Parameters of the AC induction flux model are set
— Integration state variables are reset
— Motor-dependent constants are set
•
Parameters of the d-q establishment algorithm are set
— Rotor flux zero limit value is initialized
— Motor-dependent constants are set
•
Parameters of the decoupling algorithm are set
— Motor-dependent constants are set
•
Parameters of the torque- and flux-producing current components controllers and speed, flux
and field-weakening controllers are set
— Proportional and integral gain and their scaling constants are set
— Controller output limits are set
— Controller integral portion is reset to zero
•
Currents limitation algorithm parameter is set
— Maximum motor-current value is set
MOTOROLA
3-Phase AC Induction Motor Vector Control
For More Information On This Product,
Go to: www.freescale.com
31
Freescale Semiconductor, Inc.
Software Implementation
•
States of the application state machine are set as follows:
— Application state is set to INIT
— Substate of application RUN state is set to DE-EXCITATION
— Substate of application INIT state is set to BRANCH
Application operating mode is set to MANUAL
•
PrimaryCtrl bit in appInitControl control word is set
•
Start/Stop switch, switch filter and overload filter are initialized
Freescale Semiconductor, Inc...
•
32
3-Phase AC Induction Motor Vector Control
For More Information On This Product,
Go to: www.freescale.com
MOTOROLA
Freescale Semiconductor, Inc.
Software Implementation
ADC End of Scan Interrupt
- synchronized with PWM
reload
Reset
SCI Receiver
Interrupt
Drive Parameters Settings
ADC End of Scan ISR
SCI Receirver ISR
Done
Done
Freescale Semiconductor, Inc...
Application and DSP
Initialization
SCI Transmitter
Interrupt
Background Loop
SCI Transmitter ISR
Timer C Channel 0
On Compare
Interrupt
Done
Quadtimer C Channel 0 ISR
IRQA Interrupt
Done
IRQA ISR
Done
PWMA Fault
Interrupt
IRQB Interrupt
IRQB ISR
PWMA Fault ISR
Done
Done
Figure 7-1. Software Flowchart Overview
MOTOROLA
3-Phase AC Induction Motor Vector Control
For More Information On This Product,
Go to: www.freescale.com
33
Freescale Semiconductor, Inc.
Software Implementation
After initialization of the drive parameters is completed, the application and DSP initialization routine
is executed:
•
ADC channels are assigned to the sensed quantities
— ADC channel 2 to sample 0 - Phase current A
— ADC channel 3 to sample 1 - Phase current B
— ADC channel 4 to sample 2 - Phase current C
— ADC channel 0 to sample 4 - DCBus voltage
— ADC channel 5 to sample 4,5,7 - power module temperature
•
Quad Timer C channel 0 driver initialization (slow control loop time base)
— Count Up
Freescale Semiconductor, Inc...
— Prescaler 2
— Interrupt On Compare (compare value set to 1000µs period)
— Associate interrupt service routine with On Compare event
•
Quad Timer C channel 2 driver initialization (ADC and PWM synchronization)
— Count Up
— Prescaler 1
— Started by PWM reload signal
•
Switch control is initialized
•
PWMA fault interrupt service routine is initialized
•
Brake control is initialized
•
Power stage board identification
— Identifies hardware set connected to the EVM board
•
Speed and position measurement is initialized
— Quad Timer A channels 0, 1, 2, 3 initialized for speed and position measurement. The
position measurement (Quad Timer A channel 1) is not applied in the application.
— Speed measurement-specific variables are initialized
34
•
Status LEDs control is initialized
•
Quad Timer C channel 0 is enabled
•
Push button control is initialized
•
Interrupts are enabled
3-Phase AC Induction Motor Vector Control
For More Information On This Product,
Go to: www.freescale.com
MOTOROLA
Freescale Semiconductor, Inc.
Software Implementation
7.2.2 Background Loop
After initialization, the background loop is entered. It runs in an endless loop and is asynchronously
interrupted by the system interrupt service routines. The processes executed in the background are:
•
Fault Detection
— Fault DCBus overvoltage and overcurrent pins are scanned for a fault signal occurrence
— Measured DCBus voltage in u_dc_bus_filt is checked for undervoltage
— Measured power module temperature in temperature_filt is checked for overheating
— Mains detection fault flag is checked
— Hardware identification fault flag is checked
Freescale Semiconductor, Inc...
— Drive overload fault is detected
— When a fault occurs, the appropriate bits in appFaultStatus and appFaultPending
words are set. The FaultCtrl bit in appControl is set to change application state to
FAULT.
•
Start/Stop Switch and Required Speed Scan
— Based on the application operating mode, the process selects whether the required speed
and start/stop command are set manually with the switches and buttons or by the PC
master software interface. The required speed is limited to maximum and minimum
values.
•
Brake Control Background
— Sets the generator mode flag if the drive is running in the generator mode. If the drive is in
motor mode, the brake switch is turned off.
•
Application State Machine
— Ensures the execution of the active application state and the transition between the states,
according to bits in the application control word.
7.2.3 ADC End of Scan ISR
The ADC End of Scan ISR is the most critical and the routine most demanding of the processor's time.
Most of the AC induction motor vector control processes must be linked to this ISR.
The Analog-to-Digital Converter is initiated synchronously with a PWM reload pulse. It
simultaneously scans phase currents, phase voltage and temperature. When the conversion is finalized,
the ADC End of Scan ISR is called. The PWM reload pulse frequency is set to every second PWM
opportunity. For the PWM frequency of 16kHz, this means the PWM reload pulse frequency is 8kHz,
which corresponds to the 125µs ADC End of Scan ISR period.
The routine calls control functions according to application state. If the application state is RUN, the
FastControlLoopEnabled function is called; otherwise, the FastControlLoopDisabled
function is called. The ADC End of Scan diagram is shown in Figure 7-2.
The FastControlLoopEnabled function provides the following services and calculations:
•
Sets a compare value for QuadTtimer C channel 2, defining the ADC start, needed for phase
current measurement
•
Calls the analog-sensing and correction function
•
Calls the forward Clarke transformation
•
Calls the rotor flux model calculation
MOTOROLA
3-Phase AC Induction Motor Vector Control
For More Information On This Product,
Go to: www.freescale.com
35
Freescale Semiconductor, Inc.
Software Implementation
•
Calls the d-q system establishment function
•
Calls isd and isq current-component controllers
•
Calls the decoupling algorithm
•
Calls the inverse Park transformation
•
Calls the DCBus ripple elimination function
•
Calls the space vector modulation function
•
Calls the analog-sensing correction reconfiguration function
•
Passes calculated duty cycle ratios to the PWM driver
•
Calls the brake control function
Freescale Semiconductor, Inc...
The FastControlLoopDisabled function is called in the application states when the vector control
algorithm is not executed. The function services only the analog-sensing correction process, space
vector modulation algorithm and PWM generation. The drive control variables are set to their initial
values.
36
3-Phase AC Induction Motor Vector Control
For More Information On This Product,
Go to: www.freescale.com
MOTOROLA
Freescale Semiconductor, Inc.
Freescale Semiconductor, Inc...
Software Implementation
Fast Control Loop Disabled
Fast Control Loop Enabled
Analog-Sensing
Correction
Analog-Sensing
Correction
Drive Initialization
Forward Clarke
Transformation
Space Vector
Modulation
Rotor Flux
Model
Analog-Sensing
Reconfiguration
d,q Establishment
Done
Current Loop Controllers
Decoupling
Inverse Park Transform
DC-Bus Ripple
Elimination
Space Vector
Modulation
Analog-Sensing
Reconfiguration
Done
Figure 7-2. ADC End of Scan ISR
MOTOROLA
3-Phase AC Induction Motor Vector Control
For More Information On This Product,
Go to: www.freescale.com
37
Freescale Semiconductor, Inc.
Software Implementation
7.2.4 Quad Timer C, Channel 0, On Compare ISR
The routine calculates part of the vector control algorithm and handles LED indication, button
processing and switch filtering. It is called with a 1000µs period. The tasks provided by individual
functions are:
•
Slow control loop is executed. It provides the part of vector control algorithm calculations,
which can be executed in a slower control loop. The function SlowControlLoopEnabled is
called.
— Reads the actual motor speed and handles the speed measurement process
— Executes the speed acceleration/deceleration ramp algorithm
— Calculates the output stator voltage amplitude
Freescale Semiconductor, Inc...
— Field-weakening controller is called
— Rotor flux and speed controllers are called
— Current limit algorithm is called
•
LED indication process handles the LED indication of the application state (INIT, RUN,
STOP, FAULT)
•
Button processing handles the UP/DOWN button debounce counter
•
Switch-filter processing handles the Start/Stop switch filtering
•
PC master software recorder routine is called
7.2.5 PWMA Fault ISR
The PWMA Fault ISR is the highest priority interrupt implemented in the software. In the case of
DCBus, overcurrent or overvoltage fault detection, the external hardware circuit generates a fault
signal that is detected on the fault input pin of the DSP’s PWMA module. The signal disables PWM
outputs in order to protect the power stage and generates a fault interrupt where the fault condition is
handled. The routine sets the records of the corresponding fault source to the fault status word and sets
the fault bit in the application control word.
7.2.6 SCI ISR
The interrupt handler provides SCI communication and PC master software service routines. These
routines are fully independent of the motor control tasks.
7.2.7 IRQA and IRQB ISR
Push button interrupt handlers take care of the push button service. The UpButton ISR sets the UP
button flag and the DownButton ISR sets the DOWN button flag. The desired speed is
incremented/decremented according to the debounced UP/DOWN button flag.
38
3-Phase AC Induction Motor Vector Control
For More Information On This Product,
Go to: www.freescale.com
MOTOROLA
Freescale Semiconductor, Inc.
Software Implementation
PWM A Fault Interrupt
PWM Output Pads Disable
Quadtimer C Channel 0
On Compare Interrupt
Fault Source Determination
(over-current and over-voltage)
Slow Control Loop
Freescale Semiconductor, Inc...
Fault Flag Asserted
LED Indication
Processing
PWM A Fault Clear
Button Processing
Done
Switch Filtering
Done
IRQA Interrupt
SCI Reciever
Interrupt
Increment Required Speed
(manual operating mode)
PC Master
(Independent of application)
Done
Done
IRQB Interrupt
SCI Transmitter
Interrupt
Decrement Required Speed
(manual operating mode)
PC Master
(Independent of application)
Done
Done
Figure 7-3. Application Interrupt Service Routines
MOTOROLA
3-Phase AC Induction Motor Vector Control
For More Information On This Product,
Go to: www.freescale.com
39
Freescale Semiconductor, Inc.
Software Implementation
7.3 Control Algorithm Data Flow
The 3-phase AC induction motor vector control algorithm data flow is described in Figure 7-4,
Figure 7-5 and Figure 7-6.
The individual processes are described in detail in the following sections.
7.3.1 Analog-Sensing Corrections
The analog-sensing process handles sensing, filtering and correction of analog variables (phase
currents, temperature, DCBus voltage).
7.3.2 Speed Measurement
Freescale Semiconductor, Inc...
The speed measurement process provides the mechanical angular speed, omega_actual_mech.
7.3.3 Forward Clarke Transformation
The forward Clarke transformation transforms the 3-phase system a,b,c to a 2-phase orthogonal
reference frame α,β. For theoretical background, see Section 4.2. The algorithm is included in the
SDK motion control function library. For more details, refer to the SDK library manual.
7.3.4 Rotor Flux Model
The rotor flux model process calculates the rotor magnetic flux of the AC induction motor in the (α, β)
2-phase stationary reference frame. The flux model utilizes monitored rotor speed and stator voltages
and currents. For theoretical background, see Section 4.4. The algorithm is included in the SDK
motion control function library. For more details, refer to the SDK library manual.
7.3.5 d-q System Establishment
This process transforms quantities from an (α, β) 2-phase reference frame attached to the stator into a
d-q-) 2-phase reference frame rotating with the magnetic flux angular speed. The rotor magnetic flux
space vector is put into the d axis of the coordinate system. The function calculates the magnitude of
the rotor magnetic flux and the sine and cosine of its position angle theta_field in the (α, β)
coordinate system. For theoretical background, see Section 4.3. The algorithm is included in the SDK
motion control function library. For more details, refer to the SDK library manual.
7.3.6 Decoupling
The decoupling process calculates the decoupling rotational voltage components of the AC induction
machine in the d-q coordinate system and adds them to the outputs of the currents controllers which
control the isd and isq components. It yields to the d and q output stator voltage components. The
output voltage vector is limited to the desired limits. For theoretical background, see Section 4.5. The
algorithm is included in the SDK motion control function library. For details, refer to the SDK library
manual.
40
3-Phase AC Induction Motor Vector Control
For More Information On This Product,
Go to: www.freescale.com
MOTOROLA
Freescale Semiconductor, Inc.
Software Implementation
ADC
Quadrature
. Encoder .
Analog Sensing
Corrections
Speed Measurement
u_Ssector
3rd page
Freescale Semiconductor, Inc...
temperature_filt
i_Sabc_comp
Forward Clarke
Transform
i_SAlphaBeta
omega_actual_mech
u_dc_bus_filt
3rd page
u_SAlphaBeta
fluxModelState
Rotor-Flux Model
psi_RAlphaBeta
dqEstablState
d,q System Establishment
2nd page
theta_field
dqData
u_SDQ_ref
decouplingState
Decoupling
u_SDQ
Figure 7-4. Vector Control Application Data Flow
MOTOROLA
3-Phase AC Induction Motor Vector Control
For More Information On This Product,
Go to: www.freescale.com
41
Freescale Semiconductor, Inc.
Software Implementation
3rd page
u_Sfieldweak
u_Samplitude
fieldweakControllerParams
Fieldweakening
Controller
omega_required_mech
Speed Ramp
Freescale Semiconductor, Inc...
1st page
1st page
DQdata->psi_RD
psi_RD_desired
psi_RD_controllerParams
Rotor-Flux Controller
omega_desired_mech
omega_actual_mech
Speed Controller
i_Sphase_max
i_SD_desired
speed_controllerParams
i_SQ_desired
1st page
1st page
Isq limitation
algorithm
dqData.i_Sd
dqData.i_Sq
i_SD_controllerParams
i_SQ_controllerParams
Isd Controller
Isq Controller
u_SDQ_ref.d_axis
u_SDQ_ref.q_axis
Figure 7-5. Controllers Data Flow Chart
42
3-Phase AC Induction Motor Vector Control
For More Information On This Product,
Go to: www.freescale.com
MOTOROLA
Freescale Semiconductor, Inc.
Software Implementation
1st page
1st page
u_SDQ
theta_field
Inverse Park Transform
1st page
Freescale Semiconductor, Inc...
u_SAlphaBeta
u_dc_bus_filt
Voltage Amplitude
Calculation
DC-Bus Ripple Correction
u_Samplitude
u_SAlphaBeta_RipElim
Space-Vector Modulation
u_Sabc
1st page
u_Ssector
1st page
omega_actual_mech
dqData.omega_field
driveStatus.B.BrakeONFlag
1st page
Brake Control Background
u_dc_bus_off_brake
u_dc_bus_filt
driveStatus.B.GeneratorModeFlag
u_dc_bus_on_brake
Brake Control
Figure 7-6. Space Vector Modulation and Brake Control Data Flow
MOTOROLA
3-Phase AC Induction Motor Vector Control
For More Information On This Product,
Go to: www.freescale.com
43
Freescale Semiconductor, Inc.
Software Implementation
7.3.7 Speed Ramp
This process calculates the desired speed (omega_desired_mech), based on the required speed
according to the acceleration/deceleration ramp. The required speed (omega_required_mech) is
determined either by the push buttons, if in manual mode, or by PC master software, if in PC remote
control mode.
7.3.8 Speed Controller
This process calculates the desired isq stator current component (i_SQ_desired) according to the
speed error, which is the difference between the actual and desired speeds. The PI controller is
implemented.
Freescale Semiconductor, Inc...
7.3.9 Isq Controller
This process calculates the linear portion of the stator voltage space vector q component
(u_SDQ_ref.q_axis) based on the isq stator current component error, which is the difference
between the actual and desired isq stator current components. The PI controller is implemented.
7.3.10 Field-Weakening Controller
The field-weakening process provides control of the desired rotor flux (psi_RD_desired) in order to
achieve a higher motor speed than nominal. It compares the actual output motor stator-voltage
amplitude with nominal field-weakening voltage; the desired rotor flux is set based on the calculated
error.
7.3.11 Flux Controller
This process calculates the desired isd stator current component (i_SD_desired) according to rotor
flux error, which is the difference between the actual and desired rotor flux. The PI controller is
implemented.
7.3.12 Isd Controller
This process calculates the linear portion of the stator voltage space vector d component
(u_SDQ_ref.d_axis), based on the isd stator current component error, which is the difference
between the actual and desired isd stator current components.
7.3.13 Inverse Park Transformation
The Inverse Park Transformation process converts stator voltage space vector components from the
rotating orthogonal coordinate system (d-q) attached to the rotor magnetic flux to the stationary
orthogonal coordinate system (α,β) attached to the stator. For theoretical background, see Section 4.3.
The algorithm is included in the SDK motion control function library. For more details, refer to the
SDK library manual.
7.3.14 DCBus Ripple Elimination
This process provides for the elimination of the voltage ripple on the DCBus. It compensates an
amplitude of the direct- α and the quadrature- β components of the stator reference voltage vector U S
for imperfections in the DCBus voltage. The algorithm is included in the SDK motion control function
library. For more details, refer to the SDK library manual.
44
3-Phase AC Induction Motor Vector Control
For More Information On This Product,
Go to: www.freescale.com
MOTOROLA
Freescale Semiconductor, Inc.
Software Implementation
7.3.15 Space Vector Modulation
This process directly transforms the stator voltage space vector from the α,β coordinate system to
pulse width modulation (PWM) signals (duty cycle values). The duty cycle ratios are then passed to
the PWM module in the u_Sabc structure. For theoretical background, see Section 4.6. The
algorithm is included in the SDK motion control function library. For details, refer to the SDK library
manual.
7.3.16 Voltage Amplitude Calculation
Freescale Semiconductor, Inc...
This process provides a calculation of the actual stator voltage space vector magnitude from the d-q
components of the stator voltage. The actual stator voltage amplitude is used in field-weakening. It is
the value controlled by the field-weakening controller.
7.3.17 Brake Control Background
This process is executed in the background. It sets the generator mode flag if the drive is running in
generator mode. If the drive is in motor mode, the generator mode flag is cleared. In motor mode, if the
brake-on flag is set, the brake switch is turned off and the brake-on flag is cleared.
7.3.18 Brake Control
This process is executed in the ADC End of Scan ISR. If the generator mode flag is set, switching of
the brake switch is enabled. The brake switch is turned on if the DCBus voltage is higher than
u_dc_bus_on_brake and turned off if it is lower than u_dc_bus_off_brake. The brake-on flag is
set if the switch is on and cleared if it is off.
Notes:
Constants of controllers were designed using standard control theory in a continuous time
domain. The step responses of the controlled system measured by the PC master software were
used to investigate system parameters. The least-square method, programmed in Matlab,
identified the respective system parameters in the Laplace domain. The parameters were
designed using standard Matlab functions, such as the Bode plot of frequency response,
Nyquist plot, step response, etc. The results in the continuous time domain were then
transformed to the discrete time domain for DSP usage. In the application, the controller
parameters were tuned slightly.
MOTOROLA
3-Phase AC Induction Motor Vector Control
For More Information On This Product,
Go to: www.freescale.com
45
Freescale Semiconductor, Inc.
Software Implementation
7.4 Application State Diagram
The processes described above are implemented in the state machine, as illustrated in Figure 7-7. The
state machine provides transitions between the states INIT, STOP, RUN, FAULT.
Application Statemachine Input
INIT State
Freescale Semiconductor, Inc...
InitDoneCtrl=1
FaultClearCtrl=1
OmChangeCtrl=1
STOP State
FaultCtrl=1
FaultCtrl=1
StartStopCtrl=0
FAULT State
StartStopCtrl=1
RUN State
FaultCtrl=1
Figure 7-7. Application State Diagram
7.4.1 Application State - INIT
After RESET, the application enters the INIT state, which provides DSP and application initialization.
In this state, the drive is disabled and the motor cannot be started. The INIT state is divided into three
substates which handle the different phases of the INIT state. The substates of the INIT state are
illustrated in Figure 7-8. The tasks provided by the INIT substates are:
46
•
The BRANCH substate decides whether or not the primary initialization is executed. It is
entered any time there is a transition from any other state to the INIT state. It is entered just
once after the INIT state is set. It calls the transition function to either the PRIMARY or
OPERATING MODE substates.
•
The PRIMARY substate provides the primary initialization of the DSP and the application. It
is entered from the BRANCH substate after the application is reset or after a transition from a
FAULT to an INIT application state. In the transition from the BRANCH to the PRIMARY
3-Phase AC Induction Motor Vector Control
For More Information On This Product,
Go to: www.freescale.com
MOTOROLA
Freescale Semiconductor, Inc.
Software Implementation
substate, analog-sensing correction initialization is started. After the initialization is finished,
mains detection is executed and the state is changed to the OPERATING MODE substate.
•
The OPERATING MODE substate handles the operating mode change logic. It is entered
from the BRANCH or PRIMARY substates and sets the actual operating mode (MANUAL or
PC_MASTER).This state can be exited only if the RUN/STOP switch is in the stop position
and the application transits to the STOP state. If the switch is in the start position, the
application remains in the INIT state; it serves as protection against start after reset if the
RUN/STOP switch is in the start position.
If any fault is detected, the application transits to the FAULT state (protection against fault).
Freescale Semiconductor, Inc...
Application INIT State
from INIT State
BRANCH State
PrimaryCtrl=1
PRIMARY State
OpModeCtrl=1
OpModeCtrl=1
OPERATING MODE
State
to INIT State
Figure 7-8. INIT State Substates State Machine
7.4.2 Application State - STOP
The STOP state can be entered either from the INIT state or the RUN state. The STOP state provides a
motor standstill. In the STOP state, the drive is disabled, PWM output pads are disabled and the
FastControlLoopDisabled function is called by the ADC End of Scan ISR. The application waits
for the start command.
When the application is in the STOP state, the operating mode can be changed, either from manual
mode to PC master software mode, or vice versa. When the operating mode request is asserted, the
application always transits to the INIT state, where the mode is changed.
MOTOROLA
3-Phase AC Induction Motor Vector Control
For More Information On This Product,
Go to: www.freescale.com
47
Freescale Semiconductor, Inc.
Software Implementation
If a fault is detected in the STOP state, the application enters the FAULT state (fault protection). If no
fault is present and the start command is accepted, the application transits to the RUN state and the
motor is started.
7.4.3 Application State - RUN
Freescale Semiconductor, Inc...
The RUN state can be entered from the STOP state. The RUN state performs a motor spinning. In the
RUN state, the drive is enabled and the motor runs. The PWM output pads are enabled and the
FastControlLoopEnabled function is called by the ADC End of Scan ISR. The RUN state is
divided into three substates which handle the different phases of the RUN state. The RUN substates’
state machine is illustrated in Figure 7-9. The tasks provided by the RUN substates are:
•
The EXCITATION substate provides the excitation of the motor during start-up. It is entered
after the transition from the STOP stat; motor excitation is then enabled. After the motor is
excited to the nominal rotor flux value, the substate is changed to SPINNING. If the stop
command is accepted before the motor is fully excited, the substate is changed to
DE-EXCITATION.
•
The SPINNING substate provides motor spin and acceleration/deceleration. It is entered from
the EXCITATION substate. The required speed command is accepted, and the motor spins at
the required speed. If a stop command is accepted, the substate changes to DE-EXCITATION.
•
The DE-EXCITATION substate provides de-excitation as the motor is going to the STOP
state. It is entered from the EXCITATION or SPINNING substates. The speed command is set
to zero turns. When zero turns are reached, motor de-excitation is executed. If the motor is
deexcited, the application transits to the STOP state.
If any fault in the RUN state is detected, the application enters the FAULT state (fault protection).
7.4.4 Application State - FAULT
The FAULT state can be entered from any state. In the FAULT state, the drive is disabled and the
application waits for the faults to be cleared.
When it detects that the fault has disappeared and the fault clear command is accepted, the RUN/STOP
switch is moved to the stop position and the application transits to the INIT state. The “Wrong
hardware” and “Mains out of range” faults can only be cleared by reset.
48
3-Phase AC Induction Motor Vector Control
For More Information On This Product,
Go to: www.freescale.com
MOTOROLA
Freescale Semiconductor, Inc.
Software Implementation
Application RUN
State
from RUN State
EXCITATION State
Freescale Semiconductor, Inc...
SpinningCtrl=1
SPINNING State
DeexcitationCtrl=1
DeexcitationCtrl=1
DEEXCITATION State
to RUN State
Figure 7-9. RUN State Substates State Machine
7.5 Speed Sensing
All members of the Motorola DSP56F80x family except the DSP56F801, contain a quadrature decoder
module. This peripheral is commonly used for position and speed sensing. The quadrature decoder
position counter counts up/down at each edge of the Phase A and Phase B signals according to their
order; see Figure 7-10.
Figure 7-10. Quadrature Encoder Signals
In addition, the quadrature decoder input signals (Phase A, Phase B and Index) are connected to Quad
Timer module A. The quad timer module contains four identical counter/timer groups. Due to the wide
variability of quad timer modules, it is possible to use this module to decode quadrature encoder
signals and to sense position and speed. The application presented uses the quad timer approach for
speed measurement in order to be able to easily accommodate the software for the DSP56F801, which
MOTOROLA
3-Phase AC Induction Motor Vector Control
For More Information On This Product,
Go to: www.freescale.com
49
Freescale Semiconductor, Inc.
Software Implementation
PHASE B
INDEX
Quadrature Decoder
Position Counter
Primary Source
Primary Source
QTimer A0
cascade mode
PHASE A
Internal Digital Filter
does not have a quadrature decoder module. The configuration of the quad timer module is shown in
Figure 7-11. The presented configuration is ready for position sensing handled by timer A1. In the AC
induction motor vector control application presented, however, position sensing is not applied.
Secondary Source
QTimer A1
Secondary Source
Impulses Counter
Primary Source
QTimer A2
Freescale Semiconductor, Inc...
Secondary Source
Period Timer
CLK/2
Primary Source
QTimer A3
Secondary Source
Time Base
CLK
Primary Source
QTimer C0
not used
Secondary Source
Figure 7-11. Quad Timer Module A Configuration
7.5.1 Speed Sensing
There are two common ways to measure speed. The first method measures the time between two
following edges of the quadrature encoder; the second method measures the position difference per
constant period. The first method is used at low speed. At higher speeds, when the measured period is
very short, the speed calculation algorithm switches to the second method.
The proposed algorithm combines both of the above mentioned methods. The algorithm
simultaneously measures the number of quadrature encoder pulses per constant period and their
accurate time period. The speed can then be expressed as:
k1 ⋅ N
k1 ⋅ N
k ⋅ N- = ----------------------------- = -------------speed = -----------N clkT2
T
T clkT2 N clkT2
(EQ 7-8)
where
50
speed
calculated speed
[-]
k
scaling constant
[-]
k1
scaling constant
[s]
N
number of counted pulses per constant period
[-]
T
accurate period of N pulses
[s]
TclkT2
period of input clock to timer A2
[s]
NclkT2
number of pulses counted by timer A2
[-]
3-Phase AC Induction Motor Vector Control
For More Information On This Product,
Go to: www.freescale.com
MOTOROLA
Freescale Semiconductor, Inc.
Software Implementation
The speed-sensing algorithm uses three timers (A0, A2, A3) in quad timer module A and another timer
as a time base (C0). The timer A0 is used in quadrature count mode, where the primary and secondary
external inputs are decoded as quadrature encoded signals. The timer A0 counts to zero and then
reinitializes. The other two timers (A2 and A3) are required for counting the quadrature signals and
their period (see Figure 7-11.). Timer A2 counts the quadrature encoder pulses from timer A0 and
timer A3 counts a system clock divided by 2. The values in both timers can be captured by each edge
of the Phase A signal. The time base is provided by timer C0, which is set to call a slow control loop
every 1ms where the speed measurement is calculated. The speed processing algorithm works as
follows:
Freescale Semiconductor, Inc...
1. The new captured values of both timers are read. The difference in the number of pulses and their
accurate period are calculated from actual and previous values.
2. The new values are saved for the next period and the capture register is enabled. From this time,
the first edge of the Phase A signal captures the values of both timers (A2, A3) and the capture
register is disabled.
3. The speed is calculated using (EQ 7-1)
4. This process is repeated with each call of the speed processing algorithm; (see Figure 7-12.)
C
Figure 7-12. Speed Processing
7.5.1.1 Minimum and Maximum Speed Calculation
The minimum speed is given by the following equation:
60
v min = ---------------------4N E T calc
(EQ 7-1)
where:
vmin
minimum obtainable speed
[rpm]
NE
number of encoder pulses per revolution
[-]
Tcalc
period of speed measurement (calculation period)
[s]
MOTOROLA
3-Phase AC Induction Motor Vector Control
For More Information On This Product,
Go to: www.freescale.com
51
Freescale Semiconductor, Inc.
Software Implementation
In this application, the quadrature encoder has 1024 pulses per revolution and the calculation period
chosen is 1ms, based on the motor mechanical constant. Thus, equation (EQ 7-1) calculates the
minimum speed as 14.6 rpm.
The maximum speed can be expressed as:
60
v max = ------------------------4N E T clkT2
(EQ 7-2)
Freescale Semiconductor, Inc...
where:
vmax
maximum obtainable speed
[rpm]
NE
number of encoder pulses per revolution
[-]
TclkT2
period of input clock to timer A2
[s]
After substitution in equation (EQ 7-2) for N and TclkT2 (timer A2 input clock = system clock
36 MHz/2), we calculate the maximum speed as 263,672 rpm. As shown, the algorithm presented can
measure speed within a wide speed range. Because such a high speed is not practical, the maximum
speed can be reduced to the required range by a constant k in (EQ 7-8). The constant k can be
calculated as:
60
k = -----------------------------------4N E T clkT2 v max
(EQ 7-3)
where:
k
scaling constant in the equation
[-]
vmax
maximum required speed
[rpm]
NE
number of encoder pulses per revolution
[-]
TclkT2
period of input clock to timer A2
[s]
In the application presented, the maximum measurable speed is limited to 4000 rpm.
Notes:
52
To ensure correct speed calculation, the input clock of timer A2 must be chosen so that the
calculation period of speed processing (in this case, 1ms) is represented in timer A2 as a value
lower than 0x7FFF (1000.10-6/TclkT2<=0x7FFF).
3-Phase AC Induction Motor Vector Control
For More Information On This Product,
Go to: www.freescale.com
MOTOROLA
Freescale Semiconductor, Inc.
Software Implementation
7.6 Analog Sensing
7.6.1 Current Sensing
Freescale Semiconductor, Inc...
The DSP56F80x family provides the ability to synchronize the ADC and PWM modules via a SYNC
signal. This exceptional hardware feature, which has been patented by Motorola, is used for current
sensing. The PWM outputs a synchronization pulse, which is connected as an input to the
synchronization module TC2 (quad timer C, channel 2). A high-true pulse occurs for each reload of the
PWM regardless of the state of the LDOK bit. The intended purpose of TC2 is to provide a
user-selectable delay between the PWM SYNC signal and the updating of the ADC values. A
conversion process can be initiated by the SYNC input, which is an output of TC2. The time diagram
of the automatic synchronization between PWM and ADC is shown in Figure 7-13.
PWM COUNTER
PWM SYNC
PWM
GENERATOR
OUTPUTS 0, 1
dead-time/2
dead-time/2
PWM
PINS 0, 1
POWER
STAGE
VOLTAGE
TC2
COUNTER
TC2
OUTPUT
ADC
CONVERSION
dead-time
dead-time
t1
t2
ADC
ISR
Figure 7-13. Time Diagram of PWM and ADC Synchronization
Phase currents are measured by shunt resistors at each phase. A voltage drop on the shunt resistor is
amplified by an operational amplifier and shifted up by 1.65V. The resultant voltage is converted by
the ADC; see Figure 7-14. and Figure 7-15.
MOTOROLA
3-Phase AC Induction Motor Vector Control
For More Information On This Product,
Go to: www.freescale.com
53
Freescale Semiconductor, Inc.
Software Implementation
DC bus positive
Q1
SKB10N60
Q3
SKB10N60
Gate_AT
Gate_BT
Gate_CT
Phase_A
Phase_B
Phase_C
Q2
SKB10N60
Freescale Semiconductor, Inc...
Q5
SKB10N60
Q4
SKB10N60
Q6
SKB10N60
Gate_AB
Gate_BB
Gate_CB
Source_AB
Source_BB
Source_CB
I_sense_A1
sense
I_sense_B1
sense
I_sense_A2
sense
R1
I_sense_B2
0.075 1%
sense
R2
0.075 1%
I_sense_C1
sense
I_sense_C2
sense
R3
0.075 1%
DC bus negative
Figure 7-14. 3-Phase Bridge with Current Shunt Resistors
R318 75k-1%
R320 10k-1%
I_sense_C2
5
1.65V +/- 1.65V
7
@ +/- Imax
I_sense_C
+
6
-
I_sense_C1
R321 10k-1%
R322
75k-1%
R323 390
U301B
MC33502D
1.65V ref
+3.3V_A
+
C306
3.3uF/10V
5
R325
33k-1%
4
LM285M
U304
GNDA
R324
100k-1%
8
C307
100nF
GNDA
Figure 7-15. Current Amplifier for Phase C
The current cannot be measured at the current sense resistors at an arbitrary moment. This is because
current only flows through the shunt resistor (for example, R1 corresponding to Phase A) if transistor
Q2 is switched on. Only at that instant can the Phase A current be measured. Correspondingly, the
current in Phase B can only be measured if transistor Q4 is switched on, and the current in phase C can
only be measured if transistor Q6 is switched on. In order to get an actual instant of current sensing,
voltage shape analysis must be performed.
Voltage shapes of two different PWM periods are shown in Figure 7-16. These voltage shapes
correspond to center-aligned PWM sinewave modulation. As shown, the best instant of current
sampling is in the middle of the PWM period, where all bottom transistors are switched on. However,
not all three currents can be measured at an arbitrary voltage shape. PWM period II in Figure 7-16
shows an instant when the bottom transistor of Phase A is on for a very short time. If the on time is
shorter than a certain critical time, the current cannot be correctly measured. The specific critical time
is given by the hardware configuration (transistor commutation times, response delays of the
54
3-Phase AC Induction Motor Vector Control
For More Information On This Product,
Go to: www.freescale.com
MOTOROLA
Freescale Semiconductor, Inc.
Software Implementation
processing electronics, etc.). In the 3-phase ACIM application, two PWM periods are always longer
than the critical pulse width. Therefore, only two currents are measured and the third current is
calculated from equation:
0 = iA + i B + i C
(EQ 7-4)
I.
II.
PWM RELOAD
PHASE_A
PHASE_B
PHASE_C
critical pulse width
ADC sampling point
Figure 7-16. The Voltage Shapes of Two Different PWM Periods
II.
I.
GXW\F\FOHUDWLRV
Freescale Semiconductor, Inc...
PWM PERIOD
3KDVH$
3KDVH%
3KDVH&
DQJOH
6HFWRU 6HFWRU 6HFWRU 6HFWRU 6HFWRU 6HFWRU
Figure 7-17. 3-Phase Sinewave Voltages and Corresponding Sector Values
The current that cannot be measured is the calculated. The simplest technique is to calculate the current
of the most positive phase voltage, where the bottom PWM is switched on for the shortest time. For
example, Phase A generates the most positive voltage within section 0 - 60ƒ 3KDVH % ZLWKLQ WKH
VHFWLRQƒƒHWFVHHFigure 7-17.
MOTOROLA
3-Phase AC Induction Motor Vector Control
For More Information On This Product,
Go to: www.freescale.com
55
Freescale Semiconductor, Inc.
Software Implementation
In the case presented, the output voltages are divided into six sectors; (see Figure 7-17.). The current
is then calculated according to the actual sector value:
for sectors 1, 6:
iA = – i B – iC
(EQ 7-5)
iB = – i A – iC
(EQ 7-6)
iC = – i B – iA
(EQ 7-7)
for sectors 2, 3:
Freescale Semiconductor, Inc...
for sectors 4, 5:
Notes:
The sector value is used only for current calculation and has no other meaning at the sinewave
modulation. But if any type of the space vector modulation is used, the sector value can be
obtained as a part of space vector calculation and used for phase current measurement.
7.6.2 Voltage Sensing
The resistor divider network in Figure 7-18 is used to sense the DCBus voltage. The voltage signal is
divided down to the 3.3V level and is ready for further processing. DCBus voltage does not change
rapidly. It is almost a constant, with ripple caused by the structure of the power supply. If a bridge
rectifier for conversion of the AC line voltage is used, the ripple frequency is twice the AC line
frequency. Ripple amplitude should not exceed 10% of the nominal DCBus value if the power stage is
designed correctly.
DC bus positive
330k-1%
R224
270k-1%
R225
6.8k-1%
R226
R228
6.8k-1%
220k-1%
R227
R229
270-1%
+
C208
22nF/630VDC
3.24V @
C209
470uF/400V
DC-Bus = 400V
V_sense_DCB
R230
6.8k-1%
DC bus negative
GNDA
Figure 7-18. DC-Bus Voltage Sensing
The measured DCBus voltage must be filtered in order to eliminate noise. One of the easiest and
fastest techniques is a first order filter, which calculates the average filtered value recursively from the
last two samples and a coefficient C:
u DCBusFilt ( n + 1 ) = ( Cu DCBusFilt ( n + 1 ) – Cu DCBusFilt ( n ) ) – u DCBusFilt ( n )
56
3-Phase AC Induction Motor Vector Control
For More Information On This Product,
Go to: www.freescale.com
(EQ 7-8)
MOTOROLA
Freescale Semiconductor, Inc.
Software Implementation
To speed up initialization of voltage sensing, the filter has an exponential dependence with a constant
of 1/N samples and a moving average filter that calculates the average value from the last N samples is
used:
u DCBusFilt =
∑n = 1 uDCBus ( n )
–N
(EQ 7-9)
Freescale Semiconductor, Inc...
7.6.3 Power Module Temperature Sensing
The measured power module temperature is used for thermal protection The hardware realization is
shown in Figure 7-19. The circuit consists of four diodes connected in series, a bias resistor, and a
noise suppression capacitor. The four diodes have a combined temperature coefficient of 8.8 mV/οC.
The resulting signal, Temp_sense, is fed back to an A/D input where software can be used to set safe
operating limits. In the application presented, the temperature (in Celsius) is calculated according to
the conversion equation:
Temp_sense - b
temp = -------------------------------------a
(EQ 7-10)
where:
temp
power module temperature in Celsius
Temp_sense
voltage drop on the diodes, which is measured by the ADC
a
diode-dependent conversion constant (a = -0.0073738)
b
diode-dependent conversion constant (b = 2.4596)
+3.3V_A
R1
2.2k - 1%
Temp_sense
D1
BAV99LT1
D2
BAV99LT1
C1
100nF
Figure 7-19. Temperature Sensing
7.7 START/STOP Switch and Button Control
The START/STOP switch is connected to a GPIO pin in the case of DSP56F805/7EVMs. The state of
the START/STOP switch can be read directly from the GPIO Data Register. In the DSP56F803EVM,
there are no free GPIO pins; therefore, the switch is connected to ADC input AN7 and switch status is
then obtained with the ADC. The switch logical status is obtained by comparing a measured value with
the threshold value.
MOTOROLA
3-Phase AC Induction Motor Vector Control
For More Information On This Product,
Go to: www.freescale.com
57
Freescale Semiconductor, Inc.
Software Implementation
Since the DSP56F803EVM does not have free GPIO pins for user buttons, they are connected to IRQA
and IRQB pins. The DSP56F805/7EVMs use the same connection of the push buttons to the IRQA and
IRQB pins, enabling the same code to run on DSP56F803/5/7EVM boards. The EVM boards do not
solve the button contact bouncing, which may occur during the pushing and releasing of a button.
Therefore, this issue must be solved by software.
The IRQA and IRQB are maskable interrupts connected directly to the DSP’s core. The IRQA and
IRQB lines are internally synchronized with the processor’s internal clock and can be programmed as
level-sensitive or edge-sensitive. The IRQA and IRQB interrupts do not have interrupt flags; therefore,
the flags are replaced by software flags. The following algorithm is used to check the state of the IRQ
line and is described for one interrupt.
Freescale Semiconductor, Inc...
The level-sensitive trigger mode of the IRQ interrupt is set. When the button is pressed, the logical
level 0 is applied on the IRQ line and an interrupt occurs; see Figure 7-20. The ISR disables the IRQ
interrupt to avoid multiple calls of the ISR due to contact bouncing, sets the debounce counter to a
predefined value, and sets the variable buttonStatus to 1. The variable buttonStatus represents the
interrupt flag. Using the DSP56F80x’s timer or a software timer, the ButtonProcessing function is
called periodically; see Figure 7-20. The function ButtonProcessing decrements the debounce counter
and if the counter is zeroed, the IRQ interrupt is re-enabled. Button pressing is checked by the
ButtonEdge function; see Figure 7-21. When the variable buttonStatus is set, the ButtonEdge function
returns “1” and clears buttonStatus. When the variable buttonStatus is not set, the ButtonEdge function
returns “0”.
The value of the debounce counter should be set according to a ButtonProcessing calling period close
to 180ms. This value is sufficient to prevent multiple IRQ ISR calls due to contact bouncing.
,54,65
%XWWRQ3URFHVVLQJ
'LVDEOH,54LQWHUUXSW
'HFUHPHQWGHERXQFH
FRXQWHU
6HWEXWWRQ6WDWXV
6HWGHERXQFHFRXQWHU
1R
'HERXQFHFRXQWHU <HV
(QDEOH,54LQWHUUXSW
5HWXUQ
5HWXUQ
Figure 7-20. Button Control - IRQ ISR and ButtonProcessing
58
3-Phase AC Induction Motor Vector Control
For More Information On This Product,
Go to: www.freescale.com
MOTOROLA
Freescale Semiconductor, Inc.
SDK Implementation
ButtonEdge
buttonStatus = 1
No
Yes
Freescale Semiconductor, Inc...
Clear buttonStatus
Return 1
Return 0
Figure 7-21. Button Control - ButtonEdge
8.
SDK Implementation
The Motorola Embedded SDK is a collection of APIs, libraries, services, rules and guidelines. This
software infrastructure is designed to let a DSP5680x software developer create high-level, efficient
and portable code. The following section describes how the 3-phase AC induction motor vector control
application was written under the SDK.
8.1 Drivers and Library Functions
The 3-phase AC induction motor vector control application uses the following drivers:
•
ADC driver
•
Quad timer driver
•
Quadrature decoder driver
•
PWM driver
•
LED driver
•
SCI driver
•
PC master software driver
•
Switch driver (only for DSP56F805EVM and DSP56F807EVM)
•
Brake driver
All drivers are included in the bsp.lib library.
The 3-phase AC induction motor vector control application uses the following library functions:
•
boardId (board identification, bsp.lib library)
•
fluxmodel (rotor flux calculation, mcfunc.lib library)
MOTOROLA
3-Phase AC Induction Motor Vector Control
For More Information On This Product,
Go to: www.freescale.com
59
Freescale Semiconductor, Inc.
SDK Implementation
•
cptrfmClarke (forward Clarke transformation, mcfunc.lib library)
•
dqestabl (d-q system establishment, mcfunc.lib library)
•
decoupling (stator voltage decoupling, mcfunc.lib library)
•
cptrfmParkInv (inverse Park transformation, mcfunc.lib library)
•
svmElimDcBusRip (DCBus ripple elimination, mcfunc.lib library)
•
svmPwmIct (space vector modulation, mcfunc.lib library)
8.2 Appconfig.h File
Freescale Semiconductor, Inc...
The purpose of the appconfig.h file is to provide a mechanism for overwriting default configuration
settings, which are defined in the config.h file.
There are two appconfig.h files The first is dedicated to external RAM (..\ConfigExtRam directory)
and the second is dedicated to flash memory (..\ConfigFlash directory). In the case of the 3-phase AC
induction motor vector control application, the files are identical, with the following exceptions:
•
The appconfig.h for the ExtRAM target contains a definition of the memory support; Flash
support is not defined
•
The appconfig.h for Flash target contains a definition of the flash support; memory support is
not defined
•
The appconfig.h for the ExtRAM target contains a PC master software recorder buffer 2000
samples long, while the appconfig.h for Flash target contains a PC master software recorder
buffer only 200 samples long. This is due to the limited internal RAM memory size.
•
The appconfig.h for the DSP56F805EVM and DSP56F807EVM contains the definition of a
switch driver, while the appconfig.h for the DSP56F803EVM does not
The appconfig.h file can be divided into two sections. The first defines which components of the SDK
libraries are included in the application; the second overwrites the standard settings of components
during their initialization.
8.3 Drivers Initialization
Each on-chip DSP or EVM board periphery is accessible through a driver. The driver initialization of
all peripherals used is described in this section. For detailed descriptions of drivers, see the Targeting
Motorola DSP5680x Platform documentation.
To use a driver, follow these steps:
•
Include the driver support in the appconfig.h
•
Fill in the configuration structure in the application code for specific drivers, depending on the
driver type
•
Initialize the configuration setting in the appconfig.h for specific drivers, depending on the
driver type
•
Call the open (create) function
The ioctl function call provides access to individual driver functions.
60
3-Phase AC Induction Motor Vector Control
For More Information On This Product,
Go to: www.freescale.com
MOTOROLA
Freescale Semiconductor, Inc.
SDK Implementation
8.4 Interrupts
The SDK services the interrupt routines calls and automatically clears the interrupt flags. The user
defines the callback functions called during the interrupts. The callback functions are assigned during
driver initialization. Callback function assignment is defined as an item in the initialization structure.
Some drivers define the callback function in the appconfig.h file.
Freescale Semiconductor, Inc...
8.5 PC Master Software
PC master software was designed to provide a debugging, diagnostic and demonstration tool for
development of algorithms and applications. It consists of a component running on a PC and a part
running on the target DSP, connected by an RS-232 serial port. A small program is resident in the DSP
that communicates with PC master software to parse commands, return status information to the PC,
and processes control information from the PC. PC master software executing on the PC uses
Microsoft Internet Explorer as the user interface.
PC master software is a part of the Motorola Embedded SDK and may be selectively installed during
the SDK installation.
To enable PC master software operation on the DSP target board application, the following lines must
be added to the appconfig.h file:
#define INCLUDE_SCI
#define INCLUDE_PCMASTER
/* SCI support */
/* PC master software support */
It automatically includes the SCI driver and installs all the necessary services. The baud rate of the SCI
communication is 9600Bd. It is set automatically by the PC master software driver.
Part of the PC master software is also a recorder, which is able to sample the application variables at a
specified sample rate. The samples are stored to a buffer and read by the PC via an RS232 serial port.
The sampled data can be displayed in a graph or the data can be stored. The recorder behaves like a
simple on-chip oscilloscope with trigger/pretrigger capabilities. The size of the recorder buffer and the
PC master recorder time base must be defined in the appconfig.h file:
#define
PC_MASTER_REC_BUFF_LEN
#define
PC_MASTER_RECORDER_TIME_BASE
200
/* recorder buffer
length (words) */
0x4001 /* 1ms sampling
period */
The recorder routine must be called periodically in the loop in which you want to take the samples. The
following line must be added to the loop code:
pcmasterdrvRecorder(); /* PC master recorder routine call */
A detailed description of PC master software is provided in the PC Master Software User Manual.
The actions controlled by PC master software are:
•
Take over the PC remote control
•
Start/Stop control
•
Motor speed set point
Variables read by PC master software by default and displayed to the user are:
•
Required speed
•
Actual motor speed
•
PC remote control mode
•
Start/Stop status
MOTOROLA
3-Phase AC Induction Motor Vector Control
For More Information On This Product,
Go to: www.freescale.com
61
Freescale Semiconductor, Inc.
DSP Usage
•
Drive Fault status
•
DCBus voltage level
•
Identified power stage boards
•
System status
The profiles of required and actual speed can be seen in the speed scope window.
9.
DSP Usage
Freescale Semiconductor, Inc...
Table 9-1 shows how much memory is used to run the 3-phase AC induction motor vector control
application. The PC master software recorder buffer is set to zero and a majority of the DSP memory is
still available for other tasks.
Table 9-1. RAM and FLASH Memory Usage for SDK2.4 and CW4.1
Memory
Available
DSP56F803
DSP56F805
Available
DSP56F807
Used
Application + Stack
(DSP56F805)
Used
Application without PC
master software, SCI
(DSP56F805)
Program FLASH
32K x 16bit
60K x 16bit
13989 x 16bit
9247 x 16bit
Data FLASH
4K x 16bit
8K x 16bit
399 x 16bit
399 x 16bit
Program RAM
512 x 16bit
2K x 16bit
125 x 16bit
125 x 16bit
Data RAM
2K x 16bit
4K x 16bit
1139 + 352 stack x 16bit
876 + 352 stack x 16bit
10.
References
[1] Bose, K. B. (1997). Power Electronics and Variable Frequency Drives, IEEE Press, ISBN
0-7803-1061-6, New York.
[2] Caha, Z.; Cerny, M. (1990). Elektricke pohony, SNTL, ISBN 80-03-00417-7, Praha.
[3] Subrt, J. (1987). Elektricke regulacni pohony II, VUT Brno, Brno.
[4] Vas, P. (1998). Sensorless Vector and Direct Torque Control, Oxford University Press, ISBN
0-19-856465-1, New York.
[5] Motorola, Inc. (2000). DSP56800 Family Manual, DSP56F800FM/D, Rev. 1.
[6] Motorola, Inc.(2001). DSP56F80x User’s Manual, DSP56F801-7UM/D, Rev. 3.0.
[7] Motorola, Inc. (2001). DSP Evaluation Module Hardware User’s Manual,
DSP56F805EVMUM/D, Rev. 3.0.
[8] Motorola, Inc. (2001). DSP Evaluation Module Hardware User’s Manual,
DSP56F803EVMUM/D, Rev. 3.0.
[9] Motorola, Inc. (2001). DSP Evaluation Module Hardware User’s Manual,
DSP56F807EVMUM/D, Rev. 0.
[10] Motorola, Inc. (2000). 3-Phase AC/BLDC High-Voltage Power Stage User’s Manual,
MEMC3PBLDCPSUM/D.
[11] Motorola Software Development Kit documentation available on the web page:
www.motorola.com
62
3-Phase AC Induction Motor Vector Control
For More Information On This Product,
Go to: www.freescale.com
MOTOROLA
Freescale Semiconductor, Inc.
Freescale Semiconductor, Inc...
References
MOTOROLA
3-Phase AC Induction Motor Vector Control
For More Information On This Product,
Go to: www.freescale.com
63
Freescale Semiconductor, Inc...
Freescale Semiconductor, Inc.
Motorola reserves the right to make changes without further notice to any products herein. Motorola makes no warranty, representation or guarantee regarding the
suitability of its products for any particular purpose, nor does Motorola assume any liability arising out of the application or use of any product or circuit, and
specifically disclaims any and all liability, including without limitation consequential or incidental damages. “Typical” parameters which may be provided in Motorola
data sheets and/or specifications can and do vary in different applications and actual performance may vary over time. All operating parameters, including
“Typicals” must be validated for each customer application by customer’s technical experts. Motorola does not convey any license under its patent rights nor the
rights of others. Motorola products are not designed, intended, or authorized for use as components in systems intended for surgical implant into the body, or other
applications intended to support or sustain life, or for any other application in which the failure of the Motorola product could create a situation where personal injury
or death may occur. Should Buyer purchase or use Motorola products for any such unintended or unauthorized application, Buyer shall indemnify and hold Motorola
and its officers, employees, subsidiaries, affiliates, and distributors harmless against all claims, costs, damages, and expenses, and reasonable attorney fees
arising out of, directly or indirectly, any claim of personal injury or death associated with such unintended or unauthorized use, even if such claim alleges that
Motorola was negligent regarding the design or manufacture of the part. Motorola and the Stylized M Logo are registered trademarks of Motorola, Inc. Motorola,
Inc. is an Equal Opportunity/Affirmative Action Employer.
MOTOROLA and the Stylized M Logo are registered in the US Patent & Trademark Office. All other product or service names are the property of their
respective owners. © Motorola, Inc. 2002.
How to reach us:
USA/EUROPE/Locations Not Listed: Motorola Literature Distribution; P.O. Box 5405, Denver, Colorado 80217. 1–303–675–2140 or 1–800–441–2447
JAPAN: Motorola Japan Ltd.; SPS, Technical Information Center, 3–20–1, Minami–Azabu. Minato–ku, Tokyo 106–8573 Japan. 81–3–3440–3569
ASIA/PACIFIC: Motorola Semiconductors H.K. Ltd.; Silicon Harbour Centre, 2 Dai King Street, Tai Po Industrial Estate, Tai Po, N.T., Hong Kong. 852–26668334
Technical Information Center: 1–800–521–6274
HOME PAGE: http://www.motorola.com/semiconductors/
AN1930/D
For More Information On This Product,
Go to: www.freescale.com
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
