Data Sheet
Cisco PVC2300 Business Internet Video Camera: Audio/PoE
Cisco Small Business Video Surveillance Cameras
High-Quality Video Surveillance Platform with Power over Ethernet Provides Flexible Installation
Box camera with PoE, interchangeable lenses, and I/O ports allow for flexible installation for multiple
High-quality CCD sensor with low light sensitivity and an IR filter switcher provides optimal video image under
multiple conditions
Simultaneous dual codecs provide optimal combination of viewing and storage of video
Two-way audio, IP Multicast, 3GPP, and lots of other advanced features make this solution ideal for
surveillance deployments

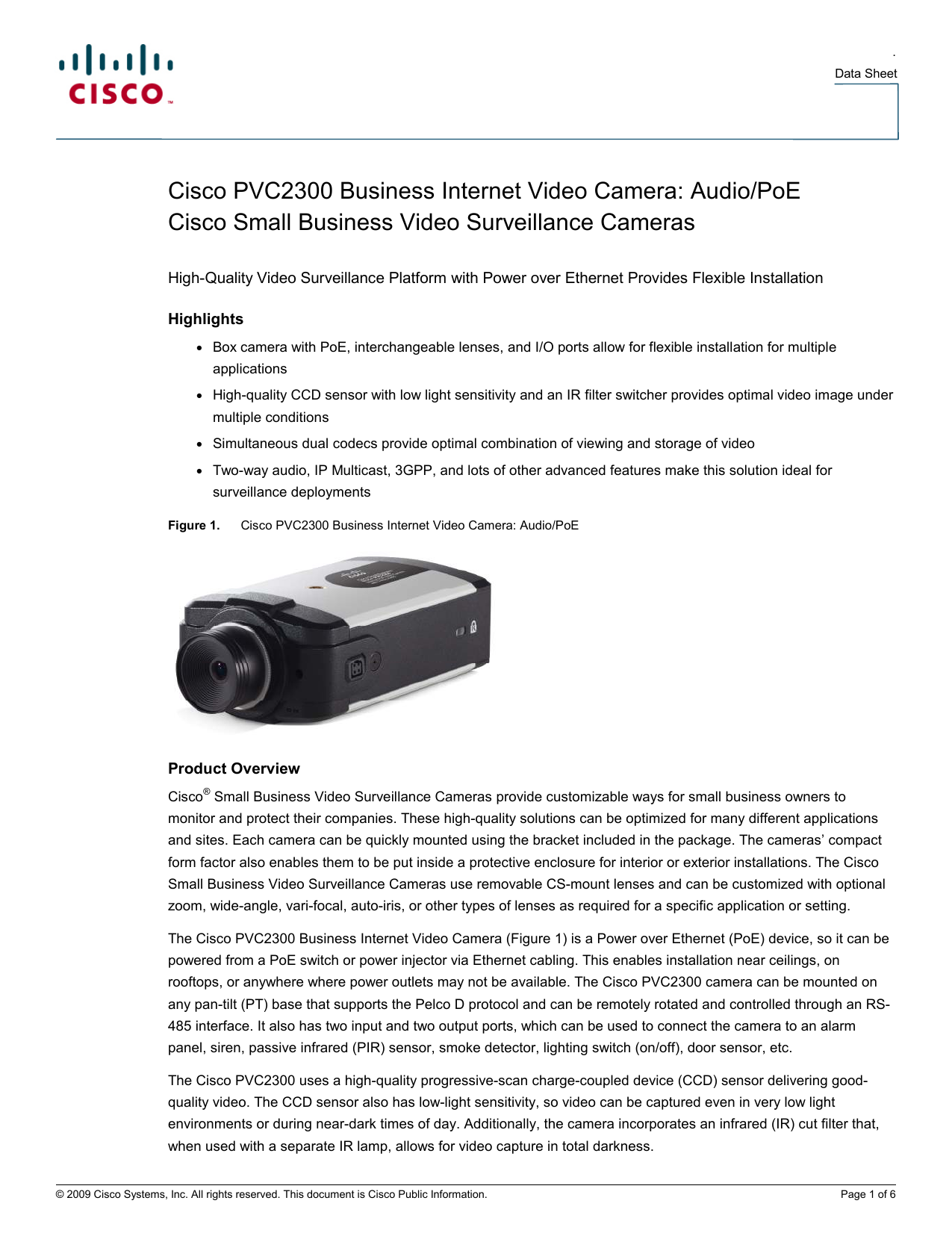

Figure 1.
Cisco PVC2300 Business Internet Video Camera: Audio/PoE
Product Overview
Cisco Small Business Video Surveillance Cameras provide customizable ways for small business owners to
monitor and protect their companies. These high-quality solutions can be optimized for many different applications
and sites. Each camera can be quickly mounted using the bracket included in the package. The cameras’ compact
form factor also enables them to be put inside a protective enclosure for interior or exterior installations. The Cisco
Small Business Video Surveillance Cameras use removable CS-mount lenses and can be customized with optional
zoom, wide-angle, vari-focal, auto-iris, or other types of lenses as required for a specific application or setting.
The Cisco PVC2300 Business Internet Video Camera (Figure 1) is a Power over Ethernet (PoE) device, so it can be
powered from a PoE switch or power injector via Ethernet cabling. This enables installation near ceilings, on
rooftops, or anywhere where power outlets may not be available. The Cisco PVC2300 camera can be mounted on
any pan-tilt (PT) base that supports the Pelco D protocol and can be remotely rotated and controlled through an RS485 interface. It also has two input and two output ports, which can be used to connect the camera to an alarm
panel, siren, passive infrared (PIR) sensor, smoke detector, lighting switch (on/off), door sensor, etc.
The Cisco PVC2300 uses a high-quality progressive-scan charge-coupled device (CCD) sensor delivering goodquality video. The CCD sensor also has low-light sensitivity, so video can be captured even in very low light
environments or during near-dark times of day. Additionally, the camera incorporates an infrared (IR) cut filter that,
when used with a separate IR lamp, allows for video capture in total darkness.
© 2009 Cisco Systems, Inc. All rights reserved. This document is Cisco Public Information.
Page 1 of 6
Data Sheet
The Cisco PVC2300 camera supports dual codecs (MPEG-4 and MJPEG). Both codecs can be used
simultaneously. MPEG-4 gives efficient bandwidth consumption with good-quality compression and is optimal for
real-time viewing of video. MJPEG gives optimal video quality with lossy compression, making it ideal for largevolume storage to a network attached storage (NAS) device.
The Cisco PVC2300’s audio capabilities include two-way audio, embedded microphone, external speaker and
microphone ports, and voice compression. With extensive feature support, such as IP Multicast, Real Time
Streaming Protocol (RTSP), Real Time Protocol (RTP), and 3rd Generation Partnership Project (3GPP), video can
be viewed from multiple endpoints and client applications such as 3G phones and QuickTime clients on PCs or Wi-Fi
phones. Support for multiple network protocols such as 802.1p priority, 802.1q VLANs, and Dynamic DNS (DDNS)
make the solution ideal for multiple IP surveillance applications. The camera can also be managed securely using
Standard box-type camera allows for flexible installation
Mounts in a standard outdoor or indoor enclosure
Provides controls for mounting on a Pelco pan/tilt base to control movement remotely
Removable CS-mount lens
Camera can be customized for multiple applications
Supports zoom lens, wide-angled, vari-focal, auto-iris lenses, etc
1/4-inch progressive-scan CCD sensor delivers good-quality video
Low light sensitivity with high-quality lens, sensor, and programmable IR cut filter capability
Audio input/output for external microphone and/or speaker
I/O ports facilitate alarm triggers, turning lights on/off, etc.
PoE allows for flexible installation
Dual codecs (MPEG-4 and MJPEG) supported simultaneously
IP Multicast support
RTSP video/audio streaming to unicast and multicast clients
4x digital zoom; can also use optical zoom with appropriate interchangeable lens
Real-Time video recording from the Web interface directly with one button recording
PC-less event recording directly to Network Attached Storage via integrated Samba client
© 2009 Cisco Systems, Inc. All rights reserved. This document is Cisco Public Information.
Page 2 of 6
Data Sheet
Table 1 gives the specifications, package contents, and minimum requirements for the Cisco PVC2300 Business
Internet Video Camera.
Table 1.
Specifications for the Cisco PVC2300 Business Internet Video Camera: Audio/PoE
IEEE 802.3, IEEE 802.3af, IEEE 802.3u, IEEE 802.1p (QoS Priority), IEEE 802.1q (VLAN)
Protocols supported
TCP/IP, HTTP, Dynamic Host Configuration Protocol (DHCP), Simple Mail Transfer Protocol (SMTP), FTP,
Bonjour, Network Time Protocol (NTP), DNS, Universal Plug and Play (UPnP), RTP, RTSP, and DDNS
Ethernet with PoE, microphone IN, speaker OUT, power (12V, 1A), general-purpose I/O (GPIO), 4-pin IRIS port,
RS-485 Serial Port
Cabling type
Unshielded twisted pair (UTP) Category 5
Power, Network
Camera type
I/O ports
● RS-485 x 1 (2 pins): supports Pelco D Protocol commands
● Input control x 2 (2 pins)
● Output control x 2 (2 pins)
1/4-in. progressive CCD sensor
0.4LUX @ F1.7
Lens type
CS-mount lens, fixed focus; adapter also included for lenses that require more distance between sensor and lens
Focal length
500mm~infinity (for included lens)
Field of view
47º Diagonal (for included lens)
Video resolution
640 x 480 (VGA), 320 x 240 (QVGA), 160 x 120 (QQVGA)
Frame rate
1 to 30 frames per second (selectable)
Provides iris control for CS-mount auto-iris lens when attached
Web UI
Built-In web interface for easy browser-based configuration (HTTP)
Web browser
● Internet Explorer 5.x or later
● Limited support for Netscape and Firefox. Browser controls for pan/tilt/zoom (PTZ), audio, and motion detection
are limited or not supported with Netscape and Firefox.
Event logging
Event logging (syslog)
Web firmware upgrade
Firmware upgradable through web browser
Video Compression
Dual codec
● MPEG-4 simple profile
● Simultaneous dual stream
National Television System Committee (NTSC) and Phase Alternating Line (PAL)
Image settings
Brightness and contrast
4x digital zoom
Night vision
IR cut filter for low light
Video controls
Auto-white balance (AWB), auto-exposure (AES)
Image control
Select video by quality, bandwidth, and frame rate
3GPP for use with 3G phones
© 2009 Cisco Systems, Inc. All rights reserved. This document is Cisco Public Information.
Page 3 of 6
Data Sheet
Motion detection
4 detection areas with individual sensitivity
Email alert
3 email addresses
FTP uploading
FTP server address and login settings
Instant messaging
Jabber client support
Schedule by time
Inputs 1, input 2, motion detection
Outputs 1, output 2, messaging, email, FTP
2-way audio
Built-in microphone
6mm, -40dB + 3dB
Microphone input
3.5-mm phone jack
Speaker output
3.5-mm phone jack
G.726 - 16K, G.711 A-law and µ-law
Sampling rate
8 KHz
Default bit rate
16 Kbps
Included Video Monitoring System Software (SWVMS16)
Monitoring/recording software
● Monitoring, recording, and playback for up to 16 cameras
● Advanced search histogram or by time and date
● Recording set up to record by motion trigger, manual, or schedule
User list
User rights list to view video and/or to control camera functions. Multi-level permissions (Administrator, Operator,
and Viewer)
Logon authentication: 20-character username and 8-character password
Kensington lock
Physical security option
Allows for viewing from any client supporting these protocols, like 3G phones or QuickTime client
Keeps time of camera in sync with your network
Allows video clips to be emailed
FTP client
Facilitates scheduling transfer of images to an FTP server
Facilitates reaching the camera by a name irrespective of camera’s IP address. Supports DDNS, TZO, and 3322
DDNS services
Allows autodiscovery of the camera by other UPnP devices
IP filtering
Allows or disallows access by IP address
Power options
Power consumption
● IEEE 802.3af PoE—48V/0.3A
● External power adapter: 12V/1A, 110~120V AC/60 Hz, switching
4.72 x 2.99 x 1.81 in. (120 x 76 x 46 mm)
Unit weight
1.15 lb (0.52 kg)
External power adapter 12V DC 1A 110~120V AC/60-Hz switching or PoE 48V/0.3A
FCC part 15C Class B, CE, UL, EMC/EMI Part 15B Class B for US
Operating temperature
32º to 122ºF (0º to 50ºC)
Storage temperature
-4º to 158ºF (-20º to 70ºC)
Operating humidity
10% to 80%
Storage humidity
0% to 19%
© 2009 Cisco Systems, Inc. All rights reserved. This document is Cisco Public Information.
Page 4 of 6
Data Sheet
Package Contents
● Cisco PVC2300 Business Internet Video Camera
● Stand kit
● Power supply (12V 1A)
● 6-foot Ethernet cable
● Adapter ring to allow for C mount lens
● Allen wrench
● Quick installation guide
● CD including setup wizard, user guide and video monitoring software
Minimum Requirements (Camera)
● Wired Ethernet network
● Network adapter with Ethernet network cable and TCP/IP protocol installed per PC
● Switch/router to support multiple connection points
● Internet Explorer 6.x or later with ActiveX support for viewing
● Microsoft Windows Vista, XP to support Installation Wizard
● 2-GHz Pentium 4, or AMD Athlon Class CPU with 512 MB RAM
● 128-MB AGP video adapter
Minimum Video Monitoring System Requirements (4-Camera Viewing)
● CPU - Intel Pentium 4, 2.4 GHz
● RAM - 512 MB
● Motherboard - Intel 945 or 965 chip or above; Intel chipset recommended
● Video card - ATI Radeon 9200, NVIDIA GeForce FX-5200, or Intel 945G/965G or later; ATI recommended
● Ethernet - 100 BASE-T or above; Gigabit LAN recommended
● Hard disk - 80 GB or more
● Operating system - Microsoft Windows XP Pro Service Pack 2, or Microsoft Vista
Product Warranty
3-year limited hardware warranty with return to factory replacement and 90-day limited software warranty.
Table 2.
Camera Upgrade Accessories
Camera Compatible
Auto Iris
Lens Types
Camera Lens Tamron 3-8mm Varifocal Manual Iris
3-8 mm
Camera Lens Computar Wide Angle 2.3mm Fixed
Manual Iris
2.3 mm
IP Camera Fujinon 3-11 mm Varifocal Lens
Yes - DC
IP Camera Tamron 3-11 mm Varifocal Lens
Yes - DC
IP Camera Fujinon 3-8 mm Varifocal Lens
Yes - DC
3-8 mm
IP Camera Tamron 3-8 mm Varifocal Lens
Yes - DC
3-8 mm
IP Camera Fujinon 5-50 mm Varifocal Lens
Yes - DC
5-50 mm
IP Camera Tamron 5-50 mm Varifocal Lens
Yes - DC
5-50 mm
Cisco Limited Warranty for Cisco Small Business Series Products
This Cisco Small Business product comes with a 3-year limited hardware warranty with return to factory replacement
and a 90-day limited software warranty. In addition, Cisco offers software application updates for bug fixes and
telephone technical support at no charge for the first 12 months following the date of purchase. To download
software updates, go to:
Product warranty terms and other information applicable to Cisco products are available at
For More Information
For more information on Cisco Small Business Video Surveillance Camera Solution, visit:
© 2009 Cisco Systems, Inc. All rights reserved. This document is Cisco Public Information.
Page 5 of 6
Data Sheet
Printed in USA
© 2009 Cisco Systems, Inc. All rights reserved. This document is Cisco Public Information.
Page 6 of 6
