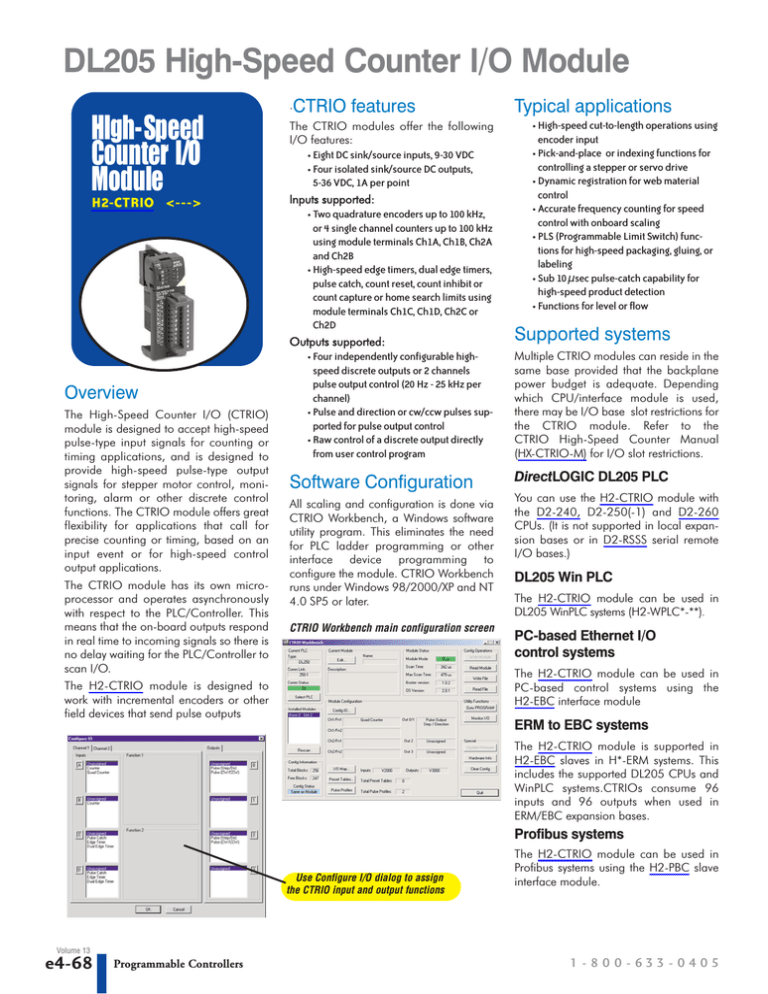

DL205 High-Speed Counter I/O Module
.
HIgh-Speed
Counter I/O
Module
H2-CTRIO <--->
Overview
The High-Speed Counter I/O (CTRIO)
module is designed to accept high-speed
pulse-type input signals for counting or
timing applications, and is designed to
provide high-speed pulse-type output
signals for stepper motor control, monitoring, alarm or other discrete control
functions. The CTRIO module offers great
flexibility for applications that call for
precise counting or timing, based on an
input event or for high-speed control
output applications.
The CTRIO module has its own microprocessor and operates asynchronously
with respect to the PLC/Controller. This
means that the on-board outputs respond
in real time to incoming signals so there is
no delay waiting for the PLC/Controller to
scan I/O.
CTRIO features
The CTRIO modules offer the following
I/O features:
• Eight DC sink/source inputs, 9-30 VDC
• Four isolated sink/source DC outputs,
5-36 VDC, 1A per point
Inputs supported:
• Two quadrature encoders up to 100 kHz,
or 4 single channel counters up to 100 kHz
using module terminals Ch1A, Ch1B, Ch2A
and Ch2B
• High-speed edge timers, dual edge timers,
pulse catch, count reset, count inhibit or
count capture or home search limits using
module terminals Ch1C, Ch1D, Ch2C or
Ch2D
Outputs supported:
• Four independently configurable highspeed discrete outputs or 2 channels
pulse output control (20 Hz - 25 kHz per
channel)
• Pulse and direction or cw/ccw pulses supported for pulse output control
• Raw control of a discrete output directly
from user control program
Software Configuration
All scaling and configuration is done via
CTRIO Workbench, a Windows software
utility program. This eliminates the need
for PLC ladder programming or other
interface device programming to
configure the module. CTRIO Workbench
runs under Windows 98/2000/XP and NT
4.0 SP5 or later.
CTRIO Workbench main configuration screen
Typical applications
• High-speed cut-to-length operations using
encoder input
• Pick-and-place or indexing functions for
controlling a stepper or servo drive
• Dynamic registration for web material
control
• Accurate frequency counting for speed
control with onboard scaling
• PLS (Programmable Limit Switch) functions for high-speed packaging, gluing, or
labeling
• Sub 10 µsec pulse-catch capability for
high-speed product detection
• Functions for level or flow
Supported systems
Multiple CTRIO modules can reside in the
same base provided that the backplane
power budget is adequate. Depending
which CPU/interface module is used,
there may be I/O base slot restrictions for
the CTRIO module. Refer to the
CTRIO High-Speed Counter Manual
(HX-CTRIO-M) for I/O slot restrictions.
DirectLOGIC DL205 PLC
You can use the H2-CTRIO module with
the D2-240, D2-250(-1) and D2-260
CPUs. (It is not supported in local expansion bases or in D2-RSSS serial remote
I/O bases.)
DL205 Win PLC
The H2-CTRIO module can be used in
DL205 WinPLC systems (H2-WPLC*-**).
PC-based Ethernet I/O
control systems
The H2-CTRIO module can be used in
PC-based control systems using the
H2-EBC interface module
The H2-CTRIO module is designed to
work with incremental encoders or other
field devices that send pulse outputs
ERM to EBC systems
The H2-CTRIO module is supported in
H2-EBC slaves in H*-ERM systems. This
includes the supported DL205 CPUs and
WinPLC systems.CTRIOs consume 96
inputs and 96 outputs when used in
ERM/EBC expansion bases.
Profibus systems
Use Configure I/O dialog to assign
the CTRIO input and output functions
The H2-CTRIO module can be used in
Profibus systems using the H2-PBC slave
interface module.
Volume 13
e4-68
Programmable Controllers
1 - 80 0 - 633 - 0405
DL205 High-Speed Counter
Company
Information
Systems
Overview
I/O Specifications
Programmable
Controllers
General
Module Type
Modules Per Base
I/O Points Used
Field Wiring Connector
Internal Power Consumption
Operating Environment
Manufacturer
Isolation
Field I/O
Intelligent
Limited only by power consumption
Software
None, I/O map directly in PLC V-memory or PC control access
Standard removable terminal block
400mA Max at +5V from Base Power Supply, Maximum of 6 Watts
(All I/O in ON State at Max Voltage/Current)
32°F to 140°F (0°C to 60°C), Humidity (non-condensing) 5% to 95%
C-more &
other HMI
Host Automation Products, L.L.C.
Soft
Starters
Drives
2500V I/O to Logic, 1000V among Input Channels and All Outputs
Motors &
Gearbox
Steppers/
Servos
H2-CTRIO Input Specifications
8 pts sink/source 100 kHz
max.
Inputs
Minimum Pulse
Width
Input Voltage Range
Maximum Voltage
Input Voltage
Protection
Rated Input Current
Minimum ON
Voltage
Maximum OFF
Voltage
Minimum ON
Current
Maximum OFF
Current
OFF to ON Response
ON to OFF Response
5 µsec
9-30 VDC
30 VDC
Zener Clamped at 33 VDC
8 mA typical 12mA maximum
9.0 VDC
2.0 VDC
5.0 mA (9 VDC required to
guarantee ON state)
2.0 mA
Less than 3 µsec
Less than 3 µsec
H2-CTRIO Output Specifications
Outputs
4 pts, independently isolated, current sourcing or sinking
FET Outputs: open drain and source with floating gate drive
Voltage range
Maximum voltage
Output clamp voltage
Maximum load current
Maximum load voltage
Maximum leakage
current
Inrush current
OFF to ON Response
ON to OFF Response
ON state V drop
External power supply
Overcurrent protection
Thermal shutdown
Overtemperature reset
Duty cycle range
Configurable Presets
a) single
b) multiple
5 VDC - 36 VDC
36 VDC
60 VDC
1.0 A
36 VDC
Motor
Controls
Proximity
Sensors
Sensors
Limit
Switches
100 µA
Encoders
5 A for 20 ms
less than 3 µsec
less than 3 µsec
0.3 V max.
for loop power only, not required for internal module function*
15 A max
Tjunction = 150°C
Tjunction = 130°C
1% to 99% in 1% increments (default = 50%)
Current
Sensors
Pressure
Sensors
Temperature
Sensors
Pushbuttons/
Lights
a) each output can be assigned one preset, or
b) each output can be assigned one table of presets, one table can contain max. 128 presets, max. predefined tables = 255
Process
Relays/
Timers
* User supplied power source required for stepper drive configuration.
Comm.
Terminal
Blocks &
Wiring
H2-CTRIO Output Resources
H2-CTRIO Input Resources
Counter/Timer 4, (2 per 4 input channel group)
Resource
Options
1X, 2X, or 4X Quadrature, Up or
Down Counter, Edge Timer, Dual
Edge Timer, Input Pulse Catch, Reset,
Inhibit, Capture
Timer Range / 4.2 billion (32 bits); 1 µsec
Resolution
Pulse output / Discrete outputs Pulse outputs: 2 channels (2 outputs each channel) Discrete outputs: 4 pts.
Resource Options
Target Position Range
Pulse outputs: pulse/direction or cw/ccw; Profiles:Trapezoid, S-Curve,
Symmetrical S-Curve, Dynamic Position, Dynamic Velocity, Home Search,
Velocity Mode, Run to Limit Mode and Run to Position Mode
Discrete outputs: 4 configurable for set, reset, pulse on, pulse off, toggle,
reset count functions (assigned to respond to Timer/Counter input functions).
Raw mode: Direct access to discrete output from user application program
± 2.1 billion (32 bits or 31 bits + sign bit)
Power
Circuit
Protection
Enclosures
Tools
Pneumatics
± 2.1 billion
Counter Range (32 bits or 31 bits + sign bit)
Appendix
Product
Index
Part #
Index
Volume 13
w w w. a u to m at i o n d i re c t . c o m / d l 205
Programmable Controllers
e4-69
DL205 High-Speed Counter
LED Diagnostic Definitions
Status indicators
H2-CTRIO LED Descriptions
OK
ER
1A
2A
0-3
Module OK
User Program Error
H2-CTRIO LED Diagnostic Definitions
LED OK
LED ER
ON
Description
OFF
All is well - RUN Mode
Hardware Failure
Channel 1 Status
ON
ON
Channel 2 Status
Blinking
Blinking
Output Status
Blinking
OFF
OFF
Blinking
OFF
ON
Module Error Due to Watchdog Timeout
OFF
OFF
No Power to Module
Boot Mode - Used for Field OS Upgrades
Program Mode
Module Self-diagnostic Failure
H2-CTRIO LED Diagnostic Definition
1A/2A
Blinking 7 times per second
Input is configured as Counter and is changing
Following state of input
Input is not configured as counter
0-3
Follow actual output state: ON = output is passing current
Installation and wiring
The H2-CTRIO module has two independent input channels, each consisting of 4 optically isolated input
points (pts. 1A-1D on common 1M and pts. 2A-2D on common 2M). The inputs can be wired to either sink
or source current.
The module has 4 optically isolated output points (pts. Y0-Y3 with isolated commons C0-C3, respectively).
The outputs must be wired so positive current flows into Cn terminal and then out of the Yn terminal (see the
diagram on the following page).
Remember that the internal jumpers can be used to connect the input commons or outputs/output commons
together.
The module is configured, using CTRIO Workbench, to accommodate
the user’s application. The function of each input (counting, timing,
reset, etc.) and output (pulse output, discrete output, etc.) is defined in
the configuration of the module.
1A
CTR
+24VDC
IN
OUT PUTS
0
OK
1
ER
C1
2
3
C TR 2
H2--CTRI O
IN 9-30VDC 5-12mA
OUT 5-36VDC
1.0A max
per point
2A
1B
2B
See the notes below for further details about power source considerations, circuit polarities, and field devices.
1C
2A
2C
2B
1D
Notes:
2C
2D
-
L
NC
+
-
–
+
Y0
C3
–
+
Y3
1C
1D
1M
NC
C0
Y0
C1
Y1
C1
L
Y3
–
Y2
L
C3
+
C2
C0
Y2
–
2M
C2
+
+
2D
2M
+
3. Outputs have one polarity only and are powered by user-provided
5-36 VDC power sources. The maximum allowable current per output
circuit is 1A.
–
+
–
L
-
+
+
- +
2. Polarity of the input power sources can be reversed. Consideration
must be given, however, to the polarity of the field device. Many field
devices are designed for only one polarity and can be damaged if
power wiring is reversed.
1M
–
+
-
1. Inputs (1A, 1B, 1C, 1D and 2A, 2B, 2C, 2D) require user-provided
9-30 VDC power sources. Terminals 1M and 2M are the commons for
Channel 1 and Channel 2 inputs. Maximum current consumption is
12 mA per input point.
1A
1B
–
+
Y1
Volume 13
e4-70
Programmable Controllers
1 - 80 0 - 633 - 0405
DL205 High-Speed Counter
Company
Information
Systems
Overview
Solid state input wiring
device
Pulse output schematic
DC type field devices are configured to
either sink or source current. This affects
the wiring of the device to the CTRIO
module. Refer to the sinking/sourcing
appendix in this catalog for a complete
explanation of sinking and sourcing
concepts.
Programmable
Controllers
Field I/O
Cn (where n=0, 1, 2, 3)
Software
CTRIO
Output
+5 to 36VDC
C-more &
other HMI
Yn
Drives
+
Soft
Starters
Load
-
NPN Field Device (sink)
Motors &
Gearbox
This drawing illustrates wiring that is
typical for Channel 1 terminals 1A, 1B,
1C, and 1D. The same circuitry is also
present at the corresponding
Channel 2 terminals.
Steppers/
Servos
+
Load
Motor
Controls
+5 to 36VDC
1A
Sensing Circuit
Cn (where n=0, 1, 2, 3)
CTRIO
Output
Proximity
Sensors
Sensors
Yn
Limit
Switches
24VDC
- +
Encoders
1M
Current
Sensors
The same circuitry is present at the
corresponding Channel 2 terminal.
Pressure
Sensors
Temperature
Sensors
24VDC
PNP Field Device (source)
Sensing Circuit
This drawing illustrates wiring that is
typical for Channel 1 terminals 1A, 1B,
1C, and 1D. The same circuitry is also
present at the corresponding
Channel 2 terminals.
+
Pushbuttons/
Lights
Stepper/Servo drive
wiring example
Process
Relays/
Timers
-
Comm.
Terminal
Blocks &
Wiring
1A
Power
Circuit
Protection
Enclosures
1M
Tools
Pneumatics
The same circuitry is present at the
corresponding Channel 2 terminal.
Appendix
Product
Index
Part #
Index
Volume 13
w w w. a u to m at i o n d i re c t . c o m / d l 205
Programmable Controllers
e4-71
DL205 High-Speed Counter
CTRIO Workbench configure I/O setup
Fill-in-the-blank
configuration software
The CTRIO Workbench is the software utility used to configure the
CTRIO module and to scale signals to desired engineering units.
Workbench also allows you to perform various other functions,
such as switching between the CTRIO’s Program mode and Run
mode, monitoring I/O status and functions, and diagnostic control
of module functions. The CTRIO Workbench utility ships with the
CTRIO User Manual. You can also download the latest version
free at the Host Engineering’s Web site: www.hosteng.com.
The Configure I/O dialog is the location where input and output
functions are assigned to the module. The choice of input and
output functions determines which options are available. The
input function boxes prompt you with selections for supported
functions. The Workbench software automatically disallows any
unsupported configurations.
CTRIO Workbench main configuration screen
Select modules from multiple
networked PLCs
Save and load configurations
with Read/Write File feature
H2-CTRIO
Configure I/O screen
Detailed snap-shot of module
status and configurations
CTRIO Workbench diagnostics and monitoring
The Monitor I/O dialog is accessible from the main Workbench
dialog when the module is in Run Mode. This allows for a convenient way to test and debug your configuration prior to installation.
The Monitor I/O dialog is divided into three functional areas: Input
Functions, Output Functions and System Functions. The data
displayed under the Input Functions tab includes all input Dword
parameters, status bits and the current status of each configured
input and output function. The fields displayed under the Output
Functions tab includes all output (D)word parameters and configuration information that can be altered during runtime and the bits
that indicate successful transfers or errors. The System Functions
can be used to read from or write to the CTRIO’s internal registers.
Monitor I/O screen
CTRIO Workbench on-board scaling
Scaling raw signals to engineering units is accomplished
using the Scaling Wizard. The Scaling Wizard options are
different for the Counter functions as compared to the Timer
functions. “Position” and “Rate” scaling are available when
you select a Counter function. “Interval” scaling is available
when you select a Timing function.
Scaling Wizard screen
Monitor I/O dialog included
for easy de-bug features
Volume 13
e4-72
Programmable Controllers
1 - 80 0 - 633 - 0405
DL205 High-Speed Counter
Company
Information
Systems
Overview
High-speed input operations
High-speed counting
The CTRIO module is capable of a wide variety of highspeed input and output operations, all within one
module. With its flexible 2-channel input and separate
2-channel output design, the CTRIO can satisfy highspeed counting, timing, and pulse catch operations,
along with high-speed discrete output or several profile
choices of pulse output operations. Not all combinations of input functions and output functions are
possible within the resources of the module, but the
following examples are some of the most common
applications for the CTRIO. Check out these examples
and see how they relate to your high speed application
needs.
The CTRIO can be configured for counting functions for the
use of an encoder input (up to two quadrature encoders per
module), with available connections for external reset,
capture and inhibit signals. In a simple cut-to-length application as shown, the encoder provides an input position reference for the material to the module. The module's high-speed
outputs are wired to the cutting device and to the clutch
and/or braking device. When the count from the encoder is
equal to a pre-programmed setpoint within the module, the
high-speed outputs are activated to stop and cut the material
to a repeatable fixed length. Additionally, the clutch/brake
signal can be used as an inhibit signal so counts are not
accumulated while the material is being cut.
Programmable
Controllers
Field I/O
Software
C-more &
other HMI
Drives
Soft
Starters
Motors &
Gearbox
Steppers/
Servos
High-speed timing
High-speed cut-to-length application
The CTRIO can be configured for timing functions
based on both count or rate. Using a common configuration of a proximity switch sensing the teeth on a gear,
the module is able to calculate the velocity of the gear
based on the rate it receives its counts. This value can
be scaled within the module to the engineering units
required for the application.
Motor
Controls
PLC with CTRIO module
Motor
Interface
Motor
control
lines
Sensors
Gearbox, clutch and
brake interface
High-speed timing application
Proximity
Sensors
CTRIO highspeed output
Limit
Switches
Encoders
Encoder
Cutter interface
PLC with CTRIO module
Current
Sensors
Gear
Cutter assembly
Pressure
Sensors
Material to be
cut to length
Temperature
Sensors
Proximity switch
Photoelectric switch
Using Configure I/O screen to configure
CTRIO for high-speed counting
Pushbuttons/
Lights
Process
Relays/
Timers
Comm.
Terminal
Blocks &
Wiring
High-speed edge timing application
Power
Using Configure I/O screen to configure CTRIO for high-speed timing
Point-click selections of
hardwired connection for Counting,
Reset, and Inhibit
Circuit
Protection
Enclosures
Powerful edge timing functions clicking on the edge button cycles through the
available edge timing functions available
Tools
Pneumatics
Appendix
Product
Index
Part #
Index
Volume 13
w w w. a u to m at i o n d i re c t . c o m / d l 205
Programmable Controllers
e4-73
DL205 High-Speed Counter
Pulse output operations
PLC with CTRIO module
Using Edit Pulse Profile screen to select Trapezoid pulse output profile
Fill spout
CTRIO pulse output signals
Stepper or
servo drive
Fill-in-the-blank parameters
allow precise tuning of the output
pulse profile
Pulse output for stepper/servo control
The CTRIO module is capable of multiple configurations for
pulse output control, most often when connected to a stepper
or servo drive system. The module can deliver a pulse output
signal up to a maximum of 25 kHz on two channels with
support for pulse-and-direction or CW/CCW pulses. The
available profile choices include Trapezoid, S-Curve,
Symmetrical S-Curve, Dynamic Positioning, Dynamic
Velocity, free form and Home Search. All profiles can be
easily configured using the CTRIO Workbench software with
fill-in-the-blank parameter fields and a graphic representation of the selected profile. Three additional profiles are
available that are completely controlled by the user program
(no CTRIO profile is configured). They are Velocity Mode,
Run to Limit Mode, and Run to Position Mode.
Example application
In a simple rotary indexing application, as shown above, a
fixed Trapezoid profile is chosen. The CTRIO for this application is wired to a stepper drive for pulse-and-direction. The
requirement for this application is to provide a smooth movement of the rotary table to allow product to be filled into individual containers at an equal distance apart. The
predetermined number of pulses required for each movement is entered into the CTRIO Workbench as "Total Pulses"
along with the Starting Frequency, Ending Frequency, and
Positioning Frequency (speed after acceleration). The
Acceleration and Deceleration parameters are entered in
units of time, so no ramp-distance calculations are required.
After all parameters are entered, a graphical representation
of the configured profile is shown automatically. Once the
configuration has been downloaded to the module, all that is
needed from the PLC CPU is for the Enable Output signal to
begin a movement.
Stepper
motor
Stepper motor
inside housing
Circular turn table
Rotary indexing liquid fill application
Other common pulse output applications:
• S-Curve accel/decel profile for signaling a stepper or servo drive
that needs a curved acceleration and deceleration profile, i.e. for
diminishing any initial “jerk” upon movement of static products,
boxes on conveyors, liquids in containers on an indexer, printing
registrations, etc.
• Dynamic Positioning for any run-to-a-specific-position requirement, either by a pre-programmed count of an external highspeed discrete input wired to the module. This is popular in
winding or web control with any dynamic registration mark or
variable speed requirement.
• Home search routines to seek a home position based on CTRIO
discrete input limit(s).
Example of S-Curve acceleration and deceleration pulse output profile
Calculate Profile displays
graphical representation of output
pulse profile
Volume 13
e4-74
Programmable Controllers
1 - 80 0 - 633 - 0405
DL205 High-Speed Counter
Combining high-speed input and
pulse output operations
Using CTRIO Workbench to configure the module
for simultaneous high-speed input and highspeed pulse output operation
Company
Information
Systems
Overview
Multihead drill machine application
Programmable
Controllers
Proximity switch
Field I/O
Software
Proximity switch
Proximity switch
Encoder
C-more &
other HMI
Stepper motor
Drives
Soft
Starters
Motors &
Gearbox
Steppers/
Servos
PLC with CTRIO module
Motor
Controls
Stepper or
servo drive
Proximity
Sensors
Sensors
Limit
Switches
High-Speed inputs and pulse output
combinations
The flexible design of the CTRIO module allows for
combining high-speed inputs and delivering high-speed pulse
outputs signals simultaneously. There are limitations to this
type of configuration in that the module does not internally
support closed loop control. Providing closed loop control
with the CTRIO involves additional PLC code to coordinate
this control, making the application subject to the PLC CPU
program scan. Simple position/speed monitoring via a highspeed counting input for non-critical response, while
providing pulse outputs to a drive, is easily achievable for the
CTRIO.
Example application
Encoders
In the simple drill-head application shown above, the CTRIO
pulse outputs are wired to a stepper and/or servo drive. The
inputs are wired to an encoder attached to the lead screw on
the movable portion of the drill-head assembly. The CTRIO
module output pulse train to the drive allows the motor to spin
the lead screw, making the drill move forward into the passing
material. The encoder monitors the speed and position of the
drill-head. Prox switches at each end act as limit switches
ensuring the drill-head will not over-travel. A home sensor is
positioned in the middle of the assembly which allows the PLC
to reset the count.
Current
Sensors
Pressure
Sensors
Temperature
Sensors
Pushbuttons/
Lights
Process
Relays/
Timers
Comm.
PLC CPU program
CTRIO pulse output profile
Terminal
Blocks &
Wiring
Power
Circuit
Protection
Enclosures
Closed loop control for the CTRIO module requires PLC
CPU program interaction to close the loop. This makes the
application subject to the PLC CPU scan.
Tools
Pneumatics
Appendix
Product
Index
CTRIO high-speed input pulse train
Part #
Index
Volume 13
w w w. a u to m at i o n d i re c t . c o m / d l 205
Programmable Controllers
e4-75
HERE
Power Requirements
These charts help
determine your power
requirements
This section shows the amount of power
supplied by each of the base power
supplies and the amount of power
consumed by each DL205 device. The
Power Consumed charts list how much
INTERNAL power from each power source
is required for the DL205 devices. Use this
information when calculating the power
budget for your system.
In addition to the internal power sources,
the DL205 bases offer a 24 VDC auxiliary
power supply with external power connections. This auxiliary power supply can
power external devices.
Use ZIPLinks to reduce
power requirements
Power Supplied
Device
Bases
Price 5V(mA) 24V Auxiliary
Device
Bases
Price
5V(mA) 24V Auxiliary
D2-03B-1
<--->
2600
300
D2-06BDC1-1
<--->
2600
None
D2-03BDC1-1 <--->
2600
None
D2-06BDC2-1
<--->
2600
300
D2-04B-1
<--->
2600
300
D2-09B-1
<--->
2600
300
D2-04BDC1-1 <--->
2600
None
D2-09BDC1-1
<--->
2600
None
D2-06B-1
2600
300
D2-09BDC2-1
<--->
2600
300
<--->
Power Consumed
Power Consumed
Device
CPUs
5V(mA)
24V Auxiliary
Device
5V(mA)
Analog Modules
24V Auxiliary
D2-230
120
0
F2-04AD-1
100
5
D2-240
120
0
F2-04AD-2
110
5
D2-250-1
330
0
F2-08AD-1
100
5
D2-260
330
0
F2-08AD-2
100
5
H2-WPLC*-**
680
0
F2-02DA-1
40
60 (note 1)
F2-02DA-1L
40
70 @ 12V (note 1)
0
F2-02DA-2
40
60
40
70 @ 12V
DC Input Modules
D2-08ND3
50
D2-16ND3-2
100
0
F2-02DA-2L
If your application requires a lot of relay
outputs, consider using the ZIPLink AC or
DC relay output modules. These modules
can switch high current (10A) loads
without putting a load on your base power
budget. Refer to the Terminal Blocks and
Wiring Solutions section in this catalog for
more information.
D2-32ND3
25
0
D2-32ND3-2
25
0
F2-02DAS-1
F2-02DAS-2
100
100
50 / channel
60 / channel
F2-08DA-1
30
50 (note 1)
F2-08DA-2
60
140
F2-4AD2DA
60
80 (note 1)
F2-8AD4DA-1
35
100 (note 1)
F2-8AD4DA-2
35
80 (note 1)
This logo is placed next to the I/O
modules that are supported by the ZIPLink
connection systems. See the I/O module
specifications at the end of this section.
F2-08SIM
F2-04RTD
90
0
F2-04THM
110
60
AC Input Modules
D2-08NA-1
D2-08NA-2
D2-16NA
Operator Interface
DV-1000
150
C-more MicroGraphic
210
0
0
50
0
60
20
D2-08TD1
100
0
D2-08TD2
100
0
200
200
80
0
F2-16TD1P
70
50
F2-16TD2P
70
50
D2-32TD2
24V Auxiliary
0
D2-04TD1
D2-32TD1
5V(mA)
100
0
DC Output Modules
D2-16TD2-2
Device
100
0
Input Simulator Module
D2-16TD1-2
Power Consumed
50
350
350
0
0
AC Output Modules
D2-08TA
250
0
F2-08TA
250
0
D2-12TA
350
0
Relay Output Modules
D2-04TRS
250
0
D2-08TR
250
0
F2-08TR(S)
670
0
D2-12TR
450
0
Combination In/Out Module
D2-08CDR
200
Specialty Modules
D2-CTRINT
50*
0
D2-CM / D2-EM
100/130
0
H2-CTRIO
400
0
D2-DCM
300
0
F2-DEVNETS
160
0
F2-SDS-1
160
0
H2-PBC
530
0
H2-EBC(-F)
450, (640)
0
H2-ECOM(-F)
450, (640)
0
H2-ECOM100
300
0
F2-CP128
235
0
H2-ERM(-F)
320, (450)
0
D2-RMSM
200
0
D2-RSSS
150
0
Remote I/O
Programming Devices
D2-HPP
200
0
*requires external 5VDC for outputs
Note 1: Add an additional 20 mA per output loop.
0
Volume 13
e4-46
Programmable Controllers
1 - 80 0 - 633 - 0405
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
