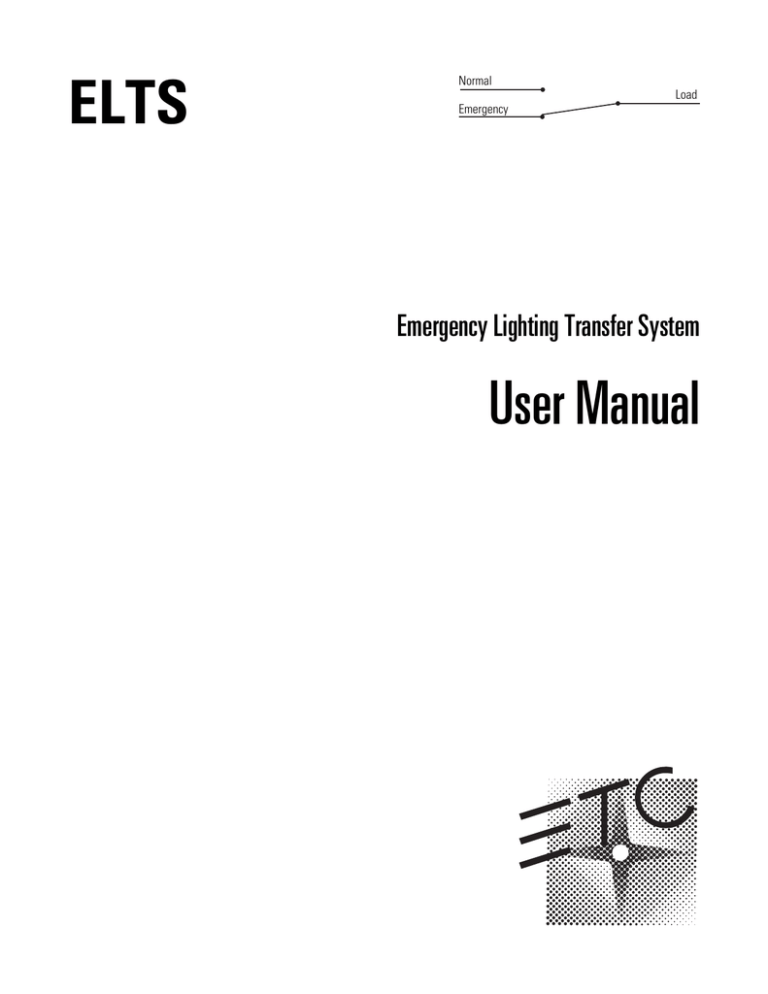

ELTS

Normal

Emergency

Load

Emergency Lighting Transfer System

User Manual

2 Electronic Theatre Controls, Inc.

Emergency Lighting Transfer System

User Manual

Contents

Introduction

................................................................................................... 5

How to use this manual ........................................................................... 5

Codes and standards................................................................................ 5

System Diagram....................................................................................... 6

Installation and setup chapters

Installation

..................................................................................................... 7

Unpack and Inspect.................................................................................. 7

ELTS Models............................................................................................ 8

Mounting the ELTS cabinet...................................................................... 9

Installing Remote stations (optional) ...................................................... 11

Connecting power and control wiring to the ELTS cabinet

................... 12

Transfer switch, Normal power and lighting load connections .............. 13

Control and Sensing wire connections................................................... 15

Testing

......................................................................................................... 18

Before you power up for the first time .................................................. 18

Turn on system ...................................................................................... 18

Functional checkout ............................................................................... 19

Settings

....................................................................................................... 21

ELTS timing settings .............................................................................. 21

ELTS voltage and frequency settings..................................................... 24

Use and service chapters

Operation

..................................................................................................... 25

Automatic operation............................................................................... 25

Switching power sources manually ....................................................... 26

Service

......................................................................................................... 27

Preventive maintenance......................................................................... 27

Troubleshooting

......................................................................................... 28

Emergency or Normal Power Stable LED does not turn on properly..... 28

The ELTS will not switch between Normal and Emergency.................. 28

Remote stations cannot switch the ELTS.............................................. 29

Appendices

Appendix A: ELTS specifications

............................................................... 30

Appendix B: Wire connection schematics and diagrams

....................... 31

Appendix C: Transfer switch control system schematics

....................... 33

Appendix D: Transfer switch load switching schematic

......................... 34

Appendix E: Test and Maintenance Log

................................................... 35

Emergency Lighting Transfer System User Manual 3

4 Electronic Theatre Controls, Inc.

Emergency Lighting Transfer System

Introduction

Welcome to ETC’s Emergency Lighting Transfer System (ELTS) User Manual.

This manual shows you how to install and use your ELTS system. See

ELTS

Models on page 8 for a breakdown of ELTS models and configurations.

How to use this manual

This manual is divided into three sections:

Installation

on page 7 tells you how to install and test your system

Operation

on page 25 tells you how to use and service your system

The

Appendix B: Wire connection schematics and diagrams

on page 31 contains additional information you may need

Warnings and notice conventions

These symbols alert you to danger or important information:

Warning!

Warns you when electricity may cause injury

Warning!

Warns you when there is a possibility of other types of injury

Notice:

Alerts you to important information relating to equipment performance or reliability

Contacting ETC

For questions about ELTS system delivery or general information, contact ETC

Customer Service at 800/688-4116.

Codes and standards

ELTS systems meet the following regulatory standards for emergency lighting transfer devices:

ANSI/UL 1008 – Listed, Automatic Transfer Switches

ANSI/NFPA 110 – Emergency and Standby Power Systems

ANSI/NFPA 70 – National Electric Code

Article 701 – Legally Required Standby Systems

Article 700 – Emergency Systems

Article 540 –11(c) – Motion Picture Houses

Article 520 – 7 – Theatres and Similar Locations

Article 518 – 3(c) – Places of Assembly

City of New York, Advisory board, Electrical Department

OSHA

Department of Defense

Emergency Lighting Transfer System User Manual 5

6

Emergency generator

L1 L2 L3 N

System Diagram

Main power

L1 L2 L3 N

Normal loads are connected directly to the dimming system. If main power fails, normal loads are dark.

Normal loads

Channels 1–6

Generator

Start

Normal loads

Dimmer rack

L1, L2 and L3 sensing wires

Normal power

Channels 7–12 (into ELTS)

Normal/Emergency loads

Channels 7–12 (from ELTS)

Fire alarm activation

Aux activation

ELTS cabinet

Normal/Emergency loads are routed through the ELTS. Normal load power comes from the dimming system. If the ELTS detects a loss of dimmer normal power, it switches the normal/emergency loads from dimmer normal power to the emergency power source.

Normal/Emergency loads

Up to ten Remote stations can be connected to the ELTS

Figure 1: Diagram of a typical ELTS system

Electronic Theatre Controls, Inc.

Emergency ground lug

Emergency

Line and

Neutral lugs

Terminal

blocks

Installation

NA

NB

NC

EA

EC

G1

G2

G3

F1

F2

A1

A2

R1

R2

R3

R4

R5

A

Unpack and Inspect

Before you begin installation, check your shipment so you know it arrived complete and undamaged.

1.

Check the shipping container for obvious physical damage:

Torn or opened containers

Water stains or wetness

Crushed or punctured boxes

Other shipping-related damage

2.

If you find damage, document it to help with a claim against your shipper.

3.

Unpack your order and check the contents against the Bill of Materials to be sure your order is complete.

4.

Open the ELTS cabinet door and check for loose connections or broken components caused by shipping vibration.

5.

If you discover a problem with your order, call ETC Customer Service at

800/688-4116.

A

GROUND

LUG

ELTS 850, 1820, 2420

DUE TO SHIPPING, MFG. IS NOT RESPONSIBLE FOR

LOOSE CONNECTIONS, TIGHTEN ALL CONNECTIONS

BEFORE ENERGIZING.

PS ASCO

POWER

SUPPLY

ASCO GROUP 9

CONTROL PANEL

B

EPDB

C N

Control panel

ELTS 450,

620, 1220

B C N

ELTS power supply

Emergency ground lug

A

GROUND

LUG

DUE TO SHIPPING, MFG. IS NOT RESPONSIBLE FOR

LOOSE CONNECTIONS, TIGHTEN ALL CONNECTIONS

BEFORE ENERGIZING.

PS

B

EPDB

C N

ASCO

POWER

SUPPLY

ASCO GROUP 9

CONTROL PANEL

SR3B SR3B SR3B SR3B A B C N

10

11

12

T4

T5

T6

T7

T8

T9

T10

T11

T12

T1

T2

T3

Isolation relays

TS1

12 POLE TRANSFER SWITCH

TS2

12 POLE TRANSFER SWITCH

Emergency

Line and

Neutral lugs

SR3B SR3B SR3B SR3B

TS3

12 POLE TRANSFER SWITCH

TS4

12 POLE TRANSFER SWITCH

Terminal

blocks

10

12

11

T1

T2

T3

T4

T5

T6

T7

T8

T9

T10

T11

T12

R1

R2

R3

R4

R5

F1

F2

A1

A2

G1

G2

G3

NA

NB

NC

EA

EC

ELTS power supply

Isolation relays

TS1

12 POLE TRANSFER SWITCH

TB1

TB2

TB3

TS11

TS29

TS30

TS10

TS12

TS2

12 POLE TRANSFER SWITCH

TB1

TB2

TB3

TS11

TS29

TS30

TS10

TS12

Transfer switch assemblies

Figure 2: Identifying ELTS components

Emergency Lighting Transfer System User Manual 7

Operational Current: 200A Max 3 Phase

Operational Voltage: 120/208v (3p+N+ )

Frequency: 50/60Hz.

Short-circuit current: 10,000 AIC

UL1008 Listed

Electronic Theatre Controls Inc.

Middleton, WI Made in USA

C

NORMAL

POWER

Electronic Theatre Controls Inc.

MODEL ELTS

AUTOMATIC TRANSFER SWITCH FOR EMERGENCY SYSTEMS

ISSUE NO. 934

AUTO

EMERGENCY

OPERATION

EMERGENCY

POWER

NORMAL POWER

STABLE

EMERGENCY POWER

STABLE

GENERATOR

START

FIRE ALARM

TRANSFER SIGNAL

AUXILIARY

TRANSFER SIGNAL

1 2 3 4 5 6 7 8 9 10 11 12

13 14 15 16 17 18 19 20 21 22 23 24

ELTS Models

Large ELTS cabinet (30" wide x 54" tall x 9" deep)

ELTS 850 8 circuits of 50 amps

ELTS 1820

ELTS 2420

18 circuits of 20 amps

24 circuits of 20 amps

Small ELTS cabinet (30" wide x 36" tall x 9" deep)

ELTS 450

ELTS 620

ELTS 1220

4 circuits of 50 amps

6 circuits of 20 amps

12 circuits of 20 amps

Operational Current: 200A Max 3 Phase

Operational Voltage: 120/208v (3p+N+ )

Frequency: 50/60Hz.

Short-circuit current: 10,000 AIC

UL1008 Listed

Electronic Theatre Controls Inc.

Middleton, WI Made in USA

C

NORMAL

OPERATION

NORMAL

POWER

Electronic Theatre Controls Inc.

MODEL ELTS

AUTOMATIC TRANSFER SWITCH FOR EMERGENCY SYSTEMS

ISSUE NO. 934

AUTO

EMERGENCY

OPERATION

NORMAL POWER

STABLE

EMERGENCY POWER

STABLE

GENERATOR

START

FIRE ALARM

TRANSFER SIGNAL

AUXILIARY

TRANSFER SIGNAL

1 2 3 4 5 6 7 8 9 10 11 12

Figure 3: Large and small ELTS cabinets

8

NORMAL

OPERATION

EMERGENCY

OPERATION

NORMAL

POWER

AUTO EMERGENCY

POWER

Figure 4: Remote station

Remote station (part # 1093A2023)

Provides front panel keyswitch control at remote locations.

Link up to ten stations with parallel wiring.

Normal and Emergency LEDs indicate ELTS status.

Electronic Theatre Controls, Inc.

Mounting the ELTS cabinet

Mount the ELTS on a load-bearing wall, in a location where it will not be subject to tampering or vandalism. If possible, install the ELTS where it is most secure from damage by a fire, flood or other incident likely to require its use. Do not install the ELTS inside any other electrical enclosure.

Physical requirements for mounting

You must mount either size ELTS cabinet with sufficient front clearance (30 inches) to allow the door to open completely.

55.187"

(bolts)

Operational Current: 200A Max 3 Phase

Operational Voltage: 120/208v (3p+N+ )

Frequency: 50/60Hz.

Short-circuit current: 10,000 AIC

Electronic Theatre Controls Inc.

Middleton, WI Made in USA

UL1008 Listed

NORMAL

OPERATION

NORMAL

POWER

Electronic Theatre Controls Inc.

MODEL ELTS

AUTOMATIC TRANSFER SWITCH FOR EMERGENCY SYSTEMS

ISSUE NO. 934

NORMAL POWER

STABLE

EMERGENCY POWER

STABLE

EMERGENCY

OPERATION

AUTO EMERGENCY

POWER

GENERATOR

START

FIRE ALARM

TRANSFER SIGNAL

AUXILIARY

TRANSFER SIGNAL

10 11 12

13 14 15 16 17 18 19 20 21 22 23 24

54.000"

(cabinet)

37.187"

(bolts)

Operational Current: 200A Max 3 Phase

Operational Voltage: 120/208v (3p+N+ )

Frequency: 50/60Hz.

Short-circuit current: 10,000 AIC

Electronic Theatre Controls Inc.

Middleton, WI Made in USA

UL1008 Listed

NORMAL

OPERATION

NORMAL

POWER

Electronic Theatre Controls Inc.

MODEL ELTS

AUTOMATIC TRANSFER SWITCH FOR EMERGENCY SYSTEMS

ISSUE NO. 934

NORMAL POWER

STABLE

EMERGENCY POWER

STABLE

EMERGENCY

OPERATION

AUTO EMERGENCY

POWER

GENERATOR

START

FIRE ALARM

TRANSFER SIGNAL

AUXILIARY

TRANSFER SIGNAL

10 11 12

36.000"

(cabinet)

24.250" (bolts)

30.000" (cabinet)

Large cabinet

9.375"

24.250" (bolts)

30.000" (cabinet)

Small cabinet

9.375"

Figure 5: ELTS cabinet mounting dimensions

Notice: When planning your installation, make sure to leave space around the cabinet for entry and exit wire conduit. Emergency line and neutral conduit may require extra space due to increased bend radius requirements for larger cables.

Emergency Lighting Transfer System User Manual 9

10

Planning wire entry into the ELTS cabinet

The Emergency power connections must enter the cabinet from the top or side of the cabinet within six inches of the top left corner.

Control, Normal power sensing and options wires connect most easily if they enter above the Remote station terminal or just below the Emergency sensing terminal on the left side of the cabinet.

Note: Do not run the control, normal power sensing and options wiring in the same conduit as Emergency phase or load power wiring.

Load wires in from the dimmer rack and out to the lighting loads connect most easily if they enter through the bottom of the cabinet either between or beside the transfer switch assemblies.

Note: Except for the emergency power supply wires, which must enter near the top left corner of the cabinet, recommended conduit entry locations may be changed based on the requirements of your installation.

Control panel

GROUND

LUG

DUE TO SHIPPING, MFG. IS NOT RESPONSIBLE FOR

LOOSE CONNECTIONS, TIGHTEN ALL CONNECTIONS

BEFORE ENERGIZING.

PS ASCO

POWER

SUPPLY

ASCO GROUP 9

CONTROL PANEL

A N B

EPDB

C

Emergency power conduit entry area

Emergency power lugs

A B C N

Isolation relays

ELTS power supply

SR3B SR3B SR3B SR3B

Transfer switch assembly

Factory wired terminal

Recommended control conduit location

3

4

5

6

1

2

9

10

7

8

11

12

T4

T5

T6

T7

T8

T9

T10

T11

T12

T1

T2

T3

TS1

12 POLE TRANSFER SWITCH

TS2

12 POLE TRANSFER SWITCH

Remote stations

Fire alarm transfer

Auxiliary transfer

Generator start

Normal sensing

Emergency sensing

Recommended control conduit location

Factory wired terminal

1

2

3

4

5

6

R1

R2

R3

R4

R5

1

2

3

1

2

3

3

4

5

6

1

2

F1

F2

A1

A2

G1

G2

G3

1

2

3

4

5

6

NC

NA

NB

3

4

1

2

5

6

EA

EC

4

5

6

7

8

9

2

3

1 TB1

TB2

TB3

TS11

TS29

TS30

TS10

TS12

TS3

12 POLE TRANSFER SWITCH

TS4

12 POLE TRANSFER SWITCH

Transfer switch manual operation handle

Recommended load input and output conduit locations

Figure 6: ELTS components

Electronic Theatre Controls, Inc.

Mounting the cabinet

After determining where you want to install the cabinet, follow these instructions.

1.

Install two 3/8" bolts 24.25 inches apart for the lower two support slots

(the installer must supply the mounting hardware).

2.

Use the mounting dimensions from Figure 5

: ELTS cabinet mounting dimensions on page 9 to drill the holes for the upper two 3/8" bolts.

3.

Place the ELTS cabinet on the wall supported by the two lower bolts.

Notice: ELTS cabinets are very heavy. Make sure you have adequate equipment (or help) to lift the cabinet into place and support it while you secure the top two bolts.

4.

Secure the ELTS to the wall with the two upper 3/8" bolts.

Installing Remote stations (optional)

1.

Install a standard two gang backbox (4" x 4" x 3.5") and run wire conduit from it to the ELTS cabinet.

2.

Pull five conductor, Class 2 (12 Vdc) wiring through from the backbox to the cabinet.

3.

Connect the wires to the terminal strip on the back of the remote station.

Note which terminal each wire connects to.

4.

Install the Remote station onto the backbox with four 6 - 32 x 1/2" oval head machine screws (provided).

5.

To install multiple Remote stations, repeat steps 1 – 4, wiring in parallel between Remote station terminal blocks.

Refer to

Connecting Remote stations to the ELTS

on page 16 for instructions for connecting Remote station wiring inside the ELTS cabinet.

Emergency Lighting Transfer System User Manual 11

12

Connecting power and control wiring to the ELTS cabinet

Warning! To prevent death or injury due to electrical shock, Normal and

Emergency power to the ELTS must be turned off any time you are connecting or servicing any ELTS.

Connecting Emergency power

The Emergency power lugs are in the upper left of the ELTS cabinet. The ELTS is available in one or three phase power configurations.

1.

Cut a hole within six inches of the top left corner of the ELTS cabinet

2.

Install conduit and pull the Emergency power cables into the cabinet.

Note: Top conduit connections are recommended to reduce the cable bending necessary to connect to the lugs.

Table 1: Emergency power lug wire sizes and connection torques

Connection type

Phase and Neutral lugs (3 phase)

Wire size

6 AWG to 2/0

Phase and Neutral lugs (single phase) 6 AWG to 250 MCM

Ground lug (both phase types) 14 AWG to 2/0

Torque

275 in/lbs

275 in/lbs

50 in/lbs

Three phase (4 wire) connections

1.

Connect each phase power cable to the correct lug. See Figure 7, below, to identify the lugs.

2.

Connect the Neutral cable to the Neutral lug.

3.

Connect the Ground cable to the Ground lug.

GROUND

LUG

DUE TO SHIPPING, MFG. IS NOT RESPONSIBLE FOR

LOOSE CONNECTIONS, TIGHTEN ALL CONNECTIONS

BEFORE ENERGIZING.

Ground lug

Phase C lug

(Three phase

ELTS only)

Phase A lug

A B C N

Phase B lug

A B C N

Neutral lug

Figure 7: Connecting Emergency power to the ELTS

Single phase connection (3 wire)

1.

Connect one phase cable to the Phase A lug and one to the Phase B lug.

See Figure 7, above, to identify lugs.

2.

Connect the Neutral cable to the Neutral lug.

3.

Connect the Ground cable to the Ground lug

Electronic Theatre Controls, Inc.

Circuits

1 – 6

Circuits

7 – 12

Circuits

13 – 18

Circuits

19 – 24

Figure 8: 20 amp Transfer switch circuit assignments

Lighting load

Neutral output wire

Transfer switch, Normal power and lighting load connections

Each transfer switch can have up to six 20 amp circuits or two 50 amp circuits connected to it. You need to connect Line and Neutral inputs from the dimmer rack and outputs to the emergency lighting loads. The Line and Neutral input from Emergency power are delivered prewired.

Table 2Switch assembly wire sizes and connection torques

Wire size

14 – 10 AWG

6 – 4 AWG

Torque

35 in/lbs

45 in/lbs

Wire size

8 AWG

3 AWG to 2/0

Torque

40 in/lbs

50 in/lbs

20 amp dimmer rack Load and Neutral wire input connections

1.

Attach the conduit for the wires from the dimmer rack to the bottom of the ELTS cabinet (recommended.)

2.

Connect a Neutral wire for each dimmer circuit to terminals

NN1

through

NN6

on the right side of the transfer switch assembly. See Figure 8, left, to match switch assemblies to loads.

3.

Connect a Line wire for each dimmer circuit to terminals

NL1

through

NL6

on the right side of the transfer switch assembly.

4.

Repeat steps 2 and 3 for the other transfer switch assemblies.

Lighting load Line and Neutral terminals

TS1

12 POLE TRANSFER SWITCH

Input connections for Line and

Neutral wires from the dimmer rack (Normal power)

Lighting load

Line output wire

Neutral wire from dimmer

Line wire from dimmer

Prewired Emergency feeds

Prewired Emergency Line and

Neutral input terminals

Figure 9: 20 amp Transfer switch connections for Line and Neutral wires

20 amp lighting load Line and Neutral output connections

1.

Attach the conduit for the wires to the lighting loads through the bottom of the ELTS cabinet (recommended).

2.

Connect a Neutral wire for each lighting load to terminals

LN1

through

LN6

on the left side of the transfer switch assembly. See Figure 8, above, to match switch assemblies to loads.

3.

Connect a Line wire for each lighting load to terminals

LL1

through

LL6

on the left side of the transfer switch assembly

4.

Repeat steps 2 and 3 for the other transfer switch assemblies.

Emergency Lighting Transfer System User Manual 13

14

Circuits

1 & 2

Circuits

3 & 4

Circuits

5 & 6

Circuits

7 & 8

Figure 10: 50 amp transfer switch circuit assignments

Lighting load

Neutral output wire

Lighting load Line and Neutral terminals

50 amp dimmer rack Load and Neutral wire input connections

1.

Attach the conduit for the wires from the dimmer rack to the bottom of the ELTS cabinet (recommended.)

2.

Connect a Neutral wire for each dimmer circuit to terminals NN1 and NN2 on the right side of the transfer switch assembly. See Figure 10, left, to match switch assemblies to loads.

3.

Connect a Line wire for each dimmer circuit to terminals NL1 and NL2 on the right side of the transfer switch assembly.

4.

Repeat steps 2 and 3 for the other transfer switch assemblies.

50 amp lighting load Line and Neutral output connections

1.

Attach the conduit for the wires to the lighting loads through the bottom of the ELTS cabinet (recommended.)

2.

Connect a Neutral wire for each lighting load to terminals LN1 and LN2 on the left side of the transfer switch assembly. See Figure 10, to match switch assemblies to loads.

3.

Connect a Line wire for each lighting load to terminals LL1 and LL2 on the left side of the transfer switch assembly

4.

Repeat steps 2 and 3 for the other transfer switch assemblies.

TS1

4 POLE TRANSFER SWITCH

Input connections for Line and

Neutral wires from the dimmer rack (Normal power)

Neutral wire from dimmer

Lighting load

Line output wire

Line wire from dimmer

Prewired Emergency feeds

Prewired Emergency

Line and Neutral input terminals

Figure 11: 50 amp Transfer switch connections for Line and Neutral wires

Electronic Theatre Controls, Inc.

Door control and indicator connections

(prewired)

Remote station connections

Fire alarm signal transfer

Auxiliary signal transfer

Engine/ generator start

Normal power sensing

Emergency power sensing

(prewired)

1

2

3

4

5

6

G1

G2

NA

NB

EA

EC

T7

T8

T9

T10

T11

T12

T4

T5

T6

T1

T2

T3

7

8

9

10

11

12

4

5

6

1

2

3

4

5

6

1

2

3

4

5

6

1

2

3

4

5

6

1

2

3

1

2

3

1

2

3

R1

R2

R3

R4

R5

F1

F2

A1

A2

G3

NC

Transfer switch connections

(prewired)

7

8

9

4

5

6

1

2

3

Figure 12: Control and Sensing wire terminal connections

TB1

TB2

TB3

TS11

TS29

TS30

TS10

TS12

Control and Sensing wire connections

Control and power sensing wires connect to terminal blocks on the left side of the ELTS cabinet.

Terminals can accept from 8 to 22 AWG wires. Torque terminal screws to

18 in/lbs.

1.

Install control and sensing wire conduit on the left side of the ELTS cabinet above the remote station connection terminals or below the Emergency power sensing terminals (recommended conduit location).

2.

Pull the wires into the cabinet.

Connecting the Normal power sensing wires

Normal power sensing wires connect to the phase lugs of the dimmer rack connected to the ELTS. They attach to the Normal power sensing terminal block. Each sensing wire must connect to the ELTS through a 15 amp circuit breaker located outside the ELTS cabinet.

Note: Power sensing wires must be 12 AWG or larger.

1.

Connect a sensing wire to each phase lug of the dimmer rack connected to the ELTS. Mark each wire to identify its phase at the ELTS rack.

2.

Connect each sensing wire to a 15 amp circuit breaker close to the dimmer rack. Circuit breakers CANNOT be inside the ELTS cabinet.

3.

Pull the wires from the circuit breakers through wire conduit to the Normal power sensing terminal block in the ELTS cabinet.

4.

Connect the sensing wires to the Normal power sensing terminal block:

Connect phase A to terminal 1 (across from wire NA)

Connect phase B to terminal 3 (across from wire NB)

Connect phase C to terminal 5 (across from wire NC)

Note: On single phase (three wire) systems, terminal 5 will not be used.

Connecting the Emergency power sensing wires

Emergency power sensing wires on ELTS systems with front panel circuit breaker or fuse panels are wired from the Emergency power lugs to the correct terminals on the Emergency power terminal block at the factory.

Sensing wires on systems without front panel circuit breakers must be wired into the ELTS cabinet.

Note: Emergency power sensing wires must be 12 AWG or larger.

1.

Connect a sensing wire to phase A and C (A and B on single phase systems) of the Emergency power supply. Mark each wire to identify its phase at the ELTS rack.

2.

Pull the wires through the conduit to the Emergency power sensing terminal block in the ELTS cabinet.

3.

Connect the sensing wires to the Emergency sensing terminal block:

Connect phase A to terminal 1 (across from wire NA)

Connect phase C to terminal 5 (across from wire NC)

Note: On single phase (three wire) systems, connect phase B to terminal 5.

Emergency Lighting Transfer System User Manual 15

Closed start signal 1

G1

2

Always connected

3

G2

4

Open start signal

5

G3

6

Figure 13: Connections for Engine/generator starting wires

Remote 1

Remote 2

Remote 3

Remote 4

Remote 5

1

2

3

4

5

R1

R2

R3

R4

R5

6

Figure 14: Connections for Remote stations

Connecting the Engine/generator starting wires

The ELTS system can provide both normally open and normally closed starting circuits for engine generator activation.

1.

Connect two wires to the terminals of your engine/generator starting circuit.

Note: Consult your generator installation manual for start signal wiring information.

2.

Pull the wires through the conduit to the engine/generator start terminal block.

3.

Connect one of the starting wires to terminal 3 (across from wire G2).

4.

Connect the other starting wire to terminal 1 or 5:

For a closed start signal, connect the wires to terminal 1 (across from wire G1)

For an open start signal, connect the wires to terminal 5 (across from wire G3)

Connecting Remote stations to the ELTS

You can connect up to 10 Remote stations to the ELTS with parallel wiring. For

Remote station installation instructions see page 11.

1.

Pull the Remote station wires the Remote station terminal.

2.

Connect the Remote wire 1 (Common) to terminal 1

(across from wire R1).

3.

Connect the Remote wire 2 (Emergency Select) to terminal 4

(across from wire R2).

4.

Connect the Remote wire 3 (Normal Select) to terminal 5

(across from wire R3).

5.

Connect the Remote wire 4 (Normal indicator LED) to terminal 2

(across from wire R4).

6.

Connect the Remote wire 5 (Emergency indicator LED) to terminal 3

(across from wire R5).

16 Electronic Theatre Controls, Inc.

Remove Fire alarm shorting wire and install

Fire alarm circuit wires in terminals

1 and 2

2

3

1

F1

F2

2

1

A1

A2

Remove Aux. shorting wire and install Aux. circuit wires in terminals 1 and 2

3

Figure 15: Connecting fire alarm and auxiliary circuit wires

Connecting fire alarm activation

You can connect your ELTS to your fire alarm system so it switches to

Emergency when the alarm is triggered. Your fire alarm system must be able to provide an open signal when it activates.

1.

Connect two wires to the terminals of your fire alarm activation circuit.

2.

Pull the wires through the conduit to the fire alarm terminal block.

3.

Remove the shorting wire between terminal 1 and terminal 2.

4.

Connect one wire to terminal 1 (across from wire F1).

5.

Connect the other wire to terminal 2 (across from wire F2).

Note: If you do not use the fire alarm activation feature, leave the shorting wire in place or the ELTS will not operate properly.

Connecting auxiliary activation

You can connect your ELTS to an auxiliary circuit so it switches to Emergency when the circuit is triggered. Your auxiliary circuit must provide an open signal when it activates.

1.

Connect two wires to the terminals of your auxiliary circuit.

2.

Pull the wires through the conduit to the auxiliary terminal block.

3.

Remove the shorting wire between terminal 1 and terminal 2.

4.

Connect one wire to terminal 1 (across from wire A1).

5.

Connect the other wire to terminal 2 (across from wire A2).

Note: If you do not use the auxiliary activation feature, leave the shorting wire in place or the ELTS will not operate properly.

Emergency Lighting Transfer System User Manual 17

18

Testing

Before you power up for the first time

Checking transfer switch operation manually

By checking transfer switch manual operation before you apply power, you reduce the possibility of failure caused by mechanically frozen, damaged or obstructed switches. Each switch should rotate without catching or binding.

Warning! Normal and Emergency power should be off when you open the ELTS cabinet for to check switch operation. Opening the cabinet with power applied exposes you to death or injury from electrical shock.

1.

Open the ELTS cabinet.

Warning! Rotating the transfer switch assemblies manually with Normal or Emergency power applied may result in the assemblies switching automatically, causing severe hand injuries.

2.

Turn the manual operation handle 90

° clockwise. E (Emergency) should be visible on the assembly about 1.5 inches above the handle.

3.

Rotate the handle 180

° counter-clockwise. N (normal) should be visible.

Note: If you have difficulty operating the switch, check for installation debris that may be blocking switch operation.

4.

Repeat steps 2 and 3 with the remaining transfer switch assemblies.

Turn on system

Voltage checkout

1.

Apply power to the ELTS and connected dimmer rack at the main circuit breaker. The green Normal LED lights.

2.

Apply emergency power. The red Emergency light turns on.

Warning! ELTS voltage tests should only be performed by qualified personnel using EXTREME caution. Opening the cabinet with power applied exposes you to death or injury from electrical shock.

3.

Open the ELTS cabinet.

4.

Use a digital voltmeter (DVM) to test the feed voltage at the Normal power sensing terminal block (Figure 12 on page 15 for location). Phase A is on terminal 1, phase B on terminal 3 and phase C on terminal 5. Voltage must be within

±10 percent of the rated voltage for the ELTS.

5.

Use the DVM to test the feed voltage at the Emergency power lugs.

Phase lugs are labeled either A, B or C. Voltage values must be within

±10 percent of the rated voltage for the ELTS.

6.

Close the ELTS cabinet.

Electronic Theatre Controls, Inc.

Functional checkout

After verifying the Normal and Emergency voltages, check the ELTS system functions.

Lights when

Emergency power is used

Lights when

Normal power is used

Keyswitch selects

ELTS preference between Normal and Emergency

Operational Current: 200A Max 3 Phase

Operational Voltage: 120/208v (3p+N+ )

Frequency: 50/60Hz.

Short-circuit current: 10,000 AIC

®

UL1008 Listed

Electronic Theatre Controls Inc.

Middleton, WI Made in USA

© ®

NORMAL

OPERATION

Electronic Theatre Controls Inc.

MODEL ELTS

AUTOMATIC TRANSFER SWITCH FOR EMERGENCY SYSTEMS

ISSUE NO. 934

EMERGENCY

OPERATION

NORMAL POWER

STABLE

EMERGENCY POWER

STABLE

GENERATOR

START

NORMAL

POWER

AUTO EMERGENCY

POWER

FIRE ALARM

TRANSFER SIGNAL

AUXILIARY

TRANSFER SIGNAL

Lit if Normal power is acceptable

Lit if Emergency power is acceptable

Lights when ELTS sends a Generator start signal

Lights when ELTS receives a fire alarm activation

Lights when ELTS receives a auxiliary activation

Figure 16: Local control operation and LED indications

Switch function

1.

Insert the key into the keyswitch on the front panel of the ELTS.

2.

Turn the key to EMERGENCY POWER. The red light above EMERGENCY

OPERATION turns on and the emergency loads go to full brightness. If

Emergency power is provided by an engine/generator, there will be a short delay as the generator turns on and the voltage and frequency stabilize.

3.

Release the key. The keyswitch returns to AUTO (center) and the

EMERGENCY OPERATION light remains on.

4.

Turn the key to the NORMAL POWER position. The green light below

NORMAL OPERATION turns on if the system is functioning correctly.

5.

Release the key. The keyswitch returns to AUTO and the NORMAL

OPERATION light remains on.

Remote switch functions

After confirming correct function of the keyswitch on the front of the ELTS cabinet, repeat the switch function checkout procedure at EVERY remote station installed on your system.

Emergency Lighting Transfer System User Manual 19

20

Automatic function

The automatic function tests the ELTS’s ability to switch back and forth from

Normal to Emergency when Normal power is interrupted or restored.

1.

Make sure the NORMAL OPERATION LED is lit on the ELTS front panel.

2.

Turn off the normal power to the dimmer rack connected to the ELTS. The

NORMAL OPERATION and NORMAL POWER STABLE LEDs on the

ELTS front panel goes out and the ELTS switches to Emergency power

(the EMERGENCY OPERATION and EMERGENCY POWER STABLE

LEDs light, and the emergency loads go to full brightness.) If Emergency power is provided by an engine/generator, there will be a short delay before switching as the generator turns on and the voltage and frequency stabilize.

3.

Turn the Normal power back on. The ELTS switches back to Normal power after the retransfer delay times out (the default setting is one minute). On the front of the ELTS, the EMERGENCY OPERATION and

EMERGENCY POWER STABLE LEDs turn off and the NORMAL

OPERATION and NORMAL POWER STABLE LEDs light. If used, the

Emergency power engine/generator turns off when the cool down time is complete.

Options function

ELTS systems can also be activated by fire alarm and auxiliary circuits. Both are operated by a normally closed circuit controlled by the fire alarm or auxiliary relays. When the fire alarm or auxiliary circuit activates, the relay opens, causing the ELTS to switch to Emergency power. To test option relay function, either:

Activate the fire alarm or auxiliary relay. The ELTS should switch to

Emergency power and the emergency loads should go to full.

If you do not wish to activate the fire alarm or auxiliary circuit, generate an open circuit at the ELTS connection to the fire alarm or auxiliary circuit by disconnecting one of the two wires to the ELTS cabinet. The ELTS will switch to Emergency power and the emergency loads should go to full.

Note: The second method tests the ELTS response to an open circuit, but does not confirm the fire alarm or auxiliary relay’s ability to open the circuit to the ELTS.

Electronic Theatre Controls, Inc.

Cover

Latch

Figure 17: Removing the control panel cover

Settings

ELTS timing settings

ELTS timing settings for momentary outage override, transfer to Emergency delay, return to Normal delay, and generator cool down are set at the factory.

You can adjust settings for specific applications any time after installation.

Caution: Only make changes to ELTS timing settings if you are familiar with the system and know the reason for making the change.

Table 3: ELTS timing settings

Delay type Default setting

1 second

Range

Momentary Outage override

Transfer to Emergency delay

0

0.5 - 6 seconds

0 - 60 seconds

0 - 8 minutes

Return to Normal delay 30 minutes 0

0.5 - 30 minutes

Generator cool down cycle

5 minutes 0 - 8 seconds

0.5 - 30 minutes

DIP Switch Adjustment

Pot.

P4

SW2 up

SW2 down

SW1 up

SW1 down

SW3 up

SW3 down

P2

P1

P3

Getting access to the ELTS control panel

To make adjustments, you must access the ELTS control panel.

1.

Disconnect Normal and Emergency power to the ELTS.

Warning! Opening the ELTS cabinet with power on may result in death or injury from electrical shock.

2.

Open the ELTS cabinet.

3.

Release the two latches on the control panel cover and remove it. See

Figure 17, left.

Potentiometer P1

SW1, SW2 and SW3

Potentiometer P3

Potentiometer P2

Potentiometer P4

Figure 18: Adjustment potentiometer and DIP switch locations

21 Emergency Lighting Transfer System User Manual

22

Changing the momentary outage override

The momentary outage override is the interval the ELTS will tolerate a Normal power voltage fault without switching to Emergency power. It can be set from

0.5 to 6 seconds using adjustment potentiometer P4.

1.

Follow the instructions on page 21 to remove the control panel cover.

2.

Locate P4 using Figure 18

: Adjustment potentiometer and DIP switch locations on page 21.

3.

Turn P4 clockwise to increase the interval or counterclockwise to decrease it. P4 has a 270

° adjustment range.

Note: Potentiometer adjustments change timing as a fractions of the adjustment range. For example, turning the pot half its range changes the timing value by 50%. You will need to use some trial and error and a timing device to achieve exact values.

Clockwise to increase

DIP switch in

Up position

SW 1 2 3

•1 •2 •3 •4

• • • •

DIP switch in

Down position

Figure 20: Setting DIP switches

Counterclockwise to decrease

Figure 19: Changing adjustment potentiometer settings

Changing the Transfer to Emergency delay

The Transfer to Emergency delay sets the time the ELTS waits before switching to Emergency after the Emergency power voltage and frequency stabilize. You can set the delay in two time ranges, from zero to 60 seconds or zero to 8 minutes, using DIP switch SW2 and adjustment potentiometer P2.

1.

Follow the instructions on page 21 to remove the control panel cover.

2.

Locate SW2 using Figure 18

: Adjustment potentiometer and DIP switch locations on page 21.

3.

To select the zero to 60 second adjustment range put SW2 up. To select the zero to 8 minute range, put SW2 down.

4.

Locate P2 using Figure 18

: Adjustment potentiometer and DIP switch locations on page 21.

5.

After setting the range, turn P2 clockwise to increase the interval or counterclockwise to decrease it. P2 has a 270

° adjustment range.

Electronic Theatre Controls, Inc.

Emergency Lighting Transfer System User Manual

Changing the Return to Normal delay

The Return to Normal delay sets the time the ELTS waits before switching from Emergency to Normal after Normal power is restored. The delay can be turned off, or set from 0.5 to 30 minutes using DIP switch SW1 and adjustment potentiometer P1.

Note:To disable the delay on a one-time basis (to quickly restart an interrupted performance or for testing purposes) switch the ELTS back to Normal with the front panel Local switch or a Remote keyswitch station.

1.

Follow the instructions on page 21 to remove the control panel cover.

2.

Locate SW1 using Figure 18 : Adjustment potentiometer and DIP switch locations on page 21.

3.

To turn off the delay put SW1 up. To set the range from 0.5 to 30 minutes, put SW1 down.

4.

If SW1 is down, locate P2 using Figure 18 : Adjustment potentiometer and

DIP switch locations on page 21.

5.

Turn P2 clockwise to increase the interval or counterclockwise to decrease it. P2 has a 270

° adjustment range.

Changing the Generator cool down interval

The Generator cool down interval sets the time the ELTS waits before shutting off the Emergency power generator after switching back to Normal power. It can be set from zero to 8 seconds or 0.5 to 30 minutes using DIP switch SW3 and adjustment potentiometer P3.

Caution: Consult your generator user manual for proper cool down times before changing the Generator cool down interval.

1.

Follow the instructions on page 21 to remove the control panel cover.

2.

Locate SW3 using Figure 18 : Adjustment potentiometer and DIP switch locations on page 21.

3.

To make the adjustment range zero to 8 seconds put SW3 up. To make the range 0.5 to 30 minutes, put SW3 down.

4.

Locate P3 using Figure 18 : Adjustment potentiometer and DIP switch locations on page 21.

5.

After setting the range, turn P3 clockwise to increase the interval or counterclockwise to decrease it. P3 has a 270

° adjustment range.

23

24

ELTS voltage and frequency settings

Voltage and frequency settings are set at the factory and should only be adjusted by an authorized ETC representative.

Caution: Indiscriminate changes to voltage and frequency sensing settings may affect normal operation of the ELTS and result in switching function failure.

Table 4: 120 volt ELTS voltage and frequency settings

Description

Normal source voltage pickup

Normal source voltage dropout

Emergency source voltage pickup

Factory setting Adjustment range

108 volts 102 – 120 volts

102 volts

108 volts

81 – 106 volts

102 – 120 volts

Emergency source voltage dropout 92 volts

Emergency source frequency pickup 57 hertz

Emergency source frequency dropout 50 hertz

No adjustment: 15% below pickup setting

57 – 60 hertz

No adjustment: 12% below pickup setting

Table 5: 277 volt ELTS voltage and frequency settings

Description

Normal source voltage pickup

Normal source voltage dropout

Emergency source voltage pickup

Factory setting Adjustment range

249 volts 235 - 277 volts

235 volts

249 volts

187 - 244 volts

235 – 277 volts

Emergency source voltage dropout 212 volts

Emergency source frequency pickup 57 hertz

Emergency source frequency dropout 50 hertz

No adjustment: 15% below pickup setting

57 – 60 hertz

No adjustment: 12% below pickup setting

Electronic Theatre Controls, Inc.

Operation

Automatic operation

During automatic operation the ELTS system switches back and forth from

Normal to Emergency when either power supply is interrupted or restored.

Lights when

Emergency power is used

Lit if Normal power is acceptable

Lights when

Normal power is used

Keyswitch selects

ELTS preference between Normal and Emergency

Operational Current: 200A Max 3 Phase

Operational Voltage: 120/208v (3p+N+ )

Frequency: 50/60Hz.

Short-circuit current: 10,000 AIC

®

UL1008 Listed

Electronic Theatre Controls Inc.

Middleton, WI Made in USA

©

®

NORMAL

OPERATION

NORMAL

POWER

Electronic Theatre Controls Inc.

MODEL ELTS

AUTOMATIC TRANSFER SWITCH FOR EMERGENCY SYSTEMS

ISSUE NO. 934

AUTO

Lit if Emergency power is acceptable

NORMAL POWER

STABLE

Lights when ELTS sends a Generator start signal

EMERGENCY POWER

STABLE

EMERGENCY

OPERATION

EMERGENCY

POWER

GENERATOR

START

FIRE ALARM

TRANSFER SIGNAL

Lights when ELTS receives a fire alarm activation

AUXILIARY

TRANSFER SIGNAL

Lights when ELTS receives a auxiliary activation

Figure 21: Local control LED indications

Selecting the preferred power source: Normal or Emergency

Using the local keyswitch on the front of the ELTS cabinet or a Remote keyswitch station installed in your facility, you can select either Normal or

Emergency as the preferred power source.

1.

Insert the key into the keyswitch and select the desired power source:

To select Normal power, turn the key left. The green NORMAL

OPERATION LED lights.

To select Emergency power, turn the key right. The red EMERGENCY

OPERATION LED lights and the emergency loads go to full. If Emergency power is provided by an engine/generator, there will be a short switching delay as the generator turns on and voltage and frequency stabilize.

2.

Release the key. The keyswitch returns to center and the indicator light you selected remains on. The ELTS uses the selected power source. If the selected source’s voltage or frequency drops below the limit, the ELTS will switch to the other source.

3.

When the voltage and frequency of the selected source returns to acceptable levels, the ELTS will switch back to it.

Remote Station

Remote Keyswitch station operation is identical to the local station. Refer to

Selecting the preferred power source: Normal or Emergency for instructions.

Fire alarm or Aux signal switching

If desired, the ELTS system can be activated by fire alarm or auxiliary circuits.

When the ELTS receives the fire alarm or auxiliary circuit activation, it will switch to Emergency power.

Note: If you have selected Emergency as the preferred power with either the

Local or Remote keyswitch, the ELTS will not switch power sources after receiving a fire alarm or auxiliary activation.

Emergency Lighting Transfer System User Manual 25

26

Switching power sources manually

If you need to switch the ELTS from one power source to another when the electronic switching circuits will not function (for example, if you needed to use either Normal or Emergency power, but the voltage or frequency was below the limit) you can set the transfer switch assemblies manually.

1.

Disconnect Normal AND Emergency power.

Warning! Turn off Normal and Emergency power to the ELTS at the main circuit breaker.Opening the cabinet with power applied exposes you to death or injury from electrical shock.

2.

Open the ELTS cabinet.

3.

Disconnect the large brown connector on the lower left side of the control panel.

Squeeze the release tabs on both sides of the socket together and pull the plug out

ASCO GROUP 9

CONTROL PANEL

Figure 22: Removing the control panel connector

Warning! Operating switch assemblies manually without disconnecting the control panel connector may result in the assemblies switching back automatically, causing severe hand injuries.

To switch from Normal to Emergency power: Turn the manual operation handle on the bottom of each transfer switch assembly 90

° clockwise.

E (Emergency) should be visible just above the handle.

To switch from Emergency to Normal: Turn the manual operation handle on the bottom of each transfer switch assembly 90

° counter-clockwise.

N (normal) should be visible just above the handle.

4.

Close the cabinet door and restore power to the ELTS.

Note: Do not plug the control panel connector back in until you want the ELTS to resume automatic operation.

Restoring automatic operation

1.

Disconnect Normal AND Emergency power.

Warning! Turn off Normal and Emergency power to the ELTS at the main circuit breaker.Opening the cabinet with power applied exposes you to death or injury from electrical shock.

2.

Open the ELTS cabinet.

3.

Reconnect the large brown connector on the lower left side of the control panel.

4.

Close the cabinet door and restore power to the ELTS.

Electronic Theatre Controls, Inc.

Service

Preventive maintenance

Regular testing and simple maintenance of your ELTS system will result in long service life and reliable performance. To assist in documenting your test and maintenance schedule, a blank

Test and Maintenance Log is included on page 35. We suggest you post a copy near your ELTS cabinet.

Warning! Turn off Normal and Emergency power to the ELTS at the main circuit breaker.Opening the cabinet with power applied exposes you to death or injury from electrical shock.

Warning! Rotating the transfer switch assemblies manually with Normal or Emergency power applied may result in the assemblies switching automatically, causing severe hand injuries.

Monthly testing

1.

Manually test the ELTS’s transfer function at the local keyswitch on the front of ELTS cabinet. See

Switch function on page 19 for keyswitch instructions and indications.

2.

Note the test results in the test and maintenance log.

Quarterly testing and maintenance

1.

Manually test the ELTS’s transfer function at the local keyswitch on the front of ELTS cabinet. See Switch function on page 19 for keyswitch instructions and indications.

2.

Test the ELTS Auto transfer function. See Automatic function on page 20 for automatic transfer instructions and indications.

3.

Visually inspect the ELTS cabinet for loose wires or component damage.

4.

Note the test results in the test and maintenance log.

Annual testing and maintenance

1.

Manually test the ELTS’s transfer function at the local keyswitch on the front of ELTS cabinet. See Switch function on page 19 for keyswitch instructions and indications.

2.

Test the ELTS Auto transfer function. See Automatic function on page 20 for automatic transfer instructions and indications.

3.

Visually inspect the ELTS cabinet for loose wires or component damage.

4.

Retighten ELTS phase, neutral and ground lugs using values in Table 1

:

Emergency power lug wire sizes and connection torques on page 12.

5.

Vacuum the ELTS cabinet to remove dust and debris that may have collected.

6.

Note the test results in the test and maintenance log.

Emergency Lighting Transfer System User Manual 27

28

Troubleshooting

If you have trouble with an installed ELTS system, you can contact ETC

Technical Service at 800/775-4382.

Warning! Trouble shooting usually involves opening the ELTS cabinet and metering voltages. Opening the ELTS cabinet with power applied exposes you to death or injury from electrical shock.

Use extreme caution during all troubleshooting activities.

Emergency or Normal Power Stable LED does not turn on properly

During normal operation, either the Normal Power Stable or Emergency

Power Stable LED should be lighted. If one or the other does not light, the problem may be with the LED, Normal or Emergency sensing wiring, or

Normal or Emergency power.

1.

Switch between Normal and Emergency power on the ELTS control panel keyswitch and observe the results. The ELTS should switch between

Normal and Emergency power.

The ELTS switches between Normal and Emergency

1. Check for loose LED wire connections or defective LEDs.

2. Make sure the Control Panel connector is properly seated.

The ELTS does not switch between Normal and Emergency. Go to the next ELTS troubleshooting section.

The ELTS will not switch between Normal and Emergency

If the system will not switch from Emergency power

1.

check for tripped Normal power sensing wire circuit breakers.

2.

If the circuit breakers are not tripped, meter Normal power using the procedures in

Voltage checkout on page 18.

If the system will not switch from Normal power

1.

Meter Emergency power using the procedures in

Voltage checkout on page 18.

2.

If no fire alarm or auxiliary circuits are connected to the ELTS, make sure the terminal jumpers are in place.

3.

If fire alarm or auxiliary circuits are connected, meter between the wires to be certain the circuit is closed. An open circuit switches the ELTS to

Emergency power.

If the system does not seem to function in either Normal or Emergency power mode

1.

Make sure the control panel connector is properly seated.

2.

Check other wire connections for loose terminals or broken wires.

3.

Use the procedures in

Checking transfer switch operation manually on page 18 to test the switching mechanism for mechanical problems.

Electronic Theatre Controls, Inc.

Remote stations cannot switch the ELTS

1.

Switch between Normal and Emergency power on the ELTS control panel keyswitch and observe the results.

If the ELTS does not switch locally

Follow the instructions in

The ELTS will not switch between Normal and

Emergency on page 28.

If the ELTS switches locally

Try switching the ELTS from other Remote station, if multiple stations have been installed

1.

If the other stations function, check the wire terminal connections on the problem station. See

Installing Remote stations (optional) on page 11 for station connection requirements.

2.

If the other stations do not function, or there is only one Remote station installed.

3.

Check the wire connections on the Remote station terminal block.

4.

Check the Remote station fuse in the ELTS cabinet

Remove this cover on the left side of the

Isolation relays to check the Remote station fuse

SR3B SR3B SR3B SR3B

Figure 23: Locating the Remote station fuse

5.

Inspect the wiring between the ELTS cabinet and the stations for defects.

See Connecting Remote stations to the ELTS on page 16 for ELTS connection requirements.

Some ELTS circuits do not switch when the system changes sources

Partial switching of ELTS circuits indicates one or more transfer switch assemblies, or the wiring to them, is defective.

1.

Use the procedures in

Checking transfer switch operation manually on page 18 to locate any transfer switch assemblies that have not switched and to manually test their function.

2.

If an assembly cannot be switched manually, check for something that could be physically obstructing it. If you find something, remove it and manually test the switch again. If you cannot find and remove the cause of the switching failure, the assembly is defective and must be replaced.

3.

If the assembly switches manually, check for loose wire connections to the assembly and look for damaged wires between the assembly and the control panel. Repair any wire problems you find and test the system.

Emergency Lighting Transfer System User Manual 29

30

Appendix A: ELTS specifications

Dimensions

Small cabinet: ELTS 450, ELTS 620, ELTS1220

36" x 30" x 9"

Large cabinet: ELTS 850, ELTS 1820, ELTS 2420

54" x 30" x 9"

Weight

ELTS 450, ELTS 620, ELTS1220 – 305 pounds

ELTS 850, ELTS 1820, ELTS 2420 – 370 pounds

Electrical

Operational voltage

120/240V single phase 250 amp maximum

120/208V three phase 175 amp maximum

277/480V three phase 175 amp maximum

Frequency: 50 – 60Hz

Short circuit current: 10 kA @ 120/240V

100,000 kA @ 277/480V

(5 kA with 50 amp circuit breakers)

Electrical Compliance

ANSI/UL 1008 – Listed, Automatic Transfer Switches

ANSI/NFPA 110 – Emergency and Standby Power Systems

ANSI/NFPA 70 – National Electric Code

Article 701 – Legally Required Standby Systems

Article 700 – Emergency Systems

Article 540 –11(c) – Motion Picture Houses

Article 520 – 7 – Theatres and Similar Locations

Article 518 – 3(c) – Places of Assembly

City of New York, Advisory board, Electrical Department

OSHA

Department of Defense

Environment

Ambient temperature between 32

° F and 104°F (0°C and 40°C)

Humidity between 30 and 95 percent (non-condensing)

Altitude below 6500 feet (2000 meters)

Electronic Theatre Controls, Inc.

Appendix B: Wire connection schematics and diagrams

Wire connection schematics and diagrams are included to help you understand the internal wiring of your ELTS system.

INCOMING POWER

1 2

ØA

3 4 1 2

ØB

3 4 1 2

ØC

3 4 1 2 3

N

4 5 6

A A A A B B B B C C C C N N N N N N N N N N N N

11 14 17 20 12 15 18 21 13 16 19 22 T1 T1 T1 T1 T1 T1 T2 T2 T2 T2 T2 T2

31 34 37 40 32 35 38 41 33 36 39 42 T3 T3 T3 T3 T3 T3 T4 T4 T4 T4 T4 T4

#12 WIRE

G

+

+

PS

10 9 8 7 6 5 4 3 2 1

3 F2 4 T9 6 2 EC EA NC NA

53 1 53 1 62 61 1 1 1

52 52 52 52

1

21

CP-PLUG

22 23 24

1

51

51

69

69

1

1

1

1

G3

EC

EA

20

17

G1

R4

R5

15

17

13

9

5

1

18

14

2

10

6

19 20

15

11

7

3

16

12

8

4

G2

18

NC

19

NB

NA

EA

1

1

51

69

1

51

69

CP9

CP10

CP11

CP12

CP13

CP14

CP15

CP1

CP2

CP3

CP4

CP5

CP6

CP7

CP8

CP16

CP17

CP18

CONTROL PANEL

3

4

8

4

10

10

10

9

6

7

7

5

TO CUSTOMER

REMOTE CONTROL

STATION (RC)

3

4

5

6

1

2

R1

R2

R3

R4

R5

FACTORY JUMPER

REMOVE

AS REQUIRED

TO CUSTOMER

FIRE ALARM CNTRL.

STATION (FA)

TO CUSTOMER

AUX. STATION

(AS)

TO ENGINE

GENERATOR

CONTROL

TO CUSTOMER

"NORMAL"

MAIN PANEL

TO CUSTOMER

"EMERGENCY"

BRANCH PANEL

2

3

1

F1

F2

T1

T1

T1

T1

T1

T1

T1

T4

TB1

TB2

TB3

TS11

TS29

TS30

TS10

TS12

7

8

5

6

9

3

4

1

2

G2

G3

R5

R4

1

18

16

15

2

3

1

A1

A2

3

4

1

2

5

6

G1

G2

G3

3

4

1

2

5

6

NA

NB

NC

4

5

6

1

2

3

EA

EC

7

8

5

6

3

4

1

2

9

10

11

12

TB

T1

T6

T7

T8

T9

T2

T3

T4

T5

T10

T11

T12

64

51

65

1

1

1

1

69

52

69

52

53

66

53

53

53

67

68

53

51

53

64

65

61

67

68

1

1

52

52

52

52

1

52

1

69

51

52

69

51

69

51

69

51

24VDC

FUSE

5

R1

66

1

51

2

63

9

53

7

6 3 5 2 4 1

62

9

64

11

6 3 5 2 4 1

63

11

1

T11

6 3 5 2 4 1

53

13

1

T12

6 3 5 2 4 1

CR1

B 9 8 7 A

14 10 6 6

67 63 51 63

CR2

B 9 8 7 A

10 8 6 6

68

62 66 62 64

CR3

B 9 8 7 A

F1 12 6 6

1 65 63 65

CR4

B 9 8 7 A

A1 12 6

1 64 64

61 63

R1 8

X2 X3

13 T5 3 4

65 1 51 51

1 62

T2 14

X4 X5

D1

X11

T6

1

D2

X12

R3

1

D3

X13

R2

1

31 12 29 11 10 30 13 32

TO LAMP

LOADS

LN6

LL6

LN5

LL5

LN4

LL4

LN3

LL3

LN2

LL2

LN1

LL1

16

TB

TS6

N

EN6 NN6

EL6 NL6

15

TB

TS5

N

EN5 NN5

EL5 NL5

14

TB

TS4

N

EN4 NN4

EL4 NL4

13

TB

TS3

N

EN3 NN3

EL3 NL3

12

TB

TS2

N

EN2 NN2

EL2 NL2

11

TB N

TS1

EN1 NN1

EL1 NL1

TB1

TRANSFER SWITCH

12 POLE

TB2

TB3

NORMAL

SOURCE

TB1

TB2

TB3

1

1

1

T2

T2

T2

31 12 29 11 10 30 13 32

TO LAMP

LOADS

LN6

LL6

LN5

LL5

LN4

LL4

LN3

LL3

LN2

LL2

LN1

LL1

22

21

TB

TB

N

TS112

N

TB

TS111

N

20

19

TS110

TB N

TB

TS9

N

18

17

TB

TS8

N

TS7

EN6 NN6

EL6 NL6

EN5 NN5

EL5 NL5

EN4 NN4

EL4 NL4

EN3 NN3

EL3 NL3

EN2 NN2

EL2 NL2

EN1 NN1

EL1 NL1

TB1

TRANSFER SWITCH

12 POLE

TB2

TB3

NORMAL

SOURCE

TB1

TB2

TB3

T1

T1

T1

T2

T2

T2

31 12 29 11 10 30 13 32 31 12 29 11 10 30 13 32

TO LAMP

LOADS

LN6

LL6

LN5

LL5

LN4

LL4

LN3

LL3

LN2

LL2

LN1

LL1

36

35

34

33

32

TB

TB

TB

TB

TB

N

TS18

N

TS17

N

TS16

N

TS15

N

TS14

EN6 NN6

EL6 NL6

EN5 NN5

EL5 NL5

EN4 NN4

EL4 NL4

EN3 NN3

EL3 NL3

EN2 NN2

EL2 NL2

31

TB N

TS13

EN1 NN1

EL1 NL1

TB1

TRANSFER SWITCH

12 POLE

TB2

TB3

NORMAL

SOURCE

TB1

TB2

TB3

T4

T2

T4

T2

T2

T4

TO LAMP

LOADS

BACKWALL

LN6

LL6

LN5

LL5

LN4

LL4

LN3

LL3

LN2

LL2

LN1

LL1

42

41

40

39

TB

TB

TB

TB

N

TS24

N

TS23

N

TS22

N

TS21

EN6 NN6

EL6 NL6

EN5 NN5

EL5 NL5

EN4 NN4

EL4 NL4

EN3 NN3

EL3 NL3

EN2 NN2

EL2 NL2

38

TB N

TS20

37

TB N

TS19

EN1 NN1

EL1 NL1

TB1

TRANSFER SWITCH

12 POLE

TB2

TB3

NORMAL

SOURCE

TB1

TB2

TB3

T3

T3

T3

1 63

T3 10

X6 X7

T4 7

1 62

T10

1

T1 T8 T7

1 1 1

52

19

52

20

1

1

52

17

A1 13 51 23 61 33 71 43 81

TR A2 14 52 24 62 34 72 44 82

EC EA NA

1

52

1 1

NC 16

1 1

Figure 24: ELTS cabinet wire connection location diagram

Emergency Lighting Transfer System User Manual 31

NORMAL POWER

STABLE

G T7 1

T6 4

EMERGENCY POWER

STABLE

G

T8

T6

1

1

3

GENERATOR

START

G

T10 1

T9 6

FIRE ALARM

TRANSFER SIGNAL

R T11 1

T9 7

5

AUXILIARY

TRANSFER SIGNAL

R T12 1

T9 1

6

Door panel schematic

TB

A

TB

B

TB

C

TB

A

TB

B

TB

#12 WIRE

TB

C A

TB

B

TB

C

TB

A

TB

B

TB

C

EMERGENCY

OPERATION

R

T5

T1

1

10

9

NORMAL

OPERATION

G

T4

T1 8

1

CB1

TS1

T1

CB2

TS2

T1

CB3

TS3

T1

CB4

TS4

T1

CB5

TS5

T1

CB6

TS6

CB7

TS7

CB8

TS8

T2

CB9

TS9

T2

CB10

TS10

T2

CB11

TS11

T2

CB12

TS12

T2 T1 T2

#12 WIRE

TB

A

TB

B

TB

C

TB

A

TB

B

TB

#12 WIRE

TB

C A

TB

B

TB

C

TB

A

TB

B

TB

C

8

1 T1

KEYSWITCH CIRCUIT

N

A

E

T2 1

T3 1

CB13

TS13

T3

CB14

TS14

T3

CB15

TS15

T3

CB16

TS16

T3

CB17

TS17

T3

CB18 CB19

TS18 TS19

T3 T4

#12 WIRE

CB20

TS20

T4

CB21

TS21

T4

CB22

TS22

T4

CB23

TS23

T4

CB24

TS24

T4

Breaker bracket schematic

Figure 25: ELTS door panel and breaker bracket wire connection schematics

TS1A

TS1B

13 11 31 29

T1

TB1 TB2 TB3

12 10 32 30

TS2A

TS2B

13 11 31 29

T2

TB1 TB2 TB3

12 10 32 30

TS3A

TS3B

13 11 31 29

T3

TB1 TB2 TB3

12 10 32 30

13 11 31 29

T4

TB1 TB2 TB3

12 10 32 30

TS12

TS10

TS30

TS29

TS11

TB3

TB2

TB1

TERMINAL BLOCK

8

7

TS12

TS10

6

5

4

3

2

1

TS30

TS29

TS11

TB3

TB2

TB1

FACTORY CONNECTIONS

TO CONTROL MODULE

SEE CONTROL SCHEMATIC DIAGRAM

Figure 26: Transfer switch assembly control wire connections schematic

32 Electronic Theatre Controls, Inc.

Appendix C: Transfer switch control system schematics

EXPLANATION:

CP

CR1- CR4

- CONTROL PANEL

- CONTROL RELAY

PS

TR

- POWER SUPPLY

- TRANSFER RELAY

PL1- PL7 - INDICATING LIGHT

D1- D3 - DIODE BLOCKS

SS

- SELECTOR SWITCH, KEY OPERATED

XX

S1

- TRANSFER SWITCH TERMINAL CONNECTION

- TERMINAL BLOCK

- CONNECTOR PLUG TO CONTROL PANEL

- CONNECTION POINT

FACTORY JUMPERS

REMOVE AS REQUIRED

NA

TR

52 51

20

TR

13 14

EA

208 VAC CKT.

FROM NORMAL MAIN PANEL

208 VAC CKT.

FROM EMERGENCY BRANCH PANEL

EC

TR

24 23

1

TR

61 62

S4

S2

S3

S1

THIS

DRAWING

S6

S5

NC

4 2

PS

1

+ 9

INTERNAL JUMPER

7 + 5 +

3

( 208 VAC INPUT )

DUAL INPUT POWER SUPPLY

( 24 Vdc OUTPUT ) 10 8 -

INTERNAL JUMPER

6 -

2 3 4

FIRE ALARM STATION (FA)

F2

F1

AUXILIARY STATION (AS)

A2

A1

LOCAL DIAGNOSTIC PNL. (LD)

AUX T12 AUXILIARY

TRANSFER SIGNAL

FIRE ALARM

TRANSFER SIGNAL

GENERATOR

START

R

R

FIRE

T11

G

GEN T10

T9

EMERG POWER

STABLE

NORMAL POWER

STABLE

G

E

G

N

T8

T7

T6

LOCAL CONTROL STATION (LC)

EMERG.

PL2

R

T5

NORM.

PL1

G

N A E

T4

T2

SS

(KEY OPER)

T3

T1

T5

T5

T4

T4

T2

T2

T3

T3

T1

T1

F2

F1

F2

F1

B

CR3

A

A2

A1

A1

T7

T6

T12

T12

T11

T11

T10

T10

T9

T9

T8

T8

T7

T6

B

CR4

A

CR4

1

CR3

7

1 7

X1

X10

REMOTE

CONTROL

STATION

FAULT

FUSE

JMPR

GND

CT16

TEST-NC

CT7

NR

CT12

TS

CT2

E-OK

CT18

N-OK

CT19

NR

TEST-EMG

CT8

TS-NORM

CT9

CP

TEST-NC

CT6

GND

CT3

MAN-X

CT4

BYPASS

CT10

DELAY

CT14

GND

CT15

INHIBIT

CT11

ET-NC

CT1

+24VDC

CT17

JMPR

7

4

CR1

13

CR4

6 9

12

CR3

11

CR2

9 6 1 7

7

X11

D1

X2

X6

D3

X13

X4

D2

X12

X3

8

CR2

9 6

9

CR1

3 9

10

B

CR2

A

X7

X5

14

B

CR1

A

6

FIRE ALARM

ISOLATION RELAY

AUX. STATION

ISOLATION RELAY

TRANSFER

MANUAL RELAY

RETRANSFER

MANUAL RELAY

REMOTE CONTROL STATION (RC)

R5

R

E

G

N

R4

E

R2

N

R3

R1

R5

R5

R2

R3

R1

R4

R4

R2

R3

R1

THIS

DRAWING

S2

THIS

DRAWING

S6

FROM NORMAL MAIN PANEL

TO

ENGINE-GENERATOR

CONTROL

NORMALLY

CLOSED CONTACT

ENGINE-GEN.

START-RUN

COMMAND

NORMALLY

OPEN CONTACTS

NB

G1

G2

G3

NB

G1

G2

G3

TS12

TS10

TS30

FACTORY CONNECTION

TO TRANSFER SWITCH(ES)

SEE TRANSFER SWITCH

SCHEMATIC DIAGRAM

TS29

TS11

TB3

TB2

TB1

1

THIS

DRAWING

S3

THIS

DRAWING

S5

16

S1

THIS

DRAWING

THIS

DRAWING

S4

CONTROL PANEL

NA

CP12 NA SENSE

NC

CP4 NC SENSE

CP13 TS-NO

CP14 TS-NC

CP11 NB SENSE

NR

CP17

CP8

CP9

NR

EA

A2

TR

A1

19

EC

15

TR

34 33

17

18

20

CP7 EA SENSE

SE

CP5

CP15

CP16

ER SE

CP6 EC SENSE

CP10 TS-COM

ER

CP1

SE

SE

CP3

CP2

Emergency Lighting Transfer System User Manual 33

34

Appendix D: Transfer switch load switching schematic

EMERG. SOURCE

CIRCUIT 1

EMERG. SOURCE

CIRCUIT 2

EMERG. SOURCE

CIRCUIT 3

EMERG. SOURCE

CIRCUIT 4

EMERG. SOURCE

CIRCUIT 5

EMERG. SOURCE

CIRCUIT 6

#12

ØA

CB1

20A

N

#12

ØB

CB2

20A

N

#12

ØC

CB3

20A

N

#12

ØA

CB4

20A

N

#12

ØB

CB5

20A

N

#12

ØC

CB6

20A

N

TS1 TS2 TS3 TS4 TS5 TS6

-

AC1

REC

+

LOAD

CIRCUIT 1

LL1 LN1

LOAD

CIRCUIT 2

LL2 LN2

LOAD

CIRCUIT 3

LL3 LN3

LOAD

CIRCUIT 4

LL4 LN4

LOAD

CIRCUIT 5

LL5 LN5

#12 WIRE

LOAD

CIRCUIT 6

LL6 LN6

71

72

TB1

AC2

TS1

A

B

CKT

COIL

9

8

TB2

70

69

TB3

6

7

E E

L L

N N

NL1 NN1

NORMAL SOURCE

CIRCUIT 1

EMERG. SOURCE

CIRCUIT 7

E E

L L

N N

NL2 NN2

NORMAL SOURCE

CIRCUIT 2

EMERG. SOURCE

CIRCUIT 8

E E E E

L L L L

N N N N

NL3 NN3

NORMAL SOURCE

CIRCUIT 3

NL4 NN4

NORMAL SOURCE

CIRCUIT 4

12 POLE UNIT

EMERG. SOURCE

CIRCUIT 9

EMERG. SOURCE

CIRCUIT 10

E E

L L

N N

NL5 NN5

NORMAL SOURCE

CIRCUIT 5

EMERG. SOURCE

CIRCUIT 11

E E

L L

N N

NL6 NN6

NORMAL SOURCE

CIRCUIT 6

EMERG. SOURCE

CIRCUIT 12

31

32

13

12

TS1

29

TS1

30

11

TS1

10

-

71

AC1

REC

+

AC2

TS1

A

B CKT

COIL

9 70 6

72 8

TB1 TB2

69

TB3

#12

TS7

ØA

CB7

20A

N

LL7

#12

ØB

CB8

20A

N

TS8

LOAD

CIRCUIT 7

LN7 LL8

#12

ØC

CB9

20A

N

TS9

LOAD

CIRCUIT 8

LN8 LL9

#12

ØA

CB10

20A

N

TS10

LOAD

CIRCUIT 9

LN9

#12

ØB

CB11

20A

N

TS11

LOAD

CIRCUIT 10

LL10 LN10

#12

ØC

CB12

20A

N

TS12

LOAD

CIRCUIT 11

LL11 LN11

#12 WIRE

LOAD

CIRCUIT 12

LL12 LN12

7

E E

L L

N N

NL7 NN7

NORMAL SOURCE

CIRCUIT 7

E E

L L

N N

NL8 NN8

NORMAL SOURCE

CIRCUIT 8

E E E E

L L L L

N N N N

NL9

NORMAL SOURCE

CIRCUIT 9

NN9 NL10

NORMAL SOURCE

CIRCUIT 10

12 POLE UNIT

NN10

E E

L L

N N

NL11 NN11

NORMAL SOURCE

CIRCUIT 11

E E

L L

N N

NL12 NN12

NORMAL SOURCE

CIRCUIT 12

EMERG. SOURCE

CIRCUIT 13

EMERG. SOURCE

CIRCUIT 14

EMERG. SOURCE

CIRCUIT 15

EMERG. SOURCE

CIRCUIT 15

EMERG. SOURCE

CIRCUIT 16

EMERG. SOURCE

CIRCUIT 17

31

32

13

12

29

TS2

30

11

TS2

10

TS2

-

AC1

71

AC2

TS1

A

B CKT

COIL

9 70 6

72 8

TB1 TB2

REC

+

69

TB3

#12

ØA

CB13

20A

N

TS13

#12

ØB

CB14

20A

N

TS14

LOAD

CIRCUIT 13

LL13 LN13

#12

ØC

CB15

20A

N

TS15

LOAD

CIRCUIT 14

LL14 LN14

#12

ØA

CB15

20A

N

TS15

LOAD

CIRCUIT 15

LL15 LN15

#12

TS16

LOAD

CIRCUIT 16

LL16 LN16

ØB

CB16

20A

N

#12

ØC

CB17

20A

N

TS17

LOAD

CIRCUIT 17

LL17 LN17

#12 WIRE

LOAD

CIRCUIT 18

LL18 LN18

7

E E

L L

N N

NL13 NN13

NORMAL SOURCE

CIRCUIT 13

E E

L L

N N

NL14 NN14

NORMAL SOURCE

CIRCUIT 14

E E E E

L L L L

N N N N

NL14 NN14

NORMAL SOURCE

CIRCUIT 14

NL15 NN15

NORMAL SOURCE

CIRCUIT 15

12 POLE UNIT

E E

L L

N N

NL16 NN16

NORMAL SOURCE

CIRCUIT 16

E E

L L

N N

NL17 NN17

NORMAL SOURCE

CIRCUIT 17

EMERG. SOURCE

CIRCUIT 19

EMERG. SOURCE

CIRCUIT 20

EMERG. SOURCE

CIRCUIT 21

EMERG. SOURCE

CIRCUIT 22

EMERG. SOURCE

CIRCUIT 23

EMERG. SOURCE

CIRCUIT 24

31

32

13

12

TS3

29

TS3

30

11

TS3

10

AC1

REC

+

71

AC2

TS1

A

B CKT

COIL

9 70 6

72

TB1

8

TB2

69

TB3

#12

ØA

CB19

20A

N

TS19

#12

TS20

LOAD

CIRCUIT 19

LL19 LN19

ØB

CB20

20A

N

#12

ØC

CB21

20A

N

TS21

LOAD

CIRCUIT 20

LL20 LN20

#12

ØA

CB22

20A

N

TS22

LOAD

CIRCUIT 21

LL21 LN21 LL22

#12

ØB

CB23

20A

N

TS23

LOAD

CIRCUIT 22

LN22

#12

ØC

CB24

20A

N

TS24

LOAD

CIRCUIT 23

LL23 LN23

#12 WIRE

LOAD

CIRCUIT 24

LL24 LN24

7

E E

L L

N N

NL19

NN19

NORMAL SOURCE

CIRCUIT 19

E E

L L

N N

NL20 NN20

NORMAL SOURCE

CIRCUIT 20

E E E E

L L L L

N N N N

NL21

NORMAL SOURCE

CIRCUIT 21

NN21 NL22

NORMAL SOURCE

CIRCUIT 22

12 POLE UNIT

NN22

E E

L L

N N

NL23 NN23

NORMAL SOURCE

CIRCUIT 23

E E

L L

N N

NL24 NN24

NORMAL SOURCE

CIRCUIT 24

31

32

13

12

TS4

29

TS41

30

11

TS4

10

Electronic Theatre Controls, Inc.

Date

Appendix E: Test and Maintenance Log

Date installed ___________________________________________

System address _________________________________________

________________________________________________________

Service contact __________________________________________

Inspected by Manual transfer Automatic transfer Visual inspection Vacuumed

Emergency Lighting Transfer System User Manual 35

Electronic Theatre Controls

North America

3030 Laura Lane

Europe

5 Victoria Industrial Estate • Victoria Road

Middleton, Wisconsin 53562 • USA London W3 6UU • England

Tel: (+1) 608 831 4116 • Fax: (+1) 608 836 1736 Tel: (+44) 181 896 1000 • Fax: (+44) 181 896 2000

World Wide Web: http://www.etcconnect.com • Email: [email protected]

Asia

Room 1619-20 • 16/F Metro Centre II • 21 Lam Hing Street

Kowloon Bay • Hong Kong

Tel: (+852) 2799 1220 • Fax: (+852) 2799 9325

Copyright ©1997 revised 8/97 Specifications subject to change. 1093M1101

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
