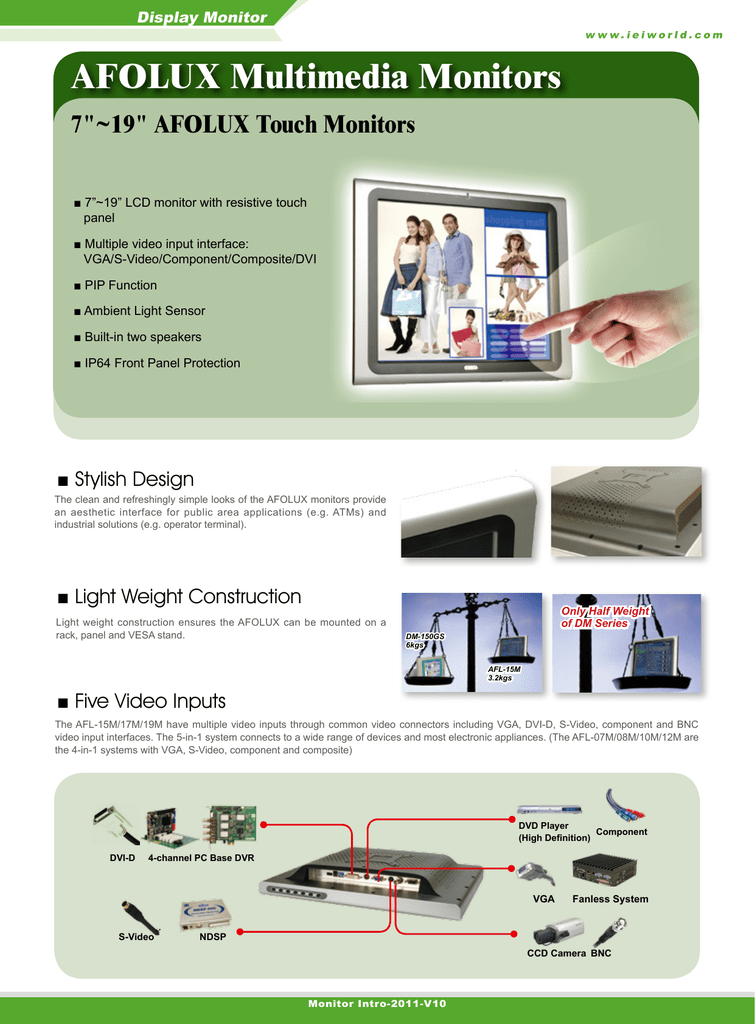

AFL-07M

Display Monitor
w w w.ieiworld.com
AFOLUX Multimedia Monitors
7"~19" AFOLUX Touch Monitors
■ 7”~19” LCD monitor with resistive touch
panel
■ Multiple video input interface:
VGA/S-Video/Component/Composite/DVI
■ PIP Function
■ Ambient Light Sensor
■ Built-in two speakers
■ IP64 Front Panel Protection
■ Stylish Design
The clean and refreshingly simple looks of the AFOLUX monitors provide
an aesthetic interface for public area applications (e.g. ATMs) and
industrial solutions (e.g. operator terminal).
■ Light Weight Construction
Light weight construction ensures the AFOLUX can be mounted on a
rack, panel and VESA stand.
Only Half Weight
of DM Series
DM-150GS
6kgs
AFL-15M
3.2kgs
■ Five Video Inputs
The AFL-15M/17M/19M have multiple video inputs through common video connectors including VGA, DVI-D, S-Video, component and BNC
video input interfaces. The 5-in-1 system connects to a wide range of devices and most electronic appliances. (The AFL-07M/08M/10M/12M are
the 4-in-1 systems with VGA, S-Video, component and composite)
DVD Player
Component
(High Definition)
DVI-D
4-channel PC Base DVR
VGA
S-Video
Fanless System
NDSP
CCD Camera BNC
Monitor Intro-2011-V10
Display Monitor
w w w.ieiworld.com
■ PIP Function
PIP enables a second video/image to be viewed in a small on-screen window. Images from other sources including DVR and DVD devices can
also be viewed in the PIP window.
The small onscreen window can be easily resized and moved to a specified onscreen location. Alternatively, “picture-outside-picture” (POP) can
be implemented by dividing the screen into two equally sized portions with two different outputs being displayed on either screen.
Main screen and sub screen can’t display BNC/S-Video or VGA/YPbPr inputs at the same time
PIP Settings :
Three sizes including small, medium and large
Four positions including upper left, lower left, upper right
and lower right.
Independent PIP widow color controls (brightness,
contrast, hue and saturation)
A blend function makes the PIP transparent
Picture In Picture
(Video on Video)
Side by Side
(Video & Video)
■ Remote Control for OSD Function
Hot-keys on the remote control include PIP zone, main source setting, autodimming, brightness, contrast and volume. Remote control hot-keys ensure easy
configuration of the AFOLUX.
Picture In Picture
(Video on Graphics)
Side by Side
(Video & Graphics)
LCD ON/OFF
Auto Dimming
Main Source
Setting
OK
Autoadjustment/Exit
PIP Zone
Brightness
■ Full OSD Function
Contrast
Integrated OSD functions under the front panel enables convenient monitor
configuration. Image, display ,PIP, color and system configurations can all be set
with the hidden OSD.
System
Mute
Volume
Color
Right
Left
Auto
LCD ON/OFF
PIP
MENU
UP
Down
OSD Keypad is designed for AFL-15M/17M/19M
Display
■ Ambient Light Sensor
The AFOLUX 15M, 17M and 19M models come with an amient light (ALS) to ensure your
monitor performing optimally in all lighting conditions.
The ALS can be turned on or off according to the user's preference and the operational
environment. Some of the ALS benefits include:
Reduces cost of operation by reducing the power usage
Extends backlight life
Provides comfortable viewing
- Higher Ambient Illuminance
- Lower Ambient Illuminance
ALS is placed on the front side, where there is an opening for light
Applications
Interactive digital signage
Digital menu boards in numerous restaurants
Monitor Intro-2011-V10
Video gaming machines in bars and casinos
Display Monitor
w w w.ieiworld.com
Specifications
Model
LCD Size
Input Interface
AFL-07M
AFL-08MH
AFL-10M
AFL-12M
7"
8.4"
10.4"
12.1"
AFL-15M
AFL-15ME
AFL-17M
AFL-19M
AFL-W19M
15"
15"
17"
19"
19" (16:10)
1. BNC Connector (NTSC/PAL)
2. YPbPr
3. S-Video
4. VGA
5. DVI
1. Composite (NTSC/PAL)
2. YPbPr
3. S-Video
4. VGA
Analog VGA +
DVI-D
800 x 480
(WVGA)
800 x 600
(SVGA)
800 x 600
(SVGA)
1024 x 768
(XGA)
1024 x 768
(XGA)
1024 x 768
(XGA)
1280 x 1024
(SXGA)
1280 x 1024
(SXGA)
1440 x 900
(WXGA+ )
500
450
400
600
350
250
380
450
300
Contrast Ratio
400:1
600:1
700:1
700:1
700:1
700:1
1000:1
1000:1
1000:1
Display Color
262K
262K
262K
262K
262K
16.2M
16.7M
16.7M
16.7M
0.1905
0.213
0.264
0.24
0.297
0.297
0.264
0.294
0.2835
Viewing Angle
(H/V)
140º / 130º
160º / 140º
160º / 140º
160º / 140º
140º / 125º
170º / 160º
170º / 160º
170º / 160º
170º / 160º
Touch Screen
Resistive Type 4-Wire (touch
controller IC is on board)
Max. Resolution
Brightness (cd/m²)
Pixel Pitch (mm)
Resistive Type 5-Wire (touch controller IC is on board)
Front Frame
ABS and PC Plastic front frame
Chassis
Aluminum Chassis
Input Voltage
12VDC
OSD Function
1. OSD Keypad below the Front Panel
2. Remote Control for OSD Functions
Remote Control for OSD Functions
Smart-OSD
Mounting
YES
Panel / Wall mounting
(VESA 75 x 75mm)
Color
Dimensions
(W x H x D mm)
9-36VDC
Panel / Wall mounting
(VESA 75 x 75mm / 100 x 100mm)
Wall mounting
(VESA 100 x 100mm)
Gray 7539U
226 x 140 x 40
234 x 184 x 41
Sliver (877U) & Gray (ABSA2037)
276 x 227 x 51
304 x 246 x 50
393 x 308 x 61
Operating
Temperature
0°C~+50°C
Front Panel
Protection
IP 64 Compliant
Net Weight
0.88 Kg
Power Adapter
1.14 Kg
1.33 Kg
2.12 Kg
428 x 350 x 65
470 x 382 x 67
475 x 332 x 65
5.0 Kg
5.6 Kg
6.0 Kg
3.2 Kg
36W, 63000-FSP036RAB610-RS
Block C
60W, 63000-FSP060DBAB1553-RS
7"~12.1" AFOLUX Monitor
15"~19" AFOLUX Monitor
4-in-1 Multiple Video Input System
5-in-1 Multiple Video Input System (DVI-D Added)
Standard VESA mounting
Standard VESA Mounting
Speaker
DVI-D
Audio (Line in)
12V DC IN
12V DC Input
USB for Touch screen
(Option)
OSD KEY PAD
S-Video
VGA
Component
Composite
RS-232 for Touch screen
Audio (Line in)
Component
VGA
USB for Touch screen
S-Video
Speaker
BNC
VESA 100
AFOLUX 19" Wide WXGA + Touch Monitor
OSD Keypad
9~36V DC Input
(Optional)
Monitor Intro-2011-V11
12V DC
Power Jack
VGA
Audio In
DVI-D
RS-232 for Touch
screen(Option)
Display Monitor
w w w.ieiworld.com
AFL-07M
Dimensions (Unit: mm)
AFL-08M
Dimensions (Unit: mm)
AFL-10M
Dimensions (Unit: mm)
AFL-12M
Dimensions (Unit: mm)
Monitor Intro-2011-V10
Display Monitor
w w w.ieiworld.com
AFL-15M
Dimensions (Unit: mm)
AFL-17M
Dimensions (Unit: mm)
AFL-19M
Dimensions (Unit: mm)
AFL-W19M
Dimensions (Unit: mm)
Monitor Intro-2011-V10
Display Monitor
w w w.ieiworld.com
Options
Model
AFL-07M
Panel Mounting Kits
AFL-08MH
AFL-10M
AFLPK-08
AFL-12M
AFLPK-12
Wall Mounting Kits
AFL-15M
AFL-17M
AFL-19M
AFL-W19M
AFLPK-15
AFLPK-17
AFLPK-19
AFLPK-W19B
AFLWK-12
Rack Mounting Kits
AFLRK-07
LCD Monitor Stand
AFLRK-08
STAND-A08/STAND-100-RS
VSTAND
VSTAND-A07
AFLRK-10
AFLWK-19
AFLRK-12
AFLRK-15-R11
STAND-A12/STAND-100-RS
VSTAND-A10
DC to DC Converter Module
AFLRK-17-R11
N/A
STAND-A19/STAND-B19/STAND-210-R11
VSTAND-A12
N/A
IDD-930160-KIT
Ordering Information
Part NO
Description
AFL-07M/R-R20
7" 500cd/m² WVGA LCD monitor, plastic front panel, gray color, with 7" RS-232 and USB touch screen R20, RoHS
AFL-08MH/R-R20
8.4" 450cd/m² SVGA LCD monitor, plastic front panel, gray color, with 8.4" RS-232 and USB touch screen R20, RoHS
AFL-10M/R-R20
10.4” 400cd/m² SVGA LCD monitor, plastic front panel, gray color, With 10.4” RS-232 and USB touch screen R20, RoHS
AFL-12M/R-R20
12.1” 600cd/m² XGA LCD monitor, plastic front panel, gray color, With 12.1” RS-232 and USB touch screen R20, RoHS
AFL-15M/R-R20
15" 350cd/m² XGA LCD monitor, plastic front panel, gray color, with 15" RS-232 touch screen R20, RoHS
AFL-15ME/R-R20
15" 250cd/m² XGA LCD monitor,plastic front panel,gray color,with 15" RS-232 touch screen R20, RoHS
AFL-15M-USB/R-R20
15" 350cd/m² XGA LCD monitor, plastic front panel, gray color, with 15" USB touch screen R20, RoHS
AFL-15ME-USB/R-R20
15" 250cd/m² XGA LCD monitor, plastic front panel,gray color,with 15" USB touch screen R20,RoHS
AFL-17M/R-R20
17” 380cd/m² SXGA LCD monitor, plastic front panel, gray color, With 17” RS-232 touch screen R20, RoHS
AFL-17M-USB/R-R20
17” 380cd/m² SXGA LCD monitor, plastic front panel, gray color, With 17” USB touch screen R20, RoHS
AFL-19M/R-R20
19” 450cd/m² SXGA LCD monitor, plastic front panel, gray color, With 19” RS-232 touch screen R20, RoHS
AFL-19M-USB/R-R20
19” 450cd/m² SXGA LCD monitor, plastic front panel, gray color, With 19” USB touch screen R20, RoHS
AFL-W19M/R-R20
19" 300cd/m² WXGA+ Widescreen LCD monitor with VGA and DVI-D input, with 19" RS-232 and USB touch screen, plastic front panel, R20, RoHS
AFL-W19MM/R-R20
19" 300cd/m² WXGA+ Widescreen LCD monitor with VGA and DVI-D input, 9~36V DC input, with 19" RS-232 and USB touch screen, plastic, front panel, R20,
RoHS
Packing List
Description
Part No.
Remark
1 x AC power cable
32000-089900-RS
Length: 1800mm
(EU or US, Which type of cord is shipped
depends on the contry)
1 x VGA cable
32000-036200-RS
Length: 1800mm
1 x DVI cable
32000-086600-RS
Length: 1800mm
For AFL-15M / 17M / 19M-R20
1 x Audio Cable
32007-001600-100-RS
Length: 1800mm
1 x Component Cable
32010-000300-100-RS
Length:150mm
1 x Component Extend Cable
32000-132800-RS
Length: 1800mm
1 x 36W AC power adapter
63000-FSP036RAB610-RS
For AFL-07M / 08M / 10M / 12M-R20 series
Operating Temperature : 0ºC~ +40ºC
1 x 60W AC Power Adapter
63000-FSP060DBAB1553-RS
For AFL-15M / 17M / 19M / W19M-R20
series
Operating Temperature : 0ºC~ +40ºC
Touch Pen
Remote Control
1 x User manual
1 x Remote Control
7Z000-8T00322ICP01G-RS
1 x Touch Pen
43125-0002C0-RS
1 x Touch screen RS-232 Cable /
USB Cable / Driver CDROM
Length: 1800mm
RS-232 Cable:32005-001100-100-RS Length: 1500mm
USB Cable: 32001-006100-100-RS
(For AFL-07M~12M and AFL-15M~W19M
USB model)
Component Extension Cable Component Cable
Optional 60W DC/DC Converter Module Spec. (P/N:IDD-930160-KIT)
Input Voltage
9~30VDC
Input Current
Max. 8A at 6VDC
Output
12V@5A
Max. Total Output
60W
Performance Characteristics
Noise & ±Ripple:<320mV, Line Regulation: <120mV , Load Regulation: <120mV
Transient toggle rate
250Hz (50% duty ratio)
Transient current step
From 0% to 50% and 50% to 100% of max current
Efficiency
typ. 95% (Vin=12V, 80% of full load)
Dimensions
42mm x 103mm x 31mm
Mounting Kit
12mm x 80mm
Cable Length
180cm
Operating Temperature
-40°C~85°C
IDD-930160-KIT
60 W DC/DC converter module can be
easily mounted in the vehicle equipment to
supply DC power source.
IDD-930160KIT(Optional)
Monitor Intro-2011-V12
