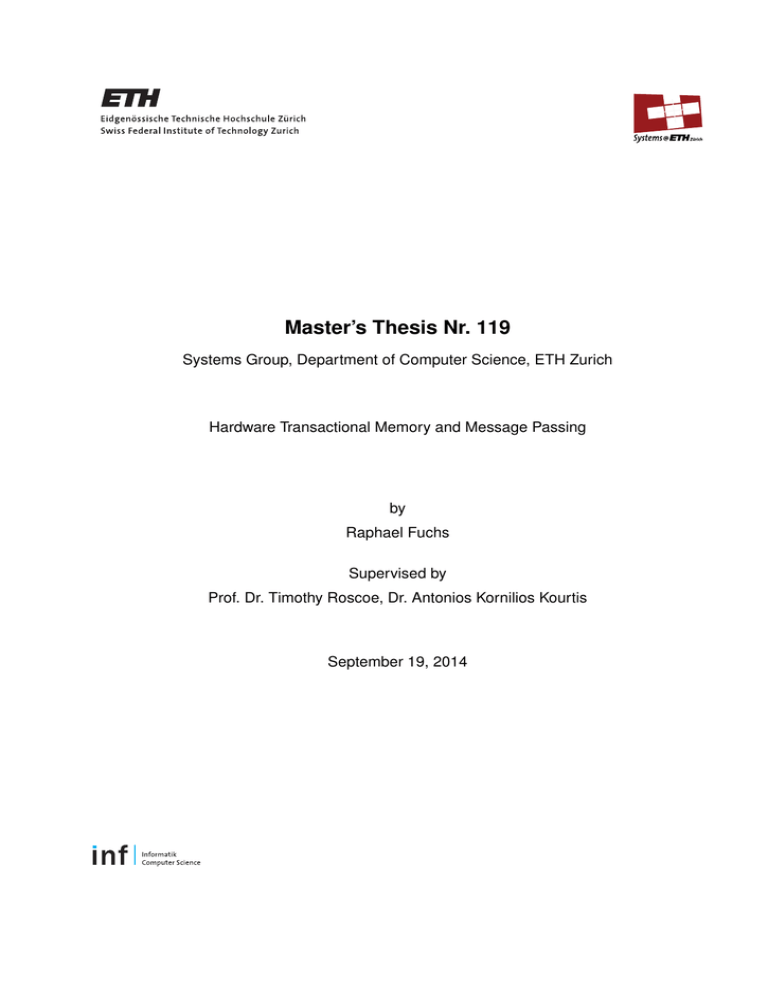

Master’s Thesis Nr. 119

Systems Group, Department of Computer Science, ETH Zurich

Hardware Transactional Memory and Message Passing by

Raphael Fuchs

Supervised by

Prof. Dr. Timothy Roscoe, Dr. Antonios Kornilios Kourtis

September 19, 2014

Abstract

Message passing has gained increased adoption. It is an integral part of programming languages like Erlang and Go, the de-facto standard on large-scale clusters, and the basic means of communication in the Barrelfish operating system.

This thesis focuses on point-to-point, inter-core message passing between two processes running in parallel and within a cache-coherency domain. State-of-the-art communication in such a scenario bypasses the kernel and relies on shared memory for message transfer, therefore providing high bandwidth communication. However, low-latency is only achieved if the receiver is constantly polling, which wastes processor cycles that are better spent on application processing.

We describe a simple hardware mechanism, alert-on-update, that, inspired by hardware transactional memory, monitors multiple memory locations and triggers a control transfer upon modification. This mechanism enables the sender to notify the receiver of a new message and, in turn, frees the receiver from constant polling.

We integrate alert-on-update into Barrelfish’s message passing framework and describe the support needed from the operating system. Using full-system simulation, the evaluation shows that our solution outperforms polling at regular intervals with message latencies up to several orders of magnitude lower and, on top of that, provides a cleaner programming construct.

Acknowledgments

First and foremost, I would like to thank Timothy Roscoe and Kornilios Kourtis for their support and guidance. Their critical thinking and valuable input were essential for the success of this thesis. It has been a pleasure working with you!

Thanks also belongs to the rest of the Barrelfish team, for their input and feedback especially during our brainstorming sessions.

Additionally, I would like to thank Christine Zeller, Reto Achermann and Jonas

Moosheer for their comments and suggestions on an earlier draft of this thesis.

Contents

List of Figures

List of Tables

List of Listings

1 Introduction

2 Background

10

2.1

Hardware Transactional Memory

. . . . . . . . . . . . . . . . . . . .

10

2.1.1

Intel Transactional Synchronization Extensions

. . . . . . . .

10

2.1.2

AMD Advanced Synchronization Facility

. . . . . . . . . . .

12

2.2

Barrelfish Operating System

. . . . . . . . . . . . . . . . . . . . . . .

12

2.2.1

Overview

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

12

2.2.2

Dispatchers and User-level Scheduler

. . . . . . . . . . . . . .

13

2.2.3

User-level Message Passing (UMP)

. . . . . . . . . . . . . . .

14

2.2.4

Flounder

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

14

5

6

7

8

3 Using Intel TSX to Accelerate Message Passing

16

3.1

RTM Performance Analysis

. . . . . . . . . . . . . . . . . . . . . . .

16

3.1.1

Setup and Commit Overhead

. . . . . . . . . . . . . . . . . .

17

3.1.2

Abort Overhead

. . . . . . . . . . . . . . . . . . . . . . . . .

17

3.1.3

Setup, Commit and Abort Overhead Scaling

. . . . . . . . .

18

3.1.4

Time Limit

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

20

3.2

Abort Handler for Message Notification

. . . . . . . . . . . . . . . .

21

3.3

Helper Threading and RTM for Message Passing

. . . . . . . . . . .

23

3.4

n : 1 communication channels

. . . . . . . . . . . . . . . . . . . . . .

26

3.5

Conclusion

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

27

4 Using Alert-on-Update to Accelerate Message Passing

28

4.1

Alert-on-Update ISA Extension

. . . . . . . . . . . . . . . . . . . . .

28

4.1.1

Enabling and Disabling Alerts

. . . . . . . . . . . . . . . . .

29

4.1.2

Modify Set of Monitored Memory Locations

. . . . . . . . . .

29

3

4.1.3

Alert

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

30

4.1.4

Implicit Disabling of Alerts

. . . . . . . . . . . . . . . . . . .

30

4.1.5

Spurious Alerts

. . . . . . . . . . . . . . . . . . . . . . . . . .

31

4.2

Message Passing Without Polling

. . . . . . . . . . . . . . . . . . . .

31

4.2.1

Monitor Message Channel

. . . . . . . . . . . . . . . . . . . .

32

4.2.2

Dedicated Memory Region for Notifications

. . . . . . . . . .

32

4.3

Barrelfish Application Programmer API

. . . . . . . . . . . . . . . .

33

5 Implementation

36

5.1

Alert-on-Update in Gem5

. . . . . . . . . . . . . . . . . . . . . . . .

36

5.2

Barrelfish Implementation

. . . . . . . . . . . . . . . . . . . . . . . .

40

5.2.1

Monitoring UMP Channels

. . . . . . . . . . . . . . . . . . .

40

5.2.2

Alert - Step-by-Step

. . . . . . . . . . . . . . . . . . . . . . .

40

5.2.3

TLA+ Model and Model Checking

. . . . . . . . . . . . . . .

43

5.2.4

Scheduler Activations and Why Using Alerts in Linux is Hard

45

6 Evaluation

47

6.1

Alerts versus Tight Polling

. . . . . . . . . . . . . . . . . . . . . . .

47

6.2

Alerts versus Polling at Different Polling Frequencies

. . . . . . . . .

49

6.3

Alerts versus Polling with Multiple UMP Channels

. . . . . . . . . .

51

7 Related Work

53

8 Conclusion and Future Work

54

8.1

Directions for Future Work

. . . . . . . . . . . . . . . . . . . . . . .

54

8.1.1

Alert-on-Update and Fast Mutexes

. . . . . . . . . . . . . . .

54

8.1.2

Alert-on-Update and Hardware Transactional Memory Codesign

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

55

A Changes to the Barrelfish Operating System

56

A.1 Timers and Timer Interrupts

. . . . . . . . . . . . . . . . . . . . . .

56

A.2 ARM ABI

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

57

B TLA+ Specification

Bibliography

59

74

4

List of Figures

2.1

Barrelfish OS structure on a four core ARMv7-A system.

. . . . . .

12

2.2

One dispatcher and three user-level threads, each with their associated stacks and memory areas to store the register state when they are not running.

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

13

3.1

Intel RTM Commit and Abort Scaling

. . . . . . . . . . . . . . . . .

18

3.2

Intel RTM Commit and Abort Scaling with Barrier

. . . . . . . . . .

20

3.3

Hyper-Threading and nop loop

. . . . . . . . . . . . . . . . . . . . .

25

4.1

Alert handler register state

. . . . . . . . . . . . . . . . . . . . . . .

30

5.1

Extended MOESI cache-coherency protocol with four new alert states:

AM, AO, AE, AS.

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

38

5.2

Layout of memory structure to support alerts

. . . . . . . . . . . . .

41

5.3

Example two states that relate by the ThreadYield action.

. . . . . .

44

6.1

Message latency breakdown.

. . . . . . . . . . . . . . . . . . . . . . .

48

6.2

Application overhead for 1, 10 and 100 UMP channels

. . . . . . . .

51

5

List of Tables

4.1

Alert-on-update ISA extension instructions.

. . . . . . . . . . . . . .

30

5.1

Encoding of AOU instructions using co-processor 3

. . . . . . . . . .

37

6.1

Gem5 simulation parameters.

. . . . . . . . . . . . . . . . . . . . . .

47

6.2

Benchmark results from compute-intensive task that also receives

UMP messages using 1 channel.

. . . . . . . . . . . . . . . . . . . . .

49

6

List of Listings

2.1

Code pattern for Restricted Transactional Memory (RTM).

. . . . .

11

3.1

Microbenchmark to measure base cost of setting up and committing a transaction. An empty transaction is executed one million times.

The base cost of setting up and committing a transaction is computed by dividing the total execution time by the number of iterations.

. .

17

3.2

Microbenchmark to measure the time until a transaction containing an infinite nop loop gets aborted.

. . . . . . . . . . . . . . . . . . . .

20

4.1

Enable monitoring for waitset.

. . . . . . . . . . . . . . . . . . . . .

33

4.2

Disable monitoring for waitset.

. . . . . . . . . . . . . . . . . . . . .

34

4.3

Test whether waitset is monitored.

. . . . . . . . . . . . . . . . . . .

34

4.4

Event dispatch function for a monitored waitset.

. . . . . . . . . . .

34

7

Chapter 1

Introduction

Message passing, as a communication and synchronization mechanism, has gained increased adoption. It is used as the only form of communication between processes

in Erlang [ 12 , Chapter 5] and is an integral part of the Go programming language.

The user guide Effective Go postulates: “Do not communicate by sharing memory;

instead, share memory by communicating.” [ 1 ] Moreover, on large-scale clusters,

MPI [ 36

], a portable message passing system, is the programming model of choice [ 41 ].

In the area of operating systems, favoring message passing over shared memory has

been an important design decision for the Barrelfish [ 14 ] operating system. And

in the Linux community, there is an ongoing effort to replace D-Bus with a more

efficient inter-process communication system [ 20 ].

In this thesis, we restrict ourselves to inter-core message passing within a cachecoherency domain. State-of-the-art message passing between two processes in such a system bypasses the kernel altogether and relies on shared memory for message

transfer [ 15 ]. Note that while the implementation of the message passing facility

employs shared memory, it is different from a programming model where processes or threads directly share an address space. With message passing, all communication is explicit and the processes do not rely on shared memory, only on the message passing mechanism. They do not need to be adapted if they were run on two cores that do not share memory, as long as a form of message passing is available.

User-level message passing (UMP) of Barrelfish demonstrates that message passing in such a system can provide high bandwidth. By exploiting knowledge of the cache-coherency protocol, cache-line-sized messages can be transferred directly from the sender’s cache to the receiver’s without going through main memory.

The receiver uses polling to detect the arrival of new messages. While a tight polling loop on the receiver results in low-latency message delivery, it is wasteful and often not feasible to poll for an extended amount of time because other computation needs to be done.

8

What really is missing is an efficient way for the sender to notify the receiver that there is a new message. This is the problem this thesis tackles. While notifications can be sent by involving the kernel and using inter-processor interrupts, such a notification scheme would be very heavy-weight compared to the size of the message.

Our goal is to provide a notification mechanism that is light-weight and works completely in user space.

To arrive at our goal, we will incorporate ideas from hardware transactional memory.

In particular, hardware transactional memory systems like Intel’s Transactional

Synchronization Extensions (TSX) allow to monitor a set of cache lines and trigger a control transfer if any of them changes. We will use such a mechanism as the basis of our message notification scheme.

After introducing concepts and terminology used throughout this thesis in Chapter

2 ,

Chapter

3

will analyze to what extend Intel’s TSX can be used to accelerate message passing. We will find that while the mechanisms provided by TSX would be useful for message notification, it cannot, in its current form, be used for such a purpose.

Consequently, Chapter

4

describes a simple hardware mechanism, alert-on-update, that carries over features from hardware transactional memory systems but has an

API suitable for message notification. The implementation of the alert-on-update hardware extension in a CPU simulator as well as how we use this extension for message passing in Barrelfish is presented in Chapter

5 . Chapter

6

evaluates the effectiveness of the hardware feature and the software implementation, whereas

Chapter

7

surveys related work. Finally, Chapter

8

concludes and gives directions for future work.

Appendix

A

describes changes made to Barrelfish that are unrelated to message passing but were nevertheless necessary to get a working system. Appendix

B

contains a formal specification of our implementation in TLA+.

9

Chapter 2

Background

This chapter provides background information on two topics used throughout the thesis. Section

2.1

introduces hardware transactional memory and in particular

Intel’s TSX while Section

2.2

gives an overview of the Barrelfish operating system.

2.1

Hardware Transactional Memory

Recently, several implementations of hardware transactional memory systems have appeared. The processor used in the Blue Gene/Q supercomputer has hardware

support for transactional memory [ 25 , Section 2.15] and the Power ISA Version

2.07 [ 26 , Book II, Chapter 5] features it. Moreover Intel’s Haswell processors support it [ 28

, Chapter 15] and AMD proposed their own version of transactional memory [ 4 ].

In this section, we give a brief overview of Intel’s Transactional Synchronization

Extensions (TSX) in Section

2.1.1

, and in Section

2.1.2

we describe how AMD’s proposed Advanced Synchronization Facility (ASF) differs. The interested reader will find a more in-depth discussion of hardware transactional memory systems,

both industry designs and research proposals, in Harris et al. [ 23 , Chapter 5].

2.1.1

Intel Transactional Synchronization Extensions

Intel’s TSX [ 27 , Chapter 12] [ 28 , Chapter 15] [ 33 ] provides two separate programming

interfaces. The first, Hardware Lock Elision (HLE), is based on work by Rajwar

and Goodman [ 37 ] on speculative lock elision. The high-level idea of HLE is to

optimistically execute critical sections without taking the lock, thereby exploiting dynamic parallelism, and fallback to acquiring the lock only if a conflict arises during actual execution.

10

The interface consists of two new instruction prefixes xaquire and xrelease.

xaquire prefixes the assembly instruction that acquires the lock while xrelease prefixes the corresponding lock release instruction. These prefixes are forward compatible: older processors that do not support HLE simply ignore these two prefixes, therefore always taking the fall back path of acquiring the lock.

The second interface is called Restricted Transactional Memory (RTM) and allows to execute an instruction sequence transactionally. Unlike HLE, this interface is not forward compatible, it generates an exception if used on an unsupported CPU.

Listing

2.1

shows the common code pattern used with RTM. Transactional execution is started with the xbegin instruction. It takes as single argument the address of the fallback path in case the transaction aborts. xend marks the end of the transactional region. If there are no conflicts, xend commits all changes to memory atomically.

Otherwise, the transaction aborts, any updates to memory since the start of the transaction are discarded, and execution continues at the fallback address.

xbegin abort

# executed transactionally xend jmp continue abort:

# fallback path continue:

Listing 2.1: Code pattern for Restricted Transactional Memory (RTM).

In order to detect conflicting accesses between a transaction executing on one processor and all other processors, the hardware tracks the read- and write-set for each transaction. As the names imply, the read-set contains all memory locations the transaction read while the write-set contains all locations written. A data conflict occurs if another processor reads from a memory location in the read-set of the transaction or writes to a location in the read- or write-set of the transaction.

Data conflicts are a primary reason of aborts. Transactions also abort if they contain one of the many unsupported instructions, examples include the pause instructions, ring transitions (sysenter, syscall), legacy I/O operations (in, our),

monitor and mwait, etc. [

28 , Section 15.3.8]. There are many more reasons why a

transaction might abort, like limited architectural resources to buffer the changes made by an uncommitted transaction or interrupts happening during transactional

execution [ 27 , Section 12.2.3]. Transactions can also be explicitly aborted using the

xabort instruction.

If a transaction aborts, all changes made to memory and registers are discarded and execution continues at the fallback address. The eax register contains information about the abort, why it happened and whether a retry might succeed. All other registers contain the value they had at the time the transaction was started with xbegin.

11

2.1.2

AMD Advanced Synchronization Facility

AMD’s ASF [ 4 ] is similar to Intel’s TSX except for two major differences. First,

it allows for loads and stores to bypass the transactional mechanism. With TSX, all loads and stores within a transaction are implicitly transactional. ASF allows loads to optionally not be added to the read-set and for stores to optionally take immediate effect. Both types of loads and stores can occur within a transaction and they are distinguished by whether or not the x86 mov instruction carries the lock prefix.

Second, the register state is not automatically checkpointed when the transaction starts and restored when an abort is triggered. Instead, software is responsible for saving and restoring them. As a result, the registers at the time execution was interrupted by the abort are available to the abort handler except, for rax, rip, rsp and rflags, which are overwritten.

2.2

Barrelfish Operating System

2.2.1

Overview

Barrelfish is a research operating system developed by ETH Zurich. It is structured

as a multikernel [ 14 ] and a high-level overview of the system architecture is depicted

in Figure

2.1

.

Domain 1

Dispatcher

Domain 2

Dispatcher Dispatcher

Domain 3

Dispatcher

User space

Monitor Monitor Monitor Monitor

Kernel space

CPU

Driver

CPU

Driver

CPU

Driver

CPU

Driver

Hardware

ARMv7-A core

ARMv7-A core

ARMv7-A core

ARMv7-A core

Figure 2.1: Barrelfish OS structure on a four core ARMv7-A system.

The figure shows a four core ARMv7-A CPU running Barrelfish. Each core runs its own copy of the kernel, called CPU driver, and they do not share any state.

Like in a microkernel, the CPU driver is only responsible for enforcing protection,

12

basic scheduling and fast message passing between applications running on the same core. In particular, device drivers, filesystems and the networking stack are implemented in user space. Additionally, each core runs the monitor process in user space. Collectively, they are part of the trusted computing base and coordinate system-wide state using message passing.

Processes are called application domains or just domains. While the CPU driver and the monitor do not rely on shared memory but use message passing for communication, applications might use shared address spaces and span multiple cores. For each core the application runs on, there exists an object called dispatcher, which is the entity the local CPU driver schedules.

2.2.2

Dispatchers and User-level Scheduler

Barrelfish uses scheduler activations [ 6 ]. The dispatcher is upcalled by the kernel,

which, in turn, runs the user-level scheduler to decide which thread to resume. While the user-level scheduler runs, further upcalls are disabled. If the kernel interrupts the domain while upcalls are disabled, it later resumes the domain instead of upcalling it.

Thread 1 stack

Domain

Thread 2 stack

Thread 3 stack register save area register save area

Dispatcher enabled save area disabled save area stack disabled flag register save area

Figure 2.2: One dispatcher and three user-level threads, each with their associated stacks and memory areas to store the register state when they are not running.

Figure

2.2

shows a single dispatcher and three user-level threads together with their associated state. Each thread has a stack and a memory region used to store the register state if it is not running.

The kernel only schedules the dispatcher and has no knowledge of user-level threads.

Consequently, when the kernel interrupts an application domain, it cannot store the

13

register state directly to the thread save area. Instead, the register state is stored in the enabled or disabled area of the dispatcher, depending on whether upcalls were enabled or disabled at the time the interrupt happened. If upcalls were disabled, the kernel later resumes the dispatcher with the register state from the disabled area. If they were enabled, the dispatcher is upcalled and starts executing on its own stack. It has knowledge of the user-level threads and knows which one was last run and can copy the register state from the enabled area to the save area of the corresponding thread before scheduling another thread.

2.2.3

User-level Message Passing (UMP)

For inter-core communication, Barrelfish uses a variant of URPC [ 15 ]: a shared

memory region is used as communication channel between one sender and a single receiver. After a setup phase, all communication happens completely in user space without any kernel involvement. Thus, it is appropriately named user-level message passing (UMP).

The shared memory region is organized into cache-line-sized messages. Sending a message simply consists of writing it to the shared region while the receiver uses polling to detect a new message.

UMP provides a high bandwidth messaging channel. On a system with a MOESI cache coherency protocol the message is directly transferred from the sender’s cache to the receiver’s without going through main memory. In the common case, only two bus transactions are necessary: one when the sender starts writing and invalidates the cache line on the receiver’s side and one when the sender polls. When the latter happens, the modified cache line transitions to the Owned state on the sender and

the receiver cache fetches it there [ 14 ].

UMP communication can be low latency but only if the receiver continuously polls.

Otherwise, the latency is directly correlated to the polling frequency.

2.2.4

Flounder

Apart from UMP, Barrelfish provides other means of message passing, for example local message passing (LMP) between domains running on the same core.

On top of these low-level and fixed-message-sized communication channels, Barrelfish

features a higher-level messaging infrastructure called Flounder [ 13 ] which provides

a common interface regardless of the type of message passing used. Additionally, it handles marshalling and demarshalling between application messages and fixed-sized interconnect messages.

The runtime support for message passing comes in the form of waitsets. A waitset bundles multiple channel endpoints and presents activity on the channel, for example an newly arrived message, as events. Internally, the waitset categorizes the channels

14

into three groups: pending, polled and idle. Channels in the pending group have at least one pending event that is ready to be handled, whereas channels in the idle group have none. For channels in the polled group, we do not know whether or not there is a pending message and need to poll them regularly.

A UMP channel is part of either the polled or the pending group of a waitset. If we already know that there is a pending message, it is in the pending list, otherwise it is in the polled list.

To handle events, the function event_dispatch is called on a waitset, commonly inside an infinite loop. On each invocation, the following steps are performed. First, it is checked whether there are channels in the pending group. If there are, the next event from one of them is handled. If there are no pending channels, it is checked whether any of the channels in the polled queue has an event. If that is the case, the event is handled, otherwise, the function blocks.

15

Chapter 3

Using Intel TSX to

Accelerate Message Passing

In this chapter, we analyze to what extent Intel TSX can be used to accelerate message passing. Section

3.1

evaluates the performance characteristics of TSX. In

Section

3.2

we describe our initial idea of using the control transfer triggered by an abort as a notification mechanism for message passing and identify why the TSX abort handler cannot be used for notification. The two sections that follow, describe alternative ways how TSX might be employed to accelerate message passing.

3.1

RTM Performance Analysis

In this section we analyze the performance of TSX and in particular RTM by a series of microbenchmarks. All measurements were done on an Intel Core i7-4770 running at 3.40GHz. Frequency scaling was effectively disabled by setting the minimum and maximum frequency to 3.40GHz. For the benchmark, Hyper-Threading was disabled in the BIOS and Turbo Boost was turned off by setting the value in

/sys/devices/system/cpu/intel_pstate/no_turbo to 1. The system software consisted of Linux kernel 3.14.2, glibc 2.19 and gcc 4.9. All benchmarks use a single thread which was pinned to a specific processor core and the rdtscp instruction was used to measure execution time.

The microbenchmarks answer the following questions:

• What is the overhead of setting up and committing a transaction? (Section

3.1.1

)

• What is the overhead of aborting a transaction? (Section

3.1.2

)

16

• How does the cost of setting up, committing and aborting a transaction scale with increased transaction size? (Section

3.1.3

)

• Is there a time limit for transactional execution? (Section

3.1.4

)

3.1.1

Setup and Commit Overhead

The first microbenchmark measures the base cost of setting up and committing a transaction by measuring the execution time of an empty transaction. Listing

3.1

shows the code used for the microbenchmark. To amortize the cost of reading the time stamp counter, the execution time for multiple transactions (one million in our case) is measured and the total execution time is divided by the number of transactions executed to arrive at the base cost of setting up and committing a single transaction. Because the transactional memory intrinsics (

_xbegin()

,

_xend() and

_xabort()

) for gcc result in a suboptimal code pattern, inline assembly was used instead.

3

4

1

// read time stamp counter

2 for ( int i = 0; i < 1000000; i++) {

__asm__ __volatile__( "xbegin 1f

"xend

5

6

}

"1:"

7

// read time stamp counter

);

\n\t"

\n\t"

Listing 3.1: Microbenchmark to measure base cost of setting up and committing a transaction. An empty transaction is executed one million times. The base cost of setting up and committing a transaction is computed by dividing the total execution time by the number of iterations.

The above described microbenchmark was run ten times. The average overhead of setting up and committing a transaction was 47.89 cycles with a standard deviation of 0.06 cycles.

3.1.2

Abort Overhead

The next benchmark measures the overhead of aborting a transaction. To this end, we measure the execution time of a transaction that contains as its only instruction an explicit abort. The only difference between this benchmark and the one shown in Listing

3.1

is that between lines 3 and 4 an explicit xabort 0xff is inserted.

The benchmark was again run ten times resulting in an average time of 155.22

cycles to setup and abort a transaction, with a standard deviation of 0.29 cycles.

We assume that the abort is significantly slower than the commit because on an abort, the register state from the time the transaction started must be restored and there is a control transfer to the address of the abort handler.

17

3.1.3

Setup, Commit and Abort Overhead Scaling

Having investigated the execution time of an empty transaction as well as the cost of immediately aborting a transaction, this section looks into the overhead of committing or aborting a transaction of increasing size and compares it to executing the same instruction sequence non-transactionally.

The benchmark explores transaction sizes, measured in number of cache lines modified, between 0 and 100. A transaction of size x writes a 64 bit magic number to the first cache line, then writes the same 64 bit magic number to the neighboring cache line and so on, until x cache lines are modified. Since the same magic number is written to all cache lines, there is no dependency between the writes.

The execution time of each transaction is timed individually and the cache is cleared between measurements. For each size and each mode (non-transactional, transactional commit, transactional abort) 10’000 measurements are averaged. The resulting graph is depicted in Figure

3.1

.

3000

Transactional Commit and Abort Scaling (cold cache)

non-transactional transactional commit transactional abort

2500

2000

1500

1000

500

0

0 20 40 60

Number of cache lines written

80 100

Figure 3.1: Execution times for modifying an increasing number of adjacent cache lines in three different scenarios. The first performs the modification outside of a transaction (non-transactional), the second within a transaction that commits

(transactional commit) and the third within a transaction that explicitly aborts after all modifications have been done (transactional abort).

The figure shows that in case the cache lines are modified within a committing transaction, the execution time increases linearly with the size of the transaction.

In the non-transactional and transactional abort case, the execution time is nearly constant for transaction sizes between 0 and 49 cache lines, followed by a sharp rise.

Afterwards, the execution time increases linearly with the size of the transaction.

18

Since the slope for transactions larger that 50 cache lines is the same for a committing transaction and for the non-transactional case, there is a constant overhead of committing a transaction. Likewise, the slope for an aborting transaction and execution of the instruction sequence non-transactional is the same. Therefore, the execution overhead of aborting does not depend on the size of the transaction.

The near constant execution time for the non-transactional case can be explained due to the effect of store buffers. In a nutshell, a store buffer is a small cache that sits between the CPU and its associated cache and holds outstanding writes until

the corresponding cache lines arrive [ 35 ] [ 27 , Section 2.1]. In the benchmark, we

read the time stamp counter, write a series of cache lines and read the time stamp counter again. The modifications to the cache lines are kept in the store buffer until the cache lines arrive from main memory, which takes some hundred cycles due to the cache being cleared before the measurement. Reading the time stamp counter with rdtscp

, however, does only wait until the modifications are recorded in the store buffer and not for the store buffer to completely drain. For transaction sizes smaller than 49 cache lines, the modifications fit in the store buffer which results in a near constant execution time. Larger transactions fill up the store buffer, then stall after each write, waiting for an entry in the store buffer to become available.

Haswell’s store buffer has 42 entries [ 27 , Section 2.1.4.1]. The sharp increase in

execution time happens at 49 modified cache lines. The latter is larger since while the store buffer is filled, some entries are already written back to cache making space for more entries.

The execution time in case we abort the transaction has a similar shape and can be explained by the same argument. However, in case we commit the transaction the execution time increases linearly even for small transactions, which can be explained by the way transactions are committed. During commit, at the latest, data conflicts must be detected. Since the current implementation of TSX tracks the read- and

write-sets used for data conflict detection in the first-level cache [ 27 , Section 12.1.1],

all outstanding entries in the load and store buffer must arrive in the cache before the commit can happen. The draining of the load and store buffer during commit causes the execution time for a committing transaction to increase linearly regardless of transaction size.

To verify our hypothesis that the near constant execution time is due to the store buffer, we repeated the previous experiment but forced a drain of the load and store buffer before reading the time stamp counter the second time in the nontransactional case as well as before the xabort in the aborting case. The drain was forced by using the mfence instruction. Figure

3.2

depicts the resulting graph, which clearly shows that for all three scenarios there is a linear increase in execution time.

19

3000

Transactional Commit and Abort Scaling (cold cache)

non-transactional with barrier transactional commit transactional abort with barrier

2500

2000

1500

1000

500

0

0 20 40 60

Number of cache lines written

80 100

Figure 3.2: Same experiment as in Figure

3.1

, except that the load- and store buffers

are explicitly drained in the non-transactional and aborting transaction case.

3.1.4

Time Limit

In this last microbenchmark, shown in Listing

3.2

, we investigate whether or not

there is a time limit for transactional execution. The benchmark starts by reading the time stamp counter and entering transactional execution. The body of the transaction contains an infinite nop loop, therefore the end of the transaction ( xend

) is never reached. Instead, the execution is trapped in the nop loop until the transaction gets aborted, at which point the time stamp counter is read again and the execution time is computed.

for ( int i = 0; i < 1000000; i++) {

// read time stamp counter

__asm__ __volatile__ ( "xbegin 2f

"1:

"nop

"jmp 1b

"xend

"2:" );

// read time stamp counter

// compute and store execution time

}

\n\t"

\n\t"

\n\t"

\n\t"

\n\t"

Listing 3.2: Microbenchmark to measure the time until a transaction containing an infinite nop loop gets aborted.

Taking one million samples, the average execution time before the transaction got aborted was 3.16 ms (10’752’920 cycles) with a standard deviation of 0.74 ms

20

(2’499’796 cycles). Since the average execution time lies in the range of the timer interrupts of the Linux kernel, we conclude that there is no time limit and the transactions in our experiment only get aborted due to timer and other kinds of interrupts.

To conclude the performance analysis, we answer the questions posed at the beginning of the section. The overhead of setting up and committing a RTM transaction is 48 cycles, whereas the overhead of setting up and aborting is 155 cycles. Both overheads are constant and do not depend on the size of the transaction. Moreover, there is no time limit for a transaction.

Our results match the findings by Ritson and Barnes [ 38 ] in a similar performance

study of RTM. They also compared using a transaction instead of multiple compareand-swap instructions and found that using a transaction that modified two words has the same performance as using two compare-and-swap instructions. If only one word is modified, compare-and-swap is faster whereas transactions are faster if more than two words are modified.

3.2

Abort Handler for Message Notification

RTM provides the means to detect when a set of cache lines get modified and allows execution to continue at a predefined address in such an event. In this section, we will argue why such a mechanism is useful not only for hardware transactional memory but also for user-level notification and message passing.

At a high-level, user-level message passing between two cores, for example as

implemented in the Barrelfish operating system [ 31

] [ 13 ], employs a shared memory

region for communication. One of the cores writes to the shared location whereas the other regularly polls for new messages. Polling, however, is wasteful, especially if low-latency message delivery is required and therefore a short polling interval is used. A much better alternative would be for the sending core to inform the receiving end that a new message is ready. Ideally, sending such a notification would be done entirely in user space without going through the kernel, because traversing the user-kernel boundary twice incurs a significant overhead.

Such a user-level notification and interrupt mechanism, in which a user-level process running on one core sends a notification to a process running on another core, which, in turn, transfers control to a notification handler and once finished continues where it left of, is currently not implementable without going through the kernel. However, the mechanism provided by RTM of detecting modifications of cache lines and triggering a control transfer almost allows for user-level notifications. Subsequently, we will describe how user-level notification could almost be implemented with RTM and then describe what is lacking to make it actually work.

To illustrate how user-level notification could almost be implemented, let us assume that a thread running on core 0 wants to notify a thread running on core 1. A memory

21

region shared between both threads is used for communicating the notification and sending the notification simply consists of writing a value, for example 1, to the shared memory region. The novelty lies in the way the notification is received.

Instead of polling the shared memory location regularly, the receiver registers a notification handler during initialization which is invoked when a notification is received. Registering the notification handler involves starting a transaction with xbegin handler

, where handler is the address of the user-level notification handler.

Then it transactionally reads the shared memory location, thereby adding it to the read-set of the transaction. Without completing the transaction with xend

, execution continues as normal. All memory operations, except the initial reading of the shared memory location, are done non-transactional, i.e. although they are within a transaction, they are not added to the read- or write-set of the transaction and therefore not used for conflict detection and not rolled-back during an abort.

Once core 0 sends the notification by writing 1 to the shared memory location, core 1 aborts the transaction because a cache line in the transactions read-set was modified, and execution continues at the specified handler address. The notification handler processes the notification, re-registers the notification handler, restores the execution context before it was interrupted and jumps back to the point where it left off before receiving the notification.

The above described approach for user-level notification can also be applied to userlevel message passing where the sender, instead of writing just the value 1, writes the actual message to the shared memory buffer. The receiver gets notified without polling that a message arrived and can handle the message right away or record that a message arrived. This approach is not limited to a single message channel. The receiver can monitor any number of channels by adding the corresponding memory location to its read-set during setup. This provides a powerful mechanism to wait for a message on any number of channels without actually having to poll.

While RTM features a mechanism to detect changes in any number of cache-lines, the above described approach does not work with RTM for several reasons. First, our approach requires that once the notification or message handler is registered, transactional execution continues but references and modifications to memory locations are non-transactional. Intel TSX does not provide such a feature. All memory references between xbegin and xend are implicitly transactional and all references outside of a transaction are non-transactional. There are, however, hardware transactional memory systems that support such a feature, for example

AMD’s proposed Advanced Synchronization Facility [ 4 ].

Second, if a RTM transaction gets aborted, the execution context, e.g. register content, is not retained. Instead, the register state at the point the transaction started is restored. Since the execution context where normal execution was interrupted is not available in the notification handler, there is not way to continue execution there. The only state which is available is the instruction pointer at which the transaction got aborted. It is not available by default but can be made available by

enabling Precise Event Based Sampling (PEBS) [ 30 , Section 18.11.5.1]. However,

22

enabling PEBS is only possible from ring 0 and the mechanism incurs a significant overhead: the abort induces a PEBS interrupt, which in turn writes the instruction pointer to a buffer.

In summary, RTM provides the basic mechanism to detect changes in any number of cache lines and allows execution to continue at a specified address. Nevertheless, the current implementation of RTM has several shortcomings rendering it impossible to implement user-level notification or message passing without polling in a straightforward way. Next, we explore two alternative ways to accelerate message passing using TSX. These two alternatives do not try to employ notifications in lieu of polling but instead aim at reducing the polling time.

3.3

Helper Threading and RTM for Message Passing

Applications in operating systems like Barrelfish [ 14 ] that use message passing as the

basic means of communications quickly end up polling a large number of message channels, where polling latency increases linearly with the number of channels.

Instead of replacing polling with a notification mechanism as proposed in the last section, an alternative way to accelerate message passing is to reduce the polling latency from linearly dependent on the number of channels to constant. Such a decrease in polling time can be achieved using a concept commonly referred to as helper threading.

The idea of helper threading is to accelerate a primary thread by using an additional execution context (also called logical core, hyperthread or hardware thread ). This is often used in combination with Simultaneous Multithreading (SMT) where both the primary and helper thread run on the same core but on two different hardware threads.

Helper threading has been used previously for speculative

precomputation [ 19

] [ 43 ], where the helper thread prefetches data for the primary

thread thereby reducing the number of cache misses on the critical path. It has also

be used to overlap communication and computation [ 22 ].

In our case, the helper thread is used to poll all the channels the application is interested in and summarizes the readiness in a single word. In a simple scheme, this word contains a boolean flag indicating whether any channel is ready. Alternatively, the summary word could contain one bit for each channel polled, precisely indicating which channels, if any, are ready. The primary thread still polls, but before polling all the different channels, it checks the summary word to see if any channel is ready and only polls if some channels are ready. In case no channel is ready, this results in constant instead of linear overhead.

The helper thread performs the following steps.

First, it starts transactional execution with xbegin handler

. Then it reads all the message channels the primary thread is currently polling. The primary thread communicates the list of message

23

channels by writing it to a shared memory location. Next, the helper thread waits for the transaction to abort while doing nothing. This is implemented with an infinite loop of nop instructions. Once the transaction aborts, the abort handler checks whether any of the channels is actually ready (it could have been a spurious abort for example because a cache line from the read-set was evicted from the cache) and writes the summary word accordingly. Now, the same steps are repeated ad infinitum.

As an optimization and to reduce the number of spurious aborts due to interrupts, the helper thread could be executed in ring 0 as a minimal helper kernel with all interrupts disabled. Depending on whether the application would benefit from such a helper kernel, it could dynamically be enabled or disabled. Recent research

demonstrated that dynamically booting new or other versions of kernels [ 45 ] is

feasible.

Whether or not the helper kernel accelerates the main application depends on whether the increase in performance due to faster polling outweighs the two disadvantages.

The first disadvantage is having only one hardware thread per core available for the main application instead of two. The second is the possible slowdown of the application resulting from executing a nop loop on the second hardware thread.

We expected that executing a nop loop on one hardware thread does not significantly slow down the other execution context running on the same core, and performed a series of measurement to verify or invalidate our hypothesis. Except when stated otherwise, the same system, software, and settings were used as for the experiments in Section

3.1

.

The measurements were performed on nine benchmarks in six different scenarios,

Figure

3.3

shows the result. Eight of the nine benchmarks, namely block tri-diagonal solver (BT), scalar penta-diagonal solver (SP), lower-upper gauss-seidel solver (LU), conjugate gradient (CG), multi-grid on a sequence of meshes (MG), discrete 3d fast fourier transformation (FT), embarrassingly parallel (EP) and integer sort (IS), are

from the OpenMP reference implementation of the NAS Parallel Benchmarks [ 3 ]

version 3.3.1 with class B problem size. The last benchmark (compile) measures the time it takes to compile Linux kernel version 3.14.2 using eight threads ( make -j8

).

For the first scenario (SMT-disabled), Hyper-Threading was disabled in the BIOS.

The benchmarks could make use of all four cores available on the i7-4770 with one execution context each. This scenario serves as the base line for comparison with other scenarios. All except the first scenario have Hyper-Threading enabled. In the second scenario (SMP-enabled-notused), the benchmarks were restricted to use only one execution context per core. Since nothing else was running on the test system, the second execution context of each core was running the Linux kernel idle loop.

The third scenario allows benchmarks to use all execution contexts. The remaining three scenarios are similar to the second in that the benchmarks are restricted to use only one execution context per core. In all three scenarios, four additional threads are spawned which are pinned to the execution contexts the benchmark is

24

1.4

1.3

1.2

1.1

1

0.9

0.8

0.7

0.6

0.5

0.4

0.3

0.2

0.1

0

2

1.9

1.8

1.7

1.6

1.5

SMT-disabled

SMT-enabled-notused

SMT-enabled-used

SMT-enabled-noploop-simple

SMT-enabled-noploop-multi

SMT-enabled-noploop-pause

BT SP LU CG MG FT EP IS compile

Benchmarks

Figure 3.3: Runtime of eight benchmarks from the NAS Parallel Benchmarks suite as well as one compile benchmark (compiling Linux kernel 3.14.2) in different scenarios. The first scenario has SMT disabled and serves as base line, all other have it enabled. The second scenario restricts the benchmark to run only on one logical core per physical core whereas the third does not have such restriction. Scenarios four to six also only use one logical core per physical core for the benchmark and run an infinite loop of nop instructions on the other logical core.

25

not using. Each of these threads executes an infinite loop of nop instructions. The difference between those scenarios is the kind of nop loop they are running. Scenario four (SMT-enabled-noploop-simple) uses a one byte nop instruction encoded as

0x90 whereas the fifth scenario (SMT-enabled-noploop-multi), uses the multi-byte nop instruction 0x0f 0x1f 0x00, which is one of the recommended multi-byte nop

sequences [ 29 ]. The sixth and last scenario (SMT-enabled-noploop-pause) uses the

pause instruction. Each benchmark was ran ten times for each scenario.

Enabling SMT but not using it (SMT-enabled-notused) incurs a median slowdown of

4.3% compared to the base line (SMT-disabled). We attribute this slowdown to the static partitioning of CPU resources when Hyper-Threading is enabled. Each of the two execution contexts per core gets half the resources of any statically partitioned resource like the number of entries in the reorder buffer (ROB) or the load and store

buffers [ 42 ]. Since only one execution context per core is used for the benchmark,

there are less resources available when SMT is enabled but not used.

Enabling SMT and using it (SMT-enabled-used) is faster by 9.5% in the median case. This is to be expected as SMT generally improves performance by better utilization of execution units.

Running a thread with an infinite nop loop using either the single byte (SMT-enablednoploop-simple) or the multi-byte (SMT-enabled-noploop-multi) nop version has identical performance. Relative execution time ranges between a factor of 1.06

and 1.55 with a median slowdown of 22%. The significant slowdown suggests that even though the nop instruction does not alter the architectural state (except the instruction pointer), it consumes execution resources. The x86 architecture therefore lacks a real nop instruction which does not consume execution resources.

Intel recommends to use the pause

instruction in spin-wait loops [ 29 ]. It “will de-

pipeline a thread’s execution, causing it to not contend for resources such as the trace

cache until the pause has committed.” [ 42 ] However, using the

pause instruction in an infinite loop (SMT-enabled-noploop-pause) did not result in significant performance improvements compared to the other two versions of nop loops.

The results from Figure

3.3

invalidate our hypothesis that executing a nop loop on one hardware thread does not significantly slow down execution on the other hardware thread. While the presented approach of using a helper thread or kernel to reduce polling time could be implemented with TSX, we do not expect that the slowdown incurred by executing a nop loop on the hyperthread can be compensated by a reduced polling time and therefore did not further pursue this approach.

3.4

n : 1 communication channels

Yet another way to reduce polling time is to lower the number of communication channels. In Barrelfish, UMP channels are point-to-point channels between exactly two communication partners. Additionally, each channel internally consists of a

26

memory region for sending and receiving respectively. This has the benefit that no synchronization is needed for the sender. On the downside, essential OS domains like the monitor end up having to poll a large number of channels.

Using n : 1 channels with multiple senders and one receiver would drastically reduce the number of channels and therefore the time spent polling. For synchronization between the senders TSX could be used. Depending on the implementation of the messaging channel, though, a single compare-and-swap would be all that is needed to synchronize the senders. As mentioned in Section

3.1

Ritson and Barnes [ 38 ] found

that using a single compare-and-swap instruction is faster that using a transaction.

Therefore, CAS is a better fit as synchronization primitive for n : 1 communication channels.

3.5

Conclusion

In this chapter, we learned that the abort mechanism of TSX provides a low-overhead control transfer. However, the current incarnation of TSX is not flexible enough such that it can be repurposed and used for user-level notification. We explored two alternative ways to accelerate message passing using TSX by reducing the polling time. The first approach relied on helper treading but did not yield the expected performance, while the second approach of using n : 1 channels can be better solved by using compare-and-swap instructions instead of transactions.

We conclude that TSX, in its current form, cannot be used to accelerate message passing.

27

Chapter 4

Using Alert-on-Update to

Accelerate Message Passing

In the last chapter we found that TSX cannot be used to accelerate message passing.

In the first part of this chapter (Section

4.1

) we will propose and describe a simple

ISA extension alert-on-update (AOU) that allows a programmer to register an alert handler which is invoked by hardware whenever any element in a set of memory

locations changes. Such a feature has been proposed before [ 40 ] but with a different

API and it has only been studied in the context of software transactional memory [ 39 ]

whereas we use it for message passing.

The middle part of the chapter (Section

4.2

) gives a high-level overview how the alert-

on-update hardware feature can be used to accelerate user-level message passing by removing the need for constant polling using Barrelfish’s user-level message passing

(UMP) as a running example.

In the last part (Section

4.3

), we describe how AOU fits into the larger message

passing framework of the Barrelfish operating system. We present the API provided to the application programmer that allows to use alerts instead of polling for specific domains and waitsets. Details as to how this API is implemented, will be given in the next chapter. Barrelfish was chosen as the operating system to experiment with

AOU because it already features a comprehensive message passing framework.

4.1

Alert-on-Update ISA Extension

This section presents the alert-on-update ISA extension. We decided to use ARMv7-

A as the base ISA since it is a widely used instruction set, yet still much simpler than x86. Also, CPU simulators as well as operating systems running on top of

28

the simulators were readily available to the author. While our discussion of AOU focuses on ARMv7-A, most concepts are general enough such that they can be applied to other ISAs as well.

The alert-on-update feature consists, at a high-level, of four new assembly instructions, a set of memory locations that are monitored by hardware, an alert handler that is called by hardware whenever any of the monitored memory locations changes, and a memory buffer that is allocated by software and written to by hardware when an alert is triggered.

4.1.1

Enabling and Disabling Alerts

The aou start instruction enables the receiving of alerts and takes two arguments.

The first argument is the virtual address of the alert handler. When an alert happens, control is transferred to this address. The second argument is the virtual address of a memory buffer. The programmer is responsible for allocating this buffer and it must be at least 8 bytes in size.

The dual instruction aou end, which does not take any arguments, disables the use of alerts. No alerts are received after an aou end and before a subsequent aou start. Moreover, the instruction clears the set of memory locations that were monitored. After an aou end, the hardware no longer uses the memory buffer provided as argument to the most recent aou start, and it can therefore be freed.

For each execution context provided by the CPU, alerts can be enabled and disabled separately. The aou start and aou end instructions implicitly enable or disable alerts for the context they are executed in.

4.1.2

Modify Set of Monitored Memory Locations

The set of memory locations monitored can be modified by the aou monitor and aou release instructions. Both take as single argument the virtual address of the memory location to monitor or release respectively. The instruction aou monitor adds a memory location to the initial empty set whereas aou release removes it.

Memory locations are handled at cache line size granularity. Any address that corresponds to a specific cache line can be used to add the corresponding cache line to the set of monitored cache lines. Also, the argument provided to aou monitor and aou release must not be aligned.

Each execution context has its own set of monitored cache lines and the aou monitor and aou release instructions implicitly add or remove the cache line to the set belonging to the context they are executed in. Note that these sets do not have to be disjoint, a certain memory location can be monitored from multiple execution contexts.

29

aou start

<alert handler> <buffer address> aou monitor

<address> aou release

<address> aou end

Table 4.1: Alert-on-update ISA extension instructions.

Table

4.1

summarizes the four instructions that make up the alert-on-update ISA extension.

4.1.3

Alert

If any line from the set of monitored cache lines is modified by an execution context other than the current one, an alert for the current context is triggered and the following steps are performed in hardware. The current value of the r1 register is written to the memory buffer at offset 0. Likewise, the current value of the pc register is written to the buffer at offset 4. Next, the virtual address of the memory buffer is stored in the r1 register and the address of the alert handler is stored in the pc register causing execution to continue at the alert handler. While an alert is triggered, further alerts are disabled and the set of monitored cache lines is cleared as if an explicit aou end was called. Therefore, the alert handler must not be reentrant.

r1 old r1 old pc offset 0 offset 4

Figure 4.1: Alert handler register state: the r1 register points to the memory buffer containing the old values of the r1 and pc registers.

Figure

4.1

depicts the state before the first instruction of the alert handler is executed.

The r1 register points to the memory buffer containing the old values of the r1 and pc register from the time normal execution was interrupted by the alert. All registers except r1 and pc still contain the values from normal execution. It is at the programmers discretion to save and restore the registers trashed by the alert handler.

4.1.4

Implicit Disabling of Alerts

As mentioned before, alerts get implicitly disabled when an alert is triggered. There are, however, two other important cases that cause alerts to get disabled.

Firstly, alerts get implicitly disabled by any change in privilege level. For example, if the privilege level changes from PL0 (user mode) to PL1 (FIQ, IRQ, supervisor,

30

etc.), alerts get disabled. This entails that they get disabled when running in user mode and an interrupt happens or a supervisor call is made. If alerts were not implicitly disabled by a change in privilege level, an alert handler that was setup in user mode but triggered while at PL1 would have elevated access rights.

Secondly, alerts get disabled by any change in the TLB or cache configuration. This includes all instructions that operate on co-processor 15.

An implicit disabling of alerts has the same effect as an explicit aou end, i.e. no alerts are received afterwards until the next aou start and the set of monitored cache lines is cleared.

4.1.5

Spurious Alerts

In the usual case, an alert is triggered if alerts are enabled and a cache line gets modified by a context other than the current one after it has been added to the set of monitored cache lines but before alerts were explicitly or implicitly disabled.

However, for implementation dependent reasons, a spurious alert might happen anytime alerts are enabled. A spurious alert is any alert that is not triggered as the result of a modification of a monitored cache line.

The semantic for when an alert is triggered is that whenever alerts are enabled, a modification of a monitored cache line always triggers an alert. However, the opposite is not true. An alert does not imply that a cache line was modified.

The hardware does not give any indication whether a particular alert was a spurious alert or not. It is the responsibility of the programmer using application specific knowledge to check whether actually something changed.

4.2

Message Passing Without Polling

Now that we have an understanding of how the alert-on-update feature works, let us discuss how AOU can be employed to accelerate message passing. We will use

Barrelfish’s UMP message passing as an example to guide the discussion.

The goal is to reduce the number of times polling is necessary and in many cases getting rid of polling altogether by using alerts. This can be achieved in several different ways. The most straight-forward way, presented in Section

4.2.1

, directly

monitors the cache line the next message will be received in. Alternatively, one can make use of a dedicated memory region for notification (Section

4.2.2

).

31

4.2.1

Monitor Message Channel

The setting we consider is that of a sending thread and a receiving thread running on different cores in parallel, i.e. at the same time. The receiving thread wants to get notified when a message arrives without having to poll all the time.

To this end, the receiving thread enables alerts whenever it is scheduled using the aou start instruction. Moreover, it adds the memory location where the next message will be received to the set of monitored memory locations using aou monitor. Next, the receiving thread can continue its processing—it will get notified once a message arrives.

The process of sending does not change at all. In fact, the sender does not even have to know whether the receiver uses polling or relies on the alert-on-update feature.

The sender simply writes the next message (cache line) to the message channel.

This write will trigger an alert in the receiver, notifying it that a message arrived and allowing it to act appropriately, for example, by handling the message right away or by unblocking a high-priority thread that will shortly handle the message.

Afterwards, the receiving thread can continue at the point it was interrupted by the alert.

The receiver is not restricted to monitor a single channel. After it enabled alerts, it can monitor any number of channels. Moreover, channels that were torn down can be removed and new channels that are established can dynamically be added by using aou release and aou monitor respectively. Once an alert happens, the receiver needs to check which of the monitored channel is ready as the hardware does not give any indication which memory location caused the alert. Also, it could have been a spurious alert.

While polling is still necessary when an alert happens, frequent polling between the arrival of messages in order to provide low-latency message delivery is no longer needed.

4.2.2

Dedicated Memory Region for Notifications

Instead of directly monitoring the cache line the next message will be received in, one can use a dedicated memory region shared between sender and receiver for notifications. As we will see shortly, such a scheme can be used to further reduce the polling overhead by providing a hint which channels need to be polled once an alert arrives.

In contrast to the approach presented in the last section, the process of sending does change. After the sender has written the next message to a certain communication channel, it writes a hint to the shared memory region that there is a pending message for the channel. There are many possibilities to encode such a hint but for the purpose of the discussion let us assume that the shared memory region contains one

32

bit for each communication channel and the sender simply sets this bit to one to indicate a pending message for the channel. Alternatively, hints could be encoded

using Bloom filters [ 18 ].

The receiver does not monitor the cache line the next message will be received in but instead monitors all the cache lines belonging to the dedicated memory region.

Note that there is only one such memory region for all channels. Following an alert, the receiver only polls the channels for which the pending bit is set to one.

4.3

Barrelfish Application Programmer API

This section presents the API for the application programmer. The reader might ask why there even is such an API and why alerts are not enabled by default. The reason we provide an API is because not all types of applications benefit from using alerts. The decision whether or not it makes sense to use alerts for a given application is therefore left to the programmer.

The programmer, however, does not have to deal with monitoring message channels or the alert handler directly. Instead, the API is at a higher level of abstraction: at the level of waitsets. The API allows to enable and disable monitoring for specific waitsets. Additionally, there exists a new function to dispatch events. In the following, we will discuss each function in turn.

/**

* \brief Monitor UMP channels of waitset using the Alert-on-Update feature

*

*/ instead of polling them.

errval_t waitset_monitor_ump( struct waitset *ws);

Listing 4.1: Enable monitoring for waitset.

The function waitset_monitor_ump

(Listing

4.1

) enables monitoring for the waitset.

As a result, the UMP channels belonging to the waitset are no longer continuously polled. Instead, the approach described in Section

4.2.1

is used to monitor the UMP channels. Whenever a UMP channel receives a new message, the alert-on-update feature detects it and the UMP channel is moved from the polled queue of the waitset to the pending queue. Note that the UMP message handler is not yet called, it is merely recorded that there is a pending message.

The dual function of waitset_monitor_ump is waitset_poll_ump

(Listing

4.2

). It

disables monitoring for the waitset and again continuously polls the UMP channels.

For backwards compatibility, the default mode for waitsets is that their UMP channels are polled.

The third function, waitset_ump_is_monitored

, shown in Listing

4.3

, returns for

33

/**

* \brief Poll UMP channels of waitset instead of monitoring them using the

* Alert-on-Update feature.

*/ errval_t waitset_poll_ump( struct waitset *ws);

Listing 4.2: Disable monitoring for waitset.

/**

* \brief Whether the UMP channels of the waitset are set to be monitored or

* polled.

*/ bool waitset_ump_is_monitored( struct waitset *ws);

Listing 4.3: Test whether waitset is monitored.

a given waitset whether their UMP channels are currently monitored using the alert-on-update feature or polled.

/**

* \brief Dispatch next event on given waitset or block waiting for it.

*

* Compared to event_dispatch() or event_dispatch_non_block() this function

* does NOT poll channels on the ’polled’ list and is intended to be used on

* a waitset where the UMP channels are monitored using the Alert-on-Update

* feature.

*/ errval_t event_dispatch_monitored( struct waitset *ws);

Listing 4.4: Event dispatch function for a monitored waitset.

As mentioned, for a monitored waitset the runtime automatically moves UMP channels from the polled queue to the pending queue but the pending events on the channels are not yet dispatched. To handle the events the application programmer is supposed to create a high-priority thread that calls event_dispatch_monitored

(Listing

4.4

) in an endless loop. This function handles an event from a pending

channel and blocks if no channels are ready. Compared to event_dispatch

, it does not poll any UMP channels.

The high-priority thread ensures that whenever the domain is scheduled and there are pending messages, these are handled first. Moreover, after an alert is received due to a new UMP message, the alert handler unblocks the high-priority thread and enters the thread scheduler. This has the effect that the message is handled right away.

34

The presented programming model allows an application to perform lengthy computations without having to sprinkle polls through the computation while still achieving low latency message passing. The latter is achieved because the lengthy computation is interrupted by an alert and the message is handled before the computation is resumed.

35

Chapter 5

Implementation

This chapter describes how the APIs presented in the last section were implemented.

The implementation of the alert-on-update ISA extension in the gem5 simulator framework is described in Section

5.1

. Section

5.2

gives implementation details on how AOU is used inside Barrelfish’s message passing framework.

5.1

Alert-on-Update in Gem5

We implemented AOU in the gem5 [ 16 ] simulator framework. Gem5 was chosen

because there was an existing port of Barrelfish for gem5 using the ARMv7-A

architecture [ 24 ] and because it provides flexibility to quickly model different types

of systems. For the purpose of our discussion, we assume the system consists of a multicore CPU with per-core L1 caches and one shared L2 cache.

The most natural way to add new instructions to the ARM instruction set is to use a specific co-processor and rely on the co-processor instructions mcr, mcrr, etc. For the AOU ISA extension we used co-processor number 3. Table

5.1

shows how the mnemonic instructions used so far ( aou_start

, aou_end

, aou_monitor

, and aou_release

) map to the corresponding co-processor instructions.

Apart from four new instructions, the implementation of AOU uses two modelspecific registers for each execution context of the CPU. The aou start instruction stores the address of the alert handler and the memory buffer address in those two registers. The buffer address must be aligned to four bytes, which makes the least two significant bits available. The least significant bit is used as a flag to denote whether alerts are enabled or disabled for the execution context. The aou start instruction sets this bit whereas it is cleared by an aou end and by any of the events that trigger an implicit disabling of alerts.

36

Mnemonic Name Actual Encoding aou start aou end aou monitor aou release mcrr p3, 0x0, <reg buffer>, <reg handler>, c0 mcrr p3, 0x1, <reg any>, <reg any>, c0 mcrr p3, 0x2, <reg addr>, <reg any>, c0 mcrr p3, 0x3, <reg addr>, <reg any>, c0

Table 5.1: Encoding of AOU instructions using co-processor 3. The placeholder <reg any> denotes that any of the registers can be used an that the actual value is ignored.

The set of monitored cache lines is tracked in the L1 cache, which is local to each core. The state kept for each cache line is extended by an additional bit indicating whether the corresponding cache line is part of the set of tracked cache lines. The aou monitor instruction sets the bit for the cache line corresponding to the provided memory address whereas aou release clears it. An explicit aou end as well as any event that causes an implicit disabling of alerts clears all the bits.

An alert is triggered whenever a cache line that is marked as monitored is written to by another execution context. The alert-on-update feature extends the cachecoherency protocol in order to detect such a change. Gem5 comes with two different memory systems. The classic memory system implements a snoop-based MOESI cache-coherency protocol that can be simulated rather fast. The Ruby memory system, on the other hand, is more flexible in the cache-coherency protocol and interconnect used, and is typically used for research into cache-coherency proto-

cols [ 17 ]. For our implementation, we used the classic memory system since it has a

much faster simulation speed and we did not require any of the additional flexibility provided by Ruby.

Figure

5.1

shows the extended MOESI cache–coherency protocol used. Circles denote the different states a cache line might be in whereas arrows denote local and remote events that cause a state transition. The left hand side of the figure (black states and arrows) shows the standard MOESI protocol with the terminology used

by AMD [ 5 , Section 7.3]. They use the prefix “probe” to denote a remote event.

The extended MOESI protocol has four new states: AM, AO, AE and AS, which we will collectively refer to as alert states. They have the same meaning as the

MOESI counterparts: M(odified), O(wned), E(xclusive) and S(hared), except that additionally the cache line is monitored. A monitor event brings a cache line from one of the MOESI states to the corresponding alert state whereas a release brings it back. For example, a cache line residing in the M state transitions to the AM state in response to an aou monitor instruction on that cache line. In case a cache line is monitored that was not yet present in the cache, i.e. the cache line was in the invalid state, the cache line is loaded from lower level caches or main memory and put in the AS state.

The transitions between the AM, AO, AE and AS states are the same as the

37

Read Hit

Write Hit

M

Read Hit

Probe Read Hit

Monitor

Release

Read Hit

Write Hit

AM

Read Hit

Probe Read Hit

W rite Miss

O

Read Hit

Pr obe W rite Hit

E

Monitor

Release

Monitor

Release

AO

Read Hit

AE

Read Hit

Probe Read Hit

S

Read Hit

Probe Read Hit

AS

Monitor

Release

Monitor

Probe W rite Hit + Alert

I

Figure 5.1: Extended MOESI cache-coherency protocol with four new alert states: AM,

AO, AE, AS.

38

transitions between the M, O, E and S states except for the probe write hit event.

In any of the alert states, such a remote write causes a transition to the invalid state and triggers an alert.

To be more precise, the alert is not triggered right away, but it is recorded that there is a pending alert and it is triggered at the next possible moment. This is necessary because otherwise the alert might be triggered at a point in time that violates atomicity. The strexd instruction, for example, guarantees that the 64 bit

value is written atomically [ 11 , Section A3.5.3]. If the alert were triggered right

away and the first 32 bit write triggered an alert, atomicity would be violated.

Cache lines are only monitored in the L1 cache. A single bit is sufficient to indicate that the cache line is part of the set of tracked cache lines. Which execution context the set is associated with is stored implicitly since the L1 cache belongs to a specific core and each core only has one execution context (ARM does not feature

Simultaneous Multithreading). In order to support monitoring cache lines in the shared L2 cache as well, we would need to know which execution context the cache line belongs to. While this information could be stored alongside each cache line in the L2 cache it would use up scarce L2 space. Also, the space needed scales linearly with the number of cores in the system. Therefore, do not track cache lines in the

L2 cache.

As a result, a spurious alert is triggered whenever a monitored cache line is evicted from the L1 cache due to a capacity or conflict miss. To reduce the number of

spurious alerts, a victim cache [ 32 ] could be employed or the cache line replacement

policy could be tweaked to favor cache lines that are monitored. We did not use any of these techniques because spurious alerts were not a problem in practice.

Since the changes to the CPU required for AOU are comparable to the changes required to support TSX, we are convinced that AOU is implementable in hardware.

The set of monitored cache lines in AOU corresponds to the read-set in TSX. Both are tracked in the L1 cache and a modification of any element of the set causes a hardware initiated control transfer to the alert handler or abort handler respectively.

The difference is merely in the way new elements are added to this set. With TSX, all memory locations read within a transaction are implicitly added to the read-set, while with AOU, the cache lines can be explicitly added and removed by an assembly instruction. There are two other differences between TSX and AOU. Firstly, they handle interrupts and system calls differently. With TSX events like interrupts and system calls trigger an abort while with AOU they do not cause an alert but instead we simply stop monitoring. Secondly, TSX takes a snapshot of the register state at the beginning of the transaction and restores this state for the abort handler. AOU, on the other hand, makes the register state from the time normal execution was interrupted available to the alert handler. Despite the mentioned differences, we are convinced that AOU is implementable in hardware because the differences do not add complexity but merely handle cases differently.

39

5.2

Barrelfish Implementation

This section details how the high-level API described in Section

4.3

is implemented.

We start by describing how the UMP channels are monitored without creating a race condition (Section

5.2.1

) and then walk through the steps that happen during

an alert (Section

5.2.2

). Section

5.2.3

gives an overview of the TLA+ model—a formal model of the implementation—and describes the invariants we model checked.

The last section, Section

5.2.4

, elaborates why scheduler activations are essential for

the implementation and describes why using alerts in Linux is hard.

5.2.1

Monitoring UMP Channels

As presented in Section

4.3

, the programmer uses the API call

waitset_monitor_ump to enable monitoring the UMP channels belonging to the waitset instead of polling them. The dispatcher keeps a list of all the waitsets that are monitored. The API calls waitset_monitor_ump and waitset_poll_ump merely add or remove the waitset to this list. Alerts are used if there is at least one waitset in the list.

All UMP channels belonging to a waitsets in the list are no longer continuously polled but only at defined times. In particular, they are polled whenever the dispatcher is upcalled because a message could have arrived while the dispatcher was not running, and they are polled after an alert.

When the dispatcher is upcalled, not only are the UMP channels polled but they are also monitored. The order in which these two operations are performed is important.

If we were to poll the UMP channels first, there would exist a raise condition and if a message arrived between polling the channel and monitoring it, it would go undetected. To avoid this race condition, a UMP channel is first monitored and then polled. If there is a pending message, the UMP channel is moved from the polled to the pending queue of the waitset and the cache line that was monitored is released again.

5.2.2

Alert - Step-by-Step

To support alerts, a memory structure shown in Figure

5.2

is allocated when the dispatcher is created. It contains the memory region used by the alert-on-update feature, the address of the current dispatcher as well as the alert stack. Only the two words shown in red are written to by hardware, the rest is solely used by the software alert handler. When alerts are enabled with aou_start

, the address to the middle of this structure, namely to the word labeled “offset 0”, is passed as the memory buffer argument. Later, when an alert is triggered, this address is stored in the r1 register and we have the exact situation as shown in the figure.

40

r1 alert stack old r1 old pc dispatcher address offset -4 offset 0 offset 4 offset 8 used by AOU ISA extension used by software

Figure 5.2: Layout of memory structure to support alerts. It contains the structure used by the AOU feature as well as the alert stack.

Embedding the memory buffer used by the hardware in the structure used by software gives the alert handler access to all state needed. It has access to the old register state (old r1 and pc register), has access to the current dispatcher and has a stack to work with.

When an alert is triggered the software alert handler performs the following steps.

First, it establishes a basic execution environment: setting up the stack and storing the current value of a handful of registers such that they can be used as scratch registers. Second, it is determined whether or not upcalls were effectively disabled at the time normal execution was interrupted by the alert. If they were, we merely record that an alert happened but do not act immediately. Instead, the register state is restored and normal execution is resumed.

If upcalls were enabled, the register state at the time normal execution was interrupted is saved to the enabled save area of the dispatcher. Moreover, we disable upcalls and switch to the dispatcher stack where the second half of the alert handler executes.

The second part of the alert handler enables alerts again and then polls the UMP channels and monitors them with the scheme described in the last section. If any of the channels are ready and there is a thread blocked on the waitset, it gets unblocked.

Subsequently, the thread scheduler is entered. In the intended programming model, there is a high-priority thread that handles the messages and the thread scheduler will choose this one over the lower priority application thread, therefore handling the arriving message right away. Once all messages are handled, the high-priority threads blocks and the application thread is resumed again.

The alert handler is split in two because the first part of the alert handler is not reentrant. Therefore, it is unsafe to enable alerts while still executing on the alert stack. The second part of the alert handler actually is not reentrant either but it is never entered twice. If an alert happens while executing the second part of the alert handler, the first part restores the interrupted execution because upcalls are disabled while the second part runs.

41

This is one example why it is essential for the first part of the alert handler to restore the interrupted execution instead of acting on the alert right away. In general, disabling upcalls is used in Barrelfish as a synchronization mechanism and important data structures like the dispatcher state or the thread control blocks might not be in a consistent state while disabled. Therefore it would be unsafe to run the second part of the alert handler which enters the user-level scheduler.

Instead of acting right away, the alert handler notes that an alert happened and restores the interrupted execution. When we enable upcalls again, we check whether there was an alert while upcalls were disabled and handle it at that time.

So far, we only talked about the alert interrupting normal execution, all of which happens completely in user space. However, there is one more dimension to consider, namely the kernel interrupting user space. The kernel might interrupt user space at any time and it might happen that an alert interrupted normal execution and while the alert handler runs, the kernel interrupts user space.

Before we describe how such a scenario is handled let us quickly review how interrupts interact with dispatchers in the absence of alerts. There are two cases to consider depending on whether upcalls were enabled or disabled when the interrupt happened.

If upcalls were enabled, the kernel saves the register state of the interrupted context to the enable save area and once it finished processing the interrupt the dispatcher is upcalled. If upcalls were disabled, the register state is stored to the disabled save area and the kernel resumes the dispatcher instead of upcalling it.

There is one more twist. Because of a race condition when the user level scheduler resumes a thread context, the kernel cannot just check the flag that indicates whether upcalls are disabled or not. The race condition exists because upcalls are enabled before the full register state of the thread is restored, however, while the resume operation takes place, the dispatcher should still be considered disabled. Therefore, the kernel not only checks the flag that indicates whether upcalls are disabled or not but also checks whether userland was resuming a thread when it was interrupted.

The latter is done by checking whether the value of the pc register lies within the interval of instruction addresses that correspond to the resume code. The kernel considers the dispatcher effectively disabled if the flag indicates that it is disabled or if the pc register lies in the resume range.

With alerts the interaction between kernel and dispatcher stays the same except for the definition of effectively disabled. The kernel considers the dispatcher effectively disabled if the flag indicates that it is disabled or if the pc register lies in the resume range or if the pc register lies in the alert handler range. The last check is necessary because we have a similar race condition in the alert handler that we have when resuming a thread. As soon as the hardware triggers the alert, and while the alert handler is running, upcalls should be disabled. However, we can only explicitly disable upcalls after we have setup a basic execution environment. To account for this discrepancy between the time the kernel should consider upcalls disabled and the time the disabled flag is set, the kernel performs the additional check.

42

The check whether the dispatcher is effectively disabled happens at every interrupt and on the fast path. Therefore, as an optimization, the code that resumes a thread and the alert handler are placed adjacently in the binary by putting them in a dedicated section. As a result, we only have to check whether the pc register lies within this section.

5.2.3

TLA+ Model and Model Checking

The last section mentioned quite a few subtle implementation details one must get right and there are many more that we did not discuss. Part of the complexity stems from the fact that there are several different execution environments involved each with their associated stack and register state. First, there are user-level threads that store their register state in the thread control block if they are not running.

However, if a user-level thread is preempted by the kernel, its state is temporarily stored in the enabled save area of the dispatcher. Then, there is the dispatcher whose register state is created anew each time it is upcalled. If the dispatcher, running on its own stack, or a user-level thread with upcalls disabled is preempted, the register state is stored in the disabled save area. Finally, there is the alert context. If an alert is triggered, part of the state of the interrupted context is—out of necessity—temporarily stored on the alert stack and later moved to the enabled save area.

To get high confidence that these different execution environments are always saved and resumed correctly, we wrote a formal model of the intended implementation using

the TLA+ [ 34 ] specification language even before starting with the implementation.

Furthermore, we used the TLC model checker [ 44 ] to assert that the register state

from each execution environment is never overwritten or lost.

The full TLA+ specification can be found in Appendix

B

and the interested reader is encouraged to read it. While the specification might look daunting at first, it is extensively commented and most of the specification has a similar pattern. In the following we give a brief overview of the specification.

Our specification models a single dispatcher and two user-level threads as well as how they interact with interrupts and alerts. To keep the model to a reasonable size, we only model the following variables: the flag indicating whether upcalls are disabled or not, the enabled and disabled save area, the thread control blocks of both threads, the scheduler variable indicating which thread is currently running, whether or not alerts are enabled, the memory buffer used by the alert-on-update feature, and the program counter.

In TLA+, the execution of a system is described as a sequence of discrete steps. Each step leads from one state to a new one where a state is a particular mapping from variables to values. The specification determines the set of all allowed sequences. It is formulated as an initial state and a set of next state actions.

43

The formula shown below is an example next state action. Note that in TLA+, unprimed variables refer to the current state while primed variables refer to the next state.

ThreadYield

= ∧ pc = “user”

∧ disabled

0

= TRUE

∧ ∨ pc

0

= “disp save 1”

∨ pc

0

= “disp switch 1”

∧ unchanged henabled area, disabled area, thread1 tcb, thread2 tcb, resume from, current , alerts enabled , alert buffer i

The next state action is named ThreadYield and is one of several next state actions in our specification that model the steps occurring when a thread yields. In Barrelfish, the first operation that is performed when a thread yields is to disable upcalls and the above formula models exactly that.

current state

pc = user disabled = FALSE

...

ThreadYield

next state

pc = disp_save_1 disabled = TRUE

...

Figure 5.3: Example two states that relate by the ThreadYield action.

Intuitively, the action states that it is applicable whenever the program counter has the value “user” and that the next state has the same mapping from variables to values with two exceptions. First, the value of the variable disabled has the value

TRUE. Second, the value of the program counter is either “disp save 1” or “disp switch 1”. Figure

5.3

shows one example where the ThreadYield action was used to get from the current to the next state.

Our specification has 22 next state actions which all follow a similar pattern as the ThreadYield action. In each state the system is in, a subset of the next state actions are applicable. In our case, there are usually three actions applicable. One of them describes the next action in program order, the other two correspond to an interrupt and an alert respectively.

After we specified the system, we defined safety properties that should to hold in every possible state. Subsequently, we used the TLC model checker to verify that these properties hold for every possible execution. Our initial design contained two design flaws which the model checker immediately identified. It also provided an example trace where the problem occurred. This allowed us to quickly rectify the design.

44

Even though it was a considerable effort to write the formal specification, it has proven worthwhile. The design flaws were subtle edge cases and they would have been nearly impossible to debug.

5.2.4

Scheduler Activations and Why Using Alerts in Linux is Hard

Because a context switch implicitly disables alerts, they need to be enabled again each time a dispatcher is scheduled. This can easily be done in Barrelfish because

it supports scheduler activations [ 6 ]. A user-level thread that is preempted by the

kernel is not directly resumed when the dispatcher is scheduled again, instead, the dispatcher is upcalled. This upcall makes the dispatcher aware of the fact that it was interrupted by the kernel and allows it to reenable alerts.

Linux and UNIX-like systems do not support scheduler activations and processes have no way to tell that they were interrupted. This makes it hard to use alerts efficiently. The only way how alerts can be used is by adapting the alert-on-update hardware feature. In the following we discuss two different approaches how the

AOU ISA extension can be changed to make it useful for a Unix-like system.

Kernel Restores Alerts for User Process

In the first approach, the kernel reenables alerts on behalf of the user program before the process is scheduled. To this end, the user process communicates to the kernel the address of the alert handler, the address of the memory buffer and all the memory locations that should be monitored so that the kernel can setup alerts.

To make this work, the proposed AOU ISA extension must be slightly adapted.

Remember that any change in privilege level implicitly disables alerts. If alerts are enabled in the kernel for userland, lowering the privilege level should no longer implicitly disable alerts.

While such an approach works, it adds software overhead and hardware complexity.

On the software side, the kernel must validate the information provided by the user process. On the hardware side, there are additional edge cases. For example, what happens when a monitored cache line is modified after the kernel enabled alerts on behalf on the user process but before it is scheduled? The alert cannot be triggered right away as the alert handler would otherwise run with elevated access permissions.

Thus, the hardware must remember that there was an alert for a particular user process and trigger it only after the process is scheduled.

45

Trigger Alert When Interrupted

In a second approach, the alert-on-update feature triggers a spurious alert when an interrupt happens instead of implicitly disabling alerts. The way this works is that whenever an interrupt happens while alerts are enabled, the interrupt remains pending and is handled after the alert is triggered but before the first instruction of the software alert handler executes. This is analogous to how TSX triggers a

spurious abort when an interrupt occurs [ 28 , Section 15.3.8.2].

With the change to the AOU feature described above, hardware triggers an alert whenever a process is preempted and the software alert handler runs first thing when the process is scheduled again. This makes the process aware that it was descheduled and empowers it to reenable alerts.

This approach enables the efficient use of alerts on UNIX-like systems. It is, however, not without its downsides. On the one hand, it puts functionality in hardware that can easily be implemented in software. To elaborate on this, the changed hardware behavior emulates an upcall since the alert handler runs whenever the process is scheduled. Upcalls, however, can be easily implemented in software.

On the other hand, it increases the interrupt latency because processing the interrupt is delayed until the alert is triggered. While this happens in TSX as well, transactions are usually short lived, and as a result, the interrupt latency is only increased in the unlikely case that it occurs while a transaction is active. Alerts, on the other hand, are enabled most of the time.

Other Approaches

Other approaches are possible including ones where the hardware saves and restores all alert state for a process. Such approaches, however, require extensive hardware support and we did not consider them further because there were no compelling advantages over the two approaches presented above.

46

Chapter 6

Evaluation

This chapter evaluates the performance of Barrelfish’s user-level message passing

(UMP) when alerts are used to notify the receiver and compares it to the standard means for the receiver to detect a new message: polling. If not stated otherwise, gem5 was configured to emulate a machine with the parameters shown in Table

6.1

.

CPU Atomic Simple, ARMv7-A, 2 cores, 1GHz

L1 dcache 64KB per-core, 2-way associative, 2 cycles hit latency

L1 icache 32KB per-core, 2-way associative, 2 cycles hit latency

L2 cache

DRAM

2MB shared, 8-way associative, 20 cycles hit latency

256MB, 30 cycles access latency

Table 6.1: Gem5 simulation parameters.

6.1

Alerts versus Tight Polling

The first microbenchmark compares a receiver that uses alerts to one that uses a tight polling loop to detect the arrival of a new message. The experiment setup consists of a sender running on one core and a receiver running on another. To communicate, a single UMP channel is used.

In case the sender uses alerts, we make use of the intended programming model described in Section

4.3

of creating an additional thread that is usually blocked but gets unblocked and scheduled when a message arrives. For the purpose of the benchmark, the main thread performs a dummy computation: summing up numbers.

In case the sender uses polling, there is only one thread which continuously polls the UMP channels.

47

Because of the overhead associated with an alert—setup and teardown of the alert stack, entering the user-level scheduler and switching to the thread that handles the message—we expect that using polling is faster compared to alerts. Keep in mind though, that with polling we waste our cycles checking the arrival of a new message while with alerts the main thread can perform useful work.

For the experiment, a total of 1000 messages are sent from sender to receiver, each carrying two 32 bit words as payload. For sending and receiving, the high-level

Flounder message passing framework is used. The latency for each message is timed individually. We start measuring right before the transmit function is called and stop once the receive callback is invoked.

Using a tight polling loop resulted in a median message latency of 1137 cycles, and a latency of 1611 cycles when alerts are used. As expected using polling is faster than using alerts, but it is noteworthy that alerts only add 500 cycles overhead compared to polling.

high-level send

20%

low-level

UMP send alert-handler called

13% 22%

UMP channels polled

33%

low-level

UMP receive high-level receive

11%

message marshalling detect sending, trigger alert, setup alert stack switch to dispatcher stack, poll all UMP channels, move ready channels to pending queue unblock thread, run user-level scheduler, switch threads demarshalling events receiver events sender

Figure 6.1: Message latency breakdown.

Figure

6.1

shows a timeline of the different activities that happen between the send and receive and breaks down the time spent in each as a percentage of the total message latency. Events depicted in green occurred at the sender while blue events happened at the receiver.

To marshall the message and get from the high-level send function to the low-level

UMP send accounts for 20% of the total message latency. After the message was sent, it takes approximately 210 cycles (13%) to detect that there was a message, trigger an alert and for the receiver to setup the execution environment for the alert handler. Subsequently, the receiver switches to the dispatcher stack, polls all UMP channels to check which one is ready, and moves the ready channels to the pending queue of the corresponding waitset; all of which uses up 22% of the total message latency. One third of the time is the spent unblocking the high-priority thread that will handle the message, running the user-level scheduler and dispatching that very thread. Finally, it takes another 11 percentage points to demarshall the low-level

UMP message and invoke the registered message handler.

48

6.2

Alerts versus Polling at Different Polling Frequencies

The second benchmark models an application that performs a compute-intensive task but every so often receives a UMP messages which should be handled in a timely manner. The task consists of summing up all the numbers between 0 and

10

7

− 1 using 64 bit additions.

We provide two different implementations of the benchmark. The first uses alerts to detect new messages and consists of two threads. One thread performs the summation task while the other is responsible for handling incoming messages and is blocked if there are none. The second implementation uses polling to check for new messages and only employs one thread. This thread interleaves summing up the numbers with polling. After a configurable number of summation operations, the thread polls the UMP channels. This implementation has a tradeoff between the polling frequency and the overhead due to polling. Choosing a higher polling frequency results in a lower message latency but, on the downside, increases the total runtime.

We compare the implementation using alerts with the polling implementation at different polling frequencies. The UMP messages sent to the application originate from a load generator running on a different core. A single UMP channel is used for sending the messages from the load generator to the application. The load generator is configured to send a message carrying a two word payload every 1 to 50 ms. The exact time when the next message is sent is chosen uniformly at random from this interval.

total time [s] total time slowdown polling never 3.661

polling 10

6

3.675

polling 10

5 polling 10

4

3.682

3.690

polling 10

3 polling 10

2

3.701

3.727

polling 50 polling 25

3.752

3.794

alerts 3.700

-

0.38%

0.60%

0.80%

1.11%

1.82%

2.49%

3.64%

1.06% median message latency

[cycles]

180’910’028

20’673’991

1’890’584

191’297

21’094

11’605

6’637

1’611 median message latency slowdown

-

15’911’072%

1’818’193%

166’178%

16’725%

1’755%

921%

484%

42%

Table 6.2: Benchmark results from compute-intensive task that also receives UMP messages using 1 channel.

Table

6.2

shows the result of the benchmark. It lists the total time it took to complete the summation task and the median message latency from the time the

49

load generator sent the message until the application handled it. Additionally, it shows the slowdown of the total time and the slowdown of the median message latencies compared to the respective baseline. As baseline for the total time serves a run of the benchmark that uses the polling implementation but the polling frequency was set so low that the channels were never polled and therefore no messages were handled. This run is labeled “polling never” in the table. The baseline for the median message latency is the result obtained in the last section, where we used tight polling. This slowdown represents how much slower it is to use alerts or polling at a fixed frequency compared to the fastest way to detect a new message: tight polling.

We performed seven benchmark runs with different polling intervals. For each polling interval, the benchmark was run only once. However, since gem5 has deterministric simulation, there is no point in repeating a benchmark run with the same parameters as it results in exactly the same outcome.

Polling every 25 addition operation resulted in a low message latency of 6’637 cycles but the total runtime of the application increased by 3.64%. At the other end of the spectrum, if we poll every one million iteration, the application runtime is not significantly affected but the message latency increases to 181 · 10

6 cycles which equals 181 ms. Using alerts resulted in the lowest latency of 1’611 cycles and an overhead of 1.06%.

Using the detailed statistics provided by the gem5 simulator allowed us to analyze where the application overhead stems from. Comparing alerts to polling every 25 iterations shows that with polling there are 5.0% more memory references (loads and stores) whereas with alerts there are 4.1% more instruction cache misses. There are more memory references with polling because the UMP channels are checked more frequently, resulting in more read operations. With alerts there are more instruction cache misses because more distinct code is executed.

These results attest that there are several tradeoffs to consider when deciding whether or not to use alerts. If low-latency messaging is of utmost importance or if the application has nothing else to do, it is best to use a tight polling loop. This gives the lowest message latency. In case the application is not just waiting for the next message to arrive but has other useful work to perform, alerts are a good fit. While the message latency increases, it is still much lower compared to regularly checking for new messages. Also, the application overhead of using alerts is low. Polling at regular intervals only makes sense if low latency message passing is not required and a message latency in the order of magnitude of milliseconds is acceptable. In such a case, polling provides a small performance advantage. However, since the performance gain is low—less than 1%—and polling at regular intervals entails sprinkle code that checks the message channels all over the application, we would argue that alerts are better suited. They provide a cleaner programming construct since the application task and the polling are not intertwined.

50

6.3

Alerts versus Polling with Multiple UMP Channels

In the benchmark from the last section all the messages arrived on a single UMP channel and therefore only one channel had to be polled. However, it is common for Barrelfish applications to make use of multiple UMP channels, and essential system services like the monitor or the memory server easily end up having to poll dozens of channels. In this section, we repeat the experiment from the last section but increase the number of UMP channels used. The messages might now arrive on any of them and the application has to poll them all.

55

Application overhead for 1, 10 and 100 UMP channels

50

1 UMP channel

10 UMP channels

100 UMP channels

45

40

35

30

25

20

15

10

5

0

25 50 100 1000 10000

Polling interval

100000 1000000

Figure 6.2: Application overhead when polling at different intervals and for an increasing number of UMP channels.

Figure

6.2

shows the application slowdown due to regularly polling 1, 10 and 100

UMP channels. The results for 1 UMP channel are from the experiment in the last section and are shown for comparison. When multiple channels are polled, the overhead quickly increases, especially for high polling frequencies. For example at a polling interval of 25, the overhead is 3.64% for one UMP channel, 7.89% for 10 and 50.34% for 100 UMP channels.

In contrast, the application slowdown when using alerts is not significantly affected

51

by the number of UMP channels. With one UMP channel the overhead is 1.06%, with 10 1.09% and with 100 UMP channels 1.15%. This favorable scaling makes using alerts preferable over regular polling in case there are many UMP channels to check.

52

Chapter 7

Related Work

Ritson and Barnes [ 38 ] perform a similar performance study of TSX as we did in

Chapter

3

and then go on to list possible use cases outside of transactional memory.

They identify that TSX can be used by a user application to detect context switches as well as for user-level exception handling because, for example, a null pointer dereference causes the transaction to abort but the operating system will not be invoked. Also, TSX can be used to implement choice over events analogous to what we use to detect an incoming message with multiple UMP channels.

Alert-on-update has been proposed before [ 40 ] [ 39 ]. Spear et al. use the alert-on-

update feature as a simple hardware-assist to accelerate a software transactional memory system. While our feature resembles theirs, it differs in various aspects.

Apart from a different API, their solution has two different mechanisms to deliver an alert depending on whether it happens while executing in user or kernel mode.

An alert happening in user mode causes a simple control transfer while one occuring in kernel mode takes the form of an interrupt. Also, our implementation extends the MOESI cache-coherency protocol while theirs uses MESI.

Diestelhorst et al. [ 21 ] propose a small modification to AMD’s Advanced Synchro-

nization Facility (ASF) that makes the full register state available to the abort handler, therefore enabling the transaction to resume. For example, it would be possible to resume the transaction after an interrupt or system call. With the modification, ASF could also be used for alert-on-update.

Isaacs [ 31 ] proposes an alternative notification scheme for Barrelfish’s user-level

message passing that relies on kernel support and uses inter-processor interrupts.

Since it is rather heavy-weight compared to the size of the message, it is not meant to be used on every message. Rather, the programmer can decide to expedite certain latency-sensitive messages. Our approach is more light-weight since it neither involves the kernel nor inter-processor interrupts, but, on the downside, only works if sender and receiver are currently running.

53

Chapter 8

Conclusion and Future Work

We have studied point-to-point message passing between two threads running in parallel on two cores which are part of the same cache-coherency domain. After analizing the performance characteristics of Intel TSX, we found that while the basic mechanism of monitoring multiple cache lines and triggering a control transfer would be useful for message notification in the above described scenario, the API exposed by TSX is not flexible enough.

Thus, we presented a hardware mechanism called alert-on-update that carries over the basic mechanism from TSX but can be used outside of transactional memory.

We used AOU in the context of Barrelfish’s user-level message passing to notify the receiver of a new message and integrated the use of alerts into the larger message passing framework of Barrelfish. To get high confidence that our implementation is correct, we wrote a formel specification in TLA+ and model checked it.

Measuring the effectiveness of message passing with notifications, we found that it is most useful if low-latency message delivery with latencies below the scheduling quantum are required. It provides comparable, though unsurprisingly higher, message latencies compared to tight polling with the advantage that no cycles are wasted on polling and can instead be used for application processing. Comparing the use of alerts to polling at regular intervals revealed that alerts provide lower latencies and a cleaner programming construct.

8.1

Directions for Future Work

8.1.1

Alert-on-Update and Fast Mutexes

We have studied using alert-on-update for message passing and others have applied it to software transactional memory. AOU has other applications like fast mutexes

54

that are worth investigating.

Consider, for example, a high-priority thread T

1 running on core 0 that is blocked because it tried to acquire a mutex which is currently held by another thread T

2 running on core 1. Because T

1

Once T

2 is blocked, core 0 runs a lower-priority thread T releases the mutex, we would like to schedule the high-priority thread T

3

1 as fast as possible. This can be achieved either by involving the kernel and using an

.

inter-processor interrupt, or by using alerts.

The scenario has many similarities to message notification: in both cases there is an event on one core that needs to be delived to another. In the same way that using alerts is the better choice for message notification, we believe that it will be for fast mutexes.

8.1.2

Alert-on-Update and Hardware Transactional Memory

Co-design

As discussed in detail in Section

5.1

, alert-on-update and hardware transactional

memory (HTM) like Intel’s TSX share many similarities. At the heart of both solutions lies cache-line tracking and a hardware initiated control transfer. It would be worthwhile exploring whether a common hardware feature could be used for both alerts and hardware transactional memory, and the implications such an approach would have.

55

Appendix A

Changes to the Barrelfish

Operating System

The ARMv7 port of Barrelfish for the gem5 simulator was not used much since its

initial implementation in 2012 [ 24 ]. Over time, many bugs made their way into the

code. As part of this thesis, countless bugs were fixed. In the following, we describe two of the more involved bugs.

A.1

Timers and Timer Interrupts

The VExpress EMM platform that our configuration script of gem5 simulates

features two SP804 [ 7 ] double timer modules as well as Cortex A9 core private timers [ 8 , Section 4.2]. Before our bugfix, one SP804 module was used as the timer interrupt for all cores and the interrupt was configured in N-N mode [ 10 , Section

1.4.3] at the Generic Interrupt Controller (GIC). In this mode, each core receives and must acknowledge the interrupt independently.

The implementation had two problems. On the one hand, the calculations of the counter value assumed the timer was running at the 1GHz system clock while in reality is was running at the 1MHz peripheral clock. As a result, the timer interrupt was only triggered once every 5 seconds instead of every 5 milliseconds. On the other hand, the GIC implementation in gem5 does not support interrupts in N-N mode and resorted to 1-N mode sending the interrupt only to core 0.

One way to fix the issue would have been to use both timers of each of the two

SP804 modules we have on the VExpress EMM platform, one for each of the four cores we support. We chose an alternative way of using the core private timers of the Cortex A9. This makes the code simpler since we do not need to assign timers

56

to cores, is how we do it on the PandaBoard and is less platform-specific.

During bootup, each core configures its private timer to interrupt every timeslice.

Since this timer is private to the core, the interrupt is also only delivered to that core.

A.2

ARM ABI

The second problem arose because we link together object files compiled for different

ABIs. Barrelfish applications are compiled for the ARM Architecture Procedure

Call Standard (AAPCS) [ 9 ] with two exceptions. First, the r9 register is reserved to

contain the address of the current dispatcher at all times

1

. Second, the r10 register always points to the global offset table

2

.

However, Barrelfish applications are also linked against libgcc that comes with the compiler and which uses the unmodified ARM Architecture Procedure Call

Standard. The libgcc library provides a low-level runtime and the compiler is free to insert calls to the library at anytime. It is used for example for integer division or floating-point arithmetic on machines that do not support such operations

natively [ 2 ].

Linking together code compiled for different ABIs is generally discouraged. If it is done nevertheless, great care must be taken. The specific problem we encountered was the following. The application was performing a division and since the hardware did not provide a native instruction for it, a soft implementation from libgcc was used. The division function adhering to the AAPCS ABI stored the callee-save r9 and r10 register on the stack at the beginning of the function but freely used them afterwards. During the division function an alert was triggered and control was transferred to the alert handler. The alert handler code, however, was compiled for the modified AAPCS ABI and assumed that the r9 and r10 register contained the address of the current dispatcher and the address of the global offset table respectively. This did not hold anymore and the alert handler was unable to access any global variable or call any Barrelfish library function that referenced the current dispatcher. Being unable to do either, the alert handler could not perform any useful work.

One way to fix the issue would have been to compile libgcc with the same modified

ABI as Barrelfish applications are. However, the Barrelfish team decided on another

occasion that they rather make the operating system work with a blessed compiler

3

than to start modifying both or require to build the compiler with different flags for that matter.

1

2

3

GCC flag -ffixed-r9

GCC flags -msingle-pic-base and -mpic register=r10

At the time of writing the blessed compiler is MentorGraphics Sourcery CodeBench Lite Edition

Version 2012.03.

57

So we set out to make Barrelfish work if linked against libgcc compiled for the unmodified AAPCS ABI. In a first step, we changed the ABI used by Barrelfish such that the r10 register is no longer dedicated to hold the address of the global offset table. This change makes the r10 register available as a general purpose register and brings the ABI closer to the AAPCS.

Even though the address of the global offset table is no longer available in a dedicated register, our applications are still position independent executables. If a global variable is accessed, the address of the global offset table is found using pc-relative addressing. While this increases the overhead of accessing global variables, we are convinced that overall application performance does not get worse since the compiler now has one more register available for code generation.

Changing the ABI and making r10 a general purpose register enabled the alert handler to correctly access global variables. If a global variable is referenced in the alert handler, it no longer assumes any particular value of the r10 register but instead computes the address using the current program counter. They only remaining difference between the Barrelfish and libgcc ABI is the use of the r9 register.

Unfortunately, it is much harder to remove this ABI difference. For an application that only runs on one core, the dispatcher address could be stored in a global variable instead of keeping it in the r9 register. An application that spans multiple cores has one dispatcher per core, the global variable therefore would have to point to different dispatchers depending on which core the global variable is dereferenced on. While this could be implemented using a different page table structure for each core and map the page containing the global variable to a different physical frame on each core, it adds complexity and duplicates state—at least the first level page table cannot be shared.

For these reasons, we decided not to opt for removing the ABI difference but to deal with the fact that our Barrelfish ABI assumes the r9 register always contains the dispatcher address while the libgcc ABI freely uses it. Care must be taken whenever a new context is established, i.e. when the kernel upcalls the dispatcher, when a new domain or thread is created, and when the alert handler sets up the context for itself to run. In all these cases the r9 register must be explicitly set to point to the current dispatcher.

In case of the alert handler this is handled as follows. When the alert stack is allocated, the dispatcher address is stored at offset 8 (see Figure

5.2

on page

41 ).

The alert handler then bootstraps itself by loading this address into the r9 register before calling any Barrelfish functions and saves the value the r9 register had before, so that the interrupted context can be properly restored.

58

Appendix B

TLA+ Specification

module aou

The TLA+ specification at hand models the interactions between dispatchers, user-level threads, interrupts and alerts in the Barrelfish operating system. It is used together with the TLC model checker to verify that the execution state of threads and dispatchers is retained even if normal execution flow is interrupted by user-level alerts and interrupts.

The specification models a single dispatcher with two user-level threads all running on a single core. A thread can yield at any time resulting in a thread switch or a sys yield of the dispatcher.

In the latter case, the dispatcher is upcalled at the run entry point once the kernel scheduler decides to run the dispatcher again. Following a run upcall, the dispatcher either resumes the thread that ran before or schedules another one. While executing in user-mode an asynchronous interrupt may happen at any time. Depending on whether upcalls were enabled or disabled at the time the interrupt happened, the kernel will either upcall the dispatcher or resume it. Lastly, user-level alerts may happen asynchronously anytime they are enabled. Following a notification, the user-level thread scheduler is entered and potentially a new thread is scheduled.

In TLA+, the execution of a system is described as a sequence of discrete steps. Each step leads from one state to a new one where a state is a particular mapping from variables to values. The specification determines the set of all allowed sequences. It consists of the initial state Init and all allowed next state actions Next . The specification consists of the following variables. The

TypeInvariant located near the end of this specification list all the possible values the variables may attain.

59

disabled Boolean flag that is part of the dispatcher state and indicates whether upcalls are explicitly disabled or not. In the following if we refer to a disabled dispatcher we mean that upcalls are disabled.

enabled area One of the two save areas used by the kernel to store user-space state in case an interrupt happens. The enabled area is used if the dispatcher was enabled and therefore stores the state of the user-level thread that was running when the interrupt happened.

disabled area The other save area used by the kernel. It stores the state of the dispatcher if it was interrupted while being disabled.

thread1 tcb Thread control block for thread 1 containing the thread state if another thread is currently active.

thread2 tcb Thread control block for thread 2 containing the thread state if another thread is currently active.

resume from Either the enabled area or the TCB are used to resume a thread. This variable indicates which area is used to resume the thread and corresponds to the argument of the disp resume function in lib/barrelfish/arch/<arch>/dispatch.c.

current Variable which is part of the dispatcher state and indicates whether ”thread1” or ”thread2” is currently active.

alerts enabled Boolean flag indicating whether alerts are enabled or not. This flag is part of the hardware state.

alert buffer Buffer allocated by software but written by hardware when an alert happens. In our model it contains only the value of the program counter at which the normal control flow was interrupted by the notification handler.

pc The program counter assumes string values and is used to model program order.

Four of the above variables, namely enabled area, disabled area, thread1 tcb and thread2 tcb, store the register state. While the real system contains some dozens registers, we model only two registers named r1 and r2. This makes the model much simpler and readable while still being able to distinguish, for example while storing the full register state to the save area, between an interrupt that happened before, in between or after registers r1 and r2 were stored to the save area.

Instead of storing the actual value of a register to the save area, we store the number of store and load operations performed. Each store increases the value by one whereas each load decreases it by one. If our specification is correct, only values 0 or 1 should ever appear. A value of 2, for example, would be an error because there were two store operations without a load operation in between. Intuitively, this means that the state stored the first time is never read but overwritten by the second store. The TypeInvariant states that only values 0 and 1 are correct and the model checker verifies that the invariant actually holds for the specified system.

Apart from the fact that the state is retained at all times, many more properties are checked.

Section ‘safety properties’ at the end of this specification list the properties in details.

Since in Barrelfish all kernel operations are done with interrupts disabled, they are modeled as a single atomic step (atomic in the sense that no other action is allowed to come in between) with only the changes that are visible once we’re back to user space.

At a high-level alerts fit into the existing Barrelfish system as follows:

• they are enabled in the ‘run’ upcall

• they are disabled explicitly before we enter disabled mode

• they are disabled implicitly by an interrupt (because we traverse the user-kernel boundary)

• after the alert handler, we enter the thread-scheduler

60

The system model at hand uses several simplifications compared to the real system to keep the model simple and to a reasonable length. The most important of those are:

• pagefaults and traps are not modeled

• there are two static threads, creating and destroying threads is not possible

• threads don’t block

• system calls are not yet modeled

• we don’t check any liveness properties like []<> pc = "user" yet.

extends Naturals variables disabled , disabled area, enabled area, thread 1 tcb, thread 2 tcb, resume from, current , alerts enabled , alert buffer , pc vars

= hdisabled , disabled area, enabled area, thread 1 tcb, thread 2 tcb, resume from, current , alerts enabled , alert buffer , pci

***************************** Utility functions ****************************

Given a program counter ’p’, indicates whether or not we are currently resuming a user-level thread.

inside resume range(p)

= p ∈ {“resume 1”, “resume 2”, “resume 3”}

Given a program counter ’p’, indicates whether or not we are currently inside the critical section.

The critical section spans all code where the disabled flag is set to false but the dispatcher still should be considered disabled. This includes two cases. First, during resume, the disabled flag is set to false and then all the registers of a thread are restored and execution of the thread continues.

Second, while in the notification handler we always should be considered disabled even before the disabled flag is explicitly set to false.

inside cs(p)

= inside resume range(p) ∨ p ∈ {“ahandler 1”, “ahandler 2”,

“ahandler 3”, “ahandler 4”,

“ahandler 5”}

Given a program counter ’p’, indicates whether or not we are effectively disabled. Effectively disabled means that either the disabled flag is explicitly set or the program counter is within the critical section.

effectively disabled (p)

= disabled ∨ inside cs(p)

Save specified register to save area.

As mentioned above, saving a register to the save area increments the corresponding counter by one. For example: SaveRegisterTo([r 1 7→ 0, r 2 7→ 0], “r1”) = [r 1 7→ 1, r 2 7→ 0]

61

The implementation relies on the fact that records are functions in TLA+.

SaveRegisterTo(area, register )

= area

0

= [area except

!

[register ] = area[register ] + 1]

Load specified register from save area. Dual function to ’SaveRegisterTo’.

LoadRegisterFrom(area, register )

= area

0

= [area except

!

[register ] = area[register ] − 1]

******************************** Initial state *****************************

The initial state is an enabled dispatcher with thread 1 running. All of the save areas are invalid except for the thread control block of thread 2 which contains its state. Notifications are enabled but the notification buffer does not yet contain valid data. Moreover, the program counter is set to “user” indicating that we are currently executing user code, i .e. the actual user application.

The initial state is somewhat arbitrary and one could just as well start off at another state.

Init

= ∧ disabled = false

∧ enabled area = [r 1 7→ 0, r 2 7→ 0]

∧ disabled area = [r 1 7→ 0, r 2 7→ 0]

∧ thread 1 tcb = [r 1 7→ 0, r 2 7→ 0]

∧ thread 2 tcb = [r 1 7→ 1, r 2 7→ 1]

∧ resume from = “invalid”

∧ current = “thread1”

∧ alerts enabled = true

∧ alert buffer = [pc 7→ “invalid”]

∧ pc = “user”

**************************** Next step actions *****************************

Yielding a thread is an action that is explicitly invoked by the currently running thread. It involves disabling upcalls followed by a decision of the user-level scheduler to run another thread or to yield the dispatcher. Our specification does not include the variables that decide which action occurs.

Therefore, we simply specify that both actions are allowed behavior.

Code location: thread yield in lib/barrelfish/threads.c

ThreadYield

= ∧ pc = “user”

62

∧ disabled

0

= true

∧ ∨ pc

0

= “disp save 1”

∨ pc

0

= “disp switch 1”

∧ unchanged henabled area, disabled area, thread 1 tcb, thread 2 tcb, resume from, current , alerts enabled , alert buffer i

Switching from one thread to the other involves the following steps: Determine the next thread to run. Since we only have two threads in our model, we always run the other thread. (DispSwitch 1)

Save the state of the thread that was running before to the thread control block. (DispSwitch 2 and DispSwitch 3).

Code locations: thread yield in lib/barrelfish/threads.c

disp switch in lib/barrelfish/arch/<arch>/dispatch.c

DispSwitch 1

= ∧ pc = “disp switch 1”

∧ if current = “thread1” then ∧ current

0

= “thread2”

∧ resume from

0

= “thread2” else

∧ current

0

= “thread1”

∧ resume from

0

= “thread1”

∧ pc

0

= “disp switch 2”

∧ unchanged hdisabled, enabled area, disabled area, thread 1 tcb, thread 2 tcb, alerts enabled , alert buffer i

DispSwitch 2

= ∧ pc = “disp switch 2”

∧ if current = “thread1” then ∧ SaveRegisterTo(thread 2 tcb, “r1”)

∧ unchanged hthread1 tcbi else

∧ SaveRegisterTo(thread 1 tcb, “r1”)

∧ unchanged hthread2 tcbi

∧ pc

0

= “disp switch 3”

63

∧ unchanged hdisabled, enabled area, disabled area, resume from, current , alerts enabled , alert buffer i

DispSwitch 3

= ∧ pc = “disp switch 3”

∧ if current = “thread1” then ∧ SaveRegisterTo(thread 2 tcb, “r2”)

∧ unchanged hthread1 tcbi else

∧ SaveRegisterTo(thread 1 tcb, “r2”)

∧ unchanged hthread2 tcbi

∧ pc

0

= “resume 1”

∧ unchanged hdisabled, enabled area, disabled area, resume from, current , alerts enabled , alert buffer i

Prepare to yielding the dispatcher by saving the state of the currently running thread to the enabled area.

Code location: disp save in lib/barrelfish/arch/<arch>/dispatch.c

DispSave 1

= ∧ pc = “disp save 1”

∧ SaveRegisterTo(enabled area, “r1”)

∧ pc

0

= “disp save 2”

∧ unchanged hdisabled, disabled area, thread1 tcb, thread 2 tcb, resume from, current , alerts enabled , alert buffer i

DispSave 2

= ∧ pc = “disp save 2”

∧ SaveRegisterTo(enabled area, “r2”)

∧ pc

0

= “sys yield”

∧ unchanged hdisabled, disabled area, thread1 tcb, thread 2 tcb, resume from, current , alerts enabled , alert buffer i

64

Yield the dispatcher. As a result, we enter the kernel and potentially schedule another dispatcher.

However, since we only model one dispatcher, the next action visible is when it is upcalled again at the run entry point.

The sys yield function enables upcalls in the dispatcher. Therefore, the next time the kernel schedules the dispatcher, it is upcalled at the run entry point. Before the upcall, however, further upcalls are disabled. Therefore, the disabled flag does not change.

Also, the syscall implicitly disables notifications. Although, in our case, notifications are already disabled.

Code locations: sys yield in kernel/syscall.c

dispatch in kernel/dispatch.c

SysYield

= ∧ pc = “sys yield”

∧ pc

0

= “run”

∧ alerts enabled

0

= false

∧ unchanged hdisabled, enabled area, disabled area, thread 1 tcb, thread 2 tcb, resume from, current , alert buffer i

The run upcall performs several tasks outside of our model but then enters the user-level scheduler.

Code location: disp run in lib/barrelfish/dispatch.c

Run

= ∧ pc = “run”

∧ pc

0

= “thread run 1”

∧ unchanged hdisabled, enabled area, disabled area, thread1 tcb, thread 2 tcb, resume from, current , alerts enabled , alert buffer i

User-level thread scheduler, either resumes the thread that was last ran or schedules another thread.

Our specification does not say which one happens but allows both as possible outcomes.

Code location: thread run disabled in lib/barrelfish/threads.c

ThreadRun 1

= ∧ pc = “thread run 1”

∧ alerts enabled

0

= true

∧ pc

0

= “thread run 2”

∧ unchanged hdisabled, enabled area, disabled area, thread1 tcb,

65

thread 2 tcb, resume from, current , alert buffer i

ThreadRun 2

= ∧ pc = “thread run 2”

∧ ∨ ∧ pc

0

= “resume 1”

∧ resume from

0

= “enabled area”

∨ ∧ pc

0

= “run switch 1”

∧ unchanged hresume fromi

∧ unchanged hdisabled, enabled area, disabled area, thread 1 tcb, thread 2 tcb, current , alerts enabled , alert buffer i

In case we schedule another thread during the run upcall, the state of the old thread needs to be saved in the corresponding thread control block (RunSwitch 1 and RunSwitch 2) and the next thread must be determined (RunSwitch 3).

Code location: thread run disabled in lib/barrelfish/threads.c

RunSwitch 1

= ∧ pc = “run switch 1”

∧ if current = “thread1” then ∧ SaveRegisterTo(thread 1 tcb, “r1”)

∧ unchanged hthread2 tcbi

∧ SaveRegisterTo(thread 2 tcb, “r1”) else

∧ unchanged hthread1 tcbi

∧ LoadRegisterFrom(enabled area, “r1”)

∧ pc

0

= “run switch 2”

∧ unchanged hdisabled, disabled area, resume from, current , alerts enabled , alert buffer i

RunSwitch 2

= ∧ pc = “run switch 2”

∧ if current = “thread1” then ∧ SaveRegisterTo(thread 1 tcb, “r2”)

∧ unchanged hthread2 tcbi else

∧ SaveRegisterTo(thread 2 tcb, “r2”)

66

∧ unchanged hthread1 tcbi

∧ LoadRegisterFrom(enabled area, “r2”)

∧ pc

0

= “run switch 3”

∧ unchanged hdisabled, disabled area, resume from, current , alerts enabled , alert buffer i

RunSwitch 3

= ∧ pc = “run switch 3”

∧ if current = “thread1” then ∧ current

0

= “thread2”

∧ resume from

0

= “thread2” else

∧ current

0

= “thread1”

∧ resume from

0

= “thread1”

∧ pc

0

= “resume 1”

∧ unchanged hdisabled, enabled area, disabled area, thread 1 tcb, thread 2 tcb, alerts enabled , alert buffer i

Resume a thread from the save area specified by ’resume from’, which consists of the following steps:

• Enable upcalls. (Resume 1)

• Restore the thread state from the save area specified by resume from. (Resume 2 and

Resume 3)

The resume code is part of the critical section, which is entered and left implicitly by the value of the pc.

Code locations: thread run disabled in lib/barrelfish/threads.c

disp resume in lib/barrelfish/arch/<arch>/dispatch.c

Resume 1

= ∧ pc = “resume 1”

∧ disabled

0

= false

∧ pc

0

= “resume 2”

∧ unchanged henabled area, disabled area, thread 1 tcb, thread 2 tcb, resume from, current , alerts enabled , alert buffer i

67

Resume 2

= ∧ pc = “resume 2”

∧ if resume from = “enabled area” then ∧ LoadRegisterFrom(enabled area, “r1”)

∧ unchanged hthread1 tcb, thread2 tcbi else if resume from = “thread1” then ∧ LoadRegisterFrom(thread 1 tcb, “r1”)

∧ unchanged henabled area, thread2 tcbi else

∧ LoadRegisterFrom(thread 2 tcb, “r1”)

∧ unchanged henabled area, thread1 tcbi

∧ pc

0

= “resume 3”

∧ unchanged hdisabled, disabled area, resume from, current , alerts enabled , alert buffer i

Resume 3

= ∧ pc = “resume 3”

∧ if resume from = “enabled area” then ∧ LoadRegisterFrom(enabled area, “r2”)

∧ unchanged hthread1 tcb, thread2 tcbi else if resume from = “thread1” then ∧ LoadRegisterFrom(thread 1 tcb, “r2”)

∧ unchanged henabled area, thread2 tcbi

∧ LoadRegisterFrom(thread 2 tcb, “r2”) else

∧ unchanged henabled area, thread1 tcbi

∧ resume from

0

= “invalid”

∧ pc

0

= “user”

∧ unchanged hdisabled, disabled area, current, alerts enabled , alert buffer i

Many functions of libbarrelfish temporarily disable upcalls, for example mutex manipulations.

We don’t model all these functions but provide two generic next state actions that disable the dispatcher and enables it again.

Disable

= ∧ pc = “user”

∧ disabled

0

= true

68

∧ pc

0

= “enable”

∧ unchanged henabled area, disabled area, thread 1 tcb, thread 2 tcb, resume from, current , alerts enabled , alert buffer i

Enable

= ∧ pc = “enable”

∧ disabled

0

= false

∧ pc

0

= “user”

∧ unchanged henabled area, disabled area, thread 1 tcb, thread 2 tcb, resume from, current , alerts enabled , alert buffer i

All next state actions so far were guarded by a specific value of the program counter. This is not the case for an interrupt because it can happen at any time. To be specific what “at any time” means, let me quickly explain the model of atomicity of TLA+. In each state, a subset of the next state actions are possible. In TLA+ terminology each action that is possible from a certain state is said to be ’enabled’. In our specification usually three next state actions are enabled. The first is the actions whose program counter guard corresponds to the current value of the pc. This is the action that follows in program order. Second, there is the interrupt action because there are no guards for this actions. And third, as we will see in a moment, is the user-level notification.

So with “at any time” I mean that the interrupt action is enabled in any state. Each next state action, however, transforms the current state to the next without being interrupted even if multiple variables are modified.

Interrupts, like system calls, are modeled as one action for start until they return to user space.

An interrupt implicitly disables notifications because it traverses the user-kernel boundary. If the dispatcher is effectively disabled, the interrupt does not have an observable change in our model.

While the state is stored to the disabled area it is also restored from there before returning to userspace. If the dispatcher was enabled, the state is stored in the enabled area and the dispatcher is upcalled at the run entry once the interrupt completes.

Interrupt

= ∧ alerts enabled

0

= false

∧ if ¬effectively disabled(pc) then ∧ enabled area

0

= [enabled area except

!

.r 1 = enabled area.r 1 + 1,

!

.r 2 = enabled area.r 2 + 1]

∧ pc

0

= “run”

∧ disabled

0

= true else unchanged hdisabled , enabled area, pci

69

∧ unchanged hdisabled area, thread1 tcb, thread 2 tcb, resume from, current , alert buffer i

Alerts can be received whenever they are enabled.

When the hardware triggers an alert it atomically performs the following steps: (Notify 1)

• disables further alerts

• writes the value of r15 (pc) to the notification buffer

• transfers control to the alert handler

Since the alert handler code is part of the code region that is considered the “critical region”, the control transfer initiated by the hardware also atomically enters the critical section. The software part of the alert handler performs the following steps:

• Switch to dispatcher stack and push registers that will be trashed by rest of the handler.

(not modelled)

• If we’re disabled or in the resume range, exit notification handler and restore state of before the notification arrived. (Notify 2)

• Else, save state to enable area (Notify 3 and (Notify 4), disable upcalls and enter thread scheduler. (Notify 5)

Setting the pc value in the alert buffer to “invalid” is not required and the invariants can also be verified if it is left out. However, including it reduces the number of states.

Initially, we planed to abandon the current register state and enter the user-level scheduler in case an alert arrives while the program counter is in the resume range. However, this does not work because the resume code is reached from two different code path. On the one hand, the resume code is reached from the ’run’ upcall where we resume from the enabled area. On the other hand, it is reached during a thread yield if another thread is scheduled. In the latter case, the resume happens directly from the register state in the TCB . There is no sane way for the alert handler to determine in which of the two cases we are. So jumping back to the scheduler regardless would lead to madness. A possible workaround to still make this solution work would be to always restore for the same area. For example always restore from the enabled area and copy the register state from the TCB to the enabled area during thread yield. We decided against such a solution because it would introduce another copying on the fast-path to make a corner-case faster.

AHandler 1

= ∧ alerts enabled = true

∧ alerts enabled

0

= false

∧ alert buffer

0

= [alert buffer except

!

.pc = pc]

∧ pc

0

= “ahandler 2”

∧ unchanged hdisabled, enabled area, disabled area, thread1 tcb, thread 2 tcb, resume from, current i

70

AHandler 2

= ∧ pc = “notify 2”

∧ if ∨ disabled = true

∨ inside resume range(alert buffer .pc) then ∧ pc

0

= alert buffer .pc

∧ alert buffer

0

= [alert buffer except

!

.pc = “invalid”] else

∧ pc

0

= “ahandler 3”

∧ unchanged halert bufferi

∧ unchanged hdisabled, enabled area, disabled area, thread1 tcb, thread 2 tcb, resume from, current , alerts enabled i

AHandler 3

= ∧ pc = “ahandler 3”

∧ SaveRegisterTo(enabled area, “r1”)

∧ pc

0

= “ahandler 4”

∧ unchanged hdisabled, disabled area, thread1 tcb, thread2 tcb, resume from, current , alerts enabled , alert buffer i

AHandler 4

= ∧ pc = “ahandler 4”

∧ SaveRegisterTo(enabled area, “r2”)

∧ pc

0

= “ahandler 5”

∧ unchanged hdisabled, disabled area, thread1 tcb, thread2 tcb, resume from, current , alerts enabled , alert buffer i

AHandler 5

= ∧ pc = “ahandler 5”

∧ disabled

0

= true

∧ alert buffer

0

= [alert buffer except

!

.pc = “invalid”]

∧ pc

0

= “thread run 1”

∧ unchanged henabled area, disabled area, thread1 tcb,

71

thread 2 tcb, resume from, current , alerts enabled i

Next

= ThreadYield ∨

DispSwitch 1 ∨ DispSwitch 2 ∨ DispSwitch 3 ∨

DispSave 1 ∨ DispSave 2 ∨

SysYield ∨

Run ∨

ThreadRun 1 ∨ ThreadRun 2 ∨

RunSwitch 1 ∨ RunSwitch 2 ∨ RunSwitch 3 ∨

Resume 1 ∨ Resume 2 ∨ Resume 3 ∨

Interrupt ∨

AHandler 1 ∨ AHandler 2 ∨ AHandler 3 ∨ AHandler 4 ∨ AHandler 5

****************************** Specification *******************************

The specification is the set of all allowed behaviors (sequences of states). Each behavior starts in the initial state and is followed by an arbitrary number of states each obtained by applying one of the next state actions. So called shuttering steps, i .e. steps that don’t change the state at all are also allowed.

Spec

= Init ∧

2[Next] vars

********************* Safety Properties (Invariants) ***********************

The type invariant checks that each variable only attains expected values. Because of the way the type invariant is structured and the way the save areas are modified, it also checks that the state in any of the save areas is never overwritten.

TypeInvariant

= let valid pc values

=

{“user”, “disp switch 1”,

“disp switch 2”, “disp switch 3”, “disp save 1”,

“disp save 2”, “sys yield”, “run”, “thread run 1”,

“thread run 2”, “run switch 1”,

“run switch 2”, “run switch 3”, “resume 1”,

“resume 2”, “resume 3”, “enable”,

“ahandler 1”, “ahandler 2”, “ahandler 3”, “ahandler 4”,

“ahandler 5”}

72

in

∧ disabled

∧ enabled area

∧ disabled area

∧ thread 1 tcb

∧ thread 2 tcb

∧ resume from

∈ boolean

∈ [{“r1”, “r2”} → {0, 1}]

∈ [{“r1”, “r2”} → {0, 1}]

∈ [{“r1”, “r2”} → {0, 1}]

∈ [{“r1”, “r2”} → {0, 1}]

∈ {“invalid”, “enabled area”,

∧ current

“thread1”, “thread2”}

∈ {“thread1”, “thread2”}

∧ alerts enabled ∈ boolean

∧ alert buffer .pc

∈ valid pc values ∪ {“invalid”}

∧ pc ∈ valid pc values

Asserts that upcalls are enabled and disabled as expected.

DisabledInvariant

= ∧ pc ∈ {“disp save 1”, “disp save 2”, “sys yield”,

“run”, “thread run 1”, “thread run 2”,

“resume 1”, “enable”}

⇒ disabled

∧ pc ∈ {“resume 2”, “resume 3”}

⇒ effectively disabled (pc)

∧ pc ∈ {“user”} ⇒ ¬disabled

Asserts that the resume from argument is valid whenever we use it.

ResumeFromInvariant

= pc ∈ {“resume 2”, “resume 3”}

⇒ resume from 6= “invalid”

Invariants

= TypeInvariant ∧ DisabledInvariant ∧ ResumeFromInvariant

********************************* Theorems *********************************

The model checker verifies that the specification implies that the invariant always hold.

theorem Spec ⇒ 2Invariants

73

Bibliography

[1] Effective Go.

http://golang.org/doc/effective_go.html#concurrency

.

Accessed: 2014-09-17.

[2] The GCC low-level runtime library.

https://gcc.gnu.org/onlinedocs/ gccint/Libgcc.html

. Accessed: 2014-09-07.

[3] NAS parallel benchmarks.

www.nas.nasa.gov/publications/npb.html

. Accessed: 2014-08-27.

[4] Advanced Micro Devices. Advanced Synchronization Facility - Proposed Architectural Specification, March 2009. Revision 2.1.

[5] Advanced Micro Devices. AMD64 Architecture Programmer’s Manual - Volume

2: System Programming, May 2013. Revision 3.23.

[6] Thomas E. Anderson, Brian N. Bershad, Edward D. Lazowska, and Henry M.

Levy. Scheduler activations: Effective kernel support for the user-level management of parallelism. In Proceedings of the Thirteenth ACM Symposium on

Operating Systems Principles, 1991.

[7] ARM.

ARM Dual-Timer Module (SP804) - Technical Reference Manual,

January 2004. Revision r1p0 - Issue D.

[8] ARM. Cortex -A9 MPCore - Technical Reference Manual, July 2011. Revision r3p0 - Issue G.

[9] ARM. Procedure Call Standard for the ARM Architecture, November 2012.

ABI release 2.09.

[10] ARM. ARM Generic Interrupt Controller - Architecture Specification - Architecture version 2.0, July 2013. Issue B.b.

[11] ARM. ARM Architecture Reference Manual - ARMv7-A and ARMv7-R edition,

May 2014,. Issue C.c.

Programming in Erlang. Prentice Hall, 2nd edition, 1996.

74

[13] Andrew Baumann. Inter-dispatcher communication in Barrelfish - Barrelfish technical note 11. Technical report, Systems Group, Department of Computer

Science, ETH Zurich, May 2011.

[14] Andrew Baumann, Paul Barham, Pierre-Evariste Dagand, Tim Harris, Rebecca hania. The multikernel: A new OS architecture for scalable multicore systems.

In Proceedings of the 22nd ACM Symposium on OS Principles, 2009.

[15] Brian N. Bershad, Thomas E. Anderson, Edward D. Lazowska, and Henry M.

Levy. User-level interprocess communication for shared memory multiprocessors.

ACM Trans. Comput. Syst., May 1991.

[16] Nathan Binkert, Bradford Beckmann, Gabriel Black, Steven K. Reinhardt,

Ali Saidi, Arkaprava Basu, Joel Hestness, Derek R. Hower, Tushar Krishna,

Somayeh Sardashti, Rathijit Sen, Korey Sewell, Muhammad Shoaib, Nilay

Vaish, Mark D. Hill, and David A. Wood. The gem5 simulator. SIGARCH

Comput. Archit. News, August 2011.

[17] Gabriel Black, Nathan Binkert, Steven K. Reinhardt, and Ali Saidi. Modular

ISA-independent full-system simulation. In Processor and System-on-Chip

Simulation. Springer Publishing Company, Incorporated, 1st edition, 2010.

chapter 5.

[18] Burton H. Bloom. Space/time trade-offs in hash coding with allowable errors.

Commun. ACM, July 1970.

[19] Jamison D. Collins, Hong Wang, Dean M. Tullsen, Christopher Hughes, Yong-

Fong Lee, Dan Lavery, and John P. Shen. Speculative precomputation: Longrange prefetching of delinquent loads. In Proceedings of the 28th Annual

International Symposium on Computer Architecture, 2001.

[20] Jonathan Corbet.

The unveiling of kdbus.

http://lwn.net/Articles/

580194/

, January 2014. Accessed: 2014-09-17.

[21] Stephan Diestelhorst, Martin Nowack, Michael Spear, and Christof Fetzer. Brief announcement: Between all and nothing - versatile aborts in hardware transactional memory. In Proceedings of the Twenty-fifth Annual ACM Symposium on

Parallelism in Algorithms and Architectures, 2013.

[22] G. Goumas, N. Anastopoulos, N. Koziris, and N. Ioannou. Overlapping computation and communication in SMT clusters with commodity interconnects. In

Proceedings of the IEEE International Conference on Cluster Computing, Aug

2009.

[23] Tim Harris, James Larus, and Ravi Rajwar. Transactional Memory. Morgan and Claypool Publishers, 2nd edition, 2010.

[24] Samuel Hitz. Multicore ARMv7-a support for Barrelfish. ETH Zurich, 2012.

Bachelor’s Thesis.

75

[25] IBM. A2 Processor User’s Manual for Blue Gene/Q, October 2012. Version

1.3.

[26] IBM. Power ISA Version 2.07, May 2013.

[27] Intel Corporation. Intel

R

Manual, July 2013.

64 and IA-32 Architectures Optimization Reference

[28] Intel Corporation. Intel

R

64 and IA-32 Architectures Software Developer’s

Manual Volume 1: Basic Architecture, February 2014.

[29] Intel Corporation. Intel

R

64 and IA-32 Architectures Software Developer’s

Manual Volume 2B: Instruction Set Reference, N-Z, February 2014.

[30] Intel Corporation. Intel R 64 and IA-32 Architectures Software Developer’s

Manual Volume 3B: System Programming Guide, Part 2, February 2014.

[31] Rebecca Isaacs. Message notifications - Barrelfish technical note 9. Technical report, Systems Group, Department of Computer Science, ETH Zurich, June

2010.

[32] Norman P. Jouppi. Improving direct-mapped cache performance by the addition of a small fully-associative cache and prefetch buffers. In Proceedings of the

17th Annual International Symposium on Computer Architecture, 1990.

[33] David Kanter.

Analysis of Haswell’s transactional memory.

http://www.

realworldtech.com/haswell-tm/

, February 2012. Accessed: 2014-04-29.

[34] Leslie Lamport. Specifying Systems: The TLA+ Language and Tools for

Hardware and Software Engineers. Addison-Wesley Longman Publishing Co.,

Inc., 2002.

[35] Paul E. McKenney. Memory barriers: a hardware view for software hackers,

July 2010.

[36] Message Passing Interface Forum. MPI: A Message-Passing Interface Standard

- Version 3.0, September 2012.

[37] Ravi Rajwar and James R. Goodman. Speculative lock elision: Enabling highly concurrent multithreaded execution. In Proceedings of the 34th Annual

ACM/IEEE International Symposium on Microarchitecture, 2001.

[38] Carl G. Ritson and Frederick R.M. Barnes. An evaluation of Intel’s restricted transactional memory for CPAs. In Communicating Process Architectures, 2013.

[39] Michael F. Spear, Arrvindh Shriraman, Luke Dalessandro, Sandhya Dwarkadas, and Michael L. Scott. Nonblocking transactions without indirection using alert-on-update. In Proceedings of the Nineteenth Annual ACM Symposium on

Parallel Algorithms and Architectures, 2007.

[40] Michael F. Spear, Arrvindh Shriraman, Hemayet Hossain, Sandhya Dwarkadas, and Michael L. Scott. Alert-on-update: A communication aid for shared memory

76

multiprocessors (poster paper). In Proceedings of the 12th ACM SIGPLAN

Symposium on Principles and Practice of Parallel Programming, 2007.

[41] Sayantan Sur, Matthew J. Koop, and Dhabaleswar K. Panda. High-performance and scalable MPI over InfiniBand with reduced memory usage: An in-depth performance analysis. In Proceedings of the 2006 ACM/IEEE Conference on

Supercomputing, 2006.

[42] Nathan Tuck and Dean M. Tullsen. Initial observations of the simultaneous multithreading Pentium 4 processor. In Proceedings of the 12th International

Conference on Parallel Architectures and Compilation Techniques, 2003.

[43] Hong Wang, Perry H. Wang, Ross Dave Weldon, Scott M. Ettinger, Hideki

Saito, Milind Girkar, Steve Shih-wei Liao, and John P. Shen. Speculative precomputation: Exploring the use of multithreading for latency. Intel Technology

Journal Q1, (Vol. 6 Issue 1), 2002.

[44] Yuan Yu, Panagiotis Manolios, and Leslie Lamport. Model checking TLA+ specifications. In Proceedings of the 10th IFIP WG 10.5 Advanced Research

Working Conference on Correct Hardware Design and Verification Methods,

CHARME ’99, 1999.

[45] Gerd Zellweger, Simon Gerber, Kornilios Kourtis, and Timothy Roscoe. Decoupling cores, kernels, and operating systems. In 11th USENIX Symposium on Operating Systems Design and Implementation (OSDI 14), 2014.

77

Eigenständigkeitserklärung

Die unterzeichnete Eigenständigkeitserklärung ist Bestandteil jeder während des Studiums verfassten

Semester-, Bachelor- und Master-Arbeit oder anderen Abschlussarbeit (auch der jeweils elektronischen

Version).

Die Dozentinnen und Dozenten können auch für andere bei ihnen verfasste schriftliche Arbeiten eine

Eigenständigkeitserklärung verlangen.

__________________________________________________________________________

Ich bestätige, die vorliegende Arbeit selbständig und in eigenen Worten verfasst zu haben. Davon ausgenommen sind sprachliche und inhaltliche Korrekturvorschläge durch die Betreuer und Betreuerinnen der Arbeit.

Titel der Arbeit (in Druckschrift):

Hardware Transactional Memory and Message Passing

Verfasst von (in Druckschrift):

Bei Gruppenarbeiten sind die Namen aller

Verfasserinnen und Verfasser erforderlich.

Name(n):

Fuchs

Vorname(n):

Raphael

Ich bestätige mit meiner Unterschrift:

− Ich habe keine im Merkblatt „Zitier-Knigge“

beschriebene Form des Plagiats begangen.

− Ich habe alle Methoden, Daten und Arbeitsabläufe wahrheitsgetreu dokumentiert.

− Ich habe keine Daten manipuliert.

− Ich habe alle Personen erwähnt, welche die Arbeit wesentlich unterstützt haben.

Ich nehme zur Kenntnis, dass die Arbeit mit elektronischen Hilfsmitteln auf Plagiate überprüft werden kann.

Ort, Datum Unterschrift(en)

Zürich, 19. September 2014

Bei Gruppenarbeiten sind die Namen aller Verfasserinnen und

Verfasser erforderlich. Durch die Unterschriften bürgen sie

gemeinsam für den gesamten Inhalt dieser schriftlichen Arbeit.

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Table of contents
