20F217-00 E1 User Manual

20F217-00 E1 – 2010-08-13

F217 – 3U CompactPCI®

Memory Card Carrier

User Manual

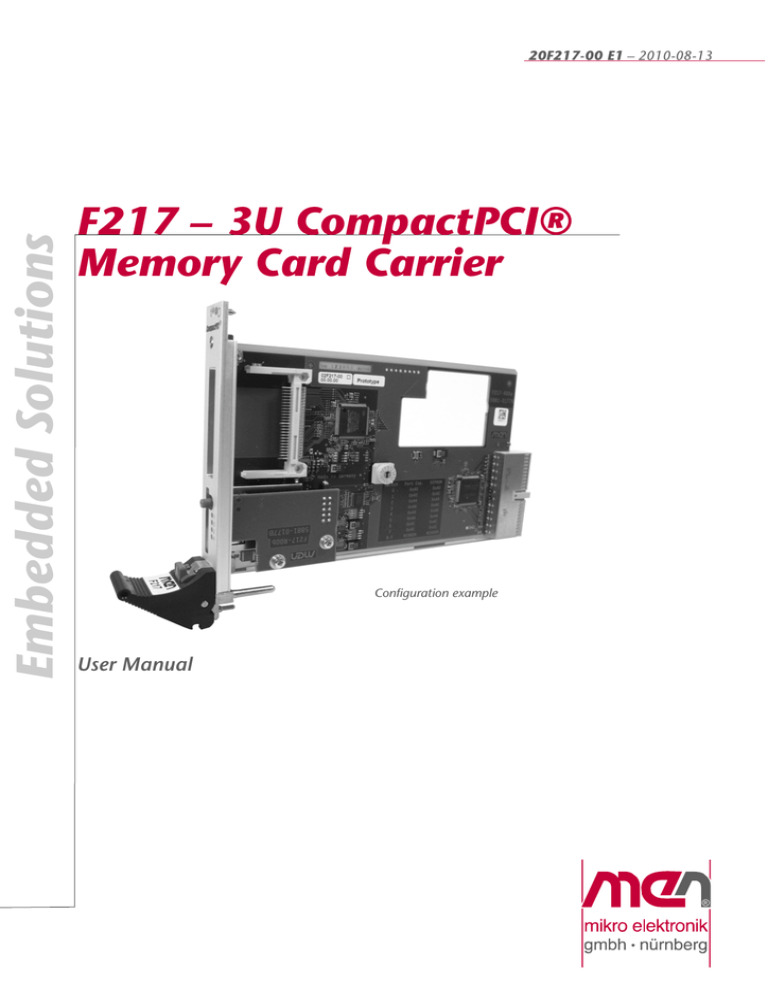

Configuration example

®

F217 - 3U CompactPCI® Memory Card Carrier

F217 - 3U CompactPCI® Memory Card Carrier

The F217 is a 3U 4HP CompactPCI® board which offers a multitude of memory configurations. It is equipped with a CompactFlash® socket and a multi card reader which supports MS, SD and MMC plus cards.

The memory cards are accessible at the front and can be inserted and removed during operation (hot plug). They can optionally be protected by an EMC-proof cover which also secures the cards mechanically, so that they cannot fall out. This protection makes the boards especially suited for harsh environments. A button for hot-extraction request and four status LEDs are also provided at the front panel.

The F217 is screened for operation in the extended temperature range of -40 to

+85°C.

MEN Mikro Elektronik GmbH

20F217-00 E1 – 2010-08-13

2

Technical Data

Technical Data

Memory

• One CompactFlash® card interface

- Type I/II

- UDMA Mode 0..4

- PIO Mode 0..6

- Via USB Flash media controller

• One multi card reader

- MS (Memory Stick 1.43)

- SD/SDHC (Secure Digital 2.0)

- MMC plus (Multi Media Card 4.2)

- Via USB Flash media controller

CompactPCI® Bus

• Compliance with CompactPCI® Core Specification PICMG 2.0 R3.0

• Peripheral slot

• V(I/O): +3.3 V

Electrical Specifications

• Isolation voltage:

- 1000 VAC between GND and SHIELD

• Supply voltage/power consumption:

- +3.3 V (-3%/+5%), 1.06 W (with CompactFlash and SD card)

Mechanical Specifications

• Dimensions: conforming to CompactPCI® specification for 3U boards

• Front panel: 4 HP with ejector

• Weight: 124 g (without cards)

Environmental Specifications

• Temperature range (operation):

- -40..+85°C (screened, depending on the cards used)

- Airflow: 1.0 m/s

• Temperature range (storage): -40..+85°C

• Relative humidity (operation): max. 95% non-condensing

• Relative humidity (storage): max. 95% non-condensing

• Altitude: -300 m to + 3,000 m

• Shock: 15 g, 11 ms

• Bump: 10 g, 16 ms

• Vibration (sinusoidal): 1 g, 10..150 Hz

• Conformal coating on request

MTBF

• 1,190,023h @ 40°C according to IEC/TR 62380 (RDF 2000)

MEN Mikro Elektronik GmbH

20F217-00 E1 – 2010-08-13

3

Technical Data

Safety

• PCB manufactured with a flammability rating of 94V-0 by UL recognized manufacturers

EMC

• Conforming to EN 55022 (radio disturbance), IEC1000-4-2 (ESD) and

IEC1000-4-4 (burst)

Software Support

• Windows®

• Linux

• For more information on supported operating system versions and drivers see online data sheet.

MEN Mikro Elektronik GmbH

20F217-00 E1 – 2010-08-13

4

Block Diagram

4 User-Definable

LEDs

User-Definable

Push-Button

I2C Port Expander

CompactFlash

Socket

USB Flash Media

Controller

Multi Card

Reader

SMBus

PCI-to-USB Host

Controller

Block Diagram

MEN Mikro Elektronik GmbH

20F217-00 E1 – 2010-08-13

5

Configuration Options

Configuration Options

Mechanics

• Front panel cover for EMC and mechanical protection

Please note that some of these options may only be available for large volumes.

Please ask our sales staff for more information.

For available standard configurations see online data sheet.

MEN Mikro Elektronik GmbH

20F217-00 E1 – 2010-08-13

6

Product Safety

Product Safety

!

Electrostatic Discharge (ESD)

Computer boards and components contain electrostatic sensitive devices.

Electrostatic discharge (ESD) can damage components. To protect the board and other components against damage from static electricity, you should follow some precautions whenever you work on your computer.

• Power down and unplug your computer system when working on the inside.

• Hold components by the edges and try not to touch the IC chips, leads, or circuitry.

• Use a grounded wrist strap before handling computer components.

• Place components on a grounded antistatic pad or on the bag that came with the component whenever the components are separated from the system.

• Store the board only in its original ESD-protected packaging. Retain the original packaging in case you need to return the board to MEN for repair.

MEN Mikro Elektronik GmbH

20F217-00 E1 – 2010-08-13

7

About this Document

About this Document

This user manual describes the hardware functions of the board, connection of peripheral devices and integration into a system. It also provides additional information for special applications and configurations of the board.

The manual does not include detailed information on individual components (data sheets etc.). A list of literature is given in the appendix.

History

E1

Issue

First issue

Comments Date

2010-08-13

Conventions

!

italics

bold

monospace hyperlink

IRQ#

/IRQ in/out

This sign marks important notes or warnings concerning proper functionality of the product described in this document. You should read them in any case.

Folder, file and function names are printed in italics.

Bold type is used for emphasis.

A monospaced

font type is used for hexadecimal numbers, listings, C function descriptions or wherever appropriate. Hexadecimal numbers are preceded by "0x".

Hyperlinks are printed in blue color .

The globe will show you where hyperlinks lead directly to the Internet, so you can look for the latest information online.

Signal names followed by "#" or preceded by a slash ("/") indicate that this signal is either active low or that it becomes active at a falling edge.

Signal directions in signal mnemonics tables generally refer to the corresponding board or component, "in" meaning "to the board or component", "out" meaning

"coming from it".

MEN Mikro Elektronik GmbH

20F217-00 E1 – 2010-08-13

8

About this Document

Legal Information

MEN Mikro Elektronik reserves the right to make changes without further notice to any products herein. MEN makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does MEN assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation consequential or incidental damages.

"Typical" parameters can and do vary in different applications. All operating parameters, including "Typicals" must be validated for each customer application by customer's technical experts.

MEN does not convey any license under its patent rights nor the rights of others.

Unless agreed otherwise, MEN products are not designed, intended, or authorized for use as components in systems intended for surgical implant into the body, or other applications intended to support or sustain life, or for any other application in which the failure of the MEN product could create a situation where personal injury or death may occur. Should Buyer purchase or use MEN products for any such unintended or unauthorized application, Buyer shall indemnify and hold MEN and its officers, employees, subsidiaries, affiliates, and distributors harmless against all claims, costs, damages, and expenses, and reasonable attorney fees arising out of, directly or indirectly, any claim of personal injury or death associated with such unintended or unauthorized use, even if such claim alleges that MEN was negligent regarding the design or manufacture of the part.

Unless agreed otherwise, the products of MEN Mikro Elektronik are not suited for use in nuclear reactors or for application in medical appliances used for therapeutical purposes. Application of MEN products in such plants is only possible after the user has precisely specified the operation environment and after MEN Mikro Elektronik has consequently adapted and released the product.

ESM™, ESMini™, MDIS™, MDIS4™, MDIS5™, MENMON™, M-Module™, M-Modules™, SA-Adapter™, SA-

Adapters™, UBox™, USM™ and the MBIOS logo are trademarks of MEN Mikro Elektronik GmbH. PC-MIP® is a registered trademark of MEN Micro, Inc. and SBS Technologies, Inc. MEN Mikro Elektronik®, ESMexpress®, MIPIOS® and the MEN logo are registered trademarks of MEN Mikro Elektronik GmbH.

microSD™ is a trademark of SD-3C, LLC. Microsoft® and Windows® are registered trademarks of Microsoft Corp.

Windows® Vista™ is a trademark of Microsoft Corp. PCI Express® and PCIe® are registered trademarks of PCI-SIG.

CompactFlash® is a registered trademark of SanDisk Corp.

All other products or services mentioned in this publication are identified by the trademarks, service marks, or product names as designated by the companies who market those products. The trademarks and registered trademarks are held by the companies producing them. Inquiries concerning such trademarks should be made directly to those companies. All other brand or product names are trademarks or registered trademarks of their respective holders.

Information in this document has been carefully checked and is believed to be accurate as of the date of publication; however, no responsibility is assumed for inaccuracies. MEN Mikro Elektronik accepts no liability for consequential or incidental damages arising from the use of its products and reserves the right to make changes on the products herein without notice to improve reliability, function or design. MEN Mikro Elektronik does not assume any liability arising out of the application or use of the products described in this document.

Copyright © 2010 MEN Mikro Elektronik GmbH. All rights reserved.

Please recycle

Germany

MEN Mikro Elektronik GmbH

Neuwieder Straße 5-7

90411 Nuremberg

Phone +49-911-99 33 5-0

Fax +49-911-99 33 5-901

E-mail [email protected]

www.men.de

MEN Mikro Elektronik GmbH

20F217-00 E1 – 2010-08-13

France

MEN Mikro Elektronik SA

18, rue René Cassin

ZA de la Châtelaine

74240 Gaillard

Phone +33 (0) 450-955-312

Fax +33 (0) 450-955-211

E-mail [email protected]

www.men-france.fr

USA

MEN Micro, Inc.

24 North Main Street

Ambler, PA 19002

Phone (215) 542-9575

Fax (215) 542-9577

E-mail [email protected]

www.menmicro.com

9

Contents

Contents

1 Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

1.1 Map of the Board. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

1.2 Integrating the Board into a System . . . . . . . . . . . . . . . . . . . . . . . . . . 15

1.3 Installing Driver Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

2 Functional Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

2.1 Power Supply. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

2.2 Flash Media Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

2.3 CompactFlash Socket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

2.4 Multicard Reader . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

2.5 LEDs and Request Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

2.5.1

LED Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

2.5.2

Button Control. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

2.6 CompactPCI Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

2.7 Front Panel Cover (Optional) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

3 Appendix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

3.1 Literature and Web Resources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

3.1.1

CompactFlash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

3.2 Finding out the Product’s Article Number, Revision and

Serial Number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

MEN Mikro Elektronik GmbH

20F217-00 E1 – 2010-08-13

10

Figures

Figure 1. Map of the board – front panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Figure 2. Map of the board – top view. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Figure 3. Labels giving the product’s article number, revision and serial number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

MEN Mikro Elektronik GmbH

20F217-00 E1 – 2010-08-13

11

Tables

Table 1.

Supported card formats. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Table 2.

SMBus addresses of port expander . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Table 3.

LED control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Table 4.

Button control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

MEN Mikro Elektronik GmbH

20F217-00 E1 – 2010-08-13

12

1

Getting Started

Getting Started

This chapter gives an overview of the board and some hints for first installation in a system.

1.1

Map of the Board

Figure 1. Map of the board – front panel

®

F217

3

4

1

2

MEN Mikro Elektronik GmbH

20F217-00 E1 – 2010-08-13

13

Figure 2. Map of the board – top view

CompactFlash

Socket

8

0

Hex

Switch

Multicard Reader

Getting Started

MEN Mikro Elektronik GmbH

20F217-00 E1 – 2010-08-13

14

Getting Started

1.2

Integrating the Board into a System

You can use the following check list when installing the board in a system for the first time and with minimum configuration.

; Power-down the system.

; Insert the F217 into a peripheral slot of your CompactPCI system, making sure that the CompactPCI connectors are properly aligned.

Note: The peripheral slots of every CompactPCI system are marked by a circle on the backplane and/or at the front panel.

; Insert a CompactFlash and/or MS/SD/MMC card.

; Power-up the system.

; You can now install driver software.

1.3

Installing Driver Software

For a detailed description on how to install driver software please refer to the respective documentation.

You can find any driver software available for download on MEN’s website .

MEN Mikro Elektronik GmbH

20F217-00 E1 – 2010-08-13

15

2

Functional Description

Functional Description

2.1

Power Supply

Power supply is fed via the CompactPCI backplane. The board operates on +3.3 V.

2.2

Flash Media Controller

The F217 offers the possibility to connect a CompactFlash as well as an SD, MMC or MS Flash device. They are controlled by a Flash Media Controller which is connected to the PCI bus via a PCI to USB host controller.

2.3

CompactFlash Socket

The F217 offers a CompactFlash socket for CompactFlash media type I and II which supports UDMA Mode 0..4 and PIO Mode 0..6. The cards can be inserted from the front panel.

2.4

Multicard Reader

The F217 provides a multi card socket for SD, MMC and MS media accessible on the front panel. The following types of flash media device can be used on the F217:

Table 1. Supported card formats

Type

SD/SDHC miniSD/ micro SD

MS

MS Pro

MS Duo

MS Pro-HG Duo

MMC plus

RS-MMC/

MMC-micro

Standard

Secure Digital 2.0 [SD]

Memory Stick 1.43

Memory Stick Pro Format 1.02

Memory Stick Duo 1.10

Memory Stick Pro-HG Duo 1.01

Multi Media Card 4.2

Comment

with SD adapter with MS adapter with MS adapter

1/4/8 bit MMC with MMC adapter

MEN Mikro Elektronik GmbH

20F217-00 E1 – 2010-08-13

16

Functional Description

2.5

LEDs and Request Button

The F217 provides four user-definable LEDs and a request button at the front panel which can be controlled via an I

2

C expander connected to the SMBus. MEN provides a driver for accessing the SMBus. See MEN’s website for more information and downloads.

Eight different SMBus addresses can be set for the I

2

C expander using a hex switch

to avoid conflicts with other SMBus devices in the system. See Table 2, SMBus addresses of port expander on page 17

.

For the position of the hex switch see Figure 2, Map of the board – top view on page

14

.

Table 2. SMBus addresses of port expander

0

4

C

8

Switch Position

2

3

0

1

6

7

4

5

8..F

SMBus Address

40

42

44

46

48

4A

4C

4E

Mirror

2.5.1

LED Control

The four LEDs are controlled by the first four GPIOs of the port expander.

• Logic High on related SMBus data results in an inactive LED

• Logic Low on related SMBus data results in an active LED.

Per default the four LEDs are inactive after power up.

Table 3. LED control

1

2

3

4

LED Number

LED 1

LED 2

LED 3

LED 4

I/O0

I/O1

I/O2

I/O3

GPIO of SMBus

2.5.2

Button Control

The request button at the front panel is controlled by I/O4 of the port expander.

Table 4. Bu

t

ton control

Button

GPIO of SMBus

I/O4

MEN Mikro Elektronik GmbH

20F217-00 E1 – 2010-08-13

17

Functional Description

2.6

CompactPCI Interface

The F217 supports a 32-bit 33-MHz CompactPCI interface fully compatible with

CompactPCI specification PICMG 2.0 Rev. 3.0. The board works with 3.3V and tolerates 5V V I/O.

For full CompactPCI functionality only the J1 connector is needed, therefore the board only has a J1 connector to the bus.

Connector type of J1:

• 110-pin shielded, 2mm-pitch, 5-row receptacle according to IEC 917 and IEC

1076-4-101

The pin assignment of connector J1 as defined in the CompactPCI specification will not be repeated here.

2.7

Front Panel Cover (Optional)

As an option the F217 can be equipped with a front panel cover which ensures EMC protection and also mechanical fixation for the cards to ensure that they do not fall out. A special board version is required for this. Please contact MEN’s sales team for further information.

MEN Mikro Elektronik GmbH

20F217-00 E1 – 2010-08-13

18

3

Appendix

Appendix

3.1

Literature and Web Resources

• F217 data sheet with up-to-date information and documentation: www.men.de/products/02F217-00.html

3.1.1

CompactFlash

• CompactFlash Association: www.compactflash.org

3.2

Finding out the Product’s Article Number, Revision and

Serial Number

MEN user documentation may describe several different models and/or design revisions of the F217. You can find information on the article number, the design revision and the serial number on two labels attached to the board.

Article number: Gives the product’s family and model. This is also MEN’s ordering number. To be complete it must have 9 characters.

Revision number: Gives the design revision of the product.

Serial number: Unique identification assigned during production.

If you need support, you should communicate these numbers to MEN.

Figure 3. Labels giving the product’s article number, revision and serial number

Complete article number

02F217-00

00.00.00

Revision number

Serial number

MEN Mikro Elektronik GmbH

20F217-00 E1 – 2010-08-13

19

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
