Panel Meters
Machine Display & Interface
Panel Meters
Panel Meters
Monitor Multiple
Functions

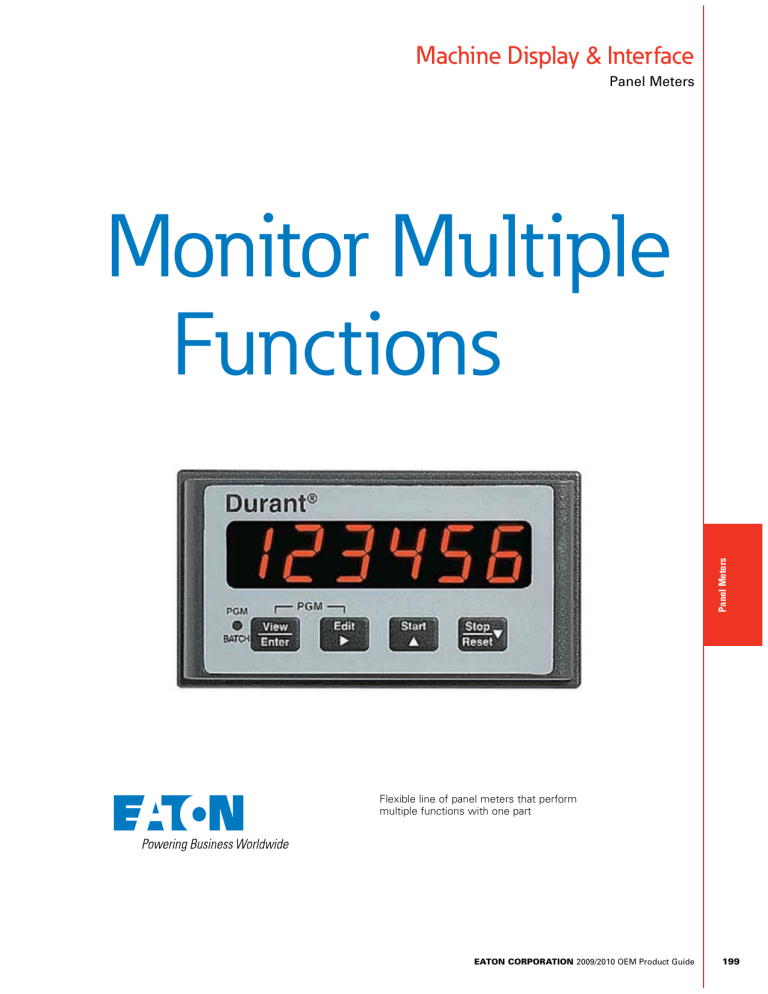

Flexible line of panel meters that perform
multiple functions with one part
EATON CORPORATION 2009/2010 OEM Product Guide
199
Product overview
Machine Display & Interface
Panel Meters
PRODUCT OVERVIEW
Panel Meters Product Overview
Description
E5
Eclipse
Page
Page 201
Page 201
Number of Digits
5
4
Display Technology
7-Segment LED
7-Segment LED
Display Character Height
8 mm
14 mm
Panel Cut-Out Size
1/32 DIN (25 x 50 mm)
1/8 DIN (45 x 92 mm)
Available Outputs
None
Dual Relay, Analog, RS-485
Available Inputs
0 – 10V / 2 – 10V / 0 – 20 mA / 4 – 20 mA
dc Volt, ac Volt, dc Amp, ac Amp, 5A ac,
Temperature (J, K, T, PT100 RTD), 4 – 20 mA / 0 – 10V / 1 – 5V
Front Panel Protection
IP65
NEMA 4X
Connection Method
Screw Terminal
Depluggable Screw Terminals
Scaling
Programmable End Points, Linear Interpolation
Programmable End Points, Linear Interpolation
Input Power Options
10 – 30V dc
9 – 30V dc or 85 – 264V ac
500 ms
400 ms
Automatic MIN / MAX Capture
Yes
Yes
Input for Display-Hold
Yes
—
Panel Meters
Update Time
200
EATON CORPORATION 2009/2010 OEM Product Guide
For our complete product offering, see the Control Products Catalog (CA08102001E).
Catalog Selection / Product Selection
Digital Panel Meters
Machine Display & Interface
Panel Meters
CATALOG SELECTION / PRODUCT SELECTION
Digital Panel Meters — E5-324-E
s
Galvanic isolation with protection against incorrect polarity
s
Automatic min. / max. value detection
s
Freely programmable characteristic curve end points
s
Input range:
—
1 current measuring input (0/4 – 20 mA)
—
1 voltage measuring input (0/2 – 10V)
E5-324-E0402
Description
Catalog Number
LED Digital Panel Meter, 24 x 48 mm
E5-324-E0402
Digital Panel Meters — Eclipse Series — Catalog Numbering System
5770 X - 4 X X
Code
0
1
Power Supply
DC (9 – 30V dc)
AC (85 – 265V ac)
Code
0
1
2
3
4
5
6
Input Option
DC Volt
AC Volt TRMS
DC Amp
AC Amp TRMS
5A AC TRMS
Process (4 – 20 mA, 0 – 10V, 1 – 5V)
Temperature (J, K, T, PT100 RTD)
Output Option Code
0
1
2
3
4
5
6
7
No Option
Dual Relay
Analog Output (4 – 20 mA and 0 – 10V)
Dual Relay, Analog Output (4 – 20 mA and 0 – 10V)
RS-485 Communications
Dual Relay, RS-485
Analog, RS-485 (4 – 20 mA and 0 – 10V)
Dual Relay, Analog, RS-485 (4 – 20 mA and 0 – 10V)
Output Options 0, 2, 4 are not available for models -41X and -43X.
s
4 full digits
s
1/8 DIN size
s
Red, LED display
s
Scalable display
s
Flashing alarms
s
Min. / max. data hold
s
Optional analog, relay and RS-485 outputs
s
Type 4X
Panel Meters
Digital Panel Meters — Eclipse Series
Eclipse Series
Description
Catalog Number
Digital Ammeter — 5A AC, 85 – 264V ac Power
Digital Ammeter — 5A AC, 85 – 264V ac Power, 2 Relay Outputs
Digital Process Meter — 4 – 20mA / 0 – 10V, 85 – 264V ac Power
Digital Process Meter — 4 – 20mA / 0 – 10V, 85 – 264V ac Power, 2 Relay Outputs
Digital Process Meter — 4 – 20mA / 0 – 10V, 85 – 264V ac Power, 2 Relay Outputs and Analog Retransmission
Digital Temperature Meter, 85 – 264V ac Power
Digital Temperature Meter, 85 – 264V ac Power, 2 Relay Outputs
57701440
57701441
57701450
57701451
57701453
57701460
57701461
For our complete product offering, see the Control Products Catalog (CA08102001E).
EATON CORPORATION 2009/2010 OEM Product Guide
201
Operator Interfaces & Programming Software
Machine Display & Interface
Operator Interfaces & Programming Software
Operator Interfaces &
Programming Software
Effective and
Flexible
202
EATON CORPORATION 2009/2010 OEM Product Guide
s
Low cost graphic panels for basic at machine monitoring
and control
s
Competitively priced hardened displays with embedded
programmable logic control
s
Windows®-based displays with multi-vendor
communications capabilities
s
Solid-state memory means rugged displays that
ride-through machine wear and tear
s
Create your ideal machine interface with Canvas™
SCADA software
product overview
Machine Display & Interface
Operator Interfaces & Programming Software
PRODUCT OVERVIEW
Operator Interfaces & Programming Software Product Overview
ELC-GP Graphics Panel
HMi Operator Interface
PanelMate ePro PS
Page
Page 205
Page 206
Page 207
Screen Size
2-Line and 4-Line
4", 6", 8", and 10"
8", 10", 12", 15" and
Blind Node (no screen)
Screen Options
Monochrome
Blue Mode, Grey Scale, 256 Color STN
or 65k Color TFT
16 Million Color TFT; Indoor and Outdoor;
Selectable Resolutions from
VGA (640 x 480) to UXGA (1600 x 1200)
Interface
Keypad Only
Touchscreen and Keypad
Touchscreen Only
Bezel Options
Standard
Standard; Customer Logo
Standard; Stainless Steel;
Customer Logo; Custom Color
Communication Ports
2 Serial
3 Serial; 1 or 2 USB; Expansion Port for
Ethernet Modbus TCP or Local I/O
2 serial; 1 Ethernet; 2 PCMCIA;
1 Removable CompactFlash; 4 USB; VGA
Three Simultaneous Protocols
—
Yes
Yes
Ethernet Drivers
—
Modbus TCP
Modbus TCP, Ethernet IP, ProfiNet,
and more
Upload / Download
Serial Cable
Ethernet; USB
Ethernet; USB
Operating System
Proprietary
Proprietary
Windows XP Embedded (protected)
Third-Party Software Support
—
—
Yes
Screen Saver
—
Yes
Yes
