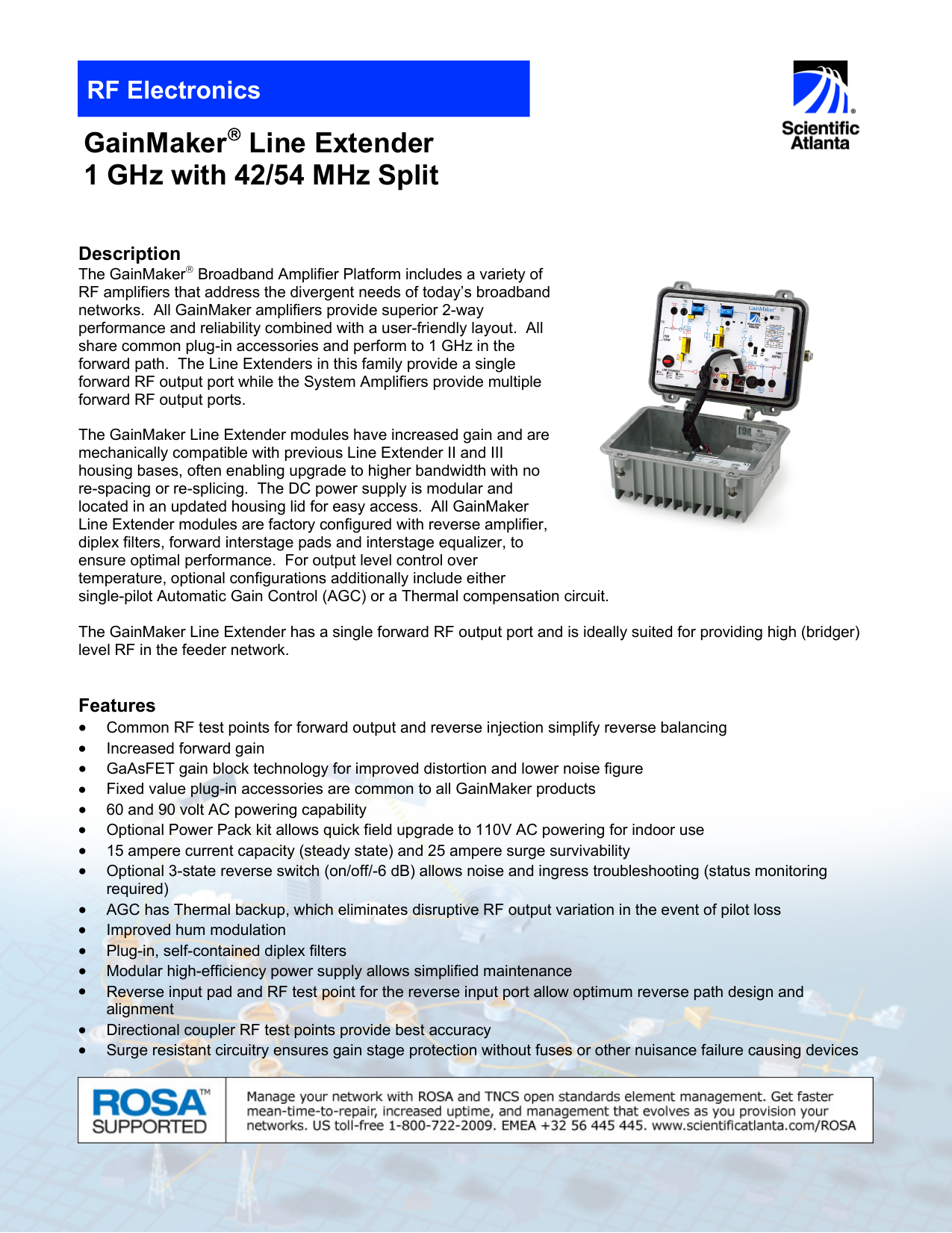

RF Electronics
GainMaker® Line Extender
1 GHz with 42/54 MHz Split
Description
The GainMaker® Broadband Amplifier Platform includes a variety of
RF amplifiers that address the divergent needs of today’s broadband
networks. All GainMaker amplifiers provide superior 2-way
performance and reliability combined with a user-friendly layout. All
share common plug-in accessories and perform to 1 GHz in the
forward path. The Line Extenders in this family provide a single
forward RF output port while the System Amplifiers provide multiple
forward RF output ports.
The GainMaker Line Extender modules have increased gain and are
mechanically compatible with previous Line Extender II and III
housing bases, often enabling upgrade to higher bandwidth with no
re-spacing or re-splicing. The DC power supply is modular and
located in an updated housing lid for easy access. All GainMaker
Line Extender modules are factory configured with reverse amplifier,
diplex filters, forward interstage pads and interstage equalizer, to
ensure optimal performance. For output level control over
temperature, optional configurations additionally include either
single-pilot Automatic Gain Control (AGC) or a Thermal compensation circuit.
The GainMaker Line Extender has a single forward RF output port and is ideally suited for providing high (bridger)
level RF in the feeder network.
Features
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Common RF test points for forward output and reverse injection simplify reverse balancing
Increased forward gain
GaAsFET gain block technology for improved distortion and lower noise figure
Fixed value plug-in accessories are common to all GainMaker products
60 and 90 volt AC powering capability
Optional Power Pack kit allows quick field upgrade to 110V AC powering for indoor use
15 ampere current capacity (steady state) and 25 ampere surge survivability
Optional 3-state reverse switch (on/off/-6 dB) allows noise and ingress troubleshooting (status monitoring
required)
AGC has Thermal backup, which eliminates disruptive RF output variation in the event of pilot loss
Improved hum modulation
Plug-in, self-contained diplex filters
Modular high-efficiency power supply allows simplified maintenance
Reverse input pad and RF test point for the reverse input port allow optimum reverse path design and
alignment
Directional coupler RF test points provide best accuracy
Surge resistant circuitry ensures gain stage protection without fuses or other nuisance failure causing devices
GainMaker® - Line Extender - 5-42/54-1002 MHz
Block Diagram
Forward Output T.P.
and Reverse Injection
-20 dB
Forward Input
-20 dB T.P.
FWD
Pad
HPF
Trim
EQ
AC
Bypass
Sys.
Trim
Pad
ISEQ
-Bode for
Thermal
or AGC
-Jumper for
Manual
FWD
AC
Bypass
REV
REV
Reverse
Output
-20 dB T.P.
AGC
Fuse
Shunt
Status Monitoring
Rev
EQ
GainMaker
Line Extender
Pad
Reverse
Input
-20 dB T.P.
AGC
Pad
Pad
Fuse
Shunt
3 State
Switch
Option
Reverse Amp
Input -20 dB T.P.
2
GainMaker® - Line Extender - 5-42/54-1002 MHz
Specifications
General Station Performance
Pass Band
Amplifier Type
Frequency Response
Auto Slope and Gain Range
Return Loss
Max AC Through Current (continuous)
Max AC Through Current (surge)
Hum Modulation @ 12 A
(over specified frequency range)
Hum Modulation @ 15 A
(over specified frequency range)
Test Points (± 0.5 dB)
Reference Output Level @…
1002 MHz
870 MHz
750 MHz
650 MHz
550 MHz
55 MHz
Reference Output Tilt (55-1002 MHz)
Units
MHz
--dB
dB
dB
Amps
Amps
dB
dB
dB
dBmV
dB
Forward Station Performance
Operational Gain
Internal Tilt (± 0.5 dB)
Noise Figure @ 54 MHz
Noise Figure @ 1 GHz
78 NTSC Channels (CW) with digital
Composite Triple Beat
Cross Modulation
Composite Second Order (high side)
94 NTSC Channels (CW) with digital
Composite Triple Beat
Cross Modulation
Composite Second Order (high side)
Reverse Station Performance
Operational Gain
Internal Tilt (± 0.5 dB)
Noise Figure
6 NTSC Channels (CW)
Composite Triple Beat
Cross Modulation
Composite Second Order (high side)
Forward
54-1002
GaAs FET
±0.5
±5.5
16
15
25
70 (52-870 MHz)
60 (870-1002 MHz)
65 (52-870 MHz)
60 (870-1002 MHz)
-20
49.5
47.5
45.7
44.0
42.5
35.0
14.5
Reverse
5-42
PP
±0.5
n/a
16
60 (5-10 MHz)
70 (11-40 MHz)
60 (5-10 MHz)
65 (11-40 MHz)
-20
35 (@42 MHz)
Notes
7
35 (@5 MHz)
-
Units
dB
dB
dB
dB
Manual
9 dB ISEQ
39.5
9.5
6.0
7.0
Thermal
7.5 dB ISEQ
34
9.5
7.5
7.0
AGC
9 dB ISEQ
33
9.5
7.5
7.0
dB
dB
dB
81
76
76
79
73
75
79
72
75
dB
dB
dB
76
73
72
74
70
71
74
69
71
1
Notes
2
3
2
2
4
9
5,9
9
8
9
5,9
9
Units
dB
dB
dB
19.5
0
7.5
Notes
6,7
3
6, 7
dB
dB
dB
92
80
82
9
5,9
9
Unless otherwise noted, specifications reflect typical performance and are referenced to 68°F (20°C). Specifications are based
upon measurements made in accordance with SCTE/ANSI standards (where applicable), using standard frequency assignments.
3
GainMaker® - Line Extender - 5-42/54-1002 MHz
Specifications, continued
Station Delay Characteristics
Forward
(Chrominance to Luminance Delay)
Frequency (MHz)
55.25 - 58.83
61.25 - 64.83
67.25 - 70.83
77.25 - 80.83
Reverse
(Group Delay in 1.5 MHz bandwidth)
Frequency (MHz)
5.0 - 6.5
6.5 - 8.0
8.0 - 9.5
37.5 - 39.0
39.0 - 40.5
40.5 - 42.0
Delay (ns)
37
14
8
5
Delay (ns)
60
22
12
15
18
29
Station Powering Data
GainMaker
Line Extender
Manual and
Thermal
AGC
I DC (Amps)
@ 12V
1.74
@ 24V
0
1.74
0.1
AC Current (A)
Power (W)
AC Current (A)
Power (W)
AC Current (A)
Power (W)
90
85
80
75
70
0.45
27.0
0.48
29.2
0.51
31.5
0.47
27.0
0.51
29.1
0.54
31.5
0.49
26.9
0.52
29.1
0.56
31.5
0.51
26.9
0.54
29.1
0.57
31.5
0.52
26.9
0.55
29.1
0.59
31.4
AC Voltage
65
60
0.53
26.9
0.57
29.1
0.60
31.4
0.62
26.9
0.66
29.1
0.71
31.6
55
50
45
40
35
0.64
26.9
0.68
29.1
0.73
31.6
0.67
27.0
0.71
29.2
0.76
31.6
0.70
27.1
0.75
29.3
0.80
31.7
0.76
27.2
0.82
29.4
0.88
31.9
0.86
27.4
0.92
29.6
0.98
32.1
AGC with
1.9
0.1
Status Mon.
& Reverse
Switch
Data is based on stations configured for 2-way operation. AC currents specified are based on measurements made with typical CATV type
ferro-resonant AC power supply (quasi-square wave), and standard GainMaker Line Extender power supply (12/24 V DC, pn 593020).
DC supply has a user configurable 30 V, 40 V, or 50 V AC under voltage lockout circuit. Default setting is 30 V. 40 V or 50 V AC under voltage
lockout may be selected by changing the position of the lockout jumper.
Notes:
1. Reference output tilt is specified as “LINEAR” tilt (as opposed to “cable” tilt).
2. Forward Gain and Noise Figure measured with 0 dB input EQ and 1 dB input pad.
3. Down tilt, the effect of cable, is represented by a (-). Up tilt, the effect of equalization, is represented by a (+).
4. 78 CW NTSC channels loaded from 55 to 550 MHz. Digital refers to 550-1002 MHz loading with QAM carriers at -6 dB levels relative to
analog video carrier levels.
5. X-mod (@ 15.75 kHz) specified using 100% synchronous modulation and frequency selective measurement device.
6. Reverse Gain and Noise Figure for station with 0 dB reverse input pad, 0 dB reverse output EQ, and 1 dB output pad.
7. Reverse Operational Gain, Noise Figure, and Return Loss are specified without reverse switch option. If switch is installed, reduce
Gain by 0.5 dB, increase Noise Figure by 0.5 dB, and decrease Return Loss by 1 dB.
8. 94 CW NTSC channels loaded from 55 to 650 MHz. Digital refers to 650-1002 MHz loading with QAM carriers at -6 dB levels relative
to analog video carrier levels.
9. Distortion performance at reference output levels and tilt.
Environmental
Operating Temperature Range
Mechanical
Housing Dimensions
Weight
•
Housing with power supply
•
Module
-40 to +140°F (-40 to +60°C)
11.7 in. L x 9.8 in. H x 6.7 in. D
297.2 mm L x 248.9 mm H x 170.2 mm D
9 lbs, 4 oz. (4.2 kg)
3 lbs, 12 oz. (1.7 kg)
Unless otherwise noted, specifications reflect typical performance and are referenced to 68°F (20°C). Specifications are based
upon measurements made in accordance with SCTE/ANSI standards (where applicable), using standard frequency assignments.
4
GainMaker® - Line Extender - 5-42/54-1002 MHz
Ordering Information
The GainMaker Ordering Matrix provides ordering information for configured amplifier modules or stations. This page contains
ordering information for required and optional accessories that are not included as part of a configured amplifier module or
station. Consult your account representative or customer service representative for ordering assistance.
The following Required Accessories must be ordered separately (not included via GainMaker Ordering Matrix):
Required Accessories
Plug-in Pads (attenuators) - Available in 0.5 dB steps from 0 to 20 dB
•
1 required for forward input
•
1 required for AGC, if applicable*
•
2 required for reverse (1 input, 1 output)
*To determine AGC pad value, subtract 29 dB from the design value station RF
output level at the AGC pilot frequency (applies to Line Extender only)
Plug-in Forward Equalizer - Available in 1.5 dB steps from 0 to 30 dB at 1002 MHz
•
1 required for forward input
Part Number
589693 (0 dB)
sequentially thru
589734 (20.5 dB)
4007228 (0 dB)
sequentially thru
4007248 (30 dB)
Plug-in Reverse Equalizer – Available in 1 dB steps from 0 to 12 dB at 40 MHz
•
1 required for reverse output - unless design value is 0 dB (0 dB EQ is provided)
712719 (0 dB) and
589628 (1 dB)
sequentially thru
589639 (12 dB)
The following Optional Accessories may be ordered separately:
Optional Accessories
Part Number
230 V AC Crowbar Surge Protector (plug-in, one per station)
Plug-in Inverse Equalizer. Simulates cable equivalent tilts (creates tilt opposite that of equalizers). Use in place
of forward input EQ as needed to maintain proper output tilt in short spaced locations. Available in 1.6 dB “cable
equivalent” steps from 1.6 to 16.2 dB.
Long Reach Test Point Adapter
Status Monitoring Transponder – * see GainMaker Status Monitoring Transponder Data Sheet
715973
4007486 (1.6 dB)
sequentially thru
4007495 (16.2 dB)
562580
*
The following Housing Options may be included with the product if ordered using the GainMaker Ordering Matrix. They may
also be ordered separately.
GainMaker Line Extender Housing - 1 required. Housing includes housing base, lid, wiring harness, and
12/24 V power supply #593020. All Housings have 15 amp capacity.
•
Uncoated housing without external test point access
•
Chromate Plated housing without external test point access
•
Uncoated housing with external test point access
•
Chromate Plated housing with external test point access
GainMaker Line Extender Housing Upgrade Kit - 1 required if upgrading an existing LEI, LEII, or LE III
housing to allow use of GainMaker Line Extender modules. Includes a GainMaker Line Extender housing lid,
wiring harness, and 12/24 V power supply #593020.
•
Uncoated housing lid without external test point access
•
Painted housing lid without external test point access
•
Uncoated housing lid with external test point access
•
Painted housing lid with external test point access
Power Pack Kit (for indoor 110 V AC powering) - Includes LE wall mount bracket, power supply with indicator
light, power supply bracket, housing base, lid, wiring harness, power cord strain relief - * see GainMaker Power
Pack Data Sheet
Seizure Upgrade Kit - 1 required if upgrading an existing LEI or LEII housing base to allow use of GainMaker
Line Extender Modules. Includes high current (15 amp) rated seizure screws and anvils.
Part Number
593095
593093
593094
593092
593087
593085
593086
593084
748997
548774
Scientific-Atlanta, the Scientific-Atlanta logo, and GainMaker are registered trademarks of Scientific-Atlanta, Inc.
ROSA is a trademark of Scientific-Atlanta Europe NV.
Specifications and product availability are subject to change without notice.
© 2005 Scientific-Atlanta, Inc. All rights reserved.
Scientific-Atlanta, Inc.
1-800-722-2009 or 770-236-6900
www.scientificatlanta.com
Part Number 7006590 Rev D
August 2005
5

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
