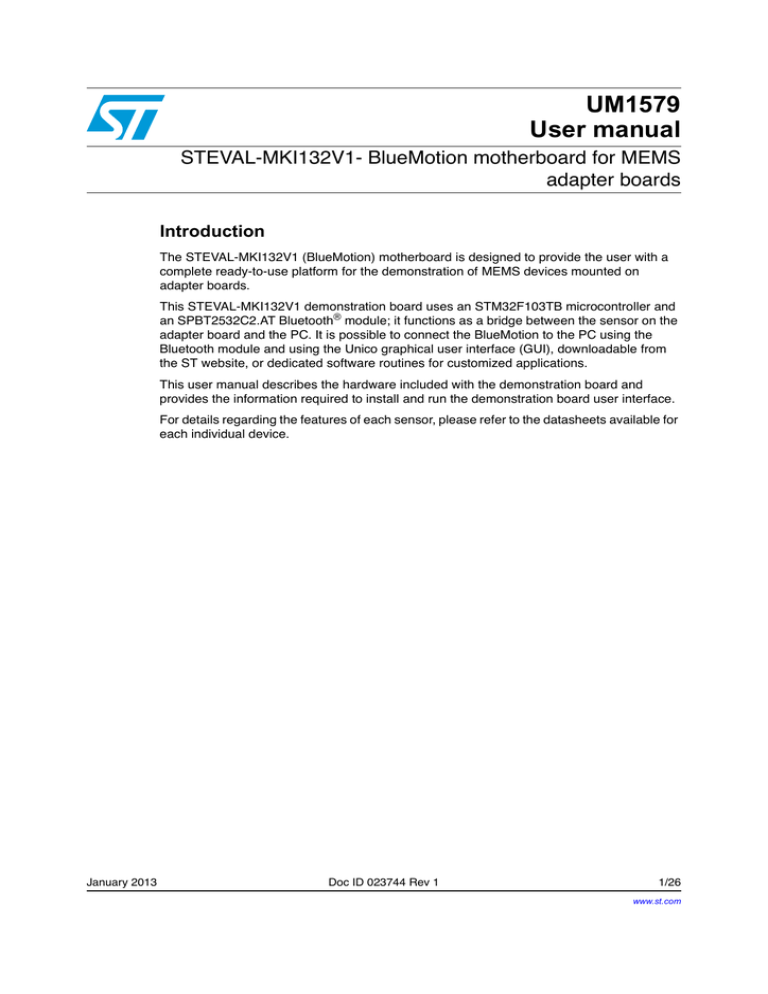

UM1579

User manual

STEVAL-MKI132V1- BlueMotion motherboard for MEMS

adapter boards

Introduction

The STEVAL-MKI132V1 (BlueMotion) motherboard is designed to provide the user with a complete ready-to-use platform for the demonstration of MEMS devices mounted on adapter boards.

This STEVAL-MKI132V1 demonstration board uses an STM32F103TB microcontroller and an SPBT2532C2.AT Bluetooth

®

module; it functions as a bridge between the sensor on the adapter board and the PC. It is possible to connect the BlueMotion to the PC using the

Bluetooth module and using the Unico graphical user interface (GUI), downloadable from the ST website, or dedicated software routines for customized applications.

This user manual describes the hardware included with the demonstration board and provides the information required to install and run the demonstration board user interface.

For details regarding the features of each sensor, please refer to the datasheets available for each individual device.

January 2013 Doc ID 023744 Rev 1 1/26

www.st.com

3

4

5

6

7

1

2

Contents

Contents

UM1579

Demonstration board description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

BlueMotion board installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

2.1

Establishing Bluetooth connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Supported MEMS adapter boards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Supported commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

4.1

Getting started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

4.2

Supported commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

4.2.1

4.2.2

4.2.3

4.2.4

Commands list and description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Digital output accelerometers: supported commands . . . . . . . . . . . . . . 19

Digital output gyroscopes: supported commands . . . . . . . . . . . . . . . . . 20

Digital output magnetometers: supported commands . . . . . . . . . . . . . . 20

4.3

Quick start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Schematic diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Bill of materials . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

2/26 Doc ID 023744 Rev 1

UM1579

1

Demonstration board description

Demonstration board description

The BlueMotion is a complete demonstration board that allows the demonstration of both digital and analog MEMS sensors. Thanks to its DIL 24 connector, a wide range of MEMS adapter boards can be used.

The block diagram of the demonstration board is shown in

Figure 1

.

Figure 1.

Demonstration board block diagram

UART

MEMS device

DIL 24

Connector

I2C

STM32F103TB

µC

Bluetooth

Interrupt LEDs

General Purpose LEDs

AM14726V1

As shown in

Figure 1

, the BlueMotion demonstration board is based on the STM32F103TB

microcontroller and can be connected to the PC through Bluetooth. Data coming from the

MEMS sensor connected to the board can be read through the PC GUI provided with the board.

The BlueMotion can be flashed with compatible firmware using an SWD connector or a

UART connector. See www.st.com/mems for new firmware releases.

The following steps are required to flash the board using UART:

1.

Connect the BlueMotion to the PC using a UART connector (use the FS and ST pins of

the J2 connector shown in

Figure 10

).

2. Set the BOOT0 pin of the DIL 24 device adapter high.

3. Power up the board.

4. Use the STM32 flash loader utility to establish a UART connection with the BlueMotion.

The recommended settings are shown in

Figure 2

.

Doc ID 023744 Rev 1 3/26

Demonstration board description

Figure 2.

Connecting BlueMotion using UART

UM1579

AM14752V1

Download the hexadecimal file of the firmware on BlueMotion using the STM32 flash loader utility. For further details, refer to the utility’s user manual.

Figure 3.

Downloading firmware using UART

AM14753V1

4/26 Doc ID 023744 Rev 1

UM1579

Figure 4.

Connecting BlueMotion using UART

Demonstration board description

AM14754V1

The BlueMotion also integrates one general purpose LED, and two LEDs connected directly to the interrupt pins of the digital adapters.

The top view and the bottom view of the full board are shown in

Figure 5

and

Figure 6

respectively.

Doc ID 023744 Rev 1 5/26

UM1579 Demonstration board description

Figure 5.

Board top view ref 4 ref 3

ref 1

Figure 6.

Board bottom view

F

T

ref 5 ref 6 ref 2

AM14727V1

6/26

AM14728V1

The BlueMotion demonstration board can be used with the Unico GUI interface which allows simple interaction with the sensor. The steps required for establishing a Bluetooth connection with the board and accessing it are discussed in the following sections.

Doc ID 023744 Rev 1

UM1579 Demonstration board description

In

Figure 5

some of the main components placed on the top layer of the BlueMotion board are highlighted.

The dual power supply connector J1 (

Figure 5

, ref 1) can be used to supply power in

one of the two possible modes. Pin 2 on must be connected to ground. The board can be powered with either a 1.5 V supply, e.g. an AA battery, connected to Pin 1 or with a supply in the range 3.5 V - 6.0 V. connected to Pin 3.

The SWD connector J3 can (

Figure 5

, ref 2) be used to program the BlueMotion board.

Jumper JP1 allows the user to measure the sensor current consumption by connecting

a multimeter in series with its terminals when a 1.5 V power supply is used (

Figure 5

, ref 3).

Jumper JP2 allows the user to measure the sensor current consumption by connecting a multimeter in series with its terminals when a power supply in the range 3.5 V - 6.0 V

is used (

Figure 5

, ref 4).

BlueMotion also integrates three LEDs:

LED D5 (

Figure 5

, ref 5) is a general purpose LED and is used to indicate some firmware states.

LEDs D6 and D7 (

Figure 5

, ref 6) are directly connected to the interrupt pins of the

MEMS digital adapters (if available on the sensor mounted on the adapter board).

Doc ID 023744 Rev 1 7/26

BlueMotion board installation

2 BlueMotion board installation

UM1579

The software package can be downloaded from the st.com website and includes the following directory structure:

FIRMWARE: it contains the source code of the firmware of the BlueMotion board together with the corresponding binary file that can be flashed to the board.

The section below describes the procedure for establishing a Bluetooth connection with the

BlueMotion board.

A Bluetooth connection to the BlueMotion board can be established in three steps: searching the BlueMotion device, pairing it and connecting to it. To search the device, open the “Bluetooth Places” using the Bluetooth software on your PC and click on “Search

Devices“. The BlueMotion board should appear with the name “eMotion BT”, as shown in

Figure 7

.

8/26 Doc ID 023744 Rev 1

UM1579

Figure 7.

Searching the BlueMotion board

BlueMotion board installation

AM14729V1

To pair the device right click on the icon “eMotion BT” and select “Pair”. Enter “1234” in the

“Passkey” field in the dialogue-box (shown in

Figure 8

) and click “OK”.

Doc ID 023744 Rev 1 9/26

BlueMotion board installation

Figure 8.

Pairing the BlueMotion board

UM1579

10/26

AM14730V1

The next step is to connect to the BlueMotion board. Click on the “eMotion BT” icon and

then click on the “Bluetooth Serial Port” icon, as shown in

Figure 9

. In this example the board is assigned the port “COM26”. The BlueMotion board is now connected and it can be accessed through the assigned port.

Doc ID 023744 Rev 1

UM1579

Figure 9.

Connecting to the BlueMotion board

BlueMotion board installation

AM14731V1

Doc ID 023744 Rev 1 11/26

Supported MEMS adapter boards

3 Supported MEMS adapter boards

Table 1

below provides a complete list of supported adapter boards.

Table 1.

List of supported MEMS adapter boards

Adapter board Device

STEVAL-MKI089V1

STEVAL-MKI105V1

STEVAL-MKI106V1

STEVAL-MKI107V1

STEVAL-MKI107V2

STEVAL-MKI108V1

STEVAL-MKI108V2

STEVAL-MKI110V1

STEVAL-MKI122V1

STEVAL-MKI123V1

STEVAL-MKI303V1

LIS331DLH

LIS3DH

LSM303DLHC

L3G4200D

L3GD20

9AXISMODULE v1 [LSM303DLHC + L3G4200D]

9AXISMODULE v2 [LSM303DLHC + L3GD20]

AIS328DQ

LSM330DLC

LSM330D

LSM303D

UM1579

12/26 Doc ID 023744 Rev 1

UM1579 Supported commands

The microcontroller mounted on the BlueMotion board is equipped with dedicated firmware that supports a set of commands which allows either the digital or the analog output MEMS sensor to be controlled and permits the acquisition of the measured data. The firmware also handles the communication between the board and the PC through a Bluetooth connection.

These features allow the user to easily write their own applications to exploit the capabilities of the sensor chosen.

This section describes the commands that are supported by the firmware for the microcontroller of the BlueMotion demonstration board.

Before using the commands supported by the firmware, the following procedure must be performed:

1.

Connect the BlueMotion to the PC using Bluetooth.

2. Launch an application which allows commands to be sent through the virtual serial port. The remainder of this document assumes the use of the “Microsoft

®

HyperTerminal” program available with the Windows

®

XP operating system.

3. Create a new connection, enter a name (e.g. “BlueMotion”), and click “OK”.

4. In the “Connect Using” field, select the Bluetooth serial COM port to which the

BlueMotion has been connected, and click “OK”.

5. In port settings, set bits per second to 115200, data bits to 8, parity to none, stop bits to

1, and flow control to none. Click “OK”.

6. On the “HyperTerminal” application window choose “files” > “properties” > “settings”, then click on the “ASCII Setup” button.

7. Select “Send line ends with line feeds” and “Echo typed characters locally”.

8. Click the “OK” button to close the “ASCII Setup” window.

9. Click the “OK” button to close the “Properties” window.

Once this procedure has been completed the user can utilize the commands described in the following sections by typing them into the “HyperTerminal” window.

The firmware supports a wide range of MEMS adapters; the next section reports the complete list of supported commands (see

Table 2

) and their description.

Then, the list of commands (split into sections) available for each sensor supported by the

BlueMotion firmware is reported.

Doc ID 023744 Rev 1 13/26

Supported commands

4.2.1

Note:

Commands list and description

Table 2.

Supported commands list

Command Description

*mwAADD

*single

*list

*listdev

*echoon

*echooff

*fifostr

*fifomde

*fifotrg

*fiforst

*gfifostr

*gfifomde

*gfifotrg

*gfiforst

*gfifobts

*setdbXXXVY

Selects firmware according to the adapter connected

*start

*debug

*stop

*Zon

Starts continuous data acquisition

Returns the output data in readable text format

Stops data acquisition

Forces 3-state

*Zoff

*dev

*ver

*rAA

*wAADD

*grAA

*gwAADD

*mrAA

Exits from 3-state

Device name

Firmware version

Accelerometer register read

Accelerometer register write

Gyroscope register read

Gyroscope register write

Magnetometer register read

Magnetometer register write

It gets a single X, Y, and Z data acquisition

Prints the list of MKIs supported

Prints the list of devices supported

Activates the write verbose mode

Deactivates the write verbose mode

Accelerometer “FIFO Stream” mode enable

Accelerometer “FIFO mode” mode enable

Accelerometer “Stream-to-FIFO” mode enable

Accelerometer “Reset” mode enable

Gyroscope “FIFO Stream” mode enable

Gyroscope “FIFO mode” mode enable

Gyroscope “Stream-to-FIFO” mode enable

Gyroscope “Reset” mode enable

Gyroscope “Bypass-to-FIFO” enable

UM1579

Returned value

(see

Table 3

)

(see

Table 4

)

e.g.: LIS3DH e.g.: V1.0

e.g.: RAAhDDh e.g.: GRAAhDDh e.g.: MRAAhDDh

(see

Table 4

)

e.g.: MKI105V1 e.g.: LIS3DH e.g.: RAAhDDh st 0 0 0 0 0 0 IR FC FS st 0 0 0 0 0 0 IR FC FS st 0 0 0 0 0 0 IR FC FS st 0 0 0 0 0 0 IR FC FS st 0 0 0 0 0 0 IR FC FS st 0 0 0 0 0 0 IR FC FS st 0 0 0 0 0 0 IR FC FS st 0 0 0 0 0 0 IR FC FS st 0 0 0 0 0 0 IR FC FS

IR: interrupt byte; FC: FIFO control register; FS: FIFO source register.

14/26 Doc ID 023744 Rev 1

UM1579 Supported commands

Set demonstration board

The command *setdbxxxvy selects the part of the firmware able to handle the adapter board sensor connected to the board. e.g., in order to select the firmware for the LIS3DH the command must be: setdb105V1.

Start command

The *start command initiates the continuous data acquisition. When this command is sent to the device, it returns a string of bytes (plus carriage return and line feed) similar to “st OUT1

OUT2 OUT3 IR BT”.

The first two bytes are always the

ASCII char “s”

and

“t”

which correspond to the hexadecimal values {73h 74h}.

OUT1, OUT2, and OUT3 are the bytes that contain the values measured at device outputs; if the output data is represented on more than 8 bits, OUT1, OUT2, and OUT3 are split into two bytes: high byte (e.g.: “XH”) and low byte (e.g.: “XL”).

IR contains the interrupt bytes and BT contains the bytes that describe the state of the buttons integrated on the board.

Specifically, bit#0 of the “BT” data corresponds to the status of the SW1 button on the demonstration board: it is set to 1 when the SW1 is pressed (otherwise 0). Bit#1 has the same behavior but is dedicated to the SW2.

Before sending the *start command, the device must be out from 3-state and some registers must be configured according to user needs, therefore, *start must be preceded by a *zoff and some “Register Write” commands.

Table 3

shows the format of the string returned for each device when a *start command is sent.

Table 3.

Returned values for *start command

STEVAL # (device) Returned value

STEVAL-MKI089V1 (LIS331DLH)

STEVAL-MKI105V1 (LIS3DH)

STEVAL-MKI107V1 (L3G4200D)

STEVAL-MKI107V2 (L3GD20)

STEVAL-MKI110V1 (AIS328DQ)

STEVAL-MKI122V1 (LSM330DLC)

STEVAL-MKI123V1 (LSM330D) s t XH XL YH YL ZH ZL int1 int2 sw1|sw2 \r \n

STEVAL-MKI106V1 (LSM303DLHC)

STEVAL-MKI303V1 (LSM303D)

STEVAL-MKI108V1 (9AXISMODULEv1)

STEVAL-MKI108V2 (9AXISMODULEv2) s t A_XH A_XL A_YH A_YL A_ZH A_ZL M_XH M_XL

M_YH M_YL M_ZH M_ZL A_int1 A_int2 sw1|sw2 \r \n s t A_XH A_XL A_YH A_YL A_ZH A_ZL

G_XH G_XL G_YH G_YL G_ZH G_ZL

M_XH M_XL M_YH M_YL M_ZH M_ZL

A_int1 A_int2 sw1|sw2 \r \n s t A_XH A_XL A_YH A_YL A_ZH A_ZL

G_XH G_XL G_YH G_YL G_ZH G_ZL

A_int1 A_int2 G_int1 G_int2 sw1|sw2 \r \n

Note: XH: X axis output high byte (same for Y axis, Z axis, P pressure, and TEMP temperature).

XL: X axis output low byte (same for Y axis, Z axis, P pressure, and TEMP temperature).

Doc ID 023744 Rev 1 15/26

Supported commands UM1579

Debug command

The *debug command starts the continuous data acquisition in debug mode. When this command is sent to the board, it returns the output values measured by the device formatted in a readable text format. The values shown on the screen correspond to the LSB data shown as a decimal number.

Table 4

shows the format of the string returned for each device when a *debug command is sent.

Table 4.

Returned values for *debug command

STEVAL # (device)

STEVAL-MKI089V1 (LIS331DLH)

STEVAL-MKI105V1 (LIS3DH)

STEVAL-MKI110V1 (AIS328DQ)

STEVAL-MKI106V1 (LSM303DLHC)

STEVAL-MKI303V1 (LSM303D)

STEVAL-MKI107V1 (L3G4200D)

STEVAL-MKI107V2 (L3GD20)

Returned value

X=XXXXX Y=YYYYY Z=ZZZZZ

AX=XXXXX AY=YYYYY AZ=ZZZZZ

MX=XXXXX MY=YYYYY MZ=ZZZZZ

P=PPPPP R=RRRRR Y=YYYYY

STEVAL-MKI108V1 (9AXISMODULEV1)

STEVAL-MKI108V2 (9AXISMODULEV2)

STEVAL-MKI122V1 (LSM330DLC)

STEVAL-MKI123V1 (LSM330D)

AX=XXXXX AY=YYYYY AZ=ZZZZZ

MX=XXXXX MY=YYYYY MZ=ZZZZZ

GX=XXXXX GY=YYYYY GZ=ZZZZZ

AX=XXXXX AY=YYYYY AZ=ZZZZZ

GX=XXXXX GY=YYYYY GZ=ZZZZZ

Stop command

The *stop command interrupts any acquisition session that has been started with either the

*start or *debug commands.

Zon and Zoff

The *Zon and *Zoff commands are employed, respectively, to put into 3-state the

STM32F103TB microcontroller mounted on the demonstration board. These commands allow the isolation of the sensor from the microprocessor and allow the user to interact with the sensor in a pure analog way.

By default, when the board is first turned on, the lines are in 3-state mode and the user is required to send the *Zoff command to allow communication between the sensor and the microcontroller. If Zoff has not been launched, the firmware ignores any other commands.

Device name

The *dev command retrieves the name of the adapter connected to the demonstration board. The returned value is, for example,

LIS3DH

.

Firmware version

The *ver command queries the demonstration board and returns the version of the firmware loaded in the microprocessor, for example, “V1.0”.

16/26 Doc ID 023744 Rev 1

UM1579 Supported commands

Accelerometer register read

The *rAA command allows the contents of the accelerometer registers in the demonstration board to be read. AA, expressed as a hexadecimal value and written in upper case, represents the address of the register to be read.

Once the read command is issued, the board returns RAAhDDh, where AA is the address sent by the user and DD is the data present in the register.

For example, to read the register at address 0x20, the user issues the command *r20, which returns, e.g., R20hC7h.

Accelerometer register write

The *wAADD command allows writing to the contents of the accelerometer registers of the demonstration board. AA and DD, expressed as hexadecimal values and written in upper case, represent, respectively, the address of the register and the data to be written. For example, to write 0xC7 to the register at address 0x20, the user issues the command

*w20C7.

Gyroscope register read

The *grAA command allows the contents of the gyroscope registers of the demonstration board to be read. AA, expressed as hexadecimal value and written in upper case, represents the address of the register to be read.

Once the read command is issued, the board returns GRAAhDDh, where AA is the address sent by the user and DD is the data present in the register.

For example, to read the register at address 0x20, the user issues the command *gr20, which returns, e.g., GR20hC7h.

Gyroscope register write

The *gwAADD command allows writing to the contents of the gyroscope registers of the demonstration board. AA and DD, expressed as hexadecimal values and written in upper case, represent, respectively, the address of the register and the data to be written. To write

0xC7 to the register at address 0x20, for example, the user issues the command *gw20C7.

Magnetometer register read

The *mrAA command allows the contents of the magnetometer registers in the demonstration board to be read. AA, expressed as a hexadecimal value and written in upper case, represents the address of the register to be read.

Once the read command is issued, the board returns MRAAhDDh, where AA is the address sent by the user and DD is the data present in the register.

For example, to read the register at address 0x00, the user issues the command *mr00, which returns, e.g., MR00h10h.

Magnetometer register write

The *mwAADD command allows writing to the contents of the magnetometer registers of the demonstration board. AA and DD, expressed as hexadecimal values and written in upper case, represent, respectively, the address of the register and the data to be written. To write 0x20 to the register at address 0x01, for example, the user issues the command

*mw0120.

Doc ID 023744 Rev 1 17/26

Supported commands UM1579

Single acquisition

The *single command may be used to read just one set of data. It requires the sensor to be well configured and once invoked, returns the read values of one data sample.

The format of the returned value is exactly the same as the *debug command (

Table 4

), in fact, the *debug command is used for continuous data acquisition purposes whereas a

*single command returns just one set of data.

List

The *list command returns the list of MKI adapters supported by the firmware, printed in

ASCII format.

Listdev

The *listdev command returns the list of devices supported by the firmware, printed in ASCII format.

Echo on

The *echoon command is used to activate the write command verbose mode. Once this command is launched, after every write command the firmware automatically performs also a read of the register just written. This function is useful to check if the write has succeeded.

For instance, if the *echoon command is launched, after a *w2027 it results R2027.

Echo off

The *echooff command stops the write command verbose mode.

Accelerometer FIFO Stream mode enable

The *fifostr command is used to enable the accelerometer FIFO Stream mode. For more details see the AN3308 application note.

Accelerometer FIFO mode enable

The *fifomde command is used to enable the accelerometer FIFO mode. For more details see the AN3308 application note.

Accelerometer Stream-to-FIFO mode enable

The *fifotrg command enables the accelerometer Stream-to-FIFO mode. For more details see the AN3308 application note.

Accelerometer FIFO Reset enable

The *fiforst command enables the accelerometer FIFO Reset mode. For more details see the AN3308 application note.

Gyroscope FIFO Stream mode enable

The *fifostr command is used to enable the gyroscope FIFO Stream mode.

Gyroscope FIFO mode enable

The *gfifomde command is used to enable the gyroscope FIFO mode.

18/26 Doc ID 023744 Rev 1

UM1579

4.2.2

Note:

Supported commands

Gyroscope Stream-to-FIFO mode enable

The *gfifotrg command enables the gyroscope Stream-to-FIFO mode.

Gyroscope FIFO Reset enable

The *gfiforst command enables the gyroscope FIFO Reset mode.

Gyroscope FIFO Bypass-to-Stream enable

The *gfifobts command enables the gyroscope Bypass-to-Stream mode.

Digital output accelerometers: supported commands

Table 5

below lists the commands supported by the devices/demonstration boards including a digital output accelerometer.

Table 5.

Digital output accelerometers: supported commands list

Command Description Returned value

*setdbXXXVY

*wAADD

*single

*list

*listdev

*echoon

*echooff

*fifostr

(1)

*fifomde

(1)

*fifotrg

(1)

*fiforst

(1)

*start

*debug

*stop

*Zon

*Zoff

*dev

*ver

*rAA

Selects firmware according to the adapter connected

Starts continuous data acquisition

Returns the output data in readable text format

Stops data acquisition

Forces 3-state

Exits from 3-state

Device name

Firmware version

Accelerometer register read

Accelerometer register write

It gets a single X, Y, and Z data acquisition

Prints the list of MKIs supported

Prints the list of devices supported

Activates the write verbose mode

Deactivates the write verbose mode

Accelerometer “FIFO Stream” mode enable

Accelerometer “FIFO mode” mode enable

Accelerometer “Stream-to-FIFO” mode enable

Accelerometer “Reset” mode enable

1.

Available only for devices with embedded FIFO.

(see

Table 3

)

(see

Table 4

)

e.g.: LIS3DH e.g.: V1.0

e.g.: RAAhDDh

(see

Table 4

)

e.g.: MKI105V1 e.g.: LIS3DH e.g.: RAAhDDh st 0 0 0 0 0 0 IR FC FS st 0 0 0 0 0 0 IR FC FS st 0 0 0 0 0 0 IR FC FS st 0 0 0 0 0 0 IR FC FS

IR: interrupt byte; FC: FIFO control register; FS: FIFO source register.

Doc ID 023744 Rev 1 19/26

Supported commands UM1579

Note:

4.2.4

Table 6

below lists the commands supported by the devices/demonstration boards including a digital output gyroscope:

Table 6.

Digital output gyroscopes: supported commands list

Command Description Returned value

*setdbXXXVY

*start

*debug

*stop

*Zon

*Zoff

*dev

*ver

*grAA

*gwAADD

*single

*list

*listdev

Selects firmware according to the adapter connected

Starts continuous data acquisition

Returns the output data in readable text format

Stops data acquisition

Forces 3-state

Exits from 3-state

Device name

Firmware version

Gyroscope register read

Gyroscope register write

It gets a single X, Y, and Z data acquisition

Prints the list of MKIs supported

Prints the list of devices supported

*echoon

*echooff

*gfifostr

(1)

*gfifomde

(1)

*gfifotrg

(1)

*gfiforst

(1)

*gfifobts

(1)

Activates the write verbose mode

Deactivates the write verbose mode

Gyroscope “FIFO Stream” mode enable

Gyroscope “FIFO mode” mode enable

Gyroscope “Stream-to-FIFO” mode enable

Gyroscope “Reset” mode enable

Gyroscope “Bypass-to-FIFO” enable

1.

Available only for devices with embedded FIFO.

(see

Table 3

)

(see

Table 4

)

e.g.: LIS3DH e.g.: V1.0

e.g.: GRAAhDDh

(see

Table 4

)

e.g.: MKI105V1 e.g.: LIS3DH e.g.: RAAhDDh st 0 0 0 0 0 0 IR FC FS st 0 0 0 0 0 0 IR FC FS st 0 0 0 0 0 0 IR FC FS st 0 0 0 0 0 0 IR FC FS st 0 0 0 0 0 0 IR FC FS

IR: interrupt byte; FC: FIFO control register; FS: FIFO source register.

Digital output magnetometers: supported commands

Table 7

below lists the commands supported by the devices/demonstration boards including a digital output magnetometer:

20/26 Doc ID 023744 Rev 1

UM1579 Supported commands

*start

*debug

*stop

*Zon

*Zoff

*dev

*ver

*mrAA

*mwAADD

*single

*list

*listdev

*echoon

*echooff

Table 7.

Digital output magnetometer: supported commands list

Command Description Returned value

*setdbXXXVY

Selects firmware according to the adapter connected

Starts continuous data acquisition

Returns the output data in readable text format

Stops data acquisition

Forces 3-state

Exits from 3-state

Device name

Firmware version

Pressure sensor register read

Pressure sensor register write

It gets a single X, Y, and Z data acquisition

Prints the list of MKIs supported

Prints the list of devices supported

Activates the write verbose mode

Deactivates the write verbose mode

(see

Table 3

)

(see

Table 4

) e.g.: LIS3DH e.g.: V1.0

e.g.: MRAAhDDh

(see

Table 4

) e.g.: MKI105V1 e.g.: LIS3DH e.g.: MRAAhDDh

This section shows the basic sequence of commands, based on the LIS3DH accelerometer, to start a data communication session and to retrieve the X, Y, and Z acceleration data from the demonstration board:

1.

Connect the BlueMotion to the PC using Bluetooth.

2. Start the “Microsoft HyperTerminal” and configure it as described in

Section 4.1

.

3. Inside the “HyperTerminal” window, enter the command *setdb105v1 (supposing the

LIS3DH adapter board is used, for other adapters see the relevant datasheets to check the register configuration), enter the command *Zoff to enable the control of the device by the STM32F103TB microcontroller, and *w2047 to switch on the LIS3DH and to set the data rate to 50 Hz.

4. Send the *debug command to get the X, Y, and Z data measured by the sensor.

5. Send *stop to end the continuous acquisition and visualization.

Doc ID 023744 Rev 1 21/26

Schematic diagrams UM1579

The schematic diagrams of the BlueMotion demonstration board are shown in

Figure 10

.

Figure 10.

BlueMotion board (power supply and USB)

INT2

INT1 d GP_

T0 BOO

SWCLK

GP_GPIO1

28

29

30

31

GP_GPIO 32

BOOT0

33

34

35

36

PA14/SWCLK

PA15

PB3

PB4

PB5

PB6/I2C1_SCL

PB7/I2C1_SDA

BOOT0

Vss_3

Vss_1

PB2

PB1/ADC9

PB0/ADC8

PA7/ADC7

PA6/ADC6

PA5/ADC5

PA4/ADC3

PA3/USART2_R X

18

17

16

15

14

13

12

11

10

GP_led

OUT1

OUT2

OUT4

OUT3

RESET_BT

TXD

4

2

22/26

1

2

1

2

Gnd 2

Doc ID 023744 Rev 1

RF_GND

ANT

0

1

AM14732V1

UM1579 Bill of materials

The bill of materials for the BlueMotion demonstration board is provided in

Table 8

below.

Table 8.

Component

Bill of materials

Qty.

Description

D7

J1

J4

J2

D1

D4

D5

D6

J3

JP1

JP2

L1

C8

C9

C10

C11

C12

C13

Cosc1

Cosc2

C4

C5

C6

C7

C1

C2

C3

Osc1

R1

R2

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

LED_SMD

LED_SMD

LED_SMD

LED_SMD

LED_SMD

MHDR1X3

Header 12

Header 12

Header 5

CON2

CON2

Inductor

Ceramic SMD crystal 3.2x2.5 mm

Res1

Res1

CAP

CAP

CAP

CAP

CAP

CAP

CAP

CAP

CAP

CAP

CAP

CAP

CAP

CAP

CAP

Value

1 μF

2.2 μF

33 nF

4.7 μF

10 nF

100 nF

18 pF

18 pF

47 μF

47 μF

100 nF

100 nF

100 nF

100 nF

1 μF

LED_SMDg

LED_SMDr

LED_SMDg

LED_SMDg

LED_SMDr

Dual power supply

SWD connector

Current_measure

Current_measure

Inductor

16 MHz

4.7 K

Ω

4.7 K

Ω

Package

LED_SMD_0603

LED_SMD_0603

LED_SMD_0603

LED_SMD_0603

LED_SMD_0603

HDR1X3

HDR1X12

Header _13_to_24

MHDR1X5

Header 1x2 2 mm

Header 1x2 2 mm

1210(2)

Ceramic SMD crystal

3.2x2.5 mm

0402

0402

0402

0402

0402

0603

0402

0402

0402

0402

0805

0805

0402

0402

0402

0402

0402

Doc ID 023744 Rev 1 23/26

Bill of materials

Table 8.

Component

R3

R4

R5

R6

R7

R9

R10

R11

R12

R13

U1

U2

U3

U4

U5

Bill of materials (continued)

Qty.

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

Description Value

Res1

Res1

Res1

Res1

Res1

Res1

Res1

Res1

Res1

Res1

L6920

130R

10 K

Ω

10 K

Ω

130R

4K7

10 K

Ω

1 M

Ω

130R

130R

130R

L6920DC

Component_1

STM32F103TB_VF

QFPN36 lds3985xx30

STM32F103TB

Bluetooth_module

BT_module

SPBT2532C2.AT

ANT_BLUETOOTH ANT_BLUETOOTH

UM1579

Package

0402

0402

0402

0402

0402

0603

0402

0402

0402

0402

L6920DC

SOT23-5

VFQFPN36

SPBT25532C2.AT

Antenna Johanson

24/26 Doc ID 023744 Rev 1

UM1579

Table 9.

Date

Document revision history

Revision

29-Jan-2013 1 Initial release.

Changes

Revision history

Doc ID 023744 Rev 1 25/26

UM1579

Please Read Carefully:

Information in this document is provided solely in connection with ST products. STMicroelectronics NV and its subsidiaries (“ST”) reserve the right to make changes, corrections, modifications or improvements, to this document, and the products and services described herein at any time, without notice.

All ST products are sold pursuant to ST’s terms and conditions of sale.

Purchasers are solely responsible for the choice, selection and use of the ST products and services described herein, and ST assumes no liability whatsoever relating to the choice, selection or use of the ST products and services described herein.

No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted under this document. If any part of this document refers to any third party products or services it shall not be deemed a license grant by ST for the use of such third party products or services, or any intellectual property contained therein or considered as a warranty covering the use in any manner whatsoever of such third party products or services or any intellectual property contained therein.

UNLESS OTHERWISE SET FORTH IN ST’S TERMS AND CONDITIONS OF SALE ST DISCLAIMS ANY EXPRESS OR IMPLIED

WARRANTY WITH RESPECT TO THE USE AND/OR SALE OF ST PRODUCTS INCLUDING WITHOUT LIMITATION IMPLIED

WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE (AND THEIR EQUIVALENTS UNDER THE LAWS

OF ANY JURISDICTION), OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR OTHER INTELLECTUAL PROPERTY RIGHT.

UNLESS EXPRESSLY APPROVED IN WRITING BY TWO AUTHORIZED ST REPRESENTATIVES, ST PRODUCTS ARE NOT

RECOMMENDED, AUTHORIZED OR WARRANTED FOR USE IN MILITARY, AIR CRAFT, SPACE, LIFE SAVING, OR LIFE SUSTAINING

APPLICATIONS, NOR IN PRODUCTS OR SYSTEMS WHERE FAILURE OR MALFUNCTION MAY RESULT IN PERSONAL INJURY,

DEATH, OR SEVERE PROPERTY OR ENVIRONMENTAL DAMAGE. ST PRODUCTS WHICH ARE NOT SPECIFIED AS "AUTOMOTIVE

GRADE" MAY ONLY BE USED IN AUTOMOTIVE APPLICATIONS AT USER’S OWN RISK.

Resale of ST products with provisions different from the statements and/or technical features set forth in this document shall immediately void any warranty granted by ST for the ST product or service described herein and shall not create or extend in any manner whatsoever, any liability of ST.

ST and the ST logo are trademarks or registered trademarks of ST in various countries.

Information in this document supersedes and replaces all information previously supplied.

The ST logo is a registered trademark of STMicroelectronics. All other names are the property of their respective owners.

© 2013 STMicroelectronics - All rights reserved

STMicroelectronics group of companies

Australia - Belgium - Brazil - Canada - China - Czech Republic - Finland - France - Germany - Hong Kong - India - Israel - Italy - Japan -

Malaysia - Malta - Morocco - Philippines - Singapore - Spain - Sweden - Switzerland - United Kingdom - United States of America

www.st.com

26/26 Doc ID 023744 Rev 1

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
