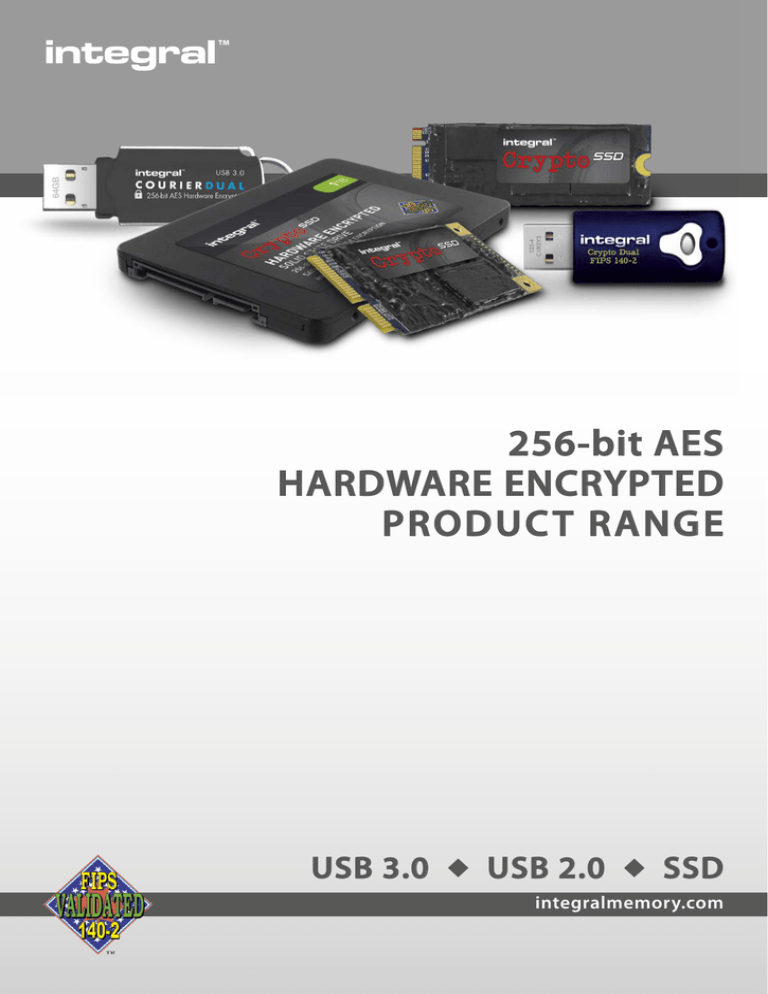

256-bit AES

HARDWARE ENCRYPTED

PRODUCT RANGE

USB 3.0



USB 2.0



SSD

integralmemory.com

About

Us

Introducing

Integral Memory plc are one of the largest digital memory producers in Europe with more than 25 years of sales success.

Integral was founded in London, England during 1989 and quickly became one of Europe’s leading DRAM specialists. Over the next two decades Integral expanded its product range as the solid-state flash memory market matured. Integral has long-term partnerships with leading component suppliers including Toshiba, Samsung and Hynix. International sales offices have been established in France, Spain, the Netherlands and UAE.

The Integral range includes a cutting-edge FIPS 140-2 validated Hardware Encrypted SSD and a selection of FIPS 140-2 validated, USB Flash Drives with

AES 256-bit encryption; ensuring sensitive data stored on the USB cannot be compromised.

Our passion is to bring you the latest memory products built on quality, reliability and great prices.

For detailed product information and technical support please visit our website www.integralmemory.com

Hardware Encrypted USB Flash Drives

Portable data security is a challenge facing all IT departments and government bodies. All data that is off company premises is at risk.

Integral produce a range of AES 256-bit hardware encrypted USB Flash Drives that provide an easy to use, cost effective and highly secure solution that is designed to work with your end-point security. Dual password versions are also available, making these more easy to manage in I.T. departments.

Our encrypted USB Flash Drive range is FIPS 197/140-2 validated and all models are zero footprint, so no software installation is required. All files transferred to the drive are automatically encrypted and are protected by a mandatory high-strength password. All Crypto products will securely destroy data safely if the set password attempts are exceeded, protecting your data if lost or stolen.

Hardware Encrypted Solid State Drives

Hard Drive security is a challenge facing all IT departments and government bodies.

Integral produce a range of AES 256-bit hardware encrypted SSDs that provide an easy to use, cost effective and highly secure solution that is designed to work with your end-point security.

If a PC/laptop/ultrabook/tablet protected with an Integral Crypto SSD is lost or stolen, sensitive data is securely encrypted and cannot be accessed without the high-strength password. This includes the operating system as well as all other files that are stored on the drive. An unauthorised user WILL NOT be able to boot the system or access any data by transferring the Crypto SSD to another system or by cloning the drive.

Our Crypto range is FIPS 140-2 validated and all models are zero footprint, so no software installation is required. All files on the drive are automatically encrypted and are protected by a mandatory high-strength password. All Crypto products will securely destroy data safely if the set password attempts are exceeded, protecting your data if lost or stolen.

The Crypto SSD is the no-fuss and highly-secure solid state encryption solution for many industries including; finance, legal, health, education and government.

Hardware encryption in 3 easy steps

1. Install the Crypto SSD in your host device. A Windows operating system is required. This can be cloned from an existing drive or image (with OS and data) before the Crypto SSD is fitted, or a fresh installation can be completed after the Crypto SSD is fitted in your host device, by using the manufacturers setup disks.

2. Run the “SSDLock” program once (supplied on a USB) to set the encryption and specify usernames and passwords. Power down.

3. Your system is now protected with Full Disk Encryption (FDE). On every boot up, a valid username and password is required to access the system.

Why choose hardware encryption over software encryption?

The major difference between hardware encryption and software encryption is that with hardware based encryption, the encryption and decryption processes are carried out by a dedicated processor (part of the Integral Crypto hardware). In software encryption, the resources of the device on which the software is installed are used for the encrypting and decrypting of data. This makes hardware encryption much faster. Another significant advantage of hardware encryption is that the cryptographic key is stored in a separate inaccessible portion of memory storage, making it more secure than software encryption.

What is the difference between FIPS 140-2 and FIPS 197 certification?

FIPS 197 certification looks at the hardware encryption algorithms used to protect the data. FIPS 140-2 is the next, more advanced level of certification. FIPS

140-2 includes a rigorous analysis of the product’s physical properties. So, with a FIPS 140-2 certified SSD the tamper-proof design of the circuit board has been approved, as well as the data encryption. FIPS certification proves that the product has been tested by an independent government approved laboratory.

Crypto SSD and USB drives are used and trusted worldwide by government departments, global corporations and SMEs.

2

www.integralmemory.com

USB -

Hardware Encryption

NEW

Courier Dual USB 3.0 FIPS 197

• Dual password / Master password override in addition to a high-strength user password. If a user forgets their password the Courier Dual can be accessed with a master password by an IT administrator (optional)

• AES 256-bit hardware encryption

• FIPS 197 Validated - Certificate No. 2590

• USB 3.0 SuperSpeed data transfer - with compatible PC/

Mac hardware

• Secure Entry - Data cannot be accessed or removed without the correct high strength 8-16 character password

• Brute-force Password Attack Protection - Data will be automatically erased after 6 failed access attempts and

Drive reset

• Dual OS - Compatible with both Windows and Mac

• Personal ID Function (optional) - Contact details can be added so that Drive can be returned, whilst confidential data remains secure

• Zero Footprint - No software installation required

• Multi-lingual interface and a simple user interface for “out of the box” use

Courier USB 3.0 FIPS 197

• AES 256-bit hardware encryption

• FIPS 197 Validated - Certificate No. 2590

• USB 3.0 SuperSpeed data transfer - with compatible PC/

Mac hardware

• Secure Entry - Data cannot be accessed or removed without the correct high strength 8-16 character password

• Brute-force Password Attack Protection - Data will be automatically erased after 6 failed access attempts and

Drive reset

• Dual OS - Compatible with both Windows and Mac

• Personal ID Function (optional) - Contact details can be added so that Drive can be returned, whilst confidential data remains secure

• Zero Footprint - No software installation required

• Multi-lingual interface and a simple user interface for “out of the box” use

• Single user password

Rotates 360° Genuine Leather Key Chain Cap Storage Shockproof USB 2.0

Clip

Hardware Unique ID available for use with Endpoint software, see page 11

Courier Dual USB 3.0 FIPS 197

8GB

16GB

32GB

64GB

Courier Dual 3.0 FIPS 197

INFD8GCOUDL3.0-197

INFD16GCOUDL3.0-197

INFD32GCOUDL3.0-197

INFD64GCOUDL3.0-197

Cap Storage Shockproof USB 2.0

Clip Waterproof

Hardware Unique ID available for use with Endpoint software, see page 11

Capless

Courier USB 3.0 FIPS 197

8GB

16GB

32GB

64GB

Courier 3.0 FIPS 197

INFD8GCOU3.0-197

INFD16GCOU3.0-197

INFD32GCOU3.0-197

INFD64GCOU3.0-197

Slider

www.integralmemory.com

3

USB -

Hardware Encryption

Rotates 360°

Crypto Dual FIPS 140-2 / FIPS 197

• Dual password / Master password override in addition to a highstrength user password. If a user forgets their password the Crypto Dual can be accessed with a master password by an IT administrator (optional)

• Dual OS - Compatible with both Windows and Mac

• AES 256-bit hardware encryption

• FIPS 140-2/FIPS 197 Validated - Certificate No. 1821/1137

• Secure Entry - Data cannot be accessed without the correct high strength alphanumeric 8-16 character password. A password hint option is available. The password hint cannot match the password

• Brute-Force Password Attack Protection - Data is automatically erased after 6 failed access attempts. The data and encryption key are securely destroyed and the Crypto Drive is reset

• Auto-lock - The Crypto Drive will automatically encrypt all data and lock when removed from a PC or when the screen saver or “computer lock” function is activated on the host PC

• Password Entry Count - The Crypto Drive records the failed entry count. e.g. if the Crypto is removed after 2 failed attempts and reinserted, the drive will resume with the 3rd attempt

• Personal ID Function - As an option, contact details can be added to the Crypto that can be viewed without compromising encrypted data

• Unique number - The USB pin on each drive is etched with a unique and random 7-digit code. This allows a record to be kept of which drive has been allocated to a specific user

• Rugged triple-layer waterproof design - Protects the Crypto Drive against knocks, drops, break-in and submerging in water. The electronics are sealed in epoxy resin and then shielded by a steel inner case. The rubberised silicone outer casing provides a final layer of protection

• Multi-lingual interface and a simple user interface for “out of the box” use

Hardware Unique ID available for use with Endpoint software, see page 11

Crypto Dual + FIPS 140-2 / FIPS 197

• Feature set as above

• Expanded design allows for massive storage capacity of

64GB and 128GB

• 4-Channel access for faster read/ write

Crypto Dual FIPS 140-2

2GB

4GB

8GB

16GB

32GB

INFD2GCRYPTODL140-2

INFD4GCRYPTODL140-2

INFD8GCRYPTODL140-2

INFD16GCRYPTODL140-2

INFD32GCRYPTODL140-2

Crypto Dual FIPS 197

2GB

4GB

8GB

16GB

32GB

INFD2GCRYPTODL197

INFD4GCRYPTODL197

INFD8GCRYPTODL197

INFD16GCRYPTODL197

INFD32GCRYPTODL197

Clip

Slider

Waterproof

4 integralmemory.com/video

Hardware Unique ID available for use with Endpoint software, see page 11

www.integralmemory.com

Crypto Dual Plus FIPS 140-2

Capless Slider

64GB

INFD64GCRYDLPL140-2

128GB

INFD128GCRYDLPL140-2

Crypto Dual Plus FIPS 197

64GB

128GB

INFD64GCRYDLPL197

INFD128GCRYDLPL197

Rotates 360°

USB -

Hardware Encryption

Crypto Drive FIPS 140-2 / FIPS 197

• AES 256-bit hardware encryption

• FIPS 140-2/FIPS 197 Validated - Certificate No. 1821/1137

• Dual OS (FIPS 197 only) - Compatible with both Windows and Mac

• Secure Entry - Data cannot be accessed without the correct high strength alphanumeric 8-16 character password. A password hint option is available. The password hint cannot match the password

• Brute-Force Password Attack Protection - Data is automatically erased after 6 failed access attempts. The data and encryption key are securely destroyed and the Crypto Drive is reset

• Auto-lock - The Crypto Drive will automatically encrypt all data and lock when removed from a PC or when the screen saver or “computer lock” function is activated on the host PC

• Zero Footprint - No software installation required

• Password Entry Count - The Crypto Drive records the failed entry count. e.g. if the Crypto is removed after 2 failed attempts and reinserted, the drive will resume with the 3rd attempt

• Personal ID Function - As an option, contact details can be added to the Crypto that can be viewed without compromising encrypted data

• Unique number (FIPS 140-2 only) - The USB pin on each drive is etched with a unique and random 7-digit code. This allows a record to be kept of which drive has been allocated to a specific user

• Rugged triple-layer waterproof design - Protects the Crypto Drive against knocks, drops, break-in and submerging in water. The electronics are sealed in epoxy resin and then shielded by a steel inner case. The rubberised silicone outer casing provides a final layer of protection

• Multi-lingual interface and a simple user interface for “out of the box” use

*Up to 4 ft. water; conforms to IEC 60529 IPX8

Clip Slider Waterproof integralmemory.com/video

Hardware Unique ID available for use with Endpoint software, see page 11

Capless Slider

Crypto Drive FIPS140-2 / FIPS 197

2GB

4GB

8GB

16GB

32GB

Crypto FIPS 140-2

INFD2GCRYPTO140-2

INFD4GCRYPTO140-2

INFD8GCRYPTO140-2

INFD16GCRYPTO140-2

INFD32GCRYPTO140-2

Crypto FIPS 197

INFD2GCRYPTO197

INFD4GCRYPTO197

INFD8GCRYPTO197

INFD16GCRYPTO197

INFD32GCRYPTO197

Courier FIPS 197

The best selling Integral Courier is available in an Advanced Encryption

Standard (AES) Security Edition.

• AES 256-bit hardware encryption

• FIPS 197 Validated - Certificate No. 1137

• Secure Entry - Data cannot be accessed or removed without the correct high strength 8-16 character password

• Brute-force Password Attack Protection – Data will be automatically erased after 6 failed access attempts and Drive reset

• Zero Footprint – No software installation required

• Multi-lingual interface and a simple user interface for “out of the box” use

• Cap stores in base when Drive is in use

• 2 year warranty

Rotates 360° Genuine Leather Key Chain Cap Storage Shockproof USB 2.0

Clip Waterproof

Courier - FIPS 197

2GB

4GB

Slider

16GB

32GB

Hardware Unique ID available for use with Endpoint software, see page 11

INFD2GBCOUAT

INFD4GBCOUAT

INFD8GBCOUAT

INFD16GBCOUAT

INFD32GBCOUAT www.integralmemory.com

5

USB -

Hardware Encryption

Specs

Available Capacities

AES 256-bit hardware encryption

FIPS Validation and

Certificate number

Mandatory encryption of all files

USB

Zero Footprint - No software required

Compatible with Endpoint security systems

Works on Windows without administrator privileges

Works on Mac OS X without administrator privileges

Secure Entry - Password

Mandatory

High-Strength Password

Enforcement

Brute-Force Password

Attack Protection

Auto-Lock

Password Entry Count

Personal ID Function

Rugged triple-layer waterproof design

User manual stored on drive

Multi-lingual interface

Crypto 140-2

2GB, 4GB, 8GB,

16GB, 32GB



FIPS 140-2 Level 2

Certificate No. 1424



2.0







-









24 Languages









Crypto 197

2GB, 4GB, 8GB,

16GB, 32GB



FIPS 197

Certificate No. 1137



2.0











1















24 Languages

Dual Password

Dual OS - PC & Mac compatible

4 Channel access

(faster read & write speeds)

Serial Number Etching

-

-

-

-

-



 available on request

What is FIPS?

FIPS (Federal Information Processing Standards) is a US & Canadian certification which is recognised around the world as AES compliant devices that can be utilized by Federal agencies or departments for the purpose of protecting sensitive data.

6

www.integralmemory.com

Crypto Dual 197

2GB, 4GB, 8GB,

16GB, 32GB



FIPS 197/140-2 Level 2

Certificate No. 1137



2.0











1















26 Languages





-



Crypto Dual 140-2

2GB, 4GB, 8GB,

16GB, 32GB



FIPS 197/140-2 Level 2

Certificate No. 1821



2.0











1















26 Languages





-



Hardware Unique ID available for use with

Endpoint software, see page 11

USB -

Hardware Encryption

NEW

USB 3.0

NEW

USB 3.0

Crypto Dual+ 197

64GB, 128GB



FIPS 197 Level 2

Certificate No. 1137



2.0











1















26 Languages

Crypto Dual+ 140-2

64GB, 128GB



FIPS 140-2 Level 2

Certificate No. 1821



2.0











1















26 Languages











1





-







Courier FIPS 197

2GB, 4GB, 8GB,

16GB, 32GB



FIPS 197 Level 2

Certificate No. 1137



2.0



24 Languages









-



  -

  available on request

What is AES Hardware Encryption?

AES stands for Advanced Encryption Standard. Many government bodies around the world have adopted this encryption model. Integral Encrypted USB Flash Drives use the highest

256-bit AES encryption key.











1





-







Courier Dual 3.0 197

8GB,

16GB, 32GB, 64GB



FIPS 197

Certificate No. 2590



2.0/3.0



26 Languages





available on request www.integralmemory.com

7











1





-







Courier 3.0 197

8GB,

16GB, 32GB, 64GB



FIPS 197

Certificate No. 2590



2.0 /3.0



26 Languages

-



available on request

1 Locks if PC is idle for more than 10 mins

SSD -

Hardware Encryption

BIOS Independent

Crypto SSD security system runs independently of your system

BIOS, unlike other hardware encrypted SSDs

Seamless encryption unnoticeable to the user

ADMIN+USER passwords configurable

OPAL Compliant

Specification Available

Details on request

Full Disc Encryption with no licensing or subscription fees.

Crypto SSD 2.5” SATA III (6Gbps)

Crypto SSD is the

Full Disk Encryption solution for Windows desktops and laptops. Featuring

AES 256-bit Hardware

Encryption so you can encrypt and protect your sensitive data and get the speed, reliability and power benefits of SSD.

Once encryption is set, a valid user name and password is required to access the Crypto SSD prior to system boot

(before Windows loads).

• FIPS 140-2 Validated

•

Mandatory encryption

• Secure Entry - Encrypted data cannot be accessed without the correct high-strength 8-16 character alphanumeric password. Before use a high-strength password must be set

• Rugged Design - The electronics are sealed in tamperfree epoxy resin and then shielded by a metal outer case

•

High-speed Read/Write - up to 450MB/s

• Quick Boot - Using a solid state disk in place of a traditional hard drive can cut your desktop computer or laptop’s boot time in half

• Shockproof - no moving parts, so a greater resistance to shock and vibration than HDD

• Ultra-slim form factor (7mm) - Ideal for the latest slimline laptops, 7mm 9mm adapter also included

•

Silent operation - no spin or seek time

• Low heat - a more comfortable user experience

• Low power usage - laptop battery will last far longer with

SSD than HDD

• Endpoint security software compatible - The Integral

Crypto SSD operates comfortably with endpoint security solutions by using the configurable hardware unique ID feature, which is part of the program

• OPAL compliant specification available - please contact sales team for information

• Warranty - 3 Years

Crypto SSD SATA III - FIPS 140-2

64GB

128GB

256GB

512GB

1TB

INSSD64GS625M7CR140

INSSD128GS625M7CR140

INSSD256GS625M7CR140

INSSD512GS625M7CR140

INSSD1TS625M7CR140

Notebook

Capless Slider

8

www.integralmemory.com

* Based on internal testing

SSD -

Hardware Encryption

Full Disc Encryption with no licensing or subscription fees.

Crypto SSD M.2 SATA III (6Gbps)

Crypto M.2 SSD is the Full Disk Encryption solution for Windows laptops and UltraBooks. Featuring AES 256-bit Hardware Encryption so you can encrypt and protect your sensitive data and get the speed, reliability and power benefits of SSD. Once encryption is set, a valid user name and password is required to access the Crypto M.2 SSD computer with the installed prior to system boot (before Windows loads).

•

FIPS 140-2

•

Mandatory encryption

•

Secure Entry - Encrypted data cannot be accessed without the correct high-strength 8-16 character alphanumeric password.

Before use a high-strength password must be set

• Secure Design - the electronics are sealed in tamper-free epoxy resin

• High-speed Read/Write - up to 450MB/s

• Quick Boot - Using a solid state disk in place of a traditional hard drive can cut your laptop’s boot time in half

• Shockproof - no moving parts, so a greater resistance to shock and vibration than HDD

• Silent operation - no spin or seek time

BIOS Independent

Crypto SSD security system runs independently of your system BIOS, unlike other hardware encrypted SSDs

Seamless encryption unnoticeable to the user

ADMIN+USER passwords configurable

• Low heat - a more comfortable user experience

• Low power usage - laptop battery will last far longer with SSD than HDD

• Endpoint security software compatible - The Integral Crypto

M.2 SSD operates comfortably with endpoint security solutions by using the configurable hardware unique ID feature, which is part of the program

• M.2 form factor with SATA III 6Gbps interface (backwards compatible with SATA 3Gbps and SATA 1.5Gbps)

• Warranty - 3 Years

Crypto M.2 SATA 22X60

128GB

256GB

512GB

INSSD128GM2M2260C140

INSSD256GM2M2260C140

INSSD512GM2M2260C140

Crypto M.2 SATA 22X80

64GB

128GB

256GB

INSSD64GM2M2280C140

INSSD128GM2M2280C140

INSSD256GM2M2280C140 www.integralmemory.com

9

Notebook

Capless Slider

SSD -

Hardware Encryption

BIOS Independent

Crypto SSD security system runs independently of your system BIOS, unlike other hardware encrypted SSDs

Seamless encryption unnoticeable to the user

ADMIN+USER passwords configurable

OPAL Compliant

Specification Available

Details on request

Full Disc Encryption with no licensing or subscription fees.

Crypto SSD mSATA III (6Gbps)

Crypto mSATA SSD is the Full Disk Encryption solution for small form factor machines, Windows laptops and UltraBooks. Featuring

AES 256-bit Hardware Encryption so you can encrypt and protect your sensitive data and get the speed, reliability and power benefits of SSD. Once encryption is set, a valid user name and password is required to access the Crypto mSATA SSD prior to system boot

(before Windows loads).

•

FIPS 140-2

•

Mandatory encryption

• Secure Entry - Encrypted data cannot be accessed without the correct high-strength 8-16 character alphanumeric password.

Before use a high-strength password must be set

• Secure Design - the electronics are sealed in tamper-free epoxy resin

• High-speed Read/Write - up to 450MB/s

• Quick Boot - Using a solid state disk in place of a traditional hard drive can cut your desktop computer or laptop’s boot time in half

• Shockproof - no moving parts, so a greater resistance to shock and vibration than HDD

• Silent operation - no spin or seek time

• Low heat - a more comfortable user experience

• Low power usage - laptop battery will last far longer with SSD than HDD

• Endpoint security software compatible - The Integral Crypto mSATA SSD operates comfortably with endpoint security solutions by using the configurable hardware unique ID feature, which is part of the program

• mSATA form factor with SATA III 6Gbps interface (backwards compatible with SATA 3Gbps and SATA 1.5Gbps)

• Warranty - 3 Years

Notebook Capless

Crypto mSATA SSD - FIPS 140-2

32GB

64GB

128GB

INSSD32GMSA6MCR140

INSSD64GMSA6MCR140

INSSD128GMSA6MCR140

INSSD256GMSA6MCR140

10

www.integralmemory.com

Customisation

Customisation

Customisation Available - Your own serial number etching, Flash Drive and GUI can be customised to suit your brand (subject to minimum order quantities).

Hardware Unique ID for Endpoint software

The Integral hardware encrypted Flash Drive range can be personalised with a designated company identifying name or number. This will allow a Network Administrator to block access to unrecognised USBs for security purposes, whilst allowing the Integral encrypted Flash Drive to function as the ‘official’ company drive.

During production a personalised tag (e.g. “LONDON UNIVERSITY”) can be embedded into the Crypto that can be viewed on a PC. The tag gives Endpoint software a convenient way to identify Integral drives.

Each drive can be personalized further (upon request) with an individual user specific personal tag e.g “LONDON UNIVERSITY” –

USER1234” if required.

This personalisation can be offered on any Integral USB Flash Drive

(requested at time of order).

www.integralmemory.com

11

Head Office

Integral Memory plc

Unit 6 Iron Bridge Close

Iron Bridge Business Park

London

NW10 0UF

England

Tel: +44 20 8451 8700

Fax: +44 20 8459 6301

[email protected]

www.integralmemory.com www.integralmemoryplc.com

France

Integral Europe SARL

38 Ter Rue de Verdun

92150 Suresnes

France

Tel: +33 1 41 44 73 00

Fax: +33 1 41 44 07 18 www.integralmemory.com

[email protected]

Spain

Integral Memory España, S.A.

Calle Juan Perez Zuniga, 32

28027 Madrid

Spain

Tel: +34 91 406 29 32

Fax: +34 91 377 55 40 www.integralmemory.com [email protected]

Netherlands

Integral Memory plc

Burgemeester Brandtstraat 2

2841 XC Moordrecht

The Netherlands

Tel: +31 18 23 77240

Fax: +31 18 23 77241 www.integralmemory.com [email protected]

UAE

Integral Memory International FZCO

Office Number 1, High Bay Building

Dubai Silicon Oasis Authority

PO Box 341128

Dubai, U.A.E

Tel: +971 4326 3446

Fax: +971 4326 3447 www.integralmemory.com

[email protected]

Representative Offices

Poland

M: +48 60 244 3002 [email protected]

Portugal

Tel: +351 210819012

M: +351 912881144

Fax: +351 210819012 [email protected]

Australia & New Zealand

Tel: +61 243 424 861

M: +61 406 061 437 [email protected]

INTUKENCR14V3

All Trademarks Acknowledged. E&OE Product specifications subject to change without notice.
