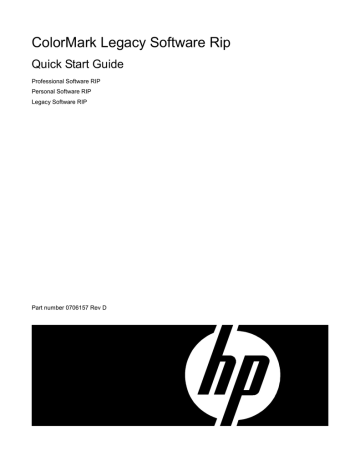

ColorMark Legacy Software Rip

Quick Start Guide

Professional Software RIP

Personal Software RIP

Legacy Software RIP

Part number 0706157 Rev D

Legal notices

© Copyright 2008 Hewlett-Packard Development Company, L.P.

Confidential computer software. Valid license from HP required for possession, use or copying. Consistent with

FAR 12.211 and 12.212, Commercial Computer Software, Computer Software Documentation, and Technical

Data for Commercial Items are licensed to the U.S. Government under vendor's standard commercial license.

The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

Printed in the US

For additional technical support and user documentation please refer to

:

www.hp.com/go/graphicarts

Hardware and Operating System Requirements

The ColorMark

®

Software RIP requires a computer with these minimum specifications:

Processor

Professional Software RIP

:

1.5 GHz Intel Pentium 4

Personal Software RIP: 866 MHz Intel Pentium

III

Legacy Software RIP

:

300 Mhz Intel Pentium II

RAM

256 Mb minimum – 1 Gb maximum

Operating system Professional, Personal: Microsoft Windows XP, Windows 2000 w/Service Pack 4

Legacy: Windows

NT

4.0 w/Service Pack 6

A “clean” install of the operating system with no other software installed is preferred. The operating system

CD-ROMs

may be required during installation.

Available disk space

Monitor resolution

Network

3 Gb on Drive C:

1024x768, 256 colors minimum. Lower resolutions will not display the entire Software RIP.

Network interface card configured in operating system with the network protocols and services to be used, required network cabling

One available PCI expansion slot is required to install the VideoNet interface card

PCI Expansion slot

Parallel port

Other

One available parallel port is required to install the RIP Key

◆ 3-1/2 inch diskette drive, CD-ROM drive, keyboard, mouse

◆ Operating system account with “Administrator” privileges to install the ColorMark

Software RIP and related software, and “Guest” access for all printer users

Category 5 Ethernet cable — If the computer is connected directly to the printer

(recommended), use a standard Category 5 Ethernet crossover cable with RJ45 connectors. If you are connecting the printer to the computer with a hub in between, use a standard Category 5 Ethernet straight-through cable. These cables can be purchased at computer stores or from a computer networking specialist.

Grounding strap — the computer, VideoNet card, and other electronic computer components are susceptible to damage from electrostatic discharge. Always use an anti-static grounding strap according to manufacturer’s directions, and follow antistatic precautions when installing computer components.

Be sure that all components are installed, and the system is properly configured to run with these components, before you proceed.

- 2 -

ColorMark Software RIP Quick Start Guide

Parts List

The ColorMark Software RIP product kit consists of the following parts:

Hardware

Software

Documentation

◆ VideoNet Adapter Card (network interface card) — enables communication between the Software RIP and the ColorSpan printer, installs in the computer’s PCI expansion slot

◆ RIP Key — enables the Software RIP, installs on the computer’s parallel port

◆ ColorMark Software RIP, Professional and Personal, OR Legacy — includes VideoNet card driver software, VideoNet protocol, and printer driver software

◆ ColorMark Printing Tools — includes printer driver software

◆ Digital Typeface Corporation MasterWorks Fonts (varies with Software RIP version)

◆ ColorMark Color Management System, Disks 2, 3, 4 (Professional and Personal), OR

Disk 1 (Legacy)

◆ Embedded Software Update (varies with Software RIP version)

◆ Documentation set CD-ROM

Software RIP Quick Start Guide (this document)

System Control User Guide — describes how to use the System Control interface of the

Software RIP

ColorSpan Printing Tools User Guide — describes how to use the Downloader Utility and other

ColorSpan Printing Tools for Macintosh OS and Microsoft Windows operating systems

◆ Printer Embedded Software Release Notes (varies with Software RIP version)

◆ Server Software Release Notes

◆ ColorMark Color Management System Release Notes

Contact ColorSpan Technical Services if any of these parts are missing (see the last page of this document for contact information).

Installation Overview

◆ Step 1. Install the Hardware (page 4)

◆ Step 2. Set Up and Connect the Printer (page 4)

◆ Step 3a. Install the Network Driver and Protocol Software for Windows XP/Windows 2000 (see the next section for Windows NT) (page 5) OR

◆ Step 3b. Install the Network Driver and Protocol Software for Windows NT 4 (see the previous section for Windows XP/

Windows 2000) (page 6)

◆ Step 4. Install the ColorMark Software RIP (page 7)

◆ Step 5. Add the Printer to System Control (page 8)

◆ Step 6. Install the ColorMark Color Management System (CMS) Software (page 8)

◆ Step 7a. Install the Printer in Windows XP/Windows 2000 (see the next section for Windows NT) (page 8) OR

◆ Step 7b. Install the Printer in Windows NT 4 (see the previous section for Windows XP/Windows 2000) (page 9)

◆ Step 8. Install the Printing Tools (page 9)

◆ Step 9. Print a Test File (page 9)

◆ Step 10. Print a Document from a Client (page 9)

- 3 -

ColorMark Software RIP Quick Start Guide

Step 1. Install the Hardware

Caution

The VideoNet card and your computer are susceptible to damage from electrostatic discharge. Do not remove the card from its protective packaging until instructed to do so in this procedure.

1. Start with the computer powered off and unplugged from the power outlet and all peripherals.

2. Install the VideoNet card into an available PCI expansion slot in the computer.

a.

Place the computer on a sturdy table with ample clear space, preferably not on a carpeted floor.

b. Remove the cover from the computer case.

c.

Touch the frame of the computer chassis to get rid of any static charge build-up from your body.

d. Select an available PCI expansion slot for the VideoNet card, and remove the slot cover if installed by removing the screw.

e.

Remove the VideoNet card from its protective packaging.

f.

Press the VideoNet card carefully but firmly, straight down into the PCI expansion slot, as shown below. Ensure that the card’s electrical contacts are seated firmly all the way to the bottom of the slot. Take care to avoid damaging any other components in the computer.

g. Secure the VideoNet card with the screw you removed from the slot cover.

h. Replace the computer case cover.

3. Install the RIP Key on the parallel port of the computer. Verify that the parallel port is enabled in the computer’s BIOS

.

Do not “daisy chain” (connect in serial) the RIP Key with any other parallel port device.

Parallel port

PCI slots

PCI slots (typical; number, exact location and appearance varies with motherboard used)

RIP Key installation (typical; arrangement varies with motherboard used)

Step 2. Set Up and Connect the Printer

1. Unpack and set up the printer, according to its documentation.

2. Connect printer to the VideoNet card with the VideoNet cable supplied with printer.

- 4 -

ColorMark Software RIP Quick Start Guide

Step 3a. Install the Network Driver and Protocol Software for Windows

XP

/Windows 2000

(see the next section for Windows

NT

)

These instructions assume a familiarity with Windows

XP

/Windows 2000 administrative functions. If necessary, consult your information systems administrator or consultant for assistance.

1. Restart Windows. Windows XP will detect the VideoNet card and install the driver software. Windows 2000 does not include the necessary driver software. If you are using Windows 2000, install the driver software by running the installer on the ColorMark Software RIP CD-ROM:

◆ Browse to the following folder on the ColorMark Software RIP CD-ROM: [d:]\drivers\netcard, where [d:] is the drive letter of the CD-ROM drive

◆ Double-click the following file: PRO2KXPM.EXE

◆ Restart Windows

.

2. Install the VideoNet protocol:

a.

Load the ColorMark Software RIP CD-ROM into the CD-ROM drive.

b. Display the Local Area Connection icons. You should see two icons, one representing your office LAN, the other representing the VideoNet connection to the ColorMark Software RIP.

◆ On the Windows Start menu, click Control Panel. From the Control Panel, click Network & Internet Connec-

tions. From Network & Internet Connections, click Network Connections.

c.

Right-click the Local Area Connection icon that corresponds to your office LAN.

Local Area Connection icons

Windows XP shown, Windows 2000 appears similar.

d. Click Properties.

e.

Click the Install button.

f.

Select Protocol.

g. Click the Add button.

h. Click Have Disk...

i.

Click Browse. Browse to the CD-ROM drive with the ColorMark Software RIP CD-ROM.

j.

Open the \videonet\windows xp or \videonet\windows 2000 folder. This displays a file named videonet.inf in the File Name field.

k.

Select Open. The Install from disk dialog box reappears with the path to the windows xp or windows 2000 folder on the CD-ROM.

l.

Click OK. A window appears, listing the ColorSpan VideoNet Driver.

- 5 -

ColorMark Software RIP Quick Start Guide

m. Highlight ColorSpan VideoNet Driver, then click OK. Windows installs the VideoNet protocol. After the install has completed, the Network Properties for chosen card will be displayed.

If Windows displays this error message while you are installing the VideoNet driver or adding a ColorSpan printer, click the Continue Anyway button. ColorSpan software has been thoroughly tested with all supported Windows operating systems.

3. Un-bind protocols from the network cards:

a.

Uncheck the VideoNet protocol from this card by clicking once on the check box. Use the identifying information in this tab to verify that you are configuring your office LAN settings, not the VideoNet card settings.

b. Click OK to close the window.

c.

Right-click on Local area connection 2, then click Properties. The window should now display all services and protocols assigned to the second network card. This should be the Intel network card provided in the ColorMark

Software RIP product kit.

d. Uncheck all protocols except ColorSpan VideoNet by clicking on the boxes with check marks in them.

e.

Tip: To avoid confusion in the future, rename the Local Area Connection icons to “LAN” and “VideoNet.”

4. Proceed to “Step 4. Install the ColorMark Software RIP” on page 7.

Step 3b. Install the Network Driver and Protocol Software for Windows NT 4

(see the previous section for Windows XP/Windows 2000)

These instructions assume a familiarity with Windows NT administrative functions. If necessary, consult your information systems administrator or consultant for assistance.

1. Restart Windows.

2. Install the driver software for the VideoNet network interface card by running the installer on the ColorMark Software

RIP CD-ROM:

◆ Browse to the following folder on the ColorMark Software RIP CD-ROM: [d:]\drivers\netcard, where [d:] is the drive letter of the CD-ROM drive

◆ Double-click the following file: PRONT4.EXE

◆ Restart Windows

.

3. Install the VideoNet protocol:

a.

On the Windows desktop, right-click Network Neighborhood.

b. On the context menu, click Properties.

c.

Click the Protocols tab.

d. Click Add, then click Have Disk.

- 6 -

ColorMark Software RIP Quick Start Guide

e.

In the box provided, type the path to the VideoNet driver: [d:]\videonet\windows nt, where [d:] is the drive letter of your CD-ROM drive.

f.

Highlight the VideoNet Driver and click OK.

g. When you see the Setup Message, click OK.

h. At the bottom of the Network dialog box, click OK.

4. Un-bind protocols from the network cards:

a.

On the Windows desktop, right-click Network Neighborhood.

b. On the context menu, click Properties.

c.

Click the Bindings tab. There will be a drop-down window that says “Show bindings for” next to it. Click on the drop-down menu and select All adapters. The window now displays the adapters installed with “+” symbol to the left.

d. Click the plus sign next to the first adapter.

e.

Right-click the VideoNet protocol under this adapter.

f.

Click Disable.

g. Click the plus sign next to the second adapter.

h. Disable all protocols under this adapter except the VideoNet using the method described above. As the protocols are disabled there will be a red circle with a line through it along side each.

i.

Click Close at the bottom of the Network dialog box.

j.

Restart Windows.

Step 4. Install the ColorMark Software RIP

1. Turn on (or boot) the computer.

2. Load the ColorMark Software RIP CD-ROM into the CD-ROM drive.

3. The CD-ROM should start automatically. Run the program SETUP.EXE, located in:

◆ Professional version: the \Professional directory

◆ Personal version: the \Personal directory

◆ Legacy version

:

the root directory of the CD-ROM

4. Follow the prompts during installation. Install to drive C: and accept the default directory paths.

5. Remove the ColorMark Software RIP CD-ROM from the CD-ROM drive.

6. After installation is complete, reboot the computer.

If you install the ColorMark Software RIP onto a computer running Microsoft Windows XP with Service Pack 2, the first time you start the Software RIP, the following message appears:

7. Click the Unblock button. This will prevent this error message from appearing every time the Software RIP starts.

- 7 -

ColorMark Software RIP Quick Start Guide

Step 5. Add the Printer to System Control

The printer must be connected and online to complete this step.

1. Start the Software RIP by double-clicking the desktop shortcut or the Start menu.

2. A message appears asking you to be sure the hardware key is in place. Click OK to continue.

3. Add the printer to System Control, as prompted.

4. Route the input ports to the printer you added and click Route.

5. Refer to the System Control User Guide for detailed operating instructions.

Step 6. Install the ColorMark Color Management System

(CMS)

Software

Installation of CMS software is optional. However, if you choose not to install the software, the quality of your output may not be satisfactory, and only CMYK printing is enabled.

1. Place ColorMark CMS CD-ROM into the CD-ROM drive of the ColorMark Software RIP computer.

2. Answer Yes when asked if you would like to install ColorMark.

3. Follow the on-screen prompts to complete the installation.

Step 7a. Install the Printer in Windows XP/Windows 2000 (see the next section for Windows

NT

)

During the following process, you must be logged in to Windows with Administrator rights assigned (at least temporarily) to install the printer.

1. Load the Printing Tools CD-ROM into the CD-ROM drive. If the Printing Tools CD-ROM is not available, load the

ColorMark Software RIP CD-ROM instead.

2. On the Windows Start menu, click Settings - Printers and Faxes (Windows XP) or Printers (Windows 2000). The

Printers window opens.

3. Double click the Add Printer icon to start the Windows Add Printer Wizard.

4. Select Next, then click Local Printer but do not check “Automatically Detect and Install My Plug And Play Printer.”

5. Click Next.

6. Click the button next to Use the following port:

7. From the drop-down box, scroll to and select \..\pipe\winlink0000.

8. Click Next. You should now see a window listing various manufacturers and printers.

9. Click Have Disk. A window opens asking for the location of the files.

10. Click Browse, and navigate to the folder on the CD-ROM that corresponds to your language (for example, “english”) and operating system version. This displays a file named ntprint.inf in the file name field.

11. Click Open. The Install from disk dialog box reappears.

12. Click OK. A dialog box appears with a list of ColorSpan printers.

13. Select a printer and click Next. A dialog box appears with a blank field for you to name the printer.

14. Enter a printer name if desired.

15. Click Next.

16. Select Share this printer.

- 8 -

ColorMark Software RIP Quick Start Guide

17. Click Next. A dialog box appears that asks if you'd like to print a test page.

18. Select No and click Next. A dialog box appears with a summary of the installation.

19. Click on the Finish button.

20. Proceed to “Step 8. Install the Printing Tools” on page 9.

Step 7b. Install the Printer in Windows NT 4 (see the previous section for Windows XP/Windows

2000)

During the following process, you must be logged in to Windows with Administrator rights assigned (at least temporarily) to install the printer.

1. Load the Printing Tools CD-ROM into the CD-ROM drive. If the Printing Tools CD-ROM is not available, load the

ColorMark Software RIP CD-ROM instead.

2. On the Windows Start menu, click Settings - Printers. The Printers window opens.

3. Double click the Add Printer icon to start the Windows Add Printer Wizard.

4. Select My Computer.

5. Click Next, then under Available Ports: scroll to and select \..\pipe\winlink0000.

6. Click Next. A dialog box appears that lists various manufacturers and printers.

7. Click Have Disk... A dialog box opens, asking for the location of the files.

8. Click Browse, and navigate to the folder that corresponds to your language (for example, “english”) and operating system version. This displays a file named ntprint.inf in the file name field.

9. Click Open. The Install from disk dialog box reappears.

10. Click OK. A dialog box appears that displays a list of ColorSpan printers.

11. Select a printer and click Next. A dialog box appears with a blank field for you to name the printer.

12. Enter a printer name if desired.

13. Click Next.

14. Select Not Shared.

15. Click Next. You may be asked to install the Windows NT CD-ROM.

16. In the printer Properties dialog box, click the Sharing tab and share the printer to the rest of the network.

17. Close the Printers window.

Step 8. Install the Printing Tools

Install the Printing Tools on each client computer. Refer to the ColorSpan Printing Tools User Guide for instructions. The printing tools are on the Software RIP CD-ROM.

Step 9. Print a Test File

1. Load media and ink as described in the printer’s User Manual.

2. Select DiskDirect from System Control.

3. Select Internal Disk Drive.

4. Highlight one of the test files and click OK.

Step 10. Print a Document from a Client

Print a simple document from a Macintosh or Windows client to the server over the network. Refer to the Print Server &

Driver Setup Guide

for instructions.

- 9 -

ColorMark Software RIP Quick Start Guide

Post-Installation Issues You May Encounter

None of the issues listed below have been found to affect the functionality of the software. Some of these issues were found only when the Software RIP was installed on a system that already had other software pre-installed by the computer manufacturer. Those issues can be corrected by performing a clean install of the operating system only, before the install of the ColorSpan server software.

◆ (Not applicable to installations on Microsoft Windows XP.) The AppleTalk Zone will not display properly when attempting to configure an AppleTalk port from System Control. The ports will, however, appear in the default AppleTalk zone of the server and should be visible by any Macintosh on the network provided the AppleTalk protocol has been installed.

◆ Window sizing for the ColorMark Software RIP System Control starts at full screen. To change this, click and drag on one side edge and then one top or bottom edge of the System Control window. You may want to adjust your taskbar properties to Always on Top. This will help to avoid it from being hidden by System Control.

Software RIP Features

The ColorMark Software RIP products provide the features described in the System Control User Guide, with the following exceptions.

Feature Professional

Personal Legacy

Fonts included

PostScript-compatible interpreter

235 35 35

PostScript 3 compatible PostScript 3 compatible PostScript Level 2 compatible

Preview RIPed image

Yes

Media Saver

Yes

N-Up

Yes

DiskDirect file input

Yes

Pre-RIP size, rotate

Permanent RIP Saver

Queue

Temporary RIP Saver

Queue

Job Log

Yes

Yes

Yes

Yes

No

No

Yes

Yes

No

No

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Limited (only logs server errors, does not log jobs or track consumables usage)

Yes

Optional Optional

ColorMark+ Software

Optional

Number of ports supported

WinLink

TCP/IP

AppleTalk

Novell NetWare

Printers supported

8

8

1

1

8

8

14 6 14

(AppleTalk is not natively supported by Microsoft Windows XP)

1 1

Any of the following:

(1) DisplayMaker 72S/72SR

(1) DisplayMaker

®

X-12

(1) DisplayMaker Mach 12

(2) DisplayMaker Series XII

(1) DisplayMaker FabriJet™

(1) DisplayMaker Esprit

Any of the following:

(1) DisplayMaker X-12

(1) DisplayMaker Mach 12

(1) DisplayMaker Series XII

(1) DisplayMaker FabriJet

(1) DisplayMaker Esprit

1

Any of the following:

(2) Giclée PrintMakerFA

®

(2) PressMate-FS

®

(2) DisplayMaker HiRes

(1) DesignWinder™

(1) DisplayMaker Express

- 10 -

ColorMark Software RIP Quick Start Guide

Caution

Running other applications while using the Software RIP, or altering Windows Networking or Registry settings, may degrade the performance or disable operation of the Software RIP.

Related Documentation

Refer to the following documentation to learn how to use the ColorMark Software RIP:

Print Server & Driver Setup Guide — in specific versions for each ColorSpan printer, describes how to configure printing options using the Software RIP and printer driver software for Macintosh OS and Microsoft Windows operating systems.

Included with the printer.

All documentation is stored in Adobe Acrobat format on the ColorSpan software CD-ROMs. The Adobe Acrobat Reader software, available with Adobe products and as a free download at www.adobe.com, is required to read the files.

Service and Support

For service and support, contact your MacDermid ColorSpan authorized reseller, or MacDermid ColorSpan Technical

Services:

World Wide Web: www.colorspan.com

Internet E-mail: [email protected]

United States and Canada:

◆ Telephone: (800) 925-0563 or (952) 944-4040

◆ Fax: (952) 943-3611 or (952) 944-8509

Europe/Middle East/Africa:

◆ Telephone: +31 (23) 562 20 00

◆ Fax: +31 (23) 562 79 44

Latin America:

◆ Telephone: +1 (952) 943-3427 or +1 (952) 943-3627

◆ Fax: +1 (952) 944-1244

Asia/Pacific:

◆ Telephone: +1 (952) 943-3300

◆ Fax: +1 (952) 943-3313

◆ Telephone (South Korea): +82 (2) 3461 1532

- 11 -

ColorMark Software RIP Quick Start Guide

- 12 -

ColorMark Software RIP Quick Start Guide

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
