Ports and controls
System

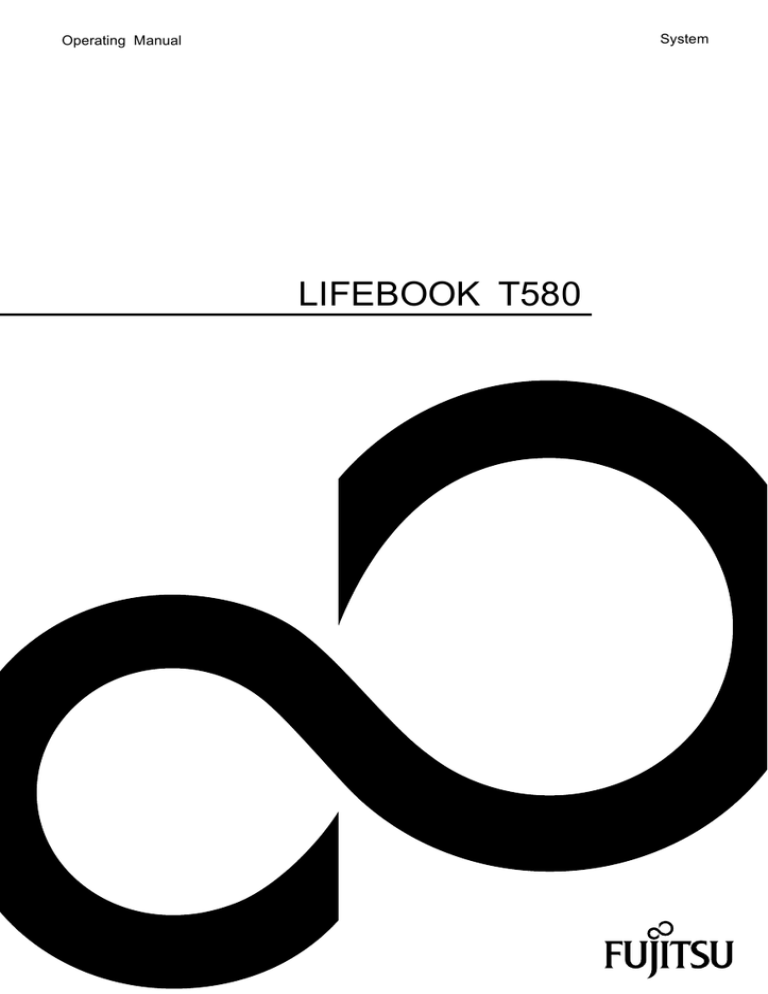

Operating Manual
LIFEBOOK T580
Congratulations, you have decided to buy an
innovative Fujitsu product.
The latest information about our products, useful tips, updates etc. is available
from our website: "http://ts.fujitsu.com"
For automatic driver updates, go to: "http://support.ts.fujitsu.com/com/support/index.html"
Should you have any technical questions, please contact:
•
our Hotline/Service Desk (see Service Desk list or visit:
"http://ts.fujitsu.com/support/servicedesk.html")
• Your sales partner
• Your sales office
We hope you really enjoy using your new Fujitsu system.
Copyright
Fujitsu Technology Solutions 2010 08/2010
Published by
Fujitsu Technology Solutions
Mies-van-der-Rohe-Straße 8 (Mies-van-der-Rohe Street No. 8)
80807 Munich, Germany
Contact
http://ts.fujitsu.com/support
All rights reserved, including intellectual property rights. Subject to technical alterations. Delivery subject to availability.
No warranty is offered or liability accepted in regard of the completeness, correctness, or current applicability of any
data or illustrations. Brand names may be protected trademarks of the respective manufacturer and/or protected
by copyright. Use of these by third parties for their own purposes may constitute an infringement of the holders’
rights. Further information can be found at "http://ts.fujitsu.com/terms_of_use.html"
Order No. Fujitsu Technology Solutions GmbH: A26391-K318-Z320-1-7619, edition 1
LIFEBOOK T580
Operating Manual
Innovative technology
7
Ports and controls
9
Important notes
12
First-time setup of your device
15
Working with the notebook
19
Security functions
65
Connecting external devices
85
Removing and installing components
during servicing
90
Settings in BIOS Setup Utility
96
Troubleshooting and tips
98
Technical data
106
Manufacturer’s notes
109
Index
116
Microsoft, MS, Windows XP and Windows 7 are registered trademarks of the Microsoft Corporation.
Adobe Reader is a trademark of Adobe Systems Incorporated.
MultiMediaCard is a registered trademark of Infineon Technologies AG
Sony and Memory Stick are registered trademarks of Sony Electronics, Inc.
All other trademarks referenced are trademarks or registered trademarks of their
respective owners, whose protected rights are acknowledged.
Copyright © Fujitsu Technology Solutions GmbH 2010
All rights reserved, including rights of translation, reproduction by printing, copying
or similar methods, in part or in whole.
In the event of violations, perpetrators will be liable to prosecution for damages.
All rights reserved, including rights created by patent grant or registration of a utility model or design.
Subject to availability and technical modifications.
Contents
Contents
Innovative technology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Further information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Notational conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7
7
8
Ports and controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
9
Important notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Safety notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Energy saving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Energy saving under Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Travelling with your notebook . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Before you travel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Transporting the notebook: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cleaning the notebook . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
12
12
12
12
13
13
13
14
First-time setup of your device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Unpacking and checking the device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Selecting a location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Mains adapter connecting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Switching on the device for the first time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
15
15
16
16
17
Working with the notebook . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Status indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Opening the notebook . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Switching on the notebook . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Programming the ON/OFF switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Different ways to use your notebook . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
From notebook to Tablet PC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Select display orientation (portrait or landscape orientation) . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
From Tablet PC to notebook . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Switching off the notebook . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Closing the notebook . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Handwriting recognition under Windows XP Tablet PC 2005 Edition . . . . . . . . . . . . . . . . . . . . . . . . .
Handwriting recognition under Windows 7 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
LCD screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Ambient light sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Using the device as a Tablet PC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Using fingers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Using the stylus pen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Using the device as a notebook . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Touchpad and touchpad buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Virtual numeric keypad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Country and keyboard settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Key combinations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tablet buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Webcam . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rechargeable battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Charging, caring for and maintaining the battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Removing and installing the battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Using the power-management features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Memory cards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
19
19
21
22
22
23
24
25
26
27
28
28
28
29
29
30
30
40
45
45
47
49
49
50
52
53
54
54
55
57
58
Fujitsu Technology Solutions
3
Contents
Supported format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Inserting the memory card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Removing the memory card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Loudspeaker and microphone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SIM card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Inserting the SIM card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Removing a SIM card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Wireless LAN / Bluetooth / UMTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Switching the wireless components on and off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Setting up WLAN access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Access via UMTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Ethernet and LAN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
58
58
59
59
60
60
61
62
62
63
63
64
Security functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Brief overview of security functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Configuring the fingerprint sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Use Kensington Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Configuring password protection in BIOS Setup Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Protecting BIOS Setup Utility (supervisor and user password) . . . . . . . . . . . . . . . . . . . . . . . . . . .
Password protection for booting of the operating system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SmartCard reader . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Inserting the SmartCard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SmartCard SystemLock (optional) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Access rights of SmartCards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SmartCard user groups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installing SystemLock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Setting up the first system in a user group or a stand-alone system for use with SystemLock
.....................................................................................
Adding a system to a user group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Carrying out administrator functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Remote Access Enabling – F4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Switch on the device using SystemLock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Start BIOS Setup F2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Changing PIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Uninstall SystemLock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Error messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Trusted Platform Module - TPM (optional) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Enabling TPM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Disabling TPM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
65
66
67
67
68
68
69
70
70
71
72
73
74
Connecting external devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Connecting an external monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
HDMI port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Connecting USB devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
How to remove USB devices correctly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Connecting external audio devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Microphone port / Line In . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Headphone port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
85
86
87
88
88
89
89
89
Removing and installing components during servicing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Notes on installing and removing boards and components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Preparing to remove components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installing and removing memory expansion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Removing a cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
90
90
91
91
92
4
74
77
79
81
82
82
82
82
83
83
84
84
Fujitsu Technology Solutions
Contents
Removing memory modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installing a memory module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Attaching the cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Removing and installing the hard disk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Removing a hard disk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installing a hard disk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Finishing component removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
92
93
93
94
94
95
95
Settings in BIOS Setup Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Starting the BIOS Setup Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Operating BIOS Setup Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Exiting BIOS Setup Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Exit Saving Changes - save changes and exit BIOS Setup Utility . . . . . . . . . . . . . . . . . . . . . . .
Exit Discarding Changes – Discard changes and exit BIOS Setup Utility . . . . . . . . . . . . . . . . .
Load Setup Defaults – Copy Standard Entries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Discard Changes – Discard changes without exiting the BIOS Setup Utility . . . . . . . . . . . . . . .
Save Changes - save changes without exiting the BIOS Setup Utility . . . . . . . . . . . . . . . . . . . .
Save Changes and Power Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
96
96
96
97
97
97
97
97
97
97
Troubleshooting and tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Help if problems occur . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Restoring the hard disk contents under Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
The notebook’s date or time is incorrect . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Battery indicator does not illuminate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
When certain characters are entered on the keyboard, only numerals are written . . . . . . . . . . . . .
The notebook’s LCD screen remains blank . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
The LCD screen is difficult to read . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
The external monitor remains blank . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
The external monitor is blank or the image is unstable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
The cursor does not correctly follow the pen movements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
The notebook cannot be started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
The notebook stops working . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
The printer does not print . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
The radio connection to a network does not work . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
The battery discharges too quickly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Acoustic warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Error messages on the screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
98
99
99
100
100
100
100
101
101
101
102
102
103
103
103
104
104
104
Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Notebook . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rechargeable battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Mains adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
106
106
107
108
Manufacturer’s notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Energy Star . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Disposal and recycling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Declarations of Conformity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
CE marking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Regulatory notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Regulatory information for notebooks without radio device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
DOC (Industry CANADA) notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
FCC regulatory information for notebooks with radio device . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
109
109
109
109
110
110
110
112
114
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116
Fujitsu Technology Solutions
5
Contents
6
Fujitsu Technology Solutions
Innovative technology
Innovative technology
... and ergonomic design make your device a reliable and convenient companion.
The device boots very quickly, is ready for immediate use and offers a particularly
long operating time because of its high capacity battery.
With the user-friendly "BIOS Setup Utility" you can control your notebook’s hardware and better
protect your system against unauthorised access by using the powerful password properties.
Information on the connections and user components of your notebook
can be found in "Ports and controls", Page 9.
Further information
The Windows drivers for your device can be found on our Internet site.
The factory installation of your device does not support any other operating
system. Fujitsu Technology Solutions accepts no liability whatsoever
if any other operating system is used.
Software oriented components of these instructions refer to Microsoft products,
if they come within the scope of the delivery.
If you install other software products, pay attention to the operating
instructions of the manufacturer.
Fujitsu Technology Solutions
7
Innovative technology
Notational conventions
Pay particular attention to text marked with this symbol. Failure to observe
these warnings could pose a risk to health, damage the device or lead
to loss of data. The warranty will be invalidated if the device becomes
defective through failure to observe these warnings.
Indicates important information for the proper use of the device.
►
Indicates an activity that must be performed
Indicates a result
This font
indicates data entered using the keyboard in a program dialogue or at
the command line, e.g. your password (Name123) or a command used to
start a program (start.exe)
indicates information that is displayed on the screen by a program, e.g.:
Installation is complete.
indicates
"This font"
• terms and texts used in a software interface, e.g.: Click on Save
• names of programs or files, e.g. Windows or setup.exe.
indicates
This font
This font
•
•
Key
This font
8
cross-references to another section, e.g. "Safety information"
cross-references to an external source, e.g. a web address: For more
information, go to "http://ts.fujitsu.com"
• Names of CDs, DVDs and titles or designations of other materials, e.g.:
"CD/DVD Drivers & Utilities" or "Safety" Manual
indicates a key on the keyboard, e.g: F10
indicates terms and texts that are emphasised or highlighted, e.g.: Do
not switch off the device
Fujitsu Technology Solutions
Ports and controls
Ports and controls
This chapter presents the individual hardware components of your device. It gives an
overview of the displays and connections of the device. Please familiarise yourself with
these components before you start to work with the device.
3
2
1
4
11
5
17
6
16
10
9
7
15
14 13
1 = Webcam
2 = LCD screen for use with the pen and
with TouchScreen functionality
3 = UMTS antenna
4 = Ambient light sensor
5 = Microphone
6 = ON/OFF switch
7 = Pen release lever
8 = Loudspeaker
9 = Touchpad buttons
Fujitsu Technology Solutions
10
11
12
13
14
15
16
17
=
=
=
=
=
=
=
=
12
8
Touchpad
Keyboard
Microphone jack
Headphone port
Status indicators
ON/OFF switch for wireless components
Fingerprint sensor
Tablet buttons
9
Ports and controls
Left panel
1
2
3
4
6
5
4 = ON/OFF switch for wireless components
5 = SmartCard slot
6 = Memory card slot
1 = DC input connector (DC IN)
2 = USB port
3 = Fan-air-outlet
Right-hand side
1
1
2
3
4
10
=
=
=
=
2
3
Pen slot
Eyelet for pen cord
Hard disk service compartment
ON/OFF switch
4
5
7
6
5 = USB port
6 = LAN port
7 = VGA monitor port
Fujitsu Technology Solutions
Ports and controls
Rear
1
2
1 = HDMI port
2 = Kensington Lock
Underside
1
4
3
1 = Battery with SIM card slot under the battery
2 = Memory service compartment
Fujitsu Technology Solutions
2
3 = Loudspeaker
4 = Hard disk service compartment
11
Important notes
Important notes
Notes
Importantnotes
This chapter contains essential safety information which must be followed
when working with your notebook. Other notes also provide useful information
which will help you with your notebook.
Safety notes
Notes
Safetynotes
Please note the information provided in the "Safety" manual and
in the following safety notes.
Please pay special attention to the sections in the manual marked
with the symbol on the left.
When connecting and disconnecting cables, observe the relevant
notes in this operating manual.
Read the information on the ambient conditions in the "Technical data",
Page 106 and "First-time setup of your device", Page 15 before preparing your
notebook for use and switching it on for the first time.
When cleaning the device, please observe the relevant notes in the
section "Cleaning the notebook", Page 14.
Pay attention to the additional safety notes for devices with wireless
components provided in the "Safety" manual.
Please refer to the notes in the chapter "Removing and installing
components during servicing", Page 90.
This notebook complies with the relevant safety regulations for data processing
equipment. If you have questions about using your notebook in a particular area,
please contact your sales outlet or our Hotline/Service Desk.
Energy saving
Energysaving
Energy
Notes
Switch the notebook off when it is not in use. Switch off external, connected devices if you
are not using them. If you use the energy saving functions, the notebook uses less energy.
You will then be able to work for longer before having to recharge the battery.
Energy efficiency is increased and the environmental impact is reduced.
You save money while protecting the environment.
Energy saving under Windows
► Make use of the power management features (see ""Using the power-management features",
Page 57").
12
Fujitsu Technology Solutions
Important notes
Travelling with your notebook
Mobile operation
Notebook
Transportation
Notes
Please observe the points listed below when travelling with your notebook.
Before you travel
► Back up important data stored on your hard disk.
► Switch off the radio component for data security reasons. With data traffic via a wireless
connection, it is also possible for unauthorised third parties to receive data.
Travel,notebook
Notebook
Information on activating data encryption is provided in the documentation
for your radio component.
► If you wish to use your notebook during a flight, first check with the flight
attendants if it is OK to do so.
When travelling in other countries
► If you are travelling abroad, check that the mains adapter can be operated with the
local mains voltage. If this is not the case, obtain the appropriate mains adapter for
your notebook. Do not use any other voltage converter!
► Check whether the local mains voltage and the power cable are compatible. If this is
not the case, buy a power cable that matches the local conditions.
► Enquire with the corresponding government office of the country you will be
travelling in as to whether you may operate the radio component integrated in your
notebook there (see also "CE marking", Page 110).
Transporting the notebook:
Protect the notebook from severe shocks and extreme temperatures
(e.g. direct sunlight in a car).
Notebook
Transportation
►
►
►
►
►
Switch the notebook off.
Unplug the mains adapter and all external devices from the power socket.
Disconnect the mains adapter cable and the data cables for all external devices.
Close the LCD screen.
To protect against damaging jolts and bumps, use a notebook carrying
case to transport your notebook.
Fujitsu Technology Solutions
13
Important notes
Cleaning the notebook
Do not clean any interior parts yourself; leave this job to a service technician.
Only use cleaning products designed for computers. Normal household
cleaners and polishes can damage the markings on the keyboard and the
device, the paintwork or the notebook itself.
Ensure that no liquid enters the notebook.
The LCD screen very sensitive to scratches. Only clean the display
surface with a very soft, slightly damp cloth.
► Switch the notebook off.
► In order to prevent accidentially switching the device on, remove the power cable from the mains
adaptor and remove the battery (see "Removing and installing the battery", Page 55).
The surface can be cleaned with a dry cloth. If particularly dirty, use a cloth which has
been moistened in mild domestic detergent and then carefully wrung out.
To clean the keyboard and the touchpad, if available, you can use disinfectant wipes.
CrystalViewdisplay
LCDscreen
Touchpad
Keyboard
Notebook
Notes
Cleaning
Ensure that no liquid enters the device.
14
Fujitsu Technology Solutions
First-time setup of your device
First-time setup of your device
Gettingstarted
First-timesetup
Please read the chapter "Important notes", Page 12.
If your device is equipped with a Windows operating system, the necessary
hardware drivers and supplied software are already pre-installed.
Before you switch on the device for the first time, connect it to the mains voltage
using the mains adapter, see "Mains adapter connecting", Page 16. The mains
adapter must be connected during the entire installation process.
A system test is performed when your device is first switched on. Various messages
can appear. The display may remain dark for a short time or may flicker.
Please follow the instructions on the screen.
NEVER switch off your device during the first-time setup process.
On delivery, the battery can be found in the battery compartment or in the accessories kit.
The battery must be charged if you want to operate your device using the battery.
When used on the move, the built-in battery provides the device with the necessary power. You
can increase the operating time by using the available energy-saving functions.
For instructions on how to connect external devices (e.g. mouse, printer) to your
device, please refer to the operating manual for your device.
Unpacking and checking the device
Should you discover any damage that occurred during transportation,
notify your local sales outlet immediately!
► Unpack all the individual parts.
► Check your device for any visible damage which may have occurred during transportation.
Transport
Packaging
You may need the packaging in the future, if you need to transport your device.
Fujitsu Technology Solutions
15
First-time setup of your device
Selecting a location
Selectinga location
Mainsadapter
Device
Select a suitable location for the device before setting it up. Follow
the instructions below when doing so:
•
Never place the device or the mains adapter on a heat-sensitive surface.
The surface could be damaged as a result.
Never place the device on a soft surface (e.g. carpeting, upholstered furniture,
bed). This can block the air vents and cause overheating and damage.
The underside of the device heats up during normal operation. Prolonged contact
with the skin may become unpleasant or even result in burns.
Place the device on a stable, flat, non-slippery surface. Please note that the
rubber feet of the device may mark certain types of delicate surfaces.
Keep other objects at least 100 mm away from the device and its
mains adapter to ensure adequate ventilation.
Never cover the ventilation slots of the device.
Do not expose the device to extreme environmental conditions. Protect
the device from dust, humidity, and heat.
•
•
•
•
•
•
Mains adapter connecting
Mainsadapter
Preparingforoperation
Observe the safety precautions in the enclosed "Safety" manual.
The supplied power cable conforms to the requirements of the country in
which you purchased your device. Make sure that the power cable is approved
for use in the country in which you intend to use it.
► Connect the power cable (1) to the
mains adapter.
► Plug the mains cable (2) into a mains outlet.
► Connect the mains adapter cable (3) to
the DC jack (DC IN) of the device.
3
2
1
16
Fujitsu Technology Solutions
First-time setup of your device
Switching on the device for the first time
Switchingon for thefirsttime
On devices with ON/OFF switch for wireless components: Slide the ON/OFF switch
for wireless components to the ON position before switching on the device.
Your device is equipped with a ON/OFF switch for wireless components.
When you switch on the device for the first time, the supplied software is
installed and configured. Because this procedure must not be interrupted,
you should set aside enough time for it to be fully completed and connect
the device to the mains using the mains adapter.
During the installation process, DO NOT restart the device unless
you are requested to do so!
To make it easier to use your device for the first time, the operating system
is pre-installed on the hard disk.
2
3
ON
1
OF
F
► Slide the ON/OFF switch for wireless components (1) towards the display to
activate the wireless components for the installation.
► Slide the ON/OFF switch (2) towards the display to switch on the notebook.
The ON/OFF switch returns automatically to its original position.
The power-on indicator (3) flashes.
► During installation, follow the instructions on screen.
Fujitsu Technology Solutions
17
First-time setup of your device
If a Windows operating system is installed on your device, you will find more
information on the system and drivers, help programmes, updates, manuals etc.
on the device or on the Internet at "http://ts.fujitsu.com/support".
18
Fujitsu Technology Solutions
Working with the notebook
Working with the notebook
Notebook
Notebook,operation
This chapter describes the basics for operating your notebook. Please read the chapter
entitled "Connecting external devices", Page 85 for instructions on how to connect
devices such as a mouse and a printer to the notebook.
Please refer to the notes in "Important notes", Page 12.
Status indicators
Symbols
Statusindicators
The status indicators provide information about the status of the power supply,
the drives and the keyboard functions etc.
Fujitsu Technology Solutions
19
Working with the notebook
Status displays
Description
Power-on indicator
• Indicator is illuminated: The notebook is switched on.
• Indicator flashes: The notebook is in sleep mode (Save-to-RAM).
• The indicator is not illuminated: The notebook is switched off or in
Save-to-Disk mode.
Battery charging indicator
The battery charging indicator shows whether a battery is installed and being
charged.
•
•
•
The indicator is lit green: AC power supplied, battery charge completed.
The indicator is lit orange: AC power supplied, battery charge on the way.
The indicator flashes orange: AC power supplied, error while battery
charge.
• The indicator is not lit: No AC power supplied.
Battery indicator
The battery indicator shows the state of charge of the installed battery.
•
The indicator is lit green: The battery is between 50 % and 100 %
charged.
• The indicator is lit orange: The battery is between 13 % and 49 %
charged.
• The indicator is lit red: The battery is between 0 % and 12 % charged.
• The indicator flashes orange: The battery state of charge is being
checked (for four seconds after battery installation).
• The indicator flashes red: The battery is faulty.
• The indicator is not lit: There is no battery installed.
Drive indicator
The indicator is illuminated: The hard disk drive of the notebook is being
accessed.
Num Lock indicator
Indicator is lit: The Num key has been pressed. The virtual numerical
keypad is activated. You can output the characters indicated on the upper
right of the keys.
Caps Lock indicator
The indicator is illuminated: The Caps Lock key has been pressed. All letters
are output as capital letters. In the case of overlay keys, the character printed
on the upper left of the key will appear when that key is pressed.
Scroll Lock indicator
Indicator is lit: The key combination Fn + Scr has been pressed. The effect
that this key has varies between applications.
20
Fujitsu Technology Solutions
Working with the notebook
Opening the notebook
► Open the LCD screen.
Fujitsu Technology Solutions
21
Working with the notebook
Switching on the notebook
Notebook:switching on
Suspend/Resumebutton
Power-onindicator
1
2
► Slide the ON/OFF switch (1) towards the display to switch on the notebook.
The ON/OFF switch automatically returns to its starting position.
The power-on indicator (2) lights.
Programming the ON/OFF switch
You can program the ON/OFF switch:
Operating system
Windows XP
Windows 7
Menu
Start - (Settings) - Control panel - Performance and
Maintenance - Power options - Advanced
Start - (Settings) - Control panel - System and
Security - Power options
If you have assigned a password, you must enter this when requested to
do so, in order to start the operating system. Detailed information can be
found in the chapter "Security functions", Page 65.
22
Fujitsu Technology Solutions
Working with the notebook
Different ways to use your notebook
During your daily work, you can use your notebook as a tablet PC or as a notebook,
just as you wish. The "conversion" is lightning fast and effortless.
Note the direction of rotation in the following description! No guarantee claims
can be met for damage caused by turning in the wrong direction.
You must note that the display cannot be turned completely on its own axis!
Fujitsu Technology Solutions
23
Working with the notebook
From notebook to Tablet PC
► Raise the screen into a vertical position.
► Hold the screen as low as possible on both sides. Turn the screen to the left or right in the direction
of the arrow. At first you will feel some slight resistance, then it will turn easily and without friction.
► Rotate the display further until it has turned 180° and the hinge latches in.
24
Fujitsu Technology Solutions
Working with the notebook
► Now fold the screen down until the back of the screen is flat on top of the keyboard.
The screen is now secured in the tablet position.
Select display orientation (portrait or landscape orientation)
Displayorientation
Portraitorientation
Landscapeorientation
You can choose to use either portrait or landscape orientation for the display. Press the
Tablet button
to switch from one display orientation to the other.
The display switches automatically to portrait layout when the device is used as a Tablet
PC and to landscape layout when it is used as a notebook.
Windows XP
You can change these settings in the Fujitsu menu or under Start (Settings -) Control Panel - Tablet and Pen Settings.
Windows 7
You can change these settings in the Fujitsu menu or under Start - (Settings -)
Control Panel - Hardware and Sound - Display - Settings.
Profiles for operating in different screen orientations are found under Fujitsu
Tablet Control in the Fujitsu menu. These profiles have preset standard
configurations that can be modified as desired.
These settings not only affect the monitor settings on the Tablet PC, but
also any external monitors that may be connected.
Fujitsu Technology Solutions
25
Working with the notebook
From Tablet PC to notebook
► Raise the display into a vertical position.
26
Fujitsu Technology Solutions
Working with the notebook
Note the direction of rotation in the following description! No guarantee claims
can be met for damage caused by turning in the wrong direction.
► Hold the display on both sides as far down as possible and then turn the
display. It turns easily and without resistance.
► Turn or move the display further until it has turned 180° and the hinge latches in.
You can now close the notebook as usual.
Switching off the notebook
Notebook
► Close all applications and then shut down the operating system (please
see the "Operating System Manual").
► Slide the ON/OFF switch towards the right.
The ON/OFF switch returns automatically to its original position.
Fujitsu Technology Solutions
27
Working with the notebook
Closing the notebook
► Fold the LCD screen down onto the lower part of the notebook until you feel it lock into place.
Handwriting recognition under Windows XP
Tablet PC 2005 Edition
Selectthelanguage:forhandwritingrecognitionandkeyboard
►
►
►
►
Click on Control Panel – Date, Time, Language and Regional Options – Language and Regional options.
Select the Languages tab.
In the Text services and input languages field, click on the Details button.
In the next dialog window, select the Settings register card and click the
Add button in the Installed Services field.
► In the next dialog window, select the desired Input area schema.
You can now decide which functions (keyboard layout, handwriting recognition, etc.)
the selected input area schema is to be activated for.
► Mark the desired functions and then confirm your entries by clicking the OK button.
You will find further information in the Windows XP Tablet PC 2005 Edition operating system help.
Handwriting recognition under Windows 7
Handwriting recognition under Windows 7 currently supports the following languages:
English, German, French, Italian, Japanese, Korean, Chinese (traditional and simplified), Dutch,
Portuguese, Spanish, Brazilian, Norwegian (Bokmål and Nynorsk), Swedish, Finnish, Danish,
Polish, Rumanian, Serbian (Cyrillic and Latin script), Catalan, Russian, Czech and Croatian.
28
Fujitsu Technology Solutions
Working with the notebook
LCD screen
Notes
LCDscreen
High-quality TFT displays are installed in notebooks from Fujitsu Technology Solutions GmbH. For
technical reasons, TFT monitors are manufactured for a specific resolution. An optimal, clear
picture can only be ensured with the correct resolution intended for the relevant TFT monitor. A
monitor resolution which differs from the specification can result in an unclear picture.
The screen resolution of the LCD monitor of your notebook is optimally set at the factory.
The standard of production techniques today cannot guarantee an absolutely fault-free screen
display. A few isolated constant lit or unlit pixels (picture elements) may be present. The maximum
permitted number of pixels faults is stipulated in the international standard ISO 9241-3 (Class II).
Example:
A monitor with a resolution of 1280 x 800 has 1280 x 800 = 1024000 pixels. Each pixel consists of
three subpixels (red, green and blue), so there are almost 3 million subpixels in total. According to
ISO 9241-3 (class II), a maximum of 2 light and 2 dark pixels and an additional 5 light or 10 dark
subpixels or a corresponding mix may be defective (1 light subpixel counts as 2 dark subpixels).
Pixel
Subpixel
Cluster
A pixel consists of 3 subpixels, normally red, green and
blue. A pixel is the smallest element that can be generated
by complete functionality of the display.
A subpixel is a separately addressable internal structure
within a pixel that enhances the pixel function.
A cluster contains two or more defective pixels or
subpixels in a 5 x 5 pixel block.
Background lighting
TFT monitors are operated with background lighting. The luminosity of the background
lighting can decrease during the period of use of the notebook. However, you can
set the brightness of your monitor individually.
Synchronising the display on the LCD screen and an external monitor
For more information, please refer to the chapter "Key combinations", Page 50
under "Display output, switch between".
Ambient light sensor
If your notebook was shipped with the Windows 7 operating system, the screen brightness is
regulated by means of the ambient light sensor and depending on the respective light conditions.
This results in optimum readability and longer battery life at the same time.
In delivery status, the ambient light sensor on your device is switched off. To switch the ambient
light sensor on, select Start - Control Panel - Positioning and other sensors - Ambient light sensor.
Fujitsu Technology Solutions
29
Working with the notebook
Using the device as a Tablet PC
You can execute commands as follows:
•
•
using your fingers
using the stylus pen (supplied with your device)
Using fingers
You can execute certain commands by using your finger tip on the touchscreen of your device.
Everything which you can select or activate using your finger tip can also
be selected or activated using the stylus pen.
Calibrate the Dual Digitizer for finger-based operation of the device
Before using the finger-based operation for the first time, you should calibrate it
so that the finger tips are recognized as accurately as possible.
You should also always repeat the calibration if the co-ordination between your
fingers and the operation on the screen deteriorates.
Operating system
Windows XP
Windows 7
30
Menu
To calibrate, run the Tablet and Pen Settings function in the Control Panel.
You need to calibrate both portrait and landscape formats.
To calibrate, run the Hardware and Sound / Tablet PC Settings function in the
Control Panel. You need to calibrate both portrait and landscape formats.
Fujitsu Technology Solutions
Working with the notebook
Actions with one finger
Action
Selecting objects (click with the left mouse
button)
Starting programs (double-click with the left
mouse button)
Moving objects/windows (drag with left mouse
button pressed, Drag&Drop)
Opening a context menu (click with the right
mouse button)
Moving the cursor
Fujitsu Technology Solutions
Description
► With your finger, tap once briefly on the
object.
► With your finger, tap twice briefly in quick
succssion on the program icon.
► Position one finger on the object/window,
hold your fingertip pressed against the
touchscreen and move the desired
object/window.
► Touch the desired item once with your finger
tip. Hold your fingertip pressed against the
touchscreen.
The context menu appears.
► Position one finger on the touchscreen and
move the finger in the desired direction.
31
Working with the notebook
Actions with two fingers
Action
Scrolling
Description
► Position two fingers on the touchscreen.
► Move your fingers upwards to scroll up.
or
► Move your fingers downwards to scroll
down.
Rotating
► Position the thumb on the touchscreen,
then turn the picture clockwise or
counter-clockwise at the corners by using
your index finger.
32
Fujitsu Technology Solutions
Working with the notebook
Action
Zoom in / Zoom out
Description
► Position two fingers on the touchscreen and
move them apart to increase the view.
or
Blocking context-sensitive menus
Fujitsu Technology Solutions
► Position two fingers on the touchscreen and
move them together to decrease the view.
► With two fingers, tap twice briefly in quick
succession on the touchscreen.
33
Working with the notebook
Actions with three fingers
Action
Maximising or minimising current window
Description
► Position three fingers on the touchscreen
and move them upwards to maximise the
window.
or
► Position three fingers on the touchscreen
and move them downwards to minimise the
window.
34
Fujitsu Technology Solutions
Working with the notebook
Action
Displaying and rotating current window in 3D
carousel layout
Minimising all windows and displaying the
desktop
Fujitsu Technology Solutions
Description
► Tap the touchscreen with your three fingers
to display the 3D carousel.
► Hold your fingertips pressed to change the
3D carousel layout.
► With three fingers, tap the touchscreen twice
briefly in quick succession.
35
Working with the notebook
Action
Scrolling through all open files in a program
Description
► Position three fingers on the touchscreen
and move them to the side (left or right) over
the touchscreen.
Displaying context menu and selecting entry
► Position two fingers on the touchscreen.
A context menu is displayed on the screen.
► With one finger on the other hand, tap on an
entry in the context menu.
The entry is selected.
36
Fujitsu Technology Solutions
Working with the notebook
Actions with four fingers
Action
Displaying a menu with context-sensitive web
applications with one hand.
Description
► Tap briefly on the touchscreen with four
fingers of one hand then lift your fingers
from the screen.
Selecting a word, sentence, paragraph or a item
A menu with context-sensitive web applications
is displayed.
Displaying menu with context-sensitive web
applications with two hands
► To select an area position two fingers on
each hand on the touchscreen as shown in
the rectangle.
A menu with context-sensitive web applications
is displayed.
Fujitsu Technology Solutions
37
Working with the notebook
Action
Magnifying an area
Description
► To magnify an area within a document,
position two fingers on each hand on the
touchscreen as shown in the rectangle.
The selected area will be magnified.
► Use one finger to move the rectangle around
the touchscreen to magnify the areas it
moves over.
38
Fujitsu Technology Solutions
Working with the notebook
Action
Leafing (fast scrolling)
Description
► Position four fingers on the touchscreen and
move them upwards to scroll up.
or
► Position four fingers on the touchscreen and
move them downwards to scroll down.
The distance you sweep your fingers indicates
how far you move up or down.
Fujitsu Technology Solutions
39
Working with the notebook
Using the stylus pen
1 = pen tip
2 = pen button
3
3 = eyelet for pen cord
2
1
You can use the pen on your notebook as an electronic writing implement to select
items and to navigate through menu options and programs. Programs that support
handwriting recognition also allow you to write characters directly on the screen with
the pen. You can also use the pen as a drawing tool.
The notebook pen is retained securely in the pen slot. This ensures that the pen cannot be
lost, regardless of whether you use the notebook as a Tablet PC or as a notebook, or transport
it while travelling. Always replace the pen in its slot when you are not using it.
The notebook is supplied with a pen cord which you can attach to the eyelets
on the pen and on the notebook.
Only use the pen provided with your notebook. Do not use substitute pen tips
that were not specially designed for your notebook. Replace the stylus tip if it
is worn. The warranty does not cover a scratched screen.
While writing, you should take care not to scratch the surface of the
display (e.g. with a wristwatch or bracelet).
40
Fujitsu Technology Solutions
Working with the notebook
The pen of your notebook is an electronic instrument which can be damaged
if used incorrectly. Handle the pen with care.
The following list contains guidelines for proper pen handling:
•
•
•
•
Do not gesture with the pen.
Do not use the pen as a pointer.
Never use the pen on any other surface than the screen of your notebook.
Do not try to turn the thumb grip on the pen. The thumb grip is used to
place the pen in its slot and to take it out of the slot.
• Never store the pen with the tip bearing the weight of the pen (e.g. with the tip down
in a pen holder). If the pen is stored with the tip pointing down, this may have
an adverse effect on the pen mechanism (particularly under high temperatures).
In this case the pen tip may react as though it is constantly being pressed down.
To avoid damage, the pen should be stored in the pen slot when not in use.
The pen can be influenced by electromagnetic fields (cursor quivers or
jumps). There may be a few areas on the screen where the cursor quivers
slightly in spite of pressing the pen down firmly.
The screen responds to entries made with the tip of the finger or the pen when the tip
of the finger or the pen is in direct contact with the screen.
You can use the pen to perform all the functions for which you would otherwise use a mouse.
In addition, you can conveniently delete hand-written pen entries using the pen.
The pen does not support erasing function.
Handling
Selecting menu
entries
Mouse
Click with the left-hand mouse button.
Pen
Push the pen button.
or
Click with the right-hand mouse
button.
Selecting menu
Click with the left-hand mouse button.
entries
Starting programs Double click with the left-hand mouse
button.
Moving
Drag with the left-hand mouse button
objects/windows
held pressed.
Opening a context Click with the right-hand mouse
menu
button.
Moving the cursor -
Fujitsu Technology Solutions
Touch the menu entry with the pen tip.
Briefly touch the program icon twice
with the pen tip.
Place the pen tip directly on the
object/window. Hold the pen tip
pressed against the screen. Move the
desired object/window.
Touch the desired element with the
pen and leave the pen on the element
for a moment.
Place the pen tip directly on the
screen.
41
Working with the notebook
Setting the pen
Operating system
Windows XP
Windows 7
Menu
You can access the various pen settings (for instance the pressure
sensitivity) under Fujitsu Pen Settings or Tablet and Pen Settings in the
Control Panel.
Under Hardware and Sound – Pen and Input Devices in the Control Panel
you can change various settings for the pen (assignment and function
of the rocker button).
Calibrating the pen
Before using the pen for the first time, you should calibrate it so that the cursor follows the
movements of the pen as accurately as possible. You should also always repeat the calibration
if the co-ordination between the pen and cursor movement deteriorates.
Operating system
Windows XP
Windows 7
42
Menu
To calibrate, run the Tablet and Pen Settings function in the Control Panel.
You need to calibrate both portrait and landscape formats.
To calibrate, run the Hardware and Sound / Tablet PC Settings function in the
Control Panel. You need to calibrate both portrait and landscape formats.
Fujitsu Technology Solutions
Working with the notebook
Removing the pen battery
Do not remove the tip of the pen for changing the battery.
The pen contains one AAAA-battery.
► Remove the rear pen cap.
► Take the battery out of the pen (1) and
close the rear pen cap (2).
2
1
Inserting the pen battery
1
► Remove the rear pen cap (1) and insert
the new battery into the pen (2).
► Close the rear pen cap.
2
Fujitsu Technology Solutions
43
Working with the notebook
Replacing the pen tip
With use, the pen tip may become worn or may pick up foreign particles that can scratch the screen.
A damaged or worn tip may not move freely, causing unpredictable results when using the pen.
If problems like these occur with your pen, you should replace the pen tip.
► Pull the tip from the barrel.
► Use one of the new tips that were supplied
with your pen to replace the tip. Insert the
pointed end of the tip into the barrel and
push it in firmly until it is in place.
1
Do not continue to use a tip which is worn or damaged.
Installing a pen cord
You should attach the pen with a pen cord to prevent accidentally dropping or losing it.
► Attach one end of the pen cord to your pen and the other end of the pen cord to your notebook.
44
Fujitsu Technology Solutions
Working with the notebook
Using the device as a notebook
Touchpad and touchpad buttons
Keep the touchpad clean. Protect it from dirt, liquids and grease.
Touchpad
Do not use the touchpad if your fingers are dirty.
Do not rest heavy objects (e.g. books) on the touchpad or the touchpad buttons.
1 = Touchpad
1
2 = Touchpad buttons
2
The touchpad enables you to move the mouse pointer on the screen.
The touchpad buttons allow you to select and execute commands. They correspond
to the buttons on a conventional mouse.
You can use a key combination to disable the touchpad, to avoid accidentally moving
the pointer on the screen (see also "Key combinations", Page 50).
Moving the pointer
► Move your finger on the touchpad.
The pointer will move.
Touchpad
Selecting an item
► Move the pointer to the item you wish to select.
► Tap the touchpad once or press the left button once.
The item is selected.
Touchpad
Executing commands
► Move the pointer to the field you wish to select.
► Tap the touchpad twice or press the left button twice.
The command is executed.
Touchpad
Fujitsu Technology Solutions
45
Working with the notebook
Dragging items
► Select the desired item.
► Press and hold the left button and drag the item to the desired position
with the finger on the touchpad.
The item will be moved.
Touchpad
Switching the Touchpad on and off
You can switch the Touchpad on and off using a key combination,
see "Key combinations", Page 50.
46
Fujitsu Technology Solutions
Working with the notebook
Keyboard
Keyboardkeypad
Numeric
Buttons
The keyboard of your notebook is subject to continuous wear through normal
use. The key markings are especially prone to wear. The key markings are
liable to wear away over the life of the notebook.
The keyboard has been designed to provide all the functions of an enhanced keyboard.
Some enhanced keyboard functions are mapped with key combinations.
The following description of keys refers to Windows. Additional functions supported by the keys
are described in the relevant manuals supplied with your application programs.
The figure below shows how to access the different characters on keys with overlaid functions.
The example applies when the Caps Lock key has not been activated.
The illustrations shown below may differ from your actual device.
=
Num
0
+
=
0
}
=
0
Fujitsu Technology Solutions
}
}
=
0
}
Alt Gr
+
=
0
}
47
Working with the notebook
Key
Description
Backspace key
The Backspace key deletes the character to the left of the cursor.
Backspace
Tab key
The Tab key moves the cursor to the next tab stop.
Tabkey
Enter key (return)
The Enter key terminates a command line. The command you have entered
is executed when you press this key.
Linefeed
Enter
Return
Enterkey
Caps Lock key
The Caps Lock key activates the Caps Lock mode, and the corresponding
icon is displayed in the Windows information area. In Caps Lock mode, all
of the characters you type appear in upper case. In the case of overlay
keys, the character printed on the upper left of the key will appear when
that key is pressed. To cancel the Caps Lock function, simply press the
Caps Lock key again.
CapsLock
Shiftkey
Shift key
The Shift key causes uppercase characters to appear. In the case of overlay
keys, the character printed on the upper left of the key appears when that
key is pressed.
Shift
Shiftkey
Fn button
The Fn key enables the special functions indicated on overlay keys (see
"Key combinations", Page 50).
Fnkey
Cursor keys
The cursor keys move the cursor in the direction of the arrow, i.e. up, down,
left, or right.
Cursor controlkeys
keys
Start key
The Start key opens the Windows Start menu.
Startkey
Menu key
The Menu key invokes the menu for the marked item.
48
Fujitsu Technology Solutions
Working with the notebook
Virtual numeric keypad
Numeric
Num
Virtualnumerickeypad
Lock
keypad
To provide the convenience of a numeric keypad, your keyboard is equipped with a virtual
numeric keypad. The special keys of the virtual numeric keypad are recognisable by the numbers
and symbols printed in the upper right corner of each key. If you have switched on the virtual
numeric keypad, you can output the characters shown on the upper right of the keys.
The keyboard layout shown below may differ from your actual device.
1 = Valid characters when the Num
key is not activated
2 = Valid characters when the Num
is activated
Further information about the status indicators can be found in chapter "Status indicators", Page 19.
Country and keyboard settings
If you want to change the country and keyboard settings, proceed as follows:
► Enter the settings by clicking Start – (Settings) – Control Panel – Time, Regional and Language Options.
Fujitsu Technology Solutions
49
Working with the notebook
Key combinations
The key combinations described below apply when using Microsoft Windows
operating systems. Some of the following key combinations may not function in
other operating systems or with certain device drivers.
Key combinations are entered as follows:
► Press the first key in the combination and keep it pressed.
► While holding the first key down, press the other key or keys in the combination.
Combination
Description
Switching the loudspeakers on/off
This key combination switches the integrated loudspeakers on and
off.
Enable/disable touchpad
This key combination enables and disables the touchpad.
Decrease screen brightness
This key combination decreases the brightness of the screen.
Increase screen brightness
This key combination increases the brightness of the screen.
Decrease volume
This key combination reduces the volume of the internal
loudspeakers.
Increase volume
This key combination increases the volume of the internal
loudspeakers.
50
Fujitsu Technology Solutions
Working with the notebook
Combination
Description
Toggle output screen
Use this key combination to select which screen(s) is/are used for
display if an external monitor is connected.
Toggleoutputscreen
Fn+F10
Screen output is possible:
•
•
•
only on the notebook’s LCD screen
only on the external monitor
on the notebook’s LCD screen and the external monitor at the
same time.
Press the key combination several times to switch through all
possible settings.
If you have connected two external monitors to the port replicator,
the following display outputs are possible:
•
•
•
•
only on the notebook’s LCD screen
only on the external monitor (analogue)
at the same time on the LCD screen (digital)
at the same time on the notebook’s LCD screen and on the
external monitor (analogue)
You cannot use the key combination to switch output at the same
time to both external monitors on the Port Replicator.
Fujitsu Powersaving Utility
This key combination starts the "Fujitsu Powersaving Utility".
Ctrl
+
C
With the "Fujitsu Powersaving Utility" you can adjust various power
saving options.
Halt current operation
This key combination can be used to halt an operation instantly
without clearing the keyboard buffer.
Back tab
This key combination moves the cursor back to the previous tab
stop.
Fujitsu Technology Solutions
51
Working with the notebook
Tablet buttons
Your notebook has three multifunctional tablet buttons. You can navigate on the screen with a
simple press of a button, call preset applications or ones that you have set yourself.
52
Fujitsu Technology Solutions
Working with the notebook
Basic functions when the device has booted
Button
Basic function
Log on to the system or open the Windows Task Manager
If you hold this tablet button down for two seconds, you can log back on to the
system again:
• after system startup
• after a system lock
• when returning from power management
After log-on, pressing the tablet button for two seconds launches the Windows Task
Manager or – in the network – opens the security window.
Change screen orientation
When you press the Orientation button, the orientation of the screen display
changes from portrait (vertical) to landscape (horizontal) or vice versa.
When you would like to use the Tablet PC as an eBook, for example, you would
use the portrait orientation.
When accessing spreadsheets, you would more typically use a landscape
orientation.
Open Fujitsu menu
Pressing this tablet button will bring up the TouchLauncher on your screen. The
TouchLauncher is used to start installed programs.
Pressing and holding this tablet button will bring up the Fujitsu menu on your
screen. The Fujitsu menu is used to change certain system settings.
Pressing this tablet button in Sleep or Off mode will bring up the battery check.
You can check the current battery status without the need to start the operating
system. The battery LED indicates the battery status.
Webcam
Webcam
Depending on the software used, you can use your Webcam to take pictures,
record video clips or take part in web chats.
•
•
•
•
The picture quality depends on the lighting conditions and the software being used.
You can only operate the webcam with a particular application (e.g. an Internet telephony
program or a video conferencing program which supports a webcam).
When using the webcam the notebook support must not wobble.
The webcam automatically adjusts itself to the current light level. For this reason
the LCD screen may flicker while the light level is adjusted.
Further information on use of the webcam and additional settings can be found
in the help function of the program which uses the webcam.
If you wish to carry out a function test with your webcam, you can use the
corresponding test software available at "http://ts.fujitsu.com/support/".
Fujitsu Technology Solutions
53
Working with the notebook
Rechargeable battery
Life,battery
Battery
Rechargeablebattery
When not plugged into a mains socket, the notebook runs on its built-in battery. You
can increase the life of the battery by caring for the battery properly. The average
battery life is around 500 charge/discharge cycles.
You can extend the battery life by taking advantage of the available energy saving functions.
Charging, caring for and maintaining the battery
Battery
The notebook battery can only be charged, when the ambient temperature
is between 5°C and max. 35°C.
You can charge the battery by connecting the notebook to the mains adapter
(see "Mains adapter connecting", Page 16).
If the battery is running low you will hear a warning alarm. If you do not connect the mains adapter
within five minutes of the warning alarm described above, your notebook will automatically switch off.
monitoring the battery charging level
Batterystatusmeter
Battery
Windows also has a "Battery status meter" in the taskbar for monitoring the battery capacity. When
you place the mouse pointer on the battery symbol, the system displays the battery status.
The battery capacity can be monitored using an indicator which shows the current state
of charge. Use the following menu to enable this feature:
Operating system
Windows XP
Windows 7
Menu
Start – (Settings) – Control panel–Power options
Start – (Settings) – Control panel – Mobile PC –
Power options
The indicator is then displayed in the task bar as a battery symbol. When you place the
mouse pointer on the battery symbol, the system displays the battery state of charge. Please
refer to the Help facility of the operating system for more information.
Battery storage
Chargingcapacity,battery
Self-discharge,battery
Battery
Keep the battery pack between 0°C and +30°C. The lower the temperature at which
the batteries are stored, the lower the rate of self-discharge.
If you will be storing batteries for a longer period (longer than two months),
the battery charge level should be approx. 30 %. To prevent exhaustive
discharge which would permanently damage the battery, check the level
of charge of the battery at regular intervals.
To be able to make use of the optimal charging capacity of the batteries, the battery
should be completely discharged and then fully recharged.
If you do not use the batteries for long periods, remove them from the
notebook. Never store the batteries in the device.
54
Fujitsu Technology Solutions
Working with the notebook
Removing and installing the battery
Only use rechargeable batteries approved by Fujitsu Technology
Solutions for your notebook.
Never use force when fitting or removing a battery.
Make sure that no foreign bodies get into the battery connections.
Never store a battery for longer periods in the discharged state. This
can make it impossible to recharge.
Removing the battery
► Prepare for removal, see chapter "Preparing to remove components", Page 91.
1
2
3
► Slide the release button in the direction of the arrow (1) and hold it in place.
► Slide the release mechanism in the direction of the arrow (2).
► Remove the battery from the battery compartment (3).
Fujitsu Technology Solutions
55
Working with the notebook
Installing the battery
2
1
► Push the battery into the battery compartment until you feel it engage (1).
► Slide the release mechanism in the direction of the arrow (2).
► Complete the removal, see chapter "Finishing component removal", Page 95.
56
Fujitsu Technology Solutions
Working with the notebook
Using the power-management features
Battery
Power
The notebook uses less power when the available power-management features are used. You
will then be able to work longer when using the battery before having to recharge it.
Power efficiency is increased and environmental pollution reduced. By
choosing the best power options, you can make significant savings and
at the same time help protect the environment.
When you fold down and close the LCD screen, depending on the setting in Windows,
the notebook automatically enters a power saving mode.
We recommend the following settings:
Function
Turn off monitor
Turn off hard disk(s)
Energy saving (S3)
Hibernate mode (S4)
On external power
After 10 minutes
After 15 minutes
After 20 minutes
After 1 hour
On battery power
After 5 minutes
After 10 minutes
After 15 minutes
After 30 minutes
► Select the power management functions in your Control Panel.
► Select the Screen Saver in your Control Panel.
or
► Right-click on the desktop. Switch on the screen saver by clicking Personalization –
Change screen saver.
If you need further information about an option, you can get help with most
settings by pressing F1 to open the Microsoft Help.
When the notebook is in power-saving mode, the following must be remembered:
During power saving mode, open files are held in the main memory
or in a swap file on the hard disk.
Never turn off your notebook while it is in a power saving mode. If the built-in battery is
nearly flat, close the open files and do not go into power saving mode.
If you do not intend to use your notebook for a long period of time:
► Exit power saving mode if necessary via the mouse or keyboard or by switching on the
notebook.
► Close all opened programs and completely shut down the notebook.
Fujitsu Technology Solutions
57
Working with the notebook
Memory cards
Slot
Your notebook is equipped with an integrated memory card reader.
Observe the manufacturer’s instructions when handling the memory cards.
Memory card
Supported format
It supports the following format:
•
Secure Digital (SDTM card)
Inserting the memory card
► Carefully slide the memory card into the
slot. The label should be facing upward. Do
not apply excessive force, as otherwise the
delicate contact surfaces could be damaged.
Depending on the particular type
used, the memory card may protrude
slightly from the slot.
Memory card
58
Fujitsu Technology Solutions
Working with the notebook
Removing the memory card
Memorycard
In order to protect your data, always follow the correct procedure
for removing the card outlined below.
You can stop the memory card via the corresponding icon in the task bar:
► Left-click on the icon.
► Select the card you want to stop and remove.
► Press the Enter key.
Wait for the dialogue box which tells you that it is now safe to remove the memory card.
► On devices with card locking: Press
on the storage card (1).
The storage card is released and
can now be removed.
► Pull the storage card out of the slot (2).
Memory card
1
2
Loudspeaker and microphone
Bass loudspeaker (subwoofer)
Loudspeakers
Microphone
Volumecontrol
Information on the exact position of the speaker and microphone can be
found in "Ports and controls", Page 9.
Please refer to chapter "Key combinations", Page 50 for information on setting the volume
and also enabling/disabling the loudspeakers using key combinations.
If you attach an external microphone, the built-in microphone is disabled.
When you connect headphones or external speakers, the built-in speaker is disabled.
Information on connecting headphones and a microphone can be found
in "Connecting external devices", Page 85.
Fujitsu Technology Solutions
59
Working with the notebook
SIM card
A SIM Card (Subscriber Identity Module) is a chip card which is inserted in a mobile telephone or
notebook to enable access to a mobile radio network in conjunction with an installed UMTS module.
Follow the instructions supplied by the provider of the SIM card.
The SIM card slot is located in the battery compartment and can only
be accessed when the battery is removed.
Inserting the SIM card
► Prepare for insertion of the SIM card, see chapter "Preparing to remove components", Page 91.
► If necessary, open the clip (a) of the SIM card.
► Slide the SIM card into the slot (1)
a
until it engages, as shown in the
battery compartment.
► Slide the SIM card lock (a) in the
direction of the arrow (2).
2
1
The UMTS module will be activated only if the SIM card lock is closed.
► Complete the insertion, see chapter "Finishing component removal", Page 95.
60
Fujitsu Technology Solutions
Working with the notebook
Removing a SIM card
► Prepare for removal of the SIM card, see chapter "Preparing to remove components", Page 91.
► Slide the SIM card lock (a) in the
a
direction of the arrow (1).
► Press on the edge of the SIM card so that
it jumps up slightly out of the slot.
► Pull the SIM card out of the slot in the
direction of the arrow (2).
1
2
► Complete the removal, see chapter "Finishing component removal", Page 95.
Fujitsu Technology Solutions
61
Working with the notebook
Wireless LAN / Bluetooth / UMTS
The installation of radio components not approved by Fujitsu Technology Solutions
will invalidate the certifications issued for this device.
Switching the wireless components on and off
Before switching on your device for the first time, the on/off switch for
radio components must be in the "ON" position.
► Slide the ON/OFF switch into the "ON"
position to activate the radio components.
or
► Slide the ON/OFF switch to the
"OFF" position to deactivate the
radio components.
Bluetooth
WirelessLAN
If you switch off the radio components, the wireless LAN transmission unit (antenna)
and, if present, the Bluetooth and UMTS module will also be switched off.
You can configure your wireless devices with the PlugFree Network application.
The PlugFree Network application is pre-installed on your system.
You can also deactivate the wireless components individually in the BIOS Setup.
For this to occur, you must either not have assigned a supervisor password or if a
supervisor password has been assigned, you must know this password.
Pay attention to the additional safety notes for devices with wireless
components provided in the "Safety" manual.
Details on using Wireless LAN can be found in the online help system
included in the Wireless LAN software.
You can find more information on how to use Bluetooth on the CD you
received with your Bluetooth software.
You can obtain more information on UMTS from your service provider.
62
Fujitsu Technology Solutions
Working with the notebook
Setting up WLAN access
•
Requirement: A WLAN must be available and you must have the
corresponding access information.
Information on configuring the WLAN access can be found in the
documentation for your operating system.
Access via UMTS
If you ordered an integrated UMTS module with your system, you can enjoy optimum
reception and maximum energy efficiency without awkward cables or antennas. The
optional UMTS module is ready for use straight away.
If you did not order a UMTS module, you can purchase the accessories for UMTS reception
from your retailer or your Fujitsu Technology Solutions dealer.
You will find information on establishing the connection with the UMTS network
in the documentation for the hardware used.
You can connect your device with the Internet via UMTS. To do this, use one
of the following types of connection:
•
•
a USB dongle (a USB stick with your mobile phone provider’s SIM card)
mobile end-device (e.g. mobile phone with Bluetooth or cable connection)
UMTS antenna
► To use the optimum reception, swing
out the UMTS antenna.
1
Fujitsu Technology Solutions
63
Working with the notebook
Ethernet and LAN
EthernetLAN
The internal network module of your notebook supports Ethernet LAN. You can use it to
establish a connection to a local network (LAN = Local Area Network).
► Connect the network cable to the LAN
port of the notebook (1).
► Connect the network cable to your
network connection (2).
1
2
Your network administrator can help you to configure and use the LAN connections.
The network cable is not included in the delivery scope. This type of
cable can be obtained from a specialist dealer.
64
Fujitsu Technology Solutions
Security functions
Security functions
Securityfunctions
Your notebook has several security features that you can use to secure your
system from unauthorised access.
This chapter explains how to use each function, and what the benefits are.
Please remember that in some cases, for example, forgetting your password,
you may be locked out and unable to access your data. Therefore,
please note the following information:
•
Make regular backups to external storage devices such as external
hard drives, CD or DVD disks.
• Some security functions need you to choose passwords. Make a note
of the passwords and keep them in a safe place.
If you forget your passwords you will need to contact the our Service
Desk. Deletion or resetting of passwords is not covered by your warranty
and a charge will be made for assistance.
Fujitsu Technology Solutions
65
Security functions
Brief overview of security functions
Detailed information about the security equipment of your device can be found
in the "Professional Notebook" manual, on the "Drivers & Utilities" CD/DVD
or on our website at "http://ts.fujitsu.com/support/".
Security functions
Kensington Lock
Fingerprint sensor
BIOS password protection
Boot from removable media
Owner Information
SmartCard reader
Trusted Platform Module
(optional)
66
Type of protection
Mechanical
Preparation
Fit and lock Kensington
MicroSaver (accessory).
Biometric
Install the supplied fingerprint
software.
Password protection for BIOS
Specify at least one supervisor
Setup, operating system and
password in the BIOS Setup
hard disk with supervisor and
and activate the password
user password. The passwords protection for the operating
consist of a maximum of eight system and hard disk as
alphanumeric characters.
desired.
Prevents unauthorised booting In the BIOS Setup, go to the
of an operating system from
Security menu and edit the
external media (e.g. USB stick, option Boot from Removable
USB CD-ROM drive etc.).
Media.
Overlay service desk or owner In the BIOS Setup, go to the
information during the boot
Security menu and edit the
process.
option Owner Information.
PIN and SmartCard protection Install software e.g. SmartCase
for operating system
Logon+ (accessories). Specify
a password when using the
SmartCase Logon+ software.
Identification and authentication Define a supervisor password
in the BIOS Setup and enable
of the notebook
the TPM (Security Chip).
Fujitsu Technology Solutions
Security functions
Configuring the fingerprint sensor
Fingerprintsensor
The fingerprint sensor can record an image of a fingerprint. With additional fingerprint
software, this image can be processed and used instead of a password.
► You must install the fingerprint software
in order to be able to use the
fingerprint sensor (1).
1
Use Kensington Lock
Your device comes with a Kensington Lock device for the Kensington MicroSaver. With
the Kensington MicroSaver, a sturdy steel cable, you can help protect your notebook from
theft. The Kensington MicroSaver is available as an accessory.
► Fit the Kensington MicroSaver on the
device on your notebook.
MicroSaver
Lock
Mechanicalbackup
Kensington
UsingaKensington
Anti-theftprotection
K
Fujitsu Technology Solutions
67
Security functions
Configuring password protection in BIOS Setup Utility
Before using the various options for password protection in the BIOS Setup utility
to increase data security, please observe the following:
Make a note of the passwords and keep them in a safe place. If you forget your
supervisor password you will not be able to access your notebook. Passwords are
not covered by your warranty and a charge will be made for assistance.
Password protection
Your password can be up to eight characters long and contain letters and numbers.
No distinction is made between uppercase and lowercase.
Protecting BIOS Setup Utility (supervisor and user password)
If you have opened these operating instructions on the screen, we recommend that
you print out the following instructions. Because you cannot call the instructions
onto the screen while you are setting up the password.
BIOS SetupUtility
You prevent unauthorised use of the BIOS Setup Utility with both the supervisor and the user
password. The supervisor password gives you access to all functions of the BIOS Setup
Utility, while the user password only provides some of the functions. You can only set a
user password if a supervisor password has already been assigned.
Please refer to the "Settings in BIOS Setup Utility", Page 96 section for a
description of how to call up and operate the BIOS Setup Utility.
Setting supervisor and user password
► Start the BIOS Setup Utility and go to the Security menu.
► Select the Set Supervisor Password field and press the Enter key.
With Enter new Password: you are asked to enter a password.
► Enter the password and press the Enter key.
Confirm new Password requires you to confirm the password.
► Enter the password again and press the Enter key.
Changes have been saved is a confirmation that the new password has been saved.
► To set the user password, select Set User Password and proceed exactly as
when configuring the supervisor password.
If you do not want to change any other settings, you can exit BIOS Setup Utility.
► In the Exit menu, select the option Save Changes & Exit.
► Select Yes and press the Enter key.
The notebook will be rebooted and the new password will come into effect. It will now be
necessary to first enter your supervisor or user password in order to open the BIOS Setup Utility.
Please note that the user password only provides access to a few of the BIOS settings.
Supervisor password
Password
Userpassword
68
Fujitsu Technology Solutions
Security functions
Changing the supervisor or user password
You can only change the supervisor password when you have logged into the
BIOS Setup Utility with the supervisor password.
User password
Supervisorpassword
Password
► Call the BIOS Setup Utility and go to the Security menu.
► When changing the password, proceed exactly as for password assignment.
Removing passwords
To remove a password (without setting a new password) perform the following steps:
User password
Supervisorpassword
Password
► Start the BIOS Setup Utility and go to the Security menu.
► Highlight the Set Supervisor Password or Set User Password field and press the Enter key.
You will be requested to enter the current password by the Enter Current Password prompt.
You will be requested to enter a new password by the Enter New Password prompt.
► Press the Enter key twice.
► In the Exit menu, select the option Save Changes & Exit.
► Select Yes and press the Enter key.
The notebook will now reboot with the password removed.
Removing the supervisor password simultaneously deactivates the user password.
Password protection for booting of the operating system
With the supervisor password you have set in the BIOS Setup Utility (see
section "Setting supervisor and user password", Page 68), you can also
prevent booting of the operating system.
Operating system
Activating system protection
►
►
►
►
Start the BIOS Setup Utility and go to the Security menu.
Select the Password on Boot option and press the Enter key.
Select the desired option (Disabled, First Boot or Every Boot) and press the Enter key
Select the Save Changes & Exit option under Exit.
The notebook will reboot. You will be prompted to enter your password (the supervisor password).
Operatingsystem
Deactivating system protection
► Start the BIOS Setup Utility and go to the Security menu.
► Select the Password on Boot option and press the Enter key.
► Select the Disabled option and press the Enter key.
If you do not want to change any other settings, you can exit BIOS Setup Utility.
► Select the Save Changes & Exit option under Exit.
The notebook will reboot. The system is no longer password-protected.
Operatingsystem
Fujitsu Technology Solutions
69
Security functions
SmartCard reader
Securityfunctions
Securityfunctions,
SmartCards are not supplied as standard equipment. You can use all SmartCards that comply with
the ISO standard 7816-1, -2 or -3. These SmartCards are available from various manufacturers.
With the appropriate software you can use your SmartCard as an alternative to password protection,
but also as a digital signature, for encrypting your e-mails or for home banking.
We recommend that you always use two SmartCards. Always keep one of the SmartCards
in a safe place if you are carrying the other SmartCard with you.
In order to be able to take advantage of all the security features of your notebook, you
will need a CardOS SmartCard from Fujitsu Technology Solutions.
The SmartCard can only be used with a PIN, offering maximum protection even if
you lose the SmartCard. In order to maximise your security, the CardOS SmartCard
is disabled if three incorrect attempts are made to enter the PIN.
When you use the CardOS SmartCard for the first time, you will either need to enter the
preset PIN "12345678" or the PIN given to you by your systems administrator.
Inserting the SmartCard
Do not use force when inserting and removing the SmartCard.
Make sure that foreign objects do not fall into the SmartCard reader.
► Slide the SmartCard into the SmartCard
reader with the chip facing upwards (on
some variants it faces down) and to the front.
70
Fujitsu Technology Solutions
Security functions
SmartCard SystemLock (optional)
With SystemLock enabled, the device can only be started using an initialised SmartCard (SICRYPT,
CardOS or Fujitsu) and a personal identification number (PIN). The SmartCard and PIN are
checked during system booting in the BIOS, i.e. before the operating system is started.
SmartCard SystemLock
SmartCard SystemLock
Install Single PC:
Install Group PC:
Not Installed
[Enter]
[Enter]
Item Specific Help
Installs the security
for this PC, and
creates a new
SystemLock Admin
SmartCard dedicated to
this PC.
SmartCard data will be
overwritten.
A correct SmartCard is
required for a
permanent installation
Switchingon the system
SmartCard
All new SmartCards have a preset PIN (Personal Identification Number)
and PUK (Personal Unblocking Key).
On SICRYPT and CardOS SmartCards, the value 12345678 is preset
for the PIN and the PUK.
On Fujitsu cards, the value 0000 is preset for the PIN and the value
administrator is preset for the PUK. For security reasons, we recommend
that you change both PIN and PUK without fail.
Additional software (e.g. Smarty) is required so that the system can also check that
the correct SmartCard is inserted while the system is running.
You will find information on how to uninstall SystemLock under "Uninstalling SystemLock".
A system which was protected using SystemLock can no longer be released.
Always create a backup copy of the SmartCard which was used.
Fujitsu Technology Solutions
71
Security functions
Access rights of SmartCards
SmartCard
A new SmartCard initially only has a preset PIN and PUK. Access rights and the customised
PIN and PUK are not assigned until the SmartCard is initialised. The SmartCard type
depends on the access rights assigned to the card, as described below:
•
•
•
•
User SmartCard: starting the system, changing the PIN
SuperUser SmartCard: starting the system, changes in BIOS Setup, changing the PIN
Service SmartCard: changes in BIOS-Setup,, cannot start the operating system
Admin SmartCard: starting the system, changes in BIOS Setup, changing the PIN,
uninstalling SystemLock, initialising SmartCards, blocking SmartCards
The following table shows an overview of the rights granted with each type of
SmartCard when a PIN or PUK is entered:
User
Start-up system
SmartCard
PIN
PUK
x
Run BIOS Setup
x
Change own PIN
Unblocking own
blocked SmartCard
Unblock all blocked
SmartCards
Generating user cards
SuperUser
Admin
Service
SmartCard
PIN
PUK
x
SmartCard
PIN
PUK
SmartCard
PIN
PUK
x
x
x
x
x
x
x
x*
x*
x*
x
x
x
x
x
Uninstall SystemLock
* BIOS Setup setting (Unblock own SmartCard)
Usually there is always one Admin SmartCard and at least one User or SuperUser
SmartCard that will allow a system to be operated.
72
Fujitsu Technology Solutions
Security functions
SmartCard user groups
SmartCard
User groups can be set up using SystemLock. This enables several systems to be started with one
SmartCard. A user group consists of at least two systems. Each user that is allowed to start the
systems is provided with one SmartCard. The user can start any of the systems using this SmartCard.
Basic information on setting up user groups
When installing SystemLock, the first PC in the user group is set up as a "Single PC". The
Admin SmartCard generated during this process is used to set up the user group. SystemLock
sets up each additional device as a "Group PC" during installation. The existing Admin
SmartCard is inserted, information is read in and the device is added to the user group.
The Admin SmartCard determines which user group the device belongs to.
If you use FSC-CardOS SmartCards, SystemLock can be administered via the Windows
program "SystemLock Admin". "SystemLock Admin" allows you to conveniently manage
SystemLock at the operating system level, create SystemLock Organisation Units and Groups,
generate SmartCards for these Organisation Units or Groups, assign access rights for user
cards at various levels and restore access rights using remote access. You can also change
the SmartCard’s PIN or PUK for yourself and other users and reactivate blocked cards.
For a detailed description, see the "SystemLock Admin" Help manual.
Select System mode: F1
1
PC 1
2
Smart Card
PC1
Admin Card
PC1
Select System mode: F3
PC2
3
Select System mode: F3
PC4
Admin Card
PC1
PC3
3
3
Admin Card
PC1
Admin Card
PC1
User SmartCards or SuperUser SmartCards must still be generated using SystemLock so that
users can access the systems within the user group. Using a User SmartCard or SuperUser
SmartCard a user can log on to each system within the user group.
Fujitsu Technology Solutions
73
Security functions
Installing SystemLock
InstallingSystemLock
During initial installation, the first SmartCard becomes the Admin SmartCard. Together with the
PUK, it has all access rights, and should therefore be kept in a safe place. It must only be
used by an authorised user (Administrator), for instance to initialise user cards.
You need an Admin SmartCard if you want to set up a user group. You use this
Admin SmartCard to add further systems to the user group.
Setting up the first system in a user group or a stand-alone
system for use with SystemLock
User groups
► Start the device and call up BIOS Setup.
► From the Security menu, choose the option SmartCard SystemLock.
The following SmartCard SystemLock menu will be displayed:
Security
SmartCard SystemLock
SmartCard SystemLock
Install Single PC
Install Group PC
Enter PIN:
Item Specific Help
Installs the security
from a SystemLock Admin
SmartCard into this PC
without modifying any
data on the SmartCard.
Not Installed
[Enter]
[Enter]
[
]
A correct SmartCard is
required for a
permanent installation.
► Insert a new SmartCard in the reader and press Enter.
74
Fujitsu Technology Solutions
Security functions
New SmartCards have a preset PUK (see above).
if you want to re-initialise a previously initialised SmartCard, you will need
to know the PUK which was assigned to it.
► Enter the PUK.
When the following appears:
• ACCESS DENIED = You have entered an invalid PUK. After six failed attempts,
the SmartCard will be blocked and can no longer be used.
► Enter a new PIN at the following prompt:
Enter new PIN:
Confirm new PIN:
A number with 4 to 8 digits is acceptable for the new PUK. For security
reasons, we recommend that you change the PUK for every SmartCard,
and use an 8-digit number each time.
► Re-enter the new PIN to confirm.
When the following appears:
• PIN/PUK do not match = You have confirmed the PIN incorrectly. You will be
requested to re-enter the new PIN and reconfirm.
Please wait a few seconds after confirming the new PIN: SystemLock is being installed.
The following message will be displayed if installation is successful:
Setup Notice
Changes have been saved
[Continue]
Fujitsu Technology Solutions
75
Security functions
► Now press the Enter key. The SystemLock administration menu will be displayed:
Security
SmartCard SystemLock
Item Specific Help
SmartCard SystemLock
Uninstall:
BIOS Recovery:
SmartCard and Pin
Installed
[Enter]
[Allowed]
[Always required]
SmartCard Initialization
Admin SmartCard
SuperUser SmartCard:
User SmartCard:
Service SmartCard:
[Enter]
[Enter]
[Enter]
[Enter]
SmartCard Configuration
Change PIN:
Change PUK:
Unblock SmartCard:
[Enter]
[Enter]
[Enter]
Allows to deactivate
The smartcard security.
ATTENTION:
Always check the BIOS
password settings after
uninstalling
SystemLock.
NOTICE:
Reinstalling a SinglePC
implies re-initializing
all of your smartcards
► For security reasons, the preset PUK should always be changed before removing
the new SmartCard. To do this, under SmartCard Configuration, select the option
Change PUK, press the Enter key and input the new PUK.
► First enter the preset PUK.
Enter the PUK:
New SmartCards have a preset PUK (see above).
You will need to know the PUK assigned to the SmartCard if you want to
re-initialise a previously initialised SmartCard.
► Enter the PUK.
When the following appears:
• ACCESS DENIED = You have entered an invalid PUK. After six failed attempts,
the SmartCard will be blocked and can no longer be used.
► Enter the new PUK as follows.
Enter new PUK:
Confirm new PUK:
A number with 4 to 8 digits is acceptable for the new PUK. For security
reasons, we recommend that you change the PUK for every SmartCard,
and use an 8-digit number each time.
► Re-enter the new PUK to confirm.
When the following appears:
• PIN/PUK do not match = You have confirmed the PUK incorrectly. You will then
be requested to re-enter and reconfirm the new PUK.
Instructions on how to initialise an additional SmartCard can be found in Section "".
F5,function key
F6,function
F7,function
F8,function
F9,function
F10,functionkey
76
Fujitsu Technology Solutions
Security functions
► If you do not want to initialise any further SmartCards, press Esc and remove the Admin
SmartCard. NEVER write the PIN or PUK on the SmartCard under any circumstances!
Keep the SmartCard and PIN/PUK in a safe place and protect
them from unauthorised access.
Adding a system to a user group
SystemLock2
► Start the device.
► Call up BIOS Setup and select the SmartCard SystemLock page from the Security menu.
The following SmartCard SystemLock menu will be displayed:
Security
SmartCard SystemLock
SmartCard SystemLock
Install Single PC
Install Group PC
Enter PIN:
Item Specific Help
Installs the security
from a SystemLock Admin
SmartCard into this PC
without modifying any
data on the SmartCard.
Not Installed
[Enter]
[Enter]
[
]
A correct SmartCard is
required for a
permanent installation.
► Insert the Admin SmartCard for the user group.
Enter PIN:
► Enter the PIN.
When the following appears:
• ACCESS DENIED = You have confirmed the PIN incorrectly. You are then requested to
enter and confirm the new PIN again. After three failed attempts, the SmartCard will
be blocked and can then only be activated again by entering the PUK.
Enter the PUK:
Fujitsu Technology Solutions
77
Security functions
► Enter the PUK.
When the following appears:
• ACCESS DENIED = You have entered an invalid PUK. After six failed attempts,
the SmartCard will be blocked and can no longer be used.
Please wait a few seconds after entering the PIN and PUK: SystemLock is being installed.
The following message will be displayed if installation is successful:
Setup Notice
Changes have been saved
[Continue]
Now press the Enter key. The SystemLock administration menu will be displayed:
Security
SmartCard SystemLock
Item Specific Help
SmartCard SystemLock
Uninstall:
BIOS Recovery:
SmartCard and Pin
Installed
[Enter]
[Allowed]
[Always required]
SmartCard Initialization
Admin SmartCard
SuperUser SmartCard:
User SmartCard:
Service SmartCard:
[Enter]
[Enter]
[Enter]
[Enter]
SmartCard Configuration
Change PIN:
Change PUK:
Unblock SmartCard:
[Enter]
[Enter]
[Enter]
Allows to deactivate
The smartcard security.
ATTENTION:
Always check the BIOS
password settings after
uninstalling
SystemLock.
NOTICE:
Reinstalling a SinglePC
implies re-initializing
all of your smartcards
F5,function key
F6,function
F8,function
F9,function
Generate a user card for the device as described in Section "Carrying out
administrator functions", Page 79.
► If you do not want to initialise any further SmartCards, press
remove the Admin SmartCard.
78
Esc
and
Fujitsu Technology Solutions
Security functions
Carrying out administrator functions
If you have an internal SmartCard reader, you can switch on the device by inserting the SmartCard.
If you switch on the device with the On/Off switch then the following message appears:
SystemLock
Insert a SmartCard.
Administrator functions
► Insert the Admin SmartCard. The following message will be displayed:
Enter your PIN:
You can now select:
F2=Setup, F3=Change PIN, F4=Administration
► Press the F4 function key. The following message will be displayed:
Enter the PUK:
► If you have entered the PUK correctly, you receive the following message:
PUK OK.
Initialize another SmartCard or press ESC to abort?
F5=User, F6=SuperUser, F7=Admin, F8=Service, F9=Unblock SmartCard, F10=Uninstall
F5 : Normal User SmartCard ("System" access rights):
Only allows system start-up, does not allow changes in BIOS Setup.
F6 : Extended User SmartCard ("System and Setup" access rights):
Allows system start-up and changes in BIOS Setup.
F7 : Admin SmartCard ("Admin" access rights):
Allows generation of further Admin SmartCards.
F8 : Service SmartCard ("Service" access rights):
Only allows changes in BIOS Setup.
F9 : Re-activate a blocked User SmartCard.
Enables a new user PIN entry.
F10 : Uninstalls SystemLock.
Additional SmartCards should be produced either as Normal User SmartCards
("System") or as Extended User SmartCards ("System and Setup"). These
then have restricted access to the device.
► Press the desired function key. The following message will be displayed:
Remove the SmartCard.
► Remove the Admin SmartCard.
Insert a SmartCard.
Keep the Admin SmartCard in a safe place and protect it from unauthorised access.
Fujitsu Technology Solutions
79
Security functions
► Insert the next SmartCard. It will be initialised as required.
The following message will be displayed:
Remove the SmartCard.
Always change the PIN and PUK for all further SmartCards. The PUK
is used to re-activate a blocked SmartCard.
► Remove the User SmartCard and label it, e.g. with the name of the user. But NEVER
write the PIN on the SmartCard under any circumstances!
80
Fujitsu Technology Solutions
Security functions
Remote Access Enabling –
F4
Requirement:
The device is centrally administered as part of an Organisation Unit and is registered in a SystemLock
Admin database. The SmartCard used for the group installation must have been initialised beforehand
using the SystemLock Admin.EXE Windows program (see "SmartCard user groups", Page 73).
In order to enable remote access to a device for a user, or to grant one-time remote access
to the device for a guest or service technician, proceed as follows:
► Start the device.
The prompt to insert a SmartCard will appear.
► Press the F4 key.
SmartCard SystemLock
Org Unit:
PC Group:
I-CODE 1:
I-CODE 2:
Company Department 1
Group 1
0123456789ABCDEF
0123456789ABCDEF
The following dialogue box will appear:
The user must then contact the administrator or the administration hotline and
inform them of the data and codes displayed .
The administrator then specifies the type of the once-only access rights:
User
access
Service
access
Admin
access
The user can boot the system once.
The user has one-time access to the BIOS for service purposes, without
access to the SystemLock functions.
The user has access to the BIOS and the SystemLock functions, e.g. for
activating the device when the associated SmartCard has been lost.
An activation code will be generated that depends on the access rights granted;
this will be given to the user by the Hotline.
The user must now press the Enter key on the PC to be activated, enter the first half
(code 1) of the activation code and confirm the entry by pressing Enter. The dialogue
box for entering the second half (code 2) of the activation code will appear. There is
no limit to the number of incorrect entries that can be made.
When all 32 characters of the activation code have been correctly entered, the
device will boot with the rights assigned by the administrator, in the same way
as if a corresponding SmartCard were inserted.
The activation code can only be used once to start the device; it immediately becomes
invalid when the device boots. If you wish to switch off the device and start it again
without your SmartCard, the procedure described above must be repeated each time.
Fujitsu Technology Solutions
81
Security functions
Switch on the device using SystemLock
If you have an internal SmartCard reader, you can switch on the device by inserting the SmartCard.
If you switch on the device with the On/Off switch then the following message appears:
Insert a SmartCard.
SystemLock
► Insert your SmartCard.
Enter PIN:
► Enter your PIN.
When the following appears:
ACCESS DENIED = You have entered an incorrect PIN. After three failed attempts, the
SmartCard will be blocked and can only be enabled again by entering the PUK.
Depending on the rights assigned to your SmartCard, you can select the following
functions when this message is displayed on the screen:
F2=Setup, F3=Change PIN
If your SmartCard has the appropriate rights, you can:
F2,function key
F3,function
F2 : start BIOS Setup.
F3 : change PIN.
If you do not select a function, the system will boot up.
Start BIOS Setup
F2
A SmartCard with the appropriate rights must be inserted (SuperUser, Service or Admin).
Changing PIN
It is possible to change the PIN for any initialised SmartCard.
► Press the function key
► Enter the old PIN.
► Enter the new PIN.
F3 .
A number with 4 to 8-digits is acceptable for the new PIN. For security
reasons, we recommend that you change the PIN for every SmartCard,
and use an 8-digit number each time.
► Confirm the new PIN.
Uninstall SystemLock
► Start the device.
► Follow the instructions given in section "Carrying out administrator functions",
Page 79. Select "Uninstall" to uninstall SystemLock. You can now use the
device again without the need for a SmartCard.
Uninstalling
82
Fujitsu Technology Solutions
Security functions
Error messages
Error messages
In this chapter you will find the error messages which are generated by the
mainboard and the SmartCard reader.
Error
Boot access denied
Check your
SmartCard
SmartCard reader
FAILURE
Non-authorised
SmartCard
SystemLock
installation
FAILED:
The SmartCard is
blocked.
Enter the PUK:
Cause
The SmartCard has no access rights to the system.
The SmartCard is either inserted incorrectly or it is not a suitable SystemLock
SmartCard.
An error has occurred on the serial port to the SmartCard reader. If this error
occurs frequently, the connection between the SmartCard reader and the
mainboard must be checked, or the SmartCard reader must be replaced.
While the error is present, access to the system is blocked.
The SmartCard cannot be used on this device. The SmartCard has been
configured for a different device.
An error occurred while installing SystemLock. Do not switch off the device,
insert the "BIOS Flash diskette" instead.
Perform a BIOS update and try the installation process again.
You have exceeded the maximum allowed number of incorrect PIN entries.
The SmartCard is blocked. Enter the administrator PUK to re-activate the
SmartCard. You must then enter a new User PIN to restart the system.
Trusted Platform Module - TPM (optional)
Trusted Platform Module
TPM
To use the TPM, you must activate the TPM in the BIOS Setup before the software
is installed. The condition for this is that you have assigned at least the supervisor
password (see "Security functions", Page 65).
Options for using the TPM
You can use the TPM in different ways:
Microsoft® BitLocker
BitLocker Drive Encryption (BDE) is a feature of Microsoft®
Windows 7 and Ultimate Editions for encryption of the hard disk
drive. Here, BitLocker uses the TPM for the storage of the recovery
data which are used for decryption of the partition.
It is also possible to use BitLocker without TPM and only to use
the USB dongle for storing the crypto key. This option is mainly of
interest if Windows 7 is installed on a computer on which TPM is
not installed or an older version (before Version 1.2) is installed.
For BitLocker to work, you must have set up at least two partitions
on your hard drive. The first partition contains the boot information.
The second, larger partition is encrypted and contains the operating
system as well as the user data.
Important: The partitions must be set up before Windows 7 is
installed.
Fujitsu Technology Solutions
83
Security functions
Enabling TPM
•
►
►
►
Requirement: You have assigned a supervisor password, see "Security functions", Page 65.
Call up the BIOS Setup and select the Security menu.
Mark the TPM Security Chip Setting field and press the Enter key.
Select Enabled to activate the TPM.
Once you have activated the TPM the Clear Security Chip option appears.
Select Clear Security Chip to delete the holder in the TPM. By clicking on Enabled,
all secret keys (e.g. SRK - Storage Root Keys, AIK - Attestation Identity Keys
etc.) generated by applications are deleted.
Please note that you will then no longer be able to access the data you have
encrypted with the keys based on that holder.
► Select the Exit Saving Changes option in the Exit menu.
► Press the Enter key and select Yes.
The notebook will restart, and TPM will be enabled after the reboot.
Disabling TPM
•
►
►
►
►
►
84
Requirement: You have assigned a supervisor password, see "Security functions", Page 65.
Call up the BIOS Setup and select the Security menu.
Mark the TPM Security Chip Setting field and press the Enter key.
Select Disabled to deactivate the TPM.
From the Exit menu, choose the option Exit Saving Changes.
Press the Enter key and select Yes.
Your notebook will now restart and TPM will be disabled.
Fujitsu Technology Solutions
Connecting external devices
Connecting external devices
Always refer to the safety information provided in "Important notes", Page 12 before
connecting or disconnecting any devices to or from your notebook.
Always read the documentation supplied with the device you wish to connect.
Never connect or disconnect cables during a thunderstorm.
Never pull at a cable when disconnecting it. Always grasp the plug.
Follow the steps below in order, when connecting or disconnecting
devices to your notebook:
With some devices such as USB devices, it is not necessary to switch off
the notebook and the device before connecting/disconnecting. For more
information about whether or not devices need to be switched off, please refer
to the documentation supplied with the external device.
Some of the external devices require special drivers (see the operating
system and external device documentation).
Connecting devices to the notebook
1.
2.
3.
4.
Turn off your notebook and all external devices.
Unplug your notebook and all devices from the mains sockets.
Connect the cables for your external devices following the instructions.
Plug all power cables into the mains sockets.
Peripheraldevices
Devices
Disconnecting devices from the notebook
1. Turn off your notebook and all external devices.
2. Unplug your notebook and all devices from the mains sockets.
3. Disconnect the cables for your external devices following the instructions.
Peripheraldevices
Devices
Fujitsu Technology Solutions
85
Connecting external devices
Connecting an external monitor
You can connect an external monitor to the analogue VGA monitor connection of the
notebook. Screen output is limited to a maximum of two screens at any one time (see
"Key combinations", Page 50, section "Toggle output screen").
VGAconnection socket
Monitor
Monitorport
Screenport
Analogue VGA monitor connection socket
► Switch off the notebook and the external monitor.
► Connect the data cable of the external monitor to the monitor port of the notebook.
► First switch on the external monitor and then the notebook.
You can also use a key combination to switch back and forth between the external
monitor and the notebook’s LCD screen, see chapter "Key combinations", Page 50.
You can display the same picture on the external monitor and the
notebook LCD screen simultaneously.
86
Fujitsu Technology Solutions
Connecting external devices
HDMI port
HDMIport
The HDMI port of your notebook can be used to connect an external amplifier,
LCD TV or a plasma TV with an HDMI connection.
► Connect the data cable to the
external device.
► Connect the data cable to the HDMI
port of the notebook.
Under Windows 7 the external device is connected automatically and
the sound settings are adjusted.
Fujitsu Technology Solutions
87
Connecting external devices
Connecting USB devices
USBports
On the USB ports, you can connect external devices that also have a USB port
(e.g. a DVD drive, a printer, a scanner or a modem).
USB devices are hot-pluggable. This means you can connect and disconnect
devices while your operating system is running.
USB 1.x has a maximum data transfer rate of 12 Mbit/s.
USB 2.x has a data transfer rate of up to 480 Mbit/s.
Additional information can be found in the documentation for the USB devices.
► Connect the data cable to the
external device.
► Connect the data cable to a USB
port of the notebook.
Device drivers
USB devices will be automatically recognised and installed by your operating system.
How to remove USB devices correctly
Always correctly remove the device according to the rules described below,
to ensure that none of your data is lost.
► Left click on the icon to safely remove hardware, located in the taskbar.
► Select the device which you want to shut down and remove.
► Press the Enter key.
Wait for the dialogue box which tells you that it is now safe to remove the device.
88
Fujitsu Technology Solutions
Connecting external devices
Connecting external audio devices
Microphone port / Line In
Microphone,connecting
Audioports
Audiodevices,connecting
The microphone port/Line In allows you to connect an external microphone, a MiniDisc
player, MP3 player, CD player or a tape deck to your notebook.
► Connect the audio cable to the
external device.
► Connect the audio cable to the microphone
port/Line In of the notebook.
Headphone port
Connectingaudio devices
Connectingheadphones
Audioports
You can connect headphones or external loudspeakers to your notebook via the headphone port.
► Connect the audio cable to the
external device.
► Connect the audio cable to the headphone
port of the notebook.
The internal loudspeakers are disabled.
If you purchase a cable from a retailer, please note the following information:
The headphone port on your notebook is a "3.5 mm jack socket".
If you want to connect headphones or a speaker you will need a "3.5 mm jack plug".
Fujitsu Technology Solutions
89
Removing and installing components during servicing
Removing and installing components
during servicing
Only qualified technicians should repair your notebook. Unauthorised
opening or incorrect repair may greatly endanger the user (electric shock,
fire risk) and will invalidate your warranty.
Servicing
Components
After consulting the Hotline/Service Desk, you may remove and install the
components described in this chapter yourself.
If you remove and install components without consulting the Hotline/Service
Desk, then the warranty of your notebook will be voided.
Notes on installing and removing boards
and components
•
•
•
•
Switch the notebook off and pull the power plug out of the mains socket.
Always remove the battery.
Take care when you use the locking mechanisms on the battery and any other component.
Never use sharp objects such as screwdrivers, scissors or knives as leverage to remove covers.
Boards with electrostatic sensitive devices (ESD) are marked with the label
shown.
ESD
Board
Notes
When handling boards fitted with ESDs, you must always observe the following
points:
•
•
•
•
•
90
You must always discharge static build up (e.g. by touching a grounded
object) before working.
The equipment and tools you use must be free of static charges.
Remove the power plug from the mains supply before inserting or removing
boards containing ESDs.
Always hold boards with ESDs by their edges.
Never touch pins or conductors on boards fitted with ESDs.
Fujitsu Technology Solutions
Removing and installing components during servicing
Preparing to remove components
If you are going to remove or change system components, prepare for the removal as follows:
Please observe the safety information in chapter "Important notes", Page 12.
Remove the power plug from the mains outlet !
► Switch the device off.
The device must not be in energy-saving mode !
► Close the LCD screen.
► Remove all the cables from the device.
► Turn the device over and place it on a stable, flat and clean surface. If necessary, lay an
anti-slip cloth on this surface to prevent the device from being scratched.
► Remove the battery (see "Removing the battery", Page 55).
Installing and removing memory expansion
Removing
Mainmemory
Memorymodule
System
expansion
memory
If you are asked by the Hotline/Service Desk to remove and install the memory
expansion yourself, proceed as follows:
Please observe the safety information in chapter "Important notes", Page 12.
When installing/removing memory modules, the battery must be removed from
the notebook and the notebook must not be connected to the power supply,
see "Preparing to remove components", Page 91.
Only use memory expansion modules that have been approved for your
notebook (see "Technical data", Page 106).
Never use force when installing or removing a memory extension.
Make sure that foreign objects do not fall into the memory extension compartment.
You must open the service compartment to remove or install a memory module. On some devices,
opening the compartment may expose other components. These components should be removed
and replaced only by authorised specialists. Therefore, be sure to observe the following:
Individual components can become very hot during operation. Therefore, we
recommend that you wait one hour after switching off the notebook before removing
or installing memory modules. Otherwise, there is a risk of suffering burns!
As some components are exposed that are sensitive to static electricity, please take
note of chapter "Notes on installing and removing boards and components", Page 90.
Fujitsu Technology Solutions
91
Removing and installing components during servicing
Removing a cover
1
2
► Remove the screw (1).
► Pull off the cover from the notebook in the direction of the arrow (2).
Removing memory modules
► Carefully push the two mounting
clips outwards (1).
The memory module snaps upwards (2).
► Pull the memory module out of its slot
in the direction of the arrow (3).
Memory module
expansion
3
2
1
1
92
Fujitsu Technology Solutions
Removing and installing components during servicing
Installing a memory module
► Insert the memory module with the contacts
and the recess (a) facing the slot (1).
► Carefully push the memory module
downwards until you feel it click
into place (2).
Memory module
expansion
1
2
a
Attaching the cover
2
1
►
►
►
►
►
Place the cover into position, following the direction of the arrow (1).
Fasten the cover with the screw (2).
Install the battery again (see "Removing and installing the battery", Page 55).
Turn the notebook the right way up again and place it on a flat surface.
Reconnect the cables that were previously disconnected.
Fujitsu Technology Solutions
93
Removing and installing components during servicing
Removing and installing the hard disk
Removing a hard disk
1
1
2
► Remove the screws (1).
Keep the screws in a safe place. If you are removing more than one component at
the same time, store the screws for the individual components separate from each
other. If you install the wrong screws, components may be damaged.
► Push the hard disk out of the notebook in the direction of the arrow (2).
94
Fujitsu Technology Solutions
Removing and installing components during servicing
Installing a hard disk
2
2
1
► Place the hard disk on its mounting location (1).
► Fasten the screws (2).
Finishing component removal
After you have removed or changed the system components as you required, please
prepare your device for operation again as follows:
► Install the battery again (see "Installing the battery", Page 56).
► Turn the notebook the right way up again and place it on a flat surface.
► Reconnect the cables that you disconnected before.
Fujitsu Technology Solutions
95
Settings in BIOS Setup Utility
Settings in BIOS Setup Utility
BIOS SetupUtility
System
Setup
Configuration,BIOSSetupUtility
Hardwareconfiguration
settings,BIOSSetupUtility
configuration
The BIOS Setup Utility allows you to set the system functions and the hardware
configuration for the notebook.
When it is delivered, the notebook is set to factory default settings. You can
change these settings in BIOS Setup Utility. Any changes you make take effect as
soon as you save and exit the BIOS Setup Utility.
The BIOS Setup Utility program contains the following menus:
About
System
Advanced
Security
Boot
Exit
Displays information relating to the BIOS, processor and notebook
Advanced system settings
Configuration of various hardware components, such as mouse, keyboard,
processor
Password settings and security functions
Configuration of the start-up sequence
Exits the BIOS Setup Utility
Starting the BIOS Setup Utility
► Reboot the notebook (switch off/on or reboot the operating system).
The following or a similar display appears on the screen at start-up:
<F2> BIOS Setup <F12> Boot Menu
BIOSSetupUtility
► Press the function key F2 .
► If a password has been assigned, enter the password and press the Enter key.
If you have forgotten the password, contact your system administrator
or contact our customer service centre.
The BIOS Setup Utility starts.
Operating BIOS Setup Utility
BIOS SetupUtility
Press the F1 key to display help on the operation of BIOS Setup Utility. The description
of the individual settings is shown in the right-hand window of the BIOS Setup Utility.
With the F9 key you can load the default settings of the BIOS Setup Utility.
► Use the cursor keys ← or → to select the menu you wish to access to make changes.
The menu is displayed on the screen.
► Select the option you want to change with the cursor keys ↑ or ↓ .
► Press the Enter key.
► Press the ESC key to exit the selected menu.
► For future reference, make a note of the changes you have made (for example, in this manual).
96
Fujitsu Technology Solutions
Settings in BIOS Setup Utility
Exiting BIOS Setup Utility
BIOS SetupUtility
You need to select the desired option in the Exit menu and activate it by pressing the Enter key:
Exit Saving Changes - save changes and exit BIOS Setup Utility
► To save the current menu settings and exit the BIOS Setup Utility, select Exit Saving Changes and Yes.
The notebook is rebooted and the new settings come into effect.
Exit Discarding Changes – Discard changes and
exit BIOS Setup Utility
► To discard the changes, select Exit Discarding Changes and Yes.
The settings in place when BIOS Setup Utility was called remain effective. BIOS
Setup Utility is terminated and the notebook is rebooted.
Load Setup Defaults – Copy Standard Entries
► To copy the standard entries for all menus of the BIOS Setup Utility,
choose Load Setup Defaults and Yes.
Discard Changes – Discard changes without exiting
the BIOS Setup Utility
► To discard the changes you have made, select Discard Changes and Yes.
The settings in place when BIOS Setup Utility was called remain effective.
You can now make additional settings in the BIOS Setup Utility.
► If you want to exitBIOS Setup Utilitywith these settings, select Exit Saving Changes and Yes.
Save Changes - save changes without exiting
the BIOS Setup Utility
► To save the changes, select Save Changes and Yes.
The changes are saved. You can now make additional settings in the BIOS Setup Utility.
► If you want to exit BIOS Setup Utility with these settings, choose Exit Saving Changes and Yes.
Save Changes and Power Off
► To save the changes and switch off your device, select Save Changes and Power Off and Yes.
The changes are saved. Your device is shut down.
Fujitsu Technology Solutions
97
Troubleshooting and tips
Troubleshooting and tips
Fault
Tips
Troubleshooting
Refer to the safety information in the "Safety" manual when
connecting or disconnecting cables.
If a fault occurs, try to correct it as described. If you fail to correct the problem, proceed as follows:
► Make a note of the steps and the circumstances that led to the fault. Also
make a note of any error messages displayed.
► Switch the notebook off.
► Please contact the Hotline/Service Desk.
You can find the telephone numbers in the service desk list. Please have
the following information ready when you call:
•
•
•
•
•
•
The model name and serial number of the notebook. The serial number is
located on a sticker on the underside of the notebook.
Notes of any messages that appear on the screen and information on acoustic signals.
Any changes you have made to the hardware or software since
receiving the notebook.
Any changes you have made to the BIOS Setup settings since receiving the notebook.
Your system configuration and all peripheral devices connected to your system.
Your sales contract.
Our notebooks have been designed primarily with mobile applications in mind. This
means that considerable effort has been made to optimise components and equipment
in terms of weight, space and energy requirements. Depending on the particular
configuration you have purchased, it is possible that functionality may be slightly reduced
compared to a desktop PC if you are running processor-intensive gaming software, e.g.
games with intensive 3D graphics. Updating your hardware with drivers which have not
been approved by Fujitsu Technology Solutions may result in performance losses, data
losses or malfunction of the equipment. A list of approved drivers and current BIOS
versions can be downloaded from: "http://ts.fujitsu.com/support/downloads.html"
98
Fujitsu Technology Solutions
Troubleshooting and tips
Help if problems occur
Should you at any time have a problem with your computer that you can’t solve
yourself, in many cases you can quickly solve it by using the SystemDiagnostics
program which is pre-installed on your computer.
The SystemDiagnostics program is already installed on devices which were
delivered with a Windows operating system.
► To start the SystemDiagnostics program, click on Startsymbol - Program - Fujitsu - SystemDiagnostics.
► If a problem is found during a test run, the SystemDiagnostics program outputs
a code (e.g. DIFS-Code YXXX123456789123).
► Make a note of the output DIFS code and the identity number of your device. The identity
number can be found on the type rating plate on the back of the casing.
► For further clarification of the problem, contact the Service Desk for your country (see the Service
Desk list or visit the Internet at "http://ts.fujitsu.com/support/servicedesk.html"). When you do
this, please have ready the identity number and serial number of your system and the DIFS code.
Restoring the hard disk contents under Windows
Operatingsystem,restoring
Harddisk:
You can use the "Windows Recovery CD" (optionally available) and the "Drivers & Utilities
CD/DVD" to reinstall the operating system.
The instructions are provided on the case of the Recovery CD.
During the reinstall process your personal files and any installed programs
will be deleted. We advise you to backup your files to an external hard
drive, or CD / DVD disk before you start.
► Switch the notebook on.
The following display briefly appears on the screen during start-up:
<ESC>Diagnostic screen <F12>Boot Menu <F2>BIOS Setup
►
►
►
►
When this message appears, press the function key F12 .
Insert the "Windows Recovery CD" into the optical drive.
Select CD-ROM and press the Enter key.
Follow the instructions on the screen.
After the installation you must install all the drivers again. Some installed hardware
components will not be correctly supported until this has been done.
►
►
►
►
►
Insert the "Drivers & Utilities" CD/DVD into the optical drive. The CD starts automatically.
Click on the Desk Update button.
Select Automatic driver installation (Express) and click on Start installation.
Follow the instructions on the screen.
Restart your notebook when the driver installation is completed.
Fujitsu Technology Solutions
99
Troubleshooting and tips
The notebook’s date or time is incorrect
Summer
Buffer
Dateisincorrect
Incorrectdate/time
Timenotcorrect
Time,daylightsavings
battery,load
time
Cause
Time and date are incorrect.
Troubleshooting
► With the BIOS-Setup-Utility, you can set the
date and time in the main menu.
If the date and time are repeatedly incorrect when you switch on the notebook,
the built-in battery that supplies the internal clock has failed.
► Please contact your sales outlet or our Hotline/Service Desk.
Battery indicator does not illuminate
Cause
The battery is not installed correctly.
The battery is fully discharged.
Fault elimination
► Switch the notebook off.
► Check whether the battery is installed
correctly in its compartment.
► Switch the notebook on.
► Charge the battery.
or
► Install a charged battery.
or
► Connect the notebook to a mains outlet
using the mains adapter.
When certain characters are entered on the
keyboard, only numerals are written
Abeepsounds everysecond
Cause
Troubleshooting
► Press the Num key.
The virtual numeric keypad of your device is
activated, see "Virtual numeric keypad", Page 49
The notebook’s LCD screen remains blank
LCDscreenistoodark
LCDscreen
Cause
Monitor is switched off.
External monitor or television set connected.
100
Troubleshooting
► Press a key or touch the touchpad.
► Press the key combination to switch the
screen output, see "Key combinations",
Page 50.
Fujitsu Technology Solutions
Troubleshooting and tips
The LCD screen is difficult to read
LCDscreen
Cause
Reflected glare
Troubleshooting
► Turn the notebook or alter the tilt of the LCD
screen.
► Increase the brightness of the screen.
The external monitor remains blank
Monitor
Cause
Monitor is switched off.
Power saving has been activated (monitor is
blank).
Brightness is set to dark.
Screen output is set to the notebook’s LCD
screen
The external monitor’s power cable or data
cable is not connected properly.
Troubleshooting
► Switch the external monitor on.
► Press any key to continue.
► Adjust the brightness of the monitor.
► Press the key combination to switch the
screen output, see "Key combinations",
Page 50.
► Switch off the external monitor and the
notebook.
► Check whether the power cable is plugged
properly into the external monitor and into
the power socket.
► Check whether the data cable is properly
connected to the notebook and the external
monitor (if it is plugged in with a connector).
► Switch on the external monitor and the
notebook.
The external monitor is blank or the image is unstable
Monitor
Screen
Cause
The wrong external monitor has been selected
or the wrong screen resolution has been set for
the application program.
Fujitsu Technology Solutions
Troubleshooting
► Terminate the application program in
Windows by pressing Alt + F4 . If the
fault persists after closing the program, use
the key combination for switching the screen
output (see "Key combinations", Page 50) to
switch over to the notebook’s LCD screen.
Change the following setting:
► Set the screen resolution: Set the screen
resolution as described in the documentation
for your operating system.
► Select monitor: Select monitor 1 or 2 as
described in the documentation for your
operating system.
101
Troubleshooting and tips
The cursor does not correctly follow the
pen movements
Cause
Pen incorrectly calibrated
Fault elimination
Windows XP
► Calibrate the pen as shown under Tablet
and Pen Settings in the Control Panel, see
"Setting the pen", Page 42 and "Calibrating
the pen", Page 42.
Windows 7
► Calibrate the pen as shown under Hardware
and Sound / Tablet PC Settings in the Control
Panel, see "Setting the pen", Page 42 and
"Calibrating the pen", Page 42.
The notebook cannot be started
Notebook
Cause
The battery is not installed correctly.
The battery is dead.
Troubleshooting
► Check whether the battery is installed
correctly in its compartment.
► Switch the notebook on.
► Charge the battery.
or
► Insert a charged battery.
or
The power adapter is not connected correctly.
102
► Connect the mains adapter to the
notebook.
► Check whether the mains adapter is
connected correctly to the notebook.
► Switch the notebook on.
Fujitsu Technology Solutions
Troubleshooting and tips
The notebook stops working
Energysaving mode
Notebook
Cause
Notebook is in energy saving mode.
An application programme has caused the
malfunction.
The battery is dead.
Troubleshooting
► Leave energy saving mode.
► Close the application program or restart
the notebook (by restarting the operating
system or switching the device off and back
on again).
► Charge the battery.
or
► Insert a charged battery.
or
► Connect the mains adapter to the
notebook.
The printer does not print
Printer doesnotprint
Cause
The printer is not switched on.
The printer is not connected correctly.
The printer driver is faulty or not correctly
installed, or it is the wrong printer driver.
Troubleshooting
► Make sure that the printer is switched
on and ready for operation (refer to the
documentation supplied with the printer).
► Check that the data cable connecting
the notebook to the printer is properly
connected.
► Check that the data cable connecting
the notebook to the printer is properly
connected.
► Check whether the correct printer driver is
loaded (refer to the printer documentation).
The radio connection to a network does not work
Theradioconnectiontoanetwork does notwork
Cause
The wireless component is disabled.
The wireless component is enabled. Despite
this, the wireless connection to a network does
not work.
Fujitsu Technology Solutions
Troubleshooting
► Switch the radio component on (see
"Switching the wireless components on and
off", Page 62).
► Check whether the radio connection is
switched on via the software.
► Further information on using the radio
component can be found in the help files.
103
Troubleshooting and tips
The battery discharges too quickly
Battery:
Cause
The battery is either too hot or too cold. In this
case the battery indicator flashes.
Troubleshooting
► Bring the notebook up/down to a normal
temperature again.
► If the operating time of the battery life is
extremely short, the battery is probably too
old. Replace battery if necessary.
You may have an application running that
► Use the mains adapter as frequently as
consumes a great deal of power due to frequent
possible.
accessing of the hard disk or optical drive.
The maximum brightness may have been set
► Set the screen slightly darker with the
for the screen.
key combination for Decreasing the screen
brightness in order to reduce the amount of
power being drawn.
Acoustic warnings
Acoustic error messages
Errors
Cause
A beep sounds every few seconds.
Troubleshooting
► Charge the battery.
The battery is almost flat.
Error messages on the screen
Error message:
messages onthescreen
This section describes the error messages generated by the BIOS Setup. Error messages displayed
by the operating system or programmes are described in the relevant documentation.
If the error message appears repeatedly, despite troubleshooting measures, please
contact the place of purchase or our customer service centre.
Error message/cause
CMOS battery bad
If the error message occurs repeatedly, the
buffer battery in the notebook is flat.
System CMOS checksum bad - default configuration
used
The system configuration information is
incorrect.
104
Resolution
► Contact your sales outlet or our customer
service centre.
► Switch the notebook off.
► Switch the notebook on.
► Press the function key F2 to access the
BIOS Setup.
► In the BIOS Setup, select the Exit menu.
► Select the entry Load Setup Defaults.
► Select OK and press the Enter key.
Fujitsu Technology Solutions
Troubleshooting and tips
Error message/cause
Resolution
Extended memory failed at offset: xxxx Failing Bits: ► Check whether the additional memory
zzzz zzzz
module has been inserted correctly.
When testing the extended memory an error has
resulted at the address xxxx.
Failure Fixed Disk n
► Start the BIOS Setup (Primary Master
submenu) and select the correct settings.
The settings of the hard disk drive are incorrect.
Keyboard controller error
► Switch the notebook off with the ON/OFF
switch.
► Wait 3 - 5 seconds and switch on the
notebook again.
Keyboard error
If you are using an external keyboard:
nn Stuck key
Operating system not found
Press <F1> to resume, <F2> to SETUP
► Check the connection and reboot the
notebook.
► Make sure that no key is pressed.
► Check in the BIOS Setup whether your hard
disk has been set correctly.
► Make sure that the operating system is
installed on the corresponding drive.
► Press the F1 function key to start the
operating system.
► Press the function key F2 to access the
BIOS Setup.
This error message appears if an error occurs
during the self-test before starting the operating
system.
Previous boot incomplete - Default configuration
► Press the F1 function key when prompted
used Due to an error during the previous system
to do so.
boot, default values were used for certain
settings. Check the settings in the BIOS Setup.
Real time clock error
► Contact your sales outlet or our customer
service centre.
nnnnK Shadow RAM failed at offset: xxxx Failing
► Contact your sales outlet or our customer
Bits: zzzz
service centre.
System battery is dead - Replace and run SETUP
► Contact your sales outlet or our customer
service centre.
System cache error - Cache disabled
► Contact your sales outlet or our customer
service centre.
System timer error
► Contact your sales outlet or our customer
service centre.
Fujitsu Technology Solutions
105
Technical data
Technical data
Notebook
General
Processor
Main memory (SO DIMM)
Intel Core i3 Prozessor 380UM (1.33 GHz),
3 MB
Intel Core i5 Prozessor 560UM (1.33 GHz),
3 MB
Maximum 8 GB DDR3
2 slots for 2 GByte or 4 GByte modules
Electrical data
Safety regulations complied with
Protection class
Maximum power consumption (when the
notebook is switched on and the battery is
charged):
LCD screen
CE
II
60 W
Size
Resolution
Monitor technology
Pixel class
Brightness control
Digitizer and glass screen
10.1 inch/25.7 cm TFT
1366 x 768/32 Bit, HD
TFT display with LED backlight
II
12 levels
Dual digitizer with touchscreen and
anti-fingerprint coating
Graphics card
Chip
Recommended screen resolution of the external
CRT monitor (53.34 cm):
Recommended screen resolution of the
simultaneous monitor:
Dimensions
Width x depth x height
Weight depending on configuration
Input devices
Keyboard
Touchpad
Tablet buttons
Pen
Slots
106
UMA (CPU integrated)
maximum 1920 x 1200 / 16.7 million colours at
85 Hz
maximum 1280 x 800 / 16.7 million colours at
85 Hz
270 mm x 189 mm x 37.4 mm (without rubber
feet)
270 mm x 189 mm x 39.7 mm (with rubber feet)
from 1.35 kg
82 keys
2 keys
3 keys
1 active pen with push button
Fujitsu Technology Solutions
Technical data
1x
SmartCard slot
Memory card slot
1 x SD card
1x
SIM card slot (optional)
Ports
Monitor port (analogue)
HDMI port
LAN port
15-pin female connector
1 x 19 pins
Socket, RJ45
3.5 mm stereo mini jack
3.5 mm stereo mini jack
Microphone port/Line In
Headphones port/Line Out
USB (Universal Serial Bus)
Kensington Lock
Ambient conditions
Environment class DIN IEC 721
Mechanism class DIN IEC 721
Operating temperature
Transport temperature (2K2)
2 x USB 2.0
1x
7K1
7M2
5 °C .... 35 ℃
–15 °C .... 60 ℃
Rechargeable battery
You can find information on the batteries used in your device on the
Internet at "http://ts.fujitsu.com/support".
Rated voltage
Rated capacity
Nominal power
3-cell rechargeable battery
10.8 V
31.3 Wh
2,900 mAh
6-cell rechargeable battery
10.8 V
62.6 Wh
5.800 mAh
The operating time depends on the device configuration, the active
applications and the energy saving settings.
Fujitsu Technology Solutions
107
Technical data
Mains adapter
Primary
Rated voltage
Rated frequency
Max. rated current
Secondary
Nominal power
Rated voltage
Max. rated current
100 V to 240 V (automatic)
50 Hz to 60 Hz (automatic)
0.7 – 1.2 A
60 W
19 V
3.16 A
An additional mains adapter or power cable can be ordered at any time.
108
Fujitsu Technology Solutions
Manufacturer’s notes
Manufacturer’s notes
Energy Star
Devices which are certified according to the Energy Star environmental mark, fully
comply with the standards on delivery. Note that the installation of hardware or software
after delivery as well as changes to the BIOS settings or energy settings can increase
the energy consumption of your device. In these cases, the characteristics ensured
by the Energy Star environmental mark can no longer be guaranteed.
Devices which are certified according to the Energy Star environmental
mark help to save money and reduce the emission of greenhouse gases.
Power Management settings on delivery:
•
•
Monitor switched off after < 15 minutes of inactivity
Automatic activation of energy saving mode (ACPI S3): < 30 minutes
of inactivity
Detailed information about the requirements of the "Energy Star"
environmental mark and the products which satisfy these requirements
can be found on the Internet at "https://www.energystar.gov/".
Disposal and recycling
Notes
Information about this subject can be found on your notebook or on our Internet pages.
Declarations of Conformity
Declarationofconformity
The "Declarations of Conformity" for the device can be found at our Internet
address under: "http://ts.fujitsu.com/ce".
Fujitsu Technology Solutions hereby declares that your device is in compliance with the
essential requirements and other relevant provisions of Directive 1999/5/EC.
Fujitsu Technology Solutions
109
Manufacturer’s notes
CE marking
CEmarking
CE marking for devices with radio component
This equipment complies with the requirements of Directive 1999/5/EC of the
European Parliament and Commission from 9 March, 1999 governing Radio
and Telecommunications Equipment and mutual recognition of conformity.
This equipment can be used in the
Belgium
Bulgaria
Estonia
Finland
UK
Ireland
Latvia
Liechtenstein
Malta
The
Netherlands
Poland
Portugal
Switzerland
Slovakia
Hungary
Czech Republic
following countries:
Denmark
France
Iceland
Lithuania
Norway
Germany
Greece
Italy
Luxembourg
Austria
Rumania
Sweden
Slovenia
Spain
Cyprus
Contact the corresponding government office in the respective country for
current information on possible operating restrictions. If your country is
not included in the list, then please contact the corresponding supervisory
authority as to whether the use of this product is permitted in your country.
Regulatory notices
If there is no FCC logo and also no FCC ID on the device then this device is
not approved by the Federal Communications Commission (FCC) of the USA.
Although it is not explicitly forbidden to travel in the US trading area carrying this
device, to avoid trouble at customs clearance, Fujitsu Technology Solutions GmbH
recommends not to bring this device into the US trading area.
Regulatory information for notebooks without radio device
Regulatoryinformation
NOTICE:
Changes or modifications not expressly approved by Fujitsu Technology Solutions
could void this user’s authority to operate the equipment.
Notice to Users of Radios and Television
These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the following measures:
•
•
110
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Fujitsu Technology Solutions
Manufacturer’s notes
• Connect the equipment into an outlet that is on a different circuit than the receiver.
• Consult the dealer or an experienced radio/TV technician for help.
Notice to Users of the US Telephone Network
Your notebook may be supplied with an internal modem which complies with Part 68 of the
FCC rules. On this notebook is a label that contains the FCC Registration Number and the
Ringer Equivalence Number (REN) for this equipment among other information. If requested,
the user must provide their telephone company with the following information:
1. The telephone number to which the notebook is connected.
2. The Ringer Equivalence Number (REN) for this equipment.
3. The equipment requires a standard modular jack type USOC RJ-11C
which is FCC Part 68 compliant.
4. The FCC Registration Number.
This equipment is designed to be connected to the telephone network or premises wiring using
a standard modular jack type USOC RJ-11C which is FCC Part 68 compliant and a line cord
between the modem and the telephone network with a minimum of 26AWG.
The REN is used to determine the number of devices that you may connect to your telephone
line and still have all of those devices ring when your number is called. Too many devices
on one line may result in failure to ring in response to an incoming call. In most, but not all,
areas the sum of the RENs of all of the devices should not exceed five (5). To be certain
of the number of devices you may connect to your line, as determined by the RENs, contact
your local telephone company. If this equipment causes harm to the telephone network, your
telephone company may discontinue your service temporarily. If possible, they will notify you
in advance. If advance notice is not practical they will notify you as soon as possible. You
will also be advised of your right to file a complaint with the FCC.
This fax modem also complies with fax branding requirements per FCC Part 68.
Your telephone company will probably ask you to disconnect this equipment from the telephone
network until the problem is corrected and you are sure that the equipment is not malfunctioning.
This equipment may not be used on coin-operated telephones provided by your telephone
company. Connection to party lines is subject to state tariffs. Contact your state’s public utility
commission, public service commission or corporation commission for more information.
This equipment includes automatic dialing capability. When programming and/or
making test calls to emergency numbers:
• Remain on the line and briefly explain to the dispatcher the reason for the call.
• Perform such activities in off-peak hours, such as early morning or late evening.
FCC rules prohibit the use of non-hearing aid compatible telephones in the
following locations or applications:
•
•
•
•
•
•
All public or semi-public coin-operated or credit card telephones.
Elevators, highways, tunnels (automobile, subway, railroad or pedestrian) where a
person with impaired hearing might be isolated in an emergency.
Places where telephones are specifically installed to alert emergency authorities
such as fire, police or medical assistance personnel.
Hospital rooms, residential health care facilities, convalescent homes and prisons.
Hotel, motel or apartment lobbies.
Stores where telephones are used by patrons to order merchandise.
Fujitsu Technology Solutions
111
Manufacturer’s notes
•
•
Public transportation terminals where telephones are used to call taxis or
to reserve lodging or rental cars.
In hotel and motel rooms as at least ten percent of the rooms must contain hearing
aid-compatible telephones or jacks for plug-in hearing aid compatible telephones which
will be provided to hearing impaired customers on request.
DOC (Industry CANADA) notices
DOC(INDUSTRYCANADA)NOTICES
Notice to Users of Radios and Television
This Class B digital apparatus meets all requirements of Canadian Interference-Causing Equipment
Regulations.
CET appareil numérique de la class B respecte toutes les exigence du Réglement
sur le matérial brouilleur du Canada.
Notice to Users of the Canadian Telephone Network
NOTICE:
This equipment meets the applicable Industry Canada Terminal Equipment Technical
Specifications. This is confirmed by the registration number. The abbreviation, IC, before
the registration number signifies that registration was performed based on a Declaration of
Conformity indicating that Industry Canada technical specifications were met. It does not
imply that Industry Canada approved the equipment. Before connecting this equipment to
a telephone line the user should ensure that it is permissible to connect this equipment to
the local telecommunication facilities. The user should be aware that compliance with the
certification standards does not prevent service degradation in some situations.
Repairs to telecommunication equipment should be made by a Canadian authorised
maintenance facility. Any repairs or alterations not expressly approved by Fujitsu or
any equipment failures may give the telecommunication company cause to request the
user to disconnect the equipment from the telephone line.
NOTICE:
The Ringer Equivalence Number (REN) for this terminal equipment is 0.0. The REN assigned
to each terminal equipment provides an indication of the maximum number of terminals
allowed to be connected to a telephone interface. The termination on an interface may
consist of any combination of devices subject only to the requirement that the sum of the
Ringer Equivalence Numbers of all the devices does not exceed five.
CAUTION:
For safety, users should ensure that the electrical ground of the power utility, the
telephone lines and the metallic water pipes are connected together. Users should NOT
attempt to make such connections themselves but should contact the appropriate electric
inspection authority or electrician. This may be particularly important in rural areas.
Avis Aux Utilisateurs Du Réseau Téléphonique Canadien
AVIS : Le présent matériel est conforme aux spécifications techniques d’Industrie Canada
applicables au matériel terminal. Cette conformité est confirmée par le numéro d’enregistrement.
Le sigle IC, placé devant le numéro d’enregistrement, signifie que l’enregistrement s’est effectué
conformément à une déclaration de conformité et indique que les spécifications techniques
d’Industrie Canada ont été respectées. Il n’implique pas qu’Industrie Canada a approuvé le matériel.
112
Fujitsu Technology Solutions
Manufacturer’s notes
Avant de connecter cet équipement à une ligne téléphonique, l’utilisateur doit vérifier
s’il est permis de connecter cet équipement aux installations de télécommunications
locales. L’utilisateur est averti que même la conformité aux normes de certification ne
peut dans certains cas empêcher la dégradation du service.
Les réparations de l’équipement de télécommunications doivent être effectuées par un service de
maintenance agréé au Canada. Toute réparation ou modification, qui n’est pas expressément
approuvée par Fujitsu, ou toute défaillance de l’équipement peut entraîner la compagnie de
télécommunications à exiger que l’utilisateur déconnecte l’équipement de la ligne téléphonique.
AVIS : L’indice d’équivalence de la sonnerie (IES) du présent matériel est de 0.0. L’IES
assigné à chaque dispositif terminal indique le nombre maximal de terminaux qui peuvent
être raccordés à une interface téléphonique. La terminaison d’une interface peut consister
en une combinaison quelconque de dispositifs, à la seule condition que la somme d’indices
d’équivalence de la sonnerie de tous les dispositifs n’excède pas 5.
AVERTISSEMENT:
Pour assurer la sécurité, les utilisateurs doivent vérifier que la prise de terre du service
d’électricité, les lignes télphoniques et les conduites d’eau métalliques sont connectées
ensemble. Les utilisateurs NE doivent PAS tenter d’établir ces connexions eux-mêmes,
mais doivent contacter les services d’inspection d’installations électriques appropriés
ou un électricien. Ceci peut être particulièrement important en régions rurales.
UL Notice
This unit requires an AC adapter to operate. Only use a UL Listed Class 2 adapter.
The correct output rating is indicated on the AC adapter label. Refer to the illustration
below for the correct AC Adapter output polarity:
CAUTION:
To reduce the risk of fire, use only 26AWG or larger telecommunications line cord.
For Authorized Repair Technicians Only
CAUTION:
For continued protection against risk of fire, replace only with the
same type and rating fuse.
WARNING:
Danger of explosion if Lithium (CMOS) battery is incorrectly replaced. Replace only
with the same or equivalent type recommended by the manufacturer.
Dispose of used batteries according to the manufacturer’s instructions.
Fujitsu Technology Solutions
113
Manufacturer’s notes
FCC regulatory information for notebooks with radio device
Regulatoryinformation
Federal Communications Commission statement
This device complies with Part 15 of FCC Rules. Operation is subject to the following
two conditions: (1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may
cause undesired operation of this device.
FCC Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses, and can radiate radio frequency energy. If not installed and used in accordance with
the instructions, it may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
1. Reorient or relocate the receiving antenna.
2. Increase the distance between the equipment and the receiver.
3. Connect the equipment to an outlet on a circuit different from the one the receiver is connected to.
4. Consult the dealer or an experienced radio/TV technician for help.
Please note the following regulatory information related to the optional radio device.
FCC Radio Frequency Exposure statement
This radio device has been evaluated under FCC Bulletin OET 65C and found compliant with the
requirements as set forth in CFR 47 Sections 2.1091, 2.1093, and 15.247 (b) (4) addressing RF
Exposure from radio frequency devices. The radiated output power of this radio device is far below
the FCC radio frequency exposure limits. Nevertheless, this device shall be used in such a manner
that the potential for human contact during normal operation is minimized. When using this device, a
certain separation distance between antenna and nearby persons must be maintained to ensure RF
exposure compliance. In order to comply with RF exposure limits established in the ANSI C95.1
standards, the distance between the antennas and the user should not be less than 20 cm (8 inches).
Regulatory Notes and Statements
Radio device, health and authorisation for use
Radio-frequency electromagnetic energy is emitted from the wireless devices. The energy levels
of these emissions, however, are far much less than the electromagnetic energy emissions from
wireless devices such as mobile phones. Radio devices are safe for use by consumers because
they operate within the guidelines found in radio frequency safety standards and recommendations.
The use of the radio devices may be restricted in some situations or environments, such as:
•
•
•
on board an airplane, or
in an explosive environment, or
in situations where the interference risk to other devices or services is
perceived or identified as harmful.
In cases in which the policy regarding use of radio devices in specific environments is not
clear (e.g., airports, hospitals, chemical/oil/gas industrial plants, private buildings), obtain
authorization to use these devices prior to operating the equipment.
114
Fujitsu Technology Solutions
Manufacturer’s notes
Regulatory Information/Disclaimers
Installation and use of this radio device must be in strict accordance with the instructions included
in the user documentation provided with the product. Any changes or modifications made to this
device that are not expressly approved by the manufacturer may void the user’s authority to operate
the equipment. The manufacturer is not responsible for any radio or television interference caused
by unauthorized modification of this device, or the substitution or attachment of connecting cables
and equipment other than those specified by the manufacturer. It is the responsibility of the user
to correct any interference caused by such unauthorized modification, substitution or attachment.
The manufacturer and its authorized resellers or distributors will assume no liability for any damage
or violation of government regulations arising from failure to comply with these guidelines.
Export restrictions
This product or software contains encryption code which may not be exported or
transferred from the US or Canada without an approved US Department of Commerce
export license. This device complies with Part 15 of FCC Rules, as well as ICES 003 B
/ NMB 003 B. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference
that may cause undesirable operation.
Modifications not expressly authorised by Fujitsu Technology Solutions may
invalidate the user’s right to operate this equipment.
Fujitsu Technology Solutions
115
Index
Index
A
A beep sounds every second 100
Acoustic error messages 104
Administrator functions 79
Anti-theft protection 67
Audio devices, connecting 89
Audio ports 89
B
Backspace 48
Bass loudspeaker (subwoofer) 59
Battery
battery life 54
caring for and maintaining 54
charge level 54, 57
charging 54
self-discharge 54
storage 54
Battery status meter 54
Battery:
discharges too quickly 104
BIOS Setup Utility
calling 96
exiting 97
operating 96
protecting with password 68
settings 96
Bluetooth
Switching off module 62
Switching on module 62
Board 90
Buffer battery, load 100
Buttons 47
C
Caps Lock 48
CE marking 110
Charging capacity, battery 54
Cleaning 14
Components
installing / removing 90
Configuration, BIOS Setup Utility
Connecting audio devices 89
Connecting headphones 89
Crystal View display
cleaning 14
Cursor control keys 48
Cursor keys 48
116
96
D
Date is incorrect 100
Declaration of conformity 109
Device
setting up 16
Devices
connecting 85
disconnecting 85
Display orientation
selecting 25
DOC (INDUSTRY CANADA) NOTICES
E
Energy
energy saving 12
Energy saving 12
Energy saving mode
leaving 103
Enter 48
Enter key 48
Error message:
on the screen 104
Error messages
Mainboard 83
Error messages on the screen
Errors
Acoustic warnings 104
ESD 90
Ethernet LAN 64
112
104
F
F10, function key 76
F2, function key 82
F3, function key 82
F5, function key 76, 78
F6, function key 76, 78
F7, function key 76
F8, function key 76, 78
F9, function key 76, 78
Fault
correction 98
Fingerprint sensor 67
configure 67
First-time setup
15
Fn + F10 51
Fn key 48
G
Getting started
15
Fujitsu Technology Solutions
Index
H
Hard disk:
restoring the contents 99
Hardware configuration 96
HDMI port 87
I
Important notes 12
Incorrect date/time 100
Installing SystemLock 74
K
Kensington MicroSaver
Keyboard 47
cleaning 14
67
L
Landscape orientation
screen 25
LCD screen
cleaning 14
difficult to read 101
notes 29
reflected glare 101
remains blank 100
LCD screen is too dark 100
Life, battery 54
Line feed 48
Loudspeakers 59
M
Main memory
see Adding memory 91
Mains adapter
connecting 16
setting up 16
Mechanical backup 67
Memory card
handling 58
inserting 58
removing 59
Memory expansion
installing 93
removing 92
Memory module
important notes 91
installing 93
removing 92
Microphone 59
Microphone, connecting 89
Mobile operation 13
Fujitsu Technology Solutions
Monitor
connecting 86
drifting display 101
remains blank 101
Monitor port
see VGA connection socket
86
N
Notebook
before you travel 13
cannot be started 102
cleaning 14
stops working 103
switching off 27
transporting 13
using 19
Notebook, operation 19
Notebook: switching on 22
Notes 12
boards 90
cleaning 14
disposal / recycling 109
energy saving 12
LCD screen 29
Safety 12
transport 13
Num Lock
indicator 49
Numeric keypad 47
see Virtual numeric keypad
49
O
Operating system
activating system protection 69
cancel system protection 69
protecting with password 69
Operating system, restoring 99
P
Packaging 15
Password
changing 69
entering 68
removing 69
Password protection 68
Peripheral devices
connecting 85
disconnecting 85
Portrait orientation
screen 25
117
Index
Power
power consumption 57
power-management features
Power-on indicator 22
Preparing for operation 16
Printer does not print 103
57
R
Rechargeable battery 54
see Battery 54
Regulatory information
notebooks with radio device 114
Notebooks without radio device 110
Removing memory
see Adding memory 91
Return 48
S
Safety notes 12
Screen
no screen display 101
Screen port
see VGA connection socket 86
Security functions 65
SystemLock 70
Security functions,
SmartCard 70
Select the language: for handwriting recognition
and keyboard 28
Selecting a location 16
Self-discharge, battery 54
Servicing 90
Setup
see BIOS Setup Utility 96
Shift 48
Shift key 48
Slot
Memory cards 58
SmartCard 71
access rights 72
PIN 72
PUK 72
user groups 73
Start key 48
Status indicators 19
Summer time 100
Supervisor password
changing 69
entering 68
removing 69
Suspend/Resume button 22
Switching on for the first time 17
118
Switching on the system 71
Symbols
indicators 19
System configuration 96
System expansion 91
see Adding memory 91
System settings, BIOS Setup Utility
SystemLock
switching on 82
SystemLock 2
installing 77
96
T
Tab key 48
The radio connection to a network does
not work 103
Time not correct 100
Time, daylight savings 100
Tips 98
Toggle output screen 51
Touchpad 45
buttons 45
cleaning 14
dragging items 46
executing commands 45
moving the pointer 45
selecting an item 45
TPM 83
Transport
Transport damage 15
Transportation 13
Travel, notebook 13
Troubleshooting 98
Trusted Platform Module 83
U
Uninstalling
SystemLock 82
USB ports 88
User groups
installing 74
User password
changing 69
entering 68
removing 69
Using a Kensington Lock
67
V
VGA connection socket 86
Virtual numeric keypad 49
Volume control 59
Fujitsu Technology Solutions
Index
W
Webcam 53
Wireless LAN
Fujitsu Technology Solutions
Switching off module 62
Switching on module 62
119
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
