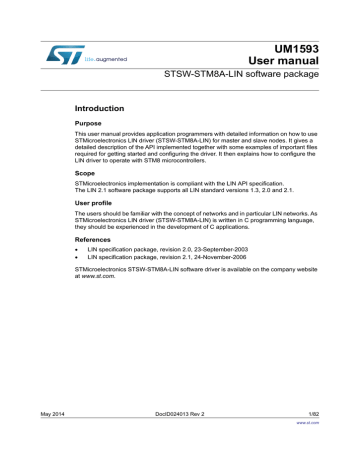

UM1593

User manual

STSW-STM8A-LIN software package

Introduction

Purpose

This user manual provides application programmers with detailed information on how to use

STMicroelectronics LIN driver (STSW-STM8A-LIN) for master and slave nodes. It gives a detailed description of the API implemented together with some examples of important files required for getting started and configuring the driver. It then explains how to configure the

LIN driver to operate with STM8 microcontrollers.

Scope

STMicroelectronics implementation is compliant with the LIN API specification.

The LIN 2.1 software package supports all LIN standard versions 1.3, 2.0 and 2.1.

User profile

The users should be familiar with the concept of networks and in particular LIN networks. As

STMicroelectronics LIN driver (STSW-STM8A-LIN) is written in C programming language, they should be experienced in the development of C applications.

References

LIN specification package, revision 2.0, 23-September-2003

LIN specification package, revision 2.1, 24-November-2006

STMicroelectronics STSW-STM8A-LIN software driver is available on the company website at www.st.com.

May 2014 DocID024013 Rev 2 1/82

www.st.com

1

2

Contents

Contents

3

4

UM1593

Abbreviations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

2.1

LIN concept . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

2.2

LIN communications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

2.3

Signal management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

2.4

Using the driver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

2.5

Driver version . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

API . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

3.1

Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

3.2

Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

3.3

CORE API . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

3.3.1

3.3.2

3.3.3

3.3.4

Driver and cluster management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Signal interaction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Notification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Interface Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

3.4

Diagnostic API . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

3.4.1

3.4.2

3.4.3

3.4.4

3.4.5

Node Configuration specific API (diagnostic) . . . . . . . . . . . . . . . . . . . . . 22

Node Identification specific API (diagnostic) . . . . . . . . . . . . . . . . . . . . . 27

Diagnostic Transport Layer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Diagnostic Transport Layer: RAW API . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Diagnostic Transport Layer: COOKED API . . . . . . . . . . . . . . . . . . . . . . 30

3.5

Master specific API . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

3.5.1

Schedule management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

3.6

Slave specific API . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

3.6.1

Interface management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

3.7

STMicroelectronics extensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

3.8

Implementation notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

3.8.1

3.8.2

API data types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Notification flags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Driver configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

2/82 DocID024013 Rev 2

UM1593

5

6

7

Contents

4.1

File and directory structure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

4.2

Makefiles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

4.2.1

Top-level makefile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

4.3

Cluster configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

4.3.1

4.3.2

Cluster description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Lingen tool . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

4.4

User configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

4.4.1

4.4.2

4.4.3

4.4.4

4.4.5

4.4.6

Timers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

General settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Diagnostic functions configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Diagnostic class . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Transport Protocol handling in LIN 2.1 Master . . . . . . . . . . . . . . . . . . . 51

Callback functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

4.5

Interrupt configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Lingen control file specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

5.1

Lingen control file . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

5.1.1

5.1.2

5.1.3

File definition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

Interface specification$ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

Default frame Identifiers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

5.2

Syntax specification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

Examples . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

6.1

Sample control file for lingen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

6.2

LIN 2.0 LDF example (master and slave) . . . . . . . . . . . . . . . . . . . . . . . . . 67

6.3

LIN 2.1 LDF example (master and slave node) . . . . . . . . . . . . . . . . . . . . 73

6.4

Example implementation of IRQ callbacks (master and slave) . . . . . . . . 76

Architecture notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

7.1

CPU frequency . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

7.2

Interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

7.3

Timers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

7.4

Interrupt function configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

7.5

Using memory page 0 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

7.6

Toolchain support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

DocID024013 Rev 2 3/82

4

Contents

8

UM1593

Revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

4/82 DocID024013 Rev 2

UM1593

List of tables

List of tables

Table 1.

Table 2.

Table 3.

Table 4.

Table 5.

Table 6.

Table 7.

Table 8.

Description of abbreviated forms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

LIN naming conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

System Initialization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Scalar signal read . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Scalar signal write. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Byte array read . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Byte array write . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Test flag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Table 9.

Clear flag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Table 10.

Initialize interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Table 11.

Connect interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Table 12.

Disconnect interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Table 13.

Wakeup. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Table 14.

Interface control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Table 15.

Character reception notification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Table 16.

Character transmission notification. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Table 17.

Read interface status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Table 18.

Description of l_ifc_read_status returned value . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Table 19.

Diagnostic module ready . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Table 20.

Check configuration response . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Table 21.

Assign frame ID range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Table 22.

Assign diagnostic address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Table 23.

Save configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Table 24.

Assign frame ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Table 25.

Conditional change diagnostic address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Table 26.

Read configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Table 27.

Set configuration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Table 28.

Read by ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Table 29.

Initialization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Table 30.

Put raw frame . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Table 31.

Get raw frame . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Table 32.

Query raw transmit-queue status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Table 33.

Query raw receive-queue status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Table 34.

Send message . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Table 35.

Receive message . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Table 36.

Get transmit-queue status. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Table 37.

Get receive-queue status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Table 38.

Schedule tick . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Table 39.

Set schedule table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Table 40.

Goto sleep . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Table 41.

Slave synchronize. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Table 42.

Read by ID callout. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Table 43.

Software Timer function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Table 44.

Protocol Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Table 45.

Data Dump . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Table 46.

Set Cooling Break. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Table 47.

Set baud rate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Table 48.

Raw Tx delete. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

DocID024013 Rev 2 5/82

6

List of tables UM1593

Table 49.

Directory structure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Table 50.

Top-level makefile predefined variable definition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Table 51.

Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Table 52.

Disable Interrupts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Table 53.

Restore Interrupts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Table 54.

Protocol switch function callback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

Table 55.

ld_read_by_id callback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

Table 56.

ld_data_dump callback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

Table 57.

Baud rate detection callback. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Table 58.

Handler for character rx . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Table 59.

Handler for character tx . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

Table 60.

Syntax description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

Table 61.

Hardware timer configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

Table 62.

Hardware timer interrupt service routine. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

Table 63.

Document revision history. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

6/82 DocID024013 Rev 2

UM1593

1 Abbreviations

Abbreviations

Table 1. Description of abbreviated forms

Abbreviation Description

API

CAN

LDF

LIN

RSID

SID

Application Programming Interface

Controller Area Network

LIN description

Local Interconnect Network

Response Service Identifier

Service Identifier

2 Overview

LIN (local interconnect network) is a concept that has been developed by a group of wellknown car manufacturers to produce low-cost automotive networks that complement existing networks such as CAN. It is based on single-wire serial communications using SCI

(UART) interfaces that are commonly available on microcontrollers. LIN is intended to be used together with CAN to build a hierarchical vehicle network. LIN is usually used for local subsystems where a low bit rate (up to 20 kbit/s) is acceptable and no safety-critical functions are required. These applications are typically used for car body electronics such as door and seat control, air conditioning, etc. These subunits are connected to a CAN network through a LIN/CAN gateway.

A LIN cluster comprises one master node and one or several slave nodes. LIN has a special feature that performs the synchronization of slave nodes via the bus thus allowing to implement low-cost nodes without the need of quartz clocking. In addition, since accesses to the bus are controlled by the master node, no collision management is required between the slave nodes. This also means that a worst-case transmission time for signals can be guaranteed.

The slave nodes do not need any information about the LIN cluster. As a result, additional slave nodes can be added to the LIN without modifying existing slave nodes. The master node requests information from all slaves and must be re-built if new nodes are added.

The LIN standard includes the specification of the transmission protocol, the transmission medium, the system definition language and the interface for software programming.

Communications between the application software embedded on LIN nodes are performed by exchanging signals. The LIN driver software is responsible for managing the exchange of signals at low level. The information are transferred between the nodes by using frames.

DocID024013 Rev 2 7/82

81

Overview UM1593

The driver is consequently responsible for processing application signals, packing them into the frame data section, and initiating the transfers. The frames are then transferred via the microcontroller serial interface. Using this communication technique, signal reading and writing operations are performed asynchronously of the frame transfers. An overview of communications between LIN nodes is described in

Figure 1

.

All transfers are initiated by the master node. Slave nodes only transmit data when requested to do so. The message frame consists of a header and a frame body. The master node sends the frame message header. The frame body can be sent either by the master or by a slave node. Since the publisher for any given frame is configured before building the application, only one node will send the frame body.

The frame message identifier denotes the message content and not the destination. This communication concept means that data are exchanged between nodes as follows:

From the master node to one or more slave nodes,

From a slave node to the master and/or to other slave nodes.

As a result, communications are possible from slave to slave without routing through the master and the master can broadcast to all slaves belonging to the LIN subsystem.

The order in which frames are sent is determined by a schedule table used by the master.

Several tables may be configured but only one table can be active at a time. Switching between tables can be carried out either by the application or internally by the driver. The schedule tables required by an application must be configured by the user in the LIN description file.

Figure 1. Master-slave node communications

8/82 DocID024013 Rev 2

UM1593 Overview

2.4

Note:

Signals are transferred in the frame data bytes. Several signals can be packed into a frame as long as they do not overlap each other or extend beyond the data area of the frame.

Each signal has only one producer. This means that it is always written by the same node in a given cluster. Each signal that is issued by a node must be configured by the user.

A signal is described either by a scalar value or by a byte array:

Scalar signal ranging between 1 and 16 bits. A 1 bit signal is called a boolean signal. 2bit to 16-bit scalar signals are treated as unsigned values.

A byte array ranging from 1 to 8 bytes.

Signal self-consistency is ensured by the driver (a partially updated 16-bit signal must never be passed to an application), while the consistency between signals is managed by the application.

The signal LSB is transmitted first. Scalar signals may cross a byte boundary at most once.

The driver maps each byte in the byte array to a byte in the frame.

Using the driver

The driver must be configured and built before use. Details on the configuration steps are given in

Section 4: Driver configuration

, and architecture specific details are provided in

Section 7: Architecture notes

.

The STMicroelectronics LIN driver includes the diagnostic layer as described in LIN 2.1 specification. The diagnostic API is divided between a RAW API and a COOKED API. The

RAW API allows a diagnostic application to control the contents of every frame sent while the COOKED API provides a full transport layer. The user can choose to include or not the diagnostic functions when building the driver (see

configuration

).

Section 4.4.3: Diagnostic functions

Before using the driver functionalities, the driver itself must be initialized by calling the l_sys_init() API function. Before using any interface-related function the microcontroller interfaces must be initialized using the l_ifc_init() API function, and then connected using l_ifc_connect().

l_ifc_connect()and l_ifc_disconnect() functions are obsolete for LIN 2.1 protocol, and will not be compiled. These functions will be compiled only for LIN 2.0 or LIN

1.3 protocols.

The following naming convention that has been adopted in STMicroelectronics driver:

item type

signal frame flag schedule table node

Table 2. LIN naming conventions item name LIN name

sigName frameName flagName tabName nodeName

LIN_SIGNAL_sigName

LIN_FRAME_frameName

LIN_FLAG_flagName

LIN_TAB_tabName

LIN_NODE_nodeName

DocID024013 Rev 2 9/82

81

Overview UM1593

The application must use the “LIN name” format except when calling the API static functions. For example, if a signal named sigMstatus has been configured in the LDF file, the application must use the form LIN_SIGNAL_sigMstatus for dynamic function calls: my_sig = l_u8_rd(LIN_SIGNAL_sigMstatus); or the form sigMstatus as used in the generation of static function names: my_sig = l_u8_rd_sigMstatus();

If a master node is configured to use multiple interfaces, an optional tag can be specified by the user to avoid naming conflicts. This tag will prefix the “item name” given above. See

Section 4.3: Cluster configuration

for details and examples.

The driver comprises several source and header files that are revisioned with a version number which is only updated on change. A given driver release consequently contains files with varied version numbers. The list of the file versions used to build a given driver release is contained in the file lin_version_control.h located at the root of the source directory. This information is used to ensure that only consistent files are included when building the driver.

10/82 DocID024013 Rev 2

UM1593

3 API

API

3.1 Data

The following data types must be defined for the driver: l_bool l_u8 l_u16 l_u32 l_ioctl_op.

l_irqmask l_ifc_handle

Since these types are hardware dependent, they are defined in the architecture specific file lin_def_archname_gen.h located in the architecture specific directory.

3.2 Functions

The numbering in the description sections below refers to the LIN API specification section where the corresponding function is described.

3.3.1 Driver and cluster management

Table 3. System Initialization l_sys_init(void)

Prototype

Availability

Return value l_bool l_sys_init(void);

Master and slave nodes

Include

Description lin.h

This function performs the initialization of the LIN core (LIN API 7.2.1.1). The scope of the initialization is the physical node i.e. the complete node (see LIN 2.1 section 9.2.3.3).

The call to l_sys_init is the first call the user application must issue in the LIN core before calling any other API functions.

Parameters None zero if initialization succeeded non-zero if initialization failed

DocID024013 Rev 2 11/82

81

API UM1593

Prototype

(dynamic)

Availability

Include

Description

Parameters

Prototype

(static)

Return value

Table 4. Scalar signal read l_bool_rd, l_u8_rd, l_u16_rd

l_bool l_bool_rd (l_signal_handle signalId); l_u8 l_u8_rd (l_signal_handle signalId); l_u16 l_u16_rd (l_signal_handle signalId);

Master and slave nodes lin.h

These functions read and return the current value of the specified signal (see LIN 2.1 section

7.2.2.2) signalId: name of the signal to be read e.g. for the configured signal status then

LIN_SIGNAL_status l_bool: boolean signal value or 0 if signalId is invalid l_u8: 8 bit signal value or 0 if signalId is invalid l_u16: 16 bit value or 0 if signalId is invalid l_bool l_bool_rd_sss (void); l_u8 l_u8_rd_sss (void); l_u16 l_u16_rd_sss (void); where sss denotes the name of the signal that is to be read e.g. for the configured boolean signal status then the prototype: l_bool l_bool_rd_status(void);

Table 5. Scalar signal write l_bool_wr, l_u8_wr, l_u16_wr

Prototype

(dynamic) void l_bool_wr (l_signal_handle signalId, l_bool val); void l_u8_wr (l_signal_handle signalId, l_u8 val); void l_u16_wr (l_signal_handle signalId, l_u16 val);

Master and slave nodes Availability

Include lin.h

Description These functions set the current value of the specified signal to val (see LIN 2.1 section 7.2.2.3)

Parameters signalId: the signal to be set e.g. for the configured signal status then

LIN_SIGNAL_status val: the value to which the signal is to be set

Return value None

Prototype

(static) void l_bool_wr_sss (l_bool val); void l_u8_wr_sss (l_u8 val); void l_u16_wr_sss (l_u16 val); where sss denotes the name of the signal which value is to be set to val e.g. for the configured boolean signal status then the prototype: void l_bool_wr_status (l_bool val);

12/82 DocID024013 Rev 2

UM1593 API

Table 6. Byte array read l_bytes_rd

Prototype

(dynamic)

Availability

Include

Description void l_bytes_rd (l_signal_handle signalId, l_u8 start, l_u8 count, l_u8* const data);

Master and slave nodes lin.h

This function reads and returns the current value of the selected bytes in the specified signal (see

LIN 2.1 section 7.2.2.4). The sum of start and count must never be greater than the length of the byte array.

Parameters signalId: the signal to be read e.g. for the configured signal user_data then

LIN_SIGNAL_user_data start: the first byte to be read count: the number of bytes to be read data: the area where the bytes will be written

Return value None

Prototype

(static) void l_bytes_rd_sss (l_u8 start, l_u8 count, l_u8* const data); where sss denotes the name of the signal to be read e.g. for the configured signal user_data then the prototype: void l_bytes_rd_user_data(l_u8 start, l_u8 count, l_u8* const data);

Table 7. Byte array write l_bool_wr, l_u8_wr, l_u16_wr

Prototype

(dynamic)

Availability

Include

Description void l_bytes_wr (l_signal_handle signalId, l_u8 start, l_u8 count, const l_8* const data);

Master and slave nodes lin.h

This function sets the current value of the selected bytes in the specified signal to the values given in data (see LIN 2.1 section 7.2.2.5). The sum of start and count must never be greater than the length of the byte array.

Parameters signalId: the signal to be written e.g. for the configured signal user_data then

LIN_SIGNAL_user_data start: the first byte to be written count: the number of bytes to be written data: the area where the bytes will be read from

Return value None

Prototype

(static) void l_bytes_wr_sss (l_u8 start, l_u8 count, const l_u8* const data); where sss denotes the name of the signal to be written e.g. for the configured signal user_data

then the prototype: void l_bytes_wr_user_data (l_u8 start, l_u8 count, const l_u8* const data);

DocID024013 Rev 2 13/82

81

API UM1593

3.3.3 Notification

Table 8. Test flag l_flg_tst

Prototype

(dynamic)

Availability

Include

Description l_bool l_flg_tst (l_flag_handle flag);

Master and slave nodes lin.h

This function returns the state of the flag specified i.e. zero if cleared, non-zero otherwise. (see

LIN 2.1 section 7.2.3.1)

Parameters flag: the flag which state is to be returned e.g. for the configured flag Txerror then

LIN_FLAG_Txerror

Return value Zero if flag is clear, non-zero otherwise

Prototype

(static) l_bool l_flg_tst_fff (void); where fff denotes the name of the flag to be tested e.g. for the configured flag Txerror then the prototype: l_bool l_flg_tst_Txerror (void);

Table 9. Clear flag l_flg_clr

Prototype

(dynamic)

Availability void l_flg_clr (l_flag_handle flag);

Master and slave nodes

Include lin.h

Description This function sets the value of the specified flag to zero (see LIN 2.1 section 7.2.3.2)

Parameters flag: the flag to be cleared e.g. for the configured flag Txerror then LIN_FLAG_Txerror

Return value None

Prototype

(static) l_bool l_flg_clr_fff (void); where fff denotes the name of the flag to be cleared e.g. for the configured flag Txerror then the prototype: l_bool l_flg_clr_Txerror (void);

Prototype

(dynamic)

Availability

Include

Table 10. Initialize interface l_ifc_init

l_bool l_ifc_init (l_ifc_handle ifc);

Master and slave nodes lin.h

14/82 DocID024013 Rev 2

UM1593 API

Table 10. Initialize interface (continued) l_ifc_init

Description

This function initializes the specified interface (for example the baud rate). The default schedule set will be L_NULL_SCHEDULE where no frames will be sent or received. The interface names are listed in lin_def.h.

See

Section

and

4.4

for details.

This function must be called before using any other interface related to API functions (see LIN

2.1 section 7.2.5.1)

Parameters ifc: the interface to be initialized

Return value Zero if initialization was successful, non-zero otherwise.

Prototype

(static) l_bool l_ifc_init_iii (void); where iii denotes the interface to be initialized e.g. for the configured interface SCI0 then the prototype: l_bool l_ifc_init_SCI0 (void);

Table 11. Connect interface l_ifc_connect

Prototype

(dynamic) l_ifc_connect() function is obsolete for LIN 2.1 protocol and should not be used.

Table 12. Disconnect interface l_ifc_disconnect

Prototype

(dynamic) l_ifc_disconnect() function is obsolete for LIN 2.1 protocol and should not be used.

Table 13. Wakeup l_ifc_wake_up

Prototype

(dynamic)

Availability

Include void l_ifc_wake_up (l_ifc_handle ifc);

Master and slave nodes lin.h

Description

This function issues a wakeup signal to the specified interface (see LIN 2.1 section 7.2.5.3).

The wake-up signal (0xF0 byte, i.e. a dominant pulse lasting 250 μs to 5 configured bit rate) is transmitted directly when this function is called.

ms depending on the

It is the responsibility of the application to retransmit the wakeup signal according to the wakeup sequence (see LIN 2.1 section 2.6.2.).

Parameters ifc: interface handle

Return value None

Prototype

(static) void l_ifc_wake_up_iii (void); where iii denotes the interface to be woken up e.g. for the configured interface SCI0 then the prototype: void l_ifc_wake_up_SCI0 (void);

DocID024013 Rev 2 15/82

81

API UM1593

Availability

Include

Description

Parameters

Return value

(master node)

Table 14. Interface control l_ifc_ioctl

Master and slave nodes lin.h

This function controls a functionality that is not covered by the other API calls. It is used to control protocol specific parameters or hardware specific functionalities, such as switching on/off the wakeup signal detection.

The operations supported depend on the interface type. The parameter block pParams is optional. It is set to null if not needed. Otherwise it is interpreted as specified below (see LIN 2.1 section 7.2.5.4)

This function is currently implemented to support the operations listed below.

ifc: interface to which the operation is to be applied operation: the operation to be applied pParams: optional parameter block

LIN_IOCTL_DRIVER_STATE

:

This function returns a 16-bit values where the lower 8 bits represent the state of the driver, and the upper 8 bits either the protected identifier of the frame currently being transferred or 0xFF.

The protected identifier is only returned if the state is neither LIN_STATE_IDLE nor

LIN_STATE_BUSSLEEP.

Note: The definition of driver states is currently located in the file

lin_types.h.

16/82 DocID024013 Rev 2

UM1593 API

Table 14. Interface control (continued) l_ifc_ioctl

The return value depends on the operation requested:

LIN_IOCTL_DRIVER_STATE

:

The function returns a 16-bit values where the lower 8 bits represent the state of the driver, and the upper 8 bits either the protected identifier of the frame currently being transferred or 0xFF.

The protected identifier is returned if the state is either LIN_STATE_SEND_DATA or

LIN_STATE_RECEIVE_DATA.

Note: The definition of driver states is currently located in the file

lin_types.h.

LIN_IOCTL_READ_FRAME_ID

The parameter referenced by *pParams must match the type l_frameMessageId_t defined in the file lin.h. The function sets the frame identifier pParams->frameId and the frame index pParams-

>frameIndex that matches the message ID pParams->messageId.

The function returns 0 if it is successful, and 1 if the message was not found.

LIN_IOCTL_READ_MESSAGE_ID

The parameter referenced by *pParams must match the type l_frameMessage_t defined in the file lin.h. The function sets the message ID pParams->messageId and the frame index pParams-

>frameIndex that matches the message ID pParams->messageId. Returns 0 if successful or 1 if the message ID was not found.

Return value

(slave node)

LIN_IOCTL_READ_FRAME_ID_BY_INDEX

The parameter referenced by *pParams must match the type l_frameMessageId_t defined in the file lin.h. The function sets the frame ID pParams->frameId and the message ID pParams-

>messageId for the frame indexed by pParams->frameIndex. Returns 0 if successful or 1 if the index is invalid.

LIN_IOCTL_SET_FRAME_ID

The parameter referenced by *pParams must match the type l_frameMessageId_t defined in the file lin.h. The function sets the frame ID for the frame matching pParams->messageId to that given by pParams->frameId. Returns 0 if success otherwise 1.

LIN_IOCTL_FORCE_BUSSLEEP

Forces the driver into sleep mode.

LIN_IOCTL_SET_VARIANT_ID

Sets the Variant ID part of the Product ID in a slave node. The default Variant ID used for a slave node on startup is that which is given in the LDF.

The parameter referenced by *pParams must be of type l_u8.

LIN_IOCTL_READ_VARIANT_ID

The function returns the current value of the Variant ID. The parameter given by pParams is not used and may be set to 0 in the function call.

DocID024013 Rev 2 17/82

81

API UM1593

Table 14. Interface control (continued) l_ifc_ioctl

LIN_IOCTL_READ_CONFIG_FLAGS

The function returns a 16-bit value indicating which configuration flags are set. These flags are set on successful completion of the corresponding diagnostic service. The flags are only cleared when read using this operation.

Flags set are:

LIN_DIAG2_FLAGS_ASSIGN_FRAME_ID

LIN_DIAG2_FLAGS_ASSIGN_NAD

LIN_DIAG2_FLAGS_COND_CHANGE_NAD

LIN_DIAG2_FLAGS_READ_BY_ID

LIN_DIAG2_FLAGS_DATA_DUMP

Return value

(slave node)

LIN_IOCTL_READ_NAD

The function returns a 16-bit value, the lower 8 bit being the diagnostic node address (NAD) currently configured. pParams is not used and may be set to 0 in the function call.

LIN_IOCTL_WRITE_NAD

Sets the diagnostic node address (NAD) of the slave node to the l_u8 value of *pParams. All values are accepted, values from 1 to 126 are specified by the standard as the values to be used for diagnostic node addresses. Always returns success i.e. 0.

Prototype

(static)

LIN_IOCTL_WRITE_INITIAL_NAD

Sets the initial diagnostic node address (NAD) of the slave node to the l_u8 value of *pParams.

All values are accepted, values from 1 to 126 are specified by the standard as values to be used for diagnostic node addresses. Always returns success i.e. 0.

Note: This function shall be called after l_sys_init() but before l_ifc_init() otherwise the initial

NAD set with the call will not be used by the driver to initialise the “current” NAD.

l_u16 l_ifc_ioctl_iii (l_ioctl_op operation, void* pParams); where iii denotes the interface to which the operation is to be applied e.g. for the configured interface SCI0 then the prototype: l_u16 l_ifc_ioctl_SCI0 (l_ioctl_op operation, void* pParams);

18/82 DocID024013 Rev 2

UM1593 API

Table 15. Character reception notification l_ifc_rx

Prototype

(dynamic)

Availability

Include void l_ifc_rx (l_ifc_handle ifc);

Master and slave nodes lin.h

Description

This function must be called when the specified interface receives one character of data (see LIN

2.1 section 2.5.5).

The application program is responsible for binding the interrupt and setting the correct interface handle if the interrupt is used.

For UART based implementations, this function can be called from a user-defined interrupt handler triggered by a UART on reception of one character of data. In this case the function performs the required operations on the UART control registers.

For more complex LIN hardware, this function can be used to indicate the reception of a complete frame (see also

Section

).

Parameters ifc: the interface that received the data

Return value None

Prototype

(static) void l_ifc_rx_iii (void); where iii denotes the interface that received data e.g. for the configured interface SCI0 then the prototype: void l_ifc_rx_SCI0 (void);

Table 16. Character transmission notification l_ifc_tx

Prototype

(dynamic)

Availability

Include

Description void l_ifc_tx (l_ifc_handle ifc);

Master and slave nodes lin.h

This function must be called when the specified interface transmits one character of data (see

LIN 2.1 section 7.2.5.6).

The application program is responsible for binding the interrupt and for setting the correct interface handle if the interrupt is used.

For UART based implementations, this function can be called from a user-defined interrupt handler triggered by a UART on transmission of one character of data. In this case the function performs the required operations on the UART control registers.

For more complex LIN hardware, it can be used to indicate the transmission of a complete frame

(see also

Section

).

Parameters ifc: the interface that sent the data

Return value None

Prototype

(static) void l_ifc_tx_iii (void); where iii denotes the interface that transmitted data e.g. for the configured interface SCI0 then the prototype; void l_ifc_tx_SCI0 (void);

DocID024013 Rev 2 19/82

81

API

Table 17. Read interface status l_ifc_read_status

Prototype (dynamic) l_u16 l_ifc_read_status (l_ifc_handle ifc);

Availability Master and slave nodes. The behavior is different for master and slave nodes.

Include

Description

Parameters lin.h

Returns a 16-bit status frame for the specified interface.

ifc: the interface which status is to be returned (see LIN 2.1 section 7.2.5.8)

UM1593

20/82 DocID024013 Rev 2

UM1593

Return value

Prototype

(static)

API

Table 17. Read interface status (continued) l_ifc_read_status

Status of the previous communication: 16-bit word which value depends on the frame transmitted or received by the node (except bus activity). The call is a read-reset call. This means that after the call has returned, the status word is set to 0.

For the master node, the status word is updated in the l_ifc_sch_tick() function.

For slave nodes, the status word is updated later when the next frame is started.

The status word returned by l_ifc_read_status is defined as follows (bit 15 is MSB,

bit 0 is LSB) (see

Table

):

Bit 0: Response error

This bit is set when a frame error (such as checksum error or framing error) is detected in the frame response. An error in the header results in the header not being recognized and the frame being ignored. It is not set if there was no response on a received frame or if there is an error in the response (collision) of an event-triggered frame.

Bit 1: Successful transfer

This bit is set when a frame has been successfully transmitted/received.

Bit 2: Overrun

This bit is set when two or more frames have been processed since the last call to this function. If set, bit 0 and bit 1 represent the ‘OR’ed values for all the frames processed.

Bit 3: Go to sleep

This bit is set when a go to sleep command has been received by a slave node, or when the go to sleep command has been successfully transmitted on the bus by a master node. Receiving a go to sleep command does not affect the node power mode.

It is up to the application to do this.

Bit 4: Bus activity

This bit is set when the node has detected activity on the bus. A slave node is put in bus sleep mode after a period of bus inactivity. This can be implemented by the application by monitoring the bus activity.

Note: The bus is inactive when there is no transition between recessive and dominant bit values. Bus activity is the opposite.

Bit 5: Event-triggered frame collision

This bit remains set as long as the collision resolving schedule is executed. It can be used in conjunction with the value returned by l_sch_tick().

For slave nodes, this bit is always 0.

If the master node application switches schedule table while the collision is resolved, the event -triggered frame collision flag is set to 0.

Bit 6: Save configuration

This bit is set when the save configuration request has been successfully received. It is set only for slave nodes, and always remains 0 for the master node.

Bit 7: always set to 0

Bit [8:15]: Last frame protected identifier

This 8-bit value represents the protected identifier last detected on the bus and processed in the node. If the overrun bit (bit 2) is set, only the last value is maintained.

l_u16 l_ifc_read_status_iii (void); where iii denotes the interface which status is to be read e.g. for the configured interface SCI0 then the prototype: void l_ifc_read_status_SCI0 (void);

DocID024013 Rev 2 21/82

81

API UM1593

Table 18. Description of l_ifc_read_status returned value

15 14 13 12 11 10 9 8 7 6 5 4 3 2

Last frame PID 0

Save configuration

Eventtriggered frame collision

Bus activity

1 0

Go to sleep

Overrrun

Successful transfer

Response error

3.4.1

Prototype

Availability

Include

Node Configuration specific API (diagnostic)

Description

Parameters

Return value

Table 19. Diagnostic module ready ld_is_ready

l_u8 ld_is_ready (l_ifc_handle ifc);

Master node only lin.h

This function returns the status of the last requested configuration service.

The returned value values are interpreted as follows:

LD_SERVICE_BUSY: Service is ongoing.

LD_REQUEST_FINISHED: The configuration request has been completed. This is an intermediate status between configuration request and configuration response.

LD_SERVICE_IDLE: The configuration request/response combination has been completed, i.e. the response is valid and can be analyzed. This value is also returned if no request has been called.

LD_SERVICE_ERROR: The configuration request or response failed. This means that a bus error occurred, and that the slave node did not receive any negative configuration response

(see LIN 2.1 section 7.3.1.1).

Figure 2

shows the case of a successful configuration request and configuration response. The

change of state after the master request frame and slave response frame are complete may be delayed by up to one timebase period.

ifc: the interface of the module to be queried

LD_SERVICE_BUSY: Service is ongoing

LD_REQUEST_FINISHED: The configuration request has been completed. This is an intermediate status between the configuration request and configuration response.

LD_SERVICE_IDLE: The configuration request/response combination has been completed, i.e. the response is valid and can be analyzed. This value is also returned if no request has been called.

LD_SERVICE_ERROR: The configuration request or response failed. This means that a bus error occurred, and that the slave node did not receive any negative configuration response.

22/82 DocID024013 Rev 2

UM1593

Figure 2. successful configuration request and response

API

Table 20. Check configuration response ld_check_response

Prototype

Availability

Include

Description void ld_check_response(l_ifc_handle ifc, l_u8* const pRsid, l_u8* const pErrorCode);

Master node only lin.h

This function returns the result of the last node configuration call completed in the parameters pRsid

and pErrorCode. A value is always returned in pRsid, but not always in pErrorCode.

Default values for pRsid and pErrorCode are 0 (see LIN 2.1 section 7.3.1.2)

Parameters ifc: interface of the node to be checked pRsid: location of the RSID returned pErrorCode: location of the error code returned

Return value None

Prototype

Availability

Include

Description

Parameters

Return value

Table 21. Assign frame ID range ld_assign_frame_id_range

Void ld_assign_frame_id_range (l_ifc_handle ifc, l_u8 nad, l_u8 start_index, const l_u8* const PIDs);

Master node only lin.h

This function changes the PIDs of up to four frames in the slave node with the addressed NAD.

The PIDs parameter must be four bytes long; each byte must contain a PID, don’t care

(0xFF)or unassigned value (0x00) (see LIN 2.1 section 7.3.1.3) ifc: interface handle nad: diagnostic address of the node start_index: frame index from which to start to assign PIDs

PIDs: Up to 4 bytes containing the new PIDs (PIDs values must be either a value listed in table

2.4 in section 2.8.2 of LIN 2.1 specifications, 0xFF, or 0x00).

None

DocID024013 Rev 2 23/82

81

API UM1593

Prototype

Availability

Include

Description

Parameters

Prototype

Availability

Include

Description

Table 22. Assign diagnostic address ld_assign_NAD

void ld_assign_NAD (l_ifc_handle ifc, l_u8 initial_nad, l_u16 supplier_id, l_u16 function_id, l_u8 new_nad);

Master node only lin.h

This function changes the diagnostic address (NAD) of any slave nodes matching the specified initial_nad, supplier_id and function_id to the value in new_nad (See LIN2.1 section 7.3.1.4) ifc: addressed interface initial_nad: nad of the nodes to be re-assigned supplier_id: supplier id of the nodes function_id: function id of the nodes new_nad: the new nad to be assigned to the nodes

None Return value

Table 23. Save configuration ld_save_configuration

Prototype

Availability

Include

Description void ld_save_configuration (l_ifc_handle ifc, l_u8 nad);

Master node only lin.h

This function issues a save configuration request to a specific slave node with the given NAD, or to all slave nodes if NAD is set to broadcast (see LIN 2.1 section 7.3.1.5)

Parameters ifc: addressed interface nad: nad of the nodes to which the driver sends the request

Return value None

Table 24. Assign frame ID ld_assign_frame_id

void ld_assign_frame_id (l_ifc_handle ifc, l_u8 nad, l_u16 supplier_id, l_u16 message_id, l_u8 pid);

Master node only.

This function is obsolete for LIN 2.1 and disabled by default. It can be used only to configure LIN 2.0 slaves in mixed clusters.

lin.h

This function changes the protected identifier of a frame in the slave node corresponding to nad and supplier_id. The changed frame must be the specified message_id and the new protected identifier value given in pid.

24/82 DocID024013 Rev 2

UM1593 API

Parameters

Return value

Table 24. Assign frame ID (continued) ld_assign_frame_id

ifc: interface handle nad: diagnostic address of the node supplier_id: supplier id of the node message_id: the message id to assign to the frame id pid: the new protected id value

None

Prototype

Availability

Include

Description

Parameters

Table 25. Conditional change diagnostic address ld_conditional_change_NAD

void ld_conditional_change_NAD (l_ifc_handle ifc, l_u8 nad, l_u8 id, l_u8 byte, l_u8 mask, l_u8 invert, l_u8 new_nad);

Master node only lin.h

This function changes the nad if the corresponding node properties fulfills the test specified by id, byte, mask and invert (see LIN 2.1 section 7.3.2)

Refer to LIN Diagnostic Specification for further details ifc: interface handle nad: diagnostic address of the node id: 0-31 byte: 1-5, specifying the id byte mask: 0-255 invert: 0-255 new_nad: new node address

None Return value

Prototype

Availability

Include

Table 26. Read configuration ld_read_configuration

l_u8 ld_read_configuration (l_ifc_handle ifc, l_u8 *const data, l_u8

*const length);

Slave node only lin.h

DocID024013 Rev 2 25/82

81

API UM1593

Description

Parameters

Return value

Table 26. Read configuration (continued) ld_read_configuration

This function serializes the current configuration and copies it to the area (data pointer) provided by the application. It does not transport any message on the bus (see LIN 2.1 section 7.3.1.6)

Tis function must be called when the save configuration request flag is set in the status register

(see LIN 2.1 section 7.2.5.8).

When the call has completed, the application is responsible for storing the data in the appropriate memory area. Before calling this function, the caller must reserve an area allowing to store the number of bytes specified by length.

The ld_read_configuration function sets the length parameter to the actual size of the configuration.

If the data area is too small, the function returns without performing any action.

If the NAD has not been set by a previous call to ld_set_configuration or the Master node has used the configuration services, the returned NAD will be the initial NAD.

The data consists of two bytes, the NAD followed by the PIDs, for all frames ordered in the same way as in the frame list in the LDF and NCF (see LIN 2.1 section 9.2.2.2 and section 8.2.5 respectively).

ifc: addressed interface data: structure that contains the NAD and n PIDs for the frames of the specified NAD length: length of data (1+n, NAD+PIDs)

LD_READ_OK if the service was successful.

LD_LENGTH_TOO_SHORT if the configuration size is greater than the size specified by length

. It means that the data area does not contain a valid configuration.

Prototype

Availability

Include

Description

Parameters

a

Return value

Table 27. Set configuration ld_set_configuration

l_u8 ld_set_configuration (l_ifc_handle ifc, const l_u8 *const data, l_u16 length);

Slave node only lin.h

This function configures the NAD and the PIDs according to the configuration specified by data.It does not transport any message on the bus (see LIN 2.1 section 7.3.1.7)

This function must be called to restore a saved configuration or set an initial configuration (for example coded by I/O pins). It must be called after calling l_ifc_init().

The caller must set the size of the data area before calling it.

The data contains the NAD and the PIDs and occupies one byte each.

The structure of the data is: NAD and then all PIDs for the frames.

The PIDs are ordered in the same way as in the frame list in the LDF and NCF (see LIN 2.1 section 9.2.2.2 and section 8.2.5 respectively). ifc: the interface to address data: structure containing the NAD and n PIDs for the frames of the specified NAD length: length of data (1+n, NAD+PIDs)

LD_SET_OK: If the service was successful.

LD_LENGTH_NOT_CORRECT: if the required size of the configuration is not equal to the given length.

LD_DATA_ERROR: Configuration setting could not be performed.

26/82 DocID024013 Rev 2

UM1593 API

3.4.2

Prototype

Availability

Include

Node Identification specific API (diagnostic)

Description

Parameters

Return value

Table 28. Read by ID ld_read_by_id

void ld_read_by_id (l_ifc_handle ifc, l_u8 nad, l_u16 supplier_id, l_u16 function_id, l_u8 id, l_u8* const data);

Master node only lin.h

This function reads the data specified by id from the node identified by nad and supplier_id. When the next call to ld_is_ready returns LD_SERVICE_IDLE (after this function is called), the area specified by data contains the requested data (see LIN 2.1 section 7.3.3.1)

The data returned is always in big-endian format.

Note: The user must reserve the memory space to store 5 bytes when

id is in the range given for user defined ids.

ifc: interface handle nad: diagnostic address of the node supplier_id: supplier id of the node function_id: function id of the node id: id of the data requested as follows:

0: LIN product identification

1: serial number

2-31: reserved

32-63: user defined

64-255: reserved data: pointer to buffer for receiving the requested data

None

3.4.3 Diagnostic Transport Layer

Table 29. Initialization ld_init

Prototype

Availability

Include void ld_init (l_ifc_handle ifc);

Master and slave nodes lin.h

Description

This function (re)initializes the raw and the cooked layers on the ifc interface.

All transport layer buffers are initialized (see LIN 2.1 section 7.4.2).

If a diagnostic frame transporting a cooked or raw message is ongoing on the bus, it will not be aborted.

Parameters ifc: the interface handle

Return value None

DocID024013 Rev 2 27/82

81

API UM1593

3.4.4 Diagnostic Transport Layer: RAW API

Table 30. Put raw frame ld_put_raw

Prototype

Availability

Include

Description void ld_put_raw (l_ifc_handle ifc, const l_u8* const pData);

Master and slave nodes lin.h

This function queues a raw diagnostic frame for transmission (see LIN 2.1 section 7.4.3.1)

The data area is copied in the call and the pointer is not memorized.

Note: The application should check

ld_raw_tx_status before attempting to queue a frame.

If no space is available, the frame data is discarded.

Parameters ifc: interface handle pData: pointer to the data to be queued

Return value None

Table 31. Get raw frame ld_get_raw

Prototype

Availability

Include

Description void ld_get_raw (l_ifc_handle ifc, l_u8* const pData);

Master and slave nodes lin.h

This function copies the oldest frame on the receive-stack to the provided buffer (see LIN 2.1 section 7.4.3.2).

ld_raw_rx_status should be checked first as the ld_get_raw function does not report whether a frame has been copied or not.

No data are copied if the receive queue is empty.

Parameters ifc: interface handle pData: pointer to the buffer into which the frame will be copied

Return value None

28/82 DocID024013 Rev 2

UM1593 API

Table 32. Query raw transmit-queue status ld_raw_tx_status

Prototype

Availability l_u8 ld_raw_tx_status (l_ifc_handle ifc);

Master and slave nodes

Include

Description lin.h

This function returns the status of the raw frame transmission queue (see [LIN 2.1 section

7.4.3.3)

Parameters ifc: interface handle

Return value

LD_QUEUE_FULL: transmit-queue is full and cannot accept further frames

LD_QUEUE_EMPTY: transmit-queue is empty i.e. all frames in the queue have been transmitted

LD_QUEUE_AVAILABLE: transmit-queue contains entries, but is not full, and is consequently ready to receive additional frames for transmission

LD_TRANSMIT_ERROR: LIN protocol errors occurred during transfer. Reinitialize and redo the transmission.

Table 33. Query raw receive-queue status ld_raw_rx_status

Prototype

Availability l_u8 ld_raw_rx_status (l_ifc_handle ifc);

Master and slave nodes

Include lin.h

Description This function returns the status of the raw frame receive-queue (see LIN 2.1 section 7.4.3.4)

Parameters ifc: interface handle

Return value

LD_DATA_AVAILABLE: receive-queue contains data that can be read

LD_NO_DATA: receive-queue is empty

LD_RECEIVE_ERROR: LIN protocol errors occurred during transfer. Reinitialize and redo the transmission.

DocID024013 Rev 2 29/82

81

API UM1593

3.4.5 Diagnostic Transport Layer: COOKED API

Table 34. Send message ld_send_message

Prototype

Availability

Include

Description void ld_send_message (l_ifc_handle ifc, l_u16 length, l_u8 nad, const l_u8* const, pData);

Master and slave nodes lin.h

This function packs the information given by data and length into one or more diagnostic frames and sends them. If this function is called from a master node, the frames are sent to the node which address is nad. If it is called from a slave node, the frames are sent to the master

(see LIN 2.1 section 7.4.4.1)

The call returns immediately. The buffer should not be changed by the application as long as ld_rx_status returns LD_IN_PROGRESS.

If a message transfer is ongoing, the call returns without performing any action.

Note: SID (or RSID) must be the first byte in the data area. It is included in the length.

Parameters ifc: interface handle length: from 1 to 4095 bytes (including SID or RSID, i.e. message length plus one) nad: address of node (not used in slave nodes) pData: pointer to the data to be sent

Return value None

Table 35. Receive message ld_receive_message

Prototype

Availability

Include

Description void ld_receive_message (l_ifc_handle ifc, l_u16* const length, l_u8 * const nad, l_u8 * const pData);

Master and slave nodes lin.h

This function prepares the module to receive a message and stores it in the given buffer. When the call is issued, length specifies the maximum allowed length. After the call, length specifies the actual length. If ld_receive_message is called from a master node, nad is assigned the value of the nad in the message (see LIN 2.1 section 7.4.4.2)

The call returns immediately. The buffer should not be changed by the application as long as ld_rx_status returns LD_IN_PROGRESS.

If the call is issued after the message transmission has started (i.e. the SF or FF is already transmitted), this message will not be received and the function waits until the next message transfer begins.

The application must monitor the ld_rx_status and must not call this function until the status is LD_COMPLETED. Otherwise this function may return inconsistent data.

Note: SID (or RSID) must be the first byte in the data area and is included in the length.

Parameters ifc: interface handle length: ranges from 1 to 4095. It is smaller than the value originally set in the call (SID or RSID is included in the length) nad: address of node (not used in slave nodes) pData: pointer to buffer into which the data will be written

Return value None

30/82 DocID024013 Rev 2

UM1593 API

Table 36. Get transmit-queue status ld_tx_status

Prototype

Availability l_u8 ld_tx_status (l_ifc_handle ifc);

Master and slave nodes

Include

Description lin.h

This function returns the status of the last call made to ld_send_message (see LIN 2.1 section

7.4.4.3)

Parameters ifc: interface handle

Return value

LD_IN_PROGRESS: transmission not yet completed

LD_COMPLETED: transmission completed successfully. A new ld_send_message call can be issued. This value is also returned after the initialization of transport layer is complete.

LD_FAILED: transmission completed with an error. Data have been partially sent. The transport layer should be reinitialized before processing further messages.

Check the status management function l_read_status to find out why the transmission failed

(see LIN 2.1 section 7.2.5.8).

LD_N_AS_TIMEOUT: transmission failed because of a N_As timeout (see LIN 2.1 section 3.2.5).

Table 37. Get receive-queue status ld_rx_status

Prototype

Availability l_u8 ld_rx_status (l_ifc_handle ifc);

Master and slave nodes

Include

Description lin.h

This function returns the status of the last call made to ld_receive_message (see LIN 2.1 section 7.4.4.4)

Parameters ifc: interface handle

Return value

LD_IN_PROGRESS: reception not yet complete

LD_COMPLETED: reception completed successfully. All information are available (length, NAD, data). This value is also returned when the transport layer initialization is complete and a new ld_receive_message

call can be issued.

LD_FAILED: reception completed with an error. Data ware partially received and should not be trusted. The transport layer should be reinitialized before processing further messages.

Check the status management function l_read_status to find out why the reception failed

(see LIN 2.1 section 7.2.5.8).

LD_N_CR_TIMEOUT: reception failed because of a N_Cr timeout (See LIN 2.1 section 3.2.5).

LD_WRONG_SN: reception failed because of an unexpected sequence number.

DocID024013 Rev 2 31/82

81

API UM1593

Table 38. Schedule tick l_sch_tick

Prototype

(dynamic) l_u8 l_sch_tick (l_ifc_handle ifc);

Availability Master node only

Include lin.h

Description

This function follows a schedule table and initiates the transmission of frames when due. When the end of the current schedule is reached, it restarts from the beginning of the schedule (see LIN 2.1 section 7.2.4.1)

This function must be called periodically and individually for each interface within the node and at a rate specified in the cluster configuration file (LDF). The frequency at which this function is called is given by the time_base value set as part of the master node configuration. Since the period at which this function is called effectively sets the timebase tick, it is essential that the timebase period is uphold with a minimum jitter (see

Section

for an example).

A call to this function will not only start the transition of the next frame due, it will also update the signal values for those signals received since the previous call.

A predefined schedule table, L_NULL_SCHEDULE, shall exist and may be used to stop all transfers on the LIN cluster.

Parameters ifc: interface handle

Return value

Non-zero: if next call to l_sch_tick will start the transmission of the frame in the schedule table entry. The value will be the next schedule table entry number, ranging from 1 to n for a table n entries.

0: if the next call will not start a transmission

Prototype

(static) l_u8 l_sch_tick_iii (void); where iii denotes the interface for which transmission of frames is to be initiated e.g. for the configured interface SCI0 then the prototype: l_u8 l_sch_tick_SCI0 (void);

Prototype

(dynamic)

Availability

Include

Table 39. Set schedule table l_sch_set

void l_sch_set (l_ifc_handle ifc, l_schedule_handle, schedule_iii, l_u8 entry);

Master node only lin.h

32/82 DocID024013 Rev 2

UM1593 API

Table 39. Set schedule table (continued) l_sch_set

Description

This function sets up the next schedule to be followed by the l_sch_tick function for the given interface. The entry given specifies the starting point in the new schedule (see LIN 2.1 section 7.2.4.2)

The interface is optional. It can be used to solve naming conflicts when the node is a master on more than one LIN cluster.

The entry specified must lie in the range of 0 to n for a table with n entries. Values of 0 or 1 specify the beginning of the schedule table. This function can also be used to set the next frame to be transmitted in the current schedule.

A predefined schedule table, L_NULL_SCHEDULE, must exist and can be used to stop all transfers on the LIN cluster.

Parameters ifc: interface handle schedule_iii: new schedule handle for the interface ifc entry: entry point in the new schedule

Return value None

Prototype

(static) void l_sch_set_iii (l_schedule_handle schedule, l_u8 entry); where iii denotes the interface which schedule table is to be set e.g. for the configured interface SCI0 then the prototype: void l_sch_set_SCI0 (l_schedule_handle schedule, l_u8 entry);

Table 40. Goto sleep l_ifc_goto_sleep

Prototype

(dynamic)

Availability

Include void l_ifc_goto_sleep (l_ifc_handle ifc);

Master node only lin.h

Description

This function sets all slave nodes in the cluster connected to the interface given to sleep mode

(see LIN 2.1 section 7.2.5.2)

The go to sleep command is scheduled later when the next schedule entry is due. This function does not affect the power mode. It is up to the application to do this.

If the go to sleep command was successfully transmitted on the cluster, the go to sleep bit is set in the status register (see LIN 2.1 section 7.2.5.8).

Note: It is important that this function is not called if a frame transfer is ongoing. The current transmission could be interrupted or the master node driver may not send the go to sleep command as expected. The user should first check the current driver state by calling

l_ifc_ioctl(), and call l_ifc_goto_sleep() only if the driver is in

LIN_STATE_IDLE state.

Parameters ifc: interface handle

Return value None

Prototype

(static) void l_ifc_goto_sleep_iii (void); where iii denotes the interface to be sent to sleep e.g. for the configured interface SCI0 then the prototype: void l_ifc_goto_sleep_SCI0 (void);

DocID024013 Rev 2 33/82

81

API UM1593

Table 41. Slave synchronize l_ifc_aux

Prototype

(dynamic) void l_ifc_aux (l_ifc_handle ifc);

Availability Slave node only

Include lin.h

Description

This function performs the synchronization with the BREAK and SYNC characters sent by the master node on the specified interface (see LIN 2.1 section 7.2.5.7)

Note: This function is redundant for the drivers currently delivered by ST. It is therefore implemented as a null function.

Parameters ifc: interface handle

Return value None

Prototype

(static) void l_ifc_aux_iii (void); where iii denotes the interface e.g. for the configured interface SCI0 then the prototype: void l_ifc_aux_SCI0 (void);

Prototype

Availability

Include

Description

Parameters

Return value

Table 42. Read by ID callout ld_read_by_id_callout

l_u8 ld_read_by_id_callout (l_ifc_handle ifc, l_u8 id, l_u8* data);

Slave node only (optional: if it is used, the slave node application must implement this callout).

lin.h

This function can be used when the master node transmits a read-by-identifier request with an identifier in the user defined area.

When such a request is received, the slave node application is called from the driver (see LIN 2.1 section 7.3.3.2) ifc: interface handle id: identifier in the user defined area (32 to 63), from the read-by- identifier configuration request. (see LIN 2.1 Table 4.19) data: pointer to a data area of 5 bytes. This area is used by the application to set up the positive response (see LIN 2.1, user defined area in Table 4.20).

The driver acts according to the following return values from the application:

LD_NEGATIVE_RESPONSE: the slave node responds with a negative response (see LIN 2.1,

Table 4.21). In this case the data area is taken into account.

LD_POSTIVE_RESPONSE: the slave node sets up a positive response using the data provided by the application.

LD_NO_RESPONSE: The slave node does not answer.

34/82 DocID024013 Rev 2

UM1593 API

Prototype

Availability

Include

Description

Table 43. Software Timer function l_timer_tick

void l_timer_tick (void);

Master and slave nodes lin.h

This function handles a software timer interrupt. Internal LIN timers are incremented and expired timers are evaluated.

This function should be called by the user application every LIN_TIME_BASE_IN_MS ms when no hardware timer has been configured (see also

Section

).

None

None

Parameters

Return value

Prototype

Availability

Include

Description

Parameters

Return value

Table 44. Protocol Switch l_protocol_switch

void l_protocol_switch (l_ifc_handle ifc, l_bool, linEnable);

Master and slave nodes lin.h

This function switches the LIN protocol on or off for a specified interface. It provides the possibility to use an alternative protocol on a given interface. The ISR checks if LIN is enabled. If it is not, it calls a callback function that is provided as an entry point to the

alternative protocol handler. This callback must be configured as described in

Section

.

ifc: interface handle linEnable: if 1 then switch LIN on, if 0 then off

None

Table 45. Data Dump l_data_dump

Prototype void ld_data_dump (l_ifc_handle ifc, l_u8 nad, const l_u8 * const sendBuf, l_u8 * const receiveBuf);

Master node only Availability

Include

Description lin.h

This function requests a data dump from a slave node. The slave may return up to 5 bytes via the buffer receiveBuf. The application must call ld_is_ready() after the call to ld_data_dump. When TRUE is returned, the application can access the data in the buffer.

According to the LIN specification, this feature should not be used in live networks.

Parameters ifc: interface handle nad: address of node sendBuf: holds the message to be sent to the slave receiveBuf: holds the response when ld_is_ready() next returns TRUE

Return value None

DocID024013 Rev 2 35/82

81

API UM1593

Table 46. Set Cooling Break l_ifc_set_cooling_break

Prototype

Availability

Include

Description void l_ifc_set_cooling_break (l_ifc_handle ifc, l_bool on);

Master node only lin.h

This function sets the break length to the cooling value if the parameter on is set to TRUE, otherwise the break length is set to the standard break length.

Parameters ifc: interface handle on: set to true if cooling break should be used, false if normal break should be used

Return value None

Table 47. Set baud rate l_change_baudrate

Prototype

Availability

Include

Description void l_change_baudrate (l_ifc_handle ifc, l_u16, baudrate);

Slave node only lin.h

This function sets the baud rate for the specified interface. This function should only be called from the callback function that is invoked by the driver when an incorrect (too high) baud rate is

detected. The callback function must be configured as described in

Section

.

Parameters ifc: interface handle baudrate: the baud rate to set for the interface

Return value None

Table 48. Raw Tx delete ld_raw_tx_delete

Prototype

Availability

Include void ld_raw_tx_delete(l_ifc_handle ifc);

Master and slave nodes lin.h

Description

This function removes the oldest Raw Tx frame that has been put on the Tx stack using ld_put_raw().

Parameters ifc: interface handle

Return value

1 if a frame has been removed,

0 if no Raw Tx frame was on the stack.

36/82 DocID024013 Rev 2

UM1593 API

3.8.1 API data types

STLIN driver does not support some of the types defined in the standard API. This means that the application cannot directly define variables of these types. The types that are not defined are l_signal_handle, l_frame_handle and l_flag_handle.

When calling the dynamic interface, the application can only use the signals, frames and schedules by their name as defined in the LDF. It should use the interface name defined in the lingen control file. Flag names are based on the signals and frames defined in the LDF.

Refer to

Section

driver.

2.4: Using the driver

for details on the naming conventions used by the

The notification flags are used to indicate signal or frame updates resulting from the transfer of signal or frames.

Since the application and driver executions are asynchronous, unexpected behavior may occur as described in the following example.

Description

1.

The driver (master or slave) detects that a frame must be sent and builds its frame buffer. It copies the current signal values into the frame buffer and starts the transmission.

2. The user application writes a signal that is contained in the frame being transferred. It can also reset the Tx flag to be notified when the signal transmission is complete.

However, the transfer of the frame is still in progress.

3. The driver completes successfully the transfer of the frame. It then marks the frame and all the signals it contains as transferred.

4. The user application polls the Tx flag and receives 1. It consequently assumes that the value just written has been transferred. Instead, the value that was originally valid has been transferred.

Workaround

Use the l_ifc_ioctl() function to query the driver state before writing new signal values. If a frame is being transferred, the query returns the pID and the driver state. The application can then check if the signal to be written is part of the current frame. See

Section 3.3.4: Interface Management

for further details of the l_ifc_ioctl() function.

DocID024013 Rev 2 37/82

81

Driver configuration UM1593

This section describes the configuration and the hardware specific settings required, and explains how to build the driver.

4.1 File and directory structure

The LIN driver consists of four different groups of source files:

Generic files for all architectures

Hardware specific files

User configurable files

Configuration files generated by the lingen tool (supplied with the driver)

The user configurable files, the lingen tool, the control file and the LDF files required to generate a LIN library must be located in a directory selected by the user. This must then be

specified in the top-level makefile as described in

Section 4.2

.

The driver specific Make_LIN makefile (supplied with the driver) is based on a particular directory structure. The top-level directory is referred to by the variable LIN_SRC_PATH and must be configured in the top-level makefile (see

compliant with

Table 49

:

Section 4.2

). Its subdirectories should be

Top directory

LIN_SRC_PATH

Table 49. Directory structure

Subdirectory

node_type general diag timer arch/ arch_name

Comment

node_type is “master” if Master node otherwise

“slave” as given as given as given

arch_name specifies the specific architecture for which the driver will be built

4.2 Makefiles

The LIN driver is delivered together with two makefiles that can be used to build a library containing the required functionalities:

A top-level makefile example which includes the settings for environment variables

(see

Section 4.2.1: Top-level makefile

).

Make_LIN: this file controls the building process and is designed to be included in the top-level makefile.

38/82 DocID024013 Rev 2

UM1593 Driver configuration

Predefined variables

This file must include the definitions for the following variables:

Name

Table 50. Top-level makefile predefined variable definition

Description

LIN_NODE_IDENTITY

LIN_CC

LIN_CC_OPT

LIN_CC_INC

LIN_MAKE_PATH

LIN_OBJ_PATH

LIN_LIB

LIN_TMP_FILE

LIN_SRC_PATH

LIN_CFG_PATH

LIN_GEN_PATH

LIN_LINGEN_BIN

LIN_NODE

LIN_LINGEN_CONTROL

LIN_LINGEN_OPTS

This variable must be set to MASTER_NODE for a master node driver or

SLAVE_NODE for a slave node driver

Compiler command

Compiler options

Include directories for the compilation process

Path to Make_LIN file

Path in which to generate object files

Lib generation tool

Name for temporary file

Top-level directory of the LIN driver

Directory containing the configuration information for the cluster and the driver.

The lingen control file and the files lin_def.h, lin_def.c and

lin_def_archname.h must be located in this directory. The file lin_def_archname.h

is the architecture specific user configuration file where

archname refers to the specific architecture name.

Directory in which generated files are written. This is used for the –o option for

lingen in the file Make_LIN

Command used to invoke lingen

Name of the node as defined in the LDF. If multiple interfaces are defined for a master node then the name given in the associated LDF files should be the same throughout the application.

Name of the control file used by lingen

Options to be used by the lingen tool. Details of options are given in

Optional variables

In addition, the optional makefile variable LIN_LDF_FILES can be set by the user. They can be used to list the LDF filename(s) to be included in the dependency checks during the make process.

The definition of the variables of the Make_LIN file should be included as follows: include < path_to_MakeLIN > /Make_LIN where < path_to_MakeLIN > specifies the location of Make_LIN.

The generation of the LIN library can then be included as follows: make $(LIN_OBJ_PATH)/lin.lib

or by including $(LIN_OBJ_PATH/lin.lib in the target build instruction.

DocID024013 Rev 2 39/82

81

Driver configuration UM1593

A sample makefile is delivered in the driver. This can be used as a basis for development purposes.

40/82

The description of the node and cluster must be provided in a LIN description file (LDF) in accordance with the LIN 2.1 specification. An LDF example is provided in

Section 6.2

. The

lingen tool delivered with the driver suite can be used to convert the information given in the

LDF into the appropriate format used internally by the driver.

In addition to the cluster description, the user must specify which hardware interface(s) are used. This information is specified in the lingen control file that is input to the lingen tool.

If the lingen tool is called from within the make process, then the name of the control file must be set by the user in the top-level makefile as described in

Section 4.2.1: Top-level makefile

.

Master node

A master node can support more than one interface. In this case a separate LDF file is needed for each interface. The lingen control file specifies which interfaces are used and the corresponding LDF file.

The format of the lingen control file is specified in

Section

shown in the example below:

5.1: Lingen control file

and is

//

// lingen control file defining two interfaces

//

Interfaces

{

SCI0: "/home/LIN/src/lin_config/lin_sci0.ldf", "IFC0";

SCI1: "/home/LIN/src/lin_config/lin_sci1.ldf", "IFC1";

}

The interface entries consist of three parts: the interface name, the corresponding LDF file, and an optional tag field.

The location of the LDF file should be completely specified by giving the absolute path.

The tag entry is concatenated with all frame names and signal names when the lingen tool processes the LDF files. As an example, a signal name “s1_sig1” in the LDF file lin_sci0.ldf listed above will appear in the code as “LIN_SIGNAL_IFC0_sl_sig1”.

For the master node, the tag field must be used to resolve naming conflicts when two LDF files have common signal names. The number of interfaces that can be listed in the control file and their names depend on the hardware. The tag names can be freely chosen by the user.

Slave node

A slave node only supports one interface and therefore only one LDF file is required for a slave. The lingen control file then specifies this interface and the name of the corresponding

LDF file. In addition to this interface definition, the user can also define default frame

DocID024013 Rev 2

UM1593 Driver configuration

identifiers in the slave lingen control file. In this case, the default values given in the LDF file will be used for all slave frames. This means that the slave nodes can start communicating without having been first configured by the master node. This behavior is then no longer compliant with the standard.

The format of the lingen control file is specified in

Section

shown in the examples below:

5.1: Lingen control file

and is

// lingen control file defining one interface

//

Interfaces

{

SCI0: "/home/LIN/src/lin_config/lin_sci0.ldf", "IFC0";

}

//

//specify that slave nodes will start with default frame IDs

//

LIN_use_default_frame_ids;

The interface entries consist of three parts: the interface name, the LDF file to be associated with this interface and an optional tag field.

The location of the LDF file should be completely specified by giving the absolute path.

The tag entry is concatenated with all frame names and signal names when the lingen tool processes the LDF files. As an example, a signal name “s1_sig1” in the LDF file lin_sci0.ldf listed above will appear in the code as “LIN_SIGNAL_IFC0_sl_sig1”.

For slave nodes, the interface name given in the control file depends on the hardware.

Following the interface definition the user can specify the use of default frame IDs as described earlier.

DocID024013 Rev 2 41/82

81

Driver configuration UM1593

A set of configuration files can be generated using the lingen tool provided by ST. It is based on the information given in the lingen control file and on the associated LDF file.

Inputs and outputs for lingen are described in

Figure 3

.

Figure 3. Lingen workflow

42/82

The lin_cfg_types.h file contains the type definitions needed for the driver. lin_cfg.h contains static macros used for accessing configured signals and lin_cfg.c contains initialized data structures in accordance with the information given in the LDF.

The lingen tool is started automatically from the makefile but can be manually executed using the following command format:

lingen

nodeIdentifier [options] lingen_control_file where nodeIdentifier is the name of the node given in the LDF files for which the driver is to be built. For a master node, it must be the same in all ldfs, while there is only one ldf supported in the case of a slave node.

lingen_control_file

is the name of the control unit input to lingen.

The options listed in

Table 51

are currently supported:

DocID024013 Rev 2

UM1593

Note:

Driver configuration

Table 51. Options

Name Description

-c configuration

-o outputDirectory

-r receiveChecksum

-s sendChecksum

- v verbose mode

Specifies which of the possible configurations given in the LDF will be used to build the driver.

Specifies the destination for the configuration files that are to be generated

Selects the checksum model to be used for receiving frames. Possible values are: ldf(default): the lingen tool determines the checksum model from the information given in the LDF. both: the driver accepts either model for all frames

Selects the checksum model to be used for sending frames. Possible values are: ldf (default): the lingen tool determines the checksum model from the information given in the LDF. classic: the driver sends all frames using the classic checksum

Details from lingen will be output to the shell

The -o option is set in the file Make_LIN and should not be set in the top-level makefile. It must be set to LIN_GEN_PATH. It is recommended not to change this setting unless the file

Make_LIN

is replaced.

There are two header files that contain user configurable settings, lin_def.h and lin_def_archname.h where _archname refers to a specific architecture:

 lin_def_archname.h contains the architecture dependent settings (see

Section

Architecture notes

).

 lin_def.h contains other configurable settings (see

Section

,

4.4.2

,

Section

,

4.4.4

,

Section

, and

4.4.6

).

4.4.1 Timers

The LIN driver can use either a hardware timer or a software timer to monitor bus activity when sending frames or checking bus sleep conditions. This timer must be configured by the user in the architecture specific configuration file lin_def_archname.h.

If a hardware timer is selected, the timer number must also be configured according to the architecture (see

Section 7: Architecture notes

for the possible values).

The timer timebase is configured in lin_def.h. This timebase specifies the frequency at which the driver timer routine is called.

For a software timer, this timebase gives the frequency at which the API function l_timer_tick() is called by the user application or operating system. If a hardware timer interrupt has been configured, the driver sets the timer so that the timer ISR is called at this frequency.

DocID024013 Rev 2 43/82

81

Driver configuration UM1593

The recommended value for the timebase is either 1 or 2 ms. It is set as follows:

/*************************************************************

*

* Set the time base of the lin timer in ms.

* This is the time base of the timer ticks of the application

* driven timer or the time base of the hardware timer

*

************************************************************/

#define LIN_TIME_BASE_IN_MS 1

Further details concerning the use of a hardware timer are given in

Section notes

.

7: Architecture

The user must define additional settings as described below.

Checking function parameters

The driver can be built either for development or for production purposes. The development version includes a more extensive check on the parameters passed to the functions. This may not be necessary for a production version. In this case, checking operations can be reduced by changing the following switch:

/*************************************************************

* Set the driver for development or production:

*

* For development:

* #define LIN_DEVELOPMENT, several checks of input parameters

* are performed. This will be quite useful for debugging

* during the development phase.

*

* For production:

* #undef LIN_DEVELOPMENT, only a few checks on the input

* parameters of the functions are performed. Activate this

* for smaller and faster code for the production phase after

* development.

************************************************************/

#define LIN_DEVELOPMENT

Setting the frame maximum duration

The maximum duration for a frame transfer can be configured as a percentage of the nominal transfer time (the default setting of 140 corresponds to that specified in the LIN 2.1 specification:

/*************************************************************

*

* select the maximum frame transfer time in multiples of the

* nominal time (*100)

*

************************************************************/

#define LIN_FRAME_TIME_MULTIPLIER 140

44/82 DocID024013 Rev 2

UM1593 Driver configuration

Setting the number of bits for the BREAK signal

The number of bits to be used for a normal BREAK signal can be configured by changing the following setting. However, it is not normally recommended to change this value from the

LIN standard value of 13 bits.

/*************************************************************

*

* length of the break signal in bit times (nr of bits)

* recommended is 13

* Please adjust LIN_FRAME_TIME_MULTIPLIER if necessary

*

************************************************************/

#define LIN_BREAK_DURATION_BITS 13

According to the LIN 2.1 standard, a slave node is able to detect a BREAK at any time. The current frame processing is interrupted and the new frame is then processed. A BREAK is detected by the driver through a framing error. This may occur at any time during the transmission of a data byte or between transmissions of data bytes. The following switch allows to decide if all framing errors should be treated as a possible BREAK or not. Defining the switch will force the driver to examine the information last received over the bus. Only a

BREAK character that does not occur during the transmission of a data byte will be accepted as a valid BREAK.

/*************************************************************

* The slave driver is able to detect a new BREAK character

* during an ongoing frame transfer (if supported by

* hardware). This is detected through a framing error and may

* occur at any time.

* If LIN_FORCE_STANDALONE_BREAK is *not* defined, any framing

* error will be considered as a possible BREAK character,

* even if this occurs during the transmission of a data byte.

* Otherwise a framing error will only be considered as a

* possible break if it occurs between transmission of data

* bytes.

************************************************************/

#undef LIN_FORCE_STANDALONE_BREAK

Additionally, a longer break signal is required for drivers in a Cooling v2.1 network and so the standard 13 bit break signal can be lengthened to 36 bits for a 19200 baud rate network or 18 bits in a 9600 baud rate network or equivalent.

The Cooling feature must be activated before being used:

/*************************************************************

*

* Activate the Cooling option with #define LIN_USE_COOLING

* Deactivate it with #undef LIN_USE_COOLING

*

************************************************************/

#define LIN_USE_COOLING and the break length set:

#ifdef LIN_USE_COOLING

DocID024013 Rev 2 45/82

81

Driver configuration

/***********************************************************

*

* length of the break signal in bit times (nr of bits)

* Please adjust LIN_FRAME_TIME_MULTIPLIER if necessary

*

**********************************************************/

#define LIN_COOLING_BREAK_DURATION_BITS 36

#endif

UM1593

Activating the Cooling feature provides the user with an additional interface function l_ifc_set_cooling_break that can be called from the application when a longer break is required. This interface function can be used to toggle the length of the break between the configured cooling break length and the configured normal break length as required.

Configuring LIN node startup behavior

The startup behavior of LIN nodes can be influenced by two settings. The first option is to start the slave node bus sleep timer going when a slave node connects to the network. The slave then enters sleep mode if no activity is detected.

Additionally, a master node can be set up to send a wakeup signal when connecting to the network. Note that if a slave is set up to start the bus sleep timer on connection then the master should be configured to send a wakeup. If it is not the case, and the master does not start transmitting within 4 seconds, then the slave node enters sleep mode. In this case the slave node will not be ready to receive frames as it expects to receive a wakeup signal first.

The following two settings can be used for this purpose:

/*************************************************************

*

* select whether the slave node will start the bus sleep timer

* on connect

*

*

* Note: The slave may lose the first frame if the master

* node does not start with a Wakeup signal followed by

100ms silence

***********************************************************/

#define LIN_START_BUSSLEEP_TIMER_ON_CONNECT

/*************************************************************

*

* select whether the master node should start a wakeup

* sequence on connect

*

************************************************************/

#define LIN_SEND_WAKEUP_SIG_ON_CONNECT

For a master node, the initial delay is undefined when switching from L_NULL_SCHEDULE to a valid schedule table after startup. Use the following definition to set the initial value of the delay in timebase ticks:

#define LIN_DELAY_INIT 2

46/82 DocID024013 Rev 2

UM1593

Note:

Driver configuration

On slave nodes, when receiving frames, pIDs are validated against stored pIDs. However, there is no validation of pIDs assigned by the master or by the slave application. Therefore an option to validate pIDs on assignment is provided. The following definition can be used for this purpose:

#define LIN_INCLUDE_PID_PARITY_CHECK

Validation is only carried out on assignment and not on reception of each frame by the slave node.

In LIN 1.2/1.3 nodes, the API functions l_ifc_goto_sleep() and l_ifc_wake_up() were not defined. Use the following definition if LIN 1.2/1.3 nodes need to include these two

API functions:

/*************************************************************

* LIN 1.2/1.3 specific setting

* #define this if you want to use LIN 2.x goto sleep/wakeup

* API for LIN 1.2/1.3

************************************************************/

#define LIN_INCLUDE_2x_SLEEP_MODE_API

The LIN 2.x standard describes the behavior of nodes when receiving a wakeup request from a slave. All slave nodes must be ready to receive frames within 100 ms. A master must send frames within 150 ms after the wakeup request.

This means that a slave node may take up to 100 ms before being ready to receive frames and so a master node should not start transfer before this delay has elapsed. However, if slave nodes are ready to receive frames in a shorter time frame, then the master may start sending earlier.

This time delay must be configured using the following definition:

/*************************************************************

* Master specific setting

* Here the delay after wakeup before sending frames is

* specified for LIN 2.x.

* The value is configurable here (in milliseconds). The

* default value is 100 milli secs.

* Here you can specify other values, for example shorter

* times if you know your slaves are responding faster.

* In particular the CANoe.lin conformance test needs a

* shorter time, recommended in this case is 75.

************************************************************/

#define LIN_MASTER_WAKEUP_TIMER_VALUE 100

On slave nodes, the default value for bus sleep timeout is specified in the LIN2.x standard as 4 s. When a wakeup request is issued by a slave node, the period between consecutive retries is 150 ms. After three failed attempts the node must wait 1.5

s before issuing another wakeup request. These values can be configured by the user as follows:

/*************************************************************

* LIN 2.x specific setting

* The value for the bus sleep timeout is configurable here (in

* milliseconds). The recommended default value given in the

* standard is 4secs.

* The other two definitions give the period between the

* signals in milliseconds, the standard demands 150 and 1500

DocID024013 Rev 2 47/82

81

Driver configuration

Note:

4.4.3

UM1593

* msecs

************************************************************/

#ifndef LIN_13

#define LIN_BUSSLEEP_TIMEOUT_VAL(IFC) (l_u16) 4000

#define LIN_WAKEUP_TIMEOUT_VAL_SHORT(IFC) (l_u16) 150

#define LIN_WAKEUP_TIMEOUT_VAL_LONG(IFC) (l_u16) 1500

#endif

The maximum number of attempts can also be configured:

/*************************************************************

* The number of wakeup retries to send

* If after a wakeup signal from the slave the master does not

* start to send frame headers, the slave may retry to send

* the wakeup signal. The define gives the maximum number of

* retries

************************************************************/

#define LIN_WAKEUP_RETRIES_MAX 3

Setting this value to zero means that the driver does not stop sending wakeup signals when there is no response from the master.

Diagnostic functions configuration

The diagnostic module functions can be individually selected as described below. The driver default settings reflect the standard requirements. The following definitions are used for this purpose:

/*************************************************************

*

* Configuration features. Select by define'ing.

* Default values match the mandatory services defined by the

* standard

*

************************************************************/

/*************************************************************

* service Assign Frame Id (mandatory for LIN 2.0, obsolete

* for LIN 2.1)

************************************************************/

#undef LIN_INCLUDE_ASSIGN_FRAME_ID

/*************************************************************

* service Assign NAD (optional for LIN 2.x)

************************************************************/

#define LIN_INCLUDE_ASSIGN_NAD

The “Assign NAD” service is optional. It is enabled since it is called in the Initialization table of the demo present in the LDF file of the LIN package and is required to configure slave nodes.

/*************************************************************

* service Read By Id (mandatory for LIN 2.x)

48/82 DocID024013 Rev 2

UM1593 Driver configuration

************************************************************/

#define LIN_INCLUDE_READ_BY_ID

/*************************************************************

*service Conditional Change NAD (optional for LIN 2.x)

************************************************************/

#undef LIN_INCLUDE_COND_CHANGE_NAD

/*************************************************************

* service Data Dump (optional for LIN 2.x))

* Note: The standard strongly discourages use of this service

* in operational LIN clusters

************************************************************/

#undef LIN_INCLUDE_DATA_DUMP

/*************************************************************

*

* choose Serial Number (optional for Slave node)

* Slave node may have a serial number to identify a specific

* instance of a slave node product. The serial number is 4

* bytes long.

************************************************************/

#define SERIAL_NUMBER 0xFFFF

The Save Configuration and Assign Frame Id Range services are valid only for LIN 2.1:

#ifdef LIN_21

/*************************************************************

* service Save Configuration (optional for LIN 2.1)

************************************************************/

#define LIN_INCLUDE_SAVE_CONFIGURATION

/*************************************************************

* service Assign Frame Id Range (mandatory for LIN 2.1)

************************************************************/

#define LIN_INCLUDE_ASSIGN_FRAME_ID_RANGE

The Save Configuration service is also optional. It is enabled since it is called in the

Initialization table of the demo present in the LDF file of the LIN package.

The Diagnostic class is valid and mandatory only for LIN 2.1 slave nodes. It can be used to perform the following actions:

Do a crosscheck between LDF and the same class to understand if the slave node is able to perform the diagnostic

Understand which diagnostic services the slave node is able to respond to

Know which configuration and identification services is supported

Understand if the slave node is able to support the Transport Protocol

Understand if the slave node is able to be reprogrammed (only class 3).

DocID024013 Rev 2 49/82

81

Driver configuration UM1593

/*************************************************************

* choose Diagnostic Class (mandatory for LIN 2.1 slave node)

* LIN 2.1 slave nodes must have a Diagnostic Class value

* defined.

* This value can be: 1,2 or 3 (other values will involve in

* an error).

************************************************************/

/*

* DIAGNOSTIC_CLASS 1: Only the node configuration services

* are supported.

* The slave does not support any other diagnostic services.

* Single frames (SF) transport protocol support is

* sufficient.

* Node Identification is limited to the mandatory read by

* identifier service.

*

* DIAGNOSTIC_CLASS 2: Node configuration and identification

* services are supported.

* Full transport layer implementation is required to support

* multi-frame transmissions.

* Node Identification is extended to all the Read By Id

* services. Slave-nodes will support a set of ISO 14229-1

* diagnostic services like Node identification (SID 0x22),

* Reading data parameter (SID 0x22) if applicable, Writing

* parameters (SID 0x2E) if applicable.

*

* DIAGNOSTIC_CLASS 3: Node configuration and identification

* services are supported.

* Full transport layer implementation is required to support

* multi-frame transmissions.

* Node Identification is extended to all the Read By Id

* services. Slave-nodes shall support all services as of

* Class II.

* Additionally, other services may be supported depending on

* the features which are implemented by the slave node:

* for example Session control (SID 0x10), I/O control by

* identifier (0x2F), Read and clear DTC (SID 0x19, 0x14).

* Only class 3 slave nodes can reprogram the application via

* the LIN bus.

************************************************************/

#define LIN_DIAGNOSTIC_CLASS 1

#ifdef LIN_SLAVE_NODE

#ifndef LIN_DIAGNOSTIC_CLASS

#error "For a LIN 2.1 slave node, LIN Diagnostic Class is mandatory and must be defined!"

#endif

#if ((LIN_DIAGNOSTIC_CLASS < 1) ||

(LIN_DIAGNOSTIC_CLASS > 3))

#error "LIN 2.1 Diagnostic Class value can be 1,2 or 3!"

#endif

50/82 DocID024013 Rev 2

UM1593 Driver configuration

#else

#if ((!defined(LIN_MASTER_ONLY)) ||

(!defined(LIN_SLAVE_ONLY)))

#error "A master node must support the Interleaved

Diagnostics schedule Mode (mandatory)!"

#endif

#endif

#endif /* LIN_21 */

/*************************************************************

*

* LIN TP features. Select by define'ing.

* TP is disabled by default

*

************************************************************/

/*************************************************************

* the cooked diagnostic TP

************************************************************/

#undef LIN_INCLUDE_COOKED_TP

/*************************************************************

* the raw diagnostic TP

************************************************************/

#undef LIN_INCLUDE_RAW_TP

4.4.5

For the Raw TP the size of the Rx and Tx FIFO stack can be configured using the definition:

/*************************************************************

* define the stack size of the raw tp fifo stacks

* (in numbers of frames)

************************************************************/

#define LIN_DIAG3_FIFO_SIZE_MAX 1

Transport Protocol handling in LIN 2.1 Master

Transport Protocol handling requires that:

The master node supports a diagnostic master request schedule table that contains a single master request frame.

The master node supports a diagnostic slave response schedule table that contains a single slave response frame.

When no diagnostic communication is active, the master node does not execute diagnostic schedules tables (default).

A master node supports the following different scheduling modes:

– Interleaved diagnostics mode (mandatory)

– Diagnostics-only mode (optional)

DocID024013 Rev 2 51/82

81

Driver configuration UM1593

Master node supporting a diagnostic master request schedule table containing a single master request frame

The diagnostic master request schedule table is executed each time a master request frame

is transmitted (see

Figure 4

).

The lingen tool checks if a table containing only a single master request frame exists in the

LDF file.

If a table is found (if there are more than one table, it checks only the first table found in the LDF file), it includes the following define statement in the lin_cfg_types.h

(located under ..\demo\stm8\lin_basic_demo\master\obj\):

#define LIN_MASTER_ONLY LIN_TAB_MasterOnly

In the example below the lingen tool has found the MasterOnly table in the LDF file:

MasterOnly {

//This is the Master Diagnostic interleaved Mode (mandatory)

MasterReq delay 20 ms;

}

If the lingen tool does not find a table complying with the mandatory requirements, it does not include the LIN_MASTER_ONLY define statement. This will cause a compilation error since a master node must support the Interleaved Diagnostics schedule mode which is mandatory (see also

Master node supporting either

Interleaved diagnostics or Diagnostics-only mode

).

Figure 4. Interleaving of a diagnostic master request schedule table

52/82 DocID024013 Rev 2

UM1593 Driver configuration

Master node supporting a diagnostic slave response schedule table containing a single slave response frame

The diagnostic slave response schedule table is run between the executions of the normal communication schedules whenever a slave response frame is transmitted (see

Figure 5

).

The lingen tool checks if a table containing only a single slave response frame exists in the

LDF file.

If a table is found (if there are more than one table, it checks only the first table found in the LDF file), it includes the following define statement in the lin_cfg_types.h

(located under ..\demo\stm8\lin_basic_demo\master\obj\):

#define LIN_SLAVE_ONLY LIN_TAB_SlaveOnly

In the example below the lingen tool has found the SlaveOnly table in the LDF file:

SlaveOnly {

//the Slave Diagnostic Interleaved Mode (mandatory)

//the default scheduled table in Diagnostic Only Mode

//and no active transmission from master node must be sent

SlaveResp delay 20 ms ;

}

If the lingen tool does not find any table complying with the mandatory requirements, it does not include the LIN_SLAVE_ONLY define statement. This will cause a compilation error since a master node must support the Interleaved Diagnostics schedule Mode which is mandatory (see also

Master node supporting either Interleaved diagnostics or

Diagnostics-only mode

).

Figure 5. Interleaving of a diagnostic slave response schedule table

DocID024013 Rev 2 53/82

81

Driver configuration UM1593

No diagnostic schedule tables executed by the master node when no diagnostic communication is active

This is the master node default behavior. The master application must not switch to tables such as the LIN_TAB_SlaveOnly or LIN_TAB_MasterOnly tables described in the previous examples before it receives a diagnostic request from an external tool (see

Figure 6

).

Figure 6. No diagnostic communication

54/82

Master node supporting either Interleaved diagnostics or Diagnostics-only mode

Upon request from an external diagnostic test tool, the master node can operate each of its connected LIN clusters either in Interleaved Diagnostics Interleaved mode or in Diagnostics-

only mode(see

Figure 5

):

Diagnostics Interleaved mode

This is the master node default mode.

Before executing diagnostic schedules, the master node completed the ongoing normal communication schedules (see

Figure 4

and

Figure 5

). After executing of a diagnostic schedule, the master node runs a normal communication schedule before

executing the new diagnostic schedule (see

Figure 7

).

In Diagnostics Interleaved mode, the master application ensures via normal communication schedule design that the time between two subsequent diagnostic schedules complies with the OEM specific diagnostic requirements.

DocID024013 Rev 2

UM1593

Figure 7. Diagnostic Interleaved mode

Driver configuration

The number of executions of the diagnostic master request schedule table depends on the amount of data that needs to be transmitted. It is determined by the master node in compliance with the LIN transport protocol. As an example, the schedule must be executed twice to transmit 10 user data bytes using the LIN transport protocol.

Subsequent executions of the interleaved diagnostic slave response schedule table depend on the amount of data to be transferred. They are performed by the master node until the transmissions have successfully completed or a transport protocol timeout occurs.

If a diagnostic transmission from slave node to master has started, the master node executes the diagnostic slave response schedule (even when one or several slave response frame headers have not been answered) until ((see

Figure 8

):

– A P2max / P2*max timeout occurs (See section 5.6 of LIN 2.1 specification);

– A transport protocol timeout occurs (See section 3.2.5 of LIN 2.1 specification).

The Diagnostic interleaved mode is configured by the Lingen tool by enabling the following define statement:

#define LIN_MASTER_ONLY LIN_TAB_TableName1

#define LIN_SLAVE_ONLY LIN_TAB_TableName2

DocID024013 Rev 2 55/82

81

Driver configuration

Figure 8. Continued execution of diagnostic slave response schedule table until response received

UM1593

Diagnostics-only mode (optional)

In Diagnostics-only mode only the diagnostic schedules. No normal communication schedules are executed. The basic principles when using master request frame schedule tables and slave response frame schedule tables are similar as for the

Diagnostics interleaved mode except that no normal communication schedules are interleaved between the diagnostic schedule tables.

This allows to optimize diagnostic data transmission when reading slave node

Identifications or during Flash memory reprogramming (see

Figure 9

for the different

cases).

56/82 DocID024013 Rev 2

UM1593

Figure 9. Diagnostic-only mode

Driver configuration

The Diagnostics-only mode is enabled and disabled by issuing a diagnostic service request from an external test tool. For example, the "Communication Control" service in

UDS disables normal communication on the LIN cluster and activates the Diagnosticsonly mode.

When operating in Diagnostics-only mode and no transmission is active, the master

node executes diagnostic slave response schedule tables (see

Figure

).

The lingen tool checks if a table containing only two frames, a master request frame and a slave response frame, exists in the LDF file:

If at least one table is found (if there are more than one table, it checks only the first table found in the LDF file), it includes the following define statement in the lin_cfg_types.h

(located under ..\demo\stm8\lin_basic_demo\master\obj\):

#define LIN_DIAGNOSTIC_ONLY LIN_TAB_Diagnostic

In the example below, the lingen tool has found the Diagnostic table in the LDF file:

Diagnostic { //This is the Diagnostic Only Mode (optional)

MasterReq delay 20 ms ;

SlaveResp delay 20 ms ;

}

If the lingen tool does not find any table complying with the optional requirements, it does not include the LIN_DIAGNOSTIC_ONLY define statement. This does not generate any compilation since the Diagnostics-only mode is optional.

DocID024013 Rev 2 57/82

81

Driver configuration UM1593

/*************************************************************

* choose Diagnostic Class (mandatory for LIN 2.1 slave node)

* LIN 2.1 slave nodes must have a Diagnostic Class value

* defined.

* This value can be: 1,2 or 3 (other values will involve in

* an error).

************************************************************/

/*

* DIAGNOSTIC_CLASS 1: Only the node configuration services

* are supported.

* The slave does not support any other diagnostic services.

* Single frames (SF) transport protocol support is

* sufficient.

* Node Identification is limited to the mandatory read by

* identifier service.

*

* DIAGNOSTIC_CLASS 2: Node configuration and identification

* services are supported.

* Full transport layer implementation is required to support

* multi-frame transmissions.

* Node Identification is extended to all the Read By Id

* services. Slave-nodes will support a set of ISO 14229-1

* diagnostic services like Node identification (SID 0x22),

* Reading data parameter (SID 0x22) if applicable, Writing

* parameters (SID 0x2E) if applicable.

*

* DIAGNOSTIC_CLASS 3: Node configuration and identification

* services are supported.

* Full transport layer implementation is required to support

* multi-frame transmissions.

* Node Identification is extended to all the Read By Id

* services. Slave-nodes shall support all services as of

* Class II.

* Additionally, other services may be supported depending on

* the features which are implemented by the slave node:

* for example Session control (SID 0x10), I/O control by

* identifier (0x2F), Read and clear DTC (SID 0x19, 0x14).

* Only class 3 slave nodes can reprogram the application via

* the LIN bus.

************************************************************/

#define LIN_DIAGNOSTIC_CLASS 1

#ifdef LIN_SLAVE_NODE

#ifndef LIN_DIAGNOSTIC_CLASS

#error "For a LIN 2.1 slave node, LIN Diagnostic Class is mandatory and must be defined!"

#endif

#if ((LIN_DIAGNOSTIC_CLASS < 1) ||

(LIN_DIAGNOSTIC_CLASS > 3))

#error "LIN 2.1 Diagnostic Class value can be 1,2 or 3!"

#endif

58/82 DocID024013 Rev 2

UM1593 Driver configuration

#else

#if ((!defined(LIN_MASTER_ONLY)) ||

(!defined(LIN_SLAVE_ONLY)))

#error "A LIN 2.1 master node must support the Interleaved

Diagnostics schedule Mode (mandatory)!"

#endif

#endif

#endif /* LIN_21 */

/*************************************************************

*

* LIN TP features. Select by define'ing.

* TP is disabled by default

*

************************************************************/

/*************************************************************

* the cooked diagnostic TP

************************************************************/

#undef LIN_INCLUDE_COOKED_TP

/*************************************************************

* the raw diagnostic TP

************************************************************/

#undef LIN_INCLUDE_RAW_TP

For the Raw TP the size of the Rx and Tx FIFO stack can be configured using the definition:

/*************************************************************

* define the stack size of the raw tp fifo stacks

* (in numbers of frames)

************************************************************/

#define LIN_DIAG3_FIFO_SIZE_MAX 1

DocID024013 Rev 2 59/82

81

Driver configuration

Figure 10. Default schedule in the Diagnostic Only mode

UM1593

60/82

Interrupt callback functions

Two callback functions must also be provided by the user. They allow the LIN driver to enable or disable system interrupts. The function prototypes are described below together with their implementation. They can be located in the lin_def.c file located in the user configuration directory. The function prototypes are defined as follows:

Table 52. Disable Interrupts l_sys_irq_disable

Prototype l_irqmask l_sys_irq_disable (void);

Availability Master and slave nodes

Description

This function achieves a state in which no interrupts from the LIN communication can occur

Parameters None

Return value Interrupt mask describing the state of the interrupts when this function is called.

Table 53. Restore Interrupts l_sys_irq_restore

Prototype void l_sys_irq_restore (l_irqmask irqMask);

Availability Master and slave nodes

Description This function restores the interrupt level identified by the irqMask parameter

Parameters irqMask: mask containing the state of the interrupts to be restored

Return value None

DocID024013 Rev 2

UM1593 Driver configuration

An implementation example is given in

Section callbacks (master and slave)

.

6.4: Example implementation of IRQ

The LIN driver uses these user-defined functions each time an API function is called.

Interrupts are disabled when entering the API function and re-enabled before returning. This means that the callback functions provided for the driver must handle nested calls. If an API function is called and interrupts have already been disabled, interrupts shall only be reenabled at the outermost call to the l_sys_irq_restore() function.

The SuspendOSInterrupts and RestoreOSInterrupts OSEK functions described in

Section 6.4

meet this requirements.

Protocol switch callback function

The application can change the protocol for a given LIN interface by using the l_protocol_switch() function with its parameter set to disable LIN. When LIN is disabled, a callback function is used by the ISR as an entry to the alternative protocol. This callback function must be provided by the user and comply with the prototype given in

Table 54

.

To enable the use of this feature, include the following define statement in lin_def.h:

#define LIN_PROTOCOL_SWITCH

Table 54. Protocol switch function callback l_protocol_callback_iii

Prototype void l_protocol_callback_iii (void); where iii denotes configured interfaces SCI0 .. SCIn

Availability Master and slave nodes

Description

This function provides the entry point to an alternative protocol handler called by the ISR when an interrupt occurs after the application has called the l_protocol_switch() API function to disable LIN. The callback is interface specific and so for each interface the user must provide a corresponding callback.

Parameters None

Return value None

DocID024013 Rev 2 61/82

81

Driver configuration UM1593

Diagnostic callback functions (slave only)

Two callback functions can be configured for slave nodes to be able to use the ld_read_by_id()diagnostic service (when used for user-defined ids) and the ld_data_dump()service. These have the following prototype forms:

For these two callbacks, empty implementations are included in the file lin_def.c. These must be replaced by the user to provide the functionality required.

Table 55. ld_read_by_id callback ld_readByIdCallback

Prototype

Description l_bool ld_readByIdCallback(l_u8 id, l_u8* pBuffer);

This function provides a response in accordance with the id request sent from the master.

This callback will be called by the slave driver when the id given lies in the range allocated for user-defined ids i.e. 32 – 63.

If a non-zero value is returned, the driver sends the buffer back to the master. The user application receives the complete frame buffer and can write up to 5 bytes response into the buffer starting at location pBuffer[3]. The application is responsible for setting the PCI byte (pBuffer[1]) correctly. It must be set to the number of valid data bytes written plus one. Since the buffer is pre-set to 0xFF, the unused bytes will have this value.

Parameters id: the id sent by the master pBuffer: the buffer into which the user application must write a response

Return value non-zero if buffer to be sent back to master

Table 56. ld_data_dump callback ld_dataDumpCallback

Prototype l_bool ld_dataDumpCallback(l_u8* sendBuf, l_u8* recBuf);

Description

Provides a response to a data dump request from the master. This callback is called by the slave driver and must write 5 bytes in response starting at recBuf[0] and then return non-zero to the driver. If no response is to be sent then return zero to the driver.

Note: When a response is to be returned, 5 bytes will always be transferred.

Parameters sendBuf: the buffer sent by the master recBuf: the buffer into which the application can write its response

Return value non-zero if the driver is to send a response back to the master

Baud rate detection callback function (slave only)

Baud rate detection for slave nodes can be configured. When this feature is enabled, a callback function is invoked by the LIN driver when an incorrect baud rate is detected. From this callback, the application can then call the l_change_baudrate() function to reduce the current baud rate.

The application starts with the highest possible baud rate and then repeatedly reduces the baud rate until communication is established.

This feature must be enabled in lin_def.h by:

#define LIN_BAUDRATE_DETECT

62/82 DocID024013 Rev 2

UM1593 Driver configuration

Table 57. Baud rate detection callback l_baudrate_callback_iii

Prototype void l_baudrate_callback_iii (l_u16 baudrate);

Description

This function sets the baud rate for the given interface by calling the l_change_baudrate() API function. This callback is called if an incorrect (too high) baud rate is detected by the slave driver. The callback is interface specific and so for each interface the user must provide a corresponding callback.

Parameters ifc: interface handle baudrate: the baud rate currently detected (i.e. the incorrect baud rate) on the interface

Return value None

The STMicroelectronics LIN driver provides functions to handle the interrupts occurring when a character is received or transmitted on a specific interface. These functions must be called from the user-defined interrupt handlers which are called when an interrupt is triggered. Since the driver functions completely handle the interrupts, any further handling should not be implemented by the user.

These driver functions are architecture dependent. As an example, the application user

should not call the Tx handler when only the Rx handler is used. Refer to

Section 7:

Architecture notes

for exact details.

The functions have the following interfaces:

Table 58. Handler for character rx l_ifc_rx

Prototype

Availability void l_ifc_rx (l_ifc_handle ifc);

Master and slave nodes

Description

This function h andles the interrupt when a character is received

Parameters ifc: the interface on which the interrupt occurred

Return value None

Interface specific prototype void l_ifc_rx_iii (void);

Description handles the interrupt for the interface given by iii

Include lin.h

DocID024013 Rev 2 63/82

81

Driver configuration

Table 59. Handler for character tx l_ifc_tx

Prototype

Availability void l_ifc_tx (l_ifc_handle ifc);

Master and slave nodes

Description This function handles the interrupt

Parameters ifc: the interface on which the interrupt occurred

Return value None

Interface specific prototype void l_ifc_tx_iii (void);

Description handles the interrupt for the interface given by iii

Include lin.h

UM1593

64/82 DocID024013 Rev 2

UM1593

5 Lingen control file specifications

Lingen control file specifications

5.1 Lingen control file

The lingen tool uses a specific control file to determine which interfaces have to be configured and which LDF file is associated with the selected interfaces. The following sections specify the content of this control file.

C/C++ style comments can be used in the lingen control file. They are not described in the sections below. An explanation of the syntax is given in

Section 5.2: Syntax specification

.

<lingen_control_file> ::=Interfaces

{

[<interface_spec>]

}

(LIN_use_default_frame_ids ;)

5.1.3

The interface is defined as follows:

<interface_spec> ::= <interface_id>:<ldf_file_name> (,<tag_id>);

<interface_id> ::= identifier

The driver currently supports the interface identifiers from SCI0 to SCI9. However, the identifiers should match the specific interface as defined in

Section 7: Architecture notes

.

<ldf_file_name> ::= string

The string should specify the filename of the LIN description file. It must include the full path specification for the file. It can be either the relative path to the file or the filename if the file is located in the current directory. It is recommended to specify the full path especially if the lingen tool is executed from a makefile:

<tag_id> ::= “tag_identifier”

The tag identifier is intended for avoiding naming conflicts and will be concatenated with C identifiers internally. Therefore it should include a legal sequence of characters

following C identifier rules (see

Section 4.3.1: Cluster description

for an example).

Default frame Identifiers

The LIN_use_default_frame_ids optional keyword is intended to be used with slave nodes only. If included, the default frame identifiers (IDs) given in the LDF apply to all slave frames.

Slave nodes can start communication without having been configured by the master.

The following syntax has been used for the specification of the lingen control file. It must be consistent with the syntax used for specifying LIN description files as described in the

LIN2.1 and LIN 2.0 standards for master and slave nodes, respectively.

DocID024013 Rev 2 65/82

81

Lingen control file specifications

Symbol

::=

<>

[ ]

( ) bold text identifier string tag_identifier

Table 60. Syntax description

Description

Is defined to be

Delimits an object specified later

Delimits an object that shall appear one or more times

Delimits an object that is optional

Keyword or symbol, use directly as given

Identifies an object, c-style identifier rules apply

Any c-style string

Use to extend identifiers, c-style identifier rules apply

UM1593

66/82 DocID024013 Rev 2

UM1593

6 Examples

6.1

Examples

Sample control file for lingen

The lingen tool uses a specific control file to determine which interfaces have to be configured and which LDF file is associated with the selected interfaces. This example applies to a master configuration with two interfaces:

Master node

//

// lingen control file defining two interfaces

//

Interfaces

{

SCI0: "/home/LIN/src/lin_config/lin_sci0.ldf", "IFC0";

SCI1: "/home/LIN/src/lin_config/lin_sci1.ldf", "IFC1";

}

Slave node

//lingen control file defining one interface

//

Interfaces

{

SCI0: "/home/LIN/src/lin_config/lin_sci0.ldf", "IFC0";

}

//

// specify that slave nodes will start with default frame IDs

//

LIN_use_default_frame_ids;

6.2 LIN 2.0 LDF example (master and slave)

The format and full details for a LIN description file are given in the LIN configuration language specification section of LIN 2.0 standard. This example shows a configuration with one master and two slave nodes. The first slave node is set up according to LIN 2.0, and the second according to LIN 1.2.

//

// global definitions

//

LIN_description_file;

LIN_protocol_version = "2.0";

LIN_language_version = "2.0";

LIN_speed = 19.2 kbps;

//

// node definition: participating nodes

//

DocID024013 Rev 2 67/82

81

Examples

Nodes

{

Master: master, 10 ms, 0.1 ms;

Slaves: slave1, slave2;

}

//

// signal definition: standard signals

//

Signals

{

//

// Master node signals

//

// the DIP state of the Master node board

// masterDIPState1: DIPs 1 and 2

// masterDIPState2: DIPs 3 to 6

// masterDIPState3: DIP 7

// masterDIPSTate4: DIP 8 masterDIPState1: 2, 0, master, slave1, slave2; masterDIPState2: 4, 0, master, slave1, slave2; masterDIPState3: 1, 0, master, slave1, slave2; masterDIPState4: 1, 0, master, slave1, slave2;

// slave1 node signals

//

// the DIP state of the slave1 node board

// slave1DIPState1: DIPs 1 and 2

// slave1DIPState2: DIPs 3 to 6

// slave1DIPState3: DIP 7

// slave1DIPSTate4: DIP 8 slave1DIPState1: 2, 0, slave1, master, slave2; slave1DIPState2: 4, 0, slave1, master, slave2; slave1DIPState3: 1, 0, slave1, master, slave2; slave1DIPState4: 1, 0, slave1, master, slave2; slave1Toggle : 1, 0, slave1, master;

//

// slave2 node signals

//

// the DIP state of the slave1 node board

// slave2DIPState1: DIPs 1 and 2

// slave2DIPState2: DIPs 3 to 6

// slave2DIPState3: DIP 7

// slave2DIPSTate4: DIP 8 slave2DIPState1: 2, 0, slave2, master, slave1; slave2DIPState2: 4, 0, slave2, master, slave1; slave2DIPState3: 1, 0, slave2, master, slave1; slave2DIPState4: 1, 0, slave2, master, slave1; slave2Toggle : 1, 0, slave2, master;

68/82 DocID024013 Rev 2

UM1593

UM1593

}

// error signal errorSignalSlave1: 1, 0, slave1, master; errorSignalSlave2: 1, 0, slave2, master;

//

// signal definition: diagnostic signals

// (optional but recommended)

//

Diagnostic_signals

{

MasterReqB0: 8, 0;

MasterReqB1: 8, 0;

MasterReqB2: 8, 0;

MasterReqB3: 8, 0;

MasterReqB4: 8, 0;

MasterReqB5: 8, 0;

MasterReqB6: 8, 0;

MasterReqB7: 8, 0;

SlaveRespB0: 8, 0;

SlaveRespB1: 8, 0;

SlaveRespB2: 8, 0;

SlaveRespB3: 8, 0;

SlaveRespB4: 8, 0;

SlaveRespB5: 8, 0;

SlaveRespB6: 8, 0;

SlaveRespB7: 8, 0;

}

//

// frame definition: unconditional frames

//

Frames

{

//

// frames published by the master

// frmM1: 0, master, 2

{ masterDIPState1, 0;

} frmM2: 1, master, 1

{ masterDIPState2, 0;

} frmM3: 2, master, 1

{ masterDIPState3, 0; masterDIPState4, 1;

DocID024013 Rev 2

Examples

69/82

81

Examples

70/82

}

//

// frames published by slave1

// frmS11: 20, slave1, 2

{ slave1DIPState1, 0;

} frmS12: 21, slave1, 2

{ slave1DIPState2, 8; slave1Toggle, 12;

} frmS13: 22, slave1, 1

{ slave1DIPState3, 0; slave1DIPState4, 1; errorSignalSlave1, 2;

}

//

// frames published by slave2

// frmS21: 40, slave2, 2

{ slave2DIPState1, 0;

} frmS22: 41, slave2, 2

{ slave2DIPState2, 8; slave2Toggle, 12;

}

} frmS23: 42, slave2, 1

{ slave2DIPState3, 0; slave2DIPState4, 1; errorSignalSlave2, 2;

}

//

// frame definition: diagnostic frames

// (optional but recommended)

//

Diagnostic_frames

{

MasterReq : 60

DocID024013 Rev 2

UM1593

UM1593

}

{

MasterReqB0, 0;

MasterReqB1, 8;

MasterReqB2, 16;

MasterReqB3, 24;

MasterReqB4, 32;

MasterReqB5, 40;

MasterReqB6, 48;

MasterReqB7, 56;

}

SlaveResp : 61

{

SlaveRespB0, 0;

SlaveRespB1, 8;

SlaveRespB2, 16;

SlaveRespB3, 24;

SlaveRespB4, 32;

SlaveRespB5, 40;

SlaveRespB6, 48;

SlaveRespB7, 56;

}

//

// node definition: node attributes

//

Node_attributes

{ slave1

{

LIN_protocol = 2.0;

// the startup diagnostic address configured_NAD = 1;

// product id is used to uniquely identify a slave node

// within a cluster product_id = 0x1234, 0x5678, 0x03;

// definition of the error signal of the slave response_error = errorSignalSlave1;

// the list of configurable frames

// all frames to be processed by the slave node

// must get a message id in this section configurable_frames

{ frmM1 frmM2

= 0x01;

= 0x02; frmM3 = 0x03; frmS11 = 0x04; frmS12 = 0x05;

Examples

DocID024013 Rev 2 71/82

81

Examples

72/82 frmS13 = 0x06; frmS21 = 0x08; frmS22 = 0x09; frmS23 = 0x10;

}

} slave2

{

LIN_protocol = 1.2;

}

}

// the startup diagnostic address configured_NAD = 2;

//

// schedule table definitions

//

Schedule_tables

{

//

// this schedule table will configure the slave1 node to

// participate in LIN communication

// schTabConfig

{

AssignFrameId{slave1, frmM1 } delay 20 ms;

AssignFrameId{slave1, frmM2 } delay 20 ms;

AssignFrameId{slave1, frmM3 } delay 20 ms;

AssignFrameId{slave1, frmS11 } delay 20 ms;

AssignFrameId{slave1, frmS12 } delay 20 ms;

AssignFrameId{slave1, frmS13 } delay 20 ms;

AssignFrameId{slave1, frmS21 } delay 20 ms;

AssignFrameId{slave1, frmS22 } delay 20 ms;

AssignFrameId{slave1, frmS23 } delay 20 ms;

}

//

// the normal signals are transferred using this schedule

// table

// schTab1

{ frmM1 delay 20 ms; frmS11 delay 20 ms; frmS21 delay 20 ms; frmM2 delay 20 ms; frmM3 delay 20 ms; frmS13 delay 20 ms;

DocID024013 Rev 2

UM1593

UM1593

6.3

Examples

}

} frmS23 delay 20 ms;

LIN 2.1 LDF example (master and slave node)

The format and full details of a LIN description file are given in the LIN configuration language specification section of LIN 2.1 standard. This example shows a configuration with one master and two slave nodes. Both slave nodes are set up according to LIN 2.1.

LIN_description_file;

LIN_protocol_version =

“2.1“;

LIN_language_version =

“2.1“;

LIN_speed = 19.2 kbps;

Channel_name =

“DB“;

Nodes

{

Master: CEM, 5 ms, 0.1 ms;

Slaves: LSM, RSM;

}

Node_attributes

{

LSM

{

LIN_protocol =

“2.1“; configured_NAD = 0x20; initial_NAD = 0x01; product_id = 0x4A4F, 0x4841; response_error = LSMerror; fault_state_signals = IntTest;

P2_min = 150 ms;

ST_min = 50 ms; configurable_frames

{

CEM_Frm1; LSM_Frm1; LSM_Frm2;

}

}

RSM

{

LIN_protocol =

“2.0“; configured_NAD = 0x20; product_id = 0x4E4E, 0x4553, 1; response_error = RSMerror;

P2_min = 150 ms;

ST_min = 50 ms; configurable_frames

{

CEM_Frm1 = 0x0001; LSM_Frm1 = 0x0002; LSM_Frm2 = 0x0003;

}

}

DocID024013 Rev 2 73/82

81

Examples

74/82

}

Signals

{

IntLightsReq: 2, 0, CEM, LSM, RSM;

RightIntLightsSwitch: 8, 0, RSM, CEM;

LeftIntlLightsSwitch: 8, 0, LSM, CEM;

LSMerror, 1, 0, LSM, CEM;

RSMerror, 1, 0, LSM, CEM;

IntTest, 2, 0, LSM, CEM;

}

Frames

{

CEM_Frm1: 0x01, CEM, 1

{

InternalLightsRequest, 0;

}

LSM_Frm1: 0x02, LSM, 2

{

LeftIntLightsSwitch, 0;

}

LSM_Frm2: 0x03, LSM, 1

{

LSMerror, 0;

IntError, 1;

}

RSM_Frm1: 0x04, RSM, 2

{

RightIntLightsSwitch, 0;

}

}

RSM_Frm2: 0x05, RSM, 1

{

RSMerror, 0;

}

Event_triggered_frames

{

Node_Status_Event : Collision_resolver, 0x06, RSM_Frm1,

LSM_Frm1;

}

Schedule_tables

{

Configuration_Schedule

{

DocID024013 Rev 2

UM1593

UM1593

}

AssignNAD {LSM} delay 15 ms;

AssignFrameIdRange {LSM, 0} delay 15 ms;

AssignFrameId {RSM, CEM_Frm1} delay 15 ms;

AssignFrameId {RSM, RSM_Frm1} delay 15 ms;

AssignFrameId {RSM, RSM_Frm2} delay 15 ms;

Normal_Schedule

{

CEM_Frm1 delay 15 ms;

LSM_Frm2 delay 15 ms;

RSM_Frm2 delay 15 ms;

Node_Status_Event delay 10 ms;

}

MRF_schedule

{

MasterReq delay 10 ms;

}

SRF_schedule

{

SlaveResp delay 10 ms;

}

}

Collision_resolver

{ // Keep timing of other frames if collision

CEM_Frm1 delay 15 ms;

LSM_Frm2 delay 15 ms;

RSM_Frm2 delay 15 ms;

RSM_Frm1 delay 10 ms; // Poll the RSM node

CEM_Frm1 delay 15 ms;

LSM_Frm2 delay 15 ms;

RSM_Frm2 delay 15 ms;

LSM_Frm1 delay 10 ms; // Poll the LSM node

}

Signal_encoding_types

{

Dig2Bit

{ logical_value, 0, "off"; logical_value, 1, "on"; logical_value, 2, "error"; logical_value, 3, "void";

}

ErrorEncoding

{ logical_value, 0,

“OK“; logical_value, 1,

“error“;

DocID024013 Rev 2

Examples

75/82

81

Examples

6.4

UM1593

}

FaultStateEncoding

{ logical_value, 0,

“No test result“; logical_value, 1,

“failed“; logical_value, 2,

“passed“; logical_value, 3,

“not used“;

}

}

LightEncoding

{ logical_value, 0,

“Off“; physical_value, 1, 254, 1, 100,

“lux“; logical_value, 255,

“error“;

}

Signal_representation

{

Dig2Bit: InternalLightsRequest;

ErrorEncoding: RSMerror, LSMerror;

FaultStateEncoding: IntError;

LightEncoding: RightIntLightsSwitch, LefttIntLightsSwitch;

}

Example implementation of IRQ callbacks (master and slave)

The following example describes OSEK implementation: l_irqmask l_sys_irq_disable (void)

{

SuspendOSInterrupts();

} return 0; void l_sys_irq_restore (l_irqmask irqmask)

{

ResumeOSInterrupts();

} return ;

The user can locate these implementations in an application specific file that includes the corresponding operating system header file.

For an OSEK implementation, include os.h.

76/82 DocID024013 Rev 2

UM1593 Architecture notes

These architecture notes explains how to configure the LIN driver to run on STM8 microcontrollers.

The CPU frequency must be configured in lin_def_stm8.h as follows:

/******************************************************************

* define frequency of the cpu

******************************************************************/

#define LIN_BOARD_CPU_FREQ_HZ 8000000

7.2 Interfaces

Two serial interfaces are supported by STM8 microcontrollers, SCI1 and SCI2. The interface is configured in the lingen control file as described in

Section 5: Lingen control file specifications

.

In addition to the standard support for LIN, the interfaces offer extra functionalities:

For a master node: both interfaces support the sending of BREAK directly. This is a fixed 13-bit BREAK signal and it is always used.

For a slave node: the SCI1 interface allows to auto synchronize with the current bus baud rate when a SYNCH is detected (to within 15% of the nominal rate). This functionality can be selected by defining/undefining the following variable in lin_def_stm8.h:

#undef LIN_SLAVE_LINSCI_AUTOSYNC or

#define LIN_SLAVE_LINSCI_AUTOSYNC

7.3 Timers

The timer used by the LIN driver can be either a hardware or a software timer. It is configured by the user application in lin_def_stm8.h by defining or undefining the

LIN_USE_HARDWARE_TIMER variable.

The following example shows the selection of a hardware timer:

/******************************************************************

*

* Activate the use of a hardware timer for LIN via

* "#define LIN_USE_HARDWARE_TIMER"

* Deactivate the use of a hardware timer for LIN via

* "#undef LIN_USE_HARDWARE_TIMER"

*

******************************************************************/

#define LIN_USE_HARDWARE_TIMER

DocID024013 Rev 2 77/82

81

Architecture notes

Note:

UM1593

STM8 microcontrollers only support an 8-bit system timer (TIM4): it is referred to as 1. The timer must be configured as follows:

#ifdef LIN_USE_HARDWARE_TIMER

/******************************************************************

***

*

* choose the timer used by the LIN driver

* (valid values depend on the architecture used)

*

*******************************************************************

**/

#define LIN_TIMER

#endif

1

Note that the driver is delivered with the hardware timer configured as default timer in lin_def_stm8.h:

#define LIN_USE_HARDWARE_TIMER

When the hardware timer is used, its prescaler and reload values must be configured. For the 4 most common configurations, these values are already given in the lin_stm8.h file

(see

Table 61

).

CPU frequency

(Hz)

Table 61. Hardware timer configuration

Time base

(ms)

Prescaler value

Reload value

Note

16,000,000 2 7 250 16 MHz/ 2

7

/250  2 ms timebase

8,000,000

16,000,000

8,000,000

2

1

1

7

6

5

125

250

250

16 MHz/ 2

7

/125  2 ms timebase

16 MHz/ 2

6

/250  1 ms timebase

16 MHz/ 2

5

/250  1 ms timebase

The driver uses a special callback function, l_timerISR(), to handle hardware timer interrupts. The user application must implement and bind a timer interrupt service routine.

The user ISR will be called at the expiry of the hardware timer LIN_TIMER and it must call l_timerISR(). The timer must not be used for any other purposes.

The user ISR should not handle the interrupt nor clear any flags – it should only call the driver interrupt service routine.

78/82 DocID024013 Rev 2

UM1593 Architecture notes

The description of l_timerISR() is given below:

Table 62. Hardware timer interrupt service routine l_timerISR

Prototype

Description

Include

Parameters

Return value void l_timerISR (void);

This function handles the hardware timer interrupt, clears the interrupt flag, restarts the timer, and handles any software timeouts that may have occurred.

lin.h

None

None

7.4

7.5

Interrupt function configuration

Section 3.3.4: Interface Management

provides a general description of the Rx and Tx interrupt functions defined by the LIN 2.x standard.

For STM8 architecture, only the Rx interrupt is used. The user defined interrupt handler must therefore call the l_ifc_rx() function. The l_ifc_tx() function should not to be called as it has no effect.

Using memory page 0

To improve the speed and the driver code size, some variables can be located in page 0 of the memory area. The user application must specify how many bytes to allocate for this purpose in the lin_def_stm8.h file. This is done as follows:

/******************************************************************

* Optimisation for STM8

* Give size available in fastest/most efficient memory area

* you can spare for the LIN driver in bytes

******************************************************************/

#define LIN_ZERO_PAGE_SIZE 5

The default value is of 5 bytes. The driver automatically selects which variables can be located in the available space, and tags them accordingly for the linker.

Additionally, the user can also choose to locate some additional data in page 0. This can be configured by changing the following settings in lin_def_stm8.h:

#undef LIN_TX_FLAGS_IN_ZERO_PAGE

#undef LIN_RX_FLAGS_IN_ZERO_PAGE

#undef LIN_CHANGED_FLAGS_IN_ZERO_PAGE

#undef LIN_FRAME_BUFFER_IN_ZERO_PAGE

#undef LIN_FRAME_IDS_IN_ZERO_PAGE

The space required to locate these data in page 0 is not automatically calculated by the driver, and must be defined by the user.

DocID024013 Rev 2 79/82

81

Architecture notes UM1593

Note:

The LIN driver for the STM8 has been developed with GNU make v3.74 and Cosmic

compiler version 4.2.8 with the following components:

--------------------------------

STM8 COSMIC C Compiler

Version: 4.2.8 Date: 03 Dec 2008

--------------------------------

COSMIC Software STM8 C Cross Compiler V4.2.8 - 03 Dec 2008 - Win32-F

COSMIC Software STM8 C Parser V4.8.12 - 25 Nov 2008 - Win32-F

COSMIC Software STM8 Code Generator V4.2.8 - 03 Dec 2008 - Win32-F

COSMIC Software STM8 Optimizer V4.2.8 - 03 Dec 2008 - Win32

COSMIC Software STM8 Macro-Assembler V4.5.6 - 13 Oct 2008 - Win32-F

COSMIC Software Linker V4.7.4.1 - 27 Oct 2008 - Win32-F

COSMIC Software Hexa Translator V4.3.13 - 27 Jun 2008 - Win32

COSMIC Software Absolute Listing V4.3.13 - 27 Jun 2008 - Win32

COSMIC Software Librarian V4.3.13 - 27 Jun 2008 - Win32

COSMIC Software Absolute C Listing V4.3.13 - 27 Jun 2008 - Win32

COSMIC Software Object Inspector V4.3.13 - 27 Jun 2008 - Win32

COSMIC Software Print Debug Info V4.3.13 - 27 Jun 2008 - Win32

COSMIC Software ELF/DWARF Converter V4.5.27 - 18 Nov 2008 - Win32

COSMIC Software IEEE695 Converter V7.0.7 - 23 Mar 2006 - Win32

To optimize the driver code size, the compiler +compact switch can be used. However, in this case, as in earlier Cosmic compiler versions, the driver may not be reliable. This risk must be considered by the user when choosing this option.

The driver can be built using stack or non-stack memory model. Since most driver functions need to be re-entrant, the @stack qualifier has been added to each one. As a result the memory model has little impact on the driver.

Using a memory model switch to build the driver with all global variables placed in memory page 0 is unlikely to work since the space required to store these variables probably exceeds the available space.

A master node using multiple interfaces can only be compiled using the physical stack option.

If the driver has been configured to support the conditional change NAD function by defining

LIN_INCLUDE_COND_CHANGE_NAD in the lin_def.h file, the memory model chosen when building the slave driver must use a physical stack.

80/82 DocID024013 Rev 2

UM1593 Revision history

.

Date

05-Dec-2012

16-May-2014

Revision

Table 63. Document revision history

Changes

1

2

Initial release replacing UM0941 Rev 1 14-Jun-2010

Changed document title.

Updated

Introduction on page 1

.

Added

Applicable products on page 1

.

Updated the document title and the

Introduction

on the cover page to include STMicroelectronics LIN software package reference (STSW-

STM8A-LIN).

Removed the table “Applicable products” on the cover page.

No other changes in the content.

DocID024013 Rev 2 81/82

81

UM1593

Please Read Carefully:

Information in this document is provided solely in connection with ST products. STMicroelectronics NV and its subsidiaries (“ST”) reserve the right to make changes, corrections, modifications or improvements, to this document, and the products and services described herein at any time, without notice.

All ST products are sold pursuant to ST’s terms and conditions of sale.

Purchasers are solely responsible for the choice, selection and use of the ST products and services described herein, and ST assumes no liability whatsoever relating to the choice, selection or use of the ST products and services described herein.
