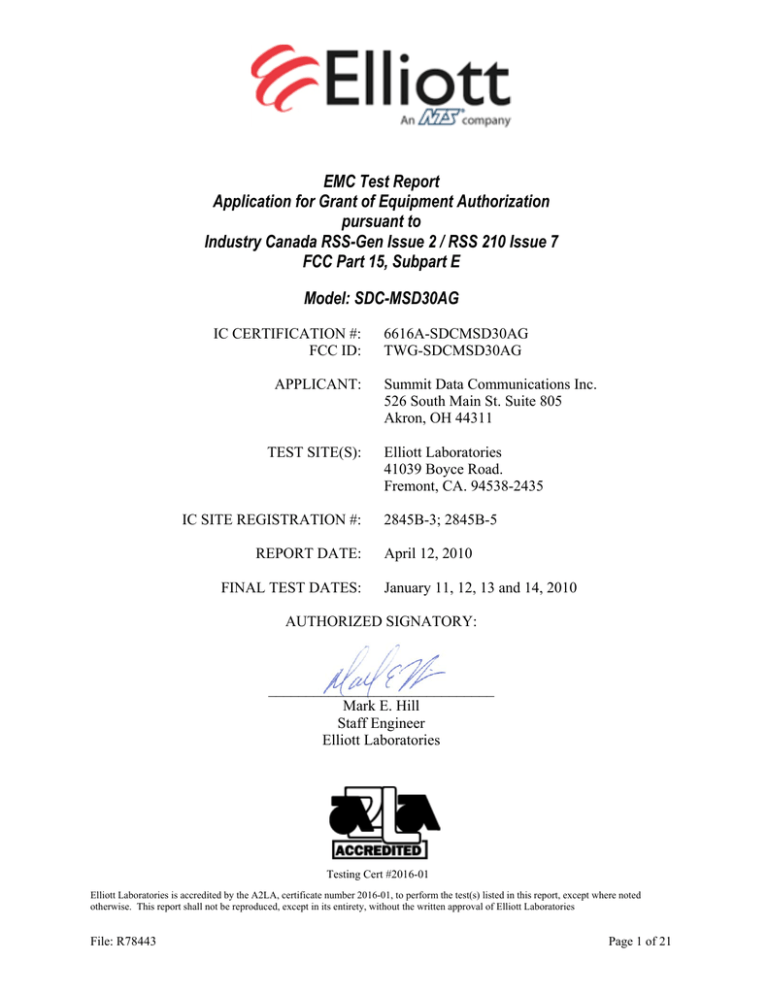

EMC Test Report

Application for Grant of Equipment Authorization pursuant to

Industry Canada RSS-Gen Issue 2 / RSS 210 Issue 7

FCC Part 15, Subpart E

Model: SDC-MSD30AG

IC CERTIFICATION #: 6616A-SDCMSD30AG

FCC

APPLICANT: Summit Data Communications Inc.

526 South Main St. Suite 805

Akron, OH 44311

TEST SITE(S): Elliott Laboratories

41039 Boyce Road.

Fremont, CA. 94538-2435

IC SITE REGISTRATION #:

REPORT DATE:

FINAL TEST DATES:

2845B-3; 2845B-5

April 12, 2010

January 11, 12, 13 and 14, 2010

AUTHORIZED SIGNATORY:

______________________________

Mark E. Hill

Staff Engineer

Elliott Laboratories

Testing Cert #2016-01

Elliott Laboratories is accredited by the A2LA, certificate number 2016-01, to perform the test(s) listed in this report, except where noted otherwise. This report shall not be reproduced, except in its entirety, without the written approval of Elliott Laboratories

File: R78443 Page 1 of 21

Elliott Laboratories -- EMC Department

REVISION HISTORY

Rev# Date

- April 12, 2010 First release

Comments

Test Report

Report Date: April 12, 2010

File: R78443 Page 2 of 21

Elliott Laboratories -- EMC Department Test Report

Report Date: April 12, 2010

TABLE OF CONTENTS

COVER PAGE.............................................................................................................................................................1

REVISION HISTORY ................................................................................................................................................2

TABLE OF CONTENTS ............................................................................................................................................3

SCOPE..........................................................................................................................................................................4

OBJECTIVE ................................................................................................................................................................5

STATEMENT OF COMPLIANCE...........................................................................................................................5

DEVIATIONS FROM THE STANDARDS..............................................................................................................5

TEST RESULTS SUMMARY ...................................................................................................................................6

UNII / LELAN DEVICES ........................................................................................................................................6

GENERAL REQUIREMENTS APPLICABLE TO ALL BANDS..........................................................................8

MEASUREMENT UNCERTAINTIES....................................................................................................................8

EQUIPMENT UNDER TEST (EUT) DETAILS......................................................................................................9

GENERAL................................................................................................................................................................9

ANTENNA SYSTEM ..............................................................................................................................................9

ENCLOSURE...........................................................................................................................................................9

MODIFICATIONS...................................................................................................................................................9

SUPPORT EQUIPMENT.......................................................................................................................................10

EUT INTERFACE PORTS ....................................................................................................................................10

EUT OPERATION .................................................................................................................................................10

TEST SITE.................................................................................................................................................................11

GENERAL INFORMATION.................................................................................................................................11

CONDUCTED EMISSIONS CONSIDERATIONS ..............................................................................................11

RADIATED EMISSIONS CONSIDERATIONS ..................................................................................................11

MEASUREMENT INSTRUMENTATION ............................................................................................................12

RECEIVER SYSTEM ............................................................................................................................................12

INSTRUMENT CONTROL COMPUTER ............................................................................................................12

LINE IMPEDANCE STABILIZATION NETWORK (LISN)...............................................................................12

FILTERS/ATTENUATORS ..................................................................................................................................12

ANTENNAS...........................................................................................................................................................13

ANTENNA MAST AND EQUIPMENT TURNTABLE .......................................................................................13

INSTRUMENT CALIBRATION...........................................................................................................................13

TEST PROCEDURES ..............................................................................................................................................14

EUT AND CABLE PLACEMENT ........................................................................................................................14

CONDUCTED EMISSIONS..................................................................................................................................14

RADIATED EMISSIONS......................................................................................................................................14

RADIATED EMISSIONS......................................................................................................................................15

CONDUCTED EMISSIONS FROM ANTENNA PORT ......................................................................................17

BANDWIDTH MEASUREMENTS ......................................................................................................................17

SPECIFICATION LIMITS AND SAMPLE CALCULATIONS ...........................................................................18

CONDUCTED EMISSIONS SPECIFICATION LIMITS: FCC 15.207; FCC 15.107(

A

), RSS GEN ..................18

GENERAL TRANSMITTER RADIATED EMISSIONS SPECIFICATION LIMITS .........................................18

FCC 15.407

(

A

) OUTPUT POWER LIMITS .........................................................................................................19

OUTPUT POWER LIMITS –LELAN DEVICES..................................................................................................19

OUTPUT POWER AND SPURIOUS LIMITS –UNII

AND

LELAN DEVICES ..................................................20

SAMPLE CALCULATIONS CONDUCTED EMISSIONS ...............................................................................20

SAMPLE CALCULATIONS RADIATED EMISSIONS....................................................................................20

SAMPLE CALCULATIONS FIELD STRENGTH TO EIRP CONVERSION...................................................21

APPENDIX A TEST EQUIPMENT CALIBRATION DATA ................................................................................1

APPENDIX B TEST DATA .......................................................................................................................................2

File: R78443 Page 3 of 21

Elliott Laboratories -- EMC Department Test Report

Report Date: April 12, 2010

SCOPE

An electromagnetic emissions test has been performed on the Summit Data

Communications Inc. model SDC-MSD30AG, pursuant to the following rules:

Industry Canada RSS-Gen Issue 2

RSS 210 Issue 7 “Low-power Licence-exempt Radiocommunication Devices

(All Frequency Bands): Category I Equipment”

FCC Part 15, Subpart E requirements for UNII Devices (using FCC DA 02-2138,

August 30, 2002)

Conducted and radiated emissions data has been collected, reduced, and analyzed within this report in accordance with measurement guidelines set forth in the following reference standards and as outlined in Elliott Laboratories test procedures:

ANSI C63.4:2003

FCC UNII test procedure 2002-08 DA-02-2138, August 2002

The intentional radiator above has been tested in a simulated typical installation to demonstrate compliance with the relevant Industry Canada performance and procedural standards.

Final system data was gathered in a mode that tended to maximize emissions by varying orientation of EUT, orientation of power and I/O cabling, antenna search height, and antenna polarization.

Every practical effort was made to perform an impartial test using appropriate test equipment of known calibration. All pertinent factors have been applied to reach the determination of compliance.

File: R78443 Page 4 of 21

Elliott Laboratories -- EMC Department Test Report

Report Date: April 12, 2010

OBJECTIVE

The primary objective of the manufacturer is compliance with the regulations outlined in the previous section.

Prior to marketing in the USA, all unlicensed transmitters and transceivers require certification. Receive-only devices operating between 30 MHz and 960 MHz are subject to either certification or a manufacturer’s declaration of conformity, with all other receive-only devices exempt from the technical requirements.

Prior to marketing in Canada, Class I transmitters, receivers and transceivers require certification. Class II devices are required to meet the appropriate technical requirements but are exempt from certification requirements.

Certification is a procedure where the manufacturer submits test data and technical information to a certification body and receives a certificate or grant of equipment authorization upon successful completion of the certification body’s review of the submitted documents. Once the equipment authorization has been obtained, the label indicating compliance must be attached to all identical units, which are subsequently manufactured.

Maintenance of compliance is the responsibility of the manufacturer. Any modification of the product which may result in increased emissions should be checked to ensure compliance has been maintained (i.e., printed circuit board layout changes, different line filter, different power supply, harnessing or I/O cable changes, etc.).

STATEMENT OF COMPLIANCE

The tested sample of Summit Data Communications Inc. model SDC-MSD30AG complied with the requirements of the following regulations:

RSS 210 Issue 7 “Low-power Licence-exempt Radiocommunication Devices

(All Frequency Bands): Category I Equipment”

FCC Part 15, Subpart E requirements for UNII Devices

Maintenance of compliance is the responsibility of the manufacturer. Any modifications to the product should be assessed to determine their potential impact on the compliance status of the device with respect to the standards detailed in this test report.

The test results recorded herein are based on a single type test of Summit Data

Communications Inc. model SDC-MSD30AG and therefore apply only to the tested sample. The sample was selected and prepared by Jerry Pohmurski of Summit Data

Communications Inc..

DEVIATIONS FROM THE STANDARDS

No deviations were made from the published requirements listed in the scope of this report.

File: R78443 Page 5 of 21

Elliott Laboratories -- EMC Department

TEST RESULTS SUMMARY

UNII / LELAN DEVICES

Test Report

Report Date: April 12, 2010

Operation in the 5.15 – 5.25 GHz Band

FCC

Rule Part

15.407(e)

15.407(a)

(1)

15.407 (a)

(1)

RSS

Rule Part

Description

Measured Value /

Comments

Indoor operation only Refer to user’s manual

26dB Bandwidth 26.0 MHz

Limit / Requirement

N/A

Limits output power if < 20MHz

Result

Complies

N/A

802.11a: 10.8 dBm

(0.012W)

51.1dBµV/m @

5147.7MHz (-2.9dB)

17dBm Complies

15.407 (a)

(1)

- 4

- A9.5

802.11a: -0.8 dBm/MHz

5 dBm/MHz Complies

15.407(b)

(5) / 15.209

15.407(b)

(2)

A9.3

A9.3

Spurious Emissions below 1GHz

Spurious Emissions above 1GHz

No emissions found Refer to Standard

Refer to Standard

Complies

Complies

15.407(a)(6) - Peak Excursion Ratio 12.8 dB < 13dB Complies

Operation in the 5.25 – 5.35 GHz Band

Note: The device is restricted to indoor use only, therefore the spectral density of spurious emissions in the 5.15 –

5.25 GHz band were limited to the power spectral limits for intentional signals detailed in FCC 15.407(a)(1) and

RSS 210 6.2.2 q1 (i)

RSS

Rule Part

Description

Measured Value /

Comments

Limit / Requirement

Result

(margin)

FCC

Rule Part

15.407(a)

(2)

15.407(a)

(2)

15.407(a)

(2))

-

26dB Bandwidth

Power Spectral Density

26.2 MHz

802.11a: 10.3 dBm

(0.011 W)

802.11a: 3.4 dBm/MHz

N/A – limits output power if < 20MHz

24dBm

(250mW)

11 dBm/MHz

N/A

Complies

Complies

- A9.5 (2) Peak Spectral Density 3.4 dBm/MHz

Shall not exceed the average value by more than 3dB

Complies

15.407(b)

(5) / 15.209

15.407(b)

(2)

15.407(a)(6)

A9.3

A9.3

-

Spurious Emissions below 1GHz

Spurious Emissions above 1GHz

Peak Excursion Ratio

No emissions found

50.6dBµV/m @

5350.1MHz (-3.4dB)

12.1 dB

Refer to Standard

Refer to Standard

< 13dB

Complies

Complies

Complies

File: R78443 Page 6 of 21

Elliott Laboratories -- EMC Department Test Report

Report Date: April 12, 2010

Operation in the 5.47 – 5.725 GHz Band

FCC

Rule Part

15.407(a)

(2)

15.407(a)

(2)

15.407(a)

(2))

RSS

Rule Part

A9.3

A9.3

-

Description

26dB Bandwidth

Power Spectral Density

A9.2(2) /

A9.5 (2)

Power Spectral Density

Non-operation in

N/A A9 sub band

15.407(b)

(5) / 15.209

15.407(b)

(2)

15.407(a)(6)

Spurious Emissions below 1GHz

Spurious Emissions above 1GHz

Peak Excursion Ratio

Requirements for all U-NII/LELAN bands

FCC

Rule Part

RSS

Rule Part

Description

15.407(b)

(5) / 15.209

15.407(b)

(2)

15.407(a)(6)

A9.3

A9.3

-

Spurious Emissions below 1GHz

Spurious Emissions above 1GHz

Peak Excursion Ratio

Channel Selection

15

Measured Value /

Comments

26.3 MHz

802.11a: 10.5 dBm

(0.011 W)

802.11a: 1.5 dBm/MHz

Device cannot operate in the 5600 – 5650

MHz band –refer to Operational Description

No emissions found

50.7dBµV/m @

5458.7MHz (-3.3dB)

12.9 dB

Measured Value /

Comments

Digital Modulation is used

No emissions found

51.1dBµV/m @

5147.7MHz (-2.9dB)

12.9 dB

Spurious emissions tested at outermost channels in each band

Measurements on three channels in each band

Limit / Requirement

Limits output power if < 20MHz

24 dBm / 250mW

(eirp < 30dBm)

11 dBm/MHz

11 dBm / MHz

Refer to Standard

Refer to Standard

< 13dB

Limit / Requirement

Digital modulation is required

Refer to Standard

< 13dB

Device was tested on the top, bottom and center channels in each band

Result

(margin)

N/A

Complies

Complies

Complies

Complies

Complies

Complies

Complies

Result

Complies

Refer to Standard Complies

Complies

Complies

N/A

Complies

15.407 (c)

15.407 (g)

A9.5(4)

A9.5 (5)

Operation in the absence of information to transmit

Frequency Stability

Operation is discontinued in the absence of information

Frequency stability is better than 10ppm

Device shall automatically discontinue operation in the absence of information to transmit

Complies

Complies

15.407 (h1)

15.407 (h2)

A9.4

A9.4

Transmit Power

Control

Dynamic frequency

Selection (device without radar detection)

TPC is not required as the device operates at below 500mW eirp

Refer to separate test report, reference

R78278

The U-NII device shall have the capability to operate with a mean EIRP value lower than

24dBm (250mW)

Channel move time

< 10s

Channel closing transmission time <

260ms

Complies

Complies

File: R78443 Page 7 of 21

Elliott Laboratories -- EMC Department

GENERAL REQUIREMENTS APPLICABLE TO ALL BANDS

Test Report

Report Date: April 12, 2010

FCC Rule

Part

15.109

15.207

15.247 (b)

(5)

15.407 (f)

RSS

Rule part

RSS GEN

7.2.3

Table 1

RSS GEN

Table 2

RSS 102

Description

Receiver spurious emissions

AC Conducted

Emissions

RF Exposure

Requirements

Measured Value /

Comments

The EUT uses u.FL connectors

44.3dBµV/m

(164.1µV/m) @

3720.0MHz (-9.7dB)

45.1dBµV @

0.176MHz (-19.6dB)

Refer to MPE calculations in

Exhibit 11, RSS 102 declaration and User

Manual statements.

Limit / Requirement

Result

(margin)

Refer to standard Complies

Refer to standard Complies

Refer to standard Complies

Refer to OET 65,

FCC Part 1 and RSS

102

Complies

-

-

-

RSP 100

RSS GEN

7.1.5

RSP 100

RSS GEN

7.1.5

RSP 100

RSS GEN

4.4.1

MEASUREMENT UNCERTAINTIES

User Manual

User Manual

99% Bandwidth

5.1GHz: 16.9 MHz

5.25GHz: 17.1 MHz

5.47GHz: 17.1 MHz

Statement required regarding noninterference

Statement for products with detachable antenna

Information only

Complies

Complies

N/A

ISO/IEC 17025 requires that an estimate of the measurement uncertainties associated with the emissions test results be included in the report. The measurement uncertainties given below are based on a 95% confidence level and were calculated in accordance with UKAS document LAB 34.

Measurement Type Frequency Range

(MHz)

Calculated Uncertainty

(dB)

______________________________________________________________

Conducted Emissions

Radiated Emissions

Radiated Emissions

Radiated Emissions

0.15 to 30

0.015 to 30

30 to 1000

1000 to 40000

± 2.4

± 3.0

± 3.6

± 6.0

File: R78443 Page 8 of 21

Elliott Laboratories -- EMC Department Test Report

Report Date: April 12, 2010

EQUIPMENT UNDER TEST (EUT) DETAILS

GENERAL

The Summit Data Communications Inc. model SDC-MSD30AG is a 802.11ag compliant wireless LAN radio Module which is designed to provide wireless local area networking connectivity. Normally, the EUT would be embedded in various types of mobile and stationary computing devices such as handheld and vehicle mounted data terminals during operation. The EUT was, therefore, placed in this position during emissions testing to simulate the end user environment. The electrical rating of the EUT is 3.3

VDC =/-5%. It’s typical power consumption is 400mA (1320mW) while in transmit mode, 180mA (594mW) while in receive mode and 10mA (33mW) while in standby mode.

The sample was received on November 8, 2009 and tested on January 11, 12, 13 and 14,

2010. The EUT consisted of the following component(s):

Company

Summit Data

Communications

Inc.

Model Description Serial Number

SDC-MSD30AG 802.11AG Mini

Compact Flash

Module with

FCC ID

- TWG-

SDCMSD30AG antenna connectors

ANTENNA SYSTEM

The SDC-MSD30AG will be marketed with the following antenna options:

Monopole Antenna - 2.4 and 5GHz bands, Huber+Suhner, SOA 2459/360/5/0/V_C,

3dBi (2.4GHz), 6.5dBi (5GHz)

Dipole Antenna #1 - 2.4 and 5GHz bands - Larsen, R380.500.314, 1.6dBi (2.4GHz),

5dBi (5GHz)

Dipole Antenna #2 - 2.4 GHz only - Cisco Air-Ant 4941 2dBi(2.4GHz)

Dipole Antenna #3 - 5GHz only - Cisco Air-Ant 5135 3.5dBi(5GHz)

Dipole Antenna #4 - 2.4GHz only - Summit SDC-CF22G - 0dBi

ENCLOSURE

The EUT does not have an enclosure as it is designed to be installed within the enclosure of a host computer or system.

MODIFICATIONS

No modifications were made to the EUT during the time the product was at Elliott.

File: R78443 Page 9 of 21

Elliott Laboratories -- EMC Department Test Report

Report Date: April 12, 2010

SUPPORT EQUIPMENT

The following equipment was used as support equipment for testing:

Company

Hewlett Packard

Model iPAQ

Description Serial Number

Handheld

FCC ID

- -

Computer

No remote support equipment was used during testing.

EUT INTERFACE PORTS

The I/O cabling configuration during testing was as follows: iPAQ Power AC Mains

Flash Module iPAQ Module

Port

EUT OPERATION

Cable(s)

Description Shielded or Unshielded Length(m)

2wire Unshielded 1.5

During emissions testing the EUT was configured to transmit at the Low, Middle, and

High Channel. Testing performed at 6Mbs for 802.11a mode.

File: R78443 Page 10 of 21

Elliott Laboratories -- EMC Department Test Report

Report Date: April 12, 2010

TEST SITE

GENERAL INFORMATION

Final test measurements were taken on January 11, 12, 13 and 14, 2010 at the test sites listed below. Pursuant to section 2.948 of the FCC’s Rules and section 3.3 of RSP-100, construction, calibration, and equipment data has been filed with the Commission and with industry Canada.

Site

Chamber 3

Chamber 5

Registration Numbers

FCC Canada

769238

211948

2845B-3

2845B-5

Location

41039 Boyce Road

Fremont, CA 94538-2435

ANSI C63.4:2003 recommends that ambient noise at the test site be at least 6 dB below the allowable limits. Ambient levels are below this requirement. The test site(s) contain separate areas for radiated and conducted emissions testing. Considerable engineering effort has been expended to ensure that the facilities conform to all pertinent requirements of ANSI C63.4:2003.

CONDUCTED EMISSIONS CONSIDERATIONS

Conducted emissions testing is performed in conformance with ANSI C63.4:2003.

Measurements are made with the EUT connected to the public power network through a nominal, standardized RF impedance, which is provided by a line impedance stabilization network, known as a LISN. A LISN is inserted in series with each currentcarrying conductor in the EUT power cord.

RADIATED EMISSIONS CONSIDERATIONS

The FCC has determined that radiation measurements made in a shielded enclosure are not suitable for determining levels of radiated emissions. Radiated measurements are performed in an open field environment or in a semi-anechoic chamber. The test sites are maintained free of conductive objects within the CISPR defined elliptical area incorporated in ANSI C63.4:2003 guidelines and meet the Normalized Site Attenuation

(NSA) requirements of ANSI C63.4:2003.

File: R78443 Page 11 of 21

Elliott Laboratories -- EMC Department Test Report

Report Date: April 12, 2010

MEASUREMENT INSTRUMENTATION

RECEIVER SYSTEM

An EMI receiver as specified in CISPR 16-1-1 is used for emissions measurements. The receivers used can measure over the frequency range of 9 kHz up to 2000 MHz. These receivers allow both ease of measurement and high accuracy to be achieved. The receivers have Peak, Average, and CISPR (Quasi-peak) detectors built into their design so no external adapters are necessary. The receiver automatically sets the required bandwidth for the CISPR detector used during measurements. If the repetition frequency of the signal being measured is below 20Hz, peak measurements are made in lieu of Quasi-Peak measurements.

For measurements above the frequency range of the receivers, a spectrum analyzer is utilized because it provides visibility of the entire spectrum along with the precision and versatility required to support engineering analysis. Average measurements above

1000MHz are performed on the spectrum analyzer using the linear-average method with a resolution bandwidth of 1 MHz and a video bandwidth of 10 Hz, unless the signal is pulsed in which case the average (or video) bandwidth of the measuring instrument is reduced to onset of pulse desensitization and then increased.

INSTRUMENT CONTROL COMPUTER

The receivers utilize either a Rohde & Schwarz EZM Spectrum Monitor/Controller or contain an internal Spectrum Monitor/Controller to view and convert the receiver measurements to the field strength at an antenna or voltage developed at the LISN measurement port, which is then compared directly with the appropriate specification limit. This provides faster, more accurate readings by performing the conversions described under Sample Calculations within the Test Procedures section of this report.

Results are printed in a graphic and/or tabular format, as appropriate. A personal computer is used to record all measurements made with the receivers.

The Spectrum Monitor provides a visual display of the signal being measured. In addition, the controller or a personal computer run automated data collection programs which control the receivers. This provides added accuracy since all site correction factors, such as cable loss and antenna factors are added automatically.

LINE IMPEDANCE STABILIZATION NETWORK (LISN)

Line conducted measurements utilize a fifty microhenry Line Impedance Stabilization

Network as the monitoring point. The LISN used also contains a 250 uH CISPR adapter.

This network provides for calibrated radio frequency noise measurements by the design of the internal low pass and high pass filters on the EUT and measurement ports, respectively.

FILTERS/ATTENUATORS

External filters and precision attenuators are often connected between the receiving antenna or LISN and the receiver. This eliminates saturation effects and non-linear operation due to high amplitude transient events.

File: R78443 Page 12 of 21

Elliott Laboratories -- EMC Department Test Report

Report Date: April 12, 2010

ANTENNAS

A loop antenna is used below 30 MHz. For the measurement range 30 MHz to 1000

MHz either a combination of a biconical antenna and a log periodic or a bi-log antenna is used. Above 1000 MHz, horn antennas are used. The antenna calibration factors to convert the received voltage to an electric field strength are included with appropriate cable loss and amplifier gain factors to determine an overall site factor, which is then programmed into the test receivers or incorporated into the test software.

ANTENNA MAST AND EQUIPMENT TURNTABLE

The antennas used to measure the radiated electric field strength are mounted on a nonconductive antenna mast equipped with a motor-drive to vary the antenna height.

Measurements below 30 MHz are made with the loop antenna at a fixed height of 1m above the ground plane.

ANSI C63.4:2003 specifies that the test height above ground for table mounted devices shall be 80 centimeters. Floor mounted equipment shall be placed on the ground plane if the device is normally used on a conductive floor or separated from the ground plane by insulating material from 3 to 12 mm if the device is normally used on a non-conductive floor. During radiated measurements, the EUT is positioned on a motorized turntable in conformance with this requirement.

INSTRUMENT CALIBRATION

All test equipment is regularly checked to ensure that performance is maintained in accordance with the manufacturer's specifications. All antennas are calibrated at regular intervals with respect to tuned half-wave dipoles. An exhibit of this report contains the list of test equipment used and calibration information.

File: R78443 Page 13 of 21

Elliott Laboratories -- EMC Department Test Report

Report Date: April 12, 2010

TEST PROCEDURES

EUT AND CABLE PLACEMENT

The regulations require that interconnecting cables be connected to the available ports of the unit and that the placement of the unit and the attached cables simulate the worst case orientation that can be expected from a typical installation, so far as practicable. To this end, the position of the unit and associated cabling is varied within the guidelines of

ANSI C63.4:2003, and the worst-case orientation is used for final measurements.

CONDUCTED EMISSIONS

Conducted emissions are measured at the plug end of the power cord supplied with the

EUT. Excess power cord length is wrapped in a bundle between 30 and 40 centimeters in length near the center of the cord. Preliminary measurements are made to determine the highest amplitude emission relative to the specification limit for all the modes of operation. Placement of system components and varying of cable positions are performed in each mode. A final peak mode scan is then performed in the position and mode for which the highest emission was noted on all current carrying conductors of the power cord.

0.4m

LISN

EUT

LISN

AE

0.8m

File: R78443 Page 14 of 21

Elliott Laboratories -- EMC Department Test Report

Report Date: April 12, 2010

RADIATED EMISSIONS

A preliminary scan of the radiated emissions is performed in which all significant EUT frequencies are identified with the system in a nominal configuration. At least two scans are performed, one scan for each antenna polarization (horizontal and vertical; loop parallel and perpendicular to the EUT). During the preliminary scans, the EUT is rotated through 360˚, the antenna height is varied (for measurements above 30 MHz) and cable positions are varied to determine the highest emission relative to the limit. Preliminary scans may be performed in a fully anechoic chamber for the purposes of identifying the frequencies of the highest emissions from the EUT.

A speaker is provided in the receiver to aid in discriminating between EUT and ambient emissions. Other methods used during the preliminary scan for EUT emissions involve scanning with near field magnetic loops, monitoring I/O cables with RF current clamps, and cycling power to the EUT.

Final maximization is a phase in which the highest amplitude emissions identified in the spectral search are viewed while the EUT azimuth angle is varied from 0 to 360 degrees relative to the receiving antenna. The azimuth, which results in the highest emission is then maintained while varying the antenna height from one to four meters (for measurements above 30 MHz, measurements below 30 MHz are made with the loop antenna at a fixed height of 1m). The result is the identification of the highest amplitude for each of the highest peaks. Each recorded level is corrected in the receiver using appropriate factors for cables, connectors, antennas, and preamplifier gain.

When testing above 18 GHz, the receive antenna is located at 1meter from the EUT and the antenna height is restricted to a maximum of 2.5 meters.

REAR VIEW

0.4m

AC Outlets (flush-mounted)

0.8m

File: R78443

SIDE VIEW

Typical Test Configuration for Radiated Field Strength Measurements

Page 15 of 21

Elliott Laboratories -- EMC Department Test Report

Report Date: April 12, 2010

EUT d

Antenna

The anechoic materials on the walls and ceiling ensure compliance with the normalized site attenuation requirements of CISPR 16 / CISPR 22 / ANSI C63.4 for an alternate test site at the measurement distances used.

Floor-standing equipment is placed on the floor with insulating supports between the unit and the ground plane. d

Antenna height range

1 to 4 m

EUT

0.8m

Test Configuration for Radiated Field Strength Measurements

Semi-Anechoic Chamber, Plan and Side Views

File: R78443 Page 16 of 21

Elliott Laboratories -- EMC Department Test Report

Report Date: April 12, 2010

CONDUCTED EMISSIONS FROM ANTENNA PORT

Direct measurements of power, bandwidth and power spectral density are performed, where possible, with the antenna port of the EUT connected to either the power meter or spectrum analyzer via a suitable attenuator and/or filter. These are used to ensure that the front end of the measurement instrument is not overloaded by the fundamental transmission.

EUT

Attenuator

(optional)

Spectrum

Analyzer (or

Power Meter)

Test Configuration for Antenna Port Measurements

Measurement bandwidths (video and resolution) are set in accordance with the relevant standards and Elliott’s test procedures for the type of radio being tested. When power measurements are made using a resolution bandwidth less than the signal bandwidth the power is calculated by summing the power across the signal bandwidth using either the analyzer channel power function or by capturing the trace data and calculating the power using software. In both cases the summed power is corrected to account for the equivalent noise bandwidth (ENBW) of the resolution bandwidth used.

If power averaging is used (typically for certain digital modulation techniques), the EUT is configured to transmit continuously. Power averaging is performed using either the built-in function of the analyzer or, if the analyzer does not feature power averaging, using external software. In both cases the average power is calculated over a number of sweeps (typically 100). When the EUT cannot be configured to continuously transmit then either the analyzer is configured to perform a gated sweep to ensure that the power is averaged over periods that the device is transmitting or power averaging is disabled and a max-hold feature is used.

If a power meter is used to make output power measurements the sensor head type (peak or average) is stated in the test data table.

BANDWIDTH MEASUREMENTS

The 6dB, 20dB and/or 26dB signal bandwidth is measured in using the bandwidths recommended by ANSI C63.4. When required, the 99% bandwidth is measured using the methods detailed in RSS GEN.

File: R78443 Page 17 of 21

Elliott Laboratories -- EMC Department Test Report

Report Date: April 12, 2010

SPECIFICATION LIMITS AND SAMPLE CALCULATIONS

The limits for conducted emissions are given in units of microvolts, and the limits for radiated emissions are given in units of microvolts per meter at a specified test distance.

Data is measured in the logarithmic form of decibels relative to one microvolt, or dB microvolts (dBuV). For radiated emissions, the measured data is converted to the field strength at the antenna in dB microvolts per meter (dBuV/m). The results are then converted to the linear forms of uV and uV/m for comparison to published specifications.

For reference, converting the specification limits from linear to decibel form is accomplished by taking the base ten logarithm, then multiplying by 20. These limits in both linear and logarithmic form are as follows:

CONDUCTED EMISSIONS SPECIFICATION LIMITS: FCC 15.207; FCC 15.107(a), RSS GEN

The table below shows the limits for the emissions on the AC power line from an intentional radiator and a receiver.

Frequency (MHz)

0.150 to 0.500

0.500 to 5.000

5.000 to 30.000

Average Limit (dBuV)

Linear decrease on logarithmic frequency axis between 56.0 and 46.0

46.0

50.0

Quasi Peak Limit (dBuV)

Linear decrease on logarithmic frequency axis between 66.0 and 56.0

56.0

60.0

GENERAL TRANSMITTER RADIATED EMISSIONS SPECIFICATION LIMITS

The table below shows the limits for the spurious emissions from transmitters that fall in restricted bands

1

(with the exception of transmitters operating under FCC Part 15

Subpart D and RSS 210 Annex 9), the limits for all emissions from a low power device operating under the general rules of RSS 310 (tables 3 and 4), RSS 210 (table 2) and

FCC Part 15 Subpart C section 15.209.

Frequency

Range (MHz)

Limit (uV/m) Limit (dBuV/m @ 3m)

0.009-0.490 2400/F

KHz

@ 300m 67.6-20*log10(F

KHz

) @ 300m

0.490-1.705 24000/F

KHz

@ 30m

87.6-20*log10(F

KHz

) @ 30m

1.705 to 30 30 @ 30m 29.5 @ 30m

30 to 88

88 to 216

216 to 960

Above 960

100 @ 3m

150 @ 3m

200 @ 3m

500 @ 3m

40 @ 3m

43.5 @ 3m

46.0 @ 3m

54.0 @ 3m

1

The restricted bands are detailed in FCC 15.203, RSS 210 Table 1 and RSS 310 Table 2

File: R78443 Page 18 of 21

Elliott Laboratories -- EMC Department Test Report

Report Date: April 12, 2010

FCC 15.407 (a) OUTPUT POWER LIMITS

The table below shows the limits for output power and output power density. Where the signal bandwidth is less than 20 MHz the maximum output power is reduced to the power spectral density limit plus 10 times the log of the bandwidth (in MHz).

Operating Frequency

(MHz)

Output Power

Power Spectral

Density

5150 - 5250

5250 - 5350

5725 – 5825

50mW (17 dBm)

250 mW (24 dBm)

1 Watts (30 dBm)

4 dBm/MHz

11 dBm/MHz

17 dBm/MHz

For system using antennas with gains exceeding 6dBi, the output power and power spectral density limits are reduced by 1dB for every dB the antenna gain exceeds 6dBi.

Fixed point-to-point applications using the 5725 – 5825 MHz band may use antennas with gains of up to 23dBi without this limitation. If the gain exceeds 23dBi then the output power limit of 1 Watt is reduced by 1dB for every dB the gain exceeds 23dBi.

The peak excursion envelope is limited to 13dB.

OUTPUT POWER LIMITS –LELAN DEVICES

The table below shows the limits for output power and output power density defined by

RSS 210. Where the signal bandwidth is less than 20 MHz the maximum output power is reduced to the power spectral density limit plus 10 times the log of the bandwidth (in

MHz).

Operating Frequency

(MHz)

5150 - 5250

5250 - 5350

5470 - 5725

Output Power Power Spectral

Density

200mW (23 dBm) eirp 10 dBm/MHz eirp

250 mW (24 dBm)

1W (30dBm) eirp

250 mW (24 dBm)

1W (30dBm) eirp

2

3

11 dBm/MHz

11 dBm/MHz

5725 – 5825

1 Watts (30 dBm)

4W eirp

17 dBm/MHz

In addition, the power spectral density limit shall be reduced by 1dB for every dB the highest power spectral density exceeds the “average” power spectral density ) by more than 3dB. The “average” power spectral density is determined by dividing the output power by 10log(EBW) where EBW is the 99% power bandwidth.

Fixed point-to-point applications using the 5725 – 5825 MHz band may use antennas with gains of up to 23dBi without this limitation. If the gain exceeds 23dBi then the output power limit of 1 Watt is reduced by 1dB for every dB the gain exceeds 23dBi.

2

If EIRP exceeds 500mW the device must employ TPC

3

If EIRP exceeds 500mW the device must employ TPC

File: R78443 Page 19 of 21

Elliott Laboratories -- EMC Department Test Report

Report Date: April 12, 2010

OUTPUT POWER AND SPURIOUS LIMITS –UNII and LELAN DEVICES

The spurious emissions limits for signals below 1GHz are the FCC/RSS-GEN general limits. For emissions above 1GHz, signals in restricted bands are subject to the

FCC/RSS GEN general limits. All other signals have a limit of –27dBm/MHz, which is a field strength of 68.3dBuV/m/MHz at a distance of 3m. This is an average limit so the peak value of the emission may not exceed –7dBm/MHz (68.3dBuV/m/MHz at a distance of 3m). For devices operating in the 5725-5850Mhz bands under the

LELAN/UNII rules, the limit within 10Mhz of the allocated band is increased to –

17dBm/MHz.

SAMPLE CALCULATIONS - CONDUCTED EMISSIONS

Receiver readings are compared directly to the conducted emissions specification limit

(decibel form) as follows:

Rr - S = M

where:

Rr = Receiver Reading in dBuV

S = Specification Limit in dBuV

M = Margin to Specification in +/- dB

SAMPLE CALCULATIONS - RADIATED EMISSIONS

Receiver readings are compared directly to the specification limit (decibel form). The receiver internally corrects for cable loss, preamplifier gain, and antenna factor. The calculations are in the reverse direction of the actual signal flow, thus cable loss is added and the amplifier gain is subtracted. The Antenna Factor converts the voltage at the antenna coaxial connector to the field strength at the antenna elements.

A distance factor, when used for electric field measurements above 30MHz, is calculated by using the following formula:

Fd = 20*LOG10 (Dm/Ds)

where:

Fd = Distance Factor in dB

Dm = Measurement Distance in meters

Ds = Specification Distance in meters

For electric field measurements below 30MHz the extrapolation factor is either determined by making measurements at multiple distances or a theoretical value is calculated using the formula:

Fd = 40*LOG10 (Dm/Ds)

Measurement Distance is the distance at which the measurements were taken and

Specification Distance is the distance at which the specification limits are based. The antenna factor converts the voltage at the antenna coaxial connector to the field strength at the antenna elements.

File: R78443 Page 20 of 21

Elliott Laboratories -- EMC Department Test Report

Report Date: April 12, 2010

The margin of a given emission peak relative to the limit is calculated as follows:

Rc = Rr + Fd

and

where:

Rr = Receiver Reading in dBuV/m

Fd = Distance Factor in dB

Rc = Corrected Reading in dBuV/m

Ls = Specification Limit in dBuV/m

M = Margin in dB Relative to Spec

SAMPLE CALCULATIONS - FIELD STRENGTH TO EIRP CONVERSION

Where the radiated electric field strength is expressed in terms of the equivalent isotropic radiated power (eirp), or where a field strength measurement of output power is made in lieu of a direct measurement, the following formula is used to convert between eirp and field strength at a distance of 3m from the equipment under test:

E = 1000000 √ 30 P microvolts per meter

3 where P is the eirp (Watts)

File: R78443 Page 21 of 21

Elliott Laboratories -- EMC Department

Appendix A Test Equipment Calibration Data

Radiated Emissions, 30 - 6,500 MHz, 11-Nov-09

Hewlett Packard SpecAn 9 kHz - 40 GHz, FT (SA40) Blue

Radiated Emissions, 1000 - 40,000 MHz, 11-Dec-09

3115

8564E (84125C)

Test Report

Report Date: April 12, 2010

786

1393

12/6/2009

4/10/2010

Hewlett Packard

Micro-Tronics

Hewlett Packard

SpecAn 9 kHz - 40 GHz, FT (SA40) Blue

Band Reject Filter, 5150-5350 MHz

8564E (84125C)

BRC50703-02

Microwave Preamplifier, 1-26.5GHz 8449B

Radiated Emissions, 30 - 40,000 MHz, 12-Jan-10

Hewlett Packard

Micro-Tronics

Micro-Tronics

Hewlett Packard

, 10-Mar-09

Microwave Preamplifier, 1-26.5GHz 8449B

3115

Band Reject Filter, 5150-5350 MHz

Band Reject Filter, 5470-5725 MHz

SpecAn 9 kHz - 40 GHz, (SA40) Purple

BRC50703-02

BRC50704-02

8564E (84125C)

Hewlett Packard

, 12-Mar-09

Test Sys (SA40, 30Hz - 40GHz),

Hewlett Packard Test Sys (SA40, 30Hz - 40GHz),

Radio Antenna Port (Power and Spurious Emissions), 14-Jan-10

Hewlett Packard SpecAn 9 kHz - 40 GHz, FT (SA40) Blue 8564E (84125C)

1393

1729

1561

1729

1730

1771

1393

4/10/2010

9/25/2010

6/10/2010

9/25/2010

9/25/2010

9/30/2010

4/10/2010

File: R78443 Appendix Page 1 of 2

Elliott Laboratories -- EMC Department

Appendix B Test Data

T77318 34 Pages

T77319 12 Pages

Test Report

Report Date: April 12, 2010

File: R78443 Appendix Page 2 of 2

Client: Summit Data Communications

Model: SDC-MSD30AG

Contact: Jerry Pohmurski

Emissions Standard(s): FCC 15.E/RSS 210

Immunity Standard(s): -

EMC Test Data

For The

Summit Data Communications

Model

SDC-MSD30AG

Date of Last Test: 1/14/2010

EMC Test Data

Job Number: J77268

T-Log Number: T77318

Account Manager: Christine Krebill

Class: -

Environment: -

T77318_NII_Radiated_Final Cover Page 1 of 34

Client:

Summit Data Communications

Model: SDC-MSD30AG

Contact: Jerry Pohmurski

Standard:

FCC 15.E/RSS 210

EMC Test Data

Job Number: J77268

T-Log Number: T77318

Account Manager: Christine Krebill

Class: N/A

RSS 210 and FCC 15.407 (UNII) Radiated Spurious Emissions

(H&S Antenna)

Test Specific Details

Objective:

The objective of this test session is to perform final qualification testing of the EUT with respect to the specification listed above.

General Test Configuration

The EUT and all local support equipment were located on the turntable for radiated spurious emissions testing.

For radiated emissions testing the measurement antenna was located 3 meters from the EUT.

Ambient Conditions:

Temperature:

Rel. Humidity:

Date of Test: Refer to each run

Test Engineer: Refer to each run

Test Location: Refer to each run

Modifications Made During Testing

No modifications were made to the EUT during testing

Deviations From The Standard

No deviations were made from the requirements of the standard.

10-15 °C

30-50 %

Config. Used: 1

Config Change: None

Host Unit Voltage 120V/ 60Hz

T77318_NII_Radiated_Final UNII RE H&S-2A Module Page 2 of 34

Client:

Summit Data Communications

Model: SDC-MSD30AG

Contact: Jerry Pohmurski

Standard:

FCC 15.E/RSS 210

EMC Test Data

Job Number: J77268

T-Log Number: T77318

Account Manager: Christine Krebill

Class: N/A

Summary of Results

NOTE: A preliminary check of output power was performed. The port with the highest power was used for the final testing. Preliminary tests showed no radio related emissions below 1 GHz.

Run #

1

2

3

Channel

5150-5250

Low

5150-5250

Low

5150-5250

Center

5150-5250

High

5250-5350

Low

5250-5350

Center

5250-5350

High

5250-5350

High

5470-5725

Low

5470-5725

Low

5470-5725

Low

5470-5725

Center

5470-5725

High

Mode

802.11a

Chain A

802.11a

Chain A

802.11a

Chain A

802.11a

Chain A

802.11a

Chain A

802.11a

Chain A

802.11a

Chain A

802.11a

Chain A

802.11a

Chain A

802.11a

Chain A

802.11a

Chain A

802.11a

Chain A

802.11a

Chain A

Power

Setting

18

18

18

18

18

18

18

18

18

18

18

18

18

Port

Main

Main

Main

Main

Main

Main

Main

Main

Main

Main

Main

Main

Main

Test Performed

Restricted Band Edge at

5150 MHz

Radiated Emissions,

1 - 40 GHz

Radiated Emissions,

1 - 40 GHz

Radiated Emissions,

1 - 40 GHz

Radiated Emissions,

1 - 40 GHz

Radiated Emissions,

1 - 40 GHz

Radiated Emissions,

1 - 40 GHz

Restricted Band Edge at

5350 MHz

Restricted Band Edge at

5460 MHz

Restricted Band Edge at

5470 MHz

Radiated Emissions,

1 - 40 GHz

Radiated Emissions,

1 - 40 GHz

Radiated Emissions,

1 - 40 GHz

Limit

15.209

FCC 15.209 / 15 E

FCC 15.209 / 15 E

FCC 15.209 / 15 E

FCC 15.209 / 15 E

FCC 15.209 / 15 E

FCC 15.209 / 15 E

15.209

15.209

15.209

FCC 15.209 / 15 E

FCC 15.209 / 15 E

FCC 15.209 / 15 E

Result / Margin

49.6dBµV/m @

5135.3MHz (-4.4dB)

40.3dBµV/m @

5433.4MHz (-13.7dB)

39.7dBµV/m @

5428.1MHz (-14.3dB)

39.9dBµV/m @

5438.9MHz (-14.1dB)

41.0dBµV/m @

15835.7MHz (-13.0dB)

41.7dBµV/m @

15902.8MHz (-12.3dB)

43.5dBµV/m @

1345.4MHz (-10.5dB)

49.2dBµV/m @

5350.2MHz (-4.8dB)

43.4dBµV/m @

5350.4MHz (-10.6dB)

44.5dBµV/m @

5469.8MHz (-23.8dB)

46.9dBµV/m @

10986.7MHz (-7.1dB)

46.9dBµV/m @

3713.3MHz (-7.1dB)

47.1dBµV/m @

3795.8MHz (-6.9dB)

Antenna:

Module:

Note:

H&S 6.5 dBi dipole antenna (Elliott 2009-1388)

00000002A

DRIVER:

V3.00.50

SCU: V2.03.18

For emission from 18-40GHz, the EUT was scanned manually. All signals were more than 20dB below the limit.

T77318_NII_Radiated_Final UNII RE H&S-2A Module Page 3 of 34

Client:

Summit Data Communications

Model: SDC-MSD30AG

Contact: Jerry Pohmurski

Standard:

FCC 15.E/RSS 210

EMC Test Data

Job Number: J77268

T-Log Number: T77318

Account Manager: Christine Krebill

Class: N/A

Run #1, Radiated Spurious Emissions, 30 - 40,000 MH. Operation in the 5150-5250 MHz Band

Date: 1/11/2010 Engineer: Suhaila Khushzad Location: FT Chamber #3

Run #1a: Low Channel @ 5180 MHz

Fundamental Signal Field Strength

Frequency Level Pol

MHz

5179.800

5179.600

dB

μV/m

96.0

105.7

V/H

V

V

5179.930

5180.130

92.3

103.2

H

H

15.209 / 15.E

Limit

Detector Azimuth

Margin Pk/QP/Avg degrees

-

-

-

-

-

-

-

-

AVG

PK

AVG

PK

62

62

134

134

5150 MHz Band Edge Signal Radiated Field Strength

Frequency

MHz

Level dB

μV/m

Pol

V/H

FCC 15.209

Limit

Detector Azimuth

Margin Pk/QP/Avg degrees

5135.270

5142.000

49.6

49.4

V

H

54.0

54.0

-4.4

-4.6

AVG

AVG

62

134

5141.000

5144.870

61.2

61.4

V

H

74.0

74.0

-12.8

-12.6

PK

PK

62

134

Height meters

1.4

1.4

1.4

1.4

Height meters

1.4

1.4

1.4

1.4

Comments

Comments

Spurious Radiated Emissions:

Frequency Level Pol

MHz

5433.400

dB

μV/m

40.3

V/H

V

6906.740

10360.270

3453.360

5429.870

6906.800

10361.600

47.4

45.3

46.3

54.1

53.0

58.7

V

V

V

V

V

V

Note 1:

Note 2:

15.209 / 15E

Limit

54.0

68.3

68.3

68.3

74.0

88.3

88.3

Detector Azimuth

Margin Pk/QP/Avg degrees

-13.7

AVG 310

-20.9

-23.0

-22.0

-19.9

-35.3

-29.6

AVG

AVG

PK

PK

PK

PK

274

1

19

310

274

1

Height Comments meters

2.2

1.0

1.0

1.0

2.2

1.0

1.0

Peak vs Avg limit

For emissions in restricted bands, the limit of 15.209 was used. For all other emissions, the average limit was set to -27dBm/MHz (~68dBuV/m).

No spurious emissions were found above 18GHz

T77318_NII_Radiated_Final UNII RE H&S-2A Module Page 4 of 34

Client:

Summit Data Communications

Model: SDC-MSD30AG

Contact: Jerry Pohmurski

Standard:

FCC 15.E/RSS 210

EMC Test Data

Job Number: J77268

T-Log Number: T77318

Account Manager: Christine Krebill

Class: N/A

T77318_NII_Radiated_Final UNII RE H&S-2A Module Page 5 of 34

Client:

Summit Data Communications

Model: SDC-MSD30AG

Contact: Jerry Pohmurski

Standard:

FCC 15.E/RSS 210

EMC Test Data

Job Number: J77268

T-Log Number: T77318

Account Manager: Christine Krebill

Class: N/A

Run #1b: Center Channel @ 5200 MHz

Spurious Radiated Emissions:

Frequency Level Pol

MHz

5428.090

dB

μV/m

39.7

V/H

V

15.209 / 15E

Limit

54.0

Margin

-14.3

Detector Azimuth

Pk/QP/Avg degrees

AVG 65

10400.200

3466.750

6933.340

5429.160

10400.530

44.8

46.4

50.7

52.2

59.1

V

V

V

V

V

68.3

68.3

68.3

74.0

88.3

-23.5

-21.9

-17.6

-21.8

-29.2

AVG

Peak

Peak

PK

PK

360

19

274

65

360

Height Comments meters

2.2

1.0

1.0

1.3

2.2

1.0

Peak vs Avg limit

Peak vs Avg limit

Note 1:

Note 2:

For emissions in restricted bands, the limit of 15.209 was used. For all other emissions, the average limit was set to -27dBm/MHz (~68dBuV/m).

No spurious emissions were found above 18GHz

T77318_NII_Radiated_Final UNII RE H&S-2A Module Page 6 of 34

Client:

Summit Data Communications

Model: SDC-MSD30AG

Contact: Jerry Pohmurski

Standard:

FCC 15.E/RSS 210

EMC Test Data

Job Number: J77268

T-Log Number: T77318

Account Manager: Christine Krebill

Class: N/A

Run #1c: High Channel @ 5240 MHz

Spurious Radiated Emissions:

Frequency Level Pol

MHz

3493.350

dB

μV/m

44.3

V/H

V

5438.860

6986.750

10480.050

3493.230

5436.330

6986.810

10482.320

39.9

46.6

42.5

48.4

52.4

52.5

56.1

V

V

V

V

V

V

V

15.209 / 15E

Limit

68.3

Margin

-24.0

Detector Azimuth

Pk/QP/Avg degrees

AVG 19

54.0

68.3

68.3

-14.1

-21.7

-25.8

AVG

AVG

AVG

275

77

360

88.3

74.0

88.3

88.3

-39.9

-21.6

-35.8

-32.2

PK

PK

PK

PK

19

275

77

360

Height Comments meters

1.0

1.5

1.1

1.0

1.0

1.5

1.1

1.0

Note 1:

Note 2:

For emissions in restricted bands, the limit of 15.209 was used. For all other emissions, the average limit was set to -27dBm/MHz (~68dBuV/m).

No spurious emissions were found above 18GHz

T77318_NII_Radiated_Final UNII RE H&S-2A Module Page 7 of 34

Client:

Summit Data Communications

Model: SDC-MSD30AG

Contact: Jerry Pohmurski

Standard:

FCC 15.E/RSS 210

EMC Test Data

Job Number: J77268

T-Log Number: T77318

Account Manager: Christine Krebill

Class: N/A

Run #2, Radiated Spurious Emissions, 30 - 40,000 MH. Operation in the 5250-5350 MHz Band

Date: 1/11/2010 Engineer: Suhaila Khushzad Location: FT Chamber #3

Run #2a: Low Channel @ 5280 MHz

Spurious Radiated Emissions:

Note: If device is not for indoor use only then measure 5250 MHz band edge to comply with -68.3dBuV/m limit

Frequency

MHz

5431.330

Level dB

μV/m

39.2

Pol

V/H

V

15.209 / 15E

Limit

54.0

Margin

-14.8

Detector

AVG

Azimuth

Pk/QP/Avg degrees

274

Height meters

2.1

Comments

3520.050

7040.020

10561.710

15835.690

5426.600

45.0

50.2

46.6

41.0

52.0

V

V

V

V

V

68.3

68.3

68.3

54.0

74.0

-23.3

-18.1

-21.7

-13.0

-22.0

Peak

Peak

Peak

Peak

PK

20

272

5

42

274

1.0

1.3

1.3

1.0

2.1

Peak vs Avg limit

Peak vs Avg limit

Peak vs Avg limit

Peak vs Avg limit

Note 1:

Note 2:

For emissions in restricted bands, the limit of 15.209 was used. For all other emissions, the average limit was set to -27dBm/MHz (~68dBuV/m).

No spurious emissions were found above 18GHz

T77318_NII_Radiated_Final UNII RE H&S-2A Module Page 8 of 34

Client:

Summit Data Communications

Model: SDC-MSD30AG

Contact: Jerry Pohmurski

Standard:

FCC 15.E/RSS 210

EMC Test Data

Job Number: J77268

T-Log Number: T77318

Account Manager: Christine Krebill

Class: N/A

Run #2b: Center Channel @ 5300 MHz

Spurious Radiated Emissions:

Frequency Level Pol

MHz

5435.930

dB

μV/m

39.8

V/H

V

15.209 / 15E

Limit

54.0

Margin

-14.2

Detector Azimuth

Pk/QP/Avg degrees

AVG 270

3533.390

7066.730

10600.000

15902.810

5427.930

45.3

50.9

45.9

41.7

52.6

V

V

V

H

V

68.3

68.3

68.3

54.0

74.0

-23.0

-17.4

-22.4

-12.3

-21.4

Peak

Peak

Peak

Peak

PK

32

101

341

61

270

Height Comments meters

2.1

1.3

1.0

1.0

1.0

2.1

Peak vs Avg limit

Peak vs Avg limit

Note 1:

Note 2:

For emissions in restricted bands, the limit of 15.209 was used. For all other emissions, the average limit was set to -27dBm/MHz (~68dBuV/m).

No spurious emissions were found above 18GHz

T77318_NII_Radiated_Final UNII RE H&S-2A Module Page 9 of 34

Client:

Summit Data Communications

Model: SDC-MSD30AG

Contact: Jerry Pohmurski

Standard:

FCC 15.E/RSS 210

EMC Test Data

Job Number: J77268

T-Log Number: T77318

Account Manager: Christine Krebill

Class: N/A

Run #2c: High Channel @ 5320 MHz

Fundamental Signal Field Strength

Frequency Level Pol

MHz

5350.600

dB

μV/m

49.2

V/H

H

5361.370

5322.800

5324.270

60.9

93.2

103.6

H

V

V

15.209 / 15.E

Limit

-

Margin

-

Detector Azimuth

Pk/QP/Avg degrees

AVG 222

-

-

-

-

-

-

PK

AVG

PK

222

226

226

5350 MHz Band Edge Signal Radiated Field Strength

Frequency

MHz

5350.000

5350.230

5356.670

5367.330

Level dB

μV/m

49.1

49.2

61.1

60.7

Pol

V/H

H

V

V

H

FCC 15.209

Limit

Detector Azimuth

Margin Pk/QP/Avg degrees

54.0

54.0

74.0

74.0

-4.9

-4.8

-12.9

-13.3

AVG

AVG

PK

PK

222

226

226

222

Height meters

1.3

1.3

2.1

2.1

Comments

Height Comments meters

1.3

2.1

2.1

1.3

Spurious Radiated Emissions:

Frequency

MHz

1345.370

Level dB

μV/m

43.5

Pol

V/H

V

5460.320

10640.510

3546.730

7093.370

39.1

35.7

45.6

49.2

H

V

V

V

1345.500

5440.520

10637.570

46.5

51.6

49.9

V

V

V

15.209 / 15E

Limit

Detector Azimuth

Margin Pk/QP/Avg degrees

54.0

-10.5

AVG 157

68.3

54.0

68.3

68.3

-29.2

-18.3

-22.7

-19.1

AVG

AVG

Peak

Peak

60

360

17

88

74.0

74.0

74.0

-27.5

-22.4

-24.1

PK

PK

PK

157

60

360

Height Comments meters

1.6

1.9

1.0

1.9

1.0

Peak vs Avg limit

Peak vs Avg limit

1.6

1.9

1.0

Note 1:

For emissions in restricted bands, the limit of 15.209 was used. For all other emissions, the average limit was set to -27dBm/MHz (~68dBuV/m).

T77318_NII_Radiated_Final UNII RE H&S-2A Module Page 10 of 34

Client:

Summit Data Communications

Model: SDC-MSD30AG

Contact: Jerry Pohmurski

Standard:

FCC 15.E/RSS 210

EMC Test Data

Job Number: J77268

T-Log Number: T77318

Account Manager: Christine Krebill

Class: N/A

T77318_NII_Radiated_Final UNII RE H&S-2A Module Page 11 of 34

Client:

Summit Data Communications

Model: SDC-MSD30AG

Contact: Jerry Pohmurski

Standard:

FCC 15.E/RSS 210

EMC Test Data

Job Number: J77268

T-Log Number: T77318

Account Manager: Christine Krebill

Class: N/A

Run #3, Radiated Spurious Emissions, 30 - 40,000 MH. Operation in the 5470-5725 MHz Band

Date: 1/11/2010 Engineer: Mehran Birgani Location: FT Chamber #3

Run #3a: Low Channel

Fundamental Signal Field Strength

Frequency Level Pol

MHz

5500.100

5499.700

dB

μV/m

94.5

105.2

V/H

V

V

5499.930

5493.330

93.6

104.1

H

H

15.209 / 15.E

Limit

112.3

132.3

112.3

132.3

Detector Azimuth

Margin Pk/QP/Avg degrees

-17.8

-27.1

-18.7

-28.2

AVG

PK

AVG

PK

60

60

151

151

Height meters

1.4

1.4

1.3

1.3

Comments

5350-5460 MHz Restricted Band Edge Signal Radiated Field Strength

Frequency

MHz

Level dB

μV/m

Pol

V/H

FCC 15.209

Limit

Detector Azimuth

Margin Pk/QP/Avg degrees

5350.370

5389.600

43.4

55.8

V

V

54.0

74.0

-10.6

-18.2

AVG

PK

60

60

5460-5470 MHz Restricted Band Edge Signal Radiated Field Strength

Frequency

MHz

5469.750

5468.100

Level dB

μV/m

44.5

60.0

Pol

V/H

V

V

FCC 15.209

Limit

68.3

88.3

Margin

-23.8

-28.3

Detector

Pk/QP/Avg degrees

AVG

PK

Azimuth

60

60

Height meters

1.4

1.4

Comments

Height Comments meters

1.4

1.4

Spurious Radiated Emissions:

Frequency Level Pol

MHz

1302.500

3713.330

7334.170

10986.670

dB

μV/m

43.6

46.1

45.7

46.9

V/H

V

V

V

V

15.209 / 15E

Limit

54.0

Margin

-10.4

Detector Azimuth

Pk/QP/Avg degrees

Peak 177

54.0

54.0

54.0

-7.9

-8.3

-7.1

Peak

Peak

Peak

96

287

14

Height Comments meters

1.6

Peak reading with average limit

1.3

1.9

1.3

Peak reading with average limit

Peak reading with average limit

Peak reading with average limit

Note 1:

For emissions in restricted bands, the limit of 15.209 was used. For all other emissions, the average limit was set to -27dBm/MHz (~68dBuV/m).

T77318_NII_Radiated_Final UNII RE H&S-2A Module Page 12 of 34

Client:

Summit Data Communications

Model: SDC-MSD30AG

Contact: Jerry Pohmurski

Standard:

FCC 15.E/RSS 210

EMC Test Data

Job Number: J77268

T-Log Number: T77318

Account Manager: Christine Krebill

Class: N/A

T77318_NII_Radiated_Final UNII RE H&S-2A Module Page 13 of 34

Client:

Summit Data Communications

Model: SDC-MSD30AG

Contact: Jerry Pohmurski

Standard:

FCC 15.E/RSS 210

EMC Test Data

Job Number: J77268

T-Log Number: T77318

Account Manager: Christine Krebill

Class: N/A

Run #3b: Center Channel

Spurious Radiated Emissions:

Frequency Level Pol

MHz

1302.500

3713.330

11146.670

dB

μV/m

43.8

46.9

45.3

V/H

V

V

V

Note 1:

15.209 / 15E

Limit

54.0

54.0

54.0

Margin

-10.2

-7.1

-8.7

Detector

Pk/QP/Avg degrees

Peak

Peak

Peak

Azimuth

177

96

6

Height meters

1.6

1.3

1.3

Comments

Peak reading with average limit

Peak reading with average limit

Peak reading with average limit

For emissions in restricted bands, the limit of 15.209 was used. For all other emissions, the average limit was set to -

27dBm/MHz (~68dBuV/m).

T77318_NII_Radiated_Final UNII RE H&S-2A Module Page 14 of 34

Client:

Summit Data Communications

Model: SDC-MSD30AG

Contact: Jerry Pohmurski

Standard:

FCC 15.E/RSS 210

EMC Test Data

Job Number: J77268

T-Log Number: T77318

Account Manager: Christine Krebill

Class: N/A

Run #3c: High Channel

Spurious Radiated Emissions:

Frequency Level Pol

MHz

1302.500

3795.830

11386.670

17093.330

dB

μV/m

43.5

47.1

39.0

43.0

V/H

V

H

H

H

Note 1:

15.209 / 15E

Limit

54.0

54.0

54.0

68.3

Margin

-10.5

-6.9

-15.0

-25.3

Detector Azimuth

Pk/QP/Avg degrees

Peak

Peak

Peak

Peak

197

143

40

237

Height Comments meters

1.6

1.3

1.2

1.0

Peak reading with average limit

Peak reading with average limit

Peak reading with average limit

Peak reading with average limit

For emissions in restricted bands, the limit of 15.209 was used. For all other emissions, the average limit was set to -

27dBm/MHz (~68dBuV/m).

T77318_NII_Radiated_Final UNII RE H&S-2A Module Page 15 of 34

Client:

Summit Data Communications

Model: SDC-MSD30AG

Contact: Jerry Pohmurski

Standard:

FCC 15.E/RSS 210

EMC Test Data

Job Number: J77268

T-Log Number: T77318

Account Manager: Christine Krebill

Class: N/A

RSS 210 and FCC 15.407 (UNII) Radiated Spurious Emissions

(Larsen Antenna)

Test Specific Details

Objective:

The objective of this test session is to perform final qualification testing of the EUT with respect to the specification listed above.

General Test Configuration

The EUT and all local support equipment were located on the turntable for radiated spurious emissions testing.

For radiated emissions testing the measurement antenna was located 3 meters from the EUT.

Ambient Conditions:

Temperature:

Rel. Humidity:

Date of Test: Refer to each run

Test Engineer: Refer to each run

Test Location: Refer to each run

Modifications Made During Testing

No modifications were made to the EUT during testing

Deviations From The Standard

No deviations were made from the requirements of the standard.

10-15 °C

30-50 %

Config. Used: 1

Config Change: None

Host Unit Voltage 120V/ 60Hz

T77318_NII_Radiated_Final UNII RE Larsen Dipole-2A Module Page 16 of 34

Client:

Summit Data Communications

Model: SDC-MSD30AG

Contact: Jerry Pohmurski

Standard:

FCC 15.E/RSS 210

EMC Test Data

Job Number: J77268

T-Log Number: T77318

Account Manager: Christine Krebill

Class: N/A

Summary of Results

NOTE: A preliminary check of output power was performed. The port with the highest power was used for the final testing. Preliminary tests showed no radio related emissions below 1 GHz.

Run # Mode Channel

Power

Setting

Port

1

802.11a

Chain A

802.11a

Chain A

5150-5250

Low

5150-5250

Low

18

18

Main

Main

802.11a

Chain A

802.11a

Chain A

5150-5250

Center

5150-5250

High

18

18

Main

Main

2

802.11a

Chain A

802.11a

Chain A

5250-5350

Low

5250-5350

Center

18

18

Main

Main

802.11a

Chain A

802.11a

Chain A

802.11a

Chain A

802.11a

Chain A

5250-5350

High

5250-5350

High

5470-5725

Low

5470-5725

Low

18

18

18

18

Main

Main

Main

Main

3

802.11a

Chain A

802.11a

Chain A

5470-5725

Low

5470-5725

Center

18

18

Main

Main

802.11a

Chain A

5470-5725

High

18 Main

Test Performed

Restricted Band Edge at

5150 MHz

Radiated Emissions,

1 - 40 GHz

Radiated Emissions,

1 - 40 GHz

Radiated Emissions,

1 - 40 GHz

Radiated Emissions,

1 - 40 GHz

Radiated Emissions,

1 - 40 GHz

Radiated Emissions,

1 - 40 GHz

Restricted Band Edge at

5350 MHz

Restricted Band Edge at

5460 MHz

Restricted Band Edge at

5470 MHz

Radiated Emissions,

1 - 40 GHz

Radiated Emissions,

1 - 40 GHz

Radiated Emissions,

1 - 40 GHz

Limit

15.209

FCC 15.209 / 15 E

FCC 15.209 / 15 E

FCC 15.209 / 15 E

FCC 15.209 / 15 E

FCC 15.209 / 15 E

FCC 15.209 / 15 E

15.209

15.209

15.209

FCC 15.209 / 15 E

FCC 15.209 / 15 E

FCC 15.209 / 15 E

Result / Margin

51.1dBµV/m @

5147.7MHz (-2.9dB)

44.4dBµV/m @

5418.4MHz (-9.6dB)

44.9dBµV/m @

5415.8MHz (-9.1dB)

43.4dBµV/m @

1306.3MHz (-10.6dB)

43.5dBµV/m @

5415.9MHz (-10.5dB)

46.4dBµV/m @

1306.5MHz (-7.6dB)

44.9dBµV/m @

1302.5MHz (-9.1dB)

50.6dBµV/m @

5350.1MHz (-3.4dB)

50.7dBµV/m @

5458.7MHz (-3.3dB)

51.4dBµV/m @

5469.9MHz (-16.9dB)

46.4dBµV/m @

3658.3MHz (-7.6dB)

45.7dBµV/m @

1339.2MHz (-8.3dB)

46.2dBµV/m @

3795.8MHz (-7.8dB)

Antenna:

Module:

Larsen 5 dBi dipole antenna (Elliott 2009-2119)

00000002A

DRIVER:

V3.00.50

SCU: V2.03.18

Note: For emission from 18-40GHz, the EUT was scanned manually. All signals were more than 20dB below the limit.

Ambient Conditions:

Temperature:

Rel. Humidity:

10-15 °C

30-50 %

T77318_NII_Radiated_Final UNII RE Larsen Dipole-2A Module Page 17 of 34

Client:

Summit Data Communications

Model: SDC-MSD30AG

Contact: Jerry Pohmurski

Standard:

FCC 15.E/RSS 210

EMC Test Data

Job Number: J77268

T-Log Number: T77318

Account Manager: Christine Krebill

Class: N/A

Run #1, Radiated Spurious Emissions, 30 - 40,000 MH. Operation in the 5150-5250 MHz Band

Date: 1/11/2010 Engineer: Joseph Cadigal Location: FT Chamber #3

Run #1a: Low Channel @ 5180 MHz

Fundamental Signal Field Strength

Frequency Level Pol

MHz

5179.920

5180.000

dB

μV/m

101.0

110.8

V/H

V

V

5180.000

5179.930

85.7

95.0

H

H

15.209 / 15.E

Limit

Detector Azimuth

Margin Pk/QP/Avg degrees

-

-

-

-

-

-

-

-

AVG

PK

AVG

PK

162

162

121

121

5150 MHz Band Edge Signal Radiated Field Strength

Frequency

MHz

Level dB

μV/m

Pol

V/H

FCC 15.209

Limit

Detector Azimuth

Margin Pk/QP/Avg degrees

5130.600

5147.670

50.1

51.1

H

V

54.0

54.0

-3.9

-2.9

AVG

AVG

120

162

5130.530

5149.300

61.7

64.2

H

V

74.0

74.0

-12.3

-9.8

PK

PK

120

162

Height meters

1.0

1.0

1.5

1.5

Height meters

1.5

1.0

1.5

1.0

Comments

Comments

Spurious Radiated Emissions:

Frequency Level Pol

MHz

1306.370

dB

μV/m

42.8

V/H

H

3453.340

4926.560

5418.440

6906.670

44.3

43.7

44.4

47.4

V

V

V

V

10359.920

1306.420

3453.340

4926.510

5418.360

6906.810

10360.140

49.6

46.3

48.3

56.1

56.8

53.3

62.9

V

V

V

V

V

H

V

Note 1:

Note 2:

15.209 / 15E

Limit

54.0

Detector Azimuth

Margin Pk/QP/Avg degrees

-11.2

AVG 229

68.3

54.0

54.0

68.3

68.3

74.0

88.3

74.0

74.0

88.3

88.3

-24.0

-10.3

-9.6

-20.9

-18.7

-27.7

-40.0

-17.9

-17.2

-35.0

-25.4

AVG

AVG

AVG

AVG

AVG

PK

PK

PK

PK

PK

PK

348

32

209

123

141

229

348

32

209

123

141

Height meters

1.5

1.3

1.0

1.0

1.5

1.0

1.5

1.3

1.0

1.0

1.5

1.0

Comments

For emissions in restricted bands, the limit of 15.209 was used. For all other emissions, the average limit was set to -

27dBm/MHz (~68dBuV/m).

No spurious emissions were found above 18GHz

T77318_NII_Radiated_Final UNII RE Larsen Dipole-2A Module Page 18 of 34

Client:

Summit Data Communications

Model: SDC-MSD30AG

Contact: Jerry Pohmurski

Standard:

FCC 15.E/RSS 210

EMC Test Data

Job Number: J77268

T-Log Number: T77318

Account Manager: Christine Krebill

Class: N/A

T77318_NII_Radiated_Final UNII RE Larsen Dipole-2A Module Page 19 of 34

Client:

Summit Data Communications

Model: SDC-MSD30AG

Contact: Jerry Pohmurski

Standard:

FCC 15.E/RSS 210

EMC Test Data

Job Number: J77268

T-Log Number: T77318

Account Manager: Christine Krebill

Class: N/A

Run #1b: Center Channel @ 5200 MHz

Spurious Radiated Emissions:

Frequency Level Pol

MHz

1306.410

dB

μV/m

42.7

V/H

V

15.209 / 15E

Limit

54.0

Margin

-11.3

Detector Azimuth

Pk/QP/Avg degrees

AVG 336

3466.690

4946.480

5415.830

6933.360

10389.450

1306.360

3466.660

4946.300

5413.720

6933.190

10389.310

44.7

42.3

44.9

44.4

35.1

46.5

48.5

55.9

56.7

50.7

51.8

H

V

V

V

V

V

H

V

V

V

V

68.3

54.0

54.0

68.3

68.3

74.0

88.3

74.0

74.0

88.3

88.3

-23.6

-11.7

-9.1

-23.9

-33.2

-27.5

-39.8

-18.1

-17.3

-37.6

-36.5

AVG

AVG

AVG

AVG

AVG

PK

PK

PK

PK

PK

PK

203

191

94

66

28

203

191

94

66

336

28

Note 1:

Note 2:

Height meters

1.3

1.5

1.0

1.0

1.5

1.3

1.3

1.5

1.0

1.0

1.5

1.3

Comments

For emissions in restricted bands, the limit of 15.209 was used. For all other emissions, the average limit was set to -

27dBm/MHz (~68dBuV/m).

No spurious emissions were found above 18GHz

T77318_NII_Radiated_Final UNII RE Larsen Dipole-2A Module Page 20 of 34

Client:

Summit Data Communications

Model: SDC-MSD30AG

Contact: Jerry Pohmurski

Standard:

FCC 15.E/RSS 210

EMC Test Data

Job Number: J77268

T-Log Number: T77318

Account Manager: Christine Krebill

Class: N/A

Run #1c: High Channel @ 5240 MHz

Spurious Radiated Emissions:

Frequency Level Pol

MHz

10479.960

dB

μV/m

31.9

V/H

V

10481.440

1306.340

3493.340

4972.310

5417.270

1306.320

3493.350

4973.090

5416.520

Note 1:

Note 2:

45.0

43.4

44.0

39.8

43.2

46.9

48.3

53.0

55.4

V

V

V

V

V

V

V

V

V

15.209 / 15E

Limit

68.3

Margin

-36.4

Detector Azimuth

Pk/QP/Avg degrees

AVG 319

88.3

54.0

68.3

54.0

54.0

74.0

88.3

74.0

74.0

-43.3

-10.6

-24.3

-14.2

-10.8

-27.1

-40.0

-21.0

-18.6

PK

AVG

AVG

AVG

AVG

PK

PK

PK

PK

319

343

156

192

181

343

156

192

181

1.0

1.3

1.3

1.0

1.0

1.3

Height Comments meters

1.5

1.5

1.3

1.0

For emissions in restricted bands, the limit of 15.209 was used. For all other emissions, the average limit was set to -

27dBm/MHz (~68dBuV/m).

No spurious emissions were found above 18GHz

T77318_NII_Radiated_Final UNII RE Larsen Dipole-2A Module Page 21 of 34

Client:

Summit Data Communications

Model: SDC-MSD30AG

Contact: Jerry Pohmurski

Standard:

FCC 15.E/RSS 210

EMC Test Data

Job Number: J77268

T-Log Number: T77318

Account Manager: Christine Krebill

Class: N/A

Run #2, Radiated Spurious Emissions, 30 - 40,000 MH. Operation in the 5250-5350 MHz Band

Run #2a: Low Channel @ 5280 MHz

Date:

1/11/2010

Engineer:

Joseph Cadigal

Location:

FT Chamber #3

Spurious Radiated Emissions:

Note: If device is not for indoor use only then measure 5250 MHz band edge to comply with -68.3dBuV/m limit

Frequency

MHz

1306.370

Level dB

μV/m

41.7

Pol

V/H

V

15.209 / 15E

Limit

54.0

Margin

-12.3

Detector

AVG

Azimuth

Pk/QP/Avg degrees

335

Height meters

1.0

Comments

3520.000

4925.540

5415.880

10560.060

43.7

38.7

43.5

35.0

V

V

V

V

68.3

54.0

54.0

68.3

-24.6

-15.3

-10.5

-33.3

AVG

AVG

AVG

AVG

146

216

241

336

1.0

1.0

1.0

1.3

1306.440

3519.900

4925.230

5414.170

10560.390

45.5

47.8

52.0

55.1

49.3

V

V

V

V

V

74.0

88.3

74.0

74.0

88.3

-28.5

-40.5

-22.0

-18.9

-39.0

PK

PK

PK

PK

PK

335

146

216

241

336

1.0

1.0

1.0

1.0

1.3

Note 1:

Note 2:

For emissions in restricted bands, the limit of 15.209 was used. For all other emissions, the average limit was set to -

27dBm/MHz (~68dBuV/m).

No spurious emissions were found above 18GHz

T77318_NII_Radiated_Final UNII RE Larsen Dipole-2A Module Page 22 of 34

Client:

Summit Data Communications

Model: SDC-MSD30AG

Contact: Jerry Pohmurski

Standard:

FCC 15.E/RSS 210

EMC Test Data

Job Number: J77268

T-Log Number: T77318

Account Manager: Christine Krebill

Class: N/A

Run #2b: Center Channel @ 5300 MHz

Date:

1/12/2010

Engineer:

Mehran Birgani

Location:

FT Chamber #5

Spurious Radiated Emissions:

Frequency Level Pol

MHz

1306.450

10600.000

Note 1:

Note 2: dB

μV/m

46.4

44.2

V/H

H

V

15.209 / 15E

Limit

54.0

68.3

Margin

-7.6

-24.1

Detector

Pk/QP/Avg degrees

Peak

Peak

Azimuth

276

106

Height meters

1.3

1.3

Comments

Peak reading with average limit

Peak reading with average limit

For emissions in restricted bands, the limit of 15.209 was used. For all other emissions, the average limit was set to -

27dBm/MHz (~68dBuV/m).

No spurious emissions were found above 18GHz

T77318_NII_Radiated_Final UNII RE Larsen Dipole-2A Module Page 23 of 34

Client:

Summit Data Communications

Model: SDC-MSD30AG

Contact: Jerry Pohmurski

Standard:

FCC 15.E/RSS 210

EMC Test Data

Job Number: J77268

T-Log Number: T77318

Account Manager: Christine Krebill

Class: N/A

Run #2c: High Channel @ 5320 MHz

Date:

1/11/2010

Engineer:

Joseph Cadigal

Location:

FT Chamber #3

High Channel @ 5320 MHz

Fundamental Signal Field Strength

Frequency

MHz

5320.000

Level dB

μV/m

104.9

Pol

V/H

V

5319.990

5320.040

5320.060

112.3

89.3

97.7

V

H

H

15.209 / 15.E

Limit

Detector Azimuth

Margin Pk/QP/Avg degrees

AVG 181

-

-

-

-

-

-

PK

AVG

PK

181

70

70

5350 MHz Band Edge Signal Radiated Field Strength

Frequency Level Pol FCC 15.209

MHz

5350.120

5350.400

5350.680

5352.980

dB

μV/m

50.6

49.9

62.1

62.2

V/H

V

H

H

V

Limit

54.0

54.0

74.0

74.0

Margin

-3.4

-4.1

-11.9

-11.8

Detector Azimuth

Pk/QP/Avg degrees

AVG

AVG

PK

PK

181

69

69

181

Height meters

1.0

1.0

1.0

1.0

Comments

Height Comments meters

1.0

1.0

1.0

1.0

Spurious Radiated Emissions:

Date:

1/12/2010

Engineer:

Mehran Birgani

Location:

FT Chamber #5

Frequency Level

MHz dB

μV/m

1302.500

3548.330

10640.000

Note 1:

44.9

46.9

43.4

Pol

V/H

V

H

H

15.209 / 15E

Limit

54.0

68.3

54.0

Detector Azimuth

Margin Pk/QP/Avg degrees

-9.1

-21.4

-10.6

Peak

Peak

Peak

196

27

93

Height Comments meters

1.6

1.3

1.2

Peak reading with average limit

Peak reading with average limit

Peak reading with average limit

For emissions in restricted bands, the limit of 15.209 was used. For all other emissions, the average limit was set to -

27dBm/MHz (~68dBuV/m).

T77318_NII_Radiated_Final UNII RE Larsen Dipole-2A Module Page 24 of 34

Client:

Summit Data Communications

Model: SDC-MSD30AG

Contact: Jerry Pohmurski

Standard:

FCC 15.E/RSS 210

EMC Test Data

Job Number: J77268

T-Log Number: T77318

Account Manager: Christine Krebill

Class: N/A

T77318_NII_Radiated_Final UNII RE Larsen Dipole-2A Module Page 25 of 34

Client:

Summit Data Communications

Model: SDC-MSD30AG

Contact: Jerry Pohmurski

Standard:

FCC 15.E/RSS 210

EMC Test Data

Job Number: J77268

T-Log Number: T77318

Account Manager: Christine Krebill

Class: N/A

Run #3, Radiated Spurious Emissions, 30 - 40,000 MH. Operation in the 5470-5725 MHz Band

Run #3a: Low Channel @ 5500 MHz

Date:

1/11/2010

Engineer:

Joseph Cadigal

Location:

FT Chamber #3

Fundamental Signal Field Strength

Frequency Level Pol

MHz

5500.000

5500.040

dB

μV/m

103.5

111.5

V/H

V

V

5499.980

5500.100

89.9

98.2

H

H

15.209 / 15.E

Limit

-

-

-

-

Margin Pk/QP/Avg degrees

-

-

-

-

Detector Azimuth

AVG

PK

AVG

PK

225

225

124

124

5350-5460 MHz Restricted Band Edge Signal Radiated Field Strength

Frequency

MHz

Level dB

μV/m

Pol

V/H

FCC 15.209

Limit

Detector Azimuth

Margin Pk/QP/Avg degrees

5457.300

5458.690

50.2

50.7

H

V

54.0

54.0

-3.8

-3.3

AVG

AVG

123

225

5455.570

5460.340

61.7

62.8

H

V

74.0

88.3

-12.3

-25.5

PK

PK

123

225

Height meters

1.0

1.0

1.1

1.1

Height meters

1.1

1.0

1.1

1.0

Comments

Comments

5460-5470 MHz Restricted Band Edge Signal Radiated Field Strength

Frequency Level Pol

FCC 15.209

Detector Azimuth

MHz

5469.260

dB

μV/m

50.2

V/H

H

Limit

68.3

Margin

-18.1

Pk/QP/Avg degrees

AVG 123

5469.880

5465.080

5469.060

51.4

65.0

62.0

V

V

H

68.3

88.3

88.3

-16.9

-23.3

-26.3

AVG

PK

PK

225

225

123

Height Comments meters

1.1

1.0

1.0

1.1

Spurious Radiated Emissions:

Date: 1/12/2010

Engineer:

Mehran Birgani Location: FT Chamber #5

Frequency Level

MHz dB

μV/m

1302.500

3658.330

10986.670

Note 1:

45.5

46.4

45.6

Pol

V/H

H

H

V

15.209 / 15E

Limit

54.0

54.0

54.0

Detector Azimuth

Margin Pk/QP/Avg degrees

-8.5

-7.6

-8.4

Peak

Peak

Peak

276

24

23

Height Comments meters

1.3

1.9

1.5

Peak reading with average limit

Peak reading with average limit

Peak reading with average limit

For emissions in restricted bands, the limit of 15.209 was used. For all other emissions, the average limit was set to -

27dBm/MHz (~68dBuV/m).

T77318_NII_Radiated_Final UNII RE Larsen Dipole-2A Module Page 26 of 34

Client:

Summit Data Communications

Model: SDC-MSD30AG

Contact: Jerry Pohmurski

Standard:

FCC 15.E/RSS 210

EMC Test Data

Job Number: J77268

T-Log Number: T77318

Account Manager: Christine Krebill

Class: N/A

T77318_NII_Radiated_Final UNII RE Larsen Dipole-2A Module Page 27 of 34

Client:

Summit Data Communications

Model: SDC-MSD30AG

Contact: Jerry Pohmurski

Standard:

FCC 15.E/RSS 210

EMC Test Data

Job Number: J77268

T-Log Number: T77318

Account Manager: Christine Krebill

Class: N/A

Run #3b: Center Channel @ 5580 MHz

Date:

1/12/2010

Engineer:

Mehran Birgani

Location:

FT Chamber #5

Spurious Radiated Emissions:

Frequency Level Pol

MHz

1339.170

3713.330

11146.670

Note 1: dB

μV/m

45.7

45.0

41.2

V/H

V

H

V

15.209 / 15E

Limit

54.0

54.0

54.0

Margin

-8.3

-9.0

-12.8

Detector

Peak

Peak

Azimuth

Pk/QP/Avg degrees

Peak 209

20

181

Height Comments meters

1.0

1.9

1.3

Peak reading with average limit

Peak reading with average limit

Peak reading with average limit

For emissions in restricted bands, the limit of 15.209 was used. For all other emissions, the average limit was set to -

27dBm/MHz (~68dBuV/m).

T77318_NII_Radiated_Final UNII RE Larsen Dipole-2A Module Page 28 of 34

Client:

Summit Data Communications

Model: SDC-MSD30AG

Contact: Jerry Pohmurski

Standard:

FCC 15.E/RSS 210

EMC Test Data

Job Number: J77268

T-Log Number: T77318

Account Manager: Christine Krebill

Class: N/A

Run #3c: High Channel @ 5700 MHz

Date:

1/12/2010

Engineer:

Mehran Birgani

Location:

FT Chamber #5

Spurious Radiated Emissions:

Frequency Level Pol

MHz

1339.170

3795.830

11386.670

Note 1: dB

μV/m

45.2

46.2

40.1

V/H

H

H

V

15.209 / 15E

Limit

54.0

54.0

54.0

Margin

-8.8

-7.8

-13.9

Detector

Peak

Peak

Azimuth

Pk/QP/Avg degrees

Peak 249

17

21

Height Comments meters

1.3

1.6

1.3

Peak reading with average limit

Peak reading with average limit

Peak reading with average limit

For emissions in restricted bands, the limit of 15.209 was used. For all other emissions, the average limit was set to -

27dBm/MHz (~68dBuV/m).

T77318_NII_Radiated_Final UNII RE Larsen Dipole-2A Module Page 29 of 34

Client:

Summit Data Communications

Model: SDC-MSD30AG

Contact: Jerry Pohmurski

Standard:

FCC 15.E/RSS 210

EMC Test Data

Job Number: J77268

T-Log Number: T77318

Account Manager: Christine Krebill

Class: N/A

Radiated Spurious Emissions

Test Specific Details

Objective: The objective of this test session is to perform final qualification testing of the EUT with respect to the specification listed above.

General Test Configuration

The EUT and all local support equipment were located on the turntable for radiated emissions testing.

The test distance and extrapolation factor (if applicable) are detailed under each run description.

Note, preliminary testing indicates that the emissions were maximized by orientation of the EUT and elevation of the measurement antenna. Maximized testing indicated that the emissions were maximized by orientation of the EUT, elevation of the measurement antenna, and manipulation of the EUT's interface cables.

Ambient Conditions:

Temperature:

Rel. Humidity:

10-15 °C

30-50 %

Summary of Results

Run #

1 (802.11a), 5300MHz

Larson Antenna, MAIN

2 (802.11a), 5300MHz

H/S Antenna, MAIN

3 (802.11a), 5580MHz

Larson Antenna, MAIN

4 (802.11a), 5580MHz

H/S Antenna, MAIN

Test Performed

RE, 1000 - 18000 MHz

Maximized Emissions

RE, 1000 - 18000 MHz

Maximized Emissions

RE, 1000 - 18000 MHz

Maximized Emissions

RE, 1000 - 18000 MHz

Maximized Emissions

Limit

RSS-GEN

RSS-GEN

RSS-GEN

RSS-GEN

Result

Pass

Pass

Pass

Pass

Margin

44.2dBµV/m (162.2µV/m) @

3533.4MHz (-9.8dB)

42.6dBµV/m (134.9µV/m) @

3533.4MHz (-11.4dB)

44.3dBµV/m (164.1µV/m) @

3720.0MHz (-9.7dB)

42.6dBµV/m (134.9µV/m) @

3720.1MHz (-11.4dB)

Modifications Made During Testing

No modifications were made to the EUT during testing

Deviations From The Standard

No deviations were made from the requirements of the standard.

Antenna:

Antenna:

Module:

Larsen 5.0 dBi dipole antenna (Elliott 2009-2119)

H&S 6.5 dBi dipole antenna (Elliott 2009-1388)

00000002A

DRIVER:

V3.00.50

Note:

SCU: V2.03.18

For emission from 10-18GHz, the EUT was scanned manually. All signals were within noise floor.

T77318_NII_Radiated_Final RE RX Page 30 of 34

Client:

Summit Data Communications

Model: SDC-MSD30AG

Contact: Jerry Pohmurski

Standard:

FCC 15.E/RSS 210

EMC Test Data

Job Number: J77268

T-Log Number: T77318

Account Manager: Christine Krebill

Class: N/A

Run #1: Maximized readings, 1000 - 18000 MHz (Larson Dipole Antenna), 5300 MHz

Date: 1/13/2010 Engineer: Mehran Birgani Location: FT Chamber #5

Frequency Level

MHz dB

μV/m

1306.440

3533.350

41.2

44.2

7066.700

1306.380

41.5

44.9

3533.340

7066.530

47.9

48.6

Note 1:

Pol

V/H

H

H

V

H

H

V

FCC Class B

Limit

Detector Azimuth

Margin Pk/QP/Avg degrees

54.0

54.0

54.0

74.0

74.0

74.0

-12.8

-9.8

-12.5

-29.1

-26.1

-25.4

AVG

AVG

AVG

PK

PK

PK

249

148

359

249

148

359

Height meters

1.0

2.1

2.1

1.0

2.1

2.1

Comments

Above 1 GHz, the FCC specifies the limit as an average measurement. In addition, the FCC states that the peak reading of any emission above 1 GHz, can not exceed the average limit by more than 20 dB.

T77318_NII_Radiated_Final RE RX Page 31 of 34

Client:

Summit Data Communications

Model: SDC-MSD30AG

Contact: Jerry Pohmurski

Standard:

FCC 15.E/RSS 210

EMC Test Data

Job Number: J77268

T-Log Number: T77318

Account Manager: Christine Krebill

Class: N/A

Run #2: Maximized readings, 1000 - 18000 MHz (H&S Monopole Antenna), 5300 MHz

Date: 1/13/2010 Engineer: Joseph Cadigal Location: FT Chamber #5

Frequency Level

MHz dB

μV/m

1306.390

3533.390

40.0

42.6

7096.650

1306.420

34.3

44.2

3533.400

7099.070

47.0

46.2

Note 1:

Pol

V/H

H

H

V

H

H

V

FCC Class B

Limit

Detector Azimuth

Margin Pk/QP/Avg degrees

54.0

54.0

54.0

74.0

74.0

74.0

-14.0

-11.4

-19.7

-29.8

-27.0

-27.8

AVG

AVG

AVG

PK

PK

PK

248

139

342

248

139

342

Height meters

1.6

1.0

1.9

1.6

1.0

1.9

Comments

Above 1 GHz, the FCC specifies the limit as an average measurement. In addition, the FCC states that the peak reading of any emission above 1 GHz, can not exceed the average limit by more than 20 dB.

T77318_NII_Radiated_Final RE RX Page 32 of 34

Client:

Summit Data Communications

Model: SDC-MSD30AG

Contact: Jerry Pohmurski

Standard:

FCC 15.E/RSS 210

EMC Test Data

Job Number: J77268

T-Log Number: T77318

Account Manager: Christine Krebill

Class: N/A

Run #3: Maximized readings, 1000 - 18000 MHz (Larson Dipole Antenna), 5580 MHz

Date: 1/13/2010 Engineer: Mehran Birgani Location: FT Chamber #5

Frequency Level

MHz dB

μV/m

1306.440

3720.020

41.2

44.3

7428.750

1306.380

36.0

44.9

3719.970

7429.980

48.5

47.3

Note 1:

Pol

V/H

H

H

V

H

H

V

FCC Class B

Limit

Detector Azimuth

Margin Pk/QP/Avg degrees

54.0

54.0

54.0

74.0

74.0

74.0

-12.8

-9.7

-18.0

-29.1

-25.5

-26.7

AVG

AVG

AVG

PK

PK

PK

244

190

22

244

190

22

Height meters

1.0

2.0

1.1

1.0

2.0

1.1

Comments

Above 1 GHz, the FCC specifies the limit as an average measurement. In addition, the FCC states that the peak reading of any emission above 1 GHz, can not exceed the average limit by more than 20 dB.

T77318_NII_Radiated_Final RE RX Page 33 of 34

Client:

Summit Data Communications

Model: SDC-MSD30AG

Contact: Jerry Pohmurski

Standard:

FCC 15.E/RSS 210

EMC Test Data

Job Number: J77268

T-Log Number: T77318

Account Manager: Christine Krebill

Class: N/A

Run #4: Maximized readings, 1000 - 18000 MHz (H&S Monopole Antenna), 5580 MHz

Date: 1/13/2010 Engineer: Joseph Cadigal Location: FT Chamber #5

Frequency Level

MHz dB

μV/m

1289.850

3720.060

25.5

42.6

7450.490

1291.420

36.3

37.4

3720.170

7448.720

47.3

47.8

H

V

V

V

Pol

V/H

V

H

FCC Class B

Limit

Detector Azimuth

Margin Pk/QP/Avg degrees

54.0

54.0

-28.5

-11.4

AVG

AVG

274

47

54.0

74.0

74.0

74.0

-17.7

-36.6

-26.7

-26.2

AVG

PK

PK

PK

162

274

47

162

Height Comments meters

1.0

1.6

1.6

1.0

1.6

1.6

Note 1: Above 1 GHz, the FCC specifies the limit as an average measurement. In addition, the FCC states that the peak reading of any emission above 1 GHz, can not exceed the average limit by more than 20 dB.

T77318_NII_Radiated_Final RE RX Page 34 of 34

Client: Summit Data Communications

Model: SDC-MSD30AG

Contact: Jerry Pohmurski

Emissions Standard(s): FCC 15.E/RSS 210

Immunity Standard(s): -

EMC Test Data

For The

Summit Data Communications

Model

SDC-MSD30AG

Date of Last Test: 1/15/2010

EMC Test Data

Job Number: J77268

T-Log Number: T77319

Account Manager: Christine Krebill

Class: -

Environment: -

T77319_NII_Conducted_Final Cover Page 1 of 12

Client:

Summit Data Communications

Model: SDC-MSD30AG

Contact: Jerry Pohmurski

Standard:

FCC 15.E/RSS 210

EMC Test Data

Job Number: J77268

T-Log Number: T77319

Account Manager: Christine Krebill

Class: N/A

RSS-210 (LELAN) and FCC 15.407(UNII)

Antenna Port Measurements

Power, PSD, Peak Excursion, Bandwidth and Spurious Emissions

Test Specific Details

Objective:

The objective of this test session is to perform final qualification testing of the EUT with respect to the specification listed above.

Ambient Conditions:

Date of Test: 1/14/2010

Test Engineer: Mehran Birgani

Test Location: FT Chamber #5

Temperature:

Rel. Humidity:

10-15 °C

30-50 %

Config. Used: 1

Config Change: None

Host Unit Voltage 120V/ 60Hz

General Test Configuration

When measuring the conducted emissions from the EUT's antenna port, the antenna port of the EUT was connected to the spectrum analyzer or power meter via a suitable attenuator to prevent overloading the measurement system. All measurements are corrected to allow for the external attenuators and cables used.

Run #

1

1

1

1

1

1

2

1

1

3

Summary of Results

Test Performed

Power, 5150 - 5250MHz

Power, 5250 - 5350MHz

Power, 5470 - 5725MHz

PSD, 5150 - 5250MHz

PSD, 5250 - 5350MHz

PSD, 5470 - 5725MHz

26dB Bandwidth

99% Bandwidth

Peak Excursion Envelope

Antenna Conducted

Out of Band Spurious

Limit

15.407(a) (1), (2)

15.407(a) (1), (2)

15.407(a) (1), (2)

15.407(a) (1), (2)

15.407(a) (1), (2)

15.407(a) (1), (2)

15.407

RSS 210

15.407(a) (6)

15.407(b)

Module:

00000002A

DRIVER:

V3.00.50

Modifications Made During Testing

No modifications were made to the EUT during testing

Deviations From The Standard

No deviations were made from the requirements of the standard.

Pass / Fail

Pass

Pass

Pass

Pass

Pass

Pass

-

-

Pass

Pass

Result / Margin

10.8dBm (0.012W)

10.3dBm (0.011W)

10.5dBm (0.011W)

-0.8 dBm/MHz

3.4 dBm/MHz

1.5 dBm/MHz

27.6 MHz

17.1 MHz

12.9 dBm/ MHz

All emissions below the -27dBm/MHz limit

SCU: V2.03.18

T77319_NII_Conducted_Final UNII RF Port Page 2 of 12

Client:

Summit Data Communications

Model: SDC-MSD30AG

Contact: Jerry Pohmurski

Standard:

FCC 15.E/RSS 210

EMC Test Data

Job Number: J77268

T-Log Number: T77319

Account Manager: Christine Krebill

Class: N/A

Run #1: Bandwidth, Output Power and Power spectral Density

Antenna Gain (dBi):

6.5

Frequency

(MHz)

5180

5200

5240

5260

5300

5320

5500

5580

5700

Note 1:

Note 2:

Note 3:

Note 4:

Software

Setting

18.0

18.0

17.0

18.0

18.0

18.0

18.0

18.0

18.0

Bandwidth

26dB

27.6

28.3

26.0

26.2

27.8

25.8

27.6

26.3

27.6

99%

4

16.9

16.9

16.6

16.9

17.0

17.1

17.1

16.9

17.1

Output Power

Measured Limit

10.8

16.5

10.3

16.5

10.6

10.3

10.0

9.1

10.5

9.9

10.5

1 dBm

16.5

23.5

23.5

23.5

23.5

23.5

23.5

Power

(Watts)

0.012

0.011

0.011

0.011

0.010

0.008

0.011

0.010

0.011

1.1

1.5

1.5

0.9

-1.7

-2.0

-0.8

3.4

-1.5

PSD

2

dBm/MHz

Limit RSS Limit

3.5

3.5

3.5

3.5

10.5

10.5

10.5

10.5

10.5

10.5

3.5

3.5

8.6

11.0

9.6

10.7

10.1

11.0

3

Result

Output power measured using a spectrum analyzer (see plots below):

RBW=1MHz, VB=3 MHz, sample detector, power averaging on (transmitted signal was continuous) and power integration over 50 MHz

Measured using the same analyzer settings used for output power.

For RSS-210 the limit for the 5150 - 5250 MHz band accounts for the antenna gain as the maximum eirp allowed is

10dBm/MHz. The limits are also corrected for instances where the highest measured value of the PSD exceeds the average

PSD (calculated from the measured power divided by the measured 99% bandwidth) by more than 3dB by the amount that the measured value exceeds the average by more than 3dB.

99% Bandwidth measured in accordance with RSS GEN - RB > 1% of span and VB >=3xRB

Pass

Pass

Pass

Pass

Pass

Pass

Pass

Pass

Pass

T77319_NII_Conducted_Final UNII RF Port Page 3 of 12

Client:

Summit Data Communications

Model: SDC-MSD30AG

Contact: Jerry Pohmurski

Standard:

FCC 15.E/RSS 210

EMC Test Data

Job Number: J77268

T-Log Number: T77319

Account Manager: Christine Krebill

Class: N/A

T77319_NII_Conducted_Final UNII RF Port Page 4 of 12

Client:

Summit Data Communications

Model: SDC-MSD30AG

Contact: Jerry Pohmurski

Standard:

FCC 15.E/RSS 210

EMC Test Data

Job Number: J77268

T-Log Number: T77319

Account Manager: Christine Krebill

Class: N/A

Run #2: Peak Excursion Measurement

Device meets the requirement for the peak excursion

Freq

(MHz)

5180

5200

5240

Peak Excursion(dB)

Value

11.3

12.4

12.8

Limit

13.0

13.0

13.0

Freq

(MHz)

5260

5300

5320

Peak Excursion(dB)

Value

10.6

11.7

12.1

Limit

13.0

13.0

13.0

Freq

(MHz)

5500

5580

5700

Peak Excursion(dB)

Value

12.7

12.9

12.8

Limit

13.0

13.0

13.0

Plots Showing Peak Excursion

Trace A: RBW = 1MHz, VBW = 3MHz, Peak hold

Trace B: Same settings as used for power/PSD measurements (RBW = 1 MHz, VBW = 3MHz, Integrated average power)

T77319_NII_Conducted_Final UNII RF Port Page 5 of 12

Client:

Summit Data Communications

Model: SDC-MSD30AG

Contact: Jerry Pohmurski

Standard:

FCC 15.E/RSS 210

EMC Test Data

Job Number: J77268

T-Log Number: T77319

Account Manager: Christine Krebill

Class: N/A

Run #3: Out Of Band Spurious Emissions - Antenna Conducted

Maximum Antenna Gain:

Spurious Limit:

Limit Used On Plots

Note 1

:

6.5 dBi

-27.0 dBm/MHz eirp

-33.5 dBm/MHz Average Limit (RB=1MHz, VB=10Hz)

-13.5 dBm/MHz Peak Limit (RB=VB=1MHz)

Note 1:

Note 2:

Note 3:

Note 4:

Note 5:

The -27dBm/MHz limit is an eirp limit. The limit for antenna port conducted measurements is adjusted to take into consideration the maximum antenna gain (limit = -27dBm - antenna gain). Radiated field strength measurements for signals more than 50MHz from the bands and that are close to the limit are made to determine compliance as the antenna gain is not known at these frequencies.

All spurious signals below 1GHz are measured during digital device radiated emissions test.

Signals within 10MHz of the 5.725 or 5.825 Band edge are subject to a limit of -17dBm EIRP

If the device is for outdoor use then the -27dBm eirp limit also applies in the 5150 - 5250 MHz band.

Signals that fall in the restricted bands of 15.205 are subject to the limit of 15.209.

Plots Showing Out-Of-Band Emissions (RBW=VBW=1MHz) with Average Limit of -33.5 dBm

Low channel, 5150 - 5250 MHz Band (channel 36, 5180 MHz)

Compliance with the radiated limits for the restricted band immediately below 5150MHz is demonstrated through the radiated emissions tests.

T77319_NII_Conducted_Final UNII RF Port Page 6 of 12

Client:

Summit Data Communications

Model: SDC-MSD30AG

Contact: Jerry Pohmurski

Standard:

FCC 15.E/RSS 210

Center channel, 5150 - 5250 MHz Band (Channel 40, 5200 MHz)

EMC Test Data

Job Number: J77268

T-Log Number: T77319

Account Manager: Christine Krebill

Class: N/A

High channel, 5150 - 5250 MHz Band (Channel 48, 5240MHz)

T77319_NII_Conducted_Final UNII RF Port Page 7 of 12

Client:

Summit Data Communications

Model: SDC-MSD30AG

Contact: Jerry Pohmurski

Standard:

FCC 15.E/RSS 210

Low channel, 5250 - 5350 MHz Band (Channel 52, 5260MHz)

EMC Test Data

Job Number: J77268

T-Log Number: T77319

Account Manager: Christine Krebill

Class: N/A

Center channel, 5250 - 5350 MHz Band (Channel 60, 5300MHz)

T77319_NII_Conducted_Final UNII RF Port Page 8 of 12

Client:

Summit Data Communications

Model: SDC-MSD30AG

Contact: Jerry Pohmurski

Standard:

FCC 15.E/RSS 210

EMC Test Data

Job Number: J77268

T-Log Number: T77319

Account Manager: Christine Krebill

Class: N/A

High channel, 5250 - 5350 MHz Band (Channel 64, 5320MHz)

Compliance with the radiated limits for the restricted band immediately above 5350MHz is demonstrated through the radiated emissions tests.

Low channel, 5470 - 5725 MHz Band (Channel 100, 5500MHz)

Includes a plot from 5460 - 5500 MHz showing compliance with the limit immediately below the allocated band from 5460-5470 MHz.

Compliance with the radiated limits for the restricted band below 5460 MHz is demonstrated through the radiated emissions tests.

T77319_NII_Conducted_Final UNII RF Port Page 9 of 12

Client:

Summit Data Communications

Model: SDC-MSD30AG

Contact: Jerry Pohmurski

Standard:

FCC 15.E/RSS 210

EMC Test Data

Job Number: J77268

T-Log Number: T77319

Account Manager: Christine Krebill

Class: N/A

Center channel, 5470 - 5725 MHz Band (Channel 116, 5580MHz)

T77319_NII_Conducted_Final UNII RF Port Page 10 of 12

Client:

Summit Data Communications

Model: SDC-MSD30AG

Contact: Jerry Pohmurski

Standard:

FCC 15.E/RSS 210

EMC Test Data

Job Number: J77268

T-Log Number: T77319

Account Manager: Christine Krebill

Class: N/A

Channel adjacent to 5650 MHz

T77319_NII_Conducted_Final UNII RF Port Page 11 of 12

Client:

Summit Data Communications

Model: SDC-MSD30AG

Contact: Jerry Pohmurski

Standard:

FCC 15.E/RSS 210

EMC Test Data

Job Number: J77268

T-Log Number: T77319

Account Manager: Christine Krebill

Class: N/A

High channel, 5470 - 5725 MHz Band

Includes a plot from 5700 - 5780 MHz showing compliance with the -27dBm/MHz eirp limit immediately above the allocated band

(5725 MHz).

T77319_NII_Conducted_Final UNII RF Port Page 12 of 12

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
