5. Start Mode:*Normal / Soft / Very-Soft, default is “Normal”.
“Normal” is preferred for fixed-wing aircraft. “Soft” or “Very-Soft” are preferred for helicopters. The
initial acceleration of the “Soft” and “Very-Soft” modes are slower than “Normal” mode, usually it
takes 3 second for “Soft” mode or 8 seconds for “Very-Soft” mode from 0% throttle advance to full
throttle. After startup, if the throttle is closed (throttle stick is moved to the bottom position) and
opened again (throttle stick is moved upwards) within 3 seconds, the restart will be temporarily
changed to “Normal” mode to get rid of the chances of a crash caused by slow throttle response.
This special design is usedful for aerobatic flight.
6. Timing:0°/ 3.75° / 7.5° / 11.25° / *15° / 18.75° / 22.5° / 26.25°, default is 15°.
Usually, low timing value is suitable for most motors. But there are many differences among
structures and parameters of different motors so please try and select the most suitable timing
value according to the motor you are just using. The correct timing value makes the motor run
smoothly. And generally, higher timing value brings out higher output power and higher speed.

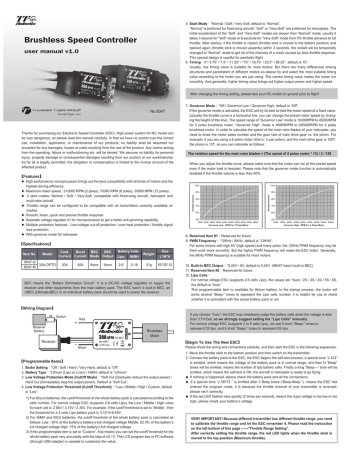

Brushless Speed Controller
user manual v1.0
After changing the timing setting, please test your RC model on ground prior to flight!
【Features】
► High performance microprocessor brings out the best compatibility with all kinds of motors and the
highest driving efficiency.
► Maximum motor speed : 210000 RPM (2 poles), 70000 RPM (6 poles), 35000 RPM (12 poles).
► 3 start modes: Normal / Soft / Very-Soft, compatible with fixed-wing aircraft, helicopter and
multi-rotor aircraft.
► Throttle range can be configured to be compatible with all transmitters currently available on
market.
► Smooth, linear, quick and precise throttle response.
► Separate voltage regulator IC for microprocessor to get a better anti-jamming capability.
► Multiple protection features : Low-voltage cut-off protection / over-heat protection / throttle signal
loss protection.
► With governor mode for helicopter.
【Specifications】
Item No.
Model
8047-G
30A-OPTO
8047-M
Cont.
Burst
Current Current
30A
40A
BEC
BEC
Mode Output
None
None
Battery Cells
Lipo
NiMH
2-6
5-18
Weight
Size
L*W*H
31g
55*25*12
BEC means the “Battery Elimination Circuit”. It is a DC-DC voltage regulator to supply the
receiver and other equipments from the main battery pack. The ESC hasn’t a built-in BEC, an
UBEC (Ultimate-BEC) or an individual battery pack should be used to power the receiver.
The rotation speed for the main rotor blades = (The speed of 2 poles motor * 13) / 3 / 150
When you adjust the throttle curve, please make sure that the motor can run at this preset speed
even if the motor load is heaviest. Please note that the governor mode function is automatically
disabled if the throttle volume is less than 60%.
105%
105%
95%
95%
85%
75%
65%
55%
8000 12000 16000 20000 24000 28000 32000 36000 40000 44000
Governor Low: RPM For 2 Poles Motor
Throttle Volume
Thanks for purchasing our Electronic Speed Controller (ESC). High power system for RC model can
be very dangerous, so please read this manual carefully. In that we have no control over the correct
use, installation, application, or maintenance of our products, no liability shall be assumed nor
accepted for any damages, losses or costs resulting from the use of the product. Any claims arising
from the operating, failure or malfunctioning etc. will be denied. We assume no liability for personal
injury, property damage or consequential damages resulting from our product or our workmanship.
As far as is legally permitted, the obligation to compensation is limited to the invoice amount of the
affected product.
Throttle Volume
No.8047
thundertiger.com
7. Governor Mode:*Off / Governor Low / Governor High, default is “Off”.
If the governor mode is activated, the ESC will try its best to hold the motor speed at a fixed value.
(Usually the throttle curve is a horizontal line, you can change the preset motor speed by changing the height of this line). The speed range of “Governor Low” mode is 10000RPM to 45000RPM
for 2 poles brushless motor, “Governor High” mode is 46000RPM to 200000RPM for 2 poles
brushless motor. In order to calculate the speed of the main rotor blades of your helicopter, you
need to know the motor poles number and the gear rate of main drive gear vs. the pinion. For
example, if you are using a 6 poles motor (that is: 3 pair poles), and the main drive gear is 150T,
the pinion is 13T, so you can calculate as follows:
85%
75%
65%
55%
40000 60000 80000 100000 120000 140000 160000 180000 200000
Governor High: RPM For 2 Poles Motor
8. Reserved Item #1:Reserved for future.
9. PWM Frequency:*12KHz / 8KHz, default is “12KHz”.
For some motors with high KV (high speed) and many poles, the 12KHz PWM frequency may let
them work more smoothly. But the higher PWM frequency will make the ESC hotter. Generally,
the 8KHz PWM frequency is suitable for most motors.
10. Built-In BEC Output:*5.25V / 6V, default is 5.25V. (#8047 hasn’t built-in BEC)
11. Reserved Item #2:Reserved for future.
12. Lipo Cells:
For normal voltage ESC (supports 2-6 cells Lipo), the values are *Auto / 2S / 3S / 4S / 5S / 6S,
the default is “Auto”
This programmable item is available for lithium battery. In the startup process, the motor will
emits several “Beep-” tones to represent the Lipo cells number, it is helpful for you to check
whether it is coincident with the actual battery pack or not.
【Wiring Diagram】
Switch
Receiver
Battery
Receiver
+
Red
Brussless
Motor
_
If you choose “Auto”, the ESC may mistakenly judge the battery cells when the voltage is less
than 3.7V/Cell, so we strongly suggest setting the “Lipo Cells” manually.
For normal voltage ESC (supports 2 to 6 cells Lipo), we use 5 short “Beep-” tones to
represent 5S lipo, and 6 short “Beep-” tones to represent 6S lipo.
【Begin To Use The New ESC】
Black
【Programmable Items】
1. Brake Setting:*Off / Soft / Hard / Very Hard, default is “Off”.
2. Battery Type:*Lithium (Lipo or Li-ion) / NiMH, default is “Lithium”.
3. Low Voltage Protection Mode (CutOff Mode):*Soft Cut (Gradually reduce the output power) /
Hard Cut (Immediately stop the output power). Default is “Soft Cut”.
4. Low Voltage Protection Threshold (Cutoff Threshold):*Low / Middle / High / Custom, default
is “Low”.
1) For lithium batteries, the cutoff threshold of the whole battery pack is calculated according to the
cells number. For normal voltage ESC (supports 2-6 cells Lipo), the Low / Middle / High value
for each cell is: 2.85V / 3.15V / 3.30V. For example, if the cutoff threshold is set to “Middle”, then
the threshold for a 3 cells Lipo battery pack is 3.15*3=9.45V.
2) For NiMH and NiCd batteries, the cutoff threshold of the whole battery pack is calculated as
follows: Low : 50% of the battery’s battery’s full charged voltage Middle: 62.5% of the battery’s
full charged voltage High: 75% of the battery’s full charged voltage
3) If this programmable item is set to “Custom”, that means you can set the cutoff threshold for the
whole battery pack very accurately with the step of ±0.1V. The LCD program box or PC software
(through USB adapter) is needed to customize the value.
Please check the wiring and connections carefully, and then start the ESC in the following sequences:
1. Move the throttle stick to the bottom position and then switch on the transmitter.
2. Connect the battery pack to the ESC, the ESC begins the self-test process, a special tone “♪ 123”
is emitted, which means the voltage of the battery pack is in normal range, and then N “Beep”
tones will be emitted, means the number of lipo battery cells. Finally a long “Beep—” tone will be
emitted, which means the self-test is OK, the aircraft or helicopter is ready to go flying.
◆ If nothing is happened, please check the battery pack and all the connections;
◆ If a special tone “♪ 56712 ” is emitted after 2 Beep tones (“Beep-Beep-”), means the ESC has
entered the program mode, it is because the throttle channel of your transmitter is reversed,
please set it correctly;
◆ If the red LED flashes very quickly (2 times per second), means the input voltage is too low or too
high, please check your battery’s voltage.
VERY IMPORTANT! Because different transmitter has different throttle range, you need
to calibrate the throttle range and let the ESC remember it. Please read the instruction
on the left bottom of this page ------“Throttle Range Setting”.
After correctly setting the throttle range, the red LED lights when the throttle stick is
moved to the top position (Maximum throttle).
【Alert Tone】
1. Input voltage is abnormal: The ESC begins to check the voltage when the battery pack is
connected, if the voltage is not in the acceptable range, such an alert tone will be emitted: “BeepBeep-, Beep-Beep-” (Every “Beep-Beep-” has a time interval of about 1 second), and at the same
time, the red LED also flashes.
2. Throttle signal is lost: When the ESC can’t detect the normal throttle signal, such an alert tone will
be emitted: “Beep-, Beep-, Beep-”. (Every “Beep-” has a time interval of about 2 seconds)
3. Throttle stick is not in the bottom position: When the throttle stick is not in the bottom (lowest)
position, a very rapid alert tone will be emitted: “Beep-, Beep-, Beep-”. (Every “Beep-” has a time
interval of about 0.25 second.)
【Protection Function】
1. Abnormal startup protection: If the motor fails to start within 2 seconds of throttle application, the
ESC will cut-off the output power. In this case, the throttle stick MUST be moved to the bottom
position again to restart the motor. (This happens in the following cases: The connection between
ESC and motor is not reliable, the propeller or the motor is blocked, the gearbox is damaged, etc.)
2. Over-heat protection: When the temperature of the ESC is over a factory-preset degree, the ESC
will reduce the output power.
3. Throttle signal loss protection: The ESC will cutoff the output power if throttle signal is lost for more
than 0.25 second, the output power will be resumed as soon as the throttle signal is normal again.
【Trouble Shooting】
Trouble
After power on, motor does not work,
such an alert tone is emitted.
Possible Reason
The connection between
battery pack and ESC is
not correct
Action
Check the power connection.
Replace the connector with new one
After power on, motor does not work,
such an alert tone is emitted and the red
LED flashes at the same time. “BeepBeep-, Beep-Beep-” (Every “Beep-Beep-”
has a time interval of about 1 second)
Input voltage is abnormal,
too high or too low.
Check the voltage of battery pack
After power on, motor does not work,
such an alert tone is emitted: “Beep-,
Beep-, Beep- ”(Every “Beep-” has a time
interval of about 2 seconds)
Throttle signal is irregular
or lost
Check the receiver and transmitter
Check the control cable of the ESC
After power on, motor does not work,
such an alert tone is emitted: “Beep-,
Beep-, Beep-” (Every “Beep-” has a time
interval of about 0.25 second)
The throttle stick is not in
the bottom (lowest)
position
Move the throttle stick to bottom
position
Set the throttle trimmer to neutral
or even lower.
After power on, motor does not work, a
special tone“♪ 56712 ” is emitted after 2
“Beep” tones (Beep-Beep-)
Direction of the throttle
channel is reversed, so
the ESC has entered the
program mode
Set the direction of throttle channel
correctly (Please refer to the user
manual of your transmitter)
1. Enter program mode
a) Switch on transmitter, move the throttle stick to the top position.
b) Connect the battery pack to the ESC, a special tone “♪123” emits, that means the battery
supply is OK.
c) Wait for 2 seconds, the motor will emit “Beep-Beep-” tone.
d) Wait for another 5 seconds, special tone like “♪56712 ” ” emits, that means the program
mode is entered
2. Select programmable items
After entering program mode, you will hear 14 groups of “Beep” tones in a
loop with the following sequence. If you move the throttle stick to bottom
position within 3 seconds after one kind of tones, the corresponding item will
be selected.
1
B
Brake
(1 short tone)
2
BB
Battery Type
(2 short tones)
3
BBB
Cutoff Mode
(3 short tones)
4
BBBB
Cutoff Threshold
(4 short tones)
5
Beep—
Start Mode
(1 long tone)
6
Beep—B
Timing
(1 long 1 short)
7
Beep—BB
Governor Mode
(1 long 2 short)
8
Beep—BBB
Reserved Item #1
(1 long 3 short)
9
Beep—BBBB
PWM Frequency
(1 long 4 short)
10
Beep—Beep—
Built-in BEC Output
(2 long tones)
11
Beep—Beep—B
Reserved Item #2
(2 long 1 short)
12
Beep—Beep—BB
Lipo Cells
(2 long 2 short)
13
Beep—Beep—Beep—B
Reset All To Defaults
(3 long 1 short)
14
Beep—Beep—Beep—BB
Exit
(3 long 2 short)
Note : “Beep—” means a long “Beep” tone, “B” means a short “Beep” tone.
Usually, 1 long “Beep—” = 5 short “B” .
3. Set item value (Programmable value)
The motor runs in the opposite direction
The motor stop running while in working
state
You will hear several “Beep” tones in loop. Set the value matching to a tone
by moving the throttle stick to top position when you hear the tone, then a
special tone “♪1515” emits, that means the value is set and saved. (Keep the
throttle stick at the top position, you will go back to Step #2 and you can
select other items; Or Move the stick to bottom position within 2 seconds will
exit program mode directly)
Items
1 short
Beep
Brake
Battery Type
The connection between
ESC and the motor need
to be changed.
Swap any two wire connections
between ESC and motor
Throttle signal is lost
Check the receiver and transmitter
Check the control cable of throttle
channel
Cutoff Mode
Land RC model as soon as possible,
and replace the battery pack
Some connections are not
reliable
Check all the connections: battery
pack connection, throttle signal
cable, motor connections, etc.
3 short
4 short
*Off
Soft
Hard
Very Hard
*LiPo
NiMH
Custom
1 long 1 long
1 short
1 long
2 short
1 long
3 short
22.5°
26.25°
*Soft Cut Hard Cut
Cutoff Threshold
Start Mode
ESC has entered Low
Voltage Protection mode
2 short
Timing
Governor Mode
*Low
Middle
High
*Normal
Soft
Very Soft
3.75°
7.5°
0°
*Off
11.25°
*15°
18.75°
4S
5S
6S
Governor Governor
Low
High
Reserved Item #1
PWM Frequency
*12KHz
8KHz
Built-in BEC Output
*5.25V
6V
*Auto
2S
Reserved Item #2
Lipo Cells
3S
← For normal ESC
(2 to 6S Lipo)
The value with * symbol is the factory-preset value (That is: default value).
【Normal Startup Procedure】
Move the throttle
stick to bottom
position and then
switch on your
transmitter
Connect the battery
pack to the ESC, a
special tone “♪123”
emits, that means the
battery supply is OK
Several “Beep-”
tones emits to
represent the
number of lipo
battery cells
As soon as the self-test
process is finished, a
long “Beep—” tone will
be emitted
Move the
throttle stick
upwards to
go flying now
4. Exit program mode
There are 2 ways to exit the program mode:
a) In Step #3, after special tone “♪1515”, please move the throttle stick to the bottom position
within 2 seconds.
b) In Step #2, after tone Beep—Beep—Beep—BB” (3 long 2 short Beep tones, that is the item
#14), move the throttle stick to the bottom position within 3 seconds.
【Throttle Range Setting】
Switch on the
transmitter,
and then move
the throttle
stick to top
position
Connect battery pack
to the ESC, a special
tone “♪123” emits, that
means the battery
supply is OK, then wait
for 2 seconds
“Beep-Beep-” tone
emits, that means the
highest point of throttle
range has been
correctly confirmed
Move throttle stick to
the bottom position,
several “Beep-” tones
emits to represent the
number of Lipo
battery cells
【Program The ESC With The Transmitter】(4 Setps)
1. Enter program mode
2. Select programmable items
3. Set item’s value (Programmable value)
4. Exit program mode
A long “Beep—”
tone emits,
means the lowest
position of throttle
range has been
confirmed
After setting the programmable items by the throttle stick, you will hear 5 long “Beep—” tones
when the ESC exits the program mode. You can restart the ESC after 5 seconds.
【Distribution】
North America
Distributed by :
HRP Distributing
2034 South 3850 West Salt Lake City, UT
84104 USA
For customer service please contact
[email protected]
[email protected]
Tel : 1-844-887-6268
Attn : TT Support
Germany, Netherlands, Belgium,
Luxembourg, Austria, Italy
Distributed by / Vertrieb :
THUNDER TIGER EUROPE GmbH,
Rudolf-Diesel-Str. 1, 86453 Dasing, Germany
For customer service please contact
[email protected]
For Other Countries
Distributed by :
Thunder Tiger Corporation
No.7 6th Road, Industry Park,
Taichung, Taiwan 40755
For customer service please contact
[email protected]
Tel : 886-4-23591632
JC7404
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
