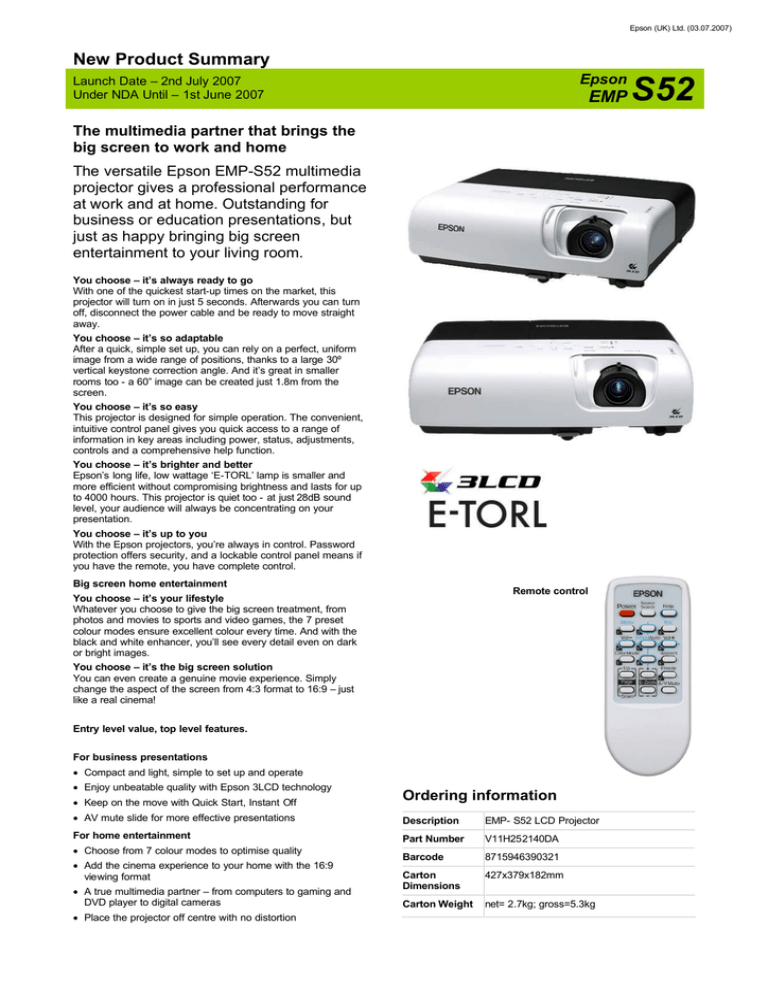

New Product Summary EMP S52

New Product Summary EMP S52
Epson (UK) Ltd. (03.07.2007)
New Product Summary
Epson
Launch Date – 2nd July 2007
Under NDA Until – 1st June 2007
EMP
The multimedia partner that brings the
big screen to work and home
The versatile Epson EMP-S52 multimedia
projector gives a professional performance
at work and at home. Outstanding for
business or education presentations, but
just as happy bringing big screen
entertainment to your living room.
You choose – it’s always ready to go
With one of the quickest start-up times on the market, this
projector will turn on in just 5 seconds. Afterwards you can turn
off, disconnect the power cable and be ready to move straight
away.
You choose – it’s so adaptable
After a quick, simple set up, you can rely on a perfect, uniform
image from a wide range of positions, thanks to a large 30º
vertical keystone correction angle. And it’s great in smaller
rooms too - a 60” image can be created just 1.8m from the
screen.
You choose – it’s so easy
This projector is designed for simple operation. The convenient,
intuitive control panel gives you quick access to a range of
information in key areas including power, status, adjustments,
controls and a comprehensive help function.
You choose – it’s brighter and better
Epson’s long life, low wattage ‘E-TORL’ lamp is smaller and
more efficient without compromising brightness and lasts for up
to 4000 hours. This projector is quiet too - at just 28dB sound
level, your audience will always be concentrating on your
presentation.
You choose – it’s up to you
With the Epson projectors, you’re always in control. Password
protection offers security, and a lockable control panel means if
you have the remote, you have complete control.
Big screen home entertainment
Remote control
You choose – it’s your lifestyle
Whatever you choose to give the big screen treatment, from
photos and movies to sports and video games, the 7 preset
colour modes ensure excellent colour every time. And with the
black and white enhancer, you’ll see every detail even on dark
or bright images.
You choose – it’s the big screen solution
You can even create a genuine movie experience. Simply
change the aspect of the screen from 4:3 format to 16:9 – just
like a real cinema!
Entry level value, top level features.
For business presentations
• Compact and light, simple to set up and operate
• Enjoy unbeatable quality with Epson 3LCD technology
• Keep on the move with Quick Start, Instant Off
Ordering information
• AV mute slide for more effective presentations
Description
EMP- S52 LCD Projector
For home entertainment
Part Number
V11H252140DA
Barcode
8715946390321
Carton
Dimensions
427x379x182mm
Carton Weight
net= 2.7kg; gross=5.3kg
• Choose from 7 colour modes to optimise quality
• Add the cinema experience to your home with the 16:9
viewing format
• A true multimedia partner – from computers to gaming and
DVD player to digital cameras
• Place the projector off centre with no distortion
S52
Epson EMP-S52 New Product Summary (03.07.2007)
Screen size and projection distance
Use the Epson Projection Distance Calculator software
available from www.epson.co.uk for distances and screen sizes
not shown below.
Ceiling Pipe (silver) 570mm
(ELPFP05)
V12H003P05
Ceiling Pipe (silver) 770mm
(ELPFP06)
V12H003P06
Ceiling Mount (ELPMB18)
Connects to the projector and either
directly to the ceiling, or to a ceiling
pipe.
V12H003B18
Cables
VGA Computer Cable HD-15 to HD15 1.8m (ELPKC02)
V12H005C02
VGA Computer Cable HD-15 to HD15 3.0m (ELPKC09)
V12H005C09
VGA Computer Cable HD-15 to HD15 20m (ELPKC10)
V12H005C10
Component Video Cable
(ELPKC19)
V12H005C19
Accessories
(Model code) order code
Consumables
HD-TV Cable
(ELPKC22)
V12H005C22
Spare Lamp (ELPLP41)
V13H010L41
What’s in the Box?
Projector
with Slide Lens Shutter
Air Filter Set (ELPAF13)
V13H134A13
Screens
50" Portable Screen (ELPSC06)
V12H002S06
60" Portable Screen (ELPSC07)
V12H002S07
80" Portable Screen (ELPSC08)
V12H002S08
Mountings
Ceiling Plate (ELPFC03)
Required if using a ceiling pipe.
V12H003C03
Ceiling Pipe (silver) 370mm
(ELPFP04)
V12H003P04
Remote Control
2 x AAA alkali batteries
for the remote control
Power Cable
1.8m cable
Computer Cable
Mini D-Sub 15-pin/mini D-Sub
15-pin, 1.8 m (6 ft.)
Use when projecting images
from a computer
Read This First Booklet
Explains the contents of the box
and which manuals the user
should refer to.
Image TBC
Setup Guide
Contains information on basic
operations for preparing the
projector before use (setup and
connecting video equipment or
a computer) and for starting
projection.
Image TBC
Document CD-ROM
Contains information on
common and useful functions,
configuration, troubleshooting,
and maintenance.
Image TBC
Safety Instructions
/ World Wide Warranty Terms
image TBC
Epson EMP-S52 New Product Summary (03.07.2007)
Video I/O
Specifications
Display
Performance
Input Signal
MODEL
EMP-S52
Projection System
RGB liquid crystal shutter projection system
Projection Method
Front / Rear / Ceiling mount
Specifications of Main Parts
LCD
Size
0.55-inch without MLA
Driving Method
Poly-silicon TFT active matrix
Pixel Number
480,000 dots (800 x 600) x 3
Native Resolution
SVGA
Aspect Ratio
4:3
Pixel Arrangement
Cross stripe
Refresh Rate
50 Hz - 60 Hz
Projection Lens
Type
Digital zoom / Manual focus
F-Number
1.44
Focal Length
16.6 mm
Zoom Ratio
Digital Zoom 1 – 1.35
Lens Cover
Slide lens shutter
Lamp
Type
170 W UHE
Life
3000 hours (High bright) / 4000 hours (Low bright)
Screen Size (Projected Distance)
30" to 300" [1.19 to 12.12 m] (Zoom:Tele)
30" to 300" [0.87 to 8.97 m] (Zoom:Wide)
60" screen 1.8 - 2.4 m
Brightness
High Brightness
1800 ANSI lumens
Mode
(Colour mode: Game, Zoom: Wide)
Low Brightness
1440 ANSI lumens
Mode
(Colour mode: Game, Zoom: Wide)
Contrast
400:1
(Colour mode : Game, High brightness mode)
Brightness Uniformity
90%
Colour Reproduction
Full-colour (16.77 million colours)
Video Quality
Simple Interlace-Progressive conversion
Sound Output
1 W Monaural
Speaker
35•• ×20•• x 1
Function
User logo, A/V mute, Freeze, E-Zoom, Help
Colour Mode
PC: Photo, Presentation, Theatre, Game, sRGB,
Blackboard, Text
Video: Sports, Presentation, Theatre, Game, sRGB,
Blackboard, Text
Remote Control Infrared Receiver Position / Distance / Directivity
Front & rear , 6 m
Right / Left : -30 to +30 degrees
Upper / Lower : -15 to +15 degrees
Effective Scanning Frequency Range (Analogue)
Pixel Clock
13.5 MHz to 162 MHz
up to UXGA 60 Hz
Horizontal
15 kHz to 92 kHz
Vertical
50 Hz to 85 Hz
Adjustment Function
Projector / Remote
Brightness / Contrast / Tint / Saturation /
Control
Sharpness / Input signal / Sync / Tracking / Position /
Colour temperature / Volume / etc.
Foot Adjuster
Front-centre
Tilt Angle
0 to 11 degrees
Keystone
Vertical : PC -30 to +30 degrees
Correction
Source Search
Yes
Auto Detection of
Yes
RGB/Component
Operation Panel
Yes
Protected Function
Password Protected
Yes
Function
(Protection of User logo)
(Security Function)
Analogue RGB I/O
Display
Native
800 x 600 dots
Performance
Input Signal
Signal Type
Separate signal
Video Signal
Analogue (0.7 Vp-p, 75 ohm / Mac
0.714 Vp-p, 75 ohm)
Sync. Signal
Separate (positive & negative, bipolarity 2-5 Vp-p)/
Composite (positive & negative,
bi-polarity 2-5 Vp-p)/
Sync-on-green (negative, 0.3 Vpp)
Audio Signal
500 mVrms / 47 k-ohm
Input Terminal
Video
D-sub 15pin x 1 Blue moulding
Audio
RCA x 1 (White/Red)
Output Signal
Video Signal
Analogue (0.7 Vp-p, 75 ohm / Mac
0.714 Vp-p, 75 ohm)
Sync. Signal
Separate (positive & negative,
TTL) /
Composite (positive & negative,
TTL) /
Sync. on green (negative 0.2-0.4
Vp-p)
Output Terminal
Video
D-sub 15pin x 1 Black
moulding(Output signal :
Computer * only)
Input Terminal
NTSC: 560 lines, PAL: 560 lines (Depend on
observation of the multi-burst pattern)
Video Standard
NTSC / NTSC4.43 / PAL / M-PAL
/ N-PAL / PAL60 / SECAM
Video Signal
Composite Video (1.0 Vp-p /
Sync.negative, 75 ohm) /
S-Video (Luminous 0.714 Vp-p,
Chrominous 0.286 Vp-p, 75 ohm)
/
Component Video (Analogue Y
level 0.7 V, 75 ohm / Cr Cb level
+/-0.35 V, 75 ohm / sync.negative
0.3 V or 3-state +/-0.3 V on Y) /
RGB Video (0.7 Vp-p, 75 ohm /
Mac 0.714 Vp-p, 75 ohm)
Audio Signal
500 mVrms / 47 k-ohm
Video
Composite Video: RCA (Yellow) x
1
S-Video: Mini DIN
Component Video: D-sub 15pin
Blue moulding
(in common with Analogue RGB
connector)
RGB Video: D-sub 15pin Blue
moulding
(in common with Analogue RGB
connector)
Audio
RCA x 1 (White/Red)
(in common with Analogue RGB
Audio terminal)
Control I/O
USB I/O
I/O Terminal
I/O Speed
Type B x1 (for K/B, control)
Ver. 1.1
Operating Temperature
5 °C to 35 °C <41 °F to 95 °F> ( 20%-80% Humidity )
Operating Altitude
0 m to 2286 m<0 ft to 7500 ft>
( over 1500 m / 4,921 ft :with High altitude mode)
Direct Power On
Yes
Start-up Period
about 5 seconds
warm-up period: 30 seconds
Cool-down Period
Instant off
Theft Proof
Padlock & Security
Yes
Cable Hole
Kensington Lock
Yes
Power Supply Voltage
100 - 240 V AC ±10%, 50/60 Hz
Power Consumption
Lamp On
231 W
Standby
5.8 W
Dimensions
Exclude Feet (D x W
245 x 327 x 92 mm
x H)
Maximum
245 x 327 x 108 mm
Dimension (D x W x
H)
Weight
Approx. 6.0 €bs. / 2.7kg
Fan Noise
High Brightness
35 dB
Mode
Low Brightness
28 dB
Mode
Supplied Accessories
Power Cable 1.8m
Computer Cable 1.8 m D-sub 15pin (Male) - D-sub
15pin(Male)
Remote Control
Battery Manganese dry cell ×2
Password Protect Sticker
User's Manual Set
Optional Accessories
Spare Lamp
ELPLP41
Air Filter Set
ELPAF13
Soft Carrying Case
ELPKS16B
50” Portable Roll
ELPSC06
Screen
60” Portable Roll
ELPSC07
Screen
80” Portable Roll
ELPSC08
Screen
100 Type Screen
ELPSC10
Computer
ELPKC02
Cable,1.8m
Computer Cable,
ELPKC09
3.0m
Computer Cable,
ELPKC10
20.0m
Component Video
ELPKC19
Cable, 3.0m
HD-TV Cable, 3.0m
ELPKC22
Ceiling Mount
ELPMB18
Ceiling Plate
ELPFC03
Pipe 370mm
ELPFP04
Pipe 570mm
ELPFP05
Pipe 770mm
ELPFP06
Warranty
UK: 1 year next business day on-site repair or replace
Republic of Ireland: 1 year next business day on-site repair or loan
Errors and omissions excepted, all specifications are subject to change without
notice.
Wedgwood AV Ltd
Specialise in the supply of audio visual equipment
to UK medical, MOD, education and businesses
Tel: 01754 769967 / 0800 018 9967
FREE Repeat Signage Standalone digital signage software for Windows with
every order over £500+VAT purchased from Wedgwood AV Ltd in 2015
Full product list FREE AV guides
Wedgwood are giving away Repeat Signage Standalone Edition worth
£145+VAT with any products with a total order value of over £500+VAT
purchased during 2015 from Wedgwood AV Ltd.
[email protected] (Order value £1,000 +VAT will receive
two software licences; £1,500+VAT three licences).
LCD monitors
Repeat Signage helps you get your message across, to promote your
products or services. You can display still and moving images, scrolling text
messages, RSS feeds (such as the BBC weather or your local news), show
webcam or web browser, add audio, PowerPoint scheduler, Flash clocks, and
even display pictures which text. See 2 minute video. Trial download
Mount solutions
Contact us - how to order
For a quotation or to place your official purchase order and receive your FREE
Repeat Signage digital signage software please telephone 01754 769967 or
fax 01754 768036 Email [email protected] Special offers
Touch screens
Medical monitors
Projectors
Wedgwood AV Ltd - 01754 769967 www.wedgwood-group.com
Lecterns
Projector lamps
Audio
Projector lenses
Digital signage
Whiteboards
Projector screens
Wedgwood AV Ltd. Tel: 01754 769967 Order fax line: 01754 768036 UK sales: [email protected] www.wedgwood-group.com
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
