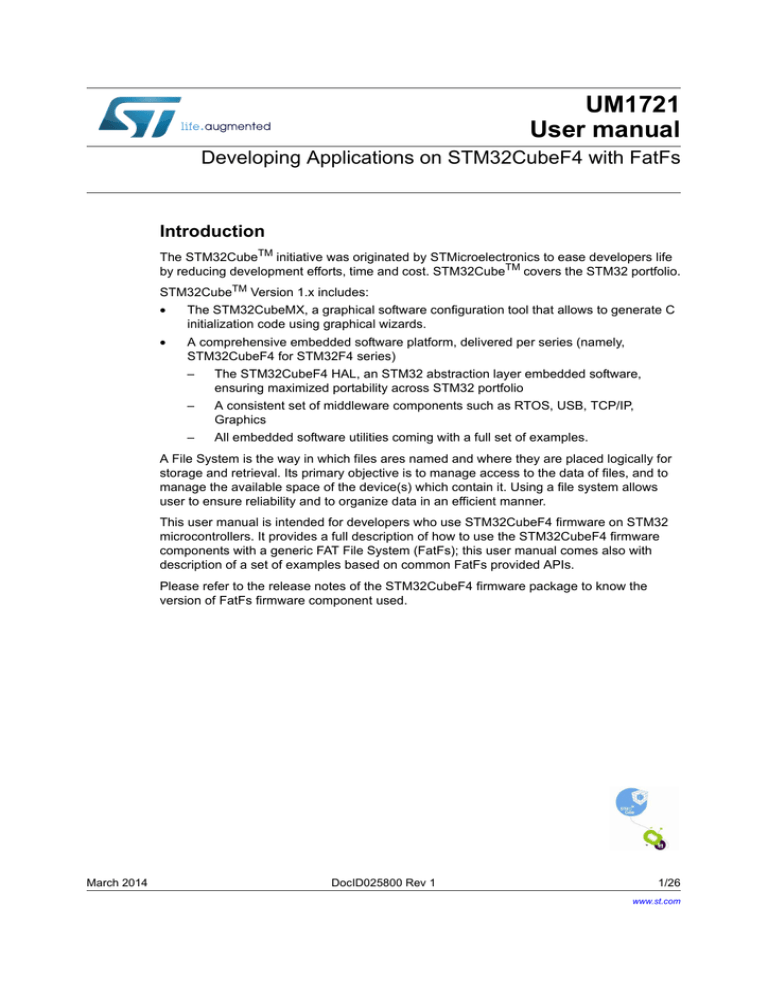

UM1721
User manual
Developing Applications on STM32CubeF4 with FatFs
Introduction
The STM32CubeTM initiative was originated by STMicroelectronics to ease developers life
by reducing development efforts, time and cost. STM32CubeTM covers the STM32 portfolio.
STM32CubeTM Version 1.x includes:
•
The STM32CubeMX, a graphical software configuration tool that allows to generate C
initialization code using graphical wizards.
•
A comprehensive embedded software platform, delivered per series (namely,
STM32CubeF4 for STM32F4 series)
–
The STM32CubeF4 HAL, an STM32 abstraction layer embedded software,
ensuring maximized portability across STM32 portfolio
–
A consistent set of middleware components such as RTOS, USB, TCP/IP,
Graphics
–
All embedded software utilities coming with a full set of examples.
A File System is the way in which files ares named and where they are placed logically for
storage and retrieval. Its primary objective is to manage access to the data of files, and to
manage the available space of the device(s) which contain it. Using a file system allows
user to ensure reliability and to organize data in an efficient manner.
This user manual is intended for developers who use STM32CubeF4 firmware on STM32
microcontrollers. It provides a full description of how to use the STM32CubeF4 firmware
components with a generic FAT File System (FatFs); this user manual comes also with
description of a set of examples based on common FatFs provided APIs.
Please refer to the release notes of the STM32CubeF4 firmware package to know the
version of FatFs firmware component used.
March 2014
DocID025800 Rev 1
1/26
www.st.com
Contents
UM1721
Contents
Acronyms and definitions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
1
FAT File System overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
1.1
2
2/26
Master Boot Record . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
1.1.2
FAT partitions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
1.1.3
FAT license . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2.1
FatFs overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
2.2
FatFs architecture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
2.3
FatFs license . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
2.4
FatFs features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
2.4.1
Duplicate file access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
2.4.2
Reentrancy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
2.4.3
Long file name . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
2.5
FatFs APIs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
2.6
FatFs low level APIs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
2.7
FatFs into STM32CubeF4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
2.7.1
FATFS_LinkDriver() . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
2.7.2
FATFS_UnlinkDriver() . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
2.7.3
FATFS_GetAttachedDriverNbr() . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Interface your own disk to FatFs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
FatFs applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
3.1
HAL drivers configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
3.2
FatFs File System configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
3.3
4
1.1.1
FatFs File System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
2.8
3
FAT overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
3.2.1
Reentrancy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
3.2.2
Long file name . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
FatFs sample application . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Conclusions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
DocID025800 Rev 1
UM1721
Contents
5
FAQ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
6
Revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
DocID025800 Rev 1
3/26
3
List of tables
UM1721
List of tables
Table 1.
Table 2.
Table 3.
Table 4.
Table 5.
4/26
Acronyms and definitions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
"Diskio_drv_TypeDef" structure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
"Disk_drv_TypeDef" structure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Examples of FatFs middleware utilization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Document revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
DocID025800 Rev 1
UM1721
List of figures
List of figures
Figure 1.
Figure 2.
Figure 3.
Figure 4.
Figure 5.
High level view of an MBR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Two FAT partitions on a device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
FatFs architecture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
FatFs license . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
FatFs Middleware module architecture. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
DocID025800 Rev 1
5/26
5
Acronyms and definitions
UM1721
Acronyms and definitions
Table 1. Acronyms and definitions
Acronym
6/26
Definition
ANSI
American National Standards Institute
API
Application Programming Interface
BPB
BIOS Parameter Block
BSP
Board Support Package
CPU
Central Processing Unit
CMSIS
Cortex™ Microcontroller Software Interface Standard
DBCS
Double Byte Char String
DOS
Disk Operating System
EFI
Extensible Firmware Interface
FAT
File Allocation Table
HAL
Hardware Abstraction Table
LFN
Long File Name
MBR
Master Boot Record
MSD
Micro Secure Digital
OEM
Original Equipment Manufacturer
RAM
Random Access Memory
RTC
Real Time Clock
RTOS
Real Time Operating System
SD
Secure Digital
SDRAM
Synchronous Dynamic Random Access Memory
SFN
Short File Name
SRAM
static Random Access Memory
USB
Universal serial Bus
DocID025800 Rev 1
UM1721
FAT File System overview
1
FAT File System overview
1.1
FAT overview
The File Allocation Table (FAT) file system was developed by Bill Gates and Marc
McDonald. It is a format and some software which stores and organizes files on a storage
device, such as a disk drive or a memory device. It is used to facilitate access to files and
directories.
The FAT file system provides a way to time stamp when a file is created or changed and
provides a way to identify the size of the file. This system provides a mechanism to store
other attributes of a file, such as whether a file is read-only, whether the file should be
hidden in a directory display, or whether a file should be archived at the next disk backup.
The FAT file system is ideal for removable Flash media used in consumer electronic
devices, such as digital cameras, media players and Flash drives.
The FAT file system can be helpful in the following scenarios:
•
Due to the backward compatibility of the FAT file system, users can employ memory
stick media or floppy disks to transfer files between a consumer electronic device and a
computer that uses an outdated operating system;
•
The FAT file system lets users quickly remove files from electronic devices, as in
professional broadcast media;
•
The file system versions, FAT16 or FAT32, may be suitable for a hard disk drive
volume.
These versions would also be useful to a user who wants to boot a computer by using a
floppy disk to access data (typically, system recovery tools) on a hard disk drive volume.
Master Boot Record
The Master Boot Record (MBR) is located on one or more sectors at the physical start of the
device. The boot region of the MBR contains DOS boot loader code, which is written when
the device is formatted (but is not otherwise used by the Dynamic C FAT file system). The
partition table follows the boot region. It contains four 16-byte entries, which allow up to four
partitions on the device.
Partition table entries contain some critical information: the partition type (Dynamic C FAT
recognizes FAT12 and FAT16 partition types) and the partition's starting and ending sector
numbers. There is also a field denoting the total number of sectors in the partition. If this
number is zero, the corresponding partition is empty and available.
Figure 1. High level view of an MBR
DĂƐƚĞƌŽŽƚZĞĐŽƌĚ;DZͿ
ŶƚƌLJ
ϬdžϬϬϬ
ŽŽƚZĞŐŝŽŶ
Ϭdžϭ
Ϭdžϭ
Ϭdžϭ
Ϭdžϭ
Ϭdžϭ&
WĂƌƚŝƚŝŽŶϬ
WĂƌƚŝƚŝŽŶϭ
WĂƌƚŝƚŝŽŶϮ
WĂƌƚŝƚŝŽŶϯ
WĂƌƚŝƚŝŽŶdĂďůĞ
1.1.1
^ŝŐŶĂƚƵƌĞ
DocID025800 Rev 1
7/26
25
FAT File System overview
UM1721
Some devices are formatted without an MBR and, therefore, have no partition table. This
configuration is not currently supported in the Dynamic C FAT file system.
1.1.2
FAT partitions
The first sector of a valid FAT file system partition contains the BIOS Parameter Block
(BPB), followed by the File Allocation Table (FAT), and then the Root Directory. The figure
below shows a device with two FAT partitions.
Figure 2. Two FAT partitions on a device
WĂƌƚŝƚŝŽŶϬ
DZ
^ĞĐƚŽƌϬ
ŽĨĞǀŝĐĞ
W
&d
ZKKd
WĂƌƚŝƚŝŽŶϭ
W
&d
ZKKd
ĂƚĂƌĞĂ
&ŝƌƐƚ^ĞĐƚŽƌ ^ƚĂƌƚŽĨ
ŽĨWĂƌƚŝƚŝŽŶϭ ůƵƐƚĞƌϮ
ĂƚĂƌĞĂ
&ŝƌƐƚ^ĞĐƚŽƌ ^ƚĂƌƚŽĨ
ŽĨWĂƌƚŝƚŝŽŶϮ ůƵƐƚĞƌϮ
BIOS Parameter Block
The fields of the BPB contain information describing the partition:
•
The number of bytes per sector;
•
The number of sectors per cluster;
•
The total count of sectors on the partition;
•
The number of root directory entries.
FAT Allocation Table
The file allocation table is the structure that gives the FAT file system its name. The FAT
stores information about cluster assignments. A cluster is either assigned to a file, is
available for use, or is marked as bad. A second copy of the FAT immediately follows the
first one.
Root directory
The root directory has a predefined location and size. It has 512 entries of 32 bytes each.
An entry in the root directory is either empty or contains a file or subdirectory name (in 8.3
format), file size, date and time of last revision and the starting cluster number for the file or
subdirectory.
Data area
The data area takes up most of the partition. It contains file data and subdirectories. Note
that the data area of a partition must, by convention, start at cluster 2.
For more details, refer to the Microsoft® EFI FAT32 File System Specification.
1.1.3
FAT license
The Microsoft Extensible Firmware Initiative FAT32 File System Specification, rev. 1.03,
December 6, 2000, is available as an Office Word document (268 kBytes).
8/26
DocID025800 Rev 1
UM1721
FAT File System overview
The download license agreement allows using the Microsoft EFI FAT32 File System
Specification only in connection with a firmware implementation of the Extensible Firmware
Initiative Specification, v. 1.0. If you plan to implement the FAT32 File System specification
for other purposes, you must obtain an additional license from Microsoft.
For example, you must obtain an additional license in order to create a file system for
reading, or reading and writing FAT32 in digital cameras recording to Flash media, in
computer operating systems reading and writing internal/external hard disks or Flash media,
or in set-top boxes reading FAT-formatted media.
For more details about FAT and applicable licenses and/or copyrights, refer to Microsoft web
site.
DocID025800 Rev 1
9/26
25
FatFs File System
UM1721
2
FatFs File System
2.1
FatFs overview
FatFs is a generic FAT file system module for small embedded systems. The FatFs is
written in compliance with ANSI C and completely separated from the disk I/O layer.
Therefore it is independent of hardware architecture, and has the following features:
2.2
•
Windows compatible FAT file system.
•
Very small footprint for code and work area.
•
Various configuration options:
–
Multiple volumes (physical drives and partitions).
–
Multiple ANSI/OEM code pages including DBCS.
–
Long file name support in ANSI/OEM or Unicode.
–
RTOS support.
–
Multiple sector size support.
–
Read-only, minimized API, I/O buffer and etc...
–
FAT sub-types: FAT12, FAT16 and FAT32.
–
Number of open files: Unlimited, depends on available memory.
–
Number of volumes: Up to 10.
–
File size: Depends on FAT specs. (up to 4G-1 bytes)
–
Volume size: Depends on FAT specs. (up to 2T bytes on 512 bytes/sector)
–
Cluster size: Depends on FAT specs. (up to 64K bytes on 512 bytes/sector)
–
Sector size: Depends on FAT specs. (up to 4K bytes)
FatFs architecture
FatFs module is a middleware which provides many functions to access the FAT volumes,
such as f_open(), f_close(), f_read(), f_write(), etc (refer to ff.c).
There is no platform dependence in this module, as long as the compiler is compliant with
ANSI C.
A low level disk I/O module is used to read/write the physical drive,
An RTC module is used to get the current time.
The low level disk I/O and the RTC module are completely separate from the FatFs module.
They must be provided by the user, which is the main task of porting FatFs module to other
platforms.
Figure 3. FatFs architecture
ƉƉůŝĐĂƚŝŽŶ
&Ăƚ&ƐDŽĚƵůĞ
>Žǁ>ĞǀĞůŝƐŬ/ͬK
;Ƶ^͕ZD͕h^͙Ϳ
10/26
^LJƐƚĞŵĂůů
Zd
DocID025800 Rev 1
ZdK^
ͺ&^ͺZEdZEdсϭ
UM1721
2.3
FatFs File System
FatFs license
Figure 4 is a copy of the FatFs license document included in the source codes.
Figure 4. FatFs license
)DW)V)$7ILOHV\VWHPPRGXOH5&&KD1
)DW)VPRGXOHLVDJHQHULF)$7ILOHV\VWHPPRGXOHIRUVPDOOHPEHGGHGV\VWHPV
7KLVLVDIUHHVRIWZDUHWKDWRSHQHGIRUHGXFDWLRQUHVHDUFKDQGFRPPHUFLDO
GHYHORSPHQWVXQGHUOLFHQVHSROLF\RIIROORZLQJWUHPV
&RS\ULJKW&&KD1DOOULJKWUHVHUYHG
7KH)DW)VPRGXOHLVDIUHHVRIWZDUHDQGWKHUHLV12:$55$17<
1RUHVWULFWLRQRQXVH<RXFDQXVHPRGLI\DQGUHGLVWULEXWHLWIRU
SHUVRQDOQRQSURILWRUFRPPHUFLDOSURGXFWV81'(5<2855(63216,%,/,7<
5HGLVWULEXWLRQVRIVRXUFHFRGHPXVWUHWDLQWKHDERYHFRS\ULJKWQRWLFH
Therefore FatFs license is one of the BSD-style licenses, but there is a big difference.
Because FatFs is for embedded projects, the conditions for redistributions in binary form,
such as embedded code, hex file and binary library, are not specified to increase its
usability. The documentation of the distributions need not include about FatFs and its
license document, and it may also. Of course FatFs is compatible with the projects under
GNU GPL. When redistribute it with any modification, the license can also be changed to
GNU GPL or BSD-style license.
2.4
FatFs features
2.4.1
Duplicate file access
FatFs module does not support the sharing controls of duplicated file access in default. It is
permitted when open method to a file is only read mode. The duplicated open in write mode
to a file is always prohibited and open file must not be renamed, deleted, or the FAT
structure on the volume can be collapsed.
The file sharing control can also be available when _FS_LOCK is set to 1 or greater. The
value specifies the number of files to manage simultaneously. In this case, if any open,
rename or remove that violates the file sharing rule that described above is attempted; the
file function will fail with FR_LOCKED. If the number of open files gets larger than
_FS_LOCK, the f_open() function will fail with FR_TOO_MANY_OPEN_FILES.
2.4.2
Reentrancy
The file operations to the different volumes are always reentrant and can work
simultaneously. The file operations to the same volume are not reentrant but it can also be
configured to thread-safe with _FS_REENTRANT option. In this case, also the OS
dependent synchronization object control functions, ff_cre_syncobj(), ff_del_syncobj(),
ff_req_grant() and ff_rel_grant() must be added to the project.
When a file function is called while the volume is in use by any other task, the file function is
suspended until that task leaves file function. If the wait time exceeded a period defined by
_TIMEOUT, the file function will abort with FR_TIMEOUT. The timeout feature might not be
supported on some RTOS.
DocID025800 Rev 1
11/26
25
FatFs File System
UM1721
There is an exception on f_mount() and f_mkfs() functions. These functions are not
reentrant to the same volume. When using these functions, all other tasks must close the
corresponding file on the volume and avoid accessing the volume.
Note that this section describes the reentrancy of the FatFs module itself, but also the low
level disk I/O layer must be reentrant.
2.4.3
Long file name
The FatFs module has started to support long file name (LFN) at revision 0.07. The two
different file names, SFN and LFN, of a file is transparent in the file functions except for
f_readdir() function. To enable LFN feature, set _USE_LFN to 1, 2 or 3, and add a Unicode
code conversion function ff_convert() and ff_wtoupper() to the project. The LFN feature
requires a certain working buffer in addition. The buffer size can be configured by
_MAX_LFN corresponding to the available memory size. The size of long file name will
reach up to 255 characters so that the _MAX_LFN should be set to 255 for full featured LFN
operation. If the size of working buffer is insufficient for the given file name, the file function
fails with FR_INVALID_NAME. When enabling the LFN feature with reentrant feature,
_USE_LFN must be set to 2 or 3. In this case, the file function allocates the working buffer
on the stack or heap. The working buffer occupies (_MAX_LFN + 1) * 2 bytes.
When the LFN feature is enabled, the module size will be increased depending on the
selected code page. Right table shows how many bytes increased when LFN feature is
enabled with some code pages.
2.5
FatFs APIs
The FatFs APIs layer implements file system APIs. It uses disk I/O interface to communicate
with the appropriate physical drive. The set of APIs is divided into four groups:
•
Group of APIs that operates with logical volume or partition.
•
Group of APIs that operates with directory.
•
Group of APIs that operates with file.
•
Group of APIs that operates with both file and directory.
The following list describes what FatFs can do to access the FAT volumes:
12/26
•
f_mount(): Register/Unregister a work area
•
f_open(): Open/Create a file
•
f_close(): Close a file
•
f_read(): Read a file
•
f_write(): Write a file
•
f_lseek(): Move read/write pointer, Expand a file size
•
f_truncate(): Truncate a file size
•
f_sync(): Flush cached data
•
f_opendir(): Open a directory
•
f_readdir(): Read a directory item
•
f_getfree(): Get free clusters
•
f_stat(): Check if the object is exist and get status
•
f_mkdir(): Create a directory
DocID025800 Rev 1
UM1721
2.6
FatFs File System
•
f_unlink(): Remove a file or directory
•
f_chmod(): Change an attribute
•
f_utime(): Change timestamp
•
f_rename(): Rename/Move a file or directory
•
f_chdir(): Change the current directory
•
f_chdrive(): Change the current drive
•
f_getcwd(): Retrieve the current directory
•
f_getlabel(): Get volume label
•
f_setlabel(): Set volume label
•
f_forward(): Forward file data to the stream directly
•
f_mkfs(): Create a file system on the drive
•
f_fdisk(): Devide a physical drive
•
f_gets(): Read a string
•
f_putc(): Write a character
•
f_puts(): Write a string
•
f_printf(): Write a formatted string
•
f_tell(): Get the current read/write pointer
•
f_eof(): Test for end-of-file on a file
•
f_size(): Get the size of a file
•
f_error(): Test for an error on a file
FatFs low level APIs
Since the FatFs module is completely separate from the disk I/O and RTC module, it
requires some low level functions to operate the physical drive: read/write and get the
current time. Because the low level disk I/O functions and RTC module are not a part of the
FatFs module, they must be provided by the user.
The FatFs Middleware solution provides low level disk I/O drivers for some supported disk
drives (RAMDisk, uSD, USBDisk).
An additional interface layer diskio.c has been added to add/remove dynamically (link)
physical media to the FatFs module, providing low level disk I/O functions as mentioned
below:
•
disk_initialize(): Initializes the physical disk drive
•
disk_status(): Returns the selected physical drive status
•
disk_read(): Reads sector(s) from the disk
•
disk_write(): Writes sector(s) to the disk
•
disk_ioctl(): Controls device-specified features
•
get_fattime(): Returns the current time
Application program MUST NOT call these functions, they are only called by FatFs file
system functions such as, f_mount(), f_read(), f_write()…
DocID025800 Rev 1
13/26
25
FatFs File System
2.7
UM1721
FatFs into STM32CubeF4
In the STM32CubeF4 solution, an additional interface layer has been added to add/remove
dynamically physical media to/from the FatFs module. To link FatFs module with a low level
disk I/O driver, user can use FATFS_LinkDriver() and FATFS_UnLinkDriver() to add or
remove dynamically a disk I/O driver; the application may need to know the number of
current attached disk I/O drivers, this is done through the FATFS_GetAttachedDriversNbr()
API.
Figure 5. FatFs Middleware module architecture
ƉƉůŝĐĂƚŝŽŶ
&Ăƚ&ƐDŽĚƵůĞ
'ĞŶĞƌŝĐ>Žǁ>ĞǀĞůƌŝǀĞƌ/ŶƚĞƌĨĂĐĞ
>ŝŶŬŵĞĐŚĂŶŝƐŵ
^WƌŝǀĞƌƐ
>Žǁ>ĞǀĞůŝƐŬ/ͬK
ƌŝǀĞƌƐ
,>ƌŝǀĞƌƐ
The generic low level driver ff_gen_drv.c/h is located in the root directory of the FatFs
modules. Two disk I/O driver type definition structures are used to help dynamic
management of attached disk drives under the ff_gen_drv.h file, as mentioned below:
Table 2. "Diskio_drv_TypeDef" structure
Field
Description
DSTATUS
(*disk_initialize)(void);
Initialize Disk Drive
DSTATUS
(*disk_status)(void);
Get Disk Status
DRESULT
(*disk_read)(BYTE*, DWORD, BYTE);
Read Sector(s)
DRESULT
BYTE);
(*disk_write)(const BYTE*, DWORD,
Write Sector(s)
_USE_WRITE should be = 0
DRESULT
(*disk_ioctl)(BYTE, void*);
I/O control operation
_USE_IOCTL should be = 1
Table 3. "Disk_drv_TypeDef" structure
Field
14/26
Description
Diskio_drvTypeDef
*drv[_VOLUMES];
Diskio_drv_TypeDef structure
uint8_t
nbr;
Number of the attached drives
DocID025800 Rev 1
UM1721
FatFs File System
To link FatFs module with a low level disk I/O driver, user can use the following APIs:
2.7.1
•
FATFS_LinkDriver(): to add dynamically a disk I/O driver,
•
FATFS_UnLinkDriver(): to remove dynamically a disk I/O driver,
•
FATFS_GetAttachedDriversNbr(): to know the number of current attached disk I/O
drivers
FATFS_LinkDriver()
This function links a compatible disk I/O driver and increments the number of active linked
drivers. It returns 0 in case of success, otherwise it returns 1.
Note:
Due to FatFs limits the MAX number of attached disks (_VOLUMES) is up to 10
Implementation of FATFS_LinkDriver:
uint8_t FATFS_LinkDriver(Diskio_drvTypeDef *drv, char *path)
{
uint8_t ret = 1;
uint8_t DiskNum = 0;
if(disk.nbr <= _VOLUMES)
{
disk.drv[disk.nbr] = drv;
DiskNum = disk.nbr++;
path[0] = DiskNum + '0';
path[1] = ':';
path[2] = '/';
path[3] = 0;
ret = 0;
}
return ret;
}
2.7.2
FATFS_UnlinkDriver()
This function unlinks a disk I/O driver and decrements the number of active linked drivers. It
returns 0 in case of success, otherwise it returns 1.
Implementation of FATFS_UnLinkDriver:
uint8_t FATFS_UnLinkDriver(char *path)
{
uint8_t DiskNum = 0;
uint8_t ret = 1;
if(disk.nbr >= 1)
{
DiskNum = path[0] - '0';
if(DiskNum <= disk.nbr)
{
DocID025800 Rev 1
15/26
25
FatFs File System
UM1721
disk.drv[disk.nbr--] = 0;
ret = 0;
}
}
return ret;
}
2.7.3
FATFS_GetAttachedDriverNbr()
This function returns the number of linked drivers to the FatFs module.
Implementation of FATFS_GetAttachedDriversNbr:
uint8_t FATFS_GetAttachedDriversNbr(void)
{
return disk.nbr;
}
2.8
Interface your own disk to FatFs
If a working storage control module is available, it should be attached to the FatFs via a glue
function rather than modifying it. User can interface any new disk by developing the
appropriate disk I/O low level driver (mynewdisk_diskio.c/.h), and save these driver files
under: \Middlewares\Third_Party\FatFs\src\drivers.
It is worth noting that the provided FatFs disk I/O low level drivers are dependent on the
board BSP drivers. To remove this BSP dependency the user can just replace “BSP_...”
APIs' calls by his own code ensuring the appropriate functionality.
To develop a disk I/O low level driver from scratch, the user can start from the skeleton of
glue functions below to attach the existing storage control module to the FatFs with a
defined API.
Low level disk I/O module skeleton for FatFs:
/*-------------------------------------------------------------------------*/
/* mynewdisk_diskio.c: Low level disk I/O module skeleton for FatFs
*/
/*-------------------------------------------------------------------------*/
/* Includes ---------------------------------------------------------------*/
#include <string.h>
#include "ff_gen_drv.h"
/* Private define ---------------------------------------------------------*/
#define BLOCK_SIZE 512 /* Block Size in Bytes */
/* Private variables ------------------------------------------------------*/
static volatile DSTATUS Stat = STA_NOINIT; /* Disk status */
/* Private function prototypes --------------------------------------------*/
DSTATUS mynewdisk_initialize (void);
16/26
DocID025800 Rev 1
UM1721
FatFs File System
DSTATUS mynewdisk_status (void);
DRESULT mynewdisk_read (BYTE*, DWORD, BYTE);
#if _USE_WRITE == 1
DRESULT mynewdisk_write (const BYTE*, DWORD, BYTE);
#endif /* _USE_WRITE == 1 */
#if _USE_IOCTL == 1
DRESULT mynewdisk_ioctl (BYTE, void*);
#endif /* _USE_IOCTL == 1 */
Diskio_drvTypeDef mynewdisk_Driver =
{
mynewdisk_initialize,
mynewdisk_status,
mynewdisk_read,
#if _USE_WRITE == 1
mynewdisk_write,
#endif /* _USE_WRITE == 1 */
/*------------------------ Initialize a Drive ---------------------------*/
DSTATUS mynewdisk_initialize (void)
{
Stat = STA_NOINIT;
// write your own code here to initialize the drive
Stat &= ~STA_NOINIT;
return Stat;
}
/*------------------------- Get Disk Status -----------------------------*/
DSTATUS mynewdisk_status (void)
{
Stat = STA_NOINIT;
// write your own code here
return Stat;
}
/*-------------------------- Read Sector(s) -----------------------------*/
DRESULT mynewdisk_read (BYTE *buff, /* Data buffer to store read data */
DWORD sector, /* Sector address (LBA) */
BYTE count) /* Number of sectors to read (1..128) */
{
DRESULT res = RES_ERROR;
// write your own code here to read sectors from the drive
return res;
}
/*--------------------------- Write Sector(s) ---------------------------*/
#if _USE_WRITE == 1
DRESULT mynewdisk_write (const BYTE *buff, /* Data to be written */
DocID025800 Rev 1
17/26
25
FatFs File System
UM1721
DWORD sector, /* Sector address (LBA) */
BYTE count) /* Number of sectors to write (1..128) */
{
DRESULT res = RES_ERROR;
// write your own code here to write sectors to the drive
return res;
}
#endif /* _USE_WRITE == 1 */
/*------------------------ Miscellaneous Functions ----------------------*/
#if _USE_IOCTL == 1
DRESULT mynewdisk_ioctl (BYTE cmd, /* Control code */
void *buff) /* Buffer to send/receive control data */
{
DRESULT res = RES_ERROR;
// write your own code here to control the drive specified features
// CTRL_SYNC, GET_SECTOR_SIZE, GET_SECTOR_COUNT, GET_BLOCK_SIZE
return res;
}
#endif /* _USE_IOCTL == 1 */
Header Low level disk I/O module:
/*-------------------------------------------------------------------------*/
/* mynewdisk_diskio.h: Header for Low level disk I/O module
*/
/*-------------------------------------------------------------------------*/
/* Define to prevent recursive inclusion ----------------------------------*/
#ifndef __MYNEWDISK_DISKIO_H
#define __MYNEWDISK_DISKIO_H
extern Diskio_drvTypeDef
mynewdisk_Driver;
#endif /* __MYNEWDISK_DISKIO_H */
18/26
DocID025800 Rev 1
UM1721
3
FatFs applications
FatFs applications
In the STM32CubeF4 solution, many applications are provided based on FatFs
middleware. The table below gives you insight on how the FatFs middleware
component is used in different examples which are classified by complexity and
depending on used physical drive interfaced (uSD, RAMDisk, USBDisk):
Table 4. Examples of FatFs middleware utilization
Example class
Examples
Description
Getting started
FatFs on single Logical Unit
(RAMDisk)
Link FatFs module to a dummy disk I/O driver
in RAM and perform mount, open, write, read,
Close operation through a static buffer.
FatFs on single Logical Unit
Link FatFs module to a uSD disk I/O driver
and perform mount, open, write, read, close
operations through a static buffer.
FatFs on Multi Logical Unit
Link FatFs module to uSD and RAM disk I/O
driver and perform mount, open, write, read,
close operations through a static buffer.
FatFs on single Logical Unit
(USB Disk)
Link FatFs module to USB Host diskI/O driver
and perform mount, open, write, read, close
operations through a static buffer.
Features
Integrated
The FatFs applications listed above provided within STM32CubeF4 solution are a set of
firmware available in two modes:
•
Standalone mode
•
RTOS mode, using FreeRTOS middleware component.
It is worth noting that user must guarantee appropriate values of stack and heap, when
using or developing FatFs applications based on ST provided disk I/O low level drivers.
Thus, stack value must be incremented by the handled maximum sector size _MAX_SS
value, available within ff_conf.h file, when using USB Disk application based on USB Host
Mass Storage Class (MSC) for scratch alignment reasons.
Heap value must be also adjusted when developing any FatFs application in RTOS mode,
using FreeRTOS middleware component based on CMSIS-OS wrapping layer common
APIs.
3.1
HAL drivers configuration
FatFs applications provided within STM32CubeF4 solution is a set of firmware used to
interface different physical disk drives (uSD, RAM Disk, USB Disk). User needs some HAL
drivers which are essential to run the FatFs application. The correspond HAL drivers are
enabled through the HAL configuration file stm32f4xx_hal_conf.h, by uncommenting the
right modules used in the HAL driver.
DocID025800 Rev 1
19/26
25
FatFs applications
UM1721
The main difference in HAL configuration files, between the supported disk drivers is the
definition of the right HAL driver corresponding to the used disk drive. The following defines
must be available depending on each drive:
•
FatFs_uSD:
–
•
•
FatFs_RAMDisk:
–
#define HAL_SDRAM_MODULE_ENABLED or
–
#define HAL_SRAM_MODULE_ENABLED
FatFs_USBDisk:
–
3.2
#define HAL_SD_MODULE_ENABLED
#define HAL_HCD_MODULE_ENABLED
FatFs File System configuration
FatFs module contains various configuration options. At this level we provide information to
help user select proper options depending on the interfaced physical disk drives his
requirement to reach the highest performance.
3.2.1
Reentrancy
Reentrancy is the key difference between the Standalone and the RTOS modes’
configurations, which can be set on FatFs configuration file ffconf.h:
•
Reentrancy is disabled in Standalone mode:
–
•
#define _FS_REENTRANT 0
Reentrancy is enabled in RTOS mode:
–
#define _FS_REENTRANT 1
Once enabled, user must provide the OS dependent type of synchronization object (#define
_SYNC_t osSemaphoreId)
RTOS mode applications’ projects need to include the syscall.c file providing the OS
depending functions, and found under: \Middlewares\Third_Party\FatFs\src\option
3.2.2
Long file name
The FatFs module supports long file name (LFN) and 8.3 format file name (SFN).
Note that the LFN feature on the FAT file system is a patent of Microsoft Corporation. This is
not the case on FAT32 but most FAT32 drivers include the LFN feature. FatFs can switch
the LFN feature by configuration option. When enable LFN feature on the commercial
products, a license from Microsoft may be required depends on the final destination. The
LFN can be used when LFN feature is enabled, which can be set on FatFs configuration file
ffconf.h: (_USE_LFN > 0) within FatFs configuration file ffconf.h:
•
LFN feature is disabled:
–
•
#define _USE_LFN 0
LFN feature is enabled, when 3 ≥ _USE_LFN > 0:
Once enabled on ffconf.h configuration file, the application project needs to include the
syscall.c/unicode.c files providing memory management functions, and found under:
\Middlewares\Third_Party\FatFs\src\option
20/26
DocID025800 Rev 1
UM1721
FatFs applications
User can enable LFN feature either on standalone mode applications or in RTOS mode
ones.
3.3
FatFs sample application
If user has already attached its own disk, developing the appropriate disk I/O low level driver
(mynewdisk_diskio.c/.h), refer to Section 2.8: Interface your own disk to FatFs, linking this
driver to FatFs module and using its logical disk can be done as follows:
/*-------------------------------------------------------------------------*/
/* main.c: Main program body
*/
/*-------------------------------------------------------------------------*/
/* Includes ---------------------------------------------------------------*/
#include "main.h"
/* Private variables ------------------------------------------------------*/
FATFS mynewdiskFatFs; /* File system object for User logical drive */
FIL MyFile;
/* File object */
char mynewdiskPath[4]; /* User logical drive path */
int main(void)
{
uint32_t wbytes; /* File write counts */
uint8_t wtext[] = "text to write logical disk"; /* File write buffer */
if(FATFS_LinkDriver(&mynewdisk_Driver, mynewdiskPath) == 0)
{
if(f_mount(&mynewdiskFatFs, (TCHAR const*)mynewdiskPath, 0) == FR_OK)
{
if(f_open(&MyFile, "STM32.TXT", FA_CREATE_ALWAYS | FA_WRITE) == FR_OK)
{
if(f_write(&MyFile, wtext, sizeof(wtext), (void *)&wbytes) == FR_OK);
{
f_close(&MyFile);
}
}
}
}
FATFS_UnLinkDriver(mynewdiskPath);
}
User must include the generic drive, ff_gen_drv.h, header file and also the disk IO module
header file, mynewdisk_diskio.h
/*-------------------------------------------------------------------------*/
/* main.h: Header for main.c module
*/
/*-------------------------------------------------------------------------*/
DocID025800 Rev 1
21/26
25
FatFs applications
UM1721
/* Includes ---------------------------------------------------------------*/
#include "ff_gen_drv.h"
#include "mynewdisk_diskio.h"
22/26
DocID025800 Rev 1
UM1721
4
Conclusions
Conclusions
This User Manual explains how to integrate the FatFs middleware components within the
STM32CubeF4 HAL drivers.
A set of examples have been described to help users who develop applications based on
FatFs File System within STM32CubeF4 solution.
DocID025800 Rev 1
23/26
25
FAQ
5
UM1721
FAQ
How to use LFN feature with FatFs?
The FatFs module supports long file name (LFN). For more details on how to use LFN
feature with FatFs refer to Section 2.4.3: Long file name and Section 3.2.2: Long file name.
What’s the difference between FatFs Multi-partitions and Multi-drives
applications?
Multi-partitions application can use multi logical drivers that can be bound to partitions on
the specified physical drive, otherwise Multi-drives applications use different logical drives at
the same time (uSD, RAMDisk…). User can choose the number of logical drives (volumes)
to be used through _VOLUMES definition within FatFs ffconf.h configuration file.
Can user interface any new Disk to FatFs?
Yes, the user can interface a new disk to FatFs. For more details, refer to Section 2.8:
Interface your own disk to FatFs.
Does FatFs support Multi-instances?
No, it doesn’t. STM32CubeF4 solution provides the multi instance feature for HAL drivers,
but, concerning FatFs middleware component, it cannot really support physical drivers
multi-instances. In other words, the user can’t hold an application using more than one
instance of a logical drive.
What FAT sub-types does FatFs support?
FatFs refers to all three major variants of Microsoft FAT sub-types: FAT12, FAT16 and
FAT32. The FAT sub-type is determined by number of clusters on the volume and nothing
else, according to the FAT specification issued by Microsoft. Thus which FAT sub-type is
selected, is depends on the volume size and the specified cluster size.
24/26
DocID025800 Rev 1
UM1721
6
Revision history
Revision history
Table 5. Document revision history
Date
Revision
04-Mar-2014
1
Changes
Initial release.
DocID025800 Rev 1
25/26
25
UM1721
Please Read Carefully:
Information in this document is provided solely in connection with ST products. STMicroelectronics NV and its subsidiaries (“ST”) reserve the
right to make changes, corrections, modifications or improvements, to this document, and the products and services described herein at any
time, without notice.
All ST products are sold pursuant to ST’s terms and conditions of sale.
Purchasers are solely responsible for the choice, selection and use of the ST products and services described herein, and ST assumes no
liability whatsoever relating to the choice, selection or use of the ST products and services described herein.
No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted under this document. If any part of this
document refers to any third party products or services it shall not be deemed a license grant by ST for the use of such third party products
or services, or any intellectual property contained therein or considered as a warranty covering the use in any manner whatsoever of such
third party products or services or any intellectual property contained therein.
UNLESS OTHERWISE SET FORTH IN ST’S TERMS AND CONDITIONS OF SALE ST DISCLAIMS ANY EXPRESS OR IMPLIED
WARRANTY WITH RESPECT TO THE USE AND/OR SALE OF ST PRODUCTS INCLUDING WITHOUT LIMITATION IMPLIED
WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE (AND THEIR EQUIVALENTS UNDER THE LAWS
OF ANY JURISDICTION), OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR OTHER INTELLECTUAL PROPERTY RIGHT.
ST PRODUCTS ARE NOT DESIGNED OR AUTHORIZED FOR USE IN: (A) SAFETY CRITICAL APPLICATIONS SUCH AS LIFE
SUPPORTING, ACTIVE IMPLANTED DEVICES OR SYSTEMS WITH PRODUCT FUNCTIONAL SAFETY REQUIREMENTS; (B)
AERONAUTIC APPLICATIONS; (C) AUTOMOTIVE APPLICATIONS OR ENVIRONMENTS, AND/OR (D) AEROSPACE APPLICATIONS
OR ENVIRONMENTS. WHERE ST PRODUCTS ARE NOT DESIGNED FOR SUCH USE, THE PURCHASER SHALL USE PRODUCTS AT
PURCHASER’S SOLE RISK, EVEN IF ST HAS BEEN INFORMED IN WRITING OF SUCH USAGE, UNLESS A PRODUCT IS
EXPRESSLY DESIGNATED BY ST AS BEING INTENDED FOR “AUTOMOTIVE, AUTOMOTIVE SAFETY OR MEDICAL” INDUSTRY
DOMAINS ACCORDING TO ST PRODUCT DESIGN SPECIFICATIONS. PRODUCTS FORMALLY ESCC, QML OR JAN QUALIFIED ARE
DEEMED SUITABLE FOR USE IN AEROSPACE BY THE CORRESPONDING GOVERNMENTAL AGENCY.
Resale of ST products with provisions different from the statements and/or technical features set forth in this document shall immediately void
any warranty granted by ST for the ST product or service described herein and shall not create or extend in any manner whatsoever, any
liability of ST.
ST and the ST logo are trademarks or registered trademarks of ST in various countries.
Information in this document supersedes and replaces all information previously supplied.
The ST logo is a registered trademark of STMicroelectronics. All other names are the property of their respective owners.
© 2014 STMicroelectronics - All rights reserved
STMicroelectronics group of companies
Australia - Belgium - Brazil - Canada - China - Czech Republic - Finland - France - Germany - Hong Kong - India - Israel - Italy - Japan Malaysia - Malta - Morocco - Philippines - Singapore - Spain - Sweden - Switzerland - United Kingdom - United States of America
www.st.com
26/26
DocID025800 Rev 1
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
