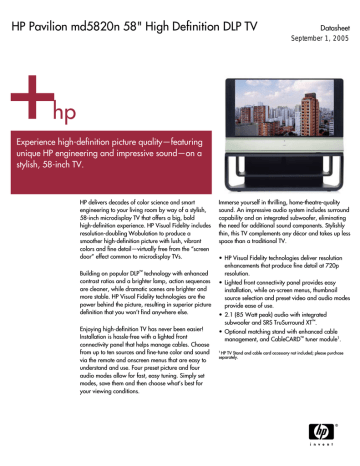

Product Sheet
HP Pavilion md5820n 58" High Definition DLP TV
Datasheet
September 1, 2005
hp
Experience high-definition picture quality—featuring
unique HP engineering and impressive sound—on a
stylish, 58-inch TV.
HP delivers decades of color science and smart
engineering to your living room by way of a stylish,
58-inch microdisplay TV that offers a big, bold
high-definition experience. HP Visual Fidelity includes
resolution-doubling Wobulation to produce a
smoother high-definition picture with lush, vibrant
colors and fine detail—virtually free from the “screen
door” effect common to microdisplay TVs.
Building on popular DLP™ technology with enhanced
contrast ratios and a brighter lamp, action sequences
are cleaner, while dramatic scenes are brighter and
more stable. HP Visual Fidelity technologies are the
power behind the picture, resulting in superior picture
definition that you won’t find anywhere else.
Enjoying high-definition TV has never been easier!
Installation is hassle-free with a lighted front
connectivity panel that helps manage cables. Choose
from up to ten sources and fine-tune color and sound
via the remote and onscreen menus that are easy to
understand and use. Four preset picture and four
audio modes allow for fast, easy tuning. Simply set
modes, save them and then choose what’s best for
your viewing conditions.
Immerse yourself in thrilling, home-theatre-quality
sound. An impressive audio system includes surround
capability and an integrated subwoofer, eliminating
the need for additional sound components. Stylishly
thin, this TV complements any décor and takes up less
space than a traditional TV.
• HP Visual Fidelity technologies deliver resolution
enhancements that produce fine detail at 720p
resolution.
• Lighted front connectivity panel provides easy
installation, while on-screen menus, thumbnail
source selection and preset video and audio modes
provide ease of use.
• 2.1 (85 Watt peak) audio with integrated
subwoofer and SRS TruSurround XT™.
• Optional matching stand with enhanced cable
management, and CableCARD™ tuner module1.
1
HP TV Stand and cable card accessory not included; please purchase
separately.
HP Pavilion md5820n 58" High Definition DLP TV
Datasheet
September 1, 2005
Technical specifications
•
•
•
•
•
High-definition picture (720p)
Up to 2200:1 contrast ratio
150 Watt lamp for ultra-wide viewing angle
Four customizable viewing modes
6-segment color wheel
Ease of Use
•
•
•
•
Lighted front connectivity panel (industry first) for fast and easy set up
Thumbnail source selection (industry first)
On-screen menus
Built-in cable management
Connectivity
• Up to ten sources, including HDMI, VGA, component video, S-Video, composite video, and coaxial cable
• Tuners for both digital and analog sources; built-in ATSC tuner
Sound
• 2.1 (85 Watt peak) audio with integrated subwoofer
• SRS TruSurround XT™
• Four customizable audio modes
Video Formats
480i, 480p, 720p, 1080i, NTSC, PAL
Resolution
720p
Bit depth
8-bit
Control Panel
5 side-mounted buttons (On/Off, Channel up/down, Enter, Menu, Volume up/down)
Display Technology Type
Wobulated HD 4 DLP modulator
Display Size
58-in diagonal
Audio Description
3 co-axial digital audio inputs, 1 PC audio input, 5 RCA L/R audio inputs, 2 RCA L/R audio outputs, 1 co-axial digital audio output
Lamp Life
6,000 hours to half brightness
Light Source
150-watt DC UHP replaceable lamp
Upgradability
Upgradeable via USB port
Adjustable Features
Viewing modes and settings, audio modes and settings, channels, language
Video compatibility
Operating Environment
Temperature Storage Range: -4 to 140° F (-20 to 60° C); Maximum Operating Temperature: 32 to 98° F, 0 to
37° C; Operating Humidity: 10 to 80% RH; Humidity Recommended Operating Range: 10 to 80% RH;
Storage Humidity: 10 to 80% RH
Dimensions/weight
US: 38.07 x 60.24 x 18.98 in, Metric: 967 x 1530 x 482 mm/US: 119 lb, Metric: 54 kg
Acoustic Power Emissions (peak)
28 dB(A) at 37° C
Power
Type: Built-in universal power supply; Consumption: 110 watts maximum
Ordering information
What's in the box?
• HP Pavilion md5820n 58inch High Definition DLP TV
• Remote control
• Batteries
• Power cord
• User's Manual
• Quick Start Guide
HP Product
HP Pavilion md5820n 58" High Definition DLP TV
Part Number
L1736A
Product Number: L1736A
HP is a registered trademark of the Hewlett Packard Company. All other trademarks are the property of their respective owners. Microsoft is a registered trademark
of Microsoft Inc. Windows is a registered trademark of Microsoft Inc. This listing of non-HP products does not constitute an endorsement by Hewlett Packard
Company. ©2005 Hewlett-Packard Development Company, L.P.The information contained herin is ubject to change without notice and is provides "as is" without
warranty of any kind. HP shall not be liable for technical or editorial errors or omisions contained herein.
For more information visit our website at www.hp.com
source
format
Antenna
NTSC, ATSC, 480i/p, 720p, 1080i
Cable
NTSC, ATSC, QAM, ClearQAM,
480i/p, 720p, 1080i
Composite/S-video
NTSC, 480i
Component
480i/p, 720p, 1080i, 1080p
HDMI
480i/p, 720p, 1080i, 1080p, VGA,
SVGA, XGA, WXGA, SXGA
VGA
VGA, SVGA, XGA, WXGA, SXGA, 720p,
1080i, 1080p at 60 Hz refresh rate
