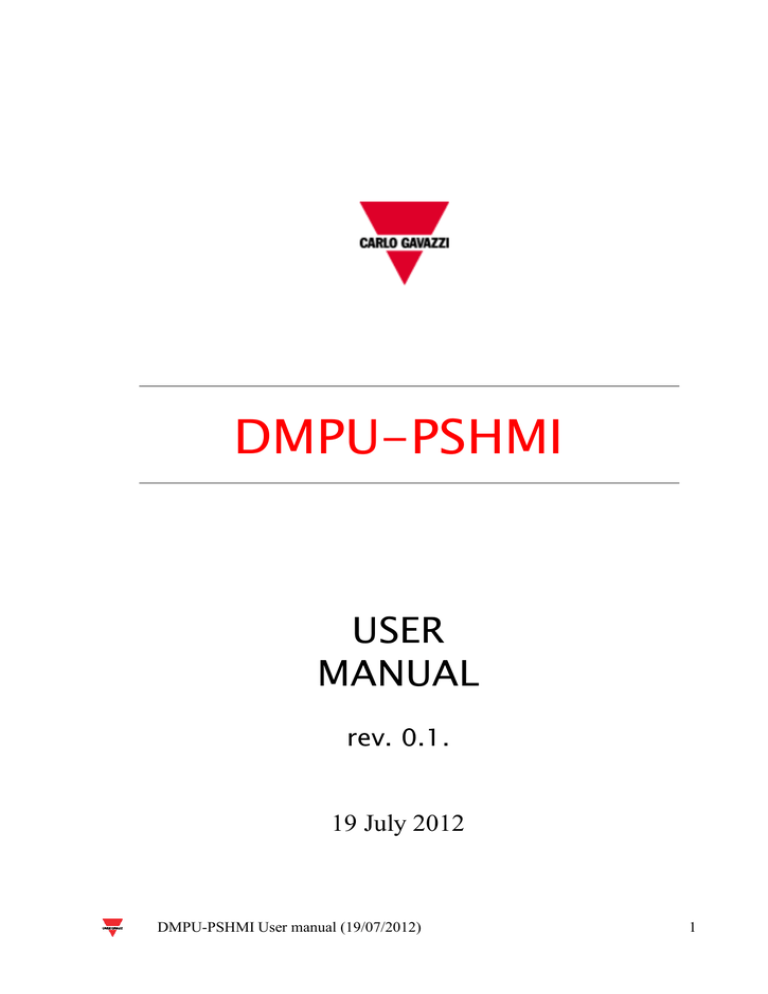

DMPU-PSHMI

USER

MANUAL

rev. 0.1.

19 July 2012

DMPU-PSHMI User manual (19/07/2012) 1

Index

1 HARDWARE CHARACTERISTICS ................................................................................................................. 3

1.1

C

HARACTERISTICS

............................................................................................................................................. 3

1.2

DMPU-HMI

WIRING DIAGRAMS

........................................................................................................................ 4

1.3

D

IMENSIONS

................................................................................................................................................... 4

2 GENERAL NOTES ....................................................................................................................................... 5

2.1

O

PERATING

S

YSTEM

......................................................................................................................................... 5

2.2

S

ET UP MENU

.................................................................................................................................................. 5

2.3

PC

CONNECTION

.............................................................................................................................................. 5

2.4

P

ASSWORD

..................................................................................................................................................... 6

3 PROJECT .................................................................................................................................................... 7

3.1

A

T THE BEGINNING

........................................................................................................................................... 7

3.2

P

ROJECT OPTIONS

............................................................................................................................................. 7

3.2.1

External Variables .............................................................................................................................. 8

3.3

M

AIN INTERFACE

............................................................................................................................................ 10

3.3.1

Display window ................................................................................................................................ 10

3.3.2

Alarms window ................................................................................................................................ 11

3.3.3

Buttons window ............................................................................................................................... 13

3.3.4

State bar .......................................................................................................................................... 13

3.3.5

Drop down menus ............................................................................................................................ 15

3.4

A

DDING DISPLAY VARIABLES

............................................................................................................................. 17

4 IMAGES LIST ............................................................................................................................................. 19

DMPU-PSHMI User manual (19/07/2012) 2

Motor Controllers HARDWARE CHARACTERISTICS

1 HARDWARE CHARACTERISTICS

1.1 Characteristics

Power supply

Current consumption

Operating temperature

Storage temperature

Installation category

EMC

Standard compliance

Weight

Keyboard

Display

Dimensions (WxHxD)

Serial ports

24VDC ±20%

< 300mA from -10 °C to +60 °C (R.H. <90% no condensation) from -10 °C to +70 °C (R.H. <90% no condensation)

Cat. III (IEC60664, EN60664)

EN61000-6-2, EN61000-6-3

IEC60664, IEC61010-1, EN60664, EN61010-1 approximately 195 g

4 programmable function buttons

Alphanumeric display backlit 2 x 8 characters

96 x 48 x 88.5 mm

2 serial ports (COM 0 and COM 2).

COM 0: RS485 serial port dedicated to communication between DMPU-

HMI and PC. It allows to download the application program created with

DMPU-PSHMI into DMPU-HMI and the DMPU-HMI's operating system upgrade.

COM 2: RS485 serial port dedicated to Modbus RTU communication between DMPU-HMI and DMPU main module.

DMPU-PSHMI User manual (19/07/2012) 3

Motor Controllers

1.2 DMPU-HMI wiring diagrams

HARDWARE CHARACTERISTICS

Figure 1-1 Power supply

1.3 Dimensions

Figure 1-2 Communication ports

Figure 1-3 Front panel size

Figure 1-4 Panel cut out

Figure 1-5 Depth size

DMPU-PSHMI User manual (19/07/2012) 4

Motor Controllers

2 GENERAL NOTES

GENERAL NOTES

Read the following guide to properly configure and use the DMPU-HMI interface and the DMPU-PSHMI programming software. The software is the development environment to create the configuration and download it into DMPU-HMI device; this configuration summarizes the pages, alarms messages, the variables from DMPU displayed on the operator interface and the 4 function buttons. This manual describes the hardware and software characteristics to use DMPU-HMI.

2.1 Operating System

DMPU-HMI's software part consists of operating system and application program. The operating system manages all the resources of the microcontroller and makes it available to the application program created by the user.

Install DMPU-PSHMI software (suggested installation directory “Programs\DMPU-PSHMI”) on the PC.

When downloading a configuration, the PC software automatically checks the compatibility between

DMPU-HMI operating system and the application program; if an out-dated system version is present on the operator interface, the PC software provides to update the device's operating system.

2.2 Set up menu

If the application program is n’t present on DMPU-HMI, at switch-on the “Set Up” menu is automatically displayed (after showing for a few seconds the message “No Appli” to inform that the device isn’t configured). If an application program is present on DMPU-HMI, the initial page is displayed. Press the fourth button at the bottom while switching on to access at “Set Up” menu.

The set up menu has the following items:

Version: shows the operating system version.

Language: selects the working language if the application provides the multilanguage mode.

Parameters: modifies some DMPU-HMI parameters, as the user password to protect the application pages.

Use the fourth button on the bottom to access at menu and the first button on the top to exit. The two buttons in the middle are the up and down arrows and allow pages scroll.

2.3 PC connection

Use the COM0 port to connect the PC (see

paragraph “DMPU-HMI wiring diagrams”). This

communication port is two wires RS485, so a USB/RS485 converter may be necessary to allow the connection with the PC. In the

“Option” software's menu, select the serial port to which DMPU-HMI is connected, like in the following figure:

DMPU-PSHMI User manual (19/07/2012) 5

Motor Controllers GENERAL NOTES

Figure 2-6 Select the PC's serial port in this menu

When the device is connected, the operator is able to:

Download the application program from PC to DMPU-

HMI (described in chapter “PROJECT”).

Download the operating system from PC to DMPU-HMI.

2.4 Password

DMPU-HMI provides a user password to protect the application's pages so, when a protected page is requested, the user must enter the password. The default user password is 1234 but it is possible to

change it in the “Set Up” menu (see “Set up menu” paragraph).

DMPU-PSHMI User manual (19/07/2012) 6

Motor Controllers

3 PROJECT

The following chapter analyses step by step a new DMPU-HMI project creation.

PROJECT

3.1 At the beginning

When opening DMPU-PSHMI programming software, select from the menu “File” the “New Project” item, or push the button on the state bar. Both options are displayed in the following image:

Figure 3-7 Create a new project

The “Project Options” window is shown; in this window it is possible to define the project name, select the first page displayed at switch-on and set external variables to read/write from DMPU main module.

3.2 Project options

The “Project options” window is automatically opened when creating a new project; it’s possible to open again this window while programming through the main interface button on the upper state bar or the

“Display” drop-down menu. These options are shown in the following image:

Figure 3-8 Select "project options" from menu

The “Project Options” looks as follows:

DMPU-PSHMI User manual (19/07/2012) 7

Motor Controllers PROJECT

Figure 3-9 Project options window

The parameters in this window are:

Project: project name (free user's choice).

All. Scroll: automatic alarm scroll time expressed in seconds (when multiple alarms are active).

If this time is zero, the alarm scroll will be manual (through two middle buttons, arrow buttons), otherwise the alarms are displayed cyclically with a time interval defined in this parameter.

Var. Externals: to configure the external variables to read/write from/on DMPU main module.

COM 0: communication parameters between DMPU-HMI and PC using serial port. In this case

DMPU-HMI behaves like a slave device.

COM 2: communication parameters between DMPU-HMI and DMPU main module. The parameters must be the same as in DMPU.

3.2.1

External Variables

The external variables are read or written, from/to DMPU device. In the

“Project Options” menu, “Var.

Externals” it is possible to decide the used external variables (Figure 3-10). Clicking “Add Variable”, the

“New External Variable” window is shown (Figure 3-11) to define a variable name (user's free choice).

This name and a progressive ID number are added to the variables list on the left (Figure 3-12 and

Figure 3-13) where all the variables to read/write from/to DMPU-HMI are summarized.

It’s possible to

show, modify and save the selected variable's parameters in the right box (Figure 3-14); the parameters

are the following:

COM: serial port connected to DMPU main module.

Node Address: DMPU slave address from which read/write variables. It's possible to connect more than one DMPU main module to one DMPU-HMI; the node address allows to select from which DMPU module the operator interface reads the external variables.

Address [DEC]: decimal register number to read on DMPU device: see the registers list on the

DMPU communication protocol.

Dimension: data format type of the read/written variable; see DMPU protocol.

Select how to manage the variable:

Nothing: the variable isn't read and isn't written.

DMPU-PSHMI User manual (19/07/2012) 8

Motor Controllers PROJECT

Read continue: DMPU-HMI reads cyclically the variable from the DMPU regardless of the displayed page, this variable is stored inside the DMPU-HMI.

Write continue: DMPU-HMI writes cyclically the variable's value stored into DMPU-HMI on DMPU regardless of the displayed page.

Reading page: DMPU-HMI reads the variable from DMPU only when the page with this variable is displayed.

Figure 3-10 External variables settings

Figure 3-11 New external variable

Figure 3-12 External variable parameters #1

Figure 3-13 Variable's name in the external variable's list

DMPU-PSHMI User manual (19/07/2012)

Figure 3-14 External variable parameters #2

9

Motor Controllers

3.3 Main interface

PROJECT

The main programming interface is divided into the following parts:

Status bar: button list to access the main software's features.

”Display” window (green): preview of the pages displayed on the operator interface; it is possible to scroll the inserted pages and modify the page's text and/or the displayed variables.

“Alarms” window (yellow): preview of the alarm pages which are displayed on the operator interface; it is possible to scroll the pages and modify the texts. These alarms are associated to the 32 virtual alarms present in DMPU. When one of these alarms trips, the relevant alarm page is displayed. If more than one alarm is simultaneously active it is possible to scroll the display with the two middle buttons or use the automatic scroll function in “Project Options” (see the

paragraph “Project options”).

“Buttons” window: set the buttons functions on the operator interface. The buttons functions are associated to the page which is shown in the actual green “Display” window. Change the actual page to associate the functions for each page.

“Page Variables” window: the list of variables which are used in the current page.

Figure 3-15 Main interface window

3.3.1

Display window

In this form (Figure 3-16) the page content is defined. Insert a text or an external variables defined

inside “Project options” in the green box (double-click to open the variable selection window; this window is described later).

Use the button on the state bar

(described in “State bar” chapter) to insert more than one text and

variables and to scroll the pages (the current page number is shown on the top in the right side of the

state bar, Figure 3-17). In the red circle area of Figure 3-17 the current page number and name is

highlighted.

DMPU-PSHMI User manual (19/07/2012) 10

Motor Controllers PROJECT

Figure 3-16 Display window

Figure 3-17 Select the current page

The page name is assigned by default with the structure “page XX”, where “XX” is the page number; this name can be changed in “Display” menu - “Page Option”.

Figure 3-18 Page option

3.3.2

Alarms window

In this form it is possible insert the alarm messages associated to DMPU's virtual alarms. DMPU-HMI allows to show up to 32 alarm pages.

For each alarm message a specific text can be shown on the operator interface when the alarm is active.

DMPU-PSHMI User manual (19/07/2012) 11

Motor Controllers PROJECT

Figure 3-19 Alarm window

In the first row the tripped alarm number and the total number of the tripped alarms (“Alxx Tyy” where

“xx” is the alarm number and “yy” is the total number of alarms) is shown.

To customise a specific alarm window, select the alarm in the scroll list, like in following figure:

Figure 3-20 Alarm selection

Choose if the alarm message is shown or not when the alarm trips selecting or deselecting the flag on the

“Show alarm” box (Figure 3-21): if the alarm message is disabled, the message isn't shown on the

operator interface (although the associated DMPU's alarm trips).

Figure 3-21 Enable/disable alarm display

Define in the “Project option” menu how to display the alarm messages selecting or deselecting the flag on the

“Immediate Alarms” box: if the box is enabled, the alarm message will be immediately shown on the operator interface when the alarm becomes active (replacing the current page); otherwise the alarm message is shown only after pressing the fourth button at the bottom of DMPU-HMI. The alarm condition is just shown by the red LED in this case.

Figure 3-22 Enable/disable the immediate alarms display

DMPU-PSHMI User manual (19/07/2012) 12

Motor Controllers PROJECT

Use the two middle buttons (second and third one) on the operator interface to scroll among the active alarms.

3.3.3

Buttons window

The buttons window, as the display window, refers to the page currently shown on the state bar (Figure

3-17); every page can have a different buttons setup.

Figure 3-23 Buttons window

Set the macros of the operator interface buttons double clicking on the button image in the buttons window to open the

“Macro & Link” window.

A macro is an operation done immediately by DMPU-HMI at the button pressure. The available macro are the following (one or two parameters can be required according to the macro type).

MACRO

Description Parameter 1 Parameter 2

MAC_NULL

MAC_PAGE

No operation

Change page

/

New page number

/

/

MAC_WRITE Write a value in a

DMPU-HMI variable.

External variable address

Value to write at this address

MAC_TOGGLE Reversing a bit state Address Bit number [0...15]

For example use the macro “MAC_PAGE” to change the current page defining the destination page number.

3.3.4

State bar

Use the upper state bar, in the main software interface, to manage the project.

Figure 3-24 State bar

DMPU-PSHMI User manual (19/07/2012) 13

Motor Controllers

In the following table the state bar functions are described:

PAGE MANAGEMENT BUTTONS

Button Description

Insert a page in the current position.

PROJECT

Add one page in the end without modifying the pages order.

Delete the selected page.

Go to the first project page/alarm.

Go to the previous project page/alarm.

Go to the last project page/alarm.

Cut the selected element on display.

Copy the selected element on display.

Paste on display the element previously copied.

Left aligned display text.

Center aligned display text.

Right aligned display text.

Number (on the left) and name (on the right) of the current page.

Button

FILE MANAGEMENT BUTTONS

Description

Exit from the current project.

Button

FILE MANAGEMENT BUTTONS

Description

Create a new project.

DMPU-PSHMI User manual (19/07/2012) 14

Motor Controllers PROJECT

Open a new project.

Save the current project.

Button

PROJECT BUTTONS

Description

Compile the current project.

Compile and transmit the application from PC to DMPUC-HMI.

Button

DISPLAYING BUTTONS

Description

Show the buttons window.

Show the alarms window.

Show the variables window.

Show the macros window.

Show the project options window.

Show the display window.

3.3.5

Drop down menus

At the top of the software window there are some drop down menus.

Figure 3-25 Drop down menus

The drop down menus items are:

New project

Open Project

Upload configuration file

File

Create a new project.

Open an existing project.

Open an example project

Save Project Save the current project.

DMPU-PSHMI User manual (19/07/2012) 15

Motor Controllers PROJECT

Save Project With Name

Text Project Management

Project information

Print

Exit

File

Save the current project with a different name.

Import/export the language strings in a “.csv” file.

Display the project info.

Print a document which summarizes the project giving the opportunity to select what to print.

Exit from the current project.

PC COM Port

PC Language

Options

Select the PC serial port to use.

Select the software language.

Display

Buttons

Alarms

Page Variables

Page Macro

Go to Pag/Alr …

First

Previous

Next

Last

Project Options

Alarm Option

Auto Update

Connection Info

Bar Link's Page

Display

Show/hide the display window.

Show/hide the buttons window.

Show/hide the alarms window.

Show/hide the page variables window.

Show/hide the page macros window.

Select the page to show.

Go to the first project page.

Go to the previous page.

Go to the next page.

Go to the last project page.

Open the “Project Options” window.

Open the

“Page Option” window.

If this item is selected, the operating system on DMPU-HMI is automatically updated if it is different from the one on the PC.

If this item is selected, prompting messages are shown while downloading the configuration.

Enable/disable the down bar where are indicated the buttons used for the page changing.

Compile

Send Application

Compile + Send Appli.

Auto Link

Project

Compile the current project.

Send the application from PC to DMPU-HMI.

Compile the current project and send it to the DMPU-HMI.

Use this function to set automatically the changing pages buttons for all the pages (all the pages use the same buttons to change page).

Remove Link Remove the change page links.

DMPU-PSHMI User manual (19/07/2012) 16

Motor Controllers PROJECT

Operation System Update

Project

Update the operating system on DMPU-HMI.

Cut

Copy

Paste

Cut Page/Alarm

Copy Page/Alarm

Paste Page/Alarm

Insert

Append

Delete

Append “x” Pag.

Insert new Language

Delete current Language

Rename current Language

Modify

Cut the selected object.

Copy the selected object.

Paste the selected object.

Cut the current page.

Copy the current page.

Paste the current page.

Insert a page in the present position.

Add one page in the end without modifying the present order.

Delete the current page.

Insert a block of new pages.

Insert a new language.

The current language is deleted.

The current language is renamed.

Help

Info

?

Show this manual.

Software version.

3.4 Adding display variables

After defining the external variables (see

paragraph “Project options”) it is possible to insert them on the

display doubleclicking the display window. In this way the “Variable set up” window is shown:

DMPU-PSHMI User manual (19/07/2012) 17

Motor Controllers PROJECT

Figure 3-26 variable set up window

In this window the features of the displayed variables are defined:

Min. (DEC): minimum variable value (if it is lower than minimum, underscores characters instead of digits are displayed).

Max. (DEC): maximum variable value (if it is higher than maximum, high scores characters instead of digits are displayed).

Digits: number of integers digits used to display the variable.

Dec. Digits: number of decimal digits used to display the variable.

ENG: displays the variable in engineering units with their conversion factors. This is the line equation. Use this function to re-scale a variable

Figure 3-27 Function to re-scale a variable

RFS: the displayed variable is continuously updated (if this function is disabled, the variable is updated only when opening the page).

DMPU-PSHMI User manual (19/07/2012) 18

Motor Controllers

4 Images list

Images list

Figure 1-1 Power supply ............................................................................................................... 4

Figure 1-2 Communication ports .................................................................................................. 4

Figure 1-3 Front panel size ........................................................................................................... 4

Figure 1-4 Panel cut out ............................................................................................................... 4

Figure 1-5 Depth size ................................................................................................................... 4

Figure 2-6 Select the PC's serial port in this menu ....................................................................... 6

Figure 3-7 Create a new project ................................................................................................... 7

Figure 3-8 Select "project options" from menu ............................................................................ 7

Figure 3-9 Project options window .............................................................................................. 8

Figure 3-10 External variables settings ........................................................................................ 9

Figure 3-11 New external variable ............................................................................................... 9

Figure 3-12 External variable parameters #1 ............................................................................... 9

Figure 3-13 Variable's name in the external variable's list ........................................................... 9

Figure 3-14 External variable parameters #2 ............................................................................... 9

Figure 3-15 Main interface window ........................................................................................... 10

Figure 3-16 Display window ...................................................................................................... 11

Figure 3-17 Select the current page ............................................................................................ 11

Figure 3-18 Page option ............................................................................................................. 11

Figure 3-19 Alarm window ........................................................................................................ 12

Figure 3-20 Alarm selection ....................................................................................................... 12

Figure 3-21 Enable/disable alarm display .................................................................................. 12

Figure 3-22 Enable/disable the immediate alarms display ......................................................... 12

Figure 3-23 Buttons window ...................................................................................................... 13

Figure 3-24 State bar .................................................................................................................. 13

Figure 3-25 Drop down menus ................................................................................................... 15

Figure 3-26 variable set up window ........................................................................................... 18

Figure 3-27 Function to re-scale a variable ................................................................................ 18

DMPU-PSHMI User manual (19/07/2012) 19

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Table of contents
