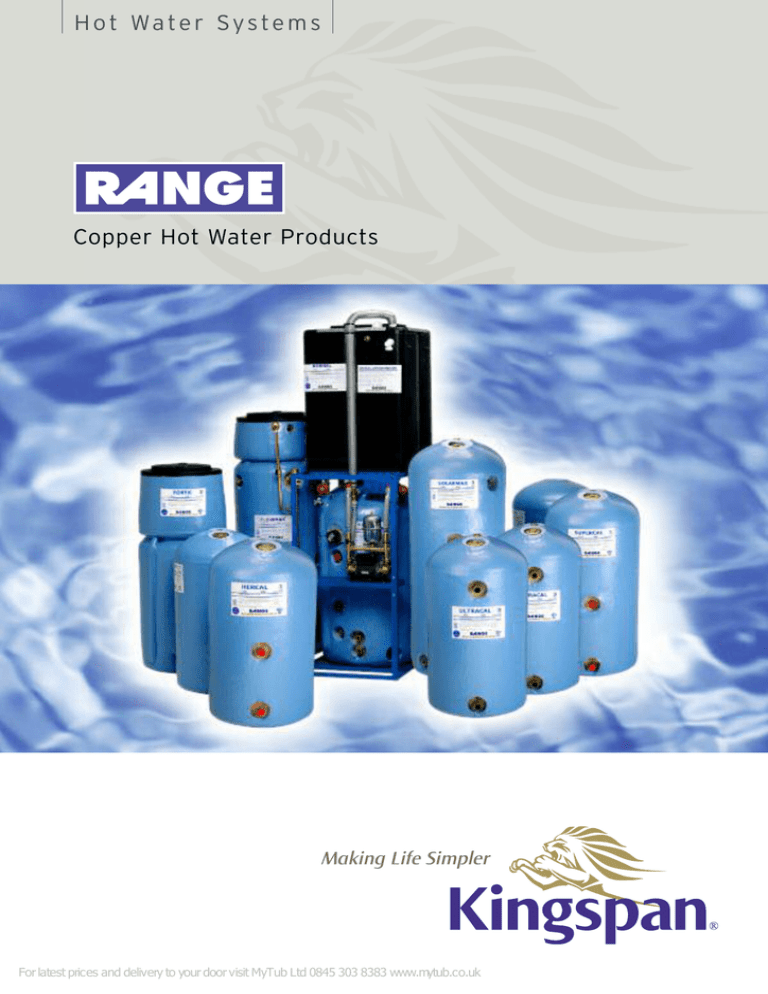

H o t W a t e r S y s t e m s

Copper Hot Water Products

Making Life Simpler

For latest prices and delivery to your door visit MyTub Ltd 0845 303 8383 www.mytub.co.uk

making life simpler

2

For latest prices and delivery to your door visit MyTub Ltd 0845 303 8383 www.mytub.co.uk

Contents

HOT WATER STORAGE

Double Feed Indirect Cylinders

COPPER:

STAINLESS STEEL:

HERCAL

HERCAL CRT

SUPERCAL

ULTRACAL

RANGE STAINLESS VENTED

Direct Cylinders

COPPER:

STAINLESS STEEL:

Solar Cylinder

COPPER:

Single Feed Indirect

COPPER:

Space Saving Cylinders

COPPER:

STANDARD DIRECT

SUPER SEVEN

RANGE STAINLESS VENTED

SOLARMAX HERCAL

PRIMATIC

DUBLO INDIRECT

DUBLO DIRECT

PLUMBING UNITS

COMPLETE PACKAGES:

KERNEL PLUMBING UNITS

HOT AND COLD WATER STORAGE

Combination Units

DIRECT:

DOUBLE FEED INDIRECT:

FORTIC F1 SUPER SEVEN

FORTIC F1

FORTIC F3

FORTIC F10

MAINS PRESSURE SYSTEMS

Thermal Storage

COPPER:

DIRECT:

FLOWMAX

FLOWMAX SEALED SYSTEMS

FLOWMAX ELECTRIC 7+

TECHNICAL DATA

MAINS PRESSURE

TABLED DIMENSIONS & GRADES

HOT WATER STORAGE

- A BASIC GUIDE

making life simpler

Page

10

11

8

9

28

20

21

21

21

22

26

26

30

32

12

13

28

14

15

15

15

16

For latest prices and delivery to your door visit MyTub Ltd 0845 303 8383 www.mytub.co.uk

3

RANGE

are transforming the way we specify, install and use hot water in the home...

THE STORY BEHIND

THE DEVELOPMENTS

The copper hot water storage vessel where hot water is stored for distribution round the home, traditionally located in the airing cupboard, is still the key to a successful hot water supply.

IT’S HISTORY GOES A LONG

WAY BACK

Until the mid 1980’s, virtually every house in

Great Britain had a storage system to provide hot water. Typically, it used a copper cylinder, located in the airing cupboard, heated by a central heating boiler or a coal fire!

The primary water was passed through a heat exchanger in the cylinder and pressure for showers relied on

‘head’ from the cold cistern. This traditional concept began to change from the late

1970’s onwards, mainly because of the growth in gas central heating, a new awareness of showers, the introduction of mains pressure hot water systems and particularly with the launch of combi boilers.

The wall hung combi was designed to provide both space heating and mains pressure hot water at the tap. The problem with the combi is that, generally, it has little or no storage and can only raise the water temperature by a fixed amount, typically 43°C. So, in the summer when the cold water temperature is, say 12°C then output is 55°C but in the winter when the cold water mains is as low as 2°C, hot water output only rises to 45°C.

This falls far below a hot water storage system performance where there is a ready to use store of hot water that can be set at a thermostatically constant temperature, typically

60 - 65°C, regardless of outside temperatures.

This means that it can be blended down to a comfortable, usable temperature which gives a greatly increased volume of hot water available for use in the home.

THE FACT IS THAT HOT WATER

STORAGE SYSTEMS ARE STILL

UNBEATABLE!

And this fact is not affected by the variable pressure or flow found in the supply conditions that occur more and more today.

RANGE

GO

ONE BETTER

Knowing that a storage hot water system was still the best system available, Range set about improving them to satisfy the demands of not only consumers but specifiers and installers alike.

This meant developing designs to match modern central heating boiler efficiencies, designs that would give systems longer life and innovations that make products simpler to install and maintain.

Range also needed to demonstrate the difference between their high quality new design products from those that might already be installed in established properties. Inferior design medium duty type cylinders that have been there for many years and which can be recognised by their lagging jacket or pale green urethane foam insulation. And so that these ‘market leading’ developments are clear, Range changed the colour of their products to a unique and distinctive blue.

making life simpler

4

For latest prices and delivery to your door visit MyTub Ltd 0845 303 8383 www.mytub.co.uk

RANGE

are setting new standards...

MORE LEVELS OF PERFORMANCE

Range cylinders set new standards, they’re specially designed to heat up faster and retain their heat longer. That means householders can save money on fuel bills and still enjoy all the hot water they need, even for the biggest family, 24 hours a day.

REHEAT TIME: 25 MINS*

• British Standard Product

REHEAT TIME: 25 MINS*

• Corrosion Resistant

• British Standard Product

• More Usable Hot Water

REHEAT TIME: 20 MINS*

• Corrosion Resistant

• British Standard Product

• More Usable Hot Water

REHEAT TIME: 15 MINS*

• Corrosion Resistant

• British Standard Product

• More Usable Hot Water

CORROSION RESISTANT

TECHNOLOGY

INNOVATIVE CRT FOR COPPER

PRODUCTS

In recent times, the problem of Pitting Corrosion has been affecting many more areas of the country. On top of this, a new danger - Rossette Corrosion has been discovered.

All this prompted Range to take a long, hard look at the basic design of hot water cylinders. The result was CRT -

Corrosion Resistant Technology.

UNRIVALLED GUARANTEES

All Range Corrosion Resistant products carry the following

Guarantees: (*Against manufacturing defect)

(**Against manufacturing defect and corrosion).

Hercal:

Fortic:

Dublo:

2 Years*

2 Years*

2 Years*

Kernel: 2 Years*

Flowmax: 10 Years*

Hercal CRT: Grade 3

Supercal: Grade 2

Ultracal: Grade 1

6 Years**

8 Years**

10 Years**

RANGE STAINLESS STEEL

VENTED

HIGH PERFORMANCE STAINLESS

STEEL HOT WATER STORAGE

Named Range

Stainless steel vented, designed to combat corrosion in any form, they are the ultimate cylinders.

Made from stainless steel and available in direct, indirect and twin coil patterns they include high recovery heat exchangers reheating in as little as 20 mins and are covered by a 25 year warranty

.

For latest prices and delivery to your door visit MyTub Ltd 0845 303 8383 www.mytub.co.uk

5

Complete

RANGE

systems in a single package...

Combination Unit specifications can be found on page 16.

KERNEL PLUMBING UNITS

Compact, factory built and tested plumbing units designed to provide easy on-site installation on both direct and indirect heating systems. These units are extensively used in both new build and modernisation work saving time money and mistakes on site.

FORTIC COMBINATION UNITS

Fortic combination units comprise a cold water cistern and hot water cylinder into a single unit of all copper construction.

They can incorporate CRT technology, a choice of performance levels and can affect installation cost savings by eliminating most of the ancillary plumbing associated with other types of storage systems.

They are an effective way to provide an adequate hot water service from a confined space and are ideal for flats and modernisation schemes.

CHOOSING THE RANGE

SYSTEM TO SUIT YOU

When you choose RANGE you’re getting today’s most exciting new products. And much, much more.

Range is the UK leader in hot water storage, with the biggest nationwide distribution and product availability. You won’t find more competitive prices and the quality is unbeatable.

British Standard is the minimum standard and most models exceed this in terms of both manufacture and performance.

IT’S HISTORY GOES A LONG

WAY BACK

The information below is a general guide for selecting the correct size of cylinder for use in domestic applications.

If you are in any doubt or have a more specialist application such as a nursing home, sports centre or youth hostel please ring us.

BS 6700 (1997) covers cylinder selection in detail.

The following are two main factors to take into account.

1. The storage volume required to meet peak demand.

Typical hot water demand (litres of water at 60°C.)

Standard bath 60 litres

Corner bath

Shower

Power shower

Wash basins

Kitchen sink

120 litres

30 litres

60 litres

5 litres

15 litres

2. How quickly can the energy source reheat the water.

With gas or oil boilers fast recovery cylinders such as

Ultracal, can help you to achieve quicker reheats and reduce the amount of water that needs to be stored.

When off- peak electricity (Economy 7/10) is used for water heating, it is most economical to heat the total contents of the cylinder overnight. This reduces the need to use immersion heaters boost periods during the day when electricity is more expensive.

Super Seven cylinders, which meet the Maxistore specifications are recommended for all electric applications.

making life simpler

6

For latest prices and delivery to your door visit MyTub Ltd 0845 303 8383 www.mytub.co.uk

Quick selection guide...

PROPERTY

TYPE

HERCAL

CYLINDERS

SUPERCAL

CYLINDERS

ULTRACAL

CYLINDERS

RANGE

STAINLESS

VENTED

CYLINDERS

SUPER 7

DIRECT

CYLINDERS

SOLARMAX

CYLINDERS

FORTIC

COMBINATION

UNITS

KERNAL

PLUMBING

PACKAGES

FLOWMAX

THERMAL

STORAGE

1 Bedroom

+ SHOWER

1 Bedroom

+ BATH

2 Bed

+ STANDARD BATH

1/2 Bed

+ CORNER BATH

3 Bed

+ STANDARD BATH

3/4 Bed

+ BATH + ENSUITE

3/4 Bed

+ CORNER BATH

60

80

100

140

120

140

60

80

100

140

120

140

60

80

80

120

100

120

160 160 140

90

120

120

120

144

144

150 210

150

180

210

210

210

210

131

166

166

206

206

250

250

65

85

115

140

115

140

210

4 Bed + ENSUITE

+ CORNER BATH

206 206 160 250 245 300

ALL THESE PRODUCTS ARE PART L COMPLIANT

210

140

140

140

140

140

180

180

210

For latest prices and delivery to your door visit MyTub Ltd 0845 303 8383 www.mytub.co.uk

7

VENTED COPPER HOT WATER CYLINDERS

HERCAL

A british standard 1566 double feed indirect cylinder.

For use in an open vented hotwater system.

Primary Systems

Hercal is not suitable for gravity circulation in its standard form. Units for gravity circulation are available on special order.

Hercal is suitable for pumped circulation and is capable of reheating from 10 to 60°C in 25 mins. Hercal is suitable for sealed primary systems operating at up to 3.5 bar. Primary coils with higher pressure ratings are available.

*Reheat times assume that the primary flow is maintained at 82°C at a flowrate of approx 15 I/min.

Grades

Available in 3 grades to suit the following working head.

GRADE 3 10m

GRADE 2

GRADE 1

15m

25m

Insulation

Hercal has a single thickness of C.F.C free urethane foam lagging as standard, this adds approximately 50mm to the cylinder diameter.

Hercal is available with a double thickness of C.F.C free urethane foam lagging on request, this gives lower heat loss and will add approximately 100mm to the cylinder diameter.

9E

10

11

12

13

7

8

5

6

9

14

0

2

3

-

1

4

BS ref.

Unlag. Unlag. Heat

Height of

Connections ht.

dia. Cap. surf.

from base

A B H* J M

1500

1200

1500

1200

1500

750

825

900

1050

1200

1800 mm

1600

900

600

900

1050

675

450

500

500

600

600

450

450

450

450

450

600 mm

300

350

400

400

400

450

206

190

245

280

360

95

106

117

140

162

440 litres

96

80

62

96

114

84

620

540

670

540

670

340

370

400

470

540

800 mm

540

400

400

400

470

300

100

150

150

150

150

100

100

100

100

100

150 mm

100

100

100

100

100

100

1250

950

1200

950

1200

550

625

700

800

950

1350 mm

1250

550

400

700

800

450

0.96

0.88

1.10

1.18

1.57

0.48

0.53

0.61

0.70

0.79

1.97

m

2

0.42

0.31

0.26

0.42

0.50

0.37

*The secondary return connection (H) is not fitted on sizes 0 - 9E unless requested.

A side entry immersion heater boss is available on request.

Size of Screwed Connections

(fitted as standard)

BS Ref.

Secondary

Connections

Primary Coil

Connections

0-9 EG1” Female

10 -11 G1

1

/

2

” Female

12 -14 G2” Female

G1” Male

G1

1

/

4

” Male

G1

1

/

2

” Male

If you require G

3

/

4

or 1

1

/

4

” connections these are available at no extra cost - please inform us at the time of order.

Male screwed secondary connections are available to order.

Size of Compression Connections

22mm or 28mm integral compression connections are available at extra cost on sizes 0 -11 only.

Sizes 12 -14 not available.

25 Min Recovery Time*

25mm CFC Free Insulation

Manufactured to BS1566

making life simpler

8

For latest prices and delivery to your door visit MyTub Ltd 0845 303 8383 www.mytub.co.uk

HERCAL CRT

A british standard 1566 double feed indirect cylinder with Corrosion Resistant

Technology. For use in an open vented hotwater system.

Primary Systems

Hercal CRT is not suitable for gravity circulation.

Hercal CRT is suitable for pumped circulation only and is capable of reheating from 10 to 60°C in 25 mins. Hercal

CRT is suitable for sealed primary systems operating at up to 3.5 bar. Primary coils with higher pressure ratings are available.

*Reheat times assume that the primary flow is maintained at 82°C at a flowrate of approx 15 I/min.

Grades

Available in 3 grades to suit the following working head.

GRADE 3

GRADE 2

GRADE 1

10m

15m

25m

Insulation

Hercal CRT has a single thickness of C.F.C free urethane foam lagging as standard, this adds approximately 50mm to the cylinder diameter.

Hercal CRT is available with a double thickness of C.F.C

free urethane foam lagging on request, this gives lower heat loss and will add approximately 100mm to the cylinder diameter.

11

12

13

14

7

8

9

9E

10

4

5

2

3

6

-

0

1

BS ref.

Unlag. Unlag. Heat

Height of

Connections ht.

dia. Cap. surf.

from base

A B H* J M

1500

1200

1500

1800

900

1050

1200

1500

1200

900

1050

675

750

825 mm

1600

900

600

500

600

600

600

450

450

450

450

500

400

400

450

450

450 mm

300

350

400

245

280

360

440

117

140

162

206

190

96

114

84

95

106 litres

96

80

62

645

515

645

775

375

445

515

595

515

375

445

275

315

345 mm

515

375

400

90

90

90

90

75

75

75

75

90

75

75

75

75

75 mm

75

75

100

1200

950

1200

1350

700

800

950

1250

950

700

800

450

550

625 mm

1250

550

400

1.10

1.18

1.57

1.97

0.61

0.70

0.79

0.96

0.88

0.42

0.50

0.37

0.48

0.53

m

2

0.42

0.31

0.26

*The secondary return connection (H) is not fitted on sizes 0 - 9E unless requested.

A side entry immersion heater boss is available on request.

Size of Screwed Connections

(fitted as standard)

BS Ref.

Secondary

Connections

0 -7

8 - 9

G1”

EG1”

Female

Female

10 -11 G1

1

/

2

” Female

12 -14 G2” Female

Primary Coil

Connections

G1”

G1”

Male

Male

G1

1

/

4

” Male

G1

1

/

2

” Male

If you require G1

1

/

4

” connections these are available at no extra cost - please inform us at the time of order.

Male screwed secondary connections are available to order.

Size of Compression Connections

22mm or 28mm integral compression connections are available at extra cost on sizes 0 -11 only.

Sizes 12-14 not available.

6 Year Guarantee

Corrosion Resistant Technology

Manufactured to BS1566

For latest prices and delivery to your door visit MyTub Ltd 0845 303 8383 www.mytub.co.uk

9

VENTED COPPER HOT WATER CYLINDERS

SUPERCAL

A british standard 1566 high performance double feed indirect cylinder with

Corrosion Resistant Technology. For use in an open vented hotwater system.

Primary Systems

Supercal is not suitable for gravity circulation. Supercal is suitable for pumped circulation only and is capable of reheating from 10 to 60°C in 20 mins.

Supercal is suitable for sealed primary systems operating at up to 3.5 bar. Primary coils with higher pressure ratings are available.

*Reheat times assume that the primary flow is maintained at 82°C at a flowrate of approx 15 l/min.

Grades

Available in 3 grades to suit the following working head.

GRADE 3 10m

GRADE 2

GRADE 1

15m

25m

Insulation

Supercal has a double thickness of C.F.C free urethane foam lagging as standard, this adds approximately 100mm to the cylinder diameter.

Supercal is available with a single thickness of C.F.C free urethane foam lagging on request, this adds approximately

50mm to the cylinder diameter.

9

9E

10

5

7

8

-

-

2

3

11

12

13

14

BS ref.

Unlag. Unlag. Heat

Height of

Connections ht.

dia. Cap. surf.

from base

A B H* J M

750

900

1050

1200

1500

1200 mm

600

750

900

1050

1500

1200

1500

1800

162

206

190

95

117

140 litres

62

80

96

114

245

280

360

440

450

450

500

450

450

450 mm

400

400

400

400

500

600

600

600

515

595

610

315

375

445 mm

315

375

375

445

790

740

870

940

75

75

90

75

75

75 mm

75

75

75

75

90

90

90

90

550

700

800

950

1250

950 mm

400

550

700

800

1200

950

1200

1350

0.52

0.61

0.79

0.97

1.23

1.13

m

2

0.35

0.52

0.61

0.61

1.31

1.65

2.10

2.55

*The secondary return connection (H) is not fitted unless requested.

A side entry immersion heater boss is available on request.

Size of Screwed Connections

(fitted as standard)

BS Ref.

Secondary

Connections

Primary Coil

Connections

0-9 EG1” Female

10 -11 G1

1

/

2

” Female

12 -14 G2” Female

G1” Male

G1

1

/

4

” Male

G1

1

/

2

” Male

If you require G

3

/

4

or 1

1

/

4

” connections these are available at no extra cost - please inform us at the time of order.

Male screwed secondary connections are available to order.

Size of Compression Connections

22mm or 28mm integral compression connections are available at extra cost on sizes 0 -11 only.

Sizes 12 -14 not available.

Extended 6 Year Guarantee

Double Thickness Foam Lagging

20 Minute Recovery Time*

making life simpler

10

For latest prices and delivery to your door visit MyTub Ltd 0845 303 8383 www.mytub.co.uk

ULTRACAL

A british standard 1566 ultra high performance double feed indirect cylinder with Corrosion Resistant Technology. For use in an open vented hotwater system.

Primary Systems

Ultracal is not suitable for gravity circulation. Ultracal is suitable for pumped circulation only and is capable of reheating from 10 to 60°C in 15 mins.

Ultracal is suitable for sealed primary systems operating at up to 3.5 bar. Primary coils with higher pressure ratings are available.

*Reheat times assume that the primary flow is maintained at 82°C at a flowrate of approx 18 l/min.

Grades

Available in 3 grades to suit the following working head.

GRADE 3 10m

GRADE 2

GRADE 1

15m

25m

Insulation

Ultracal has a single thickness of C.F.C free urethane foam lagging as standard, this adds approximately 50mm to the cylinder diameter.

Ultracal is available with a double thickness of C.F.C free urethane foam lagging on request, this gives lower heat loss and will add approximately 100mm to the cylinder diameter.

Size of Screwed Connections

(fitted as standard)

BS Ref.

0 - 9 G1”

Secondary

Connections

Female

Primary Coil

Connections

G1” Male

If you require G

3

/

4

or 1

1

/

4

” connections these are available at no extra cost - please inform us at the time of order.

7

8

2

3

9

-

-

-

BS ref.

Unlag. Unlag. Heat

Height of

Connections ht.

dia. Cap. surf.

from base

A B H* J M

900

1050

900

1050

1200 mm

600

600

750

96

114

117

140

162 litres

45

62

80

400

400

450

450

450 mm

350

400

400

0.97

1.23

1.23

1.23

1.23

m

2

0.52

0.61

0.79

445

595

595

595

595 mm

355

375

445

75

75

75

75

75 mm

75

75

75

700

800

700

800

950 mm

600

400

550

*Larger sizes are not available, please select from the Supercal range.

The secondary return connection (H) and thermostat boss are not fitted unless requested.

A side entry immersion heater boss is available on request.

Male screwed secondary connections are available to order. Ultracal cylinders are fitted with compression fittings as standard. As follows.

Size of Compression Connections

Ultracal cylinders are fitted with compression fittings as standard. As follows:

BS Ref.

0 - 2

3 - 9

Secondary

Connections

22mm

22mm

Primary

Connections

22mm

28mm

Thermostat Boss

A

1

/

2

” female thermostat boss can be factory fitted at no extra charge if requested. This allows the use of an insertion type thermostat which gives a quicker response than strap on types. We can supply a Honeywell 6188B insertion thermostat to customer order.

We recommend the use of an insertion type thermostat when small capacity Ultracal’s are heated by powerful boilers. i.e. When a 60 or 80 litres Ultracal is heated

with boilers of 80,000 BTU or more.

6 Year Guarantee

15 Minute Recovery Time*

Corrosion Resistant Technology

For latest prices and delivery to your door visit MyTub Ltd 0845 303 8383 www.mytub.co.uk

11

VENTED COPPER HOT WATER CYLINDERS

DIRECT

A british standard 1566 direct cylinder.

For use in an open vented hotwater system.

*The secondary return connection (H) is not fitted on sizes

0 - 9E unless requested.

A side entry immersion heater boss is available on request.

Grades

Available in 3 grades to suit the following working head.

GRADE 3 10m

GRADE 2 15m

GRADE 1 25m

Reheat Performance

The reheat times shown in the table are the time taken to raise the entire contents of the cylinder from 10 to 60°C using a single 3 kW immersion heater. For faster reheat performance we can supply 6 kW and 9 kW immersion heaters to customer order.

Insulation

Direct has a single thickness of C.F.C free urethane foam lagging as standard, this adds approximately 50mm to the cylinder diameter.

Direct is available with a double thickness of C.F.C free urethane foam lagging on request, this gives lower heat loss and will add approximately 100mm to the cylinder diameter.

11

12

13

14

8

9

9E

10

6

7

4

5

-

2

3

BS ref.

Unlag. Unlag.

Height of Reheat

Connections Time ht.

dia. Cap.

from base

(see notes)

A B H L

1250

950

1200

950

625

700

800

950

1200

1450 mm

1250

700

800

450

550

210

200

255

290

109

120

144

166

370

450 litres

98

98

116

86

98

450

500

500

600

450

450

450

450

600

600 mm

300

400

400

450

450

1500

1200

1500

1200

825

900

1050

1200

1500

1800 mm

1500

900

1050

675

750

2h 48m

3h 13m

4h 4m

3h 53m

4h 57m

5h 38m

7h 12m

8h 46m

1h 54m

1h 54m

2h 15m

1h 40m

1h 54m

2h 7m

2h 20m

100

100

150

150

100

100

100

100

150

150 mm

100

100

100

100

100

*The secondary return connection (H) is not fitted on sizes 0 - 9E unless requested.

A side entry immersion heater boss is available on request.

Size of Screwed Connections

(fitted as standard)

BS Ref.

0-9E G1” Female

10 -11 G1

1

/

2

” Female

12 -14 G2” Female

If you require G1

1

/

4

” connections these are available at no extra cost - please inform us at the time of order.

Male screwed secondary connections are available to order.

Size of Compression Connections

22mm or 28mm integral compression connections are available at extra cost.

Manufactured to BS1566

25mm CFC Free Insulation

Suitable for 3, 6 & 9Kw

Immersion Heaters

making life simpler

12

For latest prices and delivery to your door visit MyTub Ltd 0845 303 8383 www.mytub.co.uk

SUPER SEVEN DIRECT

A british standard 1566 high performance direct cylinder for electric water heating. Manufactured to the Maxistore specification.

For use in an open vented hotwater system.

7

8

9

9E

BS ref.

Unlag. Unlag.

Height of Reheat

Connections Time ht.

dia. Cap.

from base

(see notes)

A B H L mm

900

1050

1200

1500 mm

450

450

450

450 litres

120

144

166

210 mm

700

800

950

1250 mm

100

100

100

100

2h 20m

2h 48m

3h 13m

4h 4m

Maxistore Specification

Super Seven cylinders comply with the Maxistore specification and have the following features:

• Double thickness insulation as standard

• Two side entry immersion heater bosses

• Baffle on the cold water feed

Super Seven Indirects and CRT

We can manufacture Super Seven Indirect units which incorporate the coil from the equivalent Hercal cylinder.

Grades

Available in 3 grades to suit the following working head.

GRADE 3 10m

GRADE 2 15m

GRADE 1 25m

Reheat Performance

The reheat times shown in the table are the time taken to raise the entire contents of the cylinder from 10 to 60°C using a single 3 kW immersion heater.

Immersion Heaters

We can supply matching 3kW incoloy immersion heaters manufactured to the Maxistore specification. They are of a low density design and are very quiet in operation.

This is very important when overnight Economy Seven electricity is being used.

*The secondary return connection (H) is not fitted unless requested.

We can manufacture a Super Seven cylinder in all the sizes listed for direct cylinders to customer order.

We can supply 6kW and 9kW industrial immersion heaters for customers who want a quicker reheat performance. They can be wired for either single or three phase operation.

We can supply immersion heaters boxed but not fitted to avoid the danger of transport damage.

Electric Water Heating Controls

We can supply a matching Maxistore electronic timeswitch developed specifically for use with the Economy Seven and white meter tariffs.

Size of Screwed Connections

BS Ref.

0-9E* G1” Female

1

1

/

4

” connections these are available at no extra cost

- please inform us at the time of order. Male screwed secondary connections are available to order.

Size of Compression Connections

22mm or 28mm integral compression connections are available at extra cost.

Maxistore Specification

50mm CFC Free Insulation

2 Side Entry Immersion Heater

Bosses

For latest prices and delivery to your door visit MyTub Ltd 0845 303 8383 www.mytub.co.uk

13

VENTED COPPER HOT WATER CYLINDERS

SOLARMAX HERCAL

For use with solar collectors for domestic hot water.

A

B

Height

Diameter

Capacity (Litres)

Dimensions

1200 1200 1500 1350 1500 1800 1800

400 450 400 450 450 450 500

131 160 166 180 206 250 300

I

H

F

G

J

K

D

E

A

C

Connections

HWDO

22mm Comp (28 on 250L & 300L)

Cold Feed

22mm Comp (28 on 250L & 300L)

Solar Coil

22mm Comp (fitted using mech conns)

Solar Coil

22mm Comp (fitted using mech conns)

Stat

1/2” BSP F (c/w Pock 10)

Fossil Coil

1” BSP M (c/w Alnitec Set)

Fossil Coil

1” BSP M (c/w Alnitec Set)

Stat

1/2” BSP F (c/w Pock 10)

Sec Return

22mm Comp (on 206L, 250L & 300L)

1200 1200 1500 1350 1500 1800 1800

110 110 110 110 110 110 110

110 110 110 110 110 110 110

190 190 190 190 190 190 190

200 200 200 200 200 200 200

400 400 500 450 500 600 600

300 370 370 370 440 440 520

990 990 1300 1150 1300 1500 1500

N/A N/A N/A N/A 1300 1500 1500

Immersion Heater

Top Dome

Solar Coil Detail

Fossil Coil Detail

(319 Dia)

Material Details

(Top/Body/Bottom)

Product Codes

Foam Insulation

Specification

Solarmax 18

5m x 28mm

6m x 28mm

6m x 28mm

7m x 28mm

0.9/0.9/1.6

Solarmax 32

8m x 28mm

9m x 28mm

11m x 28mm

1.2/

1.2/1.8

2380 2381 2384 2382 2383 2386 2389

Double Thickness

*All dimensions are in mm.

14

For latest prices and delivery to your door visit MyTub Ltd 0845 303 8383 www.mytub.co.uk

Installation of solar cylinders can now be grant assisted.

*

30% of the volume is dedicated solar capacity, and 70% volume can be heated in the normal way via a primary coil on days when solar input is not sufficient to heat the full contents of the unit or on days when additional energy is required.

Two control thermostats are used to maximise solar gain. The upper one is used for boiler control (not supplied). The lower one is for solar control (not supplied). The upper 1/2” female boss (G) is for a temperature gauge

(not supplied).

The range shows seven popular sizes and capacities. When calculating the size required, please ensure that the upper coil volume is used for total requirement. If the application is for a twin bath, for example, at least

145 litre of ‘upper coil’ volume is required so that this demand can be catered for on winter days.

The range shown here has a Part L complaint upper coil fitted.

The Solarmax coil can also be used for geotherm or alternative fuel input.

*Ask for more more information.

PRIMATIC

A single feed indirect cylinder. For use in an open vented hotwater system.

BS Unlag. Unlag.

Heat ref. ht.

dia. Cap. surf.

Height of

Connections from base

A B C D E

mm mm litres m 2 mm mm mm

900 400 92 0.63 100 140 178

7 900 450 108 0.66 100 140 230

8 1050 450 130 0.78 100 140 305

9 1200 450 152 0.91 100 140 380

Primary Systems

Primatic is not suitable for sealed primary systems.

Primatic is suitable for gravity circulation and will typically reheat from 10 to 60°C in 60 mins.

Primatic is suitable for pumped circulation and is capable of reheating from 10 to 60°C in 30 mins.

Installations incorporating Primatic units should not have any form of inhibitor added to the primary system.

Grades

Available in 2 grades to suit the following working head.

GRADE 3

GRADE 2

10m

15m

Insulation

Primatic has a single thickness of C.F.C free urethane foam lagging as standard, this adds approximately 50mm to the cylinder diameter.

Primatic is available with a double thickness of C.F.C free urethane foam lagging on request, this gives lower heat loss and will add approximately 100mm to the cylinder diameter.

Primary Capacity/Boiler Ratings

Standard models (BS class 110):

Suitable for use with gravity or pumped circulation on installations with total primary volume, i.e contents of boiler, radiators and primary pipe work, plus 4.5 litres (one gallon) for the “Primatic” unit up to a maximum of 110 litres (24 gallons).

For installation with gas and oil - fired boilers of any domestic rating and solid fuel boilers up to approximately 10 kilowatts (35,000 BTU’s/hr) within the primary capacity limit of 110 litres.

Size of Screwed Connections

BS Ref.

Secondary

Connections

Primary Coil

Connections

ALL G1” Female G1” Male

Male screwed secondary connections are available to order. Primatic units are not available with compression connections. Side entry immersion heater bosses are available to order.

Data Sheet

A data sheet on Primatic cylinders is available upon request.

DUBLO 100

The Dublo 100 has a maximum working head of 30 metres, i.e.100 ft.

It is suitable for use in single or multiple dwelling applications, and is designed with three main purposes in view:

• To be highly efficient

• To withstand high working heads

• To be very compact

In practical use these objectives have been successfully achieved and the space saving feature has proved especially valuable in the compact plumbing layouts which are now generally favoured, as well as being ideal for conversion and modernisation programmes where their narrow form and highly effective insulation permits their use in shallow recesses.

Operation

The cold water enters through the disperser, and slowly fills the lower portions of both cylinders in proportion to the amount of hot water being drawn off, at high draw - off rates.

The metering orifices at the top and the bottom ensure that an equal amount is provided by each cylinder.

It will be noted that, owing to the small diameter of each unit, there is no likelihood of the incoming cold water mixing over a large area with the hot, thus reducing the temperature and this effectively ensures that almost all the stored hot water is available for use.

The Dublotank operates on the

‘U’ tube principle, i.e. the cold water being heavier than the hot, it will always balance the hot water in both halves of the unit, whether or not hot water is being drawn off.

The expansion pipe on the top draws equally from both halves for the unit whilst the breaching connection to the bottom of both halves obviates any ‘dead water’. Units are supported by an integral steel skirt.

Immersion Heaters

If a vertical immersion heater is fitted, the recommended maximum length, when used in the top entry position, to obtain maximum quantity of heated water, should be 150mm less than the overall height of the unit

(shown on diagrams at ‘A’).

This applies to all models whether

Direct Pattern, Single or Double

Feed Indirect Pattern.

The advantage of the vertical heater is that hot water is available quickly, but it requires access above the Dublotank if it should need to be removed.

Where a horizontal Immersion heater is chosen a 230mm heater should be used.

DUBLO DIRECT

A direct cylinder designed for electric water heating.

Capacity in litres

91

114

136

159

A

900

1050

1200

B

600

750

900

1350 1050

Max. Working Head 30m

B.S.P. Connections

3 - G1B 1- G1 1- G 1/2 Drain

1- G21/4*

*A front entry immersion heater connection is available if specified for both the Dublo 100 and the

Dublo Direct.

DUBLO INDIRECT

A double feed indirect cylinder.

Capacity in litres

91

114

136

159

A

900

1050

1200

1350

Max. Working Head 30m

B

520

520

580

640

B.S.P. Connections

2 - G1 2 - G1 B1- G 1/2 Drain

1- G21/4*

For use in conventional central heating systems having separate primary and secondary cold supplies or for those with pressurised primary system, the indirect Dublotank has a heat exchanger coil in one cylinder which is designed to provide a one hour reheat period.

For latest prices and delivery to your door visit MyTub Ltd 0845 303 8383 www.mytub.co.uk

15

KERNAL PLUMBING UNITS

KERNAL

Solarmax version available

Provides complete hot and cold service

Direct, indirect & solar versions

Pumped models available

The Kernel plumbing unit from Range Cylinders gives plumbers and specifiers a compact pre - plumbed storage tank and copper hot water cylinder to BS1566 and fully compliant with current Byelaws.

The Kernal is manufactured in direct, indirect and solar models and complies with Byelaw 30. A pump can be factory fitted to provide pressurised hot and cold water throughout the dwelling.

Models

The Kernel unit caters for both direct, indirect and solar hot water systems, giving a 227 litre cold and up to 210 litre hot storage capacity, all contained within a 600mm x 600mm plan area, with all connections easily available on the front of the unit.

The height of the unit is 2050mm in all cases.

Special sizes are available to order.

Why Use Plumbing Units?

• Because they store water they are not subject to mains pressure loss and therefore complete water loss because mains have been shut down.

• Costly installation labour time reduced.

• The pumped unit integrates a hot and cold Stuart Turner

Monsoon pump ensuring good water pressure throughout the dwelling.

• Fits in standard airing cupboard.

Direct - Super Seven

Cylinder capacity: 120, 144, 180, 210 litres

Double lagged.

Indirect

Cylinder capacity: 117, 140, 180, 210 litres

Single lagged.

Pumped

Cylinder capacity: 117, 140, 180, 210 litres

Single lagged.

*Negative head pump supplied as standard.

making life simpler

16

For latest prices and delivery to your door visit MyTub Ltd 0845 303 8383 www.mytub.co.uk

PUMPED DIRECT

Fitted with the following:

• 15mm ballvalve and float

• 22mm Byelaw 30 overflow

• 22mm cold supply with gatevalve

• 22mm hot draw off with pipe

• 22mm cold feed with gatevalve

• 15mm gatevalve for drain

1

/

2 drain cock

A product design service is available for bespoke products, if required.

Code

3441

3442

3443

Capacity (ltr) Pump Spec (All Negative head)*

144

180

210

Monsoon 2.0 bar

Monsoon 2.0 bar

Monsoon 2.0 bar

3447

3439

3446

144

144

180

Monsoon 2.0 bar

Monsoon 2.0 bar

Monsoon 2.0 bar

3444

3445

210

210

Monsoon 3.0 bar

Monsoon 3.0 bar

Overall Dimensions:

Height: 2050mm

Width: 600mm

Depth: 700mm

View on top of frame

For latest prices and delivery to your door visit MyTub Ltd 0845 303 8383 www.mytub.co.uk

17

KERNAL PLUMBING UNITS

DIRECT

Fitted with the following:

• 15mm ballvalve and float

• 22mm Byelaw 30 overflow

• 22mm cold supply with gatevalve

• 22mm hot draw off with pipe

• 22mm cold feed with gatevalve

A product design service is available for bespoke products, if required.

Code

2702

2707

2708

Capacity (ltr)

900 x 450 (120 litres)

1050 x 450 (144 litres)

1070 x 525 (210 litres)

Overall Dimensions:

Height: 2000mm

Width: 600mm

Depth: 600mm

Allow 100mm to front for pipework etc.

making life simpler

18

For latest prices and delivery to your door visit MyTub Ltd 0845 303 8383 www.mytub.co.uk

View on top of frame

INDIRECT

Fitted with the following:

• 15mm ballvalve and float

• 22mm Byelaw 30 overflow

• 22mm cold supply with gatevalve

• 22mm hot draw off with pipe

• 22mm cold feed with gatevalve

1

/

2 drain cock

• 22mm Byelaw 30 overflow connector

A product design service is available for bespoke products, if required.

Code

2802

2807

2808

Cylinder Size

900 x 450 (117 litres)

1050 x 450 (140 litres)

1070 x 525 (206 litres)

F & E Tank

Yes

Yes

Yes

2902

2907

2908

900 x 450 (117 litres)

1050 x 450 (140 litres)

1070 x 525 (206 litres)

No

No

No

Overall Dimensions:

Height: 2000mm

Width: 600mm

Depth: 600mm

View on top of frame

For latest prices and delivery to your door visit MyTub Ltd 0845 303 8383 www.mytub.co.uk

19

VENTED HOT & COLD WATER STORAGE

FORTIC DIRECT

FORTIC F1 SUPER SEVEN

A british standard 3198 direct combination cylinder manufactured to the

Maxistore specification.

Fast Reheat Option

Fortic combination units can be specified with Supercal or Ultracal coils on request for faster reheat.

Cold Section

The correct height for fitting the float operated valve (Ball valve) and warning pipe connection (overflow) is marked on the cisterns of all units.

All units are supplied with a rigid type lid which closely fits the rolled rim of the cistern.

An overflow, frost guard and air vent kit complete with corrosion resistant mesh screens are enclosed within the cold section for fitting on site.

These standard features ensure the unit fully complies both with BS 3198 and Water

Supply Byelaw 30 requirements.

The insulation of the division between hot and cold water sections ensures that heat transference is minimal and it meets the requirement of the British Standard.

Cold water capacities are measured to the water level marking. Hot water capacities are based on direct units.

Indirect units have marginally lower capacities due to displacement by the coil.

Connections

Units are normally fitted with three connections up to G1 female, a G

1 /

2 boss and a G2

1 /

4 draining immersion heater boss positioned as illustrated, however these can be varied to suit user requirements. 22mm or 28mm integral compression connections are available at extra cost on most units.

These Units are not included in the catalogue because an inhibitor cannot be used.

Therefore the system would not be Part L compliant. An alternative unit would be the

F10. However, units can still be supplied on a replacement basis.

Dimensions in mm litres

Nominal

Height Dia.* A B C D Hot Cold

1200 450 790 370 700 400 115 40

1400 450 985 440 900 400 144 40

1850 450 1435 890 1350 400 210 40

Super Seven combination units are designed to take maximum advantage of the off peak electricity tariffs.

Features

• Double thickness insulation

• Two immersion heater bosses

• Baffle to cold water feed

Insulation

Fortic F1 Super Seven units have a double thickness of C.F.C free urethane foam lagging as standard.

The insulation meets the heat loss requirements of the maxistore specification.

Double thickness insulation adds approximately 100mm to the cylinder.

Complies with British Standard 3198

CFC Free Insulation

Fast Reheat Options Available

making life simpler

20

For latest prices and delivery to your door visit MyTub Ltd 0845 303 8383 www.mytub.co.uk

DIRECT

FORTIC F1

A british standard 3198 direct combination cylinder.

INDIRECT

FORTIC F3

A british standard 3198 double feed indirect (DF) combination cylinder.

INDIRECT

FORTIC F10

A british standard 3198 double feed indirect (DF) combination cylinder.

Dimensions in mm litres

Nominal

Height Dia.* A B C D Hot Cold

900 400 615 300 535 265 65 15

*900 450 610 300 500 275 85 20

*1075 450 790 440 700 275 115 20

*1200 450 790 440 700 400 115 40

*1300 450 890 535 800 400 130 40

1400 450 985 440 900 400 144 40

1850 450 1435 890 1350 400 210 40

900 500 638 362 558 245 115 20

1200 500 800 400 720 370 145 45

*1700 500 676 368 596 1007 115 160

*1700 500 918 440 838 766 160 115

*2050 500 676 368 596 1359 115 228

Drain boss centre above base

100mm.

Immersion heater dimensions ‘G’ -

115mm except those sizes marked* where ‘G’ is ‘50mm.

Insulation

Fortic F1 has a single thickness of

C.F.C free urethane foam lagging as standard, this adds approximately

50mm to the cylinder diameter.

Fortic F1 is available with a double thickness of C.F.C free urethane foam lagging on request, this gives lower heat loss and will add approximately

100mm to the cylinder diameter.

Dimensions in mm litres

Nominal

Height Dia.* A B C D Hot Cold

900 400 615 300 535 265 65 15

900 450 610 300 500 275 85 20

1075 450 790 370 700 275 115 20

1200 450 790 370 700 400 115 40

1300 450 890 440 800 400 130 40

1400 450 985 440 900 400 140 40

1850 450 1435 520 1350 400 206 40

900 500 638 370 558 245 115 20

1200 500 800 520 720 370 145 45

1700 500 676 370 596 1007 115 160

1700 500 918 520 838 766 160 115

2050 500 676 370 596 1359 115 228

Drain boss centre above base 100mm.

Double feed indirect pattern with coil heat exchanger suitable for pumped or gravity circulation systems.

A separate feed and expansion cistern is required for the primary system.

Insulation

Fortic F3 has a single thickness of

C.F.C free urethane foam lagging as standard, this adds approximately

50mm to the cylinder diameter.

Fortic F3 is available with a double thickness of C.F.C free urethane foam lagging on request, this gives lower heat loss and will add approximately

100mm to the cylinder diameter.

Dimensions in mm litres

Nominal

Height Dia.* A B C D Hot Cold*

1050 450 610 300 450 420 85 20

1225 450 790 370 630 420 115 20

1325 450 890 440 730 420 130 20

1425 450 985 440 900 425 140 20

1875 450 1435 520 1350 425 206 20

*refers to each cold cistern.

Drain boss centre above base 100mm

A self - contained double feed indirect pattern with coil heat exchanger.

The cold section comprises two independent feed/expansion cisterns.

Primary feed and vent pipes are not included but should be sited to suit the pump design requirements of individual heating systems.

Fortic F10 units can be used with primary system inhibitors.

Insulation

Fortic F10 has a single thickness of

C.F.C free urethane foam lagging as standard, this adds approximately

50mm to the cylinder diameter.

Fortic F10 is available with a double thickness of C.F.C free urethane foam lagging on request, this gives lower heat loss and will add approximately

100mm to the cylinder diameter.

For latest prices and delivery to your door visit MyTub Ltd 0845 303 8383 www.mytub.co.uk

21

FLOWMAX MAINS PRESSURE

RANGE -

Thermal storage puts the pressure on

The Flowmax product range leads the way in thermal storage, able to supply balanced mains pressure hot water with good flow rates to all terminal outlets whilst simultaneously providing a rapid response to space heating demands is maintained at 82°C at a flowrate of approx 15 l/min.

Improving the standard

The demand for high performance mains pressure domestic hot water supply has led to the increased specification of thermal storage systems.

The W.M.A*, in consultation with leading manufacturers, has written a performance specification, the aim of which is to enable a specifier to select a thermal storage unit based on performance criteria. ie. ensuring there is sufficient domestic hot water in extreme conditions.

The W.M.A* “Performance Specification for Integrated Thermal Stores for Heating and Hot Water” is met by all the new improved Flowmax models.

Nothing could be simpler or safer

The Range Flowmax combines the advantage of mains pressure with the safety of traditional open vent storage in one versatile system.

Flowmax units are supplied as a complete thermal storage system, they are simple and quick to install by any qualified plumber and fully guaranteed by Range.

Flowmax now available with internal and external heat exchangers.

If higher flow rates are required or the unit is to operate in hard water conditions a high performance plate type should be used.

Product Options

Cylinder Units

For use with a separate feed and expansion tank above the

Flowmax. A common choice for refurb’ projects.

Combination Units

Commonly chosen as a combination unit because it takes tanks out of the roof space.

Central Boiler Models

Flowmax is the ideal partner for a central boiler plant. Installed in each property it allows for single metering of hot water usage and is an extremely economical system in terms of installation and running costs.

Range can custom design units to suit your requirements.

Multiple Heat Sources

Flowmax thermal stores form the ideal basis for a system with multiple heat sources.

Fire back boilers, solar heating and solid fuel stoves (Aga’s

Rayburns etc) can all be coupled up alongside the usual boiler or immersion heaters.

Builder features

• Manufactured from copper

- the material preferred by plumbers

• Flexible to site

• No visible discharge to waste needed

• Not subject to building control regulations

• Inherently safe mains pressure with an open vent

• Meets W.M.A* specifications

• No need for tank stillages in roof spaces

• Complete package from one manufacturer

• Part L compliant

The benefits

• No additional shower pumps required

• Inherently safe mains pressure with an open vent

• Flow rates of 22 litres/min, double that of most combi boilers

• Thermostatic control of hot water temperature

• Flexible siting aids building design

• Quick and simple to install with only 5 plumbing connections

• Energy efficient due to reduced boiler cycling

• Not subject to building control regulations unlike unvented type products

• Equally suited to new build/refurbishment projects

• Radiators heat up faster than ever before

• Hot water is on tap

24 hours a day

• Powerful showers available without waiting

• Baths can be filled with hot water in under five minutes

• Efficient - saves fuel and reduces energy bills

• Maintenance free roof space

(no pipes or tanks) can save on insurance costs

• Safe thermostatically controlled delivery of hot water

• Balanced pressure on both hot and cold sides gives stable shower temperatures

• Simple to operate

making life simpler

22

For latest prices and delivery to your door visit MyTub Ltd 0845 303 8383 www.mytub.co.uk

FLOWMAX

Thermal Storage Systems

How Flowmax works

Hot Water

Flowmax differs from conventional cylinders in that the water stored in the Flowmax is not the same water that is delivered to the taps. It should be thought of as a store of heat. This Primary heat store is typically maintained at 75°C.

A 50mm thick layer of CFC free foam insulation keeps heat loss to a minimum.

The heart of the Flowmax is the plate heat exchanger. Mains pressure cold water is heated instantaneously as it passes through this heat exchanger.

A flow switch detects hot water demand and switches on the store pump to assist heat exchange. Hot water can leave the plate heat exchanger at over 60°C. A thermostatic mixing valve ensures water is delivered at a safe temperature.

The store is vented via a feed and expansion tank. Only the inside of the plate heat exchanger is at mains pressure.

Flowmax electric units are heated by two immersion heaters and provide hot water only. Boiler models are heated by gas or oil and in addition to hot water can also provide heat directly to space heating

(typically radiators).

Space Heating

Previously, in a combined space heating and hot water system, operational control has focused on the boiler. Flowmax changes this and allows the thermal store to be the heart of the central heating system.

Space heating is supplied directly from the store. The store thermostat maintains the store temperature at 75°C and with this ready store of hot water the space heating demands are met far quicker than in conventional systems. As the temperature of the water in the thermal store is reduced the thermostat activates the boiler. The store is heated until it reaches it's set temperature and the thermostat shuts the boiler off.

If a timed pump overrun is fitted then the pump will continue to run, for a short while, to extract heat from the boiler circuit and maximise system efficiency.

With the thermostat ON and the thermal store controlling the system, inefficient boiler cycling is eliminated, lowering fuel consumption and maintenance bills.

Double Pump System

The typical installation uses a combination unit sited in the airing cupboard. System design is simple and incorporates 2 pumps, a cylinder stat, programmer and room stat, along with pump over- run.

The full output of the boiler is transferred into the hot store and directly controlled by the cylinder stat, it reduces boiler cycling.

The heating pump, controlled by the programmer and room stat provides instant response to the demand from the radiators.

There is no warming up period.

Cold feed to the unit is 22mm from the stop tap. In common with any other hot water cylinder, a device to prevent the build up of scale should be fitted in areas where the hardness exceeds

200mg/litre.

Hot water draw off pipe is 22mm to the bath branching off in

15mm to other terminal fittings. Overflow/warning pipe should be

3

/

4

” diameter and discharges in the same way as a warning pipe in a traditional system.

HOT OUT

SPACE HEATING

PUMP

COLD

IN

FLOW RETURN

SPACE HEATING

BOILER PUMP

BOILER RETURN

BOILER

FLOW

BOILER

INTEGRAL FEED

& EXPANSION TANK

OPEN

VENT

THERMOSTATIC

BLENDER SET

TO 55ºC

EXPANSION

VESSEL &

STRAINER

FLOW SWITCH

FLOW

RADIATOR

CIRCUIT

RETURN

HOT STORE

PRIMARY WATER

INTERNAL

DIFFUSER PLATE

BOILER

FLOW

PLATE

HEAT

EXCHANGER

BOILER RETURN

Quick Selection Guide

Flowmax units are designed to provide mains pressure domestic hot water in medium sized family homes. These units are all capable of servicing a bath and ensuite shower. The three sizes simply cater for different heating loads.

CAPACITY STORE CLASS

140L

180L

210L

SC2

SC2

SC2

BOILER MODEL

(HOT WATER & SPACE HEATING)

ELECTRIC MODEL

(HOT WATER ONLY)

2/3 Bed with bathroom 1/2 bed and ensuite shower with shower only

Max. Rad. Load 9kW

3/4 Bed with bathroom 1/2 bed and ensuite shower with bathroom

Max. Rad. Load 13kW

4/5 Bed with bathroom 2/3 bed and ensuite shower with bathroom

Max. Rad. Load 17kW

*Further technical information is available in the flowmax installation instructions which can be obtained by contacting range.

Note: Flowmax 210 meets the NHBC requirements for two bath properties where one bath is drawn after the other.

For latest prices and delivery to your door visit MyTub Ltd 0845 303 8383 www.mytub.co.uk

23

FLOWMAX MAINS PRESSURE

TRADITIONAL INDIRECT

making life simpler

24

For latest prices and delivery to your door visit MyTub Ltd 0845 303 8383 www.mytub.co.uk

FLOWMAX INDIRECT

For more detailed technical information contact our technical support team on:

0845 260 7260

For latest prices and delivery to your door visit MyTub Ltd 0845 303 8383 www.mytub.co.uk

25

FLOWMAX MAINS PRESSURE

A complete package

• Ready assembled components

• Thermostatic blender

• Flow restrictor and strainer

• Expansion vessel

• Ball valve (combination unit)

• 22mm cold feed

• Timed pump over- run

• Standard overflow

• Immersion probe type thermostat or immersion heaters with integral thermostat and high limit cut - outs

Standard boiler models

The perfect partner for a gas or oil boiler, Flowmax boiler models provide balanced mains pressure hot water and fast response radiators all from the store. Provision for an immersion heater gives a back up heat source.

When installed in the double pump format the system can be considered as being split into two circuits. In the boiler circuit the store thermostat (typically set at 75°C) controls the boiler to maintain the store at the correct temperature. When the room thermostat calls for heat, the space heating pump circulates heat to the radiators.

FLOWMAX

Seven + electric model

The Flowmax 7+ Electric model is designed to make the best use of cheap rate electricity from the wide variety of tariffs available such as Economy 7 or 10.

The lower of the two immersion heaters is usually connected to the cheap rate supply and the upper one provides a boost facility for times when there is a need to reheat the unit but cheap rate electricity is not available.

The immersion heaters Range supply are manufactured to the

Maxistore specification. They are a low noise type so as not to cause disturbance when the unit is heating during the night.

Electric units provide hot water only, space heating is not fed from the store.

Sealed System

Primary (SSP) models

As the name suggests these models allow the primary system to be sealed (3.5 bar max on the standard units). This allows the radiators to be positioned above the Flowmax unit. SSP models are plumbed in like conventional indirect cylinders.

The top tank of combination type

SSP Flowmax models keeps the unit topped up as water is lost by natural evaporation.

BOILER MODELS

Combination Units

Combination units are available in two diameters of 450mm or

375mm and with the following options:

Basic vessel

The copper hot and cold storage vessel which includes the tappings and factory applied foam insulation.

Complete fitted unit

The components are ready assembled on the unit to save installation time on site.

• Ball valve

• Thermostatic blender valve

• Strainer / flow restrictor

• Insertion thermostat

• Expansion vessel & ball valve

• Store pump

• Flow switch

• Wiring Centre

Double pump package

The complete fitted unit with addition of two pumps, pump over- run and programmer.

(Plate type only).

Triple pump package

The complete fitted unit with addition of two pumps, pump over- run and programmer, with the addition of a third pump to circulate the store through the plate heat exchanger.

Dimensions

(mm)

Vessel 375 Dia.

Cap (ltr) A

140

B C

1730 375 93

175 2000 375 93

Product Codes Plate Type

Boiler models

Cap (ltr) Basic Fitted DPP

140 2931 5701 4724

175 2932 5705 4725

COMBINATION

UNITS

Dimensions

(mm)

Vessel 450 Dia.

Cap (ltr) A

140 1280

B C

450 93

180

210

1515

1730

450 93

450 93

Product Codes Plate Type

Boiler models

Cap (ltr) Basic Fitted TPP

140

180

210

-

-

-

5701

5703

5705

5711

5713

5715

Product Codes Plate Type

Electric 7+ models Models

Cap (ltr) Manual Conventional

140 4777 5721

180

210

4780

4781

5723

4793

Product Codes Coil Type

Boiler models

Cap (ltr) Basic Fitted DPP

140 4734 4633 4635

180

210

4735

4736

4636

4639

4638

4641

making life simpler

26

For latest prices and delivery to your door visit MyTub Ltd 0845 303 8383 www.mytub.co.uk

CYLINDER UNIT SEALED SYSTEM

COMBINATION

UNIT

SEALED SYSTEM

CYLINDER UNIT

ELECTRIC 7+

Electric Combination

Unit

Cylinder units are available in

450mm diameter and with the following options:

Basic vessel

The copper hot storage vessel which includes the tappings and factory applied foam insulation.

Complete fitted unit

The components are ready assembled on the unit to save installation time on site.

• Thermostatic blender valve

• Strainer / flow restrictor

• Insertion thermostat

• Expansion vessel

• Store pump

• Flow switch

• Wiring Centre

Double pump package

The complete fitted unit with addition of two pumps, pump over- run and programmer.

(Plate type only).

Triple pump package

The complete fitted unit with addition of two pumps, pump over- run and programmer, with the addition of a third pump to circulate the store through the plate heat exchanger.

Dimensions

(mm)

Vessel 450 Dia.

Cap (ltr) A

140 1085

B C

450 93

180

210

1320

1535

450 93

450 93

Sealed system combination units are available in two diameters of 450mm or

375mm and with the following options:

Basic vessel

The copper hot and cold storage vessel which includes the primary circuit coil, tappings and factory applied foam insulation.

Complete fitted unit

The components are ready assembled on the unit to save installation time on site.

• Ball valve

• Thermostatic blender valve

• Strainer / flow restrictor

• Insertion thermostat

• Expansion vessel

• Store pump

• Flow switch

• Wiring Centre

Dimensions

(mm)

Vessel 450 Dia.

Cap (ltr) A

140

B C

1280 450 75

D

447

180

210

1515 450 75

1730 450 75

580

760

Dimensions

(mm)

Vessel 375 Dia.

Cap (ltr) A

140

175

B C D

1730 375 75 480

2000 375 75 780

Sealed system cylinder units are available in 450mm diameter and with the following options:

Basic vessel

The copper hot and cold storage vessel which includes the primary circuit coil, tappings and factory applied foam insulation.

Complete fitted unit

The components are ready assembled on the unit to save installation time on site.

• Thermostatic blender valve

• Strainer / flow restrictor

• Insertion thermostat

• Expansion vessel

• Store pump

• Flow switch

• Wiring Centre

Dimensions

(mm)

Vessel 450 Dia.

Cap (ltr) A

140

B C

1085 450 75

D

400

180 1320 450 75 533

210 1535 450 75 675

Mains water pressure should ideally be a minimum of 1.5 bar and the supply flow rate above

24 litres per minute, if optimum performance is to be achieved.

Insulation

All the Flowmax models have a 50mm thickness of CFC free urethane foam lagging as standard - this adds approximately 100mm to the cylinder diameter.

For latest prices and delivery to your door visit MyTub Ltd 0845 303 8383 www.mytub.co.uk

Electric combination units are available in two diameters of

450mm or 375mm and with the following options:

Basic vessel

The copper hot storage vessel which includes the tappings and factory applied foam insulation.

Complete fitted unit

The components are ready assembled on the unit to save installation time on site.

• Ball valve & copper float

• Thermostatic blender valve

• Strainer / flow restrictor

• Expansion vessel

• 2 Maxistore 3kW immersion heaters

• Store pump

• Flow switch

• Wiring Centre

Optional extra

Maxistore electronic Economy

Seven control.

Dimensions

(mm)

Vessel 450 Dia.

Cap (ltr) A

140 1280

B C

450 75

180

210

1515 450 75

1730 450 75

Dimensions

(mm)

Vessel 375 Dia.

Cap (ltr) A

140 1730

B

37

C

75

210 2000 375 75

27

TECHNICAL SPECIFICATION

INDIRECT

Code

SI 90

SI 120

SI 150

SI 180

SI 210

SI 250

SI 300

DIRECT

Capacity

90 L

120 L

150 L

180 L

210 L

250 L

300 L

Height

718

906

1093

1281

1469

1719

2032

Diameter

550

550

550

550

550

550

550

A

290

290

330

330

365

365

365

B

330

330

370

370

405

405

405

C

390

390

465

465

465

465

465

D

345

345

385

385

465

560

660

E

N/F

N/F

N/F

N/F

N/F

950

1100

F

N/F

N/F

N/F

N/F

1150

1400

1600

Weight

(Kg - Empty)

30

35

40

45

50

55

60

Weight

(Kg - Full)

120

155

190

225

260

305

360

Code

SD90

SD120

SD150

SD180

SD210

SD250

SD300

TWIN COIL

Capacity

90 L

120 L

150 L

180 L

210 L

250 L

300 L

Height

718

906

1093

1281

1469

1719

2032

Diameter

550

550

550

550

550

550

550

D F

N/F

N/F

N/F

N/F

1000

1250

N/F

510

610

710

810

950

1500 1100

Weight

(Kg - Empty)

25

30

35

40

45

50

55

Weight

(Kg - Full)

115

150

185

220

255

300

355

28

Code

ST150

ST180

ST210

ST250

ST300

Capacity

150 L

180 L

210 L

250 L

300 L

Height

1093

1281

1469

1719

2032

Diameter

550

550

550

550

550

A

365

365

365

365

365

B

420

420

420

420

420

C

465

465

465

465

465

D

N/F

N/F

1000

1105

1255

E

725

825

925

1050

1200

F

780

880

980

1050

1200

Weight

(Kg - Empty)

45

50

55

60

65

Weight

(Kg - Full)

195

230

265

310

365

All Dimensions are in mm and are of the cased unit. N/F = not fitted.

For latest prices and delivery to your door visit MyTub Ltd 0845 303 8383 www.mytub.co.uk

DOMESTIC SELECTION GUIDE

These recommendations are based on the guidelines in BS 6700.

Guidance should be sought for unusual applications. Eg: High flow - rate showers, large baths etc.

Hot Water Demand Bedrooms

1 Bathroom or Shower

1 Bathroom with Corner Bath

2 Bathrooms or Bath and Ensuite

Bedsit/1 Bed

2-3 Bed

3-4 Bed

2-3 Bed

3-4 Bed

2-3 Bed

3-4 Bed

4-5 Bed

Indirect

SI90

SI190

SI150

SI150

SI150

SI150

SI180

SI210

Direct

SD120

SD150

SD210

SD180

SD210

SD180

SD210

SD250

Hot Water Demand Bedrooms

1 Standard Bath

+1 Corner Bath

3 Bathrooms

2-3 Bed

3-4 Bed

4-5 Bed

3-4 Bed

4-5 Bed

5-6 Bed

Indirect

SI180

SI210

SI250

SI210

SI250

SI300

Most showers fed from a Tribune will consume the same amount of hot water as a bath.

Direct

SD250

SD300

SD300

SD300

SD300

SD300

Model

SI90

SI120

SI150

SI180

SI210

SI250

SI300

INDIRECT

Reheat Time

13 Minutes

17 Minutes

17 Minutes

21 Minutes

22 Minutes

28 Minutes

36 Minutes

Reheat Performance

Coil kW Rating

6.5 kW

16.5 kW

18.9 kW

18.9 kW

18.9 kW

21.4 kW

21.4 kW

Model

SD90

SD120

SD150

SD180

SD210

SD250

SD300

DIRECT

Reheat Time

One Element

58 Minutes

90 Minutes

121 Minutes

157 Minutes

192 Minutes

224 Minutes

263 Minutes

Reheat Time

Two Elements

45 minutes

61 Minutes

79 Minutes

96 minutes

112 Minutes

132 Minutes

The reheat performance is measured from 15°C to 60°C after drawing off 70% of the capacity. The coil kW rating is a guide to the minimum size of boiler required to achieve the reheat times stated. Faster reheat times are achieveable using twin - coil

Tribunes. With both coils fed simultaneously, reheat times can be reduced to almost half. The boiler power required would double.

Specification

Inner Container

Duplex 2304 stainless steel to EN 10088.4362.

Primary Coil

22mm diameter 36L stainless steel.

Coil in coil design for improved performance. Entire cylinder contents are heated on indirect models. The primary system must be fully pumped. The primary circuit may be sealed

(max. 7 bar).

Outer Casing

(optional)

Zintec corrosion proofed steel with durable oven - hardened white paint finish.

Thermal Insulation

Fire retardant polyurethane foam.

The foam is CFC free, HCFC free and has an Ozone depletion potential of zero. Nominal thickness 50mm

Immersion Heater

Supplied on all units. 1.75” BSP parallel threaded head. Long life incoloy sheathed low noise element 14” long. Long life incoloy sheathed thermostat pocket

11” long. Brazed construction. 11”combined thermostat and safety cut - out. Element rating 3Kw at 240V A/C.

Installation

Fixing

The units must be fitted vertically.

Water Supply

The unit must be used on an open vented system (ie. fed from a cold water tank and fitted with a vent pipe). The maximum working head is 40m.

Plumbing Connections

Inlet/outlet - 22mm compression. Indirect coils - 22mm compression.

Thermostat/Shower tapping - 1/2”F.

*NOTE

Use D2R/Gunmetal compression fittings to make connections onto the 22mm stub pipes.

Do not use push - fit connectors.

making life simpler

For latest prices and delivery to your door visit MyTub Ltd 0845 303 8383 www.mytub.co.uk

29

TECHNICAL DATA

B.S. type ref.

Ext.ht.

(over dome)

Ext. dia.

A

mm

B

mm

TABLE OF DIMENSIONS AND GRADES

Minimum nominal thickness of copper sheet before forming

GRADE 1

Test pressure

3.65 bar

Max. working head: 25m

Body

mm

Top

mm

Bottom

mm

GRADE 2

Test pressure

2.20 bar

Max. working head: 15m

Body

mm

Top

mm

Bottom

mm

GRADE 3

Test pressure

1.45 bar

Max. working head: 10m

Body

mm

Top

mm

Bottom

mm

11220000

11550000

11220000

11550000

775500

882255

990000

11005500

11220000

11550000

11880000

11660000

990000

990000

11005500

667755

11..88

11..88

11..66

11..66

11..66

11..66

11..66

11..66

22..55

22..55

22..55

11..66

11..66

11..66

11..66

11..66

11..22

11..22

11..00

11..00

11..00

11..00

11..00

11..00

11..44

11..44

11..44

00..99

00..99

11..00

00..99

00..99

11..22

11..22

11..00

11..00

11..00

11..00

11..00

11..00

11..44

11..44

11..44

00..99

00..99

11..00

00..99

00..99

22..55

22..55

22..00

22..00

22..00

22..00

22..00

22..00

22..88

22..88

22..88

11..66

11..88

22..00

11..66

11..88

11..88

11..88

11..66

11..66

11..66

11..66

11..66

11..66

22..00

22..00

22..00

11..66

11..22

11..66

11..22

11..22

445500

445500

550000

550000

445500

445500

445500

445500

660000

660000

660000

330000

335500

440000

440000

445500

1100

1111

99

99EE

77

88

55

66

1122

1133

1144

00

33

44

11

22

11..88

11..88

11..66

11..66

11..66

11..66

11..66

11..66

22..00

22..00

22..00

11..22

11..22

11..66

11..22

11..22

00..99

00..99

00..77

00..77

00..77

00..77

00..77

00..77

11..22

11..22

11..22

00..77

00..77

00..77

00..77

00..77

00..99

00..99

00..77

00..77

00..77

00..77

00..77

00..77

11..22

11..22

11..22

00..77

00..77

00..77

00..77

00..77

11..66

11..66

11..66

11..66

11..66

11..66

11..66

11..66

22..00

22..00

22..00

11..66

11..66

11..66

11..66

11..66

making life simpler

30

For latest prices and delivery to your door visit MyTub Ltd 0845 303 8383 www.mytub.co.uk

Manufacture

Cylinders and combination units are manufactured from copper sheet to BS 2870; joints either are autogenously welded or brazed with zinc free alloy and screwed connections are of copper to provide total immunity to dezincification.

Cylinder tops and bottoms are produced to very close tolerances, guaranteeing metal thickness, both before and after forming, in accordance with the requirements of the vessel standards.

Every cylinder is pressure tested to 1.5 times its working head.

Finally each product is coated with urethane foam insulation or alternatively sprayed with a ‘permanised’ copper finish to retain its appearance and resist tarnish.

All cylinders are Part L compliant.

Thermostatic Control of Hot Water

It is essential that cylinders are fitted with a thermostat in order to conserve energy when design water temperature is reached. Generally 60°C is accepted as being an adequate temperature for most domestic purposes. 65°C should not normally be exceeded as a storage temperature.

a)

Direct Cylinders

A thermostat is usually incorporated in electric immersion heaters and gas circulators.

b)

Indirect cylinders

The thermostat should be fitted approximately one third the way up the hot section of the unit and, ideally, should control the operation of the boiler and pump.

Insulation

Building Regulations require all hot water storage vessels to be insulated. BS 1566 and BS 3198 allow maximum heat loss for factory applied insulation of 1 watt/per litre of hot water storage capacity under test conditions. Range cylinders comply with, or improve on this minimum performance requirement.

Physical Properties

Range blue urethane foam meets the insulation material requirements of British Standards and is covered by the ‘Kitemark’ certification of the cylinder.

A mixture of components in liquid state are sprayed onto the surface of the copper and reacts within seconds to form a low density foam coating firmly attached to the copper to ensure a perfect permanent fit.

Range blue foam lagging retains its original thickness and insulation properties throughout its life. In addition to its thermal qualities, it protects the cylinder against dents and more serious damage during transit, storage and installation.

Installation Notes

The rate of flow from a hot tap is influenced by pipe sizing and layout but is principally dependant upon the height of the feed tank above the tap, in a normal installation the water level in the cold cistern should be a minimum of one metre above the highest hot tap with sufficient space between the top of the unit and the ceiling to service the float operated valve

(ball valve). It is important to adjust the float operated valve to correct the water level at the marked water line on the side of the cold feed cistern.

Ozone Depletion

Range blue lagging is CFC-Free, HCFC-Free and has an ozone depletion potential of zero.

For latest prices and delivery to your door visit MyTub Ltd 0845 303 8383 www.mytub.co.uk

31

HOT WATER STORAGE - A BASIC GUIDE

WHAT IS A CYLINDER?

A cylinder is a vessel that stores water which can then be heated and used to supply hot taps. They are used in all types of properties - houses, shops, offices and industrial buildings. They are made from copper which is recognised as having a long service life and are manufactured in a wide range of sizes to suit all applications. Cylinders are most commonly seen in domestic properties in an airing cupboard usually in the bathroom.

HOW A CYLINDER WORKS

The cylinder is filled by cold water being fed into it from a cold feed cistern. This cistern is fed from mains supply and regulated by means of a ball valve. It is mounted above the cylinder and the cold water is fed into the bottom of the cylinder by the ‘cold feed’ pipe. The cold feed connection is usually made in the side of the cistern to avoid any debris that has settled in the bottom being drawn into the cylinder. The cistern also includes an overflow.

As the contents of the cylinder are heated the hot water rises to the top and when a hot tap is opened the hot water is drawn off from the top connection.

As the cold water is heated it expands. When the taps are closed this extra amount of expanded water must be accommodated in the system.

A vent pipe fitted to the hot water draw off accepts this expansion.

It acts as an air break and in the event of a fault condition, should boiling occur, the expanded hot water is dumped into the cold cistern and flows safely away to waste via the cistern overflow.

The cylinder is filled up by cold water entering at the bottom, at the same speed as it is being drawn off from the top by the taps. The drop that the cold water makes into the cylinder from the cold cistern is the pressure at which hot water is delivered to the taps. This drop (the height of the cold feed cistern above the cylinder) is called the HEAD.

Cylinders are manufactured from different thicknesses of copper called Grades. The more HEAD a system has, the more pressure is exerted within the cylinder and the thicker the walls need to be. The most common Grade of cylinder is

Grade 3 for domestic use where the height of the cold cistern above the cylinder is at any height up to 10 metres.

Cylinder Grades

Grade 1 to suit 25m working head, Grade 2 to suit 15m working head, Grade 3 to suit 10m working head.

KEEPING THE HOT WATER HOT

Once the water is heated in the cylinder it is important to be able to maintain its temperature until it is needed. This saves the water being constantly re - heated until it is drawn - off for use. How this is done can dramatically effect how much electricity or gas is being used to heat the water. This reflects directly on the quarterly fuel bills the user receives. Range offer their cylinders complete with insulation which keeps the water hot. This is in the form of a foam which is sprayed onto the cylinder at the factory. It ensures a high level of insulation for the cylinder and ensures performance.

CYLINDER QUALITY

There are many manufacturers of copper cylinders and quality can vary. In order for buyers to know what they are buying there is a British Standard which sets out minimum requirements for:

• the quality of workmanship when the cylinders are made.

• the amount of copper that must be used for each Grade of cylinder.

• the performance of the cylinder and its insulation.

In most instances these products have a B.S. kitemark on the label AND on the product although this may not always be visible because of the insulation.

• Direct Cylinders BS 1566 • Indirect Cylinders BS 1566

CUSTOM MADE SPECIALS

Cylinders are available in many standard patterns but can also be tailor made to suit site conditions.

i.e. the number and position of connections can be specified.

British Standard

Kitemark

BS1566

making life simpler

32

For latest prices and delivery to your door visit MyTub Ltd 0845 303 8383 www.mytub.co.uk

CYLINDER TYPES

The water contained in the cylinder can be heated in two different ways.

1.

By an electric immersion heater inserted directly into the water through a fitting on the cylinder.

This is called a DIRECT TYPE cylinder.

2.

By hot water from a central heating boiler passing through a heat exchanger mounted within the cylinder.

This heat exchanger is usually in the form of a coil. The walls of the heat exchanger become hot due to the hot water from the boiler passing through it.

The heat exchanger then transfers its heat to the surrounding cold water in the cylinder thus heating it up for use at the hot taps.

This is called an INDIRECT TYPE cylinder because the store of water is heated indirectly.

DIRECT CYLINDERS

Direct and Super Seven Direct

Direct cylinders utilise immersion heaters to heat the water.

These may be inserted from either the side or top of the cylinder.

Immersion heaters are electrical devices which have their own

ON/OFF switch usually sited conveniently for use by the householder. This may be adjacent to the cylinder or in the kitchen for example.

A neon shows when they are in operation. A popular method of switching immersion heaters is by means of a time clock.

INDIRECT CYLINDERS

There are two common patterns of indirect cylinders - DOUBLE FEED and SINGLE FEED.

SINGLE FEED INDIRECT

Range Primatic

A cylinder that has a heat exchanger which will top up the system from within automatically. This heat exchanger uses an air trap, which is created during the filling cycle, to replace the water loss automatically should water escape from the system.

There is only one cold cistern used to feed the system and therefore the cylinder is called a SINGLE FEED INDIRECT.

Direct cylinders can also be heated by a traditional coal fired back boiler.

For latest prices and delivery to your door visit MyTub Ltd 0845 303 8383 www.mytub.co.uk

33

HOT WATER STORAGE - A BASIC GUIDE

DOUBLE FEED INDIRECT

Range - Hercal, Supercal and Ultracal

Cylinders with a coil heat exchanger.

This type of cylinder is fitted to the flow and return connections of a central heating boiler. The hot water that circulates through the coil is known as

‘primary’ water. The water stored in the cylinder which is heated by the coil is called the ‘secondary’ water.

The cylinder is fed from its own cold feed cistern. Likewise a central heating system needs to be fed (topped up to take account of evaporation or water loss due to slight leaks) from a separate cold cistern. ie. a separate cold water cistern is installed to prime the system.

The separate cold feed cistern is supplied from the cold mains via a ball valve.

The ‘primary water’ is vented to this cistern by means of a vent pipe. This cistern is called a ‘primary feed and vent’ tank.

There are therefore two cold feeds to the installation and the cylinder is called a double feed indirect.

Indirect cylinders can be used with gravity or pumped circulation from the heating boiler.

Gravity circulation allows hot water to flow through the coil as the hot water rises naturally through the primary system pipework.

This means that the pipework must have a continuous gradient up to the coil from the central heating boiler.

Pumped circulation is an installation where a pump has been fitted to assist the movement of the hot water through the coil.

HIGH PERFORMANCE CYLINDERS

All Range high performance cylinders carry additional insulation to offer the best heat retention to maximise the additional performance.

DIRECT TYPES

Range - Super Seven Direct

Using the Direct type principles, high performance cylinders are manufactured to make the most of the electricity off - peak tariffs. These direct cylinders are fitted with two immersion heaters. One at the bottom of the cylinder and one higher up. The bottom immersion heater heats the whole of the cylinder contents on the overnight economy tariff.

The top immersion heater is used to boost the heat in the water at the top of the cylinder during the day should it be required.

INDIRECT TYPES

Range - Supercal and Ultracal

Using the indirect principles, high performance cylinders extract the most heating potential from a central heating boiler.

Based on the principle and design of the double feed indirect type these cylinders include a bigger, longer heating coil so that the whole of the boiler performance can be translated into water heating potential.

(Range high performance heating coils transfer heat faster and reduce the firing times and number of firing cycles of the central heating boiler).

Range high performance double feed indirect cylinders can save as much as 30% of fuel bills when compared to normal kitemarked cylinders. Can not be used on gravity systems.

making life simpler

34

For latest prices and delivery to your door visit MyTub Ltd 0845 303 8383 www.mytub.co.uk

COMBINATION UNITS

What is a combination unit?

Range Fortic Combination units are so called because they combine the cold feed cistern and the hot water store (the cylinder) together in one unit. The plumbing connections between cold and hot sections are factory fitted as is the vent/expansion pipe. They are designed to offer a complete compact hot water service. Combination units save installers time on site and are connected via their cold feed cistern directly to the incoming cold water in the property. They offer the option of removing all plumbing from the roof space avoiding the possibility of freezing during the winter. They are made from copper and supplied complete with ball valves and lids for the cold cisterns.

Range Combination Units are covered by BS3198. Combination units are manufactured with the hot and cold sections insulated from one another. They are available as British

Standard Direct and Indirect types, also as High Performance Direct and Indirect types in the same way as cylinders.

High performance types

Range Fortic

Direct types include two immersion heater positions. The bottom to heat the whole of the contents overnight on the off - peak tariff and the top for day - time boost operation as needed.

Indirect high performance types incorporate the bigger, longer heating coil as fitted to Supercal and Ultracal cylinders.

COMBINATION UNIT PATTERNS

Circular direct types

All direct electrical types are known as pattern 1.

Circular indirect types

All indirect types are heated by a coil heat exchanger.

Pattern 3 requires the fitting of a separate cold feed and expansion cistern to top up the primary system.

Pattern 4 incorporates a primary feed and expansion cistern with an integral feed arrangement which fills and replenishes the primary system and prevents the inter mixing of secondary and primary water.

Pattern 10 comprises two separate feed and expansion cisterns on top of the unit.

PLUMBING UNITS

Range Kernal

Designed as a complete hot and cold water service ready for connection to cold water mains.

Kernel plumbing units are factory plumbed and tested and save time on site.

Installers simply select a direct or indirect type, as standard or high performance in the same way as a cylinder. It is supplied on a steel frame with the cylinder on the base and the cold water cistern on the top ready as a complete airing cupboard.

Direct

Pattern1

Double Feed Indirect

Pattern 3

Double Feed Indirect

Pattern 4

Double Feed Indirect

Pattern 10

For latest prices and delivery to your door visit MyTub Ltd 0845 303 8383 www.mytub.co.uk

35

WRc-NSF Ltd

Building Regulations Approved

MEMBER

Range Cylinders

PO Box 561, Unit A, Wakefield WF1 9EW tel: 01924 376 026 fax: 01924 385 015

www.range-cylinders.co.uk

www.kingspanhws.com

For latest prices and delivery to your door visit MyTub Ltd 0845 303 8383 www.mytub.co.uk

Issue 03

October 2008

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
