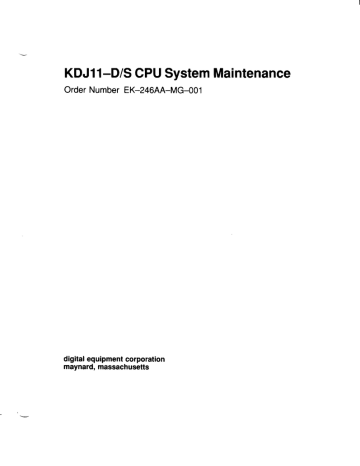

"user manual"

KDJ11

DIS

CPU System Maintenance

Order Number EK-246AA-MG-001

I

-

, digital equipment corporation maynard, massachusetts

November 1988

The information in this document is subject to change without notice and should not be construed as a commitment by Digital Equipment Corporation.

Digital Equipment Corporation assumes no responsibility for any errors that may appear in this document.

The software, if any, described in this document is furnished under a license and may be used or copied only in accordance with the terms of such license. No responsibility is assumed for the use or reliability of software or equipment that is not supplied by Digital Equipment

Corporation or its affiliated companies.

©

Digital Equipment Corporation. 1988. All rights reserved.

Printed in U.S.A.

The READER'S COMMENTS form on the last page of this document requests the user's critical evaluation to assist in preparing future documentation.

The following are trademarks of Digital Equipment Corporation:

DEC

DECmate

DECnet

DECUS

DECwriter

DELKI

DEQKA

DESTA

DIBOL

MASSBUS

MicroPDP-ll

MicroVAX

Micro \T:\1S

PDP

P/OS

Professional

Q-bus

Rainbow

RSTS

RSX

RT

ThinWire

CLTRIX

CKIBUS

VAX

VAXBI

VAXELK

VAXcluster

VAXstation

~lS

VT

Work Processor

."

digital

ML-S982

FCC NOTICE:

The equipment described in this manual generates, uses, and may emit radio frequency energy. The equipment has been type tested and found to comply with the limits for a Class A computing device pursuant to Subpart

J of Part 15 of FCC Rules, which are designed to provide reasonable protection against such radio frequency interference when operated in a commercial environment. Operation of this equipment in a residential area may cause interference, in which case the user at his own expense may be required to take measures to correct the interference.

---

I

--

Contents

Preface

Vll

Chapter 1 KDJ

11-D/S

CPU Description

1.1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

1.2

KDJ11-D/S

Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 1-2

1.3 Configuration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 1-5

1.3.1 Boot Mode Selection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-9

1.4 Boot and Diagnostic ROM Code. . . . . . . . . . . . . . . . . . . . . .. 1-11

1.5 Automatic Boot Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 1-12

1.5.1 Bootstrap Error Messages . . . . . . . . . . . . . . . . . . . . . . . .. 1-12

1.6 Console Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 1-14

1.6.1 Help Command . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-16

1.6.2 Boot Command. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 1-16

1.6.3 List Command. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 1-17

1.6.4 Map Command. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 1-18

1.6.5 Test Command. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 1-20

1.6.6 Wrap Command. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 1-21

1.6.7 Command Keys. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 1-22

1. 7 MSV11-P Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 1-22

1. 7.1 MSV11-P Expansion Addresses. . . . . . . . . . . . . . . . . . . .. 1-24

1. 8 MSV11-Q Memory. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 1-27

Chapter 2 Configuration

2.1 Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 2-1

2.2 Module Order. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 2-1

2.3 Configuration Rules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 2-3

2.4 Configuration Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3

2.5 Configuration Worksheets . . . . . . . . . . . . . . . . . . . . . . . . . .. 2-4

I

Chapter 3 Troubleshooting

3.1

3.2

3.2.1

3.2.2

3.3

3.3.1

3.3.2

3.3.3

3.3.4

3.3.5

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

General Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

System Fails To Boot . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

System Boots, but Device Fails . . . . . . . . . . . . . . . . . . . . .

KDJ 11-

DIS

Self-Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Test 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Test 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Tests 3 through 6 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Override Errors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Octal Debugging Technique (ODT) Mode . . . . . . . . . . . . . .

3-1

3-1

3-2

3-3

3-3

3-4

3-5

3-5

3-7

3-8

Appendix A Formatting RD- and RX-Series Disk Drives

Al Disk Formatting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. A-I

A1.1 Format Modes ... . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. A-2

A1.2 Formatter Messages. . . . . . . . . . . . . . . . . . . . . . . . . . . . .. A-3

Appendix B Related Documentation

Index

Examples

1-1 Successful Automatic Boot Message. . . . . . . . . . . . . . . . . . .. 1-12

1-2 Boot Error Message in Automatic Boot Mode. . . . . . . . . . . .. 1-13

1-3 Boot Error Message in Console Mode (Nonexistent Drive) . .. 1-13

1-4 Boot Error Message in Console Mode (Nonexistent Controller) 1-13

1-5 Successful Power-Up to Console Mode Message. . . . . . . . . .. 1-14

1-6 Invalid Entry Message. . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 1-15

1-7 Help Command Message ... . . . . . . . . . . . . . . . . . . . . . . . .. 1-16

1-8 Boot Command Argument Prompt. . . . . . . . . . . . . . . . . . . .. 1-17

1-9 Boot Command Using D L2. . . . . . . . . . . . . . . . . . . . . . . . . .. 1-17

1-10 List Command Messages . . . . . . . . . . . . . . . . . . . . . . . . . . .. 1-18

1-11 Map Command Message . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-19

IV

-

-

1-12

Test Command Message . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1-13

1-14

Wrap Command Message With Switch . . . . . . . . . . . . . . . . . .

3-1

Wrap Command Message Without Switch . . . . . . . . . . . . . . .

Language Inquiry and Error Prompt . . . . . . . . . . . . . . . . . . .

3-2

3-3

3-4

On-Board RAM Test Error Message . . . . . . . . . . . . . . . . . . . .

Q22-Bus RAM Test Error Message . . . . . . . . . . . . . . . . . . . . .

J11 Unexpected Trap Error Message . . . . . . . . . . . . . . . . . . .

1-21

1-22

1-22

3-5

3-6

3-6

3-6

Figures

1-1 KDJ11-D Module Layout (M7554) . . . . . . . . . . . . . . . . . . . . . 1-3

1-2 KDJ11-S Module Layout (M7554-P) . . . . . . . . . . . . . . . . . . . 1--4

1-3 KDJ11-D SLU Panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5

1--4 KDJ11-D Internal Cabling . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6

1-5 KDJ11-S Handle. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 1-7

1-6 MSV11-P Module Layout. . . . . . . . . . . . . . . . . . . . . . . . . . .. 1-23

1-7 MSV11-Q Module Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-28

1-8 MSV11-Q CSR 17772102 Setting. . . . . . . . . . . . . . . . . . . . .. 1-32

2-1 BA23 Enclosure Worksheet . . . . . . . . . . . . . . . . . . . . . . . . . . 2-8

2-2 BA200-Series Enclosure Worksheet . . . . . . . . . . . . . . . . . . .. 2-9

Tables

1-1

KDJ11-DIB Variants (MicroPDP-11/53). . . . . . . . . . . . . . . .. 1-1

1-2

KDJ11-D/S Switch and Jumper Settings. . . . . . . . . . . . . . .. 1-8

1-3 Boot Select Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 1-9

1--4

KDJ11-D/S Terminal Requirements. . . . . . . . . . . . . . . . . . .. 1-11

1-5 Console Mode Commands and Characters. . . . . . . . . . . . . .. 1-14

1-6 MSV11-P CSR Addresses and Jumpers. . . . . . . . . . . . . . . .. 1-24

1-7 MSV11-P First Address Ranges. . . . . . . . . . . . . . . . . . . . . .. 1-25

1-8 MSV11-P Partial Starting Address Ranges. . . . . . . . . . . . .. 1-25

1-9 MSV11-PK Starting Address Jumpers (256-Kbyte

Increments) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 1-26

1-10 MSV11-PL Starting Address Jumpers (512-Kbyte

Increments) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 1-27

1-11 MSV11-Q Variations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 1-28

1-12 MSV11-Q Starting and Ending Addresses. . . . . . . . . . . . . .. 1-29

1-13 MSV11-Q CSR Addresses ... . . . . . . . . . . . . . . . . . . . . . . .. 1-31 v

I

1-14 MSVll-Q Factory Jumper Settings. . . . . . . . . . . . . . . . . . .. 1-32

2-1 Q-Bus Recommended Module Order. . . . . . . . . . . . . . . . . . .. 2-2

2-2 Power and Bus Load Data mA200-Series) . . . . . . . . . . . . . .. 2-5

2-3 Power, Bus Load, and

110

Insert Data mA23, BA123) . . . . .. 2-6

3-1 KDJll-D/S Start-Up Self-Test Error Messages. . . . . . . . . .. 3-4

3-2 Error Override Commands. . . . . . . . . . . . . . . . . . . . . . . . . .. 3-7

3-3 KDJll-D/S

Console ODT Commands . . . . . . . . . . . . . . . . . . 3-9

A-1 MicroPDP-ll Formatter Messages . . . . . . . . . . . . . . . . . . . . A-3

VI

Preface

This guide describes a base system, configuration, ROM-based diagnostics, and troubleshooting procedures for systems containing the KDJl1-DlS central processing unit (CPU).

Intended Audience

This document is intended only for DIGITAL Field Service personnel and qualified self-maintenance customers.

Organization

This guide has three chapters and two appendixes.

Chapter 1 provides an overview of the

KDJl1-D/S

CPU and the MSVl1-P and MSVl1-Q memory modules.

Chapter 2 contains system configuration guidelines and lists current, power, and bus loads for supported options.

Chapter 3 contains ROM-based diagnostic troubleshooting procedures for systems containing the

KDJl1-D/S

CPU.

Appendix A explains how to format RD- and RX-series disk drives in

MicroPDP-l1 systems.

Appendix B provides a list of related documentation.

Warnings, Cautions, and Notes

Warnings, cautions, and notes appear throughout this guide. They have the following meanings:

WARNING

Provides information to prevent personal injury.

CACTION

Provides information to prevent damage to equipment or software.

NOTE Provides general information about the current topic.

• •

VII

I

I

I

I

I

I

I

I

I

I

I

I

I

I

I

I

I

I

I

I

I

I

Ch 1

KDJ11

DIS

CPU Description

1.1 Introduction

This chapter describes the

KDJll-D/S

CPU modules. There are six variants, listed in Table 1-1. Unless otherwise stated, the term

KDJll-D/S

refers to all six variants.

Table 1-1: KDJ11-D/8 Variants (MicroPDP-11/53)

Version Module No. On-Board Memory

Enclosure

KDJll-DA

KIlJll-DB

KDJll-SA

KDJll-SB

KDJll-SC

KDJll-SD

M7554

M7554

M7554-PA

M7554-PB

M7554-PC

M7554-PD

512 Kbytes; 15 MHz

1.5 Mbytes; 15 MHz

512 Kbytes; 15 MHz

512 Kbytes; 18 MHz

1.5 Mbytes; 15 MHz

1.5 Mbytes; 18 MHz

BA23

BA23

BA200-series

BA200-series

BA200-series

BA200-series

This chapter also describes the following memory modules: MSVll-PKI-PL and MSVll-QAI-QB/-QC.

The KDJll-S/D is designed for systems that use the extended LSI-ll bus, commonly called the Q22-bus. The

KDJll-D/S

uses either the MSVll-P or MSVll-Q memory module(s) and a set of standard Q22-bus options.

I

KOJ11-0/S

CPU Description 1-1

1.2 KDJ11

DIS

Overview

A system that contains a

KDJ11-D/S

CPU module is called a MicroPDP-

11/53

system.

The

KDJ11-D/S (M7554!M7554-P)

is a quad-height module based on the

DCJ11 microprocessor chip. The module operates at either 15 or 18 MHz and includes the CPU, memory management, local memory, a console serial line unit (SLU), and a printer port SLU.

The

KDJ11-D/S

executes the PDP-11173 instruction set. The floating point instruction set is standard, but the floating point accelerator (FPA) is not an option. The extended instruction set (EIS) is also standard. Three protection (operating) modes provide full 22-bit memory management for both instruction and data references: kernel, supervisor, and user.

The

KDJ11-D/S

can address up to 4 Mbytes of memory. On-board (local) memory is 512 Kbytes or 1.5 Mbytes of dynamic RAM with no battery backup.

An additional 3.5 or 2.5 Mbytes of memory can be addressed over the Q22-bus interface. The module's starting address is fixed at zero.

The KDJ11-D is the base module for the -S variants, which are for use in

BA200-series enclosure only.

The KDJ11-D and KDJ11-S modules are functionally identical, but not interchangeable. The -S variants contain a handle, riveted to the side of the module, which replaces the internal cabling and I/O panel used in the

BA23 enclosure. When installed with other modules with similar handles or covers in the card cage of BA200-series enclosures, the handle functions as a shield for electromagnetic interference (EMIl and simplifies maintenance.

The KDJ11-D (M7554) is shown in Figure 1-1. The KDJ11-S (M7554-P) is shown in Figure 1-2.

I

1-2 KDJ

11-D/S

CPU

System Maintenance

....

..

Figure 1-1: KOJ11-0 Module Layout (M7554)

NATIVE AND MAINTENANCE

REGISTERS

MAINTENANCE

REGISTER

BOOT

DIAGNOSTIC

ROMS

W30 0 0 W5

W8 0 0 0 oW2 0 0 W22

E94

0 0

W13

~..,.-...:...

512 KBYTE RAM

E41

DCJ

11

E46

34-PIN CONNECTOR

WlO0 0

W70 0

W120 0

J1 o 0W4 o

0W6 o oW9

DLART1 DLARTO

0 0

W11

E31

E26

E8 E3

V

D

A

W21

0

0

C

V o 0W20

A

V

B

A

A

V

A

STATE

MACHINE

PLS

'IIlO-OO1488

I

KDJ11-D/S CPU Description

1-3

I

Figure 1-2: KOJ11-S Module Layout (M7554-P)

BAUD RATE JUMPERS.

9600 BAUD SHOWN FOR

SLUO AND SLUl ws·· •

·W2· ·W22

0

0

WlO • •

W7·

W12· •

• .W4

• • W6

• ·W9

Wll

••

00

Wl

0

...J

DO

0

W21 W20

••

••

MlO-D01489

-

1-4

KDJ

11-D/S

CPU System Maintenance

-

..

/

--

1.3 Configuration

Refer to Figure 1-1 for the location of the jumpers on the KDJl1-D. Refer to

Figure 1-2 for the location of the connectors and jumpers on the KDJl1-S.

The KDJl1-D serial line unit (SLU) panel (Figure 1-3) contains SLUO and

SLUI baud rate select switches, SLUO and SLUI connectors to the console terminal, a test code display, a halt-on-break switch, and a 16-position boot mode select switch.

Figure 1-3: KOJ11-0 SLU Panel

SLUO

CONNECTOR

(CONSOLE TERMINALI

SLUO

BAUD RATE

SE LECT SWITCH

-

HA L TONBREAK

SWITCH

Baud Rate

0-300

1 - 600

2 - 1200

3 - 2400

4·- 4800

5 - 9600

6 - 19200

7 - 38400

AO

Q

0

A1

Q o

Q o

DISPLAY

1 6 POSITION SWITCH

IBOOT MODE SE LECTI

SLUl

CO"JNECTOR

SLUl

BAUD RATE

SELECT SWITCH

MlO-OO1490

I

KDJ11-D/S CPU Description

1-5

The internal cabling from the SLU panel to the KDJl1-D is shown in

Figure 1-4.

Figure 1-4: KOJ11-0 Internal Cabling

KDFll·D MODULE

SLU PANEL

(REAR)

I

Jl

I

I\I1LO-OO 1491

The module handle on the KDJl1-S contains console terminal connectors

SLUO and SLU1, a boot mode select rotary switch, and a hex code display

(Figure 1-5).

I

1-6

KDJ11-D/S CPU System Maintenance

Figure 1-5: KOJ11-S Handle

HEX

CODE

DISPLAY

,~

16-POSITION

BOOT MODE SE LECT SWITCH

,

--

--

v'

SLUO

SLUl

-

MLO-OO1492

To change the baud rate on the KDJll-S module, remove the module from the BA200-series enclosure and install or remove jumpers W4, W6, W7, W9,

WIO, and WI2 on six pairs of wire-wrap pins. Figure 1-2, above, shows the baud rate jumpers for SLUO and SLUI, set to baud rate 9600.

KDJ11-D/S CPU Description

1-7

I

Table 1-2 lists the switch and jumper settings on the KDJl1-D/S module.

Table 1-2: KOJ11-0/S Switch and Jumper Settings

Function Jumper/Position Comments

Halt

Boot

Select

Baud Rate

WI

In

Out

W2

W3

W5

W8

W22

W4

WI0

Out

Out

Out

Out

In

In

In

In

Wll Break

Out

In

ROM Size!.5 W13

R14

In

Out

Backplane

1.7

W20

Out

In

W21

In

In

W6

W7

Out

Out

In

In

Out

Out

In

In

W9

W12

Out

In

Out

In

Out

In

Out

In

DLARTO

DLARTI

! Factory position, KDJll-D and KDJll-S.

2KDJll-DA remote switch: remove all jumpers.

3Factory position, KDJl1-D only.

4Factory position, KDJl1-S only.

5W13, R14, and ROMs are factory installed.

6Factory position, KDJl1-SB only.

7

Soldered in; not user selectable.

Trap-on-halt disabled!

Trap-on-halt enabled

Boot select. See Table 1-3.

Boot select. See Table 1-3.

Boot select. See Table 1-3.

Boot select. See Table 1-3.

Boot select. See Table 1-3.

Baud Rate2

3003

600

1200

2400

4800

9600

4

19,200

38,400

Console Break enabled!

Console Break disabled

32-Kbyte self-test ROMs6

16-Kbyte self-test ROMs

Backplane pin CM2 to pin CN2!

Backplane pin CR2 to pin CS22

1-8 KDJ11-D/S CPU System Maintenance

-

I

.,

1.3.1 Boot Mode Selection

To choose the system boot mode, you set a boot mode select switch and position the following five jumpers: W2, W3, W5, W8, and W22.

On the KDJll-D, the SLU contains the 16-position boot mode select switch

(Figure 1-3). On the KDJll-S, the module handle contains the 16-position boot mode select switch (Figure 1-5). Jumpers W2, W3, W5, W8, and W22 are located on the

KDJll-D/S

module.

Table 1-3 describes the system boot selections for the boot mode select switch and the five jumpers.

If you position the jumpers to 00000 or 10000, you can use switch positions 0 through 15 to select the test.

Table 1-3: Boot Select Options

Jumpers W:

222358

1

Switch

Position

2

Description

00000

00001

00010

0001 1

00100

00101

00110

00 1 1 1

01000

01001

01010 o

1 0 1 1

01100 o

1 10 1 o

1 1 10 o

1 111

10000

1 0 001

10010

100 1 1

3

4

5

6

7

8

0

1

2

9

10

11

12

13

14

15

0

1

2

3

Test. Enter console mode using English text.3.4

Test. Enter console mode using French text.

Test. Enter console mode using German text.

Test. Enter console mode using Dutch text.

Test. Enter console mode using Swedish text.

Test. Enter console mode using Italian text.

Test. Enter console mode using Spanish text.

3

Test. Enter console mode using Portuguese text.

Test. Enter console mode (reserved).

Test. Enter console mode (reserved).

Test. Enter console mode (reserved).

Test. Enter console mode (reserved).

-

Test.

0

Autoboot tapes and disks; user selects language.

Test. Autoboot DPV11, DUV11, DLVll-EIF, TU58, and RK05.

Test. Autoboot DEQNA 0 and DEQNA 1.

Manufacturing test loop.

Test. Autoboot tapes and disks using English text.

3 .

4

Test. Autoboot tapes and disks using French text.

Test. Autoboot tapes and disks using German text.

Test. Autoboot tapes and disks using Dutch text.

10

= jumper installed; 1

= jumper removed.

2Jumpers W2, W3, W5, and W8 removed to use switch.

3With Version 1.0 ROMs, you can select only English (positions 00000 and 10000) or Spanish

(positions 00110 and 10110). With Version 2.0 ROMs, you can select eight languages.

4Factory or default setting.

5High-speed autoboot; memory address/shorts test bypassed.

KDJ11-D/S CPU Description

1-9

I

Table 1-3 (Cont.): Boot Select Options

Jumpers W:

222358

1

Switch

Position

2

Description

1 0 100

1 0 1 0 1

10 1 10

10 1 1 1

1 1000

1 100 1

1 10 1 0

1 10 1 1

1 1 100

1 1 10 1

1 1 1 10

1 1 1 1 1

8

9

10

11

12

13

4

5

6

~

I

14

15

Test. Autoboot tapes and disks using Swedish text.

Test. Autoboot tapes and disks using Italian text.

Test. Autoboot tapes and disks using Spanish text. 3

Test. Autoboot tapes and disks using Portuguese text.

Test. Autoboot tapes and disks (reserved

I.

Test. Autoboot tapes and disks (reserved.l.

Test. Autoboot tapes and disks (reserved

I.

Test. Autoboot tapes and disks (reserved

I.

Emulate power-up mode 24 with no messages.

Halt and enter octal debugging technique if trap-onhalt disabled, or 100p6

Test. Autoboot

DEQ~As

0 and 1.

Test. Enter console mode; user selects a language.

10

= jumper installed; 1

= jumper removed.

2Jumpers W2, W3. W5. and W8 removed to use switch.

3With Version 1.0 RO:\1s. you can select only English (positions 00000 and 10000.1 or Spanish

Ipositions 00110 and 101101. With Version 2.0

RO~ls, you can select eight languages.

6W1

=

Trap-on-halt (enabled

= removed; disabled

= installed).

The items included in Table 1-3 for tapes and disks are DU 0-255, DU

0-255 at floating addresses, DL 0-3, DX 0-1, DY 0-1, MU 0, and MS

O.

For DU, you boot removable media before fixed-media.

Version 1 (V1.0) supports English and Spanish text only. Switch positions

1 through 5 and 7 through 11 require you to select the desired language.

Version 2 (V2.0) supports English, Spanish, French, German, Dutch,

Swedish, Italian, and Portuguese text. Switch positions 1 through 7 require you to select the desired language. Switch positions 8 through 11 are reserved for future languages.

To properly display the text for the various languages, the console terminal must have certain capabilities:

• For V1.00 of the ROM code, set up the terminal to display standard

ASCII for both English and Spanish text only. Bit 7 of all input is stripped to O.

• For V2.00 of the ROM code, some of the languages require that the terminal have the multinational character set (MCS) available along with ASCII. Set up the terminal so that characters from 0 to 127(10)

1-10

KDJ11-D/S CPU System Maintenance

select ASCII, and characters from 128(10) to 255(10) select MCS. Some languages use 8-bit input also.

Table 1-4 lists the terminal requirements for the various languages.

Table 1-4: KOJ11-0/S Terminal Requirements

Language

Output

Requirements

Input

Requirements

English

French

German

Dutch

Swedish

Italian

Spanish

Portuguese

ASCII

ASCII and MCS

ASCII and MCS

ASCII

ASCII and MCS

ASCII

ASCII and MCS

ASCII and MCS

7-bit

8-bit

8-bit

7 -bit

8-bit

7 -bit

8-bit

8-bit

NOTE:

To display all the selections properly, the language selection message requires a terminal with MCS.

If you use a VT220 terminal as the console terminal, set it to VT220 mode, to display MCS characters.

For more information on configuring the

KDJll-D/S,

see the

KDJll-D/S

CPU Module User's Guide.

1.4 Boot and Diagnostic ROM Code

Bootstrap and diagnostic programs reside in two ROMs or EPROMs on the

KDJll-D/S

module. The programs mOM code) test the CPU module and memory at power-up or restart, and boot the user's software from various devices.

The ROM code consists of three routines:

• Diagnostics that run when the ROM code is started. The diagnostics verify that the

KDJll-D/S

and any additional Q22-bus memory modules are working correctly. The test run time is longer when additional memory modules are installed.

• Bootstrap routines for most DIGITAL tape, disk, and network products.

• All support routines and user commands.

KDJ11-D/S CPU Description

1-11

I

1.5 Automatic Boot Mode

Mter the

KDJll-D/S

start-up self-test completes, the ROM code automatically tries to load and start (boot) a program from the user's disk or tape drive.

If successful, the ROM code displays a message at the console terminal.

Example 1-1 shows a message for a successful system bootstrap in automatic boot mode. In this example, the software is RT-ll, booted from device DUO.

Example 1-1: Successful Automatic Boot Message

9 8 7 6 5 4 3 2 1

DUO

RT-llFB (S) VOS.Ol

The descending number sequence (top line of Example 1-1) indicates that the tests are executing. Messages following DUO are generated by the booted software, not the ROM code. At this point, the ROM code is not executing and all commands and messages are determined by the user's software.

1.5.1 Bootstrap Error Messages

If the autoboot is not successful, the ROM code displays an error message indicating that the autoboot was not successful, but will make continuous passes until successful or aborted.

There are two types of KDJll-D/S bootstrap error messages: One is associated with automatic boot mode at power-up or restart, and the other with the console mode Boot command (Section 1.6.2).

Example 1-2 shows an error message for an unsuccessful system bootstrap in the automatic boot mode.

I

1-12

KDJ

11-D/S

CPU System Maintenance

-

Example 1-2: Boot Error Message in Automatic Boot Mode

9 8 7 6 5 4 3 2 1

KDJll-D/S E. 01

No bootable devices found.

Boot in progress, press CTRL/C to exit.

When an error occurs in a boot program called with the Boot command, the

ROM code displays one of the following error messages:

Drive not ready

Media not boot able

Non-existent controller, address

Non-existent drive

Invalid unit number

Invalid device

Controller error

Drive error

=

177nnnnnn

Examples 1-3 and 1-4 show console mode Boot command error messages.

Example 1-3: Boot Error Message in Console Mode (Nonexistent Drive)

Couilliands are Help, Boot, List, Map, Test, and Wrap.

Type a command then press Return: B DL3

KDJll-D/S E. 05

Non-existent drive.

Conallands are Help, Boot, List, Map, Test, and Wrap.

Type a command then press Return.

Example 1-4: Boot Error Message in Console Mode (Nonexistent

Controller)

Commands are Help, Boot, List, Map, Test, and Wrap.

Type a comwand then press Return: B DL1

KDJll-D/S E. 04

Non-existent controller, address

=

17772152

COlUwands are Help, Boot, List, Map, Test, and Wrap.

Type a conanand then press Return.

KDJ11-D/S CPU Description 1-13

1.6 Console Mode

Console mode allows you to select a boot device, list available boot programs, run ROM tests, obtain a map of all memory and I/O page locations, and wrap the console SLU to the second SLD.

You can enter console mode in two ways:

• Depending on the contents of native register (NR) <12:08>, console mode is entered automatically after testing is completed. In console mode, the ROM code allows you to determine the execution sequence by entering keyboard commands through the console terminal.

• By typing

I

CTRLC

I during testing or the boot sequence; in this case, the

NR bits are ignored.

When you enter console mode, the ROM code displays the message shown in Example 1-5, then waits for you to enter a command.

Example

1-5:

Successful Power-Up to Console Mode Message

9 8 7 6 5 4 3 2 1

C01llmands are Help, Boot, List, Map, Test, and Wrap.

Type a command then press Return.

You can select from the six console mode commands, listed in the prompt message. For a brief description of the commands, type either?

I

RETURN

1 or H

I.

Table 1-5 lists the console mode commands and control characters.

Table 1-5: Console Mode Commands and Characters

Command Description

Help

Boot

List

Map

Test

Wrap

?

fA fA

Lists console mode commands.

Boots from selected device.

Lists ROM boot programs.

Sizes memory and map I/O page.

Runs tests 3 through 6.

Wraps SLCO to SLUl.

Alternate form of Help command.

Boot command switch: nonstandard CSR address.

Wrap command switch: wraps SLUO to specified SLU.

- - -- -

I

1-14

KOJ11-0/S CPU System Maintenance

-------

.

-

Table 1-5 (Cont.): Console Mode Commands and Characters

Command

Description

10

Delete

!RETURN!

! CTRLC

I

I

CTRLD

I

I

CTRLH

I

! CTRLL

I

I

CTRLR

I

! CTRLU

I

I

CTRLV

I

Boot command switch: overrides boot block definition.

Deletes previous command character.

Command delimiter.

Aborts operation. Enters/requests console mode.

Aborts wrap and reenters console mode.

Console is a hard-copy terminal.

Displays language inquiry message.

Redisplays command line.

Deletes command line.

Console is a video terminal.

To execute a console mode command, type the first character of the command and then press I

RETURN

I.

If you enter an invalid command, a message is displayed and the prompt is displayed again to request additional input. Example 1-6 shows an invalid entry.

Example 1-6: Invalid Entry Message

Conunands are Help, Boot, List, Map, Test, and Wrap .

Type a cOIluuand then press Return: MP

Invalid Input

COlmnands are Help, Boot, List, Map, Test, and Wrap.

Type a command then press Return.

I

KDJ11-D/S CPU Description

1-15

I

1.6.1 Help Command

The Help command displays a brief description of all console mode commands. Press either?

I

RETURN lor H

I

RETURN

I.

Example

1-7 shows the Help command message. Console mode continues when you exit from Help.

Example

1-7:

Help Command Message

Conauands are Help, Boot, List, Map, Test, and Wrap.

Type a conuuand then press Return: H

Conalland Description

Boot

List

Map

Test

Wrap

Load and start a program from a device

List boot programs

Map memory and I/O page

Run continuous self test - press CTRL/C to exit

Wrap console to SLU1, press CTRL/D to exit

COIlW,ands are Help, Boot, List, Map, Test, and Wrap.

Type a cOllimand then press Return.

1.6.2 Boot Command

The Boot command allows you to select a boot device. The command uses arguments and optional switches.

Arguments specify the device name and unit number. The device name is a two-letter mnemonic that describes the device. An optional third letter specifies the controller. If you omit the unit number, the program assumes unit zero.

Enter the Boot command in either of the following two ways:

• Type B, then press

I

RETURN

I.

The system prompts for the device name and unit number as shown in Example

1-8.

Example

1-9 shows a successful boot message using device DL2.

• Type B, press the space bar, type the device name and unit number, then press

I

RETURN

I.

1-16

KOJ11-0/S CPU System Maintenance

"

.-

Example 1-8: Boot Command Argument Prompt

------------------------------------------------------------

Enter device name and unit number then press Return.

------------------------------------------------------------

Example 1-9: Boot Command Using DL2

COilullands are Help, Boot, List, Map, Test, and Wrap.

Type a cOlwlIand then press Return: B DL2

DL2

RT-IIFB (5)

VOS.Ol

.SET IT QUIET

.R DATIME

You can use two switches with the Boot command:

• IA.

Requests that you type in a nonstandard CSR address for the controller.

• 10.

Overrides the standard boot block definition.

You type the switch immediately after the Boot command and before the device name and unit number. For example:

BIA.

1.6.3 List Command

The List command displays a list of all available boot programs found in the

ROM. The list includes the device name, unit number, and a short device description (Example 1-10).

I

KOJ11-0/S CPU Description

1-17

Example 1-10: List Command Messages

Coaullands are Help, Boot, List, Map, Test, and Wrap.

Type a coaulland then press Return: L

Device Unit Description

DU 0-225 RDnn, RXnn, RC25, RAnn

DL 0-3 RL01, RL02

DX 0-1 RXOl

DY 0-1 RX02

DD 0-1 TU5S

DK 0-7 RK05

MU 0-225 TK50

MS 0-3 TSV05, TK25

XH 0-1 DECnet Ethernet

NP 0-1 DECnet DPVll

NU 0-15 DEC net DUVll

NE 0-15 DECnet DLVll-E

NF 0-15 DECnet DLVll-F

COlwllands are Help, Boot, List, Map, Test, and Wrap.

Type a command then press RETURN.

The device name is usually a two-letter mnemonic. The valid letter range is A through Z.

The unit number range is the valid range for a particular boot program.

The range varies from 0 to 225, depending on the device.

The description, or device type, is the name of the physical device.

1.6.4 Map Command

The Map command displays the current ROM code version number, determines and displays the size of consecutive memory, identifies all memory in the system, and maps all locations in the I/O page.

Memory is mapped in l-Kbyte increments from location zero to the I/O page. The map routine tries to identify the size of each memory module and its CSR address (if applicable).

If two or more noncontiguous memory modules are present, the ROM code displays their descriptions, separated by a blank line.

NOTE:

If two memory modules share some common addresses or have CSRs with the same address, the Map command does not work correctly.

1-18

KDJ11-D/S CPU System Maintenance

I

After all memory is mapped, you are prompted to press

I

RETURN

I

(Example 1-11). Mapping continues and all responding

110 page addresses are displayed. The

110 page map addresses are 17760000 to 17777776. In addition, all responding CPU addresses are listed with a short description.

There is no description for addresses that respond and are on the external bus, with the exception of memory CSRs, if present, and Q-bus devices

DU, MU, and XH. The map only identifies DU (disk MSCP controller) and MU (tape MSCP controller) at their standard addresses of

17772150/2

and

17774500/2.

The map identifies XH at addresses

17774440/56

and

17774460176.

When the on-board line time clock CSR at address 17777546 is reached during the

110 page portion of the Map command, the ROM code follows the LTC CSR printout with either BEVENT=O (signal is not present on

Q-busl or BEVENT=1 (signal is present on Q-bus). The line time clock test does not fail if the BEVENT signal is not present.

When the ROM code detects a device at addresses 17774440 to 17774456 or

17774460 to 17774476 during the I/O page portion of the Map command, it identifies that device as XH for an Ethernet controller and then reads and types the six-byte station address starting at either 17774440 or 17774460.

The ROM code prints out in hexadecimal bits 7:4 then 3:0 of each of the six bytes. The Map command message in Example 1-11 shows one DEQNA present at location 17774440 to 17774456.

Example 1-11: Map Command Message

Commands are Help, Boot, List, Map, Test, and Wrap.

Type a conutland then press Return: M

KDJ11-D/S ROM V1.0

512 Kbytes

00000000 - 01777776

512 KB

CSR =

Press the Return key when ready to continue.

17772100

Example 1-11 Cont'd. on next page

I

KDJ11-D/S CPU Description

1-19

Example 1-11 (Cont.): Map Command Message

17772100 MCSR

17772150 - 17772152 DU

17772200 - 17772216 SIPDRO-7

17772220 - 17772236 SDPDRO-7

17772240 - 17772256

SIP~RO-7

17772260 - 17772260

SDP~RO-7

17772300 - 17772316 KIPDRO-7

17772320 - 17772336 KDPDRO-7

17772340 - 17772356

KIP~RO-7

17772360 - 17772376

KDP~RO-7

17772516 MMR3

17773000 - 17773776 CPU ROM

17774440 - 17774456 XH 08-00-2B-02-71-E2

17774500 - 17774502 MU

17776500 - 17776506 SLU1

17777520 NR

17777546 LTC CSR, BEVENT=l

17777560 - 17777566 SLUO

17777572 - 17777576 MMRO, 1, 2

17777600 - 17777616 UIPDRO-7

17777620 - 17777636 UDPDRO-7

17777640 - 17777656

17777660 - 17777660 UDP.ARO-7

17777750 MREG

17777766 CPUER

17777772 PIRQ

17777776 PSW

Conanands are Help, Boot, List, Map, Test, and Wrap.

Type a COllUlIand then press the Return key.

1.6.5 Test Command

The Test command causes the ROM code to run most of the power-up tests in a continuous loop. The ROM code starts at test 3, runs all applicable tests and subtests, then restarts the loop after test 6 is completed. To abort testing and restart console mode, enterlcTRucl at any time. If an error occurs, the test 3 through 6 error routine is entered. '!\vo actions are possible at this time:

• Restart the console mode by entering I CTRUC I.

• Loop through all the tests, ignoring errors, by typing L I RETURN

I.

1-20

KOJ11-0/S CPU System Maintenance

I

....

-

On exiting from the test loop, the ROM code displays the total number of loops (passes) and the total number of errors (if any) in the following format, where n is the number of errors and x is the number of times the tests were attempted: nnn/xxx

In Example 1-12, the Test command is entered to run all loopable tests.

After four passes, the testing sequence is aborted with no errors.

Example

1-12:

Test Command Message

Conanands are Help, Boot, List, Map, Test, and Wrap.

Type a command then press Return: T

Continuous self-test - type CTRL/C to exit.

0/4

Conanands are Help, Boot, List, Map, Test, and Wrap.

Type a command then press Return.

1.6.6 Wrap Command

The Wrap command transmits all input from the console terminal

(DLARTO) to the second SLU (DLARTl), or to a selected SLU. All input from DLARTI or the selected SLU is sent to the console terminaL This action allows you, at DLARTO, to communicate with another system through DLARTI or another selected SLU. The command has one optional switch: switch

IA.

Entering the Wrap command with switch

IA

causes the ROM code to request an alternate SLU address. The valid alternate address range is 17776500 to 17776676.

Example 1-13 shows the Wrap command without the switch. The console wraps to the second SLU at address 17776500.

Example 1-14 shows the Wrap command with an alternate SLU address.

I

KDJ11-D/S CPU Description

1-21

Example 1-13: Wrap Command Message Without Switch

Commands are Help, Boot, List, Map, Test, and Wrap.

Type a command then press Return: T

Wrap Console to SLU1, type CTRL/D to exit.

Example 1-14: Wrap Command Message With Switch

Commands are Help, Boot, List, Map, Test, and Wrap.

Type a co1tulLand then press Return: W/A

Address

=

17776520

Wrap Console to SLU1, type CTRL/D to exit.

1.6.7 Command Keys

The command keys and their functions are listed below:

• Delete. Deletes the previously entered character.

ICTRL.HI.

Selects the console terminal as a hard-copy terminal. Affects output only if you press the Delete key. When you press Delete, the ROM code identifies deleted characters with / <forward slash) characters.

• 1 Deletes the entire command line.

• 1 Selects the console terminal as a video terminal. Affects output only if you press the Delete key. When you press Delete, the deleted characters are erased from the screen (default).

• 1 Reprints the command line. Normally used on hard-copy terminals to reprint command lines that are obscured by pressing the

Delete key.

1.7 MSV11 P Memory

The MSVll-P memory is a quad-height module that occupies the slot(s) in the backplane immediately following the KDJll-D/S CPU in slot 1.

The MSVll-P module contains 64K metallic oxide semiconductor (MOS) chips that provide storage for IS-bit words

(16 data bits and 2 parity bits).

The MSVll-P also contains parity control circuitry and a control status register.

1-22

KOJ11-0/S CPU System Maintenance

I

The memory module variants and their storage capacities are:

• MSVll-PK (M8967-K): 256 Kbytes

• MSVll-PL (M8067-L): 512 Kbytes

You configure the MSVll-P, shown in Figure 1-6, by means of jumpers and wire-wrap pins. The -PK and -PL modules have the same factory configuration.

The MSVll-P module has two LEDs that show the following status:

• A green LED: lights to indicate that +5 Vdc is present.

• A red LED: lights to indicate that a parity error has been detected.

Figure 1-6: MSV11-P Module Layout

o

1"' . .

14 r-1-·15

t

L

I 0

.'6

I 0

L·"13

45 43 44

, 0

I

n .

6 7 8

~ o o

1: •

Y

_ oX

oW v

21 n

°.r:Y

.L_'

~.

2322

=

-s

.r:~

STARTING

=:~

ADDRESS

JUMPERS

.l-

:5

CSR ADDRESS oC oS

JUMPERS oA o

W3

0

MlO-OO1275

KDJ11-D/S CPU Description

1-23

1.7.1

MSV11-P Expansion Addresses

You can install additional MSVll-P modules for system expansion.

For each memory module that you add to the Q22-bus, you must reposition jumpers on the wire-wrap pins to provide a CSR address and a starting address.

Figure 1-6 shows the CSR address jumpers on the MSVll-P module.

Table 1-6 lists the CSR address and corresponding jumper configurations for each memory module (-PK or -PU added to the system.

5

6

7

1

2

3

4

8

Table

1-6:

MSV11-P CSR Addresses and Jumpers

Module No. in System

Pins to

Wire-Wrap

CSRAddress x

=

177721

None

A toE

B to E

A to B, B to

E

C to E

A to C, C to E

B to C, C to E

A to B, B to C, C to

E xOO x02 x04 x06 xlO x12 x14 x16

The starting address depends on the amount of memory already present in the system.

Table 1-7 lists the first address ranges (FAR) to select the 256K word range.

Table 1-8 lists the partial starting address (PSA) ranges for additional

MSVll-P memory modules.

'----

I

1-24 KDJ11-D/S CPU System Maintenance

' -

.-

Table 1-7: MSV11-P First Address Ranges

First Address Ranges

Decimal K Words

000-248

256-504

512-760

768-1016

1024-1727

1280--1528

1526-1784

1742-2040

Octal K Words

00000000--01740000

02000000--03740000

04000000--05740000

06000000--07740000

10000000--11740000

12000000--13740000

14000000--15740000

16000000--17740000

Pins to Wire-Wrap

None

Vto Y

WtoY

WtoY,VtoY

X to Y

XtoY,VtoY

XtoY,WtoY

XtoY,WtoY,VtoY

Table 1-8: MSV11-P Partial Starting Address Ranges

Partial Starting Address

64

72

80

88

96

104

112

120

Decimal K

0

8

16

24

32

40

48

56

128

136

144

152

Octal

00000000

00040000

00100000

00140000

00200000

00240000

00300000

00340000

00400000

00440000

00500000

00540000

00600000

00640000

00700000

00740000

01000000

01040000

01100000

01140000

Pins to Wire-Wrap

None

TtoR

LtoR

L to R, T to R

MtoR

M to R, T to R

M to R, L to R

M to R, L to R, T to R

N to R

N to R, T to R

N to R, L to R

N to R, L to R, T to R

N to R, M to R

NtoR,MtoR

N to R, M to R, L to R

N to R, M to R, L to R, T to R

PtoR

P to

R, T to

R

P to R, L to R

P to R, L to R, T to R

KDJ11-D/S CPU Description 1-25

Table 1-8 (Cont.): MSV11-P Partial Starting Address Ranges

Partial Starting Address

192

200

208

216

224

232

240

248

Decimal K

160

168

176

184

Octal

01200000

01240000

01300000

01340000

01400000

01440000

01400000

01540000

01600000

01640000

01700000

01740000

Pins to Wire-Wrap

PtoR,MtoR

P to R, M to R, T to R

P to R, M to R, L to R

P to R, M to R, L to R, T to R

P to R, N to R

P to R, N to R, T to R

P to R, N to R, L to R

P to R, N to R, L to R, T to R

P to R, N to R, M to R

P to R, N to R, M to R, T to R

P to R, N to R, M to R, L to R

P to R, N to R, M to R, L to R, T to R

Table 1-9 lists the jumper configuration for additional MSVll-PK modules.

1

2

3

4

5

6

7

8

Table 1-9: MSV11-PK Starting Address Jumpers (256-Kbyte

Increments)

Module No.

in

System Pins to Wire-Wrap

None

P to R

Vto Y

V to Y, P to R

Wto Y

WtoY,PtoR

WtoY,VtoY

WtoY,VtoY,PtoR

1-26

KOJ11-0/S CPU System Maintenance

I

-

Table 1-10 lists the jumper configuration for additional MSVll-PL modules.

1

2

3

4

t)

6

7

8

Table 1-10: MSV11-PL Starting Address Jumpers (512-Kbyte

Increments)

Module No. in System Pins to Wire-Wrap

None

V to Y

WtoY

VtoY,WtoY

X to Y

XtoY,VtoY

XtoY,WtoY

X to Y, W to Y, V to Y

For more information on the MSVll-P memory, refer to the

User's Guide (EK-MSVOP-UG).

MSVll-P

1.8 MSV11

Q

Memory

The MSVll-Q memory is a quad-height module, shown in Figure 1-7, that occupies the slot(s) in the backplane immediately following the KDJll-D/S

CPU in slot

1.

The MSVll-Q module has a 1, 2, or 4 Mbyte capacity using either 64K or

256K MaS dynamic RAMs. The control status register (CSR) contains bits used to store the parity error address bits. You can force wrong parity by setting a bit in the CSR to check the parity logic.

I

KDJ11-D/S CPU Description 1-27

Figure

1-7:

MSV11-Q Module Layout

501754701-01

CSR REGISTER

SELECTION

TEST JUMPER

(USED BY MANUFACTUR lNG,

DO NOT REMOVE,)

n

Jl1,J9,J7,J5

" " I

"

\

'--v-"

J 1 O,J8,J6,J4 o

U

J3J2Jl

SW2

,

,

6

5

)

OFF ON

SWl o

6

2

)

5

OFF ON

0

STARTING

ADDRESS

SWITCHES

(S6 NOT USED)

ENDI NG

"'-ADDRESS

SWITCHES

J17J16J15

,,-0

-;~

0,

J14J13J12 o

, o

W3y;

..J

Wl

TEST JUMPERS

(USED BY MANUFACTURING,

DO NOT REMOVE,)

BATTERY BACKUP

JUMPERS

MlO-OQ1481

Table 1-11 lists the memory module variants and their storage capacities.

Table 1-11: MSV11-Q Variations

Revision

1 Option Module

Storage RAM Size

A,C

C

C

MSVll-QA

MSVll-QB

MSVll-QC

M7551-AA

M7551-BA

M7551-CA

1 Mbyte

2 Mbyte

4 Mbyte

56K

256K (half populated)

256K (fully populated)

1

Identify the revision level by the following printed circuit board number:

A = 5017547 Al on upper right corner of component side of module

C = 5017547-01-Cl on upper left corner of component side of module

1-28 KDJ11-D/S CPU System Maintenance

I

'-

You must configure the MSVll-Q starting and ending addresses using DIP switches SW1 and SW2 (Figure 1-7). SW1 is the ending address and SW2 is the starting address.

Table 1-12 lists the switch settings for the starting and ending addresses.

Table 1-12: MSV11-O Starting and Ending Addresses

Starting

Address

(in Kbytes)

SW2

Position!

12345

2

SWI

Position

6

Ending

Address

(in Kbytes)

SWI

Position

12345

2 o

128

256

384

512

00000

11111

01111

10111

00111 o

1

1

1

1

128

256

384

512

640

1111

01111

10111

00111

11011

640

768

896

1024

(1

MbyteJ

1152

1280

1408

1536

1664

1792

1920

2048 (2 Mbytes)

2176

2304

2432

11011

01011

10011

00011

11101

01101

10101

00101

11001

01001

10001

00001

11110

01110

10110

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

768

896

1024

(1

MbyteJ

1152

1280

1408

1536

1664

1792

1920

2048 (2 MbytesJ

2176

2304

2432

2560

01011

10011

00011

11101

01101

10101

00101

11001

01001

10001

00001

11110

01110

10110

00110

2560

2688

2816

2944

3072 (3 MbytesJ

00110

11010

01010

10010

00010

1

1

1

1

1

2688

2816

2944

3072 (3 Mbytes)

3200

11010

01010

10010

00010

11100

!Switch S6 of SW2 is not used. For a memory starting address of 0, set switch 86 of 8W1 to on (0). For all other starting addresses, set switch 86 of 8W1 to off

(1).

21

= off' 0

= on

KDJ11-D/S CPU Description

1-29

I

Table 1-12 (Cent.): MSV11-Q Starting and Ending Addresses

Sta,'ting

Address

(in Kbytes)

SW2

Position l

12345

2

SWI

Position

6

Ending

Address

(in Kbytes)

SWI

Position

12345

2

3200

3328

3456

3584

3712

11100

01100

10100

00100

11000

1

1

1

1

1

3328

3456

3584

3712

3840

01100

10100

00100

11000

01000

3849

3968

01000

10000

1

1

3968

4096 14

Mbytes)

10000

00000 l8witch 86 of 8W2 is not used. For a memory starting address of 0, set switch 86 of 8W1 to on

10 l.

For all other starting addresses, set switch 86 of 8W

1 to off (1).

21

= off; a

= on

You configure the MSVll-Q CSR address by setting jumpers J4 through Jll

(Figure 1-7). Table 1-13 shows the jumper positions and the corresponding

CSR register addresses for up to 16 locations. Figure 1-8 shows the jumper settings for a CSR register address of 17772102, representing a second

MSVll-Q.

I

1-30

KDJ11-D/S CPU System Maintenance

-

Table 1-13: MSV11-Q CSR Addresses

Jumper

1

2

3

4

5

Number

CSRMemoryl

J4 to

J5

In

Out

In

Out

In

J6 to

J7

In

In

Out

Out

In

J8 to

J9

In

In

In

In

Out

JI0 to

Jll

In

In

In

In

In

CSR Address

xOO x02 x04 x06 xl0

6

7

8

9

10

Out

In

Out

In

Out

In

Out

Out

In

In

Out

Out

Out

In

In

In

In

In

Out

Out x12 x14 x16 x20 x22

11

12

13

14

15

In

Out

In

Out

In

Out

Out

In

In

Out

In

In

Out

Out

Out

Out

Out

Out

Out

Out x24 x26 x30 x32 x34

16

Out

Out

Out Out x36

1

If more than one CSR parity-type memory is installed, use care to ensure that no two modules have the same address.

I

KDJ11-D/S CPU Description 1-31

Figure 1-8: MSV11-Q CSR 17772102 Setting

J4

J6

6

J8

J10

J5

6

J7

J9

J 11

MLO-OO1277

The factory configuration for the remaining jumpers is listed in Table 1-14.

Table 1-14: MSV11-Q Factory Jumper Settings

Jumper

State Condition

JI to J2

JI3 to JI4

JI5 to JI6

W3. WI

In

In

In

In

For manufacturing test only. Do not remove.

Selects 64K RAMs. Do not remove.

Selects 64K RAMs. Do not remove.

Battery backup configuration.

For more information on the MSVll-Q, see

MSVll-Q MOS Memory User's

Guide

(KE-MSV1Q-QG).

----

I

1-32 KOJ11-0/S CPU System Maintenance

--

"

Chapter 2

Configuration

2.1 Introduction

This chapter describes the rules and guidelines for changing the configuration of a

KDJll-D/S

system. Before you change a system's configuration, you must consider the following factors:

Module order in the backplane

Module configuration

Mass storage device configuration

Section 2.2 lists the guidelines for module order and configuration. These guidelines apply to the

KDJll-D/S

CPU in the BA23 and BA200-series enclosures.

If you are adding a device to a system, you must know the capacity of the system enclosure in the following areas:

Backplane

I/O panel

Power supply

Mass storage devices

Worksheets for the enclosures (Section 2.5) provide information about system capacities.

2.2 Module Order

The order of modules in the backplane depends on four factors:

Relative use of devices in the system

Expected performance of each device relative to other devices

The ability of a device to tolerate delays between bus requests and bus grants (known as "delay tolerance'" or '"interrupt latency'")

The tendency of a device to prevent devices farther from the CPU from accessing the bus

Configuration 2-1

1

I

The relative use and performance of devices depends on the application.

This means the order of modules also depends on the application. Most applications try to balance the use of devices. To achieve maximum system performance, use the recommended order listed in Table

2-1.

The order is based on the Q-bus DMA transfer characteristics; use it as a guideline.

Make sure you read the rules and guidelines in Section 2.3 for placement of the CPU and memory modules.

Table

2-1:

Q-Bus Recommended Module Order

Option Type

Option

Example Comments

Communications

Line printer

Communications

Disk controller

Disk/tape controller

Tape controller

Disk controller

General purpose interface

DPVll

DEQNA

DRVll-J

LPVll

DLVJl

DMVll

RLV12

RRD50

KDA50

RQDX3

KLESI

TQK50

RQDX2

DRVll

Synchronous

Ethernet interface

General purpose

Asynchronous

Synchronous (DMA)

Read only

MSCP

CAUTION:

If an option has

Q /

CD jumpers, check the documentation for that option for the correct

Q /

CD jumper settings. An incorrect jumper setting can cause damage to the option.

When devices do not perform as expected, you can change the recommended module order to meet the needs of the application. Often, performance problems involve a device that is heavily used or has a low delay tolerance.

Usually, there are other heavily used devices between the device with the low delay tolerance and the CPU. In this case, move the problem device closer to the CPU.

I

2-2

KOJ11-0/S CPU System Maintenance

-

2.3 Configuration Rules

Follow these configuration rules when you install or remove modules from the card cage:

• Always install the

KDJll-D/S

CPU module in slot 1.

• Always install the MSVll-P or MSVll-Q memory module(s) in the slots immediately following the CPU, beginning with slot 2.

• Maintain the Q22-bus grant continuity for all Q22-bus devices in the system. Each Q22-bus slot that comes before a Q22-bus device on the grant continuity chain must contain an M9047 grant continuity card or another Q22-bus device.

• Install modules following the CPU and memory using the sequence shown in Table 2-1.

• Refer to the applicable enclosure maintenance documentation for enclosure-specific guidelines for the

110 panel and configuration of the backplane.

2.4 Configuration Procedure

Each module in a system must use a unique device address and interrupt vector. The device address is also known as the control status register

(CSR) address. Most modules have switches or jumpers for setting the

CSR address and interrupt vector values.

Calculating address and vector values is a complex procedure because some modules use floating addresses and vectors. The value of a floating address depends on the other modules in the system.

See

Microsystems Options

for CSR addresses and interrupt vectors for

MicroPDP-ll options. Most modules have switches and jumpers to change their operating characteristics. For some applications, you may have to change the factory switch and jumper positions according to the guidelines in

Microsystems Options.

NOTE:

Changing the factory diagnostics for the device. positions may affect the operation of the

Configuration

2-3

2.5 Configuration Worksheets

Use the following configuration worksheets, located at the end of this chapter, to make sure a configuration does not exceed a system's limits for expansion space,

va

space, power, and bus loads:

Enclosure

BA23

BA200-series

Worksheet

Figure 2-1

Figure 2-2

If you use standard DIGITAL modules, you will not exceed the limits for bus loads.

Use the configuration worksheet as follows:

1.

List all the devices already installed in the system.

2. List all the devices you plan to install in the system.

3. Fill in the information for each device, using the data listed in Table 2-2 for BA200-series enclosures or Table 2-3 for the BA23 enclosure.

4. Add up the columns. Make sure the totals are within the limits for the enclosure power supply.

I

2-4

KDJ

11-D/S

CPU System Maintenance

--

Table 2-2: Power and Bus Load Data (BA200-Series)

CUl"rent

(Amps)

Power Bus Loads

Option Module

+5V

AAVll-SA AlO09-PA

ADVl1-SA A100B-PA

AXVll-SA

A026--PA

KWVl1-SA M4002-PA

CXAl6--M

M311B-YA

CXBl6--M M311B-YB

CXY08--M

M3119-YA

DELQA-SA M7516--PA

DEQNA-SA

M7504-PA

DFA01 M3121-PA

DPVll-SA MB020-PA

DRV1J-SA MB049-PA

DRV1W-SA M7651-PA

DZQll-SA M3106--PA

IEQll-SA

MB634-PA

KDJll-S M7554-P

KMV1A-SA M7500-PA

KWVll-SA M4002-PA

LPVll-SA

MBOB6--PA

M9060 M9060-YA

MSVl1-PK

MB067-K

MSVll-PL MB067-L

MSVll-QA M7551-AA

MSVll-QB

M7551-BA

MSVl1-QC M7551-CA

RD31

-

RD32

RF30-S

TK50

TQK50

-

-

M7546

2.4

2.3

2.5

0.9

0.9

1.25

1.35

2.9

3.5

3.5

2.6

2.2

1.6

5.3

3.45

3.6

1.B

3.2

2.0

2.2

1.6

2.0

1.B

2.7

3.5

1.97

1.2

1.B

1.B

1.0

0.0

0.9

0.6

2.B5

2.4

0.0

0.0

-

-

0.0

0.0

0.0

0.0

0.0

0.0

0.130

0.20

0.0

0.30

0.5

0.50

0.40

0.30

0.0

0.0

0.36

0.0

O.lB

0.2

0.13

+12 V Watts AC

2.0

3.0

3.0

1.0

1.B

0.0

2.0

2.0

2.0

2.0

2.0

2.2

2.2

3.0

1.0

2.0

2.0

1.4

2.1

2.3

1.2

1.0

3.0

3.0

3.2

12.0

11.5

12.5

3B.B

33.0

1B.3

33.55

14.5

17.5

19.7

15.4

11.16

B.O

26.5

17.25

17.5

9.0

16.0

10.0

11.16

10.4

10.0

12.6

19.5

23.5

14.7

9.6

9.0

9.0

9.3

-

2.0

DC

1.0

1.0

0.5

1.0

1.0

1.0

0.3

0.5

0.0

1.0

1.0

1.0

1.0

0.5

0.5

0.5

0.5

1.0

1.0

0.5

0.5

0.3

0.3

0.5

-

1.0

-

-

1.0

Configuration 2-5

I

Table 2-3: Power, Bus Load,

Current

(Amps)

I/O Insert Data (BA23, BA 123)

Power Bus Loads

Option

Module

+5V

+12 V Watts AC

AAVll-D2

ADVll-D2

A1009

A100S

DEQNA

DELQA

DHVll

M7504

M7516

M3104

DLVEI-DP

MS017

1.S

3.2

3.5

2.7

4.5

1.0

DLVJ1 MS043 1.0

DMVll-M

MS053

3.4

DMVll-AP

MS053-MA 3.4

DMVll-BP MS053-MA

3.4

DMVll-CP

MS064-MA 3.35

DMVll-FP

MS053-MA 3.4

DMVll-N

MS064 3.4

DPVll

MS020

1.2

DlNll-DP M7951

DZVll

M7957

KDJll-DA

M7554

KDJ11-DB

M7554

KWVll-C2

M4002

LPVll

MS027

MRVll-D3

M7942

1.2

1.2

2.S0

3.20

2.2

O.S

1.6

MRVll-D

M7942 2.S

MSV11-PK MS067-K 3.45

MSVll-PL MS067-L 3.6

MSVll-QA M7551-AA 2.4

MSVll-QB M7551-BA 2.3

MSVll-QC M7551-CA 2.5

RC25

1.0

RD31 0.9

RD32

RD33

-

0.9

0.9

RD51

RD52

-

1.0

1.0

-

-

0.0

0.0

0.0

0.0

0.0

0.0

0.4

0.3

0.39

0.39

0.20

0.19

0.013

0.0

0.0

2.5

0.9

0.6

1.0

1.6

2.5

0.0

0.0

0.5

0.5

0.55

1.5

0.25

0.4

0.3S

0.3S

0.26

0.3S

1.6

1.0

2.0

2.0

2.0

2.0

2.0

2.0

1.0

1.0

1.0

2.S

2.2

2.9

3.0

1.S

2.0

2.0

2.0

2.0

2.0

3.0

3.9

3.0

3.0

1.0

1.4

11.2

4.0

S.O

14.0

17.25

17.5

12.0

11.5

12.5

35.0

3S.S

33.0

15.7

24.2

35.0

21.6

19.9

21.6

21.S

9.6

10.7

10.7

16.4

19.5

9.0

16.0

23.5

19.5

29.1

23.0

S.O

21.S

21.6

-

-

-

-

-

-

-

-

-

Insert l

A

A

B (2)

A

B

A

B

A

B

A (2)

A

A

A (2)

B

A lA

=

2.5 em x 10.0 em

(1 in x 4 in).

B

=

5.0 em x 7.5 em (2 in x 3 in),

2Usually connected through a universal data input panel (UDIP), using a 13.13-em (5.25-in) mass storage slot.

3Unpopulated module.

DC

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

0.5

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

0.5

0.5

0.5

2-6 KOJ11-0/S CPU System Maintenance

--

---

I

Table 2-3 (Cont.): Power, Bus Load, and

1/0

Insert Data (BA23,

BA123)

Current

(Amps)

Power Bus Loads

DC

Insert

1

Option Module

RD53

RD54

RD54A-EA

-

RLV12-AP M8061

RQDX1

RQDX2

RQDX3

M8639-YA

M8639-YB

M7555

RQDXE M7513

RX33

RX50

TK50

-

TK50-AA

-

TK50E-EA

TQK25--KA

M7605

TQK50 M7546

TSV05 M7196

+5V +12 V

0.9

1.3

1.3

5.0

6.4

6.4

2.48

0.5

0.5

0.85

1.35

1.35

1.35

4.0

2.9

6.5

0.0

0.0

2.5

1.34

1.34

0.10

0.25

0.1

0.06

0.0

0.3

1.8

2.4

2.4

2.4 lA = 2.5 em x 10.0 em 11 in x 4 in).

B = 5.0 em x 7.5 em (2 in x 3 inl.

Watts AC

5.6

25.9

33.55

34.5

35.6

20.0

14.5

32.5

34.5

23.7

22.6

26.2

35.0

33.2

13.2

2.5

-

-

-

2.0

2.8

3.0

-

-

2.7

2.0

2.0

1.0

-

1.0

-

-

-

1.0

1.0

1.0

1.0

-

0.0

1.0

0.5

1.0

-

-

-

-

A

A

A

I

Configuration 2-7

Figure 2-1: BA23 Enclosure Worksheet

f

ADD THESE COLUMNS

BACKPLANE

SLOT

1 AB

CD

2 AB

CD

MODULE

3 AB

CD

4 AB

CD

5 AB

CD

6

AB

CD

7 AB

CD

B AB

CD

MASS

STORAGE

1

2

CURRENT IA)

+5V

+12 V

POWER

IWI

110

INSERTS

B A

COLUMN

TOTALS:

MUST NOT

EXCEED:

~

36.0 7.0 t

230

4

"IF MORE THAN TWO TYPE·A FI L TER CONNECTORS ARE REQUI RED, AN ADAPTER

TEMPLATE (PN 74-27740-01) MAY BE USED. THE ADAPTER ALLOWS THREE

ADDITIONAL TYPE·A F I L TER CONNECTORS, BUT REDUCES THE AVAI LABLE

TYPE·B CUTOUTS TO TWO.

MlD-001484

,

2-8

KOJ11-0/S CPU System Maintenance

I

-

Figure 2-2:

BA200-Series Enclosure Worksheet

12 SLOT e'KLOSI",RE

SLOT

,ABC::)I

,

YODJlE

RIG~T

.... ALI'" POWER SLlPPLY

A.PS

'n

2

3

4

S

6

MASS STORAGE

TAPE 1

!

DISK 1

TOTAL

RIGKT-I-iALF

POWER SUPPLY

I

Cl-ARE!'I.T

"

,

I

>,lUST "<OT EXCEED

33.0

70

LEfT-HALF POWER

SUpp~y

! i

,

,

,

POWER

!WATTSI

230 0 •

SLOT

ABeD:,

7

B

9

"

,

,

,

MOOL:LE

"

... ASS STORAGE

::lISK

DISK

DISK

TOTAL LEFT-HALF

POWER !>UPPL Y

,

MUST

~OT

EXCEED

CGRREt>,T

5V

,

,

,

,

AMPS

'"

I

330

70

,

TOTAL BUS LOADS

~l;ST !'I.OT EXCEED

POWER

!"'ATTSJ

2JGO

'*

BUS LOADS

AC

DC

DO

-

-

-

00

-

00

-

-

-

-

00

00

00

0,0

00

00

00

350

200

6

S~OT

E"'CLOSURE

PQWEA SJPF:". Y

SLOi

:.:.BCC

,

"~OD'~ ~E

2

3

4

5

6

,

,

TOTA~

POWER$JPPL'"

,

,

, i

CL"''"Er,T

S '"

,

,

,

,

,

,

,

AMPS

12v

,

,

,

I

POWER

·:WATT5:

BUS LOADS

AC

DC

-

-

'-'lUST I><OT EXCEED 330

,

,

-0-')

91...:$ LOADS

2300 •

-

-

MUST

'IIOT

EXCEED i

350

20 a

• 'OOTE POWER SllPPLIESMAY )IFFER

CO'\jF iI:"", il-<E YAX'''''UM

WA,l

TAGE

CHECK YO\..R POWER SUPPLY SPEC'FICATIO'llS TO

MLG-001487

.

Configuration

2-9

I

I

--

Chapter 3

Troubleshooting

3.1 Overview

This chapter describes the

KDJll-D/S

CPU power-up self-test procedure and error messages.

NOTE:

Manual.

The XXDP V2 diagnostic monitor is described in the XXDP User's

Read the Troubleshooting section of the customer documentation before using this chapter. Many apparent system problems have simple causes, such as incorrect external cabling or monitor settings. Always check for obvious problems before troubleshooting the system.

The

KDJll-D/S

CPU and most option modules run self-tests when you power up the system. A module self-test can detect hard or repeatable errors, but not intermittent errors.

The LEDs on the module indicate test results. A successful module self-test does not guarantee that the module is performing correctly, because the test checks the controller logic only. The test does not check the module's Q22bus interface, line drivers and receivers, or connector pins. An unsuccessful module self-test is accurate; the test does not require any other part of the system to be working.

Refer to Microsystems Options for a description of self-tests for individual modules. For detailed information, including the contents of the command status register (CSR) of the module's Q22-bus interface, see the user's guide for the module.

3.2 General Procedures

System problems are generally of two types:

• The system fails to boot (Section 3.2.1).

• The system boots, but a device in the system fails (Section 3.2.2).

Troubleshooting

3--1

I

You should ask two questions before troubleshooting any problem:

• Has the system been used before, and did it work correctly?

• Have changes been made to the system recently?

Two common problems occur when you make a change to the system:

• Cabling is incorrect.

• Module configuration errors (incorrect CSR addresses and interrupt vectors) are introduced.

When you troubleshoot problems, note the status of cables and connectors before you perform each step. Since cables are not always keyed, you can easily install them backward, or into the wrong connector. Label cables before you disconnect them, to prevent introducing new problems that make it more difficult to diagnose the original problem.

3.2.1 System Fails To Boot

The KDJl1-D/S CPU module self-test is described in Section 3.3. If the system fails (or appears to fail) to boot the operating system, then load and boot the XXDP diagnostic monitor.

If you cannot boot XXDP V2, do the following:

• Check the console terminal screen for an error message. Error messages are listed in Section 3.3.

• If no error message appears, make sure the on/off power switches on the console terminal and the system are set to on

(1).

Check the DC

OK light on both, if applicable.

• Check the cabling to the console terminal.

• Check the hex display on the CPU

VO

panel.

If the display does not light, check the CPU module's LEDs and the CPU cabling.

If a hex error message appears (F through 1) on the

VO

panel or the module, see Section 3.3.

• If the console terminal remains off, check the power supply and power supply cabling.

If you can boot XXDP V2, and the system passes all tests, then the fault may be in the operating system.

3-2

KDJ11-D/S CPU System Maintenance

I

3.2.2 System Boots, but Device Fails

If the system boots successfully, but a device seems to fail or an intermittent failure occurs, run the XXDP diagnostic monitor to isolate the failure to an

FRU. The failing device is usually in one of the following areas:

CPU

Memory

Mass storage

Communications devices

Here are some common indications of an intermittent or device-specific problem:

• Operating system error messages appear at power-up for a particular communications device.

• Periodic operating system error messages indicate that a device is not present or cannot be found.

• Periodic data loss or scrambled data occur on one or more communications lines.

• Attached devices either do not work, or work incorrectly.

• The system cannot communicate with another computer.

3.3 KDJll

DIS

Self-Test

The

KDJll-D/S

CPU is configured at the factory for automatic self-test and boot mode. The self-test is stored in boot ROMs, and runs each time the system is turned on or restarted. The self-test performs tests on the following:

CPU

Memory

Connections between both CPU and memory modules and the Q22-bus

The self-test first tests a small portion of the CPU module, then progressively tests the rest of the system. The system enters automatic boot mode (Section 1.5) upon successful completion of the self-test.

If the selftest discovers an error or failure, the system displays a message. Table

3-1 lists and describes the start-up self-test error messages.

Troubleshooting

3-3

I

1

2

3

4

5

6

Table 3-1: KDJ11-D/S Start-Up Self-Test Error Messages

El"ror Number Description

o

Halt switch on, CPU fault, power supply fault, or control has passed from ROM code to secondary boot.

Preliminary CPU testing; limited error messages.

Console SLU testing.

CPU testing.

On-board memory testing.

External memory testing.

Floating point, LTC interrupt, SLUO interrupt, SLUI interrupt, and

MMU abort testing.

Not used.

7, 8, 9,

A, and B

C

D

E

F

Octal debugging techinque (ODT) mode in progress.

Wrap mode in progress.

Boot in progress.

Console mode in progress.

If any part of the self-test or boot diagnostics fails, the system normally displays a message in three locations:

• On the console terminal

• On the

KDJll-D/S

LEDs

• On the SLU panel

Sections 3.3.1 through 3.3.4 explain the

KDJll-D/S

self-test results.

3.3.1

Test

1

When started, the ROM code runs a series of tests that verify the basic

MMU operation and verify the ROM code. The comprehensive error message display routines are disabled at this point in the testing sequence.

If an error occurs during test 1, the ROM code displays the following error message:

KDJll-D/S 1.00

This message indicates that a fatal error condition occurred. The ROM code ignores any keyboard input, except to redisplay the error message each time input is received.

3 4

KOJ11-0/S CPU System Maintenance

I

--

3.3.2 Test 2

Test 2 checks the console SLU. When the SLUO test is running, the ROM code assumes that error messages cannot be displayed. Therefore, if an error occurs, the ROM code loops on the error.

3.3.3 Tests 3 through 6

Tests 3 through 6 are the main CPU and memory tests. These tests continuously loop when you enter the Test command. If an error is detected during these tests, the ROM code displays a brief error message.

If an error occurs and you did not select a language, the ROM code prompts you for a language, then displays the error message. In Example 3-1, the user selected English at the language inquiry prompt. Note that each line of the language inquiry displays the associated language.

Example 3-1: Language Inquiry and Error Prompt

English

Francais

Deutsch

Nederlands

Svenska

Italiano

Espanol

Portuguese

KDJ11-D/S>

Type 1 and press the Return key.

Tapex 2 et appuyez sur Retour.

Geben Sie 3 ein und drucken Sie WR.

Typ 4 en druk op Return.

Skriv 5 och tryck sedan pa Ret.

Introdurre 6 e premere Ritorno.

Presione el 7 y luego la tecla Retorno.

Escreva 8 seguido de Return.

1

KDJ11-D/S 3.015

Error, see troubleshooting section in owner's manual for assistance

ROM VPC=024722

KDJll-D/S>

I

Troubleshooting

3-5

I

The error messages are shown in Examples 3-2 through 3-4.

An explanation of the third line in these error messages follows Example 3-4.

Example

3-2:

On-Board RAM Test Error Message

KDJl1-D/S 3.15

Error, see troubleshooting section in owner's manual for assistance

RAM VPC=024722 PA=17604722 01000000/125200 <> 125252

KDJl1-D/S>

Example

3-3:

Q22-Bus RAM Test Error Message

KDJl1-D/S 3.15

Error, see troubleshooting section in owner's manual for assistance

Q-bus RAM CSR VPC=nnnnnn

KDJl1-D/S>

Example 3

4:

J11 Unexpected Trap Error Message

KDJl1-D/S 3.15

Error, see troubleshooting section in owner's manual for assistance

J11 004 VPC=024722

KDJl1-D/S>

3-6

KDJ11-D/S CPU System Maintenance

-

The third line in Examples 3-2 through 3-4 contains up to four parts:

1.

A short description of the failed area, as follows:

Jl1

Jl1 FP

Jl1 MMU

Jl1 nnn

LTC CSR

SLUO

SLUI

ROM

RAM

RAMCSR

Q-bus RAM

Q-bus CSR

Jl1 test error

Jll floating point test error

Jl1 memory management test error

Jll unexpected trap to virtual address nnn

Line time clock test error

SLU test error in the first console

SLU test error in the second console

ROM checksum test error

On-board memory test error

On-board memory parity test error

Q-bus memory test error

Q-bus memory parity test error

2. The virtual PC (VPC) of the failure. Useful only with a program listing.

3. Physical address of the failure. Useful only with a program listing.

4. Displays the failing location, the faulty data, and the expected data.

Displayed only with RAM errors.

All errors are treated as fatal errors; you are expected to fix the problem before continuing, although you can override errors for troubleshooting purposes (Section 3.3.4).

3.3.4 Override Errors

To override an error, you must type one of the two override commands shown in Table 3-2 when the error message is displayed. The ROM code displays the KIJJll-D/S prompt and waits for input.

CAUTION:

an error.

Either remove or write-protect system media before overriding

Table 3-2: Error Override Commands

Com

mand

Result

CTRUO

141

RETURN

I

L

I

RETURN

I

Overrides error and enters console mode.

Restarts tests at test 2. Loops through tests, ignoring errors.

Enter

1 CTRUC I to exit loop.

Troubleshooting

3-7

I

3.3.5 Octal Debugging Technique (ODT) Mode

You enter console octal debugging technique (ODT) mode in one of three ways:

• By pressing the console terminal Break key if halt-on-break jumper

Wll, located on the CPU module, is not installed or halt-on-break switch is not disabled. Also, make sure you enable the Break key on the terminal.

• By executing a Halt instruction in kernel mode, if halt option jumper

WI on the CPU module is installed.

• When the Q22-bus BHALT line is asserted on the backplane.

When the system enters console ODT mode, it displays the following on the console terminal: nnnnnn

@

The number nnnnnn is the contents of PC (R7), and

@ is the ODT prompt character.

ODT consists of commands and routines to find error conditions and to communicate with the system. You can examine or modify the contents of the system's registers and memory locations by entering ODT commands.

The console ODT commands are listed and described in Table 3-3.

I

KDJ11-D/S CPU System Maintenance

Table 3-3: KOJ11-0/S Console OOT

Command Symbol Function

Internal register

PSW designator

Open location

Close location

Close, then open location

Go

Proceed

Binary dump

nds

S or R

S

!

Return

Line feed

G

P

I

CTRLS

I

Specifies the location as a processor register if followed by 0 through 7 or S. For example, R9, $1, and so on.

Specifies the location as the processor status word (PSW) if preceded by R or $.

Prints the contents of a specified location.

Closes an open location.

Closes an open location, then prints the contents of the next contiguous location.

Starts program execution.

Resumes program execution.

For manufacturing use only.

I

-

Troubleshooting 3-9

I

--

Appendix A

Formatting RD- and RX-Series

Disk Drives

A.1 Disk Formatting

Format an RD-

01'

RX-series disk drive as follows:

CAUTION:

Do not format disks without first backing up the data. The disk formatting procedure destroys previous disk contents.

1.

Insert the formatter diskette

01' the tape cartridge into its drive. Press

I.

2. Type R ZRQx?? after the. (period) prompt; x is B for RQDX1 or RQDX2,

C for RQDX3, and F for RX33. The question marks allow you to use any revision of the program. Press

1 I.

NOTE:

When formatting an RD52 drive, make sure you have Version

CO or later. Earlier versions format the RD52

(31

Mbytes) as though it were an RD51

(11

Mbytes).

A prompt similar to the following appears on the terminal:

DR>

3. To run the program, type START and press

1 takes place:

I.

The following dialog

CHANGE HW (L)?

Type N (no) and press

1 I.

CHANGE SW (L)?

Type N and press

1 I.

ENTER DATE (in llutl-dd-yy fOLlllat) (A)

Type the current date (for example, 11-15-88). Press

1 I.

ENTER UNIT NUMBER TO FORMAT <0>

Formatting RD- and RX-Series Disk Drives

A-1

I

Type 0 for the first fixed-disk drive, or type 1 for the second. Press

I.

USE EXISTING Bpn BLOCK INFORMATION?

Type Y (yes) and press

(Section

A.1.l).

1 I.

This activates the reformat mode

NOTE:

The program requires about

12

minutes to format an RD51 and about

30

minutes to format an RD52 or RD53. Typing N (no) doubles the time required to format the disk drive.

CONTINUE IF Bpn BLOCK INFORMATION IS INACCESSIBLE?

Type Y and press

1 I.

ENTER A NON-ZERO SERIAL NUMBER:

Type your serial number (located on top of the disk drive) and press

FORMAT BEGUN

Mter about 12 minutes, the system displays a completion message as follows:

FORMAT COMPLETED

If the formatting is not successful, the system displays a message when the error occurs (Section

A.1.2).

Remove the diskette or tape cartridge if the formatting has completed successfully.

A.1.1 Format Modes

The program can run three types of format modes: reformat, restore, or reconstruct. In order, the program asks you the following questions. Your answers determine the format mode that runs.

1.

Use existing bad block information?

2. Down-line load?

3. Continue if bad block information is inaccessible?

The second question does not appear unless you answer N to the first question. Answering N to the third question causes the diagnostic program to stop and print a message if a problem is found.

The format modes operate as follows:

• Reformat mode.

If you answer Y to question one, no further questions are asked. The format program reads the manufacturer's bad blocks from a block on the disk.

It then formats the disk except for these bad

A-2

KDJ11-D/S CPU System Maintenance

----

I

blocks. The process requires about 12 minutes. If the program fails, try restore mode.

• Restore mode. If you answer N to question one, the program asks you to type in a list of the bad blocks. It then formats the disk except for the bad blocks you specify. You can specify the bad blocks using the list that comes with the drive. The program asks you for the last eight digits of the serial number (found at the top of the disk drive). Restore mode requires about 15 minutes.

• Reconstruct mode. If you answer N to questions one and two, the program searches the disk and identifies the bad blocks.

It does not use the manufacturer's bad block information. It then formats the disk except for the identified bad blocks. Reconstruct mode requires about

30 minutes.

A.1.2 Formatter Messages

Table A-I lists the formatter messages, their probable causes, and actions to correct the problem. The first few errors can occur almost immediately.

The remaining errors can occur from one minute to longer than ten minutes after the program starts.

Table A-1: MicroPDP-11 Formatter Messages

Message Description/Action

Unit is not Winchester or cannot be selected.

Initial failure accessing FCT.

Unit is either unavailable or is an RX-series diskette drive. Check to make sure the fixed-disk is not write-protected. Make sure the jumper on the disk drive is set correctly.

The format control table (FCT) cannot be read. Try reconstruct mode (Section

A. 1. l).

Occurs only in reformat mode. Run in reconstruct mode (Section

A.1.l).

Factory bad block information is inaccessible.

Seek failure during actual formatting. There is a hardware error. Check for hardware problems.

Revector limit exceeded.

RCT write failure.

The disk is bad. Replace the disk.

Write to disk failed after successful formatting and surface analysis. Check write-protect status.

Failure closing FCTS. Disk is marked as unformatted.

I

Formatting RD- and RX-Series Disk Drives

A-3

I

--

Appendix B

Related Documentation

The following documents contain information relating to MicroVAX or

MicroPDP-ll systems.

Document Title

Modules

Order Number

CXA16 Technical Manual

CXY08 Technical Manual

DEQNA Ethernet User's Guide

DHVll Technical Manual

DLVll-J User's Guide

DMVll Synchronous Controller Technical Manual

DMVll Synchronous Controller User's Guide

DPVll Synchronous Controller Technical Manual

DPVll Synchronous Controller User's Guide

DRVll-J Interface User's Manual

DRVll-WA General Purpose DMA User's Guide

DZQll Asynchronous Multiplexer Technical Manual

DZQll Asynchronous Multiplexer User's Guide

DZVll Asynchronous Multiplexer Technical Manual

DZVll Asynchronous Multiplexer User's Guide

IEUll-NIEQll-A User's Guide

KA630-AA CPU Module User's Guide

KA640-AA CPU Module User's Guide

KA650-AA CPU Module User's Guide

KDA50--Q CPU Module User's Guide

KDJll-D/S

CPU Module User's Guide

KDJll-B CPU Module User's Guide

KDFll-BA CPU Module User's Guide

KMVll Programmable Communications Controller User's Guide

KMVll Programmable Communications Controller Technical Manual

EK-CABl6--TM

EK-CXY08-TM

EK-DEQNA-UG

EK-DHVll-TM

EK-DLVIJ-UG

EK-DMVll-TM

EK-DMVll-UG

EK-DPVII-TM

EK-DPVll-UG

EK-DRVIJ-UG

EK-DRVWA-UG

EK-DZQll-TM

EK-DZQll-UG

EK-DZVll-TM

EK-DZVll-UG

EK-IEUQI-UG

EK-KA630--UG

EK-KA640--UG

EK-KA650-UG

EK-KDA5Q-UG

EK-KDJID-UG

EK-KDJIB-UG

EK-KDFEB-UG

EK-KMVll-UG

EK-KMVll-TM

Related Documentation

B-1

I

Document Title

Modules

LSI-ll Analog System User's Guide

Q-Bus DMA Analog System Cser's Guide

RQDX2 Controller Module User's Guide

RQDX3 Controller Module User's Guide

Order Number

EK-AXVll-UG

EK-AVllD-CG

EK-RQDX2-CG

EK-RQDX3-UG

Disk and Tape Drives

RA60 Disk Drive Service Manual

RA60 Disk Drive User's Guide

RA81 Disk Drive Service Manual

RA81 Disk Drive User's Guide

SA482 Storage Array User's Guide (for RAS2!

SA482 Storage Array Service Manual (for RA82

I

RC25 Disk Subsystem User's Guide

RC25 Disk Subsystem Pocket Service Guide

RRD50 Subsystem Pocket Service Guide

RRD50 Digital Disk Drive User's Guide

RX33 Technical Description Manual

RX50-D, -R Dual Flexible Disk Drive Subsystem Owner's Manual

TK50 Tape Drive Subsystem User's Guide

TS05 Tape Transport Pocket Service Guide

TS05 Tape Transport Subsystem Technical Manual

TS05 Tape Transport System User's Guide

EK-ORA60-SV

EK-ORA60-UG

EK-ORA81-SV

EK-ORAS1-UG

EK-SA482-UG

EK-SA482-SV

EK-ORC25-UG

EK-ORC25-PS

EK-RRD50-PS

EK-RRD50-UG

EK-RX33T-TM

EK-LEP01-0M

EK-LEP05-UG

EK-TSV05-PS

EK-TSV05-TM

EK-TSV05-UG

I

B-2 KOJ11-0/S CPU System Maintenance

-

Document Title

Systems

MicroVAX Special Systems Maintenance

630QB Maintenance Print Set

630QE Maintenance Print Set

630QY Maintenance Print Set

630QZ Maintenance Print Set

BA23 Enclosure Maintenance

BA123 Enclosure Maintenance

BA213 Enclosure Maintenance

BA214 Enclosure Maintenance

BA215 Enclosure Maintenance

H9642-J Cabinet Maintenance

H9644 Cabinet Maintenance

KA630 CPU System Maintenance

KA640 CPU System Maintenance

KA650 CPU System Maintenance

KDFll-B CPU System Maintenance

KDJll-B CPC System Maintenance

KDJll-D/S CPC System Maintenance

MicroPDP-ll Hardware Information Kit (for BA23)

MicroPDP-ll Hardware Information Kit (for BA123)

MicroPDP-ll Hardware Information Kit (for H9642-J1

MicroPDP-ll Hardware Information Kit (for BA213)

Microsystems Options

Microsystems Site Preparation Guide

MicroVAX II Hardware Information Kit (for BA23)

MicroVAX II Hardware Information Kit (for BA1231

MicroVAX II Hardware Information Kit (for H9642-J)

MicroVAX 3500 Customer Hardware Information Kit

MicroVAX 3600 Customer Hardware Information Kit (for H9644)

V AXstation 3200 Owner's Manual (BA23)

VAXstation 3500 Owner's Manual 1BA213

I

VAXstation ruGPX Owner's ManuallBA23)

VAXstation ruGPX Owner's ManuallBA123)

Order Number

EK-181AA-MG

MP-02071-01

MP-02219-01

MP-02065-01

MP-02068-01

EK-186AA-MG

EK-188AA-MG

EK-189AA-MG

EK-190AA-MG

EK-191AA-MG

EK-187AA-MG

EK-221AA-MG

EK-178AA-MG

EK-179AA-MG

EK-180AA-MG

EK-245AA-MG

EK-247AA-MG

EK-246AA-MG

OO-ZYAAA-GZ

OO-ZYAAB-GZ

OO-ZYAAE-GZ

OO-ZYAAS-GZ

EK-192AA-MG

EK-067AB-PG

OO-ZNAAA-GZ

OO-ZNAAB-GZ

OO-ZNAAE-GZ

OO-ZNAES-GZ

OO-ZNAEF -GZ

EK-154AA-OW

EK-171AA-OW

EK-I06AA-OW

EK-105AA-OW

I

Related Documentation B-3

Document Title

Diagnostics

DEClXll Reference Card

DEClXll User's Manual

XXDP User's Manual

XXDP DEClXll Programming Card

MicroVAX Diagnostic Monitor Ethernet Server User's Guide

MicroVAX Diagnostic Monitor Reference Card

MicroVAX Diagnostic Monitor User's Guide

Networks

Ethernet Transceiver Tester User's Manual

VAXlVMS Networking Manual

VAX NI Exerciser User's Guide

Order Number

AV-F145A-MC

AC-F053D-MC

AZ-GNJAA-MC

EK-OXXDP-MC

AA-FNTAC-DN

AV-FMXAA-DN

AA-FM7AB-DN

EK-ETHTT-UG

AA-Y512C-TE

AA-HI06A-TE

I

8-4 KOJ11-0/S CPU System Maintenance

A

Addresses

CSR, for MSV11-P, 1-24

CSR, for MSV11-Q, 1-31 starting, for MSV11-P, 1-25 starting and ending, for MSV11-

Q, 1-29

Automatic boot mode bootstrap messages, 1-12 select switch and jumpers, 1-9

B

Backplane configuration rules, 2-3

Boot and diagnostic ROM code

,

1-11

Boot command in console mode

1-16 '

Boot mode

See Automatic boot mode c

Commands and keys in console mode, 1-22 console mode, 1-14 console ODT, for KDJ11-D/S

3-9 ' for fOI"matting RD and RX disk drives, A-I

Configuration and factors to consider, 2-1 and module order in backplane

2-2 ' capacity requirements for, 2-1 of modules, 2-3 rules, 2-3 worksheets, 2-7

Index

Configuration worksheet, use of

2-4 '

Console mode boot error messages, 1-13 commands, 1-14 description of, 1-14

Console SLU panel for KDJ11-D, 1-5 for KDJ11-S, 1-6

Console terminal language requirements, 1-11

CSR addresses

See Addresses

D

Disk drives formatting in KDJ11-D/S system

A-I '

F

Formatter program for RD and RX disk drives, A-I messages, A-3 modes, A-2

H

Help command in console mode

1-16 '

J

Jumpers factory settings for MSV11-Q,

1-32 for boot mode, 1-9 on KDJ11-D/S, 1-8

Index-1

I

K

KDJ11-D/S

CPU module automatic boot mode selections for, 1-9 baud rate, changing, 1-8 console mode, 1-14 console ODT commands, 3-9 description of, 1-2 language selection, ROM code versions for language, 1-10 memory, 1-2

ROM code, description of, 1-11 self-tests, 3-3 switches and jumpers, 1-8 variants, 1-1

KDJ11-D SLU panel, 1-5

KDJ11-S handle, description of, 1-2

SLU panel, 1-6

KDJll-D/S

CPU module boot mode, changing, 1-9

L

Languages console terminal requirements for, 1-11 switch positions for, on KDJ11-

DIS, 1-10

List command in console mode,

1-17

M

Map command in console mode,

1-18

Memory available for

KDJ11-D/S,

1-2

Messages boot error, in console mode, 1-13 bootstrap, in automatic boot mode, 1-12 console mode, 1-14 disk formatter program, A-3 language, during self-test, 3-5

Messages (cont'd.) self-test error, 3-4

Modules and self-tests, 3-1 available memory,

KDJ11-D/S

CPU, 1-2 configuration guidelines for, 2-3

CSR addresses and interrupt vectors for, 2-3 power and bus load data for, 2-6 recommended order of in backplane, 2-2 rules for placement of in backplane, 2-3 self-tests for

KDJ11-D/S, 3-3

MSV11-P memory

CSR addresses for expansion of,

1-24

LEDs, 1-23 location of in backplane, 1-22 starting addresses for, 1-25 starting address for, additional modules, 1-26 variants, 1-23

MSV11-Q memory

CSR address configuration, 1-30 factory CSR address configuration, 1-30 location of in backplane, 1-27 starting and ending addresses for,

1-29 variants, 1-28 o

Octal debugging technique (ODT),

3-8

Options power and bus load data for, 2-6

R

RD-series disk drives, A-I

Reconstruct mode, for disk formatter, A-3

Index-2

I

RefOI"mat mode, for disk formatter,

A-2

Restore mode, for disk formatter,

A-3

ROM code on

KDJ11-D/S, 1-11

RX-series disk drives, A-I s

Self-tests

KDJ11-D/S,

3-3, 3-4 successful and unsuccessful, 3-1

SLU panel

See Console SLU panel

Switches on

KDJ11-D/S, 1-8

SWI and SW2, MSV11-Q, 1-29

T

Test command in console mode,

1-20

Troubleshooting after system changes, 3-2 and device-specific problems, 3-3 boot failures, 3-2 device failures, 3-3 general procedures for, 3-1 w

Wrap command in console mode,

1-21 x

XXDP diagnostic monitor for isolating an FRU failure, 3-3 loading for system that fails to boot, 3-2

I

Index-3

I

--

-

--

NOTES

I

I

HOW TO ORDER ADDITIONAL DOCU

From Call Write

Alaska, Hawaii, or New Hampshire

603--884 6660 Digital Equipment Corporation

P.O. Box CS2008

Nashua, NH 03061

Rest of U.S.A. and Puerto Rico*

1--800-DIGITAL

* Prepaid orders from Puerto Rico, call DIGITAL's local subsidiary (809-754-7575)

Canada 800-267--8219

(for software documentation)

613-592-5111

(for hardware documentation)

Digital Equipment of Canada Ltd.

100 Herzberg Road

Kanata, Ontario, Canada K2K 2A6

Attn: Direct Order desk

Internal orders

(for software documentation)

Internal orders

(for hardware documentation)

DTN: 234 4323

508 351-4323

Software Distribution Center (SDC)

Digital Equipment Corporation

Westminster, MA 01473

Publishing & Circulation Servo (P&CS)

NR03-11W3

Digital Equipment Corporation

Northboro, MA 01532

I

I

Reader's Comments

KOJ11-0/S CPU System Maintenance

EK-246AA-MG~01

Your comments and suggestions will help us improve the quality of our future documentation. Please note that this form is for comments on documentation only.

I rate this manual's:

Accuracy (product works as described)

Completeness (enough information)

Clarity (easy to understand)

Organization (structure of subject matter)

Figures (useful)

Examples (useful)

Index (ability to find topic)

Page layout (easy to find information)

Excellent

Good

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

What I like best about this manual:

What I like least about this manual:

Fair

0

0

0

0

0

0

0

0

Poor

0

0

0

0

0

0

0

0

My additional comments or suggestions for improving this manual:

I found the following errors in this manual:

Page Description

Please indicate the type of user/reader that you most nearly represent:

D Administrative Support

D Computer Operator

D Educator!l'rainer

D Programmer/Analyst

D Sales

Name!I'itle

Company

Mailing Address

D

ScientistlEngineer

D Software Support

D System Manager

D Other (please specifY)

Dept.

Date

Phone

10/87

I

-

Do Not Tear Fold Here and Tape

TM

-

-

- - - - - -

-

-

NO POSTAGE

NECESSARY

IF MAILED

IN THE

UNITED STATES

1

I

- I

I

1

I

-----

1

I

BUSINESS REPLY MAIL

FIRST CLASS PERMIT NO.33 MAYNARD MASS.

POSTAGE WI LL BE PAID BY ADDR ESSEE

DIGITAL EQUIPMENT CORPORATION

CORPORATE USER PUBLICATIONS

ML05-5/E45

146 MAIN STREET

MAYNARD, MA 01754-2571

1

1

I

I

Do :\"ot Tear Fold Here

-

-

-

-

-

- -

-

- -

-I

1

I

I

I

I

I

1

1

I

I

I

I

'"

...J

I]

~

1:5

".

~

1.£

<

I:

u

1

-

I

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
